Product Type	Built-in Dishwasher
Brand	Summit
Model	DW186NTADA
Dimensions (W x H x D)	60 x 85 x 60 cm (estimated)
Net Weight	Approximately 45 kg
Power Supply	120 V, 60 Hz, 12 A
Total Power	1400 W
Heating Power	1100 W
Water Pressure	0.3 - 10 bars (4.35 - 145 psi)
Capacity	8 place settings
Wash Programs	Regular, Auto, Intensive Plus, Daily, Delicate, Super 50, Rinse, etc.
Auxiliary Functions	Disinfection, High Temperature, Extra Quick, Extra Dry, Half Load, Delay Start
Water Softener Type	Built-in, adjustable from 1 to 6
Noise Level	Not specified (estimated 50 dB)
Water Consumption per Cycle	Varies by program (estimated ~10 L for regular program)
Tub Material	Stainless Steel
Maintenance	Monthly cleaning of filters and wash arms
Safety	Grounding, automatic shut-off in case of overflow, child lock (not available)
Spare Parts and Repairability	Filters, wash arms, baskets, gaskets accessible. Use original parts.
Warranty	1 year (parts and labor in the USA)

Frequently Asked Questions - DW186NTADA Summit

How to adjust the water softener?

Determine your water hardness using the provided test strip or by contacting your water supplier. Open the door, press Start/Pause + On/Off for 3 seconds, then press Program selection + Cancel until 'SL' is displayed. Adjust with the buttons and turn off to save.

How to fill the salt dispenser?

Remove the lower basket, unscrew the cap of the salt reservoir. Fill with 1 kg of special dishwasher salt and water until overflow. Screw the cap back on. The salt indicator turns off after dissolution.

Which detergent to use?

Use a specific dishwasher detergent (powder, gel, or tablets). For short programs, prefer powder. Follow dosages according to soil and water hardness. Avoid tablets for quick cycles.

How to adjust the rinse aid?

Open the door, press Start/Pause + On/Off for 3 seconds, then press Program selection + Cancel until 'rA' appears. Adjust with the selection buttons. Level 1 disables the product, levels 2 to 5 distribute 1 to 4 doses.

What to do if the program does not start?

Check that the appliance is plugged in, turned on, the door is properly closed, the water tap is open, and the fuse/circuit breaker is in order. If the problem persists, refer to the troubleshooting section.

How to clean the filters?

Remove the lower basket, unscrew the coarse filter and the micro-filter. Clean them under running water. Reinstall. Perform this operation at least once a month.

Why does my dishware remain stained?

Possible causes: not enough detergent, rinse aid dosage too low, water too hard, clogged wash arms, or poor arrangement of dishes. Increase detergent, rinse aid, or softener level.

How to use the delay start function?

Select your program and any auxiliary functions. Press Delay Start to display '1h', then press again to add hours (up to 19h). Then press Start/Pause and close the door within 4 seconds.

What does error code FF mean?

Code FF indicates a water supply failure. Check that the tap is open and the inlet filter is not clogged. If the problem persists, contact technical service.

How to maintain the dishwasher after a long period of non-use?

Leave the door slightly open to prevent odors. Before reuse, run an empty cycle with detergent. In freezing conditions, drain water from the inlet hose and tub.

USER MANUAL DW186NTADA Summit

DW186NTADA DW183WADA DW184BADA DW185SSADA

User Manual

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS

Write Model & Serial Nos. here:

Model No.

Serial No.

Felix Storch, Inc.

An ISO 9001:2015 registered company

770 Garrison Avenue

Bronx, NY 10474

www-summitappliance.com

TABLE OF CONTENTS

Important Safety Instructions 4-6

Installation 7

Technical Information 8

Before Using your Appliance 9-14

Preparing your Dishwasher for First Use 9

Setting the Water Softener 9-10

Filling the Salt Dispenser 11

Detergent Usage 12

Filling the Detergent 12-13

Using Combined Detergents 13

Water Temperature 13-14

Filling the Rinse-Aid and Setting 14

Loading your Dishwasher 15-20

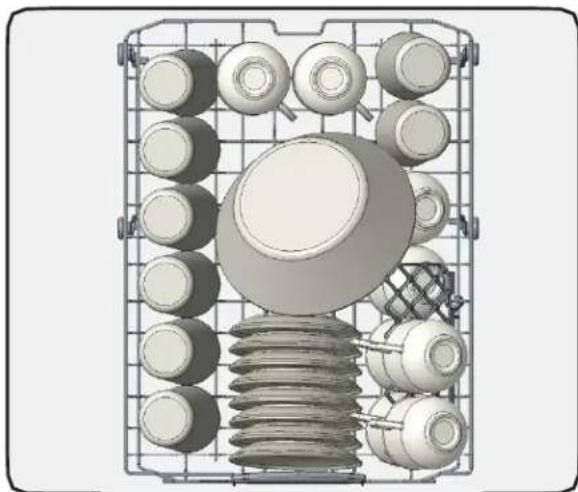

Upper Rack 16

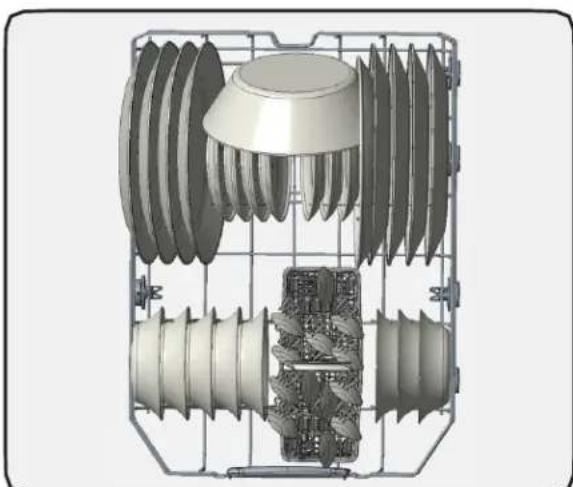

Lower Rack 16-17

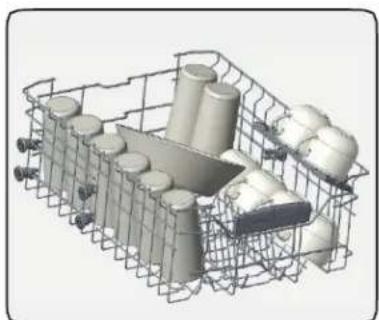

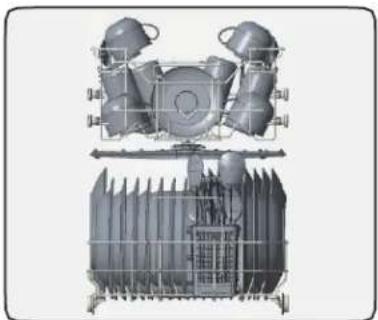

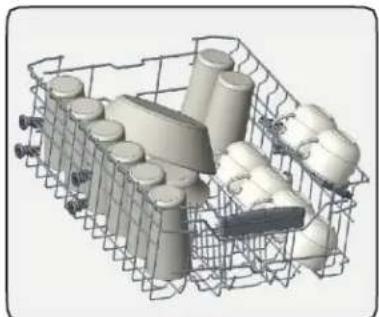

Incorrect Loads 17

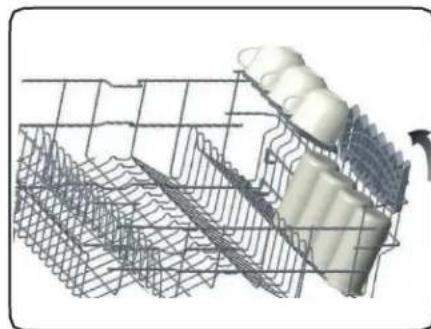

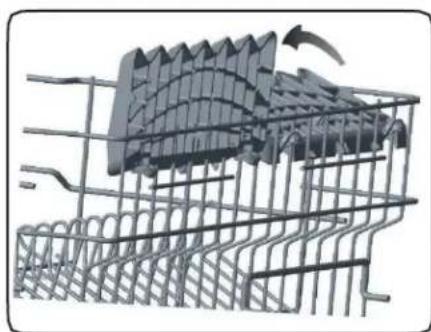

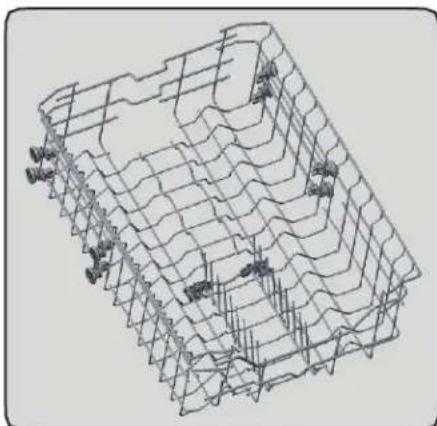

Adjustable Top Rack 18

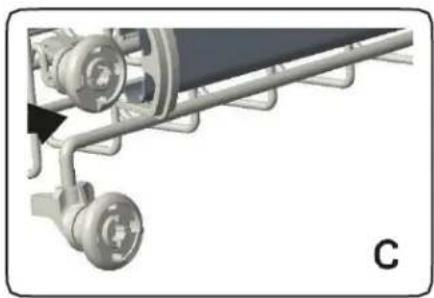

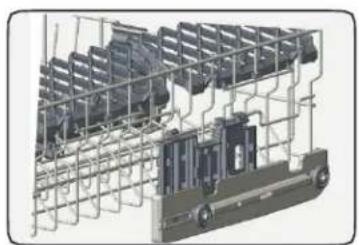

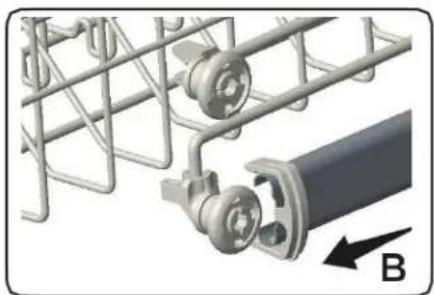

Height Setting 19-20

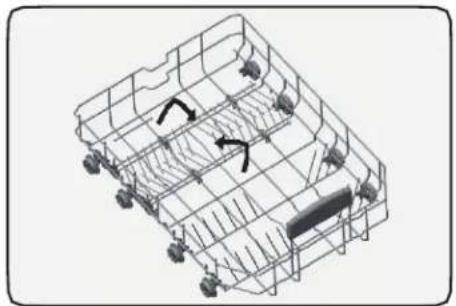

Lower Rack Folding Arms 20

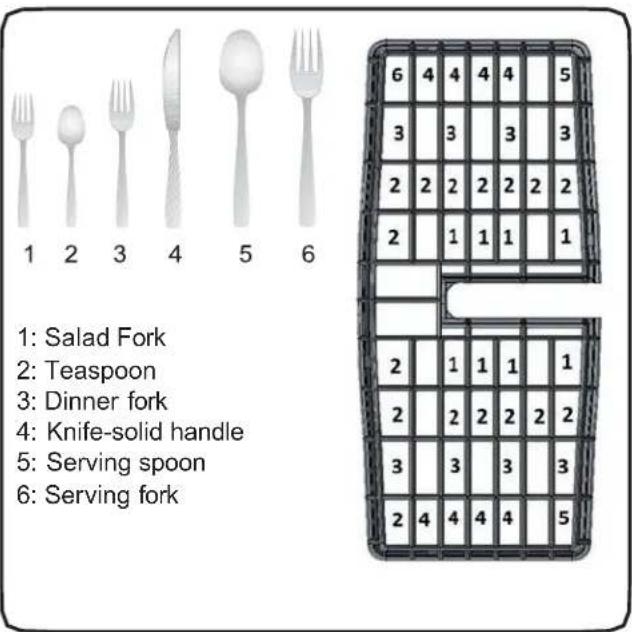

Silverware Basket 20

Programs and Options Table 21

Operating your Appliance 22-26

Control Panel 22

Keys 22

Preparing the Machine 23

Program Selection 23

Auxiliary Functions 23-24

Programming the Wash Time 24-25

Starting the Program 25

Canceling the Program 25

Salt Indicator 25

Rinse-Aid Indicator 25

End of Program 25

Water Cut-off Warning 26

Overflow Warning 26

Maintenance and Cleaning 26-27

Filters 26

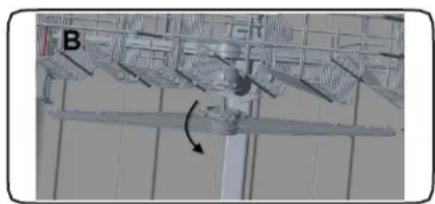

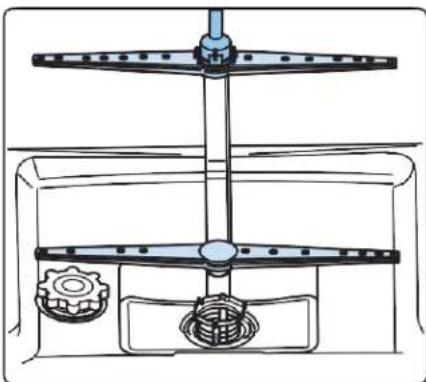

Spray Arms 27

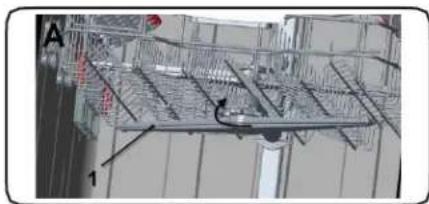

Cleaning the Impellers 27

What Should Not be Washed 28

Troubleshooting 29-30

Automatic FaultWarnings 31

Limited Warranty 32

Thank you for choosing this product.

This User Manual contains important safety information and instructions intended to assist you in your appliance operation and maintenance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon	Type	Meaning
A	WARNING	Serious injury or death risk
A	RISK OF ELECTRIC SHOCK	Dangerous voltage risk
A	FIRE	Warning; Risk of fire / flammable materials
A	CAUTION	Injury or property damage risk
O	IMPORTANT / NOTE	Operating the system correctly

INTRODUCTION

• Please read this user manual completely and carefully, particularly the safety instructions. It will save you time and effort and help to ensure optimum dishwasher performance.
• Be sure to observe all listed warnings and cautions. Look for the icons with exclamation marks inside. The information icon will also provide important references.

WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in injury. It may also be used to alert against unsafe practices.
NOTICE: Indicates a potentially hazardous situation that, if not avoided, may result in damage to the dishwasher, the tableware, the equipment, or the environment.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the dishwasher, follow basic precautions. Read all instructions before using the dishwasher! Save these operating instructions and pass them on to any future user.

• Use the dishwasher only for its intended purpose as described in this user manual. This appliance is intended for normal household use only. Do not change the specification of the appliance. The manufacturer does not claim responsibility for damage or injury caused by improper use of this appliance.
  The information in this user manual must be followed to minimize the risk of fire or explosion and to prevent property damage, personal injury, or loss of life
• Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children.

• When loading items to be washed:

• Locate sharp items so that they are not likely to damage the door seal, and

• Load sharp knives with the handles up to reduce the risk of injuries.

• Do not wash plastic items unless they are marked "dishwasher-safe" or the equivalent. For plastic items not marked, check the manufacturer's recommendations.

• Do not touch the HEATING ELEMENT during or immediately after use.
• Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.
• Do not tamper with controls.
  Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• The cup racks are designed to support cups, glasses, and kitchen utensils. When the cup racks are in the dishwasher, do not lean on or use the cup racks to support your body weight.
• This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance has a cord with an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING:

Improper connection with the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt about whether or not the appliance is properly grounded. Do not modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

• Some dishwasher detergents are high in alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children and weakened persons away from the dishwasher when the door is open.
• Consult a doctor immediately if detergent has been swallowed or inhaled.
• Do not remove the dishes from the appliance until the program is complete. Some detergent may remain on the dishes.
• Check that the detergent dispenser is empty after the completion of each wash program.
• Do not drink and play with the water in the appliance; harmful residues could be present.
  To reduce the risk of injury, do not allow children to play in or on
  the dishwasher.
• When children become old enough to operate the appliance, it is the responsibility of the parents/legal guardians to ensure the children are instructed in safe use practices.
• Do not leave the appliance with the open door unattended to avoid stepping accidentally onto it.

WARNING: Before any maintenance is performed, deactivate the appliance, and disconnect the main power plug from the socket.

• Do not use high-pressure water sprays and/or steam to clean the appliance.
• Ensure that there are no visible water leaks during and after the first use of the appliance.
• To avoid floor damage and mold growth, do not allow wet areas to remain around or under the dishwasher.
• To avoid dishwasher damage, do not allow water to remain in your dishwasher systems through extended periods of freezing.

RISK OF INJURY: To avoid the risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape.

• Do not store or use flammable liquids or vapors on, near, or in the area of the appliance.
• Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
• Please check the water supply line periodically. It is susceptible to breakage. It becomes less flexible as time goes by. Replace it immediately when it is torn, cut, swollen or there is water leakage.

RECYCLING

Remove the door to the washing compartment when removing an old dishwasher from service or discarding it. Ensure that the appliance presents no danger to children while being stored for disposal. Before disposing of the dishwasher:

• Disconnect the appliance from the main power supply.
  Cut off the power cable and discard it.
• Remove the door catch to prevent children and pets from being closed in the appliance

Old appliances may contain materials that cannot be recycled. Please contact your local recycling authority about the possibility of recycling these materials.

Please check the water supply line periodically. It is susceptible to breakage. It becomes less flexible as time goes by. Replace it immediately when it is torn, cut, swollen or there is water leakage.

Please keep the dishwasher package out of the reach of children after unpacking it.

WARNING!

Risk of injury or suffocation! Ensure that any plastic wrappings, bags, small pieces, etc. are disposed of safely and kept out of the reach of children.

INSTALLATION

WARNING: When installing the dishwasher, follow basic precautions, please check the standards and local codes for the placement of the machine.

Installation, maintenance, and repair should be performed by a qualified installer.
- Maintenance performed by unqualified persons could be dangerous and may void the warranty.
- Do not operate the appliance if damaged, malfunctioning, partially disassembled, or if it has missing or broken parts.
- Before installation or service, disconnect the power supply to the work area by unplugging the unit, "tripping" the circuit breaker, or removing the fuse.
- Only connect the dishwasher to the power supply when all installation and plumbing work is complete.
- Never connect the ground wire to gas lines, hot water pipes, or plumbing lines.
- Do not install or store the dishwasher where it can be exposed to below-freezing temperatures or exposed to the weather.
- Dishwasher must be secured to adjacent cabinetry using the brackets provided. Failure to do this may cause damage to property or bodily injury.
- Connect to a properly rated, protected, and sized power supply circuit to avoid electrical overload. The dishwasher is designed for an electrical supply of 120V (volts), 60Hz (hertz), 12AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breakers rated for 15 amperes. Electrical supply conductors shall be a minimum of # 16 AWG copper wire rated at 167^ ( 75^ ) or higher. These requirements must be met to prevent injury and machine damage. Consult a qualified electrician if in doubt.
- Do not use any extension cord or portable outlet device to connect the dishwasher to a power supply.

WARNING: Danger of suffocation! Ensure that any plastic wrapping bags, small pieces, etc. are disposed of safely and kept out of the reach of children.

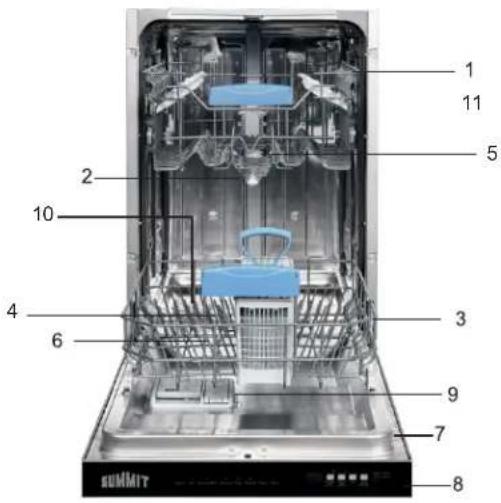

TECHNICAL INFORMATION

1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Top nozzle (Select models)
6. Filters
7. Rating plate
8. Control panel
9. Detergent and rinse-aid dispenser
10. Salt dispenser (Select models)
11. Upper basket track latch
12. Drying Unit: This system provides better dish drying performance.

Permissible water pressure	4.35 -145psi (0.3 - 10 bars)
Electrical connection	120V (volts), 12A (amps), 60Hz (hertz)
Total power	1400W
Heater power	1100W

NOTICE: Because we continually strive to improve our products, we may change our specifications and design without prior notice. This device corresponds to the following directives: UL 749 Household Dishwasher directive.

BEFORE USING YOUR APPLIANCE

Preparing Your Dishwasher for the First Use

• Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine.
• Open the door of the dishwasher.
• Remove all packaging material inside the machine.
• Set the water softener level. (See: SETTING THE WATER, select models).
• Set the rinse aid dosage (See: FILLING THE RINSE-AID AND SETTING).
• Fill the salt container (See: FILLING THE DISHWASHER SALT DISPENSER, select models).
• Fill the rinse aid compartment. (See: FILLING THE RINSE AID AND SETTING).
• Place the dishes in accordance with the instructions in the user manual.
• Put an adequate amount of detergent into the detergent dispenser. (See: FILLING THE DETERGENT).
  Make sure that the upper and lower impellers rotate freely.
• Select the program according to the amount of dirt (See: PROGRAM TABLE).
• Close the door of the dishwasher. (Push the baskets in. Then lift the door upwards and push until it clicks into position).

CAUTION: To prevent injuries, ensure that your hand is not jammed or crushed between the door and the appliance.

WARNING: While the appliance is running, if you open the door, all functions are automatically interrupted.

CAUTION: There is a chance of hot steam will come out from the unit when you open the door of your machine. Be aware of potential injuries.

Setting the Water Softener (SELECT MODELS)

• The dishwasher needs soft water for good cleaning results. Hard water results in a build-up of calcium deposits on dishware and in the dishwasher. Your dishwasher has a special water softening system to remove the hardness of the tap water. Setting this system correctly will increase the washing effectiveness.
  Water supplies with a hardness level higher than 9^ (French Water Hardness) need to be softened.
  If the hardness level of the water that you use is above 9^ (French standard for water hardness) or if you are using well water, then it is recommended to use a filter and water purification devices.
• The dishwasher is pre-programmed at the factory setting level 1 (inactive) of water hardness. If this setting corresponds to the hardness of your water, you do not need to do anything more.
  The dishwasher must be programmed for the water hardness in your area.
  To find out the hardness level of water in your area, contact your local Water Board or Determine the water hardness level with the help of the test strip provided.

WARNING: If you move to a different location, the level of water hardness will possibly be different. It is essential to set again the water hardness in order to obtain optimum washing efficiency.

Test Strip (For Models with Water Softener)

The washing effectiveness of your machine depends on the softness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness of the main water supply. The washing effectiveness will increase when the system is correctly set. To find out the water hardness level of water in your area, contact your local water board or determine the water hardness level by using the test strip (if available). Follow the steps in the image when using the test strip.

	Run water through the tap (1 min.)	Keep the strip in the water (1sec)	Shake the strip.	Wait (1 min.)	Set the hardness level of your machine.
	1 minute	1 second		1 minute	1 minute

WARNING: If the water is well water or has a hardness level above 9^ , we recommend that you use a filter and refinement devices.

Water Hardness Table

Level	German °dH	French °f	British °E	Indicator
1	0-5	0-9	0-6	L1 is shown on the display.
2	6-11	10-20	7-14	L2 is shown on the display.
3	12-17	21-30	15-21	L3 is shown on the display.
4	18-22	31-40	22-28	L4 is shown on the display.
5	23-31	41-55	29-39	L5 is shown on the display.
6	35-50	56-90	40-63	L6 is shown on the display.

Adjust the water hardness setting of your machine according to the level specified on the test strip (if available).

NOTE: Hardness level is adjusted to level 1 as a factory setting.

NOTE: If you only ever use combination products in your dishwasher, you can change the softener level.

Salt Indicator

Please check the salt indicator on the control panel to see whether there is an adequate amount of softening salt in the dishwasher or not. You need to refill the salt reservoir with salt whenever the salt warning indicator appears on the control panel of your machine.

To add salt to the machine:

1. Open the door of the machine,
2. Press and hold the "Start/Pause + On/Off" key for 3 seconds,
3. Immediately after "--" is seen on the display and the machine gives an audible warning, release the "Start/Pause + On/Off" key, press and hold the "Program Selection + Cancel" key until "SL" is represented on the display. The machine will display the last setting,
4. The amount of Salt is adjusted by pressing the "Program Selection + Cancel" key,
5. After the adjustment, turn off (by pressing the Start/Pause + On/Off key) the machine to save the selected salt amount.

Filling The Dishwasher Salt Dispenser (Select models)

WARNING: Culinary and table salts do not dissolve in water easily. Using these kinds of salts will damage the water softener system in your machine.
NOTE: The dishwasher can only use special dishwasher salt to soften the water. Do not use any small-grained or powdered type of salt, which are easily soluble. Using any other type of salt can damage your machine. The manufacturer is not liable for damages resulting from the use of the wrong type of salt
WARNING: Dishwasher detergent will damage the softener assembly. Do not fill the salt container with dishwasher detergent.
WARNING: If the water in your area is very soft and consistently lower than 9^ (French Water Hardness) you do not have to add dishwasher salt.

1. To put softener salt, first remove the lower basket and then open the salt compartment cap by turning it counterclockwise. (Fig. 1-2)
2. Fill the compartment with 1kg salt and water (Fig.3). If available, use the funnel (Fig.4) provided to make filling easier.
3. Refit the cap and close it.

WARNING: Starting the machine with any wash program is recommended after filling the salt container, in case of any spilled salt solutions. This prevents damage to the machine.

NOTE: Fill the salt compartment with water only the first time you fill the salt compartment.
NOTE: If the salt warning lamp on the control panel illuminates fill the salt compartment with salt again.
WARNING: Use softener salt specifically produced for use in dishwashers.
WARNING: If you switch to using a detergent that does not contain salt or rinse-aid, it is important to remember to add dishwasher salt and rinse-aid.

Salt Refill Indicator (Select models)

• If the salt indicator light comes on during a program, you need to wait until the end of the program to fill the salt reservoir with dishwasher salt.
  After the salt reservoir has been filled, the refill indicator may still be lit up if the salt concentration has not yet reached the correct level. It will go out when the correct concentration is reached.

NOTE: The salt refill indicator will be turned off if you have programmed the dishwasher for a water hardness below 9^ f.

Detergent Usage

WARNING: Use a detergent specifically designed for use in domestic dishwashers.

• You can find powder, gel, and tablet detergents on the market that have been designed for household dishwashers.
• Detergent should be put into the compartment prior to starting the machine. Add the proper detergent for the selected program to ensure the best performance. Use less detergent if the dishes are only lightly soiled. Using excess detergent can leave a film on dishes and in the dishwasher, resulting in poor wash performance. Do not use detergent tablets for shorter wash cycles. The tablet may not dissolve completely, causing detergent residue on dishes and inefficient cleaning.

NOTE: The amount of detergent needed depends on the cycle, load size, and soil level of the dishes. Too much detergent in soft water may cause glass corrosion and will not dissolve in water.

WARNING: Do not use too much detergent if your water supply is soft.
WARNING: Keep your detergents in cool, dry places and out of reach of children. See the detergent manufacturer's instructions for further information.
WARNING: Detergent tablets do not fully dissolve with short programs.

To prevent detergent residues on the tableware, we recommend that you use tablets with long programs.

WARNING: Do not use detergent in the Rinse cycle (select models). If you do not know the hardness of your water supply, use 15 ml/3 tsp detergent. Increase the amount of detergent if you see white water marks, especially on the surface of the glassware.

• Should you need more information concerning the detergent you are using, contact the detergent's manufacturer directly.
• Check that the detergent dispenser is empty after the completion of each wash program.

Filling The Detergent

NOTE: The dispenser should be refilled just before the start of each program.

1. Push the latch to open the detergent container as shown in the image to the right (fig 1).
2. Pour/put the detergent into the dispenser (fig 2).
3. The detergent container has level lines inside. It is possible to measure the right detergent amount using these lines. The container can hold 40~cm^3 of detergent. Open the dishwasher detergent and pour it into the larger compartment, 25~cm^3 if your dishes are heavily soiled or 15 cm^3 if they are less soiled. You may have to add more detergent to your machine, depending on the degree of soil and on the water hardness level in your area.
4. Close the flap of the dispenser.

Fig. 1

Fig. 2

NOTE: The flap is always open at the end of a program.
WARNING: Follow instructions on the package of the detergent when using liquid dishwasher detergent, concentrated powder detergent, or tablet detergent.

WARNING: Amounts may vary if you use liquid or concentrated powder detergent. Tablet detergents should be placed in a detergent container.
WARNING: Deviations are possible depending on how dirty the dishes are and how hard the water is in your location.
WARNING: Use only the proper amount of detergent. Continued use of too much detergent may cause machine damage.

Using Combined Detergents

• Detergents can also come in a combined format; they can be called "2-in-1" or "3-in-1" depending on the number of ingredients the manufacturer wishes to include.
• 2 in1 detergents contain detergent + salt or rinse aid. While using the 2-in-1 detergent, it should be noted what the tablets contain inside.
  The other tablet detergents also have detergent ^+ rinse aid ^+ salt ^+ various extra functions.
  Combined detergents produce sufficient results under certain usage conditions only. Such detergents contain rinse aid and/or salt in preset amounts.

Points to consider when using this type of product:

Always make sure to check the specifications of the detergent you will use and if it is a combined detergent.
- Check if the detergent used is appropriate for the hardness of the water the machine uses.
- Observe the instructions listed on the detergent packaging.
If you are using tablet detergents, never put them into the interior section or the cutlery basket of the dishwasher. Always put the tablets into the detergent compartment.
- When the conditions of use of such products and the machine settings are appropriate, they ensure savings in salt and/or rinse aid consumption.
- Contact the detergent manufacturers if you are not obtaining good wash results (if your dishes stay calcareous and wet) after having used 2-in-1 or 3-in-1 detergents. The scope of warranty for your machine does not cover any complaints caused by using these types of detergents.

Recommended usage: If you want to obtain better results while using combined detergents, add salt and rinse aid into your machine and adjust the water hardness setting and the rinse aid setting to the lowest position.

CAUTION: The solubility of tablet detergents produced by different companies can vary depending on the temperature and time. Therefore, it is not recommended to use such detergents in short programs. It is more suitable to use powder detergents in such programs.

Warning: Should you encounter a problem that you have not encountered before, due to the use of this type of detergent, contact the detergent manufacturers directly.

When using combined detergents:

• Fill the salt and rinse aid compartments.
• Adjust the water hardness setting to the highest position and run an empty wash.
• Adjust the water hardness level.
  Make the suitable rinse aid setting.

Water Temperature

Hot water is needed for the best dishwashing and drying results. Water entering the dishwasher should be at least 120^ (49^) to give satisfactory results.

To check the water temperature entering the dishwasher:

• Turn on the hot water faucet nearest to the dishwasher for several minutes to clear cool water from the pipes.
• Hold a candy or meat thermometer in the stream of water to check the temperature.
• If the temperature is below 120^ (49^) , have a qualified technician raise the hot water heater thermostat setting.

Rinse-Aid Usage

Rinse-aid makes dishes sparkle and helps them to dry without spotting. Rinse-aid is required for stain-free utensils and clear glasses.

Use only rinse-aid for domestic dishwashers.
- Filling the rinse-aid reservoir with detergent will damage the reservoir. Only pour rinse-aid formulated for residential dishwashers into the reservoir.

NOTE: When the Rinse-Aid indicator lights up, the rinse-aid reservoir contains sufficient rinse aid for 2-3 programs only. When using "Tab" detergents rinse-aid is not needed.

Filling the Rinse-Aid and Setting

1. To fill the rinse-aid compartment, open the rinse-aid compartment cap (Fig.A)
2. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.
3. Close the cap until it clicks. Otherwise, water can enter the rinse aid reservoir during a program.

Fig. A

In order to change the rinse aid level, follow the below steps before turning on the machine:

1. Open the door of the machine,
2. Press and hold the "Start/Pause + On/Off" key for 3 seconds,
3. Immediately after "--" is seen on the display and the machine gives an audible warning, release "Start/Pause + On/Off" key, press and hold the "Program Selection + Cancel" key until "rA" is represented on the display. The machine will display the last setting,
4. The amount of rinse aid is adjusted by pressing the "Program Selection + Cancel" key,
5. After the adjustment, turn off (by pressing Start/Pause + On/Off key) the machine to save the selected rinse aid amount. (by pressing Start/Pause + On/Off key) the machine to save the selected rinse aid amount.

NOTE: If the dishes are not drying properly, are spotted, or there is an increase in the level of blue stains on your dishes, decrease the level of rinse aid.

Level	Brightener Dose	Indicator
1	Rinse-aid not dispensed	r1 is shown on thedisplay.
2	1 dose is dispensed	r2 is shown on thedisplay
3	2 doses are dispensed	r3 is shown on thedisplay.
4	3 doses are dispensed	r4 is shown on thedisplay.
5	4 doses are dispensed	r5 is shown on thedisplay.

LOADING YOUR DISHWASHER

If you properly place your dishes into the machine, you will be maximizing energy consumption, as well as washing and drying performance.
- You can load the lower rack with round and deep items such as pots with long handles, pot lids, plates, salad plates, and cutlery sets. The upper basket has been designed for dessert plates, salad bowls, cups, and glasses. When placing long-stem glasses and goblets, lean them against the basket edge, rack, or glass supporter wire and not against other items. Do not lean long glasses against one another. They cannot remain steady and may receive damage. It is more appropriate to locate the thin, narrow parts in the middle sections of baskets. You can place spoons among the other cutlery sets to prevent them from sticking to one another.
- You are recommended to use the cutlery grid in order to obtain the best result. To avoid any injuries, always place long-handled and sharp-pointed dishes, such as a serving fork, bread knife, etc. with their sharp points facing down or horizontally on the baskets.

WARNING: Place your dishes into your machine in a way that will not prevent the upper and lower spray arms from spinning.
NOTE: Place all large and very dirty items in the lower rack.
WARNING: Do not put in the appliance items that can absorb water (sponges, household cloths).
NOTE: Place all containers such as cups, glasses, and pots into the dishwasher with the opening facing downwards (so that no water can collect).
NOTE: Dishes and cutlery should not be placed above each other.
NOTE: Do not overload your dishwasher and pay attention to manufacturer instructions regarding dishes that are appropriate for use in a dishwasher. Only by placing suitable dishes, will you obtain optimal washing results with sensible use of energy.

High-temperature water and dishwasher detergent may form a chemical synthesis that can damage certain items.

WARNING: Be careful when loading and unloading sharp items. Load sharp knives with the handles facing up to reduce the risk of personal injury.

Follow the steps below before loading the dishwasher:

1. Open the door.
2. Remove coarse food leftovers from tableware.
3. Load the dishwasher.

NOTE: While the appliance is running, if you open the door, all functions are automatically interrupted. Once the door is closed, functions will continue to work.

Upper Rack

Load the upper rack with dessert plates, cups, glasses etc.

Top rack load pattern for 8 place settings.

Lower Rack

You can load into the lower basket with round and deep items, such as pots with long handles, pot lids, plates, salad plates, and cutlery sets. The lower rack should not be used for small items such as cups or wine glasses.

Bottom rack load patterns for 8 place settings.

WARNING: Large knives and other utensils with sharp tips and edges must be placed horizontally into the upper rack due to risk of injury. Other smaller knives and sharp utensils should be placed with the sharp side down in the cutlery basket.

NOTE: Make sure that large items do not interfere with the rotation of the spray arms, and do not prevent the detergent dispenser from opening.

Loading cutlery basket (Select models)

WARNING: Sharp cutlery may shift position during the wash operation and can be also wet and slippery. Carefully remove them to prevent injury.

NOTE: Small items should therefore be placed in the cutlery tray or cutlery basket (select models). Because small items can fall through the holders from the baskets.

Incorrect Loads

Adjustable Top Rack

These racks are designed to increase the capacity of the top rack. You can place your cups and glasses on these racks. Thanks to the adjustable feature of the racks, you can place glasses of different sizes under the racks.

Height adjustment spacers mounted on the basket allow racks to be used in 2 different positions.

• You can also place long knives, forks, and spoons on these racks horizontally to ensure they do not block the movement of spray arms.

The top basket horizontal wire, located on the top basket, allows you to place your plates and bowls where required. Also, you can wash kitchenware such as pots and pans by closing the horizontal wire.

NOTE: Bringing the wires to the horizontal position by holding them from the tips may cause them to bend. Therefore, it will be appropriate to bring the middle wires to a horizontal or vertical position by holding them from their stems and pushing.

• The basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full and to create large spaces at the top or bottom area of your machine, as needed.
• Basket of your machine is set to the upper position in factory settings. In order to raise your basket, hold it from both sides and pull it upwards. In order to lower it, hold it from both sides again, and leave it.

NOTE: Make sure that both levers catch in the same height position.

Height Setting (SELECT MODELS)

When the basket is empty

In certain models, the height setting of the upper rack may be changed using the wheels, which are present at two height levels.

CAUTION: Make sure that the rack is empty. Changing the height setting while the rack contains tableware could cause the contents to dislodge, causing personal injury or damage to the tableware.

1. Release the latches on both the right and left tracks of the upper rack by turning them to the outside (A).

1. Completely pull the rack out (B).

1. Place the rack into the tracks again at the desired height (C).

1. Push the latches back into the locked position.

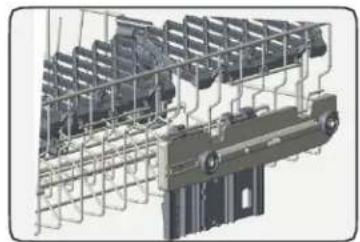

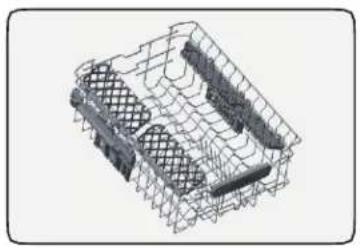

When The Basket is Filled (SELECT MODELS)

The upper basket includes a mechanism that allows the height of the basket to be adjusted up (1) or down (2) without having to remove the basket. Hold the basket on both sides and pull it up or push it down, ensuring both sides of the upper basket are in the same position.

Lower Rack Folding Arms

Folding arms, consisting of four parts that are located on the lower rack of your machine, are designed in order to let you place big items, such as pots, pans, etc., more easily. Each part can be folded separately, or all of them can be folded to create larger spaces. You can use the folding racks by raising them upwards, or by folding them.

PROGRAMS AND OPTIONS TABLE

Programs		Duration (min)	Descriptions
Regular	Dirty 140		Standard program for daily, regular, or typical use to completely wash a load of normally soiled dishes.
	Clean 105
Auto	Dirty	155	This program automatically adjusts the temperature and the quantity of water, the energy consumption, and the program duration.
	Clean 110
Intensive Plus		165	Suitable for heavily soiled dishes that are kept waiting.
Intensive		130	Suitable for heavily soiled dishes.
Daily		117	Suitable for normally soiled daily dishes.
Delicate		90	Suitable for lightly soiled delicate dishes.
Super		50	Suitable for normally soiled daily dishes with faster program.
Rinse		15	Suitable to rinse dishes that you plan to wash later.

Compatibility of Programs and Options		Options
		Half Load	Sanitize	Extra Fast	Extra Dry	Hi-Temp
Programs	Regular	✓	✓	✓	✓	✓
	Auto	✓	✓	✓	✓	✓
	Intensive Plus	✓	✓	✓	✓	✓
	Intensive	✓	✓	✓	✓	✓
	Daily	✓	✓	✓	✓	✓
	Delicate	✓	X	✓	✓	X
	Super	✓	✓	X	✓	✓
	Rinse	✓	X	X	X	X

NOTE: The program duration may change according to the number of dishes, the water temperature, the ambient temperature in the room, and any selected additional functions.
NOTE: The energy-usage label is based on the "Regular" program. This program is the most efficient in terms of its combined energy and water consumption at cleaning normally soiled dishes.

Only use powder detergent for short programs.
Short programs do not include drying.
To assist drying, we recommend slightly opening the door after a cycle is complete.

OPERATING YOUR APPLIANCE

1. Display
2. On/Off + Start/Pause Key
3. Program Selection + Cancel Key
4. Delay Timer Key
5. Extra Options Key

i. Sanitize Option Led
ii. Extra Fast Option Led
iii. Extra Dry Option Led
iv. Hi-Temp Option Led
v. Half Load - Upper Basket
vi. Half Load - Lower Basket

1. Rinse Aid Indicator

KEYS

On/Off Key

This key is used as On/Off key if the corresponding button is held down for 3 seconds. Otherwise, it can be used as Start/Pause key. It is used to turn on or turn off the machine.

The machine will turn on with the Regular program and the number and the duration of the regular program will appear on the display. Each of program number and the duration will sequentially represent for 2 seconds on the display. In Off position, the display will turn off.

Start/Pause Key

It is used to start or pause a selected program and functions.

Program Selection/Cancel Key

It is used to select the washing program you determined from the programs table. The cancel key is activated when Program Selection/Cancel Key is held down for 3 seconds.

Delay Timer Key

It should be pressed to make the time delay settings.

Options Key

It is used to add auxiliary functions to the selected program.

Preparing the Machine

1. Open the door of the dishwasher.
2. Place the dishes in accordance with the instructions in the user manual.
3. Make sure that the upper and lower impellers rotate freely.
4. Put adequate amount of detergent into the detergent dispenser.
5. Check if the Salt and Rinse Aid indicators light and add salt and/or rinse aid if needed.

Program Selection

1. Press the On/Off key to turn on your machine. Note that the door of the dishwasher is OPEN position.
2. Refer the "Programs Table" to determine a washing program suitable of your dishes.
3. Press program selection key until the number of the program you selected appears on the display.

In order to start the selected program, the Start/Pause key must be pressed and the door of the dishwasher must be closed within 4 seconds after the Start/Pause key is pressed.

If the door is not closed within 4 seconds, the machine will not start. In this case; to start the selected program, the door must be opened, the Start/Pause key must be pressed and the door must be closed again within 4 seconds after the Start/Pause key is pressed.

If the door of the machine is opened when the machine is running, the machine stops working. If the door is closed back within 4 seconds after the door is opened, the machine will continue.

If the door stays open for more than 4 seconds, the Start/Pause key must be pressed and the door of the dishwasher must be closed within 4 seconds after the Start/Pause key is pressed.

Auxiliary Functions

Washing programs of your dishwasher are designed to obtain the best cleaning effect, considering the type of the soil, soiling degree and properties of the dishes to be washed. Auxiliary functions are provided in order to enable you to save time, water and energy and to perform a more comfortable washing with conditions specific to you.

i. Auxiliary functions may cause changes in the program duration.
ii. Auxiliary functions are not suitable for all washing programs. Indicator of the auxiliary function that is not compatible with the program will not be active. Besides, the machine gives aural warning via buzzer. The compatibility of the programs and options is shown on the "PROGRAMS AND OPTIONS TABLE" section.

To add auxiliary function to the program:

1. Select the desired washing program by pressing the program Selection key.
2. In the selected washing program,

if auxiliary function is selected, the corresponding indicator will be active. If the Extra Function key is pressed again, the corresponding indicator of another auxiliary function will be active.

1. The selection of the auxiliary function will be cancelled when you press the Extra Function key six times.

Sanitize Options

Sanitize function raises the water temperature in the final rinse.

i. At the end of a successful sanitization, "--" is displayed on the display and End of program indicator will be active.
ii. Available programs and options are indicated on program Table and Options Table charts

Hi-Temp Options

When this option is selected, both the water temperature and the washing time are increased.

Extra Fast Option

Select the Extra Fast option to decrease the duration of a program, providing more economical water usage.

Extra Dry Options

The machine changes the water temperature from the value described for each different program and the extra dry is performed.

Half Load Options

It is used to operate the machine without loading it completely.

1. Load your dishes in the machine as you like.
2. Turn the machine on with On/Off key.
3. Select the desired program and press the Half Load key. The Half Load indicator will light on the display.
4. Press Start/Pause key to start the selected program and close the door of the machine.
5. With the Half Load function you can save power while using the lower and/or upper baskets of the machine.

Programming The Washing Time

Delay Timer

If an economical electricity tariff is applied in your region, you can use the Delay Timer function to wash your dishes during appropriate hours. You can delay the start of the selected program until 19 hours. Delay Timer cannot be set after the program starts.

1. Press the Delay Timer function key after selecting the washing program and other auxiliary functions.
2. Once you press the Delay Timer key, Display will show "1h" and Display will show program number, program duration and delay time alternately for 2 seconds.
3. Set the desired time by pressing the Delay Timer key. Time will increase with the increments of 1 hour every time you press the key.
4. In order to start the selected program with delay, Start/Pause key should be pressed and the door of the dishwasher must be closed within 4 seconds.

NOTE: The use of Delay Timer has a special case.

Assume that you have selected a program with delay and pressed Start/ Pause key. After a length of time, you have opened the door of the machine. If the door of the machine is closed within 4 seconds, the machine resumes on for the duration of the delay timer. If the door is not closed within 4 seconds, the machine pauses the delay timer. In this case, to continue the delay timer, the door must be opened, the Start/Pause key must be pressed and the door must be closed again within 4 seconds after the Start/Pause key is pressed.

Changing the settings while Delay Timer is enabled

While the Delay Timer function is activated, you cannot make changes in the washing program, auxiliary functions or the duration of delay time.

i. Program and auxiliary functions cannot be set/changed after the program has started.

To cancel the Delay Timer function:

1. Open the door of the dishwasher
2. Press and hold program Selection ^+ Cancel key for 3 seconds
3. When the program Selection + Cancel key is pressed and held, "1" appears on the display. At the end of the cancellation process, "--" appears on the display and delaying process is cancelled. i. You can select and start a new program following the cancellation of Delay Timer function. ii. Delay Timer function can not be set after the program starts.

Starting the Program

Open the door of your machine. Select the program and auxiliary functions. The program duration and program number will appear on the display alternately. Press "Start/Pause + On/Off" key. Close the door within 4 seconds, the program will start. If 4 seconds is exceeded and the door is closed, program will not start.

Your machine performs water softening depends on model hardness level of the supply water (SELECT MODELS). Remaining time displayed towards the end in some programs can be different from the time indicated at the beginning due to this process. The total time can also change while the program is running depending on the ambient temperature where your machine is installed, temperature of the supply water and amount of the dishes.

If the door is opened while the machine is running, the machine will switch to the standby mode. Press the Start/Pause key and close the machine door within 4 seconds, then the program will resume.

Child (Key Lock)

Not available.

Canceling the Program

1. Press the Program Selection + Cancel key for 3 seconds to cancel the program.
2. After 3 seconds, "1" will appear on the display. For a couple of minutes, the machine will fulfill the necessary operations required to cancel the program.
3. There might be residues of detergent or rinse aid left in the machine and/or on the pieces being washed depending on the step the program you have canceled was in.

Rinse-Aid Indicator

Please check the rinse aid indicator on the control panel to see whether there is adequate amount of rinse aid in the dishwasher or not. You need to refill the rinse aid reservoir with rinse aid whenever rinse-aid warning indicator appears on the control panel of your machine.

End of Program

End of program indicator will light up continuously when the washing program is over.

1. Open the door of the machine.
2. Press Start/Pause + On/Off key to turn off your machine.
3. Close the tap.
4. Unplug the machine from the socket.

Leave your dishes in the machine for about 15 minutes to cool down after they are washed. Your dishes will dry in a shorter time if you leave the door of your machine ajar during this period. This process will increase the drying effectiveness of your machine.

Water Cut-off Warning

If the main water is cut or the water inlet tap is turned off the machine can not take water in and "FF" will flash continuously on the display. As long as the problem continues, the washing program is stopped and the water inlet is checked regularly by the user. If the water inlet is provided, the machine gets ready to start a new program.

Overflowing Warning

If the machine intakes too much water or there is leakage at any of the components then the machine will detect this and "F1" will flash on the display. As long as the overflowing continues, safety algorithm will be active and try to discharge the water. If overflowing stops and safety is assured, "F1" will disappear. If "F1" does not disappear, there is a permanent fault. In this case, the authorized service should be contacted.

MAINTENANCE AND CLEANING

WARNING: Before cleaning or conducting maintenance, switch off the appliance, disconnect the power main and turn off the water tap.

A Your dishwasher can only be repaired by an authorized service agent. DO NOT try to repair your machine unless it is recommended in this manual

WARNING: All surfaces are susceptible to scratching. Contact with unsuitable cleaning agents can alter or discolor all surfaces.

WARNING: Keep the floor around your dishwasher clean and dry to prevent any injuries. To keep your dish washer clean, we recommend emptying and leaving the door cracked open to allow air to circulation, should the machine go unused for an extended period of time.

• The dishwasher door can be damaged by abrasive cleaners, scouring pads, and abrasive cloths. Cleaning the machine in regular intervals prolongs the machine's service life. Oil and lime may accumulate in the machine's washing section.
  In case of such accumulation:

Fill the detergent compartment without loading any dishes into the machine, select a program that runs at a high temperature, and start the machine. In case of insufficiency, use special cleansing material available in the market. (Cleansing material produced special to machines by detergent producers.)

Clean the seals in the machine door:

Wipe the seals regularly by using a dampened cloth.

• Cleaning the machine:

Clean the filters and spray arms at least once a month.
○ U nplug your machine and turn off its tap before starting the cleaning.
o Do not use hard materials when cleaning your machine. Wipe with a fine cleaning material and a dampened cloth.

Filters

Check if any food wastes have remained on the coarse and fine filters. If any food wastes are left, remove the filters, and clean them thoroughly under running water.

a. Micro Filter
b. Coarse Filter
c. Metal/Plastic

Spray Arms

Check whether the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under running water.

You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.

Be sure that the nut is perfectly tightened when refitting the upper spray arm.

Cleaning The Impellers

Clean the impellers at least once a week for the machine to operate efficiently.

Lower Impeller

Check if the holes on the lower impeller (1) are clogged. If they are clogged, remove, and clean the impeller. Pull the lower impeller up to remove it (A, B.)

Upper Impeller

Check if the holes on the upper impeller (1) are clogged. If they are clogged, remove, and clean the impeller. Turn its nut to the left to move the upper impeller (A, B)

Make sure that the nut is tightened well when installing the upper impeller.

WHAT SHOULD NOT BE WASHED IN YOUR DISHWASHER?

All items to be placed in the dishwasher should be dishwasher safe.
Plastics with "dishwasher safe" or equivalent labels can only be used in dishwashers.

Plastics may lose their shape or color. Check with the manufacturer for recommendations.

• Any dishes made of wood or made with wooden parts are not suitable for washing in dishwashers. High temperatures can cause the wood to swell or crack.
  Silver items without a "dishwasher safe" label should not be washed in the dishwasher because high temperatures and detergent can damage your silver. Check with the manufacturer for recommendations.
• Dishwasher-safe silver items and stainless-steel items should not come into contact, as the silver can become discolored.
• Porcelains and glassware with decorations and hand-painted utensils may lose their color and patterns due to the high temperatures. Non-decorated items are dishwasher-safethe . Check with the manufacturer for recommendations.
• Aluminum can turn dark in the dishwasher due to the heat, the detergent used or even just certain minerals in your water.
• Do not wash sponges or dishcloths in the dishwasher.
• Do not wash any material like acrylic, copper, brass, pewter, iron, bronze, or tin.
• Pots without a non-stick coating are safe to be cleaned by your dishwasher but some non-stick pots and pans can lose their coating and sticking ability.
• Glued dishes or cutlery are not suitable for machine washing since adhesives that join materials such as plastic, wood, bone, steel, copper, tin, etc. may loosen.

WARNING: If in doubt, wash by hand or follow the instructions from the manufacturer of utensils, dishes, glasses, or pots and pans. Do not wash items soiled with cigarette ash, candle wax, varnish, paint, or chemicals since they can damage your dishwasher.

WARNING: Empty the lower rack first and then the upper rack. This will avoid water dripping from the upper rack onto dishes in the lower rack.

WARNING: In general, it is not advisable to open the door while the dishwasher is in operation. If the door is opened, a safety device stops the dishwasher. Care should be taken when opening the door immediately following the cycle, as steam may escape.

TROUBLESHOOTING

ISSUE	POSSIBLE CAUSE	TROUBLESHOOTING
The program does not start.	Your Dishwasher is not plugged in.	Plug your Dishwasher in.
	Your Dishwasher is not turned on.	Turn your Dishwasher on by pressing the On/Off button.
	The fuse has blown out.	Check your indoor fuses.
	The water inlet tap is closed.	Turn on the water inlet tap.
	Your Dishwasher door is open.	Close the Dishwasher door.
	The water inlet hose and machine filters are clogged.	Check the water inlet hose and machine filters and make sure they are not clogged.
Water remains inside the machine.	The water drain hose is clogged or twisted.	Check the drain hose, then either clean or untwist it.
	The filters are clogged.	Clean the filters.
	The program is not finished yet.	Wait until the program is finished.
The machine stops while washing.	Power failure.	Check the main power source.
	Water inlet failure.	Check the water tap.
Shaking and banging noises are heard while washing.	The spray arm is hitting the dishes in the lower basket.	Rearrange or remove items blocking the spray arm.
Food particles stay on the dish after the washing cycle is complete.	Dishes placed incorrectly, sprayed water not reaching affected dishes.	Do not overload baskets.
	Dishes are leaning against each other.	Place dishes as instructed in the section onloading your dishwasher.
	Not enough detergent was used.	Use the correct amount of detergent, as instructed in the program table.
	The wrong wash program was selected.	Use the information in the program table to select the most appropriate program.
	Spray arms clogged with food waste.	Clean the holes in the spray arms with thin objects.
	Filters or water drain pump clogged or filter misplaced.	Check that the drain hose and filters are correctly fitted.
FAULT	POSSIBLE CAUSE	TROUBLESHOOTING
Stains remain on dishes.	Not enough detergent was used.	Use the correct amount of detergent, as instructed in the program table.
	Rinse aid dosage and/or water softener setting set too low.	Increase rinse aid and/or water softener level.
	High water hardness level.	Increase the water softener level and add salt.
	The salt compartment cap is not closed properly.	Check that the salt compartment cap is closed properly.
Dishes do not dry.	The drying option was not selected.	Select a program with a drying option.
	Rinse aid dosage set too low.	Increase rinse aid dosage setting.
Rust stains forming on dishes.	The stainless-steel quality of the dishes is insufficient.	Only use dishwasher-safe sets.
	High level of salt in the water.	Adjust the water hardness level using a water hardness table.
	The salt compartment cap is not closed properly.	Check that the salt compartment cap is closed properly.
	Too much salt was spilled in the Dishwasher while filling it with salt.	Use a funnel while pouring salt into the compartment to avoid spillage.
	Poor electrical grounding system.	Consult a qualified electrician immediately.
Detergent remains in the detergent compartment.	Detergent was added when the detergent compartment was wet.	Make sure the detergent compartment is dry before use.

If your appliance shows other symptoms than those described above, or if you have checked all items listed as the cause and the problem still exists, then call Summit Appliance Customer Service at 1-800-932-4267 or visit www.Summitappliance.com/support.

AUTOMATIC FAULT WARNINGS

TROUBLE CODE	POSSIBLE ISSUE	WHAT TO DO
FF	Water inlet system failure	Make sure the water inlet tap is open and water is flowing.
		Separate the inlet hose from the tap and clean the filter of the hose.
		Contact for service if the error continues.
F5	Pressure system failure	Contact for service.
F3	Continuous water input	Close the tap and contact for service.
F2	Inability to discharge water	The water discharge hoses and filters may be clogged.
		Cancel the program.
		If the error continues, contact for service.
F8	Heater error	Contact for service.
F1	Overflow	Unplug the machine and close the tap.
		Contact for service.
FE	Faulty electronic card	Contact for service.
F7	Overheating	Contact for service.
F9	Divisor position error	Contact for service.
F6	Faulty heater sensor	Contact for service.
HI	High voltage failure	Contact for service.

Practical Information

• When the machine is not in operation:

• Disconnect the unit and close the tap.

• Leave the door slightly open to prevent odor formation.

• Select the dry option to remove water droplets.

• Place dishes in the machine properly to achieve efficient energy consumption, washing, and drying performance. Please see the program and consumption table for more information.
  Rinse dirty dishes before placing them in the dishwasher.
  Only use the Rinse program when necessary.
• Do not place the machine near a refrigerator because it will reach high temperatures.
  If the machine is in an area that is at risk of freezing, close the tap, disconnect the inlet hose from the tap and drain the water inside the hose and the machine completely.

LIMITED WARRANTY

ONE-YEAR LIMITED WARRANTY

Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable standards and are not covered from damage during handling or breakage.

ITEMS WARRANTYOR WILL NOT PAY FOR:

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

DISCLAIMER OF IMPLIED WARRANTY - LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTYES, INCLUDING WARRANTYES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTYOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTYES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

WARNING: This product can expose you to chemicals including Diisononyl phthalate (DINP) which is known to the State of California to cause cancer.

For more information go to www.P65Warnings.ca.gov

Felix Storch, Inc.

An ISO 9001:2015 registered company

770 Garrison Avenue

Bronx, NY 10474

www-summitappliance.com

For parts and accessory ordering, troubleshooting and helpful hints, visit: www-summitappliance.com/support

SUMMIT

DW186NTADA DW183WADA DW184BADA DW185SSADA

Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Avenue

Bronx, NY 10474

www-summitappliance.com

TABLE DES MATIÈRES

WARNING: Starting the machine with any wash program is recommended after filling the salt container, in case of any spilled salt solutions. This prevents damage to the machine.
NOTE: Fill the salt compartment with water only the first time you fill the salt compartment.

NOTE: If the salt warning lamp on the control panel illuminates fill the salt compartment with salt again.
WARNING: Use softener salt specifically produced for use in dishwashers.
WARNING: If you switch to using detergent that does not contain salt or rinse-aid, it is important to remember to add dishwasher salt and rinse-aid.

Compatibilité des programmes et options		Options
		Half Load	Sanitize	Extra Fast	Extra Dry	Hi-Temp
Programmes	Regular	✓	✓	✓	✓	✓
	Auto	✓	✓	✓	✓	✓
	Intensive Plus	✓	✓	✓	✓	✓
	Intensive	✓	✓	✓	✓	✓
	Daily	✓	✓	✓	✓	✓
	Delicate	✓	X	✓	✓	X
	Super	✓	✓	X	✓	✓
	Rinse	✓	X	X	X	X

INFORMATIONS PRATIQUES

Division of Felix Storch, Inc.

An ISO 9001:2015 registered company

770 Garrison Avenue

Bronx, NY 10474

www-summitappliance.com

SUMMIT

For parts and accessory ordering, troubleshooting and helpful hints, visit: www-summitappliance.com/support
