USER MANUAL MDR30SS Summit

Technical line drawing of a rectangular electronic device with internal compartments and mounting bracket (no text or symbols)

Read these instructions carefully before using your microwave oven and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS

Write Serial Number here:

Felix Storch, Inc.

An ISO 9001:2015 registered company

770 Garrison Ave

Bronx, New York 10474

www.summitappliance.com

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACES
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

Specifications

Model	MDR30SS
Rated Voltage	120 V~ 60 Hz
Microwave Input	1500 W
Microwave Output	1000 W

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.

2. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 2.

3. This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on page 4.

4. Install or locate this appliance only in accordance with the provided installation instructions.

5. Some products such as whole eggs and sealed containers - for example, closed glass jars - are able to explode and should not be heated in this oven.

6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.

7. As with any appliance, close supervision is necessary when used by children.

8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.

9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment.

10. Do not cover or block any openings on the appliance.

11. Do not store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location.

12. Do not immerse cord or plug in water.

13. Keep cord away from heated surface.

14. Do not let cord hang over edge of table or counter.

15. When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.

16. To reduce the risk of fire in the oven cavity:

1). Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
2). Remove wire twist-ties from paper or plastic bag before placing bag in oven.
3). If material inside of the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
4). Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

1. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present.

THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons:

1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to stand in the microwave oven for a short time before removing the container.
5) Use extreme care when inserting a spoon or other utensil into the container.

1. Do not operate any heating or cooking appliance beneath the appliance.
2. Do not mount unit over or near any portion of heating or cooking appliance.
3. Do not mount over sink.
4. Do not store anything directly on top of the appliance surface when the appliance is in operation.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING - Improper use of the grounding can result in a risk of electric shock.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.

DANGER - Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING - Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. Longer cord sets or extension cords are available and may be used if care is exercised in their use.

3. If a long cord or extension cord is used:

1) The marked electrical rating of the cord set, or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

This device complies with part 18 of the FCC Rules.

RADIO INTERFERENCE

1. Operation of the microwave oven may cause interference to your radio, TV, or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the following measures:

1) Clean door and sealing surface of the oven.

2) Reorient the receiving antenna of radio or television.

3) Relocate the microwave oven with respect to the receiver.

4) Move the microwave oven away from the receiver.

5) Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

UTENSILS

CAUTION - Personal Injury Hazard

Tightly closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

MATERIALS YOU CAN USE IN THE MICROWAVE OVEN.

Utensils Note

Browning dish	Follow manufacturer* instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer* instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short*erm cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.

MATERIALS YOU CAN USE IN THE MICROWAVE OVEN.

Utensils Note

Plastic	Microwave-safe only. Follow the manufacturer* instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced, or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

MATERIALS YOU CANNOT USE IN THE MICROWAVE OVEN.

Utensils Note

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

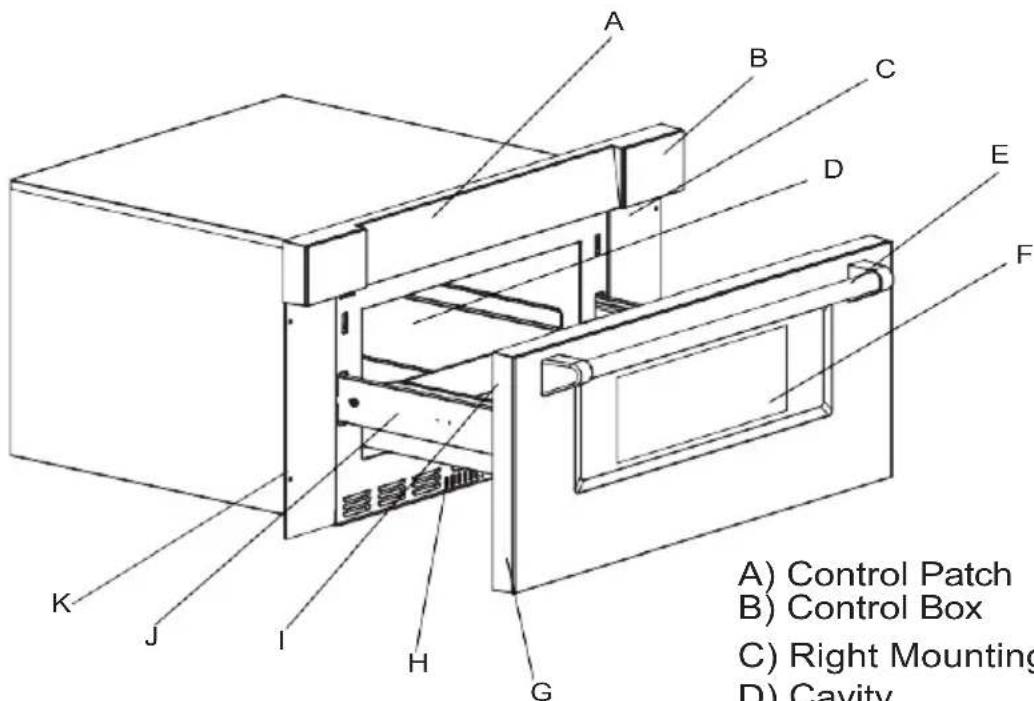

SETTING UP YOUR OVEN Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Defrosting Rack (Only use while the unit is defrosting and do not use while cooking. Do not use without food)

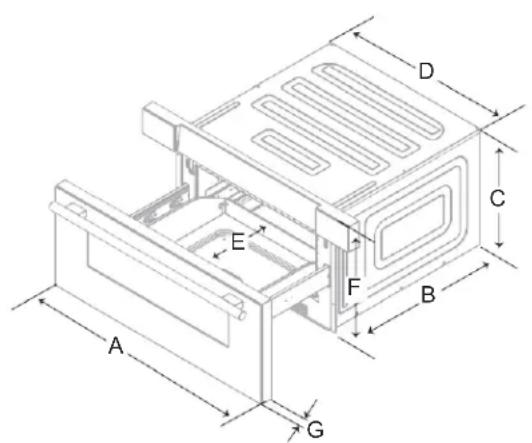

CLEARANCES AND DIMENSIONS

· Dimensions that are shown in Figure 1 must be used. Given dimensions provide minimum clearance. Locate the electrical outlet in the shaded area in the upper left-hand corner of the cutout.

- Contact surface must be solid and level. Pay special attention to the floor on which the Microwave Drawer will sit. The floor of the opening should be constructed of plywood strong enough to support the weight of the oven (approx. 100 lbs.).

- Check location where the Microwave Drawer will be installed for proper electrical supply.

- Your oven can be built into a cabinet or wall by itself or under a gas or electric wall oven.

- Be sure that the clearance of the floor between the wall oven and the microwave drawer is a minimum of 2 inches.

- The microwave interior will easily accommodate a 9" x 13" oblong dish or a bag of microwave popcorn.

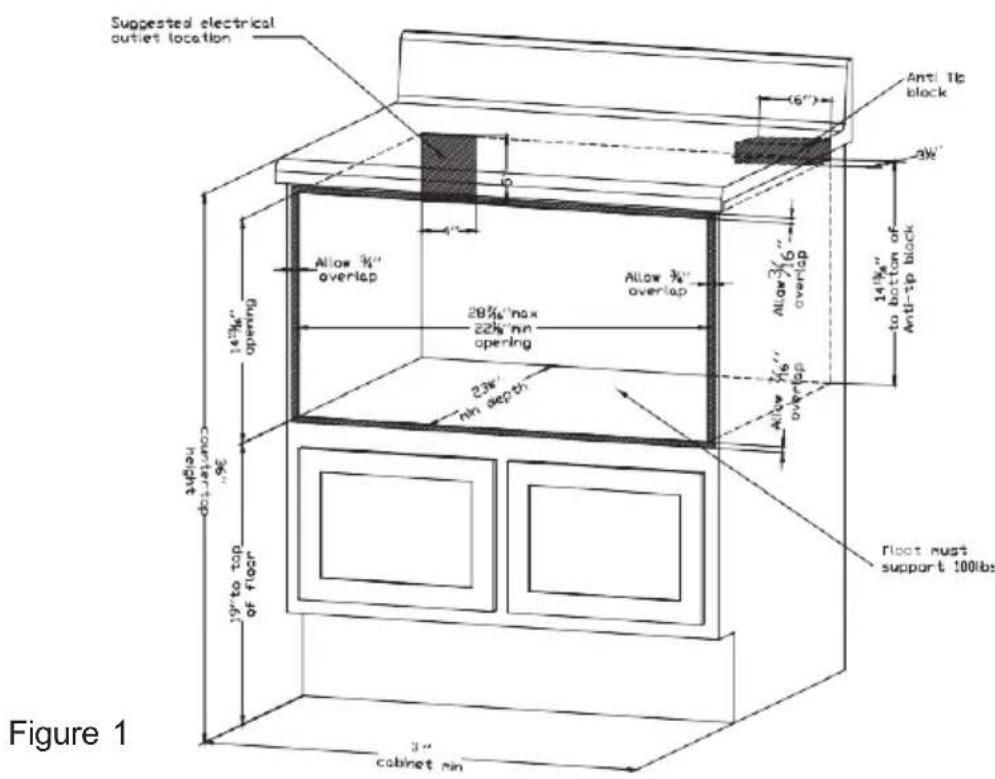

MICROWAVE DRAWER MEASUREMENTS

Suggested electrical outlet location (6") Anti tip block 3½" Allow 3½" overlap Allow 3½" overlap Allow 3½" overlap 14½" to bottom of Anti-tip block 14½" anti-tip block 1½" top to top of floor 28½" non 22½" non opening 23½" non depth 3½" cabinet nin Nest must support 100lbs Figure 1

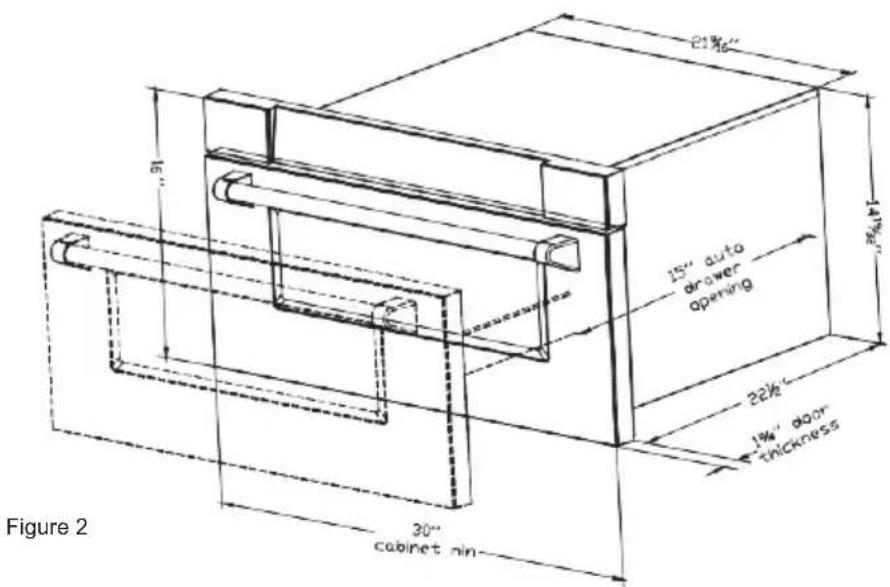

Figure 2 30" cabinet nin 15" auto drower opening 21½" 1½" 1½" door" thickness

Figures 1 and 2 contain many Microwave Drawer measurements for reference when planning the drawer's location. This Microwave Drawer can be installed below any electric or gas wall oven.

*Can also be installed using an electrical outlet in an adjacent cabinet within the area where the provided electrical cord can reach. The power cord access hole in the cabinet should be a minimum of 1 12 " diameter hole and be debarred of all sharp edges.

NOTE:

Always allow sufficient power cord length to the electrical outlet to prevent tension. Always check electrical codes for requirements.

ANTI-TIP BLOCK

ELECTRICAL OUTLET

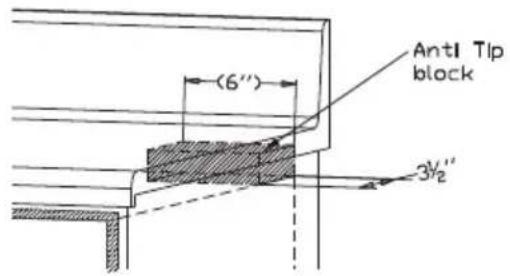

(6'') Anti Tip block 3½"

Figure 3

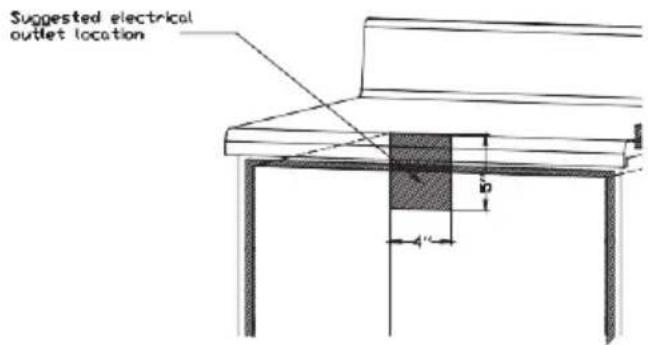

Suggested electrical outlet location in 4"

Figure 4

NORMAL INSTALLATION STEPS ANTI-TIP BLOCK INSTALLATION INSTRUCTIONS

To reduce the risk of tipping over the drawer, the Anti-Tip block must be properly installed and located 14 inches above the floor on which the Microwave Drawer will sit. The 6-inch Anti-Tip block must be provided by the installer. See Figures 1 and 3. The Anti-Tip block prevents serious injury that might result from spilled hot liquids. If the Microwave Drawer is ever moved to a different location, the Anti-Tip block must also be moved and installed, when installed to the wall make sure that the screws completely penetrate the drywall and are secured in wood or metal so that the block is stable. When fastening, be sure that the screws do not penetrate any electrical wiring or plumbing. The electrical requirements are a 120-volt 60 Hz, AC only, 15 amp. or more protected electrical supply. It is recommended that a separate circuit serving only this appliance be provided.

The drawer is equipped with a 3-prong grounding plug, it must be plugged into a wall receptacle that is properly installed and grounded. Should you only have a 2-prong outlet, have a qualified electrician install a correct wall receptacle.

NOTE: If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

*Can also be installed using an electrical outlet in an adjacent cabinet within the area where the provided electrical cord can reach. Always check electrical codes, for requirements.

DRAWER INSTALLATION

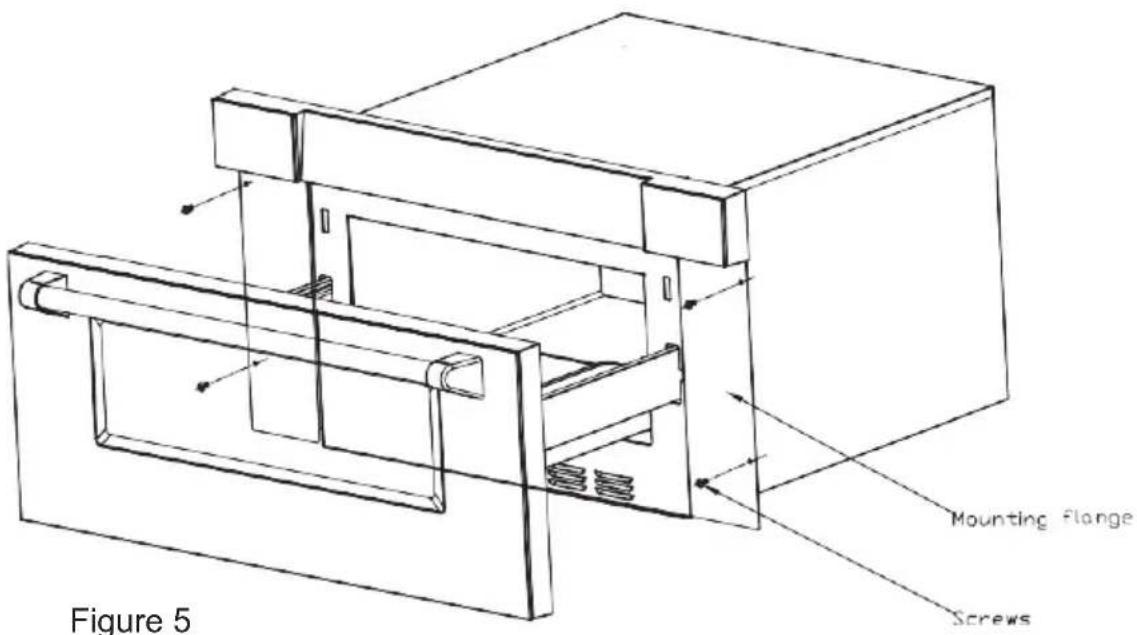

Mounting Flange Screws Figure 5

Figure 5

1. Place the drawer adjacent to the wall or cabinet opening. Plug the power supply cord into the electrical outlet.

2. Carefully guide the drawer into the prepared opening. Avoid pinching the cord between the oven and the wall.

3. Slide the drawer until the mounting flange is flush with the face of the cabinet. See Figure 5.

4. Open the drawer. Using the 4 holes on the drawer as a template, predrill the cabinet using a 1/16" bit. See Figure 5.

5. Secure the drawer with the 4 screws supplied. See Figure 6.

Four screws with different screw shapes and mounting holes, labeled '4 Screws' below (no other text or symbols)

Figure 6

MODEL AND SERIAL NUMBER LOCATION

The nameplate includes the model and serial number. Open the Microwave Drawer fully. The label is on the back wall of the microwave cavity facing up from the flat surface.

OPERATION

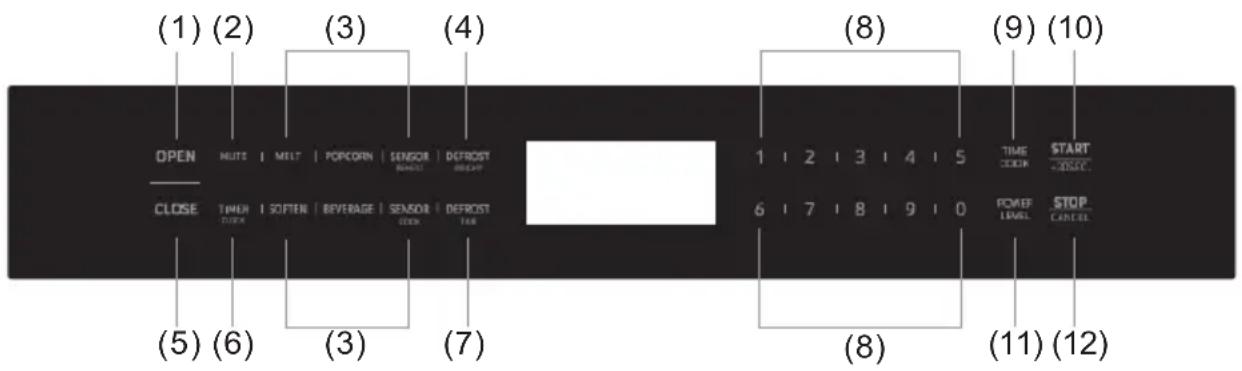

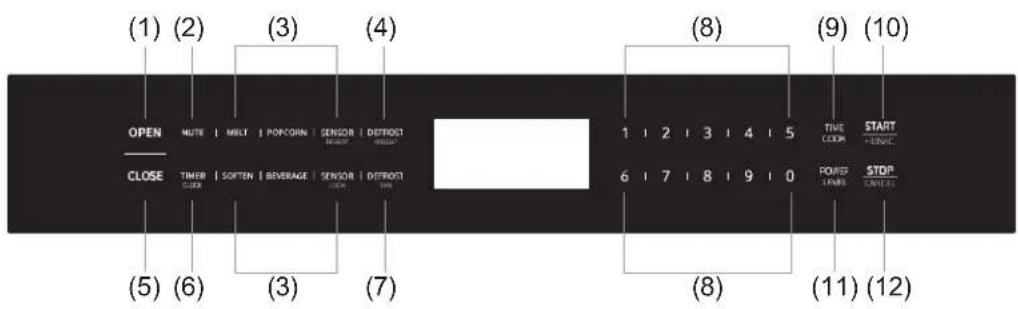

Control Panel and Features

(1) (2) (3) (4) OPEN HUTE MELT POPCORN SENSOR DEFROST CLOSE TIMER SOFTEN BEVERAGE SENSOR DEFROST (5) (6) (3) (7) (8) (9) (10) 1 2 3 4 5 TIME START CHECK STOP 6 7 8 9 0 POWER CANCEL (8) (11) (12)

1) Open
2) Setup
3) Auto Menu
4) Defrost Weight
5) Close
6) Timer/Clock
7 ) Defrost Time
8 ) Number Keys
9) Time Cook
10 ) Start/+30sec.
11) Power Level
12 ) Stop/Cancel

OPERATION

1. Clock Settings

(1) Press "TIMER/CLOCK" button twice. "12:00" will flash.
(2) Press number keys to set the clock, it should be within 1:00\~12:59.
(3) Press "START+30SEC." or "TIMER/CLOCK" to finish the setting.

NOTE: In the process of setting up the clock, if the "STOP/CANCEL" button is pressed or if there is no operation within 1 minute, the oven will go back to its former settings automatically.

2. Kitchen Timer

(1) Press "TIMER/CLOCK" button once. "00:00" will display.
(2) Press number keys to set the clock, it should be between 00:01-99:99.
(3) Press "START+30SEC." to start counting down.

3. Cooking Timer

There are 10 power levels are available.

Level	10	9	8	7	6	5	4	3	2	1
Power	100%	90%	80%	70%	60%	50%	40%	30%	20%	10%
Display	L10	L09	L08	L07	L06	L05	L04	L03	L02	L01

(1) Press "TIME COOK" button once. "00:00" will appear on the display.
(2) Press the number keys to set the cook time, it should be between 00:01-99:99.
(3) Press "POWER LEVEL" once, and then to confirm and then press "POWER LEVEL" repeatedly or press the number key to set the power level.
(4) Press "START+30SEC." to start cooking.

4. Add 30 Sec

(1) While in standby mode, the unit can start cooking immediately at 100% power level with 30 seconds' cooking time by pressing "START/+30SEC". Each press on the same button will increase cooking time by 30 seconds.
(2) While microwaving and timed defrosting, "START/+30SEC." can be pressed to increase cooking time. Each press will increase the time by 30 seconds.

5. Weight Defrost Function

(1) Press "DEFROST WEIGHT" button. Screen will display the defrost icon. And "0.0 lbs." will appear on the display.
(2) Press the number buttons to input the weight to be defrosted. The input weight should be between 0.1-6.0 lbs.
(3) Press "START/+30SEC." to start defrosting. Buzzer will ring once.

NOTE: The buzzer will ring twice to remind you to turn over the food during defrosting.

6. Timed Defrost Function

(1) Press "DEFROST TIME" button. Screen will display the defrost icon. And "00:00" will appear on the display.
(2) Press the number buttons to enter the defrosting time between 00:01-99:99.
(3) Press "START/+30SEC." to start defrosting.

NOTE: The defrosting power level is PL03, and it cannot be changed The buzzer will ring twice to remind you to turn over the food during defrosting.

7. Popcorn

(1) Press "POPCORN" to start cooking immediately.

8. Sensor Reheat

(1) In waiting state, press "Sensor Reheat" once, "Sr-1" will display.
(2) Press "Sensor Reheat" repeatedly or press "1-4" to choose the menu.
(3) Press "START+30SEC." to start cooking.

PASTA Sr-1
PIZZA	Sr-2
PLATE Sr-3
SOUP	Sr-4

9. Sensor Cook

(1) In standby mode, press "Sensor Cook" once, "Sc-1" will appear on the display.
(2) Press "Sensor Cook" repeatedly or press "1-7" to choose the menu.
(3) Press "START+30SEC." to start cooking.

Potato	Sc-1
Chicken	Sc-2
Fish	Sc-3
Ground Meat	Sc-4
Fresh Veggies	Sc-5
Frozen Veggies	Sc-6
Canned Veggies	Sc-7

10. Beverage

(1) In standby mode, press "Beverage" once, "1", "01:30" will appear on the display.
(2) Press "Beverage" repeatedly or press "1" or "2" to choose from the menu.
(3) Press "START+30SEC." to start cooking.

11. MELT

(1) In standby mode, press "MELT" once,"1 butT" will display.
(2) Press "MELT" repeatedly to choose from the menu.
(3) Press "1" or "2" to choose the corresponding weight.
(4) Press "START+30SEC." to start cooking.

Menu	Display	Weight
Butter/Margarine	1 buTT2 buTT3 buTT	1(STICK)2(STICK)3(STICK)
Chocolate	4 oz Choc8 oz Choc	4 oz8 oz
Cheese	8 oz CHEE16 oz CHEE	8 oz16 oz

12. SOFTEN

(1) In standby mode, press "SOFTEN" once,"1 buTT" will display.
(2) Press "SOFTEN" repeatedly to choose from the menu.
(3) Press "1" or "2" to choose the corresponding weight.
(4) Press "START+30SEC." to start cooking.

Menu	Display	Weight
Butter	1 buTT	1(STICH)
	2 buTT	2(STICHS)
	3 buTT	3(STICHS)
Ice cream/ Frozen juice	8 oz ICE	8 oz
	16 oz ICE	16 oz
	32 oz ICE	32 oz
Cream Cheese	3 oz CHEE	3 oz
	8 oz CHEE	8 oz

13. Multiple Cook

(1) In standby mode, press "DEFROST WEIGHT" once, "0.0 lbs." will appear on the display.
(2) Press the number buttons to input the weight to be defrosted. The input weight should be between 0.1-6.0 lbs.
(3) Press "TIME COOK" button once. "00:00" will display.
(4) Press the number keys to set the cooking time, it should be within 00:01-99:99.
(5) Press "POWER LEVEL" once, and then again to confirm and then press "POWER LEVEL" repeatedly or press number key to set the power level.
(6) Press "START+30SEC." to start cooking.

NOTE: The defrost function only could be one stage of the multiple cooks. Two stage cooks can be set at most.

14. Buzzer On/Off

To enter silent mode

Press the "MUTE" button. The screen will display the mute icon.

To cancel silent mode

While in silent mode, press the "MUTE" button. The buzzer will ring twice.

15. CHILD LOCK FUNCTION

To Lock: In standby mode, press "STOP/CANCEL" for 3 seconds, the unit will activate the child lock. Screen will display "Loc."

Unlocking: While the child lock is active, press "STOP/CANCEL" for 3 seconds to release the lock. Screen will display "UnLo."

16. ECO MODE

To enter Eco mode

If the unit's door is closed and the unit has been inactive for 1 minute, it will automatically enter eco mode.

To cancel Eco mode

While in eco mode, open the door or press any key to cancel it.

17. INQUIRING FUNCTION

(1) While cooking, press "TIMER/CLOCK" button to check the clock. The current time will display for 3 seconds.

MAINTENANCE

Troubleshooting

Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center.

TROUBLE	POSSIBLE CAUSE	POSSIBLE REMEDY
Oven will not start	a. Electrical cord for oven is not plugged in.b. Door is open.c. Wrong operation is set.	a. Plug into the outlet.b. Close the door and try again.c. Check instructions.
Arcing or sparking	a. Materials to be avoided in microwave oven were used.b. The oven is operated when empty.c. Spilled food remains in the cavity.	a. Use microwave-safe cookware only.b. Do not operate with oven empty.c. Clean cavity with wet towel.
Unevenly cooked foods	a. Materials to be avoided in microwave oven were used.b. Food is not defrosted completely.c. Cooking time, power level is not suitable.d. Food is not turned or stirred.	a. Use microwave-safe cookware only.b. Completely defrost food.c. Use correct cooking time, power level.d. Turn or stir food.
Overcooked foods	Cooking time, power level is not suitable.	Use correct cooking time, and power level.
Undercooked foods	a. Materials to be avoided in microwave oven were used.b. Food is not defrosted completely.c. Oven ventilation ports are restricted.d. Cooking time, power level is not suitable.	a. Use microwave-safe cookware only.b. Completely defrost food.c. Check to see that oven ventilation ports are not restricted.d. Use correct cooking time, power level.
Improper defrosting	a. Materials to be avoided in microwave oven were used.b. Cooking time, power level is not suitable.c. Food is not turned or stirred.	a. Use microwave-safe cookware only.b. Use correct cooking time, power level.c. Turn or stir food.

If your appliance shows other symptoms than those described above, or if you have checked all items listed as the cause and the problem still exists, then call Summit Appliance Customer Service at 1-800-932-4267 between 9 AM and 5 PM ET or visit our website at any time at summitappliance.com/support

LIMITED WARRANTY

ONE YEAR LIMITED WARRANTY

Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable standards and are not covered from damage during handling or breakage.

ITEMS WARRANTOR WILL NOT PAY FOR:

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

WARNING: This product can expose you to chemicals including Nickel (Metallic) which is known to the State of California to cause cancer.

For more information go to www.P65Warnings.ca.gov

Note: Nickel is a component in all stainless steel and some other metallic compositions.

Summit Appliance

Division of Felix Storch, Inc.

An ISO 9001:2015 registered company

770 Garrison Avenue

Bronx, NY 10474

www.summitappliance.com

SUMMIT®

For parts and accessory ordering, troubleshooting, and helpful hints, visit: www.summitappliance.com/support

SUMMIT

Technical line drawing of a microwave oven or rack unit (no text or symbols)

NUMÉRO DE MODÈLE - MDR30SS

MANUEL D'INSTRUCTIONS

A B C D E F K J I H G

Technical line drawing of a circular fan or radar device with radial blades and concentric rings (no text or symbols)

A C F D B D E G H Figure 1

A E F B C D G

Figure 2

Figure 1

Abstract black-and-white graphic symbol with curved lines and a circular border (no text or symbols)

DÉCOLLEZ TOUS LES FILMS ET BANDES DE PROTECTION AVANT UTILISATION.

(1) (2) (3) (4) OPEN MUTE | MOLT | POPCORN | SENSOR | DETROST CLOSE TIMER | SOFTEN | BEVERAGE | SENSOR | DETROST (5) (6) (3) (7) (8) (9) (10) 1 2 3 4 5 TIME START 6 7 8 9 0 CODE | ORDER STOP (8) (11) (12)

Division of Felix Storch, Inc.

An ISO 9001:2015 registered company

770 Garrison Avenue

Bronx, NY 10474

www.summitappliance.com
