Brand	Summit
Model	SCR1301
Product Type	Refrigerator for medical or domestic use
Power Supply	115 V ~ 60 Hz, fuse 10-13 A
Refrigerant	Flammable hydrocarbon (quantity and type on rating plate)
Climate Class	3, 4, 5 or 7 according to rating plate
Maximum Ambient Temperature	Up to 104 °F (40 °C) depending on class

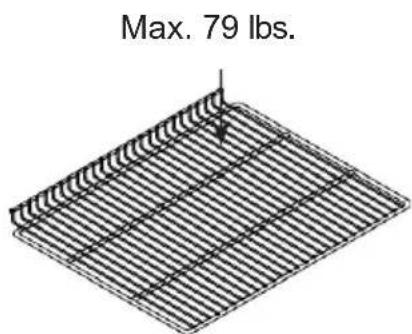

Maximum Load Capacity	79 lb (approximately 36 kg)
Temperature Setting	Electronic via + and - keys
Display	Digital display of actual temperature
ECO Mode	Yes, can be activated manually or automatically after 3 hours of door closed
Interior Lighting	On/off control by button
Defrost	Automatic for evaporator, manual via ECO button (30 min)
Required Ventilation	At least 30 mm at the rear, ventilation grilles provided
Installation	On a flat, level surface, indoors only
Protection	Fuse/circuit breaker 10-13 A
Cleaning	Warm water and non-abrasive dish soap, soft cloth
Condenser Maintenance	Vacuum cleaner to remove dust
Warranty	2 years parts and labor (48 contiguous states), 5 years compressor
Disposal	Complies with WEEE, do not dispose with household waste
Compliance	EU Directives 2014/35 and 2014/30

Frequently Asked Questions - SCR1301 Summit

What is the power supply voltage of the Summit SCR1301?

The unit operates at a voltage of 115 V~60 Hz and must be protected by a 10 to 13 A fuse or circuit breaker.

How to set the temperature on this refrigerator?

Use the + and - keys on the control panel to increase or decrease the set point. The digital display shows the actual temperature.

What does ECO mode mean and how to activate it?

ECO mode increases the set point and turns off the light to save energy. It can be activated by pressing the ECO button, or automatically after 3 hours of door closed. To activate it permanently, access the ECS parameter in the menu (hold up and down arrows for 5 seconds).

How to defrost the Summit SCR1301 refrigerator?

The evaporator defrost is automatic. If manual defrost is necessary, press the ECO button for more than 2 seconds; the cycle lasts 30 minutes then returns to normal mode.

What type of refrigerant is used and are there precautions?

The refrigerant is a flammable hydrocarbon. The quantity and type are indicated on the rating plate. Ensure the room has a volume of at least 1 m³ per 8 g of refrigerant to avoid any risk of flammable mixture in case of leakage.

Can the unit be installed outdoors?

No, the unit must be placed indoors, on a flat and level surface, in a dry and well-ventilated room, away from heat sources and direct sunlight.

How to clean the interior of the refrigerator?

Turn off the power with the on/off button. Use a mixture of warm water and a small amount of dish soap (max 150 ml). Never use abrasive products. Rinse with clean water and wipe with a soft cloth. Regularly clean the defrost water drain channel.

What to do if water is flowing in the bottom of the refrigerator?

This indicates that the defrost water drain hole is clogged. Clean the channel and hole with a pipe cleaner or similar.

The unit is vibrating or making noise. What to do?

Check that the unit is level and not touching other items. Separate bottles or containers that are knocking together. Ensure the floor is stable.

What is the warranty for the Summit SCR1301?

The unit has a limited 2-year warranty on parts and labor (48 contiguous states), and a 5-year warranty on the compressor (labor not included). Damage due to misuse, fire, or improper installation is not covered.

USER MANUAL SCR1301 Summit

SCR1301 ACR1311 SWC1301 BAR131 LBV13

SCR1154 ACR1101 SWC1154 BAR101 LBV11

Write Model & Serial Numbers (on back of unit) here:

Model

Felix Storch, Inc.

An ISO 9001:2015 registered company

770 Garrison Ave

Bronx, New York 10474

www-summitappliance.com

Warning

As the appliance contains a flammable refrigerant, it is essential to ensure that the refrigerant pipes are not damaged.

The quantity and type of refrigerant used in your appliance are indicated on the rating plate.

Standard EN378 specifies that the room in which you install your appliance must have a volume of 1m^3 per 8g of hydrocarbon refrigerant used in the appliances. This is to avoid the formation of flammable gas/air mixtures in the room where the appliance is located in the event of a leak in the refrigerant circuit.

WARNING:

Keep ventilation openings in the appliance's cabinet or in the built-in structure clear of obstruction.

WARNING:

Do not use other mechanical devices or other means to accelerate the defrosting process other than those recommended by the manufacturer.

WARNING:

Do not damage the refrigerant system.

WARNING:

Do not use electrical appliances inside the refrigerated storage compartment, unless they are of a type recommended by the manufacturer.

WARNING:

Do not expose the appliance to rain, and do not splash water when cleaning the floor.

WARNING:

The appliance is not to be used by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction.

WARNING:

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory, or mental capabilities, or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the

appliance safely and have understood the associated hazards.

WARNING:

Children shall not play with the appliance.

WARNING:

Children should not do cleaning and user maintenance without supervision

WARNING:

Do not store explosives, such as aerosol cans with flammable propellants in the unit.

WARNING:

Danger risk of fire or explosion if flammable refrigerant is used. To be repaired only by trained personnel.

WARNING:

When positioning the appliance, ensure the power cord is not trapped or damaged.

WARNING:

Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.

WARNING:

Sharp edges on cabinet,
compressor compartment,
evaporator, ventilation cover and
on internal equipment can occur.
Please be aware to avoid injury.

WARNING:

The condenser on the back of the appliance will in some cases have a hot surface. Please be aware to avoid injury.

WARNING:

Risk of child entrapment. Before you throw away your old refrigerator or freezer: Take off the doors. Leave the shelves in place so that children may not easily climb inside.

• Always keep the keys in a separate place and out of reach of children.
• Do not step on the lower panel to reach medicine at the top of the appliance.

• Before servicing or cleaning the appliance, unplug the appliance from the mains or disconnect the electrical power supply.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

• Frost formation on the interior evaporator wall and upper parts is a natural phenomenon. Therefore, the appliance should be defrosted during normal cleaning or maintenance.
• Please note that changes to the appliance construction will cancel all warranty and product liability.
• If the instructions are lost, please contact your supplier of the appliance to have new instructions for use.
• If this device needs service, please use only service personnel educated in handling medical devices.

Contents

Warning 2

Before starting the appliance. 5

Get to know your bottle cooler 6

Electrical connection. 7

Installation and start-up 7

Ventilation 8

Controller - operation and function. 9

Troubleshooting 10

Defrosting, cleaning, and maintenance. 11

Warranty, spare parts, and service. 12

Disposal 13

Warranty Information. 14

Before starting the appliance

Before operating your new appliance, please read the following instructions carefully as they contain important information on safety, installation, operation, and maintenance. Keep the instructions for future reference.

On receipt, check to ensure that the appliance has not been damaged during transport. Transport damage should be reported to the local distributor before the appliance is put to use.

Remove the transport protector before the appliance is put to use. Hang it on one of the shelves as it can be used to readjust the door.

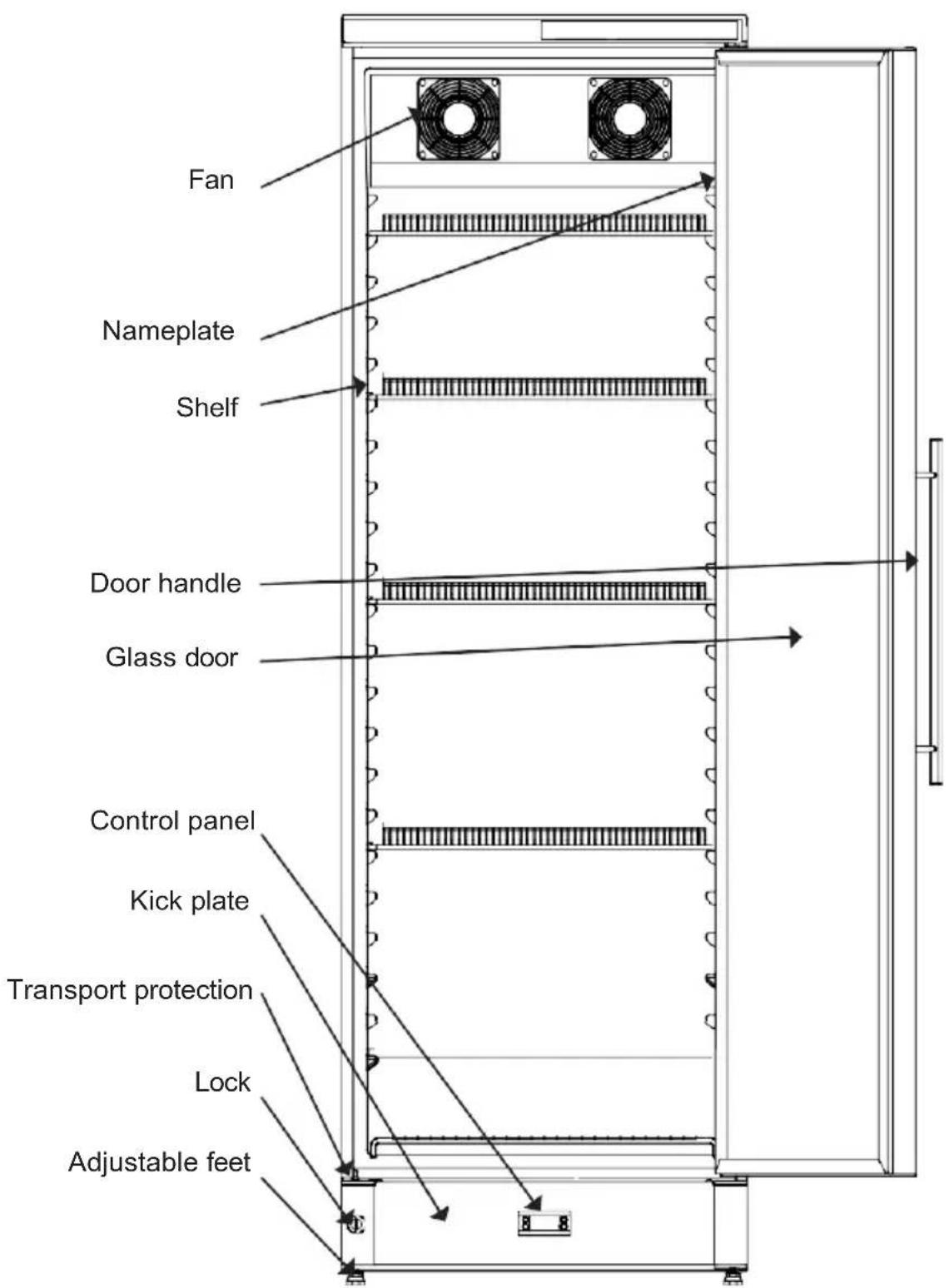

Get to know your bottle cooler

fig. 1

Electrical connection

Winning and electrical connections must follow the local and national electrical codes. Consult the codes' lengths and sizes prior to cabinet installation.

This device complies with relevant EU directives including Low Voltage Directive 2014/35/EU and Electromagnetic Compatibility Directive 2014/30/EU

The socket should be freely accessible.

Connect the appliance only to 115V 60Hz alternating current via a correctly installed earthed socket.

The socket must be fused with a 10-13 A fuse.

If the appliance is to be operated in a non-European country, check on the rating plate whether the indicated voltage and current type correspond to the values of your electrical supply.

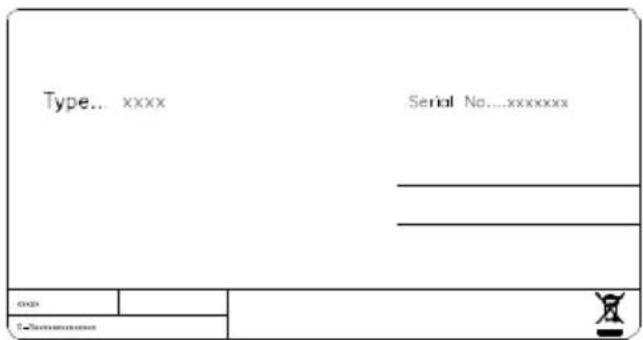

Information regarding voltage, current, or power is given on the rating plate

Only a qualified technician may replace the power cord.

The rating plate provides various technical information as well as type and serial number.

fig. 2

Installation and start-up

Placement

For safety and operational reasons, the appliance shall not be exposed to rain.

The appliance should be placed on a level surface in a dry, well ventilated room. Never place the appliance close to sources of heat and avoid placing it in direct sunlight.

The surface on which the appliance is to be placed must be level. Do not use a frame or similar.

The appliance can be installed as a freestanding unit against a wall or side-by-side with other appliances (see fig. 5)

Room temperature

The climate class is stated on the nameplate. This specifies the optimum room temperature.

Room climate class	Max room temperature °F	Relative humidity %
3	77	60
4	86	55
5	104	40
7	95	75

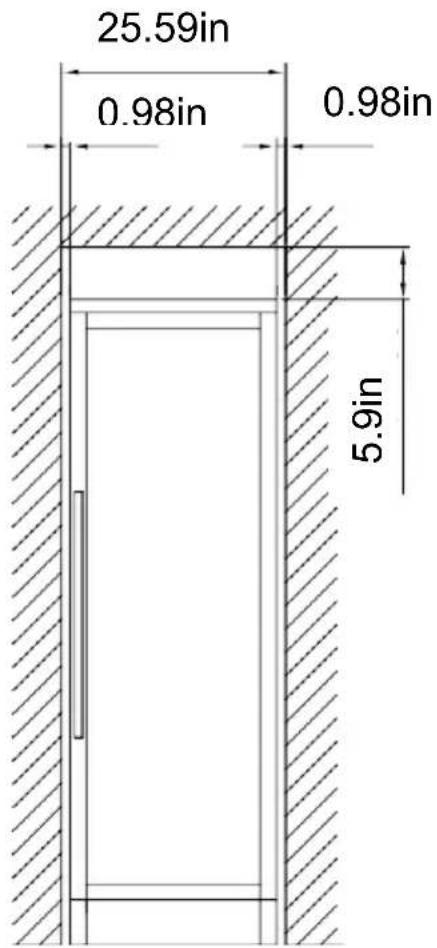

Ventilation

It is important that the appliance be well ventilated, and that air can circulate unhindered above, below, and around it. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. The figures below illustrate the clearance necessary to achieve the required air circulation.

OBS: There must be at least 1.18in (30mm) between the cabinet and the wall behind it. The two ventilation guards are mounted before moving the appliance to its final placement.

The guard's function is to secure the absolute minimum of ventilation if the appliance is pushed too close up against a wall.

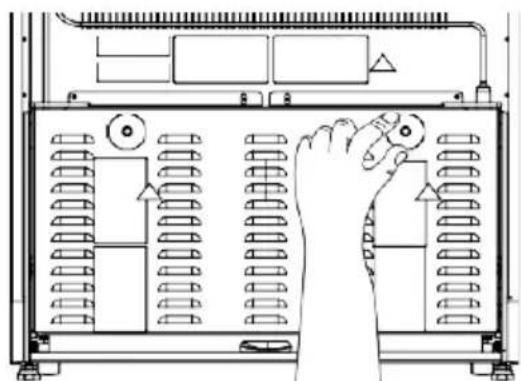

Steps:

1. Mount the ventilation guards in the holes on the back cover. (Fig 3)

fig. 4

fig.3

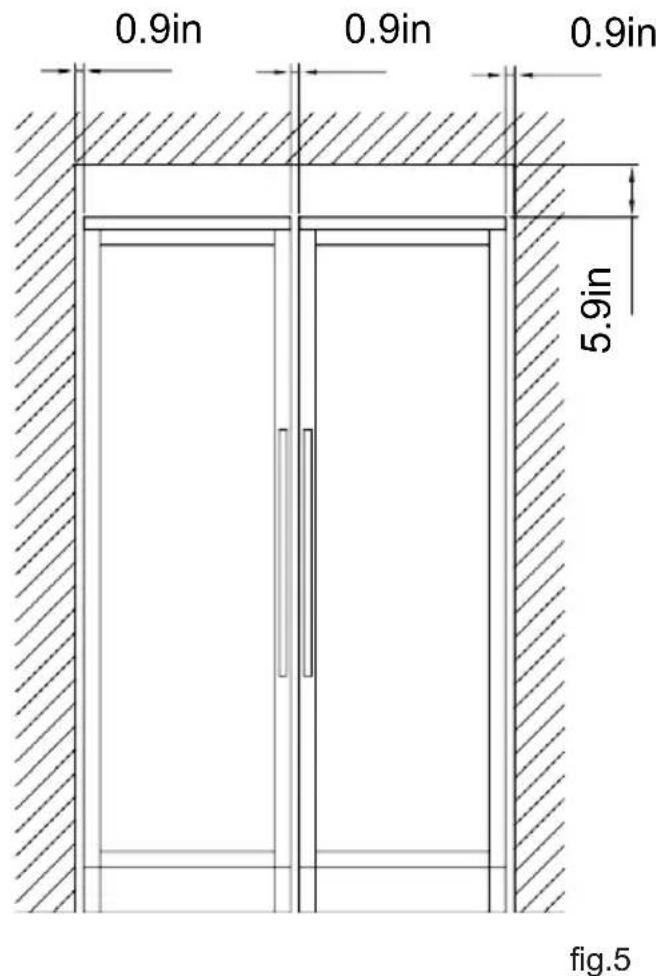

Side by side

In a side-by-side arrangement, there must be at least 0.9in (25mm) between and at the sides of the cabinets, so the doors can be opened freely

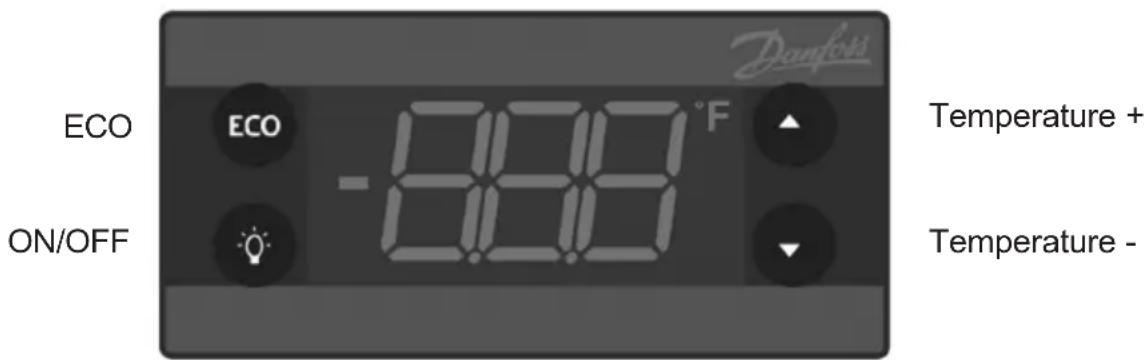

Controller - Operation and function

fig. 6

Electronic controls

The electronic controls ensure that the set temperature is maintained.

Following any power failure, the temperature settings are automatically recalled.

Manual defrosting

If there is a need for manual defrosting, push the ECO button for more than 2 seconds and a manual defrost will start.

After 30 minutes, the electronic control will return to normal mode.

Temperature display

The display shows the actual temperature in the cabinet and indicates that power is connected.

Temperature setting

Push the button to increase the set point and to decrease the set point.

Light ON/OFF

Press the button briefly to turn on and turn off the light.

ON/OFF

Push and hold the button for more than 2 sec. to switch the appliance on and off.

ECO mode:

In ECO mode the set point is higher than in serving mode.

ECO mode is switched ON/OFF by pushing the ECO button

ECO mode is also switched ON when the door has not been opened for 3 hours and switched OFF when the door opens.

ECO mode is OFF by default.

How to switch ON ECO mode:

ECO mode is switched ON/OFF in the parameter ECO in the parameter group ECS Access the parameter by:

1. Press and hold "up and down" for 5 sec
2. First parameter group shown is tHE
3. Press "up or down" to find parameter group ECS
4. Press "OK"
5. Press "down" to select ECO
6. Press "OK"
7. Press "down" to select yes
8. Press "OK"

After 30 seconds the display automatically reverts to showing the current temperature.

Troubleshooting

Issue	Possible cause	Remedy
The unit does not work	The appliance is switched off.	Press the on/off switch.
	Power failure: the fuse is blown; the appliance is not plugged in correctly.	Check that power is connected. Reset the fuse.
Water collects in the bottom of the cabinet.	The defrost water pipe is blocked.	Clean the defrost water channel and the drain hole on the rear wall of the cabinet.
Vibration or bothersome noise.	The appliance is not level. The appliance is resting against other kitchen elements.	Level the appliance using a spirit level.
	Containers or bottles inside the cabinet are rattling against one another.	Move the appliance away from the kitchen elements or appliances it is in contact with. Move containers and/or bottles apart.
Compressor runs continuously.	High room temperature.	Ensure adequate ventilation.

Defrosting, cleaning, and maintenance

Automatic defrosting.

The unit is defrosted automatically. Defrost water runs through a pipe and is collected in a tray above the compressor where the heat generated by the compressor causes it to evaporate. The defrost water tray should be cleaned at intervals.

Cleaning.

Before cleaning the appliance, unplug it from the main supply. The cabinet is best cleaned using warm water (max. 150^ ) with a little mild detergent. Never use a scouring cleaning agent. Use a soft cloth. Rinse with clean water and dry thoroughly.

The defrost water channel, in which condensation from the evaporator runs, is located at the bottom of the rear inside wall of the cabinet and must be kept clean. Add a few drops of disinfectant, e.g., Rodalon, to the defrost water drain a couple of times a year and clean the drain using a pipe cleaner or similar. Never use sharp or pointed implements.

The sealing strip around the door must be cleaned regularly to prevent discoloration and prolong service life. Use clean water. After cleaning the sealing strip, check that it continues to provide a tight seal.

If dust is collecting on the condenser on the rear of the cabinet, the compressor and the compressor compartment are best removed using a vacuum cleaner.

Warranty, spare parts, and service

Warranty disclaimer

Faults and damage caused directly or indirectly by incorrect operation, misuse, insufficient maintenance, incorrect building, installation, or mains connection. Fire, accident, lightning, voltage variation, or other electrical interference, including defective fuses or faults in mains installations.

Repairs performed by others than approved service centers and any other faults and damage that the manufacturer can substantiate are caused by reasons other than manufacturing or material faults are not covered by the warranty.

Please note that changes to the construction of the appliance or changes to the component equipment of the appliance will invalidate the warranty and product liability, and the appliance cannot be used lawfully. The approval stated on the rating plate will also be invalidated.

Transport damage discovered by the buyer is primarily a matter to be settled between the buyer and the distributor, i.e., the distributor must ensure that such complaints are resolved to the buyer's satisfaction.

Before calling for technical assistance, please check whether you are able to rectify the fault yourself. If your request for assistance is unwarranted, e.g., if the appliance has failed as a result of a blown fuse or incorrect operation, you will be charged the costs incurred by your call for technical assistance.

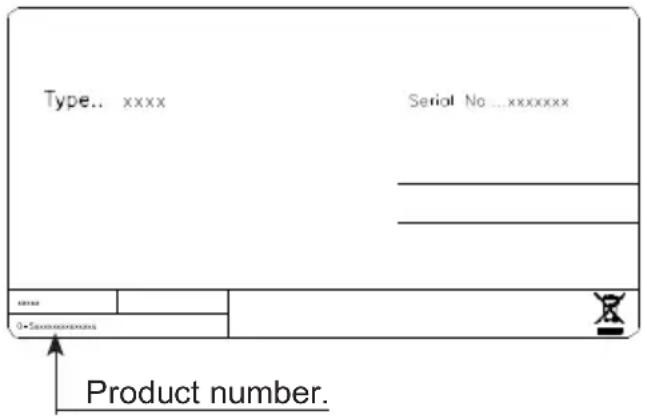

Spare parts

When ordering spare parts, please state the type, serial, and product numbers of your appliance. This information is given on the rating plate. The rating plate contains various technical information, including type and serial numbers.

Disposal

Information for Users on Collection and Disposal of Old Equipment and used Batteries

The symbol on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation.

By disposing of the product and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

CALIFORNIA CARB/SNAP DISCLOSURE

This product uses eco-friendly hydrocarbon refrigerant and fully complies with California CARB regulations.

However, we are required by California Law to provide the following disclosure statement in every product sold in California.

"This equipment is prohibited from use in California with any refrigerants on the 'List of Prohibited Substances' for that specific end-use, in accordance with California Code of Regulations, title 17, section 95374. This disclosure statement has been reviewed and approved by Felix Storch, Inc. and Felix Storch, Inc. attests, under penalty of perjury, that these statements are true and accurate."

This product does not use any refrigerants on the 'List of Prohibited Substances"

ONE-YEAR LIMITED WARRANTY

Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable standards and are not covered from damage during handling or breakage.

5-YEAR COMPRESSOR WARRANTY

1. The compressor is covered for 5 years.
2. Replacement does not include labor.

ITEMS WARRANTYOR WILL NOT PAY FOR:

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Expenses for travel and transportation for product service in remote locations.
7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

DISCLAIMER OF IMPLIED WARRANTY; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTYES, INCLUDING WARRANTYES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTYOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTYES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

WARNING: This product can expose you to chemicals including Nickel (Metallic) which is known to the State of California to cause cancer.

For more information go to www.P65Warnings.ca.gov

Note: Nickel is a component in all stainless steel and some other metallic compositions.

Felix Storch, Inc.

An ISO 9001:2015 registered company

770 Garrison Ave

Bronx, New York 10474

www-summitappliance.com

For parts and accessory ordering, troubleshooting and helpful hints, visit: www-summitappliance.com/support

Avtissement

An ISO 9001:2015 registered company

770 Garrison Ave

Bronx, New York 10474

www-summitappliance.com

SUMMIT

For parts and accessory ordering, troubleshooting and helpful hints, visit: www-summitappliance.com/support
