USER MANUAL WBKVC159DW Wisberg

Fridge freezer combination

Control panel Circuitors U V W B L N D Switch Switch

Climate classification N / ST / T
Total storage volume 227L
Electric shock classification Class
Voltage 220/240V-
Frequency 501Hz
Rated current 0.72A
Temperature rise time 10h
Energie Consumption E16 0.272kWh/24h
Energie Consumption E32 0.548kWh/24h
Refrigerant R600(μd48g)
Total input power 70W
Freezing capacity 3.4kg/24h
Natto weight	43kg
Product code	945BB4

Serial Number:

Batchcode:

Wisepick Productions B.V.
Weeno 664
3012CN, Rotterdam
The Netherland
Made in China

WBKVC159DZ

Zilver - Silver - Argent - Silber

WISBERG

WBKVC159DZ
Fridge-Freezer Combination

Climate classification N / ST / T
Total storage volume 227L
Electric shock classification Class I
Voltage 220-240V~
Frequency 50Hz
Rated current 0.72A
Temperature rise time 10h
Energe Consumption F16 0.772 kWh/24h
Energie Consumption E32 0.648 kWh/24h
Refrigerant R600μl48gJ
Total input power 70W
Freezing capacity 3.4kg/24h
Netto weight	43kg
Product code 945885

Serial Number:

Batchcode:

Wisopick Productions B.V.
Wacna 664
3012CN, Rotterdam
The Netherlands
Made in China

Climate classification -	Klimaatklasse / Classification climatique / Klimaklassifizierung
Total storage volume -	Totale inhoud / Volume total / Gesamtvolumen
Electric shock classification -	Classificatie van elektrische schokken / Classement des chocs électriques / Elektroschock-Klassifizierung
Voltage -	Spanning / Tension / Spannung
Frequency -	Frequentie / Fréquence / Frequenz
Rated current -	Nominale spanning / Tension nominale / Nennspannung
Temperature rise time -	Temperatuurstijgtijd / Temps de montée en température / Zeit des Temperaturanstiegs
Energie Consumption E16 -	Energieverbruik E16/ Consommation d'énergie E16/ Energieverbrauch E16
Energie Consumption E32 -	Energieverbruik E32/ Consommation d'énergie E32/ Energieverbrauch E32
Refrigerant -	Koelmiddel / Réfrigérant / Kältemittel
Total input power -	Totaal ingangsvermogen / Puissance d'entrée totale / Gesamte Eingangsleistung
Freezing capacity -	Vriescapaciteit / Capacité de congélation / Gefriervermögen
Netto weight -	Netto gewicht / Poids net / Nettogewicht
Product code -	Productcode / Code produit / Produktcode

INHOUDSOPGAVE

VOORWOORD

4

1. VEILIGHEID 5

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Nederland

Made in China

1. VEILIGHEID

1.2 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

WAARSCHUWING!

Simple line drawing of a square frame with an 'X' symbol on top and two base supports at the bottom (no text or labels)

Simple line drawing of a rectangular frame with a black checkmark on the side (no text or symbols)

4. Reinig

Illustration showing a hand installing or adjusting a wooden shelf panel and a mechanical device with two upward arrows (no text or symbols)

3.2 DE DRAAIRICHTING VAN DE DEUR OMKEREN

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Nederland

Made in China

INSTRUCTIONS FOR USE

1.1 Intended use and anticipated unintended use 24
1.2 Safety warnings and regulations 24
1.3 Safety instructions: installation 25
1.4 Safety instructions: use 26

2. PRODUCT FEATURES 27

2.1 Dimensions 27
2.2 Guarantee 28
2.3 Technical Data 28

3. INSTALLATION 28

3.1 Installing the appliance 28
3.2 Reversing the direction in which the door opens 30

4. USE 33

4.1 Precautions for use 33
4.2 Setting the temperature 33
4.3 Storage of food 34

5. MAINTENANCE AND CLEANING 35

6. TROUBLESHOOTING 36

7. TAKING OUT OF SERVICE 38

8. SAFE DISPOSAL 38

FOREWORD

About this document

• This manual contains all information for the correct, efficient and safe use of the appliance.
• This manual is intended for the end user and/or buyer of this appliance.
• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.
• Wisepick Productions B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.
• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.
• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading.

SYMBOL DESCRIPTION
DANGER!	Fire hazard and/or flammable materials
WARNING!	Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others.
CAUTION!	Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others.
ATTENTION!	Indicates a situation related to material damage.
NOTE	Indicates useful additional information.

NOTE

You can also find the latest version of this manual online, at wisberghome.com if you search for the article number.

Copyright

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Wisepick Productions B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Wisepick Productions B.V. and/or the third party to whom the data belong.

Wisberg contact details

Customer service can be reached at: wisberghome.com

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China

1. SAFETY

1.1 INTENDED USE AND ANTICIPATED UNINTENDED USE

• This appliance is only intended for use indoors.
- This appliance is not intended for use as a built-in appliance.
- This appliance is intended for domestic use and similar applications such as: - staff kitchens in shops, offices and other work environments; - farms and guests in hotels, motels, B&B and other residential environments; - catering and similar non-retail applications.

- This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

- Any use of the appliance other than as described in this manual is considered to be unintended use and may result in property and immaterial damage to you or to others, the appliance, your other property or other people's property and the expiry of the warranty.

1.2 SAFETY WARNINGS AND REGULATIONS

WARNING!

• Keep the vents in the appliance housing open.
• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your freezer.
• Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance.
• Do not place electrical appliances in the food storage compartments of the freezer (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• Never open the appliance and do not perform any repairs to the appliance that are not described in this manual. The appliance may only be opened for maintenance by an authorised service technician.
• It is dangerous to change the characteristics or specifications of the appliance or to try to modify this product in any way.

DANGER!

• Do not use this appliance with extension leads or power strips.
• Never use a timer, inverter or a separate remote control that automatically turns the appliance on or off. Do not connect the appliance to an earthed power socket that is regularly switched on or off.
• Do not twist or kink the power cable or roll the cable up. Do not clamp the power cable between the surface and the appliance. This can damage the cable's insulation.
• Never pull on the power cable to move the appliance or to unplug it from the earthed socket.
• Keep the power cable away from heat, oil, sharp edges or moving parts.

- Do not use the appliance if the power cable is damaged. Never replace the power cable yourself. The power cable may only be replaced by an authorised service technician.

- Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V\~50Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.

- Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT

• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.
  • Always place the appliance on a moisture-resistant and dry surface.
• Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.
• Do not touch the appliance or power cable with wet hands.

1.3 SAFETY INSTRUCTIONS: INSTALLATION

CAUTION!

• Never leave the power cable in such a way that someone could trip over it or accidentally pull it.
• Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.

ATTENTION!

• Use only the original accessories provided for the installation.
• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.
• Never clean the appliance with aggressive or abrasive cleaners, or sharp objects.
• Cleaning and user maintenance must not be carried out by children without supervision.
• Never drop the appliance and avoid bumping. Dropping or bumping the appliance may affect the proper operation of the appliance. Do not use the appliance if it has been dropped.
  • Make sure that the power cable of the installed appliance is always easily accessible.
• Ensure that air can circulate around the appliance.
• Pull the plug out of the socket before carrying out any actions on the appliance (e.g. turning the door).

• The correct operation of the appliance can only be guaranteed if the specified temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance will function correctly, but energy consumption may increase slightly.

• Do not install the appliance near radiators, stoves, ovens or hobs.

• Do not install the appliance in direct sunlight.
• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit, consider the size of the space in which the appliance is located and the amount of refrigerant used.
• The total volume of the space in which the appliance is installed divided by the amount of refrigerant of the appliance must not be less than 8 g/m3. The amount of refrigerant contained in the appliance can be found on the type plate.
• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time. Please refer to the "Climate Range" table.

Climate Range

The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (or room temperature) the operation of the appliance is optimal (correct). This type of refrigerator has climate range N, ST and T.

CLIMATE RANGE PERMISSIBLE AMBIENT TEMPERATURE
SN From +10°C to +32°C
N From +16°C to +32°C
ST From +16°C to +38°C
T From +16°C to +43°C

1.4 SAFETY INSTRUCTIONS: USE

CAUTION!

• Do not place carbonated or sparkling drinks in the freezer compartment.
• Do not remove objects from the freezer compartment if your hands are wet/damp as this may cause grazes or frostbite.
• Food storage times recommended by the food manufacturer must be observed.
• When the door is open for a long time, the temperature in the compartments of the appliance can rise considerably.
• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Store raw meat and fish airtight in suitable containers or freezer bags in the appliance so that they do not come into contact with or drip on other foods.
• If the appliance remains empty for a long time, switch it off, clean and dry it and leave the door open to prevent mould forming in the appliance.

2. PRODUCT FEATURES

2.1 DIMENSIONS

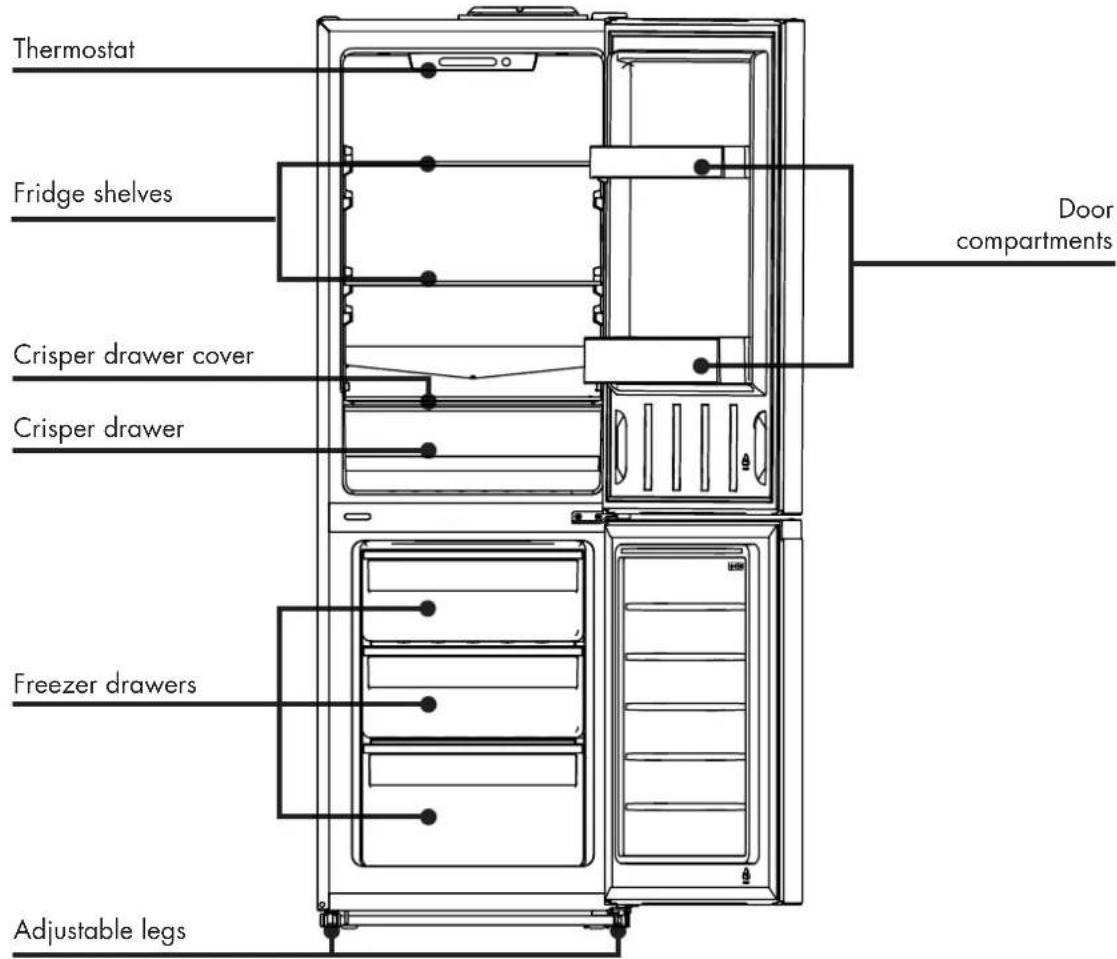

Thermostat Fridge shelves Crisper drawer cover Crisper drawer Freezer drawers Adjustable legs Door compartments

Z

W G H

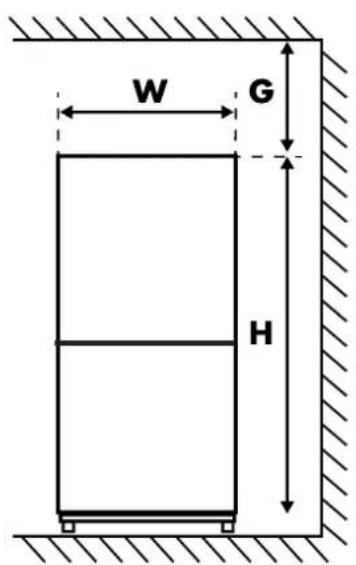

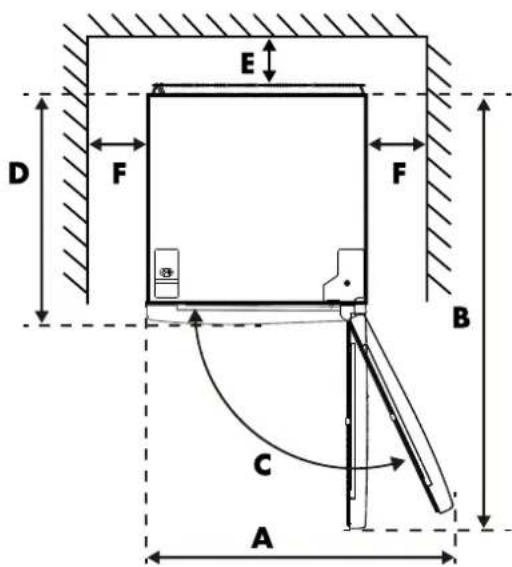

• Figure 1: Front view • Figure 2: Top view

E D F F B C A

Figures 1 and 2 only illustrate the space required for the appliance.

2.2 GUARANTEE

This appliance comes with a guarantee period of three years after purchase. For more information on guarantee conditions, please visit wisberghome.com. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee. If you place the appliance in an ambient temperature that is colder than the minimum temperature, the guarantee lapses.

Spare parts

Spare parts for this appliance are available. To order or find out more, visit wisberghome.com.

2.3 TECHNICAL DATA

Does not contain freon

The freon-free freezerrant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the appliance do not affect the ozone layer and have a very small impact on global warming.

Technical data and energy label

The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both also printed on page 2). The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database. Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to find the same information in EPREL via the link https://eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance. See link www.theenergylabel.eu for detailed information on the energy label.

3. INSTALLATION

3.1 INSTALLING THE APPLIANCE

Before installing the appliance, carefully review the safety information (chapter 1).

1. Unpack

Remove the packaging materials and dispose of them properly. Check that the appliance is not damaged. Do not connect the appliance if it is damaged. Report any damage immediately to the salesperson via customer service. In that case, keep the packaging.

2. Location

• The location where you place your appliance should be well ventilated.
  • Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.
• Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so as to guarantee the cooling effect and save on energy consumption.
• Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.
• Do not use the appliance outdoors. This appliance is only intended for use indoors.

3. Installation of the appliance

• This appliance is not intended for use as a built-in appliance.
• Use only the original accessories provided for the installation.
• To reverse the direction in which the door opens, go to section 3.2.
• During operation, the appliance emits heat to the environment. Therefore there must be at least 3 cm clearance on the top, at least 10 cm on both sides and at least 5 cm on the back of the appliance (see also section 2.1).
• Use the front adjusting legs to level the appliance. If the appliance is not level, it is possible that the door may not close properly, reducing the cooling performance of the appliance. If the appliance is not level, this can also lead to malfunctions.
• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.
• It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.

• Always place the appliance on a moisture-resistant and dry surface.
- Place the appliance on a firm and flat surface (floor) so that it is stable, otherwise vibrations and noise may occur. When placing the appliance on floor coverings such as carpets, straw mats or polyvinyl chloride (PVC), place a solid sheet or cover under the appliance to prevent colour change due to heat dissipation.

4. Clean

Before putting the appliance into use, clean the interior and all associated accessories with lukewarm water and neutral soap. Dry everything carefully. Do not use solvents or abrasive powders; these may damage the coating.

5. Wait

On first installation (or after turning the door) wait at least four hours before plugging in the appliance. This allows the oil to flow back into the compressor.

6. Switch on

Before plugging in the power cable, check that the voltage and frequency of the type plate match your power supply network. Only connect the appliance to an earthed power socket. After one hour, open the door of the appliance. If the temperature in the appliance is noticeably lower, this indicates that the cooling system is operating normally.

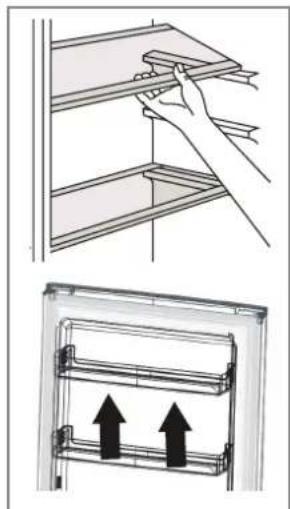

7. Mounting accessories

- Adjustable shelves

The walls of the appliance are equipped with a series of guide profiles so that the shelves can be inserted if desired.

- Installing the door compartments

To store food of different sizes, the door compartments can be set to different heights. Proceed as follows: gradually pull the compartment in the direction of the arrows until it comes loose and put it in the desired position.

8. Storing food

See Section 4 "Use".

Simple line drawing of a monitor with a black 'X' symbol on its screen (no text or labels)

Simple line drawing of a rectangular frame with a black checkmark symbol on the side (no text or labels)

Illustration showing a hand installing or adjusting a metal shelf panel and a close-up of the internal structure with two upward arrows (no text or symbols)

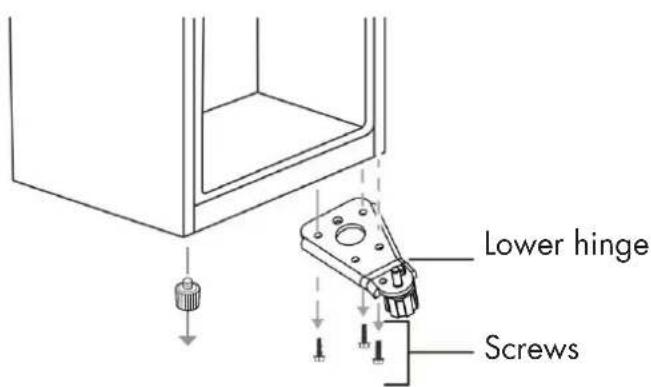

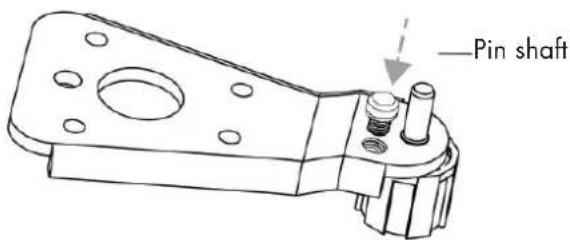

3.2 REVERSING THE DIRECTION IN WHICH THE DOOR OPENS

1. Make sure that your fridge freezer combination is unplugged.

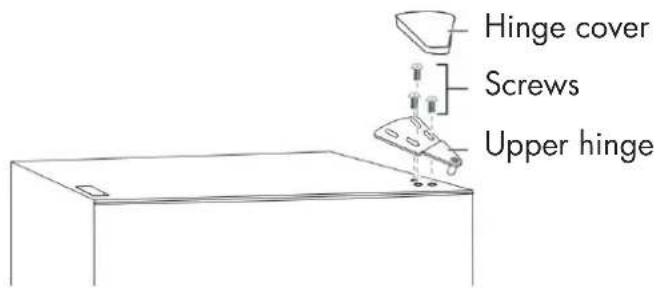

2. Pry the hinge cover up and off, remove the three screws that secure the upper hinge to the door, then remove the hinge.

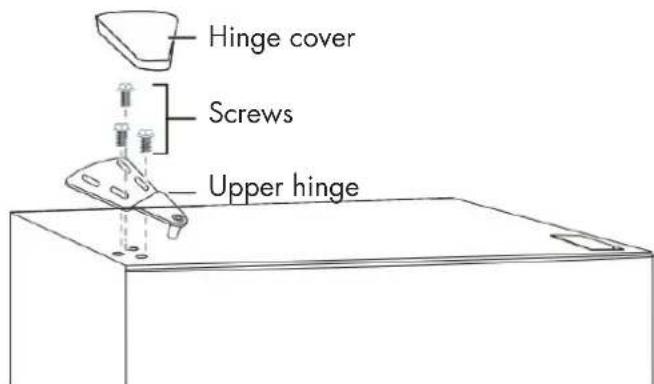

Hinge cover Screws Upper hinge

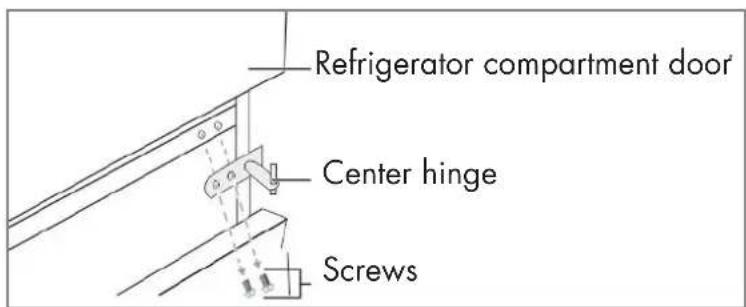

1. Remove the refrigerator compartment door from the cabinet.

2. Remove the two screws that secure the centre hinge.

Refrigerator compartment door Center hinge Screws

1. Remove the freezer compartment door.

2. Remove the adjustment leg on the left side of the cabinet and set it aside for later installation. Remove the screws that secure the lower hinge to the right side of the cabinet, then remove the hinge.

Lower hinge Screws

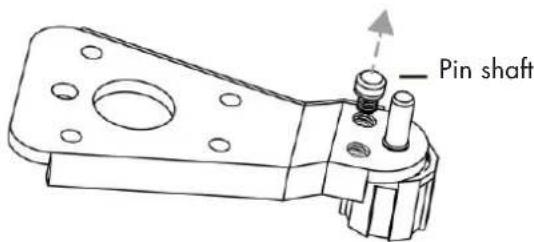

1. Remove the bottom ring and nut securing the pin shaft to the right hole on the lower hinge, then remove the shaft.

Pin shaft

1. Insert the pin shaft into the left hole on the lower hinge, then secure the shaft with the washer and nut.

Pin shaft

1. Install the lower hinge on the left side of the cabinet.

2. Install the adjustment leg removed in step 6 on the right side of the cabinet.

3. Remove the screw that secures the door stop from the bottom right of the freezer compartment door, then remove the door stop and install to the bottom left side.

Freezer door

Door stop

1. Install the freezer compartment door.

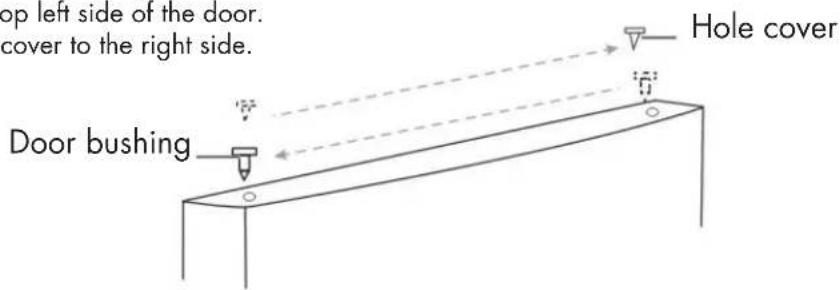

2. Move the door bushing from the top right side of the freezer door to the top left side of the door. Then move the left hole cover to the right side.

top left side of the door. cover to the right side. Door bushing Hole cover

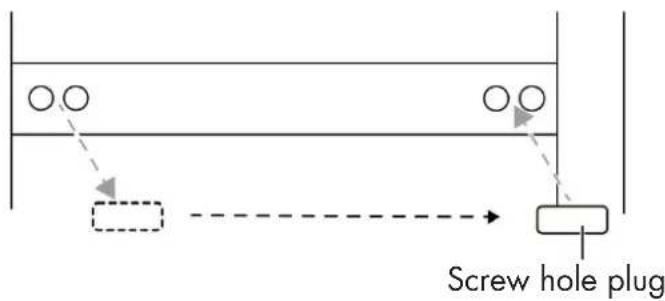

1. Remove the centre hinge screw hole plug on the left side of the cabinet, then install in the screw holes on the right side of the cabinet.

Screw hole plug

1. Install the centre hinge to the left side with the two screws you removed previously.

Freezer compartment door Center hinge Door bushing Screws

1. Remove the screw that secures the door stop from the bottom right of the refrigerator compartment door, then remove the door stop and install to the bottom left side.

Refrigerator door Left door stop

1. Install the Refrigerator compartment door.

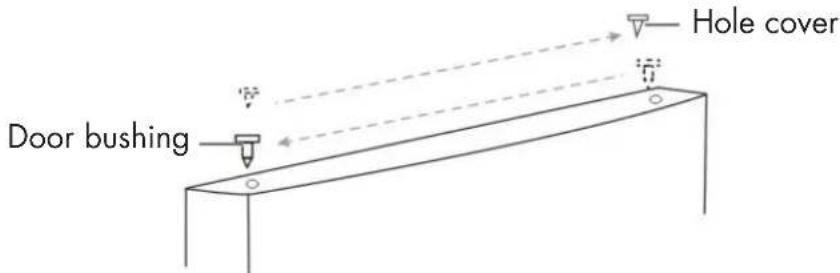

2. Move the door bushing from the top right side of the Refrigerator door to the top left side of the door. Then move the left hole cover to the right side.

Door bushing Hole cover

1. Remove the hole cover from the top left side of the cabinet and secures the cover on the top right side of the cabinet.

Hinge screw hole cover

1. Secure the upper hinge to the top left side of the cabinet with the three screws you removed previously. Before you tighten the upper hinge screws, make sure that the top of the door is level with the cabinet and that the rubber gasket makes a good seal. And finally, install the cover cap with the screws provided (it is included in the bag of supplied accessories) over the hole of the right hinge.

Hinge cover Screws Upper hinge

1. Install the hinge cover over the hinge on the top left side of the cabinet.

4. USE

4.1 PRECAUTIONS FOR USE

• On first use or after a long period of downtime: run the appliance for at least four hours at position '5' before placing products in the freezer. After 24 hours, set the temperature control between '1' and '5'.
• The appliance may not operate optimally (risk of thawing or too high a temperature in the freezer) if it is in a place where the ambient temperature is below the minimum of the temperature range for which the appliance is designed for a longer period of time. The information about the temperature range (climate type) of the appliance is stated on the type plate, which is explained in section 1.3.
• The interior temperature may be affected by factors such as the location of the cooling unit, the ambient temperature and the frequency with which the door is opened. Adjust the temperature setting if desired.
• If vibration noise occurs because the appliance is positioned against the wall or if the wall becomes black due to air circulation around the compressor, you should place the appliance away from the wall.
• Do not place filled glass or can packages in the freezer to avoid breakage due to volume expansion.
• Do not place electrical appliances in the freezer (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• Packaging with flammable gases or liquids may leak at low temperatures, do not store flammable gases or liquids in the appliance.
• Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.
• Do not place carbonated or sparkling drinks in the freezer compartment.
• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.
• Only use the power cable installed on the appliance from the factory. Do not change the power cable. The power cable may only be replaced by an authorised service technician.
• Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.
• Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V\~50/60Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.

4.2 SETTING THE TEMPERATURE

The temperature of the fridge freezer combination is controlled by the control panel mounted in the fridge compartment.

- The fridge freezer combination temperature setting cycles as following:

COLDEST COLD	5	When the user needs a colder temperature.
	4
	3	Normal use.
	2	When the user does not need a colder temperature.
	1

• Mode "3" is recommended. Mode "5" is not recommended to avoid freezing any food.
• You can set the 'fast cool' function to quickly cool or freeze foods. The 'fast cool' function will stop automatically after 26 hours, or it can be disabled manually.

FAST COOL 5 .... 4 .... 3 .... 2 .... 1 COLDEST RECOMMEND COLD SET

If the indicator light '5' or '3' or '1' starts flickering, it indicates that the refrigerator has malfunctioned. Please contact the after-sales personnel for on-site service as soon as possible.

4.3 STORAGE OF FOOD

• The freezer is suitable for freezing fresh food and storing frozen food for a long time.
• The maximum amount of food that can be frozen in 24 hours is for this appliance: 3.4kg .
• The freezing process takes 24 hours. Do not add any other food to freeze during this period.
• The temperature of the freezer is kept below -18°C if the thermostat is set between '1' and '5'. This allows food to be stored for a long time. The storage period on the packaging must be observed.

- The ideal temperature setting for the freezer is -18°C. It is possible to set it colder, but in principle this is not necessary. A lower temperature does not mean that food will last longer, but every degree lower does mean more energy consumption.

- Allow hot food to cool to room temperature before putting it in the freezer.

- Only freeze fresh and thoroughly cleaned foods.

- Prepare the food in small portions so that it is soon completely frozen and can then be thawed in the desired amount.

- Do not allow fresh, non-frozen food to come into contact with food that has already been frozen, and prevent the temperature of the food that has already been frozen from rising.

- Lean foods are better and more durable than fatty foods; salt shortens the shelf life of food.

- Ice lollies, if eaten directly from the freezer, can cause frostbite.

- It is advisable to indicate the freezing date on each individual package in order to keep track of the shelf life.

- It is advisable to keep the time between buying the food and putting it in the freezer as short as possible.

- Pack the food airtight into food freshness bags before distributing it evenly over the freezer drawers.

- Packaging bags you use should be dry, in case several packaging bags are frozen together.

- Ensure there is sufficient space between foods. Putting them too close together blocks the cold airflow, affecting the cooling effect.

- To prevent cross-contamination and odour transfer, food should be packed in suitable materials that are sturdy, flavourless, impermeable to air and water, non-toxic and pollution-free. Tips for buying frozen goods

- When you buy frozen products, read the storage guidelines on the packaging. You can store any frozen product for the period indicated by the star rating. This usually corresponds to the period stated as "best before" on the front of the package.

- Ensure that frozen food packaging is in perfect condition.

• Always buy frozen products at the end of your shopping trip or visit to the supermarket.

- Try to keep frozen food together while shopping and on the way home as this helps to keep food cooler.

- Only buy frozen food if you can freeze it immediately. In most shops, you can buy special insulating bags. These keep frozen food cold for longer.

- Use good quality food and handle it as little as possible. When food is frozen in small quantities, it takes less time to freeze or thaw it.

- Estimate the amount of food to be frozen. When freezing large quantities of fresh food, set the temperature control knob to low mode, this sets the freezer temperature lower. This allows you to freeze the food quickly, keeping it fresh.

5. MAINTENANCE AND CLEANING

Before cleaning the appliance, carefully review the safety information (Section 1).

CAUTION!

• Always remove the plug from the earthed socket before cleaning the appliance.
- Cleaning and user maintenance must not be carried out by children without supervision.
- Never touch the plug with wet or moist hands because of the risk of electric shocks and injury.
- Do not remove objects from the freezer compartment if your hands are wet/damp as this
- may cause grazes or frostbite.
- Do not put your hands unprotected in the bottom of the appliance as the sharp metal corners can cause scratches.
- Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your appliance.
- Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.

ATTENTION!

• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Never open the appliance. The appliance may only be opened for maintenance by an authorised service technician.
• Do not spill water directly onto the appliance to prevent rust, leakage and accidents.
• Do not use water jets and steam to clean the appliance.
• To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts etc.
• The electrical parts of the appliance may only be cleaned with a dry cloth.

NOTE

Once in use, it is best to use the appliance continuously. Under normal circumstances it is best not to interrupt its use in order not to affect the lifetime of the appliance.

DEFROSTING

When the appliance is in use for some time, a thin layer of ice is formed on the surface of the inner wall of the freezer compartment (or evaporator). If this layer is more than 3 mm thick, it can affect the cooling effect. Energy consumption increases by about 10 percent for every 2 millilitres of ice. The ice layer should be removed approximately every three months.

Go through the following steps to remove the ice layer:

• Remove frozen food from the appliance. Place the food temporarily in a cool box, cooler bag or an extra freezer.
• Turn the appliance off, open the door and allow the freezer to defrost.
• Place a drip tray under the freezer, or place towels in and under the freezer. Stay nearby to drain meltwater.
• Remove the fixed ice crust when it softens. Do not use scrapers or spatulas as this can damage the freezer.
  • After defrosting, clean the inside of the appliance and turn the appliance on.
• Run the unit for at least four hours on position '5' before putting products back in the freezer. After 24 hours, set the temperature control back to between '1' and '5'.

INTERIOR AND EXTERIOR CLEANING

• Food residues in the appliance can cause a bad smell. The appliance should therefore be cleaned regularly.
• Remove all drawers, shelves, door compartments etc. and clean with a soft cloth or sponge moistened with warm water or a neutral detergent.
• If you are using cleaning agents, clean with a soft cloth or sponge, and wipe dry.
  • Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this (no water).
• If the appliance will not be used for several months, switch it off, unplug it from the socket, clean and dry it and leave the door open to prevent mould forming in the appliance. For more information on switching off and storage, see Section 7.

6. TROUBLESHOOTING

You can solve some problems easily yourself using the table below. If the following descriptions do not solve your problem, please contact our customer service: wisberghome.com

Only an authorised service technician may solve the malfunctions that are not listed in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

PROBLEM POSSIBLE CAUSE SOLUTIONS

The appliance does not cool at all	- The temperature control knob is in the Coldest position.- The plug is not inserted properly.- There is no voltage on the socket.- The fuse is blown or defective.- Where is the device installed? Is it located on a balcony, in a garage, storage room or other place where the ambient temperature is less than 16°C?	- Switch the thermostat to another position.- Insert the plug properly.- Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician.- Check the fuse and replace if necessary.- Install the appliance in a protected location where the ambient temperature is higher than 16°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly.
The door does not open easily.	- You tried to open the door immediately after closing.	- Wait a few seconds between closing and re-opening the door.
Water runs over the back of the appliance	- During the automatic defrosting process, icing thaws against the back wall.	- Wipe up the water with a soft cloth.
Water enters the appliance	- Products prevent water from entering the water collection container.- The water collection channel is blocked.	- Ensure products do not touch the back wall.- Clean the water collection channel.
There is too much condensation on the back wall of the appliance.	- The door has been opened too often.- The door is not completely closed.- The stored food was not packed.	- Only open the door if necessary.- Make sure the door is completely closed.- Pack food in suitable material before putting it in the appliance.
There is water on the floor.	- The defrost water collection channel is not connected to the evaporator container above the compressor.	- Secure the defrost water collection channel to the evaporator container.
The appliance freezes or cools too much.	- The temperature is set too cold or the appliance is in the coldest position.	- Temporarily set the temperature control knob to a warmer position.
PROBLEM POSSIBLE CAUSE SOLUTIONS
The temperature in the appliance is too low/high.	- The temperature is not set correctly.- The door is not closed properly.- The temperature of the food in the fridge is too high.- Many products are stored at the same time.- The door has been opened too often.	- Set a higher/lower temperature.- Find the cause of the door not closing properly, remove or move possible obstacles.- Allow the food to cool to room temperature before preserving.- Preserve fewer products at the same time.- Only open the door if necessary.
Strange smell in the refrigerator	- There is spoiled food in the fridge.- The appliance is not clean.- Food with a strong smell is present in the appliance.	- Throw away spoiled food.- Clean the appliance.- Pack food with a strong smell.
There is too much frost and ice.	- The door is not closed properly.- The door gasket is deformed or dirty.- The products are not packed correctly.- The temperature is set incorrectly.- The appliance is fully loaded and set to the lowest temperature.- The set temperature in the appliance is too low and the ambient temperature is too high.	- Find the cause of the door not closing properly, remove or move possible obstacles.- As a result, the door does not close properly. Clean the seal and repair the deformation. If necessary, replace the seal, contact customer service.- Pack the products better.- Please refer to Section 4.- Set a higher temperature. Please refer to Section 4.- Set a higher temperature. Please refer to Section 4.
The compressor works continuously.	- The temperature is set incorrectly.- Many products are placed at the same time.- The room temperature is too high.- The food placed in the appliance was too hot.- The door is not closed properly.	- Please refer to Section 4.- Wait a few hours and then check the temperature again.- Please refer to Section 4.- Allow food to cool to room temperature before storing.- See the previous section.
The lamp does not work.	- The lamp is broken.- The lamp is in the stand-by position.	- please contact our customer service.- Close and open the door.
The side panels are hot.	- This is normal. The heat exchanger components are on the side.

7. TAKING OUT OF SERVICE

Switching off and storage

• If the appliance will not be used for several months, first switch it off and then pull the plug out of the socket.
  • Make sure the appliance is completely thawed.
• Clean the inside thoroughly and wipe dry. To prevent the formation of odours and moulds, leave the door open: block it.
• Clean the door gasket groove with soap and water and wipe everything dry with a soft cloth.
• Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.
• Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.
• The appliance in storage must not be accessible to children playing.

8. SAFE DISPOSAL

DANGER!

Waste processing

• Refrigerants and the cyclopentane foam used for the appliance are flammable. When the appliance is disposed of, it must therefore be kept away from sources of fire and collected or returned to a qualified waste processing company.
• The appliance may not under any circumstances be incinerated to prevent damage to the environment or other damage.
• R-600a is used as a refrigerant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this appliance.

The materials used in this appliance marked with this symbol are recyclable. This marking indicates that, throughout the EU, this product must not be disposed of with the household waste.

This symbol indicates that the device must not be disposed of with other household waste within the EU. By disposing of the device properly, you help to prevent possible dangers to the environment and human health. The recycling of materials contributes to the conservation of natural resources. Therefore, do not dispose of discarded electronic devices with household waste. When disposing of the device, follow the national and local regulations regarding the environmentally friendly disposal of electronic equipment. You can also contact Wisepick Productions B.V. if you no longer wish to use the device or to return the device.

ATTENTION!

• The refrigerants and insulation materials used in your appliance require special care. When draining, ensure that the pipes on the back of the appliance are not damaged.
• Avoid damaging the cooling unit, especially the heat exchanger.

Wisberg contact details

Customer service can be reached at: wisberghome.com

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China

MANUEL D'UTILISATION

COMBINÉ RÉFRIGÉRATEUR- CONGÉLATEUR

WBKVC159DW

WBKVC159DZ

WISBERG

TABLE DES MATIÈRES

AVANT-PROPOS

41

1. SÉCURITÉ 42

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Les Pays-Bas

Made in China

1. SÉCURITÉ

1.1 UTILISATION PRÉVUE ET UTILISATION INVOLONTAIRE PRÉVISIBLE

Simple line drawing of a square frame with an 'X' symbol on the top and two side supports at the bottom (no text or labels)

Simple line drawing of a rectangular box with a black checkmark on top and two small blocks at the bottom (no text or symbols)

4. Nettoyage

Illustration showing a hand installing or adjusting a shelf panel and a mechanical device with two upward arrows (no text or symbols)

3.2 INVERSION DU SENS DE ROTATION DE LA PORTE

PROBLÈME CAUSE POSSIBLE SOLUTIONS

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Les Pays-Bas

Made in China

GEBRAUCHSANLEITUNG

KÜHLGEFRIER- KOMBINATION

WBKVC159DW

WBKVC159DZ

WISBERG

INHALTSVERZEICHNIS

VORWORT

60

1. SICHERHEIT 62

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Die Niederlande

Made in China

1. SICHERHEIT

Simple line drawing of a square frame with a black 'X' symbol on the top and two small supports at the bottom (no text or labels)

Simple line drawing of a rectangular box with a black checkmark on top and two small blocks at the bottom (no text or symbols)

4. Reinigung

Illustration showing a hand installing or adjusting a metal shelf panel and a mechanical device with two upward arrows (no text or symbols)

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Die Niederlande

Made in China

Wisberg contact details

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China
