Jaxen 83797 - Lighting ELAN - Free user manual and instructions

Product type	Retractable arm wall sconce
Brand	ELAN
Model	Jaxen 83797
Usage	Indoor
Light source	Integrated LED (non-replaceable)
Power supply	LED driver included, 120 V~
Materials	Metal, glass
Warranty	3 years (manufacturing defects and materials)
Protection rating	IP20
Weight	Approximately 1.5 kg
Dimensions (approx.)	Height 30 cm, Width 20 cm, Depth 40 cm (arm extended)
Color temperature	Not specified (likely warm white)
Luminous flux	Not specified (estimated 800 lm)
Beam angle	Not specified (diffuse)
Power consumption	Not specified (estimated 10-15 W)
Features	Adjustable retractable arm, removable glass shade
Care and cleaning	Soft damp cloth, non-abrasive soap. Do not use glass cleaners.
Safety	Turn off power before installation/maintenance. Do not look directly at LEDs.
Available spare parts	Mounting bracket (XBAR83797), glass shade (G83797), wire connectors (WC001), screws (SCR832X050, CS83797), anchors (AB001, AS001)
Assembly	Estimated assembly time: 30 to 60 minutes

Frequently Asked Questions - Jaxen 83797 ELAN

How to install the light fixture?

Follow the provided assembly instructions. First cut off power at the circuit breaker. Attach the mounting bracket (B) to the outlet box, then connect electrical wires using wire connectors (AA). Mount the canopy (A) with screws (CC). Insert the glass shade (D) into the body (E) after extending the retractable arm (C).

What tools are needed for installation?

You will need a Phillips screwdriver, flathead screwdriver, wire strippers, electrical tape, a ladder, and safety glasses. A drill with a 9/32 inch bit is required for wall anchors.

Can I use a dimmer with this fixture?

The instructions do not mention dimmer compatibility. To avoid issues, use the standard wall switch. Contact a qualified electrician for more information.

The light does not turn on, what to do?

First check that the fixture is properly connected. Ensure the wall switch is on and the circuit breaker has not tripped. If the problem persists, consult an electrician.

How to clean the glass shade?

Use a soft damp cloth with non-abrasive soap. Never use glass cleaners as they may damage the metal finish. Ensure power is off before cleaning.

Is this fixture suitable for outdoor use?

No, this fixture is for indoor use only. It is not designed to withstand moisture or weather.

What is the warranty period?

The warranty is three (3) years from the date of purchase by the original buyer, covering manufacturing defects and material faults. It is non-transferable and does not cover labor for removal or installation.

How to obtain spare parts?

Call customer service at 1-855-226-7169, Monday to Friday, 8 am to 4 pm (EST). Have the part number ready (e.g., G83797 for the glass shade).

Can I replace the LED bulb?

No, the light source is an integrated non-replaceable LED. In case of failure, the fixture must be replaced or repaired by a professional.

Can the retractable arm be locked in position?

Yes, the retractable arm (C) locks into place when released. To open the shade body, push the arm to extend it, insert the glass shade, then release to secure it.

USER MANUAL Jaxen 83797 ELAN

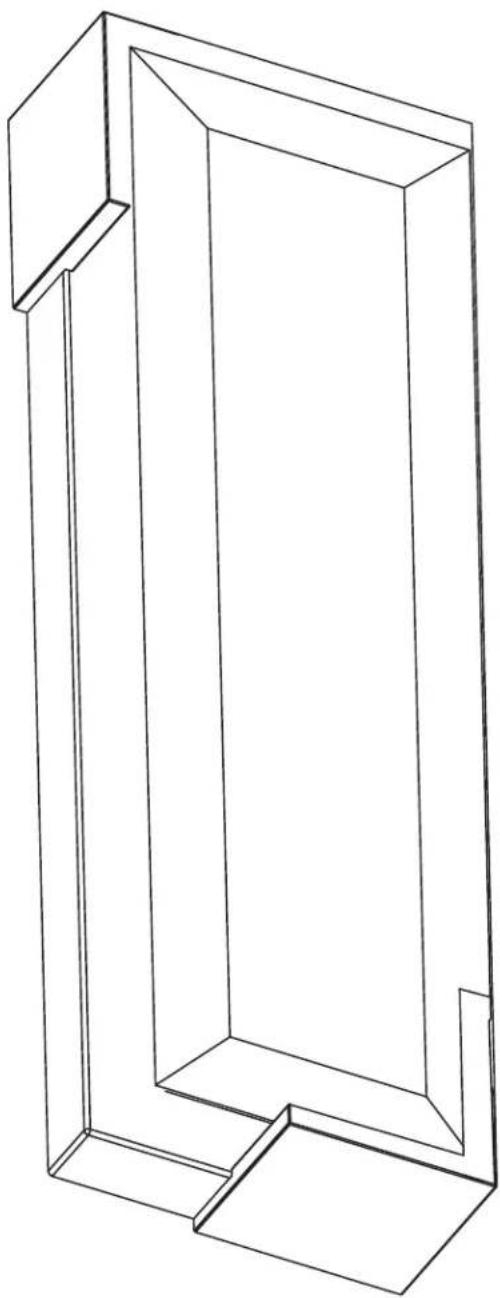

Line drawing of a 3D rectangular frame structure with no text or symbols

ATTACH YOUR RECEIPT HERE

Serial Number ____

Purchase Date

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-855-226-7169, 8 a.m. - 4 p.m., EST, Monday - Friday.

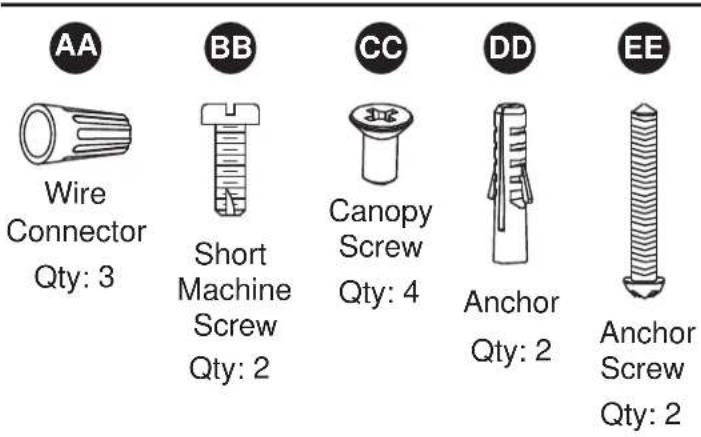

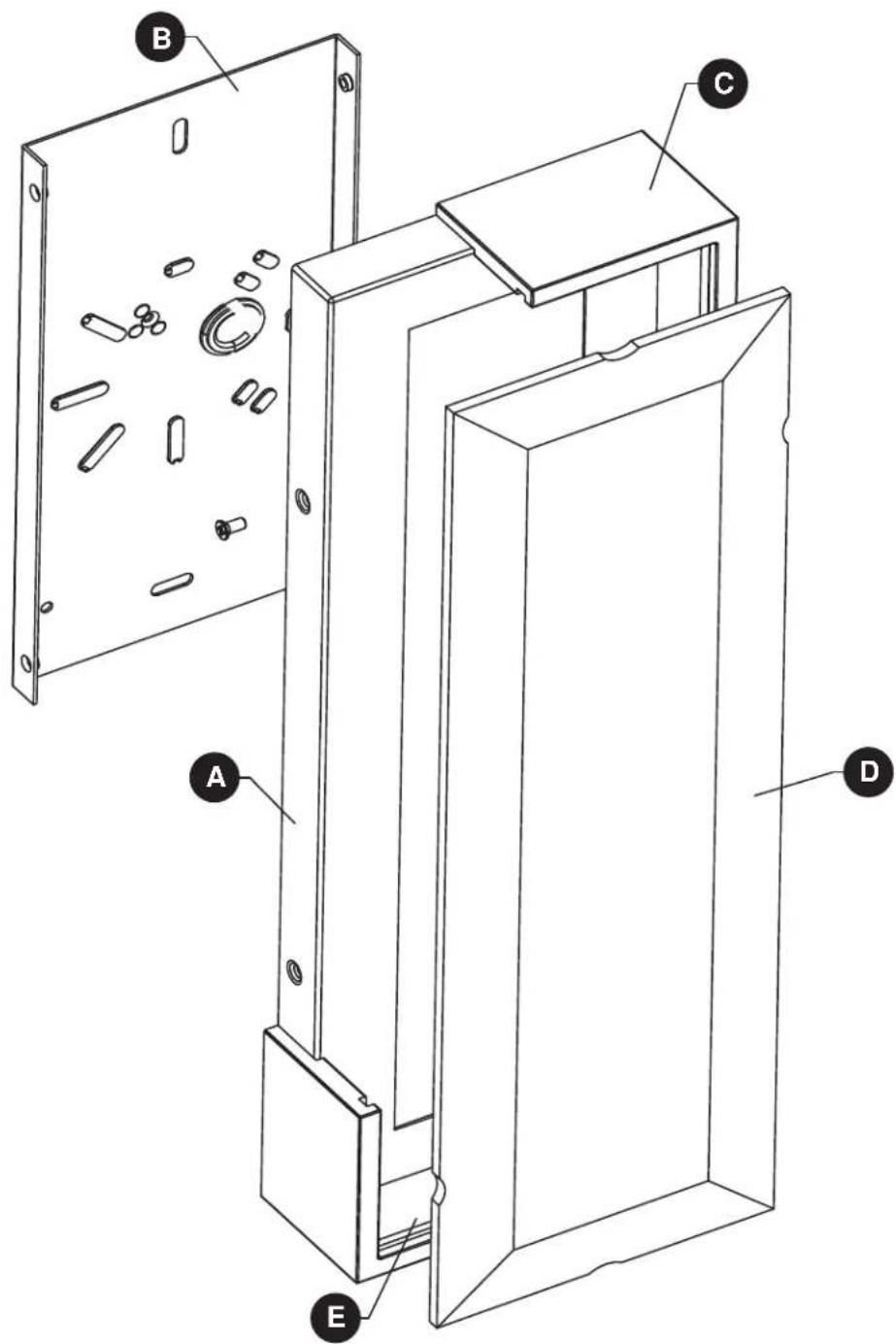

PART	DESCRIPTION	QUANTITY
A	Canopy
B	Mounting	Bracket
C	Retracting	Arm
D	Glass	Shade
E	Shade	Housing

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install the product.

WARNING

• IMPORTANT: NEVER attempt any work without shutting off the electricity.
• Go to the main fuse box, or circuit breaker, in your home. Place the main power switch in the "OFF" position and unscrew the fuse(s), or switch "OFF" the circuit breaker switch(es), that control the power to the fixture or room that you are working on.
• Place the wall switch in the "OFF" position. If the fixture to be replaced has a switch or pull chain, place those in the "OFF" position.
• Do not touch hot LED.
• The LED light output is strong enough to injure human eyes. Precautions must be taken to prevent looking directly at the LEDs with unaided eyes for more than a few seconds.
• WARNING: California Prop 65: This lighting fixture contains chemicals known to the state of California to cause cancer, birth defects, and/or other reproductive harm. Wash hands after use.

CAUTION

• Read and understand all instructions and illustrations completely before proceeding with assembly and installation of this fixture.
• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate completely, please contact a qualified licensed electrical contractor.
• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate the UL listing, C.S.A. certification, and/or ETL listing of this fixture.
• This fixture is intended for installation in accordance with the National Electric Code (NEC) and all local code specifications.
  • This fixture is for indoor use only.
• Use ONLY the supplied LED driver to power fixture.
• Driver cable is not intended for use through or concealed behind walls, floors, or ceilings.

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated assembly time: 30 minutes to 1 hour

Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers, electrical tape, ladder, safety glasses.

ASSEMBLY INSTRUCTIONS

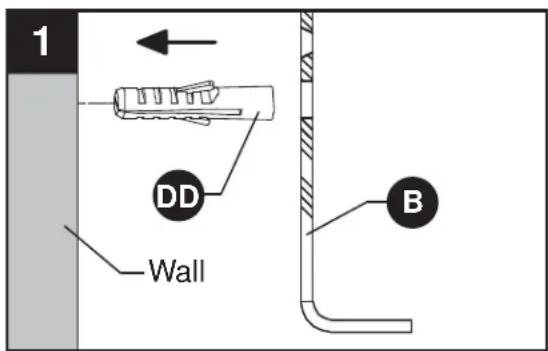

1. Temporarily raise mounting bracket (B) to wall. Mark location for anchor (DD). Use 9/32 size drill to drill holes for anchor (DD). Insert anchor (DD) into hole.

Note: Before drilling the anchor holes be sure that the holes on the mounting bracket match up with the holes on the outlet box.

Hardware Used

x 2Anchor

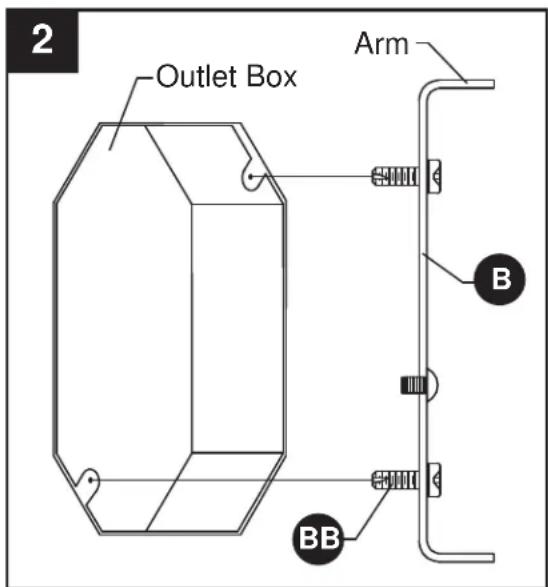

1. Orient the mounting bracket (B) so that the arms are facing away from the outlet box (not included). Connect the mounting bracket (B) to the outlet box with short machine screws (BB).

Hardware Used

Short Machine

Screw

x 2

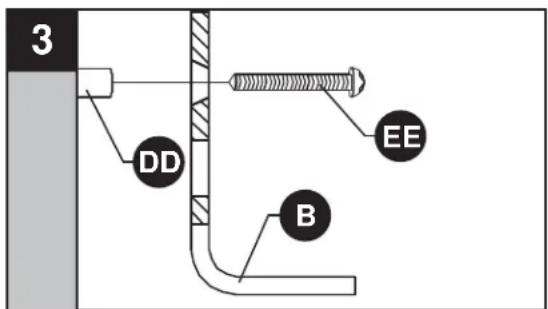

1. Screw anchor screws (EE) through mounting bracket (B) and into anchors (DD).

Hardware Used

Anchor

Screws

x 2

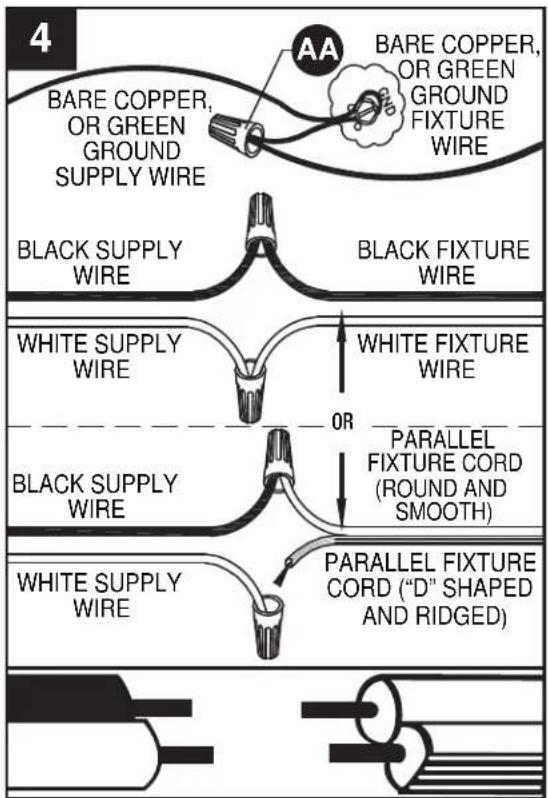

1. Wire connection guide:

Ground wire:

- For installation in the United States: Wrap ground wire from outlet box around ground screw preassembled on mounting bracket (B) no less than 2 in. from wire end. Tighten ground screw. If fixture is supplied with a ground wire, connect to outlet ground wire with a wire connector (AA).

- For installation in Canada: If fixture is supplied with ground wire, wrap ground wire around ground screw on mounting bracket (B). Tighten ground screw. Connect fixture ground wire to outlet ground wire with a wire connector (AA).

Supply wires:

• Connect the Neutral (White) supply wire from the outlet box to the Neutral fixture wire (White or Parallel Cord "D" shaped and ribbed).
• Connect the Hot (Black) supply wire from the outlet box to the Hot fixture wire (Black or Parallel Cord round and smooth).

Hardware Used

NOTE:

Fixture wires will either be:

• Black and White.
• Parallel Cord SPT-1 lamp wire with one round smooth wire and one "D"

x 3Wire Conne grouped ribbed wire.

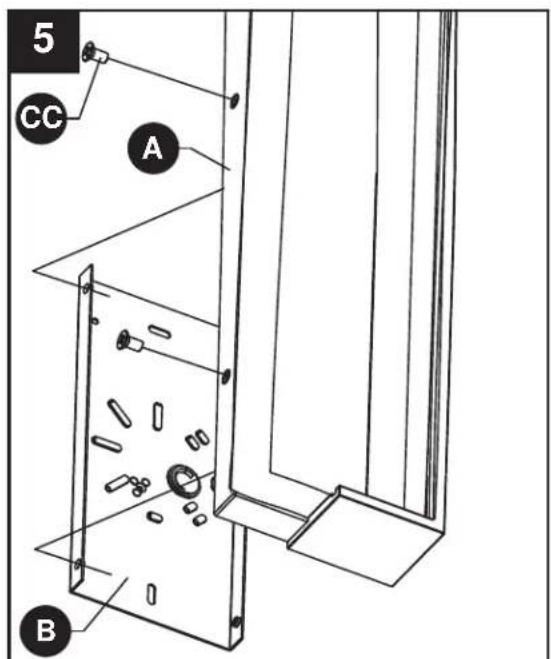

1. Pass canopy (A) over the arms protruding from the mounting bracket (B) and secure with canopy screws (CC).

Hardware Used

Canopy Screw

× 4

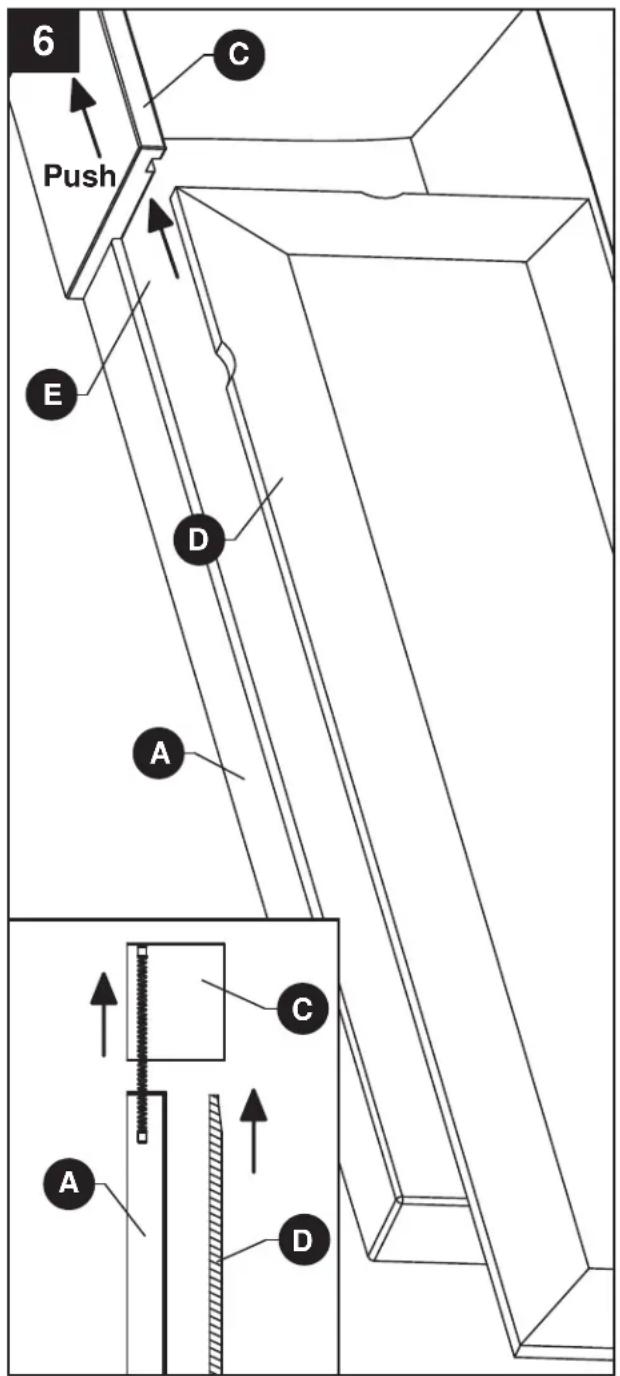

1. Push retracting arm (C) to open the shade housing (E). Place glass shade (D) into the shade housing (E) while the retracting arm (C) is extended. Release the retracting arm (C) to lock glass shade (D) in place.

CARE AND MAINTENANCE

• Always be certain that electric current is turned off before cleaning this item.
- Use a soft, moist cloth with mild non-abrasive soap to clean fixture. Never use glass cleaner on fixture, as it will damage the metal finish.

TROUBLESHOOTING

PROBLEM	POSSIBLE	CAUSE	CORRECTIVE
Fixture does not light.	1. Fixture may be wired incorrectly.		1. Check wiring.

élan Lighting warrants that its products will be free from defects in material and workmanship for three (3) year from the date of purchase by the Original Purchaser.

LED Rail, LED Lanterns. LED Wall Sconces, LED Pendants and LED Chandeliers for single family residences are warranted for three (3) year on the Light Engine and all other electrical components.

To replace a product that has a warranted defect, the Original Purchaser shall return any allegedly defective parts or products to the authorized élan distributor that the product was purchased from with PROOF OF PURCHASE, Original Purchaser's name and return address and a description of the claimed product defect.

If any of the warranted products are found by élan, in its sole discretion, to be defective, such products will, at élan's sole option and cost, be replaced, repaired or refunded less an amount directly attributable to Original Purchaser's prior use of the product. élan will return the repaired or replaced product prepaid freight. This warranty does not cover labor or other costs or expenses to remove or install any defective, repaired or replaced product.

The parties hereto expressly agree that Original Purchaser's sole and exclusive remedy against élan shall be for the repair, replacement or refund of defective products as provided herein. This warranty extends only to product ownership by the Original Purchaser; is not transferable whether to heirs, subsequent owners, or otherwise; and is void if the Original Purchaser ceases to own the product.

This warranty does not apply to any products that have been subjected to misuse, mishandling, misapplication, connected to voltage at more than 5% above standard North American voltage, unusual use (including but not limited to use in an environment where the annual average ambient operating temperature is below 27 or above 95 degrees Fahrenheit), neglect (including but not limited to improper maintenance), accident, acts of god such as high winds, improper installation or care, failure to follow the Product's written instructions for normal use and care, improper packaging of products returned to élan, modification (including but not limited to use of unauthorized parts or attachments), or adjustment or repair. Significant product exposure to chemicals, harsh cleaners, salt water or salt air will void any and all warranties on exterior finishes. This warranty only applies when all components, including transformers, have been provided by élan. Substituting another manufacturer's product and/or components will render the warranty completely void.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE OR INFRINGEMENT. ORIGINAL PURCHASER SHALL IN NO EVENT BE ENTITLED TO, AND ELAN LIGHTING SHALL NOT BE LIABLE FOR, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, INCLUDING, BUT NOT LIMITED TO LOSS OF PROFIT, PROMOTIONAL AND/OR MANUFACTURING EXPENSES, OVERHEAD, INJURY TO REPUTATION AND/OR LOSS OF CUSTOMERS.

For replacement parts, call our customer service department at 1-855-226-7169, 8 a.m. - 4 p.m., EST, Monday - Friday.

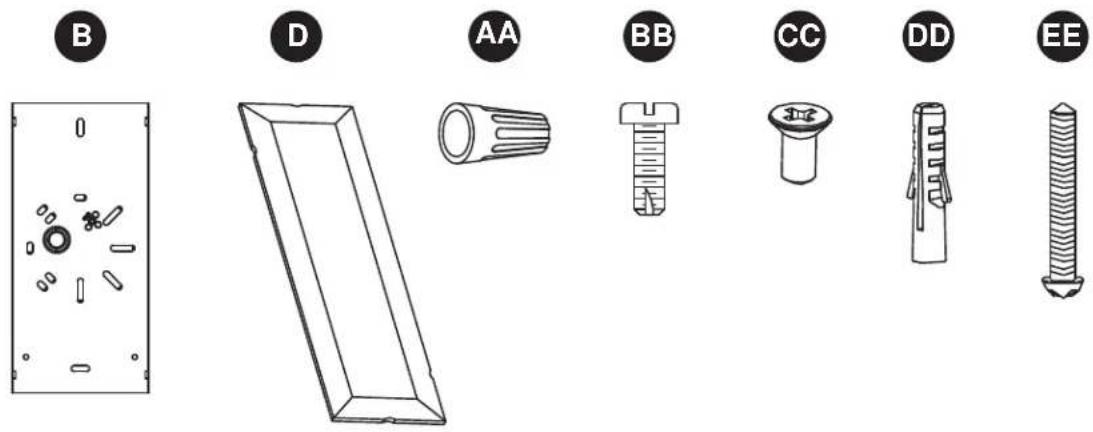

PART DESCRIPTION		PART #
B	Mounting	Bracket	XBAR83797
D	Glass	Shade	G83797
AA	Wire	Connector	WC001
BB	Short Machine Screw	SCR832X050
CC	Canopy	Screw	CS83797
DD	Anchor		AB001
EE	Anchor	Screw	AS001
