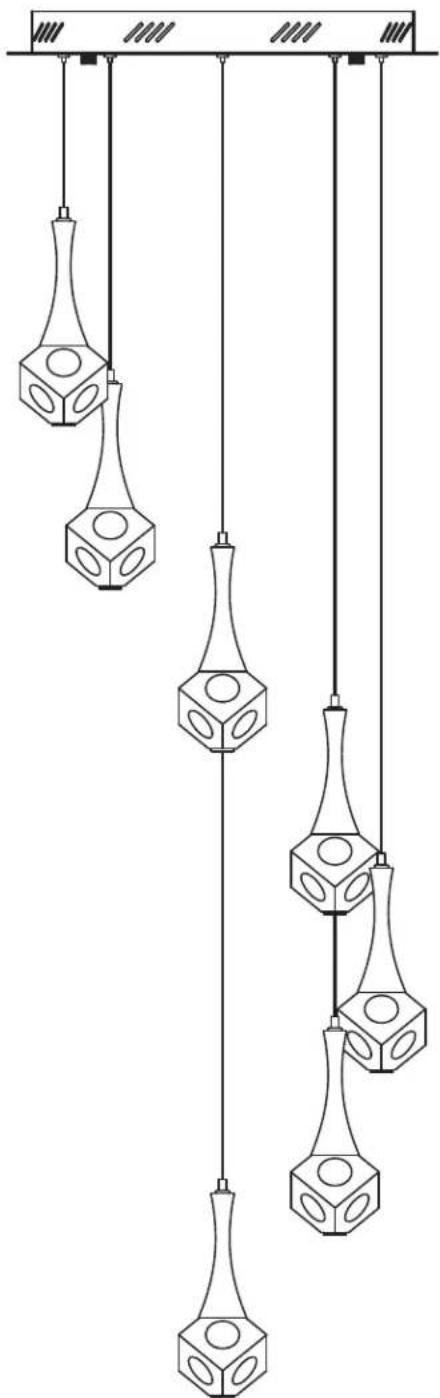

Product type	Decorative pendant light with 7 lights
Brand	Elan
Model	Rockne 83774
Category	Indoor lighting
Power supply	Integrated LED with included driver (120V)
Main material	Metal and crystal
Number of shades	7 crystal shades
Adjustable height	Yes, adjustable suspension cable via compression fitting
Installation	Ceiling mount on outlet box, requires tools (screwdriver, pliers, stepladder)
Usage	Indoor only
Safety	Cut power before installation; do not touch hot LED; do not look directly at LEDs
Maintenance	Soft damp cloth with non-abrasive soap; glass shades: warm water and mild soap, not dishwasher safe
Warranty	3 years against manufacturing defects (electrical components)
Spare parts available	Mounting bracket (XBAR83774), crystal support (CRS83773), crystal shade (G83773), junction box cover (JBOXCVR), wire connector cap (WC001), screws (SCR832X050), threaded knobs (KLF), anchors (AB001), anchor screws (AS001), canopy knob (KLFK-CH)
Standards	Compliant with National Electrical Code (NEC) and local specifications
Certifications	UL, CSA, ETL (listed per manual)
Recommended ambient temperature	Between -2.8°C and 35°C
Approximate assembly time	30 to 60 minutes

Frequently Asked Questions - Rockne 83774 ELAN

How to adjust the suspension cable height?

Push up and hold the spring tube of the compression fitting (part G) to release the cable (H) and allow adjustment. Adjust to the desired length before complete assembly.

Can I use a dimmer with this fixture?

The manual does not mention compatibility with a dimmer. Use only the provided LED driver. For any questions, consult a qualified electrician.

How to clean the crystal shades?

Clean the glass shades in a sink lined with towels, using warm water and mild soap. Do not put them in the dishwasher. For the fixture, use a soft damp cloth with non-abrasive soap.

What to do if the fixture does not turn on?

First check that the fixture is properly connected. Ensure power is restored. If the problem persists, contact customer service.

What is the warranty on this fixture?

Elan Lighting warrants this product against any manufacturing defect for 3 years from the date of purchase by the original buyer. The warranty covers replacement, repair, or refund at Elan's option.

Can I replace the LEDs?

The LEDs are integrated and not replaceable individually. Use only the provided driver. In case of failure, contact after-sales service.

How to connect the electrical wires?

Follow the wiring guide: connect the ground wire (green or bare) to the ground screw on the bracket. Connect the neutral wire (white) from the box to the neutral wire of the fixture, and the hot wire (black) to the fixture wire. Use the provided wire connector caps.

Is this fixture suitable for outdoor use?

No, this fixture is for indoor use only.

Can I install this fixture myself?

Yes, if you have basic electrical knowledge. Follow safety instructions: turn off power at the circuit breaker before starting. If in doubt, call a qualified electrician.

Where can I find spare parts?

Call customer service at 1 855 226-7169 (Mon-Fri, 8am-4pm ET) to order parts. References are listed in the manual: mounting bracket (XBAR83774), crystal shade (G83773), etc.

USER MANUAL Rockne 83774 ELAN

Pure electrical circuit lines without any symbols

ATTACH YOUR RECEIPT HERE

Serial Number ____ Purchase Date ____

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-855-226-7169, 8 a.m. - 4 p.m., EST, Monday - Friday.

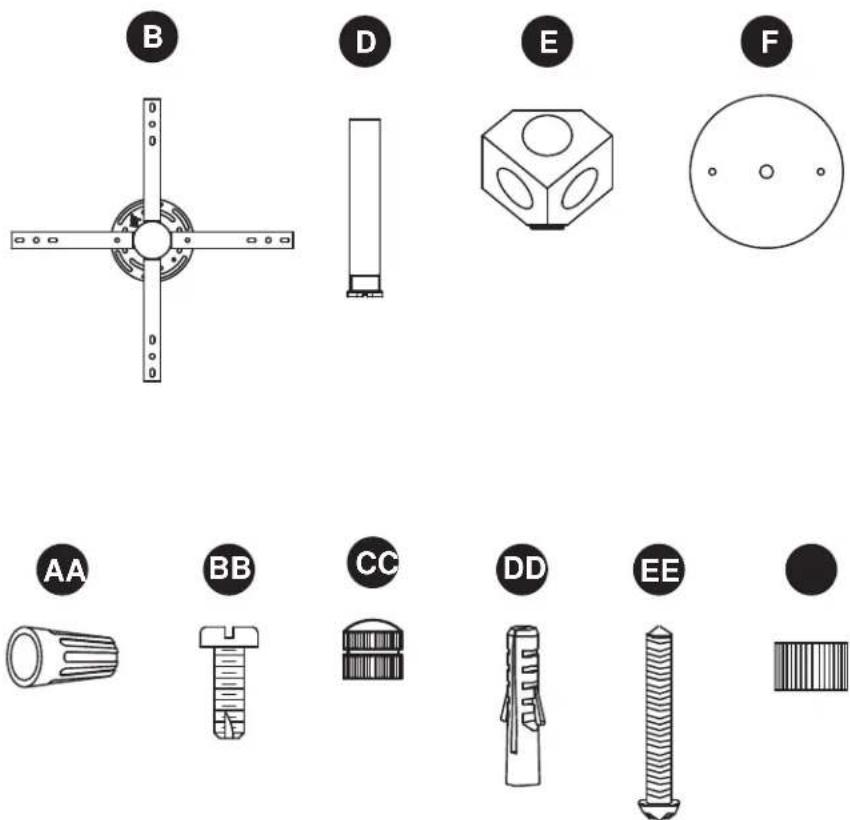

PART	DESCRIPTION	QTY.
A Canopy		1
B	Mounting Bracket	1
C	Threaded Post	7
D	Crystal Support	7

PART	DESCRIPTION	QTY.
E	Crystal Shade	7
F	Junction Box Cover	1
G	Compression Fitting	7
H	Cable	7

Wire Connector Qty: 3

Short Machine Screw Qty: 2

Threaded Knob Qty: 2

Anchor Qty: 4

Anchor Screw Qty: 4

Canopy Knob Qty: 4

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install the product.

WARNING

• IMPORTANT: NEVER attempt any work without shutting off the electricity.
• Go to the main fuse box, or circuit breaker, in your home. Place the main power switch in the "OFF" position and unscrew the fuse(s), or switch "OFF" the circuit breaker switch(es), that control the power to the fixture or room that you are working on.
• Place the wall switch in the "OFF" position. If the fixture to be replaced has a switch or pull chain, place those in the "OFF" position.
• Do not touch hot LED.
• The LED light output is strong enough to injure human eyes. Precautions must be taken to prevent looking directly at the LEDs with unaided eyes for more than a few seconds.
• WARNING: California Prop 65: This lighting fixture contains chemicals known to the state of California to cause cancer, birth defects, and/or other reproductive harm. Wash hands after use.

CAUTION

• Read and understand all instructions and illustrations completely before proceeding with assembly and installation of this fixture.
• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate completely, please contact a qualified licensed electrical contractor.
• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate the UL listing, C.S.A. certification, and/or ETL listing of this fixture.
• This fixture is intended for installation in accordance with the National Electric Code (NEC) and all local code specifications.
• This fixture is for indoor use only.
• Use ONLY the supplied LED driver to power fixture.
• Driver cable is not intended for use through or concealed behind walls, floors, or ceilings.

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated assembly time: 30 minutes to 1 hour

Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers, electrical tape, ladder, safety glasses.

ASSEMBLY INSTRUCTIONS

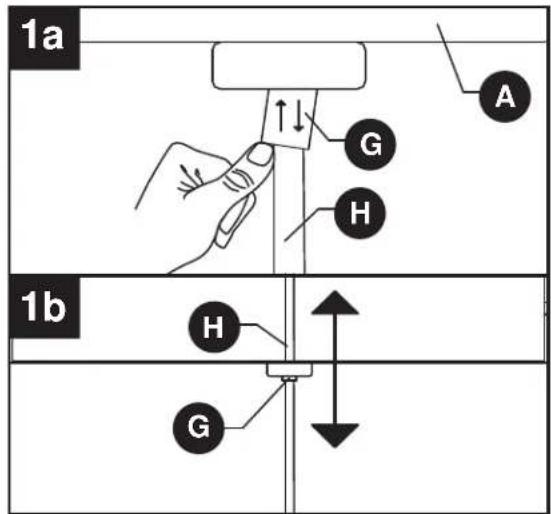

1. The hanging length of the cable (H) for this fixture is adjustable. Hold the fixture canopy (A) up against the ceiling to determine the desired length before the entire fixture is assembled.

The cable (H) is held in place by a compression fitting (G). Push up, and hold, the fitting's spring loaded tube (G) to release the cable (H) for adjustment.

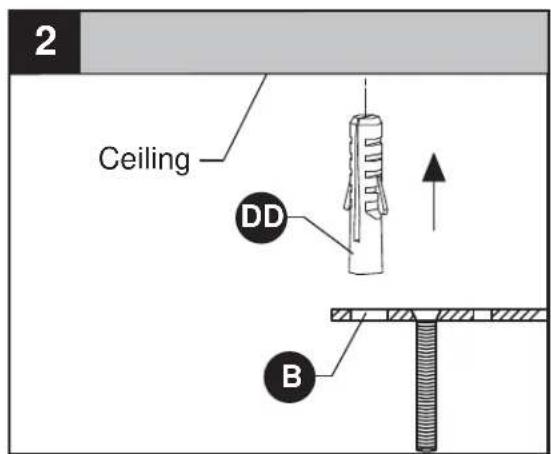

1. Temporarily raise mounting bracket (B) to ceiling. Mark location for anchor (DD). Use 9/32 size drill to drill holes for anchor (DD). Insert anchor (DD) into hole.

Hardware Used

x 4Anchor

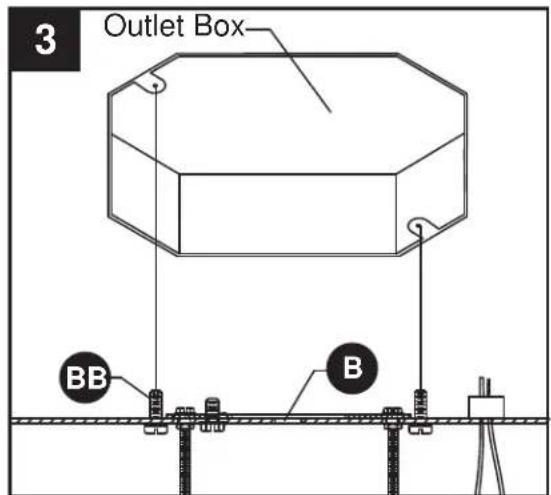

1. Connect the mounting bracket (B) to the outlet box with short machine screws (BB).

Hardware Used

Short Machine Screw

x 2

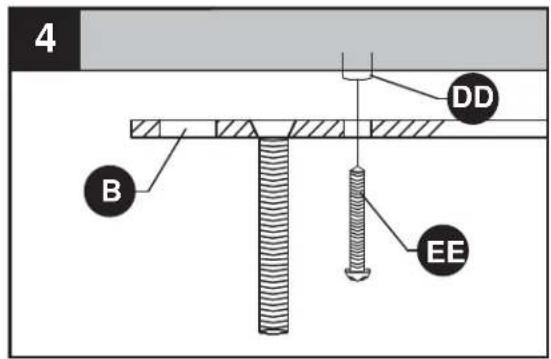

1. Screw anchor screws (EE) through mounting bracket (B) and into anchors (DD).

Hardware Used

Anchor Screws

x 4

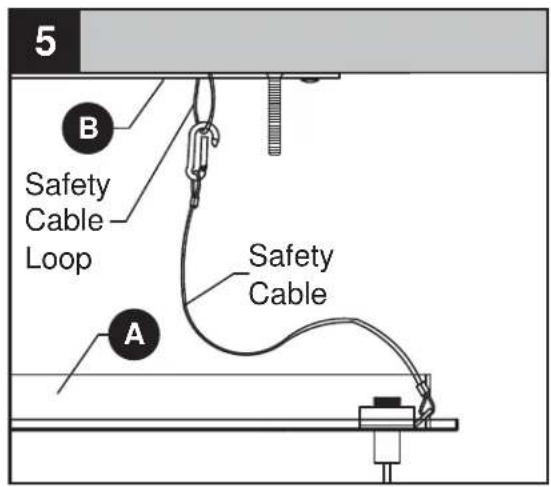

1. Connect safety cable located in canopy (A) to the safety cable loop located on mounting bracket (B).

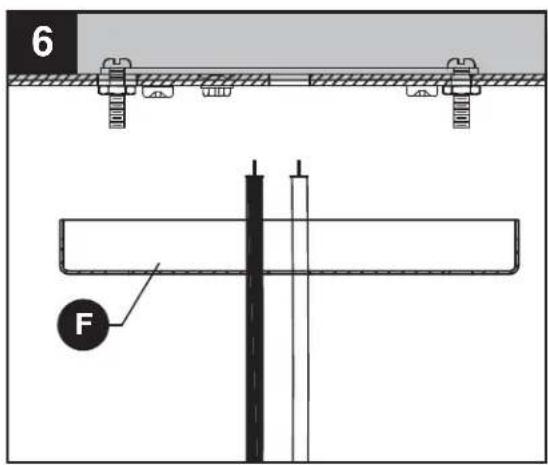

2. Pass electrical wires through junction box cover (F).

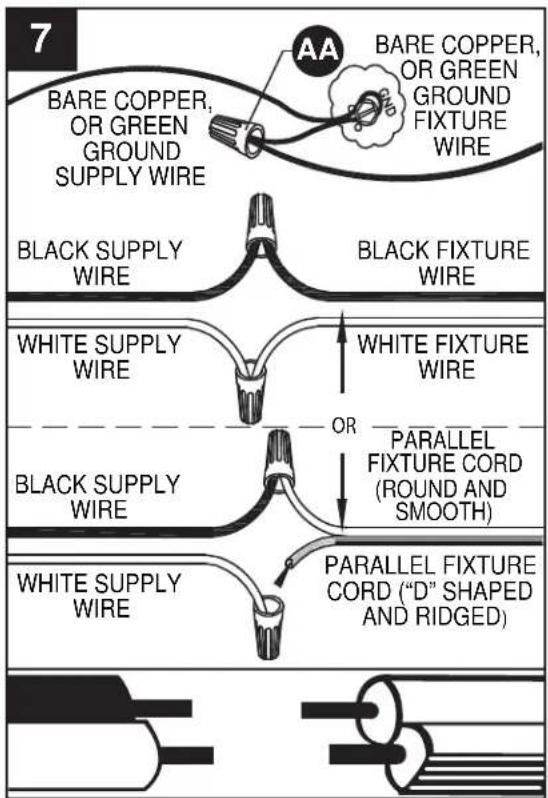

7. Wire connection guide:

Ground wire:

• For installation in the United States: Wrap ground wire from outlet box around ground screw preassembled on mounting bracket (B) no less than 2 in. from wire end. Tighten ground screw. If fixture is supplied with a ground wire, connect to outlet ground wire with a wire connector (AA).
• For installation in Canada: If fixture is supplied with ground wire, wrap ground wire around ground screw on mounting bracket (B). Tighten ground screw. Connect fixture ground wire to outlet ground wire with a wire connector (AA).

Supply wires:

• Connect the Neutral (White) supply wire from the outlet box to the Neutral fixture wire (White or Parallel Cord "D" shaped and ribbed).
• Connect the Hot (Black) supply wire from the outlet box to the Hot fixture wire (Black or Parallel Cord round and smooth).

Hardware Used

NOTE:

Fixture wires will either be:

• Black and White.
  • Parallel Cord SPT-2 lamp wire with

x 3Wire Connect one round smooth wire and one "D" shaped ribbed wire.

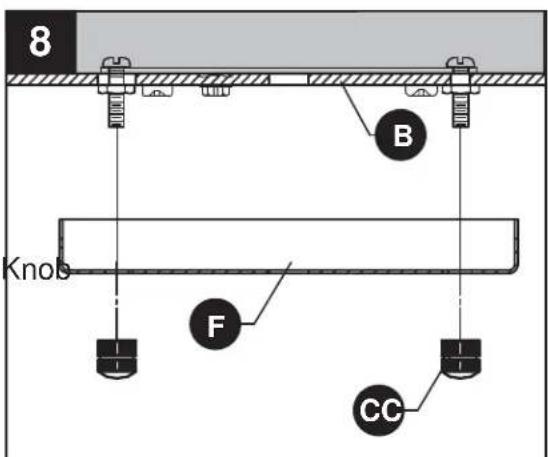

1. Pass junction box cover (F) over machine screws protruding from mounting bracket (B) and secure with threaded knobs (CC).

Hardware Used

x 2Threaded

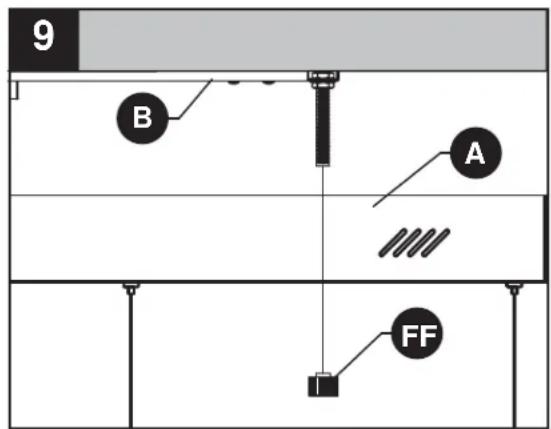

1. Pass canopy (A) over mounting bracket (B) and secure with canopy knobs (FF).

Hardware Used

Canopy Knob

x 4

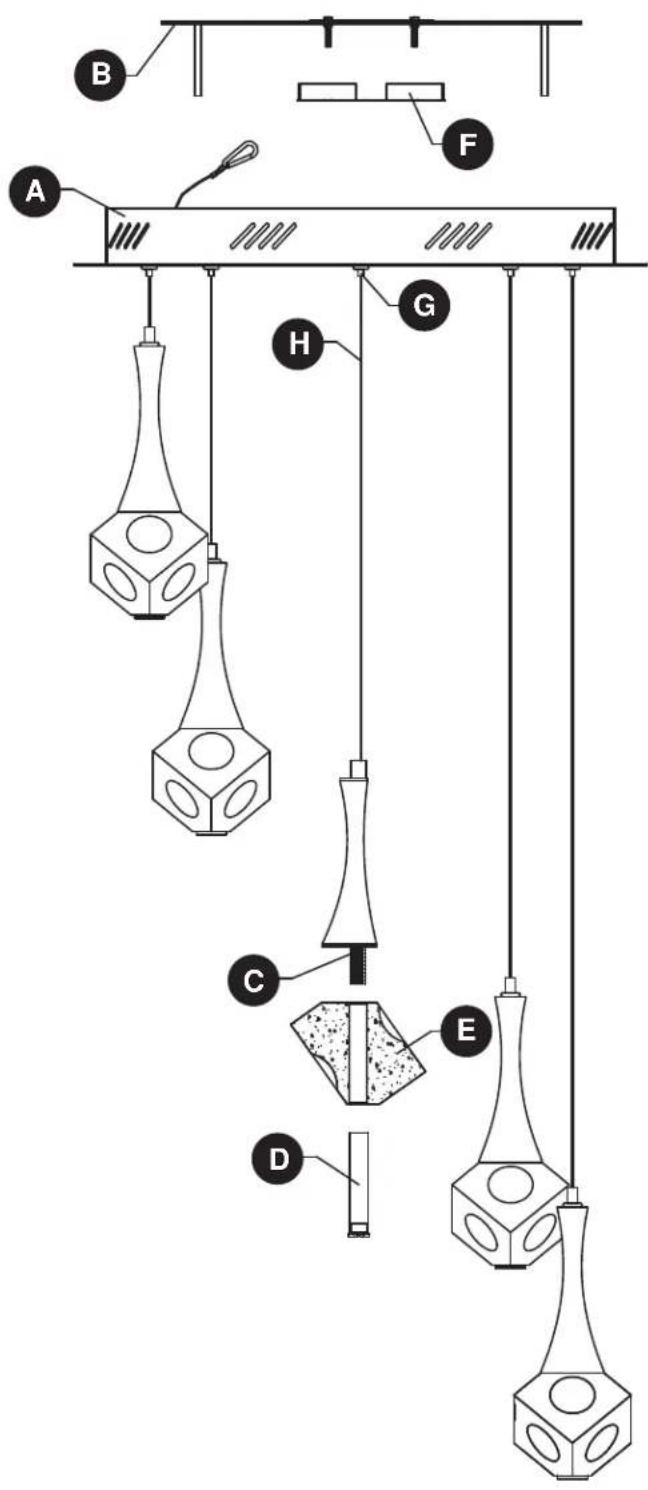

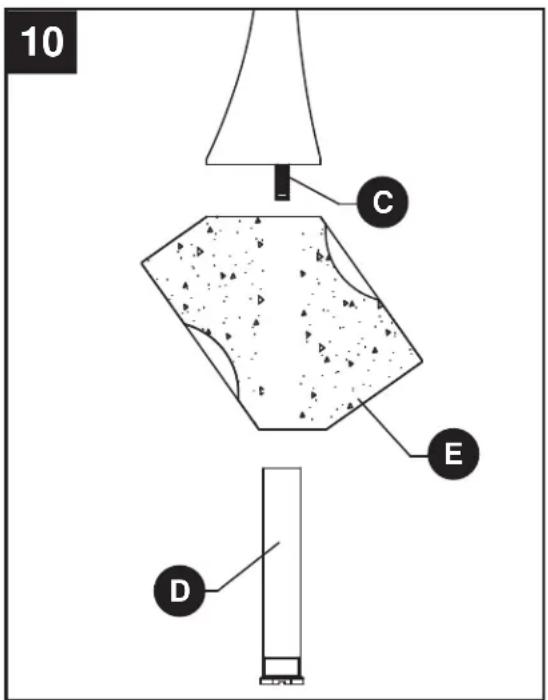

1. Pass crystal shade (E) over threaded post (C) and secure with crystal support (D).

Repeat for remaining crystal shades.

CARE AND MAINTENANCE

• Always be certain that electric current is turned off before cleaning this item.
- Use a soft, moist cloth with mild non-abrasive soap to clean fixture. Never use glass cleaner on fixture, as it will damage the metal finish.
- All glass shades may be washed in a towel-lined sink with warm water and mild soap. Do not wash shades in an automatic dishwasher.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE CORRECTIVE ACTION
Fixture does not light.	1. Fixture may be wired incorrectly. 1. Check wiring.

élan Lighting warrants that its products will be free from defects in material and workmanship for three (3) year from the date of purchase by the Original Purchaser.

LED Rail, LED Lanterns. LED Wall Sconces, LED Pendants and LED Chandeliers for single family residences are warranted for three (3) year on the Light Engine and all other electrical components.

To replace a product that has a warranted defect, the Original Purchaser shall return any allegedly defective parts or products to the authorized élan distributor that the product was purchased from with PROOF OF PURCHASE, Original Purchaser's name and return address and a description of the claimed product defect.

If any of the warranted products are found by élan, in its sole discretion, to be defective, such products will, at élan's sole option and cost, be replaced, repaired or refunded less an amount directly attributable to Original Purchaser's prior use of the product. élan will return the repaired or replaced product prepaid freight. This warranty does not cover labor or other costs or expenses to remove or install any defective, repaired or replaced product.

The parties hereto expressly agree that Original Purchaser's sole and exclusive remedy against élan shall be for the repair, replacement or refund of defective products as provided herein. This warranty extends only to product ownership by the Original Purchaser; is not transferable whether to heirs, subsequent owners, or otherwise; and is void if the Original Purchaser ceases to own the product.

This warranty does not apply to any products that have been subjected to misuse, mishandling, misapplication, connected to voltage at more than 5% above standard North American voltage, unusual use (including but not limited to use in an environment where the annual average ambient operating temperature is below 27 or above 95 degrees Fahrenheit), neglect (including but not limited to improper maintenance), accident, acts of god such as high winds, improper installation or care, failure to follow the Product's written instructions for normal use and care, improper packaging of products returned to élan, modification (including but not limited to use of unauthorized parts or attachments), or adjustment or repair. Significant product exposure to chemicals, harsh cleaners, salt water or salt air will void any and all warranties on exterior finishes. This warranty only applies when all components, including transformers, have been provided by élan. Substituting another manufacturer's product and/or components will render the warranty completely void.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE OR INFRINGEMENT. ORIGINAL PURCHASER SHALL IN NO EVENT BE ENTITLED TO, AND ELAN LIGHTING SHALL NOT BE LIABLE FOR, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, INCLUDING, BUT NOT LIMITED TO LOSS OF PROFIT, PROMOTIONAL AND/OR MANUFACTURING EXPENSES, OVERHEAD, INJURY TO REPUTATION AND/OR LOSS OF CUSTOMERS.

For replacement parts, call our customer service department at 1-855-226-7169, 8 a.m. - 4 p.m., EST, Monday - Friday.

PART	DESCRIPTION		PART #
B	Mounting	Bracket	XBAR83774
D	Crystal Support	CRS83773
E	Crystal	Shade	G83773
F	Junction Box Cover	JBOXCVR
AA	Wire	Connector	WC001
BB	Short Machine Screw	SCR832X050
CC	Threaded	Knob	KLRK-CH
DD	Anchor		AB001
EE	Anchor	Screw	AS001
FF	Canopy Knob		KLFK-CH
