USER MANUAL RTF 15810 SS TEKA

Modern kitchen interior with black cabinets and ovens, featuring a red 'TEKA' logo on the top right (no other text or symbols visible)

User Manual

RTF 15810 SS

EN PT

FR ES

DE AR

INDEX

BEFORE USING THE APPLIANCE 2

General warnings ...... 2

Old and out-of-order fridges or freezer....5

Safety warnings....5

Installing and operating your fridge 6

Before Using your Fridge 7

THE VARIOUS FUNCTION AND POSSIBILITIES....7

Information about New Generation Cooling Technology 7

Warnings about temperature adjustments....9

Accessories 10

The Icematic....10

Ice tray 10

Zero Box....10

VitaCare Box 11

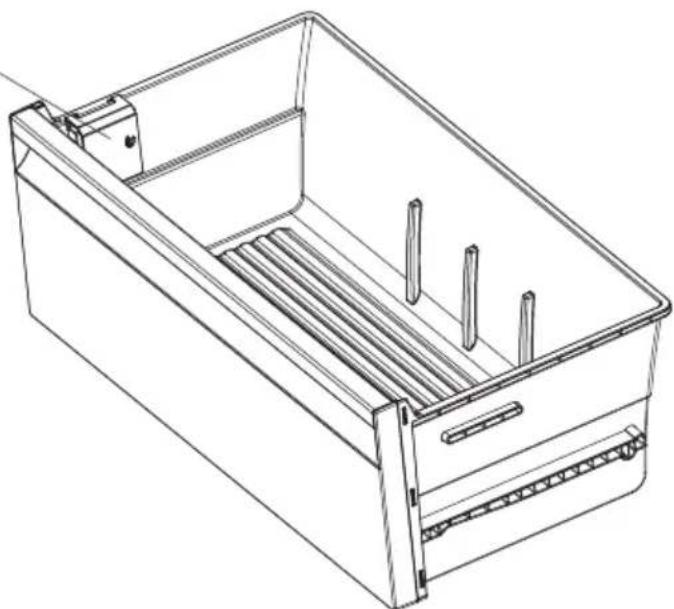

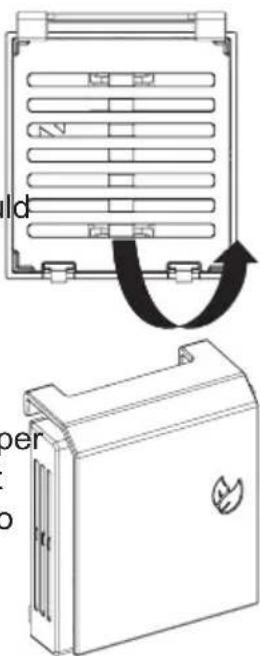

Maxi-fresh preserver 12

ARRANGING FOOD IN THE APPLIANCE 13

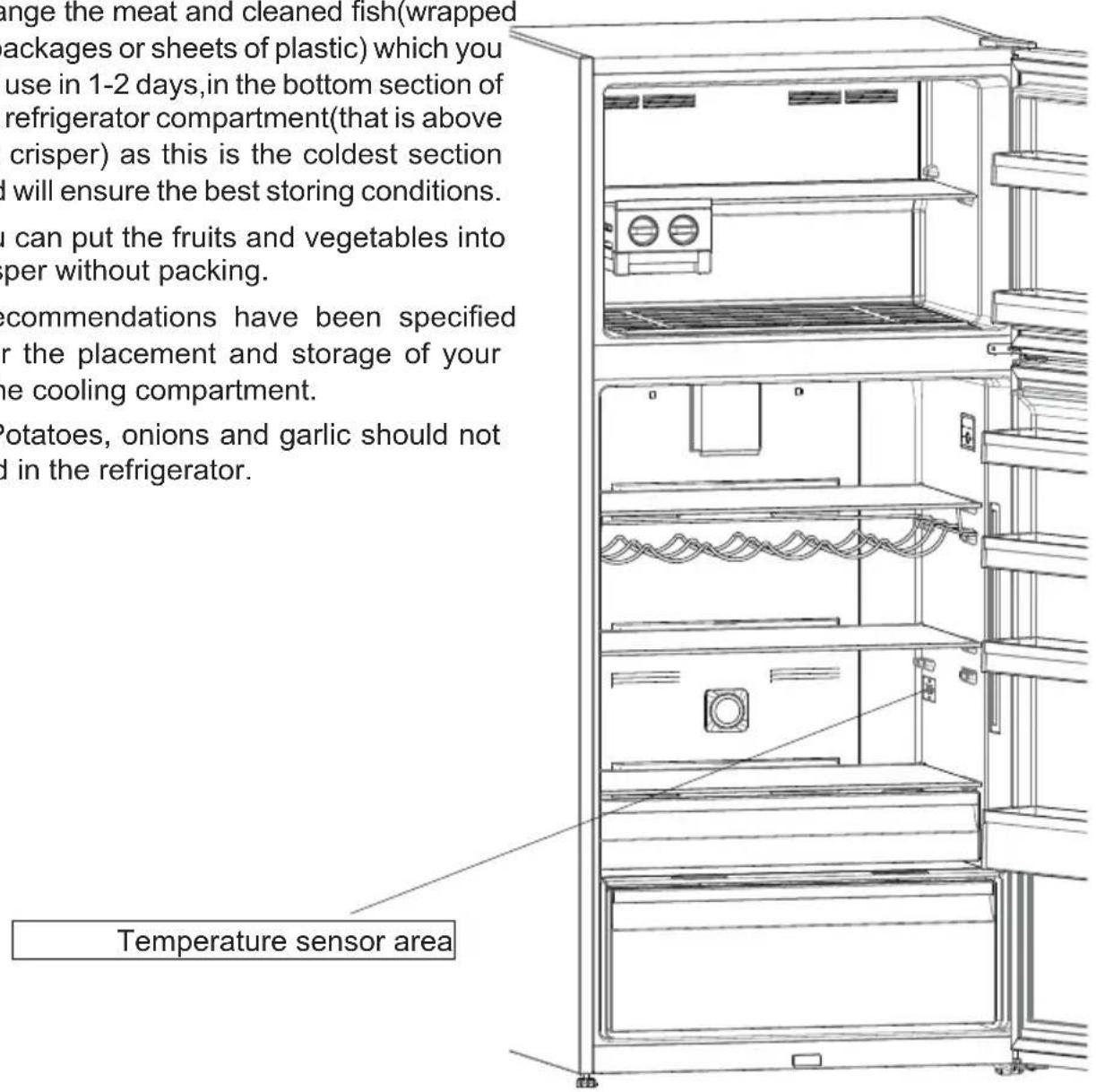

Refrigerator compartment 13

Freezer compartment....14

CLEANING AND MAINTENANCE.... 18

TRANSPORTATION AND CHANGING OF INSTALLATION

POSITION 19

Repositioning the door 19

BEFORE CALLING YOUR AFTER SALES SERVICE .... 20

Tips for saving energy 23

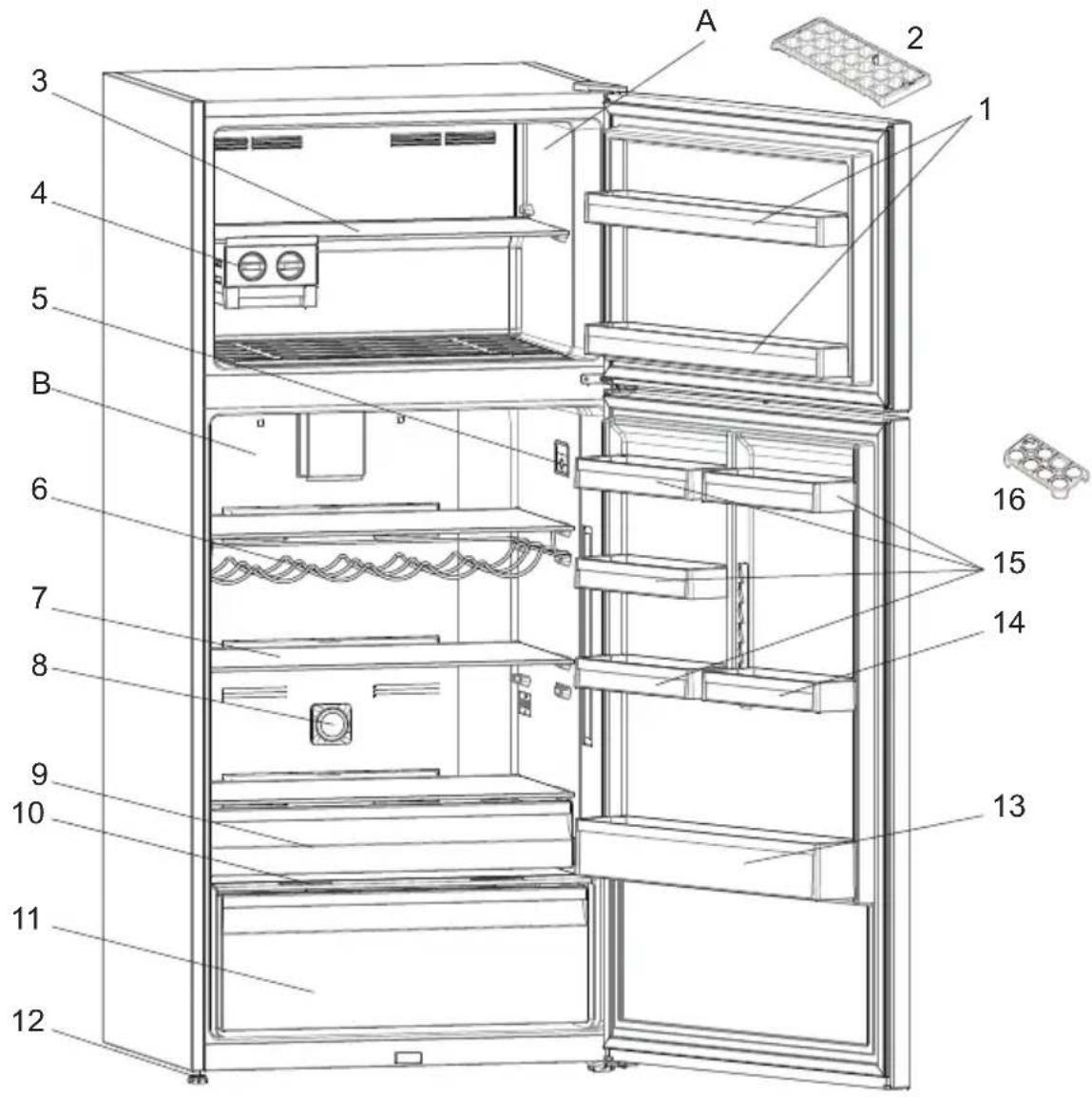

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ... 24

Warning: Risk of fire / flammable materials

PART - 1. BEFORE USING THE APPLIANCE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

⚠ WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions:

If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to be used in household and domestic applications such as:

• staff kitchen areas in shops, offices and other working environments.

• farm houses and by clients in hotels, motels and other residential type environments.
• bed and breakfast type environments;
• catering and similar non-retail applications.

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not

expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

- If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.

- This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Old and out-of-order fridges or freezer

- If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

- Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Disposal of your old appliance

This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. You will contribute to avoid potential negative results regarding environment and human health, which will arise due to wrong waste procedure for the product by ensuring that this product is annihilated properly. Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local municipality, domestic waste annihilation service or the shop you have purchased the product.

Please ask your municipal authority about the disposal of the WEEE reuse, recycle and recovery purposes.

Notes:

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.

- This appliance is produced to be used in houses and it is only suitable for cooling / storing food. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case.

Safety warnings

• Do not connect your Fridge Freezer to the mains electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

Illustration of three hands performing a manual tool manipulation (no text or symbols present)

Cartoon illustration of an electric plug with a sad face and warning symbol (no text or labels)

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
- Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
- Do not place glass bottles or beverage cans in the ice-making

Cartoon illustration of a character inside a door, showing facial expression and limbs (no text or symbols)

Illustration of a hand holding a smiling face, a phone icon, and a crossed-out no-smoking symbol (no text or labels)

• compartment as they can burst as the contents freeze.

- Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.

Simple line drawing of a bottle and two containers with splashes, no text or symbols present

- When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

- Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after you have taken them out of the ice-making compartment.

- Do not re-freeze frozen goods after they have melted. This may cause health issues such as food poisoning.

- Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

- Secure any accessories in the fridge during transportation to prevent damage to the accessories.

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

• The operating voltage for your fridge is 220-240 V at 50Hz.

• We do not accept responsibility for any damages that occur due to ungrounded usage.

- Place your fridge where it will not be exposed to direct sunlight.

- Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

- Your fridge should never be used outdoors or exposed to rain.

- When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

- Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm of free space is available above it.

- Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This should be done before placing food in the fridge.

Cartoon illustration of a distressed container with a label 'KG' on top, showing a sad face and downward motion (no text or symbols beyond the label)

- Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge after cleaning.

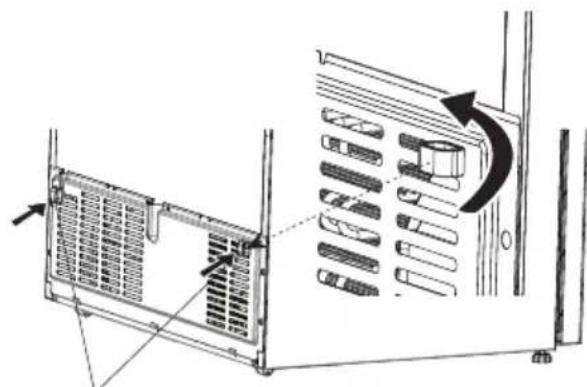

If your refrigerator has a fan condenser:

The condenser of your fridge is placed at the bottom of cabinet. As a result of that, assemble the spacer by fixing it to holes on the cover bottom panel and turn 90° that's shown below figure for arranging the distance between the refrigerator and the back wall at where you place the fridge. You can move the fridge towards the back wall until that point.

Diagram showing a rack-mounted device with ventilation grilles and a curved arrow indicating rotation (no text or symbols present)

Plastic for distance setting

Before Using your Fridge

- When using your fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.

- Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

PART - 2. THE VARIOUS FUNCTION AND POSSIBILITIES

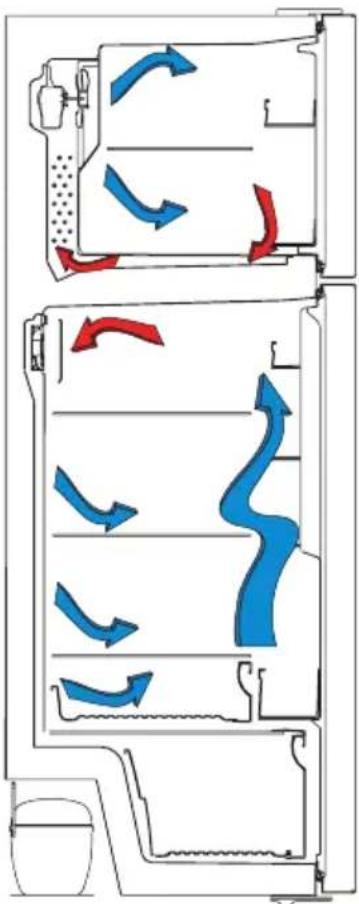

Information about New Generation Cooling Technology

Fridges with new generation cooling technology have a different working system than static fridges. Other fridges may experience ice build up in the freezer compartment due to door openings and humidity in the food. In such fridges regular defrosting is required; the fridge has to be periodically turned off, the frozen food moved to a suitable container and the ice which has formed in the freezer compartment removed.

In fridges with new generation cooling technology, dry cold air is pumped evenly into the fridge and freezer compartments using a fan. The cold air cools your food evenly and uniformly, preventing humidity and ice build up.

In the refrigerator compartment, air blown by the fan located at the top of refrigerator compartment is cooled while passing through the gap behind the air duct. At the same time, the air is blown out through the holes in the air duct evenly spreading cool air throughout the refrigerator compartment.

As there is no air passage between the freezer and refrigerator compartments there will be no odor mixing.

As a result of this, your fridge with new generation cooling technology gives you ease of use as well as huge volume and aesthetic appearance.


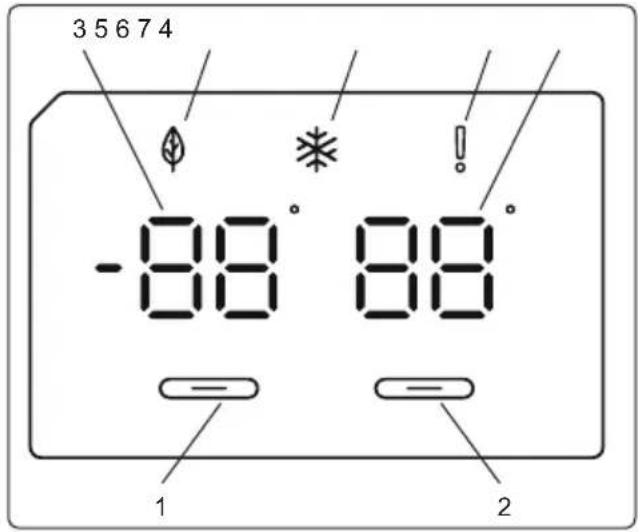

Display and Control Panel

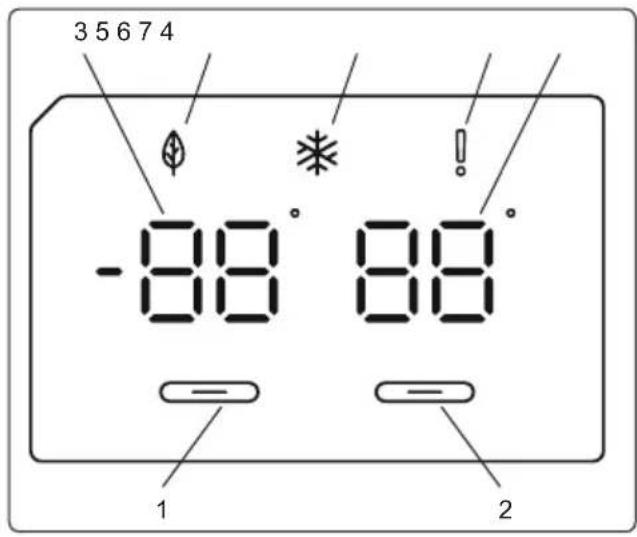

Using the Control Panel

35674 -88° 88° 1 2

1. Enables the setting of the freezer.
2. Enables the setting of the cooler.
3. Freezer set value screen.
4. Cooler set value screen.
5. Economy mode symbol.
6. Super freeze symbol.
7. Alarm symbol.

Operating your Fridge Freezer

Once you have plugged in the product, all symbols will be displayed for 2 seconds and the initial values will be shown as -18 °C on the freezer adjustment indicator, and +4 °C on the fridge adjustment indicator.

Freezer Temperature Settings

• The initial temperature value for the freezer setting indicator is -18^ .
• Press the freezer set button once.

When you first press the button, the previous value will blink on the screen.

• Whenever you press the same button, a lower temperature will be set (-16 °C, -18 °C, -20 °C, -22 °C or -24 °C).
• If you continue to press the button, it will restart from -16 °C.

NOTE: Eco mode gets activated automatically when the temperature of the freezer compartment is set to -18^ C.

Cooler Temperature Settings

• The initial temperature value for the cooler setting indicator is +4^ .
• Press the cooler button once.
• Whenever you press the button, a lower temperature will be set (+8 °C, +6 °C, +5 °C, +4 °C, or +2 °C).
• If you continue to press the button, it will restart from +8 °C.

Super Freeze Mode

Purpose

• To freeze a large quantity of food that cannot fit on the fast freeze shelf.
• To freeze prepared foods.
• To freeze fresh food quickly to retain freshness.

How to use

To enable the super freeze mode, press and hold the freezer temperature setting button for 3 seconds. Once the super freeze mode has been set, the super freeze symbol on the indicator will be lit and the machine will beep to confirm the mode has been switched on.

During Super Freeze Mode:

• The temperature of the Cooler may be adjusted. In this case, Super Freeze mode will continue.
• Economy mode cannot be selected.
• Super Freeze mode can be cancelled in the same way it is selected.

Notes:

• The maximum amount of fresh food (in kilograms) that can be frozen within 24 hours is shown on the appliance label.
• For optimal appliance performance in maximum freezer capacity, activate super freeze mode 3 hours before you put fresh food into the freezer.

Super freeze mode will automatically cancel after 24 hours, depending on the environmental temperature or when the freezer sensor reaches a sufficiently low temperature.

Warnings about temperature adjustments

• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.
• Do not pass to another adjustment before completing an adjustment.

- Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.

- A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

- Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

- This appliance is designed for use at an ambient temperature within the 10^ - 43^ range.

Climate class	Ambient ( °C)
T 16 to 43 (	°C)
ST 16 to 38 (	°C)
N 16 to 32 (	°C)
SN 10 to 32 (	°C)

Accessories

The Icematic (In some models)

• Pull the lever towards you and remove the ice maker tray
• Fill with water to the marked level
• Hold the left end of the lever and set the ice-tray on the icebox

- When ice cubes have formed, twist the lever to drop the ice cubes into the icebox. ! Do not fill the icebox with water in order to make ice. It will break.

Simple line drawing of a room with two circular windows and red arrows indicating airflow or movement (no text or symbols)

Note:

• Do not fill the icebox with water in order to make ice. It can be broken.
• The movement of the ice maker may be difficult while the refrigerator is running. In such a case should be cleaned by removing the glass shelves.

Removing the icemaker

• Take out of the freezer glass shelves
- Remove the icemaker by dragging left or right on the shelf.

You can remove the icemaker to use a larger volume of the freezer compartment.

Simple line drawing of a device with two circular ports and directional arrows indicating flow or movement (no text or symbols)

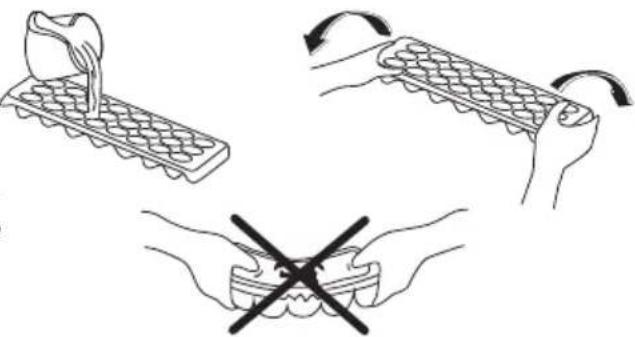

Ice tray (In some models)

• Fill the ice tray with water and place freezer compartment.
  • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration showing three hand positions: abacus, keyboard, and a cross (no text or symbols)

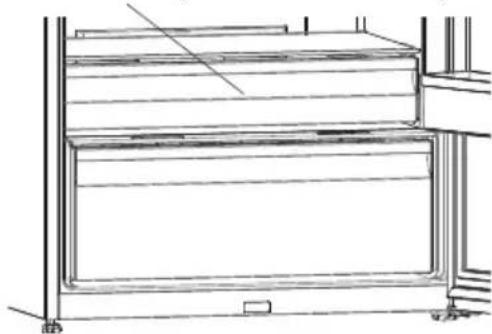

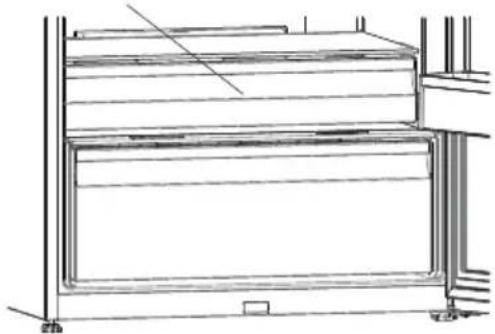

Zero Box (In some models)

Technical line drawing of a multi-level cabinet or storage unit with no visible text or symbols

Keeping food in the zero box compartment instead of the freezer or refrigerator compartment allows food to retain freshness and flavour longer, while preserving its fresh appearance. When the zero box tray becomes dirty, remove it and wash it with water.

(Water freezes at 0^ C, but foods containing salt or sugar freeze at temperatures lower than that)

Normally the zero box compartment is used to store raw

fish, lightly pickled food, rice, etc...

Do not put foods you want to freeze or ice trays onto the zero box.

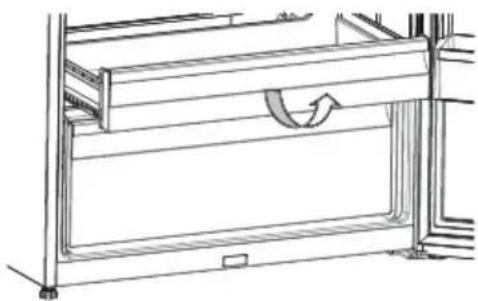

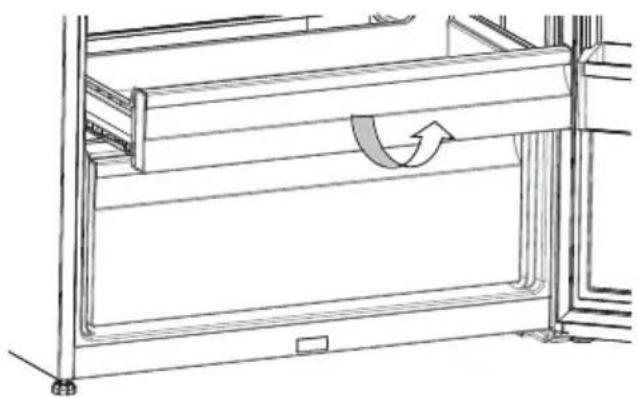

Removing the zero box

• Pull the zero box towards you by sliding it on the rails.
• Pull the zero box up from the rail and remove it from the fridge.

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

VitaCare Box

When the humidity controller is in the closed position, it allows fresh fruit and vegetables to be stored for longer.

If the VitaCare Box is completely full, open the fresh dial located in front of the VitaCare Box. This allows the air in the VitaCare Box and humidity rate to be controlled and the storage life of the food in the VitaCare Box will be increased.

If you see any condensation on the glass shelf, the humidity control should be set in the open position.

Technical line drawing of a cabinet or rack with horizontal shelves and two black components, no text or symbols present

Adjustable door shelf (In some models)

Five different height adjustments can be made to provide storage areas that you need by adjustable door shelf.

To change the position of adjustable door shelf;

Lift up front of the shelf (1) and move up or down adjustable door shelf (2) with both hands(Fig 1)

Before releasing the door shelf make sure the door shelf is located at door positions.

Diagram of a mechanical or architectural component with layered shelves and directional arrows, no visible text or symbols

(1) (2)
Fig.1

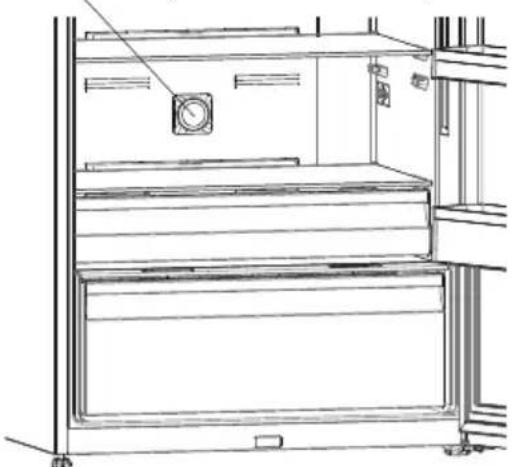

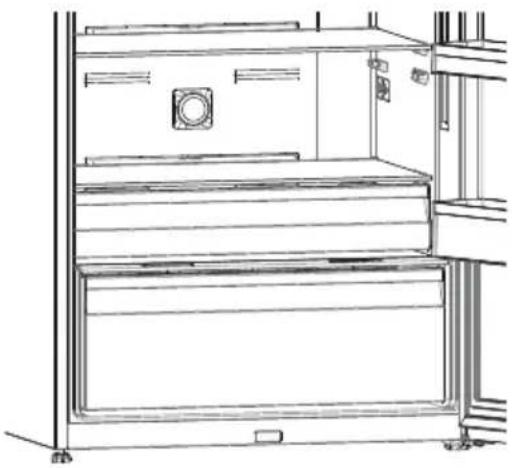

IonClean (In some models)

Technical line drawing of a multi-level cabinet or rack unit with no visible text or symbols

Natural Ion Tech spreads negative ions which neutralize particles of unpleasant smell and dust in the air.

By removing these particles from the air in the refrigerator, Natural Ion Tech improves air quality and eliminates odours.

• This feature is optional. It may not exist on your product.
- The location of your ioniser device may vary from product to product.

Maxi-fresh preserver (In some models)

Maxi Fresh Preserver technology helps to remove ethylene gas (a bioproduct released naturally from fresh foods) and unpleasant odors from the crisper. In this way, food stays fresh for a longer time.

• Maxi Fresh Preserver must be cleaned once in a year. The filter should be waited for 2 hours at 65^ C in a oven.
• To clean the filter, please remove the back cover of the filter box by pulling it in the direction of the arrow.
• The filter should not be washed with water or any detergent.

Notes: The assembly position of the filter may vary depending on the crisper design. Please see the related images. For some models, the filter cannot be attached as shown in the images. In this case it can be simply put into the drawer.

Maxi Fresh Preserver (In some models)

Technical line drawing of a rectangular mechanical drawer with internal compartments and mounting holes (no text or symbols)

Technical diagram showing a device with labeled components and directional arrows indicating flow or movement.

Visual and text descriptions on the accessories section may vary according to the model of your appliance.

PART - 3. ARRANGING FOOD IN THE APPLIANCE

Refrigerator compartment

• For normal operating conditions, adjusting the temperature value of the cooler partition of the fridge to 4^ C will be enough.
  • To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.
• Arrange the meat and cleaned fish(wrapped in packages or sheets of plastic) which you will use in 1-2 days, in the bottom section of the refrigerator compartment(that is above the crisper) as this is the coldest section and will ensure the best storing conditions.
• You can put the fruits and vegetables into crisper without packing.

Some recommendations have been specified below for the placement and storage of your food in the cooling compartment.

NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

ange the meat and cleaned fish(wrapped packages or sheets of plastic) which you use in 1-2 days,in the bottom section of refrigerator compartment(that is above crisper) as this is the coldest section will ensure the best storing conditions. can put the fruits and vegetables into per without packing. recommendations have been specified or the placement and storage of your the cooling compartment. potatoes, onions and garlic should not d in the refrigerator. Temperature sensor area

Temperature sensor area

Food Maximum	Storing time	Where to place in the fridge compartment
Vegetables and fruits 1 week	Vegetable bin
Meat and fish 2 - 3 Days		Wrapped in plastic foil or bags or in a meat container(on the glass shelf)
Fresh cheese 3 - 4 Days	In special door shelf
Butter and margarine 1 week	In special door shelf
Bottled products milk and yoghurt	Until the expiry date recommended by the producer	In special door shelf
Eggs 1 month In the egg	shelf
Cooked food All shelves

Freezer compartment

- Use the freezer to store frozen foods for long periods of time and make ice cubes.

- To freeze fresh food - ensure that as much of the surface of food to be frozen is in contact with the cooling surface.

- For optimum appliance performance to reach maximum freezing capacity, Set the refrigerator at 4 °C for 24 hours before placing fresh food into the freezer.

- After placing fresh food into the freezer, change the setting to 2^ for 24 hours is generally sufficient. After 24 hours, you can reduce the setting if required.

- Do not put fresh food on either side of frozen food as it can thaw it.

- While freezing fresh foods(i.e meat,fish and mincemeat),divide into portion sizes.

- Once the unit has been defrosted replace the foods into freezer and remember to consume them in a short period of time.

- Never place warm food in the freezer compartment.

- The instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.

- When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact.

- Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be stored in the freezer as soon as possible.

- If a package of frozen food shows signs of humidity and abnormal swelling it has been previously stored at an unsuitable temperature and that the contents have deteriorated.

- The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

That; If you decide to open the freezer door again immediately after closing, it may be difficult to re-open. This is normal and after the freezer has reached an equilibrium condition the door will open easily.

Important note:

• Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed they must NEVER be re-frozen.
• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, only add a small amount of spice if planning to freeze, or the desired spice should be added after the food has been thawed.
• The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat.
• The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags.

Pure diagram of a vertical object with two arrows pointing to its edges, no text or symbols present

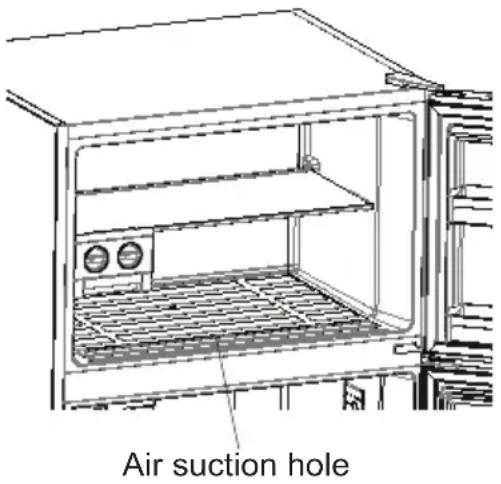

In some models; while loading the freezing compartment, the loading lines should not be passed. Otherwise, the door might remain open. In case that the freezing compartment door is left open, snow formation might occur in the freezing compartment. The problem shall not repeat itself after the snowed part is cleaned and it is made certain that its door is fully closed.

Also, not closing the freezing and/or cooling compartment door would increase your energy consumption.

If the lower shelf in the freezer door is removed and food is allowed to block the air suction hole, this will reduce the effectiveness of the fridge.

Therefore, be careful while loading the freezer compartment and make sure not to cover the air suction hole.

Air suction hole

Some recommendations have been specified on pages 16 and 17 for the placement and storage of your food in the deep freeze compartment.

Meat and fish Preparation	tion	Maximum Storing time (month)
Steak Wrapping in a foil 6 - 8
Lamb meat Wrapping in a foil 6 - 8	8
Veal roast Wrapping in a foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packages without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami	Should be packaged even if it has membrane
Chicken and turkey Wrapping in a foil 4 - 6
Goose and Duck Wrapping in a foil 4 - 6
Deer, Rabbit, Wild Boar In 2.5 kg portions and as fillets 6 - 8
Fresshwater fishes (Salmon, Carp, Crane, Siluroidea)	After cleaning the bowels and scales of the fish, wash and dry it; and if necessary, cut the tail and head.	2
Lean fish; bass, turbot, flounder		4
Fatty fishes (Tunny, Mackarel, bluefish, anchovy)		2 - 4
Shellfish	Cleaned and in bags 4 - 6
Caviar	In its package, aluminium or plastic container	2 - 3
Snail	In salty water, aluminum or plastic container	3

Note: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not cooked after being thawed, it should never be frozen again.

Vegetables and Fruits	Preparation	Maximum Storing time (months)
String beans and beans	Wash and cut to small pieces and boil in water	10 - 13
Beans	Hull and wash and boil in water	12
Cabbage	Cleaned and boil in water	6 - 8
Carrot Clean and cut to slices and boil in water	12
Pepper	Cut the stem, cut into two pieces and remove the core and boil in water	8 - 10
Spinach	Washed and boil in water	6 - 9
Vegetables and Fruits Preparation		Maximum Storing time (months)
Cauliflower	Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while	10 - 12
Eggplant Cut to pieces of 2 cm after washing 10 - 12
Corn	Clean and pack with its stem or as sweet corn	12
Apple and pear Peel and s ice 8 - 10
Apricot and Peach Cut into two pieces and remove the stone 4 - 6
Strawberry and Blackberry	Wash and hull 8 - 12
Cooked fruits Adding 10 % of sugar in the container 12
Plum, cherry, sourberry	Wash and hull the stems	8 - 12

Dairy Products Preparation		Maximum Storing time (months)	Storing Conditions
Packet (Homogenize) Milk	In its own packet 2	-3	Pure Milk – In its own packet
Cheese-excluding white cheese	In slices 6 - 8		Original package may be used for short storing period. It should be wrapped in foil for longer periods.
Butter, margarine In	its package 6

	Maximum Storing time (months)	Thawing time in room temperature (hours)	Thawing time in oven (minutes)
Bread	4 - 6	2 - 3	4-5 (220-225 °C)
Biscuits	3 - 6	1 - 1,5	5-8 (190-200 °C)
Pastry	1 - 3	2 - 3	5-10 (200-225 °C)
Pie	1 - 1,5	3 - 4	5-8 (190-200 °C)
Phyllo dough	2 - 3	1 - 1,5	5-8 (190-200 °C)
Pizza	2 - 3	2 - 4	15-20 (200 °C)

PART - 4. CLEANING AND MAINTENANCE

- Unplug the fridge before starting to clean it.

- Do not wash your fridge by pouring water into it.

- Wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.

- Remove the parts individually and clean with soapy water. Do not wash in a dishwasher.

- Never use flammable, explosive or corrosive material, such as thinner, gas or acid for cleaning.

Cartoon illustration of a smiling rectangular character and two surprised characters (no text or symbols)

Make sure that your fridge is unplugged while cleaning.

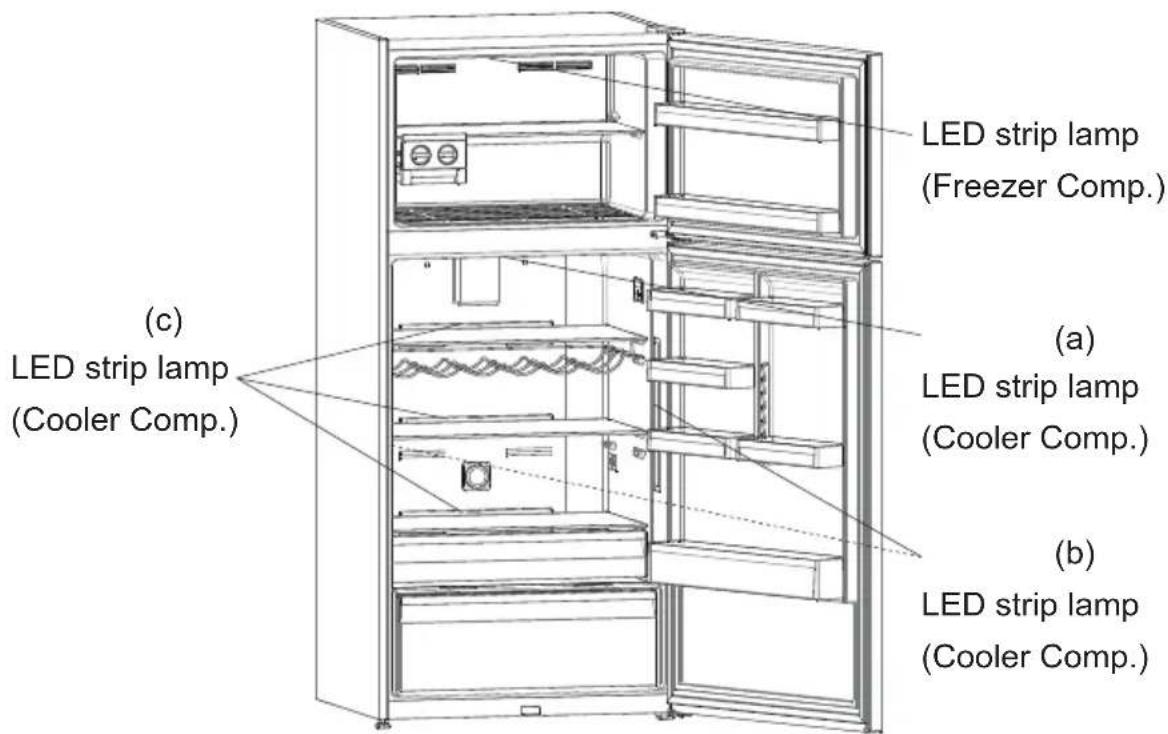

Replacing The Light LED (if the illumination is via LED strip)

Depending on the model, 1 LED strip in the freezer compartment and 2 or 3 LED strips in the cooler compartment are used to illuminate the interior of your appliance.

To replace any of the LEDS, please contact the nearest Authorised Service.

Note: Numbers and location of LED strips may be changed according to the model.

!!! Some versions may not have freezer illumination.

(c) LED strip lamp (Cooler Comp.) (a) LED strip lamp (Cooler Comp.) (b) LED strip lamp (Cooler Comp.)

PART - 5. TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

• The original packaging and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick packaging, bands or strong cords and follow the instructions for transportation on the package for re-transportation.
• Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.

Always carry your fridge in the upright position.

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Repositioning the door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge can be changed, you should contact the nearest Authorised Service to have the opening direction changed.

PART - 6. BEFORE CALLING YOUR AFTER SALES SERVICE

Errors

Your fridge will warn you if the temperatures for the cooler and freezer are at improper levels or if a problem occurs with the appliance. Warning codes are displayed in the freezer and cooler indicators.

ERROR TYPE MEANING WHY WHAT TO DO
E01 Sensor warning			Call Service for assistance as soon as possible.
E02 Sensor warning			Call Service for assistance as soon as possible.
E03 Sensor warning			Call Service for assistance as soon as possible.
E06 Sensor warning			Call Service for assistance as soon as possible.
E07 Sensor warning			Call Service for assistance as soon as possible.
E08 Low Voltage Warning		Power supply to the device has dropped to below 170 V.	- This is not a device failure, this error helps to prevent damages to the compressor.- The voltage needs to be increased back to required levelsIf this warning continues an authorised technician needs to be contacted.
E09	Freezer compartment is not cold enough	Likely to occur after long term power failure.	1. Set the freezer temperature to a colder value or set Super Freeze. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Remove any products which have thawed/defrosted during this error. They can be used within a short period of time.3. Do not add any fresh produce to the freezer compartment until the correct temperature has been reached and the error is no longer.If this warning continues an authorised technician needs to be contacted.
E10	Fridge compartment is not cold enough	Likely to occur after:- Long term power failure.- Hot food has been left in the fridge.	1. Set the fridge temperature to a colder value or set Super Cool. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Please empty the location at the front area of air duct channel holes and avoid putting food close to the sensor.If this warning continues an authorised technician needs to be contacted.
E11	Fridge compartment is too cold	Various	1. Check is Super Cool mode is activated2. Reduce the fridge compartment temperature3. Check to see if vents are clear and not cloggedIf this warning continues an authorised technician needs to be contacted.

If your fridge is not operating;

• Is there a power failure?
- Is the plug connected to the socket correctly?
- Is the fuse of the socket to which the plug is connected or the main fuse blown?
- Is there any failure at the socket? To check this, plug your refrigerator to a socket this is surely operating.

If your fridge is not cooling enough;

• Is the temperature adjustment right?
- Is the door of your fridge opened frequently and left open for a long while?
• Is the door of fridge closed properly?
- Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?
• Is your fridge filled excessively?
- Is there adequate distance between your fridge and the rear and side walls?
- Is the ambient temperature within the range of values specified in the operating manual?

If the food in your refrigerator compartment is over cooled

• Is the temperature adjustment right?
- Are there many food recently put inside the freezer compartment? If so, your fridge may over cool the food inside the refrigerator compartment as it will operate longer to cool these food.

If your fridge is operating too loudly;

To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;

• Is your appliance stable? Are the legs adjusted?
  • Is there anything behind your fridge?
• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case.
• Are the items placed on your fridge vibrating?

Normal Noises;

Cracking (Ice cracking) Noise:

• During automatic defrosting.
- When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking: Heard when the thermostat switches the compressor on/off.

Compressor noise (Normal motor noise): This noise means that the compressor operates normally Compressor may cause more noise for a short time when it is activated.

Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system.

Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air Blowing Noise (Normal fan noise): This noise can be heard in No-Frost fridge during normal operation of the system due to the circulation of air.

If humidity builds up inside the fridge;

• Are all food packed properly? Are the containers dried before placing them in the fridge?
• Are the fridge doors opened frequently? Humidity of the room gets in the fridge when the doors are opened. Humidity build up will be faster when you open the doors more frequently, especially if the humidity of the room is high.

If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door gaskets broken or torn?
  • Is your fridge on a level surface?

If the edges of fridge cabinet that the door joint contact are warm;

Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal.

IMPORTANT NOTES:

• Compressor protection function will be activated after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.

• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell.

• If the problem persists after you have followed all the instructions above, please consult to the nearest authorized service.

• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.

Tips for saving energy

1- Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat sources (radiator, cooker.. etc.). If you install it near heat sources, use an insulating plate.
2- Allow warm food and drinks to cool down before putting them in the refrigerator or freezer compartment.
3- When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment while it is thawing, reducing the energy required.
4- When placing liquids in the appliance, make sure they are covered. Otherwise humidity increases inside the appliance and the time taken to cool them is longer. Also covering drinks and liquids helps preserve the smell and taste.
5- When placing food and drinks in the appliance, open and close the appliance door as quickly as possible to keep the temperature inside the appliance stable.
6- Keep the covers closed of any compartments with different temperature requirements in the appliance (crisper, chiller ...etc.).
7- Make sure the door gasket is clean and pliable. Replace gaskets if they are worn or damaged.

PART - 7. THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Labeled diagram of a refrigerator interior with numbered compartments and internal components

This illustration is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A. Freezer compartment
B. Cooler compartment

1. Ice tray *
2. Freezer door shelves *
3. Freezer shelf
4. Icematic *
5. Interior display / In room control
6. Bottle shelf / Wine rack *
7. Cooler compartment shelves

8. Ioniser *

9. Chiller shelf *

10. Crisper cover
11. Crisper
12. Levelling feet
13. Şişelik rafı
14. Adjustable door shelf * / Door shelf
15. Door shelves
16. Egg holder

* In some models

Sommaire

AVANT D'UTILISER L'APPAREIL 26

Maxi-fresh preserver 38

AGENCEMENT DES DENRÉES DANS L'APPAREIL....39

Illustration of three hands performing a manual labor procedure with tools and tools (no text or symbols present)

Simple line drawing of an electric plug with a sad face and lightning bolt (no text or symbols)

Cartoon illustration of a character inside a refrigerator with arms and legs (no text or symbols)

Simple line drawing of a bottle and cup with explosion effects (no text or symbols)

Diagram of a server rack with ventilation grilles and a curved arrow indicating rotation (no text or symbols)

Mode Super congélation

Objectif

Simple line drawing of a washing machine with two circular gauges and red arrows indicating airflow direction (no text or symbols)

Remarque :

Diagram of a device with two circular ports and directional arrows indicating movement (no text or symbols)

Illustration showing three steps of a robotic arm: pressing a tool, moving a grid, and removing a black cross (no text or symbols)

Technical line drawing of a multi-level storage cabinet or rack unit (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

VitaCare Box

Technical line drawing of a cabinet or rack structure with horizontal shelves and door frame (no text or symbols)

Pure diagram of two arrows pointing to a vertical line and a horizontal bar, without any text or symbols

Cartoon illustration of a hand using a tool to clean or remove a device (no text or symbols present)

Cartoon illustration of a smiling face with sunglasses standing next to a 3D cube, holding thumbs up and giving thumbs-up, next to a mortar and pestle (no text or symbols)

Line drawing of a multi-tiered kitchen appliance with no text or symbols

Cartoon illustration of a smiling refrigerator and two puffer girls (no text or symbols)

Simple line drawing of two children holding a rectangular object, no text or symbols present

Labeled diagram of a refrigerator interior with numbered parts for identification

Maxi Fresh Preserver 65

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Cartoon illustration of an angry plug with a warning sign, no text or symbols present

Illustration of three hands performing a manual cable or wire manipulation technique (no text or symbols present)

Cartoon illustration of a character holding a door, with another hand holding a switch and a crossed-out prohibition symbol nearby (no text or labels)

Diagram showing server rack panel with labeled components and directional arrow indicating rotation or movement

Vor Inbetriebnahme

Simple line drawing of a smiling face inside a square with a hand holding the index finger (no text or symbols)

Diagram showing airflow around two circular chambers with red arrows indicating direction (no text or symbols)

Hinweis:

Diagram of a device with two circular ports and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a multi-level cabinet or rack unit (no text or symbols)

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

Line drawing of a container pouring liquid into a grid-patterned tray (no text or symbols)

Illustration of hands holding a grid-patterned object with curved arrows indicating rotation (no text or symbols)

Illustration of two hands holding a tooth with a black X symbol indicating a crossed-out condition (no text or labels)

VitaCare Box

Technical line drawing of a cabinet or rack structure with horizontal shelves and door frame (no text or symbols)

Diagram of a rectangular device with horizontal bars and a curved arrow indicating rotation or movement (no text or symbols)

Line drawing of a 3D rectangular drawer with internal compartments and mounting holes (no text or symbols)

Line drawing of a rectangular electronic device with a leaf symbol on the cover (no text or labels)

Line drawing of an open refrigerator with visible door, ventilation slots, and rack (no text or labels)

Gefrierfach

Pure diagram of a vertical structure with arrows indicating direction, no text or symbols present

Technical line drawing of a multi-tiered storage unit or rack structure (no text or symbols)

Cartoon illustration of a smiling rectangular character and two baby bottles (no text or symbols)

Simple line drawing of two children playing a game with a large block (no text or symbols)

Labeled diagram of a refrigerator interior with numbered parts for identification

Cartoon illustration of an angry plug with a frowning face and lightning bolts, no text or symbols present

Illustration of three hands performing a manual labor technique with tools and a tool, no text or symbols present.

Illustration of two bottles with bubbles and a droplet, showing motion effects (no text or symbols)

Diagram showing a server rack with ventilation grilles and a directional arrow indicating rotation (no text or symbols present)

Diagram showing airflow or ventilation system with two circular components and red arrows indicating direction (no text or symbols)

Nota:

Diagram of a device with two circular ports and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a multi-level cabinet or rack unit with no visible text or symbols

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation or force (no text or symbols)

VitaCare Box

Technical line drawing of a cabinet or rack with horizontal shelves and door frame (no text or symbols)

Illustration showing three steps of a robotic arm: pressing a bowl, moving a tray with arrows, and removing a hand with a crossed-out black symbol (no text or symbols present)

Line drawing of an open refrigerator with visible dish, air conditioner, and cooling unit (no text or symbols)

Pure diagram of a vertical object with two arrows pointing outward, no text or symbols present

Line drawing of a stainless steel oven with two outlets and a grating base (no text or symbols)

Cartoon illustration of a smiling cube character giving thumbs up and holding a mortar (no text or symbols)

Line drawing of a multi-tiered refrigerator with no text or symbols

Illustration of a hand holding a tool inside a wire rack (no text or symbols)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Reposicionar a porta

Labeled diagram of a refrigerator interior with numbered parts for identification

Dispensador de hielo (Icematic)....111

Zero Box....111

VitaCare Box 112

Illustration of three hands holding a cable with a lightning bolt symbol (no text or labels)

Cartoon illustration of an electric plug with a sad face and lightning bolt (no text or symbols)

Cartoon illustration of a character inside a door, showing arms and legs (no text or symbols)

Simple line drawing of a bottle and bucket with a starburst effect (no text or symbols)

Cartoon illustration of a distressed container with a bag labeled 'KG' and a sad face (no text or symbols beyond the label)

Diagram showing server rack panel installation with directional arrow indicating rotation or movement

Diagram illustrating airflow patterns in a water tank with labeled components and directional arrows indicating movement.

Pantalla y panel de control

35674 -88° 88° 1 2

Simple line drawing of a window with two circular windows and red arrows indicating direction (no text or symbols)

Nota:

Simple line drawing of a device with two circular ports and directional arrows indicating flow or movement (no text or symbols)

Zero Box

Technical line drawing of a multi-level cabinet or rack unit with no visible text or symbols

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

VitaCare Box

Technical line drawing of a cabinet or rack with horizontal shelves and a door, showing no text or symbols.

(1)(2) Fig.1

IonClean (In some models)

Line drawing of a double-door refrigerator with ventilation grilles and doorways (no text or symbols)

Natural Ion Tech spreads negative ions which neutralize particles of unpleasant smell and dust in the air.

By removing these particles from the air in the refrigerator, Natural Ion Tech improves air quality and eliminates odours.

• This feature is optional. It may not exist on your product.
- The location of your ioniser device may vary from product to product.

Pure diagram of a vertical object with two arrows pointing outward, no text or symbols present

Line drawing of an open oven with cooling unit and side-mounted dish (no text or symbols)

Cartoon illustration of a smiling refrigerator and two baby babies (no text or symbols)

Labeled diagram of a refrigerator interior showing numbered compartments and internal components

Labeled diagram of a refrigerator interior showing numbered compartments and internal components

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Cartoon illustration showing a refrigerator with a hand holding a bottle and a cup, next to an open refrigerator with a red 'X' symbol.

• الماء الفاتر

!!! demands to stop by doing the purpose.

Pure diagram of a vertical panel with arrows indicating direction, no text or symbols present

Diagram showing a device with labeled ports and a directional arrow indicating rotation or movement.

Line drawing of a multi-level cabinet or rack unit with no visible text or symbols

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

Line drawing of a hand pouring liquid into a container on a grid-patterned tray (no text or symbols)

Illustration of hands holding a grid-like object with curved arrows indicating rotation (no text or symbols)

Illustration of two hands holding a tooth with a black X symbol indicating a medical or dental procedure (no text or labels present)

Diagram showing airflow or ventilation system with two circular components and red arrows indicating direction (no text or symbols)

Simple line drawing of a device with two circular ports and directional arrows indicating flow (no text or symbols)

Cartoon illustration of a distressed container with a bag labeled 'KG' and sad face (no text or symbols beyond the label)

Pure electrical circuit lines without any symbols

• قوا بداخلها

Cartoon illustration of a charging plug with a sad face and warning symbol (no text or labels)

Illustration showing three different techniques for connecting wires, with no text or symbols present.

Cartoon illustration of a smiling refrigerator with arms and legs open, no text or symbols present

• ايى القابس.

• علق بالباب.

World map silhouette showing continents and countries with no text or labels

Qr

Importer Name:

TEKA MIDDLE EAST FZE

Importer Address:

Jabel Ali Free Zone, Office 417, Building LOB 16, P.O. Box 18251 Dubai/UAE

Importer Name:
