Product Type	Built-in refrigerator-freezer
Brand	Teka
Model	RBF 78780 FI WH
Dimensions (H x W x D)	1166 x 680 x 550 mm
Power supply	220-240 V, 50 Hz, fuse 10 A
Climate class	SN, N, ST, T (10 °C to 43 °C)
Freezer star rating	4 stars (≤ -18 °C)
Refrigerator temperature setting	2 °C to 8 °C
Freezer temperature setting	-15 °C to -25 °C
My Zone	-3 °C to +3 °C
Special functions	Super cooling, Super freezing, Holidays, Eco
Refrigerator defrost	Automatic
Freezer defrost	Automatic (No-Frost)
Display and controls	Electronic touch panel
Interior lighting	LED
Installation type	Built-in
Adjustable feet	Yes, 2 front feet
Reversible door	Not specified
Shelf material	Tempered glass
Freezing capacity	Not specified
Noise level	Not specified
Energy consumption	Not specified
Net weight	Not specified
Spare parts availability	7 to 10 years depending on part
Warranty	See manufacturer's conditions

Frequently Asked Questions - RBF 78780 FI WH TEKA

What type of refrigerant is used?

The refrigerant is isobutane (R600a), a flammable gas. Make sure to ventilate the room if a leak occurs.

How to adjust the refrigerator temperature?

Press button ④ on the control panel to choose between 2 °C and 8 °C. The recommended temperature is 5 °C.

How does the Super Freezing function work?

Press button ⑦; the freezer drops to -25 °C for 24 hours to quickly freeze fresh food. The function stops automatically.

What to do if the appliance does not cool?

Check that the plug is properly inserted, the thermostat is on, and the ambient temperature is within the climate range. If the problem persists, contact a professional.

How to clean the interior of the refrigerator?

Unplug the appliance. Clean the surfaces with a mild detergent and a soft cloth. Do not use abrasive products. Rinse and wipe dry.

The freezer forms ice despite No-Frost?

The No-Frost system normally prevents frost. If ice appears, check that the door closes properly and the gasket is clean. If the problem persists, call a technician.

Can I freeze hot food?

No, wait until they have cooled to room temperature to avoid raising the freezer temperature and spoiling other food.

How to activate Holiday mode?

Press button ③; the refrigerator goes to 17 °C and the freezer to -18 °C to save energy during your absence.

What is the storage duration of frozen food?

At -18 °C, beef keeps for 6-8 months, pork 3-6 months, fish 3-6 months, vegetables 10-12 months. Respect expiration dates.

How to change the interior light bulb?

Unplug the appliance. Remove the light cover and replace it with an identical LED bulb. If the problem persists, contact a professional.

USER MANUAL RBF 78780 FI WH TEKA

User Manual

RBF 78780 FI WH

EN DE FR ES PT IL TR

EN

Content

GUIDELINES CONCERNING THE SAFETY OF USE 2

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE … 6

UNPACKING 8

DISPOSAL OF OLD APPLIANCE 8

CONTROLS 9

OPERATION AND FUNCTIONS 11

USING THE REFRIGERATOR EFFICIENTLY 13

DEFROSTING, WASHING AND MAINTENANCE 15

TROUBLE-SHOOTING 17

INSTALLATION INSTRUCTION.... 19

GUIDELINES CONCERNING THE SAFETY OF USE

• The appliance is intended for household use only.
• The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.
• Some provisions in this user manual are unified for refrigerating products of different types (for a refrigerator, refrigerator-freezer or freezer).
• The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual.
• Keep this manual for future reference, or to pass it over to the next user.
• This appliance is not intended for use by persons (including children) with limited physical or mental capabilities and persons who lack experience or familiarity with the appliance.
• Do not allow children to use the appliance. Do not allow them to play with the appliance. They must not climb inside the drawers and swing on the doors.
• The appliance operates properly at the ambient temperature (see product fiche). Do not use it in the cellar, unheated summer cottage during autumn and winter.
• When placing, moving, lifting the appliance, do not hold the door handles, do not pull the condenser at the rear part of the refrigerator and do not touch the compressor unit.
• When transporting, moving or positioning the fridge-freezer do not tilt it by more than 40° from the vertical position. Should such a situation occur, the appliance should be switched on after minimum 2 hours from its replacement in the right position.
• Pull the plug out from the mains socket before each maintenance activity. Do not pull on the cord, but hold the body of the plug instead.
• The “cracking” sound, which the appliance may emit is caused by the expansion and contraction of parts as a result of temperature variations.
• For safety reasons do not repair the appliance yourself. Repairs carried out by persons who do not have the required qualifications may result in serious danger for the user of the appliance.

- Air the room in which the appliance is placed for a few minutes (the size of the room for a product containing isobuthane/R600a must be at least 4 m³) to avoid damage to the cooling system.

- Do not refreeze partly thawed products.

- Do not store beverages in bottles and cans, especially carbonated beverages, in the freezer chamber. The cans and the bottles may explode.

- Do not put frozen products, taken out directly from the freezer (lollies, ice cubes, etc.) into your mouth, their low temperature may cause severe frostbite.

- Make sure you do not damage the cooling system, by puncturing the refrigerant pipes in the evaporator or breaking the pipes. The refrigerant is flammable. If the refrigerant makes contact with the eyes, rinse them with clean water and call for medical assistance immediately.

- If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.

- This appliance is intended for food storage, do not use it for other purposes.

- When performing activities, such as cleaning, maintenance or moving, the appliance must be completely dis-connected from power supply (by pulling the plug out from the socket)

- This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.

- In order to obtain more space in the freezer, you can remove the drawers and place the food directly on the shelves. This has no effect on the product mechanical properties and cooling performance. Declared freezer capacity was calculated with the drawers removed.

- This product contains a light source, replaceable (LED only) light source by a professional.

WARNING: Risk of fire / flammable materials

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

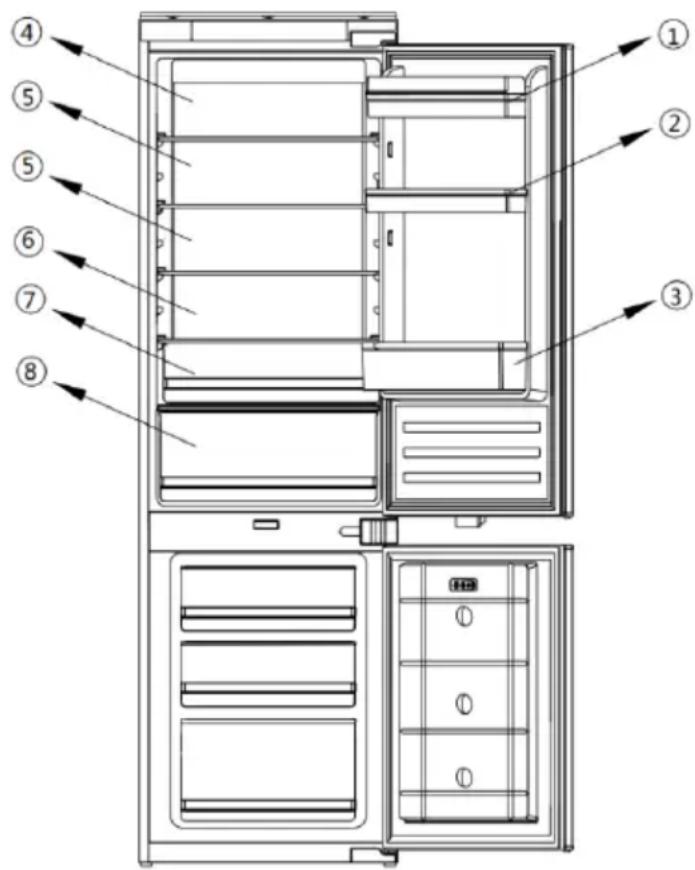

	Compartments TYPE	Target storage temp.[°C]	Appropriate food
1	Fridge +2≤+8		Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2	Freezer ***	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3	Freezer ***	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
4	Freezer **	≤-12	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food
5	Freezer *	≤-6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
6	0-star compartment	-6≤0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no more than 3 days). Partially encapsulated processed foods (non-freezable foods)
7 Chill 2≤+3			Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0 °C and above 0 °C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0°C)
8 Fresh Food 0≤+4			Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days)
9 Wine +5≤+20 red wine,white wine,sparkling wine etc.

• Note: please store different foods according to the compartments or target storage temperature of your purchased products.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Water dispenser cleaning (special for water dispenser products): Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Pursuant to Commission Regulation (EU) 2019/2019, the minimum availability period for spare parts necessary to repair the appliance is 7 or 10 years depending on the type and purpose of the spare part.
• The list of spare parts and the ordering procedure are available on the websites of the manufacturer, importer or an authorized representative.
• For more information about the product, please refer to the EU EPREL Product Database at https://eprel.ec.europa.eu. For more information, please use your mobile device to scan the QR code on the energy label or enter the product model listed on the energy label in the EPREL search engine https://eprel.ec.europa.eu/

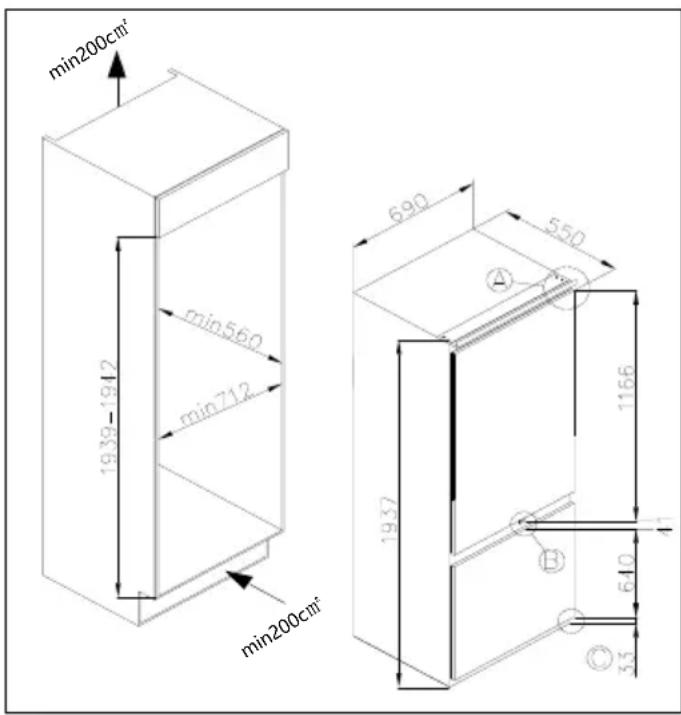

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE

This refrigeration appliance is intended for use as a built-in appliance.

Installation before using the appliance for the first time

• Take the product out of the package, remove the scotch tape protecting the door and the equipment. Any remaining adhesive stains may be removed with a mild washing agent. - Do not throw away the polystyrene elements of the packaging. If it is necessary to transport the fridge-freezer, pack it in the polystyrene elements and film as well as protecting it with scotch tape - Clean the interior surface of the fridge-freezer and the elements of the equipment with a washing agent dissolved in lukewarm water, then wipe it dry. - Place the fridge-freezer on an even, flat and stable surface, in dry, aired and shaded room, far from the heat sources such as: oven, hob, central heating radiators, central heating pipes, hot water installation, etc. - On the exterior surface of the product may be a protective foil, this foil should be removed. - Make sure the appliance is placed in a horizontal position by screwing in the 2 adjustable front legs. • Make sure the distance between the side of the appliance (on door hinges side) and the wall is enough, to ensure that the door opens freely. - Ensure adequate ventilation of the room and free air circulation from all sides of the appliance.

Minimum distances from the heat sources

• from electric gas and other ovens - 30 mm, • from oil or coal fired ovens - 300 mm, • from built-in ovens - 50 mm

If it is not possible to ensure the above-mentioned distances, provide an appropriate insulation board.

Warning:

• The rear wall of the refrigerator, in particular the condenser and other elements of the cooling system, must not come into contact with other elements that could damage them (e.g., central heating pipes and water supply pipes).
• It is forbidden to readjust or modify any parts of the unit. It is crucial not to damage the capillary tube visible in the compressor recess. The tube may not be bent, straightened, or wound.
• If the capillary tube is damaged by the user, the guarantee will be void.
• In some models, the handle is put into the appliance. You should screw it with your own screwdriver.

Mains connection

• Prior to connection, it is recommended to set the temperature control knob to an "OFF" or other position that disconnects the appliance from the power supply (see the page with the control description).
• This appliance should be connected to an AC 220-240V 50Hz supply socket. The socket must be fitted properly and must be supplied with an earthing conduit and a 10A fuse.
• It is a legal requirement that the appliance is properly earthed. The manufacturer will not be held liable for any damage or injury which may result from the failure to fulfil this requirement.
• Do not use adapters, multiple sockets, or two-wire extension leads. If it is necessary to use an extension lead, it must be equipped with a protection ring and a single socket and must have a VDE/GS safety certificate.
• If an extension lead is used (with a protection ring and safety certificate), its socket must be located at a safe distance, away from sinks, and must not be in a place where it could be flooded by water or waste water.
• See the type plate at the lower part of the internal wall of the appliance for detailed specifications.

Disconnecting the mains

Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.

Climate range

The information about the climate range of the appliance is provided on the rated plate or carton board.

Climate class Allowable ambient temperature

SN Extended Temperate	This refrigeration appliance is intended for use at an ambient temperature ranging between 10°C and 32°C
N Temperate	This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 32°C
ST Subtropical	This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 38 °C
T Tropical	This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 43 °C

UNPACKING

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

CONTROLS

1. When the appliance is switched on for the first time, it always operates at the following settings: 5°C for the fridge, 0°C for the My Zone, and -18°C for the freezer. To adjust the temperature or functions manually, press the corresponding button. The temperature range of the My Zone is from -3°C to 3°C.
2. Fridge temperature adjustment: press button ④ on the left side of the control panel to select temperatures from 2°C to 8°C.
3. Freezer temperature adjustment: press button ⑤ on the right side of the control panel to select temperatures from -15°C to -25°C.
4. My Zone drawer adjustment function: button ① controls the temperature. Pressing this button cycles the temperature from -3°C to +3°C. This function can be turned on or off by pressing and holding the button for three seconds.
5. Fast cooling function: press button ②. The button light illuminates and fast cooling is activated. The fridge automatically operates at 2°C and stops after 24 hours, at which point the light goes off.
6. Holiday function: press button ③. The button light illuminates and holiday function is activated. The entire appliance automatically operates at the following settings: fridge at 17°C and freezer at -18°C.
7. Eco function: press button ⑥ on the control panel. The eco function is activated and the button illuminates. The fridge compartment operates at 5°C, the freezer compartment at -18°C, and the My Zone at 3°C.
8. Fast freezing function: press button ⑦. The button light illuminates and the freezer operates in fast freezing mode at -25°C. After 24 hours, the fast freezing function stops automatically.
9. Press and hold button ⑧ for 3 seconds to switch off the appliance. The button illuminates and power is cut off. The internal lights go out and the compressor stops. Press and hold button ⑧ for 3 seconds again to switch the appliance back on. The symbol illuminates and power is restored.

Additional information on temperature

• The temperature inside the appliance is influenced by many factors. How you set the temperature control dial depends on the ambient temperature, sun exposure, how often you open the door, and the amount of food stored. The middle setting of the dial is most optimal in most cases.
• Do not put food into the fridge freezer before it has reached its operating temperature, which takes at least 4 hours.
• Do not change the temperature settings due to the change in season. The sensor will detect an increase in ambient temperature and the compressor will automatically run for a longer period to maintain the set temperature inside the compartments.
• Slight temperature variations are perfectly normal and may occur, for instance, when storing large quantities of fresh food in the fridge or when the door is left open for an extended period. This will not affect the condition of the stored food, and the temperature will quickly return to its set value.

Error code

This appliance has a 'fault display & alarm' function. Once the sensors get faulty, alarms are displayed on the temperature display. The appliance still cools, but a professional service engineer should be called to check the appliance.

F2 – Sensor of adapt zone

F3 – Sensor of fridge compartment

F4 – Sensor of freezer

compartment

F5 – Sensor of defrosting

2E – Fault of fan/motor in freezer

CE – Communication fault between main panel and display panel.

The above errors only show on display, no voice.

Over temperature alarm in freezer: after freezer temperature arrives at the set temperature, if the temperature rises to > -1 °C, the alarm will start, accompanied by flashing of the freezer temperature digit. Press any button to cancel the voice alarm. The flash will remain until the temperature is < -1 °C.

PS: Main board is located in the compressor compartment.

OPERATION AND FUNCTIONS

Storage of food in the fridge-freezer

• The products should be placed on plates, in containers, or packed in food wrap. Distribute them evenly over the shelves. If the food contacts the rear wall, it may cause frosting or wetting of the products.
• Do not put dishes with hot food into the fridge.
• Products which absorb flavours easily such as butter, milk, white cheese and products with intense flavour, such as fish, smoked meat, hard cheese must be placed on shelves, packed in food wrap or in tightly sealed containers.
• The storage of vegetables containing significant quantities of water will cause the deposition of condensation on the vegetable containers, it does not impact on the proper functioning of the fridge.
• Before putting the vegetables into the fridge, dry them well.
• Excessive moisture shortens the shelf life of vegetables, especially the leafed vegetables.
• Do not wash the vegetables before storing in the refrigerator. Washing removes the natural protection, therefore it is better to wash the vegetables directly before consumption.
• It is recommended to place the products in freezer drawers 1, 2, 3* up to natural loading capacity.**
• Packed products
• Shelf
• Natural loading capacity 4.
• Stacking of products on the freezer shelves is acceptable.*
• It is acceptable to place products beyond the natural loading capacity by 20-30 mm.**
• In order to increase the loading capacity of the freezer chamber and allow the stacking of products on the freezer evaporator wire shelves up to maximum height, it is possible to remove drawers 1 and 2.*

Freezing food**

• Practically all food products, except for vegetables consumed raw, such as lettuce, can be frozen.
• Only food products of the highest quality, divided into small portions for single use, should be frozen.
• Products should be packed in materials that are odourless, resistant to air and moisture penetration, and not susceptible to fat. Plastic bags, polyethylene and aluminium sheets are the best wrapping materials.
• The packaging should be tight and should stick to the frozen products. Do not use glass containers.
• Keep fresh and warm foodstuff at ambient temperature away from the products which have already been frozen.
• We advise you not to place more fresh food at a time into the freezer per day (see table with technical specifications).
• In order to maintain optimum quality of the frozen food, reorganise the food that is in the middle of the freezer, so that it does not touch the products that are not yet frozen.
• It is recommended that you move the already frozen products to one side and place the fresh products that are to be frozen on the opposite side, as close to the rear and side walls as possible.

• To freeze products, use the space marked. - Bear in mind that the temperature in the freezer is affected by several factors, including the ambient temperature and the quantity of food products in the chamber, the frequency of opening the door, the amount of frost in the freezer, and the thermostat setting. - If you cannot open the freezer door immediately after closing it, allow 1-2 minutes for the negative pressure to compensate, and try again to open the door.

The storage time for frozen products depends on their quality before freezing when fresh, and on the storage temperature. The following storage periods are recommended when the temperature of -18°C or lower is maintained:

Products Months
Beef 6-8
Veal 3-6
Giblets 1-2
Pork 3-6
Poultry 6-8
Eggs 3-6
Fish 3-6
Vegetables	10-12
Fruit 10-12

Do not store frozen food in the rapid cooling chamber. Ice cubes can be prepared and stored in this chamber.

Note: If the appliance does not have a freezer compartment ( ** ), it is not suitable for freezing foodstuffs.

USING THE REFRIGERATOR EFFICIENTLY

Practical everyday tips

• Do not place fridges or freezers next to radiators, heaters, stoves, or in direct sunlight.
• Make sure that air vents are not covered up and clean the dust off them once or twice a year.
• Select the right temperature: 6 to 8°C in your refrigerator and -18°C in your freezer is sufficient.
• When on holiday, turn up the temperature in your fridge.
• Only open your fridge or freezer when necessary. It helps if you know what food each contains and where it is located. Return food to the fridge or freezer as soon as possible after you have used it so that it does not warm up too much.
• Wipe the inside of your fridge regularly with a cloth soaked in a mild detergent. Appliances which are not self-defrosting will require regular defrosting. Do not allow frost layers thicker than 10 mm to form.
• Keep the seal around the door clean, otherwise it will not shut properly. Always replace broken seals.

Understanding the stars

Temperature is at least -6°C; sufficient to store frozen food for about a week. Drawers or compartments marked with one star used to be a feature of (mostly) cheaper fridges.

Food can be stored at -12°C or below for 1-2 weeks without losing its taste. Not suitable for freezing food.

This rating is mainly used to store foods at -18°C or below. Can also be used to freeze up to 1 kilogram of fresh food.

This appliance is suitable for storing foods at -18°C or below and freezing larger quantities of fresh foods.

Practical tips

Due to the natural circulation of the air in the appliance, there are different temperature zones in the refrigerator chamber.

The coldest area is directly above the vegetable drawers. Use this area for all delicate and highly perishable food, e.g.:

Fish, meat, poultry

Sausage products, ready meals

Dishes or baked goods containing eggs or cream

Fresh dough, cake mixtures

Pre-packed vegetables and other fresh food with a label stating it should be kept at a temperature of approximately 4°C.

The warmest area is in the top section of the door. Use this for storing butter and cheese.

Food that should not be stored in a refrigerator

• Not all food is suitable for storing in the refrigerator, particularly:
• Fruit and vegetables that are sensitive to cold, such as bananas, avocado, papaya, passion fruit, aubergines, peppers, tomatoes, and cucumbers.
• Fruit that is not yet ripe
• Potatoes

Warning:

Example of storing the food - see below

To achieve the most effective food preservation for the longest possible time and to avoid wasting any food, position the products as shown in Figure 12. In addition, this figure illustrates the layout of drawers, baskets, and shelves, which allows the most efficient use of energy.

Optimal temperature and storage conditions will extend product shelf life and optimize electricity consumption. Optimal storage temperature range should be stated on the food product packaging.

The fridge section is for short term food storage. Although low temperatures can be maintained, extended periods of food storage is not recommended. As the cold air circulates within the fridge, the temperature can vary between the different sections. As such, foods should be stored in different sections according to type.

1. Butter, cheeses etc.
2. Food in jars and bottles
3. Drinks, e.g. milk
4. Cooked food
5. Yogurts, preserves etc.
6. 75cl bottles or ready meals etc.
7. Fruit and vegetables
8. Fresh meat and fish/fruit and vegetables

The fridge shelves can be moved according to the storage requirements within the fridge section. To move the shelf, lift up the rear section and then pull it outwards.

The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.

DEFROSTING, WASHING AND MAINTENANCE

Never clean the product's casing or plastic parts using solvents or strong, abrasive detergents (e.g. washing powders or creams)! Use mild liquid detergents and soft cloths only. Do not use sponges.

Defrosting the fridge***

• Frost settles on the rear wall of the fridge chamber. It is removed automatically. During defrosting, the condensate, which contains contaminants, may clog the opening in the trough. Should this occur, carefully unclog the opening with the cleaning plug.
• The appliance operates in cycles: it refrigerates (then frost settles on the rear wall), and defrosts (water flows down the rear wall).
• Disconnect the appliance from the mains before cleaning by removing the plug from the mains socket or switching off the fuse. Prevent water from penetrating the control panel or the light.
• Do not use defrosting aerosols. They may cause the formation of an explosive mixture, or contain solvents which may damage the plastic components of the appliance and even be harmful to health.
• Make sure the water used for cleaning does not flow into the evaporation container through the discharge opening.
• The whole appliance, except for the door gasket, must be cleaned with a mild cleaning detergent. The door gasket should be cleaned with water and wiped dry.
• Wash all the accessories (vegetable containers, door shelves, glass shelves, etc.).

Defrosting the freezer**

• It is recommended to combine defrosting the appliance with washing it.
• Excessive accumulation of ice on the freezing areas impairs the appliance's freezing capacity and increases energy consumption.
• Defrost the appliance at least once or twice a year. In case of higher ice build-up, defrosting must be carried out more frequently.
• If there is food in the freezer, set the knob to the max. position about 4 hours before the planned defrosting. This will ensure the possibility of storing the food at the ambient temperature for a longer time. • After taking the food out of the freezer, put it in a container, wrap it with several layers of paper, a blanket, and store it at a cool place.
• The defrosting operation should last as short as possible. Long storage of food at the ambient temperature shortens their shelf life.

Defrost the freezer chamber following steps:**

• Switch off the appliance using the control panel and pull the plug out from the socket.
• Open the door and remove the food from the freezer.
• Depending on the model, pull out the drainage tube located in the bottom of the freezer compartment and place a suitable vessel underneath.
• Leave the door open, this will speed up the defrost process. Additionally, a pot with hot water (not boiling) may be placed inside the freezer compartment.
• Wash the interior of the freezer and wipe it dry.
• Switch on the appliance as per the relevant point in the manual.

Automatic fridge defrosting****

The fridge chamber has been equipped with an automatic defrosting function. However, frost may settle on the rear wall of the fridge chamber. This happens usually, when large quantities of fresh food products are stored in the fridge.

Automatic freezer defrosting****

The freezer chamber has been equipped with an automatic defrosting function (no frost). The food is frozen in the cooled circulation air, and the moisture from the freezer chamber is discharged outside. As a result, no ice and frost is produced in the freezer and the products do not freeze on each other.

Washing the fridge and freezer chambers manually****

It is recommended to wash the fridge and freezer chambers at least once a year. This prevents the formation of bacteria and bad odour. Switch off the appliance, remove the food from the chambers and wash them using water with a mild detergent. Then, wipe the chambers dry with a cloth.

Taking out and putting in the shelves*****

Slide the shelf out, then slide it in as much as possible so that its clamp could fit the guide groove.

Taking out and putting in the door shelf*****

Lift the door shelf, remove it and put it back from the top into its required position.

WARNING! You must not put an electric heater, a heating fan or a hair dryer into the freezer by any means.

TROUBLE-SHOOTING

Problems Possible causes Remedies

The appliance does not work The electric circuit is disrupted		- check whether the plug is properly inserted into the socket- check whether the power cable of the appliance is not damaged- check whether there is voltage in the socket, by plugging another appliance, e.g. a night lamp- check whether the appliance is switched on by setting the thermostat to a position above 0.
The lighting inside the chamber does not work	The bulb is loose or fused (only appliances with bulb lightning type)	- fit the bulb correctly or replace it (see section above “Replacing the interior light bulb)
The appliance works continuously	Incorrect setting of the adjustment knob	- reset the knob to a lower position
	See. "Temperature inside the appliance is not low enough for description of other possible causes	See. "Temperature inside the appliance is not low enough for description of other possible remedies
Water collects in the lower part of the appliance	The water discharge opening is clogged (depending on the model)	- clean the discharge opening (see the operating manual – chapter entitled "Defrosting the fridge")
	Internal air circulation obstructed	- place the food and containers in such a way as that they do not touch the rear wall of the fridge
The appliance generates unusual noise	Incorrect levelling of the appliance	- level the appliance properly
	The appliance is touching furniture and/or other objects	- place the appliance at a location that ensures proper clearances around it

Problems Possible causes Remedies

Temperature inside the appli-ance is not low enough or too high	Incorrect setting of the adjust-ment knob	- reset the knob to a higher position
	The ambient temperature is higher or lower than the climate range from table with technical specification	- the appliance is adapted to op-eration in the climate range from table with technical specification.
	The appliance is located in a sunlit place or near heat sources	- move the appliance to another place. Observe the guidelines contained in the manual
	Too much warm food loaded at a time	- wait 72 hours until the food becomes cool (freezes) and the required temperature is reached inside the chamber
	Internal air circulation obstructed	- place the food and containers in such a way that they do not touch the rear wall of the fridge
	The air circulation at the back of the appliance is obstructed	- move the appliance min. 30 mm away from the wall
	The door of the fridge/freezer is opened too often and/or remains open for too long	- reduce the frequency of open-ing the door and/or shorten the time when door remains open
	The door does not close com-pletely	- place the food and containers so that they would not interfere with door closed
	The compressor is switched on too rarely	- check whether the ambient temperature is not lower than climate class
	Door gasket inserted incorrectly - press the gasket in

Certain sounds can be heard during normal use of the refrigerator, which do not affect its correct operation.

Sounds, which can be easily prevented:

• noise caused by the appliance which is not level - adjust the position with the adjustable turn-in front feet. Alternatively, place pads made of soft material under the rear rollers, especially when the appliance is placed on tiles.
• touching the adjacent piece of furniture - move the refrigerator away.
• creaking of the drawers or shelves - take out and put back the drawer or shelf.
• sounds of clinking bottles - move bottles apart.

Sounds heard during normal use are mainly due to operation of the thermostat, compressor (switching on) and cooling system (thermal expansion and contraction of the radiator caused by flow of the cooling agent).

INSTALLATION INSTRUCTION

Installation preparation

This appliance must never be installed close to heat sources, e.g. heating elements or cookers, nor in damp places.

Seek the help of another individual, or two, when installing this appliance. This appliance may have sharp edges. Wear adequate PPE for the task and environment.

• To ensure the appliance is level, you should use the height adjustable feet at the front of the appliance.
• The cooling system at the rear of the appliance must not touch the rear wall. The greater the gap, the better.
• The appliance must be installed with adequate ventilation. Ensure that there is clearance above the appliance to allow air to escape and that there is space between the rear of the appliance and the wall.

Installation drawing

Installation instruction (sliding hinge)

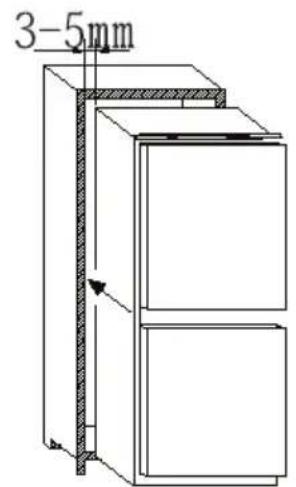

1) Insert the appliance into the wooden furniture, placing it on the opposite side of the hinges, and make sure there is a 3-5 mm distance gap.

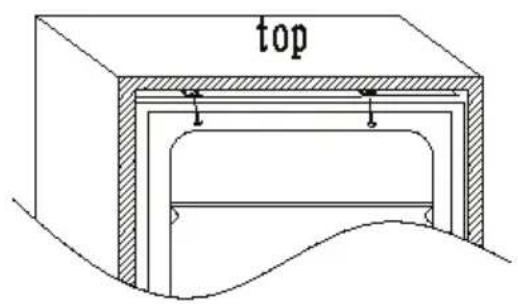

2) After ensuring the match between appliance door and column door, then screw the appliance upper part to the cabinet.

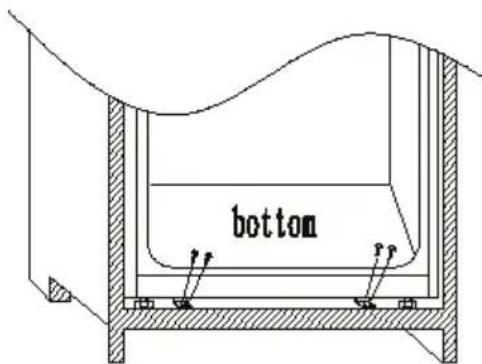

3) Screw the appliance lower part.

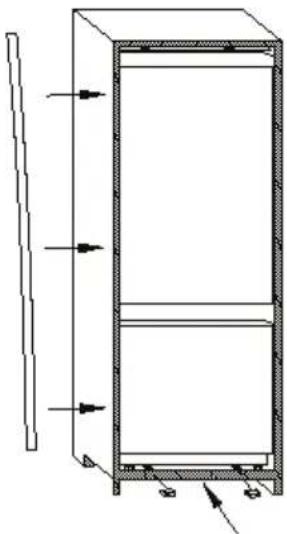

4) Fit the seal to the appliance, cut off the excessive part if necessary. Fit the bottom parts with plastic covers.

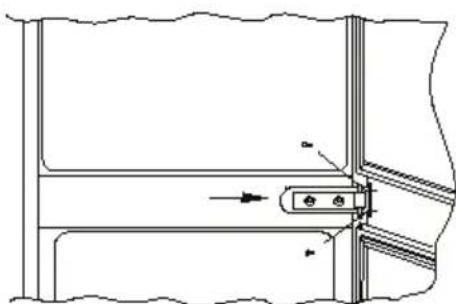

5) Use a cross-screwdriver to loosen the connecting pin underneath the right middle hinge, and adjust to screw onto the right cabinet wall.

6) Fix the slider and slider base onto wooden door and appliance door.

Installation instruction (FIX hinge)

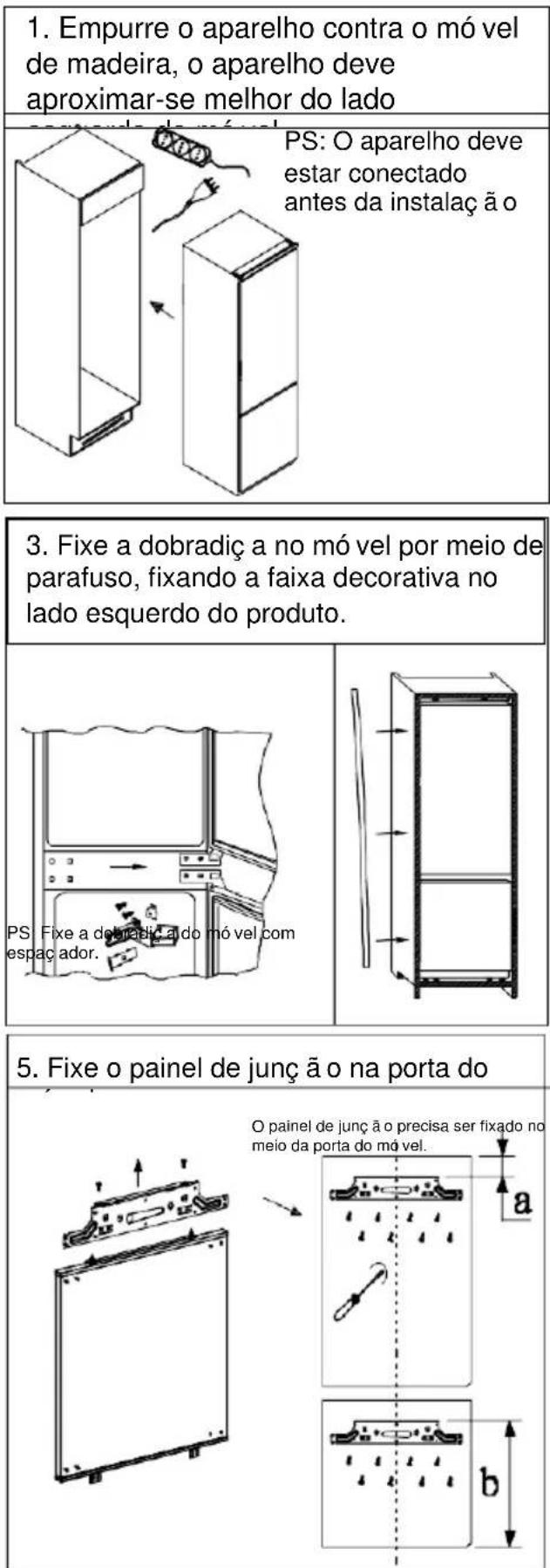

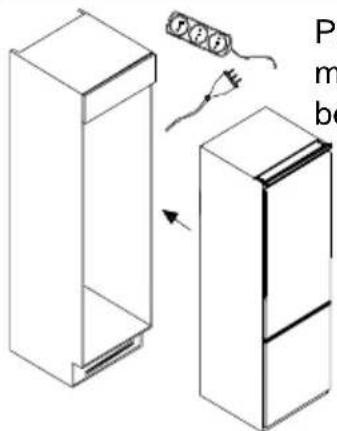

1) Push the appliance into the wood furniture, the appliance should better approach the furniture left side.

PS: The appliance must be plugged in before installation.

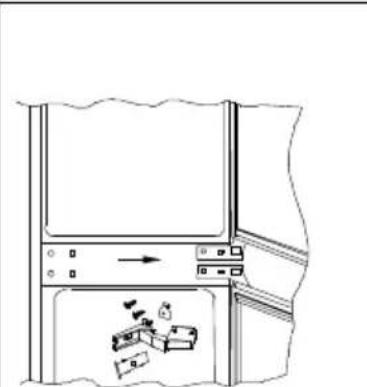

3) Fix the hinge on furniture by screw, attach the decoration stripe on the product left side.

PS: Fix the hinge on furniture with spacer

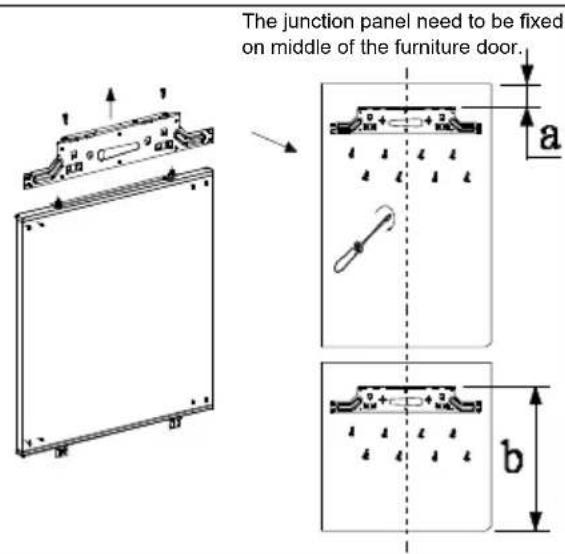

5.. Fix the junction panel on furniture door

1. Adjust the position of appliance, screw product top and bottom part on the furniture

PS: Please remove the tail after fixing the bottom part cover.

Upper hinge cover

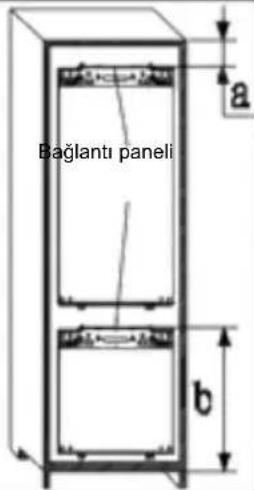

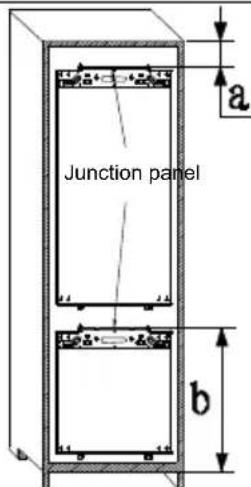

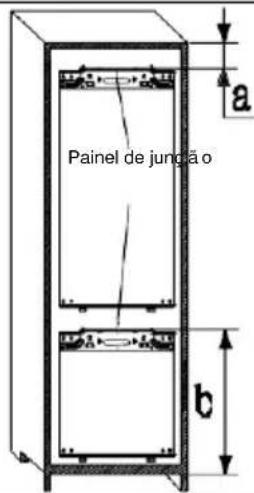

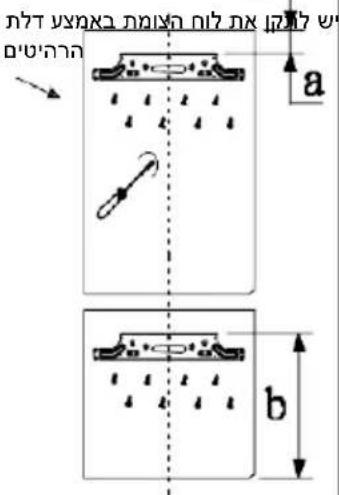

1. Measure the dimension on a and b.

Disassemble the junction panel before measuring.

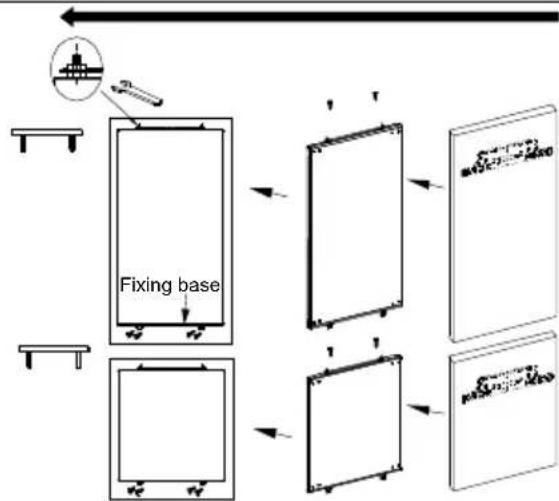

1. Fix the appliance door on furniture door.

UNPACKING....52

DISPOSAL OF USED EQUIPMENT....52

CONTROL....53

OPERATION AND FUNCTIONS....55

EFFICIENT USE OF THE REFRIGERATOR....57

DEFROSTING, WASHING AND MAINTENANCE....59

TROUBLESHOOTING....61

INSTALLATION....63

SAFETY GUIDELINES FOR USE

Understanding the stars

DEFROSTING, WASHING AND CARE

Installation instructions (FIX hinge)

"OFF"

BUZ ÇÖZME, YIKAMA VE BAKIM
