USER MANUAL ALH40032S CECOTEC

Front view of a modern flat-screen TV with visible brand logo and 'COCOLAC' branding (no additional text or symbols)

Safety instructions 14

1. Before use 108
2. Installation 108
3. TV operation 109
4. Remote control operation 115
5. Troubleshooting 118
6. Technical specifications 119
7. Disposal of old electrical
   and electronic appliances 120
8. Technical support and warranty 120
9. Copyright 120
10. Simplified Declaration of Conformity 121

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT AND KEEP THEM FOR FUTURE REFERENCE.
• For any type of incident, breakdown, inspection, or maintenance, please contact the official Cecotec Technical Support Service.
• This symbol means: general warning sign. It is used

to draw the user's attention to the main safety instructions related to use or maintenance (routine maintenance). Please pay particular attention to the information marked with this symbol.

- This symbol means: Warning; Electricity. It is used to

warn the user of the presence of uninsulated high voltage in the product's system that may be strong enough to constitute a risk of electric shock. Warning: Please pay particular attention to the information marked with this symbol.

- WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE THE LID (OR REAR PANEL). IT DOES NOT CONTAIN PARTS THAT CAN BE CHANGED BY THE USER. CONTACT QUALIFIED TECHNICAL PERSONNEL.

• In extreme weather (storms, lightning) and long periods of inactivity (going on vacation) disconnect the television from the mains.

• The mains plug is used to disconnect the television from the electricity and must therefore always be accessible. If the TV is not disconnected from the mains, the device will still consume power for all situations, even if the TV is in standby mode or switched off.

• WARNING: This device is not intended for use by
  people (including children) without skill/experience in the operation of such a device without supervision they have been given supervision or instruction using use of the appliance by a person responsible for safety.

• Please use this appliance at an altitude of less than 5000 meters above sea level, in dry places and in regions with temperate or tropical climates.
• The TV is designed for domestic and similar indoor use.
• To facilitate ventilation, leave at least 5 cm of free space around the TV.
• Ventilation should not be impeded by covering or blocking the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
• The power cable must be easily accessible. Do not place the TV or any furniture etc. on the power cable or step on it. A damaged cable may cause a fire or give you an electric shock. Grasp the power cable by the plug; do not unplug the TV by pulling on the power cable. Never touch the cable with wet hands, as this may cause a short circuit or give you an electric shock. Never tie a knot in the cable or splice it with other cables. You must replace it when it is damaged, being only a professional who can do it. If the cable or any other part of the device is damaged, contact the official Cecotec Technical Support Service.
• Do not expose the TV to dripping and splashing liquids, and do not place objects filled with liquids, such as flower vases, cups, etc., or more on the TV (eg, on shelves above the TV).
• Do not expose the TV to direct sunlight or open flames, such as light candles on top of or near the TV.
• Do not place any heat sources such as electric heaters, radiators, etc. near the TV.

- Do not place the TV on the floor or on inclined surfaces.

- To avoid a suffocation hazard, keep plastic bags out of the reach of babies, children, and pets.

- Carefully attach the stand to the TV. If the stand is provided with screws, tighten the screws firmly to prevent the TV from tilting. Do not over-tighten the screws and mount the bracket rubbers properly.

- Do not dispose of batteries in fire or with hazardous or flammable materials.

- WARNING: never expose batteries to excessive heat such as sunlight, fire, or the like.

- VERY IMPORTANT: you MUST NOT let anyone, especially children, insert any objects into holes, slots, or any opening on the TV.

- Excessive volume on headphones could cause hearing loss problems.

- No part of this product may be repaired or replaced by the user. Repairs and maintenance should only be carried out by qualified personnel. Disassembling the product in any way will void the product warranty.

Use

- This product is intended for domestic use only and not for commercial or industrial use. Use only as described in this manual.

- This appliance cannot be used by children. Children should not play with the product.

Power supply

- Before plugging in the device, check that the voltage indicated on the rating plate of the product corresponds to the voltage of your electrical installation.

• Connect the plug to an easily accessible socket.
• The mains plug is the only way to completely disconnect the device from the mains. To make sure that the device is no longer powered, you must unplug this plug from the socket.
• Be sure to unplug the power plug from the outlet during a lightning storm or when unused for long periods of time.

Power socket and power cable

• Make sure that the plug and power cable cannot be crushed or jammed, especially at plugs, sockets, and the point of connection to the product.
• Be sure to position the power cable so that it cannot be tripped over or stepped on.
• When unplugging the TV, always pull the power plug. Do not pull the cord.
• Do not touch the product or the power cable with wet hands.
• Never knot the cord or tie it with other cords.
• If the power cable is damaged, it can be replaced by your dealer, your after-sales service, or a similarly qualified person in order to avoid any risk.
• Do not immerse the appliance in water or other liquids.
• This symbol means: class II equipment. This equipment is a class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety earthed connection.

Installation

• Install the product on a flat, stable surface of sufficient size to accommodate it.
• Do not install the TV set on top of another electrical appliance.
• This product should be used in a temperate climate and indoors only.

Maintenance

- Make sure that the stand on which you place the appliance is stable. If using a trolley, be careful when moving the product so that it does not tip over and injure someone.

- Use only with stands, stands and tripods recommended by the manufacturer or sold with the product. If you use a stand, be careful not to turn it when transporting the TV + stand, to avoid injury. The product must be fixed to the floor or wall as indicated in the instructions to avoid any damage.

Humidity and water

- Do not expose this product to rain or moisture to avoid the risk of fire or electric shock.

- Avoid splashing and do not place objects containing liquids (such as vases) on or near the appliance.

- Do not use this equipment in damp and wet locations (avoid bathrooms, toilets, and locations near a washing machine).

- If liquid or any object enters the TV, unplug it, and do not use it again until it has been checked by the after-sales service.

Heat sources

- Do not install this product near any heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

- Do not place flammable sources, such as lighted candles, on or near the product.

- Do not expose this product to direct sunlight, dust, or vibration.

Ventilation and entry of objects

- The slots and openings in the product are used for ventilation and to ensure reliable operation.

• Do not obstruct ventilation holes by covering them with objects such as newspapers, tablecloths, curtains, etc.
• Do not place the product on a bed, sofa or other similar surface that may obstruct the ventilation grilles.
• Make sure that there is at least 5 cm of space around the product to ensure good ventilation.
• Make sure that no objects fall, and that no liquid enters the appliance through the slots or ventilation grilles. The device has a high voltage, and the introduction of an object inside the device may cause electric shock and/or short-circuit of the internal parts.

Headphone volume

- To preserve your hearing, we recommend that you never set the headphone volume too high.

Removable USB media

• You can connect external 2.5" and 3.5" hard disks (hard disks with external power cable) to the TV via the USB input.
• NOTE: back up the files on your storage devices before connecting them to the TV. Please note that the manufacturer is not liable for damage to files or loss of data.
• Some types of USB devices (such as MP3 players) or hard disk drives may not be compatible with this TV.
• The TV supports formatting of FAT32 and NTFS discs. However, burning will not be possible with NTFS formatted discs.
• You may experience some problems when formatting USB hard disks with a storage capacity of more than 1TB (Terabyte).
• Wait a moment before connecting or disconnecting the device, as it may not have finished reading the files. If this

happens, it may physically damage the USB drive and the USB device itself. Never remove a USB device while playing a file.

• You can use USB hubs with the USB input of the TV. In this case, USB hubs equipped with an external power supply are recommended.
• We recommend that you use the USB input of the TV directly if you want to connect a USB hard disc.

Cleaning

• Before cleaning the product, unplug it from the wall socket.
• Use only a soft, dry cloth.
• Avoid the use of aerosols.

Technical Assistance

• Refer all maintenance requests to qualified personnel. Servicing is required if the appliance has been damaged in any way: damaged power cable; liquids or objects entering the product; exposure to rain or moisture; malfunction or being dropped.
• No repairs can be carried out by the user. Please consult with the after-sales service of your establishment for maintenance requests.

Spare parts

• When parts need to be replaced, make sure that the service technician has used spare parts specified by your dealer or parts having the same characteristics and performance as the original parts.
• Unauthorised modifications may result in fire, electric shock, or other damage.

Disposal instructions

- The packaging and its components are recyclable and should therefore be recycled. Packaging materials should be kept out of the reach of children.

- The liquid crystal display (LCD) is a high-tech product containing approximately one million transistors that give you a high-quality image. Occasionally, some blue, green or red dots (corresponding to non-active pixels) may appear on the display. This does not affect the performance of the product.

Recycling of remote control batteries

- Do not dispose batteries with household waste. To protect the environment, please dispose of batteries in accordance with the applicable regulations.

- Never recharge non-rechargeable batteries, and do not disassemble or dispose of batteries in fire.

- Do not expose to high temperatures or direct sunlight.

- CAUTION: do not ingest batteries, there is a danger of chemical burns.

- This product contains batteries. If swallowed, it can cause severe internal burns in as little as 2 hours, leading to death.

- Keep new and used batteries out of the reach of children.

- If the battery compartment does not close securely, stop using the product and keep it out of the reach of children.

- If you think batteries may have been swallowed or placed inside any part of the body, seek immediate medical attention.

- Discharged batteries must be removed from the device for safe disposal.

- Leaks from the batteries can occur under extreme conditions. Do not touch any liquid that leaks from the batteries. If the liquid gets into contact with skin, wash immediately with

soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• If the device is to be stored unused for a long period of time, it is advisable to remove the batteries.
• Batteries must be inserted according to the correct polarity. Check polarity when replacing them.

Electronic equipment

- Your Bluetooth* TV uses Bluetooth* technology. Transmits and receives radio frequencies (HF) around 2.4 GHz. These high-frequency emissions can interfere with the proper functioning of many electronic devices. To avoid accidents, turn off the Bluetooth TV* when you are in the following places:

a) Places where flammable gases are present, hospitals, trains, aeroplanes, or petrol stations, near automatic doors or fire alarms.
b) Blast zones.
c) If you have a pacemaker or other prosthesis, ask your doctor for advice.

INSTRUCTIONS DE SÉCURITÉ

Assistance Technique

Trocar as pilhas do controlo remoto

https://cecotec.es/es/information/declaration-of-conformity

ENGLISH

1. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• LED 32" HD TV
• Remote control
• AAA batteries (x2)
• Instruction manual

2. INSTALLATION

Assembling the support base

1. Place the TV with the screen facing downwards on a flat surface. Use a cloth to protect the screen. Place the 2 pieces of the base bracket into the recess at the bottom of the TV.
2. Lock 4 PCS screws below and check that each screw is firmly tightened. Fig. 2

Note: this bracket is non-rotatable. Do not attempt to turn the TV.

Connections

Warning:

• Before making any connections to external devices, make sure that the TV and the various devices are not receiving power.

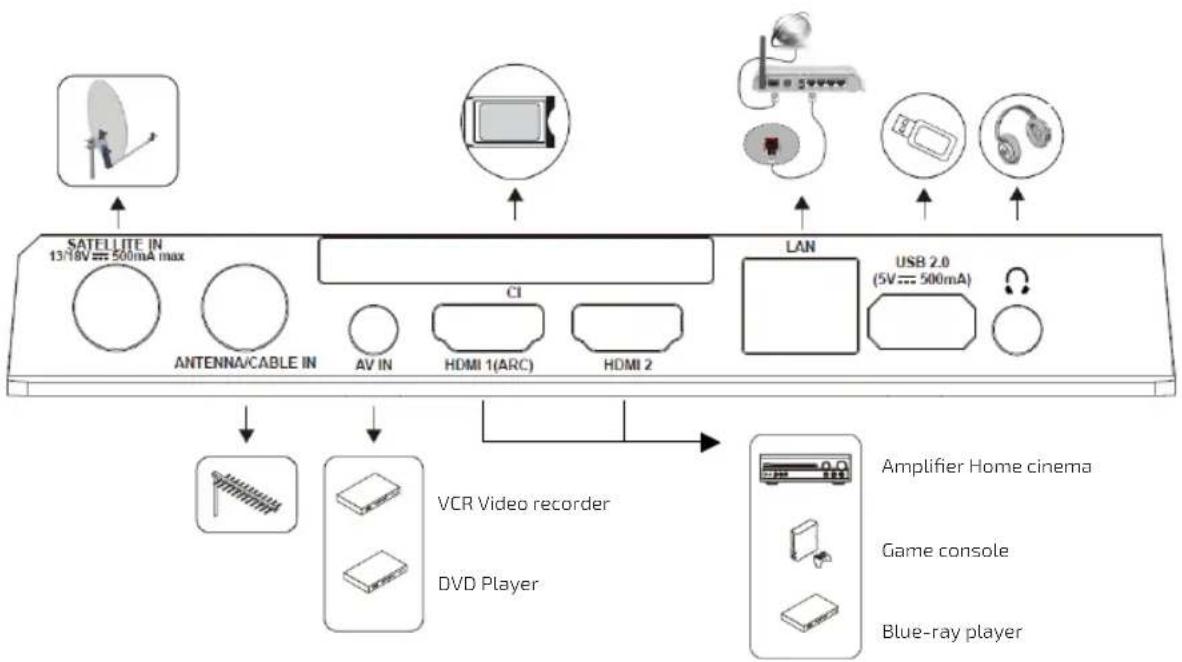

• This TV offers an AV cluster for convenient connection of VCRs, DVDs, or other video equipment. Refer also to the instruction manual of the equipment to be connected.
• You can use the input terminals on the back of the TV as shown in figure 2.

Do not touch or come close to the ANTENNA, SATELLITE and HDMI terminals, and avoid electrostatic discharge while the TV is in USB and LAN mode, otherwise the TV will stop working or show abnormal condition.

Installing a bracket

- Call a technician to install the wall bracket. The manufacturer is not liable for damage to property or personal injury resulting from installation by the customer.

ENGLISH

• Make sure that the hardware used is suitable for your wall.
• Attach your TV only to a brick or concrete wall.
• Make sure that children do not hang on the TV or try to climb on it.

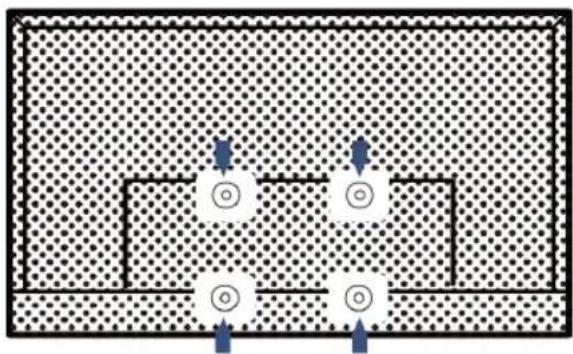

• VESA 100X100 wall bracket is sold separately. During installation, refer to the instructions supplied with the wall bracket.
• You need four M4x8 screws to attach the wall bracket to the back of the TV. Fig. 3

3. TV OPERATION

First configuration

Connect the power and antenna to your TV, then turn on the device.

On first start-up, the Welcome display appears to guide you through the initial setup process. Follow the on-screen instructions to select your preferred language, connect to the network, perform an automatic channel search, etc.

NOTE: in order for the remote control to work, it must be paired with the TV set, please read section 4 beforehand "Remote control operation".

Google - Initial Setup

When you switch on the TV for the first time, a wizard will appear to guide you through the following initial settings:

The settings below are by selecting the English language.

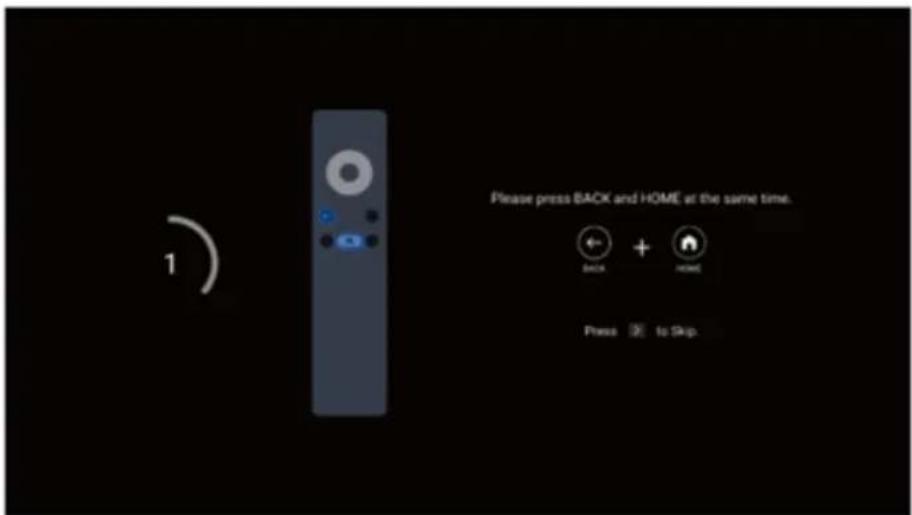

Step 1: this function is used for the remote-control pairing code. Once you have entered the code, you can use the Bluetooth remote control to control the TV. Fig. 4 See section 4 of this instruction manual.

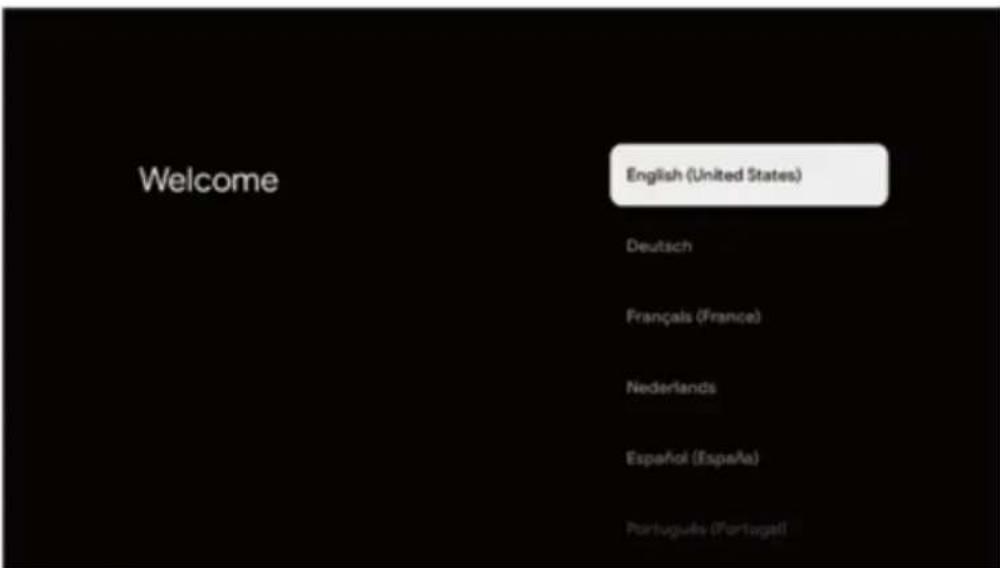

Step 2: select the menu language you require. Fig. 5

Note: the illustrations in this publication are provided for reference only.

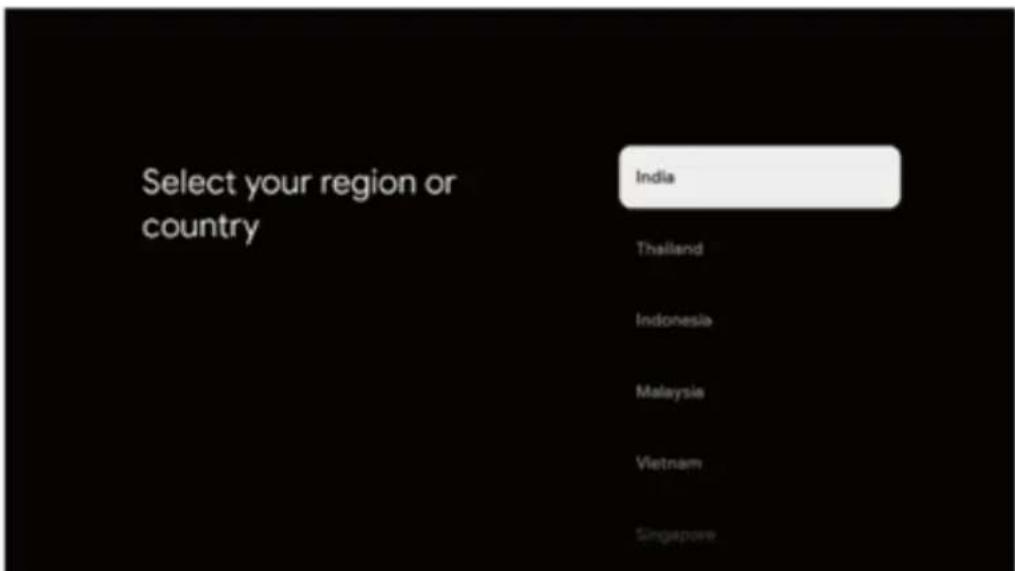

Step 3: select your Country/Region. Fig. 6.

Step 4: (Some countries only) Select whether you want to "Set up Google TV". Fig. 7

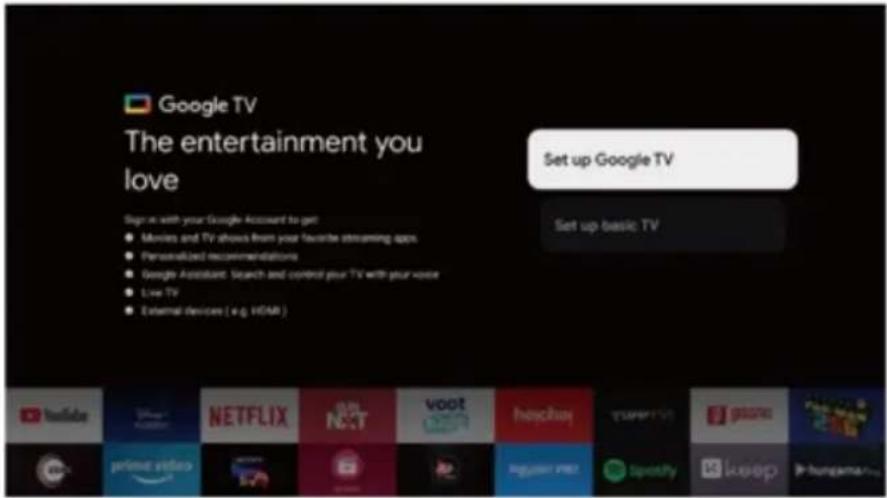

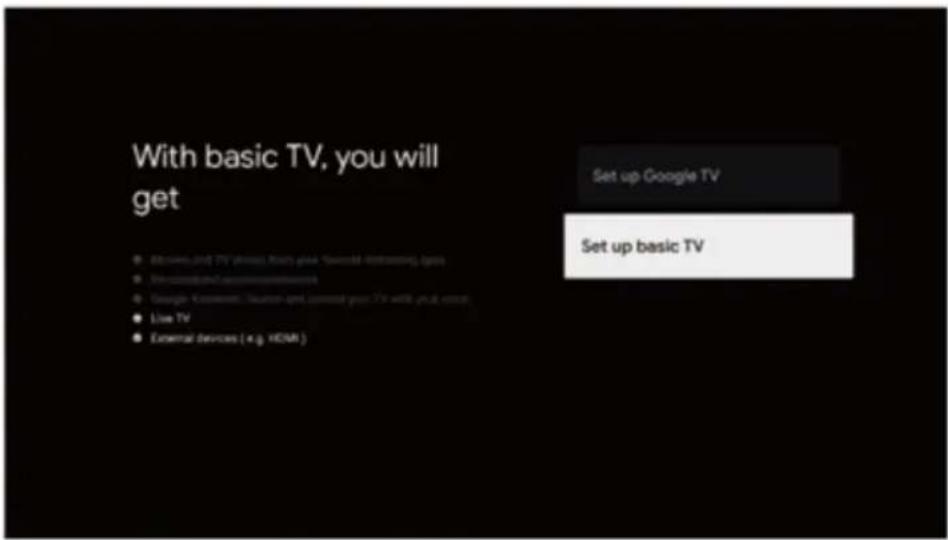

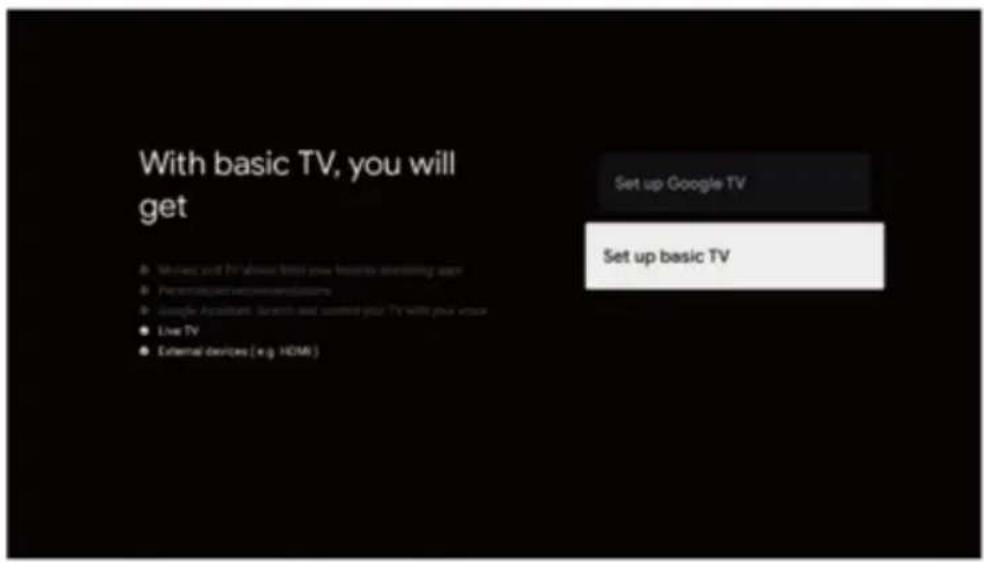

Step 5: select "Set up basic TV". Fig. 8

Step 6: select whether or not you want to connect your TV to the Wi-Fi network. Fig. 9

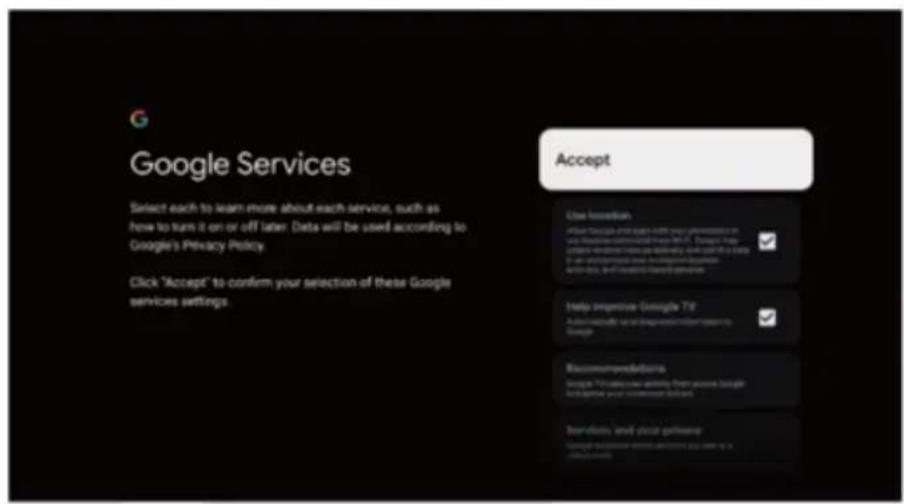

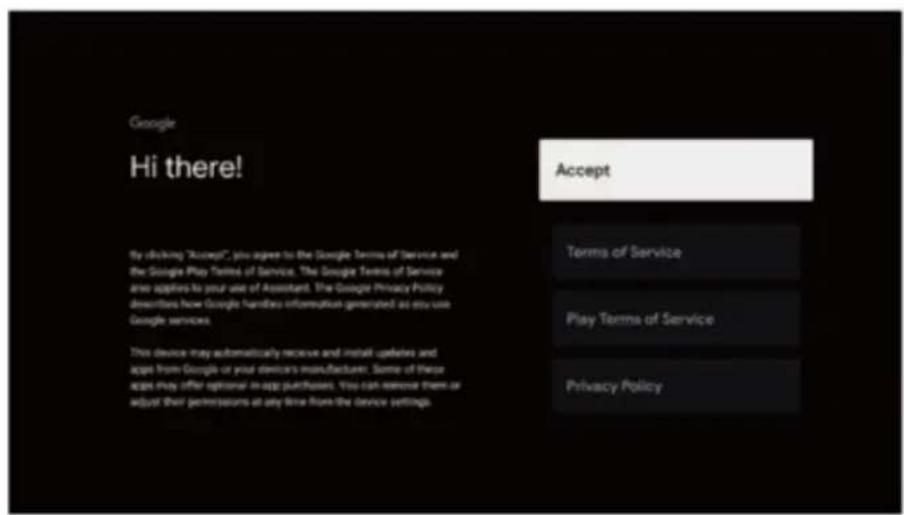

Step 7: please read and accept Google's terms of service and privacy policy. Fig. 10

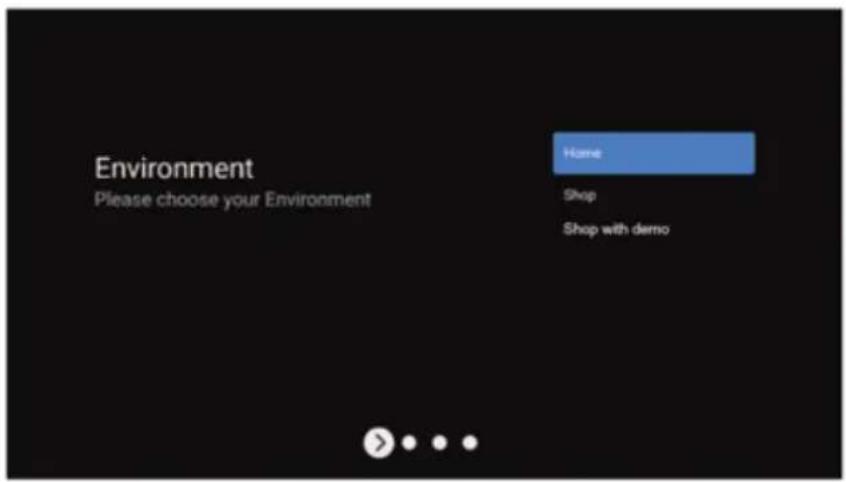

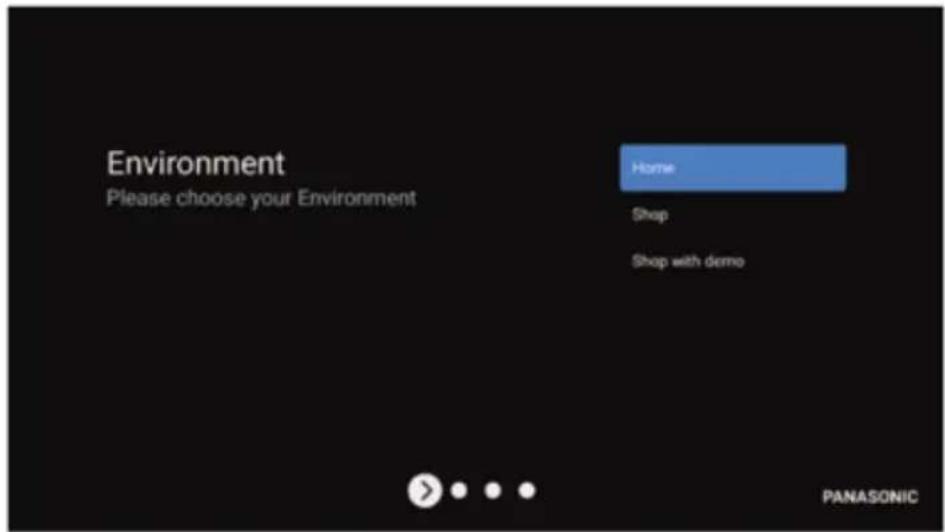

Step 8: environment

ENGLISH

Use to select your environment and then, press "OK" to move to the next step.

• Start Mode: you can see the standard settings for picture and sound modes.
• Shop Mode: you can enjoy enhanced picture and sound mode settings. Fig. 11

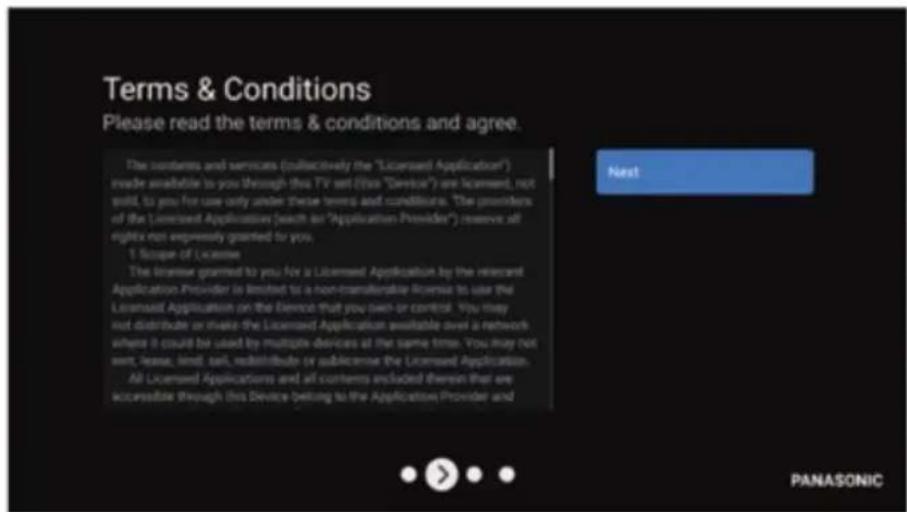

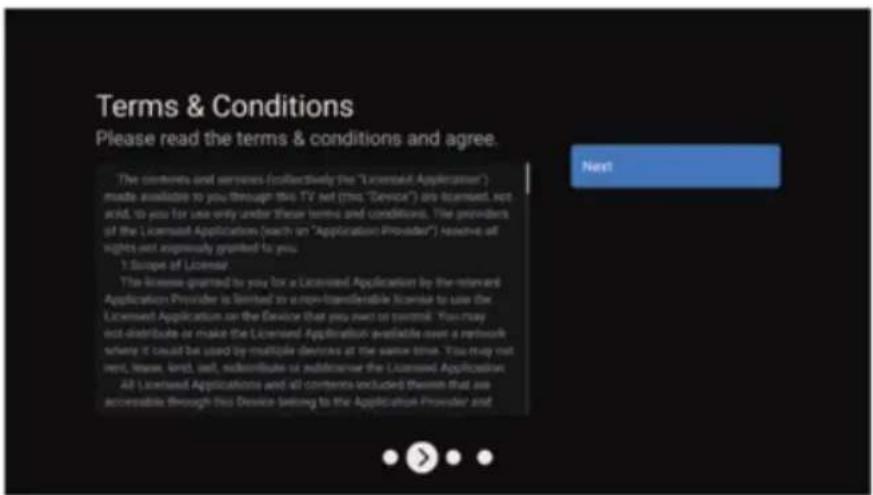

Step 9: Terms and Conditions

Use to read the Terms and Conditions, then press "OK" to confirm and move on to the next step. Fig. 12

Step 10: channel installation

Use to select Tuner Mode: Antenna, cable, satellite; Type: Digital or Analogue. Press OK to confirm and proceed to the next step. Fig. 13

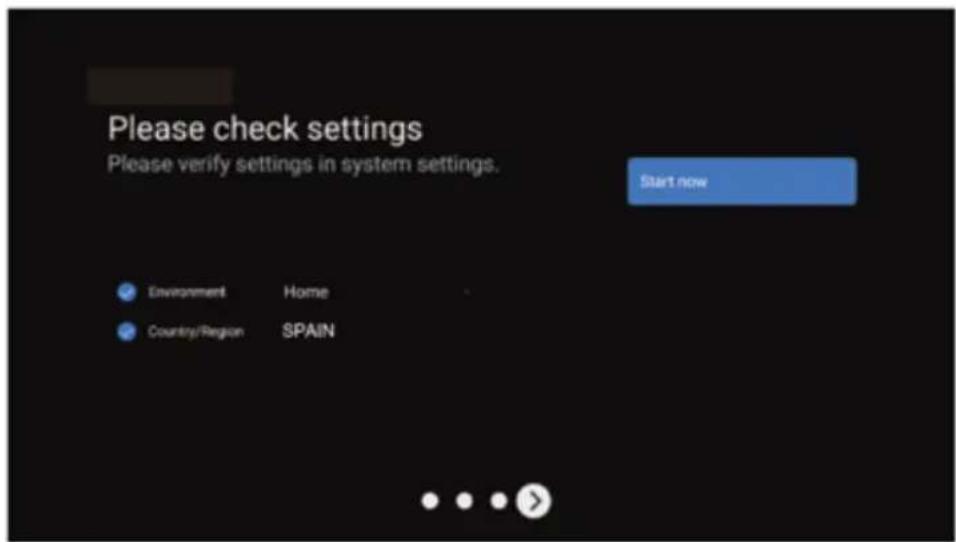

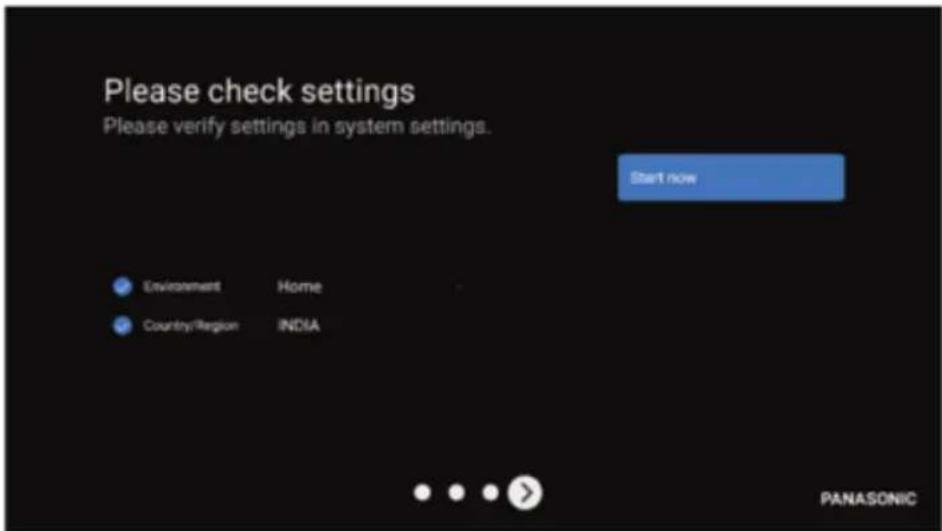

Step 11: check settings.

When all the settings are completed, the [Please check the settings] interface will appear on the display, press OK to finish the initial configuration. You can also go back to the previous step and make changes with the <button. Fig. 14

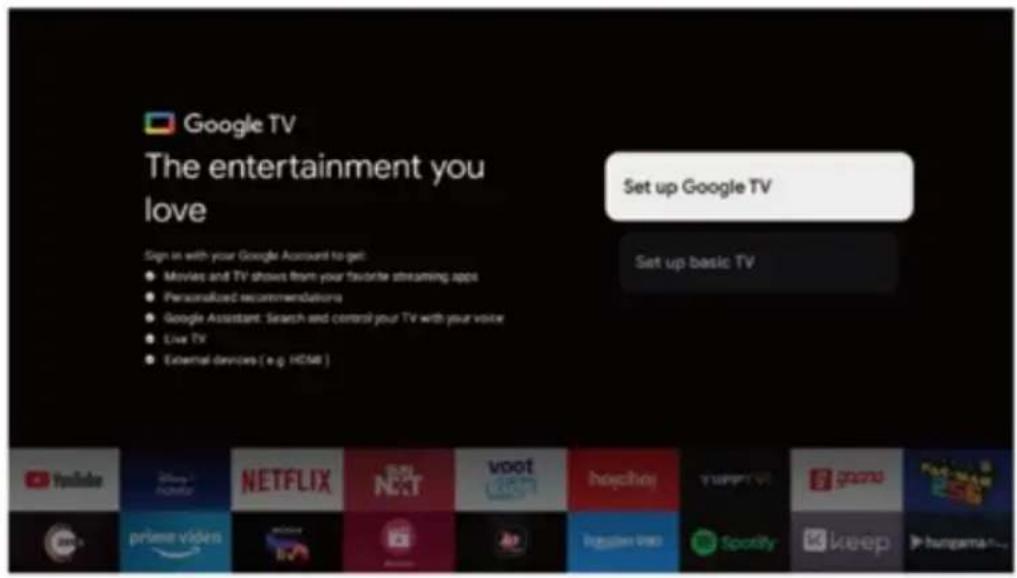

Then, select "Set up Google TV". Fig. 15

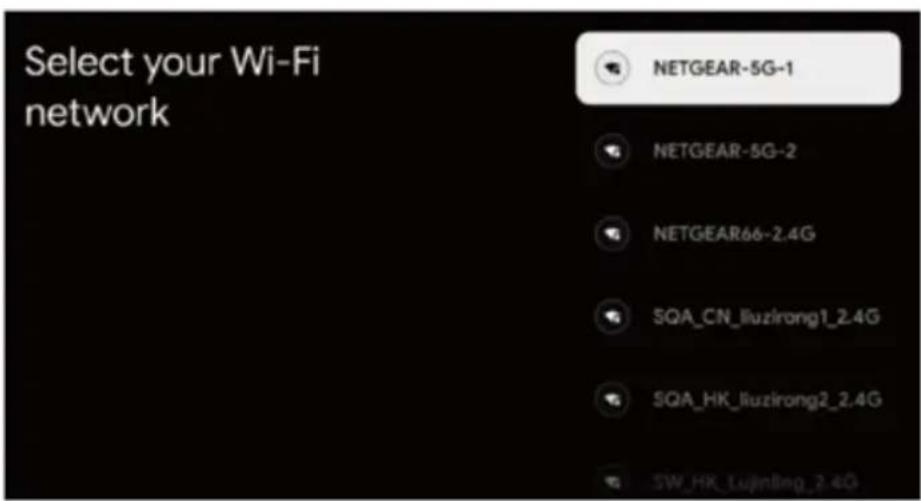

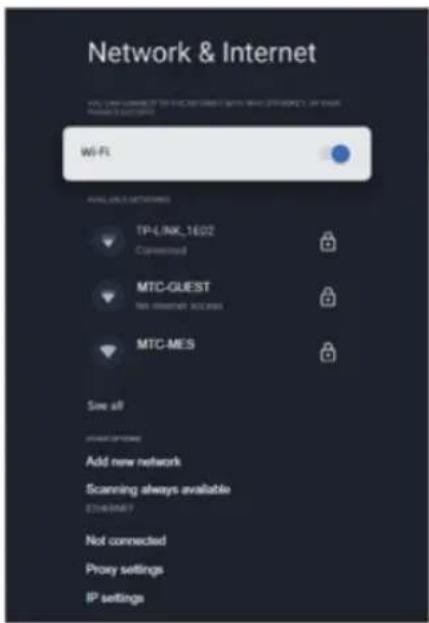

Step 12: connect the TV to a Wi-Fi network. Fig. 16

Note: to use GOOGLE TV, you must be connected to a Wi-Fi network.

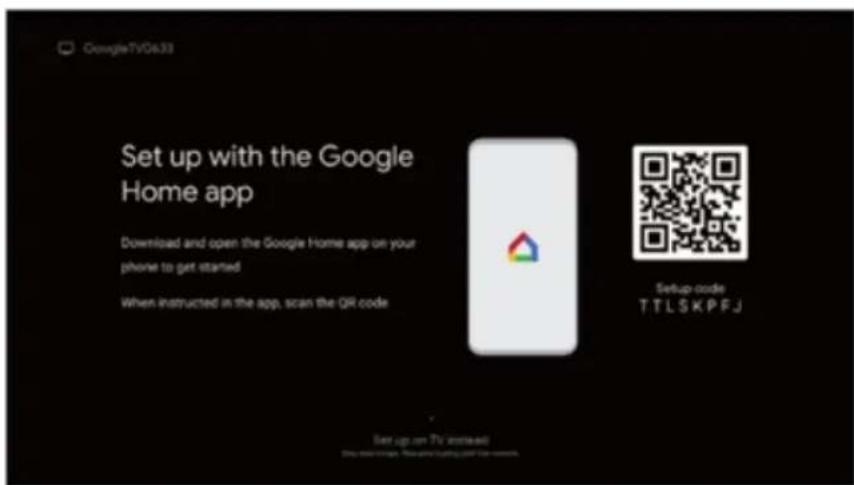

You can try to set up the TV with your phone by following the instructions below. Fig. 17

First, activate Bluetooth on your phone.

Note: make sure your phone has the Google Home app installed.

Go to the Google Home App on your phone, find your TV and select "Connect". Once connected, scan the QR code on the TV with your mobile phone.

When the phone is connected to the TV, you can set up the TV (connect to the Wi-Fi network and enter the Google account), the TV will automatically get the Wi-Fi network and Google account information from the phone.

You can also use the remote control to set up the TV and sign into your Google account.

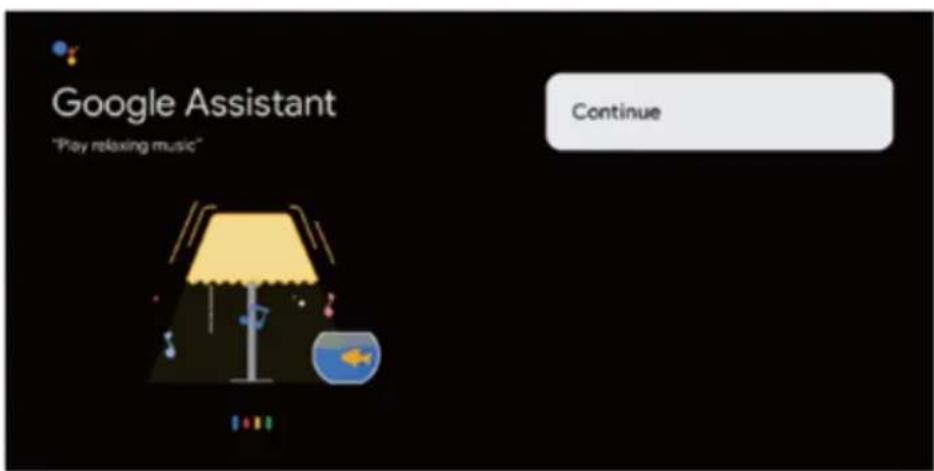

Step 13: use the Google Assistant. Fig. 18

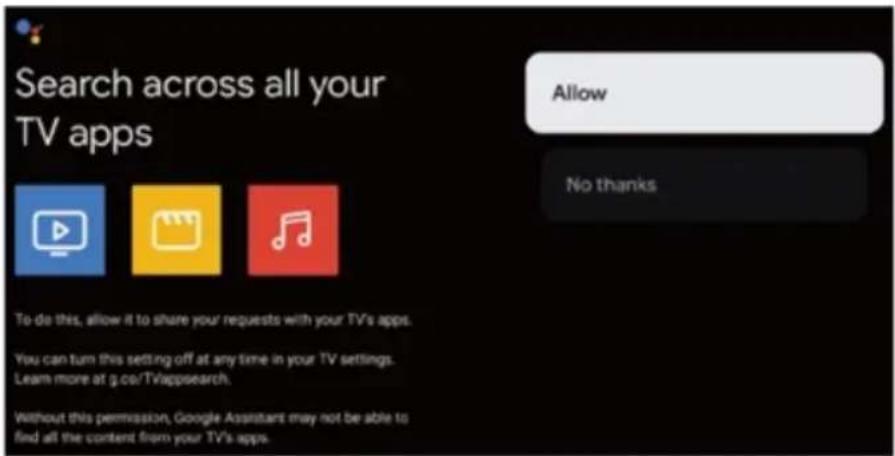

Step 14: search across all your TV apps. Fig. 19

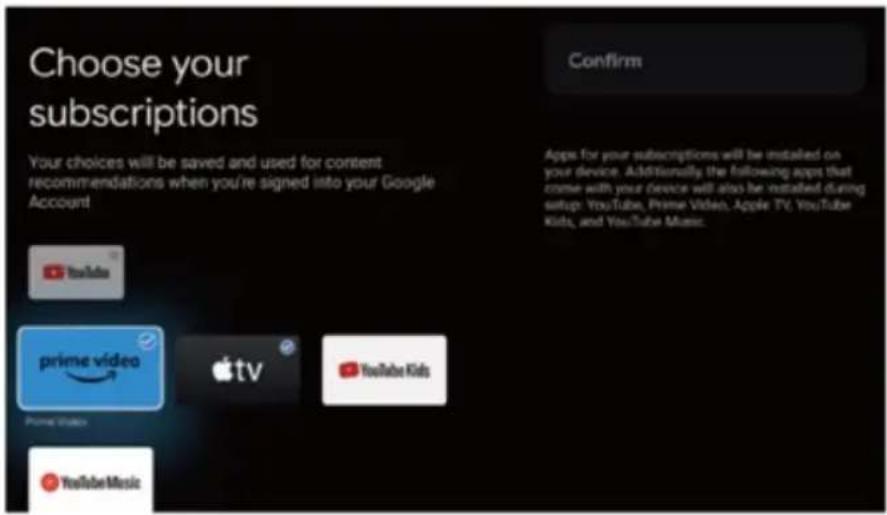

Step 15: choose your subscriptions. Fig. 20

ENGLISH

Channel installation

Step 1: environment

Press to select your environment and then, press "OK" to move to the next step. Fig. 21

- Start Mode: You can see the standard settings for picture and sound modes.

- Shop Mode: You can enjoy enhanced picture and sound mode settings.

Step 2: Terms and Conditions

Press to read the Terms and Conditions, then press "OK" to confirm and move on to the next step. Fig. 22

Step 3: channel installation

Press to select Tuner Mode: Antenna, Cable:

Type: Digital or Analogue. Press OK to confirm and proceed to the next step. (If you select "cable" in Tuner Mode, the type can only be analogue). Fig. 23

Step 4: check the configuration

When all the settings are completed, the [Please check the settings] interface will appear on the display, press OK to finish the initial configuration. You can also go back to the previous step and make changes with the button ← Fig. 24

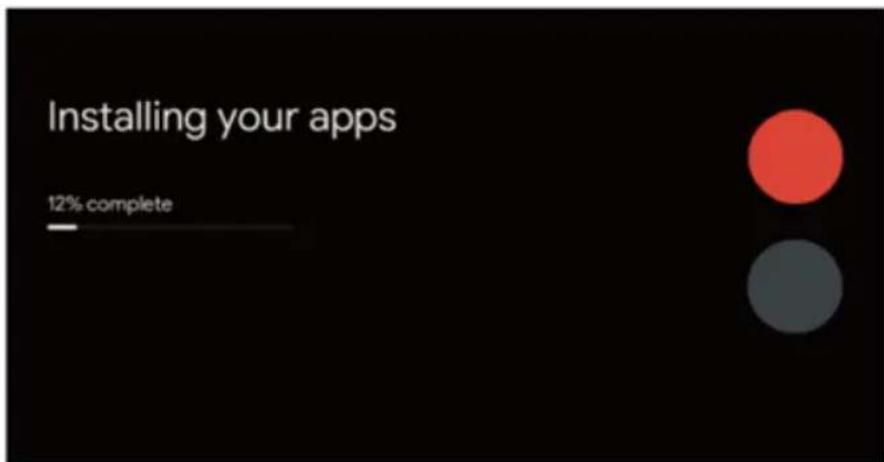

App installation

Fig. 25

Note: Please note that this will take some time.

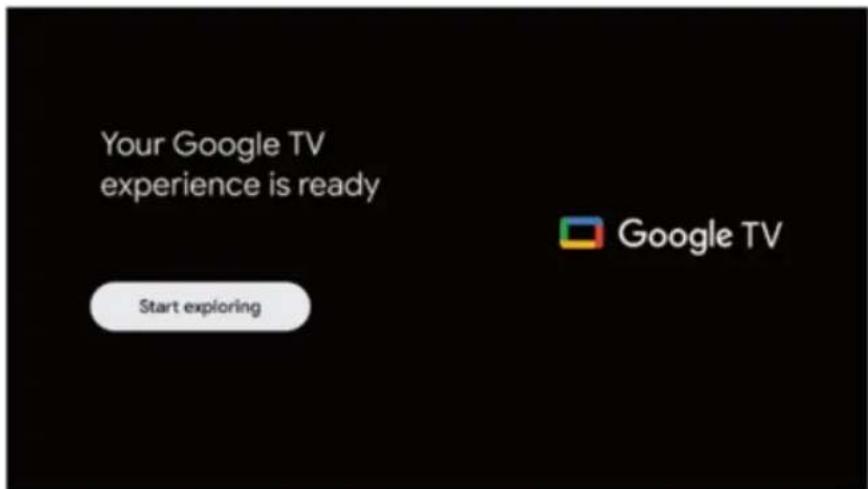

Your Google TV experience is ready. Fig. 26

The setup is complete, and the TV is ready for viewing.

Note: if tuning has failed, check the RF cable connection, and follow the on-screen instructions.

General operation

Use of the home page. Fig. 27

Note: this manual is for common use. The figures and illustrations in this User Manual are provided for reference only and may differ from the actual appearance of the product. And on some models, some options are not available.

You can select any function from the home page. (Make sure you are logged in to your Google Account)

After connecting the TV to the Internet, press to go to the home page.

Press to select any icon from the list on the screen.

ENGLISH

Press OK to select any option.

Press ← or to exit the App.

Options

1. Home: select the icons from the list on the screen.
2. Apps: displays the list of favourite applications and allows you to enter the application centre.
3. Library: your library is empty. Here you can find your purchases, rentals and content listed on TV, mobile and web.
4. : search for films, series, apps and more.
5. : display the TV's setup menu.

Note:

• The functions and content of the "Home Page" may vary depending on the country or model.
• Before using the functions on the home page, such as applications, etc., first connect the TV to the network.
• The copyright of the icons belongs to the providers of the application.

Note: the images shown are for illustration and reference only.

Using the menu functions

Source

Press → then use ∧/∨ to select the desired source and press OK to confirm. Fig. 28

Note: the available source may vary depending on the model.

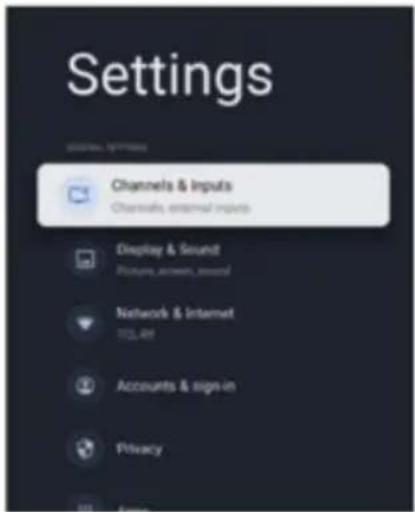

Using the system settings

The "Settings" menu allows you to configure the TV according to your preferences. Fig. 29

Note: some features may not be available from certain sources. And on some models, some options are not available.

Each menu is designed and detailed to help you get the most out of your TV. To access the menu system:

1. Press ∧∨ to select the desired option, then press OK to open the corresponding submenu.

2. In the submenu, use the ∧/∨ buttons and press OK to confirm the settings. Use ∧/∨ to select an item and press OK to enter its interface and operate according to the screen display.

3. Press to go back to the previous menu.

ENGLISH

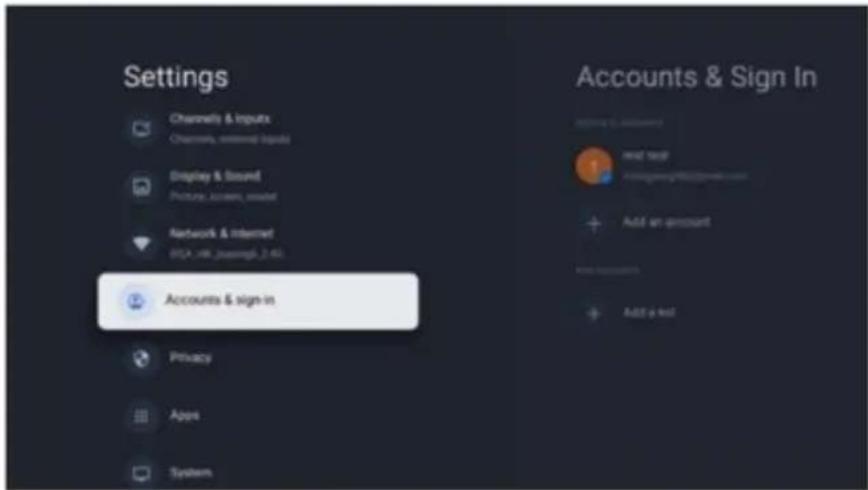

Adding a Google account

If you are already signed into your Google Account, select "Accounts and sign in" in the settings. Fig. 30

Display and sound. Fig. 31

Select this option to adjust the picture mode or advanced settings.

Picture Mode: to select Normal, Dynamic, Cinema, Sport, Game and Custom mode.

ECO: to select Off, Low and High.

Backlight: to select the level from 0-100.

Advanced setting

Colour temperature: to select Standard, Warm and Cool.

Dynamic contrast: to select On or Off.

HDMI PC/ AV Mode: to select Video, PC and Auto.

Overscanning: to select On or Off.

Noise reduction: to select Off, Low, Medium, High and Auto.

Image Reset: to reset the image.

Motion estimation and compensation (MEMC): to select Off, Low, Medium, and High.

Range: to select 2.2 or 2.4.

Display

Select this option to adjust the image size.

Sound

Select this option to configure the sound settings.

Sound Mode: to select Standard, Voice, Music, Stadium and User mode.

Dolby audio processing: to select On or Off.

Surround mode: to select Pure Sound or Surround.

Sleep mode: to select On or Off.

Sound only: select this mode and the TV screen will turn off in 10 seconds.

Advanced settings:

1. Dialogue and voice audibility enhancer.
2. Dialogue and voice audibility adjustment levels 1-7.
3. Scale
4. Sound reset

Audio output: select this option to configure the audio settings.

ENGLISH

Output device: to select the TV speaker, SPDIF/Optical and HDMI-ARC.

Digital output: to select PCM, ByPass and Auto.

Digital audio delay (ms): to select the level from 0-100.

Digital audio volume: to select the level from 0-100.

eARC: to select off or automatic.

Networks and internet

Select Wi-Fi or Ethernet to connect the TV to the network and adjust the settings. Fig. 32

1. Use to select the Wi-Fi option.

2. Press OK to access the corresponding submenu.

3. Once the setting is done, press OK to save and return to the previous menu.

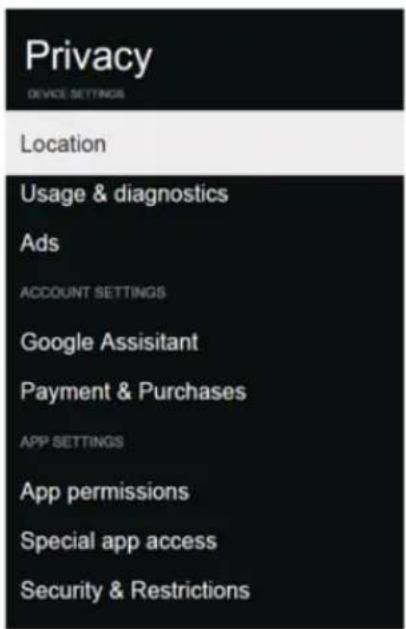

Privacy

View or adjust privacy settings for devices, accounts, and applications. Fig. 33

1. Use to select the Privacy option.

2. Press OK to access the corresponding submenu.

3. Once the setting is done, press OK to save and return to the previous menu.

Apps

View or adjust Application Specific Settings. Fig. 34

1. Use to select the Apps option.

2. Press OK to access the corresponding submenu.

3. Once the setting is done, press OK to save and return to the previous menu.

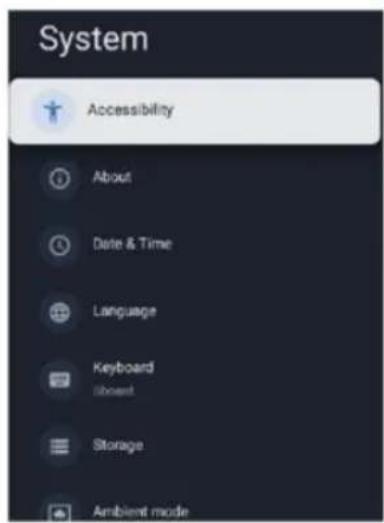

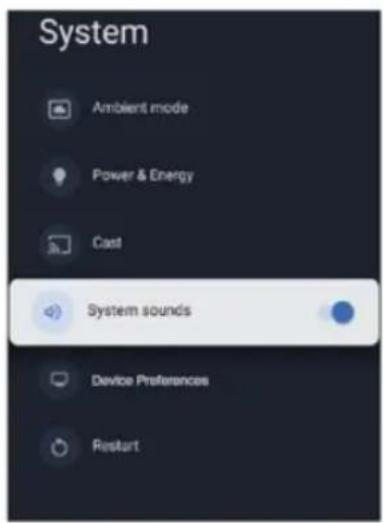

System. Fig. 35

In this menu, you can read the information and settings of the TV.

Accessibility: to select Closed Captioning, High Contrast Text, Text to Speech, Accessibility Shortcut, TalkBack Screen Reader, Switchboard Access, and TV Service Manager.

About: you can update the system, view, or change the device name, reboot and read the TV information.

- System update: You can update the TV system.

- Device name: You can see and change the TV name.

- Reset: Google restart. After the restart, your Google Account, and the application you installed will be deleted.

Date and time: to select Automatic date and time, Set date, Set time, Set time zone and Use 24-hour format.

Note: the programmed date and time are available when the Automatic Date and Time option is disabled.

ENGLISH

Language: select the menu language of your choice.

Keyboard: to select the current Keyboard, Keyboard Settings, and Manage Keyboards.

Storage: to display the internal shared storage, if there is an external device, it can also display the external storage settings.

Ambient mode: screen saver settings, you can select the picture, the switching time of the picture, whether to display the time and date, etc.

Power and energy: to select the power on, Screen Saver and Energy Saver.

Google Cast: to select Always, During screening or Never.

Sound system: to select On or Off.

System preferences: to select Shutdown Timer, Standby Mode, Timer Output Settings, Settings, Environment, RCU Firmware Update, Software Version and User ID.

Reset: resetting your TV.

Remotes and accessories

Turn on Bluetooth and pair the accessories. Fig. 36

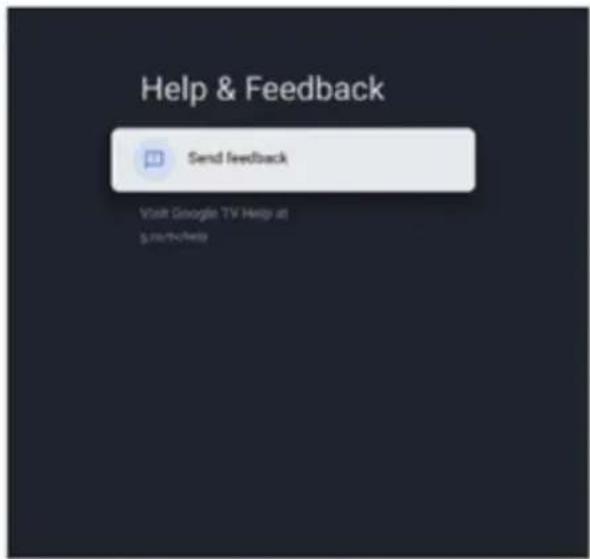

Help and feedback

Send your feedback to Google or use the web search screen to access Google Centre. Fig. 37

nserting the batteries in the remote control

• Open the cover on the back of the remote control. Correctly insert the batteries into the remote control, respecting the "+" and "-" polarities.
• Refit the cover. The remote control is powered by two AAA LR03 1.5 V batteries. We recommend using only alkaline batteries.
• Remove the batteries from the remote control if you are not going to use it for a long time (more than one month). Used batteries must be disposed of safely. Deposit them in specially designated collection containers to protect the environment.

Orientation

• Point the remote control at the infrared sensor on the front of the TV at an angle of 30^ so that it can receive the transmitted information.
• The remote control has a range of 6 meters.
• Make sure that there are no obstacles between the remote control and the infrared sensor, and that sunlight or other light sources are not reflected on them.

Pair the Bluetooth\* remote control with the TV

The Bluetooth* remote control, which is mainly used to control the TV using the Google voice assistant, needs to be paired with the TV at first power on or later by following the steps below:

ENGLISH

Pairing the remote control with the TV

- This is a Bluetooth remote control, before using it, please pair it with the TV first. When the TV is switched on for the first time, the remote control pairing process will start; this occurs during the initial setup. The remote control will automatically pair with the TV.

- You can add an additional remote control to your TV via Google or replace your old one if it has broken. Other devices, such as speakers or console controllers, can also be connected via Bluetooth.

Follow the below steps:

Step 1: Press to go to the home page.

Step 2: Use to select and enter the interface.

You can also directly press the button on the remote control.

Step 3: Use ∧/∨</> to select "Remotes and accessories" and press OK to enter the interface.

Step 4: Use // to select "Pair accessory" and press OK to enter the interface.

ATTENTION: in this menu, you can activate or deactivate Bluetooth, add a new remote control or other accessory, or set up a remote control or accessory that is already connected to the TV.

Follow the instructions on the screen to pair it. Press and hold←and for 5 seconds on the new remote control. Once detected, it will appear on the screen.

Then, press OK on your old remote control to confirm that you are adding the new one.

ATTENTION: if you have difficulties pairing the remote control with the TV, turn off all other wireless devices and try again.

If you want to unpair your Bluetooth remote, follow these steps:

Step 1: Press to go to the home page.

Step 2: Use to select and enter the interface.

You can also directly press the button on the remote control.

Step 3: Use ∧/∨ </⟩ to select "Unpair remotes or accessories" and press OK to enter the interface.

Step 4: Use to select "Delete" and choose "Yes".

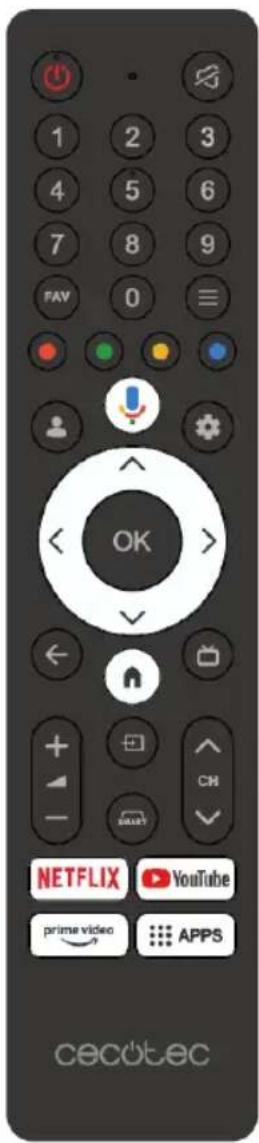

Remote control button functions. Fig. 38

Most of your TV's features are available through the menus that appear on the screen. The remote control supplied with the equipment allows you to navigate through the menus and configure all the general settings.
	(On/Off button) To turn the TV on or off.
[7A0G]	To mute and unmute the sound.
0~9	To select the number of the digital key.
FAV	To open the favourite channel list menu.
≡	To enter the quick access menu.
	To select tasks or Teletext pages.
	Microphone(Available only when the network connection is normal.)
	"Accounts and Sign In to Google TV".(When basic TV is set, this button has no effect).
	To show the TV setup menu.
OK	To confirm your selection.
	(Up, down, left, and right direction buttons) To highlight the various items in the menu system and adjust menu controls.
←	To exit the menu and return to the previous one.
	To go to the home page.
	To see the electronic programme guide.
+▲-	To increase or decrease the volume.
	To enter the source selection interface.
	To enter the interface of SMART function.
^CH∨	Channel up/down.
NETFLIX	To go to the NETFLIX home page.
YouTube	To go to the YouTube home page.
prime video	To go to the Prime Video home page.
■■■ APPS	To select the apps.

ENGLISH

5. TROUBLESHOOTING

Before contacting the after-sales service, perform the following basic checks.

Problem Possible causes Possible solutions
There is no electricity	The plug is disconnected. Make sure the power cable is properly plugged into a power outlet.
	The power socket is disconnected from the mains.	Try connecting the plug to different power outlets to check.
There is no image or sound	The image settings are incorrectly adjusted.	Check the brightness and contrast settings of the image.
	There is no audio. Check that Mute mode has not been activated.
There are no DTT HD channels, or the image is distorted	Reception of digital terrestrial television channels (DTT) is only possible in areas with coverage. Checks the proximity of a transmitter. Check the quality and strength of the receiving signal.	Check that the antenna cable is well connected to the TV. Reset to factory settings. Have a professional check your installation.
The remote control does not work	There are no batteries in the remote control, or the batteries are dead.	Check that the batteries are correctly inserted in the remote control. Check the batteries. If they don't work, replace them.
Cannot read USB removable media	The format is not compatible.	Check that the formats used are compatible with this device. Disconnect the removable device and reconnect it. Please format the USB media and try again.
The registration has not been fully completed	There is not enough space on the removable media.	Check the available space on the USB media.

Stops during playback

• Keep a distance of at least three meters between the microwave oven, mobile phones, Bluetooth* equipped devices, or any other Wi-Fi compatible devices.
• Try changing the active channel on the WLAN router.

Internet connection not available / Unable to share audio and video

• If the MAC address (a unique identification number) of your computer or modem has been stored according to regulations, your TV may not connect to the Internet. In this case, the MAC address is authenticated every time you connect to the Internet. This is a precautionary measure against unauthorized access. Since your TV has its own MAC address, your Internet provider cannot validate this address. As a result, the TV cannot connect to the Internet. Contact your Internet service provider for information on how to connect a different device, such as the TV, to the Internet.
• It is also possible that the Internet connection is not available due to a firewall related issue. If you suspect that this may be the cause of your problem, contact your Internet service provider. A firewall could explain the connectivity and detection problem when using the TV in Audio/Video Share mode or when browsing using the Audio/Video Share feature.

Invalid domain name

• Make sure you are already logged in to your computer with an authorized username/password and also make sure your domain is active, before sharing any files on your computer's media server program.
• If the domain is invalid, you may have trouble browsing files in Audio/Video Share mode.

6. TECHNICAL SPECIFICATIONS

Product reference: 03619 / 00985

Product: TV LED A4 series ALH40032 / TV LED A4 series ALU40032SS

Product TV LED A4 series ALU40032 TV LED A4 series ALU40032S
Product reference 03619 00985
QR
Power 60 W 60 W
Voltage 180-240 V~ 180-240 V~

ENGLISH

Frequency 50/60 Hz 50/60 Hz
Service life (approx.) 30,000 h 30.000 horas

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

ENGLISH

10. SIMPLIFIED DECLARATION OF CONFORMITY

CE Cecotec Innovations hereby declares that the televisions, model 03619_TV LED A4 series ALU40032 and 00985_TV LED A4 series ALU40032S, are in conformity with the Radio Equipment Directive 2014/53/EU.

The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. AVANT UTILISATION

https://cecotec.es/es/information/declaration-of-conformity

1. VOR DEM GEBRAUCH

Prodotto: TV LED A4 series ALH40032 / TV LED A4 series ALU40032S

Colocar as pilhas no controlo remoto

https://cecotec.es/es/information/declaration-of-conformity

NEDERLANDS

1. VÓÓR U HET APPARAAT GEBRUIKT

Stap 5: 1. Selecteer "Basic TV Setup". Fig. 8

Surround mode: Om Pure Sound of Surround te selecteren.

5. PROBLEEMOPLOSSING

Product: TV LED A4 series ALH40032 / TV LED A4 series ALU400325

Product TV LED A4 series	ALU40032 TV LED A4 series ALU40032S
Productreferentie 03619	00985
QR
Vermogen 60 W 60 W
Voltage 180-240 V~	180-240 V~
Frequentie	50/60 Hz	50/60 Hz
Levensduur (ongeveer)	30.000 uur	30.000 horas

https://cecotec.es/es/information/declaration-of-conformity

POLSKI

1. PRZED UŻYCIEM

Technical line drawing of a mechanical component with a bolt and mounting bracket (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr.1

Fig./Img./Abb./Afb./Rys./Obr. 2

Diagram of a rectangular area with three internal rectangular zones and directional arrows, no text or symbols present.

Fig./Img./Abb./Afb./Rys./Obr.3

Please press BACK and HOME at the same time. BACK + HOME Press → to Skip.

Fig./Img./Abb./Afb./Rys./Obr. 4

Welcome English (United States) Deutsch Français (France) Nederlands Español (España) Portugues (Portugal)

Fig./Img./Abb./Afb./Rys./Obr. 5

Select your region or country India Thailand Indonesia Malaysia Vietnam Singapore

Fig./Img./Abb./Afb./Rys./Obr. 6

Google TV The entertainment you love Set up Google TV Sign in with your Google Account to get: • Movies and TV shows from your favorite streaming apps • Personalized recommendations • Google Assistant: Search and control your TV with your voice • Live TV • External devices (e.g. HDMI) Set up basic TV YouTube Netflix NETFLIX NAT voot hepchoy TUPPTV Gianto 258 primer videos K3 Spotify Spotify keep hungemally

Fig./Img./Abb./Afb./Rys./Obr.7

With basic TV, you will get Set up Google TV Set up basic TV • Movies and TV shows less how better creating new • Personalized recommendations • Google Appointments: Search and content your TV with your view • Live TV • External devices (e.g. HDMI)

Fig./Img./Abb./Afb./Rys./Obr. 8

With basic TV, you will get Set up Google TV Set up basic TV • Review and TV address from your 'Swind-Ittemming apps' • Download/Download/Download/Download • Google - Microsoft - Google and Microsoft your TV with your own • Live TV • External devices (*.g. HDMI)

Fig./Img./Abb./Afb./Rys./Obr. 9

Google Hi there! Accept By clicking "Access", you agree to the Google Terms of Service and the Google Play Terms of Service. The Google Terms of Service also applies to your use of Assistant. The Google Privacy Policy describes how Google handles information generated as you use Google services. This device may automatically receive and install updates and app from Google or your devices manufacturer. Some of these apps may offer optional in app purchases. You can remove them or adjust their permissions at any time from the device settings. Terms of Service Play Terms of Service Privacy Policy

Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click 'Accept' to confirm your selection of these Google services settings. Accept Use permission After Google's privacy with your permission to we have been used to access Google's Privacy Policy. Google is required to use permission and can use it to access to the Google user in the Internet (IIS) GET-ALL and IHS are needed to access Google's Privacy Policy. Help/improve Google TV Auto reduces the privacy level by Google Recommendations Google "Creates user activity from Google It is responsible for your recommendation system." Before and place privacy Google is responsible for this service but not to use it otherwise.

Fig./Img./Abb./Afb./Rys./Obr. 10

Environment Please choose your Environment Home Shop Shop with demo PANASONIC

Fig./Img./Abb./Afb./Rys./Obr. 11

Terms & Conditions Please read the terms & conditions and agree. The contents and services (collectively the "Licensed Application") made available to you through this TV set (this "Device") are licensed, not sold, to you for use only under these terms and conditions. The providers of the Licensed Application (each an "Application Provider") reserve all rights not expressly granted to you. 1 Scope of License The license granted to you for a Licensed Application by the interested Application Provider is limited to a non-transferable Revenue to use the Licensed Application on the Device that you own or control. You may not distribute or make the Licensed Application available over a network where it could be used by multiple devices at the same time. You may not want, lease, limit, sell, redistribute or sublicense the Licensed Application. All Licensed Applications and all contents included therein that are accessible through this Device being to the Application Provider and Next PANASONIC

Fig./Img./Abb./Afb./Rys./Obr. 12

Channel installation Turner mode Antenna Cable Type Digital Scan Skip PANASONIC

Fig./Img./Abb./Afb./Rys./Obr. 13

Please check settings Please verify settings in system settings. Start now Environment Home Country/Region INDIA PANASONIC

Fig./Img./Abb./Afb./Rys./Obr. 14

Google TV The entertainment you love Set up Google TV Sign in with your Google Account to get Movies and TV shows from your favorite streaming apps Personalized recommendations Google Assistant: Search and control your TV with your voice Live TV External devices (e.g. HDMI) Set up basic TV YouTube NetFLIX NAT voot henchay tvspnly gstore prime video Instagram Spotify likeep hungaman

Fig./Img./Abb./Afb./Rys./Obr. 15

Select your Wi-Fi network NETGEAR-5G-1 NETGEAR-5G-2 NETGEAR66-2.4G SQA_CN_liuzirong1_2.4G SQA_HK_liuzirong2_2.4G SW_HK_Lujinling_2.4G

Fig./Img./Abb./Afb./Rys./Obr. 16

Set up with the Google Home app Download and open the Google Home app on your phone to get started When instructed in the app, scan the QR code Setup code TTLSKPFJ Set up on TV instead! Show user change, new data loading and scan more.

Fig./Img./Abb./Afb./Rys./Obr. 17

Google Assistant "Play relaxing music" Continue

Fig./Img./Abb./Afb./Rys./Obr. 18

Search across all your TV apps Allow No thanks To do this, allow it to share your requests with your TV's apps. You can turn this setting off at any time in your TV settings. Learn more at g.co/TVappsearch. Without this permission, Google Assistars may not be able to find all the content from your TV's apps.

Fig./Img./Abb./Afb./Rys./Obr. 19

Choose your subscriptions Your choices will be saved and used for content recommendations when you're signed into your Google Account Confirm Apps for your subscriptions will be installed on your device. Additionally the following apps that create with your device will also be installed during setup: YouTube, Prime Video, Apple TV, YouTube Kids, and YouTube Music:

Fig./Img./Abb./Afb./Rys./Obr. 20

Environment Please choose your Environment Home Shop Shop with demo

Fig./Img./Abb./Afb./Rys./Obr. 21

Terms & Conditions Please read the terms & conditions and agree. The contents and services (collectively the "Licensed Application") made available to you through this TV set (this, "Device") are licensed, not sold, to you for use only under these terms and conditions. The providers of the Licensed Application (such as "Application Provider") receive all rights and expressly granted to you. ? Scope of License This license granted to you for a Licensed Application by the relevant Application Provider is limited to a non-transferable license to use the Licensed Application on the Device that you own or controls. You may not distribute or make the Licensed Application available over a network where it could be used by multiple devices at the same time. You may not need, lease, long, and redistribute or subsidize the Licensed Application. All Licensed Applications and all contents excluded them that are accessible through this Device belong to the Application Provider and

Fig./Img./Abb./Afb./Rys./Obr.22

Channel installation Turner mode Type Antenna Digital Cable Satellite Scan Skip PANASONIC

Fig./Img./Abb./Afb./Rys./Obr. 23

Please check settings Please verify settings in system settings. Start now Environment Home Country/Region SPAIN

Fig./Img./Abb./Afb./Rys./Obr. 24

Installing your apps 12% complete

Fig./Img./Abb./Afb./Rys./Obr. 25

Your Google TV experience is ready Start exploring Google TV

Fig./Img./Abb./Afb./Rys./Obr.26

Home Apps Library Google TV Your app NETFLIX YouTube Disney+ prime video Apple Kids YouTube Music Continue watching 8K UPLOAD My Vault Prime Video AMAZON ORIGINAL NEW SERIES BURIAL AMAZON ORIGINAL

Fig./Img./Abb./Afb./Rys./Obr.27

Google TV Home ATV CABLE ANTENNA SATELLITE AV HDMI1 HDMI2

Fig./Img./Abb./Afb./Rys./Obr. 28

Settings Channels & Inputs Channels, external inputs Display & Sound Picture, answer, answer Network & Internet 112.49 Accounts & sign-in Privacy

Fig./Img./Abb./Afb./Rys./Obr.29

Settings Channels & Inputs Channels, wireless liquids Display & Sound Picture screen, audio Network & Internet BGA - Web Payments, 2.46 Accounts & sign-in Privacy Apps System Accounts & Sign In Add text Add an amount Add a list

Fig./Img./Abb./Afb./Rys./Obr. 30

Display & Sound Picture Screen Sound Audio output

Fig./Img./Abb./Afb./Rys./Obr. 31

Network & Internet Wi-Fi W-L APPRODUCING TP-Link_1602 Commanded MTC-GUEST Net Internet Access MTC-MES See all ADDITIONAL Add new network Scanning always available ETHANET Not connected Proxy settings IP settings

Fig./Img./Abb./Afb./Rys./Obr. 32

Privacy DEVICE SETTINGS Location Usage & diagnostics Ads ACCOUNT SETTINGS Google Assistant Payment & Purchases APP SETTINGS App permissions Special app access Security & Restrictions

Apps RECICIPIC OPENING APPS Live TV 1 minute ago See all apps PERMSSIONS App permissions Special app access Security & Restrictions

Fig./Img./Abb./Afb./ Rys./Obr. 33 Fig./Img./Abb./Afb./ Rys./Obr. 34

System Accessibility About Date & Time Language Keyboard Liberal Storage Ambient mode

System Ambient mode Power & Energy Cast System sounds Device Preferences Restart

Fig./Img./Abb./Afb./Rys./Obr. 35

Settings Accounts & sign-in Privacy Apps System Remotes & Accessories Help & Feedback Remotes & Accessories Bluetooth + Pair accessory MCA00 Downloaded via

Fig./Img./Abb./Afb./Rys./Obr. 36

Help & Feedback Send feedback Visit Google TV Help at p.manchHelp

Fig./Img./Abb./Afb./Rys./Obr. 37

1 2 3 4 5 6 7 8 9 FAV 0 ≡ OK ← + - + - CH SMART NETFLIX YouTube prime video APPs cec@tec

Fig./Img./Abb./Afb./Rys./Obr. 38

www.cecotec.es
