USER MANUAL Giggle 3 in 1 COSATTO

clever stuff for happy babies

R129/03 40 - 87cm ≤13kg

The ABCs

Tote i-Size

i-Size Car Seat

(EN) Instruction 1 - 27

(EN) Spare part list diagram 29

(EN) Instruction diagram 30 - 40

(FR) Schéma d'instructions, (DE) Anleitungsdiagramm, (IT) Diagramma di istruzioni

IMPORTANT! READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE Important safety Information

The instruction manual should be kept safely with child car seat for its life period: There is a compartment at the rear of the seat cover for storage of the instruction manual. Cosatto wants you to be happy with the fitting & security of your child car seat. If you have any questions, please contact our customer service team on our by phone [phone]) or by email ([e-mail]).

Child height and weight:

- This child car seat has been approved for transportation in cars of children from birth, height between 40 and 87cm , up to maximum weight of 13kg .

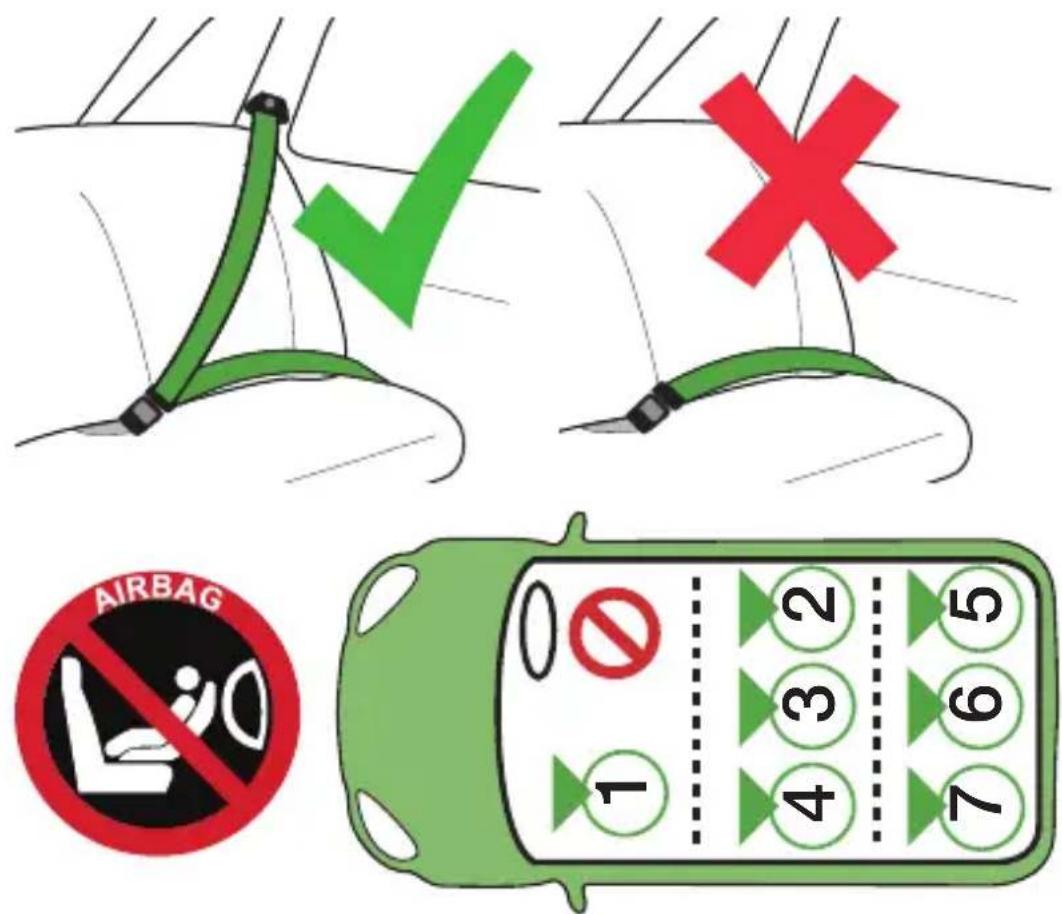

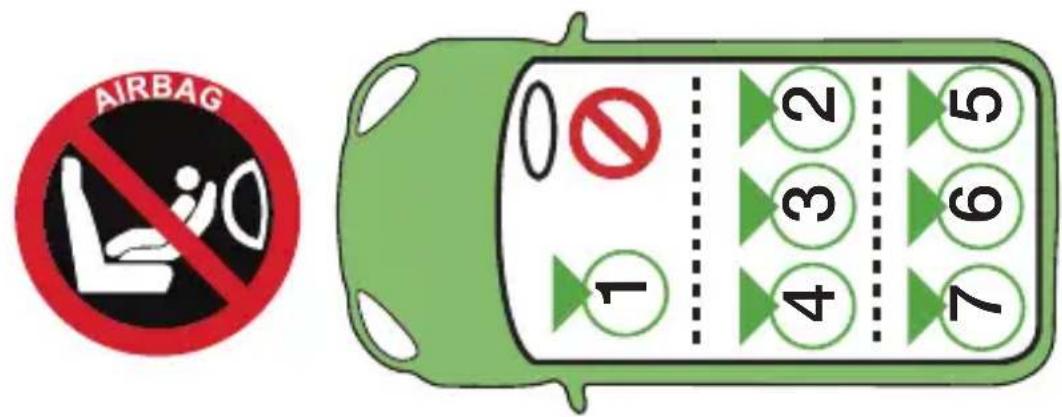

Location:

- IMPORTANT: Your child car seat can only be installed rearward facing using a three point lap and diagonal vehicle belt in the front or rear passenger seats of the car.

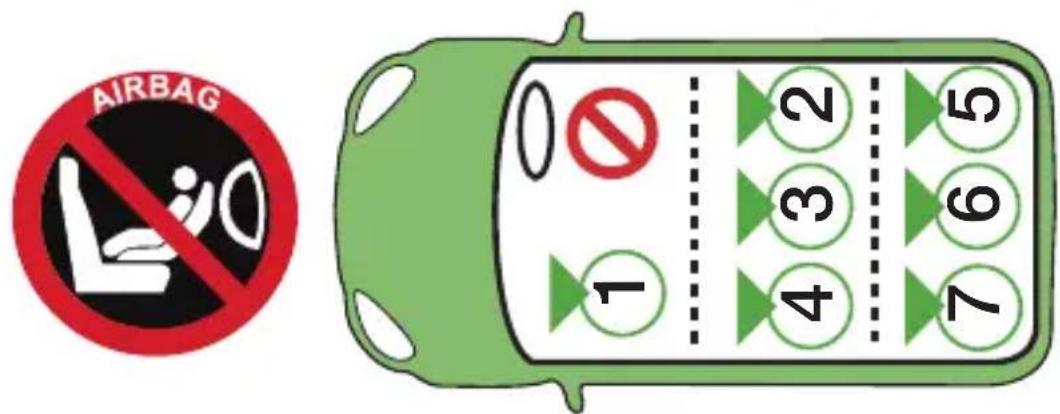

- Never use the child car seat on a seat where an airbag is fitted and active. Refer to your vehicle user manual for information on de-activating the airbag.

Safety - Please read carefully:

• NEVER use this child car seat with its side facing the vehicle seat.
• Any rigid items and plastic parts of the child car seat must be so located and installed that they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of vehicle.
• If any load bearing points other than those described in the instructions are used, this can significantly reduce the protection factor of the child car seat.
• ALWAYS secure your child with the safety harness when using this child car seat.
• Never leave your child unattended.
• Do not attempt to dismantle, modify or add to any part of the child car seat or change the way your vehicle seat belts are made or used.
• After an accident the child car seat should be replaced and the vehicle seat belts. Although they may look undamaged, they may not protect your child as well as they should.
• Do not place anything such as a towel or cushion under the child car seat. This could affect the performance of the child restraint system in an accident.
• Always make sure that the child car seat harness are correctly tensioned to ensure maximum protection for your child.
• Prevent harness from getting trapped between car doors or rubbing against sharp parts of the seat or body.
• If the harness/vehicle belts becomes cut or frayed, replace it before travelling.
• Never use replacement parts other than those approved by Cosatto.
• Cosatto advise that child car seat should not be bought or sold second-hand. Many child car seat acquired this way have been found to be dangerous.
• NOTE: The child car seat can mark vehicle seat upholstery. Cosatto cannot be held responsible for damage or marking to vehicle seat upholstery.
• Security is only guaranteed if the child car seat is fitted in accordance with these instructions.
• Safely secure any luggage or other objects that might cause injuries to the occupant of the child car seat in the event of a collision.
• Failure to comply with the instructions would be dangerous, and will automatically void the warranty and exempt Cosatto from any liability.
• The harness buckle has been designed to be released quickly in an emergency. IT IS NOT CHILD PROOF. More inquisitive children may learn to undo the buckle.

Children should be told never to play with the harness buckle or any other part of the child car seat.

- It is important that the lap harness is worn low down, so that the pelvis of the child is firmly engaged.

- Never use the child car seat without its fabric cover because the fabric cover constitutes as an integral part of the child car seat performance. The fabric cover should not be replaced with any other than the ones recommended by Cosatto.

- Cover the child car seat if it is left in direct sun light for prolonged period as the child car seat surfaces may get very hot. Check the child car seat surface before placing your child in the seat.

Notice:

• This is Universal Belted Enhanced Child Restraint System. It is approved according to UN Regulation No. 129/03, for use primarily in “Universal seating positions” as indicated by vehicle manufacturers in the vehicle user’s manual.
• Never use this Enhanced Child Restraint System in seating positions where there is an active frontal airbag is installed.
• When used in combination with the "Tote i-Size" base, this is "i-Size" Enhanced Child Restraint System.
• For seating positions of the intended vehicle, please refer to the Cosatto fit checker app (http://cosat.to/fitchecker) or the vehicle fitting list section on the website (http://cosat.to/toteisizevl).
• If in doubt, consult either the Child Restraint System manufacturer or retailer.

Reclined cradle mode:

• WARNING: Never leave the child unattended.
• WARNING: Do not use the reclined cradle once your child can sit unaided.
• WARNING: This reclined cradle is not intended for prolonged periods of sleeping.
• WARNING: It is dangerous to use this reclined cradle on an elevated surface, e.g. a table.
• WARNING: Always use the restraint system.
• This reclined cradle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.
• Do not use the recline cradle if any components are broken or missing.
• Do not use accessories or replacement parts other than those approved by Cosatto.

Care & Maintenance:

• Your child restraint system has been designed to meet safety standards and with correct use and maintenance will give many years of trouble free performance.
• Store your child restraint system in a dry, safe place.
• Storing a damp child restraint system will encourage mildew to form, so after exposure to damp conditions, dry off with a soft cloth and allow to dry thoroughly before storing.
• Avoid leaving the child restraint system in sunlight for prolonged periods as this may cause fabrics to fade.
• Inspect the child restraint system regularly for signs of damage- stop using the product if damage is found.
  • DO NOT take apart, or attempt to take apart the child restraint system when cleaning. It is unnecessary and dangerous to do so.
  • Plastic and metal parts may be sponged clean with warm water and a mild detergent.
  • Refer to the wash care label on soft goods for cleaning instruction.
• Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.

Part list:

Please refer to diagrams:

P1: Seat P8: Handle adjustment button

P2: Headrest P9: Side vehicle belt guide

P3: Hood P10: Rear vehicle belt guide

P4: Chest pads (pair) P11: Adjustor strap release button

P5: Harness P12: Seat liner

P6: Crotch pad P13: Tuck in tool

P7: Adjustor strap

Replacement parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

S1: Hood fabric S6: Crotch pad

S2: Hood fabric insert S7: Seat liner insert

S3: Chest pads (pair) S8: Headrest cover

S4: Seat cover S9: Tuck in tool

S5: Seat liner cover

Visual language Key:

XX	Refer to warning XX
	Correct action
	Incorrect action
	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
	Continue to step XX
	Repeat on other side

Fitting & Operation Information:

Please refer to the following diagrams:

Harness:

1: Loosening:

NOTE: Pull only the harness straps.

2: Tightening:

3: Opening:

4: Closing:

Headrest:

5: Adjusting:

Loosen the harness (refer to step 1).

Pull back the adjustor (a) and adjust the headrest position (b).

Seat Liner:

6: When your child's height is between 40 and 60cm , the child car seat must be used WITH the seat liner (a).

After your child's height exceed 60cm, the child car seat can be used WITHOUT the seat liner.

Handle:

7: Adjusting:

Handle positions:

1: In vehicle position

2: Carry position

3: Stow/Reclined Cradle position 4: Steady position

Hood:

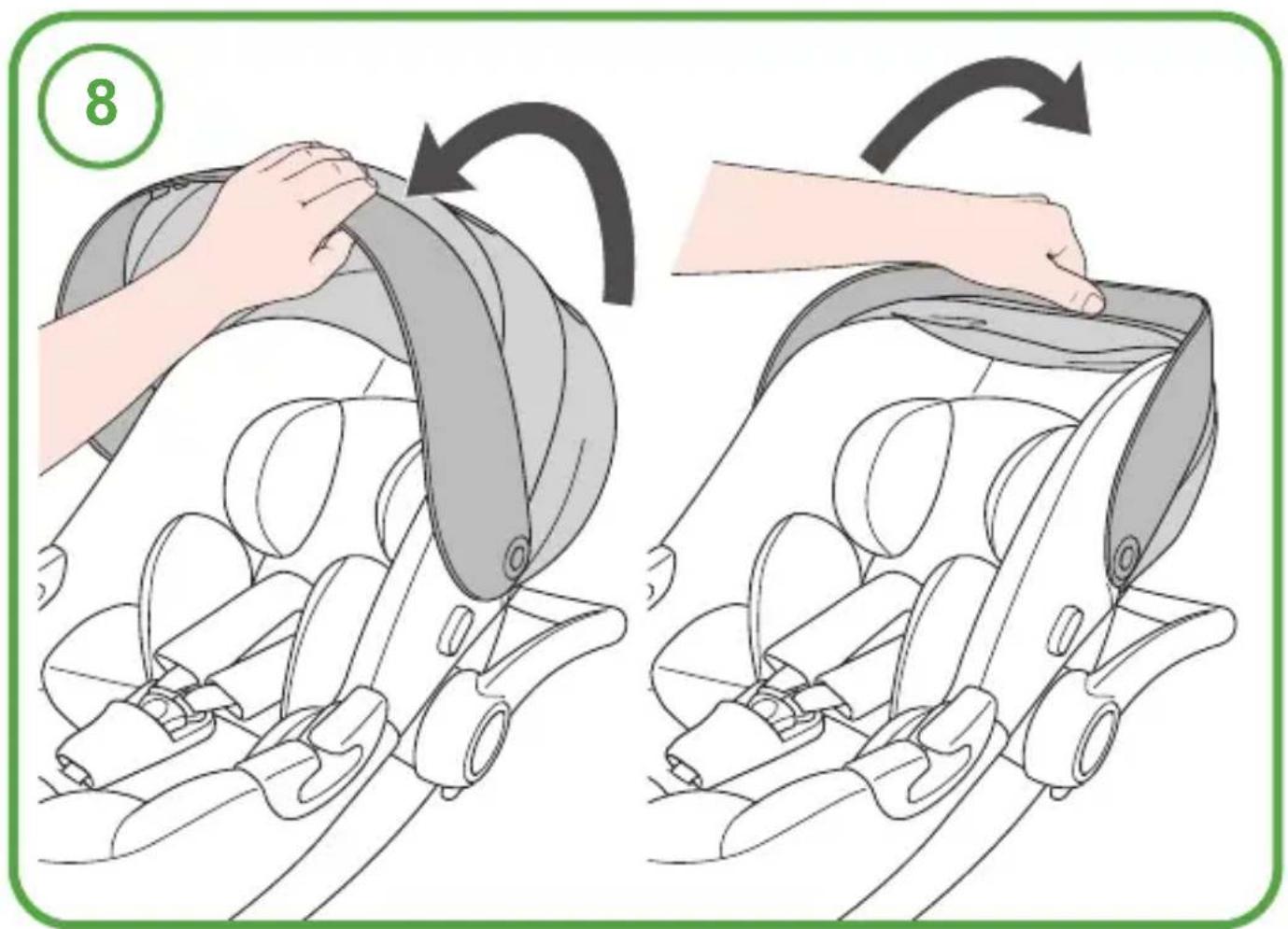

8: Adjusting:

Removing the hood fabric:

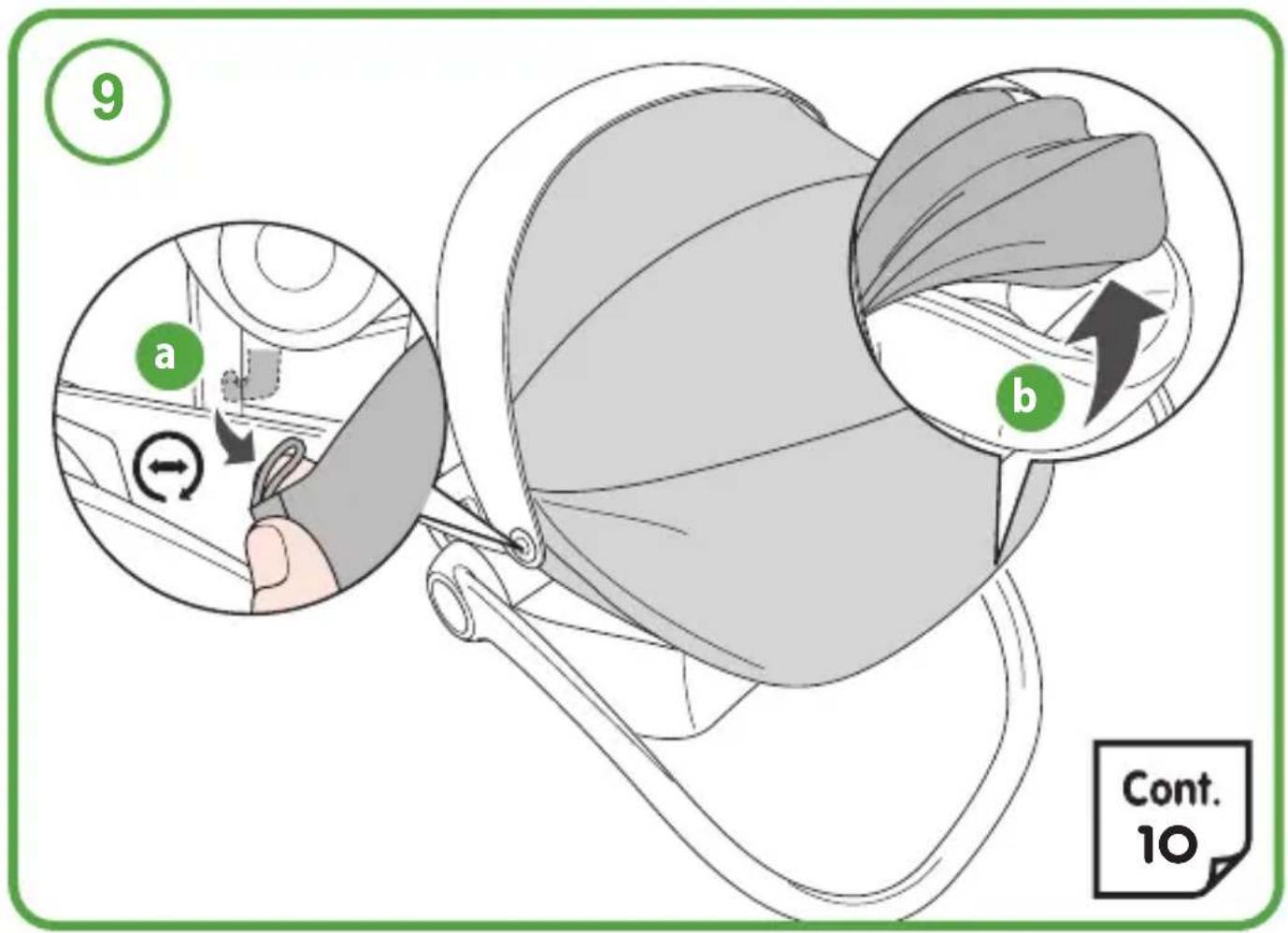

9: Release the elastic loops from both side of the hood (a).

Release the rear section of the hood fabric from the seat (b).

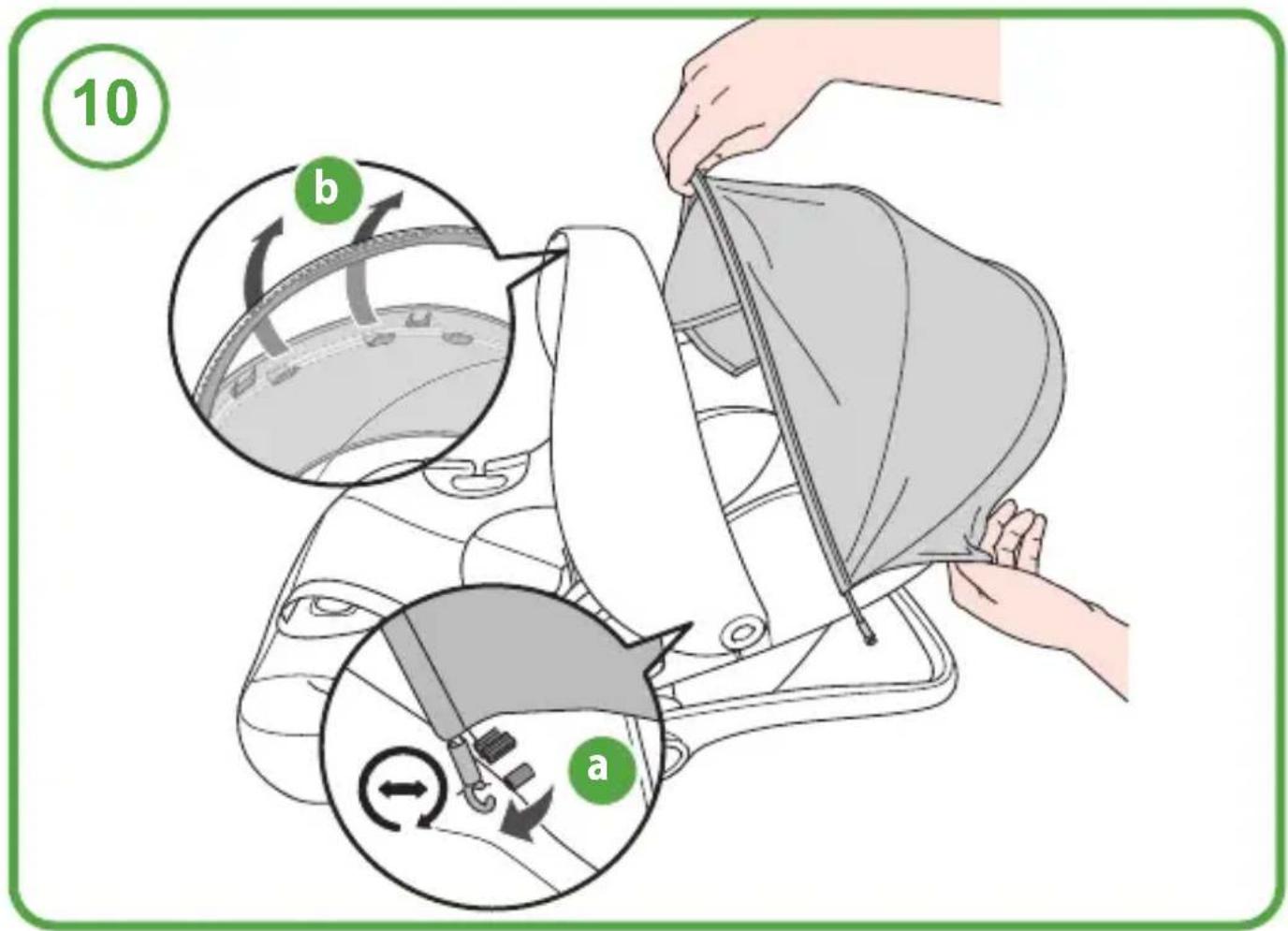

10: Release the hood fabric insert from the mounting points (a, b).

Refitting is a reversal of this procedure.

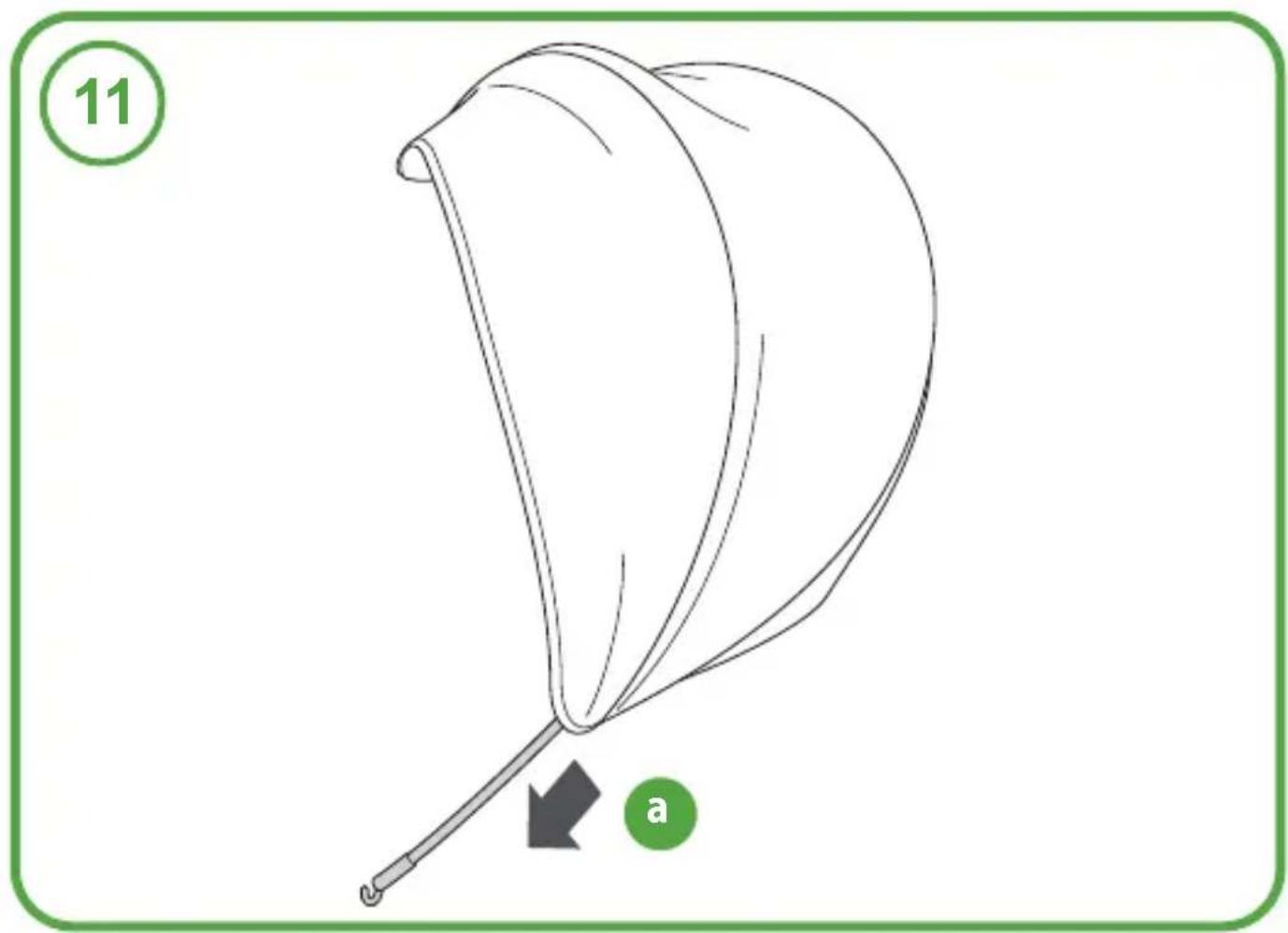

11: Removing hood fabric insert:

Refitting is a reversal of this procedure.

Securing your child in the child car seat:

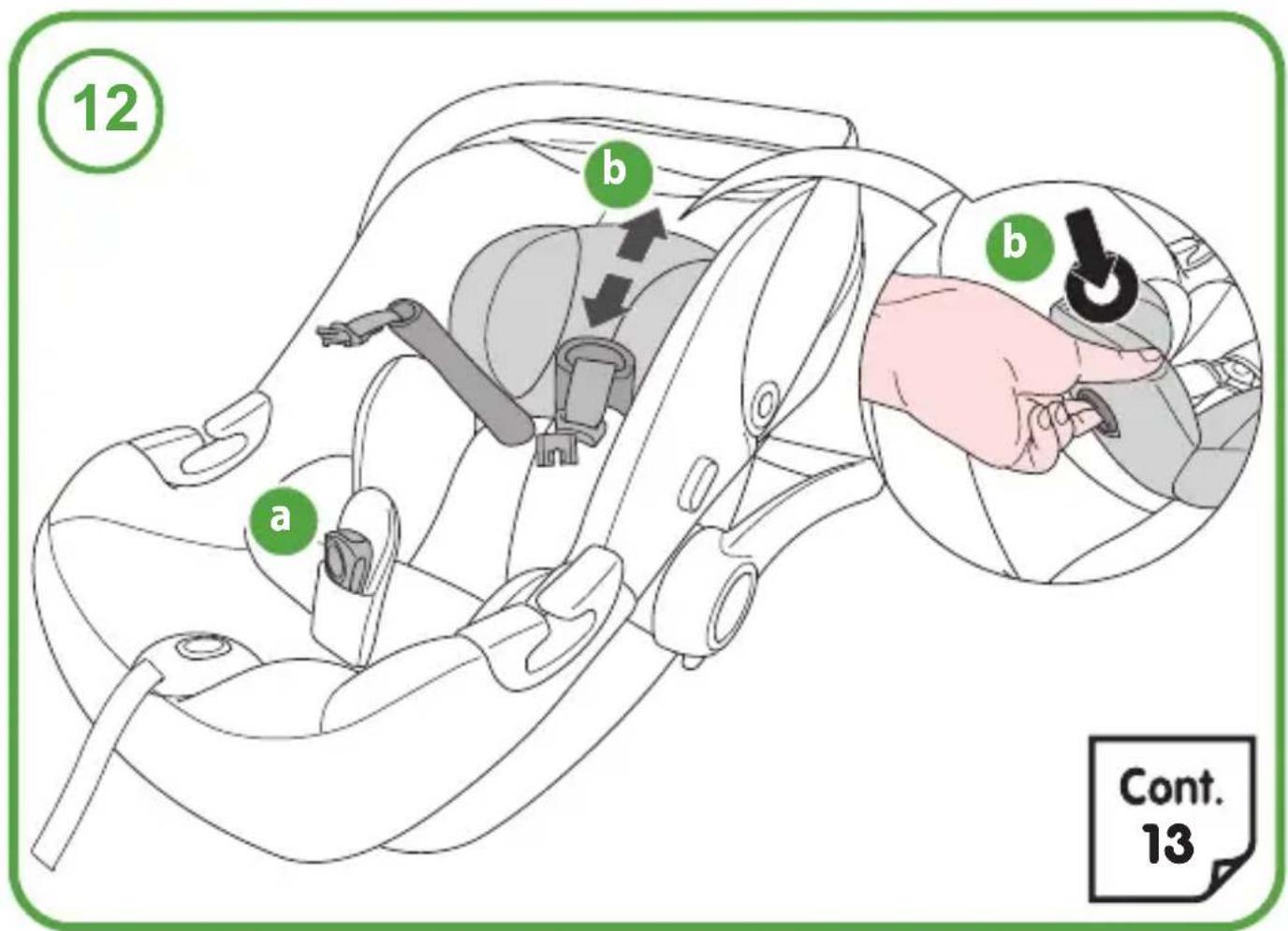

12: Open the harness (a), (refer to step 3).

Raise the headrest (b), (refer to step 5).

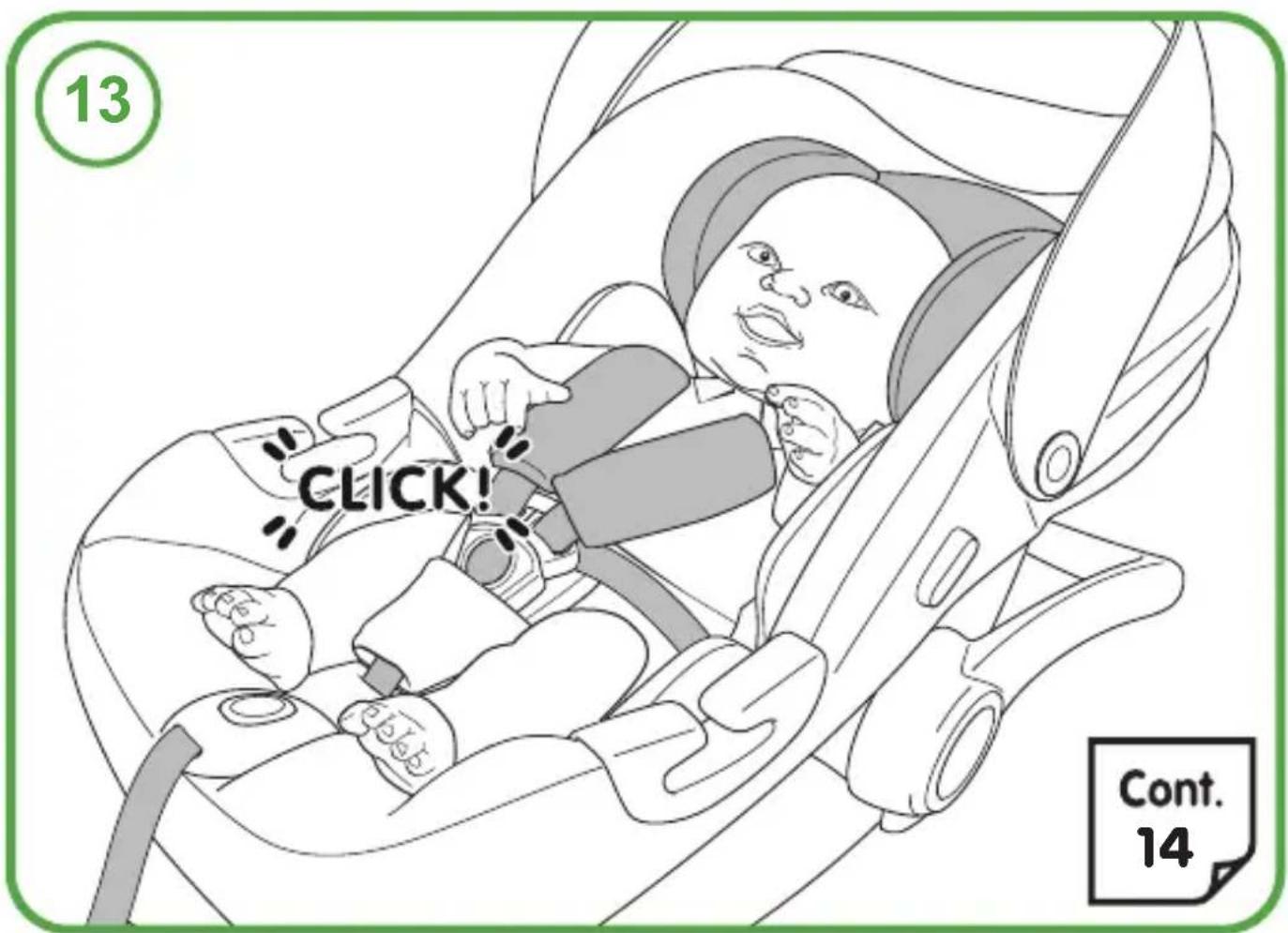

13: Place your child in the child car seat.

Close the harness (a), (refer to step 4).

Adjust the headrest (b), (refer to step 5).

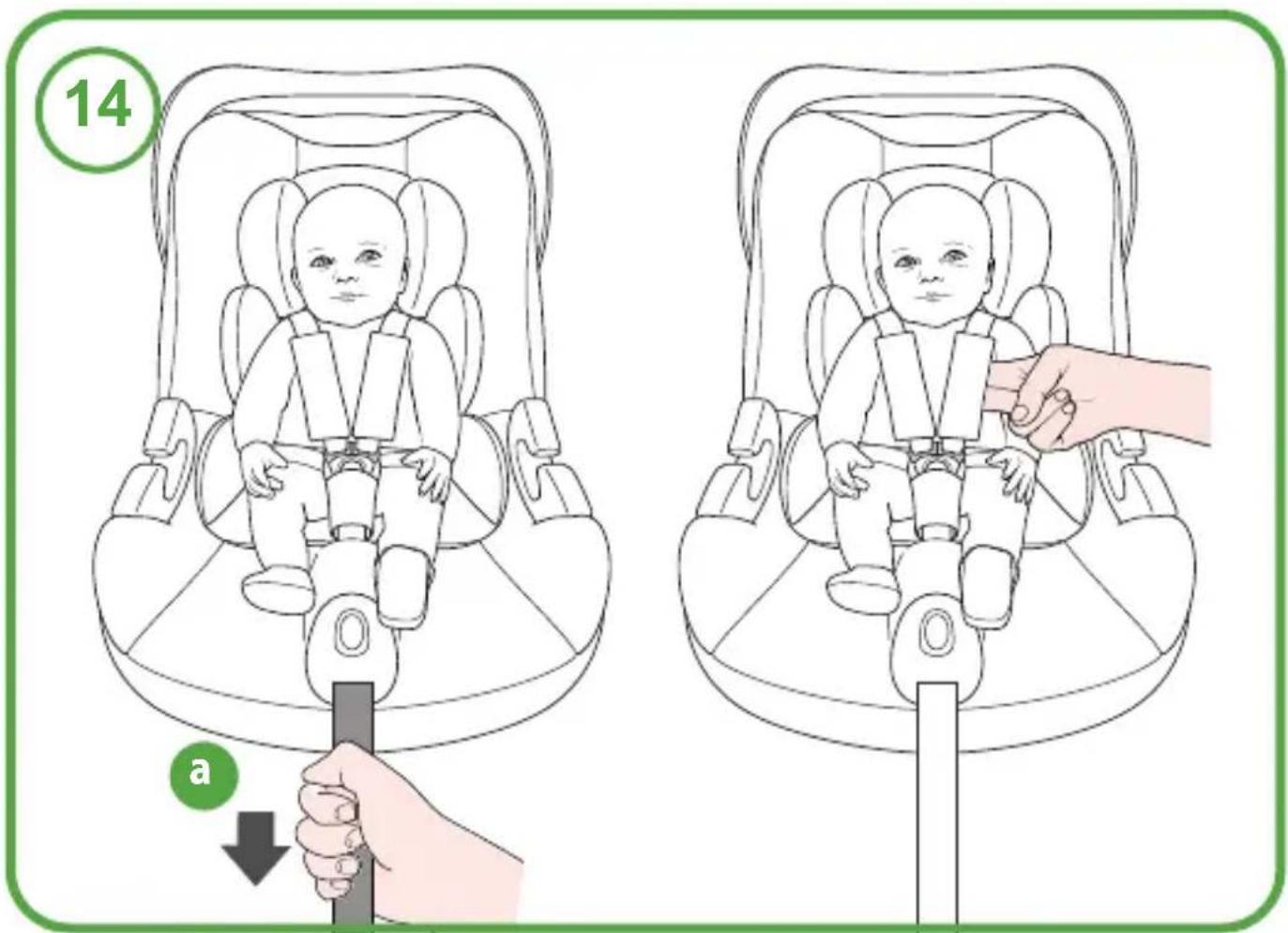

14: Tighten the harness (a), (refer to step 2).

NOTE: The harness must be reasonably tight. It should restrain but not make the child uncomfortable. Check that the straps are not twisted while the child is seated.

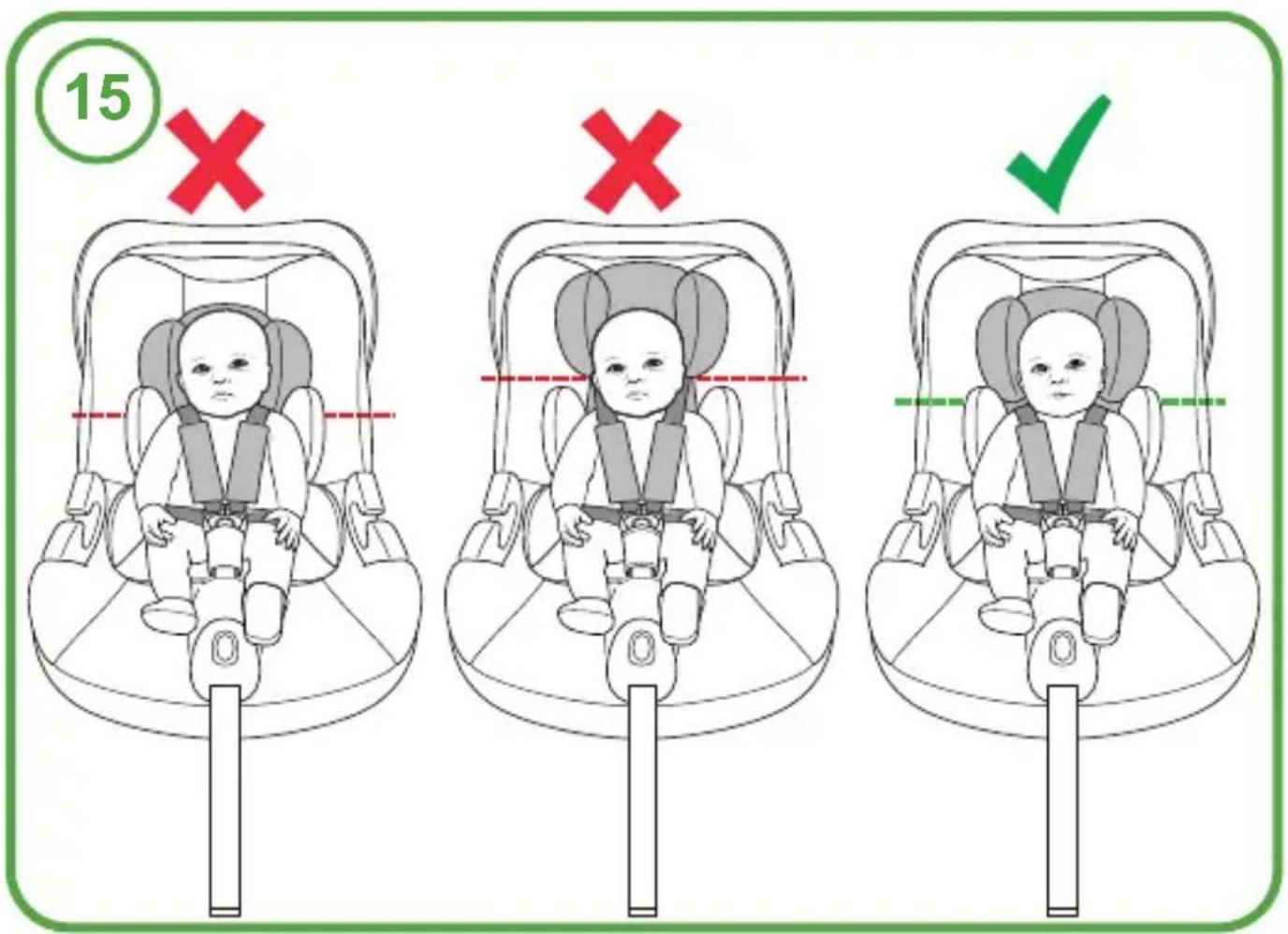

15: Satisfactory shoulder strap position:

Fitting the child car seat to your vehicle:

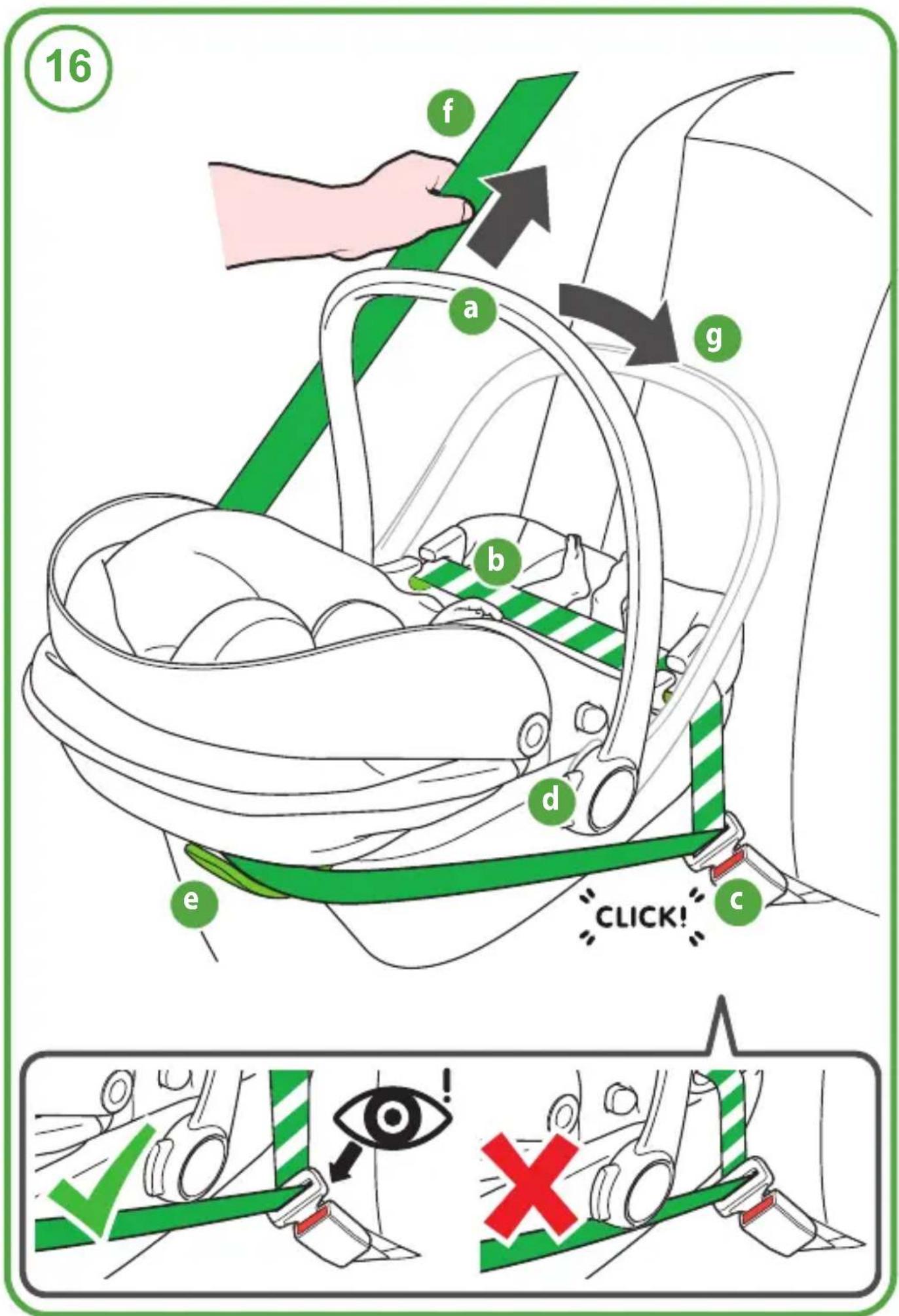

16: Adjust the handle to carry position (a) (refer to steps 7).

Position the child car seat on the vehicle seat, pass the vehicle waist belt through the side vehicle belt guides (b) and fasten the vehicle belt buckle (c).

Route the diagonal belt under handle hinge (d) then through rear vehicle seat belt guide (e).

Tension the vehicle diagonal belt (f).

Adjust the handle to in vehicle position (g) (refer to steps 7).

IMPORTANT: The position of the vehicle belt buckle can affect the stability of the child car seat. In an accident this could stop the child car seat from protecting your child as well as it should. After tightening the vehicle belt, if the buckle lies in the position marked ✗ then try fitting the child car seat in another seating position in your vehicle. If in doubt consult either the child car seat manufacturer or retailer.

Removing softgoods:

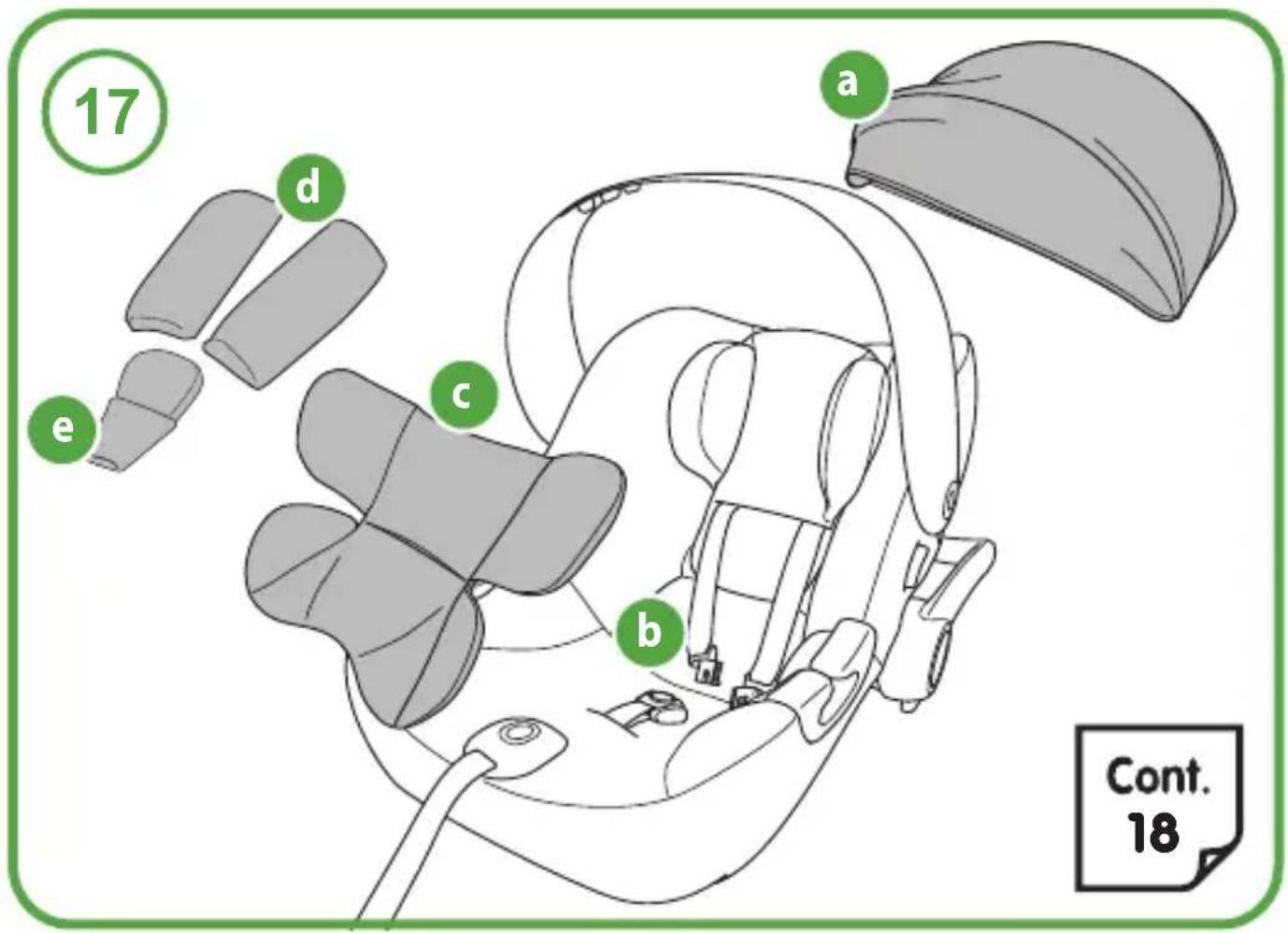

17: Remove the hood fabric (a) (refer to step 9-10).
Open the harness (b) (refer to step 3).
Remove the seat liner (c) (if applicable), chest pad (d) & crotch pad (e).

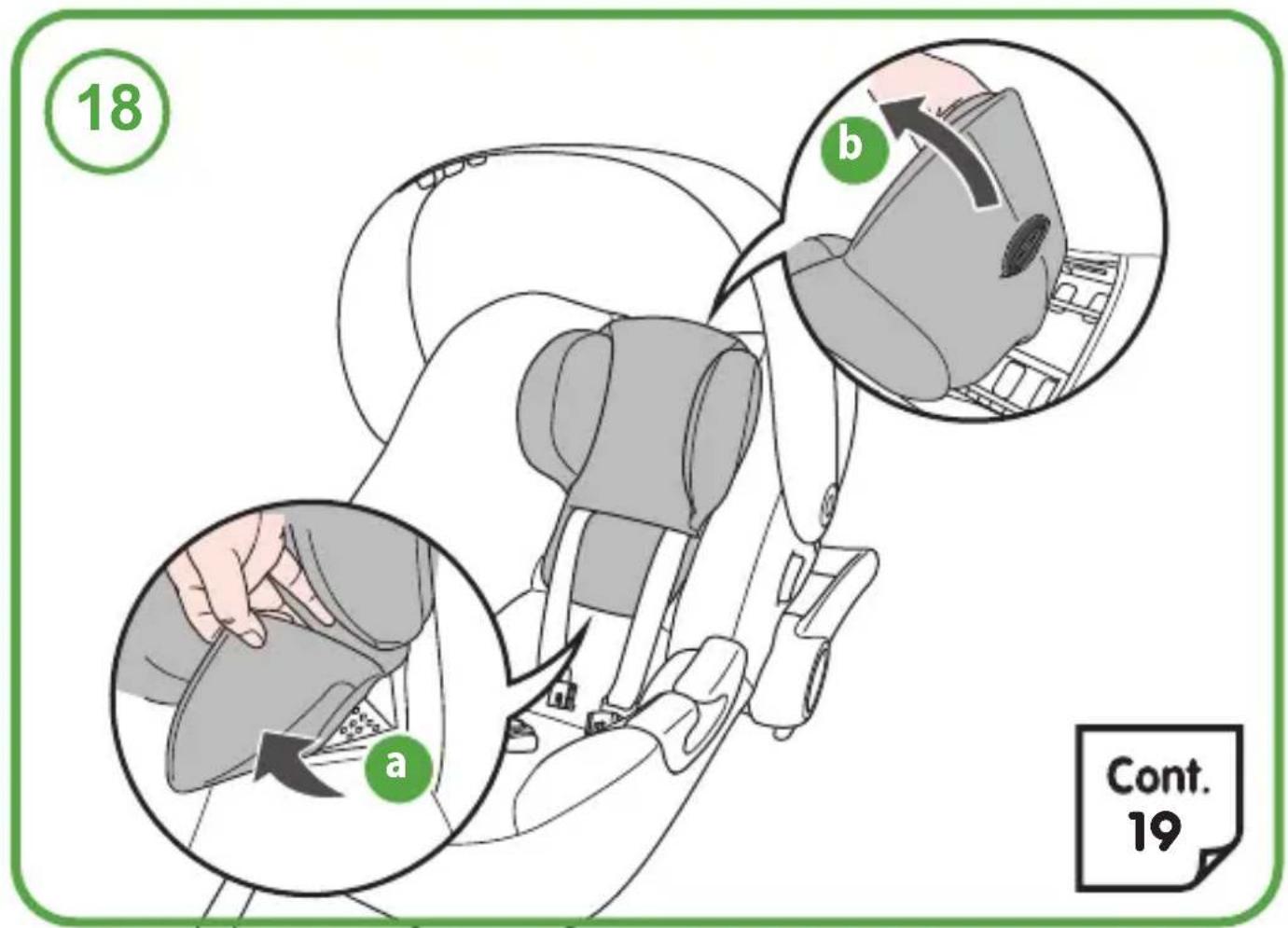

18: Remove the headrest cover (a, b).

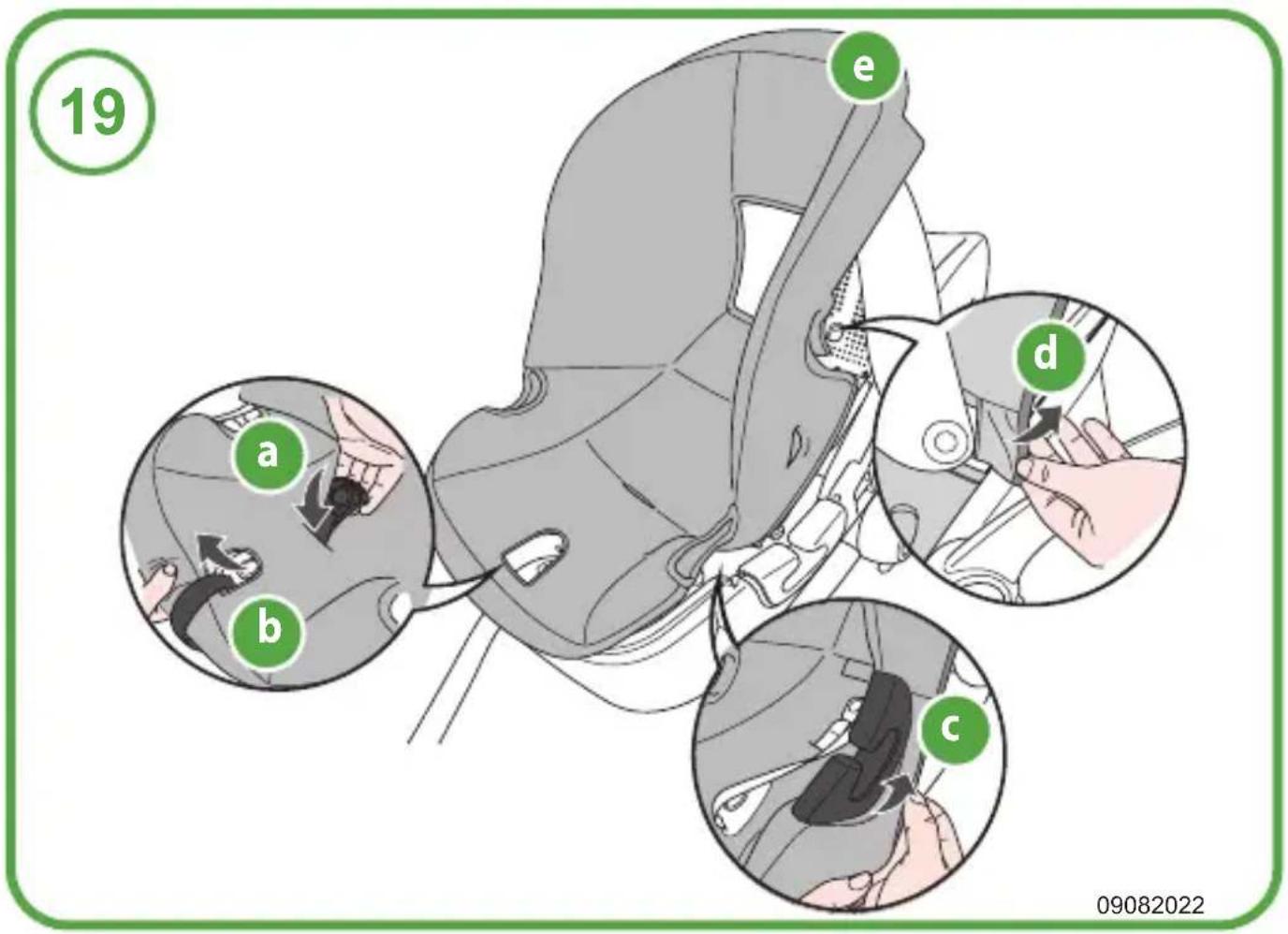

19: Remove the seat cover (a - e).
Refitting is a reversal of this procedure.

Checklist:

• Have you check the compatibility of the child car seat with the intended vehicle?
• If applicable, is the air-bag de-activated?
• Is your child car seat correctly fitted to the vehicle seat?
• Have you check the position of the vehicle belt buckle?
• Is your child correctly secure in the child car seat?
• Are the vehicle belt and harness adequately tensioned and not twisted?

IMPORTANT ! LIRE ATTENTIVEMENT AVANT UTILISATION ET CONSERVER POUR CONSULTATION ULTÉRIEURE Informations importantes de sécurité

Diagram showing two labeled scenarios: a green checkmark and a red cross, with arrows indicating movement or direction.

AIRBAG 0 1 2 3 4 5 6 7

http://www.cosatto.com/service-centre/spares

Diagram showing two hand-drawn scenarios: a green checkmark and a red cross, both with curved lines and endpoints.

AIRBAG 0 1 2 3 4 5 6 7

Wiege in Rücklehnposition:

http://www.cosatto.com/service-centre/spares

Schultergurt spannen (f).

Diagram showing two labeled parts with checkmark and cross symbols, likely illustrating a verification or approval process.

AIRBAG 0 1 2 3 4 5 6 7

Illustration showing a baby car seatbelt being adjusted for a seatbelt, with numbered steps from 1 to 7.

8

9 a b Cont. 10

10 b a

Line drawing of a leaf with a handle and arrow, labeled 'a' (no text or symbols on the diagram itself)

12 a b b Cont. 13

13 CLICK! Cont. 14

14 a

15 × × ✓

16 f a g b c e d CLICK! c

17 a d c b e Cont. 18

18 b a Cont. 19

19 a b c d e 09082022

Right by your Side

Landline: Go freephone fabulous on 0800 014 9252*

Mobile: Ring 0333 323 1729 International: [phone]

* calls from BT landlines are free but calls from mobiles and other networks may vary.

Email: [e-mail]

Letter: Cosatto Limited, Bentinck Mill, Bentinck Street, Farnworth, Bolton, Lancs, BL4 7EP, England.

All the design and trademarks contained herein are the property of Cosatto Limited. No part of this document may be reproduced without the permission of Cosatto Limited.

www.cosatto.com

(EN) NOTICE:

• THIS IS UNIVERSAL BELTED ENHANCED CHILD RESTRAINT SYSTEM. IT IS APPROVED ACCORDING TO UN REGULATION NO. 129/03, FOR USE PRIMARILY IN “UNIVERSAL SEATING POSITIONS” AS INDICATED BY VEHICLE MANUFACTURERS IN THE VEHICLE USER’S MANUAL.
• NEVER USE THIS ENHANCED CHILD RESTRAINT SYSTEM IN SEATING POSITIONS WHERE THERE IS AN ACTIVE FRONTAL AIRBAG IS INSTALLED.
• WHEN USED IN COMBINATION WITH THE “TOTE I-SIZE” BASE, THIS IS “I-SIZE” ENHANCED CHILD RESTRAINT SYSTEM
  • FOR SEATING POSITIONS OF THE INTENDED VEHICLE, PLEASE REFER TO THE COSATTO FIT CHECKER APP
  (HTTP://COSAT.TO/FITCHECKER) OR THE VEHICLE FITTING LIST SECTION ON THE WEBSITE (HTTP://COSAT.TO/TOTEISIZEVL).
• IF IN DOUBT, CONSULT EITHER THE CHILD RESTRAINT SYSTEM MANUFACTURER OR RETAILER.
