306911 - Speaker Bearware - Free user manual and instructions

Product Type	WiFi Smart Plug
Model	306911
Brand	Bearware
Input Voltage	220-240 V AC, 50 Hz
Output Voltage	220-240 V AC, 50 Hz
Maximum Current	16 A
Maximum Power	3680 W
WiFi Frequency Range	2412-2484 MHz
Maximum Transmit Power (EIRP)	17.1 dBm
Compatible Operating Systems	Apple iOS 8.0+, Google Android 4.1+
Operating Temperature	0-35 °C
Control App	Smart Life
Compatible Voice Assistants	Amazon Alexa, Google Assistant
Programmable Functions	Timer, countdown, schedule mode, random mode, astronomical mode
Pairing Mode	Press the ON/OFF button for 5 seconds
Package Contents	WiFi Smart Plug, quick start guide
Safety	Do not connect in series; power off only when plug is disconnected; do not use with refrigerator, iron, etc.
Cleaning and Maintenance	Clean with a dry cloth; do not immerse in water
Recycling	Compliant with WEEE Directive 2012/19/EU; eco-participation; local collection points
Warranty	See supplier conditions; any modification voids warranty

Frequently Asked Questions - 306911 Bearware

How to set up the Bearware 306911 smart plug?

To set up the plug, install the Smart Life app on your smartphone. Create an account, then plug the smart plug into a power outlet. Press the ON/OFF button for about 5 seconds until the LED flashes blue quickly. In the app, tap "Add Device", select the appropriate category, enter your WiFi credentials (2.4 GHz network only) and follow the instructions.

What to do if the app doesn't find the plug?

Check that your smartphone is connected to the 2.4 GHz network (temporarily disable the 5 GHz network). Ensure the plug's LED is flashing quickly (pairing mode). If not, unplug and replug the plug, then press and hold the ON/OFF button for 5 seconds. Also verify that the router is working and the plug is within range.

Can I use the plug with Amazon Alexa?

Yes, the plug is compatible with Amazon Alexa. In the Alexa app, enable the Smart Life skill, then start device discovery. Once the plug is detected, you can control it by voice. Make sure your Smart Life account is linked to Alexa.

What is the maximum power supported by the plug?

The plug supports a maximum power of 3680 W (16 A) at 220-240 V. Do not exceed this limit and do not use devices with capacitor motors (refrigerator) or heat-generating devices (iron) without supervision.

How to reset the smart plug?

To reset the plug, press and hold the ON/OFF button for about 5 seconds until the LED flashes quickly. This puts the plug back into pairing mode. You can also delete the device from the Smart Life app to reset it.

Does the plug work with a 5 GHz WiFi network?

No, the plug only works on the 2.4 GHz band. If you have a dual-band network, temporarily disable the 5 GHz during setup. Once connected, you can re-enable the 5 GHz.

Can I schedule timers to turn the plug on/off?

Yes, via the Smart Life app, you can set schedules for specific days, countdown timers, random mode or astronomical mode based on sunrise/sunset. Go to the device settings to access these functions.

What to do if the LED doesn't flash after pressing the button?

Ensure the plug is properly plugged in and powered. If the LED does not light up at all, check that the power outlet works. If it stays solid without flashing, the plug is already connected to a network. To put it back into pairing mode, press and hold the ON/OFF button for 5 seconds.

How to update the firmware of the plug?

Firmware updates happen automatically via the Smart Life app when the plug is connected to the internet. You can check for updates in the device settings within the app. Ensure the plug remains powered during the update.

Is the plug compatible with Google Home?

Yes, the plug is compatible with Google Assistant. Link your Smart Life account to the Google Home app, then add the device. You can control the plug by voice via Google Home.

USER MANUAL 306911 Bearware

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Intervallmodus:

Betriebszeitmodus:

9. Einstellungen

Thank you for purchasing a BEARWARE product. Please read the following brief instructions carefully so that you can enjoy your purchased device. Before using the delivered goods, please check that they are complete, free of defects and undamaged.

1. Scope of delivery

• WiFi smart socket
• Quick guide

2. Technical data

Input voltage 220-240V ~ (AC) / 50Hz
Output voltage 220-240V ~ (AC) / 50Hz, max. 16A
Power consumption max. 3680 W
Frequency range 2412-2484 MHz
Max. Transmission power (EIRP)	max. 17.1 dBm
Operating systems	Apple iOS V 8.0 and Google Android V 4.1 or higher
Operating systems Smart Home compatible
Ambient temperature 0-35°C

3. Important safety instructions for this device

Attention! Updates to the software or operating system may change the functionality and use of the device!

Attention!

• Do not plug in one after the other!
• Only de-energise when the plug is disconnected!

4. Additional information for this device

The following devices must not be connected to the radio-controlled sockets:

• Appliances whose technical values do not match those of the radio-controlled sockets
• Appliances with a built-in motor capacitor (e.g. refrigerator)
• Appliances that could cause fire or other damage if switched on unattended (e.g. irons)
• Televisions with built-in picture tubes
• The radio-controlled sockets must be quickly accessible in an emergency so that they can be unplugged as quickly as possible in the event of danger

5. Additional safety instructions

• Voltage-free only when the plug is disconnected
- Please do not plug in one after the other
- The radio-controlled socket may only be connected to a properly connected socket. Make sure that the voltage on the rating plate matches that of your household
- Never plug the radio-controlled socket into a multiple socket or extension lead
- The range can be affected by various factors (e.g. reinforced concrete or sources of electrical interference). If necessary, the source of interference must be removed or the device must be connected closer to the WiFi source.
- Please do not insert any metal objects into the socket outlet
- CAUTION: Not suitable for children under 3 years of age due to choking hazard caused by small parts that can be swallowed!

6. Start-up

Remove the device from the packaging and remove all packaging material. Connect the WiFi socket to a properly connected socket.

You can find out how to set up the socket via the app in the following chapter.

Notes: Make sure that the appliance to be switched is switched on, otherwise it cannot be put into operation by radio. The socket outlet used must be energised, otherwise the radio-controlled socket cannot switch.

If you are using the device with a voice assistant (e.g. Amazon Alexa), you must activate the "Smart Life" skill and then start the device search and connect the socket to the voice assistant. For more information, please refer to the manual for the relevant device.

7. Setup via the app

Open the app store of your mobile device (e.g. smartphone or tablet PC) with which you want to connect to the socket. Search for the "Smart Life" app in the app store and install it.

Alternatively, you can find the app using the following QR code:

Next, you will need to create an account in the app. To do this, please tap on the "Register" button. To receive the verification code, enter your country and your mobile phone number or email address.

Tap on "Next" again. As soon as registration is complete, you can log in to the app using the data you entered previously.

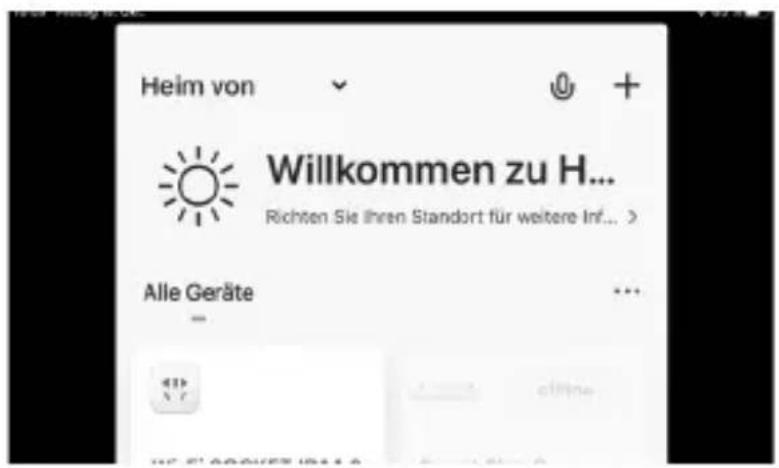

If you are logged in, a list of the currently connected WiFi devices will appear.

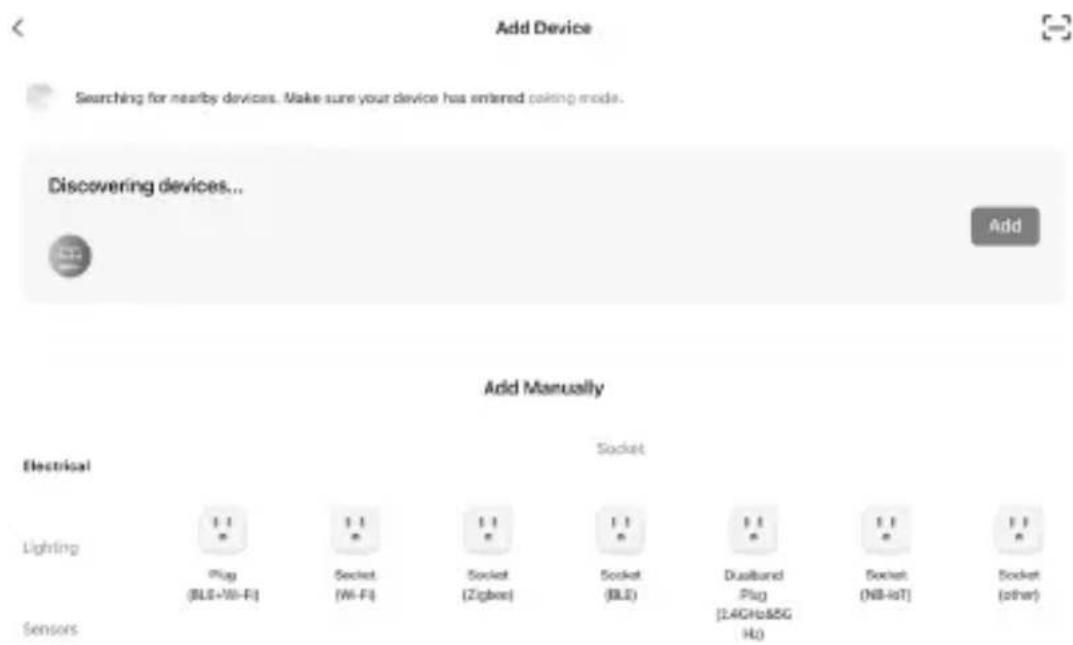

If you open the menu at the top right of the screen, you can add new devices (+" symbol). Tap on "Add Device" and then select the correct category.

Set the device to pairing mode by plugging it into the socket. Press and hold the ON/OFF button on the side of the product for approx. 5 seconds until the LED flashes blue quickly.

As soon as the WLAN status LED on the socket flashes (approx. twice per second), the device is in search mode.

Now enter your Wi-Fi data in the app. The app then connects to the socket. As soon as the process is complete, the app shows that the device has been successfully added.

Note: If you are using both a 2.4 GHz and a 5 GHz network (or other guest networks), please deactivate all networks except the 2.4 GHz network in the meantime. Make this visible, as the IP socket is addressed and connected via the network.

8. Advanced settings of the app

To use the advanced functions of the socket, such as the timer function and the rejection mode, it is necessary to click on the symbol of the connected socket in the menu.

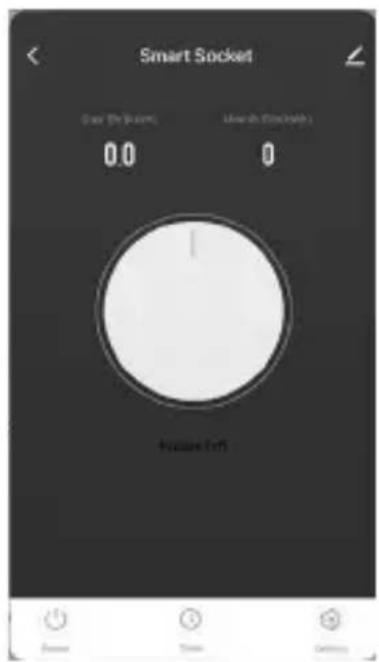

An extended settings menu appears:

You can switch the socket on and off using the "POWER" button.

Countdowntimer:

Tap on the "Timer" symbol. The "Timer" menu then opens. Tap on "Countdown". You can set any time at which the appliance is to be switched to the other state.

Schedule mode:

In schedule mode, you can set different switch-on and switch-off times on different days of the week. Set the relevant time and the desired days of the week as well as the "SWITCH" (On or Off) status and tap "Save".

Interval mode:

In interval mode, repeating switch-on and switch-off times can be set for a specific period of time. The connected device is switched on for a certain "Start Duration" for the specified period of time and then pauses for a certain "End Duration".

Random mode:

In random mode, you have the option of setting a start and end time. The appliance switches on and off randomly within this period.

Operating time mode:

In this mode, you have the option of setting a time for how long the connected end device should remain switched on after switching on. Once the set time has elapsed, the device switches itself off again.

Attention! While this mode is active, no previously set mode is switched on. All previously set modes are reset as soon as you activate this mode.

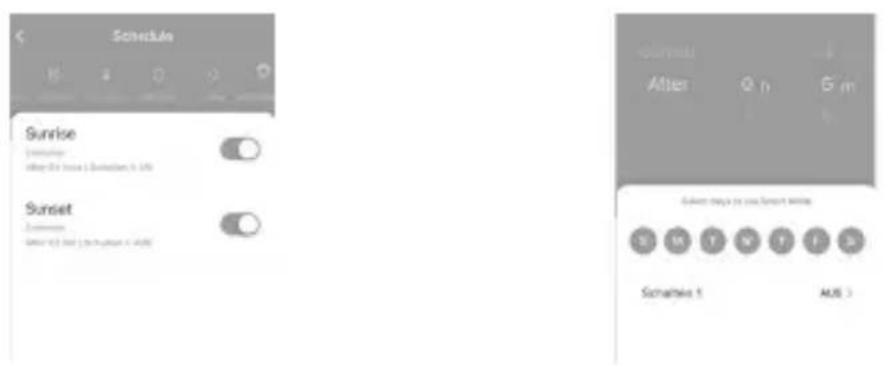

Astronomical mode:

In this mode, you have the option of switching the device on or off depending on the sunrise and sunset times. Select "Before" to set the time before sunset or sunrise, "After" to set the time after sunset or sunrise, or "Sunset" to switch the device on or off at sunset or sunrise.

9. Settings

There is a "pencil" symbol in the main menu in the top right-hand corner. Tap on these points to call up the settings. In this menu, you can, for example, set the name of the device and display the IP address. You can also link the device to Alexa or Google Assistant or create a device group. Tap on "Settings" to select additional setting options.

10. Key functions

Briefly press the ON/OFF button to switch the socket on or off. Press and hold the ON/OFF button for approx. 5 seconds to activate pairing mode.

11. Troubleshooting

Error Troubleshooting
The WiFi device is not displayed in the app	Check the connection of your routerCheck the status of the WiFi device
The app does not connect	Several WLAN networks are active. Only use the 2.4 GHz network.

12. Safety instructions and disclaimer

Never attempt to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, please only use it in dry conditions. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden temperature changes or strong vibrations, as this could damage the electronic parts. Check the device for damage before use. The appliance should not be used if it has been knocked or damaged in any other way. Please observe the national regulations and restrictions.

Do not use the appliance for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or modification to the appliance that is not carried out by the original supplier will invalidate the warranty or guarantee. The appliance may only be used by persons who have read and understood these instructions. The device specifications may change without prior notice.

13. Disposal instructions

According to the European WEEE Directive, electrical and electronic devices may not be disposed of with household waste. Their components must be recycled or disposed of separately, as toxic and hazardous components can cause lasting damage to the environment if disposed of incorrectly. As a consumer, you are obliged under the Electrical and Electronic Equipment Act (ElektroG) to return electrical and electronic equipment free of charge at the end of its life to the manufacturer, the point of sale or to public collection centres set up for this purpose. Details are regulated by the respective state law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating, recycling and disposing of old appliances in this way, you are making an important contribution to protecting our environment.

Hereby, WD Plus GmbH declares that the device 306911 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. You can obtain a complete declaration of conformity from WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, Germany, or at the following Internet address: http://downloads.ganzeinfach.de/search/model/306911

Mode intermittent :

Mode aléatoire :

9. Réglages

Modalità casuale:

9. Impostazioni

Modo intervalo:

Modo aleatorio:
