USER MANUAL MIMO88SG Ecler

Point chaud (signal direct) > Terminal +

Point froid (signal inversé) > Terminal -

Masse > Terminal ⊥

Point chaud (signal direct) > Terminal +

Point froid (signal inversé) > Terminal -

Masse > Terminal ⊥

DSP
DSP	2x 32/64bit
Sampling Rate	48kHz
Latency IN to OUT	<2.9ms
Converters
Resolution	24bit AKM
Dynamic Range	AD:110dB, DA: 115dB
Analogue
x8 Input/Output	Terminal block (Symmetrical)
Analogue Input headroom	+27dBV = +30dBu
Max. output level	+18dBV = +21dBu
Input sensitivity @ 0dBV out	From -50dBV to +10dBV in 0.5dB step
Input Impedance	Balanced, >4kΩ
Phantom power	+42VDC, 5mA max software switched
Frequency response (-3dB)	5Hz to 24kHz
Flatness	better than ±0.1dB
THD+Noise @ 1kHz, 0dBV input (line)	<0.004%
THD+Noise @ 1kHz, -40dBV input (mic.)	<0.008%
Output Noise floor FFT (20Hz - 20kHz)	better than 115dB
Interchannel crosstalk (20Hz - 20kHz)	better than 90dB (100dB typ.)
Channel Leakage (20Hz - 20kHz)	better than 100dB (115dB typ.)
CMRR 20Hz- 20kHz	65dB typ.
Processing
Input Level (x8)	Range: from Off to 0 dB
	Mute: Yes
	Signal Polarity reverse: Yes
	Metering: VU+clip pre & post fader
Output Level (x8)	Range: from Off to 0 dB
	Mute: Yes
	Solo: Yes
	Signal Polarity reverse: Yes
	Metering: VU+clip pre & post fader
Output Gain	Range: from 0 to +6 dB
Input Delay (x8)	from 0 to 1000 ms
	Units: sec/ms/m/cm
Output Delay (x8)	from 0 to 1000 ms
	Units: sec/ms/m/cm.
Parametric Eq. Types(4 max per input)(6 max per input)	Bypass / On-Off all channelsParam Eq. Freq: 20Hz-20kHz; Gain: -60/+12 dB; Q: 0.3 to 200Low & High Shelf 6/12 dB/octLow & High Pass 6/12 dB/octAll Pass 1/2 order
High & Low pass output Crossoverfilters (x8)	Bypass On-OffButterworth in 6/12/18/24 dB/octBessel in 12/18/24 dB/octLinkwitz-Riley in 12/24 dB/oct
Input Noise Gate (x8)	Bypass On-OffThreshold: from -80 dBV to +18 dBVDepth: 0 dB to 80 dBAttack time: from 0,1 ms. to 500 ms.Hold time: from 10 ms. to 3000 ms.Release time: from 10 ms. to 1000 ms.
Input Compressor / Limiter (x8)	Bypass On-OffThreshold: from -36 dBV to +18 dBVRatio: 1:1 to inf:1 (limiter)Knee: hard / softAttack time: from 0,1 ms. to 500 ms.Release time: from 10 ms. to 1000 ms.Make up gain: from 0 to +10 dB
Input Frequency Shifter (x4)(Feedback Loop Reducer)	Available on IN1 to IN4. ON / OFF function
Output Limiter (x8)	Bypass On-OffThreshold: from -36 dBV to +18 dBVAttack time: from 0,1 ms. to 500 ms.Release time: from 10 ms. to 1000 ms.
Built in Signal Generator	Sine: from 20 Hz to 20 kHzPolarity: from 20 Hz to 20 kHzWhite noisePink noise
Stereo Linking	Adjacent input / output channelsLinked processingMatrix routing linked
Mix Matrix	Size: 8x8Vol: Input, Output, CrosspointMute: Set/Clear individual, row, column, all Input /outputMono/stereo selectorMeter: Input /output VU and clip
Pager (x3)	Input: IN1 to IN8Priorities: 3 (1 max, 3 min)Depth: 0 dB to 80 dBAttack time: from 5 ms. to 2000 ms.Release time: from 50 ms. to 3000 ms.Chime Source: None, Melody 1, Melody 2Chime Volume: from -12 dB to 0 dB

Mechanical

Dimensions (WxHxD)	482.6 x 44 x 253 mm / 19 x 1.73 x 9.96 in.
Weight	3.5kg
Supply
MainsPower consumption	90-264VCA 47-63Hz45VA
Miscellaneous
Management ConnectivityRemote BusGPIAux. Power Supply for Remotes & GPITime and date retention (battery)RTC accuracy	Ethernet Base-Tx 10/100Mb Auto X-Over CAT5 up to 100m Over twisted pairs; up to 1km (see specific specs.)8, from 0 to 10VDC or TTL level+12VDC, 1.2A. max. (short circuit protected)100 hours approx. (ambient temperature dependant)±1 minute / month
Software
EclerNet Manager	From v3.03r4 version

9.2. MIMO1212SG

DSP
DSP	2x 32/64bit
Sampling Rate	48kHz
Latency IN to OUT	<3.2ms
Converters
Resolution	24bit AKM
Dynamic Range	AD:110dB, DA: 115dB
Analogue
12 Input/Output	Terminal block (Symmetrical)
Analogue Input headroom	+27dBV = +30dBu
Max. output level	+18dBV = +21dBu
Input sensitivity @ 0dBV out	From -50dBV to +10dBV in 0.5dB step
Input Impedance	Balanced, >4kΩ
Phantom power	+42VDC, 5mA max. software switched
Frequency response (-3dB)	5Hz to 24kHz
Flatness	better than ±0.1dB
THD+Noise @ 1kHz, 0dBV input (line)	<0.004%
THD+Noise @ 1kHz, -40dBV input (mic.)	<0.008%
Output Noise floor FFT (20Hz - 20kHz)	better than 115dB
Interchannel crosstalk (20Hz - 20kHz)	better than 90dB (100dB typ.)
Channel Leakage (20Hz - 20kHz)	better than 100dB (115dB typ.)
CMRR 20Hz- 20kHz	65dB typ.
Processing
Input Level (x12)	Range: from Off to 0 dB
	Mute: Yes
	Signal Polarity reverse: Yes
	Metering: VU + clip pre & post fader
Output Level (x12)	Range: from Off to 0 dB
	Mute: Yes
	Solo: Yes
	Signal Polarity reverse: Yes
	Metering: VU + clip pre & post fader
Output Gain (x12)	Range: from 0 to +6 dB
Input Delay (x12)	from 0 to 1000 ms.
	Units: sec/ms/m/cm.
Output Delay (x12)	from 0 to 1000 ms.
	Units: sec/ms/m/cm.
Parametric Eq. Types(4 max per input)(6 max per input)	Bypass / On-Off all channelsParam Eq. Freq: 20Hz-20kHz; Gain: -60/+12 dB; Q: 0.3 to 200Low & High Shelf 6/12 dB/octLow & High Pass 6/12 dB/octAll Pass 1/2 order
High & Low pass output Crossoverfilters (x12)	Bypass On-OffButterworth in 6/12/18/24 dB/octBessel in 12/18/24 dB/octLinkwitz-Riley in 12/24 dB/oct
Input Noise Gate (x12)	Bypass On-OffThreshold: from -80 dBV to +18 dBVDepth: 0 dB to 80 dBAttack time: from 0,1 ms. to 500 ms.Hold time: from 10 ms. to 3000 ms.Release time: from 10 ms. to 1000 ms.
Input Compressor / Limiter (x12)	Bypass On-OffThreshold: from -36 dBV to +18 dBVRatio: 1:1 to inf:1 (limiter)Knee: hard / softAttack time: from 0,1 ms. to 500 ms.Release time: from 10 ms. to 1000 ms.Make up gain: from 0 to +10 dB
Input Frequency Shifter (x4)(Feedback Loop Reducer)	Available on IN1 to IN4. ON / OFF function
Output Limiter (x12)	Bypass On-OffThreshold: from -36 dBV to +18 dBVAttack time: from 0,1 ms. to 500 ms.Release time: from 10 ms. to 1000 ms.
Built in Signal Generator	Sine: from 20 Hz to 20 kHzPolarity: from 20 Hz to 20 kHzWhite noisePink noise
Stereo Linking	Adjacent input / output channelsLinked processingMatrix routing linked
Mix Matrix	Size: 12x12Vol: Input, Output, CrosspointMute: Set/Clear individual, row, column, allInput /output Mono/stereo selectorMeter: Input /output VU and clip
Pager (x3)	Input: IN1 to IN12Priorities: 3 (1 max, 3 min)Depth: 0 dB to 80 dBAttack time: from 5 ms. to 2000 ms.Release time: from 50 ms. to 3000 ms.Chime Source: None, Melody 1, Melody 2Chime Volume: from -12 dB to 0 dB
Mechanical
Dimensions (WxHxD)Weight	482.6 x 44 x 253 mm / 19 x 1.73 x 9.96 in.3.2kg
Supply
MainsPower consumption	90-264VCA 47-63Hz75VA
Miscellaneous
Management ConnectivityRemote BusGPIAux. Power Supply for Remotes & GPITime and date retention (battery)RTC accuracy	Ethernet Base-Tx 10/100Mb Auto X-Over CAT5 up to 100m.Over twisted pairs; up to 1km (see specific specs.)12, from 0 to 10VDC or TTL level+12VDC, 0,6A. max. (short circuit protected)100 hours approx. (ambient temperature dependant)±1 minute / month
Software
EclerNet Manager	From v3.03r4 version

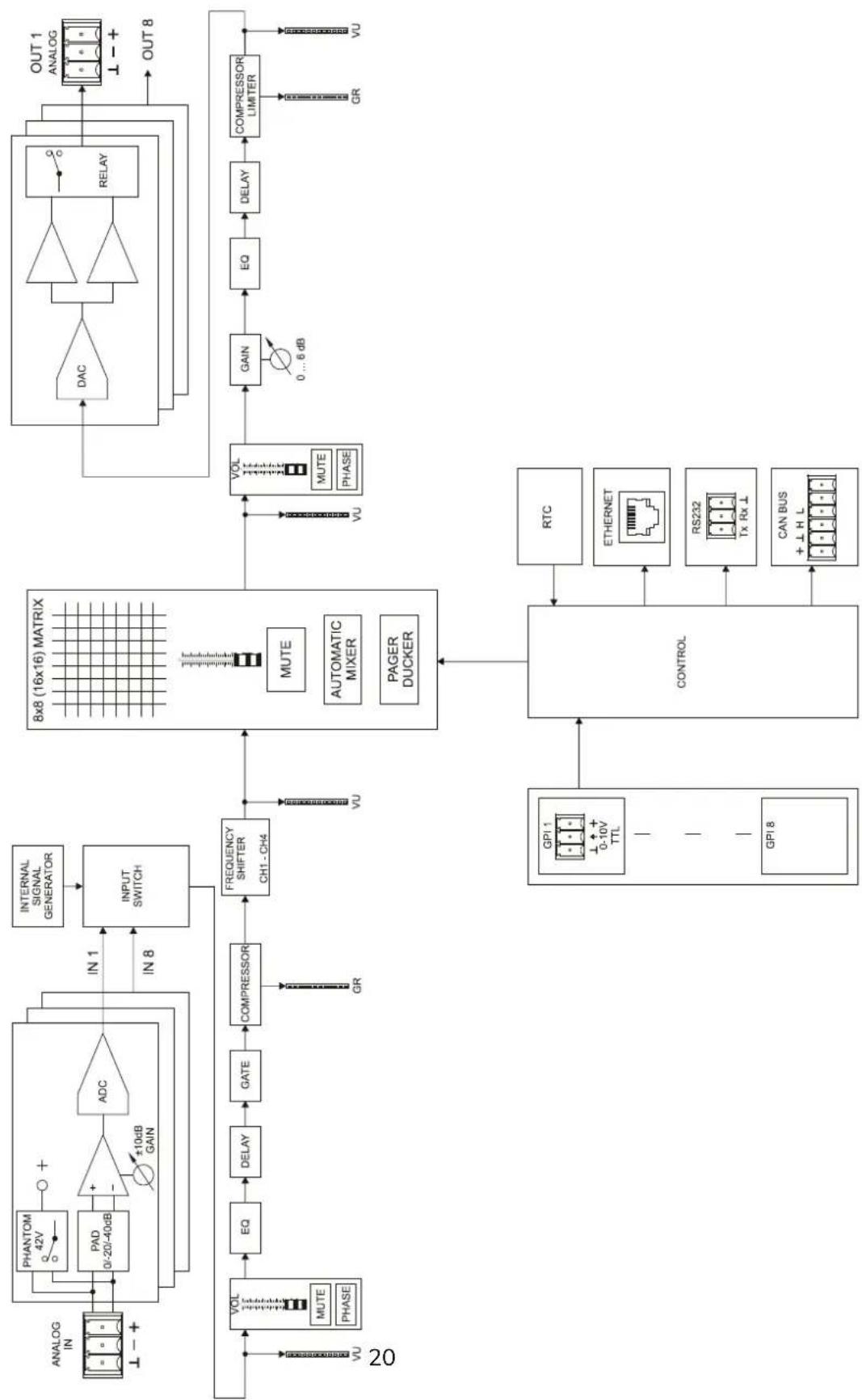

10. BLOCK DIAGRAM

10.1. MIMO88SG

    K["INTERNAL SIGNAL GENERATOR"] --> L["INPUT SWITCH"]
    L --> M["FREQUENCY SHIFTER CH1-CH4"]
    M --> N["COMPRESSOR"]
    N --> O["GR"]

    P["PHANTOM 42V"] --> Q["+"]
    Q --> R["PAD 0-20-40dB"]
    R --> S["GAIN +10dB"]

    T["ADC"] --> U["+"]
    U --> V["+10dB"]

    W["ANALOG IN"] --> X["IN 1"]
    X --> Y["IN 8"]

    Z["RTC"] --> AA["CONTROL"]
    AB["ETHERNET"] --> AC["RS232"]
    AD["CAN BUS +L H L"] --> AE["GPIO 1"]
    AF["GPIO 8"] --> AG["GPIO 10V TTL"]

    style A fill:#f9f,stroke:#333
    style K fill:#ccf,stroke:#333
    style P fill:#cfc,stroke:#333
    style Z fill:#fcc,stroke:#333
    style AB fill:#fcc,stroke:#333
    style AD fill:#fcc,stroke:#333
    style AF fill:#fcc,stroke:#333

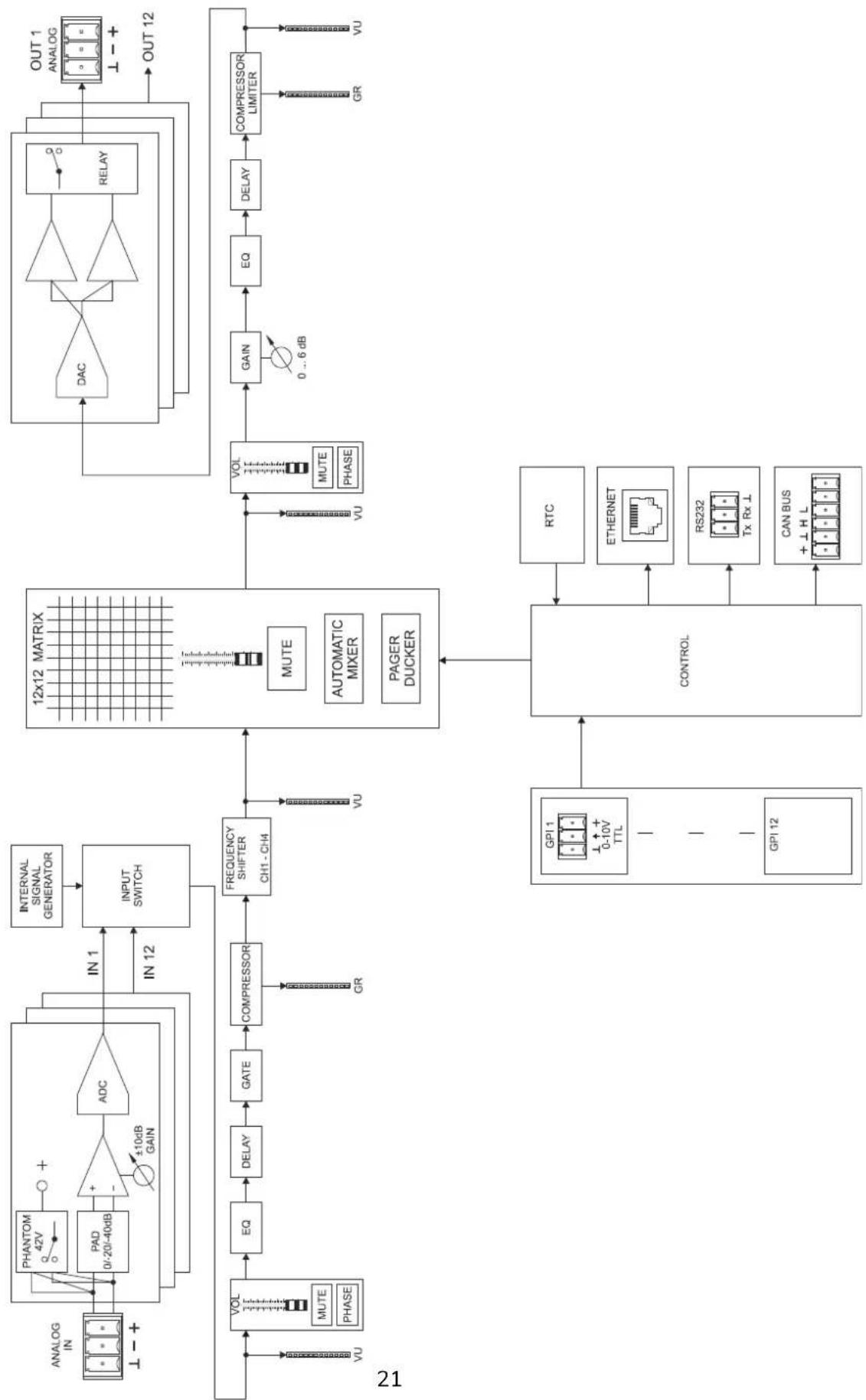

10.1. MIMO1212SG

TP-NET PROTOCOL

SOFTWARE

Third-Party NET

USER MANUAL

11. TP-NET PROTOCOL INTRODUCTION

The TP-NET protocol lets a client device (control device) get and/or set the values of several parameters of the EclerNet compatible devices (MIMO and MIMO SG series digital matrices, DUO-NET PLAYER, NXA digital audio manager series, NZA amplifier series, NPA amplifier series, etc.), like volumes, mutes, alarms, etc. It's as well available for eMIMO1616 digital matrix, HUB series digital zoner, MIMO7272DN and MIMO4040CDN digital matrix.

The communication with these digital audio devices can be established using Ethernet and the UDP/IP transport protocol, always by means of the 5800 UDP port.

A second option for this communication is using the RS-232 interface that some of these compatible devices do also have (MIMO series, DUO-NET PLAYER, NXA series, etc.). In this case, the serial connection must fulfil the following specifications:

• Baud rate: 57600 (fixed, no autonegotiation) for all the devices, except for DUO-NET PLAYER, eMIMO1616, HUB series and MIMO4040CDN, which use 115200 baud rate)
• Data bits: 8
• Parity: None
• Stop bits: 1
• Flow control: None

In case the Ecler device has an Euroblock connector for the RS-232 interface, the serial cable wiring, from the device's connector to a standard DB9 serial interface connector, must be the following:

WIRING RS232 – DB9
RS232	DB9
Tx	Pin 2 (RxD)
Rx	Pin 3 (TxD)
Gnd	Pin 5 (Signal Gnd)

The protocol is simple and direct, making it easy to read, write and modify the generated code. It is based on messages with no begin and end delimiter: each message is self-delimited by the UDP packet size, which is defined with a maximum of 80 characters. All the messages must be written in capital letters.

To let some control systems (like CRESTRON®, EXTRON®, AMX®, RTI®, VITY®, MEDIALON®, etc.) process the messages more easily, the EclerNet device adds the character LF (0x0A) to the end of each message. This way the client can buffer the messages to process them, if it's required. The EclerNet device can also handle several messages received in a single message packet by using the LF delimiter.

The available messages are built with one or more fields separated with blank spaces ( = blank space):

[PARAM1] [PARAM2] [PARAM3] [PARAM4][LF]

The first field (TYPE) defines the message type and then, the required parameters for it (each kind of message requires a given number of parameters). The field TYPE can have these values:

• SYSTEM
  • GET
• SET
  • INC
  • DEC
• SUBSCRIBE
• UNSUBSCRIBE
• DATA
• ERROR

At the end of this document you'll find all the available messages and their parameters for each model of the EclerNet compatible devices.

The SYSTEM, GET, SET, INC, DEC, SUBSCRIBE & UNSUBSCRIBE messages can be sent from the client to the EclerNet device. The DATA & ERROR messages can be sent from the device to the client. The only exception is the SYSTEM PING message, that is a SYSTEM type message that is sent from the EclerNet device when the initial message from the client to the device was SYSTEM CONNECT PINGPONG.

The communication (using UDP or RS-232) starts when a client sends the message SYSTEM CONNECT to the EclerNet device. As far as the UDP communication requires no connection (unlike the TCP), the EclerNet device stores this client's IP address, and then uses it as the destination IP address for the messages that it generates (DATA & ERROR). After receiving the SYSTEM CONNECT message, the device dumps its entire configuration using several consecutive DATA messages.

Note: if the configuration data dump process (usually a huge list of parameters & values) wants to be avoided after a SYSTEM CONNECT message, a SYSTEM CONNECT ONCE message can be used instead.

The communication can be terminated by two methods:

- Manually: when the client sends the SYSTEM DISCONNECT message, cancelling all the subscriptions and stopping the DATA & ERROR messages

- Automatically: in case the initial message was SYSTEM CONNECT PINGPONG and the client didn't get any SYSTEM PONG message in a period longer than 10 seconds (presuming a communication breakdown).

The SET messages don't have an automatic acknowledgement with a DATA message sent from the EclerNet device after it has processed the SET command. The client must update the values itself and must send the needed GET message if it requires confirmation from the device.

NOTES:

• The numerical values are always integer numbers without +, -, comma or dot symbols.
• [PINGPONG] is an optional parameter used to configure the device-client communication with a periodical check, to see whether the client or the device have terminated it. When configured this way, the device sends a SYSTEM PING once per second, and the client must answer with a SYSTEM PONG message. If anyone doesn't get these messages along a 10 seconds period, the communication will be considered terminated.
• [ONCE] is an optional parameter used to start the device-client communication without a full data dump process (usually a huge list of parameters & values).

• &

  are numerical values that identify an input or output channel of the EclerNet device:

• It can be within a [1..8] range for MIMO88SG units.

• It can be within a [1..12] range for MIMO1212SG units.

• is a numerical value that identifies one available Preset stored in the EclerNet device's memory.

• ,

   y  are numerical values in the [0..100] range that define values in a scale equivalent to [-inf..0] dB.

• & are numerical values within the [1..8] range for the MIMO88 configured as 8x8 matrix masters (single units), and [1..16] for MIMO88 couples configured as 16x16 matrix masters. For the NXA series GPI values can be within the [1..4] or [1..6] range, depending on model. For the MIMO7272DN and MIMO4040CDN GPI and GPO values can be within [1..8].
• is a numerical value within the [0..100] range that indicates the value of an analogue GPI input. For a digital input only 0 or 100 are the possible values.
• is a numerical value within the [0..1] range: it can only be 0 or 1 (opened or closed GPO).
• is a numerical value within the [1..10] range that sets the VU-meter refresh rate, or the number of times the vumeters' values are sent per second (by default = 3).
• "" is the device name inside double quotation marks, to allow for names with blank spaces.

• is a numerical value for an error code.

• "" is a text chain inside double quotation marks, containing an error description.

• is a numerical value that identifies a Virtual Control. It can be within a [1..64] range for MIMO88SG, MIMO88SGCONF, , MIMO1212SG and MIMO1212SGCONF models.

ecler

12. MIMO88SG / MIMO1212SG (SINGLE) DIGITAL MATRIX

IMPORTANT NOTE: The communication must be started with the client sending the first message SYSTEM CONNECT or SYSTEM CONNECT ONCE to the EclerNet device. Otherwise, the commands from the client to the EclerNet device will be ignored. See TP-NET PROTOCOL INTRODUCTION chapter for additional information.

TYPE	PARAM1	PARAM2	PARAM3	PARAM4	DESCRIPTION
SYSTEM	CONNECT	[MASTER]	[PINGPONG]	[ONCE]	MASTER: this parameter, applied in SYSTEM CONNECT, is used to disconnect all clients currently connected to the device, releasing all open and not correctly closed connections, opening a new connection. In this way we guarantee that the client that has set the MASTER option is the only one connected by TP-NET to the device.PINGPONG: this parameter can be used with the MASTER parameter, the difference is that this parameter performs a periodic check to see if the communication is still open (PING PONG) or if after 10 seconds with no response, the communication has ended (PING).ONCE: this parameter is used to prevent the device status dump.
	DISCONNECT				Cancel subscriptions and terminates communication
	SUBSCRIPTION_RATE				Alive message from device
	PING				Alive message from device
	PONG				Alive ACK message from client

GET	ALL				Dumps current device status (with DATA messages)
	PRESET				Gets the current PRESET
	ILEVEL				Gets the current LEVEL of an Input Channel
	OLEVEL				Gets the current LEVEL of an Output Channel
	XLEVEL				Gets the current LEVEL of a Matrix point
	IMUTE				Gets the current MUTE status of an Input Channel
	OMUTE				Gets the current MUTE status of an Output Channel
	XMUTE				Gets the current MUTE status of a Matrix Point
	IVU				Gets the VU-meter value of an Input Channel
	OVU				Gets the VU-meter value of an Output Channel
	GPI				Gets the current value of a General Purpose Input
	GPO				Gets the current value of a General Purpose Output (not valid for MIMO88SG / MIMO1212SG)
	INFO_NAME				Gets the Device Name
	INFO_MODEL				Gets the Device Model
	INFO_VERSION				Gets the Firmware Version
	INFO_MAC				Gets the Device MAC address
	VIRTUAL_CONTROL				Gets the Virtual Control value

ecler

TYPE	PARAM1	PARAM2	PARAM3	PARAM4	DESCRIPTION
SET	PRESET				Sets the current PRESET
	ILEVEL				Sets the current LEVEL of an Input Channel
	OLEVEL				Sets the current LEVEL of an Output Channel
	XLEVEL				Sets the current LEVEL for a Matrix point
	IMUTE		YES/NO		Sets the current MUTE status of an Input Channel
	OMUTE		YES/NO		Sets the current MUTE status of an Output Channel
	XMUTE			YES/NO	Sets the current MUTE status for a Matrix Point
	GPO				Sets the current value for a General Purpose Output (not valid for MIMO88SG)
	VIRTUAL_CONTROL				Sets the Virtual Control value (Value can range from 1 to 100)
INC	ILEVEL				Increases the current LEVEL of an Input Channel by Value (Value can range from ±1 to ±100)
	OLEVEL				Increases the current LEVEL of an Output Channel by Value (Value can range from ±1 to ±100)
	XLEVEL				Increases the current LEVEL of a Matrix point by Value (Value can range from ±1 to ±100)
DEC	ILEVEL				Decreases the current LEVEL of an Input Channel by Value (Value can range from ±1 to ±100)
	OLEVEL				Decreases the current LEVEL of an Output Channel by Value (Value can range from ±1 to ±100)

ecler

	XLEVEL				Decreases the current LEVEL of a Matrix point by Value (Value can range from ±1 to ±100)
SUBSCRIBE	ALL				Subscribes to all VU-meters
	IVU				Subscribes to an Input Channel VU-meter
	OVU				Subscribes to an Output Channel VU-meter
UNSUBSCRIBE	ALL				Unsubscribe to all VU-meters
	IVU				Unsubscribe to an Input Channel VU-meter
	OVU				Unsubscribe to an Output Channel VU-meter

Note: INC and DEC commands are replied with a DATA command from the device with the resulting LEVEL value, after it has been increased or decreased. When the INC or DEC command tries to adjust a LEVEL value beyond its minimum or maximum limits, no reply (DATA command) will be produced.

TYPE	PARAM1	PARAM2	PARAM3	PARAM4	DESCRIPTION
DATA	PRESET				Shows the current PRESET
	ILEVEL				Shows the current LEVEL of an Input Channel
	OLEVEL				Shows the current LEVEL of an Output Channel
	XLEVEL				Shows the current LEVEL for a Matrix point
	IMUTE		YES/NO		Shows the current MUTE status of an Input Channel
	OMUTE		YES/NO		Shows the current MUTE status of an Output Channel
	XMUTE			YES/NO	Shows the current MUTE status for a Matrix Point
	VIRTUAL_CONTROL				Shows the Virtual Control value (Value can range from 1 to 100)
	IVU				Shows the VU-meter value of an Input Channel
	OVU				Shows the VU-meter value of an Output Channel
	GPI				Shows the current value of a General Purpose Input
	GPO				Shows the current value of a General Purpose Output. (not valid for MIMO88SG)
	INFO_NAME	""			Shows the Device Name
	INFO_MODEL				Shows the Device Model
	INFO_VERSION				Shows the Firmware Version
	INFO_MAC				Shows the Device MAC address
ERROR		""			Informs about an error

13. MIMO88SG CONFERENCE DIGITAL MATRIX

IMPORTANT NOTE: The communication must be started with the client sending the first message SYSTEM CONNECT or SYSTEM CONNECT ONCE to the EclerNet device. Otherwise, the commands from the client to the EclerNet device will be ignored. See TP-NET PROTOCOL INTRODUCTION chapter for additional information.

This MIMO88SG CONFERENCE firmware version shares the same hardware with the standard MIMO88SG unit, just uploading the CONFERENCE firmware version to it, and shares as well the same TP-NET commands in the above table, adding to them these new ones:

TYPE	PARAM1	PARAM2	PARAM3	PARAM4	DESCRIPTION
GET	GATE				Gets the current status of the NOISE GATE for inputs 1 to 8
	AUTOMIXER				Gets the current status of the AUTOMIXER function for inputs 1 to 8
SUBSCRIBE	GATE				Subscribes to the status of the NOISE GATE for inputs 1 to 8
	AUTOMIXER				Subscribes to the status of the AUTOMIXER function for inputs 1 to 8
UNSUSCRIBE	GATE				Unsubscribes to the status of the NOISE GATE for inputs 1 to 8
	AUTOMIXER				Unsubscribes to the status of the AUTOMIXER function for inputs 1 to 8
DATA	GATE	s1 s2 s3 s4 s5 s6 s7 s8			Shows the current NOISE GATE status (0 = open / 1 = closed) for the 8 inputs channels (s1 to s8, status of the gate for inputs 1 to 8)
	AUTOMIXER	s1 s2 s3 s4 s5 s6 s7 s8			Shows the current status for input channels in the Automixer section (0 = disabled or bellow threshold in the automixer / 1 = enabled and beyond threshold, but queued, not in the automatic mix / 2 = enabled, beyond threshold and into the automatic mix) for the 8 inputs channels (s1 to s8, status of the automixer function for inputs 1 to 8)

14. ERROR CODES FOR ECLERNET DEVICES

14.1. COMMON ERROR CODES (to all EclerNet - TP-NET compatible devices)

ERROR ID	DESCRIPTION
0	TPNET_ERROR_NONE = 0,
1	TPNET_ERROR_INVALID_FIELD_TYPE,
2	TPNET_ERROR_INVALID_FIELD_PARAM1,
3	TPNET_ERROR_INVALID_FIELD_PARAM2,
4	TPNET_ERROR_INVALID_FIELD_PARAM3,
5	TPNET_ERROR_INVALID_FIELD_PARAM4,

14.2 MIMO88SG, MIMO1212SG, MIMO88SG CONFERENCE & MIMO1212SG CONFERENCE SERIES SPECIFIC ERROR CODES

ERROR ID	DESCRIPTION
6	UDP_ERROR_TIMEOUT_PONG,
7	UDP_ERROR_CONNECT_WHILE_CONNECTED,
8	UDP_ERROR_DISCONNECT_WHILE_UNCONNECTED,
9	UDP_ERROR_INVALID_CLIENT_IP,
10	UDP_ERROR_MESSAGE_TOO_LONG,
11	UDP_ERROR_UNSUPPORTED_MESSAGE,
12	UDP_ERROR_UNSUPPORTED_PRESET_NUMBER,
13	UDP_ERROR_UNSUPPORTED_INPUT_CHANNEL_NUMBER,
14	UDP_ERROR_UNSUPPORTED_OUTPUT_CHANNEL_NUMBER,
15	UDP_ERROR_UNSUPPORTED_GPI_NUMBER,
16	UDP_ERROR_INVALID_LEVEL_VALUE,
17	UDP_ERROR_INVALID_RATE_VALUE,

ecler
