USER MANUAL Bongo Serie D20 CECOTEC

Exterior view of a modern electric scooter with extended body and wheels (no visible text or symbols)

bongo

1.Warnings 61
2. Parts and components 63
3. Before use 64
4. Product assembly 65
5. Operation 65
6. Cleaning and maintenance 67
7. Error codes 67
8. Technical specifications 68
9. Disposal of old electrical and electronic appliances 70
10. Technical support and warranty 70
11. Copyright 71
12. Declaration of conformity 71

SOMMAIRE

Read these instructions thoroughly before using the product. Keep this instruction manual for future reference or new users.

- Cecotec shall not be liable for any problem caused by product misuse or non-compliance of both the traffic rules and the instructions in this manual.

- This electric scooter is an entertainment device. However, in some jurisdictions, it is allowed to be used on public roads. Make sure you comply the local traffic rules when using the electric scooter in these situations, as it will be considered a vehicle. Ride in a civilised manner and pay attention to people and obstacles around you to prevent accidents.

- Remember that, if you follow the instructions and warnings in this manual, as well as the traffic rules in your area, you will reduce the risks, but you will not completely prevent them.

- Remember that the higher the speed, the greater the braking distance. Remember that hard braking can cause slips and falls.

- Keep a safe distance with other people and vehicles. Respect pedestrians and give them way whenever possible. When you come closer to a pedestrian, reduce the speed and stay on the right side. Avoid frightening or surprising pedestrians. Overtake other vehicles on the left whenever possible (applicable to countries where vehicles drive on the right).

- Wear protective equipment, like a helmet, elbow, and knee pads to avoid or reduce injuries in case of accidents or falls. You must use footwear.

- We recommend you practice with the electric scooter before riding it in public areas.

• Make sure both you and people using the electric scooter read and understand these instructions completely. Do not allow anyone to use the electric scooter if they do not understand its operation.
• Avoid jumping over obstacles such as kerbs, steps, or manholes with the electric scooter. Match the speed and trajectory to those of a pedestrian to cross these obstacles. It is recommended to get off the electric scooter when these obstacles become dangerous due to their height, shape, or slipperiness.
• Make sure the wheels are not damaged and all parts and components of the electric scooter are correctly installed before each use. If you notice any of the parts is loose, hear strange noises, or the electric scooter does not work correctly, stop using it immediately and contact the official Cecotec Technical Support Service.
• Do not use the electric scooter in a manner that could damage other objects or other people.
• It is not allowed to modify the electric scooter in any manner, as this could alter its performance or damage its structure and cause harm. Do not use any accessories or parts not approved by the manufacturer. Do not modify or tamper with the electric scooter, including the steering tube and sleeve, power, folding system, and/or braking system. Any unauthorised change will void the product guarantee.
• To prevent the electric scooter from being damaged or causing an accident, do not use it under water.
• The electric scooter is not intended to be used by children from 0 to 16 years old. It can be used by children over the age of 16, as long as they are given continuous supervision. Check the current local regulations.
• This appliance can be used by children aged 16 and above,

and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the appliance.

- Supervise children to prevent them from playing with the appliance. Close supervision is necessary when the electric scooter is being used by or near children.

- Do not modify the braking system, as it could reduce its safety.

- Make sure that the mains voltage matches the voltage stated on the product marking and that the wall outlet is grounded before charging the device.

- Check the charger cord and casing regularly for visible damage. Do not use the electric scooter if the charger cord, socket, or structure are damaged, do not work properly, or have fallen, and contact the official Cecotec Technical Support Service immediately. If the power cord is damaged, it must be replaced with a special cord or set to be supplied by the official Cecotec Technical Support Service. The power cord is to be properly discarded.

- When you wish to disconnect the charger, pull from the plug, never the cord. Do not handle the plug or the electric scooter with wet hands.

- Remember that the wheel change is a complicated process, and it is advisable to be carried out by authorised personnel or by the official Cecotec Technical Support Service. Damages caused by misuse will void the guarantee.

- Check the wheels pressure before each use. Remember that a low pressure may reduce the battery life.

- Use this electric scooter only with the power supply provided with the electric scooter and with original batteries from

Cecotec compatible with this model.

• WARNING: to recharge the battery, use only the power supply unit provided with the appliance, reference CP4215.
• We recommend you charge the battery after every use and before it runs out of battery completely.
• WARNING! Keep plastic packaging out of the reach of children to prevent suffocation.

Battery safety instructions

• This electric scooter includes a lithium-ion battery.
• Unplug the battery from the charger before riding the electric scooter and before folding or unfolding it.
• Charge the battery at a room temperature between 0^ C and 35^ C so the electric scooter operates efficiently.
• Do not burn or expose batteries to high temperatures, as they may explode.
• The battery may leak under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Avoid contact between the battery and small metallic objects such as paper clips, coins, keys, nails, or screws.
• Never modify the charger in any way.
• The battery must be removed from the appliance for safe disposal.
• Battery ingestion can cause burns, perforation of soft tissue, and death. It can cause severe burns within two hours of the ingestion.

• In case of battery ingestion, please seek medical help immediately.

• Non-rechargeable batteries should not be recharged.

• The battery supply terminals must not be short-circuited.
• If the appliance is stored for a long period of time, you should remove the battery.
• The battery must be inserted in the correct position. When replacing batteries, check the polarity.

INSTRUCTIONS DE SÉCURITÉ

You must read and follow the safety instructions in this manual before riding the electric scooter. Use approved safety equipment such as helmets or knee pads. This product is intended for use as a personal mobility vehicle for the purpose of transporting a single person in a public or private place.

Fig. 2

Do not use the vehicle with rainy weather.

Fig. 3

The electric scooter cannot be used by more than a person at a time.

Fig. 4

This product cannot be used by children under 16. Check the current local regulations. Strictly consider your health and body condition. You should consult your doctor to determine if you have any physical or health conditions that could create a risk to your safety or prevent you from using the electric scooter properly.

Fig. 5

Maximum weight allowed: 100 kg.

Recommended maximum user height: up to 2 metres.

Fig. 6

Do not ride the electric scooter under the influence of alcoholic drinks, drugs, or medicine whose intake is not compatible with driving.

Fig. 7

Do not use the phone or listen to music while riding the electric scooter.

Fig. 8

Pay special attention when riding when there is sand, puddles, mud, ice, snow, or stairs and when it is dark, or the floor is wet. Do not touch the brake disc in poor lighting conditions or after use, as it may still be hot.

Fig. 9

Do not use the electric scooter in hazardous areas where there could be flammable or explosive substances, liquids or dirt.

Fig. 10

ENGLISH

This electric scooter is not designed to be driven on motorways, highways, or intercity roads. Check the current legislation of your local authority on where electric scooters are allowed to be ridden.

Fig. 11

Do not place heavy objects on the handlebar. Any load attached to the handlebar will affect the stability of the electric scooter.

Fig. 12

Avoid climbing up and down the stairs with the electric scooter.

Fig. 13

Always ride with both hands on the handlebar.

Fig. 14

Do not ride the electric scooter with just one foot.

Fig. 15

Do not press the accelerator when walking along with the electric scooter.

Fig. 16

Note that the braking distance will be longer in puddles, wet surfaces, and/or in wet-weather conditions. The electric scooter is intended for use on flat, level, and dry surfaces.

Fig. 17

Be careful with your head when riding under roofed areas, like a door.

Fig. 18

When riding at high speed, do not turn the handlebar abruptly.

Fig. 19

Do not ride at high speed over obstacles like steps, kerbs or speed bumps.

Fig. 20

Do not hit obstacles with the wheels.

Fig. 21

Do not touch the motor immediately after riding the electric scooter, as it may be hot.

- WARNING! Regularly check the condition of components or parts subject to wear or fatigue, such as the chassis, fork, wheels, brakes, etc. This will allow you to detect cracks

ENGLISH

or damage in high-stress areas that may indicate the component's service life has been exceeded and needs to be replaced. Regular maintenance of the electric scooter and its components will extend its service life. Periodically check the tightness of the bolted parts, especially the wheel axles, the folding mechanism, the steering system, and the braking system.

• Contact your vendor to be referred to an appropriate training organisation.
• Avoid high traffic or overcrowded areas and anticipate your path and speed by respecting the traffic code of the road, the code of the pavement and its most vulnerable road users.
• Indicate your presence when approaching a pedestrian or cyclist and when you are not seen and/or heard. Remember to cross protected areas on foot and in all situations take care of yourself and others. Remove any sharp edges that may have been caused by the use of the vehicle.
• Do not modify the use of the vehicle. This vehicle is not designed for stunt use.

2. PARTS AND COMPONENTS

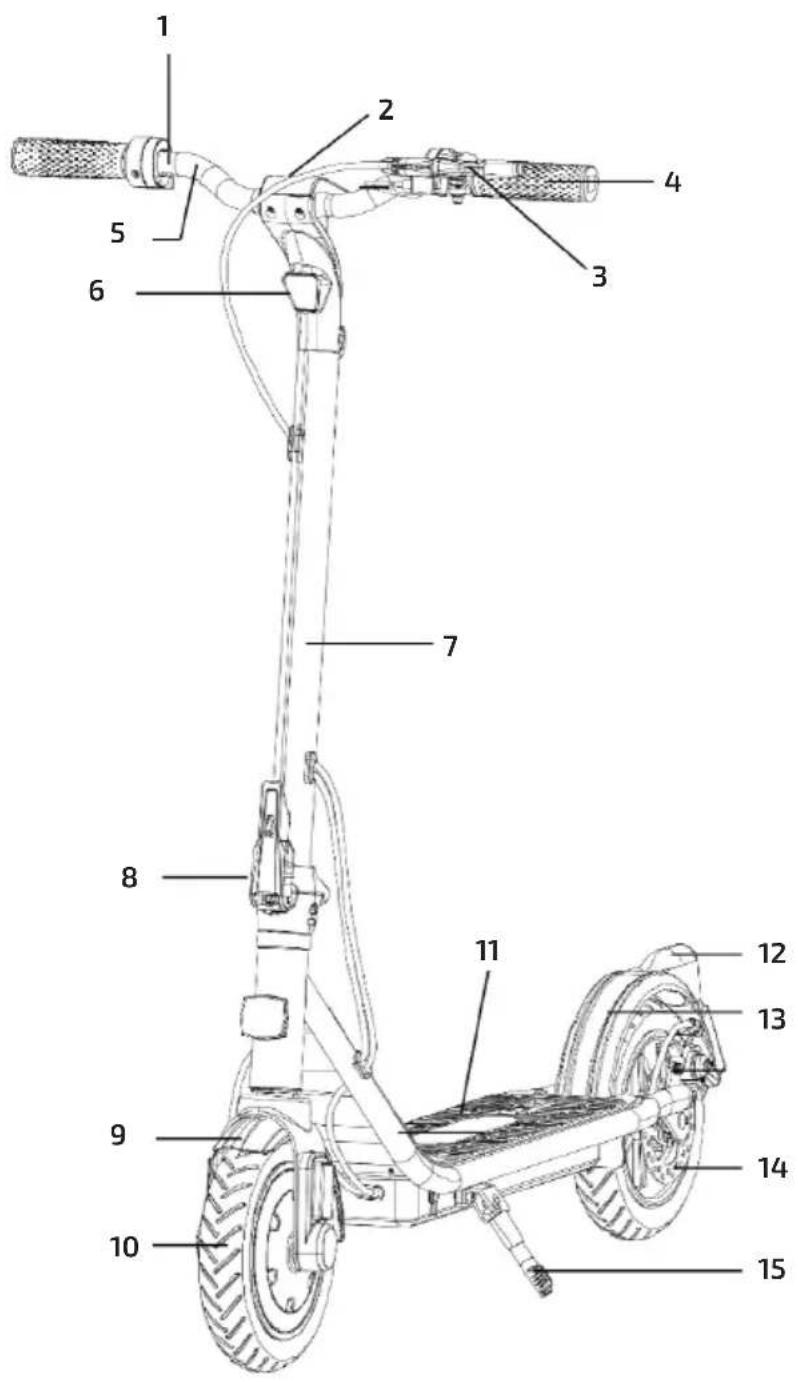

Fig. 22

1. Accelerator
2. Display
3. Brake lever and bell
4. Handlebar grips
5. Handlebar
6. Headlight
7. Stem
8. Folding mechanism
9. Front fender
10. Front wheel/motor
11. Deck
12. Tail light
13. Rear fender
14. Rear brake disc
15. Kickstand

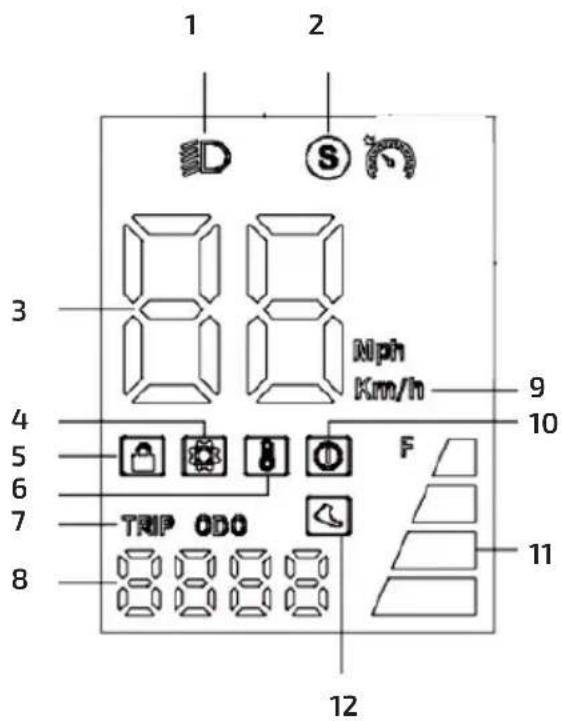

Fig. 23

1. Light
2. Drive mode
3. Speed indicator
4. Configuration mode
5. Lock system
6. Temperature sensor

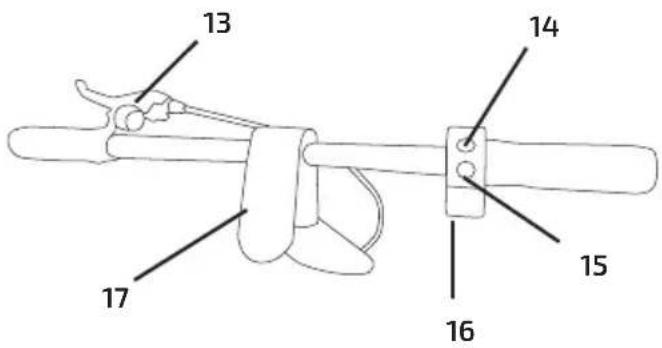

ENGLISH

1. Trip or ODO
2. Distance
3. Speed units
4. Warning
5. Battery level
6. Pedestrian mode
7. Brake lever and bell
8. Function button
9. Power button
10. Accelerator
11. Display

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

3. BEFORE USE

• This scooter features packaging designed to protect it during transport. Take the scooter out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the official Cecotec Technical Support Service.

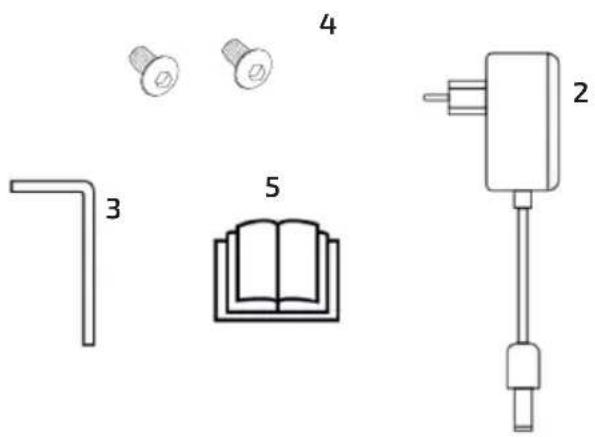

Box contents:

Fig. 24

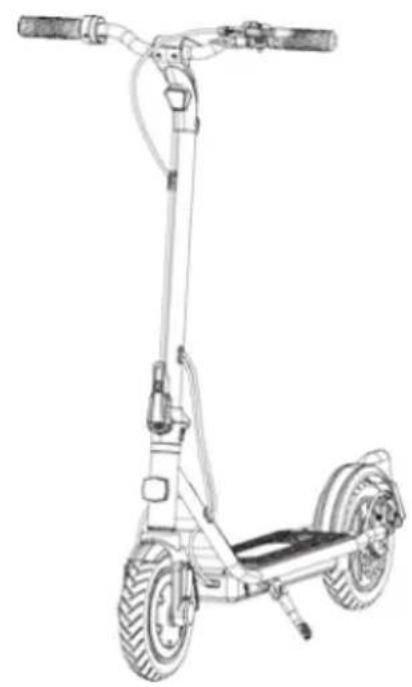

1. Bongo Serie D20 electric scooter
2. Charger
3. 1 Allen key
4. 1 set of Allen screws
5. Instruction manual

4. PRODUCT ASSEMBLY

Unfolding

1. Detach the retaining bracket and pull the stem upwards.
2. Raise the stem and move the folding lever to the closed position to lock the stem in place.
3. Adjust the brakes with the Allen key.

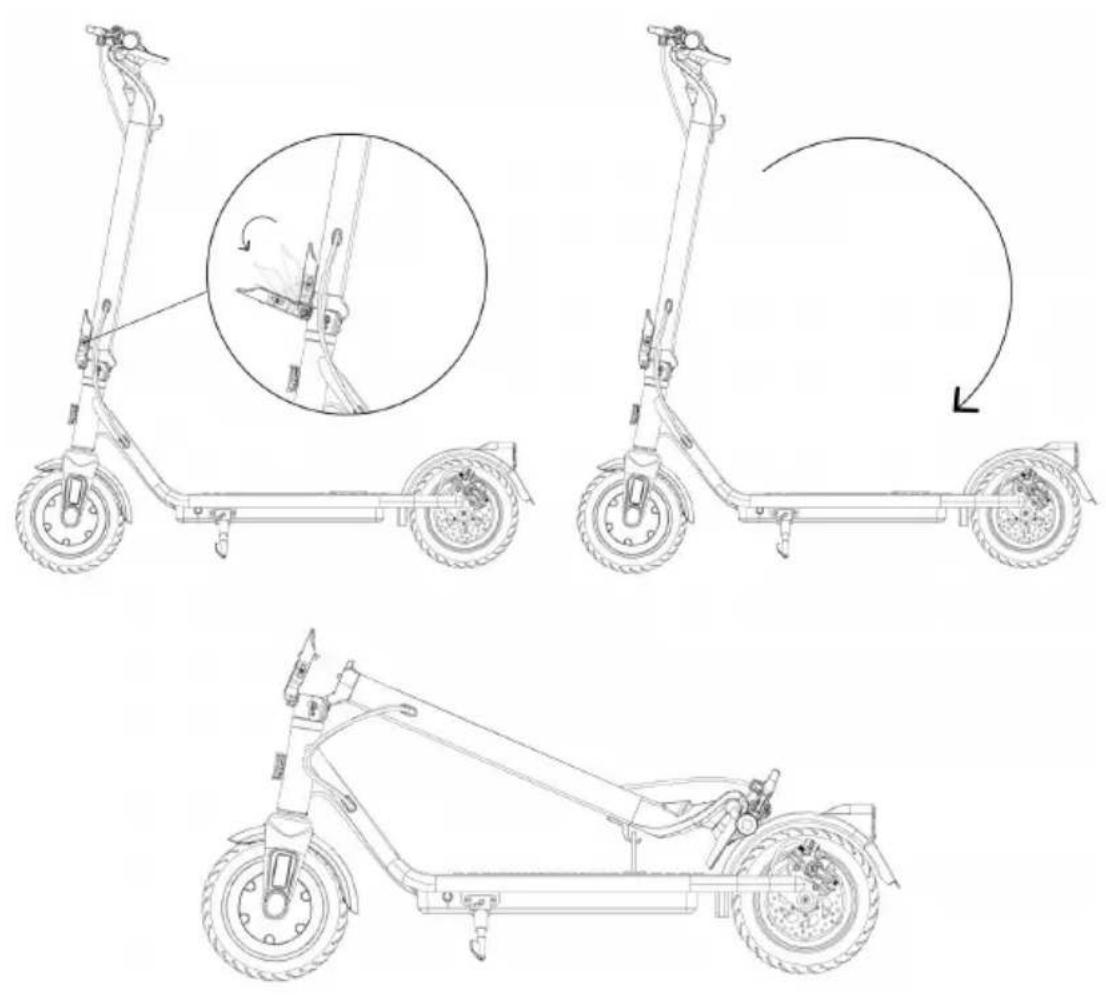

Folding Fig. 25

1. Press the blue plate to release the folding lever.
2. Move the folding lever.
3. Turn the folding lever downwards and then the stem.
4. Align the locking hook with the hole in the retaining bracket.

Assembly of the handlebar

1. Connect the male connection cord of the handlebar to the female cord of the stem. Make sure the male and female ports are correctly aligned.
2. Insert the handlebar into the top of the stem and screw it in place.

Precaution:

Be careful not to damage the cord during the process.

Checking the screws

Some of the screws may loosen during delivery. Please check all screws and tighten them before turning on the electric scooter.

5. OPERATION

5.1. Switch-on and driving Fig. 23

1. Hold down the power button for 2 seconds.
2. Step on the deck with one foot and use the other one to propel yourself forward.
3. Place both feet on the deck.
4. Press the accelerator with your right hand. The electric motor will deliver power when the speed of the scooter is equal to or greater than 3 km/h.
5. Press the accelerator to increase the speed.
6. Push the brake lever to stop or to ride more slowly.
7. Get off the electric scooter only when you ride at a very low speed or when you are still.
8. Fold down the kickstand (15, Fig. 22) to park the electric scooter when not in use.

ENGLISH

5.2 Driving modes Fig. 23

Control panel

Power button:

• Long press: switch the electric scooter on or off.

• Short press: switch between the following modes:

• PEDESTRIAN mode: the mode indicator on the display will show a person walking. In this mode, the scooter can reach 6 km/h. The tail light will flash when driving in this mode.

• COMFORT mode: In this mode, the scooter can reach 15 km/h.
• SPORT mode: the mode indicator on the display will show a white "S". In this mode, the scooter can reach 20 km/h.

NOTE: measured with a weight of 80 kg, fully charged battery, flat surface, no inclination, no wind, and an ambient temperature of approx. 25^ C.

Function button:

• Short press: switch the scooter lights on or off.
• Long press (3 seconds): enter the settings menu.

5.3 Settings menu

Once inside the settings menu, press the power button to switch between P0, P1, R0, and R1.

Press the function button to navigate between the different settings functions (P0 and P1).

Access the desired function by pressing the power button and toggle between 0 and 1 by pressing the function button. Select the desired setting by pressing the power button. To return to the initial display, wait a few seconds without pressing any buttons. The different settings functions are:

1. P0 - Units of measurement: km/h (0) or mph (1). Speed can be measured in kilometres per hour (0) or miles per hour (1).
2. P1 - Total trip distance measurement (ODO) or current trip (TRIP).

5.4 Wheel use

• For a correct operation of the electric scooter, you should check and ensure the correct pressure on the wheels before every use.
• The optimum pressure for these wheels is de 50 PSI / 3,4 bars / 344 kPa.
• We recommend you carry out periodic tests to ensure the pressure is between the recommended values to achieve efficient operation.
• During the shelf life of these wheels, we recommend using heat-sealing gels to prevent punctures and maintain maximum effectiveness and performance.

6. CLEANING AND MAINTENANCE

• Make sure the product is not plugged in the power supply or on before cleaning or maintenance.
• Use a soft cloth to clean the exterior housing of the electric scooter.
• Never use alcohol, petrol, paraffin, corrosive, or abrasive products to clean the electric scooter.
• Never immerse the electric scooter in water or any other liquid to clean it, as this could damage the electronic parts permanently.
• Never use pressurised water to clean the electric scooter.
• Do not try to repair the electric scooter on your own. In case it does not operate correctly, or it is damaged, please, contact Cecotec Technical Support Service.
• Self-tapping nuts and other fasteners may loosen their hold and need to be retightened.

Brake disc

You must check the brake discs are in perfect condition, matching the brake calliper. Easily fix it by using the Allen key included. Brake pads are consumable parts and must be replaced when its shelf life expires.

Storage

• Make sure the electric scooter is charged before storing it for long periods of time. Charge it at least once a month.
• Charge it only if the room temperature is between 0°C and 35°C and store it at a temperature between -10°C and 35°C.
• Do not store the electric scooter outdoors. Store it in a safe and dry place. Cover it to protect it from dust if necessary.

Battery release

For proper removal of the battery for later repair or recycling, you must remove the screws located on the underside, on the side opposite the deck of the scooter.

7. ERROR CODES

If the electric scooter displays any of the following error codes, you should not attempt to disassemble or repair the electric scooter yourself. Repairs carried out by unqualified persons may result in injury or serious malfunctions. Please contact the place where you bought the appliance or the official Cecotec Technical Support Service. The repair must be carried out by an authorised technician, and you must use only original spare parts.

ENGLISH

E0: Overheating protection
E1: Motor failure
E2: Motor phase failure
E3: Brake failure
E4: Accelerator failure
E5: Low-voltage protection
E6: Communication failure between controller and the display
E7: Surge protection
E8: Motor drive signal
E9: Motor blocking fault

8. TECHNICAL SPECIFICATIONS

Reference: 07104
Product: D20 Series electric scooter
Features Measuring units	Specifications
Dimensions Folded 110x59x53.5 cm
		Unfolded 110 x 59 x 118 cm (1)
Weight Electric scooter	weight 15.75 kg
User requirements Max	weight 100 kg
	Min-max height 100-200 cm
	Age bracket > 16 years old (2)
Technical specifications	Run time Up to 22 km (3)
	Max. speed 20 km/h
	Max. inclination 12°
	Operating temperature -10°/40°C
	Storage temperature 10°C - 25°C
	IP protection rating IPX4
Motor Max. power 500 W
	Rated power 250 W
Battery Type-model Li-1	8650 10S2P
	Charge time 4 - 5 hrs
	Capacity 5 Ah
	Nominal voltage 36 V
	Max. charge voltage 42 V
	Max. charging current	1.25 A (cell)- 2 A (battery)
Wheels Wheel	8.5"
Charger	Model	CP4215
	Input	100-240 V 50/60 Hz 3 A
	Outlet	42V DC, 1.5A
	Protection	IP 20; T= 0- 40°C; Class II

ENGLISH

Driving modes and ranges (4)	PEDESTRIAN 33 km
	CONFORT 22 km
	SPORT 17 km

• (1) Height from the floor to the upper part of the handlebar.
• (2) Check the current local regulations.
• (3) The autonomy has been measured with an 80 kg weight, completely charged battery, Comfort mode on a flat surface, no wind, and a room temperature of approximately 25 °C.
• (4) Measured with a weight of 80 kg, fully charged battery, flat surface, no inclination, no wind, and an ambient temperature of approx. 25 °C.
• The total value of the exposed vibration in the hand-arm system does not exceed 2.5 m/s ^2 .
• The weighted acceleration to which the whole body is submitted does not exceed 0.5 m/s ^2 .
• The A-weighted emission sound pressure level at work stations is less than or equal to 70 dB.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

12. DECLARATION OF CONFORMITY

MANUFACTURER: CECOTEC INNOVACIONES S.L

ADDRESS: C/ Pinadeta, S/N, 46930, Quart de Poblet, Valencia (Spain).

DESCRIPTION: Electric scooter

MACHINE IDENTIFICATION: Bongo D20 Series

FUNCTION: Electric vehicle with motor

MODEL: 07104

It certifies the product described has been designed, manufactured and tested and complies with all applicable provisions.

EU DIRECTIVES IMPLEMENTED:

• Directive 2006/42/CE on machinery.
• Directive 2011/65/EU and delegated directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
• Directive 2014/53/EU on the harmonisation of the laws of the Member States relating to the placing on the market of radio equipment.

APPLICABLE HARMONISED NORMS:

• EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019+A15:2021
• EN 17128:2020
• EN ISO 12100:2010
• EN IEC 61000-6-3:2007 +A1:2011 +AC:2012
• EN IEC 61000-6-1:2019
• EN IEC 61000-3-2:2019
• EN 61000-3-3:2013+A1:2019
• EN 62321:2009

FRANÇAIS

1. AVERTISSEMENTS

Img. 1

PRODUCENT CECOTEC INNOVACIONES, S.L.

ADRES: C/ Pinadeta S/N, 46930, Quart de Poblet, Valencia (España).

STOSOWANE DYREKTYWY UE:

Two line drawings of pelvic anatomy: one showing a curved bone structure and another showing a segmented medical device (no text or labels)

Fig./Img./Abb./Afb./Rys./Obr.1

Simple line drawing of a cloud with raindrops inside, crossed by a diagonal line (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr.2

Simple line drawing of two figures with geometric shapes and lines, no text or symbols present

Fig./Img./Abb./Afb./Rys./Obr. 3

< 16

Fig./Img./Abb./Afb./Rys./Obr. 4

< Kg > 100 Kg

Simple line drawing of a wine bottle and a glass with a diagonal line crossing over it (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 5 Fig./Img./Abb./Afb./Rys./Obr. 6

Simple line drawing of a smartphone with musical notes and chords (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr.7

Simple line drawing of a wheeled vehicle with wheels and a stick, no text or symbols present

Fig./Img./Abb./Afb./Rys./Obr. 8

Simple line drawing of a triangular warning symbol with a flame and droplets inside (no text or labels)

Fig./Img./Abb./Afb./Rys./Obr. 9

Simple geometric diagram showing a circle with intersecting lines and a dashed vertical line (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 10

Pure mechanical diagram showing a lever and pivot (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 11

Simple line drawing of a person using a mobility device on stairs, with motion arrows indicating movement direction (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 12

Line drawing of hands holding a mechanical component (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 13

Simple line drawing of a person riding a scooter with no text or symbols

Fig./Img./Abb./Afb./Rys./Obr. 14

Diagram illustrating a hand using a scooter to stop a phone, with a magnified circular diagram showing the hand holding a device.

Fig./Img./Abb./Afb./Rys./Obr. 15

Simple line drawing of a person using a scooter with a stick and a ball, no text or symbols present

Fig./Img./Abb./Afb./Rys./Obr. 16

Simple line drawing of a person riding a scooter with a star above their head (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 17

Diagram of hands holding a tool with intersecting lines and a curved arrow indicating rotation (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 18

Simple line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 19

Simple line drawing of a person using a scooter with a stick and wheels nearby (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 20

Diagram showing a thermometer and a hand gesture crossed by lines, indicating incorrect temperature measurement.

Fig./Img./Abb./Afb./Rys./Obr. 21

Technical diagram of a multi-wheeled electric scooter with numbered components for identification.

Fig./Img./Abb./Afb./Rys./Obr. 22

1 2 3 4 5 6 7 8 9 10 11 12 D S Nph Km/h

13 14 15 16 17

Fig./Img./Abb./Afb./Rys./Obr. 23
1

Line drawing of a three-wheeled electric scooter with visible suspension and front-mounted wheels (no text or symbols)

Diagram showing labeled components of a mechanical or electrical device, including a 3D L-shaped tool, an open book, a 2-pin connector, and four numbered parts.

Fig./Img./Abb./Afb./Rys./Obr.24

Fig./Img./Abb./Afb./Rys./Obr. 25

www.cecotec.es

Quart de Poblet, Valencia (Spain)

YV_01220820

ČEŠTINA

ČEŠTINA

ČEŠTINA

ČEŠTINA

ČEŠTINA
