USER MANUAL ARU07B3AWW MIDEA

Arctic™ King

Instruction Manual

Upright Freezer

Model: ARU07B3AWW

ARU07B3AST

Blank white rectangular frame with black border (no text or symbols)

Table of contents

1. IMPORTANT.SAFETY.PRECAUQNS...1-5
2. DIRECTIONS FOR USE

COMPONENTS ....6

INSTALLATION AND PLACEMENT....7.

START USING 7

TEMPERATURE CONTROL....8.

ENERGY SAVING TIPS 8.

LEVELING FEET 8.

DOOR REVERSAL 9-11

1. MAINTENANCE.OF.THE.FREEZER.....12
2. TROUBLESHOOTING.... 13

1. IMPORTANT SAFETY PRECAUTIONS

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

DANGER - RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. DO NOT PUNCTURE REFRIGERANT TUBING.

DANGER - RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. THE UNIT IS TO BE REPAIRED ONLY BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING.

CAUTION - RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. CONSULT THE USER'S MANUAL / OWNER'S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY PRECAUTIONS MUST BE FOLLOWED.

CAUTION - RISK OF FIRE OR EXPLOSION. DISPOSE OF PROPERTY IN ACCORDANCE WITH FEDERAL AND/OR LOCAL REGULATIONS. FLAMMABLE REFRIGERANT USED.

CAUTION - RISK OF FIRE OR EXPLOSION DUE TO PUNCTURED REFRIGERANT TUBING. FOLLOW HANDLING INSTRUCTIONS CAREFULLY. FLAMMABLE REFRIGERANT USED.

WARNING! DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. READ PRODUCT LABELS FOR FLAMMABILITY.

CAUTION - THE UNIT MUST BE POSITIONED AND INSTALLED PROPERLY FOLLOWING THE INSTRUCTIONS CONTAINED IN THIS MANUAL, UNDER THE SECTION "INSTALLATION". WHEN USING AN ELECTRICAL APPLIANCE, YOU SHOULD ALWAYS OBSERVE BASIC SAFETY PRECAUTIONS TO REDUCE THE RISK OF ELECTRIC SHOCK, FIRE OR PERSONAL INJURY.

1. WARNING - Keep the ventilation openings free of obstructions. Do not cover the appliance.
2. WARNING - Be careful not to damage the refrigerant tubing.
3. WARNING - Do not use electrical appliances inside food storage compartments.
4. WARNING - DANGER: Risk of entrapment! Before discarding of your old appliance:

• Take the doors off
- Leave the shelves in place to prevent children from easily climbing into the refrigerator.

1. Always unplug the appliance before cleaning and/or servicing.

2. Please make sure that all persons who will use with this appliance are familiar with its operaon and safety precautions. It is very important to install the appliance correctly and to follow all safety instrucons.

This appliance may not be used by persons (including children) with reduced physical, sensory or mental capacities or lack of experience and knowledge unless instructed by a person responsible for their safety. Children must not play with this appliance.

1. If the power cord is damaged, it must be replaced by the manufacturer, its service center or a qualified electrician.
2. Please dispose of the appliance according to local regulaons since the appliance uses ammable refrigerant and gas. Before discarding the appliance, remove the doors to prevent children from climbing inside.
3. This appliance is intended for domesc use only. Any other use will void the warranty.
4. Do not use this unit to store explosive materials such as aerosol containers with a ammable propellant.
5. Do not use extension cords or 2-prong adapters to connect this appliance to an electrical outlet.

DANGER

IT IS DANGEROUS FOR ANY PERSON OTHER THAN AUTHORIZED SERVICE PERSONNEL TO MAKE REPAIRS ON THIS APPLIANCE.

DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. DO NOT MODIFY THE SPECIFICATIONS OF THIS PRODUCT OR CHANGE IT IN ANY MANNER. FAULTS MAY RESULT IN A SHORT-CIRCUIT, FIRE OR ELECTRIC SHOCK.

1. DANGER - Risk of re or explosion. Flammable refrigerant used. To be repaired only by authorized personnel. Do not puncture refrigerant tubes.
2. DANGER - Risk of re or explosion. Flammable refrigerant used. All safety measures must be followed.
3. DANGER - Risk of re or explosion if refrigerant tubes are perforated. Follow the precautionary instrucons. Flammable refrigerant used.

This manual contains lots of important safety information which shall be observed by the users

ELECTRICITY RELATED WARNINGS

Diagram showing three electrical installation methods: switch, power socket, and plug-in socket with checkmark and no symbol.

Do not pull the cord when trying to disconnect the freezer. Firmly grasp the plug and pull out it from the socket directly.

Do not modify or damage the power cord under any condion. To ensure safety use, do not use when the power cord is damaged or worn.

Worn or damaged power cord shall be replaced by manufacturer-authorized maintenance services or a qualified electrician.

Simple line drawing of a plug with a cable, no text or symbols present

The power plug should be rmly plugged into the socket. Please ensure that the grounding electrode of the power socket is accurately grounded.

Simple line drawing of a kitchen appliance with a door, cabinet, and monitor (no text or symbols)

In the event of a gas leak, please turn o the gas valve and then open the doors and windows. Do not unplug the freezer or any other electrical appliances as that may create a spark and cause a re.

Simple line drawing of a refrigerator with a mounted appliance and a 'no' symbol (no text or labels)

To ensure safety, do not store small appliances such as rice cookers, microwave, toaster ovens etc...on the top of the freezer.

Aer a power failure wait 5 minutes before reconnecting the freezer to power supply to prevent damage to the compressor due to successive starts.

RELATED WARNING USE

Simple line drawing of a refrigerator with an open lid and accessories (no text or symbols)

Do not try to maintenance your freezer as you may damage the refrigerant circuits; servicing of this appliance must be conducted by an authorized technician.

A damaged power cord must be replaced by the servicing department or a qualified electrician.

Hand holding a book with a starburst effect, no text or symbols present

The gaps between the freezer door and body are small, be careful not to put your hand in these areas. Be cautious when opening the door to avoid falling articles.

Do not pick foods or containers with wet hands when the freezer is running, especially metal containers as the may cause frostbite.

Line drawing of a child hanging from an open wardrobe (no text or symbols)

Do not allow children to enter or climb into the freezer. Children can get injured from being trapped in or under a falling unit.

Do not store the freezer in moist places.

To ensure proper use locate the freezer away from direct heat sources (stoves, heater, direct sunlight). Also extreme temperature (hot or cold) will prevent the freezer from working properly.

Simple line drawing of a sad, anthropomorphic object with a cross symbol above and an exclamation mark below (no text or labels)

Do not place heavy objects on the top of the freezer considering that objects may fall when opening the door.

Disconnect the unit when cleaning or servicing.

WARNINGS RELATED TO STORAGE

Diagram showing a hand holding a tray with labeled items including a bottle, a jar, and a cross symbol, alongside a warning icon.

Do not put flammable explosive, volatile and highly corrosive items in the freezer.

Road Drainful Residual project

This freezer and is only suitable for domestic use and the storage of food. According to National Standard Codes household this freezer cannot be used for other purposes such as storage of blood, drugs or biological products.

Diagram showing a hand holding a beer bottle with stacked cans, indicating a warning or warning about the process.

Do not place items such as cans, boles or sealed container of uid such as beers and beverages in the freezer as they prevent bursts and cause damage.

USAGE WARNINGS

1) The freezer might not operate consistently if kept for an extended period of me below the cold end of the range of temperatures for which the appliance is designed.

2) Soda drinks should not be stored in the freezer

3) Do not exceed the storage me recommended by the food manufacturers for any kind of food and particularly for commercially frozen food.

4) The low temperature of the freezer can keep food fresh for a long period of me and is mainly to be used to store frozen foods and making ice.

5) The freezer is suitable for storage of meat, poultry and sh and other foods not to be consumed in short term.

6) Chunks of meat are preferably to be divided into small porons for easy access. Note that food should be consumed within the recommended shelf me.

WARNINGS RELATED TO DISPOSAL

The freezer's refrigerant and cyclopentane foam materials are combustible and a discarded freezer should be isolated from re sources. Please remit your unit to a qualified professional recycling company.

Risk of entrapment. Please remove the door of the freezer and leave the shelves in to avoid accidents.

This marking indicates that this product should not be disposed with regular household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly and promote the sustainable reuse of material resources. To return your used device, please call local authorities or contact the retailer where the product was purchased. They will ensure this product is safely recycled.

2. DIRECTIONS FOR USE

COMPONENTS

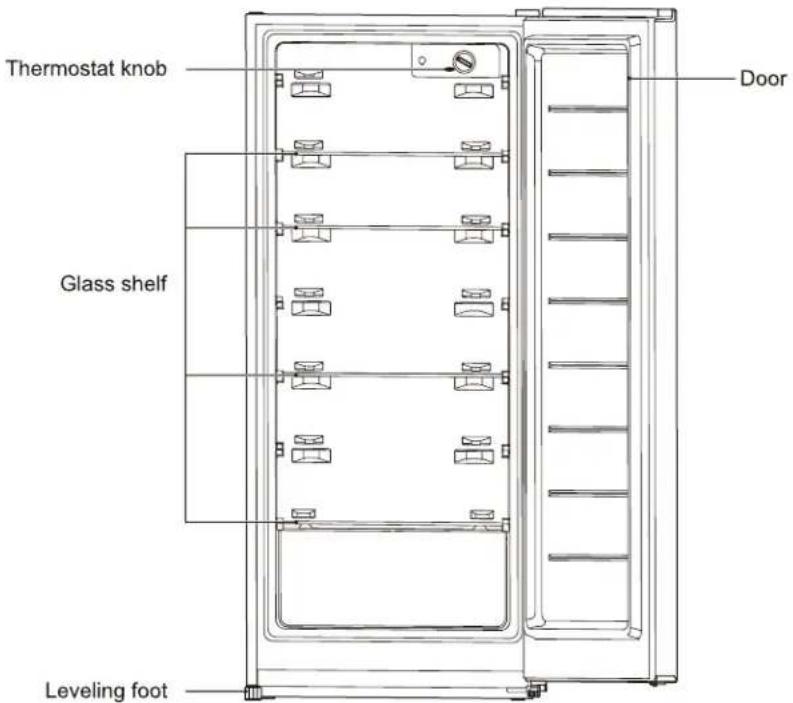

Thermostat knob Glass shelf Leveling foot Door

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.)

• The low temperature of upright freezer may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The upright freezer is suitable for storage of meat, fish, shrimp, dumplings, rice balls and other foods not to be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf time.

Refrigerating chamber

When the machine is in refrigeration mode (including when the freezer mode is adjusted to the refrigeration mode), there will be condensation water on the top of the box. It is necessary to adjust the position of the glass shelf. Place any one of the four glass shelves in the topmost position of the box to avoid condensation water dropping on the food. The small space at the top is recommended for storing packaged food.

Freezing chamber

When the machine is in freezing mode for a long time, the inner wall of the cabinet will frost, and the frost wil thicken with time, which will affect its cooling effect. In this case, please cut off the power in time for manual defrostina, clean the inner wall and then power on to continue using the machine.

When the freezing mode is switched to the refrigeration mode, the temperature inside the cabinet will rise. in order to avoid a large amount of defrosting water flowing out of the box and damaging the floor and other items, please cut off the power for manual defrosting beforeputting food in.

INSTALLATION AND PLACEMENT

Simple line drawing of a person pushing a large box (no text or symbols)

Before using your freezer, remove all packaging materials including foam pads and tapes inside the unit, remove the protective film on the door and the appliances' body.

Simple line drawing of a smiling refrigerator next to an open refrigerator (no text or symbols)

The freezer should be placed in well ventilated indoor area, the ground should be flat and sturdy enough to support the unit once filled.

Simple line drawing of a refrigerator with sun and potted plant (no text or symbols)

When choosing the location keep away from heat sources and avoid direct sunlight. Do not store the freezer in moist areas as this cause the unit to rust or generate malfunction.

φ10 φ20 φ30 φ40

Allow sufficient clearance to insure proper air circulation: 30 cm (12") at the top and 10 cm (4") on each sides and back of the unit.

START USING

Simple line drawing of a refrigerator with a smiling face and a small electrical outlet (no text or symbols)

Before connecting to the power source, let the appliance stand for 2-3 hours.

The freezer should run 4 hours before loading fresh or frozen foods.

TEMPERATURE CONTROL

• After the upright freezer is powered on, when the temperature control knob rotates clockwise, the temperature in the freezer wil gradually decrease, and when it rotates counterclockwise, the temperature will gradually increase; when knob is adjusted within the scope of "COOLING", the box is refrigerator, when knob is adjusted within the scope of "FREEZING", the box is frozen.
• "OFF" file indicates stop.
• When selecting the refrigeration function, it is recommended that the temperature control knob be set in the middle of the refrigeration icon area. During refrigeration, there may be water drops on the inner wall of the liner, which is normal and there refrigerator can be used normally.

ENERGY SAVING TIPS

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot food cool down to room temperature before storing them in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up.
• Storage areas should not be lined with aluminum foil, wax paper, or paper towels. Liners may interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

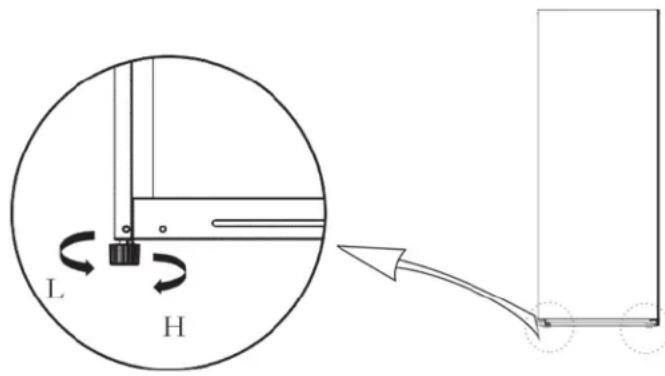

LEVELING FEET

L H

To adjust:

A. Turn the feet clockwise to raise the freezer;
B. Turn the feet counterclockwise to lower the freezer;
C. Adjust based on the previous procedures until the unit is leveled.

DOOR REVERSAL

TOOLS REQUIRED
	Phillips screwdriver
	Flat blade screwdriver
	Strong adhesive tape

1) Remove all food from unit. Fix the door with tape (see below pictures)

Isometric line drawing of a structural frame with vertical supports and horizontal beams (no text or symbols)

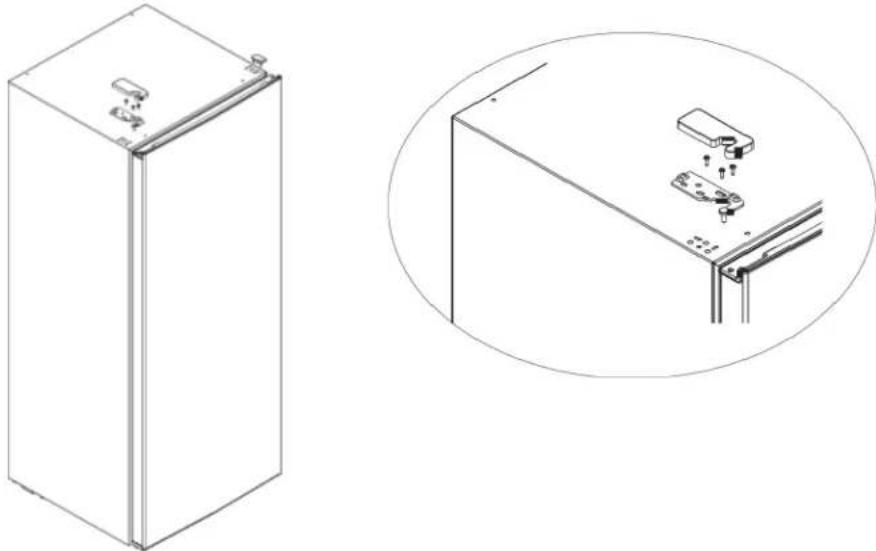

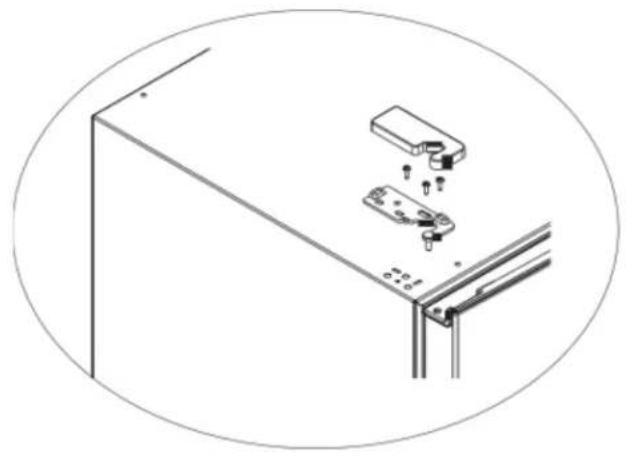

2) Dismantle hinge cap, the upper right hinge cover, the fitting screws and remove the upper right hinge. Please keep the door in a vercal posion during the process to prevent it from damaging.

Isometric line drawing of a rectangular cabinet or enclosure with mounting feet (no text or symbols)

The upper hinge cover

Hinge hole cap

Technical line drawing of a mechanical assembly with mounting bracket and clamping components (no text or symbols)

3) Remove the door

Simple line drawing of a rectangular book or shelf (no text or symbols visible)

4) Dismantle the door stopper, and install it on other side

Simple line drawing of a rectangular object with two small protrusions at the bottom (no text or symbols)

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

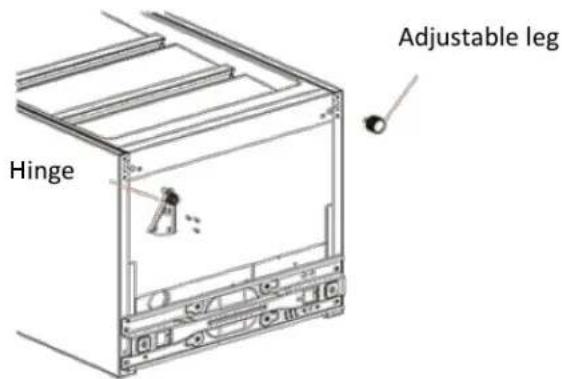

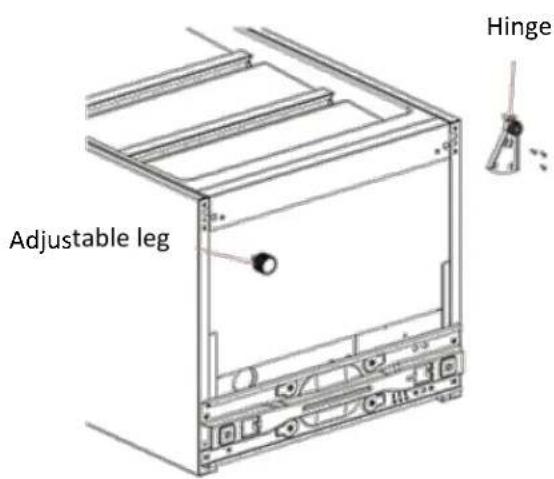

5) Dismantle the lower hinge and adjustable leg;

Adjustable leg Hinge

**At least 2 persons are recommended to execute this procedure.
** Keep the appliance parally inclined ^1 during this procedure to avoid damage to the refrigeration system.
1: transport inclinaon should NOT be more than 45^0 .

6) Install the lower hinge on lower le side of cabinet and adjustable leg on the right

Hinge Adjustable leg

7) Mount the door on lower hinge, vertically, and make sure the door gasket is tight, take out the spare upper left hinge and hinge cover (included in the accessory bag), then install the upper left hinge using the fitting screws. Finally install the hinge cover, and the hinge hole cap on upper right side.

Technical line drawing of a refrigerator with an inset close-up showing internal components (no text or symbols)

(The picture above is only for reference. The actual configuration will depend on product chosen)

• Dusts behind the freezer and on the ground should be regularly cleaned to improve the cooling effect and help with energy saving.
• The interior of the unit should be cleaned regularly to avoid odor. So towels or sponge dipped in water and non-corrosive neutral detergents are recommended for cleaning. Open the door for natural air drying before pung the power on.
• Do not use hard brushes, clean steel balls, abrasives, and organic solvents (such as alcohol, acetone soluons, banana oil, etc.), boiling water, acid or alkaline products to clean your freezer as this may damage the interior and exterior surfaces
• Do not rinse with thoroughly with water (flush) so as not to affect the electrical insulaon properes. Use a dry cloth when cleaning temperature control.

DEFROST

Your freezer is to be manually defrosted.

• Disconnect the plug from the wall socket, open the door and remove all the food and store in a cool place.
• To remove the frost, use a plasc scraper or let the warm temperature rise naturally until the ice has melted. Then wipe away the remaining ice and water. Do not use any mechanical devices to accelerate the defrost process. Be careful not to damage the refrigerant circuit.

SERVICE INTERUPTION AND MOVING

• In case of power failure foods can be preserved for a few hours even in summer me. We recommend to reduce the frequency of door openings and not to add fresh foods.
• Unplug the freezer when le unused for a long period of me or for cleaning. Keep the door open to avoid developing odors or mold.
• Do not turn the unit upside down or shake it. The carrying inclinaon cannot be greater than 45^ .
• When moving the unit do not hold it by the door or hinge.
• We recommend connuous operaon once the freezer is installed. Please do not stop the freezer unnecessarily so as not to act the unit's service life.

4. TROUBLESHOOTING

The following issues can be handled by the user. Please call the aer-sale service department if the issues are not resolved.

Unit not operang	Not plugged in.The circuit breaker tripped or has a blown fuse.The freezer temperature control is set at "OFF".
Odors	Odorous foods should be thoroughly wrappedFoods are roenUnit should be cleaned.
Long-term operaon of compressor	The room temperature is hoer than normal.A large amount of food has been added to the freezer.The door is opened too oen.The door is not enrely closed.The temperature control is not set correctly.The door gasket does not seal properly.The freezer does not have the correct clearances.The freezer has recently been disconnected for a period of me.Four hours are required for the freezer to cool down completely.
The freezer door does not properly close	The freezer is not leveled.The gasket is dirty.
Loud noise	The freezer is not leveled correctlyCheck if accessories are correctly posioned and do not vibrate.
Door opening	Aer refrigeraon, there will be pressure dience between the inside and outside of the freezer and door may not open easily. This is a normal physical phenomenon.
Freezer enclosure heat/ Condensaon	The freezer enclosure may emit heat during operaon specially in summer, this is caused by the radiaon of the condenser, and it is a normal phenomenon.Condensaon:condensaon can be detected on the exterior surface and door seals of the freezer when the ambient humidity is high, this is a normal phenomenon, and the condensaon can be wiped away with a dry towel.
Airow sound, Buzz and Claer	Refrigerants circulang in the tubes will produce sounds and grunts. This is normal and does not aect the cooling eect.The running compressor will buzz especially when starng up or shung down.The solenoid valve or electric switch valve can claer which is a normal phenomenon and does not aect the operaon.

Arctic™ King

Blank white rectangular frame with black border (no text or symbols)

TABLE DES MATIÈRES

1. IMPORTANTES CONSIGNES DE SÉCURITÉ....17-21
2. MODE D'EMPLOI DE L'APPAREIL

LES COMPOSANTES....22

EMPLACEMENT DE L'APPAREIL....23

MISE EN MARCHE....24

LE CONTRÔLE DE TEMPÉRATURE ....24

CONSEILS POUR L'ÉCONOMIE D'ÉNERGIE ....24

AJUSTER LE NIVEAU DE L'APPAREIL....25

INVERSER LA PORTE 25

1. ENTRETIEN DE L'APPAREIL ....29
2. DÉPANNAGE ....30

1. IMPORTANTES CONSIGNES DE SÉCURITÉ

Warning sign depicting a flame symbol in yellow and black on white background

DANGER - RISQUE D'INCENDIE OU D'EXPLOSION. RÉFRIGÉRANT INFLAMMABLE UTILISÉ. NE DOIT ÊTRE RÉPARÉ SEULEMENT QUE PAR DU PERSONNEL QUALIFIÉ. NE PAS PERCER LES TUBES FRIGORIFIQUES.

ATTENTION - RISQUE D'INCENDIE OU D'EXPLOSION. RÉFRIGÉRANT INFLAMMABLE UTILISÉ. CONSULTEZ LE GUIDE DE RÉPARATION / MANUEL D'INSTRUCTION AVANT DE TENTER DE RÉPARER CE PRODUIT. TOUTES LES MESURES DE SÉCURITÉ DOIVENT ÊTRE RESPECTÉES.

ATTENTION - RISQUE D'INCENDIE OU D'EXPLOSION. DISPOSEZ CONFORMÉMENT AUX RÈGLEMENTS FÉDÉRAUX OU LOCAUX. RÉFRIGÉRANT INFLAMMABLE UTILISÉ.

ATTENTION - RISQUE D'INCENDIE OU D'EXPLOSION SI LES TUYAUX RÉFRIGÉRANT SONT PERCÉS. SUIVRE LES INSTRUCTIONS AVEC SOIN. RÉFRIGÉRANT INFLAMMABLE UTILISÉ.

DANGER - RISQUE D'INCENDIE OU D'EXPLOSION. RÉFRIGÉRANT INFLAMMABLE UTILISÉ. NE PAS UTILISER DE DISPOSITIFS MÉCANIQUES POUR DÉGIVRER LE RÉFRIGÉRATEUR. NE PAS PERCER LES TUBES FRIGORIFIQUES.

Electrical safety instructions showing hand installation, switch protection, and no warning symbol

Simple line drawing of a wall socket with a cable and warning symbol (no text or labels)

Simple line drawing of a kitchen sink with a hanging bag and warning symbol (no text or labels)

Simple line drawing of a refrigerator with a door and hanging door, no text or symbols present

Simple line drawing of a refrigerator with tools and a crossed-out box, no text or symbols present

Hand holding a book with a starburst effect, no text or symbols present

Line drawing of a child hanging from an open refrigerator with no text or symbols

Illustration showing a hand holding a tray with a bottle, boxes, and a cross symbol, alongside a warning symbol.

Bened Drawn Reinusal product

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Simple line drawing of a person carrying a cardboard box next to an electric refrigerator (no text or symbols)

Simple line drawing of a smiling refrigerator next to a door with windows (no text or symbols)

Simple line drawing of a refrigerator with a potted plant and sun symbols (no text or labels)

Simple line drawing of a refrigerator with doors and legs, no text or symbols present

Simple line drawing of a smiling refrigerator with a small electrical outlet nearby (no text or symbols)

Pure technical line drawing of a structural bracket with vertical supports (no text or symbols)

Simple line drawing of a rectangular book or document (no text or symbols visible)

Technical line drawings of two rectangular components with internal features, one shown in a simple 3D view and the other in a circular inset with curved arrows indicating rotation (no text or symbols)

Line drawing of a rectangular refrigerator with lid and side connectors (no text or symbols)

Diagram of a refrigerator with attached electronic components and mounting bracket (no text or symbols)
