Welcome to the Danby family.

We are proud of our quality products and we believe in dependable service. Read this owner's manual before plugging in your new appliance as it contains important operation information to ensure the reliability and longevity of your appliance. You are entitled to the warranty coverage as described in the owner's manual.

1. Please write down your appliance information below. You must keep the original proof of purchase receipt to validate and receive warranty services.
2. Register your product online and fill out a survey to receive a FREE 2 MONTH WARRANTY EXTENSION. Follow the link: www.danby.com/support/product-registration

Model Number: ____

Serial Number: ____

Date of Purchase: ____

Need Help?

1. Read your Owner's Manual for installation, troubleshooting, and maintenance.
2. Visit www.Danby.com to access self-service tools, FAQs and more by searching for your model number using the search bar at the top of the page.
3. For consumer service, please fill out the web form at: www.danby.com/support. Your submission will go directly to an expert on your appliance. Our average response times are between 20 minutes and 2 hours, during business hours.
4. Or call 1-800-263-2629 - hold times can exceed one hour in peak periods.

PARTS & SERVICE DISCLAIMER: Danby does not guarantee availability of all parts indefinitely, service manuals for every model, or availability of service technicians in all areas.

This equipment generates and uses ISM frequencies and if not installed and used properly in strict accordance with the manufacturer's instructions, it may cause interference to radio and television reception. It has been type-tested and found to comply with limits for ISM Equipment pursuant to Part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation.

However, there is no guarantee that interference will not occur in particular installations. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the interference can be corrected by one or more of the following methods:

• Reorient the receiving antenna of radio or television.
- Move the microwave oven away from the receiver.
- Plug the microwave into a different outlet so that microwave and receiver are on different branch circuits.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification of this appliance. It is the responsibility of the user to correct such interference.

AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

• Do not attempt to operate the appliance with the door open as this can result in harmful exposure to microwave energy. Do not tamper with or attempt to defeat the safety locks.
• Do not place any object between the front face and the door or allow soil or cleaner residue to accumulate on the sealing surfaces.
• Do not operate the appliance if it is damaged. The door must close properly and there must be no damage to the hinges, latches, door, door seals or sealing surfaces.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance is equipped with a cord that has a grounding wire with a grounding plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a standard 2-prong wall outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

DO NOT USE AN EXTENSION CORD

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

SAFETY REQUIREMENTS

• Ensure that component parts are replaced with like components and that servicing is done by factory authorized service personnel, to minimize the risk of possible ignition due to incorrect parts or improper service.
• Check the appliance for damage before using. If there is any damage to the appliance, do not use it, return it to its point of purchase or contact consumer care.
• Do not clean this appliance with or use near combustible materials.
• HOT CONTENTS CAN CAUSE SEVERE BURNS. DO NOT ALLOW CHILDREN TO USE THE MICROWAVE. Use caution when removing hot items.
• This appliance is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
• Do not store or use this appliance outdoors. Do not use this appliance near water.
• Do not overcook food. Carefully watch the appliance when it is in use.
• Remove wire twist-ties before placing items in the appliance.
• Do not use the appliance for storage purposes. Do not leave items inside the appliance when not in use.
• Do not heat oil or fat for deep frying as it is difficult to control the temperature of oil in a microwave.
• Some items such as whole eggs or sealed containers have the possibility of exploding when heated and should not be placed in this appliance.
• Ensure that the glass tray and rollers are in the correct position before use to avoid possible spills.
• Do not operate this appliance when it is empty as this will increase the heat around the magnetron and can damage the appliance or cause a fire.
• If items inside the appliance should ignite, keep the door closed, turn the appliance off and disconnect the power cord.
• Do not operate the appliance without the glass tray, roller support and shaft in their correct positions.

SAVE THESE INSTRUCTIONS!

SAFETY - SUPERHEATED LIQUID

Liquids are able to be overheated beyond the boiling point without appearing to be boiling due to the surface tension of the liquid. Visible bubbling will not always be present when the liquid is removed from the appliance. This could result in very hot liquids suddenly boiling over when a utensil or other item such as a tea bag is inserted into the liquid.

To reduce the risk of injury:

• Do not overheat liquids. Do not heat any liquid for more than 2 minutes per cup.
  • Stir liquids before and halfway through heating.
• Do not use straight-sided containers with narrow necks as this can cause a build up of steam.
• Superheated liquid can begin to spontaneously boil when removed from the microwave. After heating, allow the liquid to stand in the microwave for 30 seconds before removing.
• Use extreme care when inserting a utensil or other item into hot liquids.
• The contents of milk bottles and baby food jars should be stirred or shaken and the temperature checked before serving in order to avoid burns.
• Do not defrost frozen beverages, especially carbonated beverages, in this appliance as they could explode.
• Hot foods and steam can cause burns. Be careful when opening any container that has been heated in the appliance. Direct the opening away from hands and face to avoid burns.

SAFETY - ARCING

Arcing refers to sparks inside the microwave while it is in operation. Arcing is caused by:

• Metal or foil inside the appliance.
- Recycled paper towels being used inside the appliance, as these can contain small pieces of metal.

If arcing is present, stop operation and remove any metal or paper towels from the appliance.

INSTALLATION INSTRUCTIONS

INSTALLATION

• Remove all packing materials from the inside and outside of the appliance. Do not remove the cardboard mica sheet covering the magnetron.
• Check the appliance for damage before using, such as a misaligned or bent door, damaged door seals, broken or loose door hinges or latches, or dents inside the cavity or on the door. If there is any damage to the appliance, do not use it, return it to its point of purchase or contact consumer care.
• The mounting surface must be capable of supporting the cabinet load in addition to the added weight of this microwave, approximately 28.5 - 38.5 kg (63 - 85 pounds), plus additional oven loads of up to 22.6 kg (50 pounds) for a total weight of 51.3 - 61.2 kg (113 - 135 pounds).
• This appliance cannot be installed in cabinet arrangements such as an island or peninsula. It must be mounted to both a top cabinet and a wall.
• Do not clean this appliance with or use near combustible materials.
• Do not block any ventilation openings on the appliance.
• Do not operate the appliance without the glass tray, roller support and shaft in their correct positions.
• Make sure the shelf is positioned properly inside the microwave to prevent damage from arcing. Do not use the microwave with the shelf on the floor of the microwave. Do not use the shelf when cooking popcorn. Always use pot holders when removing the shelf as it may be hot.

INSTALLATION INSTRUCTIONS

PARTS INCLUDED

PART QTY
	Convection Tray	1
	Shelf 1
	Exhaust adapter	1
TOP CABINET TEMPLATE	Top cabinet template	1
REA R WALL TEMPLATE	Rear wall template	1
	Grease filters	2
	Glass Tray 1
	Turntable Ring	1

INSTALLATION ACCESSORIES

PART QTY
	Wood screw (1/4" × 2")	2
	Wing nut (3/16" × 3")	2
	Self aligning machine screw (1/4"-28 × 3 1/4")	3
	Nylon grommet(for metal cabinets)	1

INSTALLATION INSTRUCTIONS

REQUIRED TOOLS

• #1 Phillips head screwdrivers
- Pencil or pen
- Gloves
- Safety goggles
- Duct tape
- Masking tape
• Electric drill with 3/16", 1/2" and 5/8" bits
- Saber, hole or keyhole saw
- Level
• Ruler, tape measure or straight edge
- Edge to edge stud finder or hammer (optional)
- Tin snips (to cut damper if necessary)
• Scissors (to cut template if necessary)

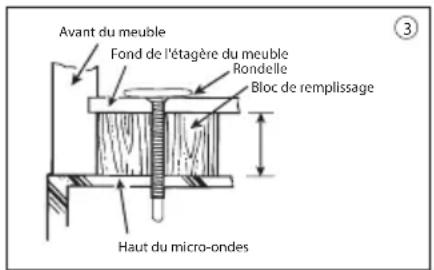

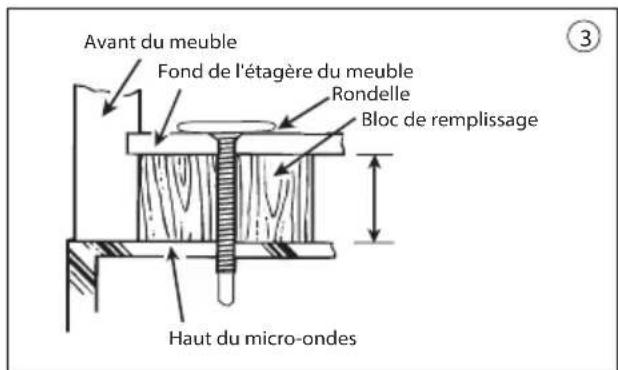

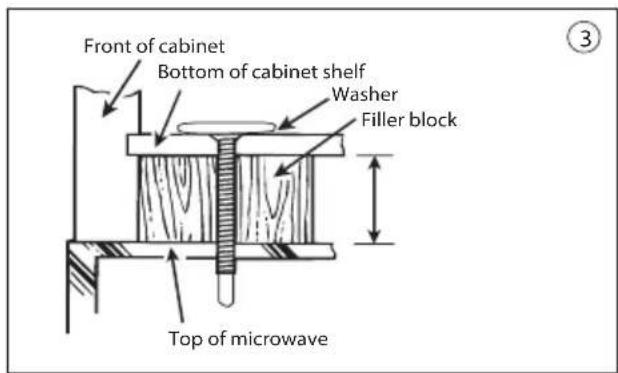

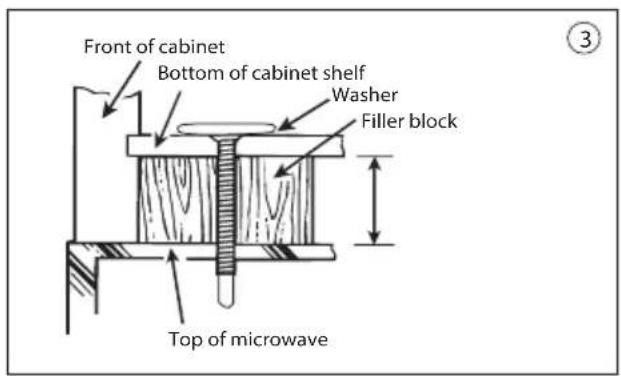

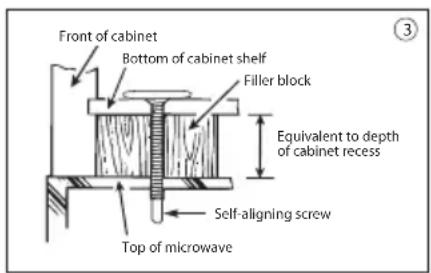

- Filler blocks or scrap wood pieces (for top cabinet spacing in recessed bottom cabinet installations if necessary)

LOCATION

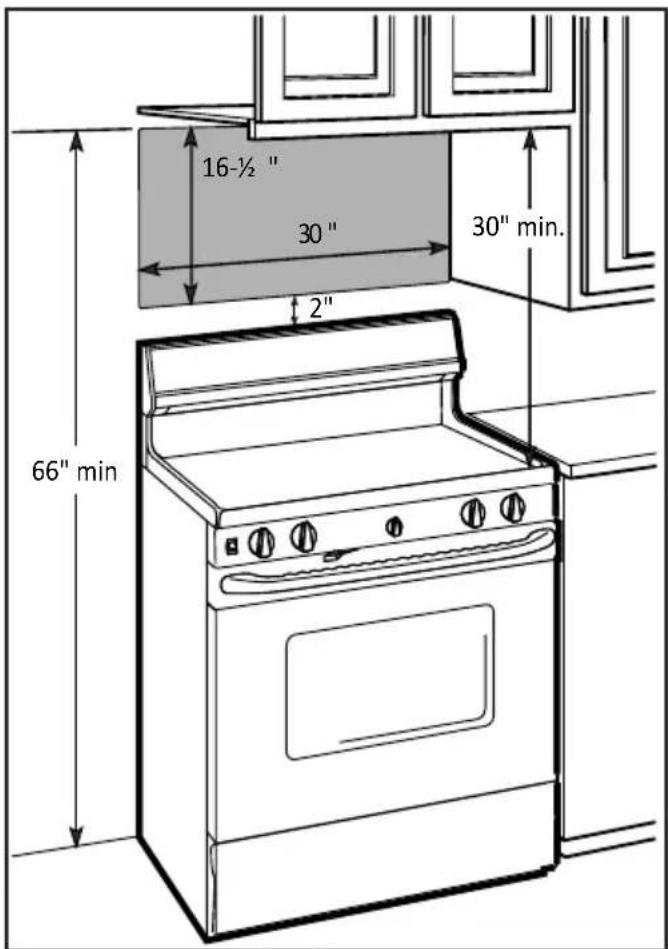

- The space between the cabinets must be 30" wide and free of obstructions.

- If the space between the cabinets is greater than 30", use filler material to fill the gap between the microwave oven and the cabinets.

- This microwave is for installation over ranges up to 36" wide.

- If installing the microwave beneath smooth, flat cabinets, be sure to follow the instructions for power cord clearance.

- If the cabinet depth, including the cabinet doors, is more than 13", then the unit must be spaced out from the wall using adequate materials supporting 68.1kg (150 lbs) to allow proper top vent air exhaust/ intake.

16-½" 30" 2" 30" min. 66" min.

INSTALLATION INSTRUCTIONS

UNPACKING THE APPLIANCE

1. Open the carton and remove the small hardware bag, exhaust adapter, glass tray, filters and turntable ring. Do not remove the Styrofoam protecting the front of the oven. Do not remove the plastic plug protection cover until just before installing unit.

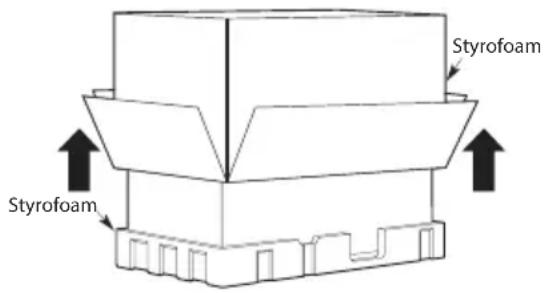

2. Fold all 4 carton flaps fully against the carton sides. Carefully roll the oven and carton over onto the top side. The oven should be resting in the Styrofoam. Remove the microwave from the carton.
3. Remove the mounting bracket from the unit. Remove screws from each end of the mounting plate. (This plate will be used as the rear wall template for mounting). Reinstall the screws into the holes where they were removed from.

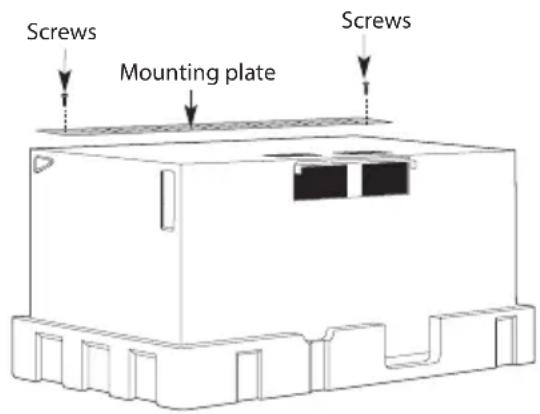

FINDING THE WALL STUDS

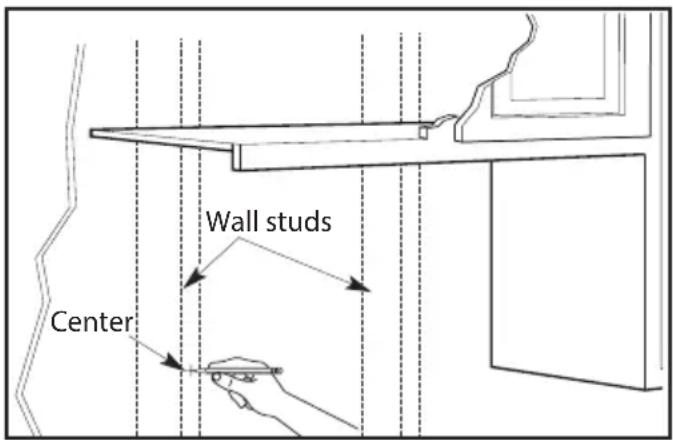

1. Use a stud finder to locate the wall stud. If a stud finder is not available, use a hammer to tap lightly on the wall to find a solid sound. This sound indicates the location of the wall stud.
2. Find the center of the wall stud by probing the wall with a small nail to find the edges of the stud. Draw a line down the center of the wall stud.

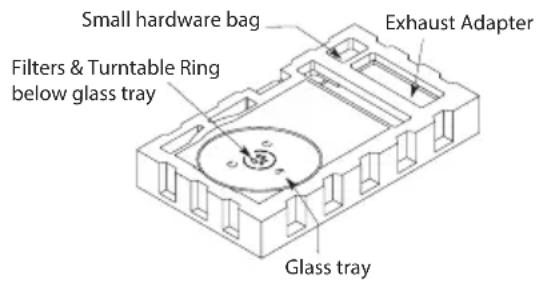

Small hardware bag Filters & Turntable Ring below glass tray Glass tray Exhaust Adapter

Styrofoam Styrofoam

Screws Mounting plate Screws

Wall studs Center

Note: The microwave must be connected to at least one wall stud.

INSTALLATION INSTRUCTIONS

USING THE INSTALLATION TEMPLATE

There are three different types of cabinetry that will change how the rear wall template should be used to determine where to install the mounting bracket.

Notes:

• Any decorative trim on the cabinetry or wall should be removed before installing the microwave.
• Use a level to ensure that the template is level before marking the wall. The microwave must be level to ensure proper functioning.
• At least three screws must be used to install the mounting plate. At least one of those screws must be in a wall stud.

Plate Position: beneath flat bottom cabinet

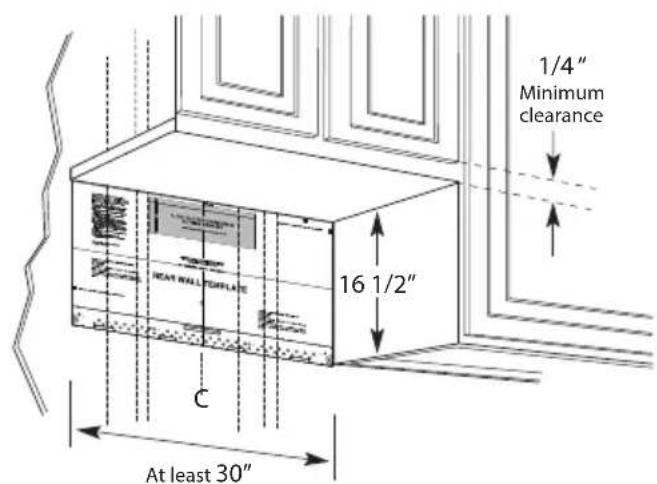

1/4" Minimum clearance 16 1/2" C At least 30"

Draw a vertical line on the wall at the center of the 30" wide space Tape the Rear Wall Template onto the wall matching the centerline and touching the bottom of the cabinet

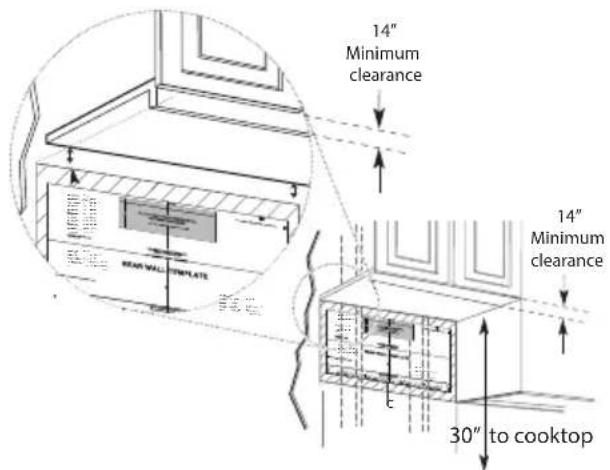

Plate Position: Beneath recessed bottom cabinet with front overhang

14" Minimum clearance 14" Minimum clearance 30" to cooktop

Draw a line on the back wall equal to the depth of the front overhang

If the cabinets have a front overhang only, with no back or side frame, install the mounting plate down the same distance as the front overhang depth. This will keep the microwave level.

Plate Position: Beneath framed recessed cabinet bottom

14" Minimum clearance 30" to cooktop C

Draw a vertical line on the wall at the center of the 30" space. Tape the Rear Wall Template onto the wall matching the centerline and touching the bottom of the cabinet frame.

INSTALLATION INSTRUCTIONS

ALIGNING WALL PLATE

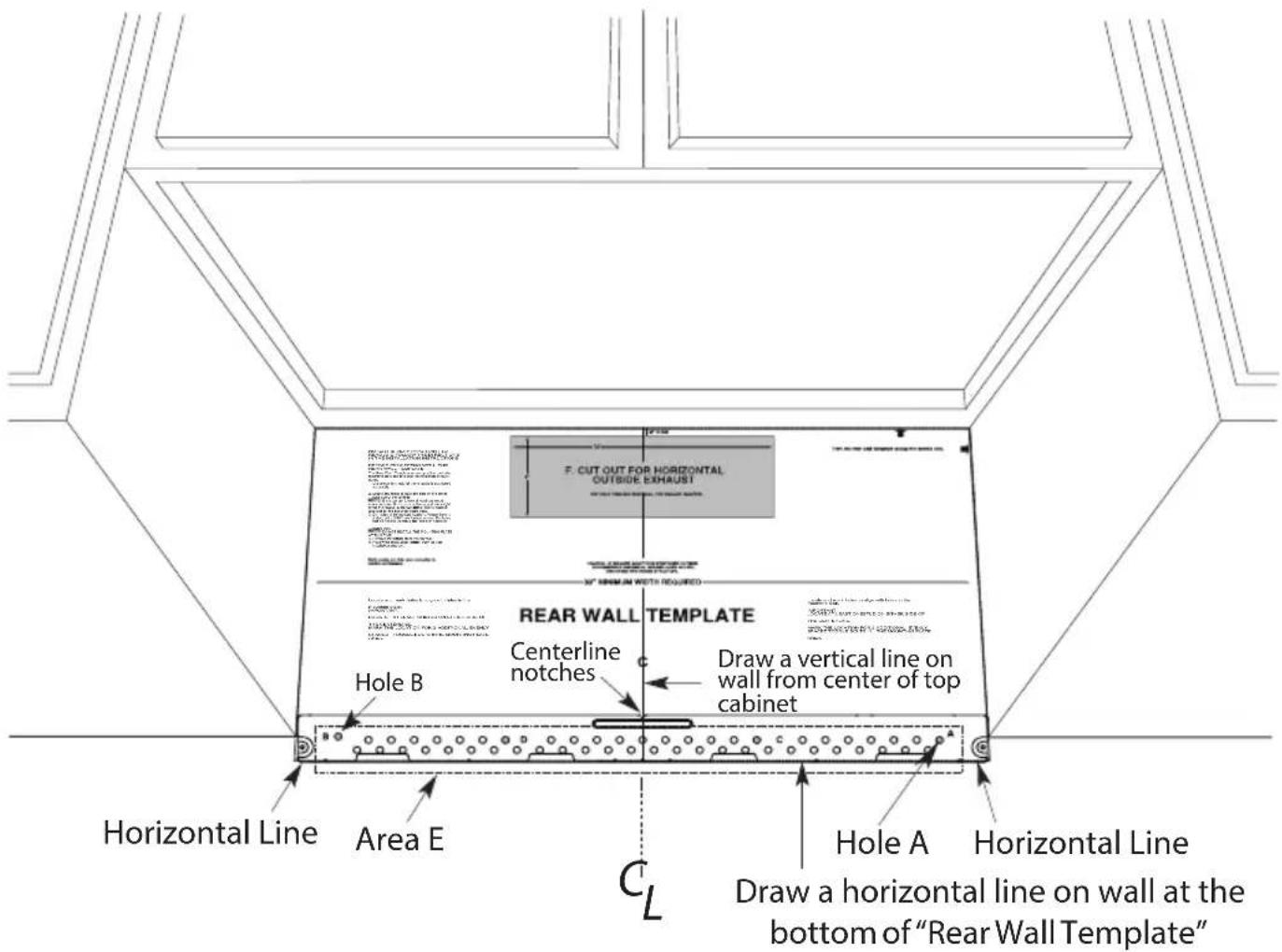

F. CUT OUT FOR HORIZONTAL OUTSIDE EXHAUST REAR WALL TEMPLATE Centerline notches Draw a vertical line on wall from center of top cabinet Hole B Horizontal Line Area E C_L Hole A Horizontal Line Draw a horizontal line on wall at the bottom of "Rear Wall Template"

1. Draw a vertical line on the wall at the center of the 30" (76.2cm) wide space.
2. Draw a horizontal line on the wall at the bottom of "Rear Wall Template".
3. Find a wall stud in area "E" of mounting plate.
4. For attaching the mounting plate into the stud, drill a 3/16" (4.77mm) hole into the stud. Drill a 5/8" (15.88mm) hole for toggle bolt in 1 location (Hole A or Hole B).

NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.

NOTE: Holes A and B are inside area E. If neither of Holes A and B are not in a stud, find a stud somewhere in area E and draw a circle to line up with the stud. It is important to have at least one wood screw mounted firmly in a stud to support the weight of the microwave. Set the mounting plate aside.

INSTALLATION INSTRUCTIONS

HOOD EXHAUST

This microwave is designed for adaptation to three types of ventilation: outside top exhaust, outside back exhaust and non-venting ductless recirculation. Use the following duct instructions if the appliance will be vented to the outside.

For satisfactory air movement, the total duct length of 3 1/4" x 10" (8.2 x 25.4 cm) rectangular or 5"(12.7 cm) diameter/6" (15.2 cm) diameter round duct. Round duct should not exceed 140 equivalent feet (42.7 m). Outside ventilation requires and EXTERNAL EXHAUST DUCT.

Elbows, transitions, wall caps and roof caps present additional resistance to airflow and are equivalent to a section of straight duct which is longer than the actual physical size. When calculating the total duct length add the equivalent lengths of all transitions and adapters plus the length of all straight duct sections. The chart below is an example of one possible installation configuration.

OUTSIDE TOP EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible ductwork installation.

DUCT PIECES EQUIVALENT		LENGTH	X	NUMBER USED	=	EQUIVALENT LENGTH
	Roof cap	24 ft (7.3m) X	(1)	= 24 ft (7.3m)
[SETW]	12 ft. straight duct (6" round)	12 ft (3.66m)	X	(1) =		12 ft (3.66m)
	Rectangular to round transition adapter	5 ft (1.5m) X	(1)	= 5 ft (1.5m)
TOTAL LENGTH					= 4	1 ft (12.5m)

IMPORTANT: If a rectangular to round transition adapter is used, the bottom corners of the damper must be cut to fit using tin snips to allow free movement of the damper.

IMPORTANT: It is important that venting be installed using the most direct route with as few elbows as possible. This ensures clear venting of exhaust and helps prevent blockages. Make sure dampers swing freely and nothing is blocking the ducts.

INSTALLATION INSTRUCTIONS

DUCT LENGTH CALCULATOR

Use the chart below to calculate the total length of the duct work being installed. The total length should not exceed 140 feet.

DUCT PIECES EQUIVALE		NT LENGTH	X	NUMBER USED	=	EQUIVALENT LENGTH
	Rectangular to round transition adapter	5 ft1.5m	X	( ) =	ft	or m
	Wall cap	40 ft12.2 m	X	( ) =	ft	or m
	Round 90° elbow	10 ft3 m	X	( ) =	ft	or m
	Round 45° elbow	5 ft1.5m	X	( ) =	ft	or m
	Rectangular 90° elbow	25 ft7.6 m	X	( ) =	ft	or m
	Rectangular 45° elbow	5 ft1.5m	X	( ) =	ft	or m
	Roof cap	24 ft7.3 m	X	( ) =	ft	or m
	Straight duct 6" round or 3 1/4" x 10" rectangular	1 ft0.3 m	X	( ) =	ft	or m
TOTAL LENGTH					= ft	or m

INSTALLATION INSTRUCTIONS

OUTSIDE TOP EXHAUST

Use these instructions if the appliance will be vented to the outside through the top of the appliance.

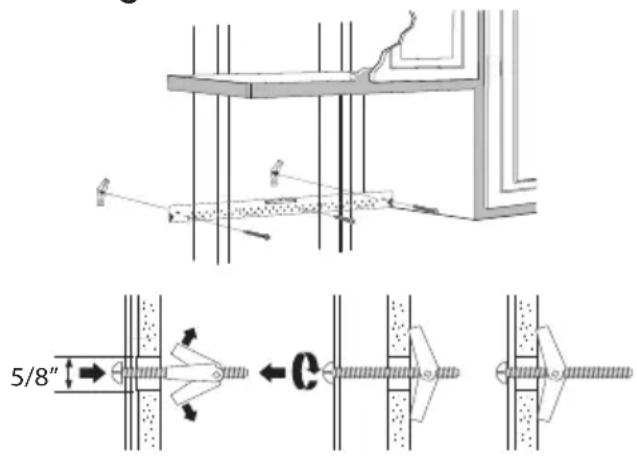

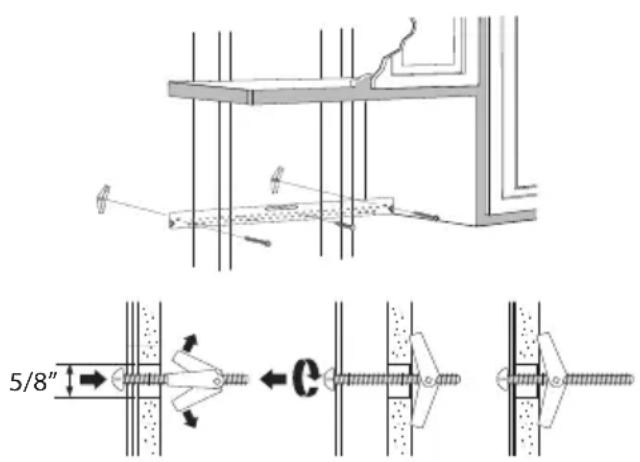

Install the mounting plate

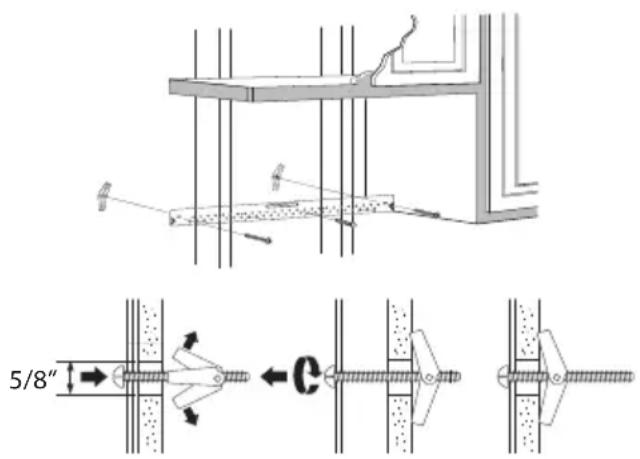

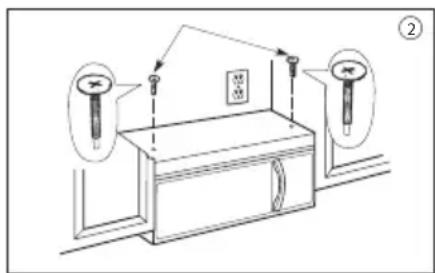

Use a 5/8" drill to make two holes that will enter the drywall. Use a 3/16" drill to make a hole that will enter a wall stud. Use the mounting template to decide the location of the holes. At least one hole must enter a wall stud.

Insert the machine screws into the mounting plate through the holes designed to go into drywall and attach the wing nuts 3/4" onto each machine screw.

Place the mounting plate against the wall and insert the wing nuts into the holes in the wall. The wing nuts will open on the other side of the wall to secure the screw.

Do not place a wing nut on the screw that will go into the wall stud. Insert a wood screw through the mounting plate and into the wall stud. Tighten all screws.

5/8"

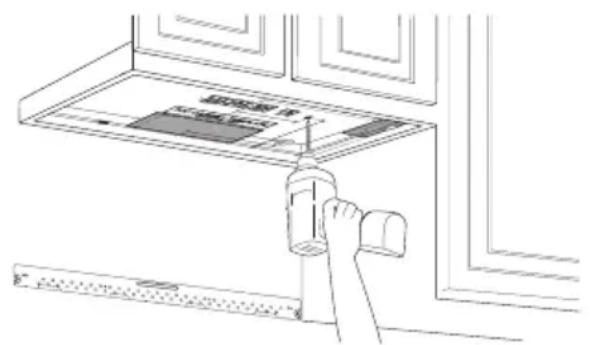

Using the top cabinet template

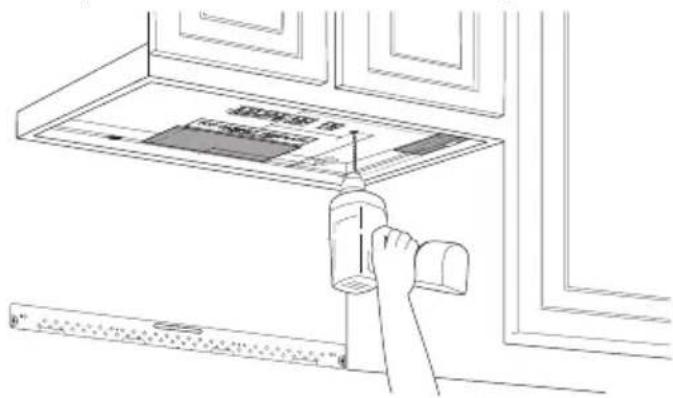

There are instructions on the top cabinet template that detail how it should be used.

Tape the top cabinet template to the under side of the cabinet where the microwave will be installed.

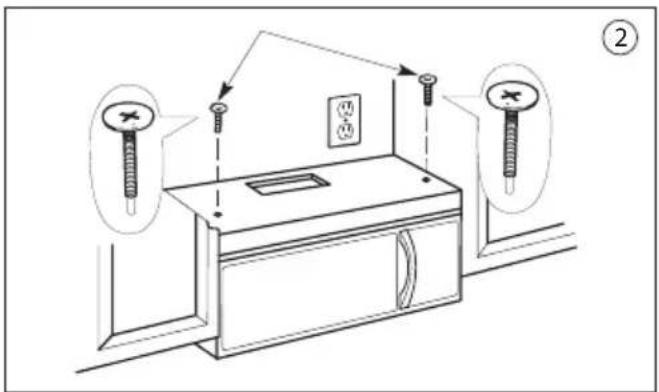

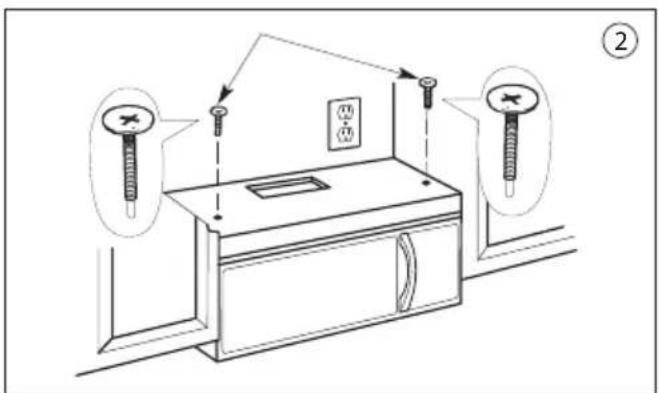

Drill holes for the top support screws, a hole large enough for the power cord to fit through and a cutout large enough for the exhaust adapter.

Technical diagram showing a hand operating a door lock with labeled components and directional arrows

INSTALLATION INSTRUCTIONS

Adapting Microwave Blower

1. Place microwave in its upright position with the top of the appliance facing up.

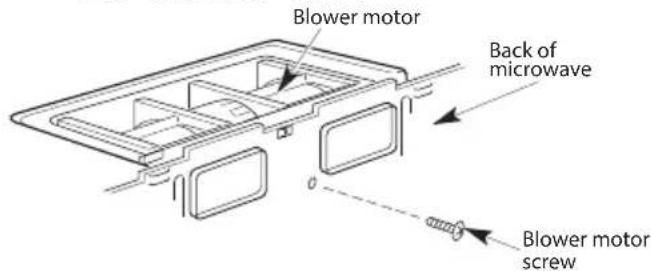

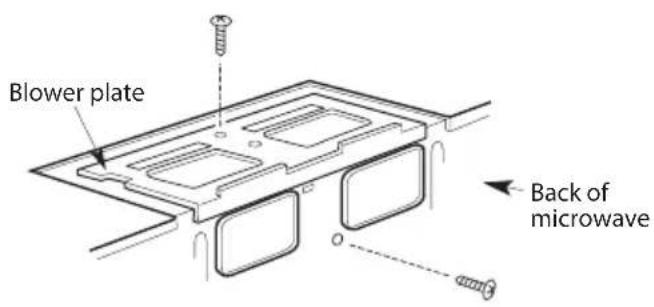

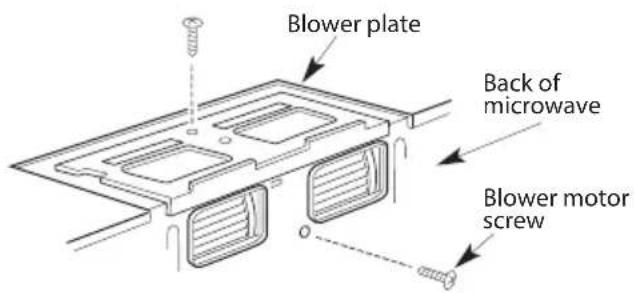

2. Remove the screw holding the blower plate to the microwave. Also remove and save the screw holding the blower motor to the microwave.

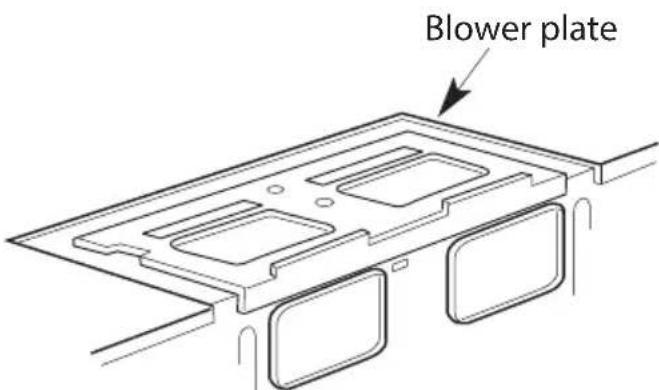

Blower plate Back of microwave Blower motor screw

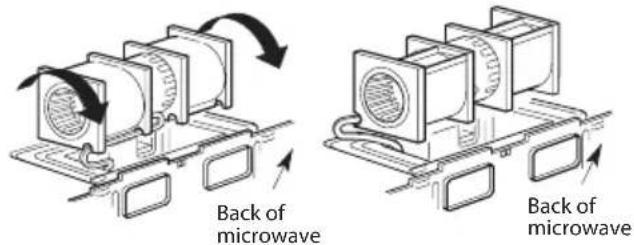

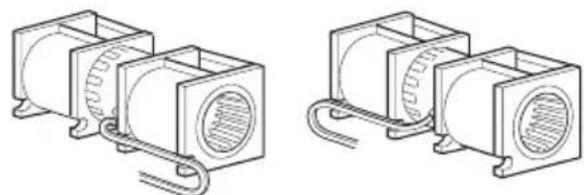

1. Carefully pull out the blower unit. The wires will extend far enough to allow you to adjust the blower unit.

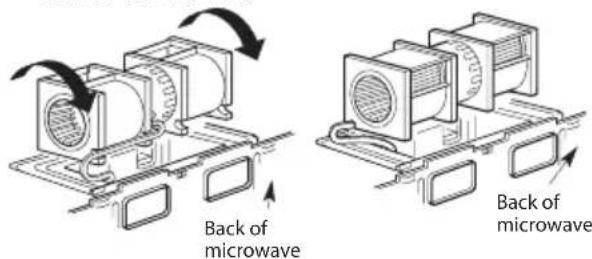

2. Roll the blower unit so the fan blade openings are facing out the top of the microwave.
3. Place the blower unit back into the opening.

NOTE: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched and that they are properly secured.

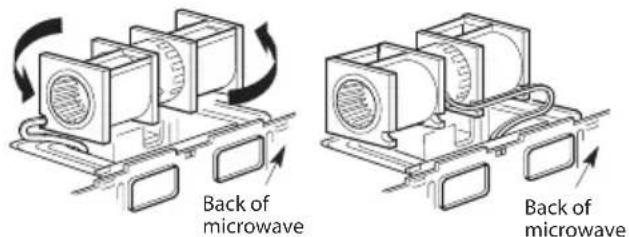

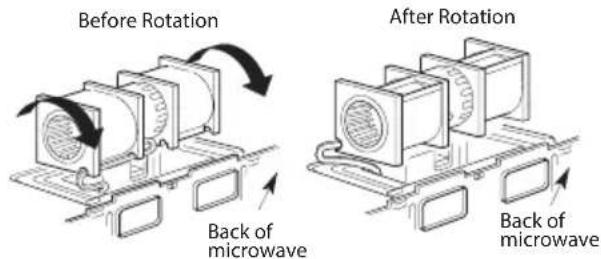

Before Rotation Back of microwave After Rotation Back of microwave

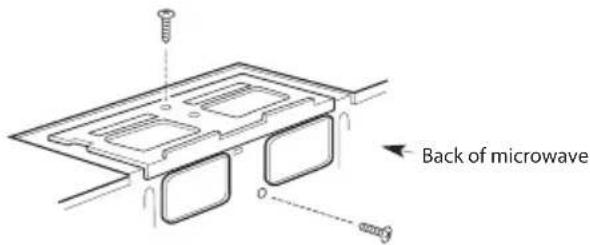

1. Secure blower unit to microwave with the screw that was removed. Make sure the screw is tight.

2. Replace the blower plate with the screw that was removed. Make sure the screw is tight.

Back of microwave

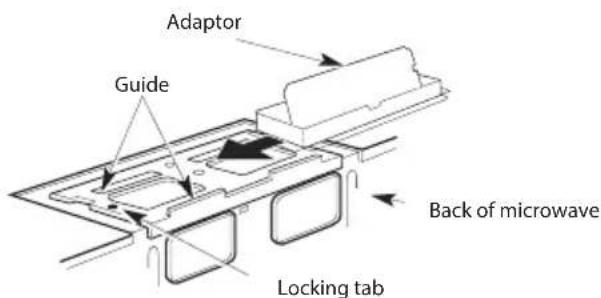

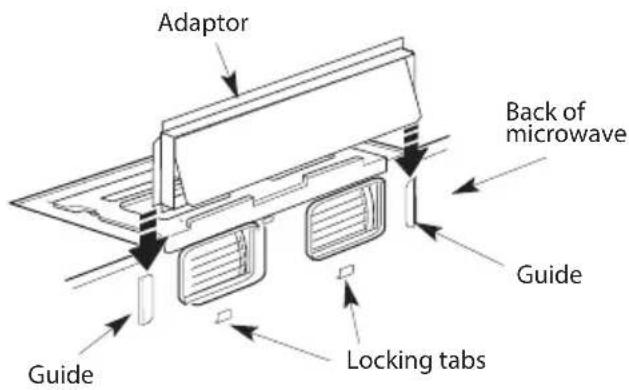

1. Attach the exhaust adapter to the top of the blower plate by sliding it into the guides.
2. Push in securely until it is in the locking tabs. Ensure that the damper hinge is installed so that the damper swings freely.

Adaptor Guide Back of microwave Locking tab

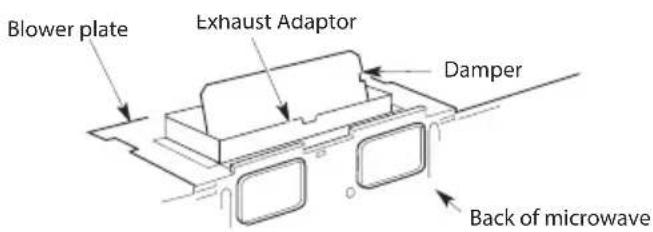

Check for proper damper operation

Make sure the tape securing the damper is removed and the damper pivots easily before mounting the microwave.

NOTE: Adjustments will be required to ensure proper alignment with the exhaust duct after the microwave is installed.

Blower plate Exhaust Adaptor Damper Back of microwave

INSTALLATION INSTRUCTIONS

Mounting the microwave oven

For easier installation and personal safety, two people should be used to install the microwave.

Do not grip or use the handle during installation.

If the surrounding cabinets are metal, use the nylon grommet around the power cord hole to prevent damage to the cord.

When mounting the microwave, thread the power cord through the hole in the cabinet. Keep the cord tight when mounting the microwave to ensure the cord does not get pinched. Do not lift the microwave by the cord.

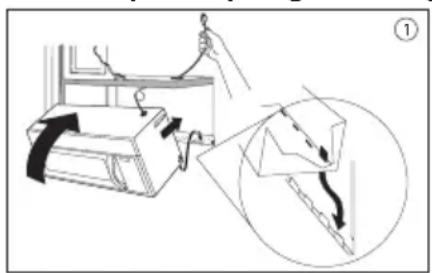

1. Lift the microwave, tilt it forward and hook the slots on the back of the microwave onto the lower tabs of the mounting plate. Rotate the front of the microwave against the bottom of the cabinet.
2. Insert two self aligning machine screws with washers through the top cabinet holes and tighten two turns.
3. If the cabinet has an overhang, insert the wood filler blocks before completely tightening the screws.

Diagram illustrating a mechanical or electrical component with labeled parts and an inset magnified view showing a detail of a tool path.

Diagram of a cabinet with labeled parts and directional arrows, likely illustrating electrical or mechanical system components.

Front of cabinet Bottom of cabinet shelf Filler block Equivalent to depth of cabinet recess Self-aligning screw Top of microwave

Install grease filters

Slide the grease filters into the openings in the bottom of the microwave until they click into place. The appliance should not be operated without the grease filters installed.

Connecting ductwork

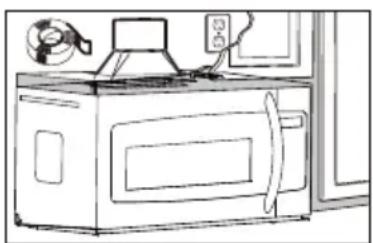

1. Adjust the exhaust adapter inside the cabinet so it can connect to the house duct
2. Extend the house duct down to connect to the exhaust adapter
3. Use duct tape to seal the exhaust duct joints.

Line drawing of a microwave oven with a mounted dish and control panel (no text or symbols)

INSTALLATION INSTRUCTIONS

OUTSIDE BACK EXHAUST

Use these instructions if the appliance will be vented to the outside through the back of the appliance.

Cut a 12" x 4" (30.48cm x 10.16 cm) square hole in the rear wall for the outside exhaust. Follow the instructions included on the rear template.

Install the mounting plate

Use a 5/8" drill to make two holes that will enter the drywall. Use a 3/16" drill to make a hole that will enter a wall stud. Use the mounting template to decide the location of the holes. At least one hole must enter a wall stud.

Insert the machine screws into the mounting plate through the holes designed to go into drywall and attach the wing nuts 3/4" onto each machine screw.

Place the mounting plate against the wall and insert the wing nuts into the holes in the wall. The wing nuts will open on the other side of the wall to secure the screw.

Do not place a wing nut on the screw that will go into the wall stud. Insert a wood screw through the mounting plate and into the wall stud. Tighten all screws.

NOTE: At least one wood screw must be used to attach the plate to a wall stud.

5/8"

INSTALLATION INSTRUCTIONS

Using the top cabinet template

There are instructions on the top cabinet template that detail how it should be used.

Tape the top cabinet template to the under side of the cabinet where the microwave will be installed.

Drill holes for the top support screws and a hole large enough for the power cord to fit through.

Diagram showing a hand operating a cleaning machine with labeled components and a ruler for scale

Adapting Microwave Blower

1. Place the microwave in its upright position with the top of the appliance facing up.
2. Remove the screw that holds the blower plate to the microwave and save the screw.

Blower plate Back of microwave

1. Remove and save screw that holds the blower motor to the microwave.

2. Carefully pull out the blower unit. The wires will extend far enough to allow adjustment to the blower unit.

Blower motor Back of microwave Blower motor screw

1. Rotate the blower motor to have the exhaust facing up.

Back of microwave Back of microwave

1. Rotate the blower unit clockwise.

Back of microwave Back of microwave

1. Gently remove the wires from the grove and reroute them through the grooves on the other side of the blower unit.

Two identical line drawings of industrial electrical components with no text or symbols

1. Rotate the blower unit so that the fan blade openings are facing out the back of the microwave.

Back of microwave Back of microwave

INSTALLATION INSTRUCTIONS

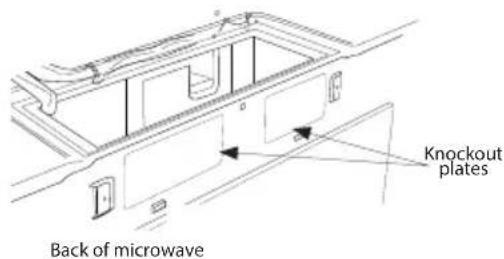

1. Remove the knockout plates in the back of the unit. Remove any sharp edges created from removing the plates.

Back of microwave Knockout plates

1. Place the blower unit back into the opening. Ensure fan blade openings are facing the back of the microwave and aligned with the exhaust openings.
2. Secure the blower unit to the microwave using the screw previously removed. Make sure the screw is tight.
3. Replace the blower plate in the same position as before with the saved screw. Make sure the screw is tight.

Blower plate Back of microwave Blower motor screw

1. Attach the exhaust adapter to the rear of the microwave by sliding it into the guides at the top center of the back of the microwave.

NOTE: Push in securely until it is in the lower locking tabs. Ensure that the damper hinge is installed so that it is at the top and the damper swings freely.

Adaptor Back of microwave Guide Guide Locking tabs

INSTALLATION INSTRUCTIONS

Mounting the microwave oven

For easier installation and personal safety, two people should be used to install the microwave.

Do not grip or use the handle during installation.

If the surrounding cabinets are metal, use the nylon grommet around the power cord hole to prevent damage to the cord.

When mounting the microwave, thread the power cord through the hole in the cabinet. Keep the cord tight when mounting the microwave to ensure the cord does not get pinched. Do not lift the microwave by the cord.

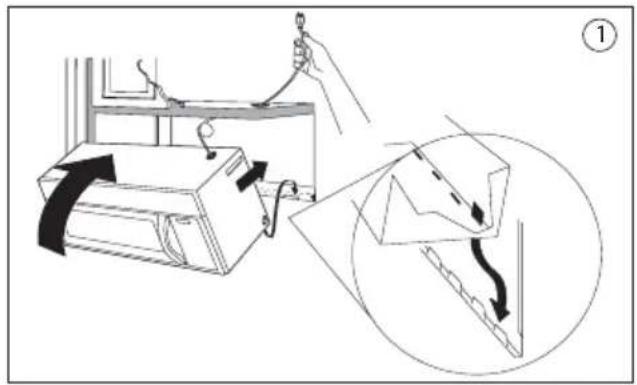

1. Lift the microwave, tilt it forward and hook the slots on the back of the microwave onto the lower tabs of the mounting plate. Rotate the front of the microwave against the bottom of the cabinet.

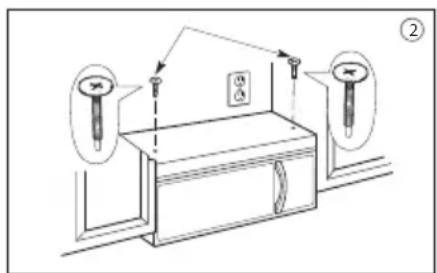

2. Insert two self aligning machine screws with washers through the top cabinet holes and tighten two turns.
3. If the cabinet has an overhang, insert the wood filler blocks before completely tightening the screws.

Diagram illustrating a cable installation process with labeled components and directional arrows, including a magnified detail view.

Diagram showing electrical circuit setup with screwdrivers and a switch, labeled with number ②

Front of cabinet Bottom of cabinet shelf Washer Filler block Top of microwave ③

Install grease filters

Slide the grease filters into the openings in the bottom of the microwave until they click into place. The appliance should not be operated without the grease filters installed.

Connecting ductwork

Adjust the exhaust adapter so it can connect to the house duct.

Extend the house duct to connect to the exhaust adapter.

Use duct tape to seal the exhaust duct joints.

INSTALLATION INSTRUCTIONS

RECIRCULATING (NON- VENTED)

Use these instructions if the appliance will not be vented to the outside.

Install the mounting plate

Use a 5/8" drill to make two holes that will enter the drywall. Use a 3/16" drill to make a hole that will enter a wall stud. Use the mounting template to decide the location of the holes. At least one hole must enter a wall stud.

Insert the machine screws into the mounting plate through the holes designed to go into drywall and attach the wing nuts 3/4" onto each machine screw.

Place the mounting plate against the wall and insert the wing nuts into the holes in the wall. The wing nuts will open on the other side of the wall to secure the screw.

Do not place a wing nut on the screw that will go into the wall stud. Insert a wood screw through the mounting plate and into the wall stud. Tighten all screws.

5/8"

INSTALLATION INSTRUCTIONS

Using the top cabinet template

There are instructions on the top cabinet template that detail how it should be used.

Tape the top cabinet template to the under side of the cabinet where the microwave will be installed.

Drill holes for the top support screws and a hole large enough for the power cord to fit through.

Blower for recirculating exhaust

1. Place the microwave in upright position, with the top of the unit facing up.
2. Check to see that the blower plate is correctly installed.

Blower plate

INSTALLATION INSTRUCTIONS

Mounting the microwave oven

For easier installation and personal safety, two people should be used to install the microwave.

Do not grip or use the handle during installation.

If the surrounding cabinets are metal, use the nylon grommet around the power cord hole to prevent damage to the cord.

When mounting the microwave, thread the power cord through the hole in the cabinet. Keep the cord tight when mounting the microwave to ensure the cord does not get pinched. Do not lift the microwave by the cord.

1. Lift the microwave, tilt it forward and hook the slots on the back of the microwave onto the lower tabs of the mounting plate. Rotate the front of the microwave against the bottom of the cabinet.

2. Insert two self aligning machine screws with washers through the top cabinet holes and tighten two turns.

3. If the cabinet has an overhang, insert the wood filler blocks before completely tightening the screws.

Diagram illustrating a mechanical device with force application and a magnified detail showing internal components.

Diagram showing electrical circuit setup with switches and power supply connections, labeled with number 2

Front of cabinet Bottom of cabinet shelf Washer Filler block Top of microwave ③

INSTALLATION INSTRUCTIONS

Install grease filters

Slide the grease filters into the openings in the bottom of the microwave until they click into place. The appliance should not be operated without the grease filters installed.

Air recirculation

There is no duct work required for this type of installation. Air from the appliance will exhaust through the front vent and recirculate into the air in the room.

CHANGING THE CHARCOAL FILTER

The charcoal filter is factory installed. It is only used when the microwave is set for recirculating exhaust. The following steps are used to change the charcoal filter.

1. Unplug or disconnect the power to the microwave.

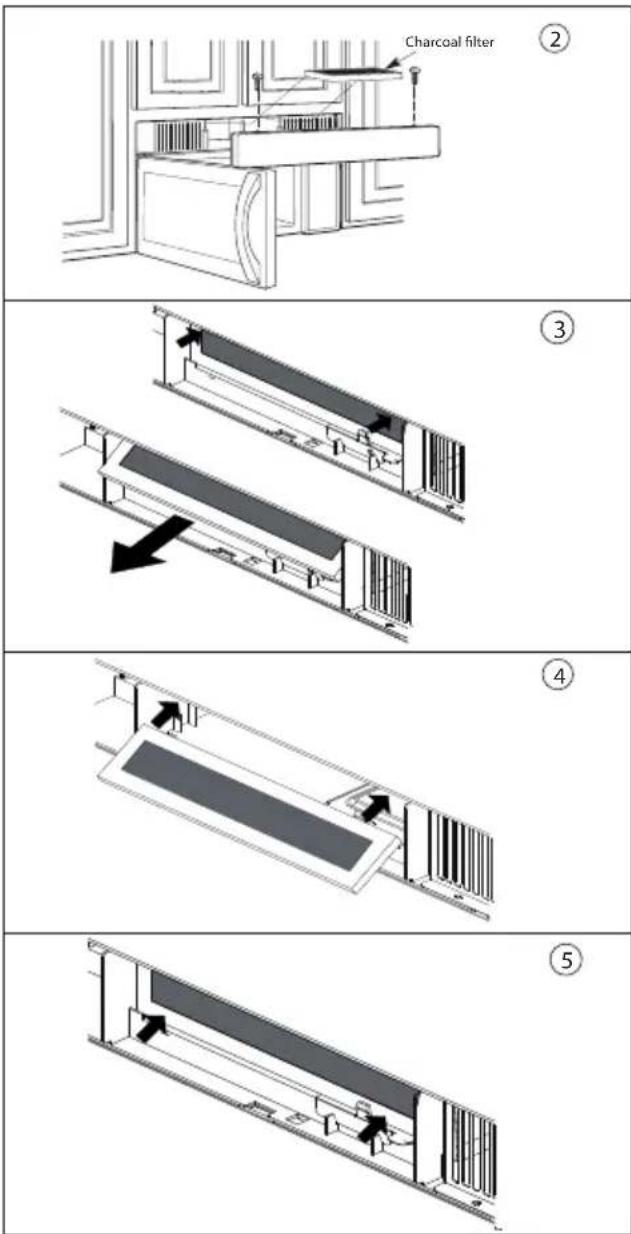

2. Open the door and remove the two vent mounting screws located on top of the microwave.

3. Remove the charcoal filter by pushing the top inwards, then pulling it forward out of the unit.

4. Slide the top of the new charcoal filter into the top of the filter cavity.

5. Press the bottom of the charcoal filter to place it into the correct position.

6. Reinstall the vent by sliding the bottom of the vent into place. Push the vent top into position and slide right into place. Replace the two vent mounting screws located on top of the microwave.

7. Close the door, plug in or reconnect power to the microwave.

Charcoal filter ② ③ ④ ⑤

COOKING UTENSILS GUIDE

RECOMMENDED

Microwave Browning Dish: Used to brown the exterior of small food items. Follow the directions provided with the browning dish.

Microwavable Plastic Wrap: Used to retain steam. Leave a small opening to avoid a build up of steam. Do not place directly on food.

Glass and Ceramic Bowls and Dishes: Use for heating or cooking.

Paper Plates and Cups: Use for short term heating at low temperatures. Do not use recycled paper as they can contain metal and could ignite.

Paper Towels and Napkins: Use for short term heating and covering. Do not use recycled paper towels as they can contain metal and could ignite.

Wax Paper: Use as a cover to prevent splattering.

Thermometers: Only use those that are labeled "microwave safe" and follow all directions.

Note: To check if a dish is safe for use in the microwave, place the empty dish in the appliance and microwave on high for 30 seconds. If the dish becomes very hot, it should not be used.

LIMITED USE

Aluminum Foil: Using too much foil can cause arcing and damage the appliance. Keep a distance of at least 1 inch (2.6 cm) between the foil and the inside of the appliance.

Ceramic, Porcelain, Plastic and Stoneware: Only use if they are labeled "microwave safe".

NOT RECOMMENDED

Glass Jars and Bottles: Regular glass is too thin to be used in a microwave. It can shatter and cause damage or injury.

Paper Bags: These are a fire hazard and could ignite. The only exception is popcorn bags, which are designed for microwave use.

Styrofoam Plates and Cups: These can melt and leave an unhealthy residue on food.

Plastic Storage and Food Containers: These can melt and ignite.

Metal Utensils: These can cause arcing and damage to the appliance. Remove all metal before operation.

COOKING TECHNIQUES

To achieve the best results when cooking in this appliance, follow the suggestions below.

STIRRING

Stir foods while cooking to distribute heat evenly. Food at the outside of the dish absorbs more energy and will heat more quickly so stir from the outside of the dish toward the center.

ARRANGEMENT

Arrange unevenly shaped foods thicker, meatier parts toward the outside of the turntable so they receive more heat. To prevent overcooking, place delicate items toward the center of the turntable.

SHIELDING

Delicate foods can be shielded with narrow strips of aluminum foil to prevent overcooking. Use only small amounts of foil as this can cause arcing and damage to the appliance.

TURNING

Turn food over midway through cooking to expose all parts to the microwave energy. This is important with large items and meat.

STANDING

Foods cooked in a microwave build up internal heat and continue to cook for a few minutes after heating stops. Let foods stand to complete cooking, especially meats and liquids. All liquids should be allowed to stand for a few minutes after cooking and should be shaken or stirred before consuming.

ADDING MOISTURE

Microwave energy is attracted to water molecules. Food that is uneven in moisture content should be covered and allowed to stand after cooking to allow the heat to disperse evenly. Add a small amount of water to dry food to help it cook.

OPERATING INSTRUCTIONS - UNIT OVERVIEW

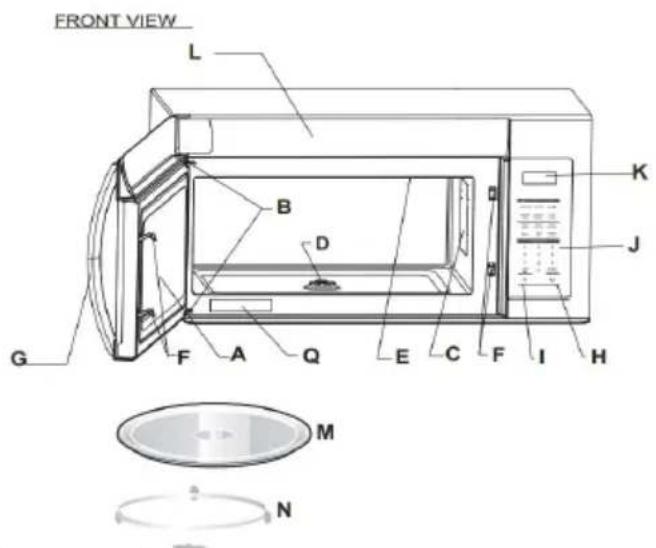

FRONT VIEW L B D K J G F A Q E C F I H M N

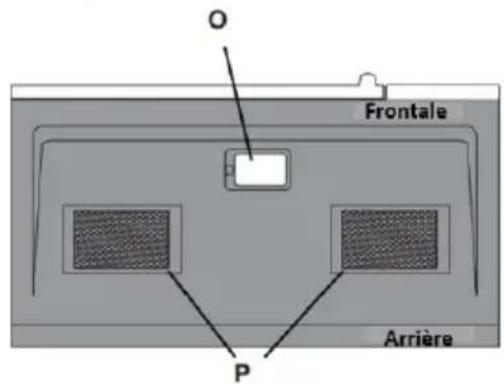

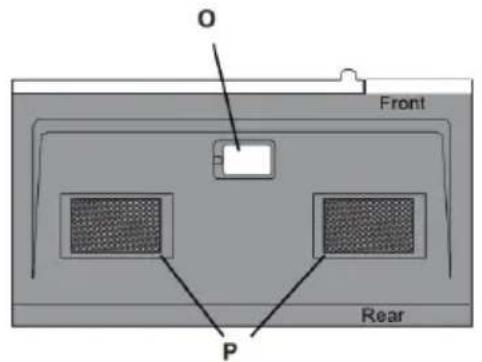

BOTTOM VIEW

O Front P Rear

Part	Description
A	Microwave oven door with see-through window
B	Door hinges
C	Cardboard mica sheet: DO NOT REMOVE
D	Turntable motor shaft
E	Microwave oven light: will light when unit is operating or door is open
F	Safety door latches: microwave will not operate unless the door is securely closed
G	Handle
H	Light on/off pad
I	Vent hi/lo/off pad: press once for high speed, twice for low speed, three times to turn off the fan
J	Auto-Touch control panel
K	Time display: maximum of 99 minutes and 99 seconds
L	Ventilation openings
M	Turntable: only remove for cleaning
N	Turntable support: place ring on floor of unit around the center support, place turntable securely on support
O	Light cover
P	Grease filters
Q	Menu label

OPERATING INSTRUCTIONS

CONTROL PANEL

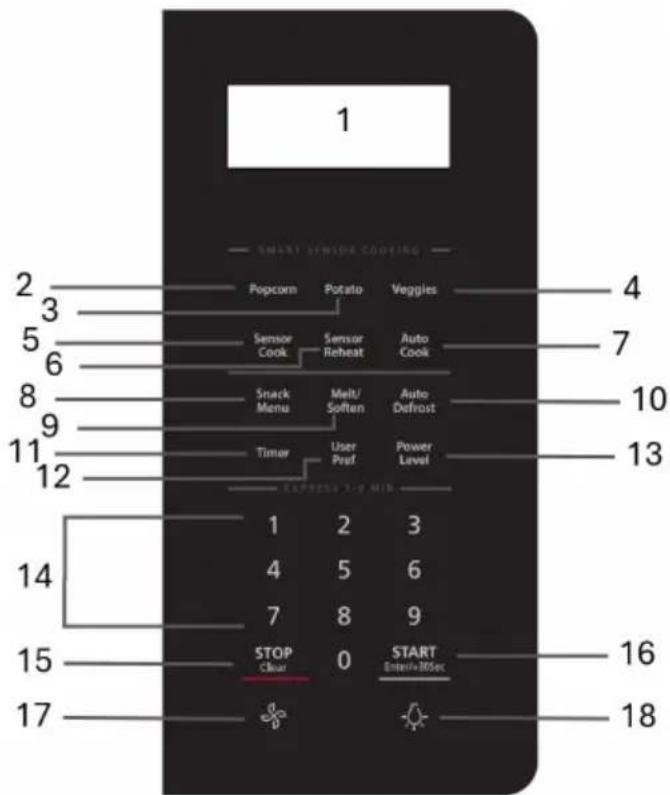

1 2 3 4 5 6 7 8 9 10 11 12 13 Smart Sensor Cooking Popcorn Potato Veggies Sensor Cook Sensor Reheat Auto Cook Snack Menu Melt/ Soften Auto Defrost Timer User Perf Power Level EXPRESS 3.9 MIN 1 2 3 4 5 6 7 8 9 STOP Clear 0 START Enter=30sec 15 16 17 18

1. Display: separate explanation provided

2. POPCORN button

3. POTATO button

4. VEGGIES button

5. SENSOR COOK button

6. SENSOR REHEAT button

7. AUTO COOK button

8. SNACK MENU button

9. MELT/SOFTEN button

10. AUTO DEFROST button

11. TIMER button

12. USER PREF button

13. POWER LEVEL button

14. Number pad: 0 through 9

15. STOP/CLEAR button

16. START ENTER/+30 SEC button

17. Vent: used to turn the exhaust fan off, or to adjust fan speed (Off/High/Low)

18. Surface Light: Used to turn the light on or off

DISPLAY

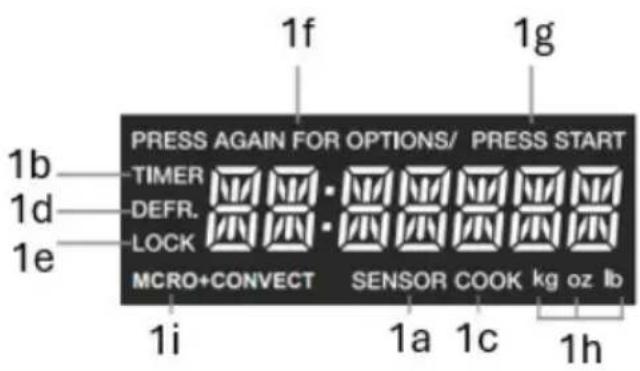

The display includes a clock and indicator that show the time of day, cooking time settings, cook power, sensor, quantities, weights and cooking functions selected.

PRESS AGAIN FOR OPTIONS/ PRESS START TIMER DEFR. LOCK MCRO+CONVECT SENSOR COOK kg oz lb 1f 1g 1b 1d 1e 1i 1a 1c 1h

1a. SENSOR: icon displayed when using sensor cook.

1b. TIMER: icon displayed when timer is being set or running.

1c. Cook: icon displayed when starting microwave cooking.

1d. DEFR: icon displayed when defrosting food.

1e. LOCK: icon displayed when control lock engaged.

1f. PRESS AGAIN FOR OPTIONS: icon displayed when additional options are available.

1g. PRESS START: icon displayed when a valid function can be started.

1h. kg, oz, lb: icon displayed when choosing the weight.

OPERATING INSTRUCTIONS

SETTING THE CLOCK

The clock can only be set as a 12-hour clock. The clock can be disabled when the microwave is first plugged in and STOP/CLEAR is pressed.

To set the current time:

1. Press USER/PREF.
2. Enter current time using the number pad.
3. Press START ENTER/+30SEC to confirm.

NOTES:

• Incorrect times cannot be entered. E.G: 2:89, the 8 is not valid.
• The microwave will revert to standby mode if there is no operation entered within 5 minutes of setting the time.

SETTING KITCHEN TIMER

The Kitchen Timer is only a timer and does not affect any cook settings. It can be used while the microwave is running.

1. Press TIMER.
2. Enter length of desired time. Maximum time is 99 minutes and 99 seconds.
3. Press TIMER to confirm. The display will show the countdown.

NOTE: The timer can be reset during a cooking cycle or in standby.

TIME COOK

1. Place food/beverage into the microwave.
2. Use the number pad to enter the desired cooking time. The maximum time is 99 minutes and 99 seconds.
3. Press the Power Level button to choose a power level. The default power level is 100%. The display will show "PL-HI". Press the Power Level button to choose the desired power level if 100% is not required.
4. Press the START ENTER/+30SEC button to begin operation.

Press POWER LEVEL	POWER LEVEL	Display shows
Once 100% PL-HI
Twice 90% PL-90
3 times 80% PL-80
4 times 70% PL-70
5 times 60% PL-60
6 times 50% PL-50
7 times 40% PL-40
8 times 30% PL-30
9 times 20% PL-20
10 times	10% PL-10
11 times 0% PL-0

OPERATING INSTRUCTIONS

EXPRESS COOK

1. Place food/beverage into the microwave.
2. Use the number pads to set time. Each number represents one minute with the maximum time of 9 minutes at a 100% power level.
3. Unit will start and display with show countdown.

NOTE: "FOOD" will be displayed if a quick start cooking cycle or START ENTER/+30SEC button is not selected within 5 minutes of placing food in the microwave.

To clear "FOOD" from the display, the microwave door must be opened and then closed.

ADD 30 SECONDS

The START ENTER/+30SEC button can be used to Start a cooking program, Enter multi-stage information or create a 30 second cook time.

1. Place food/beverage into the microwave.
2. Press START ENTER/+30SEC once for 30 seconds. Each time the button is pressed, an additional 30 seconds will be added to the cook time.

NOTE: "FOOD" will be displayed if a quick start cooking cycle or START ENTER/+30SEC button is not

selected within 5 minutes of placing food in the microwave.

To clear "FOOD" from the display, the microwave door must be opened and then closed.

POPCORN

1. Place popcorn bag into the microwave following manufacturer directions.
2. Press the Popcorn button, the display shows 3.3 oz and the "PRESS AGAIN FOR OPTIONS" icon.
3. Press the Popcorn button again to select 3.0 oz if required.
4. Press START ENTER/+30SEC to begin the operation.

POTATO

1. Pierce the potato several times with either a knife or fork.
2. Place the potato into the microwave.
3. Press the Potato button.
4. Press START ENTER/+30SEC to begin operation.

OPERATING INSTRUCTIONS

VEGGIES

There are two options for vegetables, frozen and fresh.

1. Place food into the microwave.
2. Press VEGGIES once for fresh vegetables.
3. Press VEGGIES twice for frozen vegetables.
4. Press START ENTER/+30SEC to confirm displayed option.
5. Enter number of cups (1 to 4 cups) using the number pad.
6. Press START ENTER/+30SEC to begin operation.

AUTO COOK

There are 3 options available under Auto Cook.

1. Place food/beverage into the microwave.
2. Press AUTO COOK to choose option (see table below).
3. Option will appear on the Display.
4. Press START ENTER/+30SEC to confirm option.
5. Use number pad to enter number/size of serving
6. Press START ENTER/+30SEC to begin operation.

Press AUTO COOK	Food Amount
Once Scrambled Eggs		1 - 6 eggs
Twice	Hot Cereal	1 - 3 servings
3 times Frozen Pizza		6/8/12 oz

SENSOR COOK

There are 4 options available under Sensor Cook.

1. Place food/beverage into the microwave.
2. Press the SENSOR COOK button to choose option (see table below).
3. Option will appear on the display.
4. Press START ENTER/+30SEC to begin operation.

Press SENSOR COOK	Food Amount
Once	Bacon	1 - 3 slices (optional)
Twice Frozen Dinner		10 oz/20 oz (range)
3 times	Rice	1 - 2 cups (range)
4 times Frozen Breakfast		8 - 12 oz (range)

NOTE: During sensor cooking, when the sensor determines the midpoint of required cooking time, the buzzer will sound 3 times and then the remaining cook time will appear on the display.

OPERATING INSTRUCTIONS

SNACK MENU

There are 3 options available under Snack Menu.

1. Place food into the microwave.
2. Press the SNACK MENU button to choose option (see table below).
3. Chosen option will appear on the display.
4. Press START ENTER/+30SEC to confirm option.
5. Use number pad to enter number/size of serving.
6. Press START ENTER/+30SEC to begin operation.

MELT/SOFTEN

The microwave uses low power to melt and soften items.

1. Place food into the microwave.
2. Press the MELT/SOFTEN button to choose option (see table below).
3. Chosen option will appear on the display.
4. Press START ENTER/+30SEC to confirm option.
5. Use number pad to enter number/size of serving.
6. Press START ENTER/+30SEC to begin operation.

Press SNACK MENU	Food Amount
Once Hot Dogs 1 - 6 pieces
Twice Meal in a cup		2.39 oz
3 times Frozen Kids Meal		8.80 oz

Press MELT/ SOFTEN	Food Amount
Once Melt Butter		1 or 2 sticks
Twice Melt Chocolate		2/4/8 oz
3 times Soften Ice Cream		Pint/1.5 Quart
4 times Soften Cream Cheese		3 / 8 oz

OPERATING INSTRUCTIONS

SENSOR REHEAT

There are 4 options available under Sensor Reheat.

1. Place food/beverage into the microwave.
2. Press the SENSOR REHEAT button to choose option (see table below).
3. Option will appear on the display.
4. Press START ENTER/+30SEC to begin operation.

Press SENSOR REHEAT	Food Amount
Once Beverage 1 - 3 cups
Twice Dinner Plate		1 - 2 plates
3 times Soup/ Sauce		1 - 2 cups
4 times Rolls (Muffin)		1 - 3 pieces

AUTO DEFROST

The auto defrost feature the best defrosting method for frozen foods. Please reference the cooking guide below for the defrost sequence recommended for the food which is being defrosted.

The Auto Defrost includes a built-in beep mechanism which is a reminder to check, turn over, separate or rearrange the food in order to have the best results.

1. Place food into the microwave.
2. Press the AUTO DEFROST button to choose option (see table below).
3. Chosen option will appear on the display.
4. Press START ENTER/+30SEC to confirm option.
5. Use number pad to enter number/size of serving.
6. Press START ENTER/+30SEC to begin operation.

Press AUTO DEFROST	CATEGORY	WEIGHTS
Once	Meat	0.1 to 6.0 lbs
Twice	Poultry	0.1 to 6.0 lbs

NOTE: The microwave will beep during DEFROST cycle. At this time, open the door and turn, separate or rearrange food. Remove any portions that have thawed. Return frozen portions to the microwave and press START ENTER/+30SEC to resume defrost cycle.

OPERATING INSTRUCTIONS

USER PREF

The microwave has settings that allows customizing the operation of the unit. See the table below showing the various settings.

Press USER PREF	Option
Once Clock
Twice Control Lock
3 times Power Save
4 times VolumeOff/Low/Med/High
5 times Language
6 times Setting Weight Lb/Kg
7 times Demo

SETTING CONTROL LOCK

1. Press USER PREF twice.
2. Display screen will show the current setting.
3. Press START ENTER/+30SEC to confirm setting.

NOTE: In "Locked" state, the clock will also display if it is set.

POWER SAVE

1. Press USER PREF three times.
2. Display screen will show the current setting.
3. Press START ENTER/+30SEC to confirm setting.

NOTE: Default setting is "OFF" if it has not been set previously.

SETTING VOLUME

Audible signals are available as a guide when setting and using the microwave.

• A programming tone will sound each time a button/key is touched.
• Three tones signal the end of a Kitchen Timer countdown or cooking cycle

To change the volume of the tones or disable them:

1. Press USER PREF four times
2. Display will show the 4 available settings.
3. Press START ENTER/+30SEC to confirm setting as per the display

NOTE: Default setting is "Volume On" if it has not been set previously.

OPERATING INSTRUCTIONS

SETTING LANGUAGE

The microwave has the ability to have the language of the LED display in either English or French.

1. Press USER PREF 5 times
2. Display will show available language.
3. Press START ENTER/+30SEC to confirm setting as per the display

NOTE: The default language of the display is English.

SETTING WEIGHT SCALE

The microwave has the ability to be set in LB (pounds) or KG (Kilograms).

1. Press USER PREF 6 times
2. Display will show available options.
3. Press START ENTER/+30SEC to switch to another weight unit.

NOTE: The default weight unit is lbs.

SETTING DEMO MODE

The microwave has the ability to in demonstration mode. This allows the microwave to go through the programming functions with a rapid countdown and no cooking power.

1. Press USER PREF 7 times
2. Display will show available settings.
3. Press START ENTER/+30SEC to confirm setting as per the display

NOTE: The default setting for the microwave is "DEMO OFF".

NOTE: Demo Mode ON is not recommended once installed in a residence. The recommended setting once installed is Control Lock to prevent the unit being used.

VENT FAN

The fan has 3 setting, OFF/HIGH/LOW.

Press the Fan button to cycle through the settings. The display will show the setting as the Fan button is pressed.

LIGHT

Press the Light button to turn the surface lights on or off.

NOTE: The Light button does not affect the internal light.

CARE AND MAINTENANCE

CLEANING

Turn off and unplug the appliance before performing any cleaning.

The inside of the appliance should be cleaned with a warm, damp cloth and mild detergents. Do not allow food splatters to build up on the inside of the appliance as this can affect the efficiency of the microwave and if sufficiently dirty, can ignite and cause fire.

The outside of the appliance should be cleaned with a warm, damp cloth. To avoid damage to internal components, do not allow any water to drip into the ventilation openings.

Clean the door and window on both sides, the door seals and the adjacent parts frequently with a damp cloth to remove any spills or splatters. Do not use abrasive cleaners.

Do not allow the control panel to become wet. If necessary, clean the control panel with a damp cloth and then wipe dry.

The glass tray can be removed and cleaned in warm water and mild detergent or can be placed in a dishwasher.

The roller ring and oven floor should be cleaned regularly to avoid excessive noise or spilling. The roller ring can be cleaned in warm water and mild detergent or can be placed in a dishwasher. Ensure that the roller ring and glass tray are replaced in the proper position to avoid noise or spilling.

GREASE FILTER

The grease filters should be removed and cleaned frequently to prevent accumulations of grease which may affect the efficiency of the fan.

The filters can be removed and washed in warm water with a mild detergent. Do not use abrasive cleaners.

Please ensure the filters are completely dry before reinserting into the microwave.

CARE AND MAINTENANCE

VENTILATION HOOD

The ventilation hood should be cleaned frequently to prevent accumulations of grease.

The ventilation hood can be cleaned with warm water and a mild detergent. Do not use abrasive cleaners.

MAINTENANCE

To remove odors from the microwave:

1. Combine a cup of water with the juice and skin of one lemon in a microwavable bowl.
2. Microwave on full power for 5 minutes.
3. Wipe the inside of the appliance and glass tray and roller ring thoroughly with a warm, damp cloth.

MICA SHEET

Inside the appliance there is a cardboard mica sheet protecting the magnetron. Do not remove this from the appliance as exposing the magnetron to food splatters can cause arcing or fire. If it becomes dirty, the mica sheet can be cleaned with a warm cloth.

DISPOSAL

This product should not be treated as ordinary household waste, it should be transported to the appropriate collection point for the recycling of electrical components. For information on local waste collection points, contact your local waste disposal agency or government office.

Limited "Carry-In" Warranty

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer. This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

Terms of Warranty

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 12 months

During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service

Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

It is the responsibility of the purchaser to transport the appliance to the nearest authorized service depot. Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

Exclusions

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

General Provisions

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1. Power failure.
2. Damage in transit or when moving the appliance.
3. Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4. Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (ie. extremely high or low room temperature).
5. Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6. Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7. Service calls resulting in customer education.
8. Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.

Line drawing of a hand operating a doorbell with a handle, showing no text or symbols

INSTRUCTIONS D'INSTALLATION

Diagram illustrating a mechanical or electrical installation with labeled components and an inset showing a detail of a component being inserted.

Diagram of a cabinet with labeled parts and directional arrows, likely illustrating electrical or mechanical system components.

Line drawing of a kitchen appliance with oven, air conditioner, and door (no text or symbols)

INSTRUCTIONS D'INSTALLATION

ÉVACUATION EXTÉRIEURE PAR L'ARRIÈRE

Diagram showing a hand holding a bottle next to a labeled tray with Chinese text, likely illustrating a device or control panel.

Technical line drawing of two identical electrical components with no text or symbols

INSTRUCTIONS D'INSTALLATION

Diagram illustrating a cable installation process with labeled steps and directional arrows indicating movement

Diagram showing a device setup with screwdrivers and indicator lights, labeled with number ②

Technical diagram showing a hand operating a cleaning or cleaning device with labeled components and a control panel.

Plaque de ventilation

Technical line drawing of a mechanical component with mounting holes and a directional arrow (no text or symbols)

INSTRUCTIONS D'INSTALLATION

Diagram illustrating a procedure for inserting a device into a wall, with an inset showing the step of adding a cable.

Diagram showing a device setup with screwdrivers and a wall-mounted power outlet, labeled with number 2.

REPLACEMENT DU FILTRE A CHARBON

L B D K J G F A Q E C F I H

VUE DU BAS

O Frontale P Arrière

Danby Products Limited, Guelph, Ontario, Canada N1H 6Z9

Danby Products Inc. Findlay, Ohio, U.S.A. 45840

www.danby.com
