USER MANUAL AC50B BLUETTI

Portable Power Station

User Manual v1.0

Please Read This Manual Before Use And Follow Its Guidance. Keep This Manual For Future Reference.

BLUETTI

⚠ Warning

1. Charge the unit before first use.
2. Do not use solar panels with open circuit voltage higher than 28V. Solar input voltage range for the unit is 12V-28V.
3. Charge the unit immediately when the SoC drops below 5%. If the SoC drops to 0, power off the unit and charge it for at least 30 minutes before restarting.
4. The unit is for off-grid use only. Do not connect its AC output to the grid.
5. If not used for more than 3 months, charge the unit to 40%-60% SoC and store it with the power off. For optimum battery life, discharge and charge the unit every 3 months.

Thank You

Thank you for making BLUETTI a part of your family.

From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions while delivering an exceptional eco-friendly experience for our homes and our world.

That's why BLUETTI makes its presence in 100+ countries and is trusted by millions of customers across the globe.

Canada USA Mexico Netherlands UK France Italy Germany Switzerland Sweden Austria China Japan Nigeria South Africa Singapore Philippines Malaysia Australia New Zealand

Copyright © Shenzhen PowerOak Newener Co., Ltd. All rights reserved.

No part of this document may be reproduced or transmitted in any form or by any means without the prior written consent of Shenzhen PowerOak Newener Co., Ltd.

Shenzhen PowerOak Newener Co., Ltd.

F19, BLD No.1, Kaidaer, Tongsha RD No.168, Xili street, Nanshan, Shenzhen, China Web: https://www.bluettipower.com

Notice

BLUETTI's products, services, and features are subject to the agreed-upon terms and conditions during purchase. Please note that some products, services, or features described in this manual may not be available under your purchase contract. Unless otherwise specified in the contract, BLUETTI makes no representations or warranties of any kind, express or implied, with respect to the contents of this manual.

The contents of this manual are subject to change without notice. Please get the latest version from: https://www.bluettipower.com/pages/user-guides

If you have any questions or concerns about this manual, please contact BLUETTI support for further assistance.

Symbol Conventions

This manual uses the following symbols to highlight important information:

Symbol	Category	Description
	Danger / Warning / Attention	It indicates a hazardous situation which, if not avoided, could result in death or serious injury.
	Notice / Hint	It indicates a potentially hazardous situation which, if not avoided, could cause substantial damage to property and the environment.

Contents

1 Safety Instructions 06
2 Packing List 10
3 Product Introduction 11
4 Product Overview 11
5 Power ON/OFF 12
6 LCD Display 13
7 Charging 15
8 Discharging 17
9 Settings 17
10 BLUETTI App 19
11 Specifications 20
12 Troubleshooting 21
Appx. 1 Estimating Operation Time 22
Appx. 2 FAQs 23
Appx. 3 Grounding Guidelines 24
Appx. 4 FCC Statement 25
Appx. 5 IC Caution 26
Appx. 6 Consignes de sécurité 26

1. Safety Instructions

Read this manual for instructions on the proper use and safety information for the product. The safety instructions provided herein are for illustrative purposes that include but are not limited to those listed in this manual. Actual operation shall comply with all applicable safety standards. If you have any questions, feel free to contact BLUETTI support or your local BLUETTI dealers.

1.1 Statement

To ensure a safe operation, it's crucial to observe and adhere to the following conditions:

• Always operate or store the product in the conditions specified in this manual.
- The installation and ambient conditions must comply with the requirements in the relevant international, national, or regional standards.
- Avoid unauthorized disassembly, component replacement, or modification of software codes.

BLUETTI shall not be liable for the following circumstances:

• Damage resulting from force majeure events such as earthquakes, fires, storms, floods, or mudslides.
• Damage caused by the customer's own transportation.
• Damage resulting from inadequate storage conditions as specified in the manual.
• Damage caused by customer negligence, improper operation, or intentional actions.
• System damage caused by third parties or customers, including but not limited to improper handling and installation not in accordance with the instructions in this manual.
• The product doesn't fulfill power supply needs for power-reliant equipment in critical sectors like atomic energy, aviation, medical, and other domains where safety is paramount. BLUETTI assumes no liability for incidents involving personal safety, fire, equipment malfunction, or any adverse aftermath resulting from using this product with such equipment.
• Damage caused by adjustments, changes, or removal of labels in violation of this manual.
• This product is not intended for use with devices that require a high-performance Uninterruptible Power Supply (UPS), including but not limited to data servers, workstations, medical equipment, and other similar devices. BLUETTI shall not be liable for any data loss, equipment damage, or personal injury resulting from the violation of this requirement.

1.2 General Requirements

INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS IMPORTANT SAFETY INSTRUCTIONS

⚠ WARNING - When using this product, basic precautions should always be followed, including the following:

• Read all the instructions before using the product.
• To reduce the risk of injury, close supervision is necessary when the product is used near children.
• Do not put fingers or hands into the product. And do not insert foreign objects into any ports of the product.
• Use of an attachment not recommended or sold by the manufacturer may result in a risk of fire, electric shock, or injury to persons.
• To reduce the risk of damage to the electric plug and cord, pull the plug rather than the cord when disconnecting the product.
• Do not use a battery pack or appliance that is damaged or modified, as they may exhibit unpredictable behavior resulting in fire, explosion, or personal injury.
• Do not operate the product with a damaged cord or plug, or a damaged output cable.
• Do not attempt to replace the internal battery or any other component of the product by anyone other than authorized personnel. There are no end-user serviceable components. Do not disassemble the product, take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or electric shock.
• To reduce the risk of electric shock, unplug the product from the outlet before attempting any instructed servicing.
• WARNING - RISK OF EXPLOSIVE GASES. To reduce the risk of battery explosion, follow these instructions and those published by the battery manufacturer and manufacturer of any equipment you intend to use in the vicinity of the battery. Review cautionary markings on these products and engines.
  • PERSONAL PRECAUTIONS
  a.Wear complete eye protection and clothing protection. Avoid touching eyes while working near the battery.
  b. Never smoke or allow a spark or flame in the vicinity of the battery or engine.
  c.Be extra cautious to reduce the risk of dropping a metal tool onto the battery. It might spark or short-circuit the battery or other electrical parts which may cause an explosion.
• When charging the internal battery, work in a well ventilated area and do not restrict ventilation in any way.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not expose the product to fire or excessive temperature. Exposure to fire or temperature above 130^ (266°F) may cause an explosion.

• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that safety is maintained.

• Do not stack anything on top of the product while in storage or use. Do not move the product while operating as vibrations and sudden impacts may lead to poor connections to the hardware inside.

• In case of fire, use only a dry powder fire extinguisher appropriate for the product.
• WARNING - RISK OF ELECTRIC SHOCK. Never use the product to supply power tools to cut or access live parts or live wirings, or materials that may contain live parts or live wirings inside, such as building walls, etc.
• The cigarette lighter port, categorized as PS3 according to the IEC 62368-1 standard, should take into account the fire safety measures of the connected devices or accessories (such as fire-resistant casings).

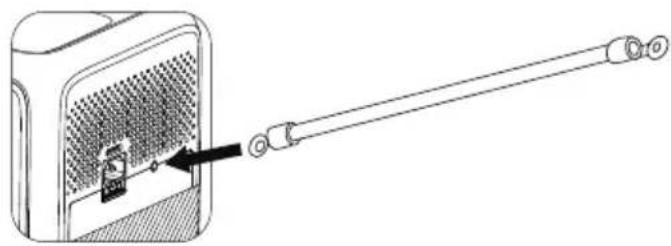

1.3 Grounding Instructions

When connecting this product to the power grid, ensure proper grounding for safety.

Grounding reduces the risk of electric shock in case of malfunctions. The AC power cord has a grounding plug, which should be inserted into a correctly installed grounded receptacle following local codes and regulations.

WARNING - Improper connection of the equipment-grounding conductor can

result in a risk of electric shock. Check with a qualified electrician if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product - if it does not fit the outlet, have a proper outlet installed by a qualified electrician.

1.4 Handling Requirements

During transportation or storage, take care to avoid dropping, violently impacting, or tilting the product as it may result in internal damage. If necessary, use mechanical assistance such as carts or adjustable height workbenches to ensure safe handling.

Recommended Number of People Based on the Weight of Product

Weight	Number of people
<18kg (39.7lbs)	1
18kg-32kg (39.7lbs-70.5lbs)	2
32kg-55kg (70.5lbs-121.3lbs)	3
>55kg (121.3lbs)	4 or a cart

1.5 Storage Instructions

• When the SoC drops to 5% , please charge the product immediately.

• Before storing the product, charge it to 40% to 60% SoC to keep it in optimal condition. In addition, power off the product and disconnect all electrical connections from it.

• Store the product in a cool and dry place, keeping it away from flammable or combustible materials and gases.

• The product can be safely stored within a temperature range of -20^ to 40^ (-4°F to 104^ ). However, if the storage duration exceeds one month, it's recommended to maintain an ideal storage temperature of around 30^ (86°F).
• Fully cycle the product every 3 months to maintain the battery's health. It's NOT recommended to store the product for extended periods of time, as it may affect its performance and overall lifespan.

If the SoC drops to 0 (during storage or upon startup), take the following actions to safely restart the product:

• Shut down immediately.
• Charge within 48 hours.
• Keep it at an ambient temperature of 5^ to 35^ (41°F to 95°F) for 6 hours before charging. It's recommended to charge the product via an AC source. If charging via solar energy, ensure that your solar system provides an output of more than 100W.

The symbol displayed is intended to remind you to read the instructions in the literature accompanying the product before operation and maintenance.

• Connect the product to a socket-outlet that has an earthing connection using the power cord provided.
• The socket-outlet should be installed near the product and easily accessible for safety purposes.
• Never dispose of a battery by throwing it into fire or a hot oven, or by mechanically crushing or cutting it, as these may cause it to explode.
• Avoid leaving batteries in extremely high-temperature environments, as this can result in an explosion or the leakage of flammable liquid or gas.
• The battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.
• Attention should be drawn to the environmental aspects of battery disposal.
• Please refer to the information on the exterior bottom enclosure for electrical and safety information before installing or operating the apparatus.

SAVE THESE INSTRUCTIONS

⚠ BLUETTI shall not be liable for any equipment damage caused by the violation of the above instructions.

2. Packing List

Standard Packaging

Item Picture Qty.
Portable Power Station		1
AC Charging Cable		1
Car Charging Cable		1
Solar Charging Cable		1
Grounding Screws		1
User Manual		1
Warranty Card		1

Optional Accessories

(Available on the official BLUETTI website: https://www.bluettipower.com)

Item Picture
USB-C to USB-C Cable (Output)
Cigarette Lighter to DC5521 Cable (For 12V devices with DC5521 port, such as routers, cameras, etc.)

3. Product Introduction

Introducing the AC50B portable power station—a reliable power solution with a 700W pure sine wave inverter and a 448Wh lithium iron phosphate (LiFePO4) battery.

Engineered for safety, portability, and reliability, it's ideal for keeping essential devices like car fridges, water heaters, fans, and laptops charged during your journeys.

Designed for efficiency, the AC50B features Turbo charging, allowing it to reach an 80% charge in just 45 minutes at a room temperature of 25°C with proper ventilation.

Achieving a full 100% charge takes roughly 70 minutes. If solar charging is your preference, it can fully charge in 3 hours. The AC50B is your practical and efficient power solution for on-the-go energy needs.

Attention

Do not connect the AC output of AC50B to the grid.

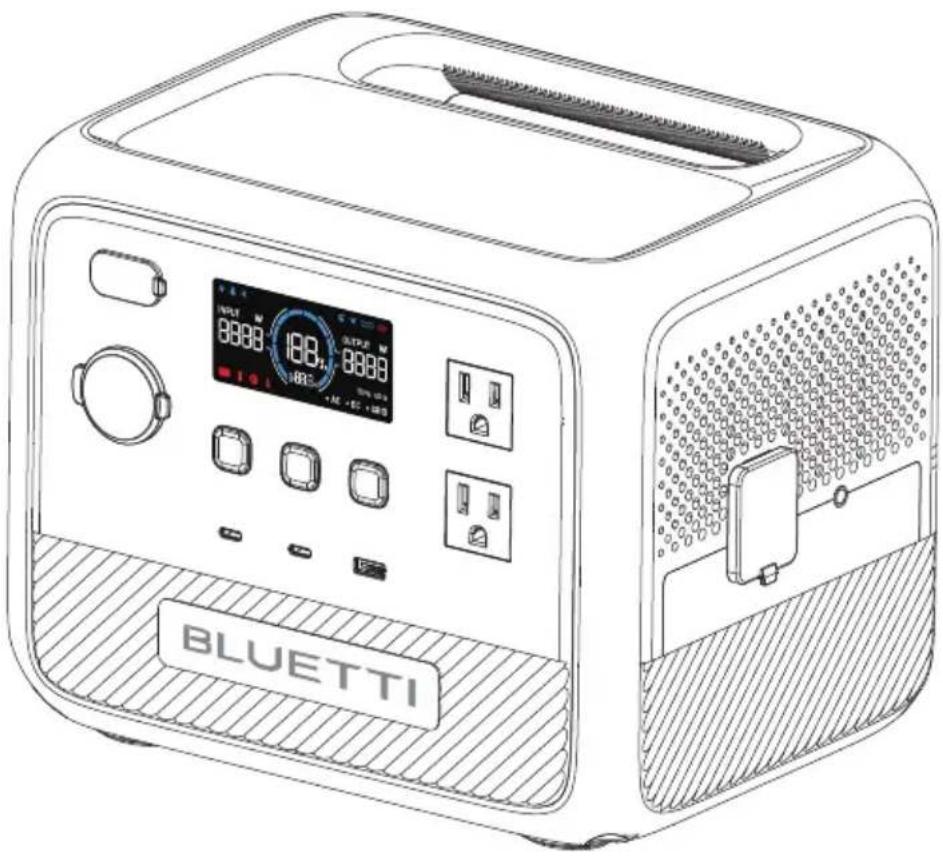

4. Product Overview

134562 8888 8888 11 10 9 BLUETTI 7 8

① DC Input
② DC Power Button
③ LCD Display
④ AC Power Button
⑤ AC Outlet
⑥ USB-A Port

⑦ Grounding Terminal*
⑧ AC Input
⑨ USB-C Port
⑩ POWER Button
⑪ Cigarette Lighter Port

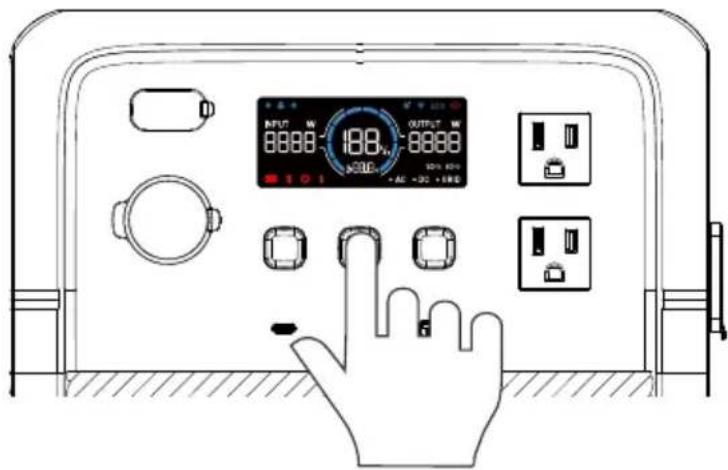

5. Power ON/OFF

OUTPUT: W 8888 180V 8888 300V AC-22+180S

• Power ON: Press and hold ( ⏻ ) for about 2 seconds, the button lights up indicating that the AC50B is now on standby.
• Power OFF: Press and hold ( ⏻ ) for about 2 seconds to turn off the unit.
• AC ON/OFF: When the AC50B is on, press the AC power button to turn it on/off.
• DC ON / OFF: When the AC50B is on, press the DC power button to turn it on / off.
• Restart: Power off the AC50B first, then press and hold (⏻) for about 2 seconds to restart.

Note:

When the AC50B is on, you can activate the LCD display by interacting with any of the buttons.

6. LCD Display

The AC50B features an informative LCD display that offers easy access to all the essential information about the unit's status and performance. When you power on the unit, the LCD display lights up, and when you power off the unit, the display turns off as well.

INPUT W 8880 188% OUTPUT W 8880 50Hz 60Hz AC DC GRID ①②③ ④⑤⑥⑦⑧ ⑨ ⑩ ⑪⑫⑬⑭ ⑫⑬⑭ ⑬⑮⑯ ⑭⑰⑱ ⑮⑯⑰ ⑯⑰⑱⑲

① Fan Status
② PV Input
③ Bluetooth Connection
④ Battery Capacity (SoC)
⑤ Power Lifting Mode
⑥ Turbo Charging
⑦ ECO Mode
⑧ Low Battery Alert
⑨ Output Power
⑩ AC Output Frequency
⑪ Grid Connection

⑫ DC Output
⑬ AC Output
⑭ Charge / Discharge Remaining Time
⑮ Charge / Discharge Status
⑯ Temperature Abnormal
⑰ Overload Alert
⑱ Overcurrent Alert
⑲ Fault Alert
⑳ Charge / Discharge Progress
②1 Input Power

LCD Instructions
Fan on or abnormal		displays or flashes
PV input		displays
Bluetooth connected		displays
State of Charge
Power Lifting Mode enabled		displays
Turbo Charging enabled		displays
ECO Mode enabled		displays
Battery low (below 5%)		displays
AC/DC output power
AC output frequency		displays
AC input		displays
DC output enabled		displays
AC output enabled		displays
Remaining charge / discharge time (hour)		displays
: Charging; : Discharging		displays
Battery / unit overheating		displays
Overload	[AZSH]	displays
Overcurrent	[2TG2]	displays
Error report	[HXSC]	displays
Remaining battery level (10% per bar)		[236Y]
Input power

7.Charging

AC50B supports four charging methods: AC, solar, car, and generator.

Attention

• Double-check that all cables are firmly plugged in.
• Avoid getting the plug and socket wet to prevent any potential damage.

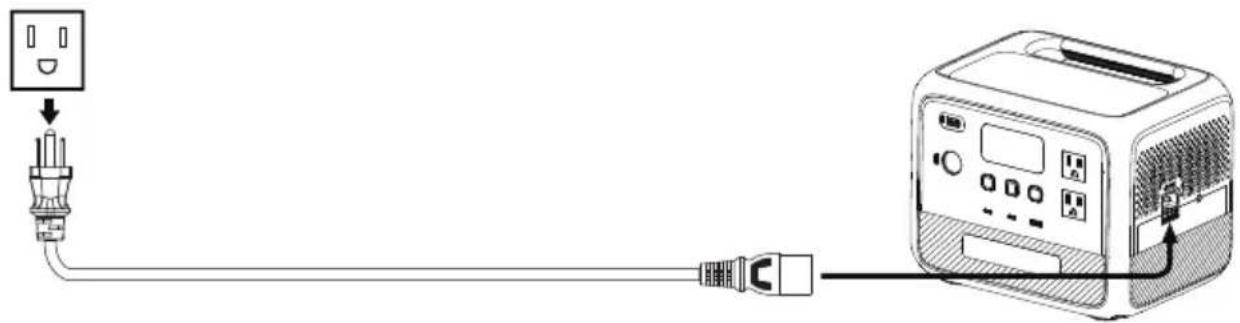

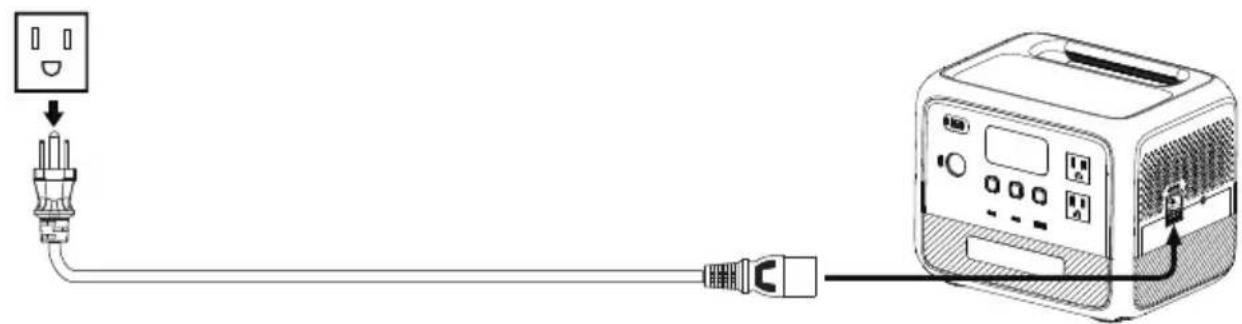

7.1 AC Charging

Plug the AC50B into a standard wall outlet and start charging. Once it's fully charged, the AC50B automatically stops charging to prevent overcharging. For a fast charge, you can enable Turbo Charging in the BLUETTI app, which allows for an 80% capacity in just 45 minutes at an ambient temperature of 25°C (77°F).

Diagram showing connections between a power outlet, plug, and a portable device (no text or symbols present)

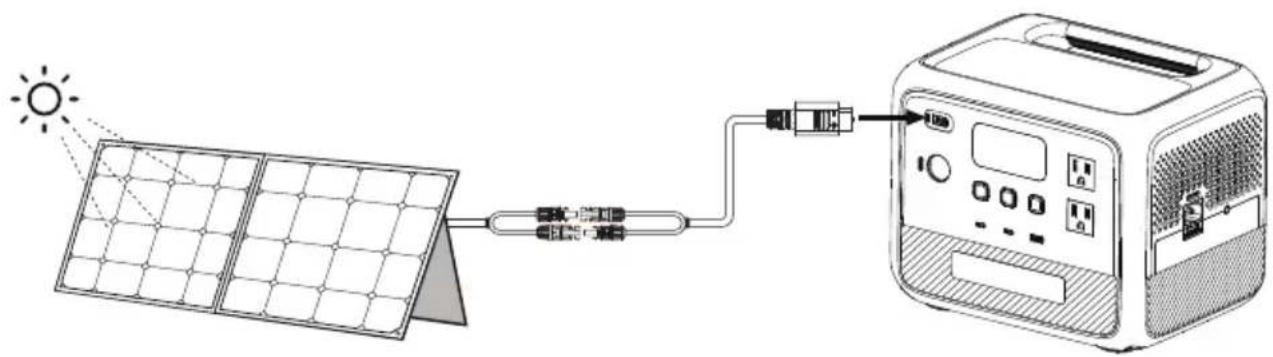

7.2 Solar Charging

Connect the solar panels (in series or parallel) to AC50B via the solar charging cable. When receiving a continuous input of 200W, the AC50B will automatically stop charging within 3 hours. However, please be aware that the charging time may vary based on weather conditions, sunlight intensity, panel orientation, and other variables.

Note:

Make sure your solar panel(s) meet the following requirements:

Voc: 12V-28V Current: 8.5A Max. Power: 200W Max.

Diagram showing solar panel connection to a portable device with labeled components and signal path

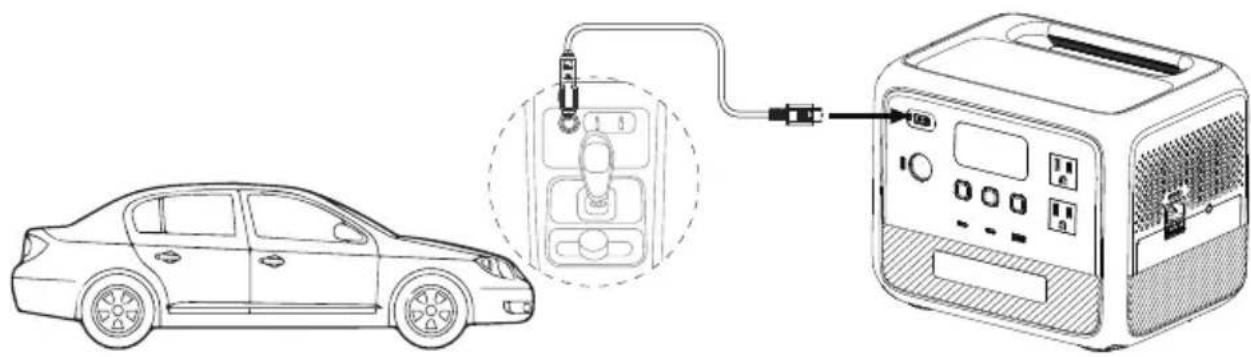

7.3 Car Charging

Connect the AC50B to the vehicle's 12V / 24V cigarette lighter port via the car charging cable. The AC50B also automatically stops charging when it's fully charged. On average, it takes about 5-7 hours to refill the AC50B using a 12V port and 3-4 hours with a 24V port at an ambient temperature of 25^ (77°F).

Note: Make sure your vehicle meets the following conditions for charging:

• The vehicle is capable of supplying power.
• The vehicle's engine is running during the charging process.

Diagram showing car connected to a device with labeled ports and wiring, including a magnified inset of the device's internal components.

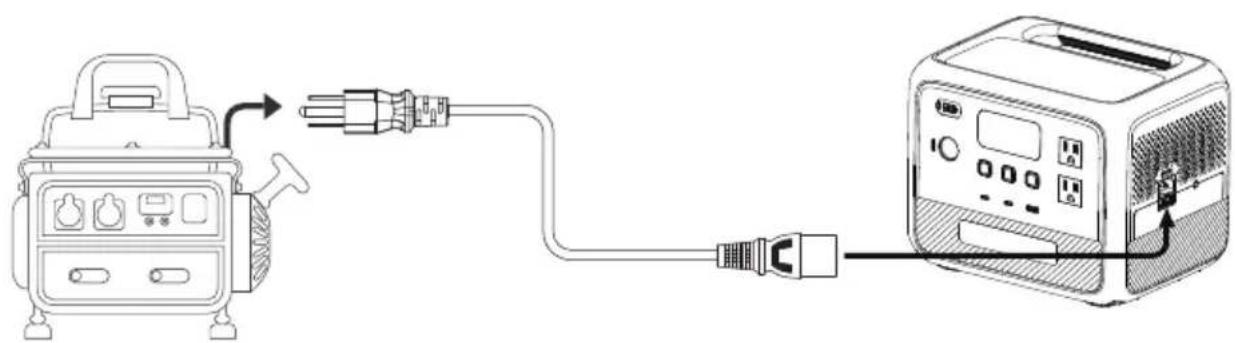

7.4 Generator Charging

Connect the AC50B to a generator via the AC charging cable. The AC50B also automatically stops charging when it's fully charged. It takes approximately 1.2 hours to reach a full charge at an ambient temperature of 25^ (77°F) if the generator output is stable.

Line drawing of a portable device connected to an electric heater via cable (no text or symbols)

Note:

• Make sure your generator delivers pure sine wave AC output with charging voltage and frequency that meet AC50B's specifications.
- If the total power demand of your connected devices exceeds the generator's output capacity, please turn on the Grid Self-adaption Mode to ensure a seamless charging experience.
- For stable and efficient charging, avoid using unreliable power sources like wind turbines.

8. Discharging

8.1 AC Discharging

Item Specifications Compatible Loads
	100V / 120V50Hz / 60Hz

Note: Do not apply AC50B to loads higher than 700W, as this may cause damage to AC50B and your devices.

8.2 DC Discharging

Item Specifications Compatible Loads
1 × Cigarette Lighter Port	12V / 10A	12V DC appliances up to 120W power. e.g. car refrigerator
2 × USB-A Port 5V / 3A		Mobile phones and other small loads.
2 × USB-C Port	5/9/12/15/20V, 3A; 20V / 3.25A	Mobile phones, laptops, etc.

Note:

To ensure optimal performance, avoid short-circuiting the ports and keep them dry during use or storage. Additionally, do not block or cover the ports while ensuring proper ventilation.

9. Settings

The AC50B offers the convenience of adjusting its settings either via physical buttons or the BLUETTI app. With the buttons located on the device itself, you have direct control over various settings such as ECO Mode, output frequency, charging modes, and other functionalities. Additionally, by using the BLUETTI app, you can access a user-friendly interface on your phone to conveniently monitor and control the AC50B.

9.1 Enter Setting Mode

When the display is on and the AC output is off, press and hold the AC and DC power buttons for about 2 seconds till the output frequency flashes to enter the Setting Mode.

9.2 Frequency Switching

The current output frequency (50Hz / 60Hz) is displayed in the lower right corner of the display. In the Setting Mode, press the DC power button to navigate to page P01; the frequency will appear. Then, press the AC power button to switch the frequency options based on your requirements.

9.3 AC Charging Mode

The AC50B supports 3 AC charging modes - Standard, Turbo, and Silent, all configurable via the app. Alternatively, in the Setting Mode, navigate to page P03 using the DC power button; the (▼) icon will start flashing on the screen. Then, press the AC power button to enable or disable the Turbo charging mode.

Mode	Recharging Power			Recharging Time Note Icon	Note Icon
	AC PV	V AC+PV
Standard	270W	200W	295W	3 hours	More friendly to AC50B's battery.	None
Turbo	580W	200W	580W	80% charge in 45 minutes; full charge in 70 minutes	Comes in handy when recharging time is a priority.
Silent	108W	106W	200W	5 hours	Offers a quiet, low-power operation for long battery life.	None

9.4 Power Lifting Mode

Power Lifting Mode allows AC50B to handle high-power resistive loads up to 1000W, including electric blankets, kettles, hairdryers, and other heating devices. To enable it, access the Setting Mode, navigate to page P04 using the DC power button; the ( ) icon will appear. Then, press the AC power button to enable or disable the mode.

Note:

• The Power Lifting Mode is not enabled by default and is only suitable for resistive loads with a power rating between 700W-1000W.
• Although the AC50B can handle higher power demands, its actual operating power remains at 700W.

9.5 ECO Mode

ECO Mode is a power-saving mode that is enabled by default. When operating on ECO Mode, the AC / DC output will automatically turn off if the AC50B is bearing low (default 10W for AC, 5W for DC) or no load for a while. You can adjust these thresholds using the app if needed.

Note:

When connecting a small power device, disable the ECO Mode for a successful and uninterrupted charge experience.

In the Setting Mode, navigate to page P05 using the DC power button; the (ECO) icon will appear. Then, press the AC power button to enable or disable the mode.

9.6 Bluetooth On/Off

In the Setting Mode, navigate to page P06 using the DC power button; the (*) icon will start flashing on the screen. Then, press the AC power button to turn the Bluetooth on or off.

9.7 Grid Self-adaption Mode

If you're charging the AC50B using an unstable generator or grid voltage, and the total power demand of your connected devices exceeds the AC50B's input power, it is recommended that you enable the Grid Self-adaption Mode through the BLUETTI app to ensure a stable, safe charging experience for both the AC50B and your devices.

9.8 Exit Setting Mode

To save your AC50B settings and exit the Setting Mode, press and hold both the AC and DC power buttons at the same time.

Note:

If you do not perform any operation in 1 minute, the AC50B will automatically exit the Setting Mode, and no changes will be saved.

10. BLUETTI App

Scan the QR code below or search "BLUETTI" in the App Store or Google Play to download the BLUETTI app.

QR code with a blue triangular logo in the center, likely linking to a digital resource or website.

For more details, please refer to the product's BLUETTI App User Manual.

1. Specifications

Model AC50B
Country / Region	JP	US CN EU/UK/AU/SA
Battery Capacity	448Wh / 20Ah
Cell Type	Lithium Iron Phosphate (LFP)
AC + DC Input	580W Max.
Net Weight	About 7.5kg / 16.53lbs
Dimensions (L × W × H)	280mm × 200mm × 220mm / 11in × 7.9in × 8.7in
Charging Temperature	0°C to 40°C / 32°F to 104°F
Discharging Temperature	-20°C to 40°C / -4°F to 104°F
Storage Temperature	-20°C to 40°C / -4°F to 104°F
Working Humidity	10% to 90%
AC Output
Power	700W in total
Voltage	100VAC	120VAC	220VAC	230VAC
Current	7A	5.8A	3.2A	3.0A
Frequency	50Hz / 60Hz
DC Output
Cigarette Lighter Port × 1	12V / 10A
USB-A × 1	5V / 3A
USB-C × 2	5 / 9 / 12 / 15 / 20V, 3A; 20V / 3.25A
AC Input
Voltage	100VAC	120VAC	220VAC	230VAC
Max. Current	8A	8A	4.5A	4.3A
Frequency	50Hz / 60Hz
UPS	Switching time ≤20ms
Charging Power	580W Max. (0%-80% in 45 minutes @ 25°C / 77°F)
DC Input
Interface	XT60PM-M
Power	200W Max.
Current	8.5A Max.
Voltage	12V to 28V

12.Troubleshooting

In the Setting Mode, press and hold the DC power button for more than 2 seconds until the error code appears on the display. Please refer to the table below for helpful guidance.

Error Code	Description	Troubleshooting
E001	Inverter overload	Check if the power consumption of your devices is too high. Reduce the load if necessary.
E002	Temperature protection	Check if any of your devices are overheating. Allow them to cool down before use.
E003	Inverter short circuit	Check if the power consumption of your devices is too high. Reduce the load if necessary.
E004	Output failure	Ensure the output voltage is within ±10% of the rated voltage or proper grid connection.
E016	Fan failure	Check if the fan is blocked, unplugged, or not functioning properly. Ensure proper ventilation.
E033	PV overvoltage	Make sure the PV input voltage is within the range of 12V to 28VDC.
E065	Cigarette lighter output short circuit	Check if the power consumption of your devices is too high. Reduce the load if necessary.
E068	Cigarette lighter output overtemperature	Wait for the device connected to the cigarette lighter port to cool down.
E085	Charging temperature too high	Wait for the unit to cool down before charging.
E086	Charging temperature too low	Make sure the unit is placed in an ambient temperature of 0°C-40°C (32°F-104°F).
E087	Discharging temperature too high	Wait for the unit to cool down before discharging.
E088	Discharging temperature too low	Make sure the unit is placed in an ambient temperature of 0°C-40°C (32°F-104°F).
E113	Grid overvoltage	Check if the grid voltage is too high. Contact your local power provider if necessary.
E114	Grid undervoltage	Check if the grid voltage is too low. Contact your local power provider if necessary.
E115	Grid overfrequency	Check if the grid frequency is too high. Contact your local power provider if necessary.
E116	Grid underfrequency	Check if the grid frequency is too low. Contact your local power provider if necessary.
E117	Grid oscillation	Disconnect the grid input and contact BLUETTI support for further assistance.
Others	/	Please contact BLUETTI support for assistance.

Appx. 1 Estimating Operation Time

To estimate the operation time of the AC50B, consider the load you're applying:

- For high-power loads (above 300W):

Operation time = Battery Capacity (Wh) × DoD × η ÷ Load Power

- For small-power loads (below 300W):

Operation time = Battery Capacity (Wh) × DoD × η ÷ (Load Power + AC50B Self-consumption)

Note:

DoD refers to the depth of discharge. AC50B works at 90% DoD for longer battery life.

is the conversion efficiency of the inverter, typically over 85% for AC50B.

The self-consumption of AC50B is approximately 10W

E.g. If you have a 40W refrigerator, you can run it for about 6.8 hours.

Operation time = 448Wh × 90% × 85% ÷ (40W + 10W) ≈ 6.8 hours.

Please keep in mind that the estimated operation time provided is for reference purposes and may vary based on actual usage conditions. Factors such as low temperature and excessive loads can significantly affect the battery capacity, leading to a reduction in the average operation time.

Appx. 2 FAQs

Q1: How do I know whether my devices will work well with this product?

A: Please evaluate the total constant load of your devices. If it doesn't exceed the Max. output power of AC50B (700W), you can use this power station to run your devices. Note: Some devices with built-in motors or compressors may start at 2-4 times the rated power, which can easily overload the AC50B.

Q2: Can I use third-party solar panels to charge this product?

A: Yes, you can. However, make sure your solar panels have an open circuit voltage of 12V-28V and are equipped with MC4 connectors. It's also important not to mix different types of solar panels.

Q3: Can it charge and discharge at the same time?

A: Yes. It supports pass-through charging. The AC50B comes with the premium LiFePO _4 battery and proprietary Battery Management System to ensure that it can charge and discharge at the same time.

Q4: What is ECO Mode and can I turn it off?

A: ECO Mode is a power-saving mode that is enabled by default. When operating on ECO Mode, the AC / DC output will automatically turn off if the AC50B is bearing low (default 10W for AC, 5W for DC) or no load for a while. You can adjust these thresholds using the app if needed. When connecting a small power device, disable the ECO Mode for a successful and uninterrupted charging experience.

Q5: Why is the charging power often too low?

A: AC50B has a built-in intelligent BMS that automatically adjusts the charging power in response to the battery temperature and SoC, thus protecting the battery and extending its service life.

Appx. 3 Grounding Guidelines

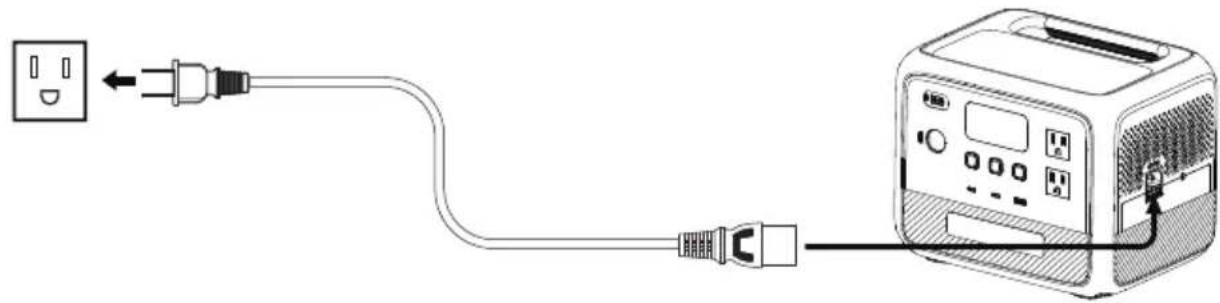

Only use the grounding terminal when the AC50B is connected to the home grid using a 2-pin cable, or if the wall outlet's grounding is ineffective, and the connected device features a metal case.

Diagram of a power outlet connected to a portable device via cable (no text or symbols)

Use a cable with OT terminals for grounding. Connect one end to the grounding terminal with a grounding screw and the other end to the wall outlet or home distribution box ground.

Diagram of a device with a sensor or connector inserted into a panel, showing no text or symbols.

The grounding terminal is unnecessary in the following scenarios.

- When connecting the AC50B to the wall outlet with a 3-pin cable, it's already grounded effectively.

Diagram showing connection between a power outlet, plug, and a portable device (no text or symbols present)

- When the AC50B is not connected to the grid, touching its case won't cause an electrical shock.

Appx. 4 FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

IMPORTANT NOTE: FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body.

Appx. 5 IC Caution

This device contains licence-exempt transmitter(s) / receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

RF exposure statement: The equipment complies with IC Radiation exposure limits set forth for uncontrolled environments. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.

CAN ICES-3 (B)/NMB-3(B) (Canada)

This Class B digital apparatus complies with Canadian ICES-003.

Le poids	Nombre de personnes
<18kg (39.7lbs)	1
18kg-32kg (39.7lbs-70.5lbs)	2
32kg-55kg (70.5lbs-121.3lbs)	3
>55kg (121.3lbs)	4 ou un chariot

5) Instructions de stockage

For more information, please visit:

Web: https://www.bluettipower.com

@ BLUETTI Support

@ BLUETTI Official

@bluetti_inc

@bluetti.inc

@bluetti_official

service@ bluettipower.com

SHENZHEN POWEROAK NEWENER CO., LTD.

Add: F19, BLD No.1, Kaidaer, Tongsha Rd No.168, Xili Street, Nanshan, Shenzhen, China

USA Company

Company: BLUETTI POWEROAK INC

Add: 6185 S VALLEY VIEW BLVD STE D LAS VEGAS

NEVADA 89118 United States

FRN: 0033559824

Customer Service

Tel: [phone] (Monday to Sunday 9:00-17:00)

Email: [e-mail] (Pre-sales),

[e-mail] (After-sales)

QR code with a blue triangular logo in the center, likely linking to a digital resource or website.

Abstract geometric logo design with black and white triangular shapes (no text or symbols)

BLUETTI

[Non-Text]

L

Certificate

Inspector:

QC: ____

Just Power On

P/N:17.0303.0737-00A0
