USER MANUAL DRS425300SR SAMSUNG

Built-In Refrigerator

DRS4253****

Contents

Important Information 4

Before You Begin 4

Safety information 5

What you need to know about the safety instructions 5

Important safety symbols and precautions: 6

State of California Proposition 65 Warning 6

Important safety precautions 6

Severe warning signs for transportation and site 8

Critical installation warnings 9

Installation cautions 11

Critical usage warnings 11

Usage cautions 14

Cleaning cautions 15

Critical disposal warnings 16

Refrigerator Features 17

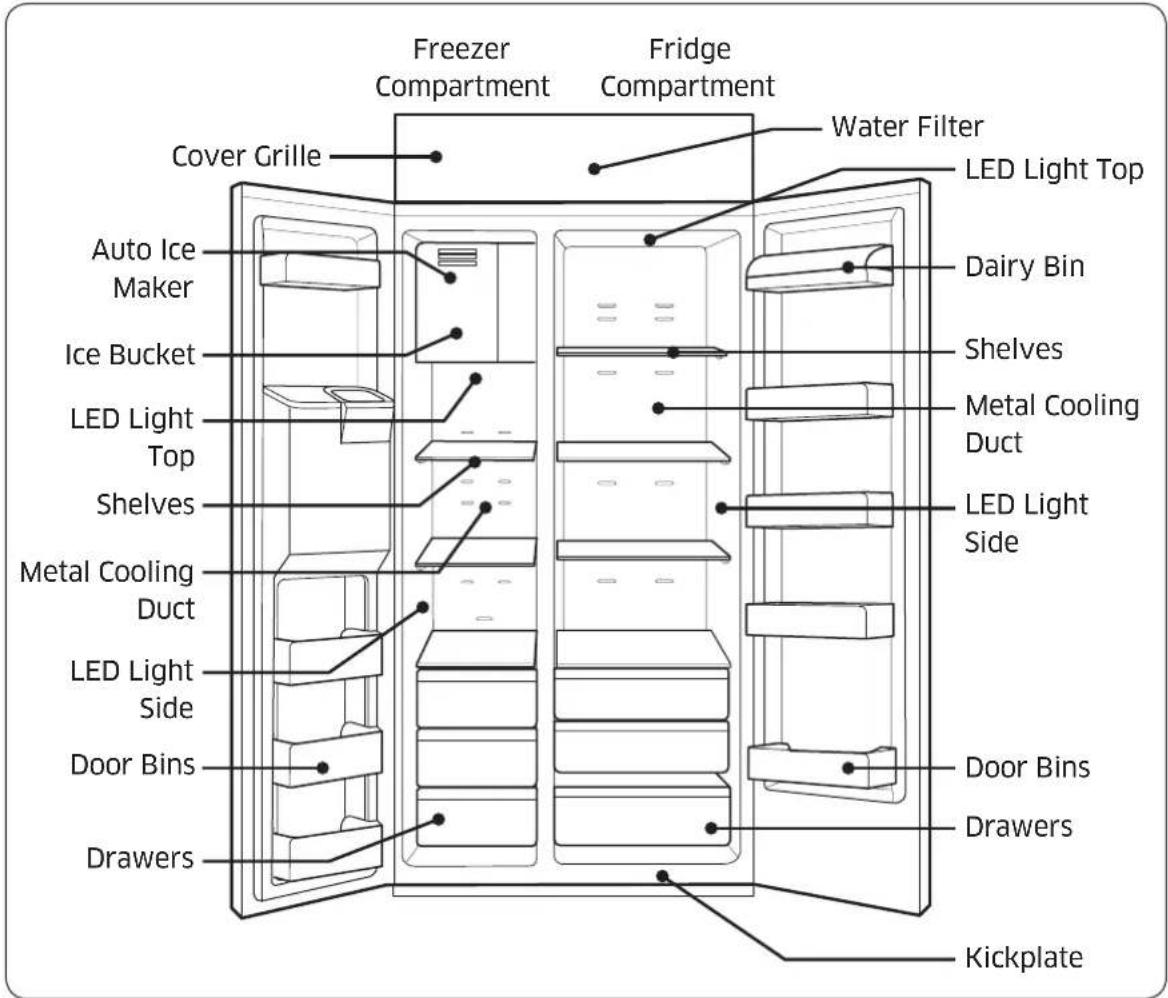

Inside Parts, Storage, and Shelving 17

Outside Parts, Control Panel Detail, and Dispenser Features 18

Using the Refrigerator 19

Refrigerator Control Panel 19

SmartThings 26

About the SMART GRID Function (Demand Response) 29

Special features 34

Door Closure Systems 36

Handle and care 37

Replacement 39

Care and Maintenance 40

Cleaning 40

Replacement 41

English2

Troubleshooting 42

Settings 42

General 43

Do you hear abnormal sounds from the refrigerator? 47

SmartThings 49

Smart Grid 50

Warranty 51

United States - Warranty 51

CANADA - Warranty 55

Regulatory Notice 61

FCC Notice 61

IC Notice 62

Open Source Announcement 63

Important Information

Before You Begin

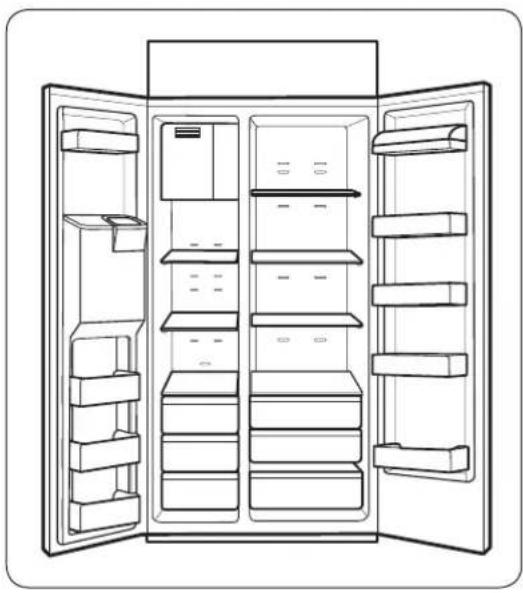

Line drawing of an open refrigerator with multiple shelves and doors (no text or symbols)

Installer

- Leave these Use and Care instructions with the appliance.

Consumer

- Please read this Use and Care Manual completely before using your refrigerator. Save it for future reference.

Retain your sales receipt or canceled check. Proof of original purchase date is required for warranty service.

Have the complete model and serial number identification for your appliance ready.

These numbers are found on the label located inside of the refrigerator wall. Record these numbers below for easy access.

Model Number
Serial Number
Date of Purchase

English4

Safety information

Before using your new Dacor Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.

What you need to know about the safety instructions

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Because the following instructions cover various models, the characteristics of your refrigerator may differ slightly from the refrigerator described in this manual.
• If you have any question, find help and information online at www.Dacor.com.
• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked flames and move anything flammable away from the product and ventilate the room immediately.
• Failing to do so may result in fire or explosion.
• Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance.
  The marked rating of the extension cord should be AC 115-120 V, 10 A, or more. If a grounding adapter is used, make sure the receptacle box is fully grounded.

Safety Information

Important safety symbols and precautions:

Please follow all safety instructions in this manual. This manual uses the following safety symbols.

WARNING

Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death.

CAUTION

Hazards or unsafe practices that may result in severe personal injury and/or property damage.

NOTE

Useful information that helps users understand or benefit from the refrigerator.

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

State of California Proposition 65 Warning

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Important safety precautions

WARNING; Risk of fire / flammable materials

WARNING

• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator. If this product contains flammable gas (Refrigerant R-600a or R-134a), contact your local authority in regard to safe disposal of this product.
• The installation location should not be exposed to direct sunlight and not placed near any electric appliance or heat source, e.g. stove, oven or hob, radiator, etc.

English6

• If you use two products side by side, for safety reason, be sure to use certified products in explosive gas atmospheres.
• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency. It must be outside the area of the rear of the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• New hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

• Fill with potable water only.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of The appliance, unless they are of the type recommended by the manufacturer.
• Connect to potable water supply only.

WARNING

- Risk of child entrapment. Before you throw away your old refrigerator or freezer:

• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.

Safety Information

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
  • catering and similar non-retail applications.

Severe warning signs for transportation and site

WARNING

- When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

- Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

- When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

English8

Critical installation warnings

WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact with water.
• Deteriorated insulation on electrical parts may cause an electric shock or fire.
• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.
• Do not plug several appliances and the refrigerator into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator's rating plate.
• This provides the best performance and also prevents overloading of house wiring circuits, which could overheat the wires and cause a fire hazard.
• If the wall socket is loose, do not insert the power plug.
• There is a risk of electric shock or fire.
• Do not use a power cord that has cracks or abrasion damage along its length or at either end.
• Do not bend the power cord excessively or place heavy objects on it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.
• Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.
• Damage to the cord may cause a short-circuit, fire, and/or electric shock.
• Do not install this appliance near a heater or flammable material.
• Do not install this appliance in a location where gas may leak.
• This may result in an electric shock or fire.
• This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.
• Connect the power plug in the proper position with the cord hanging down.
• If you connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.
• Make sure that the power plug is not crushed or damaged by the back of the refrigerator.

English 9

Safety Information

• Keep the packing materials out of reach of children.
• There is a risk of death from suffocation if a child puts the packing materials on his or her head.
• The appliance must be positioned so that the plug is accessible after installation.
• Failing to do so may result in an electric shock or fire due to electric leakage.
• Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or to water (rain drops).
• Deteriorated insulation on electrical parts may cause an electric shock or fire.
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact a Dacor service center.
• Otherwise there is a risk of fire.
• You need to remove all the protective plastic film before you initially plug the product in.
• Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips.
• There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children's reach.
• The refrigerator must be safely grounded.
• Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.
• Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground.
• You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator.
• Current leakage may result in an electric shock, fire, explosion, or problems with the product.
• Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord, or loose wall socket.
• This may result in an electric shock or fire.
• Only a qualified technician or service company should be allowed to change the fuse in the refrigerator.
• Failing to do so may result in an electric shock or personal injury.
• To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

English10

Installation cautions

CAUTION

- Allow sufficient space around the refrigerator and install it on a flat surface.

- Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.

• After you have installed the refrigerator and turned it on, allow the appliance to stand for 2 hours before loading it with food.
• It is strongly recommended you have a qualified technician or service company install the refrigerator.

- Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.

• Overloading one door may make the refrigerator fall, causing physical injury.

Critical usage warnings

WARNING

- Do not insert the power plug into a wall socket with wet hands.

- This may result in an electric shock.

- Do not store articles on the top of the appliance.

- When you open or close the door, the articles may fall and cause personal injury and/or material damage.

- Do not insert hands, feet, or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator.

• This may result in an electric shock or injury.
• Any sharp edges may cause a personal injury.

- Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.

- This may cause frostbite.

- Do not put a container filled with water on the refrigerator.

- If spilled, there is a risk of fire or electric shock.

- Do not keep volatile or flammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator.

• This refrigerator is for storing food only.
• This may result in fire or explosion.

• Children should be supervised to ensure that they do not play with the appliance.

- Keep fingers out of "pinch point" areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

English 11

Safety Information

• Do not let children hang on the door or door bins. A serious injury may occur.
• Do not let children go inside the refrigerator. They could become trapped.
• Do not insert your hands into the area under the appliance.
• Any sharp edges may cause personal injury.
• Do not store pharmaceutical products, scientific materials, or temperature sensitive products in the refrigerator.
• Products that require strict temperature controls must not be stored in the refrigerator.
• Do not place or use electrical appliances inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer.
• If you smell smoke, pull out the power plug immediately, and then contact a Dacor service center.
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact your Dacor service center.
• Otherwise there is a risk of fire.
• Do not let children step on a drawer.
• The drawer may break and cause them to slip.
• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter the refrigerator.
• Do not allow babies or children to go into a drawer.
• It can cause death from suffocation by entrapment or personal injury.
• Do not overfill the refrigerator with food.
• When you open the door, an item may fall out and cause personal injury or material damage.
• Do not spray volatile material such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, it may also result in an electric shock, fire, or problems with the product.
• Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker bucket.
• It may cause a personal injury or material damage.
• Do not use or place any substances sensitive to temperature such as flammable sprays, flammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.
• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator to remove bad odors.
• This may result in an electric shock or fire.
• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or purified water).
• Do not fill the tank with tea, juice, or a sports drink. They can damage the refrigerator.

English12

- Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, fire, problems with the product, or injury. Do not put a container filled with water on the appliance.

- If spilled, there is a risk of fire or electric shock.

- Never stare directly at the UV LED lamp for long periods of time.

- This may result in eye strain due to the ultraviolet rays.

- Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not work.

- The glass shelf could fall and cause personal injury.

- If a gas leak is detected, avoid any naked flames or potential sources of ignition, and air the room in which the appliance is standing for several minutes.

- Do not touch the appliance or power cord.

- Do not use a ventilating fan.

- A spark may result in an explosion or fire.

- Use only the LED Lamps provided by the manufacturer or its service agents.

- Bottles should be stored tightly together so that they do not fall over or out.

- This product is intended only for the storage of food in a domestic environment.

- Do not attempt to repair, disassemble, or modify the refrigerator yourself.

- Unauthorized modifications can cause safety problems. To reverse an unauthorized modification, we will charge the full cost of parts and labor.

- Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.

- If your refrigerator needs to be repaired or reinstalled, contact your nearest Dacor service center.

- Failing to do so may result in an electric shock, fire, problems with the product, or injury.

- If the interior or exterior LED lamp has gone out, contact your nearest Dacor service center.

- If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact a Dacor service center.

- Failing to do so may result in an electric or fire hazards.

- Pull the power plug out of the socket before changing the interior lamps of the refrigerator.

- Otherwise, there is a risk of electric shock.

- If you experience difficulty changing a non-LED light, contact a Dacor service center.

- If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself.

- Contact a Dacor service center.

- Plug the power plug into the wall socket firmly.

Safety Information

- Do not use a damaged power plug, damaged power cord, or loose wall socket.

- This may result in an electric shock or fire.

Usage cautions

CAUTION

- Do not re-freeze frozen foods that have thawed completely. Do not place carbonated or fizzy drinks in the freezer compartment. Do not put bottles or glass containers in the freezer.

- When the contents freeze, the glass may break and cause personal injury.

• Use only the ice maker provided with the refrigerator.
  • To get the best performance from the product:

• Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment.

• Wrap food up properly or place it in airtight containers before putting it into the refrigerator.
• Please observe maximum storage times and expiration dates of frozen goods.

- Do not put glass containers or bottles or carbonated beverages into the freezer.

- The container may freeze and break, and this may result in injury.

• Service Warranty and Modification.

- Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Dacor warranty service, nor is Dacor responsible for safety issues that result from 3rd party modifications.

- Do not block the air vents inside the refrigerator.

- If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled.

• If the refrigerator is disconnected from the power supply, you should wait for at least five minutes before plugging it back in.
• If large amounts of water enter the refrigerator, pull out the power plug and contact a Dacor service center.
• Do not strike or apply excessive force to any glass surface.

- Broken glass may result in a personal injury and/or property damage.

- Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or purified water).

- Do not fill the tank with tea, juice, or a sports drink. They can damage the refrigerator.

English14

• If the refrigerator is flooded, shut off the power to the refrigerator and contact your nearest Dacor service center.
• There is a risk of electric shock or fire.
• Do not keep vegetable oil in your refrigerator's door bins. The oil can solidify, making it foul-tasting and difficult to use. In addition, the open container can leak and the leaked oil can cause the door bin to crack. After opening an oil container, it is best to keep the container in a cool and shaded place such as a cupboard or pantry.
• Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc.

Cleaning cautions

CAUTION

• Do not spray water directly on the inside or outside of the refrigerator.
• There is a risk of fire or electric shock.
• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not place a lighted candle in the refrigerator to remove bad odors.
• This may result in an electric shock or fire.
• Do not spray cleaning products directly on the display.
• Printed letters on the display may come off.
• If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest Dacor service center.
• Failing to do so may result in an electric shock or fire.
• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug.
• Otherwise, there is a risk of fire or electric shock.
• Do not clean the appliance by spraying water directly onto it.
• Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator.
• They may damage the surface of the appliance and may cause a fire.
• Never put fingers or any objects into the dispenser outlet.
• This can cause a personal injury or material damage.
• Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failing to do so may result in an electric shock or fire.
• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator.

Safety Information

• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, door and interior liners, and gaskets.
• These can scratch or damage the material.
• Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping.

Critical disposal warnings

WARNING

• Children trapped inside a refrigerator can hurt themselves or suffocate to death.
- Please dispose of the packaging material from this product in an environmentally friendly manner.
- Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.
- When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance.
- If trapped inside, the child could be injured or suffocate to death.
- Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.
- Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.
- If a child places a bag over his or her head, the child could suffocate.

English16

Refrigerator Features

Inside Parts, Storage, and Shelving

Freezer Compartment Fridge Compartment Water Filter Cover Grille LED Light Top Auto Ice Maker Ice Bucket LED Light Top Shelves Metal Cooling Duct LED Light Side Door Bins Drawers Kickplate Dairy Bin Shelves Metal Cooling Duct LED Light Side Door Bins Drawers

Refrigerator Features

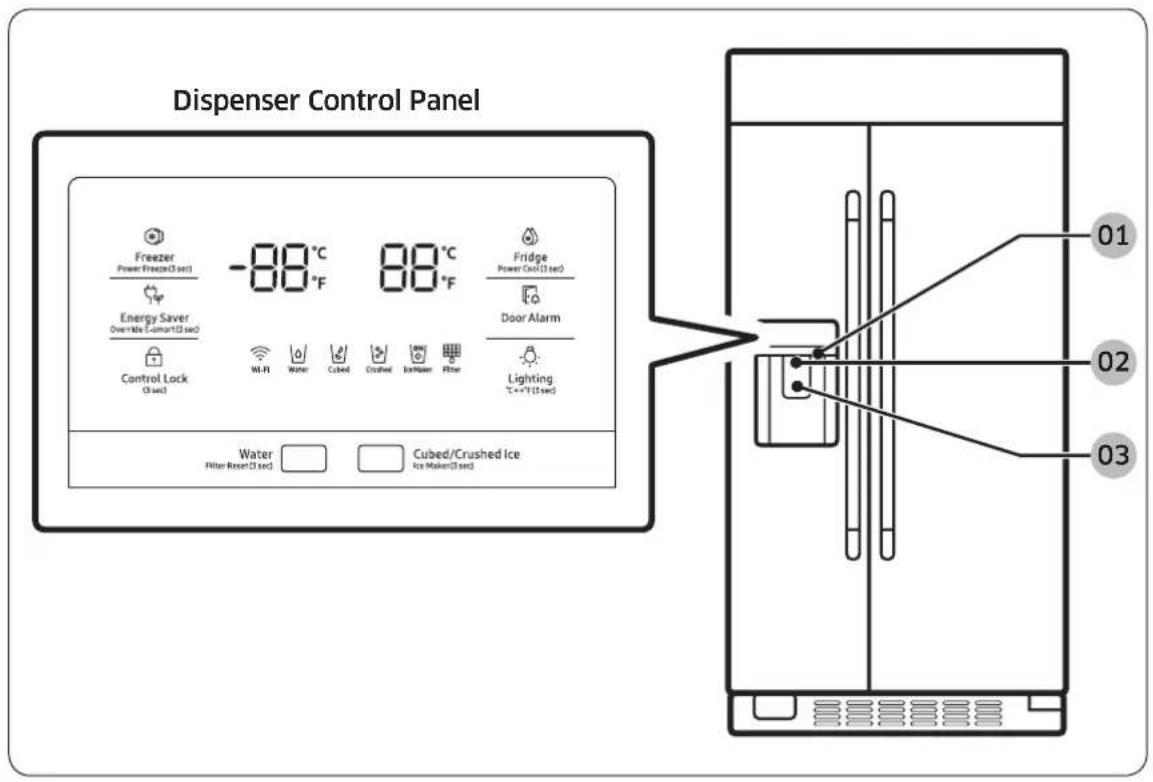

Outside Parts, Control Panel Detail, and Dispenser Features

Dispenser Control Panel Freezer Power Freezer(3 sec) Energy Saver Over/mile E-smart(12 sec) Control Lock (3 sec) -80°C -80°C Fridge Power Cool(12 sec) Door Alarm Wi-Fi Water Cubed Crushed IceMaker Filter Lighting +/-T(5 sec) Water Filter Reset(3 sec) Cubed/Crushed Ice Ice Maker(3 sec) 01 02 03

01 Dispenser Lamp (hidden) 02 Water/Ice Output
03 Dispenser Push Lever

English18

Using the Refrigerator

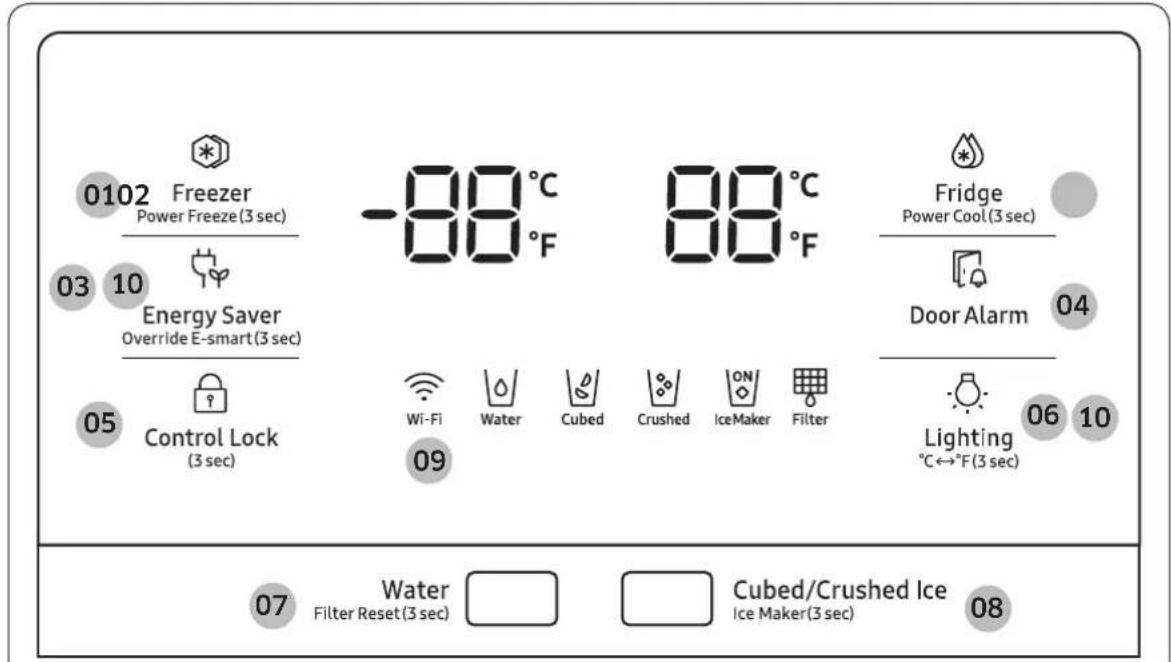

Refrigerator Control Panel

0102 Freezer Power Freeze (3 sec) 03 10 Energy Saver Override E-smart (3 sec) 05 Control Lock (3 sec) -88°C 88°C Fridge Power Cool (3 sec) Door Alarm 04 09 Wi-Fi Water Cubed Crushed IceMaker Filter Lighting 06 10 °C←°F (3 sec) 07 Water Filter Reset (3 sec) Cubed/Crushed Ice Ice Maker (3 sec) 08

01 Freezer / Power Freeze 02 Fridge / Power Cool

03 Energy Saver / Override E-smart 04 Door Alarm

05 Control Lock

06 Lighting / °C ↔ °F

07 Water / Filter Reset

08 Cubed/Crushed Ice / Ice Maker

09 Network connection 10 Shabbat Mode

NOTE

When you change the temperature on the panel, the panel displays the actual temperature inside the refrigerator until the temperature matches the temperature you set. Then, the panel displays the new set temperature. Note that it will take time for the refrigerator to reach the new temperature. This is normal. During this time, you need not set the temperature again.

Using the Refrigerator

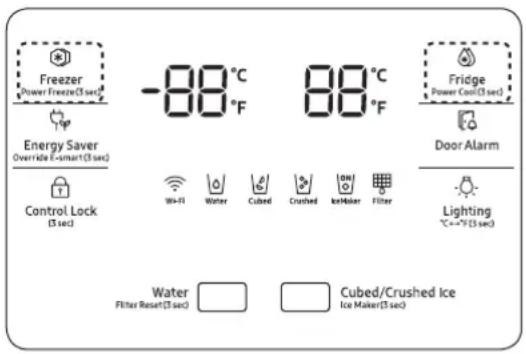

01 Freezer / Power Freeze (3 sec)

Freezer

You can use the Freezer button to set the freezer temperature or to activate/deactivate Power Freeze. To set the freezer temperature, press Freezer repeatedly. Available temperatures are between 5 °F (-15 °C) and -8 °F (-23 °C).

Power Freeze

Power Freeze lowers the freezer temperature and speeds up the freezing process. In Power Freeze mode, the freezer runs at full power for several hours and then returns to normal operation and the previous temperature setting.To activate Power Freeze, press and hold Freezer for 3 seconds. The corresponding indicator (lights up, and the refrigerator speeds up the freezing process for you.To deactivate, press and hold Freezer for 3 seconds again. Power Freeze shuts off and the freezer returns to the previous temperature setting.To freeze large amounts of food, activate Power Freeze at least 20 hours before putting food in the freezer.NOTEUsing Power Freeze increases power consumption. If you do not need the Power Freeze function on, make sure you turn it off so that the refrigerator can return to normal operation and the previous temperature setting.

English20

02 Fridge / Power Cool (3 sec)

Fridge

You can use theFridgebutton to set the fridge temperature or to activate/deactivate Power Cool.To set the fridge temperature, pressFridgerepeatedly to select a desired temperature between 34 °F (1 °C) and 44 °F (7 °C).The temperature indicator displays the currently set or selected temperature.

Power Cool

The Power Cool function lowers the fridge temperature and speeds up the cooling process. In the Power Cool mode, the fridge runs at full power for several hours and then returns to normal operation and the previous temperature setting. Use Power Cool to rapidly cool food that spoils quickly or to rapidly cool the refrigerator after the door has been left open for some time.To start Power Cool, press and holdFridgefor 3 seconds. The Power Cool icon lights and the refrigerator speeds up the cooling process.To deactivate, press and holdFridgefor 3 seconds again. Power Cool turns off and the refrigerator returns to the previous temperature setting.NOTEUsing Power Cool increases power consumption. If you do not need the Power Cool function on, make sure you turn it off so that the refrigerator can return to normal operation and the previous set temperature.

Using the Refrigerator

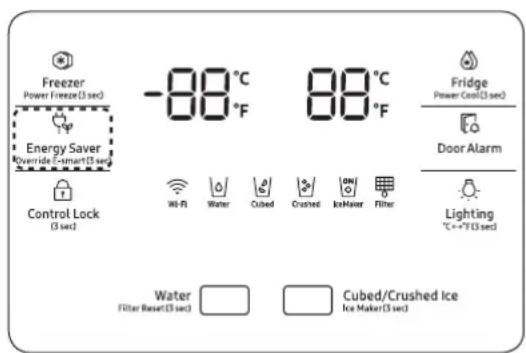

03 Energy Saver / Override E-smart (3 sec)

Energy Saver	Use Energy Saver mode to reduce power consumption. Press Energy Saver to turn on or off Energy Saver mode and the corresponding indicator. By default, Energy Saver mode is enabled.
Override E-smart	The Override E-smart function activates/deactivates Smart Grid. Press Energy Saver for 3 seconds to set/clear the Override E-smart function.

04 Door Alarm

Door Alarm

You can enable or disable the door alarm by pressing Door Alarm. When Door Alarm is enabled and a door is left open for more than 2 minutes, the alarm will sound and the alarm indicator will blink. The Door Alarm function is enabled by factory default.

05 Control Lock (3 sec)

Control Lock

To prevent accidental setting changes, press and hold Control Lock for 3 seconds. All controls will be disabled and the Lock indicator (Ⓧ) will turn on.When Control Lock is on, the refrigerator does not dispense ice or water, even if the Dispenser Lever is pressed.To deactivate, press and hold again for 3 seconds. The Lock indicator turns off and the controls are re-enabled.When Control Lock is on, the indicator blinks if any button on the panel is pressed or the Dispenser Lever is pressed.

English22

06 Lighting / °C ↔ °F (3 sec)

Lighting	By default, the dispenser lamp turns on only when the dispenser is used. If you want to keep the dispenser lamp turned on (continuous mode), press Lighting. The lighting indicator also turns on. To restore the default settings, press Lighting again.
°C ↔°F	You can use the Lighting button to switch the temperature scale between Celsius and Fahrenheit.To switch the temperature scale, press and hold Lighting for 3 seconds.

07 Water / Filter Reset (3 sec)

Water

Press Water to dispense water. In this mode, no ice will be dispensed.

Filter Reset

After about 6 months of using the original water filter (which typically amounts to about 320 gallons (1200 liters) of water), the Filter indicator blinks red to remind you that the filter needs to be replaced.When this happens, replace the filter, and then press and hold Water for 3 seconds. This resets the filter lifecycle detector and turns off the Filter indicator.NOTESome areas have relatively large amounts of lime in their water.This may reduce the lifecycle of the filter. In these areas, you will have to replace the water filter more often than specified above.If water is not dispensing properly, the water filter is most likely clogged. Even if the Filter indicator is not blinking, replace the water filter.

Using the Refrigerator

08 Cubed/Crushed Ice / Ice Maker (3 sec)

Cubed/Crushed Ice	You can select an ice type.Press the button to toggle between the cubed ice and crushed ice types. The corresponding indicator turns on.
Ice Maker	To disable ice making, press and hold Cubed/Crushed Ice for 3 seconds.In this mode, ice making is disabled even if you press Cubed/Crushed Ice. To turn ice making back on, press and hold Cubed/Crushed Ice again for 3 seconds.If the Ice Maker is turned off, it will turn on if you press and hold the ice lever for more than 5 seconds.

09 Network connection

This icon indicates that the refrigerator is connected to a network. If the Wi-Fi icon flashes, we recommend connecting your refrigerator with the SmartThings app. You can control and monitor your refrigerator on the SmartThings app. For more information, see the SmartThings section.

NOTE

• Recommended encryption systems include WPA/TKIP and WPA2/AES. Any newer or unstandardized Wi-Fi authentication protocols are not supported.
• Wireless networks may be affected by the surrounding wireless communication environment.
• If your Internet service provider has registered the MAC address of your PC or modem for identification, your Dacor Smart Refrigerator may fail to connect to the Internet. If this happens, contact your Internet service provider for technical assistance.
• The firewall settings of your network system may prevent your Dacor Smart Refrigerator from accessing the Internet. Contact your Internet service provider for technical assistance. If this symptom continues, contact a local Dacor service center or retailer.
• To configure the wireless access point (AP) settings, see the user manual of the AP.
• Dacor Smart Refrigerators support both Wi-Fi 2.4 GHz with IEEE 802.11 b/g/n and Soft-AP protocols (IEEE 802.11 n is recommended).
• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Dacor Smart Refrigerators.

English24

10 Shabbat Mode

The Shabbat mode stays active for 85 hours once it is activated. After that, it will be deactivated automatically.

• To activate, press and hold Energy Saver and Lighting simultaneously for 5 seconds to enter Shabbat mode. Then the refrigerator operates in Sabbath mode where the buttons, the display, and the room lamps are all under control.
• To deactivate, press and hold the buttons again for 5 seconds to exit Shabbat mode.

NOTE

Even after the refrigerator powers off and restarts, the Shabbat mode remains active. To exit, you must deactivate it first.

11 Cooling Off

Cooling Off mode (also called Shop mode), is designed for use by retailers when they are displaying refrigerators on the shop floor.

In Cooling Off mode, the refrigerator's fan motor and lights operate normally, but the compressors do not run so that neither the refrigerator or the freezer run the cooling process.

To enter Cooling Off mode, press and hold Fridge, Freezer, and Energy Saver for 5 seconds. The refrigerator chime sounds with the message of "OFF" on the temperature panel. To exit, press and hold again for 5 seconds.

Using the Refrigerator

SmartThings

Installation

Visit the Google Play Store, Galaxy Store, or Apple App Store and search for "SmartThings". Download and install the SmartThings app provided by Samsung Electronics to your smart device.

NOTE

• The supporting software version of the SmartThings app is subject to change according to the OS supporting policy the manufacturer provides. In addition, as for the SmartThings app or the functions that the app supports, the new application update policy on the existing OS version can be suspended due to usability or security reasons.
• The SmartThings app is subject to change without notice to improve usability or performance. As the mobile phone OS version is updated every year, the SmartThings is also updated continually according to the latest OS. If you have enquiries regarding the items mentioned above, please contact us on [e-mail]
• Recommended encryption systems include WPA/TKIP and WPA2/AES. Any newer or non-standard Wi-Fi authentication protocols are not supported.
• In addition, further updates on the app or the function in the app may stop due to usability and security reasons, even if updates are currently supported on your OS.
• Wireless networks may be affected by the surrounding wireless communication environment.
• If your Internet service provider has registered the MAC address of your PC or modem for identification, your Dacor Smart Refrigerator may fail to connect to the Internet. If this happens, contact your Internet service provider for technical assistance.
• The firewall settings of your network system may prevent your Dacor Smart Refrigerator from accessing the Internet. Contact your Internet service provider for technical assistance. If this symptom continues, contact a local Dacor service center or retailer.
• To configure the wireless access point (AP) settings, see the user manual of the AP (router).
• Dacor Smart Refrigerators support both IEEE 802.11 b/g/n (2.4 GHz) and 802.11 a/n/ac (5 GHz) protocols. (IEEE 802.11 n and 802.11 ac are recommended.)
• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Dacor Smart Refrigerators.

English26

Samsung account

You are required to register your Samsung account to use the app. If you don't have a Samsung account, follow the app's onscreen instructions to create a free Samsung account.

Getting started

Turn on the device you want to connect, open the SmartThings app on your phone, and then follow the instructions below.

If a pop-up appears saying that a new device has been found, tap ADD NOW.

If a pop-up doesn't appear, tap the + button, and then select the device you want to connect from the list of available devices.

If your device isn't in the list of available devices, tap Supported Devices, select the device type (Refrigerator), and then select the specific device model.

Follow the instructions in the app to set up your device. Once setup is complete, your refrigerator will appear as a "card" on your Devices screen.

Refrigerator app

Integrated control

You can monitor and control your refrigerator at home and on the go.

• Tap the refrigerator icon on the SmartThings Dashboard or tap the Devices icon at the bottom of the Dashboard, and then tap the refrigerator "card" to open the Refrigerator page.
• Check the operation status or notifications related to your refrigerator, and then change options or settings if necessary.

NOTE

Some options or settings of the refrigerator may not be available for remote control.

Using the Refrigerator

Refrigerator Settings

Fridge	01 Displays the currently set fridge temperature.02 Turns on/off Power Cool; check current settings.
Freezer	03 Displays the currently freezer temperature settings.04 Turns on/off Power Freeze; check current settings.
Ice Maker	05 Displays the current mode setting.06 Turns on/off Ice Maker; check ice-making status with current settings.
About Device	07 Displays product info (incl. the current version, tutorial, Self Check, and Help Desk). The user manual is downloadable, and the contact information for customer support is provided.Self CheckReference this to can check refrigerator diagnostic results. If you find an abnormal symptom, Self Check displays data that can be used for customer service.

English28

About the SMART GRID Function (Demand Response)

When the refrigerator operates in SMART GRID (Demand Response) mode, the Energy Management Refrigerator function can control energy usage or delay some functions to save money when energy prices/demand are the highest.

NOTE

• You can deactivate the SMART GRID (Demand Response) function at any time using the Override E-smart On/Off function.)
• To use the SMART GRID (Demand Response) function, you need a separate contract with your electric utility company.

Also, to use the Smart Grid (Demand Response) function, you must register for the service with your electric company. The company must have an EMS (Energy Management System) that supports SEP (Smart Energy profile).

Using the SMART GRID (Demand Response) Function

This feature monitors energy prices and demand information from your utility company and sends notifications to the refrigerator to run high-energy-consuming tasks during off-peak times when electricity costs/demand are lower.

If the refrigerator receives a control signal from the utility company, the refrigerator displays the DAL (L3) \~ TALR (L4) levels on its display and controls the power consumption according to the level.

Exception: The DAL and TALR control signals from a utility company work as long as product performance is maintained.

If the refrigerator receives the SMART GRID (Demand Response) signal (DAL or TALR), the refrigerator operates in Delay Appliance Load (Display:L3) or Temporary Appliance Load Reduction (Display:L4) mode.

- Delay Appliance Load (L3): The refrigerator responds to a DAL signal by providing a moderate load reduction for the duration of the delay period. This function controls functions that consume large quantities of energy (e.g., adjusting the Cooling system, running the defrost cycle, making ice).

• When the refrigerator operates in DAL (L3) mode, L3 appears on the refrigerator display.
• DAL mode automatically deactivates the amount of time stipulated by the DAL signal (max. 4.5 hours) is reached or when the Override E-smart key is pressed.

- Temporary Appliance Load Reduction (L4): The refrigerator responds to a TALR signal by drastically reducing the load for a brief period. This function reduces energy consumption by stopping the compressor and controlling the functions that consume large quantities of energy (e.g., defrosting, ice making).

- In TALR (L4) mode, "L4" appears on the refrigerator display.

Using the Refrigerator

- TALR (L4) mode automatically deactivates when the stipulated setting is reached (max. 15 min.), or when the Override E-smart key is pressed. The mode deactivates immediately, and the refrigerator returns to the normal state when the door is opened/closed, or the dispenser is used.

Checking the MAC Address

Freezer Power Freeze(3 sec) Energy Saver Override E-smart(3 sec) Control Lock (3 sec) -88°C °F 88°C °F Fridge Power Cool(3 sec) Door Alarm Lighting °C=°C(3 sec) Water Filter Reset(3 sec) Cubed/Crushed Ice Ice Maker(3 sec)

1. In this mode, the MAC address appears on the temperature panel (freezer and fridge sections of the panel) sequentially for 1 minute.
   Press-hold the Freezer and Fridge buttons simultaneously for 6 seconds. The temperature panel blinks.
2. Press Freezer again to display the MAC address. The fridge beeps. (Ex.: if the MAC address is "11-22-33-44-55-66", the temperature panel displays the address for 1 min. in this sequence:

$$ " - / --" \rightarrow " 1 1 / 2 2" \rightarrow " 3 3 / 4 4" \rightarrow $$

$$ " 5 5 / 6 6" \rightarrow " - - / -. T h e n, t h e M A C $$

$$ \begin{array}{l} \text { address disappears and the temperature } \ \text { panel resumes its normal state. } \end{array} $$

The temperature panel displays "-- / --" for an unknown MAC address or if a Wi-Fi connection is not established or is lost.

About Override E-smart Mode

When you want the refrigerator to ignore the SMART GRID (Demand Response) signal from the utility company, you can activate Override E-smart mode, in which the refrigerator ignores the SMART GRID (Demand Response) signal and is not controlled by the utility company.

English30

Activating/Deactivating Override E-smart mode

Freezer Power Freeze (3 sec) Energy Saver Override E-smart (3 sec) Control Lock -88°C 00°F 88°C 00°F Fridge Power Coat (3 sec) Door Alarm Lighting +/-*F (3 sec) Water Filter Reset (3 sec) Cubed/Crushed Ice Ice Maker (3 sec)

To activate Override E-smart mode, press-hold the Energy Saver button for 3 seconds.

(A buzzer sounds and 'Or' and 'on' appears on the freezer display; the fridge temperature appears for 5 sec's.)

If the refrigerator receives a SMART GRID (Demand Response) signal from the utility company, 'Or' appears in the freezer temperature display.

To deactivate Override E-smart mode, press-hold Energy Saver for 3 seconds.

A Buzzer sounds and 'Or' and 'oF' appears on the fridge and freezer temperature displays for 5 seconds.

NOTE

Alternately, you can activate/deactivate Override E-smart mode via the SmartThings app and the Energy Management function. (See the next page.)

Using the Refrigerator

Using the Energy Management Function

This function lets you control and monitor your Energy Management refrigerator using the SmartThings app.

To use the Energy Management refrigerator functions, you have to install the corresponding app first.

1. Operational Status, User Settings & Messages

2. View the freezer/fridge temperature settings.

3. Receive an alarm when the freezer/fridge door is open for 2 minutes.
4. Check the DR and Override status.

5. Check the operating status of the ice maker.

6. Remote Management

7. Power Freeze Setting: Activate the Power Freeze function.

8. Power Cool Setting: Activate the Power Cool function.

9. Ice On/Off Setting: Set up the Ice On/Off Setting function. (You can only control the Ice maker remotely.)

10. Energy Consumption Reporting : Shows the accumulated power consumption. (Data updates every 10 min.)

NOTE

The energy-consumption report may differ from the refrigerator's power consumption specifications depending on the operating environment and the stored food.

• Delay-Defrost Capability
  Saves energy by delaying the defrost operation to a user-specified time. This function saves energy during the specified period in a 24-hr cycle. If the time is not set, the default time settings are used. (Default time settings: 6 am to 10 am: 1 Nov. to 30 Apr; 3 pm to 7 pm: 1 May to 31 Oct.)

- You can change the time setting for the Delay Defrost Capability on the app.

English32

Provision for Open Access to the Connected Product Requirements

• SGIP Open Standards (Smart Energy Profile 2.0 - http://www.csep.org/)

• Energy Consumption Reporting
• Demand Response

- OPEN API

• Operational Status, User Settings & Messages
• ICE Maker Status: GET /devices/0/Fridge/iceMaker
• Door Open Alarm: GET /devices/0/Door/<>/openState
• DR Status: GET /devices/0/drlc
• Delay Defrost Capability
• Set Schedule of the Defrost Delay: PUT /devices/0/fridge/<>/DefrostReservation
• Get Schedule of the Defrost Delay: GET /devices/0/fridge/<>/DefrostReservation
• Delete Schedule of the Defrost Delay: DELETE /devices/0/fridge/>/DefrostReservation
• Defrost Delay On/OFF: PUT /devices/0/Fridge/delayDefrost

Using the Refrigerator

Special features

Water/Ice dispenser

With the dispenser, you can dispense water with or without ice to your preference.
    note right of D Select this if you want to turn ice maker off

Basically, the water dispenser offers 3 options: chilled water, cubed ice, and crushed ice. If you do not want to dispense ice, press and hold Cubed/Crushed Ice for 3 seconds.

To dispense water with ice

Illustration of a hand washing a cup inside a door, with no visible text or symbols on the diagram itself.

1. With the Ice Maker enabled, press Cubed/Crushed Ice to select the ice type.

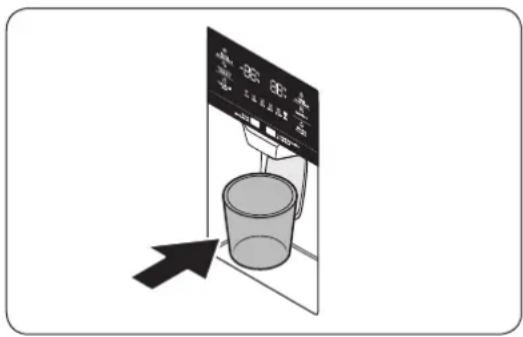

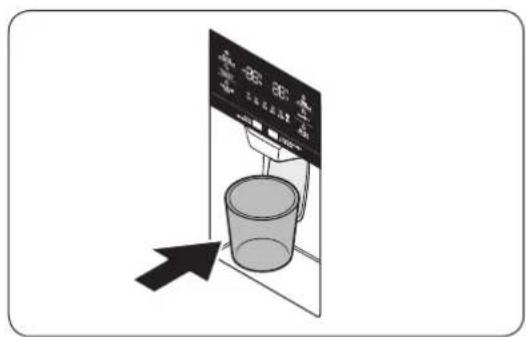

2. Put a water glass on the dispenser lever and push it. Ice will be dispensed from the dispenser.
3. Press Water to select the water.
4. Then, put the glass on the dispenser lever and push it. Water will be dispensed from the dispenser.

NOTE

• To prevent spills, wait 2 seconds before removing the glass after dispensing. Then, the dispenser lever returns to its position.
• The dispenser will stop dispensing if you keep pushing the dispenser lever for about 1 minute. To dispense more water, release and push the lever again.
• Make sure the glass is in line with the dispenser to prevent the dispensed water from spilling out.
• If you do not use the water dispenser for 2-3 days, the dispensed water may have an abnormal smell or taste. This is not a system failure. Discard the first 1-2 glasses of water.
• Push the water lever or ice lever distinctly because the dispenser responds only to the actually selected or first-pushed lever.

CAUTION

- Use the new hose-sets supplied with the appliance only. Do not re-use an old hose set.

English34

Ice maker

The refrigerator has a built-in ice maker that automatically dispenses ice so that you can enjoy filtered water with cubed or crushed ice to your preference.

Ice making

After you have installed your refrigerator and plugged it in, follow these instructions to ensure proper ice making and to keep the ice bucket full of ice:

1. Let the refrigerator operate for at least 24 hours to ensure optimal performance.
2. Dispense the first 4 to 6 ice cubes into a glass.
3. Wait another 8 hours and dispense another 4 to 6 ice cubes.
4. Then, wait another 16 hours and dispense the first glass-full of ice.

NOTE

• If you consume all the ice at once, you must wait 8 hours before dispensing the first 4 to 6 cubes. This ensures that the ice bucket is filled with ice properly.
• Ice cubes generated rapidly may look white, which is normal.

Diagnosis

Test Button

If ice does not dispense, first check the ice maker.

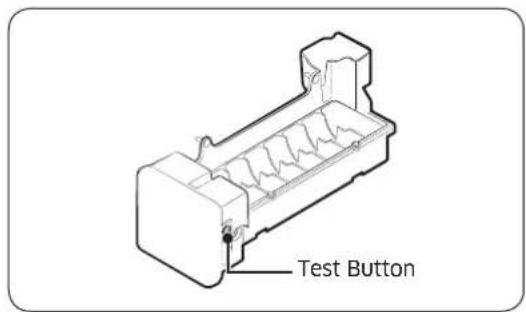

1. Press Test on the side of the ice maker. You will hear a chime (ding-dong) when you press the button.
2. You will hear another chime if the ice maker is operating properly.

CAUTION

• If the ice making chime rings repeatedly, contact the waterline installer or a local Dacor service center.
• Do not press Test repeatedly after the ice tray is filled with ice or water. Water may overflow or ice may jam.
• Do not put food in the ice bucket. The frozen food may damage the ice maker, especially when you open or close the door.

Using the Refrigerator

• When the refrigerator recovers power after a power failure, the ice bucket may contain a mix of melted and jammed ice cubes, which can prevent the ice maker from working properly. To prevent this, make sure to empty the ice bucket before using the refrigerator.
• Do not put fingers or any objects into the dispenser outlet or the ice maker. This can cause physical injury or property damage.
• When reinserting the ice maker tray, make sure that the tray is properly centered at the entrance. Otherwise, the tray can get stuck.

Ice Maker Off

If you press and hold Cubed/Crushed Ice for 3 seconds to turn the ice maker off, make sure to remove all ice cubes from the ice bucket. Remaining ice cubes may clump together, making it difficult to remove them.

Door Closure Systems

Your refrigerator has an automatic door closure system.

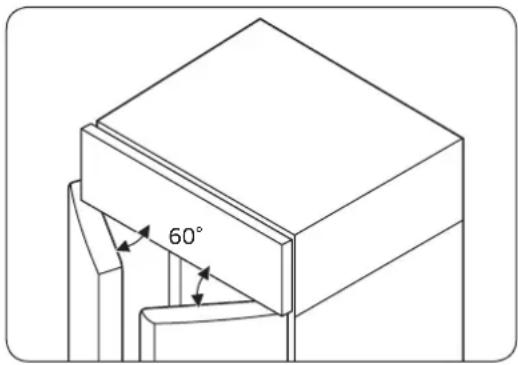

The refrigerator and freezer doors gently slow and close themselves when they are a few inches away from the opening.

60°

This eliminates door slamming and rattling of contents, as well as preventing "not quite" shut conditions that allow cold air to escape.

English36

Handle and care

Tempered glass shelves

Diagram of a mechanical component with a curved arrow indicating rotation, no text or symbols present

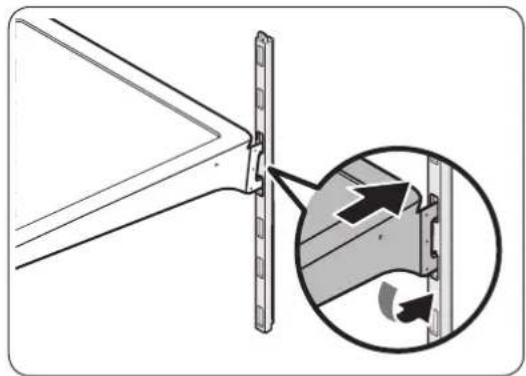

To remove a shelf, fully open the corresponding door. Hold the front of the shelf, and then gently lift up and slide out.

Diagram showing a structural joint with an inset magnified view of a mechanical component (no text or symbols)

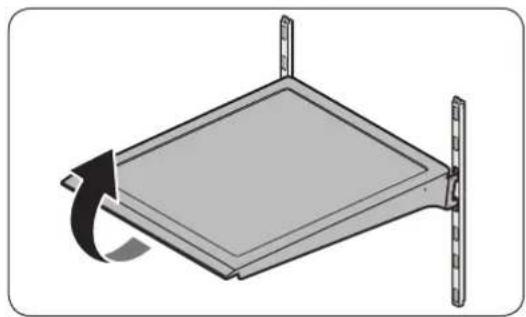

To reinsert, hold the shelf at an angle so the front is higher than the back, and then insert the top hook into the top shelf notch. Then, lower the shelf and insert the bottom shelf hook into the bottom shelf notch.

Using the Refrigerator

Door bins / Dairy bin

Diagram of a mechanical component with two arrows indicating direction, no text or symbols present

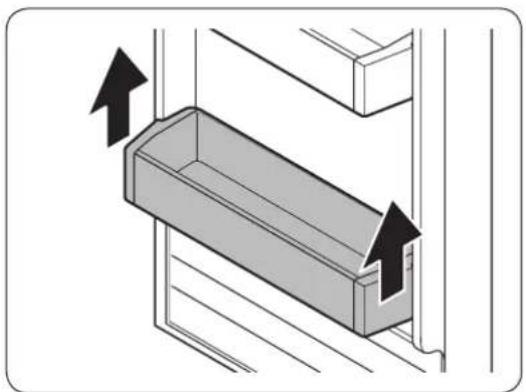

Lift up the door bin or dairy bin, and then pull out straight.

Dairy bin

Diagram showing a mechanical component with a downward arrow and a prohibition symbol (no text or labels present)

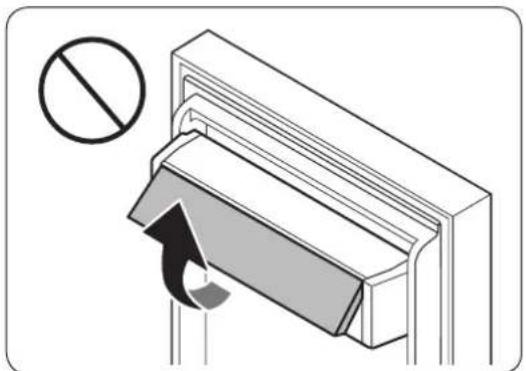

Make sure the cover is closed after use, otherwise the refrigerator door might not close correctly.

Drawers

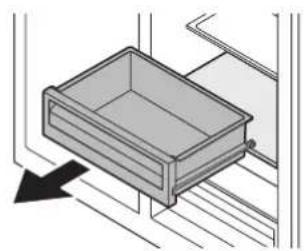

Gently lift up the front of the drawer and slide out. We recommend that you remove the door bins before removing the drawer. This is to prevent damage to the door bins.

Diagram of a mechanical or architectural component with an arrow indicating direction (no text or symbols present)

Isometric line drawing of a rectangular drawer with an arrow pointing to the side (no text or symbols)

Pulling the Drawers Removing the Drawers

English38

Replacement

Water filter

WARNING

• Do not use third-party water filters. Use only Dacor-provided or -approved filters.
• Unapproved filters may leak and damage the refrigerator, causing electric shock. Dacor is not responsible for any damage that may occur from use of third-party water filters.
  The filter indicator (☐) turns red to let you know it is time to replace the water filter. Before replacing the filter, make sure the water supply line is shut off.

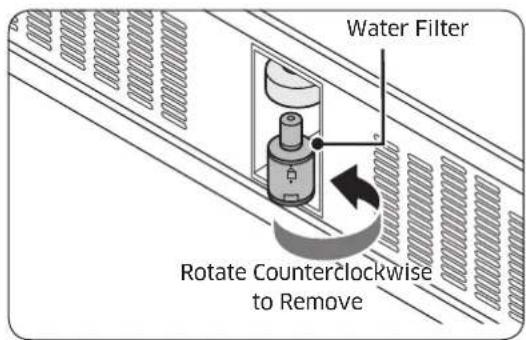

Water Filter Rotate Counterclockwise to Remove

1. Open up the Cover Grille on the top of the refrigerator.
2. Turn the dispenser filter counter clockwise to remove.
3. Replace with a new dispenser filter.
4. Close the Cover Grille.

Diagram showing a hand holding a container with a control panel and Chinese text labels above it.

1. Press and hold Water on the feature panel for 3 seconds to reset the life cycle detector.

The filter indicator (☐) turns off.

1. When you are done replacing the filter, open the water valve and run water through the dispenser for about 7 minutes. This is to remove impurities and air from the water line.

NOTE

• A newly installed filter may cause the water dispenser to spurt water briefly. This is because air has entered the waterline.
• The replacement process may cause the water dispenser to drip for a short period of time. If it drips, simply wipe up any water on the floor with a dry towel.

Care and Maintenance

Cleaning

Interior and exterior

WARNING

• Do not use benzene, thinner, or home/car detergent such as Clorox™ for cleaning. They may damage the surface of the refrigerator and cause a fire.
• Do not spray water onto the refrigerator. This may cause electric shock.
• Do not put fingers or any objects into the dispenser outlet.

Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

1. Unplug the power cord.
2. When done, use a dry cloth or paper towel to dry well.

3. Plug in the power cord.

4. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator's interior and exterior.

Cleaning the Exterior

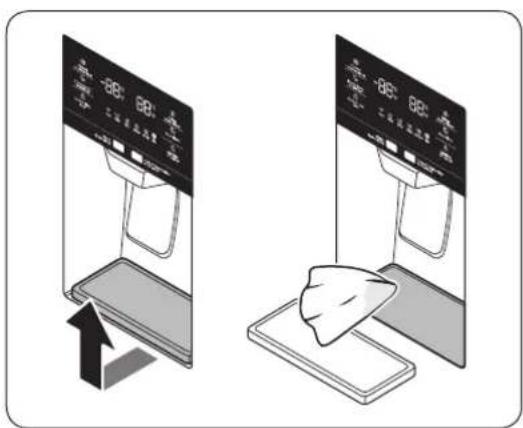

Diagram showing two steps of a device operation: one with temperature reading and arrow, the other with cooling effect and packaging.

Wipe the Outside:

1. Use a lukewarm solution of mild soap or detergent to clean the outside of your refrigerator.
2. Wipe with a clean, damp cloth.
3. Then dry.

English40

Replacement

LED Lights

To replace the LED lights on the refrigerator, contact a local service agent.

WARNING

The LED lights are not user-serviceable. Do not attempt to replace an LED light yourself. This can cause electric shock.

Troubleshooting

Settings

Before troubleshooting, check the Settings table and make sure your refrigerator meets these setting requirements. If not, this could be the reason for the problem you are experiencing.

Settings Table

Operation Setting
Service Flow 0.5 gpm (1.9 Lpm)
Water Supply Potable Water
Water Pressure 30-120 psi (207 - 827 kPa)
Operating Ambient Temperature Limits	33 °F - 100 °F (0.6 °C - 38 °C)
Electrical Ratings 115 V, 60 Hz, AC only, and fused at 15 A or 20 A.

English42

Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users.

General

Temperature

Symptom Possible causes Solution
Fridge/freezer does not operate.Fridge/freezer temperature is warm.	Power cord is not plugged in properly.Temperature control is not set correctly.Refrigerator is located near a heat source or direct sunlight.Not enough clearance between refrigerator and sides/rear.Vacation mode is activated.The refrigerator is overloaded. Food is blocking the refrigerator vents.	Properly plug in the power cord.Set the temperature lower.Keep the refrigerator away from direct sunlight or a heat source.Make sure there are at least 5 cm from the rear and sides.Deactivate vacation mode.Do not overload the refrigerator. Do not allow food to block ventilation.
Fridge/freezer is over-cooling.	Temperature control is not set correctly.	Set the temperature higher.

Troubleshooting

Symptom Possible causes Solution
Interior wall is hot.	• Refrigerator has heat-proof piping in the interior wall.	• To prevent condensation from forming, the refrigerator has heat-proof piping in the front corners. If the ambient temperature rises, this equipment may not work effectively. This is not a system failure.

Odors

Symptom Possible causes Solution
Refrigerator has odors.	• Spoiled food.	• Clean the refrigerator and remove any spoiled food.
	• Food with strong odors.	• Make sure strong smelling food is wrapped airtight.

Frost

Symptom Possible causes Solution
Frost around the vents.	Food is blocking the vents.	Make sure no food blocks the refrigerator vents.
Frost on interior walls.	Door is not closed properly.	Make sure food does not block the door. Clean the door gasket.

English44

Condensation

Symptom Possible causes Solution
Condensation forms on the interior walls.	If door is left open, moisture enters the refrigerator.	Remove the moisture and do not open the door for a long time.
	Food with high moisture content.	Make sure food is wrapped airtight.

Water/ice (dispenser models only)

Symptom Possible causes Solution
Water flow is weaker than normal.	• Water Pressure is too low.	• Make sure the water pressure is between 20 and 120 psi (138 and 872 KPa).
Ice maker makes a buzzing sound.	• The ice maker function is activated, but the water supply to the refrigerator has not been connected.	• Press and hold Cubed/ Crushed Ice for 3 seconds.
Ice maker does not make ice.	• Ice maker has just been installed.	• You must wait for 12 hours until the refrigerator makes ice.
	• Freezer temperature is too low.	• Set the freezer temperature below -18 °C (or -20 °C in warm ambient air).
	• Control Lock or Child Lock is activated.	• Deactivate Control Lock or Child Lock.
	• Ice maker is off. • Turn on the	ice maker.

Troubleshooting

Symptom Possible causes Solution
Ice does not dispense.	· Ice may jam if the ice dispenser is not used for a long time (approx. 3 weeks).	· If you won't be using the refrigerator for a long time, empty the ice bucket and turn off the ice maker.
	· Ice bucket is not properly inserted.	· Make sure the ice bucket is properly inserted.
	· Water line is not connected properly or water supply is not on.	· Check the water installation conditions.
Water does not dispense.	· Water line is not connected properly or water supply is not on.	· Check the water installation conditions.
	· Control Lock or Child Lock is activated.	· Deactivate Control Lock or Child Lock.
	· Do not use third-party water filters.	· Use only Dacor-provided or approved filters.· Unapproved filters may leak and damage the refrigerator.
	· Water filter indicator turns on or blinks.	· Replace the water filter. After replacing, reset the filter indicator sensor.

English46

Do you hear abnormal sounds from the refrigerator?

Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user.

These sounds are normal.

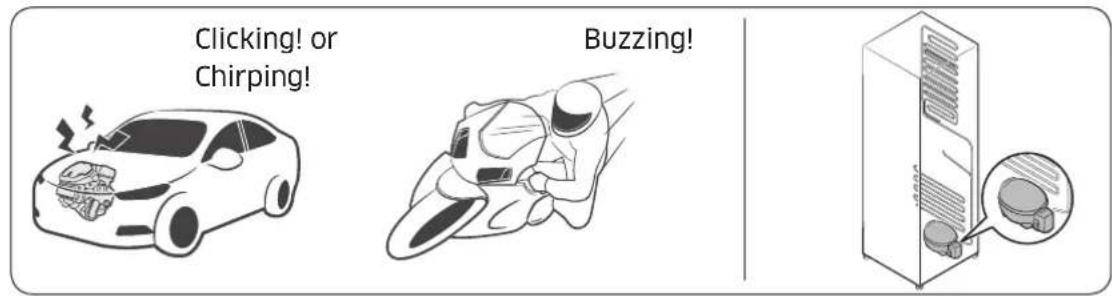

- When starting or ending an operation, the refrigerator may make sounds similar to a car engine igniting. As the operation stabilizes, the sounds will decrease.

Clicking! or Chirping! Buzzing!

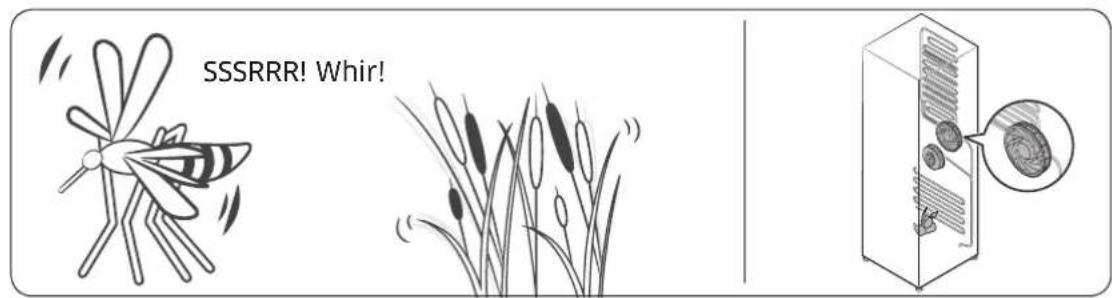

- While the fan is operating, these sounds may occur. When the refrigerator reaches the set temperature, no fan sound will occur.

SSSRRR! Whir!

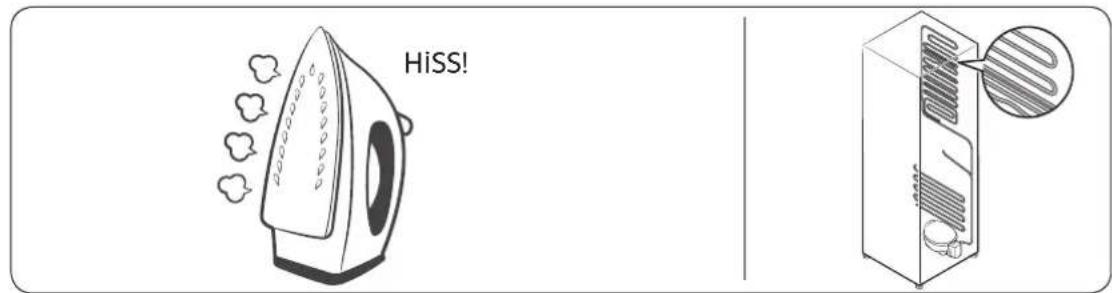

- During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds.

HiSS!

Troubleshooting

- As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds.

Simple line drawing of a kettle with smoke rising from its side (no text or symbols)

Bubbling!

Diagram of a refrigerant unit with internal heat exchanger and cooling fins (no text or labels)

- As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working.

Diagram of a tree branch with leaves and a lightning bolt, no text or symbols present

Cracking!

• For ice maker models: When the water valve opens to fill the ice maker, buzzing sounds may occur.
• Due to pressure equalizing when opening and closing the refrigerator door, whooshing sounds may occur.

English48

SmartThings

Symptom Action
Could not find “SmartThings” in the app market.	·The supporting software version of the SmartThings app is subject to change according to the OS supporting policy the manufacturer provides. In addition, as for the SmartThings app or the functions that the app supports, the new application update policy on the existing OS version can be suspended due to usability or security reasons.
The SmartThings app fails to operate.	·The SmartThings app is available for applicable models only.·The old Dacor Smart Refrigerator app cannot connect with Dacor Smart Home models.
The SmartThings app is installed but is not connected to my refrigerator.	·You must log into your Samsung account to use the app.·Make sure that your router is operating normally.·If the Wi-Fi icon on the refrigerator's display is off, this indicates that no network connection has been established yet. In this case, use the SmartThings app to connect and register your refrigerator to the access point (AP) of your house.
Could not log into the app.	·You must log into your Samsung account to use the app.·If you don't have a Samsung account, follow the app's onscreen instructions to create one.
An error message appears when I try to register my refrigerator.	·Easy Connection may fail due to the distance from your access point (AP) or electrical interference from the surrounding environment. Wait a moment and try again.
The SmartThings app is successfully connected to my refrigerator but does not run.	·Exit and restart the SmartThings app, or disconnect and reconnect the router.·Power off the refrigerator, and then power it on again after 1 minute.
The Wi-Fi icon is blinking. ( [IMAGE]	·Connect your refrigerator with the SmartThings app before use. When the connection is made successfully, the indicator stops blinking.- If you fail to make connection or don't want to use the app, press and hold the Control Lock button for 10 seconds. The indicator stops blinking with “O FF” shown on the temperature display and the Wi-Fi function turns off.

Troubleshooting

Smart Grid

Symptom Action
What Do I Need to use the Energy Management and Smart Grid functions?	To use the Smart Grid (Demand Response) and Energy Management function on your Refrigerator, you need the following devices and apps: - Devices: 1) A Wireless Router, 2) A SmartThings Refrigerator, 3) A Smartphone. (Recommended: Android OS 6.0 or later version) - Applications: 1) “SmartThings App” from the Goolge Play Store.You also need to:Connect the Refrigerator and the Smartphone to the same Wi-Fi network in your home.Install and run the SmartThings App on your Smartphone.In addition, to use the Smart Grid (Demand Response) function, you must Register for the service with your electric company. The company must have an EMS (Energy Management System) that supports SEP (Smart Energy profile).
Why isn't the Energy Management function working normally?	Confirm that the router in your home and the internet are working properly.- Connect a Smartphone to the router (AP, Access Point), and then confirm that you can browse the Internet on the phone.Confirm that refrigerator is connected to the AP.- Check for Wi-Fi icon on the panel of the refrigerator. If the refrigerator is connected, the icon will be on.Confirm that the refrigerator and Smartphone are connected to the same router.
Why isn't the Delay Defrost Capability working normally?	Confirm that the router in your home and the Internet are working properly.Connect a Smartphone to the router (AP, Access Point), and then confirm that you can browse the Internet on the phone.Confirm that the rear where you live is properly entered into the SmartThings App.Confirm that the Smart Grid function works correctly. (Check the control panel. The DAL or TALR icon should not be displayed on the panel.)

English50

Warranty

Customer Service

Before you request help or schedule service:

1. Try the Solutions offered in the Problem–Solution table in the “Troubleshooting” section.
2. Become familiar with the warranty terms and conditions of your product.
3. If none of these tips or suggestions resolves your problem, visit dacor.com or call our Customer Service center at [phone] (United States), [phone] (Canada)

United States - Warranty

CERTIFICATE OF WARRANTY ON DACOR REFRIGERATOR - UNITED STATES:

FULL TWO-YEAR WARRANTY

This warranty covers any defects in materials or workmanship in the Dacor-branded new appliance purchased from a Dacor Authorized Dealer or other seller authorized by Dacor.

This full warranty runs for two years starting from the date of original retail purchase receipt or closing date for new construction, whichever period is longer. Dacor will repair or replace your product.

LIMITED WARRANTY

After the Full Warranty period has ended, this product is warranted against defects in materials or workmanship reported to us during the applicable warranty periods as follows:

Years 3-6 of your ownership - Parts and Labor on Sealed System	For the third through sixth years of your ownership, we will pay for factory specified parts and repair labor costs to correct defects in materials or workmanship in the sealed refrigeration system (the compressor, evaporator, condenser, dryer and connecting tubing).
Years 7-12 of your ownership - Parts only on the Sealed System	For the seventh through twelfth years of your ownership, we will pay for factory-specified parts only to correct defects in the sealed refrigeration system.
Years 13-15 of your ownership - Parts only on the Compressor	For the thirteenth through fifteenth years of your ownership, we will pay for factory-specified parts only to correct defects in the compressor.

Warranty

Cosmetic Defects. In addition, for 60 days from the date of purchase, your product is warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish). Color variations are excluded, and display, floor-model, “as-is” or refurbished products are specifically excluded.

COVERAGE LIMITATIONS

Service will be provided by a Dacor designated service company during regular business hours. Please note service providers are independent entities and are not agents of Dacor.

The owner must provide proof-of-purchase or a closing statement for new construction upon request. All Dacor products must be accessible for service.

Warranty will be null and void on product that has altered, defaced, or missing serial numbers and tags.

Warranty is null and void if non-CSA approved product is transported from the U.S.A.

English52

WHAT IS NOT COVERED

·Due to differences in painted parts, kitchen lighting, product placement, and other factors; this warranty does not apply to color variation.	·Service calls to educate the customer on proper use and care of the product.
·Service fees for travel to islands and remote areas, which include but are not limited to, ferries, toll roads, or other travel expenses.	·Consequential or incidental damage, including but not limited to: food or medicine loss, time away from work, or restaurant meals.
·Commercial, business, or rental use, or any application other than residential consumer use.	·Failure of the product caused by improper product installation.
·Replacement of house fuses, fuse boxes, or resetting of circuit breakers.	·Damage caused by accident, fire, flood, power interruption, power surges, or acts of God.
·Liability or responsibility for damage to surrounding property including cabinetry, floors, ceilings and other structures or objects.	·Breakage, discoloration or damage to glass, metal surfaces, plastic components, trim, paint, or other cosmetic finish caused by improper usage, care, abuse, or neglect.
·Except as noted above, consumable parts such as filters and light bulbs are not covered and are the responsibility of the purchaser.

Warranty

THE REMEDIES PROVIDED IN THE ABOVE EXPRESS WARRANTIES ARE THE SOLE AND EXCLUSIVE REMEDIES. THEREFORE, NO OTHER EXPRESS WARRANTIES ARE MADE, AND OUTSIDE THE FIFTY STATES OF THE UNITED STATES AND CANADA, ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. IN NO EVENT SHALL DACOR BE LIABLE FOR INCIDENTAL EXPENSE OR CONSEQUENTIAL DAMAGES. IN THE EVENT DACOR PREVAILS IN ANY LAWSUIT, DACOR SHALL BE ENTITLED TO REIMBURSEMENT OF ALL COSTS AND EXPENSES, INCLUDING ATTORNEY'S FEES, FROM THE DACOR CUSTOMER. NO WARRANTIES, EXPRESS OR IMPLIED, ARE MADE TO ANY BUYER FOR RESALE.

Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or limitation of inconsequential damages, therefore the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state.

Warrantor: Samsung Electronics America, Ridgefield Park, NJ, 07660

English54

CANADA - Warranty

CERTIFICATE OF WARRANTY ON DACOR REFRIGERATOR - CANADA:

This Limited Warranty covers only those Products supplied and distributed in Canada by us and delivered new, in the original carton or packaging, to the original consumer purchaser that are purchased from an authorized reseller or distributor, except as otherwise stated herein. Except where prohibited by applicable provincial law, only the original consumer purchaser of the Product has any rights under this Limited Warranty and this Limited Warranty may not be transferred or assigned.

Any additional statements such as dealer advertising or presentation, whether oral or written, that make additional warranties or modifications to this Limited Warranty do not constitute warranties by us and should not be relied upon.

1. WHAT IS COVERED AND FOR HOW LONG

We warrant to the original purchaser (“Purchaser”) that your Dacor Refrigerator purchased from an authorized reseller or distributor in Canada (the “Products”) is free from defects in material and workmanship encountered in normal use for the warranty period identified below, effective as of the date of purchase or closing date for new construction, whichever period is longer.

Dacor Product or Part Warranty Period and Warranty Coverage
Refrigerator Two (2) Years: Parts and Labour
Refrigerator Sealed System (compressor, evaporator, condenser, dryer and connecting tubing)	Six (6) Years: Parts and Labour
Refrigerator Sealed System (compressor, evaporator, condenser, dryer and connecting tubing)	Twelve (12) Years: Parts Only
Refrigerator Compressor Fifteen (15) Years: Parts Only

Cosmetic Defects. For sixty (60) days from the date of purchase, the Product is warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish). Color variations are excluded, and display, floor-model, “as-is” or refurbished products are specifically excluded.

Warranty

2. COVERAGE LIMITATIONS

If the Product fails to operate according to the Product's specifications during the applicable warranty period and the failure is due to improper workmanship or defective material, we will repair or replace, at our sole option, and without charge to the Purchaser, the Product or any defective component part of the Product. We may, at our sole option, use rebuilt, reconditioned, or new parts or components when repairing any Product. If the same model Product or part is not available for replacement, we may, at our sole option, replace the Product or part with any rebuilt, refurbished, reconditioned or new Product or part of similar utility and value to the Product or part being replaced.

We expressly reserve the exclusive right, at our sole option, and in lieu of any service, repair or replacement of a Product under this Limited Warranty, to offer the Purchaser a partial refund of the original purchase price paid by the Purchaser for that Product (a "Partial Refund"). The amount of any Partial Refund to be offered shall be determined in our discretion based on the fair market value of the Product given its age and condition. If Purchaser accepts that offer of a Partial Refund, the Purchaser shall be deemed to have released us from any claim or liability whatsoever under this Limited Warranty or under any other applicable express or implied warranty or condition in respect of that Product.

All repaired parts or replaced Products will be warranted for a period equal to the remainder of the original Limited Warranty on the original Product or for 90 days, whichever is longer.

3. WHAT IS NOT COVERED

The remedies provided for in this Limited Warranty are available only within Canada.

This Limited Warranty does not cover any defect, malfunction, failure or damage caused by or resulting from any of the following:

(a) removal, installation, re-installation, maintenance, or service of the Product that was not authorized by us; (b) accident, fire, flood, power interruption, power surges, incorrect line voltage or supply or electrical current, fuses, house wiring, circuit breakers, connectors not supplied by us, unusual electrical or electromechanical stress, acts of God, or acts of nature; (c) misuse, abuse, neglect, mishandling, misapplication, alteration or modification of the Product or any part of the Product; (d) use of the Product in conjunction with products, equipment, utilities, services, parts, supplies, accessories, applications, external wiring, connectors, or ancillary or peripheral equipment not supplied or authorized by us; (e) uses for which the Product was not intended.

English56

Further, this Limited Warranty does not cover: (i) any Product or part from which the serial number has been removed or on which the serial number has been made illegible. Removing the serial number on any Product or rendering it illegible on any Product will immediately void the Limited Warranty for that Product; (ii) any damage whatsoever that occurs during shipment of the Product once the Product has been accepted by the Purchaser; (iii) any damage whatsoever resulting from any failure to follow operating, maintenance or environmental instructions contained in any instruction booklet or owner's manual available in connection with the Product; (iv) service fees for travel to islands and remote areas, which include but are not limited to, ferries, toll roads, or other travel expenses; (v) replacement of house fuses, fuse boxes, or resetting of circuit breakers; (vi) liability or responsibility for damage to surrounding property including cabinetry, floors, ceilings and other structures or objects; (vii) the cost of service calls for instructions, for the correction of installation errors, for customer adjustments that are explained in the Product owner's manual, or where the Product operates according to the Product's specifications. There may be a service charge for service calls made for issues not covered under this Limited Warranty; (viii) breakage, discoloration or damage to glass, metal surfaces, plastic components, trim, paint, or other cosmetic finish caused by improper usage, care, abuse, or neglect; (ix) except as noted above, consumable parts such as filters and light bulbs are not covered and are the responsibility of the Purchaser; (x) commercial, business, or rental use, or any application other than residential consumer use; (xi) colour variation due to differences in painted parts, kitchen lighting, product placement, and other factors;

We do not warrant or guarantee uninterrupted or error-free operation of the Product.

Warranty

4. WHAT ARE THE LIMITATIONS ON IN-HOME WARRANTY SERVICE?

In-home service is subject to availability, and it is not available in all areas of Canada. In-home service will only be provided if the Product is unobstructed and easily accessible from floor level to service personnel. If repair cannot be completed during in-home service or if in-home service is not available in your area, you may be directed to deliver the Product to a Dacor Authorized Service Center for warranty service. The cost of transportation of the Product to and from a Dacor Authorized Service Centre shall be paid by the Purchaser unless we elect to provide that transportation at our discretion.

To receive in-home service, the Purchaser must first contact Dacor Customer Care for problem determination and service procedures. All in-home warranty repairs must be performed by a Dacor Authorized Service Center. Valid proof of purchase must be presented to us at the time that service is requested and before warranty services are rendered.

When in-home service is not available, the Purchaser must return the Product to a Dacor Authorized Service Center for analysis. Assistance on where to deliver the Product can be obtained by contacting our Customer Service center. The cost of transporting the Product to or from the Authorized Service Center must be paid by the Purchaser.

5. WHAT ARE THE LIMITS OF OUR LIABILITY?

EXCEPT AS EXPRESSLY SET FORTH IN THIS LIMITED WARRANTY, OUR LIABILITY IS SUBJECT TO THE FOLLOWING LIMITATIONS:

(A) THE PURCHASER TAKES THE PRODUCT "AS IS" AND WE MAKE NO WARRANTY OR REPRESENTATION OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT.
(B) THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, WITH RESPECT TO THE PRODUCT
(C) IN PARTICULAR, AND WITHOUT LIMITING THE GENERALITY OF THE FOREGOING PARAGRAPHS (A) AND (B), WE MAKE NO WARRANTY, CONDITION OR REPRESENTATION AS TO ANY OF THE FOLLOWING: (i) THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; (ii) TITLE OR NON-INFRINGEMENT; (iii) DESIGN, CONDITION, QUALITY, OR PERFORMANCE OF THE PRODUCT; (iv) THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; (v) COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING TO THE PRODUCT.
(D) NOTHING CONTAINED IN ANY INSTRUCTION MANUAL OR OWNER'S MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT.

English58

THE PROVISIONS FOUND IN PARAGRAPHS (E) AND (F) BELOW DO NOT APPLY IN CIRCUMSTANCES WHERE THIS LIMITED WARRANTY IS GOVERNED BY THE LAWS OF THE PROVINCE OF QUEBEC.

(E) ALL IMPLIED WARRANTIES AND CONDITIONS THAT MAY ARISE BY OPERATION OF LAW, INCLUDING ANY APPLICABLE IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY LIMITED TO THE SAME DURATION OF TIME AS THIS LIMITED WARRANTY. SOME PROVINCES PROHIBIT LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, AND THE LIMITATION ON THE DURATION OF THE IMPLIED WARRANTY WILL NOT APPLY TO THE EXTENT THAT THE LIMITATION IS PROHIBITED BY APPLICABLE PROVINCIAL LAW.
(F) WE SHALL NOT BE LIABLE FOR DAMAGES OF ANY KIND (INCLUDING, WITHOUT LIMITATION, ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR SIMILAR DAMAGES) THAT RESULT OR ARISE DIRECTLY OR INDIRECTLY FROM ANY OF THE FOLLOWING: (i) THE PURCHASE, USE, OR MISUSE OF THE PRODUCT; (ii) ANY LOSS OF USE OF THE PRODUCT OR INABILITY TO USE THE PRODUCT; (iii) ANY BREACH OF THE EXPRESS WARRANTY; (iv) ANY LOSS OF ANTICIPATED PROFITS OR BENEFITS; (v) ANY LOSS OF FOOD OR CONSUMABLES; (vi) ANY TORT (INCLUDING NEGLIGENCE OR GROSS NEGLIGENCE) OR FAULT COMMITTED BY US, ITS AGENTS OR EMPLOYEES; (vii) ANY BREACH OF CONTRACT; (viii) ANY CLAIM BROUGHT AGAINST THE PURCHASER BY ANY OTHER PARTY. SOME PROVINCES PROHIBIT THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND THE ABOVE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES WILL NOT APPLY TO THE EXTENT THAT THE EXCLUSION IS PROHIBITED BY APPLICABLE PROVINCIAL LAW.
(G) THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM PROVINCE TO PROVINCE. THIS LIMITED WARRANTY STATES THE PURCHASER'S EXCLUSIVE REMEDY. EXCEPT WHERE PROHIBITED BY APPLICABLE PROVINCIAL LAW, THIS LIMITED WARRANTY IS NOT TRANSFERABLE WITHOUT OUR EXPRESS CONSENT.
(H) IF ANY PORTION OF THIS LIMITED WARRANTY IS HELD ILLEGAL OR UNENFORCEABLE BY REASON OF ANY LAW, SUCH PARTIAL ILLEGALITY OR UNENFORCEABILITY SHALL NOT AFFECT THE ENFORCEABILITY FOR THE REMAINDER OF THIS LIMITED WARRANTY.

If the Product is purchased from a non-authorized reseller or distributor or purchased outside of Canada, this Limited Warranty does not apply except that the above limitations specified in Sections 5(A) through 5(I) shall apply.

Warrantor in Canada: Samsung Electronics Canada Inc., Mississauga, ON, L5N 0B9 Canada

Warranty

OUTSIDE THE UNITED STATES AND CANADA:

LIMITED FIRST YEAR WARRANTY

If your Dacor product fails to function within one year of the original date of purchase due to a defect in material or workmanship, Dacor will furnish a new part, F.O.B. factory to replace the defective part.

All delivery, installation, labor costs, and other service fees are the responsibility of the purchaser.

English60

Regulatory Notice

FCC Notice

! FCC CAUTION:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contains Transmitter Module FCC ID: A3LCCAR210R

This device complies with Part 15 of FCC Rules. Operation is Subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that cause undesired operation.

For products available in the US and Canadian markets, only channels 1\~11 are available. You cannot select other channels.

FCC STATEMENT:

This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment to an outlet that is on a different circuit than the receiver.
• Consult the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it's antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.

Regulatory Notice

IC Notice

Contains Transmitter Module IC: 649E-CCAR210R

The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

For products available in the US and Canadian markets, only channels 1\~11 are available. You cannot select other channels.

IC RADIATION EXPOSURE STATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it's antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.

SAVE THESE INSTRUCTIONS

English62

Open Source Announcement

The software included in this product contains open source software.

The following URL http://opensource.samsung.com/opensource/SMART_TP1_0/seq/0 leads to open source license information as related to this product.

QR code image containing encoded data, no visible human-readable text

Contact Dacor

If you have any questions or comments relating to Dacor appliances, please contact the Dacor Customer Service Center.

Country Contact Center Web Site
U.S.A 1-833-353-5483 www.dacor.com
CANADA 1-844-509-4659 www.dacor.com

DA68-03581B-00

dacor.

dacor®

Manual del usuario

Refrigerador incorporado

DRS4253****

Contenido

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Instalador

Diagram of a hand washing a cup inside a door, with no visible text or symbols on the diagram itself.

Diagram of a mechanical component with a curved arrow indicating rotation, no text or symbols present

Diagram showing a structural joint with an inset magnified view of a mechanical component (no text or symbols)

Diagram of a door handle with an arrow indicating direction, showing a rectangular component inserted into a window (no text or symbols present)

Diagram showing a mechanical component with a circular symbol and a prohibition sign, no readable text or labels present.

Diagram of a mechanical or architectural component with an arrow indicating direction (no text or symbols present)

Isometric view of a rectangular drawer or drawer with an arrow pointing to the side (no text or symbols)

Diagram of a hand washing a cup with a digital display panel (no text or symbols)

Diagram showing two steps of a device operation: one with a display and arrow, the other with a tray holding a bag.

Simple line drawing of a kettle emitting smoke (no text or symbols)

Isometric line drawing of a rectangular device with internal heat exchanger and a magnified inset showing internal structure (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Line drawing of an open refrigerator with multiple shelves and doors (no text or symbols)

Installateur

Diagram of a hand washing machine with a bucket, showing control panel and battery (no text or symbols)

Diagram of a tilted rectangular frame with a curved arrow indicating rotation or force, mounted on a vertical post (no text or symbols)

Diagram showing a structural joint with an inset magnified view of a mechanical component (no text or symbols)

Diagram of a mechanical component with two arrows indicating direction, no text or symbols present

Diagram of a door handle with a stop symbol and directional arrow, no text or labels present

Diagram of a mechanical or architectural component with an arrow indicating direction (no text or symbols present)

Isometric view of a rectangular drawer or drawer with an arrow pointing to the side (no text or symbols)

Diagram showing a hand holding a container with a control panel and directional arrow, likely illustrating a process or measurement.

Diagram showing two devices with temperature readings and a magnified view of the device's screen display.

Simple line drawing of a kettle emitting smoke (no text or symbols)

Bouillonnement

Diagram of a refrigerator internal structure with heat exchanger and fan (no text or labels)

QR code image containing encoded data, no visible human-readable text

Français66

Mémo
