Product Type	Cash Register
Brand	Posiflex
Model	HK-1600
Dimensions (approx.)	350 x 300 x 250 mm
Weight (approx.)	5 kg
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	60 W (max)
Main Functions	Sales recording, ticket printing, inventory management, end-of-day reports
Display	Backlit LCD display
Printer	Built-in thermal printer
Connectivity	USB, serial, Ethernet ports
Cash Drawer	Compatible with external cash drawer
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not open the device. Lithium battery: do not replace with incorrect type. Use a grounded outlet.
Spare Parts and Repairability	Battery, power cord, thermal paper roll. Repair by authorized technician only.
General Information	Complies with CISPR 32 class A. Warranty void if unauthorized opening. Do not use in direct sunlight.
Operating Environment	Indoors only, away from direct sunlight
Operating Temperature	0°C to 40°C
Operating Humidity	20% to 80% (non-condensing)

Frequently Asked Questions - HK-1600 Posiflex

How to install the HK-1600 cash register?

Plug the power cord into a grounded outlet. Connect the cash drawer and peripherals (printer, scanner) to the appropriate ports. Turn on the device using the power switch. Follow the on-screen instructions for initial setup.

What to do if the screen is black?

Check that the power cord is properly plugged in and that the outlet works. Ensure the power switch is turned on. If the problem persists, contact your dealer.

How to clean the cash register?

Use a soft, dry cloth to clean the exterior. Never use liquid products, aerosols, or abrasive cloths. For the screen, use a slightly damp microfiber cloth (wring it out well).

Can I replace the battery myself?

No. The battery is lithium and replacing it with an incorrect type poses an explosion risk. Only an authorized technician can replace the battery. Please contact your dealer.

Why is my warranty void?

The warranty automatically ends if the machine is opened by someone other than authorized technicians. It is also void if the usage instructions are not followed. Consult your dealer for any issues.

Can I use the HK-1600 outdoors?

No. The HK series is not designed to operate under direct sunlight, whether indoors or outdoors. Use it only indoors, away from sunlight.

How to print an end-of-day report?

Access the reports menu from the touch screen. Select 'End-of-day report' or 'Z Report'. Confirm to start printing. Ensure the thermal paper roll is properly installed.

What to do in case of a paper jam?

Turn off the device. Open the printer cover. Gently remove the jammed paper. Replace the roll and close the cover. Turn on again. If the problem persists, contact support.

Does the cash register have network connectivity?

Yes, the HK-1600 is equipped with an Ethernet port for network connection. You can also use USB ports for peripherals. Refer to the manual for detailed network setup.

How should I dispose of the used battery?

The lithium battery must be disposed of in accordance with local waste disposal regulations. Do not throw it in the household trash. Take it to an approved collection point.

USER MANUAL HK-1600 Posiflex

PT-600 Pedestal for the Stellar User Manual

SOME IMPORTANT NOTES

FCC NOTES

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CE CLASS A WARNING

This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.

AVERTISSEMENT CE CLASSE A

Warranty will terminate automatically when the machine is opened by any person other than the authorized technicians. The user should consult his/her dealer for the problem happening. Warranty voids if the user does not follow the instructions in application of this merchandise. The manufacturer is by no means responsible for any damage or hazard caused by improper application. Please note that all of HK series kiosk are NOT designed to work direct sunshine both indoors and outdoors.

LIMITES DE GARANTIE

This equipment is not suitable for use in locations where children are likely to be present. Never open the equipment. For safety reasons, the equipment should be opened only by qualified skilled person. The power outlet socket must be located near the equipment and must be easily accessible.

CONSIGNES DE SÉCURITÉ

Power cord shall be connected to a socket-outlet with earthing connection.

ATTENTION

Risk of explosion if battery is replaced by an incorrect type. Dispose of expended battery in accordance with local disposal regulations.

AVERTISSEMENT DE BATTERIE

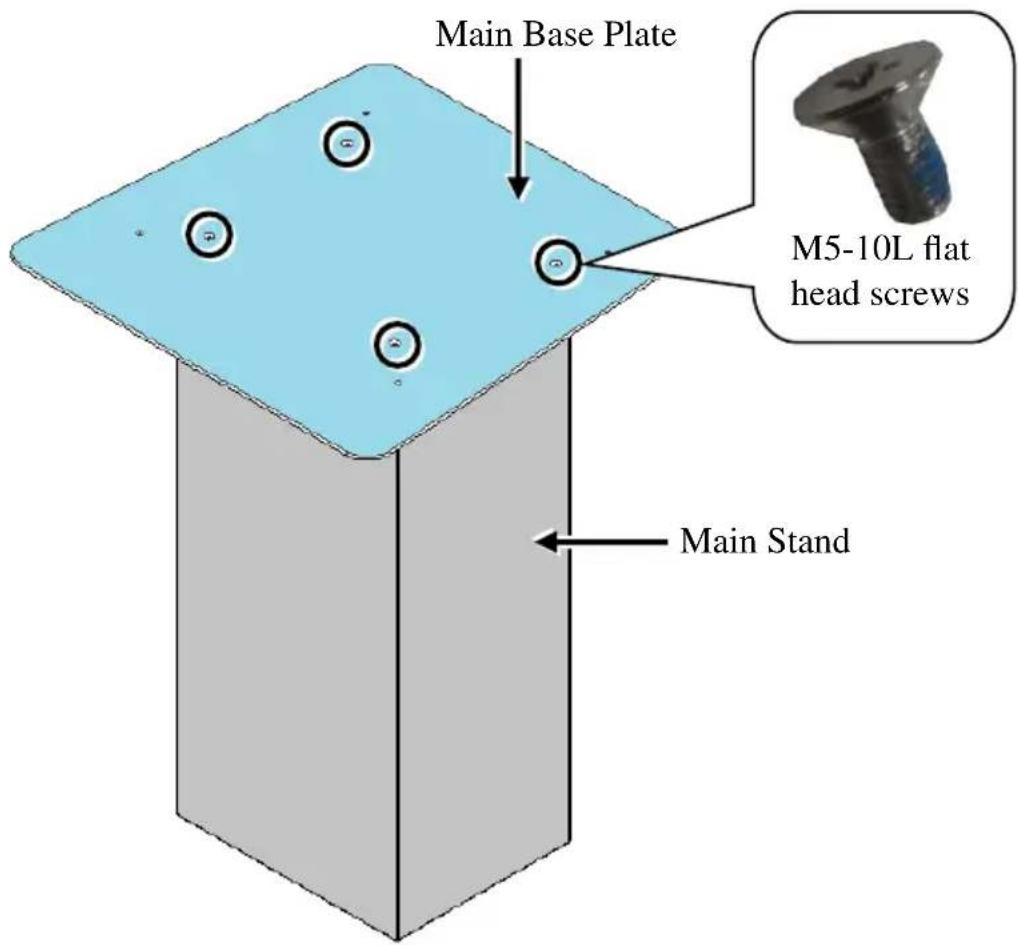

1. Place the main stand vertically on the ground (upside down) and align the main base plate, please see picture below. Next, insert the four M5-10L flat head screws into the screw holes and tighten down. This will affix the main base plate to the main stand.

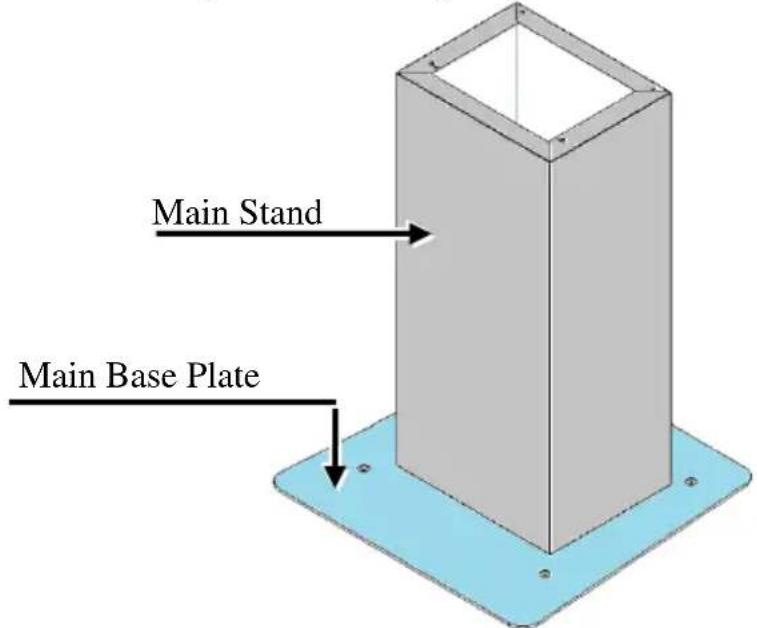

1. After installing the main base plate, stand the main stand up.

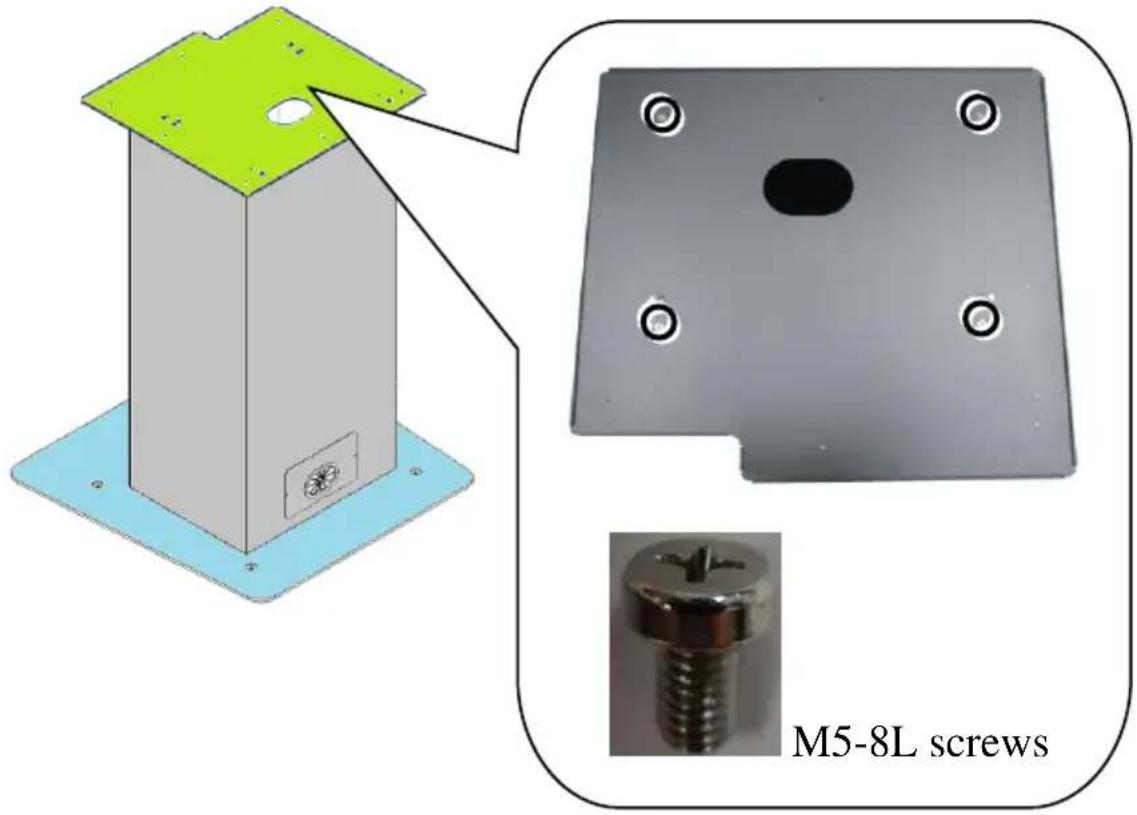

1. Fix the countertop plate onto the stand, and then fix it with four M5-8L screws.

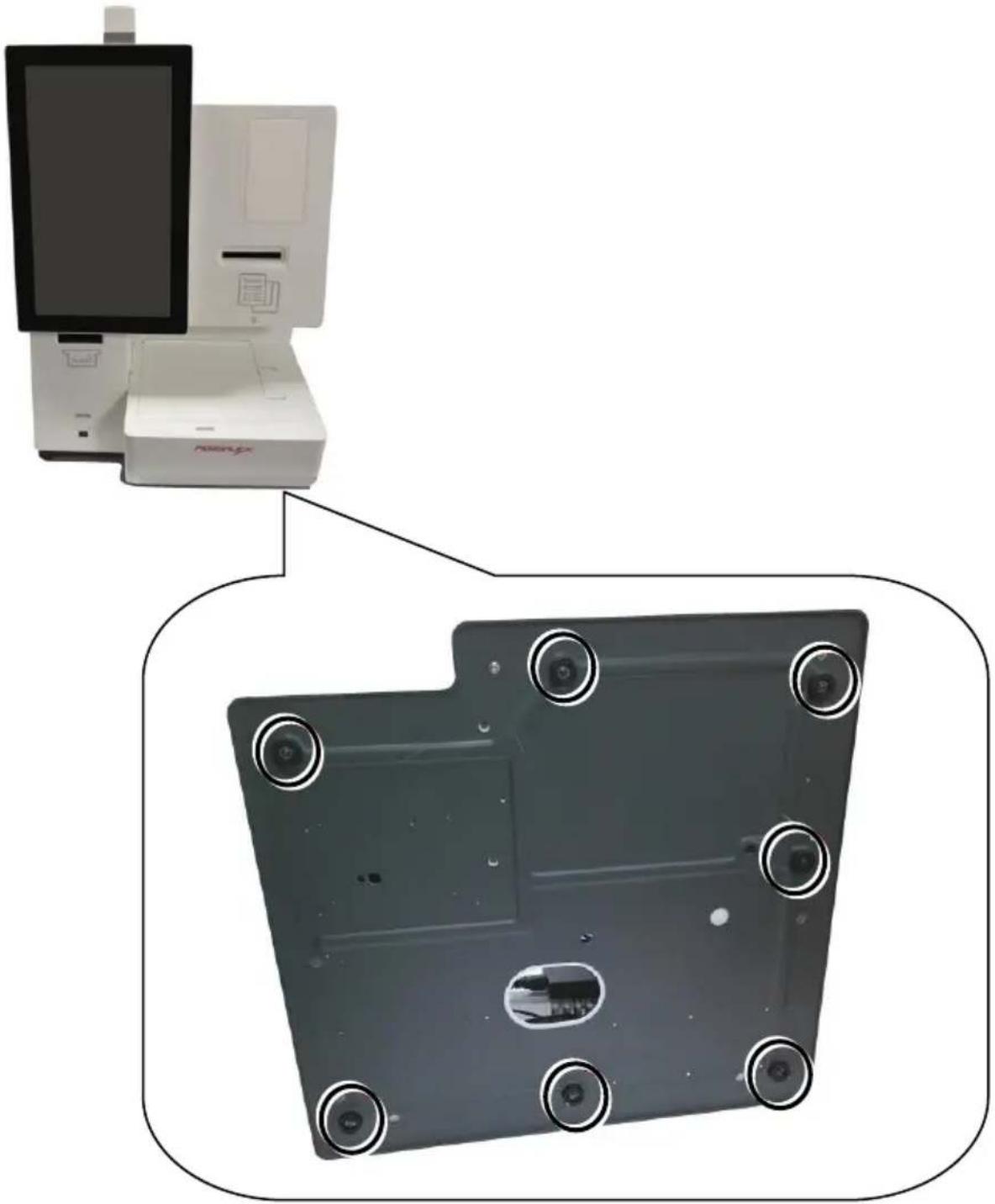

1. (1) Turn the bottom side of the countertop unit face to you.

(2) Remove the seven screws and rubber feet.

Diagram showing a medical device mounted on a laptop with a close-up of its internal components (no text or symbols visible)

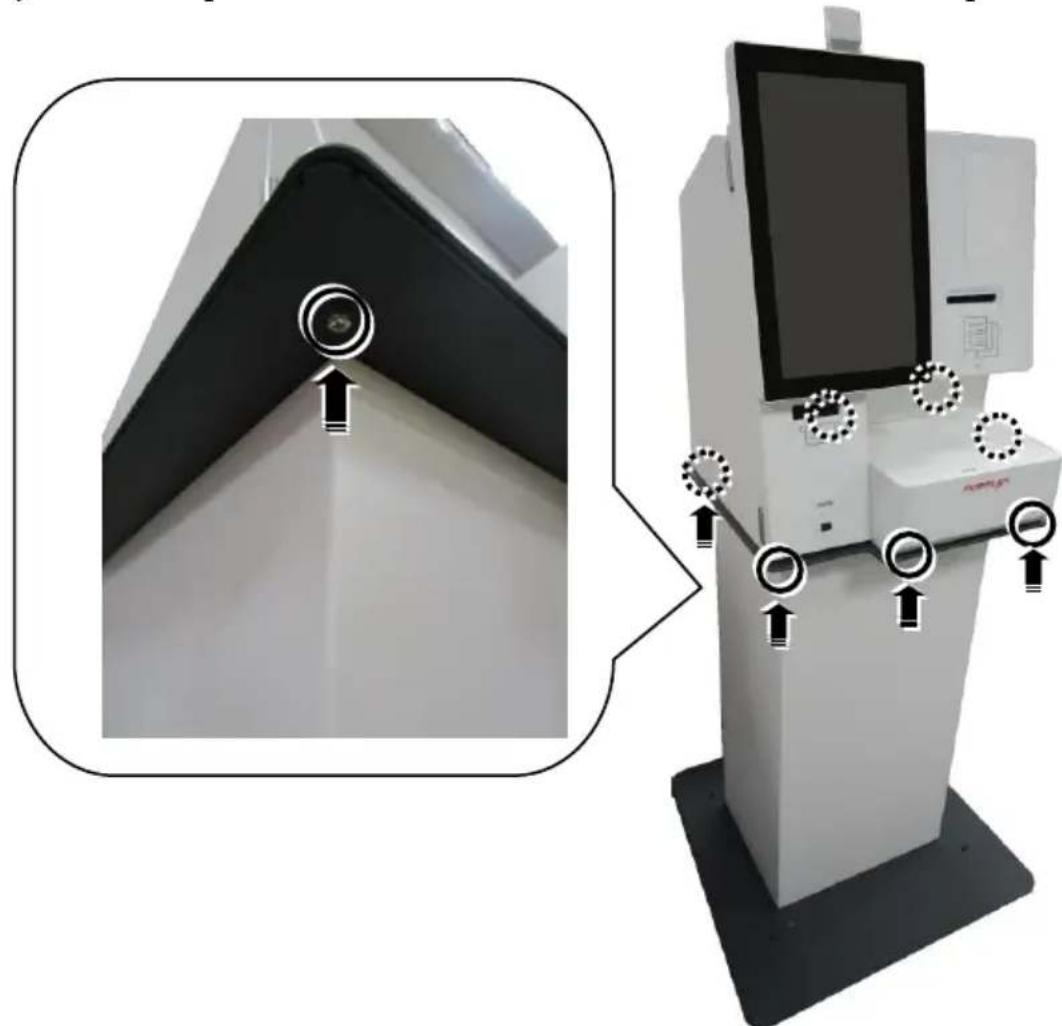

1. Carefully put the HK system unit on the pedestal, and remember to pass the cable through the cable exit on the countertop plate. Fix the HK system to the pedestal with seven #6/32 screws from bottom to top.

Diagram of a medical imaging machine with a device emitting laser beams, showing internal components and directional arrows (no text or symbols present)

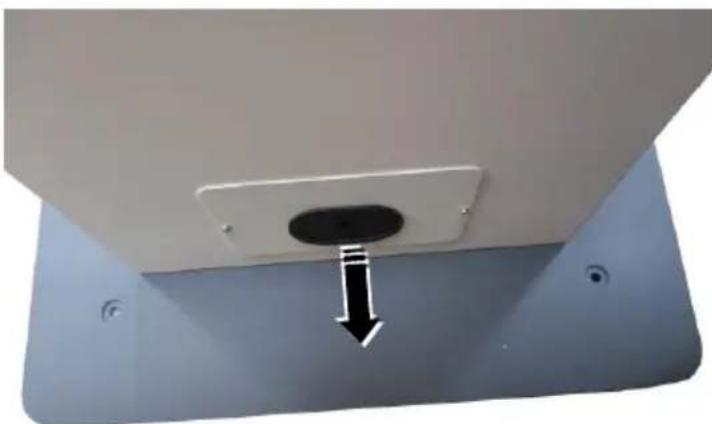

1. Take out the power cord cable through cable exit of the pedestal.

Close-up of a ceiling-mounted electronic component with a black arrow pointing to a circular opening (no text or symbols visible)

※ The product information and specifications are subject to change without prior notice.
