LST8BP - Graphic tablet Schwaiger - Free user manual and instructions

Product Type	LCD graphic tablet with multicolor writing
Brand	Schwaiger
Model	LST8BP
Dimensions	190 x 230 x 6 mm
Weight	145 g
Screen Size	21.59 cm (8.5 inches)
Writing Color	Multicolor (changes according to position on screen)
Power Supply	1 CR2025 button cell battery (3 V DC)
Battery Life	Up to 12 months
Number of Erasures	Approximately 50,000 erasures (±5%)
Operating Temperature	0 °C to +40 °C
Stylus Input Pressure	100 to 200 g
Reflectance	25 to 30%
Material	LCD screen, HIPS frame
Product Color	Pink (LST8BP)
Package Contents	Tablet, stylus, pre-installed CR2025 battery
Main Functions	Writing with stylus, erase button, writing lock
Care and Cleaning	Clean with a soft, dry cloth; do not immerse
Safety	Do not open the casing, do not expose to water or extreme temperatures
Replaceable Batteries	Yes, by user (CR2025)
Intended Use	Private use: writing and displaying notes

Frequently Asked Questions - LST8BP Schwaiger

How to erase the content of the tablet?

Press the Erase button (1) once on the front. The screen will be completely cleared.

How to prevent accidental erasure?

Slide the Lock switch (2) on the back of the product to position B. To unlock, slide it back to position G.

What type of battery does the tablet use?

The tablet uses a CR2025 button cell battery (3 V DC). It is pre-installed and can be replaced by the user.

How to replace the battery?

Unscrew the screw on the back, press the locking latch and remove the battery holder. Replace the old battery with a new one, observing the polarity (positive pole facing back). Replace the holder and screw it back in.

Can I use a different stylus than the one provided?

It is recommended to use only the provided stylus to avoid damaging the writing surface.

Does the writing change color?

Yes, the writing color changes automatically depending on where you write on the surface. The thickness may also vary according to the pressure applied.

What is the screen size?

The screen size is 21.59 cm (8.5 inches) diagonal.

How to clean the tablet?

Clean with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth with mild detergent, then dry completely. Never immerse.

Where should I store the tablet?

Store it in a dry place, out of reach of children, at a temperature between 5°C and 20°C. Make sure it is completely dry before storage.

How to dispose of the tablet at end of life?

Do not dispose of it with household waste. Return electrical and electronic devices and used batteries to a public collection point or the point of sale in accordance with local regulations.

USER MANUAL LST8BP Schwaiger

GB USER GUIDE AND SAFETY INSTRUCTIONS

8.5" LCD WRITING TABLET

MODE D'EMPLOI ET CONSIGNES DE SÉCURITÉ

TABLETTE D'ÉCRITURE LCD 8,5"

ISTRUZIONI PER L'USO E AVVERTENZE DI SICUREZZA

TAVOLETTA DA SCRITTURA LCD 8,5"

Illustration of a cartoon bear character with a blank screen, no text or symbols present

ALLGEMEINES

Read the user guide and keep it in a safe place.

Congratulations and thank you for purchasing this Schwaiger Product. This user manual is an integral part of this product. It contains important information on commissioning and handling.

This user manual is intended to assist you in using the product. Read through the instructions for use carefully. Store this guide safely throughout the product's entire service life and pass it on to any subsequent users or owners. Check that the supplied package is complete and ensure that none of the parts are defective or damaged.

INTENDED USE

The product is designed exclusively for writing and displaying notes or similar. The product is intended for private use only and is not suitable for commercial use. Only use the product as described in this user manual. Any other use is considered improper and may result in property damage.

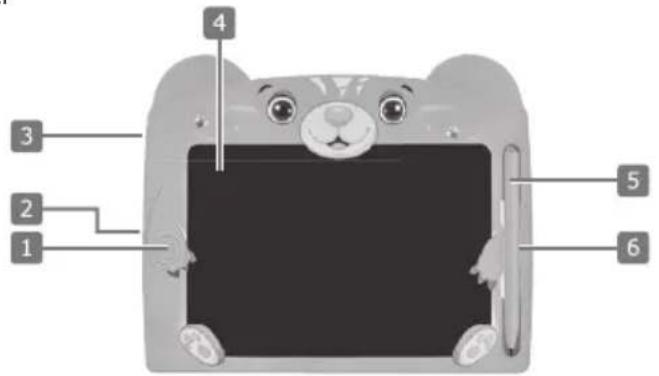

PRODUCT DETAILS

1 Erase button

2 Lock switch

3 Battery compartment

4 Writing surface

5 Pen

6 Pen holder

1 2 3 4 5 6

GENERAL SAFETY AND WARNING INSTRUCTIONS

WARNING!

Risk of electric shock!

Faulty electrical installation or excessive mains voltage can lead to electric shock.

- Do not operate the product if it shows visible damage.

• Do not open the housing but entrust the repair to specialists. Contact a specialist workshop for this purpose. Liability and warranty claims are excluded in the event of repairs carried out independently, improper connection or incorrect operation.
• Do not disassemble the product into its individual parts. Improper handling can lead to electric shock and malfunction.
• Never immerse the product in water.
• Never touch the product with wet hands.
• Keep the product away from open flames and hot surfaces.
• Only use the product in indoor areas.
• Do not expose the product to rain or extreme weather conditions e.g., sub-zero temperatures, hail, extreme heat.
• Never place the product in such a way that it can fall into water.
  • Make sure that no liquid gets into the product and, if necessary, dry the product thoroughly before using it again.
• Ensure that children do not insert any objects into the product.

WARNING!

Hazards for children and persons with reduced physical, sensory or mental abilities (for example, partially disabled persons, elderly persons with reduced physical and mental abilities) or lack of experience and knowledge (for example, older children).

• This product can be used by children aged from eight years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children must not play with the product. Cleaning and user maintenance must not be carried out by children without supervision.
• Do not leave the product unattended during operation.
• Do not allow children to play with the packaging film. Children can get caught in it while playing and suffocate.

WARNING!

Fire hazard!

Improper handling of the product and battery may cause an explosion or fire.
- Keep the product away from water, other liquids, open flames, and hot surfaces.
- Do not cover the product with objects or clothing.
- Do not place open fire sources, such as lighted candles, on or near the product.
- Keep a distance of at least 5 cm from easily flammable materials.

WARNING!

Hazard due to batteries!

If you use batteries improperly, there is a risk of explosion or burns from leaking battery fluid.

• Do not dispose of batteries in fire. Disposing of a battery in fire, in a hot oven, or mechanically crushing or cutting a battery can cause an explosion.
• Exposing a battery to extremely high ambient temperatures may cause an explosion or leakage of flammable liquid or gas.
• Exposure of a battery to extremely low atmospheric pressure may cause explosion or leakage of flammable liquid or gas.
• Do not expose batteries to unrestricted sunlight and heat. Increased risk of leakage!
• Do not charge, disassemble, or short-circuit batteries. Risk of explosion!
• Remove the battery from the battery compartment as soon as it is empty or if you do not use the product for a longer period of time.
• Pay attention to the correct polarity when inserting the battery
• Use only batteries of the same type.
• If necessary, clean the battery and device contacts before inserting the battery.
• If you suspect that a battery has been swallowed or otherwise entered your body, seek medical attention immediately.
• Do not touch leaking batteries. If you do come into contact with battery fluid, wash the affected area thoroughly with plenty of clean water. If leaking battery fluid causes a skin reaction or gets into the eyes, seek additional medical attention.
• If the battery compartment in which the battery is housed can no longer be closed securely, stop using the product. Remove the battery and keep it out of the reach of children.

Do not swallow batteries!

Danger of chemical burns. The product contains a button cell battery. If the button cell battery is swallowed, it can cause severe internal burns and death in as little as 2 hours. Keep new and used batteries away from children.

IMPORTANT!

Risk of damage!

Improper handling of the product may result in damage to the product.

• Do not drop the product or expose it to strong vibrations.
• Never place the product on or near hot surfaces (e.g., stove tops).
• Do not bring the product into contact with hot parts.
• Never expose the product to high temperature (heating, etc.) or weather (rain, etc.).
• Never pour liquid into the product.

- Never immerse the product in water for cleaning and do not use a steam cleaner for cleaning. The product may otherwise be damaged.

- Do not use the product if the plastic components of the product are cracked or deformed. Replace damaged components only with suitable original spare parts.

OPERATION IN DETAIL

Checking product and supplied package

Risk of damage!

If you open the packaging carelessly with a sharp knife or other pointed objects, the product can be damaged quickly.

- Be very careful when opening it.

1. Remove the product from the packaging.

2. Check if the delivery is complete.

3. Check whether the product or the individual parts show any damage. If this is the case, do not use the product. Contact the hotline or e-mail address specified in this instruction manual.

Commissioning

A button cell battery (CR2025) is included in the delivery and is already inserted in the battery compartment (3). Before using the product for the first time, you must pull the protective strip out of the battery compartment (3). You can then use the product.

• Remove the pen (5) from the pen holder (6).
• Write with the pointed side of the pen (5) on the writing surface (4) of the product. The harder you press with the pen (5) on the writing surface (4), the thicker the indicated line thickness will be. The colour of the writing changes automatically depending on where you write on the writing surface (4).
• Press the erase button (1) once to completely delete what you have written on the writing surface (4).
• If you want to prevent what is written on the writing surface (4) from being erased, activate the lock function of the product. To do this, slide the lock switch (2) on the back of the product to position B. To cancel the lock function, move the lock switch (2) back to position n.

Only use the pen (5) included in the scope of delivery for writing so that the writing surface (4) doesn't get damaged.

Changing the battery

When inserting a new battery, make sure that you insert the battery into the battery compartment (3) at the same time as the battery slide. In this way, the battery cannot slip in the battery compartment (3).

To insert a new button cell battery (CR2025), you must first open the battery compartment (3). Proceed as follows:

1. Loosen the screw on the back of the product.
2. Press the tension latch and remove the battery slide from the battery compartment (3). Remove the used battery.
3. Now insert the new button cell battery into the battery slide. Make sure that the polarity of the battery is correct (positive pole towards the back of the product).
4. Then put the battery slide with battery back into the battery compartment (3) and tighten the screw.

The product is now ready again and can be used.

TECHNICAL DATA

Item number LST8BB / L	LST8BP Font colour colourful
Power supply via battery: 3 V DC Lifetime approx. 50,0		00 writing times (+/- 5%)
Type of battery 1x CR20	25 Ambient temperature 0°C -	+40°C
Battery run time up to 12 months Product material LCD		display, HIPS frame
Display size 21,59 cm (8,5")	Dimensions	190 x 230 x	6 mm
Input pressure	100 - 200 g	Weight	145 g
Reflectance	25 - 30 %	Colour	blue (LST8BB) / pink (LST8BP)

MAINTENANCE & CLEANING

Short circuit hazard!

Water or other liquids entering the housing can cause a short circuit.

- Never immerse the product in water or other liquids.

- Make sure that no water or other liquids get into the housing.

i IMPORTANT!

Risk of damage!

Improper handling of the product may result in damage to the product.

- Do not use aggressive cleaning agents, brushes with metal or nylon bristles, or sharp or metallic cleaning objects such as knives, hard spatulas, and the like. These can damage the surfaces.

1. Clean the product with a soft, dry cloth.
2. If the product is stubbornly dirty, use a slightly damp cloth and a little mild detergent if necessary.
3. Allow all parts to dry completely afterwards.

Storage

All parts must be completely dry before storage.

• Always store the product in a dry place.
- Store the product out of reach of children, securely closed and at a storage temperature between 5 °C and 20 °C (room temperature).

Disposal

Do not dispose of batteries or electric and electronic devices in the normal household waste. The consumer is legally obliged to return electrical and electronic devices and batteries that are at the end of their useful life to the point of sale or public collection points that have been set up for this purpose. Legislation in the country of use governs individual details regarding disposal. The symbol on the product, the user guide or the packaging indicates this legal requirement.

GÉNÉRALITÉS

LE PRODUIT EN DÉTAIL

HET PRODUCT IN DETAIL

ALGEMENE VEILIGHEIDSINSTRUCTIES EN WAARSCHUWINGEN

WAARSCHUWING!

Stroomslaggevaar!

Schwaiger GmbH does not accept any liability or warranty for damages that are sustained due to improper installation or mounting, improper use of the product or non-compliance with the safety instructions.

Manufacturer's information

Dear Customer, please contact our Technical Support if you need technical advice and your retailer is unable to help you.

Office Hours (Technical Support in German)

Monday to Friday: 8:00 a.m. - 5:00 p.m.

Illustration of a cartoon-style digital drawing tablet with cat, sun, and flowers on its screen (no text or symbols)
