USER MANUAL DO91127 DOMO

White semi-trip refrigerator with 'DOMO' branding on front panel (no other text or symbols visible)

DO91127

Handleiding Koelkast met vriesvak

Mode d'emploi Réfrigérateur avec compartiment de congélation

Gebrauchsanleitung Kühlschrank mit Gefrierfach

Instruction booklet Fridge with freezer section

Manual de instrucciones Frigorífico con congelador

Istruzioni per l'uso Frigo-congelatore

Návod k použití Lednice s vnitřním mrazákem

Návod na použitie Chladnička s vnútorným mrazničkou

Two black-and-white icons: a warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

Two labeled diagrams showing a checkmark and an 'X' symbol, likely indicating approval or rejection status.

Illustration of three different screwdriver tools with a 8 mm scale indicator (no text or symbols on the tools themselves)

Technical line drawing of a refrigerator with open lid and internal compartments, plus close-up detail showing mounting fixtures (no text or symbols)

Technical line drawing of a refrigerator interior with mounting fixtures and internal components (no text or symbols)

Technical line drawing of a 3D cabinet or enclosure with no visible text, numbers, or symbols

GEBRUIK

TEMPERATUURREGELING

Illustration showing a hand holding a shelf and a close-up of a mechanical component with upward arrows (no text or symbols)

VERLICHTING

APPARAAT VERPLAATSEN

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two vertical signs with checkmarks and a cross symbol, likely indicating approval or rejection status.

Illustration of four different screwdriver tools with a 8 mm length label (no text or symbols on the tools themselves)

Technical line drawing of a refrigerator with open lid and side view showing internal components (no text or symbols)

Technical line drawing of an appliance cabinet with internal components and mounting hardware (no text or symbols)

Technical line drawing of a cabinet or refrigerator with open lid and internal frame (no text or symbols)

UTILISATION

RÉGLAGE DE LA TEMPÉRATURE

Diagram showing a hand placing a component into a shelf and then moving a device with upward arrows (no text or symbols)

ÉCLAIRAGE

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two simple diagrammatic boxes with checkmark and cross symbols, likely indicating approval or rejection actions.

Illustration of three different screwdriver tools with a 8 mm length标注 (no text or symbols on the tools themselves)

Technical line drawing of a refrigerator with open lid and side view showing internal components (no text or symbols)

Technical line drawing of a refrigerator interior showing internal components and mounting hardware (no text or symbols)

Technical line drawing of a refrigerator with lid and front panel (no text or symbols)

GEBRAUCH

TEMPERATURREGELUNG

Diagram showing a hand placing a component into a shelf and then adjusting a rectangular device with upward arrows (no text or symbols)

BELEUCHTUNG

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  · farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

· Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

· Make sure that children do not touch the cord or appliance.

- Your appliance uses isobutane (R600a) as a refrigerant. Despite the fact that R600a is an environmentally friendly and natural gas, it is highly flammable. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your refrigerator from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

▲ELECTRICAL WARNINGS

• Attention: This appliance cannot be used with an external timer or a separate remote control.
• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

• The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

• Do not let the cord hang on a hot surface or on the edge of a table or counter top.

• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• It is prohibited to alter or modify the device and its specifications.
• When disposing of the appliance, remove the plug from the power socket, cut the power cord (as closely as possible to the appliance), and remove the door to prevent playing children getting an electrical shock or shutting themselves in the appliance.
• The lamp in the appliance is intended for use in this cooling device only. Do not use the lamp as a household light.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

⚠️INSTALLATION

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
  · Always use the appliance on a steady, dry and level surface.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Keep the ventilation openings free of obstructions.
  · Avoid long exposure to direct sunlight.
  · Make sure that you have access to the plug of the appliance.
• Make sure the plug and cord are not crushed or damaged by the back of the appliance. This can cause short circuits and, as a result, overheating and fire.
  · This is a heavy appliance. Be careful when moving it.
  · This cooling unit is not intended for use as a built-in appliance.
• Do not place a power strip or other portable power supply behind the appliance.

- After installation, it is advisable to wait 24 hours before connecting the appliance to allow the oil to flow back in the compressor.

⚠ USE

· Do not use the appliance outdoors.
· Only use the appliance for its intended use.
- Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
- Do not use any other electrical appliance inside the refrigerator, unless they are approved for this purpose by the manufacturer.
- Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a flammable propellant.
- Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in injury or damage to the appliance.
· Do not use the appliance without a lamp.
- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
- Ensure the food in the appliance does not touch the back wall.
- Do not touch anything that comes out of the freezer with damp or wet hands. This could cause skin burns.
- Be careful when consuming ice cubes or ice creams that come from the freezer. These can cause frostbite on the lips or tongue.
· Follow the instructions below to prevent contamination of food:

• Keeping the door open for long periods may cause the temperature in the compartments of the appliance to rise considerably.
• Clean the surfaces that could come into contact with food regularly.
• If the appliance is left empty for longer periods, it should be turned off, defrosted and cleaned. Allow it to dry and leave the door ajar to prevent mould from growing in the appliance.

⚠ CLEANING AND MAINTENANCE

- Never immerse the appliance, the cord or the plug in water or any other liquid.

· Do not place warm or hot objects on top of the appliance.

· Do not clean the appliance with anything made of metal.

- Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation.

· Do not use mechanical appliances or other means to speed up the defrosting process, unless approved by the manufacturer.

- WARNING! Never place this appliance on or in the neighbourhood of a gas or electric fire or in a place where it could come into contact with a heat source. There are flammable materials located on the back of the appliance.

· Pay attention to the symbol 'Fire risk – flammable materials' located on the back of the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

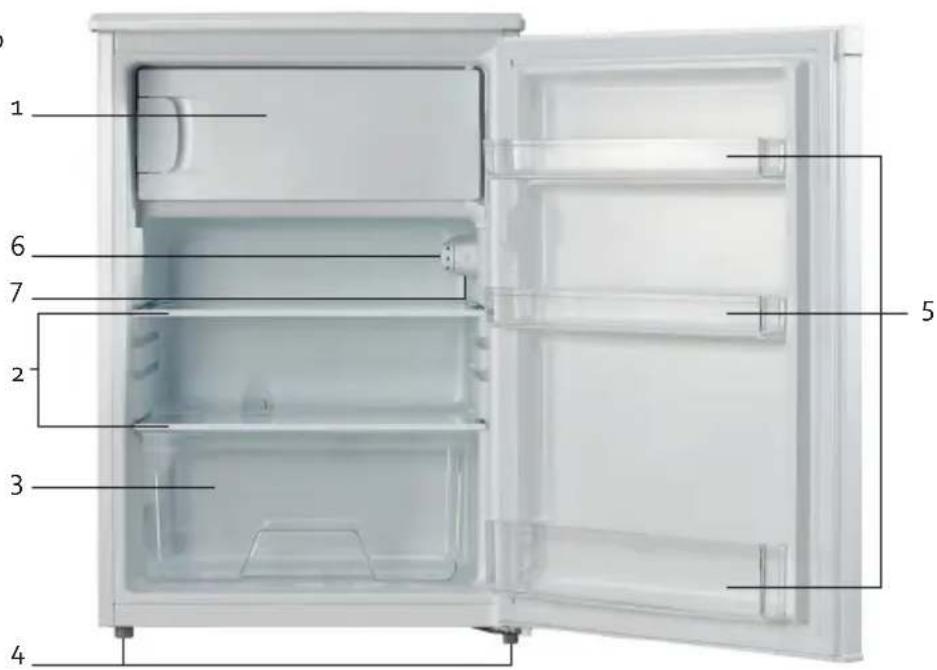

PARTS

1. Freezer compartment
2. Glass shelves
3. Vegetable container
4. Levelling feet
5. Door shelves
6. Temperature control knob
7. LED lighting

Labeled diagram of an open refrigerator interior showing numbered compartments for identification.

INSTALLATION

- Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth. Dry the appliance off well.

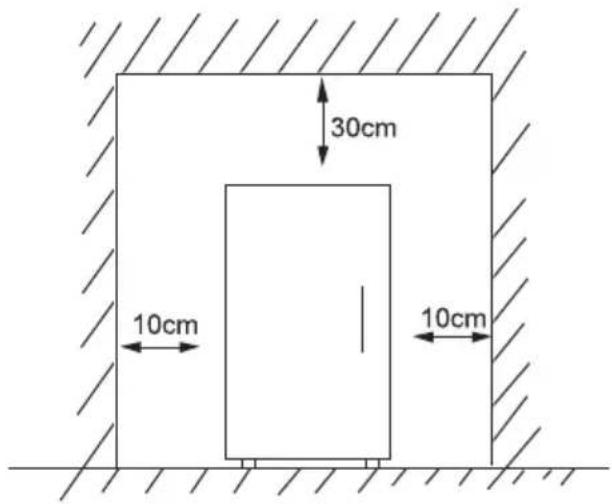

- Let air circulate freely around the cabinet.

30cm 10cm 10cm

10 cm

· Make sure there is sufficient space to open the door.

553mm 574mm 1010mm 135° 994mm

· This cooling unit is not intended for use as a built-in appliance.

- Select a place with a strong, level floor.

- Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating. Heat sources nearby will cause higher electricity consumption.

- Avoid very moist places. Too much moisture in the air will cause frost to form very quickly on the evaporator, and your refrigerator.

- Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.

· After installation, leave the fridge-freezer for 24 hours before turning it on. This way the refrigerant can settle.

- Allow the appliance to run empty for 12 hours so the compartment can cool to the appropriate temperature.

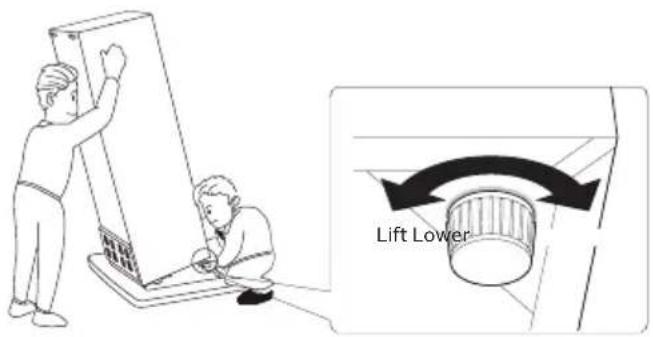

- One can level the appliance using the adjustable legs. The adjustable legs can be adjusted by screwing them in or out of the appliance.

Lift Lower

Two simple diagrammatic boxes with checkmark and cross symbols, likely indicating approval or rejection actions.

The climate class indicates the minimum and maximum ambient temperature for the proper operation of an appliance. You can find the climate class on the type plate on the inside or back of the appliance.

· SN: Subnormal: ambient temperature between 10^ C and 32^ C

· N: Normal: ambient temperature between 16°C and 32°C

- ST: Subtropical: ambient temperature between 16°C and 38°C

· T: Tropical: ambient temperature between 16°C and 43°C

DOOR CONVERSION

If you need to hinge your door on the opposite side, it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the door, you should ensure the appliance is unplugged and empty. After reversing the door, leave the appliance alone for 12 hours before switching it on. This allows the coolant to set.

It is recommended to use a crosshead screwdriver, a socket driver (8 mm) and a flathead screwdriver or putty knife (not supplied).

Illustration of three different screwdriver tools with a 8 mm length标注 (no text or symbols on the tools themselves)

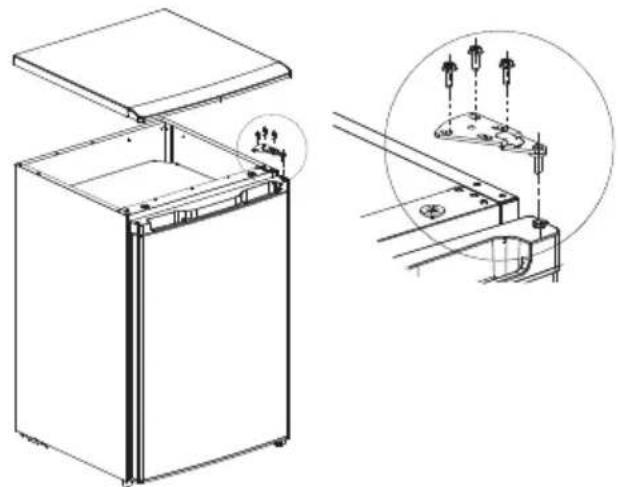

1. Unscrew and remove the top cover of the refrigerator, then place it on a soft surface to avoid scratches.

2. Unscrew and remove the top hinge.

Technical line drawing of a refrigerator with open lid and internal components, shown in two views (no text or symbols)

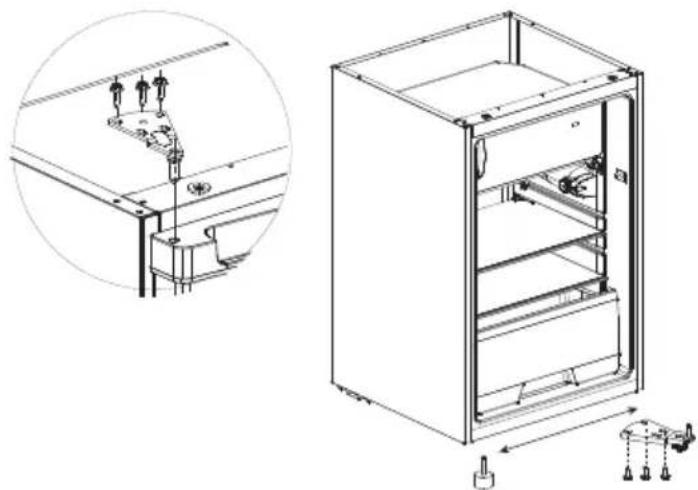

1. Lift the door and place it on a padded surface to prevent it from being scratched.

2. Unscrew and remove the bottom hinge with adjustable foot. Remove the other foot.

3. Swap the lower hinge with adjustable foot and the other adjustable feet from one side to the other side and screw them back in place.

Technical line drawing of a refrigerator interior with mounting bracket and side view showing internal components (no text or symbols)

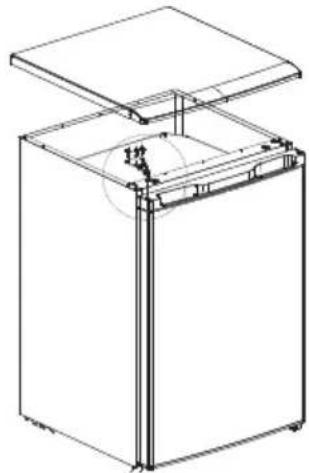

1. Place the door on the bottom hinge and fit the top hinge. Screw this tightly on.

2. Return the top cover of the refrigerator back into position and screw it in place.

Technical line drawing of a cabinet or enclosure with mounting brackets and internal components (no text or symbols)

USE

TEMPERATURE CONTROL

The fridge is controlled with a temperature control knob located inside the appliance. Adjust the control knob as desired to suit your individual preference. The higher the number, the colder the temperature. Position 4 is the recommended position for normal use.

Depending on the ambient temperature and the contents used, we recommend changing the setting to 5 or 6 (for more cooling) or setting 2 or 3 (if too cold). We recommend waiting one day after adjusting the temperature to be able to correctly assess it.

1 OFF 6

• In the OFF position the appliance does not operate (the cooling system is switched off), but power supply is not interrupted.
• The running time and temperature are affected by where the fridge is located, how often the door is opened and the temperature of the room the fridge is located in.

STORAGE GUIDE

For the best storage, set up your refrigerating appliance as follows:

Refrigerator compartment Type of food
Door rack · Food with natural preservatives such as jams, juices, drinks,spices, etc.· Do not store food with a limited shelf life here
Crisper drawer · Fruits, herbs, and vegetables· Do not refrigerate bananas, onions, potatoes, or garlic
Middle shelf Dairy and eggs
Top shelf Food that does not need to be cooked, such as ready-made meals,leftovers, spreads, etc.

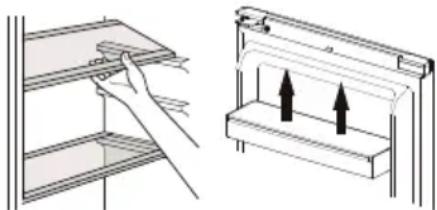

MOVING THE SHELVES AND DOOR RACK

· Empty the fridge before moving the shelves or the door racks.
· To move a shelf, raise it and pull it towards you.
- To move a door rack, grip it firmly with 2 hands. Raise the door rack and pull it towards you.

Diagram showing a hand holding a shelf and a close-up of a mechanical component with upward arrows (no text or symbols)

LIGHTING

The lighting in the freezer and the fridge are LED lights. LED lights are more ecological and manufactured for a long life. For this reason, these may not be replaced. If there is a problem with the lighting, contact a qualified service centre in your area.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

• Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the fridge to avoid any shock.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

STORING FOOD IN THE FRIDGE

The fridge helps to extend the storage times of fresh perishable foods.

Fresh food care for best results:

• Store foods that are very fresh and of good quality.
• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer.
• Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.
• Cool hot foods down before placing them in the fridge.

FREEZING AND STORING FOOD IN THE FREEZER

Use the freezer

· To store deep-frozen food.
· To make ice cubes.
· To freeze food.

Note: Ensure that the freezer door has been closed properly. Avoid opening the freezer drawers unnecessarily.

Purchasing frozen food

- Packaging must not be damaged.

- Use by the 'use by/best before/best by/' date.

- If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer.

Freezing fresh food

Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

- The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.

2. Remove air.

3. Seal the wrapping.

4. Label packaging with contents and dates of freezing.

Suitable packaging: plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

Recommended storage times of frozen food in the freezer

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food Storage time
Bacon, casseroles, milk 1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 months
Non-oily fish, shellfish, pizza, scones and muffins 3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

- When you freeze fresh foods with a use by/best before/best by date, you must freeze them before the expiry of this date.

• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
  · Once defrosted, food should be consumed quickly.

VACATION TIME

For short vacation periods, leave the control knobs at their usual settings. During longer absences:

• Remove all foods.
  · Disconnect from electrical outlet.
• Clean the refrigerator thoroughly, including defrost pan.
  · Leave door open to avoid possible formations of condensate, mould or odours.

POWER FAILURE

• Most power failures are corrected within an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off.
• During power failures of longer duration, take steps to protect your food by putting dry ice on top of packages.
• Frozen food should not be affected if the power failure lasts for less than 15 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

SOME IMPORTANT RULES FOR THE CORRECT USE OF THE REFRIGERATOR

• Never place hot foods in the refrigerator.
• Beverages should be stored in sealed containers.
• Foods to be stored for a long time should be wrapped in cellophane or polyethylene foil, or kept in glass containers.
• Never place spoiled foods in the cabinet.
• Don't overload the cabinet.
• Don't open the door unless necessary.
• Caution: please keep the product away from fire or similar glowing substances before you dispose of the refrigerator.
• Caution: Not for outer camping use (e.g. in a tent).
• Caution: For indoor use only.
• Caution: The appliance can not be used in public transportation.
• Keep all accessories, such as shelves, door racks, and drawers, in the appliance to minimise energy consumption.
• Please read the storage instructions on the food packaging. Always check the storage date.
  · Do not place carbonated drinks in the freezer. The bottle/can is pressurised and may explode.
• Be careful when consuming ice creams that come from the freezer. These can cause frostbite.
• An empty fridge consumes more energy. After all, when the door is opened, warm air enters the space and needs to be cooled. More air enters when there are fewer products, meaning that more energy needs to be consumed to cool that air. So fill your fridge properly or choose a model sized for your needs.

CLEANING AND MAINTENANCE

• Do not use abrasive cleaning agents or solvents.
• Turn the appliance off. Disconnect the mains plug from the mains socket.
  · Take out the food and store in a cool location.
• Clean the appliance with a soft cloth, warm water and detergent.
  · Wipe the door seal with clear water only and then wipe dry thoroughly.

· After cleaning, put the plug in the socket and set the desired temperature.
- Put the food back into the appliance.

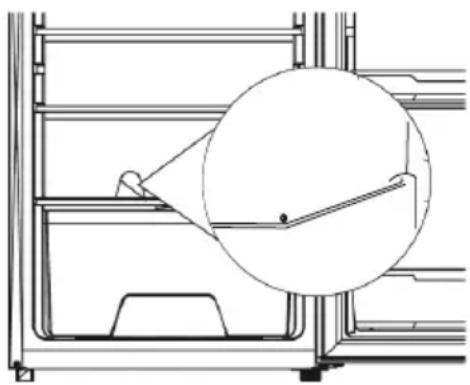

DEFROSTING THE REFRIGERATOR

The refrigerator defrosts fully automatically.

While the cooling is running, beads of condensation or hoarfrost form at the back of the refrigerator. This is normal. It is not necessary to wipe off the condensation or frost. The rear panel defrosts automatically. The condensation runs into the condensation channel and is conveyed to the compressor from where it evaporates.

Note: Keep the condensation channel and drainage hole clean, so that the condensation can run out.

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

DEFROSTING THE FREEZER

A layer of frost in the freezer will impair refrigeration of the frozen food and increases power consumption. Remove the layer of frost regularly. Do not scrape off frost or ice with a knife or pointed object. Doing this may damage the refrigerant tubes.

1. Remove the frozen food and place temporarily in a cool location.
2. Disconnect the appliance from the mains socket.
3. To accelerate the defrosting process, place a pan of hot water on a stand in the freezer.
4. Wipe up condensation with a cloth or sponge.
5. Wipe dry the freezer compartment.
6. Plug in the appliance and adjust the temperature control knob as desired.
7. Put the frozen food back in the freezer.

TROUBLE SHOOTING

Frequently, a problem is minor and a service call may not be necessary, use this trouble shooting guide for a possible solution.

Does not work

• Check connection of power cord to power source.
• Check that the temperature controller is not in the OFF position.
• Plug in unit.
• Use proper voltage.

Cools too frequently

· The temperature setting is too cool.
- Close door securely.
- Be sure that food is cool before inserting.
- Do not keep door open for too long and minimize door openings.
- Use proper voltage.
- Do not place unit close to heat sources or direct sunlight.

Internal temperature not cold enough

• Check connection of power cord to power source.
• Plug in unit.

• Check setting and adjust as needed.

• Close door securely.

• Be sure that food is cool before inserting.
  · Do not keep door open for too long and minimize door openings.
• Allow room for air to circulate around unit.
• Use proper voltage.
• Do not place unit close to heat sources or direct sunlight.

Unusual sounds

· The appliance is not level. Readjust the adjusting feet and level the unit.
- The unit is touching a wall or another object. Gently move the appliance.

There is water on the floor

• The condensation duct is blocked. See the chapter on cleaning.
• Too much condensation has formed in the fridge, causing the reservoir to overflow. Too much condensation is caused by a heat difference. Is the door closed properly? Have you put hot food in the fridge? Does the seal still close properly?

The door does not close properly

- The door seal is deformed. Heat it gently using a hairdryer. The rubber seal will become flexible and the magnetic strip in the rubber will automatically pull towards the appliance. After cooling, the rubber stays in that position.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed out by a diagonal line, with a blank rectangular base below.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon (three chasing arrows) inside a rounded square border, no text or labels present.

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Two simple diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating approval or rejection.

Illustration of four different screwdriver tools with a 8 mm length标注 (no text or symbols on the tools themselves)

Technical line drawing of a refrigerator with open lid and internal components, plus close-up detail showing mounting fixtures (no text or symbols)

Technical line drawing of an open refrigerator with internal compartments and mounting hardware (no text or symbols)

Technical line drawing of a cabinet or enclosure with mounting feet and internal structure (no text or symbols)

USO

Diagram showing a hand interacting with a shelf and a mechanical device with upward arrows (no text or symbols)

ILUMINACIÓN

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two labeled diagrams showing checkmark and cross symbols, likely indicating approval or rejection status.

Illustration of four different screwdriver tools with a 8 mm length标注 (no text or symbols on the tools themselves)

Technical line drawing of a refrigerator with open lid and internal components, plus close-up detail showing internal components (no text or symbols)

Technical line drawing of an open refrigerator with internal compartments and mounting hardware (no text or symbols)

Technical line drawing of a refrigerator with lid and front panel (no text or symbols)

UTILIZZO

CONTROLLO DELLA TEMPERATURA

Diagram showing a hand inserting a component into a shelf, and a close-up of a device with two upward arrows indicating motion (no text or symbols present)

ILLUMINAZIONE

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

SBRINAMENTO: CONGELATORE

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two labeled diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating approval or rejection status.

Illustration of three different screwdriver tools with a 8 mm length标注 (no text or symbols on the tools themselves)

Technical line drawing of a refrigerator with open lid and side view showing internal components (no text or symbols)

Technical line drawing of an open refrigerator with internal compartments and mounting fixtures (no text or symbols)

Technical line drawing of a cabinet or refrigerator with lid and frame structure (no text or symbols)

N

POUŽITÍ

NASTAVENÍTEPLOTY

Diagram showing a hand inserting a component into a device with two upward arrows indicating motion (no text or symbols present)

OSVĚTLENÍ

MANIPULSCE S PŘÍSTROJEM

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

ODMRAŽOVÁNÍ: MRAZÁK

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two identical diagrams showing a checkmark and a cross symbol, likely indicating approval or rejection status.

Illustration of four different screwdriver tools with a 8 mm length标注 (no text or symbols on the tools themselves)

Technical line drawing of a refrigerator with open lid and internal components, plus close-up detail showing mounting fixtures (no text or symbols)

Technical line drawing of a refrigerator interior with mounting fixtures and internal components (no text or symbols)

Technical line drawing of a rectangular cabinet or enclosure with a lid and internal structure (no text or symbols)

POUŽITIE

NASTAVENIE TEPLOTY

Diagram showing two steps of a device or assembly: one with a hand interacting with a shelf, the other with three upward arrows inside a rectangular frame (no text or symbols present)

OSVETLENIE

Technical line drawing of a mechanical assembly with a magnified inset showing a circular detail (no text or symbols)

ODMRAZOVANIE: MRAZNIČKA

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical containers filled with light-colored liquid, no visible text or symbols

Two product photos: one showing square cards with a lid, the other a clear glass teapot with a handle (no text or symbols visible)

Metallic rectangular container with a dark interior, placed on a plain white surface (no text or symbols visible)

QR code image containing encoded data, no visible human-readable text
