Product type	Drip coffee maker
Brand	Bosch
Model	COMPACTCLASS TKA3A014
Color	Black / Stainless steel (estimated)
Capacity	10 cups (1.25 L)
Coffee type	Ground coffee (medium grind)
Filter	Paper filter 1x4
Power	950 W (estimated)
Voltage	220-240 V, 50-60 Hz
Auto shut-off	Yes (after 2 h on auto off model)
Anti-drip device	Yes
Warming plate	Yes
Carafe	Glass with lid
Dimensions (H x W x D)	Approx. 35 x 20 x 30 cm
Weight	Approx. 1.5 kg
Removable parts dishwasher safe	Yes (lid, filter holder, carafe, etc.)
Cleaning and descaling	Regular descaling with commercial product
Safety	Auto shut-off, overheat protection
Use	Household
Warranty	According to distributor's terms

Frequently Asked Questions - COMPACTCLASS TKA3A014 BOSCH

What is the maximum capacity of the coffee maker?

The Bosch COMPACTCLASS TKA3A014 coffee maker has a maximum capacity of 10 cups (approx. 1.25 liters). Do not exceed the '10' mark on the reservoir.

How to descale the machine?

Use a commercially available descaling product. Fill the reservoir with the solution, let it sit for 5 minutes, then run a cycle. Stop after 1 minute, wait 10 minutes, repeat 3 times. Finish the cycle then rinse with 2 cycles of pure water without coffee.

Why is the coffee flowing slowly?

Slow flow is usually due to excessive scale buildup. Descale the machine according to instructions. If the problem persists, check the filter and grind.

Can I use milk or other beverages in the water reservoir?

No, only fill with pure cold water. Milk or prepared beverages will damage the machine.

How does the auto shut-off work (auto off model)?

On the 'auto off' model, the coffee maker automatically turns off after 2 hours of operation. You can also manually turn it off with the On/Off button.

What to do if condensation forms on the filter holder?

Condensation is a normal phenomenon and does not indicate a defect. It is due to water vapor during preparation.

Which parts are dishwasher safe?

All removable parts are dishwasher safe: the reservoir lid, filter holder, glass carafe with its lid. Never put the machine body in the dishwasher.

Can I brew less than 3 cups of coffee?

No, the recommended minimum amount is 3 cups (375 ml). Below that, the coffee will not have the right temperature or taste.

How to clean the exterior of the machine?

Unplug the machine and wipe the exterior with a damp cloth. Do not use harsh or abrasive cleaners, and never immerse the machine in water.

What to do if the machine stops before the end of brewing?

This indicates heavy scale buildup. Descale the machine according to instructions. To avoid this, descale more often if the water is hard.

USER MANUAL COMPACTCLASS TKA3A014 BOSCH

Illustration of a Bosch coffee maker with clear glass and lid (no text or symbols on the device itself)

TKA3A..

BOSCH

Illustration of a kitchen appliance with a lid and handle, showing a curved arrow indicating rotation (no text or symbols)

Illustration of a Bosch blender being poured into a plastic cup (no text or symbols)

Illustration of a hand holding a container with a lid open, no text or symbols present

Illustration of a hand pouring liquid into a container with a lid (no text or symbols)

Close-up of a finger pressing a button on a mechanical component (no visible text or symbols)

Illustration of a coffee maker with a steaming cup and a checkmark indicating it is checked (no text or symbols present)

Congratulations on purchasing this Bosch appliance.

You have acquired a high-quality product that will bring you a lot of enjoyment.

Please read the operating instructions carefully and keep them for future reference!

these operating instructions describe the following different models (A/B):

– Basic model with ON/OFF switch only
- “auto off” model with automatic switch-off after 2 hours. It can also be switched off manually in the same way as the basic model.

Safety instructions

This appliance is designed for domestic use or for use in non-commercial, household-like environments, such as staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

Risk of electric shock!

Connect and operate the appliance only in accordance with the specifications on the rating label.

Do not use if either the power cord or the appliance is damaged.

Keep children away from the appliance. Children should be supervised to ensure that they do not play with the appliance. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Unplug after every use or if defective.

Repairs to the appliance, such as replacing a damaged power cord, may only be carried out by our customer service in order to avoid risks.

The power cord should not:

• touch hot parts,
  – be pulled over sharp edges,
  – be used as a carrying handle.

Do not place the appliance on or near hot surfaces such as a cooker or hob.

Never cover the hotplate.

Only touch the appliance parts and coffee pot using the handles provided during operation.

Never leave the coffee machine unattended while it is in use!

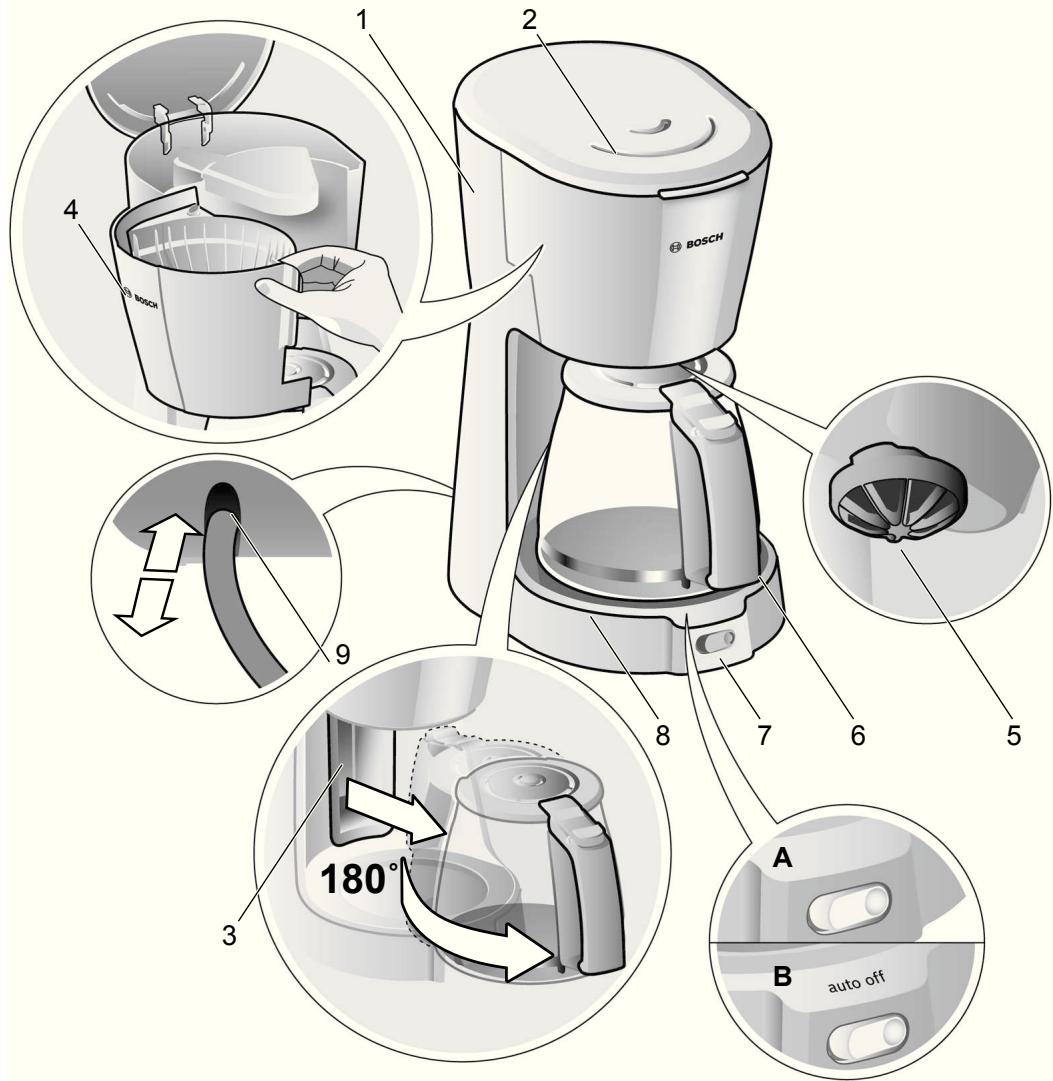

Parts and operating controls

1 Water tank with fill level indicator
2 Lid, removable (dishwasher-safe)
3 Storage compartment (coffee pot handle)
4 Filter holder, swivelling (dishwasher-safe)
5 Drip stop
6 Glass carafe with lid (dishwasher-safe)
7 Button ON/OFF
8 Hotplate
9 Cable storage compartment

General information

• Fill water tank 1 with clean, cold water only. Never add milk or beverages such as tea or coffee since this will damage the appliance.
• Never exceed the "10" marking when you fill the tank 1 with water.
• Use coffee with a medium grind (approx. 7 g per cup).

• Do not brew less than the minimum amount of three cups since the coffee will not have the desired strength and temperature (1 cup = approx. 125 ml).

• Never remove the glass carafe 6 while the machine is brewing coffee since this may cause the filter holder 4 to overflow.

• Make sure that glass carafe's lid is closed when you place the carafe 6 on the coffee machine.
• Do not use other carafes since the special drip protector will block the coffee from flowing into the receptacle.
• Some water accumulation on the filter holder 4 is normal; it does not indicate that the coffee machine is defective.

Before using for the first time

• Remove any stickers or film.
• Pull enough of the power cable out of the storage compartment 9 and plug in.
• Remove coffee pot handle from storage compartment and rotate forwards.
• To clean, open the lid 2 and fill the water tank 1 with nine cups of water. Close the lid 2, insert the glass carafe 6 and press the ON/OFF switch 7 to switch on and start the cleaning process.
• Repeat the cleaning process.

Note: You may notice a “new machine” smell; this is normal. If this is the case, fill with a vinegar solution (2 cups of vinegar for 6 cups of water) and run the cleaning program. Next, rinse the machine twice with 9 cups of water.

- Clean the carafe thoroughly.

Brewing coffee

• Fill the water tank 1 with water, taking note of the marking.
• Swivel out the filter holder 4.
• Insert a 1x4 paper filter in the filter holder 4 and add the desired amount of coffee.
• Swivel back the filter holder 4 and let it click into place.
• Place the glass carafe 6 with the lid closed underneath the filter holder 4.

- Press the ON/OFF switch 7 to start the brewing cycle.

Note: The “auto off” model has an auto off (energy-saving) program that switches the appliance off after approximately two hours.

Important: When the brewing process is complete, wait a moment until all the coffee has run through the filter and into the carafe.

Let the machine cool down for five minutes before brewing a fresh pot.

Coffee-making tips

Store ground coffee in a cool place; you can also freeze it.

Once a package of coffee has been opened, close it tightly to maintain its aroma.

How the coffee beans are roasted affects their taste and aroma.

Darker roast = more flavour

Lighter roast = more acidity

Cleaning

Never immerse the device in water or place it in the dishwasher!

Don't steam-clean the appliance.

Unplug the appliance before cleaning it.

– Clean all parts that came into contact with coffee after each use.
- Clean the coffee machine's exterior with a damp cloth; do not use strong or abrasive cleaning agents.
- Wipe out the water tank 1; do not use a hard brush.
- All detachable parts are dishwasher-safe.

Descaling

The appliance must be descaled regularly, but at the latest when

• the brewing time becomes more prolonged
  • excessive steam is emitted
• the appliance makes more noise.

Regular descaling

• makes your appliance last longer
• ensures proper function
  • prevents excessive steam
• speeds up the brewing process
• saves energy

Descale the machine with a commercial descaling agent.

• Switch off the machine and allow it to cool.
• Place the glass carafe 6 with the lid closed on the coffee machine.
• Prepare the descaling solution according to the manufacturer's instructions and pour it into the water tank 1.
• Leave the solution in the machine for 5 minutes and then switch the machine on.
• Switch off the machine after one minute and wait a further 10 minutes.
• Repeat this procedure at least three times, more often if there is a large amount of limescale.
• Allow the remaining descaling solution to run through.
• After descaling, run two brewing cycles with clean water but without coffee. Do not fill the tank with more than 6 cups of water.
• Wash all parts and the glass carafe thoroughly.

Troubleshooting

The machine takes noticeably longer or switches itself off before the brewing process is complete.

→The machine needs descaling.

- Descale the machine as per the instructions.

Tip: Descale the appliance more frequently if the water has a high lime content.

Disposal

This appliance is labelled in accordance with the European Directive 2002/96/EG relating to waste electrical and electronic equipment – WEEE. The directive provides the framework for the EU-wide take-back and disposal of end-of-life appliances. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Right of modification reserved.
