Product type	Kitchen hood
Brand	XO
Model	XOI45KSE
Usage	Residential
Finish	Stainless steel
Mounting height	65 to 75 cm above the cooking surface
Duct diameter	8 in (20.3 cm), adaptable to 4x14 in rectangular
Duct type	Rigid metal (stainless steel or galvanized)
Number of speeds	3 + Power Boost (6 minutes)
Control	Illuminated electronic push buttons
Lighting	Replaceable bulbs (turn counterclockwise)
Filters	Stainless steel baffle filters, dishwasher safe
Timer	Automatic shut-off 5 minutes (T function)
Evacuation	Outside only (duct required)
Safety	Automatic shut-off, fire protection (grease)
Power supply	120 V, 60 Hz, direct wiring (junction box)
Net weight	Approximately 13.6 kg (30 lb)
Warranty	2 years parts and labor (conditions apply)
Standards	Complies with ANSI/NFPA 70, local electrical codes
Maintenance	Regular cleaning of stainless steel with soapy water, polishing

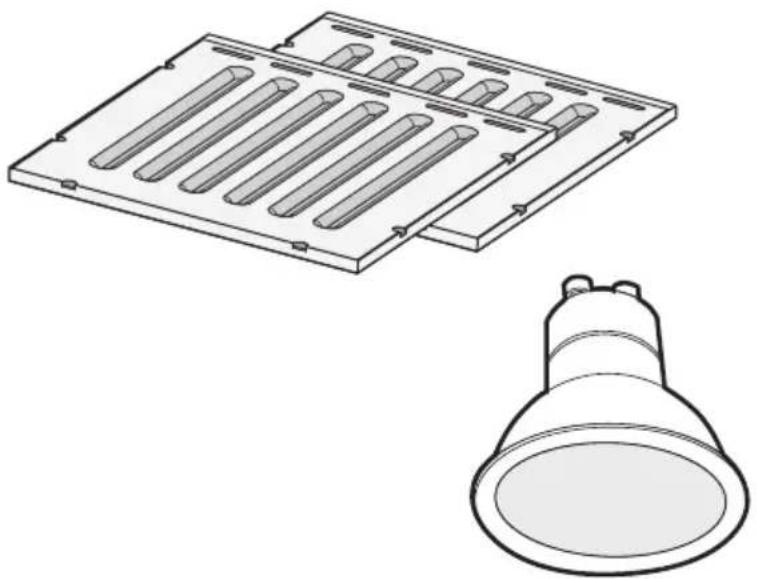

Repairability	Filters and bulbs replaceable by user

Frequently Asked Questions - XOI45KSE XO

What tools are needed to install the XO XOI45KSE hood?

You will need mounting screws, a drill, a screwdriver, and a metal duct (8 in diameter or 4x14 in). Installation requires qualified personnel.

How to clean the hood's baffle filters?

The baffle filters are removable. Pull the latch, lower the front edge and remove them. Clean them in the dishwasher or by soaking in hot soapy water. Rinse and dry before reinstalling.

What is the recommended mounting height for this hood?

The recommended height is 65 to 75 cm above the cooking surface. A height too low increases fire risk, too high reduces efficiency.

Can I use a plastic duct?

No, use only metal duct (stainless steel or galvanized) with smooth bore. The duct must be 8 in diameter or 4x14 in rectangle. Never reduce the size.

How to activate the Power Boost function?

Press BUTTON 3 for about 2 seconds. The hood will run at maximum speed for 6 minutes, then return to the previous speed. The indicator light flashes during activation.

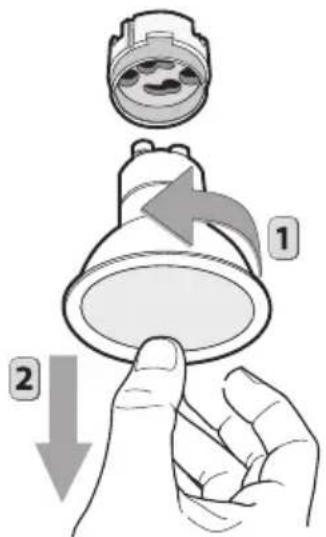

What to do if the lighting does not work?

Turn off the hood and disconnect power. Turn the bulb counterclockwise to remove it. Replace with a bulb of the same type (not specified, see manual).
Restore power.

Does the hood have to be vented outside?

Yes, this appliance is designed for outside air evacuation only. Do not vent into confined spaces like attics or garages. Use metal duct to the outside.

How does the automatic shut-off timer work?

Press BUTTON T to activate automatic shut-off after 5 minutes. The hood continues to run at current speed, then turns off automatically.

Can I use this hood with an induction cooktop?

Yes, this hood is suitable for all types of cooktops (gas, induction, electric). However, respect the mounting height and ensure ventilation is adequate for the cooking appliance.

What does the two-year warranty cover?

The limited 2-year warranty covers parts and labor for any defect in material or workmanship, subject to normal use and proper installation. It is not transferable and does not cover cosmetic damage or damage from misuse.

USER MANUAL XOI45KSE XO

EVERY THING YOU NEED TO KNOW ABOUT YOUR

X□

XOI INSERT

MODELS XOI3315KSE, XOI4515KSE, XOI33KSE, XOI45KSE

I worked really hard on this manual - so please read it...

Xo

Xo

VENTILATION

When buying any XO appliance you can be confident you have chosen a high quality, innovative and stylish product from a company that cares about you!

If you require service or have questions, there are 2 ways to contact our ventilation experts;

Online @ https://xoappliance.com/priority-service-for-your-xo-product/ Or by phone [phone]

STOP

CONGRATULATIONS

on purchasing your XO. Before you proceed, take just a moment to register your XO at:

www.xoappliance.com/register-your-product/

Ensuring warranty coverage should you need service Providing ownership verification for insurance purposes Let's XO notify you in the event of product changes or recalls.

WHERE THINGS ARE

GETTING READY 5 - 11

Safety and Precautions

Planning Ductwork

Install Examples

Dimensions

THE INSTALL 12 - 17

Mounting Height

Cut Out Dimensions

Installing

Electrical Connections

MAINTENANCE 18 - 19

Filters

Cleaning

Light Replacement

OPERATING 20

The Push Button Controls

PARTS & WARRANTY 21 - 22

PLEASE READ AND FOLLOW ALL SAFETY INSTRUCTIONS

It's for your own good... Honest.

XO

SAFETY FIRST

■ IMPORTANT SAFETY INSTRUCTIONS

■ READ AND SAVE THESE INSTRUCTIONS

■ PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.

■ IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.

■ INSTALLER: Please leave these Instructions with this unit for the owner.

■ OWNER: Please retain these instructions for future reference.

■ Take care when using cleaning agents or detergents.

■ Suitable for use in household cooking area.

■ WARNING - To reduce the risk of fire or electric shock, do not use this fan with any Solid-State Speed Control Device.

■ CAUTION - To reduce risk of fire and to properly exhaust air, be sure to duct air outside – Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

■ CAUTION - For Residential Kitchen ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

■ CAUTION - To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

■ CAUTION - Please read specification label on product for further information and requirements.

■ WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.

B. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

■ WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

A. Never leave surface units unattended at high settings. Boilovers cause smoking and

greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

B. Always turn hood ON when cooking with high heat.
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.
E. Keep fan, filters and grease laden surface clean.
F. Use high range setting on range only when necessary. Heat oil slowly on low to medium setting.
G. Don't leave range unattended when cooking.
H. Always use cookware and utensils appropriate for the type and amount off food being prepared.

■ WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

A. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
D. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.

^a Based on “kitchen firesafety tips” published by NFPA.

Proper maintenance of the Range Hood will assure proper performance of the unit.

■ INSTALLATION INSTRUCTIONS

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society

for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. This unit must be grounded.

■ WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

■ WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY BE DANGEROUS.

A. Do not check filters with hood working.
B. Do not touch the lamps after a prolonged use of the appliance.
C. No food must be cooked flambè underneath the hood.
D. The use of an unprotected flame is dangerous for the filters and could cause fires.
E. Watch constantly while frying food in order to avoid cooking oil flare ups.
F. Before performing any maintenance operation, disconnect the hood from the electrical service.
■ The manufacturers will not accept any responsibility for possible damages, because of failure to observe the above instructions.

A FEW SIMPLE RULES TO PLAN YOUR DUCTWORK

THIS HOOD IS DESIGNED TO USE AN 8" ROUND DUCT - IT MAY BE TRANSITIONED TO A 4" X 14" RECTANGULAR DUCT

NEVER REDUCE DUCT SIZE. UNDERSIZED DUCTING SEVERELY RESTRICTS AIR FLOW AND HARMS PERFORMANCE.

(Example: the area of an 8" Duct is more than 75% larger than a 6" Duct)

KEEP DUCT RUNS AS SHORT AND STRAIGHT AS POSSIBLE.

AVOID USING FLEXIBLE METAL DUCTING IF RUN IS LONGER THAN 6'.

NEVER USE PLASTIC DUCTING.

USE SMOOTH BORE METAL DUCTING.

MINIMIZE THE NUMBER OF FITTINGS (see chart).

WHEN YOU MUST USE FITTINGS, TRY TO SEPARATE THEM WITH SECTIONS OF 4' OR MORE OF STRAIGHT DUCT.

ALWAYS FOLLOW THE MANUFACTURER'S GUIDELINES FOR THE COOKING EQUIPMENT YOU ARE VENTING.

IF MAKE UP AIR CONTROL DAMPERS ARE REQUIRED, POSITION THE SENSOR IN A STRAIGHT RUN OF DUCT IDEALLY WITH 4' OF STRAIGHT DUCT BETWEEN EACH SIDE OF THE SENSOR AND A DUCT FITTING. REMEMBER TO INCLUDE POWER AND CONTROL WIRING FOR THIS IN YOUR PLANS.

ADHERE TO ALL LOCAL BUILDING CODES AND ORDINANCES.

USE THE WORKSHEET THAT FOLLOWS TO HELP CALCULATE THE TOTAL EQUIVILENT FEET OF YOUR DUCT RUN.

TOTAL EQUIVILENT FEET SHOULD BE LESS THAN 100'.

ESTIMATING TOTAL EQUIVALENT FEET IN A DUCT

CAUSING AIR TO CHANGE DIRECTION CAUSES TURBULENCE AND RESTRICTS FLOW IN A SYSTEM.

IF USING FLEXIBLE METAL DUCT - INCREASE ALL MULTIPLIERS BY 50% (12 BECOMES 18 - ETC.)

THIS EASY TO USE WORKSHEET IS FOR 1000 CFM OR LESS.

UNDER "QTY USED" ENTER HOW OF EACH SECTION YOU WILL BE USING.

IN THE FIRST TWO ROWS - ENTER HOW MANY FEET OF EACH TYPE OF STRAIGHT DUCT YOU WILL BE USING (I.E. FOR 20 FT ENTER 20, FOR 30FT ENTER 30).

ENTER THE NUMBER OF EACH TYPE OF TURN YOU ARE USING AND THE TYPE OF END CAP. MULTIPLY ACROSS EACH ROW THE "MULTIPLIER" x "QTY USED" TO GET THE EQUIVALENT FEET FOR THOSE COMPONENTS.

ADD UP ALL THE VALUES IN THE "EQUIVALENT FEET" COLUMN.

DUCT PIECE DESCRIPTION MULTIPLIER QTY USED				EQUIVALENT FEET
		1' of 8" Round Duct	1
		1' of 4" x 14" Rect. Duct	1
		8" 90 Degree Elbow	12
		8" 45 Degree Elbow	7
		4" x 14" 90 Degree	14
		4" x 14" 45 Degree	8
		4" x 14" x 8" Round	2
[x35A]		4" x 14" x 8" 90 Degree	4
		8" Round Wall Cap w Damper	24
		4" x 14" Wall Cap w Damper	24
		8" Round Roof Cap	33
TOTAL EQUIVALENT FEET SHOULD BE LESS THAN 100

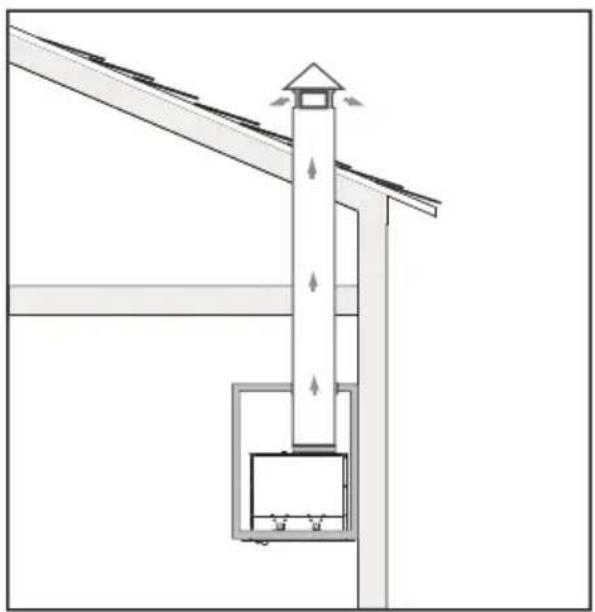

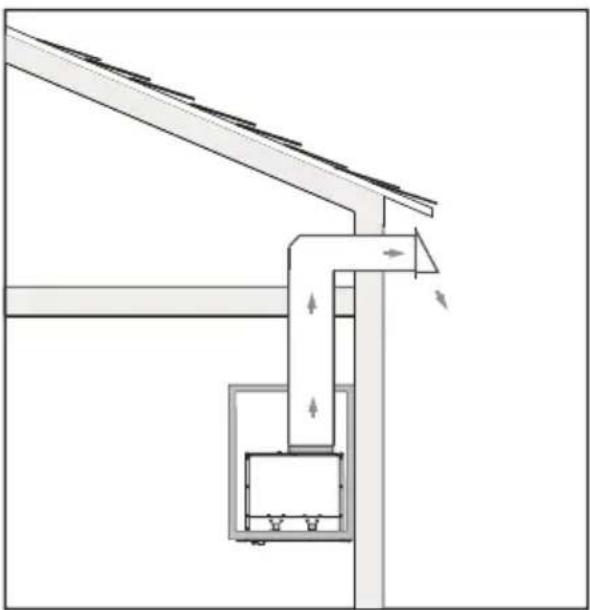

TYPICAL INSTALLATION EXAMPLES

VENTED

Technical diagram of a roof structure with airflow indicators (no text or symbols)

WALL EXHAUST ROOF EXHAUST

Architectural diagram showing a vertical structure with directional arrows, possibly indicating airflow or force (no text or symbols present)

DIMENSIONS

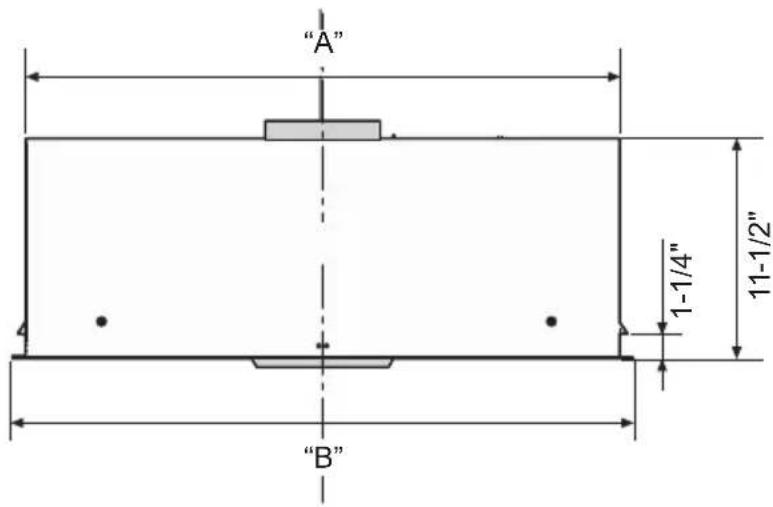

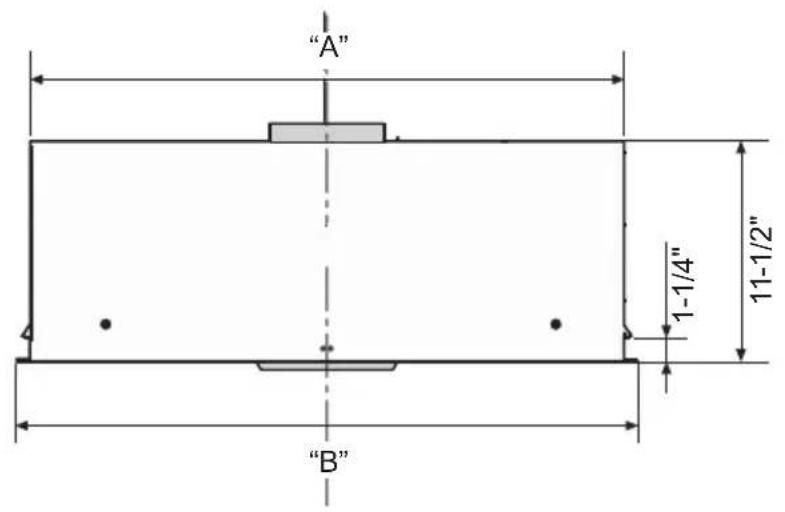

Front of hood

"A" 1-1/4" 11-1/2" "B"

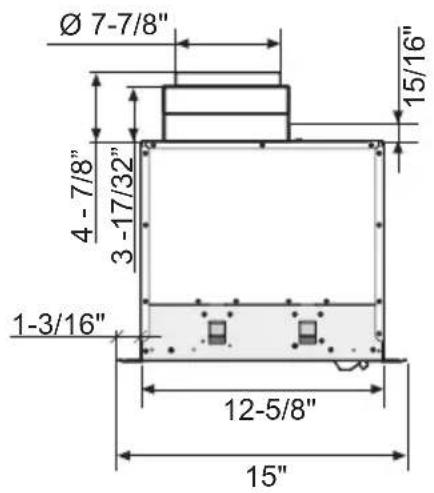

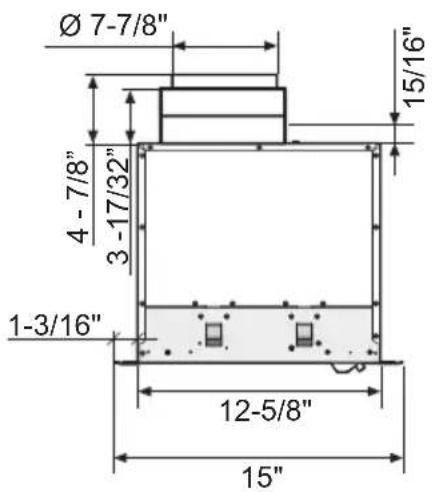

Side of hood

Ø 7-7/8" 4 - 7/8" 3 - 17/32" 15/16" 1-3/16" 12-5/8" 15"

MODEL A B
XOI3315KSE	32-3/8" 33-3/4"
XOI4515KSE	44-3/8" 45-3/4"

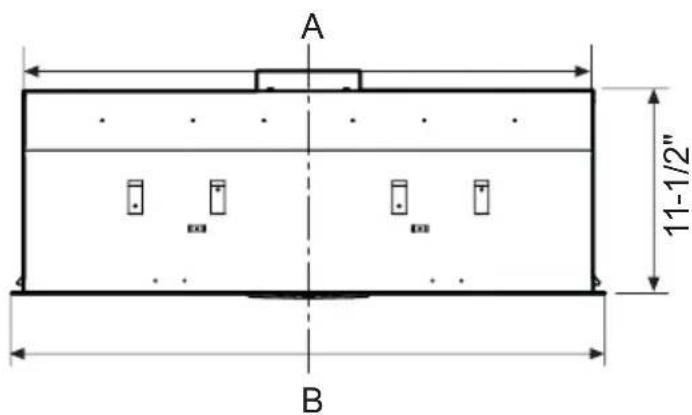

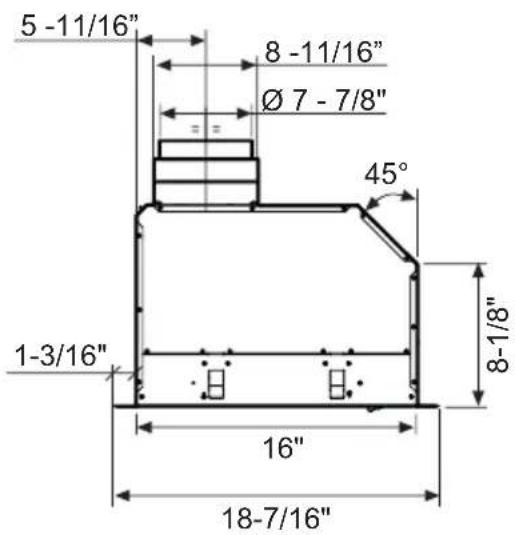

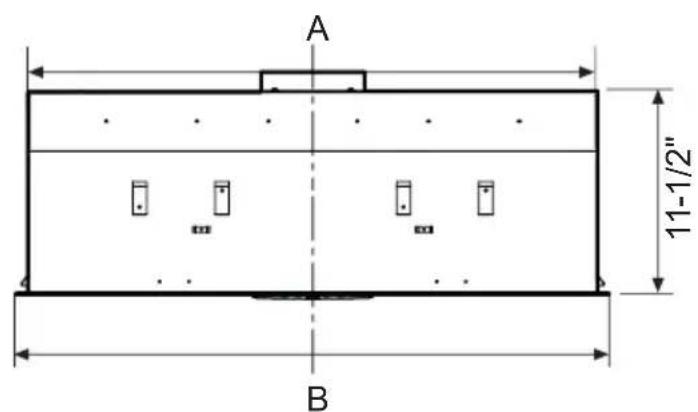

Front of hood

A 11-1/2" B

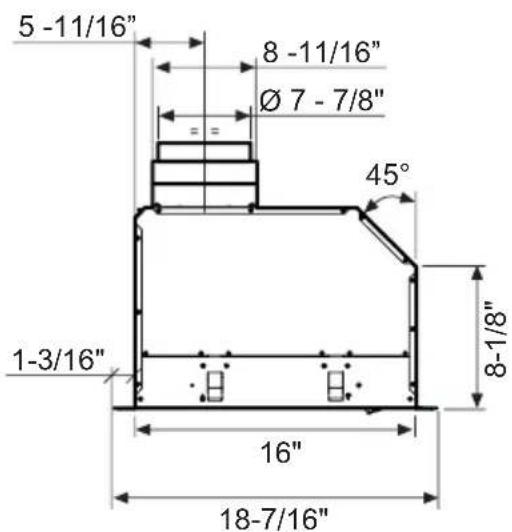

Side of hood

5 -11/16" 8 -11/16" Ø 7 - 7/8" 45° 1-3/16" 16" 18-7/16"

MODEL A B
XOI33KSE	30-7/16" 32-3/8"
XOI45KSE	40-1/2" 44-3/8"

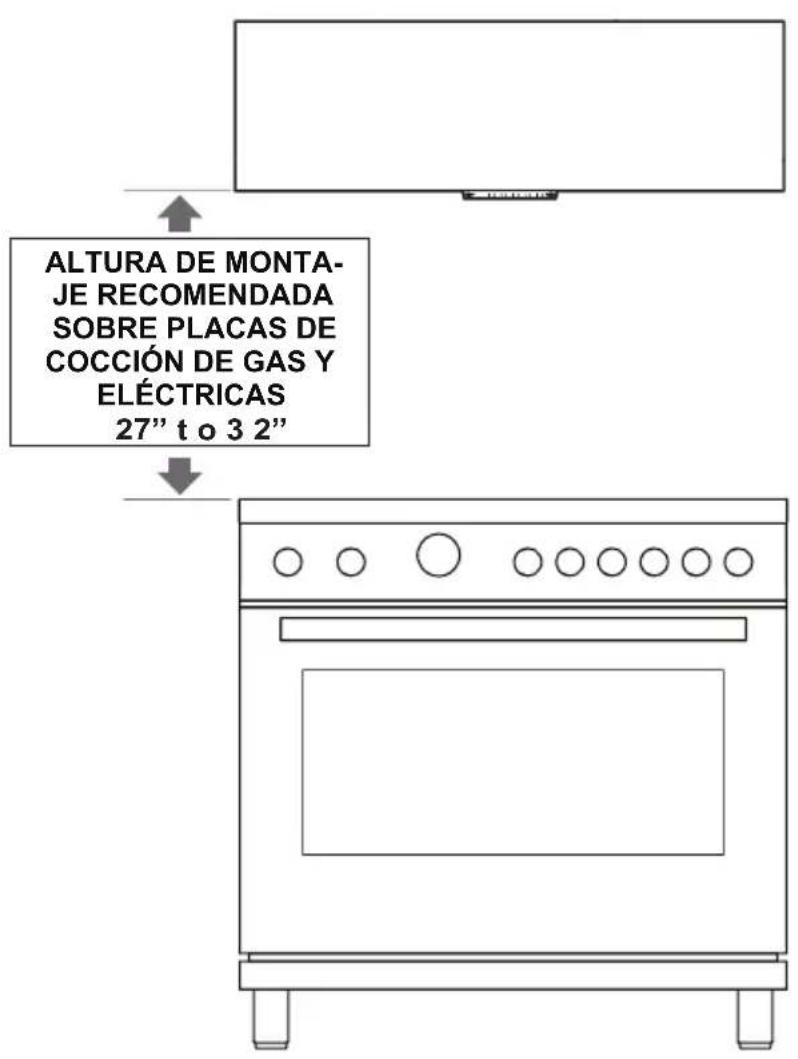

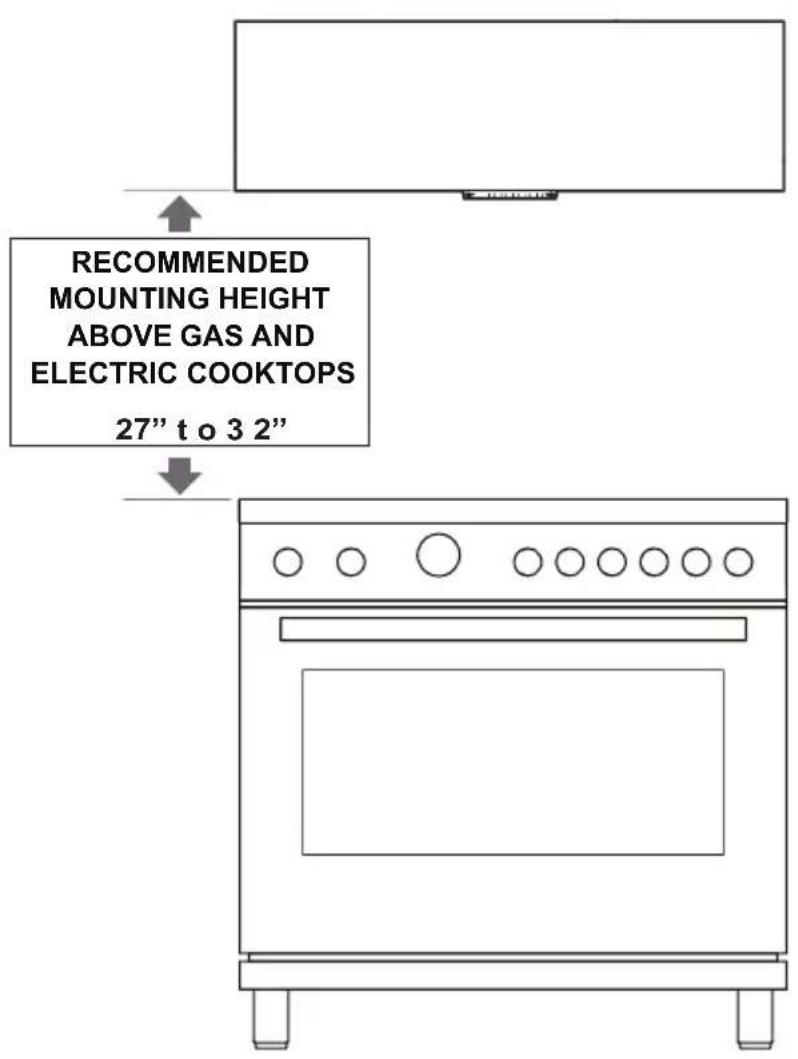

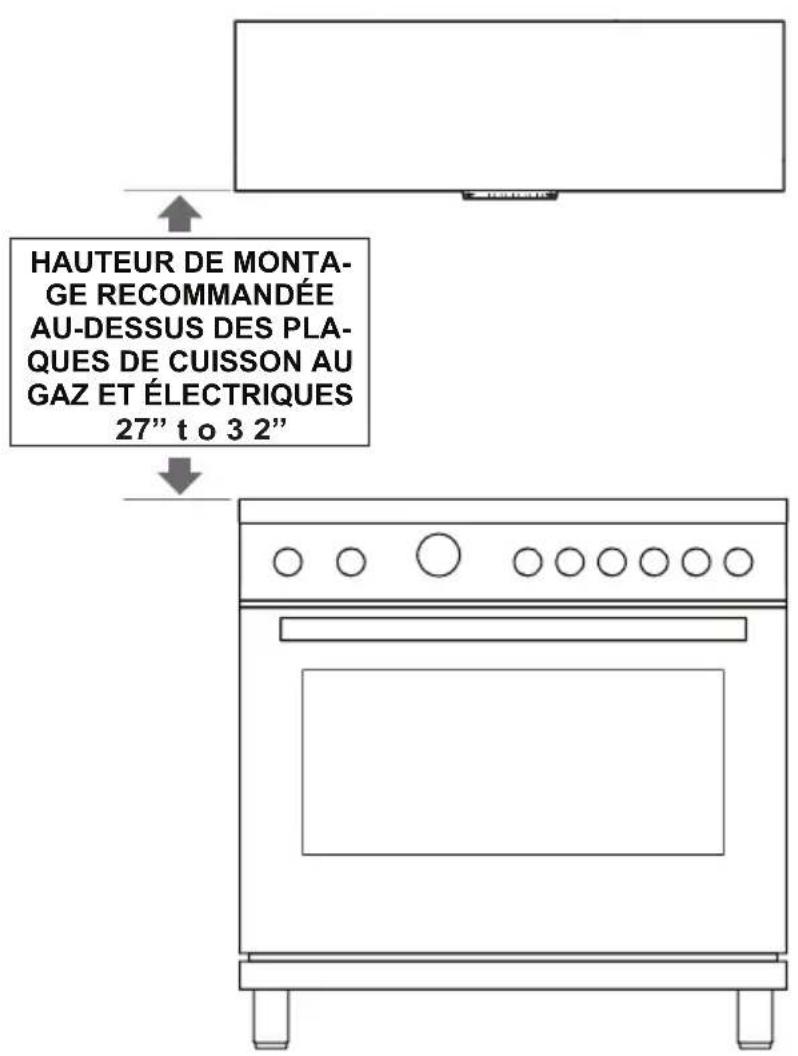

HIGHS AND LOWS

RECOMMENDED MOUNTING HEIGHT ABOVE GAS AND ELECTRIC COOKTOPS 27" t o 3 2"

All range hoods have a recommended range of installation height over the cooking surface.

It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its performance and efficiency.

THE CUT OUT

13-1/8" WIDTH

To install the hood into a custom canopy or cabinet, refer to the cutout dimensions above for your particular model. Gap around the unit should be minimized (\~ 1/16") to ensure a snug fit.

INSTALLATION

This product can be installed in 2 different ways:

1) Fixing of the hood with wood framework (Fig.1).
2) Fixing of the hood in the lower part of the kitchen cabinet (Fig.2-3-4-5).

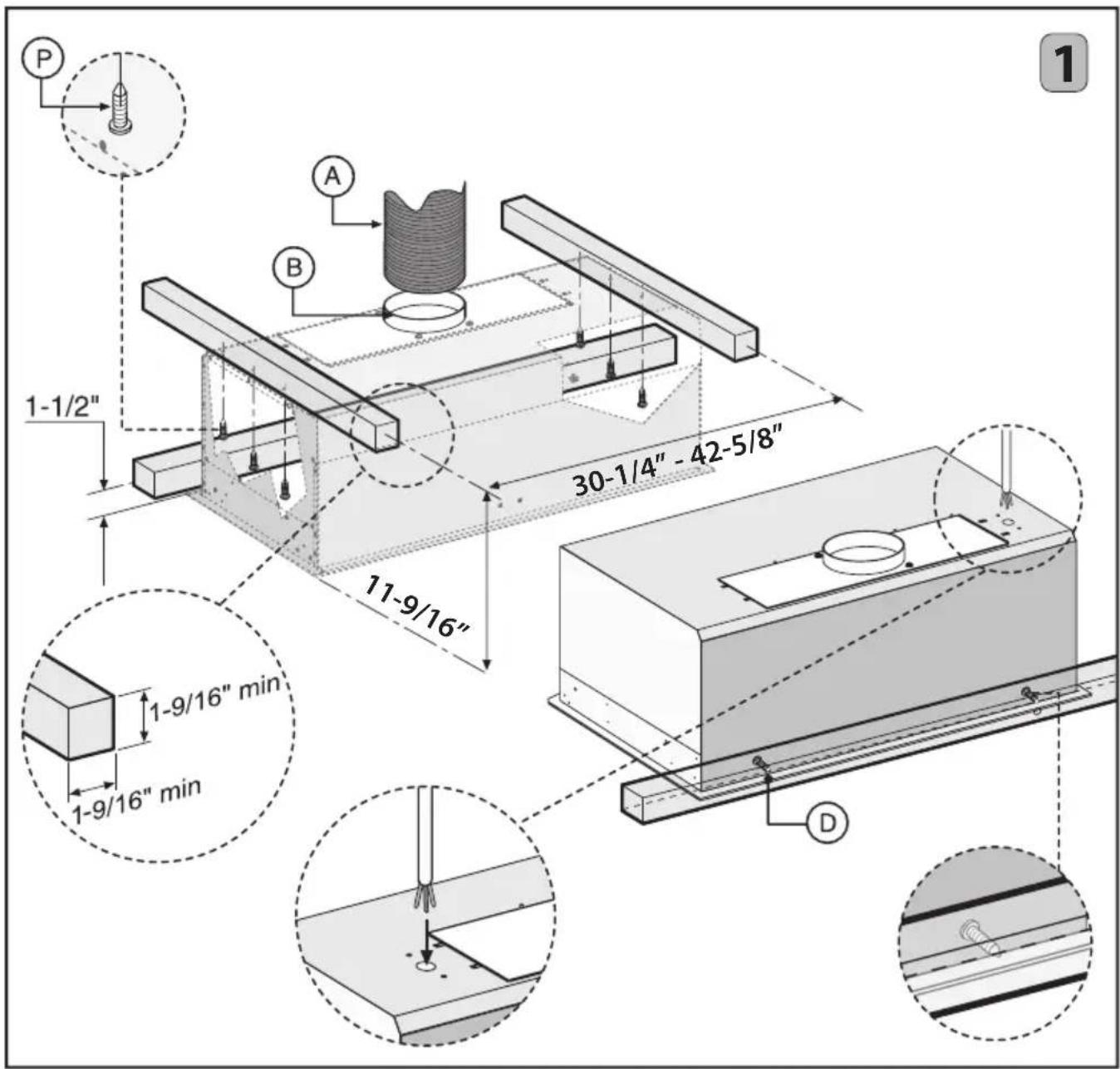

1• Fixing of the hood with wood framework:

When fitting the hood use screws that are suitable for the type of cabinet to which the appliance is being fixed, following the corresponding holes and fully respecting the measurements indicated. When fixing the hood in place make sure a wooden frame (not supplied) is fitted inside the cabinet.

Fix the appliance in place using the 6 screws P and then fit the two safety screws D.

IMPORTANT - The range hood must be secured to wall studs or use drywall anchors capable of supporting 75 lbs.

1-1/2" 30-1/4" - 42-5/8" 11-9/16" 1-9/16" min 1-9/16" min D P A B

INSTALLATION CONTINUED

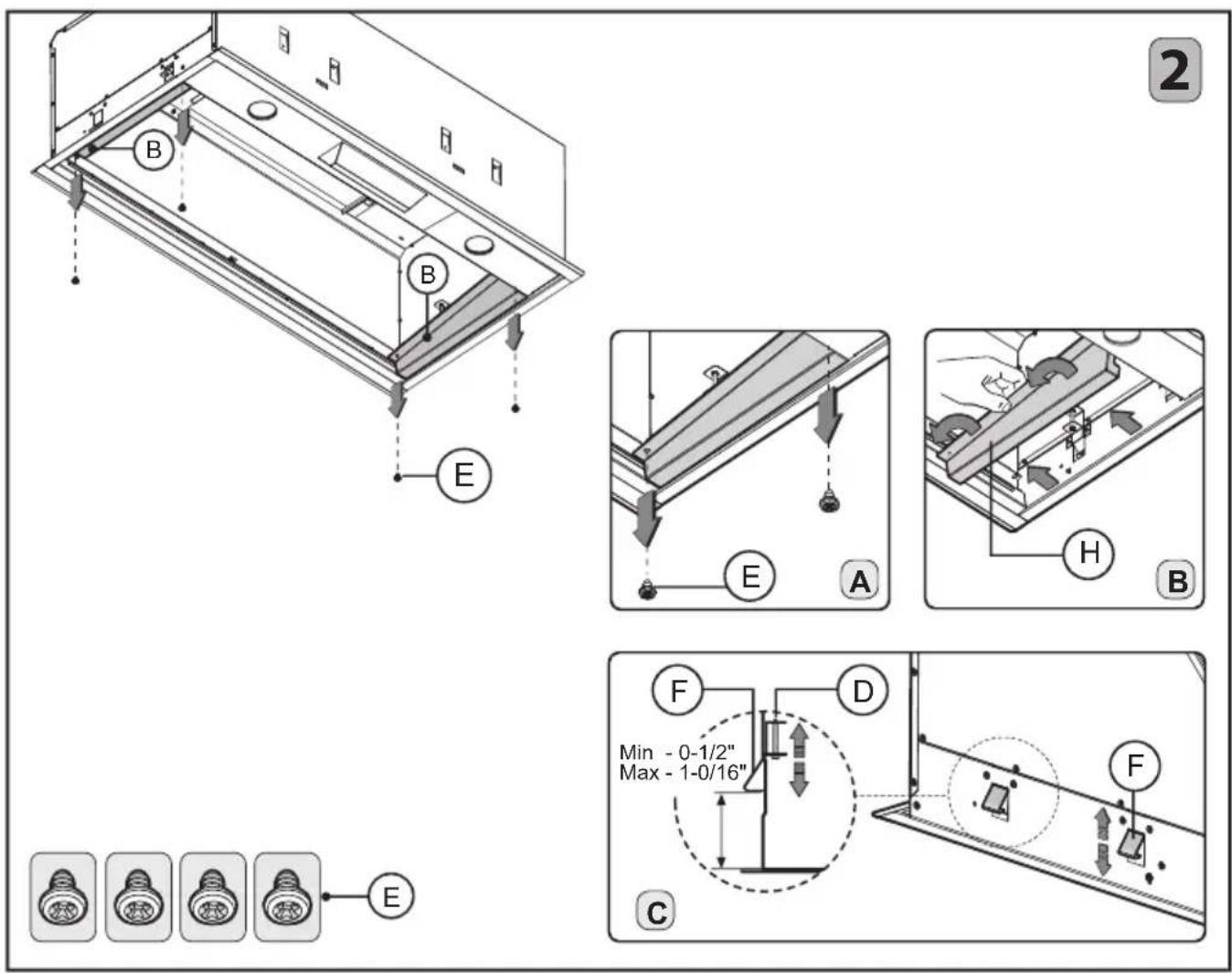

2• Fixing of the hood in the lower part of the kitchen cabinet:

For all measurements relating to the cooker hood, please refer to pag.11.

Before fixing the cooker hood to the lower part of the cabinet, the following steps should be performed:

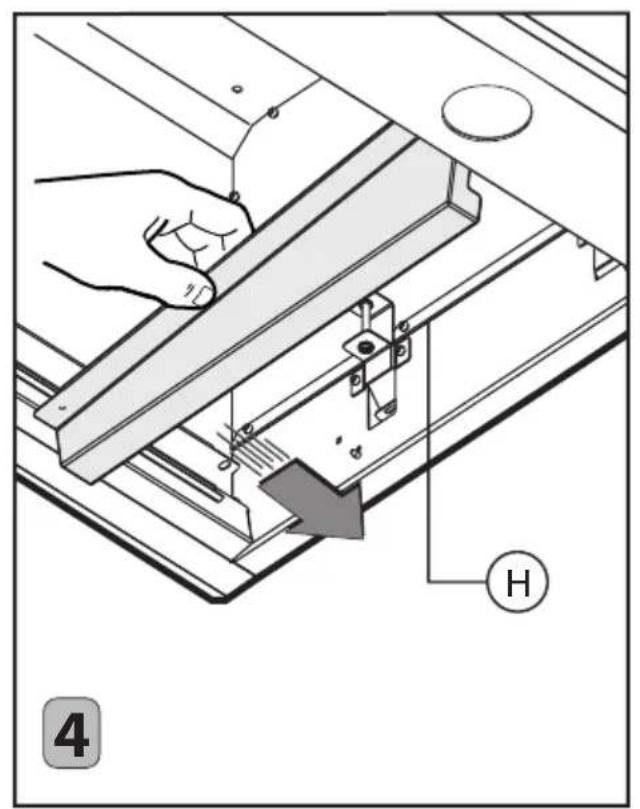

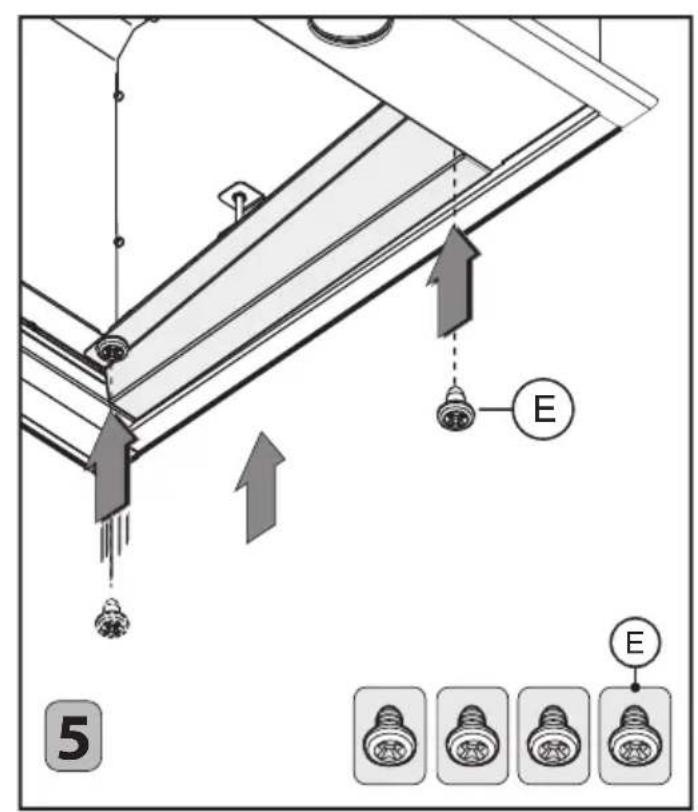

1. Remove the 4 screws E fixing the two cooker hood brackets H (RHS and LHS) in place as indicated in Fig.2A.
2. Remove the brackets H as shown in Fig.2B.
3. Make sure the thickness of the cabinet falls within the range of values listed in Fig.2C. Fit the cooker hood in the cabinet (Fig.3) and make sure the 4 springs are fixed in place well. Fix the cooker hood to the cabinet securely by using a screwdriver to tighten the screws M until the appliance is flush with the cabinet. Place again the 2 brackets H (right and left) of the hood and fix them with the 4 screws E (Fig.4 - Fig.5).

When installed in this way the appliance discharges fumes outside, either through a perimeter wall or existing ducting. It is therefore necessary to purchase a non-flammable air exhaust tube A (not supplied) which complies with all current legislation and connect it to flange B (Fig.1).

Technical diagram illustrating component assembly and mounting instructions for a refrigerator, with labeled parts and step-by-step views.

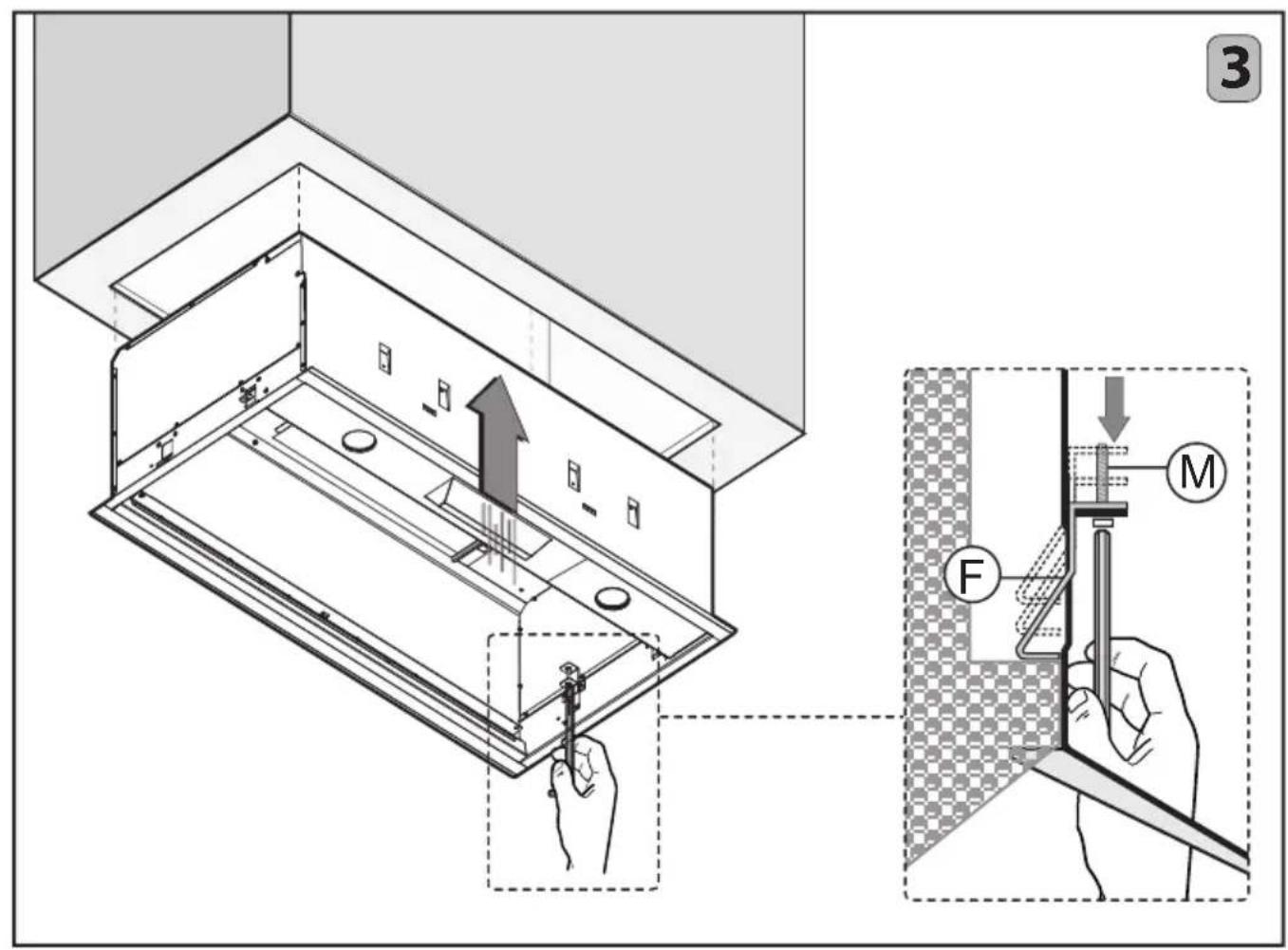

INSTALLATION CONTINUED

Technical diagram showing a mechanical assembly with labeled components and directional arrows, including a magnified inset of a component labeled 'F' and 'M'.

Technical diagram showing a hand operating a metal bracket with a labeled component 'H' and numbered section '4'

E E 5

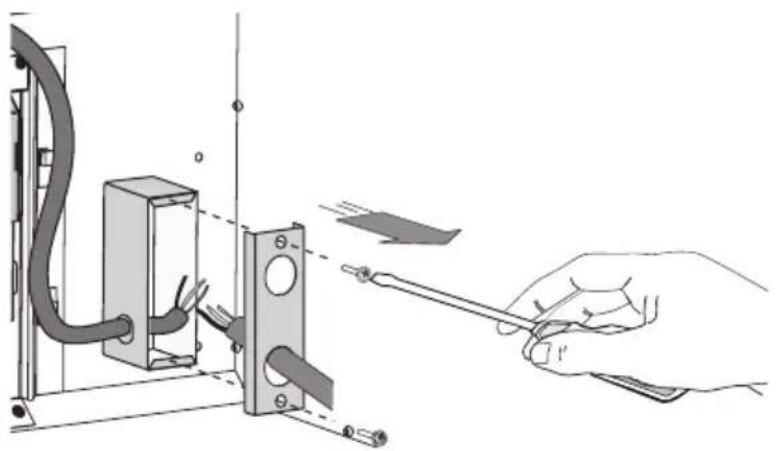

ELECTRICAL CONNECTION

1. Route the power cord to the junction box inside the hood.
2. Using listed conduit fittings and connectors, connect the power supply to the box and each line to the appropriate wire following this color convention:

BLACK = HOT LEG

WHITE = NEUTRAL

Polarity must be observed.

Unit must be properly grounded.

Use a double throw disconnect switch.

1. Replace the box cover
2. Replace the Anti-grease Baffles.

All wiring must be in compliance with national electrical code, ANSI/NFPA 70-1999 and all local codes and regulations.

Illustration of a hand using a screwdriver to adjust cable or wire inside an electrical outlet (no text or symbols present)

MAINTENANCE

Regular cleaning and maintenance is the key to long life and peak performance of any equipment.

ANTI-GREASE BAFFLE FILTERS: Your XO hood is equipped with stainless steel pro-style baffle filters designed to capture grease from cooking. The baffles are easily removed for cleaning either by soaking in a warm, mild dish detergent solution, rinsing thoroughly and drying - or - by washing in your dishwasher.

Illustration of a hand using a tool to clean or install a slatted ventilation grille (no text or symbols visible)

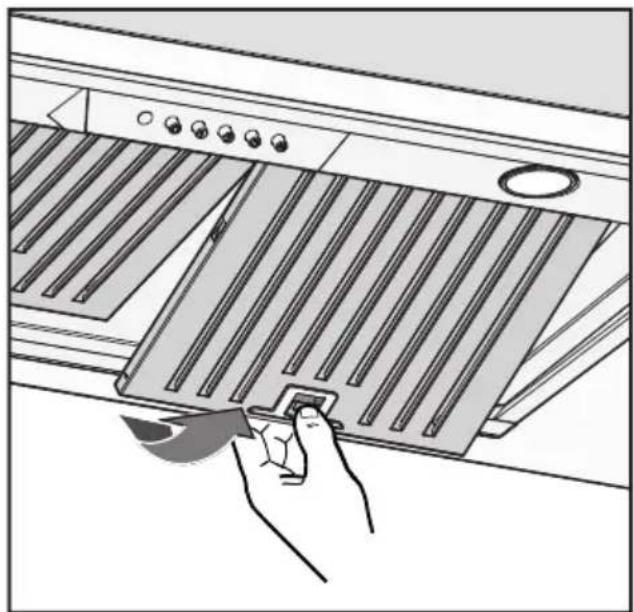

TO REMOVE THE BAFFLES:

1. Pull down on the release latch (shown left)
2. Lower the front edge of the baffle
3. Pull forward and remove
4. To replace, insert the rear of the baffle, holding the latch open, swing the front up into place and release the latch.

The importance of this simple process is essential for two reasons. First to help keep your kitchen clean and healthy, but it is also critical to minimize the risk of fire.

Baffle filters should be cleaned at least once every 2 months, more frequently depending on the type of cooking performed and the build up of grease.

CLEANING STAINLESS STEEL:

Do not use corrosive detergents, abrasive detergents or oven cleaners.

Do not use any product containing chlorine bleach or any product containing chloride.

Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.

Cleaning Stainless Steel Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser detergent. After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. Always rub lightly, with a clean cotton cloth or a micro fiber cloth and buff in the direction of the stainless steel grain.

Any painted surfaces should be cleaned with warm water and detergent only.

MAINTENANCE CONTINUED

LED LIGHT REPLACEMENT

To replace the bulbs, rotate the lamp anticlockwise as shown in Figure. Replace the bulbs with new ones of the same type.

Diagram showing a hand holding a device with labeled parts and directional arrows indicating process flow.

XOPSPK6509

EASY TO OPERATE

Your XO range hood is controlled by these electronic push buttons which illuminate when activated.

BUTTON LIGHT

BUTTON 0: OFF

BUTTON 1: SPEED I

BUTTON 2: SPEED II

BUTTON 3: SPEED III

BUTTON T: AUTOMATIC STOP TIMER - 5 minutes (*)

- The appliance has the Power Boost speed function: press BUTTON 3 for two seconds and it will be activated for 6 minutes after which it will return to the previously set speed. When the function is active the LED flashes. To interrupt it before the 6 minutes have expired press BUTTON 3 again.

(*) The “automatic stop timer” delays stopping of the hood, which will continue functioning for 5 minutes at the operating speed set at the time this function is activated.

ACCESS PARTS & ACCESSORIES

Technical line drawing of a ventilation grille and a lamp (no text or symbols)

REPLACEMENT LIGHTS

DUCT COVERS

REPLACEMENT SWITCHES

BLOWER MOTORS

FAN WHEELS

ALL OF THESE PARTS AND MORE ARE AVAILABLE, SIMPLY

VISIT WWW.XOAPPLIANCE.COM and click on PARTS STORE

OR CALL US AT 973-403-8900

WE'VE GOT YOUR BACK

90 DAY LOVE IT or LEAVE IT. For 90 Days all our products are backed by our unique Love it or Leave it Guarantee. TWO-YEAR PARTS & LABOR LIMITED WARRANTY. XO warrants to the original purchaser of every new XO ventilation unit, the cabinet and all parts thereof, to be free from defects in material or workmanship under normal and proper use and maintenance as specified by XO and upon proper installation and start-up in accordance with the instruction packet supplied with each XO unit. XO's obligation under this warranty is limited to a period of two (2) years from the date of original purchase.

WARRANTY CLAIMS. All claims for labor or parts must be made directly through XO. All claims should include: model number and serial number of cabinet, proof of purchase, and date of installation. In case of warranted compressor, the compressor model tag must be returned to XO along with the above listed information.

WHAT IS NOT COVERED BY THIS WARRANTY. XO's sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by this warranty. Open box, factory seconds, scratch and dent, floor models and commercial applications are excluded from these warranties.

WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only in favor of the original purchaser/user at the original installation location. Any such assignment or transfer shall void the warranties herein made and shall void all warranties, express or implied, including any warranty or merchantability or fitness for a particular purpose.

IMPROPER USAGE. XO assumes no liability for parts or labor coverage for component failure or other damages resulting from improper usage or installation or failure to clean and/or maintain product as set forth in the warranty packet provided with the unit. ALTERATION OR NEGLECT. XO is not responsible for the repair or replacement of any parts that XO determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or act of God.

IMPROPER ELECTRICAL CONNECTIONS. XO is not responsible for the repair or replacement of failed or damaged components resulting from electrical power failure, high or low voltage, use of extension cords, or improper grounding of the unit.

YOUR RIGHTS UNDER STATE LAW. This warranty gives you specific legal rights and you may have other rights that vary from state to state. Some states do not allow the exclusion or limitation of consequential damages or a limitation on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you.

OUTSIDE U.S. This warranty does not apply to, and XO is not responsible for, any warranty claims made on products sold or used outside the 48 continental United States.

To obtain service:

Call 973-403-8900 | email [e-mail] | or submit a request on our website www.xoappliance.com

LOVE IT OR LEAVE IT

100% GUARANTEED

2 YEAR PARTS + LABOR WARRANTY

TO U T CE QUE VOUS DEVEZ SA VOIR SUR VOTRE

X□

XOI INSERT

MODELES XOI3315KSE, XOI4515KSE, XOI33KSE, XOI45KSE

www.xoappliance.com/register-your-product/

L'INSCRIPTION VOUS AIDE EN -

Architectural diagram showing a vertical structure with directional arrows, no text or symbols present

ÉVENT D'ÉCHAPPEMENT DE TOIT

DIMENSIONS

Devant de la hotte

"A" 1-1/4" 11-1/2" "B"

Côté de la hotte

Ø 7-7/8" 4 - 7/8" 3 - 17/32" 15/16" 1-3/16" 12-5/8" 15"

MODELE A B
XOI3315KSE	32-3/8" 3	3-3/4"
XOI4515KSE	44-3/8" 4	5-3/4"

Devant de la hotte

A 11-1/2" B

Côté de la hotte

5 -11/16" 8 -11/16" Ø 7 - 7/8" 45° 1-3/16" 16" 18-7/16"

MODELE A	B
XOI33KSE	30-7/16"	32-3/8"
XOI45KSE	40-1/2"	44-3/8"

HAUTS ET BAS

HAUTEUR DE MONTA- GE RECOMMANDEE AU-DESSUS DES PLA- QUES DE CUISSON AU GAZ ET ÉLECTRIQUES 27" t o 3 2"

13-1/8" LARGEUR

MODELE	LARGEUR
XOI3315KSE	32-9/16”
XOI4515KSE	44-9/16”
XOI33KSE	32-9/16”
XOI45KSE	44-9/16”

1-1/2" 30-1/4" - 42-5/8" 11-9/16" 1-9/16" min 1-9/16" min D P A B

SUITE DE L'INSTALLATION

Technical diagram showing a mechanical assembly with labeled components and directional arrows, including a magnified inset of a component labeled 'F' and 'M'.

Technical diagram showing a hand operating a metal frame with a labeled component 'H' and numbered section '4'

E E 5

CONNEXION ÉLECTRIQUE

Illustration of a hand using a screwdriver to adjust cable or wire between two electrical components (no text or symbols present)

MAINTENANCE

Illustration of a hand using a tool to adjust or install a ventilation grille (no text or symbols visible)

REMLACEMENT DES LAMPES

Diagram showing a hand holding a device with labeled parts and directional arrows indicating process steps.

XOPSPK6509

FACILE À UTILISER

Technical line drawing of a ventilation grille and a lamp (no text or symbols)

LUMIÈRES DE REMPLACEMENT COUVERCLES DE CONDUITS INTERRUPTEURS DE REMPLACEMENT MOTEURS DE VENTILATEUR ROUES DE VENTILATEUR

TOUTES CES PIÈCES ET PLUS SONT DISPONIBLES, VISITEZ SIMPLEMENT WW.XOAPPLIANCE.COM et cliquez sur LE MAGASIN DE PIÈCES OU APPELEZ-NOUS AU 973-403-8900

ON COUURE VOS ARRIÈRES

2 YEAR PARTS + LABOR WARRANTY

TODO LO QUE NECESITAS S A B E R SOBRE TU

Xo

XOI INSERT

MODELOS XOI3315KSE, XOI4515KSE, XOI33KSE, XOI45KSE

www.xoappliance.com/register-your-product/

EL REGISTRO LE AYUDA PARA -

Architectural diagram showing a vertical structure with directional arrows, no text or symbols present

DIMENSIONES

"A" 1-1/4" 11-1/2" "B"

MODELO A B
XOI3315KSE	32-3/8" 3B-3/4"
XOI4515KSE	44-3/8" 45-3/4"

Lado de la campana

Ø 7-7/8" 4 - 7/8" 3 - 17/32" 15/16" 1-3/16" 12-5/8" 15"

A 11-1/2" B

MODELO A	B
XOI33KSE	30-7/16"	32-3/8"
XOI45KSE	40-1/2"	44-3/8"

Lado de la campana

5 -11/16" 8 -11/16" Ø 7 - 7/8" 45° 1-3/16" 16" 18-7/16"

ALTOS Y BAJOS

13-1/8" ONION

MODELO ANCHO

1-1/2" 30-1/4" - 42-5/8" 11-9/16" 1-9/16" min 1-9/16" min D

Technical diagram illustrating component assembly and mounting instructions for a device, with labeled parts A through H.

Technical diagram showing a mechanical assembly with labeled components and directional arrows, including a magnified inset of a component labeled 'F' and 'M'.

H 4

E E 5

CONEXIÓN ELÉCTRICA

Illustration of a hand using a screwdriver to adjust or install a wall-mounted electrical outlet (no text or symbols present)

MANTENIMIENTO

Illustration of a hand using a tool to adjust or install a ventilation grille (no text or symbols visible)

PARA QUITAR LOS DEFLECTORES:

Technical line drawing of a ventilation grille and a lamp (no text or symbols)

LUCES DE REPUESTO

2 YEAR PARTS + LABOR WARRANTY
