GSN58AW30G - Fridge Freezer BOSCH - Free user manual and instructions

Product type	Combined fridge-freezer
Brand	BOSCH
Model	GSN58AW30G
Installation type	Freestanding appliance
Door reversibility	Yes, reversible door opening direction
Adjustable feet	2 screw feet at front (adjustment with fork wrench SW 22)
Wall spacers	Included, to be installed to maintain minimum clearance
Door opening angle	90° minimum
Minimum distance from heat sources	3 cm from electric/gas cookers, 30 cm from oil/coal heaters
Side-by-side installation	Refrigerator on the left of the freezer
Noise level	Not specified in the manual
Climate class	Not specified
Energy consumption	Not specified
Dimensions (H x W x D)	Not specified in the manual
Weight	Not specified
Total capacity	Not specified
Freezing function	Yes (integrated freezer)
Defrost	Not specified (likely automatic or manual depending on model)
Interior lighting	Not specified
Shelf material	Not specified
Color	Not specified
Cleaning	Use a soft cloth and soapy water, avoid abrasive products
Safety	Disconnect the appliance before any intervention
Included accessories	Wall spacers, assembly instructions

Frequently Asked Questions - GSN58AW30G BOSCH

How to reverse the door opening direction?

It is recommended to entrust this operation to the after-sales service. If you do it yourself, first unplug the appliance, lay it carefully on its back with a cushion, then follow the number order in Figure 1 of the manual.

What minimum distance should be maintained from heat sources?

At least 3 cm from electric or gas cookers, and 30 cm from oil or coal heating appliances.

How to install two appliances side by side?

Place the refrigerator to the left of the freezer. The refrigerator slightly heats its right side wall, which prevents condensation between the appliances.

Where to stick the wall spacers?

Degrease the locations on the right side of the refrigerator with gasoline or alcohol, then stick the spacers to the four corners, each 5 cm from the lateral edges.

How to adjust the appliance to make it level?

Use the two screw feet at the front of the appliance. Use a fork wrench SW 22 to adjust them, and check with a spirit level.

Can the appliance be laid on its back to reverse the door?

Yes, but place a cushioning material under the appliance to avoid damaging the back. Caution: if the appliance is laid down, do not install the side wall spacer.

How to clean the appliance?

Use a soft cloth and soapy water. Avoid abrasive products, solvents, or rough sponges. Dry thoroughly after cleaning.

Where to find spare parts?

Contact BOSCH after-sales service. You can also purchase a joining kit for side-by-side installation from your dealer.

What door opening angle is required?

The appliance must be installed so as to guarantee a door opening angle of at least 90°.

Is the freezer independent?

It is part of the combined fridge-freezer. Both compartments are integrated into the same freestanding appliance.

USER MANUAL GSN58AW30G BOSCH

Free-standing appliance

Using the installation instructions ..... 8

Installation location 8

Installing appliances

next to each other 9

Changing over the door hinges ...... 9

Changing the door handle 10

Fitting the wall spacer 10

Aligning the appliance 10

Illustration showing a hand holding an open book next to a grid of document sheets with an arrow indicating direction or transformation.

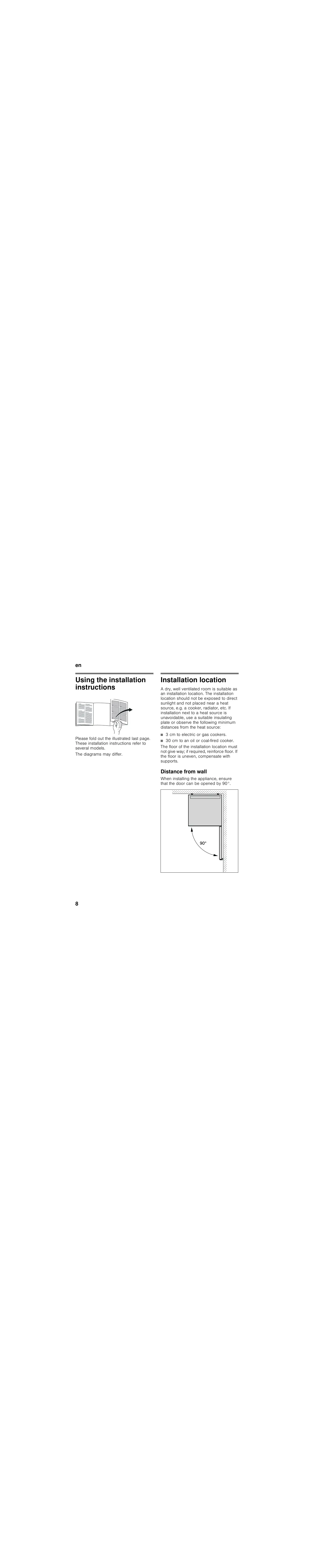

Using the installation instructions

Illustration showing a hand holding an open book next to a grid of document pages with an arrow indicating direction.

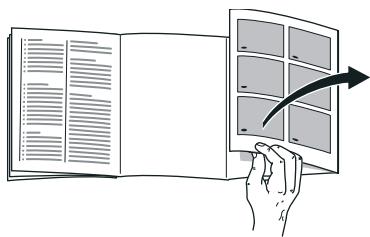

Please fold out the illustrated last page. These installation instructions refer to several models.

The diagrams may differ.

Installation location

A dry, well ventilated room is suitable as an installation location. The installation location should not be exposed to direct sunlight and not placed near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:

■ 3 cm to electric or gas cookers.
■ 30 cm to an oil or coal-fired cooker.

The floor of the installation location must not give way; if required, reinforce floor. If the floor is uneven, compensate with supports.

Distance from wall

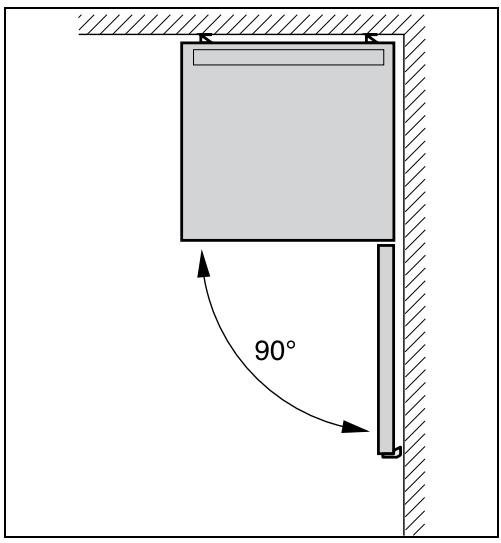

When installing the appliance, ensure that the door can be opened by 90^ .

90°

Installing appliances next to each other

Fig. 2

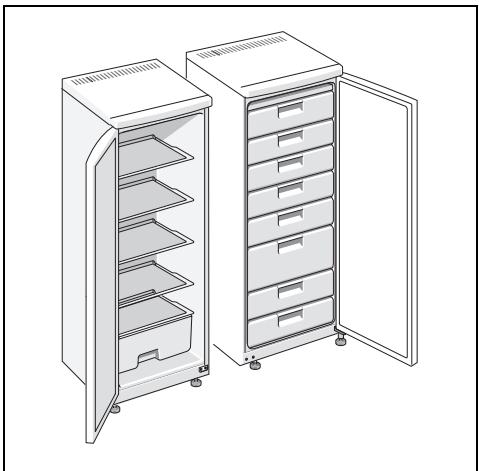

When installing two appliances, ensure that the refrigerator is on the left and the freezer is on the right.

The right side panel of the refrigerator is heated slightly. This prevents condensation from forming between the appliances.

Attaching spacers

Fig. 3

1. On the right side of the refrigerator degrease the adhesive areas with petroleum ether or spirit.

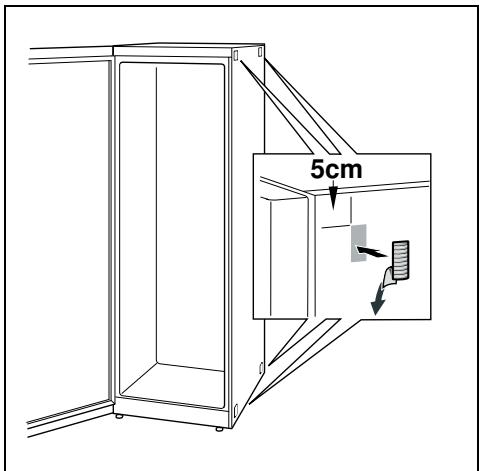

2. Stick spacers in all four corners at a distance of 5 cm from the side edges to ensure a minimum gap between the appliances.

Note

You can purchase a connection set from your dealer.

Changing over the door hinges

(if required)

We recommend that you have the door hinges changed over by our customer service. You can find out the costs for changing over the door hinges from your appropriate customer service.

Warning

While changing over the door hinges, ensure that the appliance is not connected to the power supply. Pull out the mains plug beforehand. To prevent damaging the back of the appliance, place adequate padding underneath. Carefully place the appliance on its back.

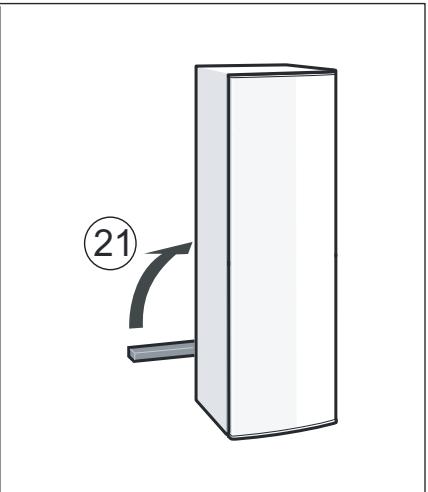

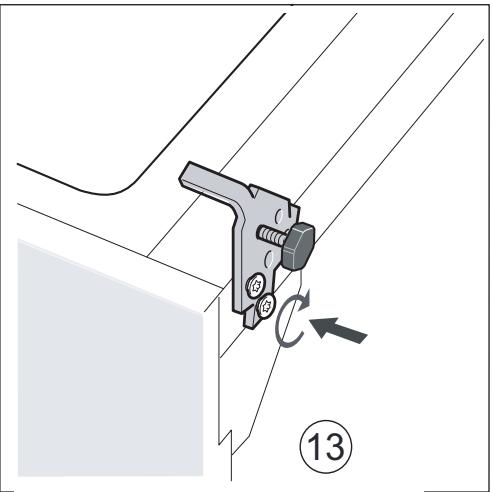

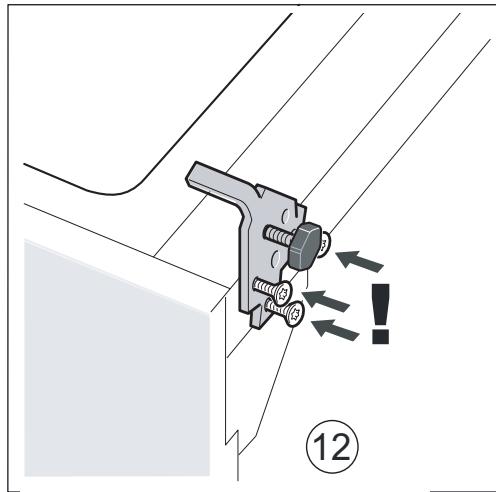

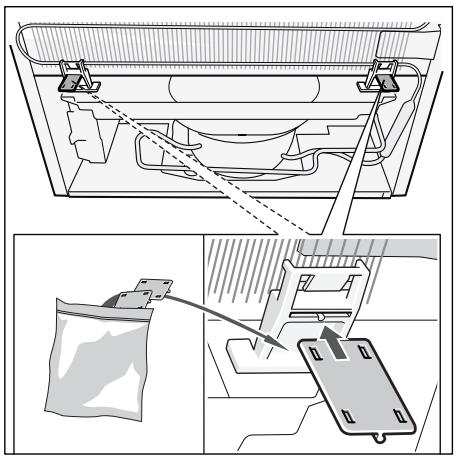

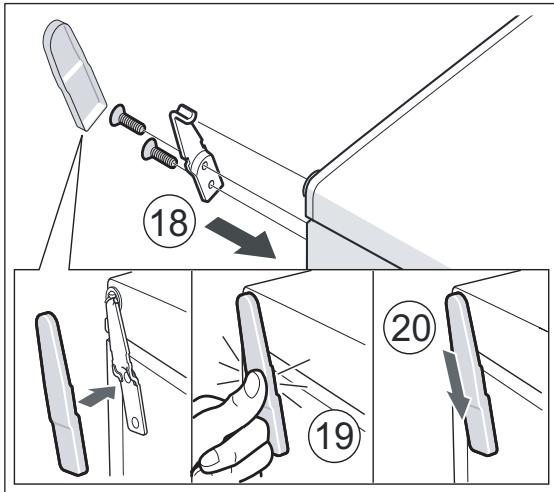

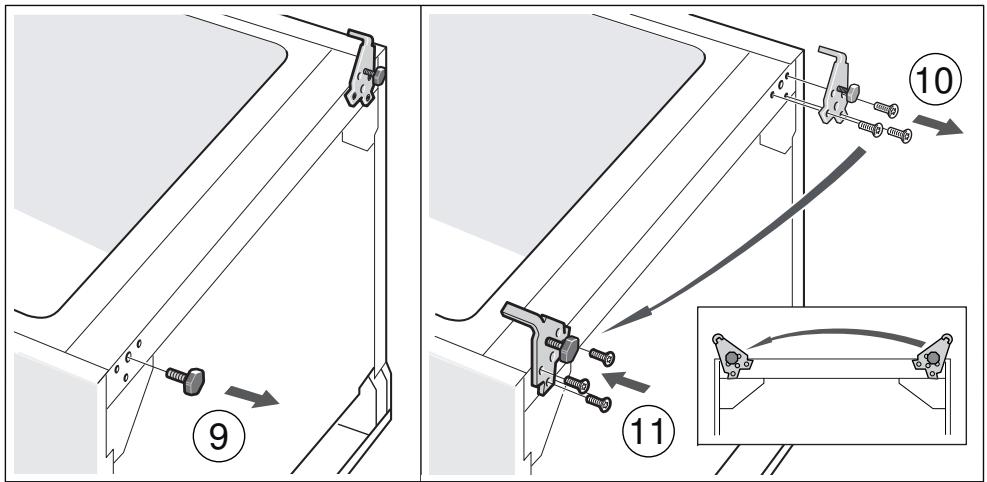

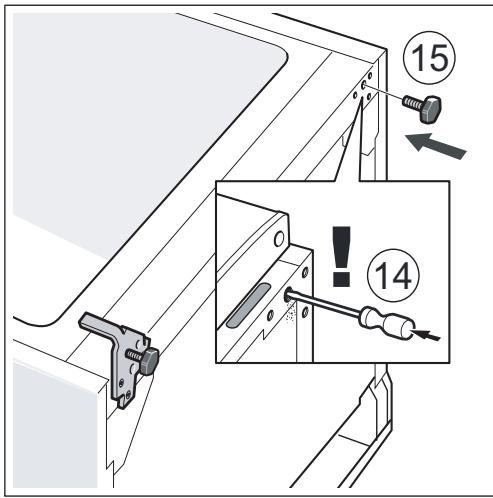

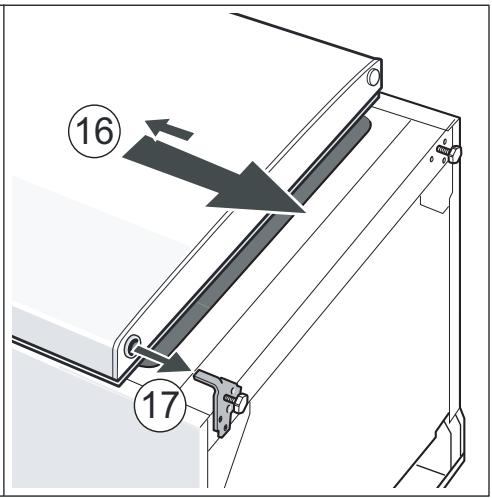

Change over the door hinges in numerical sequence. Fig. 1

Note

If the appliance is placed on its back, ensure that the wall spacer is not fitted.

Changing the door handle

(if required)

Fig. 4

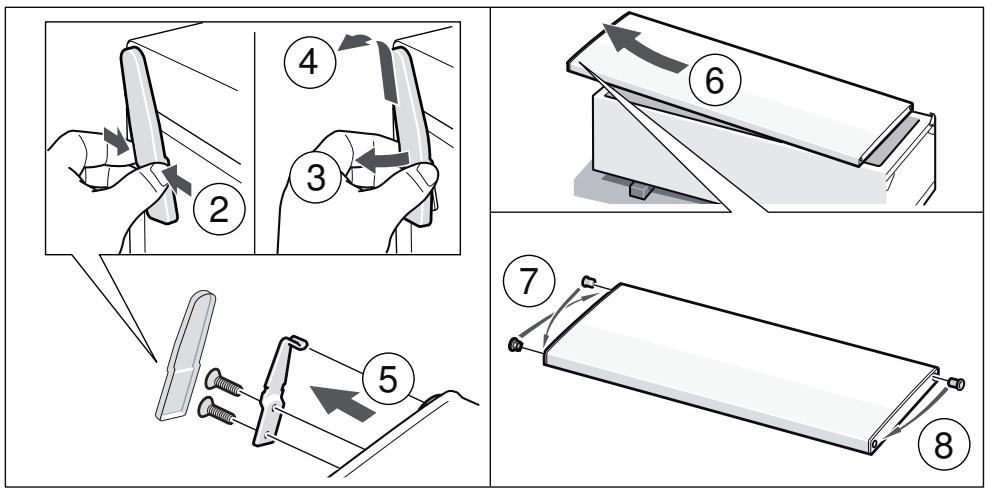

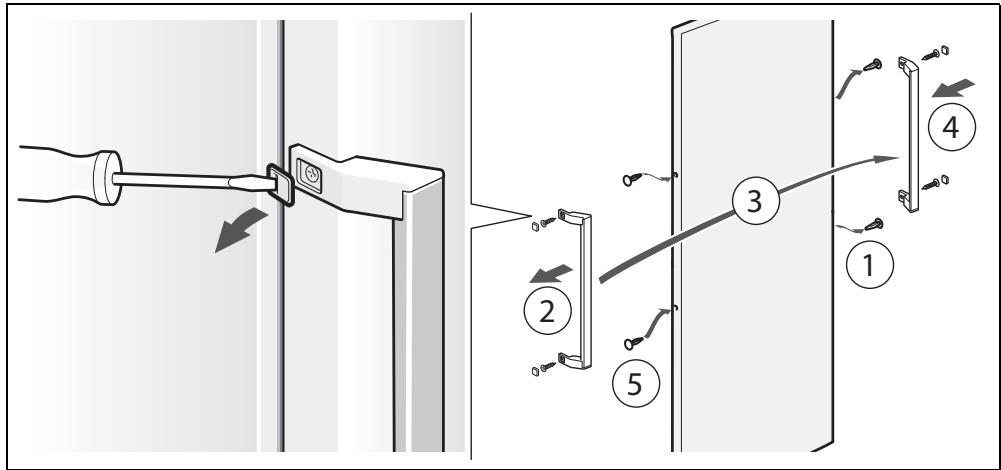

Change the door handle in numerical sequence.

Fitting the wall spacer

Fig. 5

If available:

Fit wall spacers to obtain the indicated energy absorption of the appliance. A reduced wall gap will not restrict the function of the appliance. The energy absorption may then change slightly.

Aligning the appliance

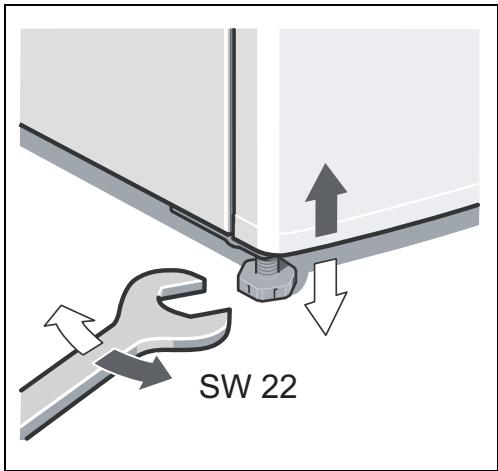

Place the appliance in the designated location and align. The appliance must be level. If the floor is uneven, use the front height-adjustable feet. Adjust the height-adjustable feet with a wrench.

Note

The appliance must be upright. Please align it with a spirit level.

SW 22

Illustration showing a hand holding an open book with a curved arrow pointing to a grid-like diagram, indicating transformation or mapping.

Illustration showing a hand holding an open book with a curved arrow pointing to a grid-like diagram, indicating transformation or mapping.

Illustration showing a hand holding an open book next to a grid of small panels with an arrow indicating transformation or mapping.

Illustration showing a hand holding an open book next to a grid of small panels with an arrow indicating transformation or mapping.

Illustration showing a hand holding an open book with a curved arrow pointing to a grid-like diagram, indicating transformation or mapping.

Illustration showing a hand holding an open book next to a grid of document pages with an arrow indicating direction.

Illustration showing a hand holding an open book with a curved arrow pointing to a grid-like diagram, indicating transformation or mapping.

Illustration showing a hand holding an open document with a grid layout and an arrow indicating direction or transformation.

Illustration showing a hand holding an open book next to a grid of small panels with an arrow indicating transformation or mapping.

Illustration showing a hand holding an open book with a curved arrow pointing to a grid-like diagram, indicating transformation or mapping.

Illustration showing a hand holding an open book with a curved arrow pointing to a grid-like diagram, indicating transformation or mapping.

Safety warning illustration showing installation of a door, warning box with warning symbol, and safety symbols for damage detection.

Diagram illustrating eight steps of a folding or cutting process, labeled 2 through 8 with numbered arrows indicating direction.

Technical diagram showing mechanical assembly steps with numbered annotations and directional arrows

Technical diagram showing a mechanical clamp or bracket assembly with directional arrows and a warning symbol, labeled with number 12.

Technical diagram showing a mechanical clamp or bracket assembly with labeled parts and directional arrows indicating motion or rotation.

Technical diagram showing mechanical assembly with numbered components and warning indicators

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram illustrating a cable clamp mechanism with numbered steps and directional arrows indicating movement.

Simple line drawing of a rectangular object with a curved arrow and number 21, no text or symbols present.

Illustration of two open refrigerator units with different internal compartments (no text or symbols)

2

5cm

3

Diagram illustrating a door lock mechanism with numbered steps from pin to bracket, showing tool placement and adjustment.

4

Technical diagram showing a mechanical assembly with a bag and a device, no visible text or symbols

5
