USER MANUAL Monitor XT70 DENON

XT15 Compact Bookshelf Speakers

XT20 Bookshelf Speakers

XT30 Center Channel Speaker

XT35 Slim Center Channel Speaker

XT60 Compact Floorstanding Loudspeaker

XT70 Floorstanding Loudspeaker

XT90 Height Accessory Speaker

Thank you for choosing the Polk Monitor XT™

Loudspeakers. This new line is bold, stylish and quality built for performance. These high-efficiency speakers feature Polk's patented Dynamic Balance® tuned drivers and tweeters for clearer highs and a more realistic mid range. The Polk Monitor XT speakers were designed to sound great and also look great; with the subtle accents, this product can live in any decor. Pure and simple, the Polk Monitor XT speakers are the true definition of "Expect Great Sound".

Having built our reputation as "The Speaker Specialists" for more than 45 years, we take pride in our superior sound and build quality, which features many patented and award-winning audio innovations. For the people of Polk, building audio products is not just a job—it's a passion. And if you're going to remember one thing, remember this: We live by the truest principle of what audio should deliver—great sound at an affordable price for everyone!

Technical Assistance or Service

If your product was damaged during shipping, please contact the authorized Polk Audio retailer where you purchased your product. For technical support, FAQs, and repair information, visit http://polk.custhelp.com. For a complete list of contact information, visit https://www.polkaudio.com/contact-us. Support email addresses and phone numbers vary based on the region where you purchased your product.

WARNING: Listen Carefully

Polk Audio loudspeakers are capable of playing at extremely high volume levels, which could cause serious or permanent hearing damage. Polk Audio accepts no liability for hearing loss, bodily injury, or property damage resulting from the misuse of its products. Keep these guidelines in mind and always use good judgment when controlling volume:

  • Limit prolonged exposure to volume levels that exceed 85 decibels (dB). For more information about safe volume levels, take a look at the Occupational Health and Safety Administration (OSHA) guidelines at http://www.osha.gov/.

DENON Monitor XT70 - WARNING: Listen Carefully - 1

Pour en savoir plus

www.quefaredemesdechets.fr

Product Disposal

Certain international, national and/or local laws and/or regulations may apply regarding the disposal of this product. For more information, please contact the retailer where you purchased this product or the Polk importer/distributor in your country. More information is also available at www.polkaudio.com or by contacting at 5541 Fermi Court, Carlsbad, California, 92008, USA. P 1-800-377-7655.

DENON Monitor XT70 - Product Disposal - 1

This symbol on our electrical products or their packaging indicates that it is prohibited in Europe to discard this product(s) as domestic waste. In order to ensure that you dispose of the product(s) correctly, please dispose of the product(s) according to local laws and regulations on the disposal of electrical and electronic equipment.

In doing so, you are contributing to the retention of natural resources and to the promotion of environmental protection by the treatment and disposal of electronic waste.

Care and Cleaning

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

EU Declaration of Conformity

DENON Monitor XT70 - EU Declaration of Conformity - 1

Hereby, Sound United, LLC declares that our product complies with the following EU/EC Directives:

EMC:2014/30/EU
LVD:2014/35/EU
RoHS: 2011/65/EU and amendment Directive (EU) 2015/863
ErP: EC regulation 1275/2008 and its framework directive 2009/125/EC including amendment 801/2013

The full text of the EU declaration of conformity is available at the following internet address: https://www.polkaudio.com/ declarations-of-conformity.

Sound United, LLC

5541 Fermi Court

Carlsbad, CA 92008, USA

EU Contact:

D&M Europe B.V.

Oude Stadsgracht 1

5611 DD Eindhoven

DENON Monitor XT70 - EU Declaration of Conformity - 2

UKCA Declaration of Conformity

Hereby, Sound United, LLC declares that our product complies with the following UK regulations:

  • Electrical Equipment (Safety) Regulations 2016
    Electromagnetic Compatibility Regulations 2016
    The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
  • Eco design for Energy-Related Products Regulations 2010
    The full text of the UK declaration of conformity is available at the following internet address: https://www.polkaudio.com/ declarations-of-conformity.

UK Importer:

UK importer: D&M Audiovisual Ltd

Dale Road, Worthing, West Sussex

BN11 2BH United Kingdom

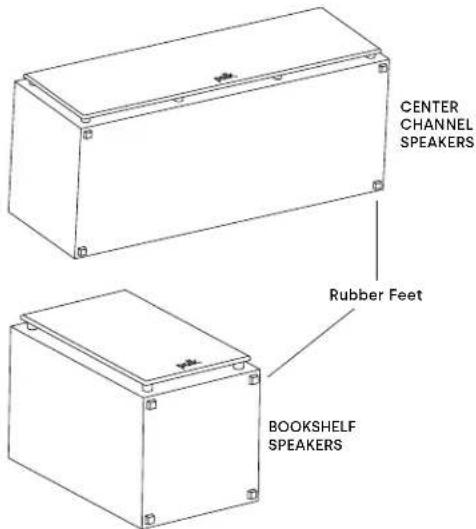

Adding Adhesive-Backed Rubber Feet

To keep your Polk speakers firmly in place and prevent damage to floors or furniture, it's a smart idea to attach the included adhesive-backed rubber feet to the bottom of your speaker.

DENON Monitor XT70 - Adding Adhesive-Backed Rubber Feet - 1

Note:

  • XT15 / XT20 / XT30 / XT35: You must install the rubber feet before using the product.
  • XT60 / XT70 / XT90: Rubber feet come pre-installed.

How to Connect Your System

To get the best sound quality, it's important to wire your speakers correctly.

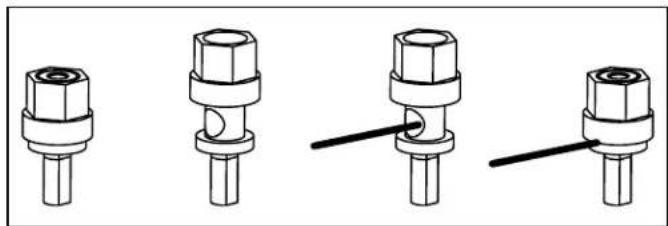

How to Use Binding Post Connectors

Loosen hex nut and insert bare speaker wire through hole. Tighten hex nut down to make connection.

Note: Do not insert insulated section of wire Into hole (you will not get a connection).

DENON Monitor XT70 - How to Use Binding Post Connectors - 1

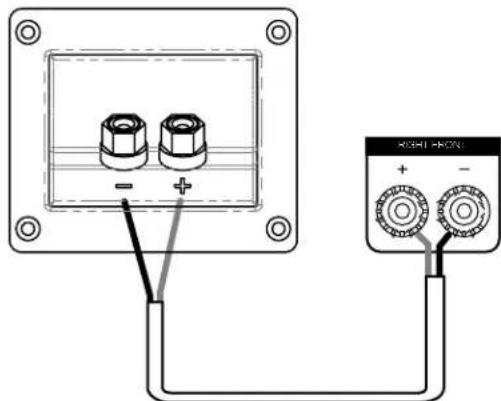

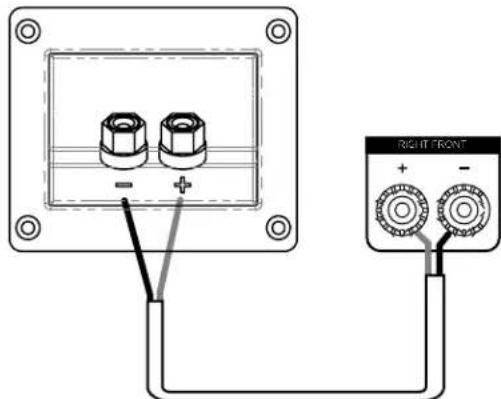

Basic Speaker Hookup

Make sure that the red (+) and black (-) connectors on your amplifier or receiver connect to the red (+) and black (-) connectors on your speakers. If your speakers sound "thin," with little bass and little or no center image, odds are that one of the speaker wires is connected backwards. Double check all connections.

DENON Monitor XT70 - Basic Speaker Hookup - 1

Processor Mode for Center Channel Speaker

Note: Set Center Channel Speaker to "small" in your receiver's Bass Management Settings.

The "bass management" or "speaker configuration" menus of most surround receivers offer the choice of "normal" or "wide" modes for center channel operation. In discrete channel digital processors, these modes are referred to as "small" and "large." Normal (small) mode filters bass frequencies from the center channel speaker and sends them instead to the front left and right main speakers or to the subwoofer output (LFE) jack. Wide (large) mode sends an unfiltered, full-range signal to the center channel speaker. Use the Small (normal) mode for optimum center (and surround) channel performance and reliability.

Speaker Positioning

To maximize the sound quality of your speaker system—whether you've purchased XT15 bookshelf speakers, an XT30 center channel speaker, or XT70 tower speakers—correct placement is everything. Take a look at the following examples and give them a try based on the Polk Monitor XT Series speakers you've purchased.

Note: Your Polk Monitor XT Series speakers are compatible with 2.0, 2.1, 3.1, 5.1, 7.1 and 9.1 setups (optional subwoofer shown in graphics).

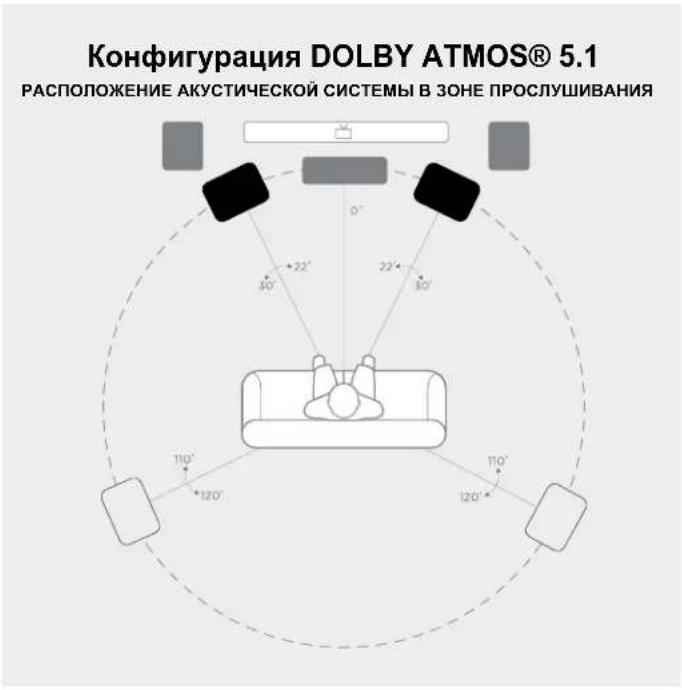

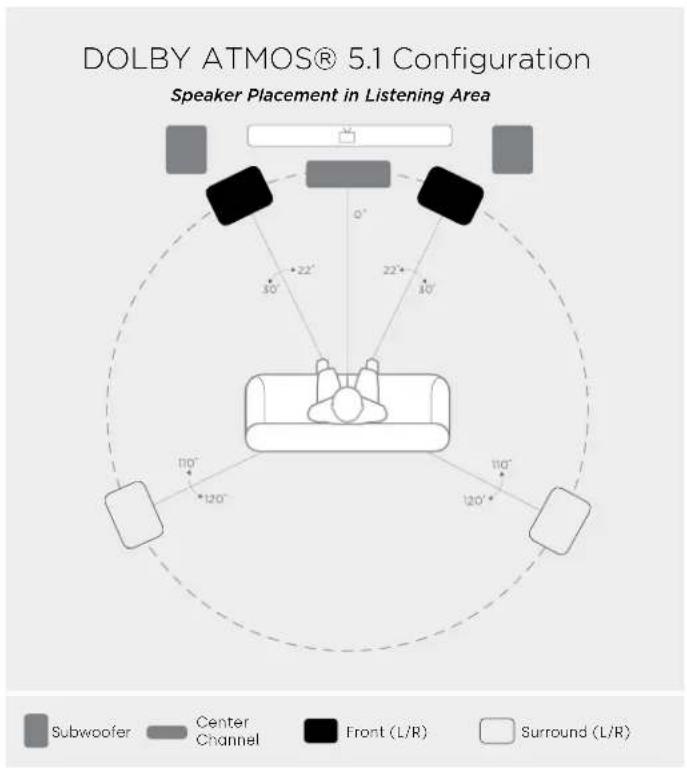

Listening in 5.1 Surround

You can use the Polk Monitor XT Series speakers as rear surround speakers in a Polk Audio home theater system. Ideal rear channel surround speaker placement is on a side wall, slightly behind and above the listening position.

Listening in 3.1 System

Get the most realistic stereo image by placing speakers as far apart as the listeners are sitting from them. If room conditions require that you place the speakers farther apart, you may choose to angle the speakers toward the middle to support a more solid center image.

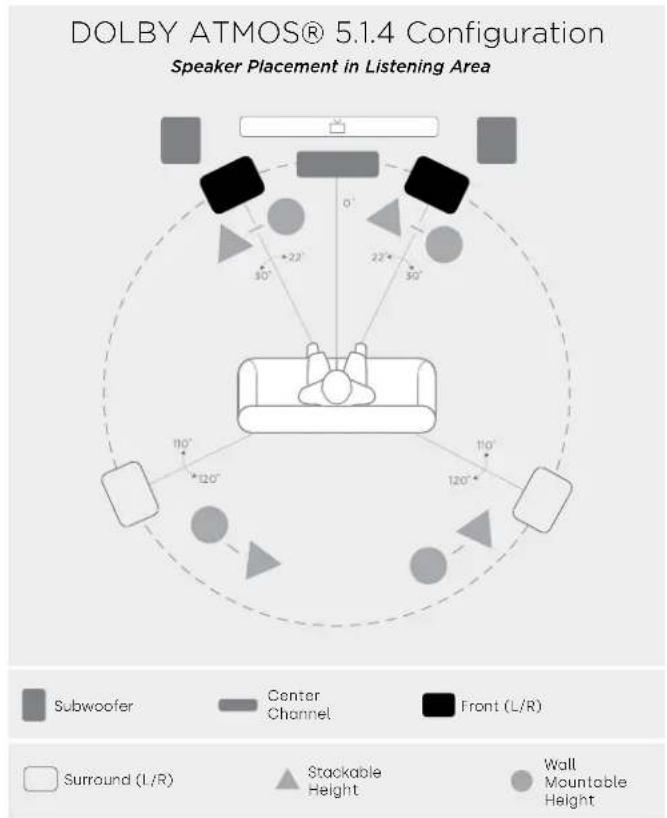

Listening in 5.1 Surround-alternate option

Alternate rear channel surround speaker placement for Polk Monitor XT Series speakers. If you cannot place rear surrounds on the side walls, position them on the rear wall above the listening position.

DENON Monitor XT70 - Listening in 5.1 Surround-alternate option - 1

DENON Monitor XT70 - Listening in 5.1 Surround-alternate option - 2

DENON Monitor XT70 - Listening in 5.1 Surround-alternate option - 3

DENON Monitor XT70 - Listening in 5.1 Surround-alternate option - 4

DENON Monitor XT70 - Listening in 5.1 Surround-alternate option - 5

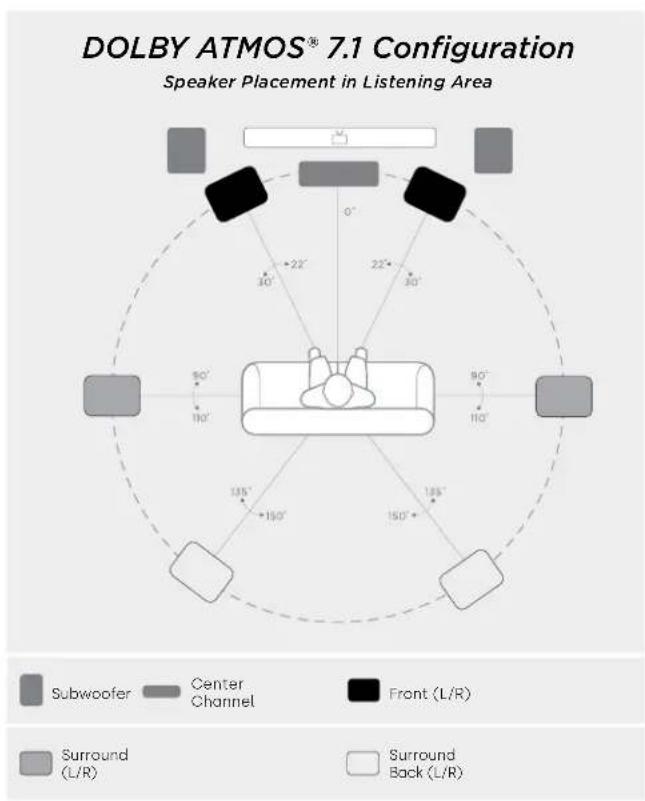

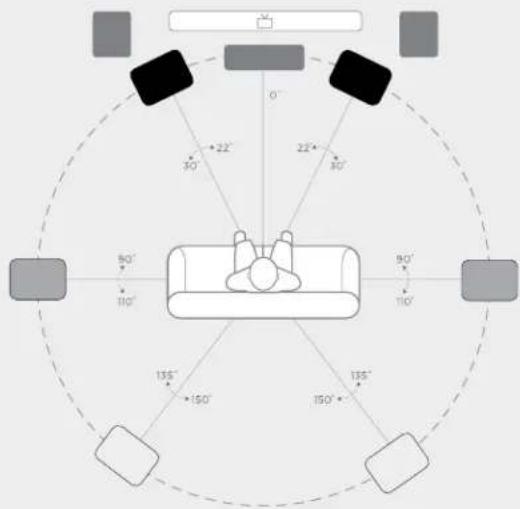

Listening in 7.1 Surround

Enjoy added depth to your surround sound experience with four rear surround speakers instead of two.

DENON Monitor XT70 - Listening in 5.1 Surround-alternate option - 6

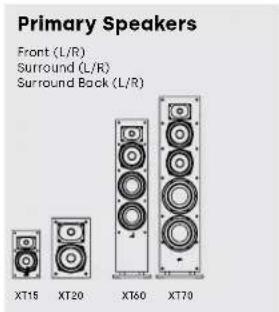

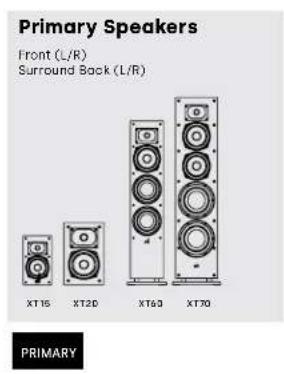

Primary Speakers

Front (L/B)

Surround (L/R)

Surround Back (L/R)

DENON Monitor XT70 - Primary Speakers - 1

PRIMARY

DENON Monitor XT70 - PRIMARY - 1

DENON Monitor XT70 - PRIMARY - 2

PRIMARY

DENON Monitor XT70 - PRIMARY - 1

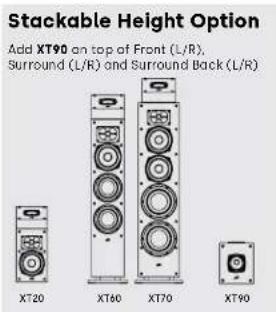

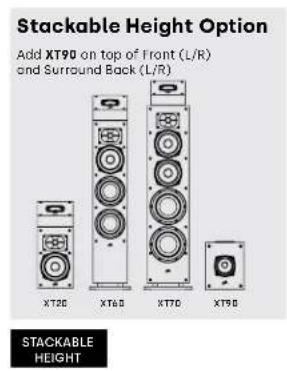

STACKABLE HEIGHT

Monitor XT Bookshelf Speakers Monitor XT Center Channel Speakers

Specifications XT15 XT20 XT30 XT35
Speaker typeStandmount (pair) Standmount (pair) Compact Center Channel Center Channel (L/C/R)
Tweeter1" Terylene Dome 1" Terylene Dome 1" Terylene Dome 1" Terylene Dome
Mid-range/mid-bass
Woofer5¼" custom paper 6½" custom paper Two 5¼" custom paper Four 3" custom paper
Passive radiatorsN/AN/AN/AN/A
Overall frequency response48 Hz-40 kHz38 Hz-40 kHz55 Hz-40 kHz57 Hz-40 kHz
Frequency response (-3 dB limits)73 Hz-26 kHz57 Hz-26 kHz77 Hz-26 kHz84 Hz-26 kHz
Recommended amplifier power30-150 W30-200 W25-200 W
Amplifier output compatibility4Ω / 8Ω4Ω / 8Ω4Ω / 8Ω4Ω / 8Ω
Minimum Impedance (ohms)4.1Ω4.3Ω4.1Ω4.2Ω
Sensitivity (2.83V/1m)86 dB87 dB89 dB87 dB
Crossover Frequency
Tweeter/mid-range2200 Hz3200 Hz2500 Hz2500 Hz
Mid-range/mid-bass
Dimensions and Weight Attributes
Product dimensions (W x H x D)6.50 x 10.6 x 7.18in7.50 x 18.0 x 10.99in.19.9 x 6.50 x 8.13in24.4 x 4.15 x 5.55in
165.1 x 269.2 x 182.4mm190.5 x 330.0 x 279.3mm482.6 x 165.1 x 206.6mm619.7 x 105.4 x 141.0mm
Greatest overall depth (including grille)
Product weight (each)
Cabinetry
Mid-range enclosure type
Mid-bass/woofer enclosure type
Available finishesMatte BlackMatte BlackMatte BlackMatte Black
FeetYes, supplied in boxYes, supplied in boxYes, supplied in boxYes, supplied in box
Wall-mountable?NoNoNoYes
Binding postsNickel-plated 5-way binding postsNickel-plated 5-way binding postsNickel-plated 5-way binding postsNickel-plated 5-way binding posts
Accessories
Designed for XT90 speakerN/AYesN/AN/A
Certifications (non-safety and regulatory)
Hi-res certifiedYesYesYesYes

*Subject to change without notice.

Monitor XT Floorstanding Speakers Monitor XT Height Module Speaker

Specifications XT60 XT70 XT90
Speaker typeFloorstanding LoudspeakerFloorstanding LoudspeakerHeight Module (pair)
Tweeter1" Terylene Dome 1" Terylene Dome N/A
Mid-range/mid-bass
Woofer6½" custom paperTwo 6½" custom paper4" custom paper
Passive radiatorsTwo 6½" PRs Two 8" PRs N/A
Overall frequency response38 Hz-40 kHz35 Hz-40 kHz94 Hz-22 kHz
Frequency response (-3 dB limits)43 Hz-26 kHz41 Hz-26 kHz164 Hz-17 kHz
Recommended amplifier power25-200 W25-200 W30-100 W
Amplifier output compatibility4Ω / 8Ω4Ω / 8Ω4Ω / 8Ω
Minimum impedance4.4Ω4.0Ω4.3Ω
Sensitivity (2.83V/1m)86 dB89 dB89 dB
Crossover Frequency
Tweeter/mid-range2200 Hz2700 Hz2700 Hz
Mid-range/mid-bass
Dimensions and Weight Attributes
Product dimensions (W x H x D)7.50 x 36.4 x 9.09in9.25 x 40.4 x 12.5in.7.50 x 5.64 x 8.38in
190.5 x 925.0 x 230.8mm235 x 1026.6 x 317.9mm190.5 x 143.2 x 212.9mm
Greatest overall depth (including grille)
Product weight (each)
Cabinetry
Mid-range enclosure type
Mid-bass/woofer enclosure type
Available finishesMatte BlackMatte BlackMatte Black
FeetRubber padsRubber padsRubber pads
Wall-mountable?NoNoYes
Binding postsNickel-plated 5-way binding postsNickel-plated 5-way binding postsNickel-plated 5-way binding posts
Accessories
Designed for XT90 speakerYesYesN/A
Certifications (non-safety and regulatory)
HI-res certifiedYesYesNo

Subject to change without notice.

Limited 5-Year Warranty

Polk Audio, LLC (hereinafter "Polk" or "Polk Audio") provides this limited warranty to the original retail purchaser only. This warranty will terminate automatically prior to its stated expiration if the original retail purchaser sells or transfers the Product to any other party.

Polk Audio warrants to the original retail purchaser only, that the loudspeaker(s), passive crossover component(s) and enclosure ("Product") will be free from defects in material and workmanship for a period of five (5) years from the date of original retail purchase from a Polk Audio Authorized Dealer.

To allow Polk to offer the best possible warranty service, please register your new Product online at: www.polkaudio.com/ registration or call Polk customer service at 800-377-7655 in the USA and Canada within ten (10) days of the date of original purchase. Be sure to keep your original purchase receipt.

Defective Products must be shipped, together with proof of purchase, prepaid insured to the Polk Authorized Dealer from whom you purchased the Product, or to the Factory at 5541 Fermi Court; Carlsbad, CA 92008. Products must be shipped in the original shipping container or its equivalent; in any case the risk of loss or damage in transit is to be borne by you. If upon examination at the factory or Polk Authorized Dealer it is determined that the unit was defective in materials or workmanship at any time during this warranty period, Polk or the Polk Authorized Dealer will, at its option, repair or replace this Product at no additional charge, except as set forth below. All replaced parts and Products become the property of Polk. Products replaced or repaired under this warranty will be returned to you, within a reasonable time, freight prepaid.

This warranty does not include service or parts to repair damage caused by accident, disaster, misuse, abuse, negligence, inadequate packing or shipping procedures, commercial use, voltage inputs in excess of the rated maximum of the unit, cosmetic appearance of cabinetry not directly attributable to defect in materials or workmanship, or service, repair, or modification of the Product which has not been authorized or approved by Polk. This warranty shall terminate if purchased from an unauthorized dealer or if any of the serial number on the Product has been removed, tampered with or defaced.

This warranty is in lieu of all other expressed warranties. If this Product is defective in materials or workmanship as warranted above, your sole remedy shall be repair or replacement as provided above. In no event will Polk Audio be liable to you for any incidental or consequential damages arising out of the use or inability to use the Product, even if Polk Audio or a Polk Authorized Dealer has been advised of the possibility of such damages, or for any claim by any other party. Some states do not allow the exclusion or limitation of consequential damages, so the above limitation and exclusion may not apply to you.

All implied warranties on this Product are limited to the duration of this expressed warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from state to state.

This warranty applies only to Products purchased in Canada, the United States of America, its possessions, and U.S. and NATO armed forces exchanges. Please see the warranty guide specific to Polk Products purchased in countries or territories not referenced herein.

Dale Road, Worthing, West Sussex

BN11 2BH United Kingdom

Dale Road, Worthing, West Sussex

BN11 2BH United Kingdom

Listening in 3.1 System

Dale Road, Worthing, West Sussex

BN11 2BH United Kingdom

Dale Road, Worthing, West Sussex

BN11 2BH United Kingdom

Vome (L/R)
Surround (L/R)

Surround hinten (L/R)

DENON Monitor XT70 - Listening in 3.1 System - 1

DENON Monitor XT70 - Listening in 3.1 System - 2

DENON Monitor XT70 - Listening in 3.1 System - 3

XT60 XT70

Primratae

Dale Road, Worthing, West Sussex

BN11 2BH United Kingdom

DENON Monitor XT70 - Listening in 3.1 System - 4

DENON Monitor XT70 - Listening in 3.1 System - 5

DENON Monitor XT70 - Listening in 3.1 System - 6

Luisteren in 7.1 surround

Dale Road, Worthing, West Sussex

BN11 2BH United Kingdom

Dale Road, Worthing, West Sussex

BN11 2BH United Kingdom

ПолныйTekтДeкларачи COOTBETCTBNA EC DOCTYNEH NO CLENYUOEMy aDpecyВИнтepheT:https://www.polkaudio.com/declarations-of-conformity.

Sound United, LLC

5541 Fermi Court

Carlsbad, CA 92008, USA

KoHTaKTHOe NmUO B EC:

D&M Europe B.V.

Oude Stadsgracht 1

5611 DD Eindhoven

Deknapaun O COOTBETCTBUN UKCA

DENON Monitor XT70 - Deknapaun O COOTBETCTBUN UKCA - 1

Hactoam Sound United, LLC 3aBnreT, TTo Hau npOyKT COOTBeCTbYeT CNeIyoUIM npaBnAm, DeIcTBYIOUM B Benko6pTaHH:

HopmatNBbIeakTbI no (6e3onacHocTn) 3neKtpoobopyoBaHn,2016r.
- PpaBnla 3JneKtpomarHHTHOI COBMecTUMOCTN, 2016 r.
OrpaHnHeHa nCNoIb3ObaHne HeKOTopbIX OaChbIX BeueCTB n3 npabIN nCNoIb3oBaHnE 3JIeKTpUeCKoro N 3JIeKTpOHHORO 6OpdyoBaHn, 2012r.
3KoONHuecka KOHCTpyKun HOpM, C8ra3aHHbIX C 3NeKTpUeCKO npodyknei,2010r.

ПолныйTekт Декларачио COOTBETCTBEN BeIMKobpntAHIN DoCTyneH no cIeNyIoUeMy aIpecy B INTEPHTe: https://www.polkaudio.com/declarations-of-conformity.

IMnpTeBBeJIko6pTaHm:

D&M Audiovisual Ltd

Dale Road, Worthing, West Sussex

BN11 2BH United Kingdom

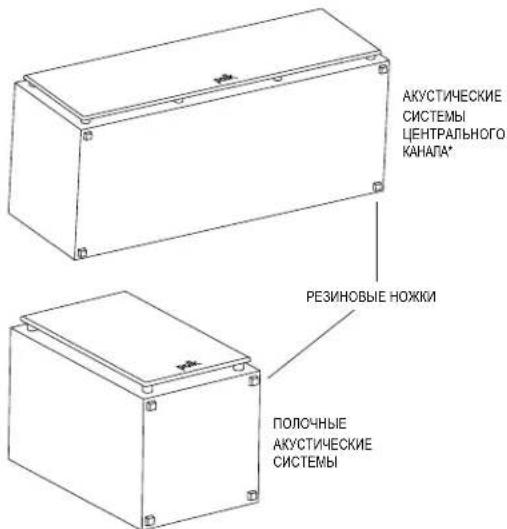

I06aBJIeHHe pe3nHObblx HOJek C JINPKOJ CnNHKOJ

TtobHaedjHo ydepKbTaB aycTueckne Cntembl Polk n npdeTbpaaTb NobpejdeHne noOBn mBeJIn, peKoMeHyetc npKnpeINb BXOJaUe B KOMnNeKT peSHOBbie HOXKn C KNEeBOI NOIIOKKo K HIXKeY qactn DnHAMka.

DENON Monitor XT70 - I06aBJIeHHe pe3nHObblx HOJek C JINPKOJ CnNHKOJ - 1

Pnmeuahne:

  • XT15 / XT20 / XT30 / XT35: Ппелд ecnoьбанем n3deJnHHeOxOIMO yctahOBt b pe3HOBbIe HOKKn.
  • XT60/XT70/XT90:Pe3HOBbIe HOKkNIOCTaBnIOTcR npedBaPnteBHO yCTaHOBneHHbIMN.

PoiKnIouHeHne CNTeMbI

YTo6bI ObecneuHTb HauyUwee KaueCTBO 3Byka, BaxHo npaBnHbHO NIOKNOHt bAkyCTNuueckNe CNTembl.

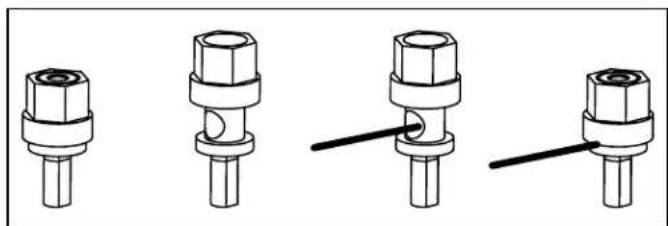

Kak nCnoB3OBAtbpazbembln noKnHueHna Ka6eJra

Ocna6bTe WeeTnprpanHyro raHy N BCTabBe The HEn30nIpuBaHHbI npOBd DnHaMnKa B OTBepCTne. 3aTHeNte WeeTnprpanHyro raKy Do KOHca, YTO6bbl BVINONHTb CoEduHHeHne.

PnmuueaHne. He BcTaBnIe N3OJInpoBaHHb yUacToK npoBoaB OTBepCTne (coeINHeHne He 6yTe).

DENON Monitor XT70 - Kak nCnoB3OBAtbpazbembln noKnHueHna Ka6eJra - 1

Ba3OBoe nodknIOueHne akyCTnuecknx cnCTem

Y6eInTeCb, YTO KpaChbIe (+) uCepHbIe (-) pa3bEmbl Ha ycInntene nn pceINBepe CoaINHIOCTc C KpaCHbIM (+) uCepHbIM (-) KneMMamn AkyCTNueCKHX CNCTEM. Ecn nAkyCTNueCKNe CNCTeMbI 3BvATK XnIKo), npaKTNUeCKN 6e3 Baca, a cHTpAlbHbKaHAn NOuTH INuN COBepWeHNO He npocnyuINBaET, To eCTb BeporTHOCTb, Yo OIN NpOBOD INHAMIKOB CoepINHeH HENpabINbHO. DbaXdb IpOBepTe BCE coeINHeHn.

DENON Monitor XT70 - Ba3OBoe nodknIOueHne akyCTnuecknx cnCTem - 1

Pexn m npoecoppa nra ceHTpaIbHoro dHaMaKKaHaHa

PnmueyHne.YcTaHOBteIJa CEHTpaIbHoro DNHaMnKa KaHaNa 3HaueHHe《MaJIeHbKm》B HAcTPOkax ynpaBJeHn6 BacAMn pecuBepa.

MeHIO 6a3oBOrO ynpabHeHnra 11111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111

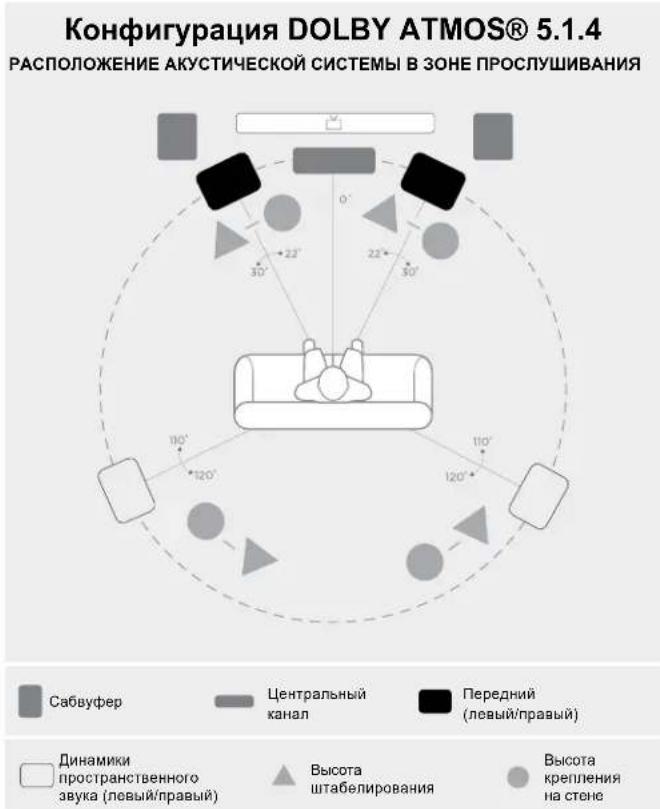

PacnoJoxeHne akyctnuecko cnCTembl

PpabnIbHoe pacnoNoxKeHne dnn MaKcMmAbHOro noBbIeHnKaueCTBa 3Byka B BaWeJ akCyTneckO cnCTeme, 6yD To KNHXhBe nNoOHTbHO akyctnweckme CTMe bXT15, akyctnwecka cnCTema CEHTpaBHoro KaHana XT30 mNn HanoNbHaAkyCTnwecka cnCTema XT70, nRpaET BaXHeuYo pOnb. B3rJaHnte Ha cNeDyOnu ne npImepb i nonpObyTe uCNOb3ObaTb DnHAMnK cepin Polk Monitor XT, kOtOpbie Bbl npNo6pei.

PpmeaHne. Bau n DnHAMKn cepu Polk Monitor XT coBmctMbI cYcTaHOBkAMn 2.0, 2.1, 3.1, 5.1, 7.1 n 9.1 (DOnonHnteJbHbN ca6Byep nokaah Ha rpaFKe).

PpocnyuBaanhe B cOpMaTe 5.1 Surround

BMOKTe NcNOb30BaTb AkyCTNeCKHe CnCTEmb cepHn Polk Monitor XT B KaeeCTBe 3aHNH DNAMIKOB npoCTpaHCTBeHHORO 3bYka B CnCTeMe DOMaHrero KNHOteaTpAoPbAudio. HeaeIbHOe paoNOnOKeHHe AkyCTNeCKoCnCTEmb IpocTpaHCTBeHHORO 3bYka 3aHNH KAnHOB Ha 6okob CTHe, HEMHOro No3aHn HAd pacNoONKeHHem CnyuataJIa

DENON Monitor XT70 - PpocnyuBaanhe B cOpMaTe 5.1 Surround - 1

DENON Monitor XT70 - PpocnyuBaanhe B cOpMaTe 5.1 Surround - 2

Cafy

DENON Monitor XT70 - PpocnyuBaanhe B cOpMaTe 5.1 Surround - 3

LcHtpanbHuN KAHAN

DENON Monitor XT70 - PpocnyuBaanhe B cOpMaTe 5.1 Surround - 4

PonopnDn (npBb@npBb)

DENON Monitor XT70 - PpocnyuBaanhe B cOpMaTe 5.1 Surround - 5

HAMK

npocpaHCTBeHHoro

3byka (noBn/npabu)

Cnyuahne BCnCTeme 3.1

IonyuHte Han6oonee peanctnHbCtpeoOohueckn 0bp3, pa3mectNBINHAMKNTAK daneko, YTObI cnyaATENI CNDENIOT HIX. Ecnn ycnoBn B Nomeuehen Tpe6yOT, YTObI DnHAMNK paONarAnCb daNbe dpYr OT dpYra, MOxHO Bb6paTb yron haknoHa DnHAMKOB nocepdne, YTObI oecneuHTb 6onee HadeXhoe ceHTpaNbHoe n3o6paxKeHne.

PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT

AJIbTePahINBHOe paCnoJoxKeHHe DnHAMKOB IpocTpaHCTBeHHORO 3ByKa Ha 3aHEm KAHane DnDnHAMKOB cepnn Polk Monitor XT. Ecnn Bbl He MoXePe pa3MeCTNb 3aHHe akyCTNueCKHe CnCTeMbl IpocTpaHCTBeHHORO 3ByKa Ha 6oKobBX CTehAo, paCNoONKeIte Hx Ha 3aHHe nCTeH He nA paCNOJIOKeHHe CNyUaTeYra.

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 1

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 2

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 3

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 4

PpocnyuBaanE BΦopMaTe 7.1 Surround

HacnajdaItecbdoonHHTeBHOIpybHO3Byka6naOapraYeIbpeM 3aHIM DnHAMKAM PocTpaHCTBeHHORo 3BYKa BmecTO DBYX.

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 5
KoHcHpypauny DOLBY ATMOS® 7.1
PACIOLOXEHNE AKYCTNUECKO CNCTEMBI B 30HE IPOCJIYUBAHNA

Ca6bypep

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 6

LehtpaIbHn KaHAN

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 7

Pepedn (pebly/npabby)

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 8

MNIKIOPOCTAHOBTBEHOGIO (nBiebI/NpabB)

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 9

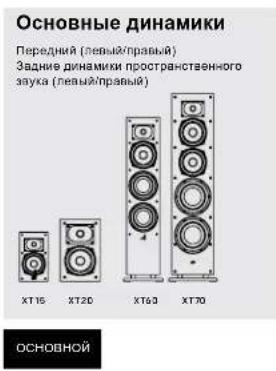

OCHOBHbIe DnHaMnKn

3dImHe DnHAMMKN npoCTpaHCTBEHAGO 38yka (JIeBbI/npabB)

Pepedn(naa/bnpa)
HAMNnnpocpaHcBHeHO 38yia
(n)
2A0HUNANANNOOAGGTAAHCTAHNHO
387x(00000000000000000000000000000000000000000000000000000000000
m - 1 0 ;

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 10

XT20

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 11

X760 X770

OCHOBHO

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 12
KoHcHypaun DOLBY ATMOS® 7.1.4
PACNOIOXEHNE AKYCTNUECKO CNCTEMbl B 30HE PPOCNYUHBAHNA

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 13

Ca6byΦe

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 14

LcHtpanbHHKAN

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 15

Pepedn (pea/npaa)

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 16

dHmamkni npoCTaHbTeBHHO 3ya (nebby/ npably)

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 17

3aDHe DnHAMMKN npoctpaHCTBeHHoro 3BNYA (nebbl/npab)

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 18

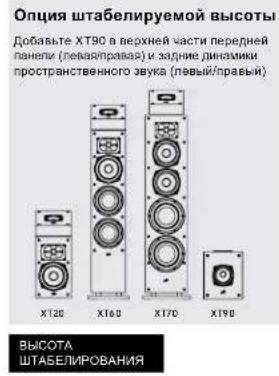

Bicota wta6eNipopoBAnH

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 19

Bicota KpennnHa CTene

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 20

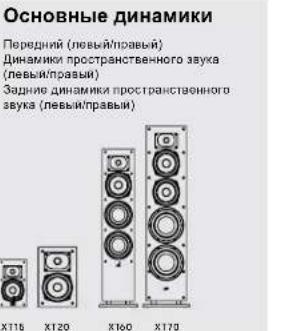

OnuwaTabeNpyEmoBbOToB

OCHOBHOU

DabMbte X790B a 8eepHHK cHaeTnepeHNEb
naneHn (npaaa/npaaa). DnAAMNKn
npocrTaehHeHHBO3yKa (hehpa/npaa) H
3aHnHEmAMNKn npocrTaehHO3yKa (hehpa/npaa)

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 21

BICOTA UTIASENIMPOBAHIVI

PiooHbIe aycTnueckne nctembl Monitor XT

Akyctnueckne cnctembl ceHTpansHoro kaHana Monilr XT

TexHueckne xapaKTepeNCTnX 15XT20XT30XT35

Dale Road, Worthing, West Sussex

BN11 2BH United Kingdom

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 22

com/declarations of conformity.

UK 进口商:

D&M Audiovisual Ltd

Dale Road, Worthing, West Sussex

BN11 2BII United Kingdom

DENON Monitor XT70 - PpocnyuBae B opmate 5.1 Surround aIbTepeHaTHBbI BapHaHT - 23

Pour en savoir plus

www.quefairedemesdechets.fr

增加背胶橡胶垫脚

Dale Road, Worthing, West Sussex

BN11 2BH United Kingdom

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : DENON

Model : Monitor XT70

Category : Speaker
