SRINTU177 - Fridge SIGNATURE - Free user manual and instructions

Product type	Built-in refrigerator
Height (mm)	1785
Width (mm)	540
Depth (mm)	545
Total volume (L)	304
Energy efficiency class	E
Annual consumption (kWh/year)	113
Noise emissions (dB(A))	41
Noise emission class	C
Rated voltage	220-240 V~
Rated frequency	50 Hz
Rated current (A)	0,6
Refrigerant gas	R600a (31 g)
Insulation foam	Cyclopentane
Defrost	Automatic
Interior lighting	LED (class F, replaceable by a professional)
Control panel	Touch with digital display
Special functions	Super cool mode, open door alert, standby mode, door opening direction reversal
Coldest zone	Temperature indicator « OK »
Freezing capacity	None (refrigerator only)
Maintenance and cleaning	Interior cleaning with baking soda, exterior with neutral detergent
Safety	Child lock not available, detailed safety instructions in the manual
Availability of spare parts	10 years
Warranty	2 years (legal conformity)

Frequently Asked Questions - SRINTU177 SIGNATURE

How to adjust the temperature of my refrigerator?

Use the touch panel: press the TEMP. button several times to cycle through COLD (8°C), COLDER (4°C), COLDEST (2°C) and SUPER COOL. The recommended temperature is 4°C.

What to do if the door is left open too long?

An audible alarm sounds after 120 seconds. You can stop it by pressing any key. Close the door to avoid a temperature rise.

How to reverse the door opening direction?

Unplug the appliance, lay it on cardboard. Remove the top and bottom hinges, then reposition them on the other side. Rotate the fixing blocks by 180°. Refer to the Door opening direction reversal section in the manual.

Why is my refrigerator making noise?

Normal noises include the compressor, fan, gurgling, and clicking. If the noise is unusual, check that the appliance is level, not touching the wall, and no objects are vibrating inside.

How to clean the inside of the refrigerator?

Unplug the appliance. Use a solution of warm water and baking soda to wipe the interior surfaces. Rinse with clean water and dry thoroughly. Never clean with abrasive or solvent-based products.

What to do in case of a power outage?

When power returns, wait at least 5 minutes before reconnecting the appliance to avoid damaging the compressor.

How to save energy with this refrigerator?

Avoid leaving the door open too long, do not place hot food inside, install the appliance in a cool, well-ventilated room, and do not set a temperature lower than necessary.

What is the coldest zone of the refrigerator?

The coldest zone is between the vegetable drawer and the shelf at the same height as the symbol on the back wall. An ‘OK’ indicator confirms the correct temperature.

What to do if the LED bulb stops working?

The LED bulb can only be replaced by a professional. Contact customer service. First, make sure the door was not left open too long (the light automatically turns off after 30 seconds).

Can I freeze food in this refrigerator?

No, this appliance is only a refrigerator. It does not have a freezer compartment and is not suitable for freezing fresh food.

USER MANUAL SRINTU177 SIGNATURE

Pure technical diagram of a vertical panel with three horizontal connectors and mounting holes, no text or symbols present.

SIGNATURE®

RÉFRIGÉRATEUR 1 PORTE INTÉGRABLE

SRINTU177

TABLE DES MATIERES

Warning sign depicting a flame symbol in yellow and black, indicating hazard or caution

Technical diagram showing mechanical assembly steps with magnified views of components and directional arrows indicating motion or assembly.

Technical line drawing of an open refrigerator with internal compartments and mounting brackets (no text or symbols)

Simple line drawing of a mechanical assembly with two parts, one upward and one downward, enclosed in an oval frame (no text or symbols)

Technical line drawing of a refrigerator with doors and wheels, no text or symbols present

Simple line drawing of a knife inserted into a rectangular block, enclosed in an oval frame (no text or symbols)

Line drawing of a rectangular industrial cabinet or enclosure with mounting brackets and ventilation slots (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Pure technical diagram of a vertical panel with three horizontal connectors and mounting holes, no text or symbols present.

SIGNATURE®

BUILT IN ONE DOOR REFRIGERATOR

SRINTU177

TABLE OF CONTENTS

Important safety instructions - 37 -

Structure illustration - 43 -

Transport and handing - 44 -

Installation -44-

First use -47-

Display controls -48-

Storage of food - 50 -

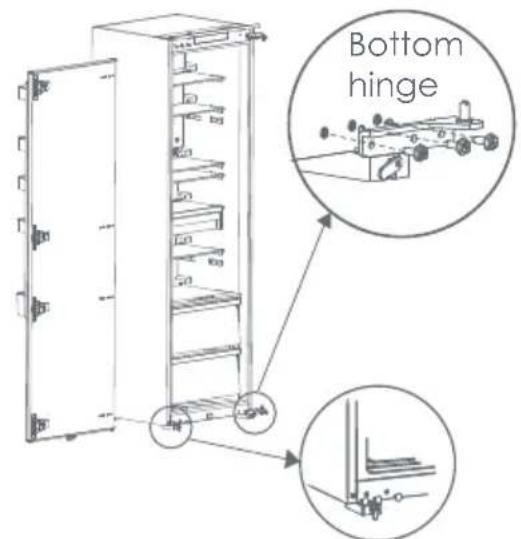

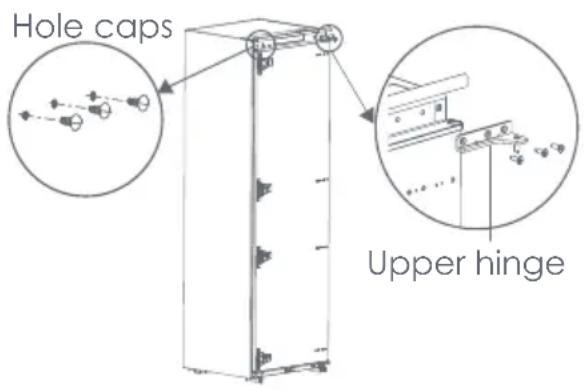

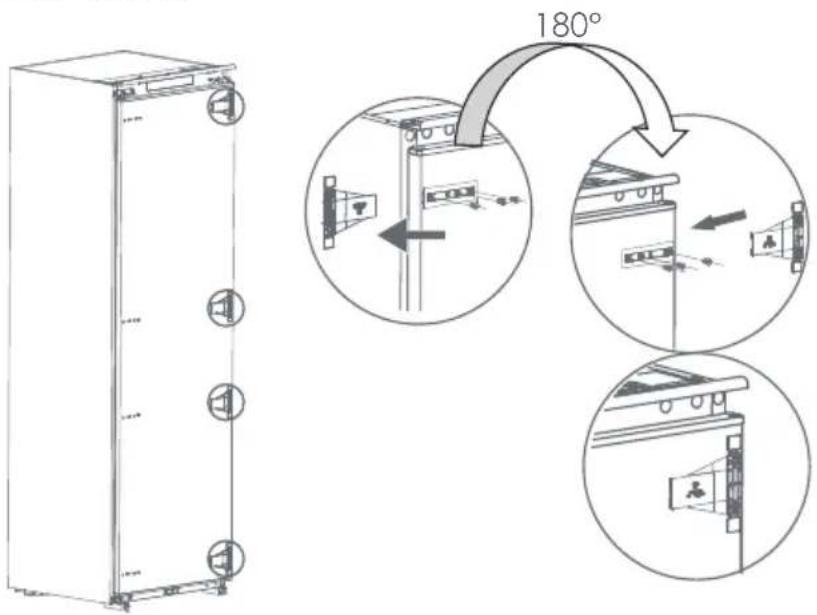

Door reverse - 53 -

Helpful hints and tips - 56 -

Cleaning and care - 57 -

Coldest zone in the refrigerator - 59 -

Technical specifications - 61 -

Troubleshooting - 64 -

This product is for household use only!

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

IMPORTANT SAFETY INSTRUCTIONS

This warning is only for EUROPEAN market only!

When using an electrical appliance, basic precautions should always be followed, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
5. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process,

other than those recommended by the manufacturer.

1. WARNING: Do not damage the refrigerant circuit.
2. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
3. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
4. This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

– farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

– catering and similar non-retail applications.

1. Placed the appliance against a wall with a free distance not exceeding 75 mm and more than 50mm
2. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
3. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
4. To avoid contamination of food, please respect the following instructions:
5. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
6. Clean regularly surfaces that can come in contact with food and accessible drainage systems.
7. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1. Unplug the appliance from outlet when not in use, before putting on or taking off parts, before cleaning.

2. Make sure to place the plug all the way into socket when connecting your appliance.

3. Insert the plug into a single grounded socket.

4. Never use the appliance in place where combustible and inflammable materials are kept.

5. For safety reason, be sure to repair or replace parts at an authorized service dealers.

6. The motor is permanently lubricated and will require no oil.

7. The appliance must be positioned so that the plug is accessible.

8. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

9. Ensure the refrigerator is unplugged before cleaning or if the product is not in use.

10. To clean the appliance use only mild detergents or glass cleaning products. Never use harsh detergents or solvents.

11. It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

12. Do not place hot food or drink into the refrigerator before it cools down to room temperature.

13. Close the door immediately after putting in any items so the inside temperature will not rise dramatically.

14. Keep appliance away from any heat source or direct sunlight.

15. To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.

16. Do not place any other appliance on top of the refrigerator, and do not wet it.

17. To avoid injury or death from electrical shock do not operate the appliance with wet hands, while standing on a wet surface or while standing in water.

18. Do not use outdoors or in wet conditions.

19. Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.

20. Keep the cord away from heated surfaces.

21. Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

22. Connect your refrigerator to an independent electrical socket and use a safe ground wire.

23. Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

24. Children should be supervised to ensure that they do not play with the appliance.

25. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

26. This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

27. It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

28. Regarding the information for replacing of the lamps of the appliance, thanks to refer to the paragraph “CLEANING AND CARE” of the manual.

29. Regarding the information pertaining to the installation, handing, maintenance, servicing and disposal of the appliance, thanks to refer to the paragraph "TRANSPORT AND HANDING" "INSTALLATION" "CLEANING AND CARE" "TROUBLESHOOTING" of the manual.

30. Disposal of the appliance: To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. And the disposal should only be done through public collection points. Old refrigerators can contain CFC that destroy the ozone; contact the waste treatment center nearest your home for more details on the correct procedures for disposal.

31. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

Warning sign depicting a flame symbol in yellow and black on a white background

1. WARNING! Risk of fire – flammable material. Please keep the product far away fire source during using, service and disposal. There are flammable materials at the back of the appliance.

2. Regarding the details for safe storage of food, please refer to section "STORAGE OF FOOD"

3. WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

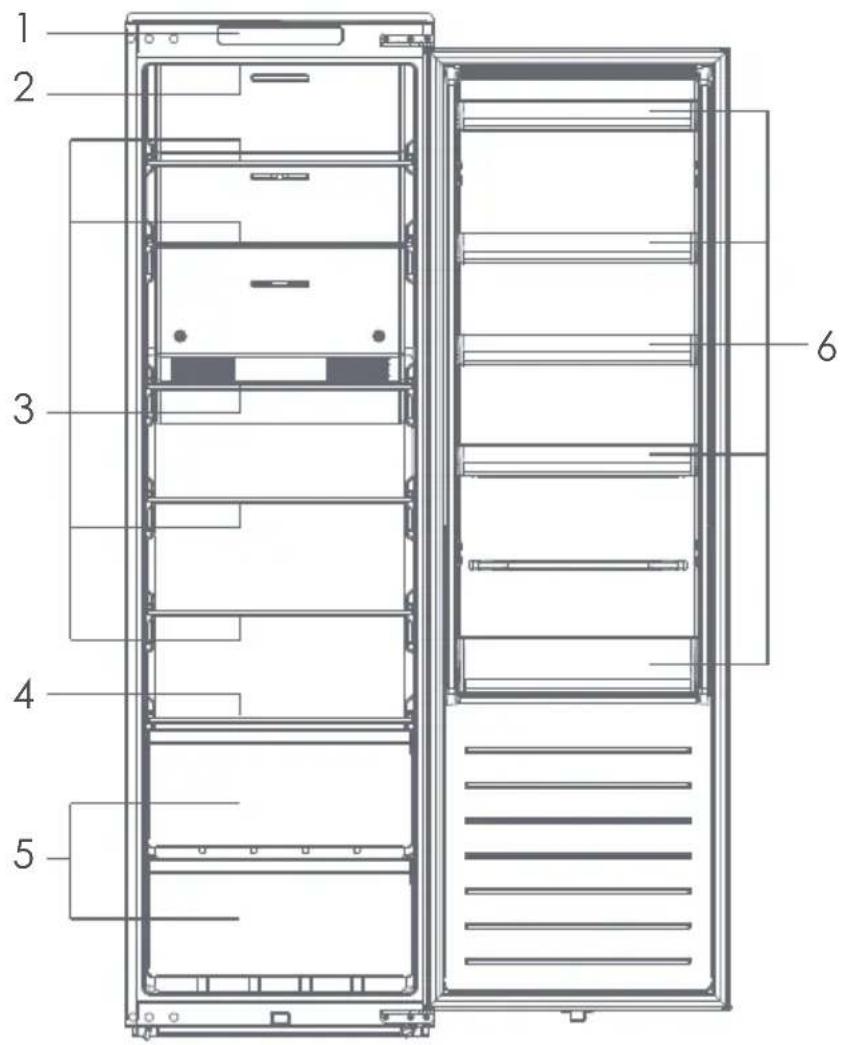

STRUCTURE ILLUSTRATION

1 2 3 4 5 6

1. Temperature control panel
2. LED lighting
3. Shelfs
4. Fruit and vegetable box cover
5. Fruits and vegetables box
6. Door trays

TRANSPORT AND HANDING

When transportation, hold the base and lift the refrigerator carefully with an angle inferior at 45 degree. Never place it upside down nor horizontally. Push refrigerator on its basis and place it thanks to its roller feet.

INSTALLATION

This refrigerating appliance is intended to be used as a built-in appliance.

To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.

Choose a location where there is no heat source. Keep the refrigerator away from direct sunlight or other appliance producing heat.

Choose a dry and well-ventilated place where there is no corrosive air.

In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator.

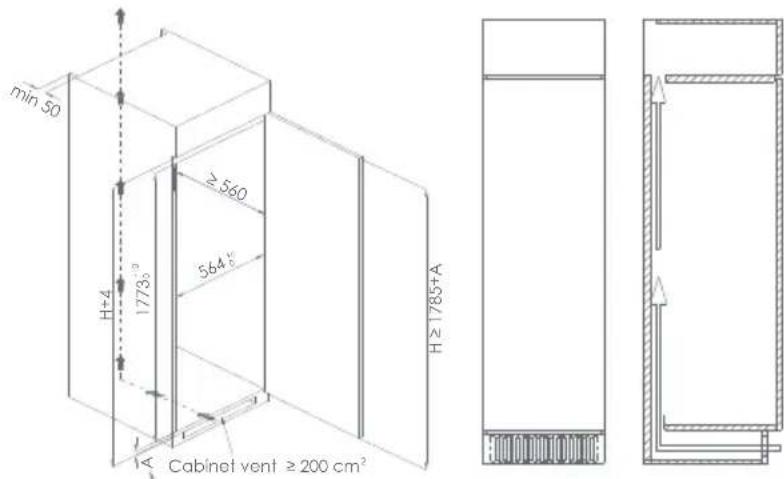

Cabinet size requirement.

min 50 H+4 1773° ≥ 560 564° A Cabinet vent ≥ 200 cm³ H ≥ 1785+A

A - Thinckness of cabinet plank

The skirting board and back of the cabinet shall be provided with a through heat dissipation channel.

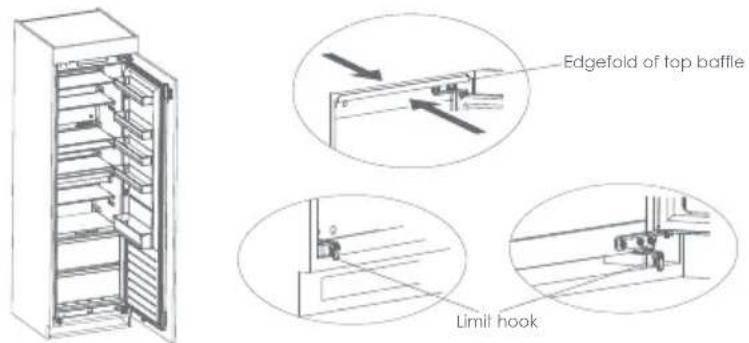

Push the refrigerator into the cabinet and adjust it to make sure the edge fold of top baffle completely touch the top edge of the cabinet, and the limit hook of supporting leg completely touch the bottom edge of the cabinet.

Edgefold of top baffle Limit hook

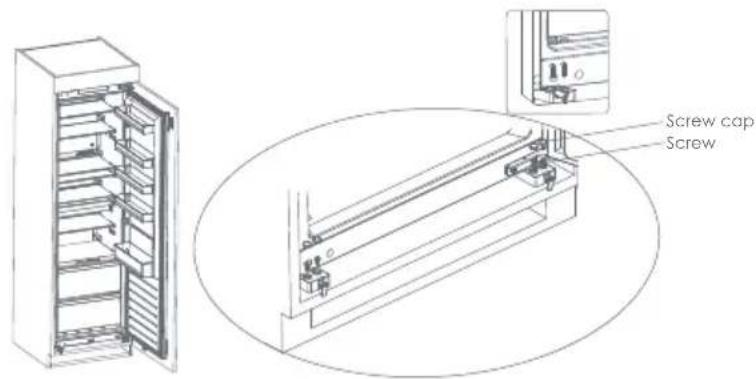

Fix the supporting leg with screws, then install the screw caps.

Screw cap Screw

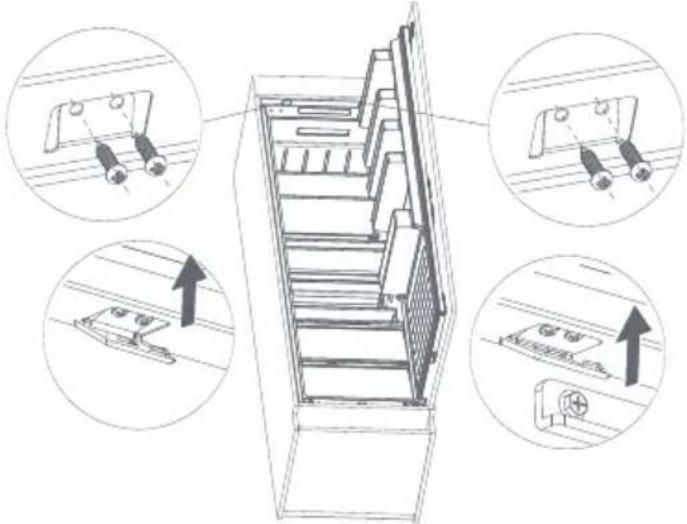

Fix the top baffle to the top of the cabinet inner with screws, then install the screw caps.

Technical diagram showing mechanical assembly steps with magnified views of components and directional arrows indicating motion or assembly.

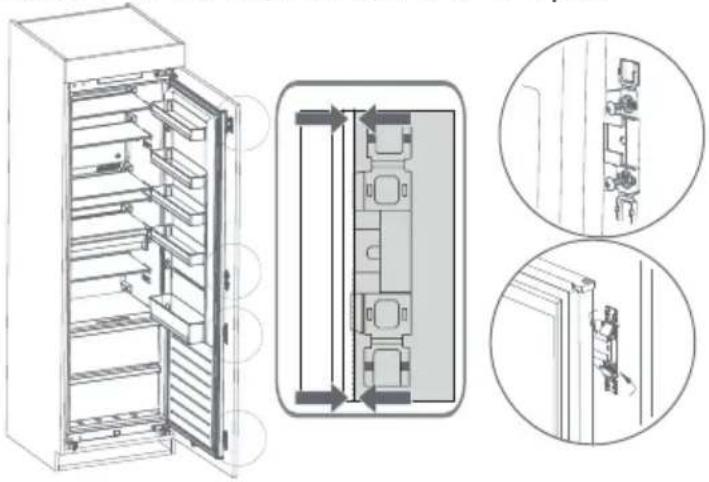

Open the door of cabinet the maximum angle, and open the door of the refrigerator to the corresponding position. Sliding the block to make sure inner edge align with the door edge of refrigerator, then fix the block to the door of cabinet with screw and install screw caps.

Technical line drawing of an open refrigerator with internal compartments and close-up insets showing internal components (no text or symbols)

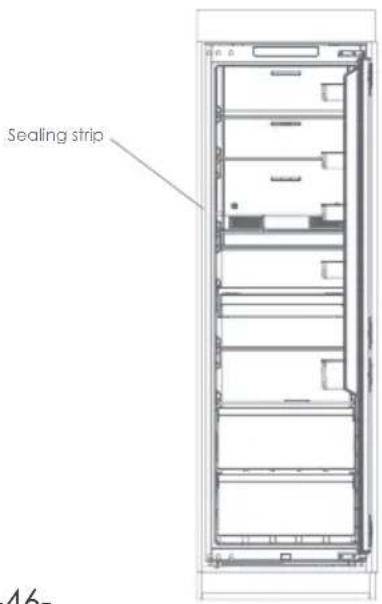

Take out the sealing strip from accessory bag, and press it in the gap between the cabinet and the refrigerator. Installation is completed.

Sealing strip 46-

FIRST USE

Before the use of the refrigerator, remove all the packages, including bottom cushion and foam pads and rubber belts in the refrigerator.

Adjust the feet and clear the outside and inside of the refrigerator with warm cloth.

Do not start the refrigerator immediately after vertical placement. Only start it after around 4 hours standing to ensure its proper operation.

To prevent damage to the power cord and any consequence incidents, the power cord should be not covered by the refrigerator or other objects. Before switching on the refrigerator, please check the voltage range of refrigerator carefully if the same as that of the power supply.

When the refrigerator is first installed, allow it stabilize at normal operating temperatures for 2-3 hours prior to filling it with fresh or frozen foods.

If operation is interrupted, wait for 5 minutes before restarting.

Temperature control

STANDBY 10 SEC. TEMP. COLO COLOR COLEST SUPER COOL TEMPERATURE CONTROL

Display

1) When powering on for the first time, the display will be displayed for 3 seconds, while the startup bell will ring, and then the display will enter normal operation;

(The temperature of the refrigerator is set at 'COLDER' which mean 4°C when it is powered on for the first time).

2) Display the fault code when there is a fault (cyclic display); Display the set temperature of the refrigeration room when there is no trouble.

3) When the refrigerated door is closed to open, the display board is bright, and it will be extinguished within 30 seconds after the door is closed; Display board off state, press any key, display board light, and then can be adjusted operation.

Fault Code Fault Description
'COLD'\ 'COLDER' Light blinking	Refrigerator temperature sensor circuit
	Refrigerator defrost sensor'COLD'\ 'COLDEST' Light blinking
	Commcardfault'COLDER'\ 'SUPER COOL' Light blinking
	Ambient temperature sensor'COLD'\ 'SUPER COOL' Light blinking

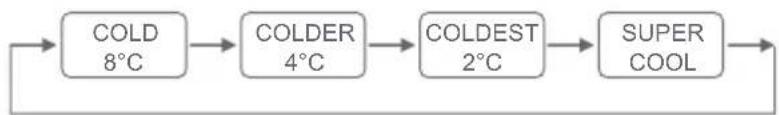

Gear setting

Every time you press TEMP. the button, the gear will change once. After setting the gear for 15 seconds, the refrigerator will run according to the set value.

Gear adjustment is:

Recommended setting temperature: refrigerator room 4°C

Lock and unlock

No lock or unlock function.

The setting takes effect 15 seconds after no operation.

Door open alert

When the refrigerator door is opened and the door is open for 120 seconds, the buzzer will alarm until the refrigerator door is closed. Or press any key to cancel the buzzer alarm.

Standby mode

Hold down the STANDBY button for 10 seconds to enter the standby mode. All loads are off and the display goes off. In standby mode, hold down the STANDBY button for 10 seconds to restore normal control.

Super cool mode

Mode entry:

Under refrigerator mode, press TEMP. the button until the icon lighten.

Mode exit:

During Super cool mode, it will exit this mode automatically after running for 360 minutes or temperature setting or mode setting.

STORAGE OF FOOD

Your appliance has the accessories as the “Structure illustration” showed in general, with this part instruction you can have the right way to storage your food. The glass shelves and crisper can be removed to store food if needed.

Note : Food is not allowed to touch directly the surface inside the appliance, and should be stored in proper containers.

Storing food in the refrigerator compartment

The fridge compartment helps to extend the storage times of fresh perishable foods.

Fresh food care for best results :

• Store foods that are very fresh and of good quality.
• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer. Vegetables and fruit need not be wrapped if they are stored in the vegetable container of the fridge compartment.

- Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.

- Cool hot foods down before placing them in the fridge compartment.

Dairy foods and eggs

• Most pre-packed dairy foods have a recommended 'use by /best before/best by/ date stamped on them.
  Store them in the fridge compartment and use within the recommended time.
• Butter can become tainted by strong smelling foods so it is best stored in a sealed container.
• Eggs should be stored in the fridge compartment.

Red meat

• Place fresh red meat on a plate and loosely cover with plastic wrap or foil.
• Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product.

Fish and seafood

• Until required, refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil.
• Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag.
• Keep shellfish chilled at all times. Use within 1-2 days.

Cooked food

• These should be stored in suitable covered containers so that the food will not dry out.
• Keep for only 1-2 days.

Vegetable container

- The vegetable container is the optimum storage location for fresh fruit and vegetables.

• Take care not to store the following at temperatures of less than 7^ C for long periods: Citrus fruit, melons, aborigines, pineapple, papaya, curettes, passion fruit, cucumber, peppers, tomatoes.

- Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.

- Do not refrigerate avocados (until they are ripe), bananas and mangoes.

This refrigerating appliance is not suitable for freezing foodstuffs.

Refrigerated food

For optimized storage, please refer to the storage time shown in the table below.

Refrigerator comportments Type of food Storage time
Door or balconies of fridge compartment	· Food with natural preservatives, such jams,juices, drinks, condiments.· Do not store perishable foods.	3 days
Crisper drawer	· Fruits, herbs and vegetables should be placed separately in the crisper bin.· Do not store bananas,onions,potatoes, garlic in the refrigerator.	1 week
Fridge shelf-middle	· dairy products, readymade food, desserts..	1 week
Fridge shelf-top	· Foods that do not need cooking,such as ready-to-eat food,deli meats,leftovers	1 week

The side at which the door opens can be changed, from the left side (as supplied) to the right side, if the installation site requires.

Warning ! When reversing the door, the appliance must not be connected to the mains. Ensure that the plug is removed from the mains socket.

Note: Before you start lay the appliance on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard. Stand the appliance upright. Open the door to take out all door racks (to avoid racks damaged) and then close the door.

To reverse the door, the following steps are generally recommended:

1) Power off the refrigerator, and remove all objects from the door trays.
2) Remove the upper hinge and hole caps of refrigerator door.

Hole caps Upper hinge

3) Remove the refrigerator door, the bottom hinge and the hole cover.

Bottom hinge

Hole caps

4) Exchange the R: Bottom hinge and R: Upper hinge, then install them according to below steps, and install the top hole caps.

R: Bottom hinge

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a refrigerator with doors and hanging weights (no text or symbols)

Simple line drawing of a tool with a blade and base, enclosed in an oval frame (no text or symbols)

R: Upper hinge

5) Remove the two fixed blocks of refrigerator door and rotate them for 180^ , and install them on other side of refrigerator door.

180°

6) The picture after completion is shown as below.

Line drawing of a vertical rectangular cabinet with mounting brackets and side panels (no text or symbols)

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.)

We recommend that you follow the tips below to save energy.

• Try to avoid keeping the door open for long periods.
• Ensure the appliance is away from any sources of heat(Direct sunlight, electric oven, cooker, etc.)
• Don't set the temperature colder than necessary.
• Don't store warm food or evaporating liquid in the appliance.
• Place the appliance in a well ventilated, humidity free room. Please refer to Installing your new appliance chapter.
• The “STRUCTURE ILLUSTRATION” shows the correct combination for the drawers, crisper and shelves.

Hints for fresh food refrigeration

• Do not place hot food directly into the refrigerator, the internal temperature will increase resulting in the compressor having to work harder and will consume more energy.
• Do cover or wrap the food.
• Place food properly so that air can circulate freely around it.

Hints for refrigerator

• Meat (All Types) Wrap food: wrap and place on the glass shelf above the vegetable drawer. Always follow food storage times and use by dates suggested by manufacturers.

• Cooked food, cold dishes, etc.: They should be covered and may be placed on any shelf.

• Fruit and vegetables: They should be stored in the special drawer provided.

• Butter and cheese: Should be wrapped in airtight foil or plastic film wrap.
• Milk bottles: Should have a lid and be stored in the door racks.

Switching off your appliance

If the appliance needs to be switched off for an extended period, the following steps should be taken prevent mould on the appliance.

1. Remove all food;
2. Remove the power plug from the mains socket;
3. Clean and dry the interior thoroughly;
4. Ensure that all the doors are wedged open slightly to allow air to circulate.

CLEANING AND CARE

For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly at least every two months.

WARNING: The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.

Exterior cleaning

• To maintain good appearance of your appliance, you should clean it regularly.
• Wipe the digital panel and display panel with a clean, soft cloth.
• Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This

helps ensure an even distribution of moisture to the surface.

- Clean the doors, handles and surfaces of machine with a mild detergent and then wiped dry with a soft cloth.

Caution!

• Don't use sharp objects as they are likely to scratch the surface.
• Don't use Thinner, Car detergent, bleach, ethereal oil, abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire.

Interior cleaning

You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the fridge with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts.

Door seals cleaning

Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning.

Caution!

- Only after the door seals are completely dry should the appliance be powered on.

Replacing the LED light

Warning : The LED light must not be replaced by the user! If the LED light is damaged, contact the customer helpline for assistance.

LED lighting source Replaceable by professional

The product contains a light source of energy efficiency class F.

COLDEST ZONE IN THE REFRIGERATOR

This symbol indicates the location of the coldest zone of the refrigerator. The area is bounded below by the glass crisper, and above by the symbol or the rack positioned at the same height.

To ensure the temperature in this area, do not change the positioning of the shelf. In forced air refrigerators (equipped with a fan or No Frost models), the symbol of the coldest zone is not represented because the temperature inside is homogeneous.

Temperature indicator setting

To help you set your refrigerator well, it is equipped with a temperature indicator that will monitor the average temperature in the coldest zone.

WARNING : This indicator is intended to work only with your refrigerator, do not use it in another refrigerator (in fact, the coldest zone is not the same), or for any other use.

Checking the temperature in the coldest zone

With the temperature indicator, you can check regularly that the temperature of the coldest zone is correct.

Indeed, the internal temperature of the refrigerator depends on several factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. Take these factors into consideration when setting the device.

When the indicator shows « OK », this means that your thermostat is well adjusted and the internal temperature correct.

OK

If the indicator of temperature turns WHITE, this means that the temperature is too high; in this case, increase the refrigerator temperature control setting and wait for 12 hours before performing a new visual inspection of the indicator.

When fresh food has been introduced or the door has been left open, it is possible for the indicator of temperature to turn WHITE after a while.

TECHNICAL SPECIFICATIONS

General information cooling
Supplier's name or trade mark: SIGNATURE
Supplier's address: BUT INTERNATIONAL, 1 AVENUE SPINOZA 77184 EMERAINVILLE, FRANCE
Model identifier: SRINTU177
Type of refrigerating appliance:
Low-noise appliance:			no	Design type:	Built-in
Wine storage appliance:			no	Other refrigerating appliance:	yes
General product parameters:
Parameter			Value	Parameter	Value
Overall dimensions (millimetre)		Height	1785	Total volume (dm3ou l)	304
		Width	540
		Depth	545
EEI			100	Energy efficiency class E
Airborne acoustical noise emissions (dB(A) re 1 pW)			41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)			113	Climate class:	temperate/subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable			16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting			no
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Volume (dm3or l)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24 h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry no		- - - -
Wine storage no		- - - -
Cellar no		- - - -
Fresh food yes		304	4 - A
Chill no - - - -

Compartment type		Compartment parameters and values
		Compartment Volume (dm3 or l)		Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24 h)	Defrosting type (auto-defrost = A, manual defrost = M)
0-star or ice-making	no	- - - - -
1-star no		- - - - -
2-star no		- - - - -
3-star no		- - - - -
4-star no		- - - - -
2-star section no		- - - - -
Variable temperature compartment	no	- - - - -
For 4-star compartments
Fast freeze facility No
Light source parameters:
Type of light source LED
Energy efficiency class				F
Minimum duration of the guarantee offered by the manufacturer: 2 years
Additional information: N/A
Weblink to the manufacturer's website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.but.fr

Reference:	SRINTU177
Rated voltage:	220-240V~
Ampere:	0.6A
Rated frequency:	50Hz
Climate class:	N/ST
Refrigerant:	R600a(31g)
Protection against electrical shock:	I
Insulation foam:	CYCLOPENTANE

Climate class:

• Extended temperate(SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';
• Temperate(N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
• Subtropical(ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';
• Tropical(T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Note: More data information, please scan the QR code on the energy label.

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service. Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.

Problem Possible cause & Solution
Appliance is not working correctly	Check whether the power cord is plugged into the power outlet properly.
	Check the fuse or circuit of your power supply, replace if necessary.
	The ambient temperature is too low. Try setting the chamber temperature to a colder level to solve this problem.
Odors from the appliance	The interior may need to be cleaned.
	Some food, containers or wrapping cause odors.
Noise from the appliance	The sounds below are quite normal:Compressor running noises.Air movement noise from the small fan motor.Gurgling sound similar to water boiling.Clicking noise before the compressor starts.
	Other unusual noises are due to the reasons below and may need you to check and take action:The cabinet is not level.The back of appliance touches the wall.Bottles or containers fallen or rolling.
The motor runs continuously	It is normal to frequently hear the sound of the motor, it will need to run more when in following circumstances:Temperature setting is set colder than necessaryLarge quantity of warm food has recently been stored within the appliance.The temperature outside the appliance is too high.Doors are kept open too long or too often.After your installing the appliance or it has been switched off for a long time.
A layer of frost occurs in the appliance	Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation.Ensure that door is fully closed. To remove the frost, please refer to cleaning and care chapter.
Temperature inside is too warm	You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top.
Temperature inside is too cold	Increase the temperature by following the “Display controls” chapter.
Doors can't be closed easily	Check whether the top of the refrigerator is tilted back by 10-15mm to allow the doors to self close, or if something insidesi preventing the doors from closing.
Water drips on the floor	The water pan(located at the rear bottom of the cabinet) may not be properly positioned to direct water into this pan, or the water spout is blocked. You may need to pull the refrigerator away from the wall to check the pan and spout.
The light is not working	· The LED light may be damaged. Refer to replace LED lights in cleaning and care chapter.· The control system has disabled the light due to the door being kept open too long, close and reopens the door to reactivate the light.

CORRECT DISPOSAL OF THIS PRODUCT

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

Note:

• In accordance with Article L. 217 of the Consumer Code, your product has 2 year legal guarantee of conformity.
• Period of availability of repair spare parts: 10 years.
• To contact our After-Sales Service, before going to BUT store, call 09 78 97 97 97, from Monday to Saturday from 8:00 a.m. to 8:00 p.m. (Price of a local call).

LE TRI

FACILE
