USER MANUAL RR92EERS SAMSUNG

Refrigerator user manual

100% Recycled Paper

This manual is made with 100% recycled paper.

English

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register

Free Standing Appliance

safety information

SAFETY INFORMATION

• Before operating the appliance, please read this manual thoroughly and retain it for your reference.
• Use this appliance only for its intended purpose as described in this instruction manual. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Because these following operating instructions cover various models, the characteristics of your refrigerator may differ slightly from those described in this manual.

Important safety symbols and precautions :

WARNING	Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION	Hazards or unsafe practices that may result in minor personal injury or property damage.
	Do NOT attempt.
	Do NOT disassemble.
	Do NOT touch.
	Follow directions carefully.
	Unplug the power plug from the wall socket.
	Make sure the machine is grounded to prevent electric shock.
	Call the contact center for help.
	Note.

2_ safety information

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

SEVERE WARNING SIGNS FOR INSTALLATION

• Do not install the refrigerator in a damp place or place where it may come in contact with water.
• Deteriorated insulation of electrical parts may cause an electric shock or fire.
• Do not place this refrigerator in direct sunlight or expose to the heat from stoves, room heaters or other appliance.
• Never use gas pipes, telephone lines or other potential lightening rods as ground.
• Improper use of the ground plug can result in electric shock.
• Do not plug several appliances into the same multiple power board.
  The refrigerator should always be plugged into its own individual electrical which has a voltage rating that matched the rating plate.
• This provides the best performance and also prevents overloading house wiring circuits, which could cause a fire hazard from overheated wires.
• If the wall socket is loose, do not insert the power plug.
• There is a risk of electric shock of fire.
• Do not use a cord that shows cracks or abrasion damage along its length or at either end.
• Do not bend the power cord excessively or place heavy articles on it.

- This refrigerator must be properly installed and located in accordance with the manual e it is used.

• Connect the power plug in proper position with the cord hanging down.
• If you connect the power plug upside down, wire can get cut off and cause fire or electric shock.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
• This constitutes a fire hazard.
• Make sure that the power plug is not squashed or damaged by the back of the refrigerator.
• Keep the packing materials out of reach of children.
• There is a risk of death from suffocation if children put them on their head.
• The appliance must be positioned so that the plug is accessible after installation.

• The refrigerator must be grounded.

You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator.

- If the power cord is damaged, have it replaced immediately by the manufacturer or vice agent.

- The fuse on refrigerator must be changed by a qualified technician or service company.

- Failing to do so may result in electric shock or personal injury.

CAUTION SIGNS FOR INSTALLATION

- Keep ventilation opening in the appliance enclosure or mounting structure clear of uction.

- Allow the appliance to stand for 2 hours after installation.

SEVERE WARNING SIGNS FOR USING

- Do not insert the power plug with wet hands.

• Do not store articles on the top of the appliance.

• When you open or close the door, the articles may fall and cause personal injury and/or material damage.

• Do not put a container filled with water on the refrigerator.

• If spilled, there is a risk of fire or electric shock.
• Do not let children hang on the door. If not, a serious injury may occur.
• Do not let children enter inside of the refrigerator. There is a risk of children entrapment.
• Never put fingers or other objects into the dispenser hole.
• It may cause personal injury or material damage.
• Do not store volatile or flammable substances in the refrigerator.
• The storage of benzene, thinner, alcohol, ether, LP gas and other such products may cause explosions.
• Do not store pharmaceuticals products, scientific materials or temperature sensitive products in the refrigerator.
• Products that require strict temperature controls must not be stored in the refrigerator.
• Do not place or use electrical appliance inside the refrigerator, unless they are of a type recommended by the manufacturer.
• Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.

- Do not disassemble or repair the refrigerator by yourself.

- You run risk of causing a fire, malfunction and/or personal injury.

• Children should be supervised to ensure that they do not play with the appliance.

• Bottles should be stored tightly together so that they do not fall out.
• This product is intended only for the storage of food in a domestic environment.
• If a gas leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.
• Use only the LED Lamps provided by manufacturer or service agents.

safety information

_3

- If you smell pharmaceutical or smoke, pull out power plug immediately and contact Samsung Electronics service center.

• If you experience difficulty when changing the light, contact service agents.
• If the products equipped with LED Lamp, do not disassemble Lamp Cover and LED Lamp by yourself.
• Please contact your service agents.

CAUTION SIGNS FOR USING

• To get Best performance of product, do not place foods too closely in front of

the vents at the rear of the appliance as it can obstruct free air circulation in the refrigerator compartment.

• Wrap the food up properly or place it in airtight containers before put it into the refrigerator.
• Fill water tank, ice tray, water cubes only with potable water.

- If the refrigerator is damaged by water, pull out the power plug and contact your

Samsung Electronics service center.

CAUTION SIGNS FOR CLEANING

- Do not directly spray water inside or outside the refrigerator.

• There is a risk of fire or electric shock.
• Do not spray inflammable gas near the refrigerator.
• There is a risk of explosion or fire.
• Do not spray cleaning products directly on the display.
• Printed letters on the display may come off.

- Remove any foreign matter or dust from the power plug pins.

But do not use a wet or damp cloth when cleaning the plug, remove any foreign material or dust from the power plug pins.

- Otherwise there is a risk of fire or electric shock.

4_ safety information

- Unplug the refrigerator before cleaning and making repairs.

SEVERE WARNING SIGNS FOR DISPOSAL

- When disposing of this or other refrigerators, remove the door/door seals, latch so that small children or animals cannot me trapped inside.

Children should be supervised to ensure that they do not play with the appliance.

• Please dispose of the packaging material for this product in an environmentally friendly manner.
• Leave the shelves in place so that children may not easily climb inside.

Ensure that none of the pipes on the back of the appliance are damaged prior to disposal.

- R600a or R134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the refrigerator to see which refrigerant is used for your refrigerator.

When this product contains flammable gas (Refrigerant R600a), contact your local authority in regard to safe disposal of this product.

Cyclopentane is used as a insulation blowing gas. The gases in insulation material require special disposal procedure.

Please contact your local authorities in regard to the environmentally safe disposal of this product. Ensure that none of the pipes on the back of the appliances are damaged prior to disposal.

The pipes shall be broke in the open space.

• If the appliance contains iso-butane refrigerant (R600a), a natural gas with high environmental compatibility that is, however, also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.
• Refrigerant squirting out of the pipes could ignite or cause an eye injury.

If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

- In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used.

Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

The room must be 1m^3 in size for every 8g of R600a refrigerant inside the appliance.

The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

ADDITIONAL TIPS FOR PROPER USAGE

• In the event of a power failure, call the local office of your Electricity Company and ask how long it is going to last.
• Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures.

However, you should minimize the number of door openings while the power is off.

• If the key is provided with refrigerator, the keys should be kept out of the reach of children and not in vicinity of the appliance.
• The appliance might not operate consistently (possibility of temperature becoming too warm in refrigerator) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
• Do not store food which spoils easily at low temperature, such as bananas, melons.
• Your appliance is frost free, which means there is no need to manually defrost your appliance, as this will be carried out automatically.

contents

TROUBLESHOOTING....14

INSTALL YOUR REFRIGERATOR....15

safety information

5

setting up your refrigerator

GETTING READY TO INSTALL THE REFRIGERATOR

Congratulations on your purchase of this Samsung Refrigerator.

We hope you enjoy the state-of-art features and effi ciencies that this new appliance offers.

• This refrigerator must be properly installed and located in accordance with the manual before it is used.
• Use this appliance only for its intended purpose as described in this instruction manual.
  • We strongly recommend that any servicing be performed by a qualified individual.
• Please dispose of the packaging material for this product in an environmentally friendly manner.

Pull the power plug out of the socket before changing the interior light of the refrigerator.

- Otherwise, there is a risk of electric shock.

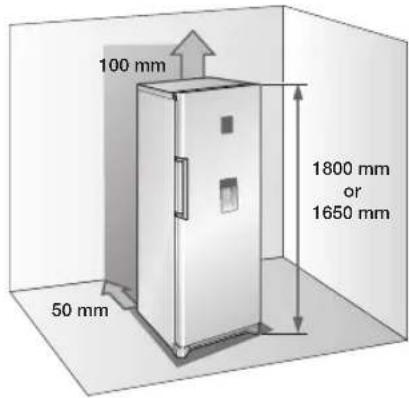

Selecting the best location for the refrigerator

• A location without direct exposure to sunlight.
• A location with fl at floor surface.
• A location with enough space for the refrigerator door to open easily.
• Allow sufficient space to the right, left, back and top for air circulation.
  If the refrigerator does not have enough space, the internal cooling system may not work properly.
• Please ensure that appliance can be moved freely in the event of maintenance & service.

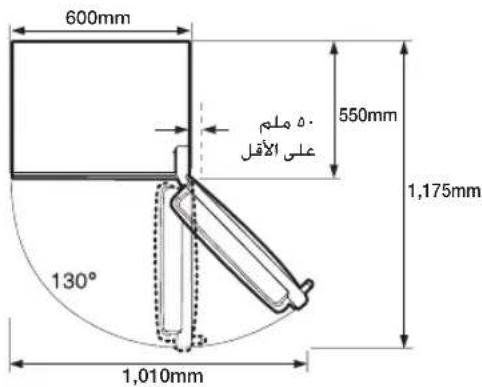

100 mm 1800 mm or 1650 mm 50 mm

600 mm 550 mm at least 50 mm 1,175 mm 130° 1,010 mm

• Height of the product may be different depending on the models.

• Allow clearance to the right, left, back and top when installing.
  This will help reduce power consumption and keep your energy bills lower.
• Do not install the refrigerator in a place with the temperature lower than 10^ C.

Pull the unit straight out when installing, servicing or cleaning behind the refrigerator and push it straight back after

work is complete. Make sure your floor can support fully loaded refrigerator.

6_ setting up

REVERSING THE REFRIGERATOR DOOR

Samsung recommends that reversing of the door opening is only completed by Samsung approved Service providers. This will be on a chargeable basis and at the customers expense.

Any damage caused while attempting to reverse the door opening is not covered under the appliance manufactures warranty. Any repairs requested due to this circumstance will be completed on a chargeable basis at the customers expense.

Required Tools (Not provided)

Phillips Head Driver (+)	Flat Head Driver (-)	10 mm Socket Wrench (for bolts)

8 mm Socket Wrench (for bolts)	Spanner (for hinge shaft)	4 mm Hex Wrench (for bottom hinge shaft)

1. Remove 2 screws on the top of the refrigerator.

Screw

1. Remove the plastic cover and make sure to disconnect the wire connected to it. After removing the plastic cover, check the parts for reversing the door.

Diagram showing a device being processed into a rack, with no visible text or symbols

Be careful not to damage the electrical wires when removing the plastic cover.

1. Disconnect the wires and then remove 3 bolts.

Diagram showing two views of a refrigerator with a door handle and a switch, no text or symbols present

Make sure your refrigerator is unplugged before handling electrical wires.

1. Remove the door from the lower hinge by carefully lifting the door straight up.

Technical line drawing of a mechanical assembly with a vertical rod and base mount (no text or symbols)

Refrigerator door is heavy, be careful not to injure yourself when removing the refrigerator door.

1. Separate the front leg cover after removing 2 screws.

Screw

1. Unscrew 3 bolts tightening the hinge and also unscrew 3 bolts on the bottom left side by the front leg where removed hinge will be attached.

10mm 10mm

setting up _7

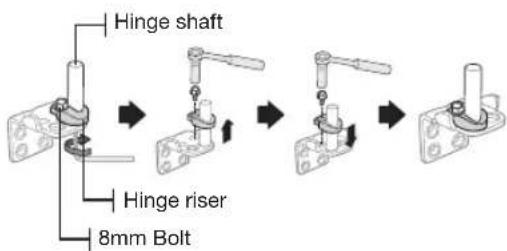

1. Separate the hinge shaft by using hex wrench first. Unscrew the bolt to remove the hinge riser and switch the side of the hinge shaft and the hinge riser.

Hinge shaft Hinge riser 8mm Bolt

1. Attach the hinge on the bottom left side of the refrigerator where bolts were previously removed in step 6. Screw the bolts that were removed on the bottom right side of the refrigerator for the future usage.

10mm 10mm

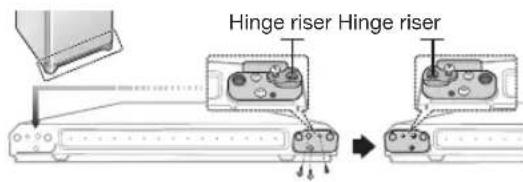

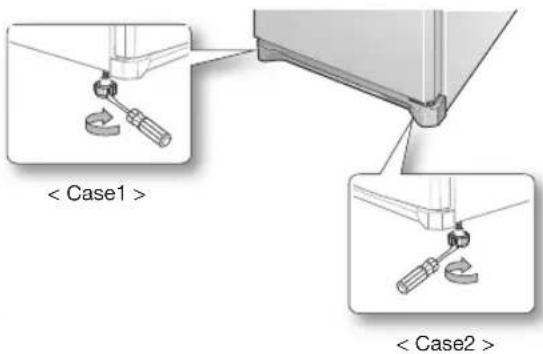

1. Remove the screws on the bottom left and right side of the refrigerator door. Switch the side of the door stopper from right to the left. Hinge riser should be switched as well.

Hinge riser Hinge riser

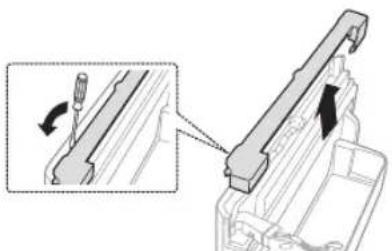

1. Remove the wire cover on top of the refrigerator door to switch the side of the wires.

Mechanical assembly diagram showing a tool interacting with a component, with no visible text or symbols.

8_ setting up

1. Remove the hinge and the grommet from the refrigerator door.

Detach the right side hinge cover and pull the wires out of the hinge cover.

Hinge cover Grommet

Be careful not to damage the electrical wires when removing the hinge cover.

1. Use wrench to separate the hinge shaft and then flip the hinge and reattach the hinge shaft.

Diagram showing a mechanical clamp or bracket being adjusted, with no visible text or symbols

1. Reassemble the hinge on the refrigerator door by reversing the step 11. Make sure to use left side hinge cover (which can be found underneath the removed plastic cover from step 2) and remove the grommet. After reassembling the hinge, wire and the hinge cover, switch the side from right to the left.

Grommet

1. After switching the hinge, close it with the wire cover on the top of refrigerator door.

"Cover Wire Door R" can be found in the packaging

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

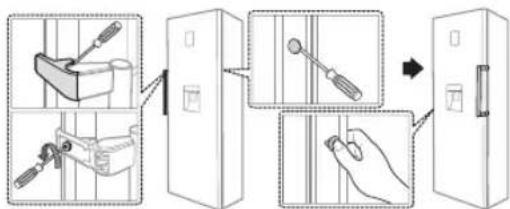

1. Take off the handle cover and remove the screws, make sure to detach the caps and the handle from the left to right side of the door. (Make sure to cover the left side with detached caps.)

Diagram illustrating a door lock operation with labeled parts and directional arrows indicating sequence.

Handles may not have cover depending on the models.

1. Switch the hinge cap and attach the front leg cover. Carefully put the refrigerator door back on.

Hinge cap

1. Tighten the 3 bolts and then connect the wires back together.

Diagram showing two views of a refrigerator with doors and ventilation slots, no text or symbols present

Make sure your refrigerator is unplugged before handling electrical wires.

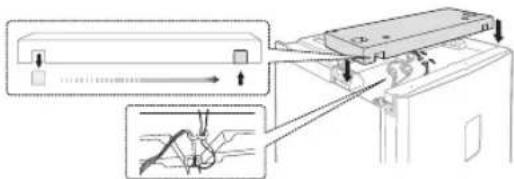

1. Connect the wire on the plastic cover and put the cover back to its original position.

Technical diagram showing a mechanical assembly with directional arrows and component labels, including a magnified view of the internal structure.

1. Tighten 2 screws back to its place.

Line drawing of a door with two curved arrows indicating rotational or mechanical components (no text or symbols)

1. Detach the Fridge and the Freezer door gaskets and then attach them after rotating them 180°.

Diagram of a rectangular panel with circular holes and directional arrows indicating rotation (no text or symbols)

- After reversing the doors, make sure the Fridge and Freezer door gaskets are properly arranged. If not, there might be a noise or dew formed which affects performance of the refrigerator.

If the front of the appliance is slightly higher than the rear, the door can be opened and closed more easily. Turn the adjusting legs clockwise to raise and counter-clockwise to lower the height.

Case 1) The appliance tilts down to the left.

• Turn the left adjusting leg in the direction of the arrow until the appliance is level.
  Case 2) The appliance tilts down to the right.
• Turn the right adjusting leg in the direction of the arrow until the appliance is level.

< Case1 > < Case2 >

setting up _9

operating your refrigerator

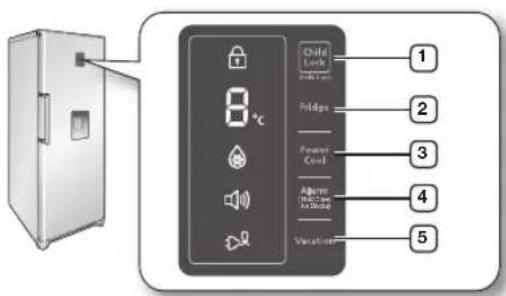

CHECKING THE CONTROL PANEL

Child Lock Fidges Foamy Cool Alarms Valve/Heat 1 2 3 4 5

Each time you press the button, a short beep will sound.

USING THE CONTROL PANEL

① Child Lock

Press the Child Lock button for 3 seconds to activate the Child Lock function.

Child lock indicator will light up and all the buttons on the control panel will be locked.

To deactivate the Child Lock function, press the Child Lock button again for 3 seconds.

② Fridge

Press the Fridge button to set the desired temperature from the range between 1°C and 7°C. Default set temperature is set on 3°C and each time you press the Fridge

button, temperature will change in following order and temperature indicator will display the desired temperature.

When the temperature setting is done, temperature indicator will display the current temperature of the refrigerator.

If current temperature is higher than 9^ C, temperature indicator will be displayed as 9^ C.

10_ operating

③ Power Cool

Press the Power Cool button to activate the Power Cool function. Power Cool indicator will light up and the refrigerator will speed up the time to needed to cool products in the refrigerator.

Power Cool function will operate for 2 hours and 30 minutes to quickly cool the refrigerator.

To deactivate the Power Cool function, press the Power Cool button again.

Power Cool function cannot be used together with Vacation function.

Selecting Vacation function will automatically deactivate the Power Cool function.

④ Alarm

1. Alarm

Press the Alarm button to activate the Alarm function.

Alarm indicator will light up and the refrigerator will alert you with alarm sound if the refrigerator door is kept open for longer than 2 minutes.

To deactivate the Alarm function, press the Alarm button again.

1. Display Off

As standard, the temperature display is switched off, to switch between on and off mode, press alarm button for 3 seconds.

⑤ Vacation

Press the Vacation button to activate the Vacation function.

Vacation indicator will light up and the refrigerator will set the temperature to

15°C to minimize the power consumption while you are away (on vacation or business trip etc).

Keep the refrigerator free from bacteria and odor.

- Vacation function will be automatically deactivated If you select Power Cool function or adjust temperature while Vacation function is on.

- Make sure to remove foods before using Vacation function.

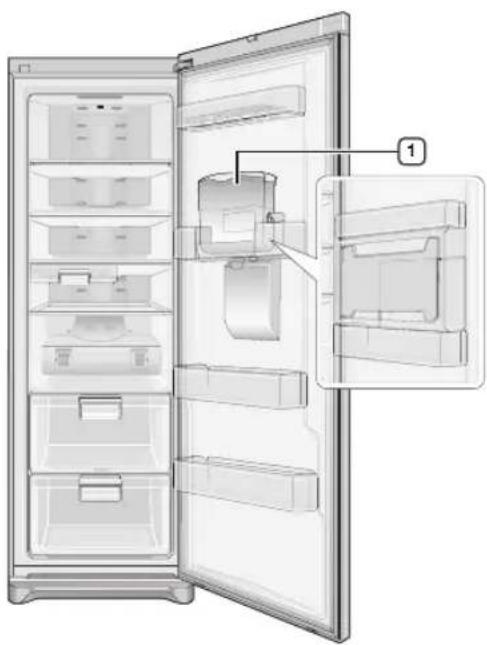

Interior view of a refrigerator showing the door, shelves, and drawer (no text or symbols visible)

• Some of the features such as water tank and the beverage station can be different and may not be available depending on the model.
• To get more space, you can remove water ① tank.

It does not affect thermal and mechanical characteristics.

A declared storage volume of refrigerator compartment is calculated with this part removed.

USING THE FOLDABLE SHELF

You can tuck in the foldable shelf if you need to accommodate taller containers or products on the shelf underneath.

1. Slightly lift up the shelf and slide it inward.
2. You can simply pull the tucked in shelf to use the fully extended shelf.

Simple line drawing of a ladder-like structure with an arrow indicating upward motion (no text or symbols)

USING THE MOISTURE CONTROL BIG BOX

You can use the moisture control big box to control the humidity for the products which needs to be preserved its freshness.

Use the humidity control lever on the top of the drawer to adjust the humidity.

Move the lever to the right side to keep the humidity low within the drawer.

Move the lever to the left side to keep the humidity high. More holes will allow higher humidity within the drawer.

Simple line drawing of a rectangular container with a lid and an arrow pointing to the side panel (no text or symbols)

USING THE BEVERAGE STATION

To open the beverage station, push the top part of the beverage station.

Anti-sweat heater switch

When the humidity of the indoor is high, sweat may form around the beverage station.

Turn the Anti-sweat heater switch on, to remove the sweat and turn the switch off when the sweat disappears.

Anti-sweat heater switch

Beverage station may not be available depending on the model.

operating _11

USING THE WATER DISPENSER

Filling the water

You can fill the water with the water tank sitting inside of the refrigerator or you can remove the water tank to fill the water.

Method 1

Fill the water through the hole on the top of the water tank.

If you pour the water too fast, water may overflow.

Method 2

1. Release the lock on the both side of the water tank to remove the lid on the water tank.
2. Fill the water in the water tank.

Illustration of a container being placed into a container with a hand pouring liquid (no text or symbols)

Do not put anything other than water in the water tank.

Getting water from the dispenser

Place a glass underneath the water outlet and push it gently against the water dispenser lever with your glass. Blue light will turn on when you push the lever.

Hand holding a cup inside a refrigerator (no text or symbols visible)

• Make sure the glass is in line with the dispenser to prevent the water from splashing out.
• Water dispenser may not be available depending on the model.

12

operating

REMOVING THE INTERIOR PARTS

Moveable deli bin

Pull the deli bin out fully then slightly lift it up to remove it.

Diagram of a mechanical assembly with a downward arrow indicating force or direction (no text or symbols)

Shelves

Gently lift up the shelves with both hands and pull it toward you.

(Glass shelf/Foldable shelf)

Diagram showing a hand pressing down on a two-tiered device with an arrow indicating motion (no text or symbols)

Drawers

Pull the drawers out fully then slightly lift it up to remove the drawers. (Plastic drawer/Moisture control big box)

Line drawing of a hand inserting a component into a file drawer (no text or symbols)

Door guards

Firmly grab the door guards with both hands and lift it up gently to remove the door guards.

Illustration of two hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

Water tank

Firmly grab the water tank with both hands and lift it up towards you gently to remove the water tanks.

Illustration of two hands holding a container with a dark arrow pointing downward (no text or symbols)

Water tank may not be available depending on the model.

Beverage station

1. Remove the door bin locate on the top of the beverage station.
2. Press the bottom left and right part of the

beverage station with both hands lift up to open.

Diagram showing two hands holding a device with numbered annotations and directional arrows, likely illustrating a process or control system.

Beverage station may not be available depending on the model.

Deodorizer

Push the lever as arrow indicates and pull the cover.

Close-up of a white rectangular object with a grid pattern and an arrow pointing to it, next to a vehicle (no text or symbols visible)

To get the best energy efficiency of this product, please leave all selves, drawers and baskets on their original position like as illustration in page (11).

CLEANING THE REFRIGERATOR

Do not use Benzene, Thinner or Clorox ^™ for cleaning.

They may damage the surface of the appliance and can create a risk of fire.

Do not spray the refrigerator with water while it is plugged in, as it may cause an electric shock.

Do not clean the refrigerator with benzene, thinner or car detergent for risk of fire.

REPLACING THE INTERIOR LIGHT

Please contact your service agents.

troubleshooting

PROBLEM SOLUTION
The appliance is not operating at all or the temperature is too high.	Check if the power plug is correctly connected.Is the temperature control on the front panel correctly set?Does sun shine on the appliance or are there any heat sources nearby?Is the back of the appliance too close to the wall?
There are unusual noises.	Check if the appliance is installed on a stable and even floor.Is the back of the appliance too close to the wall?Have any foreign objects fallen behind or under the appliance?Is the noise coming from the compressor in the appliance?A ticking sound may be heard inside the appliance; this is normal.This sound occurs when the various accessories contract or expand.
The front corners and sides of the appliance are warm and condensation starts to form.	Heat-proof pipes are installed in the front corners of the appliance to prevent condensation from forming.When the surrounding temperature rises, this may not always be effective. However, this is not abnormal.In very humid weather, condensation may form on the outer surface of the appliance when the moisture in the air comes into contact with the cool surface of the appliance.
You can hear a liquid bubbling in the appliance.	This is the refrigerant, which cools the inside of the appliance.
There is a bad smell inside the appliance.	Is there any spoiled food inside of the refrigerator?Make sure that strong smelling food (for example, fi sh) is wrapped so that it is airtight.Clean out your refrigerator periodically and throw away any spoiled or suspect food.
There is a layer of frost on the appliances walls.	Are the air outlet vents blocked by food stored inside the refrigerator?Space the food out as much as possible to improve ventilation.Is the door fully closed?
Condensation forms on the inside wall of the appliance and around vegetables.	Food with a high water content is stored uncovered with a high humidity level or the door has been left open for a long time.Store the food with a cover or in sealed containers.

14_ troubleshooting

Installation Part

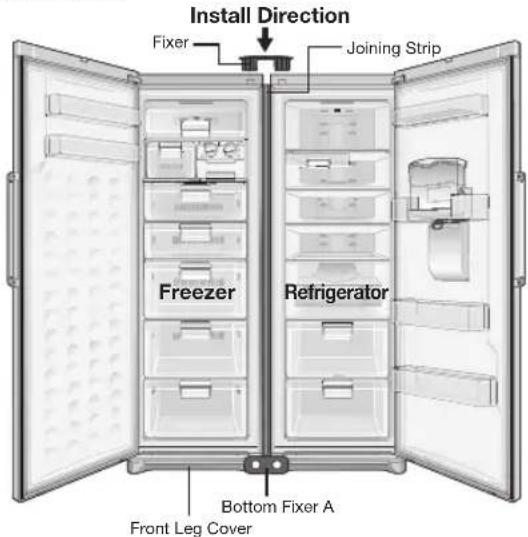

Installing the products together

Side by Side combination possible with Samsung Models starting with R Z**, RR**.

Please ask the shop for detail such as Color and Design.

For Side by Side arrangement, please make sure followings.

• Recommend to place the Fridge on the Right for best performance
• For perfect finish, allow the following clearance and install SPACERS in installation Kit provided. (Only available on some models)
• Make the height of the refrigerator and the freezer same with referring the 9 page.

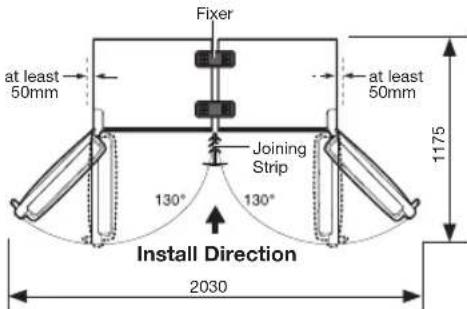

Install Direction Fixer Joining Strip Freezer Refrigerator Bottom Fixer A Front Leg Cover

Fixer at least 50mm at least 50mm Joining Strip 130° 130° Install Direction 2030 1175

Required Tools

Fixer Joining Strip		Bottom Fixer A, B	Screws

How to install the product

Make sure to turn off the power for both of the products.

1. Keep the distance between the refrigerator and the freezer about 5\~7mm.
2. Remove the front leg cover on both refrigerator and the freezer by removing the screws.

Technical diagram showing two mechanical components with a tool inserted, no visible text or symbols

1. Remove the screw from the each of the product and attach them back after putting the bottom fixer.

Bottom Fixer A

1. Insert the joining strip in between the refrigerator and the freezer.

Pure mechanical assembly diagram showing a vertical component with mounting flanges and a directional arrow (no text or symbols)

1. Insert two fixers firmly on the top of the products.

Technical line drawing of a mechanical assembly with two components and mounting holes (no text or symbols)

1. Place the front leg cover back on both of the products.

Pure mechanical component diagram without any text, numbers, or symbols

1. Join the bottom fixer B with screws at back of the products.

Bottom Fixer B

install your refrigerator _15

Ambient Room Temperature Limits

This refrigerator is designed to operate in ambient temperatures specified by its temperature class marked on the rating plate.

Class Symbol Ambient Temperature range (°C)
Extended Temperate SN +10 to +32
Temperate N +16 to +32
Subtropical ST +16 to +38
Tropical T +16 to +43

Internal temperatures may be affected by such factors as the location of the refrigerator, ambient temperature and the frequency with which you open the door.

Adjust the temperature as required to compensate for these factors.

Technical diagram of a device with a labeled 'Vis' and directional arrows indicating motion or force (no text or symbols beyond label)

Diagram showing two views of a device with internal components and a right-pointing arrow indicating transformation (no text or symbols present)

Line drawing of a refrigerator with a door and front panel, showing a change from left to right (no text or symbols)

Pure technical diagram of a mechanical assembly with no visible text, numbers, or symbols

10mm 10mm

installation _7

10mm 10mm

Mechanical assembly diagram showing a tool interacting with a component, with no visible text or symbols.

8_ installation

Diagram showing a mechanical clamp being inserted into a clamped component, with no text or symbols present.

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Diagram illustrating the step-by-step installation of a door lock system, showing hand positioning and tool path changes.

Diagram showing two views of a refrigerator with internal components and a directional arrow indicating transformation (no text or symbols present)

Diagram showing a device with control panel and mechanical assembly, including directional arrows and labeled components.

1. Serrez les 2 vis.

Diagram of a mechanical assembly with two curved arrows indicating rotation or force application (no text or symbols present)

Diagram of a rectangular panel with circular holes and directional arrows indicating rotation (no text or symbols)

Diagram of an open refrigerator with internal compartments and a numbered inset view (no text or symbols)

Simple line drawing of a ladder-like structure with an arrow indicating upward motion (no text or symbols)

UTILISATION DU BAC À HUMIDITÉ CONTRÔLÉE

Simple line drawing of a container with an open lid and a highlighted section showing a small rectangular object (no text or symbols)

UTILISATION DU MINIBAR

Illustration of a hand pouring liquid into a container using a tool (no text or symbols)

Hand holding a cup inside a refrigerator (no text or symbols visible)

Diagram of a device with a black arrow pointing to a component, no text or symbols present

Clayettes

Illustration of a hand pressing down on a two-tiered electronic device with a downward arrow (no text or symbols)

Bacs

Line drawing of a hand pressing down on a device inside a filing cabinet (no text or symbols)

Balconnet grand format

Illustration of two hands holding a rolled-up document or scroll, with arrows indicating upward motion (no text or symbols present)

Réservoir d'eau

Illustration of two hands holding a container with liquid, no text or symbols visible

Beverage station may not be available depending on the model.

Diagram showing two hands holding a device with numbered annotations and directional arrows, likely illustrating a process or control system.

Close-up of a white panel with a grid pattern and arrow pointing to it, next to a vehicle (no text or symbols visible)

Technical diagram showing two mechanical components with a screwdriver inserted, no text or symbols present

Technical diagram of a mechanical assembly with no visible text or symbols

Top-down view of a vehicle showing two cars with wheels and a connecting rod (no text or symbols visible)

Pure mechanical component diagram showing two symmetrical parts with mounting holes and arrows indicating direction (no text or symbols)

Pure mechanical assembly diagram showing two screws inserted into a bracket (no text or symbols)

Diagram showing two mechanical components with a screwdriver inserted, no text or symbols present

Pure mechanical assembly diagram showing a vertical component with mounting holes and a directional arrow (no text or symbols)

Top-down view of a vehicle dashboard with two seats and wheels (no text or symbols visible)

Pure mechanical component diagram without any text, numbers, or symbols

Diagram showing two hands holding a device with numbered arrows and directional indicators, likely illustrating a process or control mechanism.

صندوق المشروبات.

Close-up of a white rectangular object with a grid pattern and an arrow pointing to it, next to a curved surface (no text or symbols visible)

Diagram of a storage tray with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of a hand pressing down on a tray with a black arrow indicating motion (no text or symbols)

الرفوف

Illustration of a hand inserting a small object into a file drawer (no text or symbols visible)

الأدراج

Illustration of two hands holding a cylindrical object with upward arrows indicating motion or force (no text or symbols)

حواجزالباب

Illustration of two hands holding a container with a dark object inside (no text or symbols visible)

خزانannah

Illustration of a container being poured into a container using a tool (no text or symbols)

Hand holding a cup inside a refrigerator (no text or symbols visible)

Diagram of an open refrigerator showing internal compartments and a close-up of the door (no text or labels)

Simple line drawing of a ladder with an arrow indicating upward motion (no text or symbols)

1. ارفعالرف برفق وحركة

لداخل.

Diagram of a device with two curved arrows indicating rotation or movement, no text or symbols present

Diagram of a square grid with circular holes and directional arrows indicating rotation (no text or symbols)

Diagram illustrating the step-by-step installation of a door lock system, showing hand positioning and cleaning steps.

Diagram showing two views of a refrigerator with internal components and a directional arrow indicating change (no text or symbols present)

Diagram showing a device with directional arrows and a magnified view of internal components, likely illustrating a mechanical or electrical assembly.

Diagram showing a mechanical clamp tool transforming into a separate bracket component (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows, including a magnified inset showing internal components.

Technical line drawing of a mechanical assembly with a lever and base (no text or symbols)

10mm 10mm

Mechanical assembly diagram showing a tool interacting with a component, with no visible text or symbols.

- الابعداد

Diagram showing two views of a refrigerator with a door handle, one being removed and the other holding an open lid (no text or symbols present)

Technical line drawing of a mechanical assembly with a vertical rod and base mount (no text or symbols)

Diagram showing two mechanical assembly steps: one with a triangular component and arrow indicating rotation, the other with a rectangular component (no text or symbols)

المسمير الل lobية

10mm 10mm

عكس بابesthesia

Diagram showing two views of a device with internal components and a right-pointing arrow indicating transformation (no text or symbols present)

100mm 1800mm or 1650mm 50mm

600mm 550mm 1,175mm 130° 1,010mm

Black and white barcode image with vertical lines and a central pattern

DA99-01950G-09
