USER MANUAL CFP 3E9E0S CANDY

Labeled diagram of a medical or laboratory device with numbered parts for identification

Indice

Line drawing of a rectangular box with tubing and a hose, labeled with number 1 (no text or symbols on the diagram itself)

② B A

Technical diagram of a mechanical assembly with labeled parts B and C, showing a bolted joint and threaded base.

Diagram showing a mechanical device with a gear shift mechanism, labeled with step number 1 and an inset view of the gear being turned.

Diagram illustrating a mechanical device with a magnified inset showing the rotation of a gear mechanism.

Tipo "A" A A

Diagram of a hand operating a wire cage with an upward arrow, no text or symbols present

Diagram showing a hand operating a mechanical device with labeled component B and directional arrow

ATTENZIONE:

Technical line drawing of a mechanical assembly with gears and a conveyor system (no text or symbols)

Technical line drawing of a mechanical assembly or structural component (no text or symbols)

Diagram of a mechanical or structural assembly with layered components and a downward arrow, labeled A1 (no text or symbols present)

Top-down technical drawing of a mechanical assembly with no visible text or symbols

"Maxi-Ladle"

Technical line drawing of a mechanical component with grid pattern and central shaft (no text or symbols)

Technical line drawing of a mechanical assembly with rods and brackets (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with internal parts and mounting brackets (no text or symbols)

Line drawing of a wire basket with a handle and arrow indicating upward movement (no text or symbols)

Line drawing of a tray with folded food items and utensils, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a device casing with labeled ports and arrows indicating movement (no text or symbols present)

ATTENZIONE:

Technical line drawing of a device casing with labeled component C (no text or symbols beyond label)

8. TIPO DI DETERSIVO

Diagram of a device casing with internal components and a rotation arrow indicating motion (no text or symbols)

Line drawing of a hand pouring liquid into a device with a warning symbol (no text or labels)

Line drawing of a device casing with labeled component B and starburst symbol (no text or symbols beyond label)

PIENO VUOTO  riflesso scuro  riflesso chiaro

Diagram showing a mechanical lever mechanism with an arrow indicating rotational motion (no text or symbols present)

Labeled diagram of a laboratory apparatus showing five numbered components for identification

Inhalt

Line drawing of a rectangular appliance with tubing and connectors, no text or symbols present


② B A

● WATERBLOCK (Abb.3)

Diagram showing a mechanical assembly with labeled parts and a close-up view of the pipe connection detail.

DE

● AQUASTOP (Abb.4):

Diagram illustrating a mechanical device with labeled parts and a magnified inset showing rotational motion.

Diagram of a mechanical testing setup with labeled components and a magnified inset showing a rotating knob mechanism.

Diagram of a hand using a tool to interact with a grid-based mechanical device, showing no text or symbols.

Diagram showing a hand interacting with a mechanical component, labeled with point B and directional arrow


ACHTUNG!

Technical line drawing of a mechanical assembly with cylindrical components and gear-like components (no text or symbols)

Diagram of a multi-level container with internal structures and mesh lines, labeled 'A' (no text or symbols on the diagram itself)


Diagram of a mechanical or structural assembly with layered components and a downward arrow, labeled A1 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Technical line drawing of a mechanical component with grid pattern and labeled part '4' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with rods and brackets (no text or symbols)


Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with internal cavities and mounting brackets (no text or symbols)


ACHTUNG!

Line drawing of a wire basket with an upward arrow and downward arrow indicating movement (no text or symbols)

Line drawing of a tray with various kitchen utensils and cutlery (no text or symbols)

Line drawing of a vehicle interior with a highlighted rectangular component (no text or symbols)

6. INFORMATION FÜR PRÜFLABORE

Diagram of a device casing with internal components and directional arrows indicating flow or movement (no text or symbols)


ACHTUNG!

Technical line drawing of a device casing with labeled component 'C' and starburst symbol (no text or labels beyond the label)

8. ARTEN VON GESCHIRRSPÜLMITTEL

Tabs

Diagram of a device casing with internal components and a circular component, showing a rotation arrow (no text or symbols)

Line drawing of a hand pouring liquid into a container with a droplet, no text or symbols present

Line drawing of a device casing with labeled component B (no text or symbols beyond label)

VOLL LEER  dunkel  hell

Diagram showing a mechanical lever mechanism with a rotating arrow and a separate vertical component (no text or symbols)

Labeled diagram of a medical or laboratory device with numbered parts for identification

Contents

1. GENERAL SAFETY RULES 2. WATER CONNECTION 3. LOADING THE SALT 4. ADJUSTING THE UPPER BASKET (ONLY ON SOME MODELS) 5. LOADING DISHES 6. INFORMATION FOR TEST LABORATORIES 7. LOADING THE DETERGENT 8. TYPES OF DETERGENT 9. LOADING THE RINSE AID 10. CLEANING THE FILTERS 11. PRACTICAL HINTS 12. CLEANING AND MAINTENANCE 13. DESCRIPTION OF THE CONTROL PANEL 14. TECHNICAL DATA 15. PROGRAMME SELECTION AND SPECIAL FEATURES 16. PROGRAMME LEGEND 17. WATER SOFTENER UNIT 18. TROUBLESHOOTING AND WARRANTY 19. ENVIRONMENTAL CONDITIONS

1. GENERAL SAFETY RULES

\- This appliances is intended to be used in household and similar applications such as: - Staff kitchen areas in shops, offices and other working environments; - Farm houses; - By clients in hotels, motels and other residential type environments; - Bed and breakfast type environments. A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications. If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law. \- for EU market The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided with instruction as to the operation of the appliance, in a safe way with awareness of the possible risks. • for Extra EU markets This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. ● Children should be supervised to ensure that they do not play with the appliance. ● Children of aged 3 and under should be kept away unless continuously supervised. - If the supply cord is damaged, it must be replaced by a Special cord or assembly available from the manufactured or its service agent. - Only use the hose-sets supplied with the appliance for the water supply connection (do not reuse old hose-sets). ● Water pressure must be between 0.08 MPa and 1 MPa. ● Make sure carpets or rugs do not obstruct the base or any of the ventilation openings. ● After installation, the appliance must be positioned so that the plug is accessible. - Do not leave the door open in a horizontal position, in order to avoid potential dangers (e.g. tripping). - For further information on the product or to consult the technical data sheet, please refer to the manufacturer's website. - For the maximum number of place settings, see the relevant data plate attached to the product.

Electrical connections and safety instructions

- The technical details (supply voltage and power input) are indicated on the product rating plate. - Make sure that the electrical system is earthed and complies with all applicable laws, and that the socket is compatible with the plug of the appliance. The manufacturer declines all responsibility for any damage to people or property due to non-earthing of the machine. - Ensure that the dishwasher does not crush power cables. - In general it is not advisable to use adaptors, multiple plugs and/or extension cables.

WARNING:

The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility. - Before cleaning or maintaining the dishwasher, unplug the appliance and turn off the water supply. - Do not pull on the power cord or appliance to unplug the machine.

WARNING:

Water may reach very high temperatures during the wash cycle. - Do not leave the appliance exposed to the elements (rain, sun, etc.). - Leaning or sitting on the open door of the dishwasher could cause it to tip over. - When moving, do not lift the dishwasher by the door; during the transport, never lean the door on the trolley. We recommend two people lift the machine. - The dishwasher is designed for normal kitchen utensils. Objects that have been contaminated by petrol, paint, traces of steel or iron, corrosive chemicals, acids or alkalis must not be washed in the dishwasher. - If there is a water softening device installed in the home there is no need to add salt to the water softener fitted in the dishwasher. - If the appliance breaks down or stops working properly, switch it off, turn off the water supply and do not tamper with it. Repair work should only be carried out by an approved service agent and only genuine spare parts should be fitted. Any failure to follow the above advice may have serious consequences for the safety of the appliance. \- If you need to move the machine after removing the packaging, do not try to lift it by the bottom of the door. Open the door slightly and lift the machine by holding it on the top. By marking this product, we confirm, under our own responsibility, full compliance of this product with all relevant safety, health and environmental requirements under European legislation.

WARNING:

Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

Installation

\- Remove all elements of the packaging.

WARNING:

Keep packaging materials away from children. \- Do not install or use the dishwasher if it is damaged. \- Follow the instructions supplied with the product.

WARNING:

(only built-in and semi-integrated models) Do not connect the dishwasher to the mains supply until all installation operations have been performed according to the "TECHNICAL NOTES FOR INSTALLATION" supplied with the product.

WARNING:

(only built-in and half integrated models) Do not connect the dishwasher to the mains supply until the front panel has been fully installed. Otherwise, the risk of an electrical hazard may persist.

WARNING:

(only freestanding models) If it is necessary to remove the worktop to install the dishwasher in a compartment of a modular kitchen, please contact our Authorized Technical Assistance Centres.

WARNING:

Ensure that the product, before being switched on for the first time, is installed in a horizontal position by way of the adjustable feet. Check the horizontal position using a spirit level

Replacement of the inlet hose

\- In case of breakage, the hose must be replaced with an original spare part available from the manufacturer or its service center.

WARNING:

Use only the inlet hose supplied with the appliance for connection to the water mains. Old inlet hoses must not be reused.

2. WATER CONNECTION

The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused. ● The inlet and drain hoses can be directed to left or right. The dishwasher can be connected to either cold or hot water, as long as it is no hotter than 60^ C. ● Water pressure must be between 0,08 MPa and 1 MPa. ● The inlet hose must be connected to a tap so that the water supply can be cut off when the machine is not in use (fig.1). ● The dishwasher is fitted with 3/4" threaded connector (fig.2). \- Connect inlet hose "A" to water tap "B" with a 3/4" attachment making sure that it has been properly tightened. \- If it is necessary, the inlet pipe can be lengthened up to 2,5 m. The extension pipe is available from the After Sales Service Centre. \- If the dishwasher is connected to new pipes or to pipes which have not been inuse for a long time run water through for a few minutes before connecting the inlet hose. In this way no deposits of sand or rust will clog up the water inflow filter.

Line drawing of a rectangular box with tubing and connectors, labeled with number 1 (no text or symbols on the diagram itself)


② B A

Hydraulic safety devices

All the dishwashers are equipped with an overflow safety device which, if water exceeds normal levels due to malfunctions, automatically blocks water flow and/or drains excess quantities. SOME MODELS may include one or more of the following features:

● WATERBLOCK (fig.3)

The waterblock system has been designed to improve the safety of your appliance. The system prevents flooding which might be caused by a machine malfunction or as a result of a fracture on the rubber pipes and in particular on the water supply pipe.

How it works

A sump located on the base of the appliance collects any possible water leakage and operates a sensor which activates a valve placed under the water tap and blocks any water, even with the tap fully opened. If box "A" containing the electrical parts is damaged, remove the plug from the socket immediately. To ensure perfect operation of the safety system, the hose with box "A" should be connected to the tap as shown in the figure. The water supply hose should not be cut, as it contains live parts. If the hose is not long enough for correct connection, it must be replaced with a longer one. The hose can be obtained from the Technical Assistance Centre.

③ A

● AQUASTOP (fig.4):

A device located on the supply tube that stops water flow if the tube deteriorates; in this case, a red mark will appear in the window "B" and the tube must be replaced. To unscrew the nut, press the one-way lock device "C".

④ B C


Connecting the outlet hose

● The outlet hose should discharge into a standpipe, making sure that there are no kinks (fig.5). ● The standpipe must be at least 40 cm above floor level and it must have an internal diameter of at least 4 cm. \- It is advisable to fit an anti-odour air trap (fig.5X). If necessary the outlet hose can be extended up to 2,5 m, provided that it is kept at a maximum height of 85 cm above floor level. The extension pipe is available from the After Sales Service Centre. ● The hose can be hooked over the side of the sink, but it must not be immersed in water, in order to prevent water from being syphoned back to the machine when this is in operation (fig.5Y). \- When installing the appliance under a worktop the hose pipe clamp must be attached to the wall in the highest possible position under the worktop (fig.5Z). \- Check that there are no kinks in the inlet and outlet hoses.
3. LOADING THE SALT

(Fig. A "1")

● The appearance of white stains on dishes is generally a warning sign that the salt container needs filling. - On the bottom of the machine there is a container for the salt for regenerating the softener. - It is important to use only a salt that is specifically designed for dishwasher. Other types of salt contain small quantities of insoluble particles which over a long period of time may affect and deteriorate the softener performance. ● To add salt, unscrew the cap of the container on the bottom and then refill the container.

Diagram illustrating a mechanical device with a rotating knob and a magnified inset showing the rotation direction.

● During this operation a little water will overflow; but keep adding salt until the container is full. When the container is full, clean the thread of salt residue and retighten the tap.

② * optional


③

● After loading the salt, it is recommended running a complete washing cycle, or COLD RINSE programme.

Diagram showing a 3D printer with a mechanical component and a close-up of the device's rotation mechanism, labeled with number 4.

After loading the salt, YOU MUST run a complete washing cycle, or the PRE-WASH/COLD RINSE/REFRESH programme. ● The salt dispenser has a capacity of between 1 kg and, for efficient use of the appliance, it should be refilled from time to time. (Only for first start up) When the appliance is used for the first time, after completely filling the salt container, it is necessary to add water until the container overflows.

4. ADJUSTING THE UPPER BASKET (ONLY ON SOME MODELS)

Type "A":

1. Turn front blocks "A" outwards; 2. Remove the basket and remount it in the upper position; 3. Replace blocks "A" in the original position. Following this operation, the movable supports cannot be used in the upper position. Type "A"

Technical diagram showing mechanical assembly with labeled components A, including a sliding mechanism and directional arrows indicating motion.

Type "B": (ONLY MODELS WITH EASY CLICK)

The upper basket is equipped with a height adjustment system. During the first start-up, the upper basket may be in the upper or lower position. Place the basket in the upper or lower position, as appropriate for the requirements of the load, following the instructions provided. To lift it: lift the basket holding it by the sides, as soon as it is in a raised position, let it go without applying any pressure to the levers.

Diagram of a hand operating a mechanical device within a grid structure, with an upward arrow indicating motion (no text or symbols present)

To lower it: hold the basket by the sides, press the two B levers on the sides of the basket, and lower it.

Diagram showing a hand interacting with a grid structure, labeled with point B and directional arrow


WARNING:

We recommend adjusting the basket before loading the dishes.

WARNING:

Always accompany the basket during its descent into the stop position.

WARNING:

Never raise or lower the basket by working on one side only.

5. LOADING DISHES

Using the upper basket

Cup Holder (only on some models)

Technical line drawing of a mechanical assembly with gears and components (no text or symbols)

● The upper basket (fig.1), is provided with mobile racks hooked to the sides of the basket, which can be regulated into 4 positions. \- In the lowered position (A-A1) the racks may be used for such items as: tea and coffee cups, kitchen knives and ladles. Also glasses with stems may be safely hung on the ends of the racks.

Diagram of a mechanical or structural assembly with layered components and no visible text or symbols


Diagram of a mechanical or structural assembly with layered components and a downward arrow, labeled A1 (no text or symbols present)

Using the upper basket

● The upper basket has been designed to offer maximum flexibility of use. It can be loaded with dessert plates, cups and glasses, which it is advisable to lock to avoid to avoid them being overturned by the jets. \- It is advisable to position the larger plates, slightly inclined towards the front in order to facilitate the easy insertion of the basket inside the machine.

WARNING:

After loading the basket make sure that the spray arm rotates freely without hitting dishes or kitchen utensils. A standard daily load is represented in fig.3

Top-down technical drawing of a mechanical assembly with no visible text or symbols

"Maxi-Ladle" (only on some models)

This accessory (fig.4), has been designed to provide the optimal washing position for all long kitchen objects or tools such as bread knives, ladles, and forks

Technical line drawing of a mechanical component with grid pattern and central shaft (no text or symbols)

Using the lower basket

● The lower basket houses pots, pans, tureens, salad bowls, lids, serving plates, dinner plates, and soup plates. \- The cutlery should be placed with the handle down, in the special plastic container positioned in the lower basket (fig.11-12) making sure that the cutlery itself does not prevent the rotation of the spray arm or the opening of the detergent compartment.

Foldable racks (only on some models)

In the lower basket (fig.5), there may be some adjustable combs (C-D-E depending on the model) useful to guarantee optimum stability for the dishes.

5 C D E

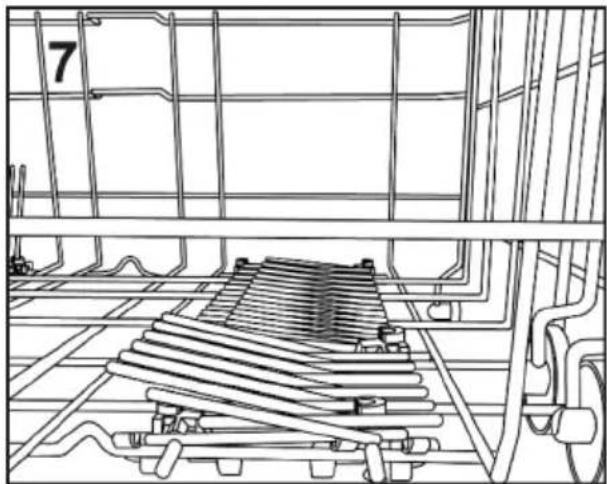

Non-standard size or shaped dishes or plates can be raised/lowered (fig.6 and fig.7) to ensure maximum loading flexibility.

Technical line drawing of a mechanical assembly with rods and brackets (no text or symbols)


Technical line drawing of a mechanical assembly with no visible text or symbols

A standard daily load is represented in fig.9.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

The rational and correct arrangement of the dishes is an essential condition for a good washing result.

Maxi Tray (only on some models)

This accessory has been designed to provide the optimal washing position for oven trays and pans. Just extract the supports (E) located on the lower basket and place the kitchen accessories on them (fig.9).

9 E

Maxi Plates

(only on some models)

The Maxi Plates system (fig.10) has been designed to provide the optimal washing position thanks to two special supports for up to 8 8 larger-than-standard size plates, up to a diameter of 34.5cm (for example pizza dishes).

10 Pizza Ø 34,5 CM


WARNING:

After loading the basket make sure that the spray arm rotates freely without hitting dishes or kitchen utensils.

Cutlery basket (only on some models)

The cutlery basket is intended to contain cutlery of all kinds, excluding those of such length as to interfere with the upper sprinkler. The cutlery must be placed in the appropriate spaces of the upper grids to allow for optimal water passage. It is possible to remove the upper grids by lifting them and sliding them inside their seat (fig.11).

11 ① ② ① ②

You can adjust the height of the cutlery basket handle by pulling or pushing the handle (fig.12).

Line drawing of a wire basket with an upward arrow and downward arrow indicating direction (no text or symbols)

An example of the positioning of the cutlery rack is shown in figure 8.

WARNING:

Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

Using the third basket (only on some models)

Use the third basket to load the cutlery, as shown in the image (fig.13). Load knives with the sharp, cutting side facing downwards.

Line drawing of a tray with various kitchen utensils and cutlery (no text or symbols)

If necessary, the side shelves of the third basket can be slid or removed (fig.14-15) in order to create additional space in the upper basket for bulky items such as wine crystals.

14


15

POWER WASH (only on some models)

In some programmes (see table of programmes), the third washing arm, positioned at the bottom of the dishwasher POWER WASH, will also be enabled. This feature is ideal when cleaning heavily soiled tableware or cookware, placing them directly in the area of the basket above the POWER WASH arm.

Technical line drawing of a mechanical component with no visible text or symbols

6. INFORMATION FOR TEST LABORATORIES

Please ask information required for comparison testing and measuring noise levels, according to EN normative, to the following address:

[e-mail]

In the request, please specify model name and number of the dishwasher (see rating plate).

7. LOADING THE DETERGENT

(Fig. A "2")

The detergent

It is essential to use a detergent that is specifically designed for dishwashers either in powder, liquid, gel or tablet form. Unsuitable detergents (like those for washing up by hand) do not contain the proper ingredients for use in a dishwasher, and stop the dishwasher from working correctly.

Filling the detergent container

The detergent container is inside the door (fig. A "2"). If container door is closed, to open it simply press the release button (A): the door is always open at the end of any wash programme ready for the next use.

Diagram of a device casing with labeled components and directional arrows (no text or symbols)


WARNING

When loading the lower basket, please ensure that the plates or others do not obstruct the detergent dispenser. The amount of detergent to be used varies according to how dirty the dishes are and on the type of dishes to be washed. We advise using 20:30 g of detergent in the wash section of detergent compartment (B).

25 ml 15 ml B

If you are using tablets, one should suffice. Insert the TABLETS, making sure that they do not interfere with the opening system.

7ABS

After pouring the detergent into the container, close the door again, pushing in the direction of the arrow until it clicks into place.

click

Since not all detergents are the same the instructions on the boxes of detergent can vary. We should just like to remind users that too little detergent does not clean the dishes properly whilst too much detergent will not produce better results and is also a waste. Do not use an excessive amount of detergent and help limit damage to the environment at the same time.

Loading pre-wash detergent in programmes that require it

In programmes that have a pre-wash cycle that requires an additional dose of detergent (see the washing programmes chapter), the additional detergent must be poured into the appropriate location (C).

Technical line drawing of a device casing with labeled component C (no text or symbols beyond label)

8. TYPES OF DETERGENT

Detergent tablets

Detergent tablets of different manufacturers dissolve at different speeds, for this reason, during short programmes, some detergent tablets may be not fully effective, because they are not completely dissolved. If these products are used, is recommended to choose longer programmes to guarantee the complete use of the detergent. To get satisfactory washing results, the tablets MUST be placed in the wash section of the detergent container and NOT directly in the tub.

Concentrated detergents

The concentrated detergents, with reduced alkalinity and with natural enzymes, in conjunction with 50^ C wash programmes, have a smaller impact on the environment and they protect the dishes and the dishwasher. The 50^ C wash programmes purposely exploit the dirt-dissolving properties of the enzymes, allowing therefore, with the use of the concentrated detergents, to achieve the same results of the 65^ C programmes but at a lower temperature.

Combined detergents

The detergents that also contain the rinse aid must be placed in the wash section of the detergent container. The rinse aid container must be empty (if it is not empty, set the rinse aid regulator to lowest position before using combined detergents).

"TABLETS" combined detergents

If you are planning to use "TABLETS" ("3 in 1 "/ "4 in 1"/ "5 in 1", etc.) combined detergents i.e. those with built in salt and/or rinse agent, we would advise the following: - read carefully and follow the manufacturer's instructions given on the packaging; ● the effectiveness of detergents containing the built in water softener/salt depends on the hardness of your water supply. Check that the hardness of your water supply is within the effective range given on the detergent packaging. If when using this type of product, you don't get satisfactory washing results, please contact the detergent manufacturer. In certain circumstances use of combined detergents can cause: - limescale deposits on dishes or in the dishwasher; ● a reduction in washing and drying performance. Any problems which arise as a direct result of the use of these products are not covered by our warranty. Please note that using the "TABLETS" combined detergents, the rinse aid and salt indicator lights (only used on selected models) are superfluous, so you must ignore the lights. If washing and/or drying problems occur, we recommend you return to use traditional separate products (salt, detergent and rinse agent). This will ensure that the water softener in the dishwasher operates correctly. In this case, we recommends that you: ● refill both the salt and rinse aid container; - run one normal washing cycle without a load. Please note that on return to the use of conventional salt, a number of cycles will be required before the system becomes fully efficient again.

9. LOADING THE RINSE AID

(Fig. A "3")

Rinse aid

Rinse aid, which is automatically released during the last rinsing cycle, helps the dishes to dry quickly and prevents spots and stains forming.

Filling the rinse aid container

The rinse aid container is next to the detergent container (fig.A "3"). To open, press the tab on the lid of the rinse aid dispenser and lift it.

Diagram of a device casing with internal components and a circular arrow indicating rotation (no text or symbols)

Add rinse aid up to the Max. indication.

Line drawing of a hand pouring liquid into a device with a warning symbol (no text or labels)

\- If the rinse aid spills out, remove it from the wash tank. ● Spilled rinse aid can cause excessive frothing during the wash cycle. \- Close the lid of the rinse aid dispenser. ● The lid clicks into the locking position. Always use rinse additives that are suitable for automatic dishwashers.

Models equipped with display or rinse aid indicator (only on some models)

When it becomes necessary to fill the rinse aid container, the display will indicate the lack of rinse aid (in models with display), or the designated indicator light on the dashboard will turn on. This has been factory-set to level 4, as this satisfies the majority of users.

Adjusting the amount of rinse aid

ALWAYS start the procedure with the dishwasher turned off. 1. Switch the appliance on, press ON/OFF" ① button. 2. Hold the "SETTINGS 5" (5Sec.)" button, a short beep will sound. 3. The "SETTINGS" message appears on the display. 4. Press the "PROGRAMME SELECTION"

buttons to navigate the submenu. 5. Choose the "RINSE AID" option. 6. Press "START/RESET" to access the regulation levels. 7. Press "PROGRAMME SELECTION"

to choose the value (R1.....R6). With level R0, no rinse aid is dispensed. 8. Press "START/RESET" to confirm. 9. Press "ON/OFF" to confirm. The limestone content of the water considerably affects the formation of limescale and the drying performance. It is therefore important to regulate the quantity of rinse aid to achieve good washing results. If, after the wash, there are streaks on the dishes, decrease the amount by one position. If whitish spots occur, increase the amount by one position. The limestone content of the water considerably affects the formation of limescale and the drying performance. It is therefore important to regulate the quantity of rinse aid to achieve good washing results. If, after the wash, there are streaks on the dishes, decrease the amount by one position. If whitish spots occur, increase the amount by one position.

Models not equipped with rinse aid indicator (only on some models):

You can check the rinse aid level by means of the optical display (B) on the dispensing container.

Technical line drawing of a device casing with labeled component B (no text or symbols beyond label)

FULL EMPTY  dark  light Adjusting the amount of rinse aid. It is only possible to adjust the amount of rinse aid used by the dishwasher via a special APP that can be downloaded from the site with your smartphone. The adjustment has been factory-set at level 2 as this satisfies the majority of users.

10. CLEANING THE FILTERS

(Fig. A "4")

The filter system consists of: - A central container that traps the larger particles; - A micro filter, located beneath the gauze, that traps the tiniest particles ensuring a perfect rinse; - A flat gauze that continuously filters the wash water. ● To achieve excellent results every time, the filters should be checked and cleaned after each wash. - To remove the filter unit, simply turn the handle anti-clockwise ① and extract it by pulling it upwards ② (fig.1).

1 ① ②

\- For ease of cleaning, the central container is removable (fig.2) by pressing the two buttons on the sides and pulling it upwards.

2

\- Remove the gauze filter (fig.3) and wash the whole unit under a jet of water (fig.4). If necessary a small brush can be used.

3 ① ②


4

● Re-assemble the plate and filter unit by following the previous operations in reverse order, taking care to screw the components back correctly, so as not to jeopardise the operation of the dishwasher. - With the Self-cleaning Micro filter, maintenance is reduced and the filter unit need only be checked every two weeks. Nevertheless, after each wash it is advisable to check that the central container and the gauze filter are not clogged.

WARNING

After cleaning the filters, make sure that they are correctly reassembled and that the gauze filter is properly positioned at the bottom of the dishwasher. Make sure that the filter is screwed back, clockwise, into the gauze, as poor seating of the filter unit could have an adverse effect on the efficiency of the appliance. Never use the dishwasher without the filters.

11. PRACTICAL HINTS

How to get really good wash results.

- Before placing the dishes in the dishwasher, remove any remaining food (bones, shells, pieces of meat or vegetables, coffee grounds, skin of fruit, cigarette ash, tooth picks etc. to avoid blocking the filters, water outlet and washing arm nozzles. - There is no need to rinse the dishes before loading them into the dishwasher, as this leads to increased water and energy consumption and is not recommended. - If saucepans and oven dishes are encrusted with the remains of burnt or roast food, it is advisable to leave them to soak before washing. - Place the dishes face downwards. ● Try to place the dishes in such a way that they are not touching one another. If they are loaded properly you will get better results. ● After loading the dishes check that the washing arms can rotate freely. ● Pans and other dishes that have particularly stubborn food particles or remnants of burnt food should be left to soak in water with dishwasher detergent. ● To wash silver properly: a) rinse the silver immediately after use, especially if it has been used for mayonnaise, eggs, fish etc.; b) do not sprinkle detergent onto it; c) keep it separate from other metals.

How to make savings.

Tips on how to save money and not damage the environment when using your appliance. - Achieve the best use of energy, water, detergent and time by using the recommended maximum load size. Save up to 50% energy by washing a full load instead of 2 half loads. - If you want the dishwasher to give a complete wash, place the dishes in the dishwasher at the end of each meal and if necessary turn on the COLD RINSE cycle to soften the food remains and remove bigger particles of food from the new load of dishes. When the dishwasher is full start the complete wash cycle programme. - If the dishes are not very dirty or if the baskets are not very full select an ECONOMY programme, following the instructions in the program list. ● The most efficient programmes in terms of combined use of water and energy are usually the longer-lasting ones with lower temperature. - Washing in a dishwasher uses less energy and water compared to hand washing if the dishwasher is used following the manufacturer's instructions and advice.

What not to wash.

- It should be remembered that not all dishes are suitable for washing in a dishwasher. We advise against using the dishwasher to wash items in thermoplastic, cutlery with wooden or plastic handles, saucepans with wooden handles, items in aluminum, crystal leaded glass unless otherwise stated. - Certain decorations may fade. It is therefore a good idea before loading the whole batch to wash just one of the items first so as to be sure that others like it will not fade. \- It is a good idea not to put silver cutlery with non-stainless steel handles into the dishwasher as there could be a chemical reaction between them. When buying new crockery or cutlery always make sure that they are suitable for washing in a dishwasher.

Useful hints

- In order to avoid any dripping from the top rack, remove the lower rack first. - If the dishes are to be left in the machine for some time, leave the door ajar, to let some air circulate and to improve the drying performance.

12. CLEANING AND MAINTENANCE

Looking after your appliance correctly can extend its lifespan.

Cleaning the appliance's exterior

\- Disconnect the machine from the power supply. ● To clean the dishwasher outside, do not use solvents (degreasing action) neither abrasives, but only a cloth soaked with water.

Cleaning the appliance's interior

● The dishwasher does not require special maintenance, because the tank is self-cleaning. ● Regularly wipe the door gasket with a damp cloth to remove any food remains or rinse aid. ● Dishwasher cleaning is recommended, in order to remove limestone deposits or dirt. We suggest you run a washing cycle periodically with specialist dishwasher cleaning products. For all cleaning operations the dishwasher must be empty. - If, in spite of the routine cleaning of the filters, you notice that the dishes or pans are not properly washed or rinsed, check that all the spray heads on the rotor arms (fig. A "5") are clear. If they are blocked, clean them in the following way: 1) remove the upper rotor arm, turning the ring nut from the right to the left (fig.1).

Diagram showing a mechanical lever mechanism with an arrow indicating rotational motion (no text or symbols present)

2) The lower rotor arm can be extracted by simply pulling it upwards (fig.2).

2

3) wash the rotor arms under a jet of water to clear any blockage in the spray heads (fig.3).

3 ?

Do not use tools that can deform the spray heads. 4) when you have finished, refit the rotor arms in the same position, remembering to re-align the arrow and screw into position (fig.4).

4 ① ②

5) Both the door lining and the tank lining are in stainless steel; however, should spots caused by oxidation occur, this is probably due to a high level of iron salts presents in the water. 6) The spots can be removed with a mild abrasive agent; never use chlorine based materials, steel wool, etc.

WHEN CYCLE IS FINISHED.

After every wash it is essential to turn off water supply and to switch off the machine by pressing the On/Off button to the off position. If the machine is not going to be used for some time, it is advisable to follow these rules: 1. do an empty wash with detergent in order to clean the machine of any deposits; 2. pull out the electric plug; 3. turn off the water tap; 4. fill the rinse aid container; 5. leave the door ajar; 6. keep the inside of the machine clean; 7. If the machine is left in places where the temperature is below 0^ C any water left inside the pipes may freeze. Wait until the temperature rises above zero and then wait for about 24 hours before.

13. DESCRIPTION OF THE CONTROL PANEL

A ON/OFF button

B PROGRAMME SELECTION light C "RESET" button for "SALT EMPTY" light D "SALT EMPTY" light E PROGRAMME SELECTION / CHILD LOCK button F HALF LOAD light

G HALF LOAD/TABLETS button

H TABLETS light I DELAY START lights L DELAY START/SETTINGS M START/RESET button SIZE

DATA	FREE-STANDING		BUILT-IN
	WITH WORKTOP	WITHOUT WORKTOP	HALF-INTEGRATED	FULL-INTEGRATED
Width x Height x Depth (cm)	60x85x60.9	59,8x82x58	59,8x81,8 ÷ 89,8x57	59,8x81,8 ÷ 89,8x55
Depth with door open (cm)	120	117	117	117

TECHNICAL DATA (See rating plate)

Place settings (EN 50242)	12	13	14	15	16
Capacity with pans and dishes	8 people	8 people	9 people	9 people	9 people
Water supply pressure (MPa)	Min. 0,08 – Max. 1
Fuse / Power input / Supply voltage	See rating plate

15. PROGRAMME SELECTION AND SPECIAL FEATURES

ON/OFF button ①

\- To turn the appliance on and off, press the ON/OFF ⏱ button.

Programme settings

- Open the door and place the dirty dishes inside the appliance. - Press the "ON/OFF" ① button. The indicator light associated with the "ECO" programme or stored programme will flash. - Select a different programme by pressing the "PROGRAMME SELECTION" button. The indicator light associated with the selected programme will flash. - To select an option, press the corresponding button (the indicator light will turn on). - Press the "START/RESET" button (the indicator light associated with the programme selected will stop flashing and remain on). - When the door is shut, after an audible signal has sounded, the programme will start automatically. If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

"IMPULSE" or "INTERMITTENCE" programmes (only on some models)

Some programmes use an impulse or intermittent washing system (depending on the model) which reduces consumption, noise and improves performance. The "intermittent" working of the washing pump is NOT to be considered a malfunction; it is a characteristic of impulse washing, and therefore should be considered a normal feature of the programme.

Interrupting a Programme

Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically. Close the door, without pressing any buttons. The cycle will start from where it left off.

WARNING:

If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished.

Changing a running programme

If you wish to change or cancel a programme already in progress, proceed as follows: - Hold the "RESET" button for at least 3 seconds. Several audible signals will sound and the programme indicator lights will turn on and off individually and in sequence. ● The indicator light associated with the "ECO" programme or stored programme will flash. - At this point a new programme can be set.

WARNING:

Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser.

Programme end

The end of the program will be indicated by 3 signals lasting 3 seconds interspersed with a pause of 20 seconds, after one minute the dishwasher will switch off at the same time on the display. the word "END" will appear for one minute. Only for models with the AUTO DOOR" option, during the drying phase the door will open automatically and you will have to wait until for the end-of-cycle signal before removing the dishes.

HALF LOAD/TABLETS Option button

This button can be used to select two different functions, depending on the selected programme:

"HALF LOAD" 12 button (only on some models).

Appositely developed for small lightly soiled loads that fits approximately half of the dishwasher's capacity. By selecting this option, you can save time, energy, and water. After selecting the program, press the "HALF LOAD" button and the indicator light will turn on. If this option is not compatible with the set program, a sound will be heard.

"TABLETS" button (only on some models).

This option optimises the use of the "TABLETS" ("3 in 1"/"4 in 1"/"5 in 1", ecc.) combined detergents. By pressing this button, the selected washing programme is modified to get best performance from combined detergents (furthermore, the salt and rinse aid shortage lights are deactivated). After selecting the program, press the "TABLETS" button for 5 sec. and the indicator light will turn on. If this option is not compatible with the set program, a sound will be heard.

WARNING:

Once selected, this option keeps being on (light on) also for next washing cycles and it can be deactivate (light off) only by pressing the button once again for 5 second. This option is recommended when using the RAPID programme, whose duration will be extended, enabling improved performance from the detergent tablets.

"SMART DOOR"

(Automatic door opening)

(Only in models where present)

This option enables a special device that opens the door by a few centimetres at the end of the "ECO" programme. The opening of the door in the final drying phase allows the air to circulate, eliminating the risk of unpleasant odours. When the door opens, the message "SMART DOOR" will appear on the display.

WARNING:

This function will only be automatically activated with the "ECO" programme. Should you choose to use the "EXPRESS" option, the SMART DOOR function will be disabled. For the operation of these OPTIONS, please refer to the "PROGRAM LEGEND".

WARNING:

With this option selected, you must not in any way prevent the door from opening or force it shut, as this would damage the mechanism. Ensure that there is free space in front of the door and, before closing, wait for the opening device to complete its activity.

"NO SALT" indicator light

This model is provided with an indicator light on the control panel which will light up when it is necessary to reload the salt container.

"RESET" button S for "NO SALT" indicator light (only in models with a salt indicator light reset button)

After filling the salt container, press this button for a few seconds, until the corresponding indicator light switches off.

WARNING:

If you press the reset button without filling the salt container, this will interfere with the correct functioning of the salt indicator light. In order to guarantee the correct functioning of the salt indicator light, YOU MUST ALWAYS FULLY REPLENISH THE SALT CONTAINER.

DELAY START/SETTINGS OPTION

button

 This button can be used to select two different functions.

- DELAY START

 The dishwasher start time can be set with this button, delaying the start by 3, 6 or 9 hours. Proceed as follows to set a delayed start: \- Choose a programme by pressing the "PROGRAMME SELECTION" P button. \- Press the "DELAY START" ⚙ button (each time you press it, you can set a respective delayed start).

Type A (only on some models)

 3h Indicator light on 6h Indicator light on 9h both indicator light on

Type B (only on some models)

 3h Indicator light on 6h Indicator light on 9h Indicator light on ● To start the countdown, press the "START/ RESET" button (the set time indicator light will start to flash). If a 9 hour delay is set, countdown will be displayed by the 6h indicator light after 3 hours and the 3h indicator light after 6 hours. At the end of the last 3 hours (at the end of countdown) the 3h indicator light will stop flashing and remain on to indicate the washing phase and the programme will start automatically. Delayed start can be changed or cancelled if countdown has not ended, and therefore the programme has not yet started. Select another programme or select/deselect the option button, proceeding as follows: - Hold the "RESET" button down for at least 3 seconds. Some audible signals will sound and the programme indicator lights will turn on and off individually and sequentially. ● The delayed start and the selected programme will be cancelled. The programme indicator lights will flash, the dishwasher is ready start programme.

- SETTINGS

 The dishwasher is regulated with certain factory settings. You can however, from the SETTINGS ✉ menu, adjust various parameters to suit your washing requirements.

The parameters adjusted are:

SOFTENER

To adjust the softener see the specific Chapter of the manual.

BUZZER

Activates or deactivates the acoustic signal at the end of the programme.

MEMO FUNCTION

To enable the storage of the last used program.

Entering the Settings menu

The dishwasher must ALWAYS be turned off before you start this procedure. - Turn on the dishwasher by holding the "ON/OFF" button for approximately 3 seconds. - Hold the "SETTINGS" button for 5 seconds to open the menu. The dishwasher must ALWAYS be turned off before you start this procedure. - You can now choose what you want to set.

BUZZER

● Press the "HALF LOAD/TABLETS"  button to activate or deactivate the acoustic indicator. \- The buzzer will remain active if the "HALF LOAD/TABLETS" indicator light switches on and a sound is heard; \- The buzzer will remain inactive if the "HALF LOAD/TABLETS" option indicator light does not come on and no sound is heard; \- Press the "START/RESET" button to save the settings and exit the settings menu.

MEMO FUNCTION

To enable memorisation of the last programme used, proceed as follows: \- Press the "DELAY START/SETTINGS"  button to activate or deactivate the MEMO FUNCTION. - The MEMO FUNCTION will be active if the "6h" indicator light comes on. - The MEMO FUNCTION will be inactive if the "6h" indicator light does not come on. - Press the "START/RESET" button to save the setting and exit the settings menu.

CHILD LOCK

 The dishwasher is equipped with an electronic child lock. The child lock disables the controls, preventing unwanted or accidental changes from being made. Turn the child lock feature on and off as follows: - Turn on the dishwasher by holding the "ON/OFF" button down for approximately 3 seconds. - Press the "CHILD LOCK" button for approximately 5 seconds. - Only the "ON/OFF" buttons will remain active.

TO DISABLE IT

\- Press the "CHILD LOCK" button for approximately 5 seconds. Switching off the machine with the "ON/OFF" ① button, the next time the machine is switched on, the child lock will be activated.

WARNING:

If the child lock command is active, the dishwasher will make a sound and blink twice for every button that is pressed.

16. PROGRAMME LEGEND

Programme Description
P1		RAPID 49'	A half-load programme designed to wash and dry in 49 minutes whilst simultaneously reducing consumption.
P2		UNIVERSAL	Suitable for everyday light soiled dishes, your daily reference program.
P3		ECO	A standard and more efficient programme in terms of combined energy and water consumption for regularly-soiled dishes.EN60436-standardized programme.
P4		INTENSIVE	For heavily soiled pans and any other items that require a strong and effective washing. Perfectly designed for very dirty plates, pans, and pots.
P5		PREWASH	Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load.

Programmes with prewash

For wash programmes with prewash, it is advisable to add a second dose of detergent (max.10 g) directly in the machine.

Programme			Detergent for soaking (Prewash)	Temperature of wash (°C)	Average time of wash1(min.)	"DELAY START" button	"TABLETS" button	"HALF LOAD" button
P1		RAPID 49'	●	60	49	YES	YES	N/A
P2		UNIVERSAL	■	60	131	YES	YES	YES
P3		ECO	■	45	233-236	YES	YES YES
P4		INTENSIVE	●	75	135	YES	YES	N/A
P5		PREWASH	■	■	10	YES	N/A	N/A

● = Add detergent for prewash

N/A= OPTION NOT AVAILABLE

1) With cold water (15°C) – Tolerance ±10% With hot water the time remaining until the end of the programme is automatically displayed while the programme is running. \*Values are measured in a laboratory according to European Standard EN 60436 (consumption may vary according to conditions of usage). The actual duration of the wash cycle varies according to the model. The ECO programme is suitable for cleaning normally soiled tableware and is the most efficient programme for this use in terms of combined energy and water consumption. Furthermore, this programme is used by regulatory authorities to assess compliance with EU ecodesign legislation. Except for the ECO programme, the values given for other programmes are indicative only. The cycle duration may be influenced by numerous factors, such as water temperature, mains water pressure, environmental temperature, the amount of detergent used and the number and distribution of dishes in the loading racks.

17. WATER SOFTENER UNIT

Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company.

Regulating the water softener

Hardness of up to 90^ fH (French grading) or 50^ dH (German grading) through 6 different settings. The table below lists different degrees of water hardness with the corresponding setting for the softener unit.

Level	Water hardness		Use of Regenerating salt	Programme Indicator Light
	^ fH (French grading)	^ dH (German grading)
S0 0-5 0-3 NO				No indicator lights
S1 6-15 4-9 YES P1
S2 16-30 10-16 YES				P1+P2
*S3 31-45 17-25 YES				P1+P2+P3
S4 46-60 26-33 YES				P1+P2+P3+P4
S5 61-90 34-50 YES				P1+P2+P3+P4+P5

\* The water softener unit is set in the factory at level 3, as this is suitable for the majority of users. According to the degree of hardness of your water, regulate the softener unit in the following way:

The dishwasher must ALWAYS be off before start of this procedure.

1. Turn on the dishwasher by holding the "ON/OFF" ⏻ button for approximately 3 seconds. 2. Hold down the "SETTING" 🎨 button for 5 seconds to open the menu. When you enter the settings mode, there will be 6 flashes from several of the indicator lights on the dashboard. 3. Press "PROGRAMME SELECTION" P button to select the desired level of limescale removal: every time you press the button, the corresponding indicator light will switch on, as shown in the table above (P1→S1, P1+P2→S2). For level 'S0', all the indicator lights will be switched off. 4. Press the "START/RESET" button to save the setting and exit the settings menu.

WARNING!

If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning.

Information on resin regeneration with salt

The regeneration phase is carried out at the end of a washing cycle. Approximately 3.5 litres of water are consumed in the resin regeneration phase, with an energy consumption of approximately 1Wh and an increase in cycle time of approximately 7 minutes. For the Eco cycle, it is as shown in the table.

Level	Programme Indicator Light	Frequency
S0	No indicator lights	Never
S1 P1		1 every9 cycles
S2 P2		1 every5 cycles
*S3 P3		1 every4 cycles
S4	P4	1 every2 cycles
S5	P5	Every cycle

18. TROUBLESHOOTING AND WARRANTY

If you believe the dishwasher is not working correctly, consult the quick guide provided below with some practical tips on how to fix the most common problems. If the malfunction continues or recurs, contact the Technical Assistance Centre.

BUG REPORTS

- Models with a display: errors are reported by a number preceded by the letter "E" (e.g. Error 2 = E2) and a short audio signal. - Models without a display: an error is shown by a sequence of flashes of every LED. The error code is shown by the number of flashes followed by a pause of 5 seconds (example: two flashes – pause 5 seconds – two flashes – repeating = Error 2). Only models with a display

Error displayed	Meaning and solutions
"NO WATER" with a short audio signal (only on some models).ERROR E2 (with display) with a short audio signal	The dishwasher does not fill with water
	Make sure the water supply is open.
	Make sure the water supply hose is not bent or crushed.
	Make sure the drain pipe is at the proper height (see installation section).
	Close the water supply, unscrew the drain pipe from the back of the dishwasher and check that the "sand" filter is not clogged.
ERROR E3 (with display) with a short audio signal	The dishwasher does not drain water
	Make sure the drain pipe isn't bent, trapped or blocked, and the filter is not clogged.
	Make sure the siphon is not clogged.
ERROR E4 (with display) with a short audio signal	Water leak
	Make sure the drain pipe isn't bent, trapped or blocked, and the filter is not clogged.
	Make sure the siphon is not clogged.
ERROR E8 (with display) with a short audio signal	The water heating element is not working correctly or the filter plate is clogged
	Clean the filter plate.
ERROR E18 (with display) with a short audio signal	Water level problems; check clogged filter plate.
	Clean the filter plate.
ERROR E21 (with display) with a short audio signal	Uncontrolled water supply with open solenoid valve.
	Close the water tap immediately and disconnect the appliance from the power supply.
Any other code (with display)	Turn off and unplug the dishwasher, wait a minute. Turn on the machine and restart a program. If the error occurs again contact an Authorised Customer Service Centre directly.

Only models without a display

If malfunctions or faults occur when a programme is running, the indicator light that corresponds to the selected cycle will blink rapidly, and an intermittent audio signal will sound. In this case, turn the dishwasher off by pressing the "ON/OFF" button. After checking to make sure the water supply is open, that the drain pipe is not bent and that the siphon or filters are not clogged, set the selected program again. If the fault persists, contact the Technical Assistance Centre. This dishwasher is equipped with an overflow safety device that, in the event of a problem, automatically discharges any excess water.

WARNING

To ensure the correct operation of the overflow safety device, we recommend not moving or tilting the dishwasher during operation. Should it be necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that no water remains inside the appliance. Other faults

FAULTS	CAUSE	SOLUTION
1. No programme works	Plug not connected to wall socket	Connect electric plug
	O/I button not pressed	Press button
	Door is open	Close door
	No electricity	Check
2. Dishwasher does not fill with water	See point 1	Check
	The water tap is closed	Open the water tap
	The water supply hose is bent	Eliminate the bends in the hose
	The filter of the water supply hose is clogged	Clean the filter at the end of the hose
3. Dishwasher does not discharge water	Filter is dirty	Clean filter
	Drain pipe is bent	Eliminate the bends in the pipe
	The drain pipe extension is not correctly connected	Follow the instructions for connecting the drain pipe carefully
	The outlet connection on the wall is pointing downwards not upwards	Call a qualified technician
4. Dishwasher discharges water continuously	Position of the drain pipe is too low	Lift drain pipe to at least 40 cm above floor level
5. Spray arms are not heard to rotate	Excessive amount of detergent	Reduce amount of detergent Use suitable detergent
	Item prevents arms from rotating	Check
	Filtering plate and filter very dirty	Clean filtering plate and filter
6. On electronic appliances without a display: one or more indicator lights flashing quickly	Water supply tap turned off	Switch off the appliance. Turn on the tap. Re-set the cycle.
7. Dishes only partially washed	See point 5	Check
	Bottom of saucepans have not been washed well	Burnt on food remains must be soaked before putting pans in dishwasher
	Edge of saucepans have not been washed well	Reposition saucepans
	Spray arms are partially blocked	Remove spray arms by unscrewing ring nuts clockwise and wash under running water
	The dishes have not been loaded properly	Do not place the dishes too close together
	The end of the drain pipe is immersed in water	The end of the drain pipe must not come into contact with the outflow water
	An incorrect amount of detergent has been measured out, or the detergent is old and hard	Increase the measure according to how dirty the dishes are, or change detergent
	The cap of the salt container is not closed properly	Choose a more vigorous programme
	The wash programme is not thorough enough	Tighten it properly
8. Detergent not dispensed or partially dispensed	Cutlery, dishes, pans, etc., stop the detergent dispenser from opening	Position dishes so as not to obstruct the dispenser
9. Presence of white spots on dishes	Mains water is too hard	Check salt and rinse aid level and regulate. Should the fault persist, contact the Technical Assistance Centre
10. Noise during wash	The dishes knock against one another	Re-check loading of dishes in the basket
	The revolving arms knock against the dishes	Re-check loading of dishes in the basket
11. The dishes are not completely dry	Inadequate air flow	Leave the dishwasher door ajar at the end of the wash program to allow the dishes to dry naturally
	Rinse aid missing	Fill the rinse aid dispenser

N.B.: Should any of the above situations result in a bad wash performance or insufficient rinsing, remove dirt deposits from the dishes by hand since the final drying cycle hardens the dirt, making it difficult to remove with a subsequent wash. If the malfunction continues, contact the Technical Assistance Centre, quoting the model of the dishwasher. This is found on the plate on the upper section of the inside of the dishwasher door, or on the warranty. This information will make it possible to take quicker, more effective action. Except for the list of spare parts available on our website, under no circumstances should you repair or attempt to repair the appliance yourself or have the appliance repaired by inexperienced and / or unqualified persons. Repairs carried out by inexperienced and / or unqualified persons can cause injury or serious malfunction of the equipment and damage to property. It is advisable to contact our Authorized Technical Assistance Centres. We recommend that you always use original spare parts, which can be obtained from our customer service for a period of at least 10 years from the moment the appliance is put into circulation within the European Economic Area.

WARNING

The manufacturer cannot be held responsible for any damage to things and people and / or for safety issues resulting from repairs not carried out by an Authorized Technical Assistance Centre or by a service provider authorised by the manufacturer in accordance with company guidelines relating to the repair and maintenance of its products. Any damage caused to the product by unauthorized personnel during a repair attempt will not be covered by the conventional warranty. From 1 March 2021, energy and environmental information relating to the energy labelling of household appliances and the specifications for their eco-design are visible in Europe in the product database (EPREL) at the following link https://eprel.ec.europa.eu/ or through the QR code located on the energy label.

Assistance and Warranty

The product is guaranteed under the law, and under the terms and conditions stated on the warranty certificate included with the product. The certificate should be stored and shown to an authorized Technical Assistance Centre in case of need, together with the proof of purchase. You can also check the warranty conditions on our website. For assistance, please fill in the online form or contact us at the number indicated on the support page of our website. Our service contacts (telephone numbers and web addresses) detailed by country are available on the warranty certificate included with the product. The manufacturer declines all responsibility for any printing errors in this booklet. Moreover, the manufacturer reserves the right to make any changes deemed useful to its products without changing their essential characteristics.

19. ENVIRONMENTAL CONDITIONS

Labeled diagram of a device with numbered parts for identification

Index

1. RÈGLES GÉNÉRALES DE SÉCURITÉ 2. ALIMENTATION EN EAU 3. REMPLISSAGE DU SEL 4. RÉGLAGE DU PANIER SUPÉRIEUR (UNIQUEMENT SUR CERTAINS MODÈLES) 5. MISE EN PLACE DE LA VAISSELLE 6. INFORMATIONS POUR LES LABORATOIRES D'ESSAIS 7. REMPLISSAGE DU DÉTERGENT 8. TYPES DE DÉTERGENTS 9. REMPLISSAGE DU PRODUIT DE RINÇAGE 10. NETTOYAGE DES FILTRES 11. CONSEILS PRATIQUES 12. ENTRETIEN ET NETTOYAGE 13. DESCRIPTION DU PANNEAU DE COMMANDE 14. DONNÉES TECHNIQUES 15. SÉLECTION DU PROGRAMME ET FONCTIONS SPÉCIALES 16. LÉGENDE DES PROGRAMMES 17. UNITÉ ADOUCISSEUR DE L'EAU 18. DÉPANNAGE ET GARANTIES 19. CONDITIONS AMBIANTES

1. RÈGLES GÉNÉRALES DE SÉCURITÉ

Line drawing of a rectangular appliance with tubing and a hose, labeled with number 1 (no text or symbols on the diagram itself)


② B A

Diagram showing a device with a switch and scissors, labeled with section number 3 and section A.

● AQUASTOP (fig. 4):

Diagram of a mechanical device with labeled parts and an inset showing a rotating component with rotation arrow

Diagram of a 3D printer with labeled parts and an inset showing gear shift mechanism

Type "A" A A

Diagram of a hand operating a wire cage with an upward arrow, no text or symbols present

Diagram showing a hand operating a mechanical device with labeled component B and directional arrow

ATTENTION

Technical line drawing of a mechanical assembly with cylindrical components and a triangular loadings system (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols


3D diagram of a mechanical or structural assembly with layered components and a downward arrow, labeled A1 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

"Maxi-Ladle"

Technical diagram of a mechanical component with grid pattern and labeled part 4 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with rods and brackets (no text or symbols)


Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with internal parts and mounting brackets (no text or symbols)

Line drawing of a wire basket with an upward arrow indicating direction (no text or symbols)

Line drawing of a food tray with sliced and rectangular items, no text or symbols present

Line drawing of a vehicle interior with a highlighted rectangular area and number 16 label (no text or symbols beyond the number)

6. INFORMATIONS POUR LES LABORATOIRES D'ESSAIS

Diagram of a device casing with internal components and directional arrows, no text or symbols present


ATTENTION

Technical line drawing of a device casing with labeled component C and starburst symbol (no text or symbols beyond label)

8. TYPES DE DÉTERGENTS

Diagram of a device casing with internal components and an arrow indicating rotation (no text or symbols)

Line drawing of a hand pouring liquid into a container with a droplet, no text or symbols present

Diagram showing a mechanical lever mechanism with an arrow indicating rotational motion (no text or symbols present)

A Bouton MARCHE/ARRÊT

B Voyant SÉLECTION DU PROGRAMME C Bouton pour éteindre le voyant "MANQUE DE SEL" D Voyant "SEL VIDE" E Bouton SÉLECTION DU PROGRAMME/VERROUILLAGE ENFANTS M Bouton DÉPART/DÉPART/ANNUL F Voyants DEMI-CHARGE DIMENSIONS

14. DONNÉES TECHNIQUES

● = Lessive prélavage

N/A = OPTION NON DISPONIBLE
