Product type	Music receiver / compact stereo audio player
Brand	Ecler
Model	PLAYER ONE
Dimensions (W x D x H)	Approximately 215 x 150 x 44 mm (half 19" rack)
Weight	Approximately 1 kg
Power supply	External AC adapter 100-240 V, 50/60 Hz
Audio outputs	1 unbalanced stereo output on RCA and mini-jack (stereo/mono selection)
Supported audio formats	MP3, OGG, WAV, AIFF, FLAC
Local sources	USB 2.0 port (up to 2 TB, FAT16/32, NTFS) and MicroSD/SDHC card reader (up to 2 TB)
Network connectivity	Ethernet RJ-45 (10/100 Mbps), built-in Wi-Fi (client or master mode)
Audio streaming	AirPlay, DLNA (via Wi-Fi), Internet radio (over 120,000 stations), http stream playback
Display	Backlit LCD screen
Front panel controls	6 backlit keys (ENTER, ESC, STOP, PLAY/PAUSE, NEXT, PREVIOUS) + rotary encoder CONTROL/SELECT
Control inputs	2 GPI ports (generic inputs) on Euroblock terminal block
Internal clock	Autonomy up to 240 h without power, NTP synchronization
Configuration	Built-in web interface (browser access, mDNS playerone.local)
Advanced functions	Up to 20 presets, GPI events and silence detection, calendar (24 events), Lua scripts, Cloud synchronization (Store & Forward rsync), local file encryption
Rack mounting	Possible with optional 1UHRMKIT rack kit (occupies 1/2 unit)
Operating temperature	Approximately 0°C to 40°C
Maintenance	Clean with a soft, dry cloth or slightly dampened with water and mild detergent. Do not use alcohol, benzene or abrasives.
Safety	Do not expose to rain or moisture. Disconnect before cleaning. Repair by qualified personnel only. Use a grounded outlet.
General information	Modular firmware, update via USB key or Internet (by holding PLAY at startup)

Frequently Asked Questions - PLAYER ONE Ecler

How to connect the PLAYER ONE to the Internet?

You can connect the device to the Internet via the Ethernet RJ-45 port or via the Wi-Fi interface. For Wi-Fi, use the web interface or the setup menu (hold down ENTER) to select the network and enter the password.

What audio formats are supported?

The PLAYER ONE supports MP3, OGG, WAV, AIFF and FLAC formats.

Can I use the PLAYER ONE without an Internet connection?

Yes, you can play audio files stored on a USB flash drive or a MicroSD card. No network is required for local sources.

How to stream audio from my smartphone?

Make sure your smartphone and the PLAYER ONE are on the same Wi-Fi network. Select the source AirPlay (iOS) or DLNA (Android) in the SOURCE menu. Then, from your app, send the audio stream to the player.

How to create and recall a preset?

In the web interface, go to Device > Presets. You can name and configure up to 20 presets (source, volume, playback modes, etc.). To recall a preset, use the PRESET menu on the device or the Player page in the web interface.

What to do if the screen displays 'UNAVAILABLE' for a source?

This means the media is not detected or cannot be read. Check that the USB stick or SD card is correctly inserted and formatted in FAT16/32 or NTFS. For streaming, make sure the network connection is active and the source is accessible.

Is it possible to schedule automatic playback?

Yes, thanks to calendar events. You can configure up to 24 events in the web interface (Device > Calendar) to trigger actions (load a source, play a preset, etc.) at set times and days.

How to reset the device to factory settings?

Hold down the STOP key while powering on the device. Follow the on-screen instructions. You can also press the FD/FS button on the back for 10 seconds with a paperclip (device powered on). Warning, this erases all settings.

What does the SP indicator on the front panel mean?

The SP (Signal Present) indicator shows the presence of an audio output signal. It is green when the device is producing sound and gray when there is no signal or in mute mode.

Can I mount the PLAYER ONE in a rack?

Yes, it requires the optional 1UHRMKIT rack mounting kit. The device occupies half a unit (0.5U) in a 19-inch rack.

USER MANUAL PLAYER ONE Ecler

4.4 Reproduction de streaming audio....16

7.2.6 Store and Forward (rsync) 57

7.2.7 Scripts/LUA....61

7.4.3 Backup, Restore and Firmware (Sauvegarde, Restauration et Firmware)......81

7.4.4 USB/MMC Parameters (paramètres USB/MMC) 83

7.4.5 Register (registre) 86

1. JSON Commands PRODUCT OVERVIEW....97

8.1 Player Commands....97

8.2 Configurations Commands....100

8.3 Preset Commands 101

8.4 Event Commands....101

8.5 Calendar Commands....101

8.6 Store and Forward Commands....101

8.7 Script Commands....102

8.8 Register Commands....102

8.9 Device Commands....102

8.10 Panel Commands....103

9. PLAYER LUA SDK Introduction....104

9.1 PLAYER LUA SDK V1.02....105

9.1.1 Changelist....105

9.2 How to use PLAYER module....105

9.2.1 Conventions....106

9.2.2 Player Functions....106

9.2.3 Config. (CFG) Functions 109

9.2.4 Preset Functions....110

9.2.5 Event Functions....112

9.2.6 Event Variables....112

9.2.7 Calendar (CAL) Functions....113

9.2.8 Store and Forward (SAF) Functions....114

9.2.9 Register (LOG) Functions....114

9.2.10 Device (DEV) Functions....115

9.2.11 Panel Functions....117

9.2.12 Finder Functions....117

9.2.13 LCD Functions....118

1. PRÉCAUTIONS

1.1 REMARQUE IMPORTANTE

WARNING: SHOCK HAZARD - DO NOT OPEN

AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

	I	N	D	E	X			1		T	O	T	A	L
	0	0	1	7				1		0	0	6	4

4.4.1 REPRODUCTION DE STREAMING PAR AIRPLAY

DIGITAL ENGINE
Processor	MIPS Single Core 64bits 580MHz
AUDIO CONVERTERS
Sampling rate	48kHz
Resolution	16bit
Bit rate	32~320kbps
Frequency response	5Hz - 24kHz (-3dB)
MEDIA PLAYER
Audio sources	Local storage (USB & microSD), Internet radio, AirPlay, DLNA
Dynamic range	From -80 dB to 0 dB
THD + Noise	< 0.008% (1kHz, 1Vrms)
ANALOGUE AUDIO OUTPUTS
Number of outputs	2 x Stereo output (unbalanced)
Connection type	RCA estéreo, minijack 3,5mm
Max output level	6dBV / 5k ohm
Output impedance	460 ohm
Dynamic range	TBC
Crosstalk	TBC
CONNECTIVITY
Ethernet	RJ-45 10/100Mbps
Wi-Fi	2.4GHz Wi-Fi, 802.11 b/g/n
Wi-Fi antenna	Front panel
Programming and control	Web Application, RePLAYER & Gallery.Third party integration: JSON
REMOTE CONTROL CONNECTIONS
GPIs	2 ports, Dry contact to ground, 3 pin Terminal block

REAL-TIME CLOCK

Retention time	240 hours aprox.
Accuracy	±1 minute / month
MONITORING AND CONTROL
Display	LCD Alphanumeric 2x16 cells
LED indicators	Front panel: NET, SP, SD, PowerRear panel: Wifi
Buttons	Front panel: Encoder, Enter, Esc, Play/pause, Next, Prev, StopRear panel: Factoty Defaults / Fail Safe (pin-hole)
LOCAL STORAGE
Micro SD	Front panel micro SD slotSupports micro SD SDXC
USB	Front panel USB female connectorSupport USB 2.0 High Speed (480 Mbps)
Capacity	Up to 2TB
File system	Supports FAT16, FAT 32, VFAT and NTFS (read-only)Multi-partition up to 1
Playable audio files	mp3, ogg, WAV, FLAC, AIFF, m3u, pls
Files analysis	65354 playable folders65354 playable folders within each folder65354 playable files within each folder
Folder hierarchy	Up to 8 containing the root directory
Sorting	UNICODEUp to 100 folders, 100 files by folder(Folders/files over 100 sorted in the FAT order)
ELECTRICAL
Power supply	External, universal, 5VDC (included)
AC mains requirement	90-264VCA 50-60Hz
AC mains connector	International AC plugs set
Power consumption	6 VA / 3 W
Ventilation	Passive

PHYSICAL

Operating temperature	Min 0°C, +32°FMax +35°C, +95°F
Operating humidity	< 85% HR
Storage temperature	Min -10°C, +14°FMax +50°C, +122°F
Storage humidity	< 90% HR
Installation options	Desktop, rack (1/2 of 1UR)
Included accessories	AD/DC Power Supply, WiFi antenna, adhesive rubber feet, rack tray screws, GPI connector, warranty card and standard user guide
Optional accessories	1UHRMKIT
Dimensions (W x H x D)	198.5 x 44 x 132 mm / 7.81" x 1.73" x 5.19"
Weight	0.8 Kg / 1.76 lb
Shipping dimensions (W x H x D)	220 x 60 x 450 mm / 8.66" x 2.36" x 17.71"
Shipping weight	1 Kg / 2.20 lb

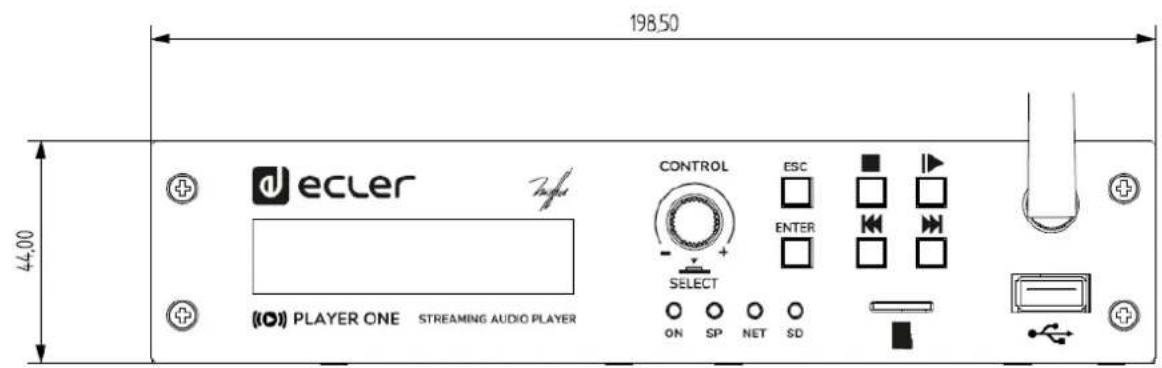

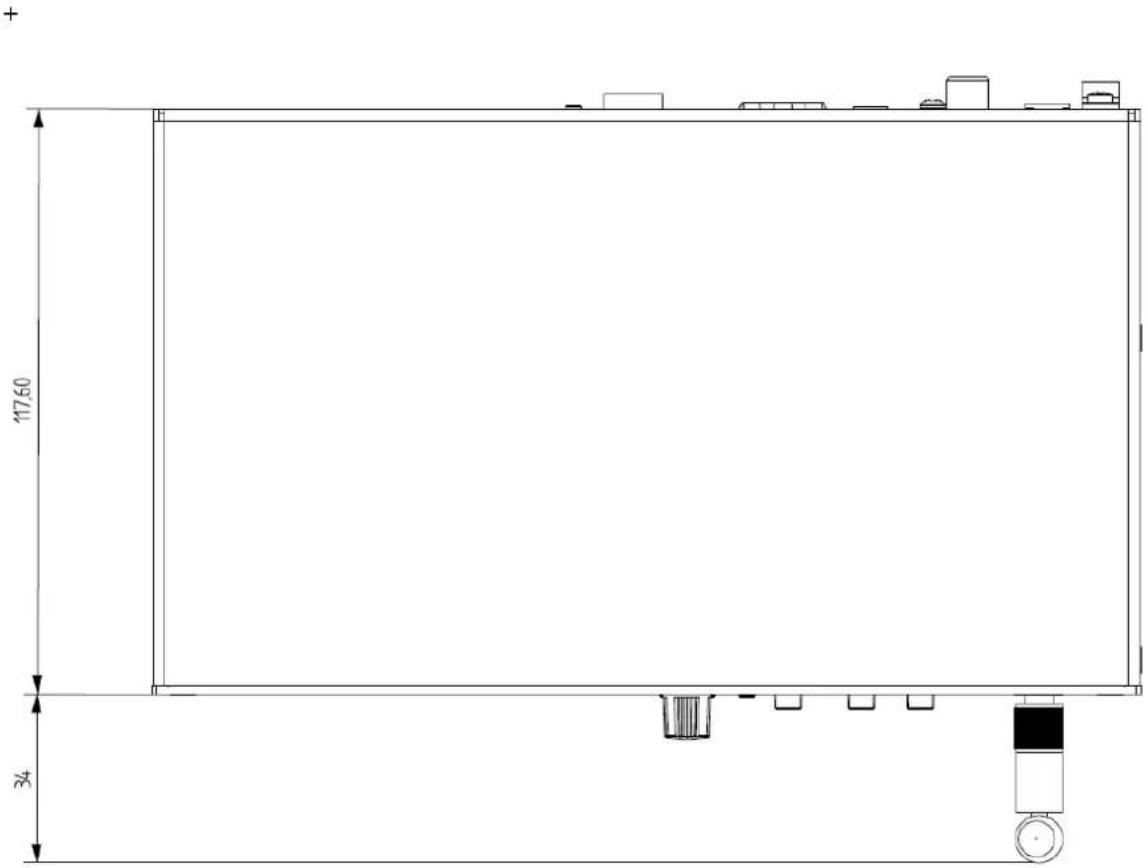

6.2 SCHEMA MECANIQUE

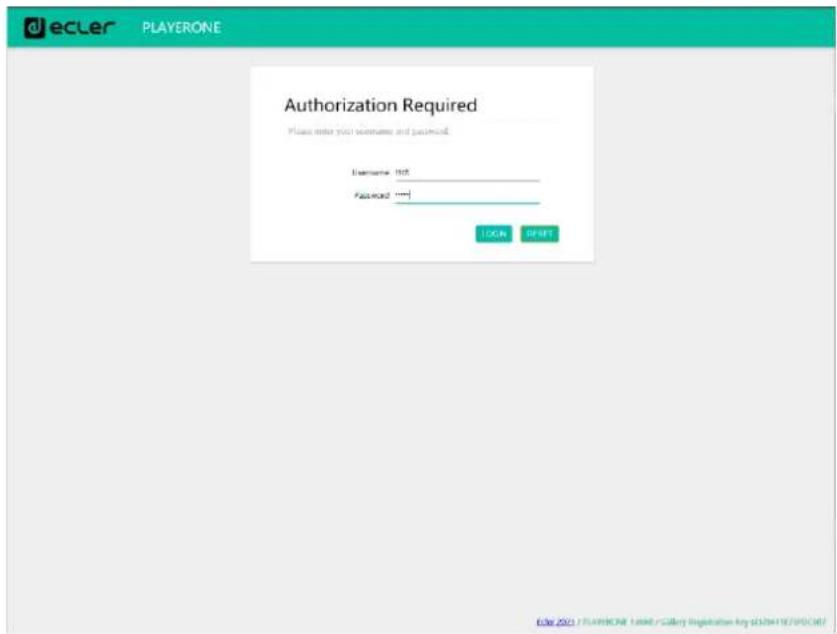

PLAYER ONE et PLAYER ZERO – Interface graphique Web (v1.00r0)

LECTEURS AUDIO

• Username:root
• Password : ecler

Simple geometric lines forming a V-shape (no text or symbols)

FADE

OFF

Figure 19 : configuration de GPI, Source

1. Source : source

Figure 20 : configuration de GPI, Target (cible)

7.2.4.4 TARGET (CIBLE)

Figure 31

Figure 32

Figure 37

Figure 44 : module Store & Forward

Figure 45: Store and Forward, onglet General

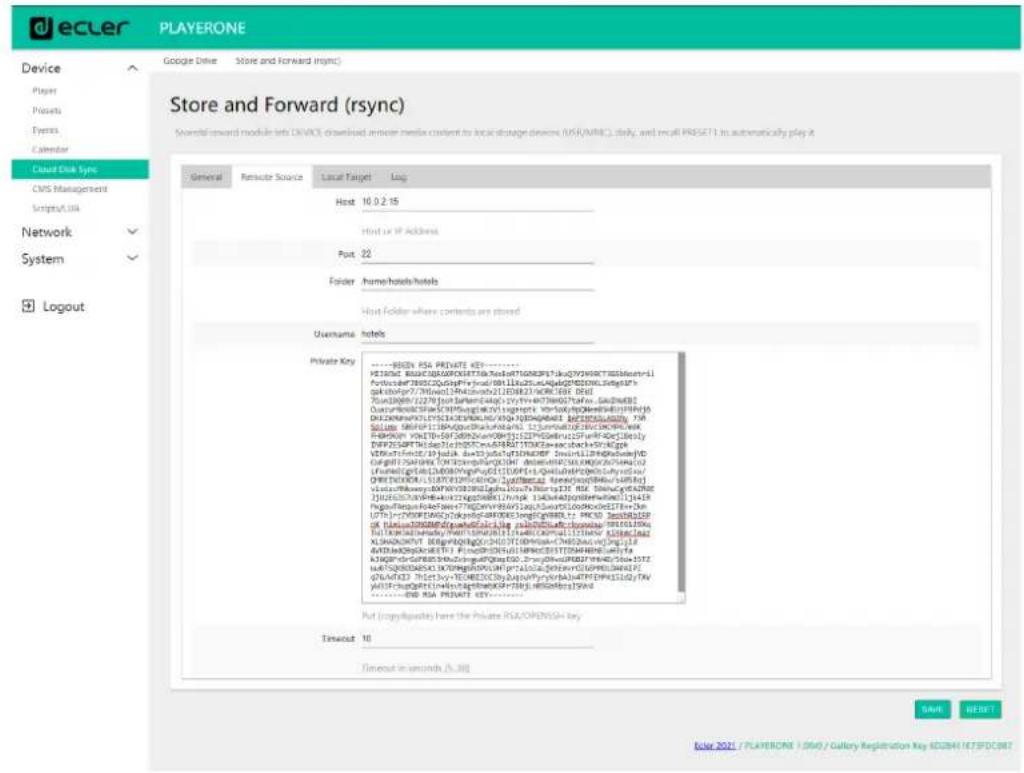

7.2.6.2 REMOTE SOURCE (SOURCE DISTANTE)

Figure 46 : Store and Forward, onglet Remote source

Figure 47: Store and Forward, onglet Local target

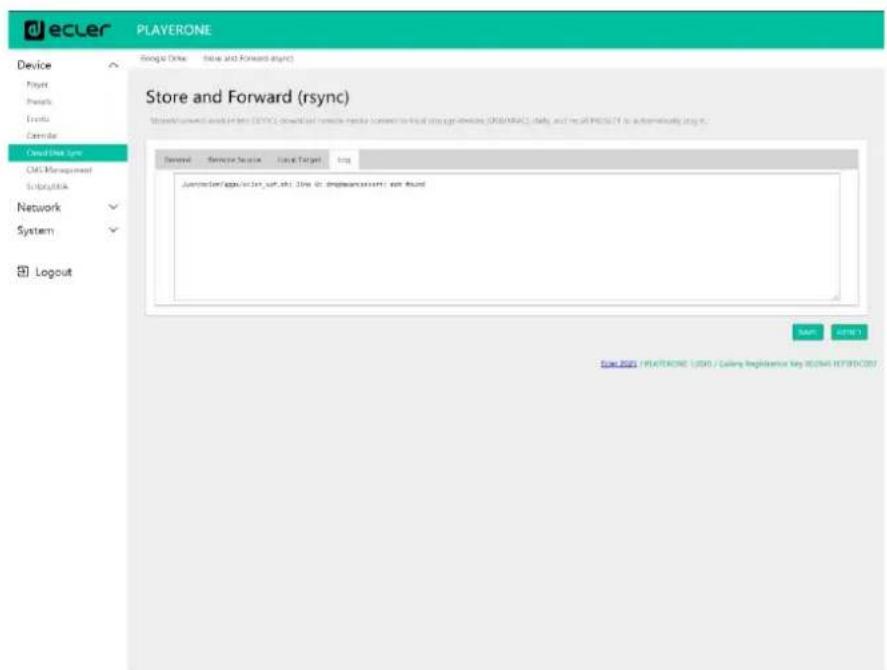

7.2.6.4 LOG (JOURNAL)

Figure 48: Store and Forward, onglet Log

Clicking the 'Start' button executes the script once (to test it).

Script Output Returned value: 0

Figure 53

• require "PLAYER"
• ep = PLAYER.new()
• ep.LCD_print2({line1="Hello",line2="Ecler",center="true",timeout=10})

7.2.7.2 EXAMPLE DE SCRIPT 2

Figure 54

• require "PLAYER"
• ep = PLAYER.new()
  • ep.PLAYER_open{url="mmc://"}

7.2.7.3 EXAMPLE DE SCRIPT 3

Figure 55

• require "PLAYER"
• ep = PLAYER.new()
  • function blink(text1, text2, nTimes)
  • for blink=1,nTimes,1 do
  ■ sleep(0.5)
• sleep(0.5)

ep.LCD_print2({line1=text1, line2=text2, center="true"})
ep.LCD_print2({line1=" ", line2=" ", center="true"})

• end

• end
- blink("NO", "Internet", 5)
- ep.PLAYER_open({preset=1})

7.2.7.4 EXAMPLE DE SCRIPT 4

Figure 44

• require "PLAYER"
• ep = PLAYER.new()
  • ep.PLAYER_open({preset=2})

7.3 NETWORK (RÉSEAU)

Figure 58

Figure 62

Figure 63 : configuration de l'interface Wi-Fi

Figure 69

Figure 70

Figure 72: Name and Time, onglet General settings

7.4.1.1 GENERAL SETTINGS (RÉGLAGES GÉNÉRAUX)

Figure 75

Figure 76

7.4.3 BACKUP, RESTORE AND FIRMWARE (SAUVEGARDE, RESTAURATION ET FIRMWARE)

Figure 77 : System, page Backup, Restore and Firmware (Sauvegarde, restauration et firmware)

7.4.3.1 FAIRE DES SAUVEGARDES

Backup

Figure 81: Firmware

Figure 83 : USB/MMC parameters (paramètres USB/MMC)

Figure 85: Reboot

7.5 CONFIGURATION DU SERVEUR SSH POUR STORE AND FORWARD (RSYNC)

Figure 90

7.5.4 GÉNÉRATION DE CLÉS SSH

Figure 91

cat .ssh/id_rsa.pub >> .ssh/authorized_keys

Figure 93

8. JSON Commands PRODUCT OVERVIEW

JSON (JavaScript Object Notation) is a lightweight data-interchange format that allows PLAYER ONE to communicate with third-party devices and platforms, such as EclerNet Manager. JSON is a text format that is completely language independent but uses conventions that are familiar to programmers of the C-family of languages. Visit the official website for more information: https://www.json.org.

• The communication with can be established using Ethernet or WiFi and the TCP/IP transport protocol, always by means of the 2003 TCP port.
• To check IP address, hold ENTER button for 2-3 seconds to enter admin menu.
• To let some control systems (like CRESTRON®, EXTRON®, AMX®, RTI®, VITY®, MEDIALON®, etc.) process the messages more easily, PLAYER ONE allows to the end of each message with a CR (\n) -line feed, character 10-.
• All commands answer {"result":true} (success) or {"result":false} (something failed)

8.1 PLAYER COMMANDS

SET PLAYER STEREO/MONO

Mono mode
{"jsonrpc":"2.0","method":"Player.Stereo","Stereo":false}
Stereo mode
{"jsonrpc":"2.0","method":"Player.Stereo","Stereo":true}

SET PLAYER FADE

No fade
{"jsonrpc":"2.0","method":"Player.Fade","Fade":0}
Cross Fade
{"jsonrpc":"2.0","method":"Player.Fade","Fade":1}
Fade
{"jsonrpc":"2.0","method":"Player.Fade","Fade":2}

SET PLAYER MODE

Player mode Sequential
{"jsonrpc":"2.0","method":"Player.Mode","PlayMode":0}
Player mode Random
{"jsonrpc":"2.0","method":"Player.Mode","PlayMode":1}

SET PLAYER REPEAT

Play all
{"jsonrpc":"2.0","method":"Player.Repeat","Repeat":0}
Play one
{"jsonrpc":"2.0","method":"Player.Repeat","Repeat":1}

Repeat all
{"jsonrpc":"2.0","method":"Player.Repeat","Repeat":2}
Repeat one
{"jsonrpc":"2.0","method":"Player.Repeat","Repeat":3}

GET SHORT PLAYER INFORMATION

{"jsonrpc":"2.0","method":"Player.GetStats"}
{"title":"Brian Hyland - Sealed With a Kiss","counter":"19:30","txtSource":"NET","status":1}

GET FULL PLAYER INFORMATION

{"jsonrpc":"2.0","method":"Player.GetStatsEx"}
{"title":"Elvis Presley -
Judy","counter":"07:02","txtSource":"NET","status":1,"SourceList":
[ "", "MMC", "USB UNAVAILABLE", "DLNA", "AIRPLAY", "JVL
PLAYLIST", "MUSICUP"], "source":6,"preset":1,"volume":100,"txtVolume":"0dB",
"stereo":1,"repeat":
2,"playmode":0,"fade":1,"bootpreset1":0,"sp":1,"bitrate":"128","duration":
"--:--","freq":"44.1","playlist_index":" 0006 / 0056"}

PLAYER ADD NEXT PLAYLIST ITEM

With this function user can manage device playlist simply inserting next item before the end of current item.
set next item to "next_item.mp3"
{"jsonrpc":"2.0","method":"Player.QueueNextElem","url":"mmc://next_item.mp3"}

PLAYER INSERT PRIORITY ITEM

With this function user can insert a priority item that will be played "over" the actual playing item. Current playing item will be fade.
set next item to "priority_item.mp3"
{"jsonrpc":"2.0","method":"Player.PrioritySetElem","url":"usb://priority_item.mp3"}

PLAYER PLAY

If the player is paused or stopped use this function to start current loaded item reproduction, otherwise the player is paused.
{"jsonrpc":"2.0","method":"Player.Play"}

PLAYER STOP

{"jsonrpc":"2.0","method":"Player.Stop"}

PLAYER NEXT

{"jsonrpc":"2.0","method":"Player.Next"}

PLAYER PREVIOUS

{"jsonrpc":"2.0","method":"Player.Prev"}

INCREMENT VOLUME

Increment volume just one dB

{"jsonrpc":"2.0","method":"Player.Volume","Action":"inc"}

DECREMENT VOLUME

Decrement volume just one dB

{"jsonrpc":"2.0","method":"Player.Volume","Action":"dec"}

SET VOLUME

Param volume is expressed in %. To set volume to 50% use next command.

{"jsonrpc":"2.0","method":"Player.Volume","Volume":50}

OPEN PLAYLIST URL

Url param must be any valid device url.

{"jsonrpc":"2.0","method":"Player.Open","Url":"http://50.7.181.186:8060"}

OPEN PRESET INDEX 10

Preset param must be a valid preset index 1 to 20

{"jsonrpc":"2.0","method":"Player.Open","Preset":10}

OPEN SOURCE INDEX 4 AIRPLAY (FROM AVAILABLE SOURCES LIST)

Source must be a valid player source index. Please check "Get of list available sources" to know all valid sources.

{"jsonrpc":"2.0","method":"Player.Open","Source":4}

GET LIST OF AVAILABLE SOURCES

This command returns the list of available sources.

{"jsonrpc":"2.0","method":"Source.GetList"}

{"SourceList": ["", "MMC", "USB UNAVAILABLE", "DLNA", "AIRPLAY", "ROCK

80s", "DISCO

80s"]}

8.2 CONFIGURATIONS COMMANDS

RESET DEVICE SETTINGS

Restore device factory default settings. All your settings will be lost. {"jsonrpc":"2.0","method":"Settings.Reset"}

RESTORE DEVICE SETTINGS FROM URL

Restore device settings to values in url file. {"jsonrpc":"2.0","method":"Settings.Restore","url":"http://ecler.com/my_player_config.config"}

BACKUP CURRENT DEVICE CONFIGURATION

Backup device settings to url. Available configurations: user, admin or gallery. {"jsonrpc":"2.0","method":"Settings.Backup","url":"mmc://backups/gim.config","user":"admin"}

GETTING DEVICE VARIABLE VALUE

This function returns a device variable value. Please check the Player LUA manual in order to check all the interface.settings.variable values.

In order to retrieve preset01.settings.bname (preset name) user should send next command to the PLAYER ONE:

{"jsonrpc":"2.0","method":"CFG.get","interface":"preset01","section":"settings","variable":"bname"} {"value":"AFTERNOON PRESET"}

SETTING DEVICE VARIABLE VALUE

This function set a device variable value. Please check the Player LUA manual in order to check all the interface.settings.variable values.

In order to set preset01.settings.bname (preset name) user should send next command to the PLAYER ONE:

{"jsonrpc":"2.0","method":"CFG.set","interface":"preset01","section":"settings","variable":"bname","value":"MIDNIGHT PRESET"}

STORE CHANGES IN DEVICE INTERNAL MEMORY

This function stores all interface variables to the internal device memory. Should be called after set all the changes. PLAYER ONE must reload the data using reload functions. {"jsonrpc":"2.0","method":"CFG.commit","interface":"preset01"}

8.3 PRESET COMMANDS

Preset variables for GFG.get and CFG.set. Please check Player LUA manual._Preset variables.

RELOAD PRESET

Reload indicated preset index. Index should be a valid preset index 1..20. Must be called after modifying preset variables and call commit command

{"jsonrpc":"2.0","method":"Preset.Reload","Index":1}

8.4 EVENT COMMANDS

Event variables for GFG.get and CFG.set. Please check Player LUA manual. Event variables.

RELOAD EVENT

Reload indicated event. Name should be: GPI1, GPI2 or SILENCE. Must be called after modifying event variables and call commit command.

{"jsonrpc":"2.0","method":"Event Reload","Name":"GPI1"}

8.5 CALENDAR COMMANDS

Calendar variables for GFG.get and CFG.set. Please check Player LUA manual. Preset variables

RELOAD CALENDAR

Reload indicated calendar. Calendar index should be a number 1..24. Must be called after modifying calendar variables and call commit command. Reload calendar 24 example:

{"jsonrpc":"2.0","method":"Calendar Reload","Index":24}

8.6 STORE AND FORWARD COMMANDS

SAF variables for GFG.get and CFG.set. Please check Player LUA manual. SAF variables

RELOAD SAF

Reload SAF configuration. Must be called after modifying SAF variables and call commit command.

{"jsonrpc":"2.0","method":"SAF Reload"}

8.7 SCRIPT COMMANDS

Script variables for GFG.get and CFG.set. Please check Player LUA manual. Script variables.

RELOAD SCRIPT

Reload script configuration. Index should be script index 1 to 20. Must be called after modifying Script variables and call commit command. Reload script 7 example: {"jsonrpc":"2.0","method":"Script Reload","Index":7}

EXECUTE SCRIPT 6

{"jsonrpc":"2.0","method":"Script.Command","Index":6,"Command":"Start"}

KILL SCRIPT 3

{"jsonrpc":"2.0","method":"Script.Command","Index":3,"Command":"Stop"}

QUERY SCRIPT 11 STATUS

{"jsonrpc":"2.0","method":"Script.Status","Index":11}
{"status":"Idle"}

8.8 REGISTER COMMANDS

ADD REGISTER LINE

Add line to device LOG. Possible line values are: Trace, Warning, Error.

Add a warning line example:

{"jsonrpc":"2.0","method":"Device.Log","Severity":"Trace","Message":"This is a warning message"}

8.9 DEVICE COMMANDS

DEVICE REBOOT

{"jsonrpc":"2.0","method":"Device.Reboot"}

GET DEVICE VERSION

{"jsonrpc":"2.0","method":"Device.GetVersion"}
{"version":"3.04r0"}

DEVICE UPDATE FIRMWARE

With this function user could update device firmware to an specific version. User must provide firmware url. Device setting will be saved.

{"jsonrpc":"2.0","method":"Device.Update","url":"https://www.ecler.com/new_firmware.bin"}

DEVICE BOOT CONFIG COMMAND

Available BootPreset1 options are: 1 - PRESET1, 2 - keep status {"jsonrpc":"2.0","method":"Device.BootPreset1","BootPreset1":2}

DEVICE GET MAC

{"jsonrpc":"2.0","method":"Device.GetMac"}
{"mac":"32 41 41 20 40 42"}

DEVICE GET GALLERY REGISTRATION KEY

{"jsonrpc":"2.0","method":"Device.GetRegkey"}
{"regkey":"2E1BB146B2DB2WA1"}

8.10 PANEL COMMANDS

PANEL SET LOCK SETTINGS

Set panel Lock to "UNLOCK ALL" "UNLOCK USER" "LOCK ALL". Set panel password to Pass.
{"jsonrpc":"2.0","method":"Device.Panel","Lock":"LOCK ALL","Pass":"1234"}

PANEL GET LOCK SETTINGS

{"jsonrpc":"2.0","method":"Device.GetPanel"}
{"Lock":"UNLOCK ALL","Pass":""}

FINDER COMMANDS

Start/stop finder operation
{"jsonrpc":"2.0","method":"Device.Finder","Finder":true}

LCD FUNCTIONS

Print text on device frontal display. Two lines are available and aligned centre if Centre variable is true. Is possible to specify the display timeout in seconds.
{"jsonrpc":"2.0","method":"Device.Print","Line1":"Hi","Line2":"Bye","Center":true,"Timeout":3}

9. PLAYER LUA SDK Introduction

PLAYER is a Lua extension library that acts as interface between LUA and PLAYER firmware using the well-known PLAYER JSON protocol.

Basically is composed by different kind of objects:

• PLAYER – access player functions
• CFG – access configuration. With this object you can access all the PLAYER configuration.
• PRESET – PRESET settings. There are 20 presets that act as memories where you can store all the PLAYER player settings like url, play mode, repeat mode, fade mode, etc.
• EVENT – Event configuration lets PLAYER execute automated functions. There are 3 possibilities GPI1, GPI2 and SILENCE settings.
• CAL – Calendar configuration lets PLAYER execute automated functions on date event. There are up to 24 different calendar.
  • SAF – Store and Forward settings
• SCRIPT – Manage PLAYER scripts. Is possible to execute scripts based on different kind of triggers like BOOT, EVENT, LOAD PRESET, CALENDAR, NETWORK, etc.
• LOG – Register functions that allows the user to write to the PLAYER internal REGISTER
• DEV – Device status and other setups (like install new firmwares)
• PANEL – Panel lock mode settings and status
• FINDER – use FINDER settings to discover your PLAYER.
  • LCD – Allow access to PLAYER LCD display

9.1 PLAYER LUA SDK V1.02

9.1.1 CHANGELIST

• v1.02 - xxxx/xx/xx

√ Added DEV_reboot function
√ Added CFG_backup2 function with type parameter: user, admin and gallery
√ Bug fix CFG_backup was calling to Device.Backup instead Settings.Backup
√ Typo, Calendar general_enabled changed to bEnabled
√ Typo, Scripts enabled change to bEnabled

• v1.01 - 2018/03/14

√ Added DEV_mac function
√ Added DEV_regkey function

• v1.00 - 2018/02/08

√ First version of the document also named "Preliminary version"

9.2 HOW TO USE PLAYER MODULE

In order to use PLAYER module you must include it in your source code using require statement. PLAYER automates this function for you, but you can also include PLAYER module manually and create your PLAYER object as you need using the next two lines of code:

require "PLAYER"
mydev = PLAYER.new()

In this case you can program actions directly to your PLAYER device, but also it is possible to access PLAYER directly from your PC (in this case it is recommended to use some LUA development tool like Eclipse/LUA)

If you want to use PLAYER directly from your PC you can call "new" function with IP and PORT parameters as shown next:

require "PLAYER"
mydev = PLAYER.new("10.120.120.4", 2003)

Where 10.120.120.4 is the PLAYER IP address, that you can check by pressing ENTER button for 10 seconds and going to WIFI or ETHERNET menu. 2003 is the JSON port.

One time PLAYER object is created is possible to access all functions in it.

Let see what you can do.

9.2.1 CONVENTIONS

• n indicates number
• b indicates Boolean
- txt indicates text

9.2.2 PLAYER FUNCTIONS

Access player functions like repeat, fade, etc.

Functions

Function:

PLAYER stereo(bStereo)

Description:

Set the player output mode to stereo or mono

Parameters:

bStereo - boolean, set to true for stereo output, otherwise mono output is selected

Function:

PLAYER_fade(nFade)

Description:

Set the player fade mode

Arguments:

nFade - integer 0-OFF, 1-XFADE, 2-FADE

Function:

PLAYER_mode(nPlayMode)

Description:

Set the player playlist sequence mode

Arguments:

nPlayMode - integer 0-SEQUENTIAL, 1-RANDOM

Function:

PLAYER_repeat(nRepeat)

Description:

Set the player repeat mode

Arguments:

nRepeat - integer 0-PLAY ALL, 1-PLAY ONE, 2-REPEAT ALL, 3-REPEAT ONE

Function:

PLAYER_getStats()

Description:

Get the player statistics and status

Return:

String - xml string containing all the player status

In the next example you could see how to obtain the player stats and how to parse it using cjson library.

require "PLAYER"

ep=PLAYER.new()
json_text=ep.PLAYER_getStats()
print(json_text)
cjson=require "cjson"
value=cjson.decode(json_text)
print("SourceList[3]=" ..

output

{"title":"The White Stripes - Seven Nation Army","counter":"52:52","txtSource":"NET","status":1,"SourceList": ["","MMC","USB","DLNA","AIRPLAY","rock alternativo"], "source":5,"preset":1,"volume":100,"txtVolume":"0dB","stereo":1,"repeat":2,"playmode":0,"fade":1,"bootpreset1":0,"sp":1,"bitrate":"192","duration":"--:--","freq":"44.1","playlist_index":"0001/0001","playlist_url":"mmc://radiobob-alternativerock-mp3-hq? sABC=5n6s2sr8%230%23no8617362n29q2o435p17n54928n16s5%23gharva&amsparams=playerid:tune in;skey:15 17236200","priority":""} SourceList[3]=USB

Function:

PLAYER_queue(urlNextElem)
Description:
Add next playlist item. Using this function you can compose your own playlist. In order to do a continuous play it is necessary to queue next item prior to the end of the current one.
Arguments:
urlNextElem – url of the item to add

Function:

PLAYER_priority(urlElemePriority)

Description:
Use this function to play priority sounds over the normal playlist. It apply
Return:
String – url of the priority element

Function:

PLAYER_play()
Description:
If the player is paused or stopped use this function to start current loaded item reproduction, otherwise the player is paused.

Function:

PLAYER_stop()
Description:
Use this function to stop the current player reproduction.

Function:

PLAYER_next()
Description:
Use this function to advance to the next item. It retains the play state after advance is done.
Function:
PLAYER_previous()

Description:

Use this function to move back to the previous item. It retains the play state.

Function:

PLAYER_incvol = function()

Description:

Use this function to increase the player volume 3dB.

Function:

PLAYER_decol = function()

Description:

Use this function to decrease the player volume 3dB.

Function:

PLAYER_setvol = function(perc)

Description:

Use this function to set the current player volume

Arguments:

nVolume - integer 0 to 100

Function:

PLAYER_setvol = function(perc)

Description:

Call this function to set the mute player parameter.

Arguments:

bMute - boolean set to true to mute the player, otherwise unmute the player.

Function:

PLAYER_open = function(options)

Description:

Call this function to open/load a preset or source or url

Arguments:

url (optional) — String of the url you want to open e.g. mmc://my-music/ http://my.server/music-mp3 preset (optional) – integer from 1 to 20. Indicates the preset you want to open source (optional) – integer from 1 to 24 representing MMC, USB, DLNA, AIRPLAY and presets from PRESET1 to PRESET 20 (preset must be configured properly)

How to load "PRESET 12"?

require "PLAYER"
ep = PLAYER.new()
ep.PLAYER_open({preset=12})

How to load url "http://my.server/music-mp3"?

require "PLAYER"
ep = PLAYER.new()
ep.PLAYER_open({url="http://my.server/music-mp3"})

How to load source "AIRPLAY"?

require "PLAYER"
ep = PLAYER.new()
ep.PLAYER_open({source=4})

*note the {} around the parameter which indicates optional arguments

9.2.3 CONFIG. (CFG) FUNCTIONS

Set and get PLAYER parameters: PRESET, SAF, CAL, EVENT, SCRIPT and LOG. Please refer to the corresponding section to check how to set/get each parameter.

Functions

Function:

CFG reset()

Description:

Restore PLAYER configuration to its initial state (factory defaults). Please note that using this function you will lost all your changes.

Function:

urlRestore – String indicating the url where settings you want to restore

Note:

If you want to apply all settings you must call DEV_reboot or call every XXX_reload function to apply changes one per one.

Function:

CFG_backup(urlBackup, bUser)

Description:

Backups PLAYER settings to urlBackup.

Arguments:

urlBackup – String indicating the url where settings are stored e.g. mmc://good-settings.config http://my.server/PLAYER/mycompany.settings bUser – Boolean set to true for user settings only, otherwise all the settings are backuped to the target destination

Function:

CFG_backup2(urlBackup, type)

Description:

Backups PLAYER settings to urlBackup.

Arguments:

urlBackup – String indicating the url where settings are stored e.g. mmc://good-settings.config http://my.server/PLAYER/mycompany.settings type – String available possibilities are: user, admin and gallery. Select gallery for Player, Events, Scripts, Player Profile and Network settings. Select user for Player, Presets, Events, Calendar, Cloud Disk and Scripts. Select Admin for all the available settings.

Function:

CFG_get = function(interface, section, variable)

Description:

Return the value of the selected variable "interface.section.variable"

Arguments:

interface – must be a valid interface: preset, saf, calendar(01..24), event (gpi1,gpi2, silence), script and log. section – variable's section. Most of the cases is "settings" variable – variable's name.

Return:

String with the variable value.

Function:

CFG_set = function(interface, section, variable, value)

Description:

Set the value of the selected variable "interface.section.variable" to "value"

Arguments:

interface – must be a valid interface: preset, saf, calendar(01..24), event (gpi1,gpi2, silence),

script and log.

section – variable's section. Most of the cases is "settings"

variable – variable's name.

value - variable's value.

Function:

CFG_commit = function(interface)

Description:

Commit interface changes. After changes all variables in one interface it's necessary to dump changes to PLAYER internal memory. Do it one time for each modified interface.

Arguments:

interface – must be a valid interface: network, wireless, preset, saf, calendar(01..24), event (gpi1, gpi2, silence), script and log.

9.2.4 PRESET FUNCTIONS

Set and get PLAYER PRESET parameters. There are 20 presets available. Each preset can configure: name, events enabled, playlist, media alias, play status, volume, mute, play mode, repeat mode, fade mode, stereo/mono.

Functions

Function:

PRESET_reload(index)

Description:

Reload preset configuration. Call it after modify the preset configuration using CFG_set and CFG_commit

Arguments:

index – number indicating the preset number (from 1 to 20)

9.2.4.1 PRESET VARIABLES

presetNN.settings.bname Preset name
presetNN.settings.eventList	List of enabled events separated by % (GPI1%GPI2%SILENCE)
presetNN.settings.bPlaylist	1 to overwrite playlist
presetNN.settings.loadPlaylist	url of the playlist. Must be enabled using presetNN.settings.bPlaylist
presetNN.settings.mediaAlias	Alias of the enabled playlist. It appears as source
presetNN.settings.bStatus	1 to overwrite status
presetNN.settings.status Preset status must be PLAY or STOP
presetNN.settings.bVolume 1 to overwrite preset volume
presetNN.settings.volume	Preset volume in % (from 0 to 100)
presetNN.settings.mute 1 indicates mute, 0 to unmute
presetNN.settings.bPlayMode	1 to overwrite play mode
presetNN.settings.playMode RANDOM or SEQUENTIAL
presetNN.settings.bRepeatMode 1 to overwrite repeat mode
presetNN.settings.repeatMode	PLAY ALL, PLAY ONE, REPEAT ALL or REPEAT ONE
presetNN.settings.bFadeMode	1 to overwrite fade mode
presetNN.settings.fadeMode	OFF, XFADE or FADE
presetNN.settings.bStereo	1 to overwrite stero/mono mode
presetNN.settings.stereo	MONO or STEREO

• All variables are optional.
• NN indicates a number 01 to 20

require "PLAYER"
ep = PLAYER.new()

epCFG_set("preset03", "settings", "bname", "My first preset")
epCFG_set("preset03", "settings", "bPlaylist", 1)
epCFG_set("preset03", "settings", "mediaAlias", "Alias of my first preset")
epCFG_set("preset03", "settings", "bVolume", 1)
epCFG_set("preset03", "settings", "volume", 100)
epCFG_set("preset03", "settings", "loadPlaylist", "mmc://")
epCFG_set("preset03", "settings", "eventList", "GPI1%SILENCE")
epCFG_commit("preset03")

ep.PRESET_reload(3)

9.2.4.2 PRESET EXAMPLES

At this moment you can load the configured preset with this instruction:

ep.PLAYER_open({preset=3})

9.2.5 EVENT FUNCTIONS

Event functions lets PLAYER execute automated functions. There are 3 possibilities GPI1, GPI2 and SILENCE settings.

Functions

Function:

EVENT_reload(txtEvent)

Description:

Reload event configuration. Call it after modify the preset configuration using CFG_set and CFG_commit

Arguments:

txtEvent – String indicating the event to reload (GPI1, GPI2 or SILENCE)

9.2.6 EVENT VARIABLES

When programmaing GPI1 or GPI2 these variables are available

gpiN.settings.source_polarity	Event polarity DIRECT or REVERSE
gpiN.settings.target_type	INTERNAL, PRESET RECALL, TRANSPORT CONTROL, LOAD & PLAY SOURCE or PRIORITY SOURCE
gpiN.settings.target_preset	If target_type=PRESET RECALL put here the preset number 1 to 20
gpiN.settings.target_transport	If target_type=TRANSPORT CONTROL enter here one of this options: STOP, PLAY, PREV/RW, NEXT/FW
gpiN.settings.target_loadsource	if target_type=LOAD & PLAY SOURCE or target=PRIORITY SOURCE put here the url you want to load and play
gpiN.settings.target_priomode	If target_type=PRIORITY SOURCE enter here the priority mode. Choose between HOLD or PULSE
gpiN.settings.target_prio_retrigger	If target_priomode=PULSE set to 1 to active retrigger option. 0 to disable it
gpiN.settings.target_prio_pulse_time	If target_prio_retrigger=1 put here the playback duration

N should be 1 or 2 (for GPI1 or GPI2)

While programming SILENCE these variables are available

silence.settings.source_detecttime	Put here the detection time in seconds
silence.settings.target_type	INTERNAL, PRESET RECALL, LOAD & PLAY SOURCE
silence.settings.target_preset	If target_type=PRESET RECALL put here the preset number 1 to 20
silence.settings.target_loadsource	if target_type=LOAD & PLAY SOURCE or target=PRIORITY SOURCE put here the url you want to load and play

9.2.7 CALENDAR (CAL) FUNCTIONS

Calendar functions lets PLAYER execute automated functions on a date/time. There are 24 different calendar events available.

Functions

Function:

CAL_reload(nIndex)

Description:

Reload calendar configuration. Call it after modify the calendar configuration using

CFG set and CFG commit

Arguments:

nIndex – number indicating the calendar to reload (1 to 24)

9.2.7.1 CALENDAR VARIABLES

calendarNN.settings.general_description	Calendar name or description
calendar01.settings.bEnabled	Set to 1 to enable this calendar
calendarNN.settings.source_start_date	Start date (YYYY/MM/DD). Could be blank
calendarNN.settings.source_start_time	Start time (HH:MM). Could be blank.
calendar.settings.source_end_enable	Could be FOREVER or CUSTOM END DATE
calendarNN.settings.source_end_date	If CUSTOM END DATE is selected put here the calendar end date (YYYY/MM/DD)
calendarNN.settings.source_end_time	If CUSTOM END DATE is selected put here the calendar end
	time (HH:MM)
calendarNN.settings.source_week_nonactive	Week mask where calendar is not active. Should be a string of days. Each day is represented by his 2 first letters (MoTuWeThFrSaSu)
calendarNN.settings.source_repeat_enable	1 indicates that the calendar must repeat the selected interval time up to the number indicated in times variable. 0 no repetition
calendarNN.settings.source_repeat_interval	If repeat is enabled this parameter indicates the repetition time
calendarNN.settings.source_repeat_times	If repeat is enalbed this parameter indicates the repetition's number
calendarNN.settings.target_type	INTERNAL, PRESET RECALL, TRANSPORT CONTROL, LOAD & PLAY SOURCE or PRIORITY SOURCE
calendarNN.settings.target_preset	If target_type=PRESET RECALL put here the preset number 1 to 20
calendarNN.settings.target_transport	If target_type=TRANSPORT CONTROL enter here one of this options: STOP, PLAY, PREV/RW, NEXT/FW
calendarNN.settings.target_loadsource	if target_type=LOAD & PLAY SOURCE or target=PRIORITY SOURCE put here the url you want to load and play

9.2.8 STORE AND FORWARD (SAF) FUNCTIONS

Store and Forward module let PLAYER download remote media content from a rsync/ssh server to local storage devices (same as PRESET1), daily, and recall PRESET1 to automatically play it.

Functions

Function:

SAF_reload()

Description:

Reload Store and Forward configuration. Call it after modify the Store and Forward configuration using CFG_set and CFG_commit

9.2.8.1 STORE AND FORWARD VARIABLES

saf.settings.bEnabled	Set to 1 to enable daily Store and Forware synchronization
saf.settings.time_param	Enter here the synchronization hour (HH:MM)
saf.settings.host	Put here the rsync/ssh server address
saf.settings.port	Enter here the rync/ssh port (default 22)
saf.settings.source_path	Enter here the server folder where the contents are stored
saf.settings.source_user	SSH/rsync username parameter
saf.settings.source_key	Enter here your private SSH/rsync key
saf.settings.source_timeout	Enter here the SSH/rsync operation timeout (in seconds)

9.2.9 REGISTER (LOG) FUNCTIONS

Register functions that allows the user to write to the PLAYER internal REGISTER

Functions

Function:

LOG_trace(txtLog)

Description:

Add to PLAYER LOG register a trace line

Arguments:

txtLog - String containing the text you want to add. The source of the register line will be equal to "ScriptNN" where NN represents the script calling LOG_trace

Function:

LOG_warning(txtLog)

Description:

Add to PLAYER LOG register a warning line

Arguments:

txtLog – String containing the text you want to add. The source of the register line will be equal to "ScriptNN" where NN represents the script calling LOG_warning

Function:

LOG_error(txtLog)

Description:

Add to PLAYER LOG register a error line

Arguments:

txtLog - String containing the text you want to add. The source of the register line will be equal to "ScriptNN" where NN represents the script calling LOG_error

9.2.10 DEVICE (DEV) FUNCTIONS

Device functions allows the user to setup firmware and general PLAYER configurations.

Functions
Function: DEV_reboot()

Description: Reboot the PLAYER immediately.

Function: txtVersion = DEV_version()

Description: Get the PLAYER firmware version

Return: txtVersion – string containing PLAYER firmware version formatted

Function: DEV_update(urlFirmware)

Description: Installs a new PLAYER firmware version. After installation device is rebooted automatically

Arguments: urlFirmware – Url containing the path where PLAYER firmware resides. Must be a local storage device or http/https url.

Function: total, used, percent = DEV_get(devUrl)

Description: Get the PLAYER firmware version

Arguments: devUrl – url of local storage device. Must be mmc:// or usb Ky

Return: total – number representing total number of bytes of external storage device used – number of bytes representing the used size percent – number parameter representing the used percentage

Example: require "PLAYER" ep=PLAYER.new()

print("usb", ep.DEV_get("usb:/+/"))

total,user,percent=ep.DEV_get("mmc:/") print("mmc", total, user, percent)

usb 7823420 4223365

mmc 15629312 68912 0

Function: DEV_boot(nBoot)

Description: Set device boot mode to nBoot

Arguments: nBoot – number indicating load PRESET1 (bBoot=2) or keep settings (nBoot=1)

Function: bEncrypt = DEV_isEncrypted(devUrl)

Description:

Get local storage encrypted flag

Arguments:

devUrl – string must be mmc:// or usb://

Return:

bEncrypt – boolean, true, if local storage is encrypted

Function:

bEncrypt = DEV_isEncrypted(devUrl)

Description:

Get local storage encrypted flag

Arguments:

devUrl – string must be mmc:// or usb://

Return:

bEncrypt – boolean, true, if local storage is encrypted

Function:

bEncrypt = DEV_mac()

Description:

Get device MAC address

Return:

jsonMAC – json string representing MAC address value

require "PLAYER"
device=PLAYER.new()
w()

{"mac":"A8 40 41 16 47 D6"}

Function:

bEncrypt = DEV_regkey()

Description:

Get device Registration Key code

Return:

jsonMAC – json string representing Registration Key code

require "PLAYER" device=PLAYER.new()
print(device.DEV_regkey())

{"regkey":"A269FCEAB4F1C20B"}

9.2.11 PANEL FUNCTIONS

Panel functions allows the user to setup firmware and general PLAYER configurations.

Functions

Function:
PANEL_set=function(lockMode, password)

Description:
Set the panel lock mode and password

Arguments:
lockMode – string indicating lock mode. Possible options are UNLOCK ALL, UNLOCK USER, LOCK ALL password – string with the LOCK/UNLOCK password. Max length is 8. Valid characters are: 0-9 A-Z

+ -

Function:
lockMode, password = PANEL_get()

Description:
Set the panel lock mode and password

Return:
lockMode – string representing lock mode. Possible values are UNLOCK ALL, UNLOCK USER, LOCK ALL
password – string with the LOCK/UNLOCK password

9.2.12 FINDER FUNCTIONS

Finder functions allows the user to run finder operation on PLAYER.

Functions

Function: FINDER_set(bLigth)

Description:
Start or Stop finder operation. If finder is active, PLAYER display blinks.

Arguments:
bLigth – boolean, set to true to start finder operation (display blink). Set to 0 to stop finder operation (normal state)

9.2.13 LCD FUNCTIONS

LCD functions allows the user to show messages on PLAYER LCD display. The texts are limited to LCD physical dimensions: 2 lines per 16 columns.

Functions

Function:

LCD_print(txtLine1, txtLine2, center, timeout)

Description:

This functions shows a message on the PLAYER LCD display

Arguments:

txtLine1 – String corresponding to the text on the first LCD line txtLine2 – String corresponding to the text on the second LCD line center – Booelan, set to true to center the text on the LCD display
timeout – Number of seconds that message is showed in PLAYER

LCD display Function:

LCD_print2({txtLine1, txtLine2, bCenter, nTimeout})

Description:

This functions shows a message on the PLAYER LCD display. Parameters are optional.

Arguments:

txtLine1 (optional) – String corresponding to the text on the first LCD line txtLine2 (optional) – String corresponding to the text on the second LCD line center (optional) – Booelan, set to true to center the text on the LCD display

nTimeout (optional) – Number of seconds that message is showed in PLAYER LCD display

ecler
