USER MANUAL DCE151 DEWALT

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
(### without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

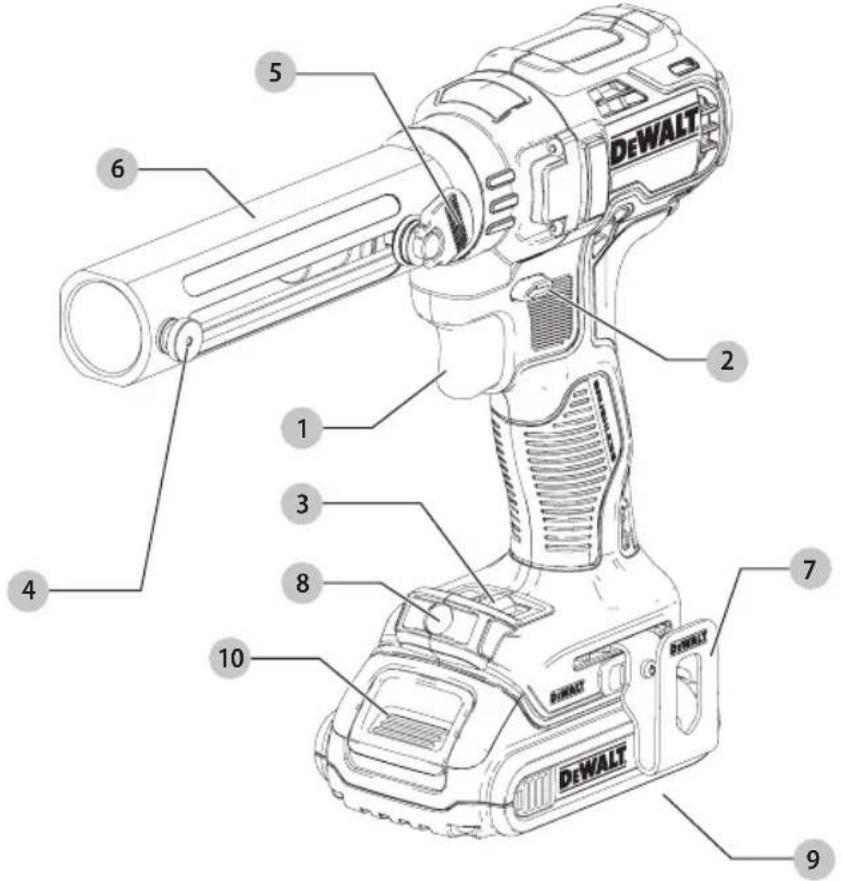

Fig. A

DEWALT 1 2 3 4 5 6 7 8 9 10 DeWALT

1 Trigger
2 Directional button
3 LED worklight switch
4 Retention pin
5 Depth stop tab
6 Stripping barrel
7 Hang hook
8 LED worklight
9 Battery pack
10 Battery release button

WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any DEWALT tool, call us toll free at: 1-800-4-DEWALT (1-800-433-9258).

English

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

3) Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking

English

into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery Tool Use and Care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional Safety Rules for Cable Strippers

DANGER: Before making contact with any cables, ensure that power has been removed from the cable(s). Contacting live cables will result in electric shock / serious injury or even death.

- Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. Careless action can cause severe injury within a fraction of a second.

- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected circumstances.

- NEVER insert fingers into bushing or stripping barrel.

- Keep all body parts away from the stripper mechanism. A moment of inattention while operating power tools may result in serious personal injury. Do not strip short pieces of material that put fingers near the bushing. Blades are sharp.

- DO NOT STRIP LIVE WIRES. Do not operate tool near live wires. This tool is not manufactured to ASTM F1505, or IEC 60900. Always de-energize lines and equipment prior to working on, or around them.

- Secure and support the cable prior to stripping to prevent movement during work. Ensure the stripped-off remnant will not create a hazard after the work.

• Keep a firm grip on the tool at all times. Forces on the tool may change during and after stripping.
• ALWAYS wear ANSI Z87.1 eye protection (CAN/CSA Z94.3). Cutting operations may cause material pieces to fly. Flying particles can cause permanent eye damage.
  • Always wear gloves when handling cable. The ends can be sharp and can cause serious personal injury.
• Inspect tool and bushing before use. Replace any worn or damaged parts. A damaged or improperly assembled tool can break and strike operator or nearby personnel.
  • Always wear safety shoes to protect your feet from sharp metal debris on the floor.
• Connection can only be effective when it is free from defects such as residual jacket or damaged conductor. Proper preparation and installation is the responsibility of the installing contractor.
• The recommended bushings for the various cable types is based off of the cable manufacturer's published cable dimensions. Actual cable dimension may vary. If cable does not strip properly using recommended bushing try a smaller or larger bushing. Refer to Trouble Shooting. User is responsible to ensure cable has been stripped properly.

Additional Safety Information

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust created by power sanding, sanding, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
  • crystalline silica from bricks and cement and other masonry products, and
  • arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection

English

appropriate for the dust exposure. Direct particles away from face and body.

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19)

during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

CAUTION: When not in use, place tool on its side can be stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knocked over.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz......hertz

min......minutes

or DC.....direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

IPM ____ impacts per minute

RPM......revolutionsper minute

sfpm .... surface feet per minute

SPM ...... strokes per minute

A ...... amperes

W......watts

or AC......alternating current

or AC/DC.....alternatingor

direct current

ClassII

Construction

(double insulated)

n_0 .....no load speed n .....rated speed

earthing terminal

safety alert symbol

......visible radiation

......wearrespiratory protection

......weareye

protection

......wearhearing

protection

......readall

documentation

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging procedures outlined. When ordering replacement battery packs, be sure to include the catalog number and voltage. Your tool uses a DEWALT charger. Be sure to read all safety instructions before using your charger. Consult the chart at the end of this manual for compatibility of chargers and battery packs.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings and all instructions for the battery pack, charger and power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

- Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.

- NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries and chargers.

- Charge the battery packs only in designated DEWALT chargers.

- DO NOT splash or immerse in water or other liquids.

- Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104 °F (40 °C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, dry location.

NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ON position.

- Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs are burned.

- If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.

- Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

WARNING: Burn hazard. Battery liquid may be flammable if exposed to spark or flame.

WARNING: Fire hazard. Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center for recycling.

Transportation

WARNING: Fire hazard. Do not store or carry the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the

ENGLISH

like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes in carry-on baggage UNLESS they are properly protected from short circuits. So when transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit.

Shipping the DEWALT FLEXVOLT™ Battery

The DEWALT FLEXVOLT™ battery has two modes: Use and Shipping.

Use Mode: When the FLEXVOLT™ battery stands alone or is in a DEWALT 20V Max* product, it will operate as a 20V Max* battery. When the FLEXVOLT™ battery is in a 60V Max* or a 120V Max ^* (two 60V

Max* batteries) product, it will operate as a 60V Max* battery.

Shipping Mode: When the

cap is attached to the FLEXVOLT™ battery, the battery is in Shipping Mode. Strings of cells are electrically disconnected within the pack resulting in three batteries with a lower Watt hour (Wh) rating as compared to one battery with a higher Watt hour rating. This increased quantity of three batteries with the lower Watt hour rating can exempt the pack from certain shipping regulations that are imposed upon the higher Watt hour batteries.

The battery label indicates two Watt hour ratings (see example). Depending on how the battery is shipped, the appropriate Watt hour rating must be used to determine the applicable shipping requirements. If utilizing the shipping cap, the pack will be considered 3 batteries at the Watt hour rating indicated for "Shipping". If shipping without the cap or in a tool, the pack will be considered one battery at the Watt hour rating indicated next to "Use".

Example of Use and Shipping Label Marking

USE: 120 Wh Shipping: 3 x 40 Wh

For example, Shipping Wh rating might indicate 3 x 40 Wh, meaning 3 batteries of 40 Watt hours each. The Use Wh rating might indicate 120 Wh (1 battery implied).

Fuel Gauge Battery Packs (Fig. B)

Some DEWALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of charge remaining in the battery pack.

The fuel gauge is an indication of approximate levels of charge remaining in the battery pack according to the following indicators:

75–100% charged

51–74% charged

< 50% charged

Pack needs to be charged

To actuate the fuel gauge, press and hold the fuel gauge button. A combination of the three green LED lights will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to be recharged.

Fig. B

NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application.

For more information regarding fuel gauge battery packs, please contact call 1-800-4-DeWALT (1-800-433-9258) or visit our website www.dewalt.com.

The RBRC® Seal

The RBRC® (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium-ion batteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by DeWALT. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call 2 Recycle® program provides an environmentally conscious alternative.

Call 2 Recycle, Inc., in cooperation with DeWALT and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized DeWALT service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC® is a registered trademark of Call 2 Recycle, Inc.

Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings and all instructions for the battery pack, charger and power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to work together.
• These chargers are not intended for any uses other than charging DEWALT rechargeable batteries.

Any other uses may result in risk of fire, electric shock or electrocution.

- Do not expose the charger to rain or snow.

ENGLISH

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug and cord.
• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution.
• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
120 V 25 (7.6)		50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0 6 18	16 16 14
6 10	18 16 14 12
10 12	16 16 14 12
12 16	14 12 Not Recommended

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.
• Do not operate the charger with a damaged cord or plug.
• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized service center.
• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
  • NEVER attempt to connect 2 chargers together.

- The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.

WARNING: Shock hazard. Do not allow any liquid to get inside the charger. Electric shock may result.

WARNING: Burn hazard. Do not submerge the battery pack in any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

CAUTION: Burn hazard. To reduce the risk of injury, charge only DEWALT rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and property damage.

NOTICE: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean.

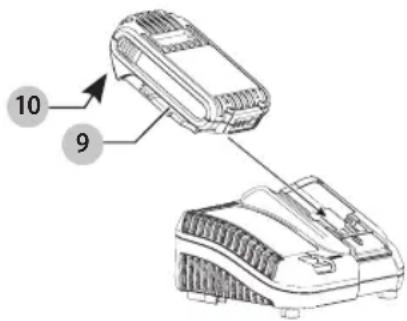

Charging a Battery (Fig. C)

1. Plug the charger into an appropriate outlet before inserting battery pack. Fig. C

10 9

1. Insert the battery pack 10 into the charger, making sure the battery pack is fully seated in the charger. The red (charging) light will blink continuously indicating that the charging process has started.
2. The completion of charge will be indicated by the red light remaining ON continuously. The battery pack is fully charged and may be used at this time or left in the charger. To remove the battery pack from the charger, push the battery release button 9 on the battery pack.

NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before first use.

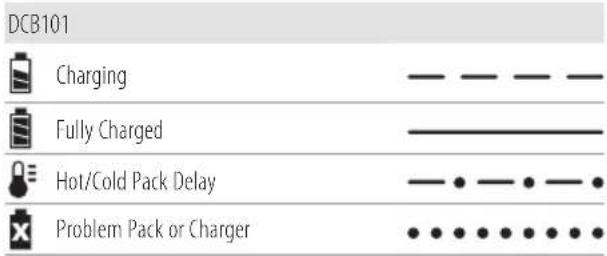

Charger Operation

Refer to the indicators below for the charge status of the battery pack.

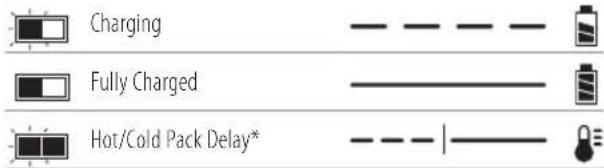

DCB101 Charging Fully Charged Hot/Cold Pack Delay Problem Pack or Charger

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132

Charging Fully Charged Hot/Cold Pack Delay*

\* DCB107, DCB112, DCB113, DCB115, DCB118, DCB132:

The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the charging procedure.

The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery pack by refusing to light or by displaying a problem pack or charger blink pattern.

NOTE: This could also mean a problem with a charger. If the charger indicates a problem, take the charger and battery pack to be tested at an authorized service center.

Hot/Cold Pack Delay

When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life.

A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery pack warms.

The DCB118 charger is equipped with an internal fan designed to cool the battery pack. The fan will turn on automatically when the battery pack needs to be cooled.

Never operate the charger if the fan does not operate properly or if ventilation slots are blocked. Do not permit foreign objects to enter the interior of the charger.

Electronic Protection System

Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge.

The tool will automatically turn off if the Electronic

Protection System engages. If this occurs, place the lithium-ion battery pack on the charger until it is fully charged.

Wall Mounting

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132

These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1" (25.4 mm) long, with a screw head diameter of 0.28–0.35" (7–9 mm), screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Important Charging Notes

1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65 °F and 75 °F (18 ° – 24 °C). DO NOT charge the battery pack in an air temperature below +40 °F (+4.5 °C), or above +104 °F (+40 °C). This is important and will prevent serious damage to the battery pack.
2. The charger and battery pack may become warm to the touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulated trailer.
3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance;
b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights;
c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65^ F – 75^ F ( 18^ – 24^ C);
d. If charging problems persist, take the tool, battery pack and charger to your local service center.

1. The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the battery pack.

English

1. Foreign materials of a conductive nature such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean.
2. Do not freeze or immerse the charger in water or any other liquid.

Storage Recommendations

1. The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold.
2. For long storage, it is recommended to store a fully charged battery pack in a cool dry place out of the charger for optimal results.

nOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.

SAVE THESE INSTRUCTIONS FOR FUTURE USE

COMPONENTS (FIG. A)

WARNING: Never modify the power tool or any part of damage or personal injury could result.

Refer to Figure A at the beginning of this manual for a complete list of components.

Intended Use

Your cable stripper is designed for professional cable stripping applications.

DO nOT use under wet conditions or in presence of flammable liquids or gases.

Your cable stripper is a professional power tool.

DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

Compatible with Greenlee® and Ripley® bushings.

Greenlee ^® is a registered trademark of Greenlee Textron, Inc. Ripley ^® is a registered trademark of Ripley Tools, LLC.

Worklight (Fig. A)

The worklight 8 is activated when the trigger switch is depressed. The low, medium, and spotlight modes can be selected by moving the switch 3 on the foot of the tool. If the trigger switch remains depressed, the worklight will remain on in all modes.

low mode

medium mode

spotlight (high) mode

• When in low and medium settings, the beam will automatically turn off 20 seconds after the trigger switch is released.
• In spotlight mode the worklight will run for 20 minutes after the trigger switch is released. Two minutes before

the worklight will shut off, it will flash twice and then dim. To avoid the worklight shutting off, lightly tap the trigger switch.

WARNING: While using the worklight in medium or spotlight mode, do not stare at the light or place the drill in a position which may cause anyone to stare into the light. Serious eye injury could result.

CAUTION: When using the tool as a spotlight, be sure it is secured on a stable surface where it will not cause a tripping or falling hazard.

CANTION: Remove all accessories from the stripping box 6 before using the cable stripper as a spotlight. Personal injury or property damage could result.

Low Battery Warning

When in spotlight mode and the battery is nearing complete discharge, the worklight will flash twice and then dim. After two minutes, the battery will be completely discharged and the drill will immediately shut down. At this point, replace with a fresh battery.

WARNING: To reduce the risk of injury, always have a backup battery or secondary lighting available if the situation warrants it.

Variable Speed Trigger Switch (Fig. A)

To turn the tool on, squeeze the trigger switch 1. To turn the tool off, release the trigger switch, Your tool is equipped with a brake. The chuck will stop as soon as the trigger switch is fully released.

NOTE: Continuous use in variable speed range is not recommended. It may damage the switch and should be avoided.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Choosing and Attaching a Bushing (Fig. B)

WARNING: To reduce the risk of serious personal injury, do not use the cable cutter with any kind of accessory or attachment other than those recommended by DEWALT.

WARNING: Blades are sharp. Keep hands away from cutting edges. Lacerations can occur.

NOTE: The bushing blade has been set by the manufacture to be in optimum position. It is recommended that it not be moved unless it dulls and needs to have the blade replaced or debris gets stuck. Bushings B14-B24 have the blade all the way pushed in while bushing B1-B13 have the blade set at the outer most position.

To change bushings, load the appropriate bushing and release the pull pin, try to rotate the bushing by hand in order to make sure the bushing is engaged with the retention pin 4.

A bushing's size can quickly be checked by placing only the bushing on the end of the cable (Reference Table). The cable should not be able to fit through the bushing with the jacket on and the blade should not extend past the jacket. Refer to the Cable to Bushing Size Reference Table at the end of this manual to match the appropriatebushing to your cable size.

Fig. B

4

Removing and Attaching the Hang Hook (Fig. A, C)

WARNING: To reduce the risk of serious personal injury, do not use the tool's hang hook to hang the tool from your body. DO NOT use the hang hook for tethering or securing the tool to a person or object during use. DO NOT suspend tool overhead or suspend objects from the hang hook.

WARNING: To reduce the risk of injury from the cable down falling on operators or bystanders, make sure it is supported securely when using the hang hook, or resting in a secure and stable location when not in use. Be sure to keep the area below clear to reduce the risk of the tool or off-cut material falling and striking someone or something below.

WARNING: To reduce the risk of serious personal injury, ensure the screw holding the hang hook is secure.

iIMPORTAnT: When attaching or replacing the hang hook 7, use only the screw 11 that is provided. Be sure to securely tighten screw.

The hang hook 7 can be attached to either side of the tool using only the screw 11 provided, to accommodate left- or right-handed users. Be sure to securely tighten screw.

Fig. C

7 11

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

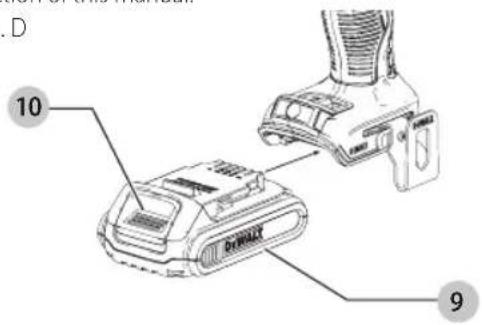

Installing and Removing the Battery Pack (Fig. D)

NOTE: For best results, make sure your battery pack is fully charged.

To install the battery pack 9 into the tool handle, align the battery pack with the rails inside the tool's handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does not disengage.

To remove the battery pack from the tool, press the release button 10 and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of this manual.

Fig. D

D 10 9

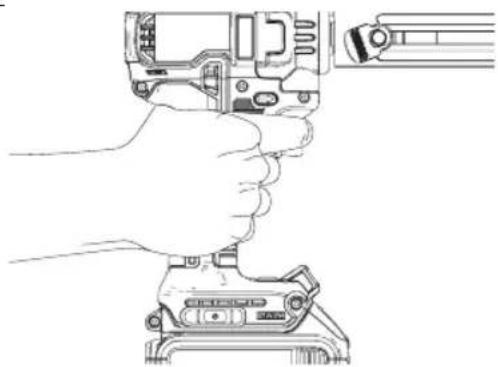

Proper Hand Position (Fig. E)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injuries, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the main handle.

Fig. E

Line drawing of a hand using a power tool to lift a component (no text or symbols)

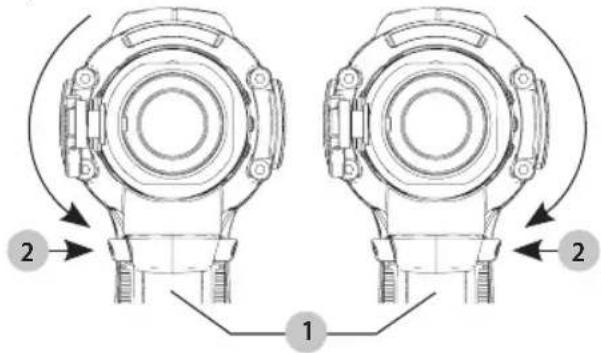

Trigger and Directional/Lock-Off Button (Fig. F)

The position of directional/lock-off button 2 determines the direction of the tool rotation, as shown in figure H, and whether the tool is locked-off. When changing the position of the control button, be sure the trigger is released.

ENGLISH

Fig. F

Technical diagram showing two mechanical components with labeled parts and directional arrows indicating rotation or assembly.

The center position of the directional button locks the tool in the off position. When changing the position of the control button, be sure the trigger is released.

Stripping a Cable End (Fig. A, G)

NOTE: Ensure cable has a straight, round end and remove and debris or jacket remnants from the bushing before beginning.

1. Determine cable type and size. Choose and attach the appropriate bushing; refer to Choosing and Attaching a Bushing.
2. Lift up and unfasten the depth stop tab 5 and adjust the depth stop to the desired strip length; retighten the tab and press it flat agains the tool.
3. Set the directional button 2 to forward.
4. Insert the cable end into the bushing opening. NOTE: When working overhead, always confirm workpiece is secure before stripping and be sure the cable end does not create a hazard as it is removed from the barrel.
5. Begin stripping by inserting the cable into the bushing and align the end against the cutting blade that is just inside the bushing (do not press the cable into or past the blade prior to pulling the trigger). Depress the trigger to rotate the stripping barrel while applying pressure against the cable end feeding it further into the stripping barrel, release the pressure against the cable after blade start stripping the insulator.

NOTE: The LED worklight 8 will automatically illuminate when trigger is depressed. Refer to Worklight.

- If the blade gets stuck:

a. Release the trigger
b. Set the directional button 2 to reverse
c. Depress the trigger to back the tool off of the cable
d. Set the directional button to forward and continue stripping. NOTE: ensure any partially stripped jacket is removed prior to continuing the strip.

1. When the stripped cable reaches the depth stop, the blade will automatically sever the casing evenly. If a longer strip is desired adjust depth gauge appropriately and strip the additional jacket off the cable
2. Remove from the cable from the barrel.

Fig. G

Technical line drawing of a mechanical component with cylindrical shaft and housing (no text or symbols)

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Accessories

WARNING: Since accessories and bushings, other those offered or recommended by DeWALT, have not been tested with this product, use of such accessories or bushings with this tool could be hazardous. To reduce the risk of injury, only DrWALT-recommended accessories and bushings should be used with this product.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DeWALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286, call 1-800-4-DrWALT (1-800-433-9258) or visit our website: www.dewalt.com.

For a complete and most up to date list of compatible attachments and bushings visit www.dewalt.com.

Repairs

The charger and battery pack are not serviceable.

WARNING: To assure product SAFETY and RAILABILITY, repairs, maintenance and adjustment (including brush inspection and replacement) should be performed by a DrWALT factory service center or a DeWALT authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

- WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.

• COnFiRMATiOn OF OWnERshiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

Register online at www.dewalt.com/register.

Three Year Limited Warranty

DEWALT will repair, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.dewalt.com or call 1-800-4-DEWALT (1-800-433-9258).

This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

In addition to the warranty, DEWALT tools are covered by our:

1 YEAR FREE sERViCE

DeWALT will maintain the tool and replace worn parts caused by normal use, for free, any time during the first year after purchase. Cable stripper wear items such as the bushing assembly are not covered.

2 YEARs FREE sSERVICE On DEWAIT BATTERY PACKs

DC9071, DC9091, DC9096, DC9182, DC9280, DC9360, DCB120, DCB127, DCB201, DCB203, DCB203BT, DCB207, DCB361

3 YEARs FREE sSERVICE On DEWAIT BATTERY PACKs

DCB200, DCB204, DCB204BT, DCB205, DCB606

NOTE: Battery warranty voided if the battery pack is tampered with in any way. DEWALT is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted by law.

90 DAY MOnEY BACK gUARAnTEE

If you are not completely satisfied with the performance of your DEWALT Power Tool, Laser, or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questions asked.

IATin AMERiCA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARning IABEI REPIACEMENT: If your warning labels become illegible or are missing, call 1-800-4-DEWALT (1-800-433-9258) for a free replacement.

TROUBLE SHOOTING

When inserting the cable follow the instructions listed under Stripping a Cable End. Make sure the cable is straight and the bushing is clear of any jacket remnants.

Recommended bushing to large, need to move to smaller bushing if:	The unstripped cable can pass through the bushing resulting in no jacket being removed.The bushing takes off only the outer layer of the jacket.
Recommended bushing to small, need to select larger bushing if:	Cable does not fit in bushingCable is straight (free of bends) when inserted and the blade scraps the wire

ENGLISH
Convention can only be effective when the convention is free from defects such as residual Jacket or damaged conductor. Proper preparation and installation is the responsibility of the installing contractor Southwest is a registered trademark of Southern Company/%). LLC. Enforce Wire is a registered trademark of Encane Wire Corp. Corp. Corp. is a registered trademark of Central Cable Technologies Corp. Southwest is a registered trademark of Southern Company/%). LLC. Enforce Wire is a registered trademark of Encane Wire Corp. Corp. Corp. Corp. is a registered trademark of Central Cable Technologies Corp. Southwest is a registered trademark of Southern Company/%). LLC. Enforce Wire is a registered trademark of Encane Wire Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp. Corp, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc., National Cable Corporation, Inc.,

BUSING NUMBER	Building Local Bushing Description	THIN Cooper THIN AL XHIW Cooper XHIW AL
		1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWC	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWGC	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWGG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWCG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWGS	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWGP	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWGCC	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWCC	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AWG	1 AW
		750
		750
		750.
BUSING NUMBER	B23	700-750 MW CL 900 MW AL	750
BUSING NUMBER	B22	700 MW CU	750
BUSING NUMBER	B21	600-700 MW CL 750 MW AL	600
BUSING NUMBER	B20	600 MW CU 700 MW AL	600
BUSING NUMBER	B19	600 MW CU	600
BUSING NUMBER	B18	500-600 MW CU 600 MW AL	600
BUSING NUMBER	B17	500 MW CU 600 MW AL	500
BUSING NUMBER	B16	500 MW CU	500
BUSING NUMBER	B15	500 MW CU	500
BUSING NUMBER	B14	350-400 MW CU	400
BUSING NUMBER	B13	350-400 MW CU 400 MW AL	400	350	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	4	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	40
BUSING NUMBER	B12	350 MW CU 400 MW AL	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	35O	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	35
BUSING NUMBER	B11	300 MW CU 350 MW AL	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	30O	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300
BUSING NUMBER	B10	250-300 MW CU 300 MW AL	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	25O	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	25
BUSING NUMBER	B9	250 MW CU 300 MW CU	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	25
BUSING NUMBER	B8	250 MW CU 300 MW CU	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	25O	250	250	25

* The recommended bushings for the various cable types is based off of the cable manufacturer's published cable dimensions. Actual cable dimension may vary. If cable does not strip properly using recommended bushing by a smaller or larger bushing. Refer to Trouble Shooting. User is responsible for ensure cable has been stripped property. **If the required size is not listed in the chair. The DCEL1B is compatible with greenlee and ripley bushings. Greenelee is a registered trademark of Ripley Tools, LLC.
Refer to DEWALT.com for latest cable to bushing size reference table.
CABLE TO BUSHING SIZE REFERENCE TABLE

WARNING: Always follow the specific manufacturer's installation instructions for attachments being used. It is the installer's responsibility to ensure the compatibility of the bushing used. Failure to follow all instructions and warnings may result in property damage and/or serious personal injury.

fabrication classe II (double isolation)

n 0......vitesse à vide n ......vitessenominale

USE: 120 Wh Shipping: 3 x 40 Wh

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132

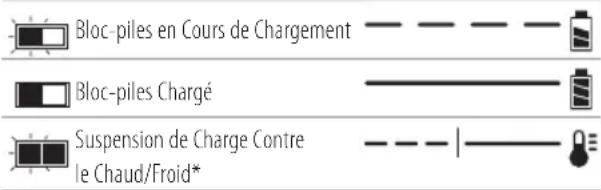

Bloc-piles en Cours de Chargement Bloc-piles Chargé Suspension de Charge Contre le Chaud/Froid*

*DCB107, DCB112, DCB113, DCB115, DCB118, DCB132:

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132

Line drawing of a hand using a power tool to adjust or install a mechanical component (no text or symbols present)

Diagram of a device with internal components and a close-up view of a fiber or cable (no text or symbols)

MAINTENANCE

DC9071, DC9091, DC9096, DC9182, DC9280, DC9360, DCB120, DCB127, DCB201, DCB203, DCB203BT, DCB207, DCB361

COnTRAT D'EnTRETiEn gRATUiT DE TROis Ans sur IEs BIOC-PiIEs DeWALT

DCB200, DCB204, DCB204BT, DCB205, DCB606

USE: 120 Wh Shipping: 3 x

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132

* DCB107, DCB112, DCB113, DCB115, DCB118,

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132

Technical diagram of a mechanical assembly with labeled component 4 and directional arrow

Removing and Attaching the Hang Hook (Fig. A, C)

Line drawing of a hand using a precision tool to press or install a mechanical component (no text or symbols present)

Technical line drawing of a mechanical component with a cylindrical shaft and flanged end (no text or symbols)

MANTENIMIENTO

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

DC9071, DC9091, DC9096, DC9280, DC9360, DC9180, DCB120, DCB127, DCB201, DCB203, DCB203BT, DCB207, DCB361

Pure geometric lines forming a symmetrical shape without any text, numbers, or symbols

DEWALT BATTERY AND CHARGER SYSTEMS

Battery Cat #

Output Voltage

120 Volts 12 Volts

DC9000

DC9310

DC9320

DCB095

DCB102

DCB103

DCB107

DCB112

DCB113

DCB114

DCB115

DCB116

DCB118

DCB132

DCB119

DW0249

DCB609

20/60

X

X

X

X

135

135

432

270

230

X

135

X

75

270

X

X

DCB606

20/60

X

X

X

X

100

100

272

170

140

X

90

X

60

90

X

X

DCB404

40

X

X

X

X

X

X

X

X

X

90

X

30

X

X

X

X

DCB406

40

X

X

X

X

X

X

X

X

X

130

X

45

X

X

X

X

DCB407

40

X

X

X

X

X

X

X

X

X

170

X

60

X

X

X

X

DC9360

36

45

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

DCB361

36

45

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

DC9280

28

60

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

DW0242

24

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

60

DCB200

20

X

X

X

X

60

60

140

90

67

X

45

X

45/30**

45

90

X

DCB201

20

X

X

X

X

30

30

70

45

35

X

22

X

22

22

45

X

DCB203

20

X

X

X

X

35

35

90

60

45

X

30

X

30

30

60

X

DCB203BT*

20

X

X

X

X

35

35

90

60

45

X

30

X

30

30

60

X

DCB204

20

X

X

X

X

70

70

185

120

90

X

60

X

60/40**

60

120

X

DCB204BT*

20

X

X

X

X

70

70

185

120

90

X

60

X

60

60

120

X

DCB205

20

X

X

X

X

95

95

240

150

112

X

75

X

75/47**

75

150

X

DCB205BT*

20

X

X

X

X

95

95

240

150

112

X

75

X

75/47**

75

150

X

DCB206

20

X

X

X

X

100

100

272

170

140

X

90

X

60

90

X

X

DCB207

20

X

X

X

X

30

30

60

40

30

X

22

X

22

22

X

X

DC9182

18

X

40

40

X

X

40

X

X

X

X

X

X

X

X

X

40

DCB120

12

X

X

X

X

30

30

60

45

35

X

20

X

X

X

45

X

DCB127

12

X

X

X

X

35

35

90

60

50

X

30

X

X

X

60

X

DCB080

8

X

X

X

60

X

X

X

X

X

X

X

X

X

X

X

X

*BT - Bluetooth® NOTE: The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth®, SIG, Inc. and any use of such marks by DEWALT is under license. Other trademarks and trade names are those of their respective owners.
**Battery Datecode 201536 or later.

"X" Indicates that the battery pack is not compatible with that specific charger. All charge times are approximate. Actual charge time may vary. Read the instruction manual for more specific information.

DEWALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286

(MAR17) Part No. N493860 DCE151 Copyright © 2017 DEWALT

The following are trademarks for one or more DEWALT power tools: the yellow and black color scheme, the "D" shaped air intake grill, the array of pyramids on the handgrip, the kit box configuration, and the array of lozenge-shaped humps on the surface of the tool.
