USER MANUAL CRX 80U DOMETIC

Exterior view of a modern refrigerator with open lid and front panel (no visible text or symbols)

CRX50, CRX65, CRX80, CRX110, CRX140

EN

Compressor refrigerator

Installation and Operating Manual.....15

FR

© 2020 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

1 2 3 4 5 6 7 CRX 50

2 CRX 65 1 2 3 4 5 6 7

3 CRX 80 1 2 3 4 5 6 7

CRX 110 1 2 3 4 5 6 7

CRX 140 5 1 2 3 4 5 6 7

CRX50, CRX65, CRX80 6 1 2 3 4 5 6 7 8

7
CRX110DC

1 2 3 4 5 6 8

CRX110ACDC, CRX140ACDC

1 2 3 4 5 6 7 8

8
CRX 50-140 CRX 50-140

ca. 50 mm (2 inch) A 2 3 1

B ca. 50 mm (2 inch) 2 4 3 1

CRX 140

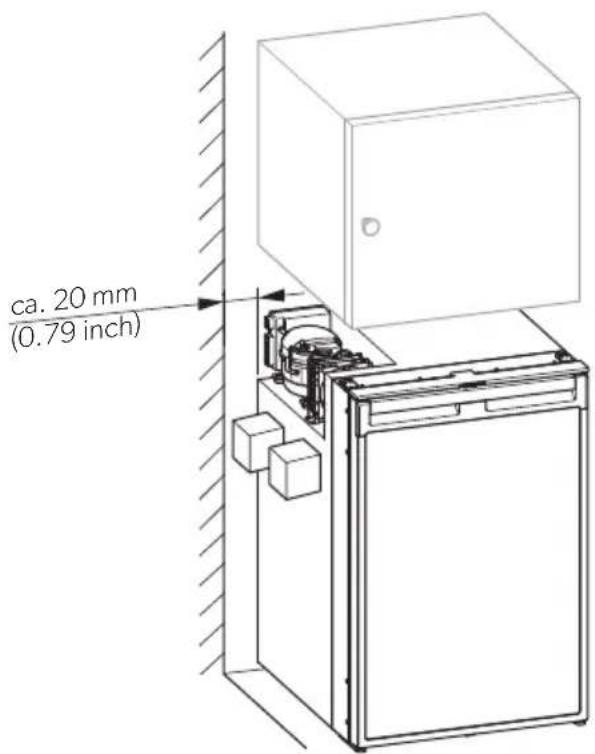

ca. 20 mm (0.79 inch)

9 1 2

10 1 2

Line drawing of a mechanical device with mounting brackets and a central component (no text or symbols)

Line drawing of a door frame with directional arrows indicating movement or force (no text or symbols)

Line drawing of a door panel with arrows indicating assembly or movement (no text or symbols)

14

15

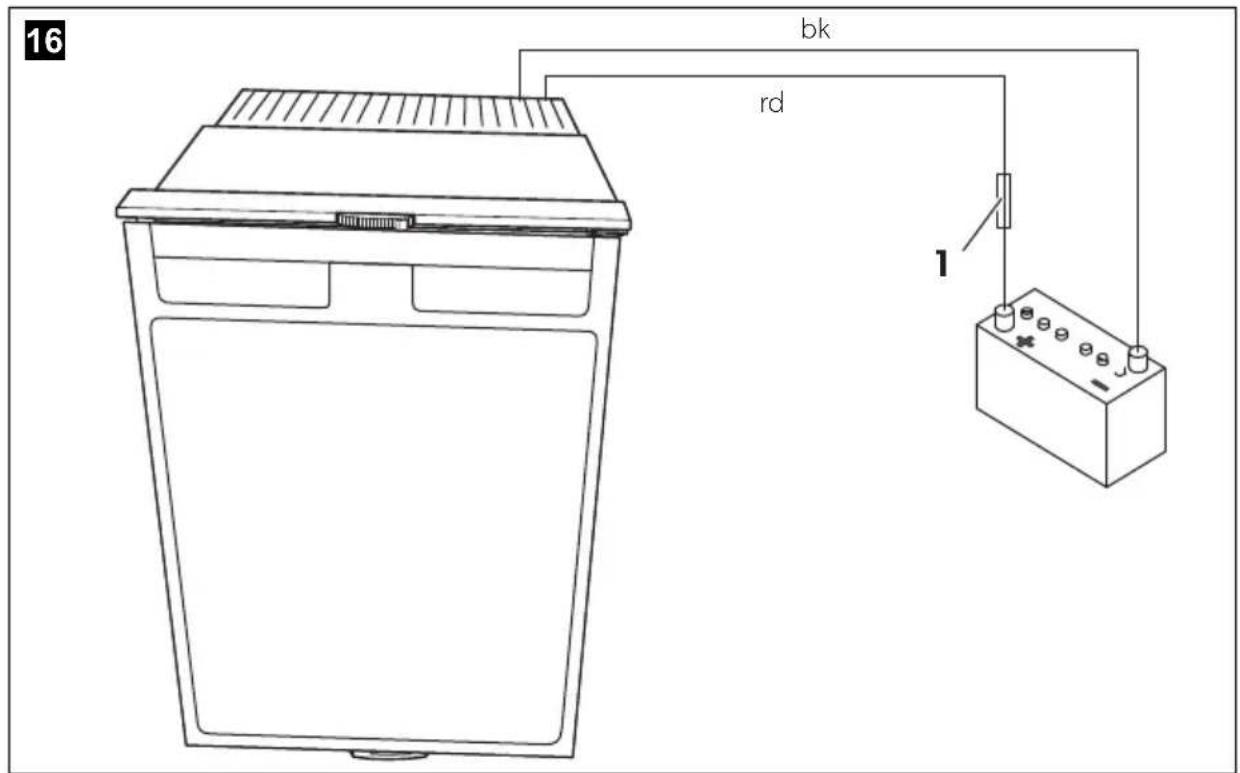

bk rd 1

17 1 2

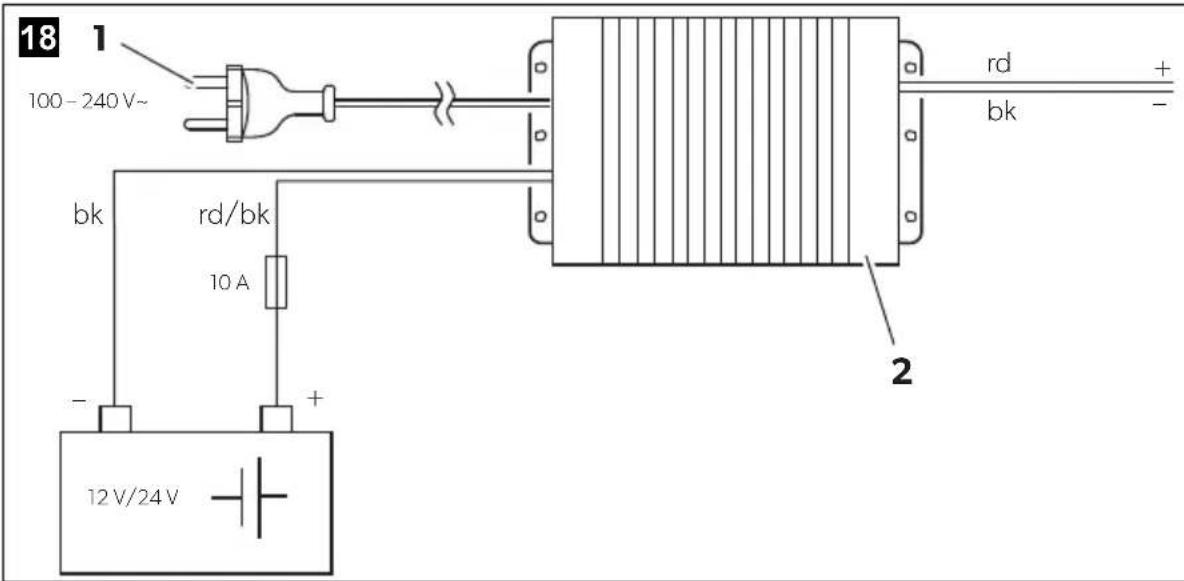

18 1 100-240V~ bk rd/bk 10 A - + 12 V/24 V 2 rd bk + -

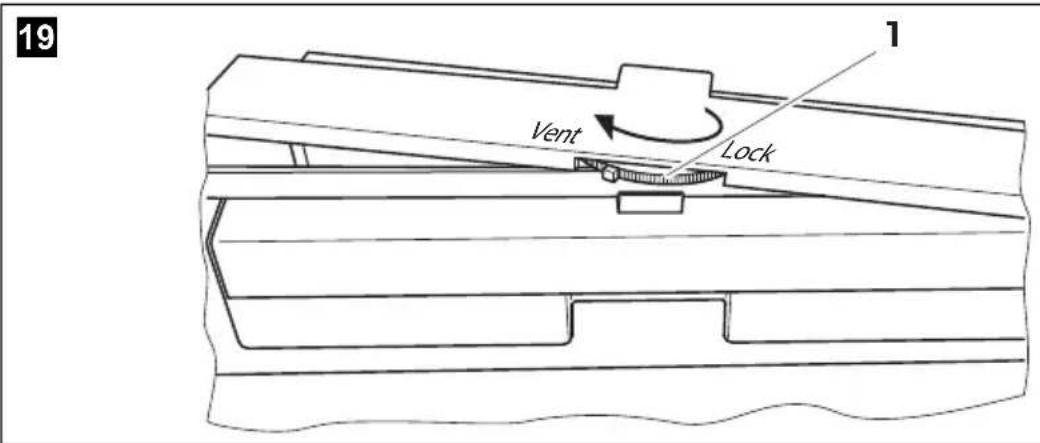

19 Vent Lock

20 CRX 50 380 mm (14.96 inch) 534 mm (21.02 inch) 500 mm (19.69 inch)

21
CRX 65

22
CRX 80

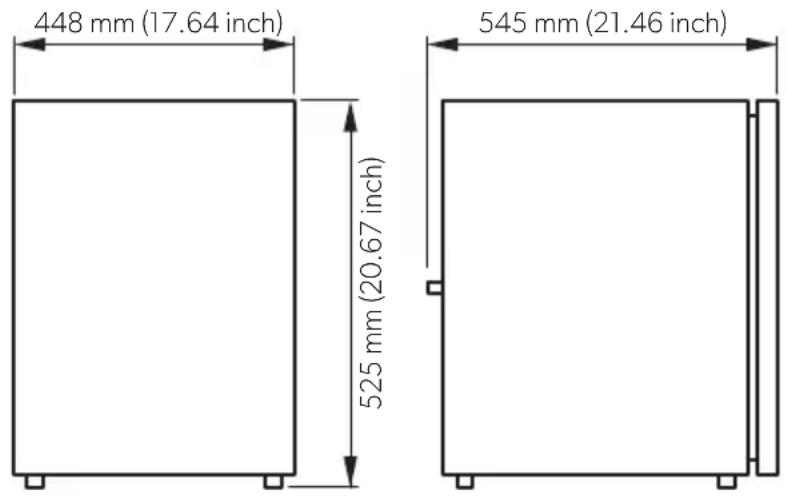

475 mm (18.7 inch) 640 mm (25.20 inch) 528 mm (20.79 inch)

23
CRX 110

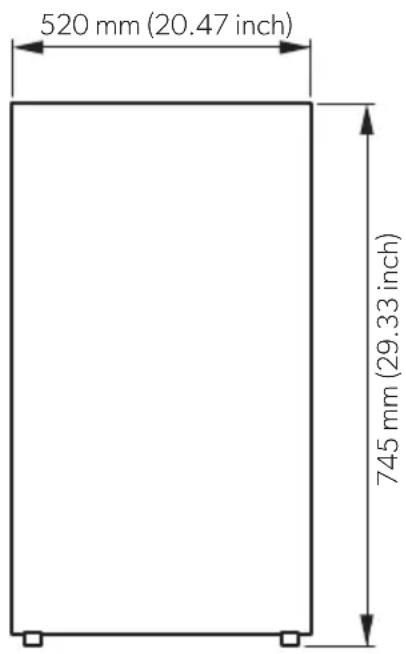

520 mm (20.47 inch) 745 mm (29.33 inch)

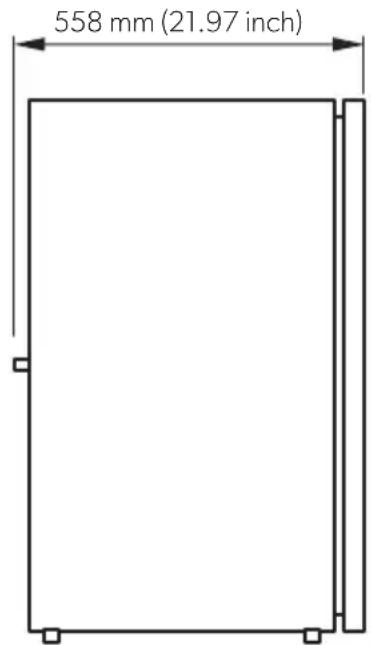

558 mm (21.97 inch)

24
CRX 140

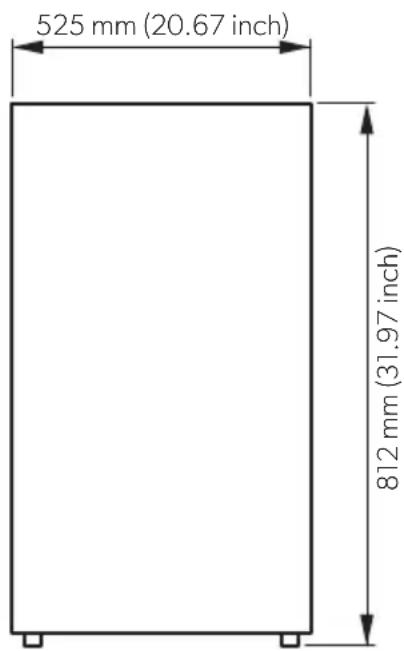

525 mm (20.67 inch) 812 mm (31.97 inch)

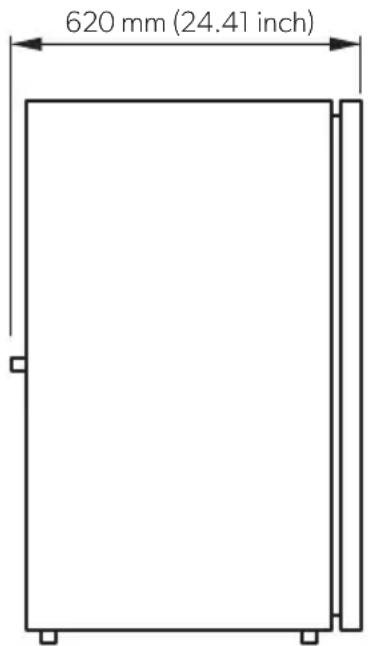

620 mm (24.41 inch)

Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it.

Table of contents

1 Explanation of symbols....15
2 Safety instructions....16
3 Scope of delivery .....19
4 Accessories 20
5 Intended use 20
6 Technical description 20
7 Installing and connecting the refrigerator 22
8 Using the refrigerator 27
9 Cleaning and maintenance....31
10 Limited warranty 32
11 Disposal.... 32
12 Troubleshooting 33
13 Technical data 36

1 Explanation of symbols

DANGER!

Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

2 Safety instructions

The manufacturer accepts no liability for damage in the following cases:

• Faulty assembly or connection
• Damage to the product resulting from mechanical influences and incorrect connection voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual

2.1 General safety

DANGER!

Failure to obey these warnings will result in death or serious injury.

DANGER OF ELECTROCUTION

- On boats: If the device is powered by the mains, ensure that the power supply has a residual current circuit breaker.

WARNING!

Failure to obey these warnings could result in death or serious injury.

DANGER OF ELECTROCUTION

• Installations in washrooms and areas exposed to water, must be performed by a qualified technician.
• Do not operate the device if it is visibly damaged.

• If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.

• This device may only be repaired by qualified personnel. Inadequate repairs may cause serious hazards.

• Disconnect the cooling device from the power supply

– before each cleaning and maintenance

- after every use

HEALTH HAZARD

• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
  • Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating devices.

EXPLOSION HAZARD

- Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device.

CAUTION!

Failure to obey these cautions could result in minor or moderate injury.

HEALTH HAZARD

- Food may only be stored in its original packaging or in suitable containers.

DANGER OF CRUSHING

- Do not put your fingers into the hinge.

NOTICE!

DANGER OF DAMAGE

• Check that the voltage specification on the type plate is the same as that of the power supply.
• Never pull the plug out of the socket by the connection cable.

• If the refrigerator is connected to the DC socket: Disconnect the refrigerator and other electric consumers from the battery before connecting the quick charging device.

• If the refrigerator is connected to the DC socket: Disconnect the refrigerator or switch it off when you turn off the engine. Otherwise you may discharge the battery.

• The refrigerator is not suitable for storing substances which are caustic or contain solvents.
• Keep the drainage outlet clean at all times.
• Do not open the refrigerant circuit under any circumstances.
• Never transport the device in a horizontal position, so that no oil can leak out of the compressor.
• Make sure that the refrigerator circuit is not damaged during transportation. The refrigerant in the refrigerator circuit is highly flammable. In the event of any damage to the refrigerator circuit:
• Avoid naked flames and sparks.
• Air the room well.
• Set up the device in a dry location where it is protected against splashing water.

2.2 Operating the device safely

DANGER!

Failure to obey these warnings will result in death or serious injury.

DANGER OF ELECTROCUTION

- Do not touch exposed cables with your bare hands. This applies especially when operating the device from the AC mains.

CAUTION!

Failure to obey these cautions could result in minor or moderate injury.

DANGER OF ELECTROCUTION

- Before starting the cooling device, ensure that the power supply line and the plug are dry.

HEALTH HAZARD

• Opening the door for long periods can cause significant increase of the temperature in the compartments of the device.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the device, so that it is not in contact with or can drip onto other food.

- If the device is left empty for long periods:

• Switch off the device.
• Defrost the device.
• Clean and dry the device.
• Leave the door open to prevent mould developing within the device.

- If you connect the device to a battery, make sure that no food comes into contact with the battery acid.

NOTICE!

DANGER OF DAMAGE

- Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for that purpose.

- Do not place it near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.)

• Danger of overheating!

Always ensure sufficient ventilation so that the heat generated during operation can dissipate. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.

• Ensure that the ventilation vents are not covered.
• Do not fill the inner container with ice or fluid.
• Never immerse the appliance in water.
• Protect the appliance and the cable against heat and moisture.
• Make sure that foodstuffs do not touch the walls of the cooling area.

3 S c o p e o f d

Quantity Description

1 Refrigerator with shelves

1 Water drain outlet

1 Installation and operating manual

4 A c c e s s o r i

Available as accessories (not included in the scope of delivery):

Description Explanation Ref. no.

Rectifier Suitable for CRX50DC, CRX65DC, CRX80DC,CRX110DC.Transforms an input voltage of 100 – 240 V~ to 24 V=,so that the refrigerator can be connected to an ACpower supply.		9600000445
MountingFrames	Flush-mount and standard mounting frames are availablefor all CRX models.	Various

If you have any questions, please contact the dealer or your service partner directly.

5 Intended use

The refrigerator is designed for installation in caravans and motorhomes and on boats. It is recommended the unit is installed into a fixed position. Once it is installed, only the front of the appliance may be accessible

The refrigerator is only suitable for cooling, freezing and storing foodstuffs. The refrigerator is not intended for the proper storage of medicine.

For DC only version: The refrigerator must only be supplied at safety extra low voltage corresponding to the marking on the refrigerator.

CAUTION! HEALTH HAZARD

Please check if the cooling capacity of the refrigerator is suitable for storing the food you wish to cool.

6 Technical description

The CoolMatic CRX series cooling appliances can cool products and keep them cool. Products can be deep-frozen in the freezer compartment. If the refrigerator is operated without a freezer compartment, frozen products can be stored in the short term using the fast-cooling function.

All materials used in the refrigerator are compatible for use with foodstuffs.

The refrigerant circuit is maintenance-free.

The cooling device can withstand a short-term inclination of 30^ , for example on boats.

The temperature is set using the control panel on the inside left of the refrigerator.

CRX50, CRX65, CRX80

Four temperature ranges from +3 °C (37 °F) to +12 °C (54 °F), and a fast-cooling function, are available for selection.

CRX110, CRX140

Four temperature ranges from +3 °C (37 °F) to +12 °C (54 °F) are available for selection.

CRX110ACDC, CRX140ACDC

Four temperature ranges from +3 °C (37 °F) to +12 °C (54 °F), and a winter mode, are available for selection.

6.1 Control elements inside the refrigerator

The various types of refrigerators are shown in the following illustrations:

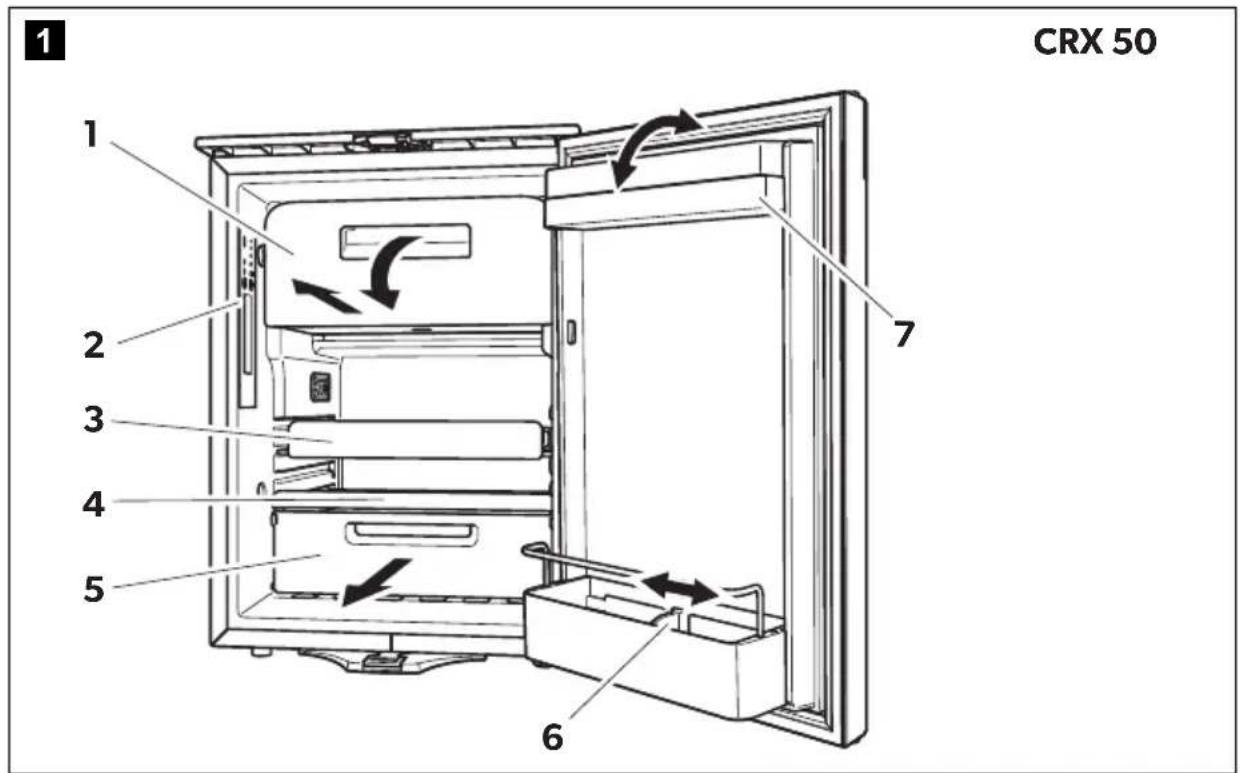

• CRX50: fig. 1, page 3

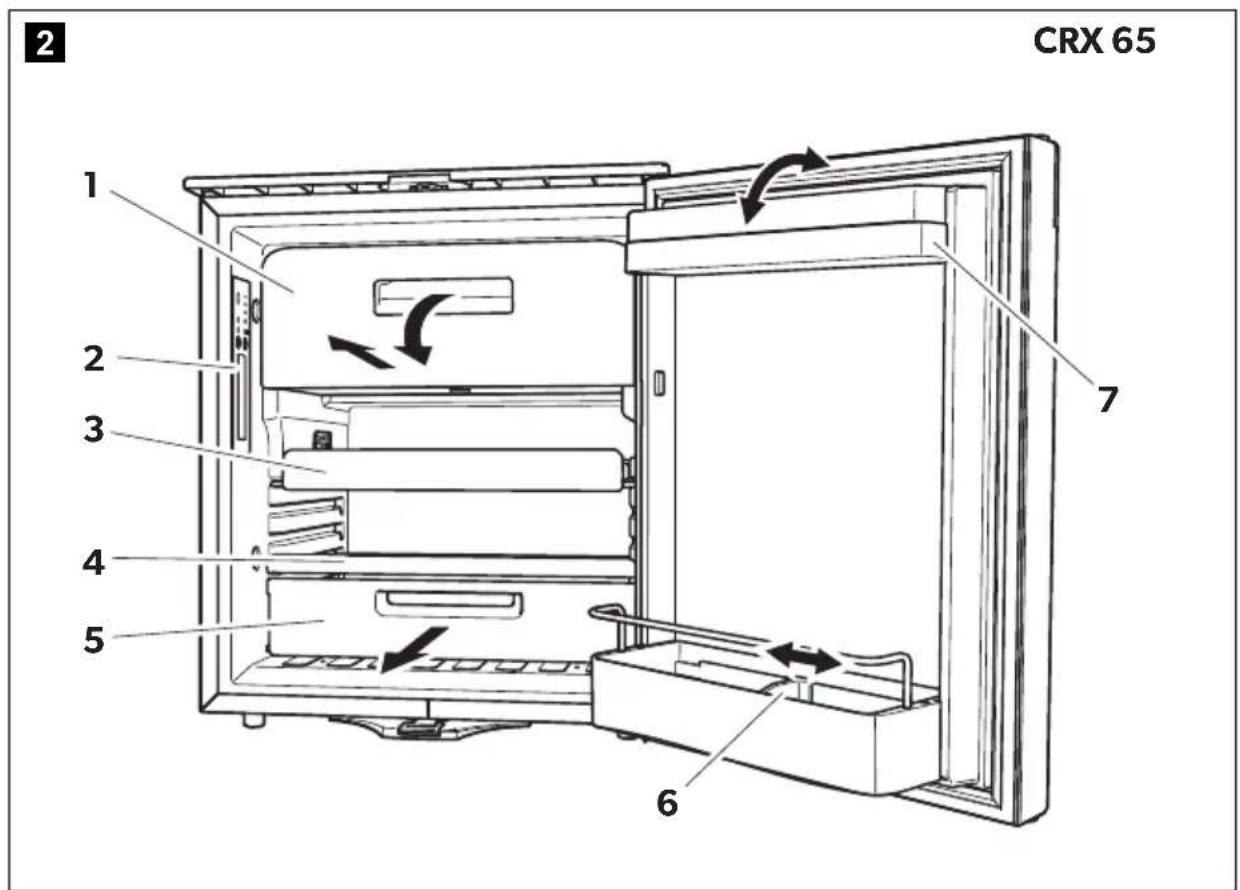

• CRX65: fig. 2, page 3

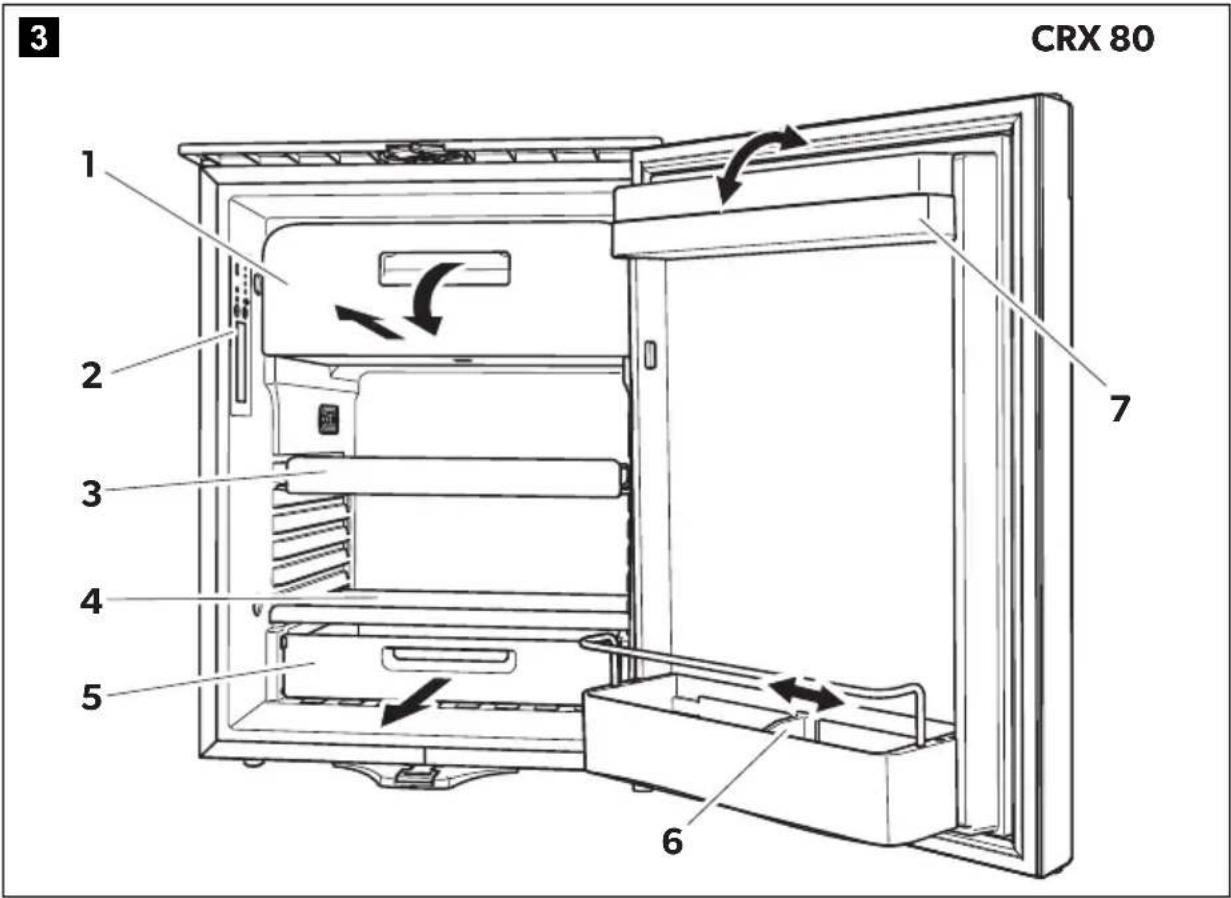

• CRX80: fig. 3, page 4

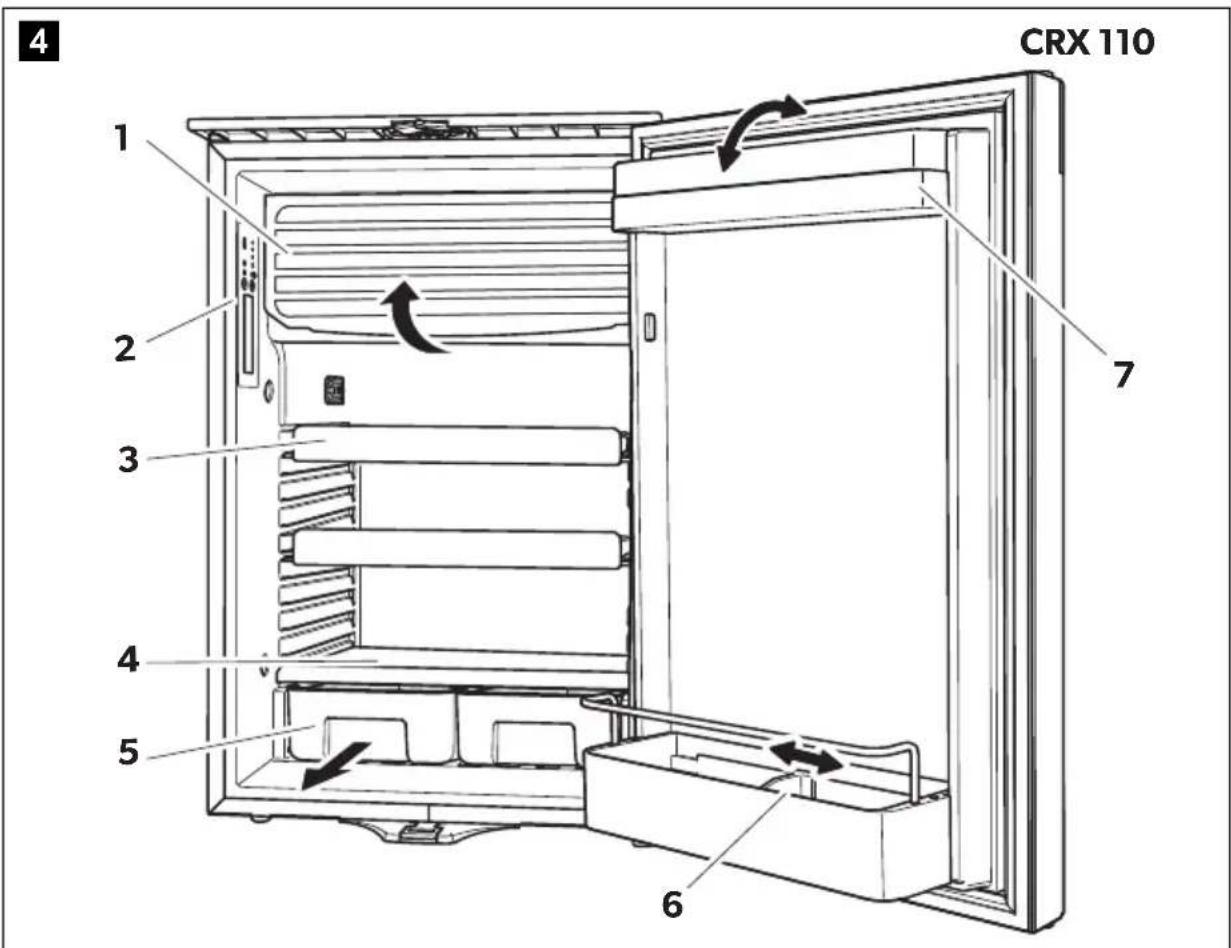

• CRX110: fig. 4, page 4

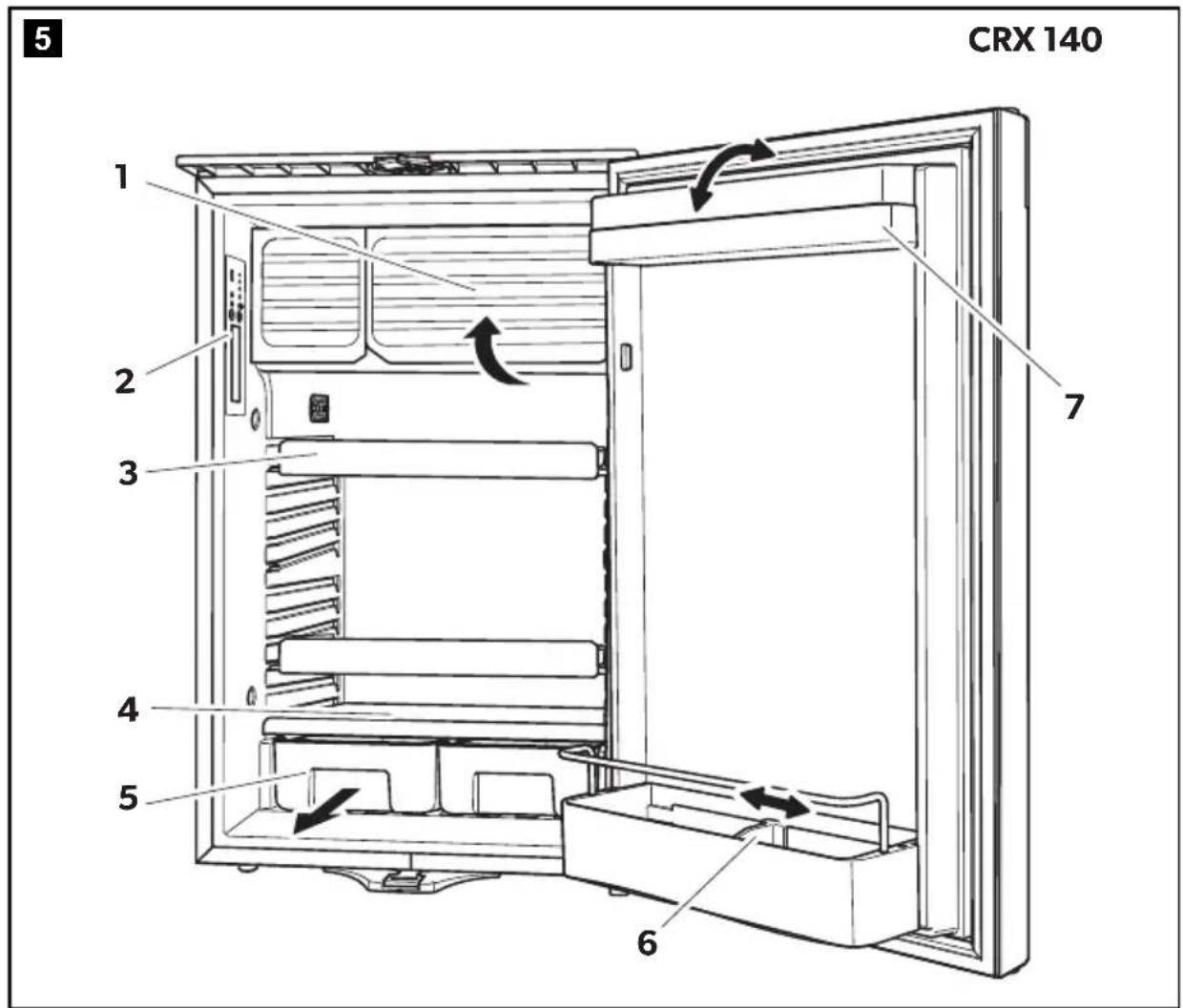

  • C R X 1 4 0 : f i g . 5, page 5

No. Explanation

1 Freezer compartment (detachable: CRX50, CRX65, CRX80 only)
2	Control panel
3	Wire shelf (folding, so that bottles can be put in the refrigerator)
4	Shelf
5	Fruit compartment
6	Bottle restraint(to hold bottles in the door)
7	Compartment with lid (hinged)

6.2 Control elements

No. in

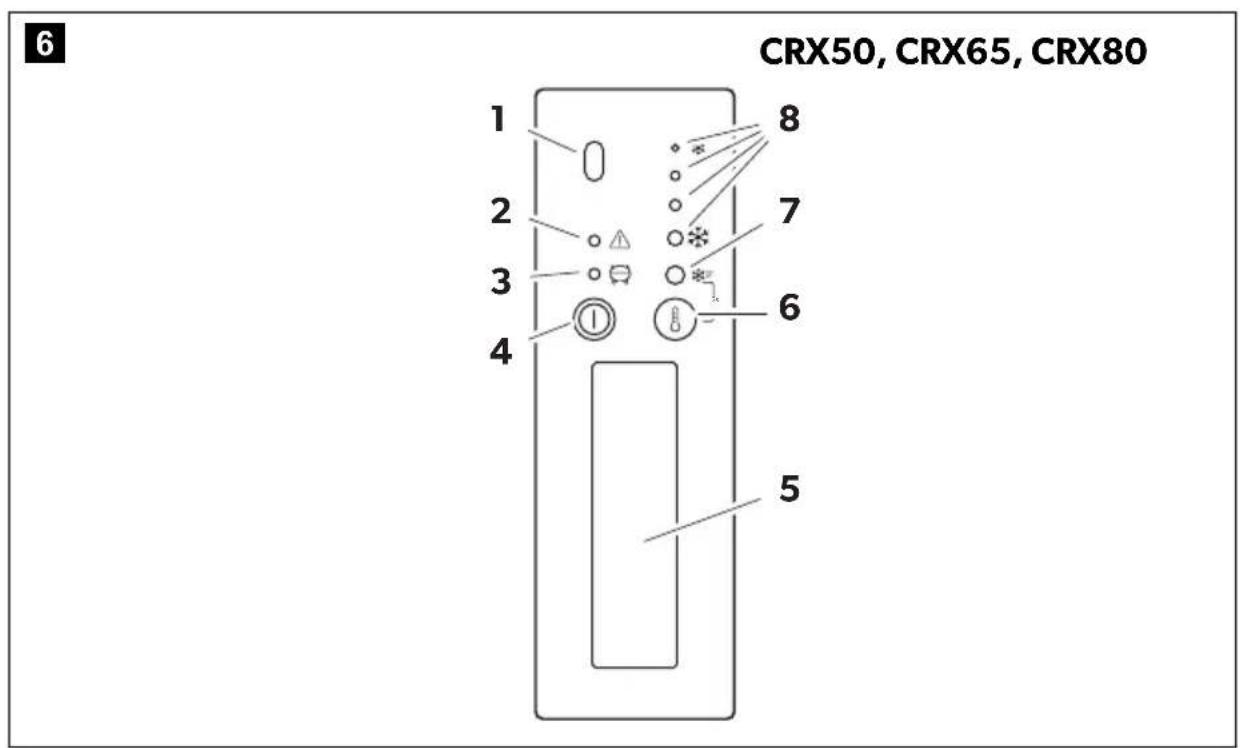

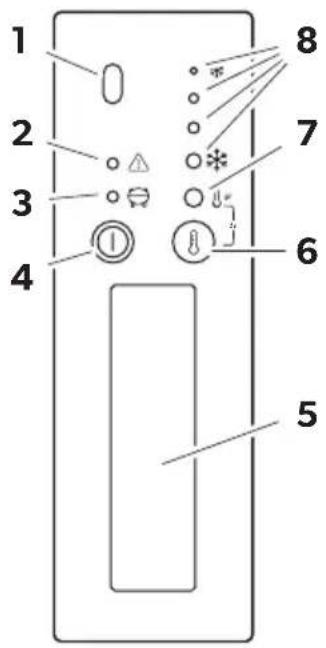

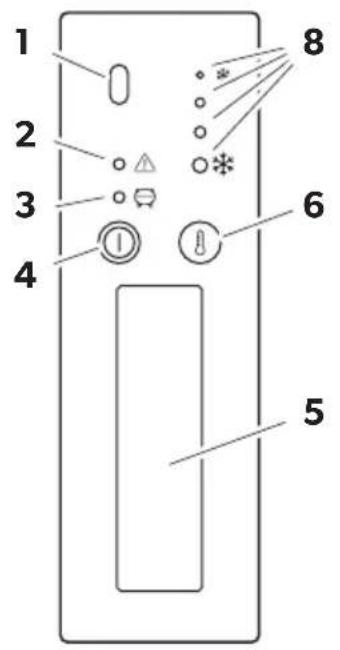

fig. 6, page 5, Explanation

fig. 7, page 6

1 IR sensor for switching the interior light
2 LED Service display
3 LED Blue: Compressor is running
LED Orange: Compressor is off
4 On/off button
5 Inner lighting
6 Temperature selection button
7 LED: Fast cooling function on (CRX50, CRX65, CRX80)
LED: Winter mode on (CRX110ACDC, CRX140ACDC)
8 LEDs: Temperature levels

7 Installing and connecting the refrigerator

7.1 Safety instructions for installation on boats

Please note the following instructions for installation on boats:

DANGER! DANGER OF ELECTROCUTION

If the appliance is powered by the mains, ensure that the voltage supply has a residual current circuit breaker.

NOTICE! DANGER OF DAMAGE

• The cooling device can withstand a short term inclination of 30^ , for example on boats. When setting up the refrigerator, note that it must be fastened to take account of this. If you have any questions regarding installation, consult your specialist dealer.
• Install the refrigerator so that the warm air produced can easily flow away (either upwards or to the sides, fig. 8, page 7).
• The appliance is designed for ambient temperatures between +16^ (61°F) and +43^ (109°F).
• CRX110ACDC, CRX140ACDC: In winter mode the appliance can be operated at ambient temperatures between +10 °C (50 °F) and +16 °C (61 °F).

7.2 Notes on installing the refrigerator

WARNING! Fire hazard!

• When positioning the device, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the device.

Observe the following when installing the refrigerator:

- Install the refrigerator so that the warm air produced can easily flow away (either upwards or to the sides, fig. 8, page 7).

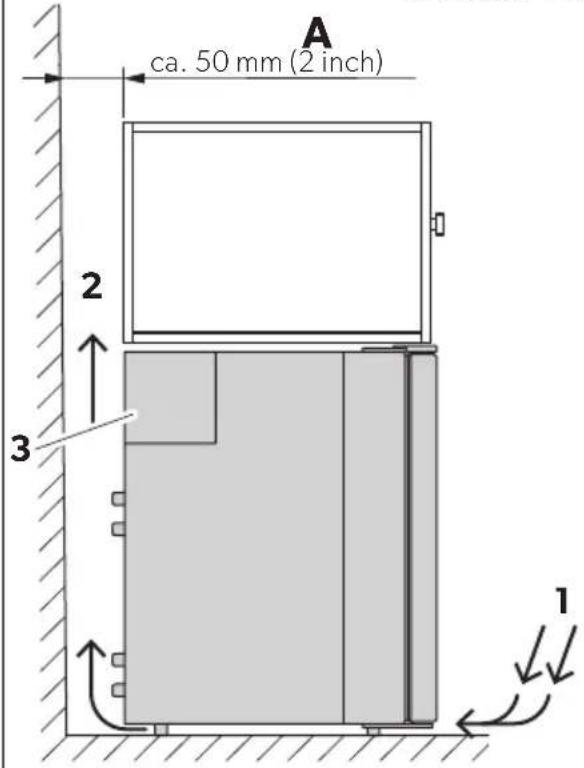

Key for fig. 8, page 7

No. Explanation

1 Cold intake air

2 Hot waste air

3 Condenser

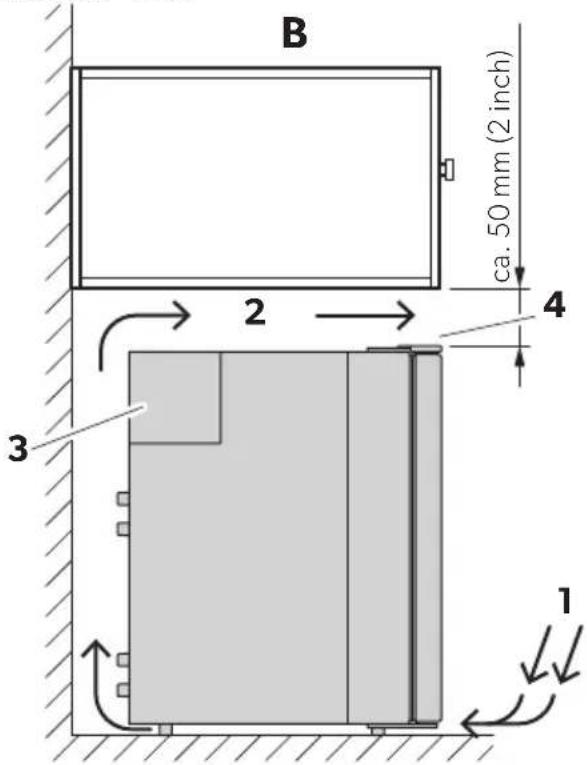

4 Spacing above the refrigerator if there is not sufficient air to circulate above or at the side.

Observe the following installation dimensions:

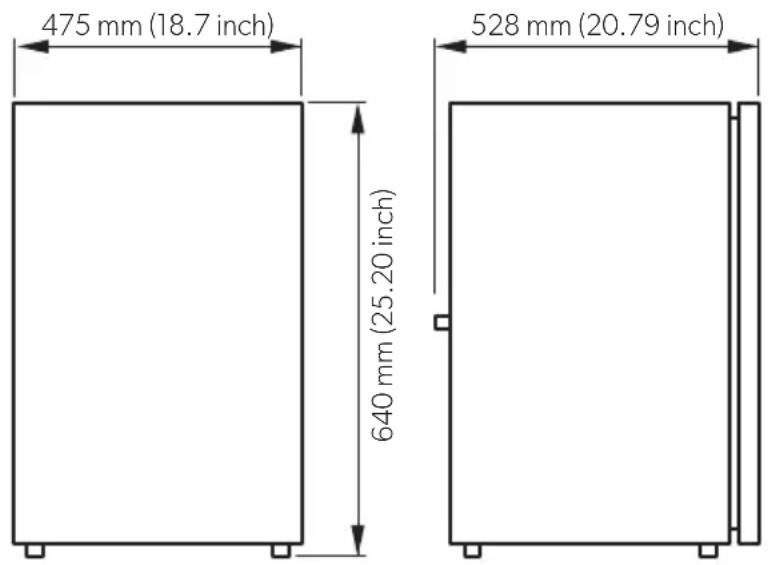

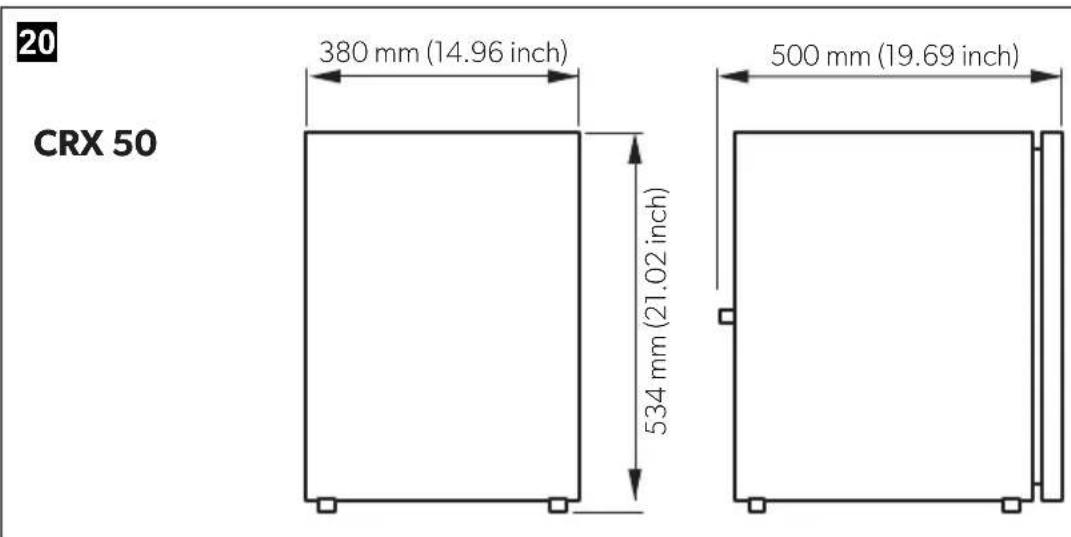

Model Dimensions W x H x D (mm) Dimensions W x H x D (inch)
CRX50	390 x 544 x 550	15.35 x 21.42 x 21.65
CRX65	458 x 535 x 595	18.03 x 21.06 x 23.43
CRX80	485 x 650 x 578	19.09 x 25.59 x 22.76
CRX110	530 x 755 x 608	20.87 x 29.72 x 23.94
CRX140	550 x 825 x 670	21.65 x 32.48 x 26.38

• Keep objects clear of openings in the housing or installation structure (such as ventilation slots, etc.).
• Condensate is produced when the refrigerator is operating normally. You can either wipe up the condensate on the floor of the refrigerator in regular intervals, or drain it through a water drain outlet in the floor of the refrigerator (see chapter "Mounting the water drain outlet (optional)" on page 24).

7.3 Mounting the water drain outlet (optional)

▶ Connect a hose with an inside diameter of 10 mm (0.4 inch) (not included) to the water drain outlet.
▶Lay the refrigerator on its side in order to access the bottom side.

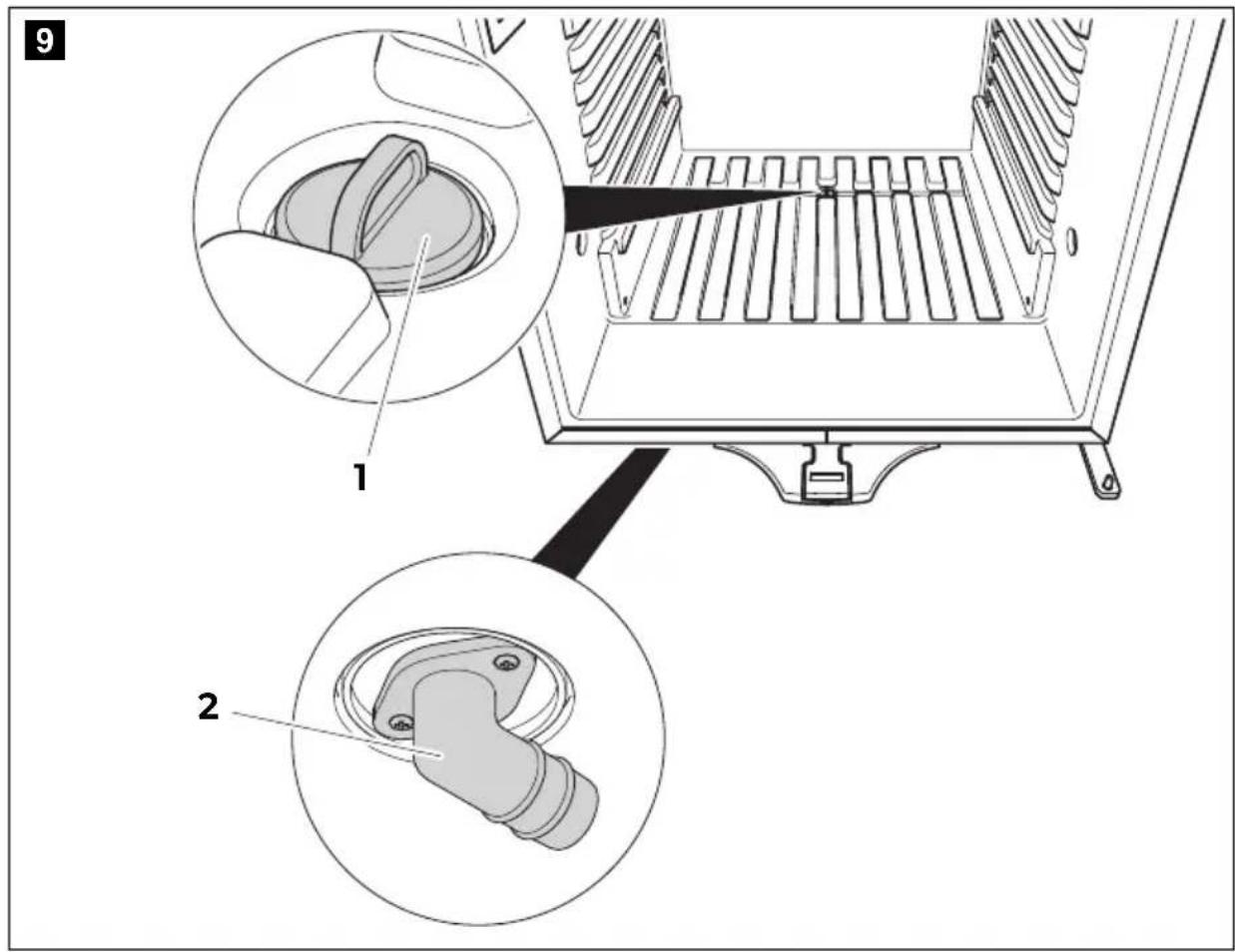

▶ Mount the water drain outlet (fig. 9 2, page 8) aligned to the front or to the back according to the desired direction.
Remove the water drain plug (fig. 9 1, page 8) inside the refrigerator.

7.4 Installing the refrigerator

Proceed as follows to install the refrigerator:

▶If you wish to drain the condensate through a hose: Mount the water drain port (see chapter "Mounting the water drain outlet (optional)" on page 24)
▶ Undo the transport lock (chapter "Releasing the lock" on page 30).
▶Open the refrigerator door.

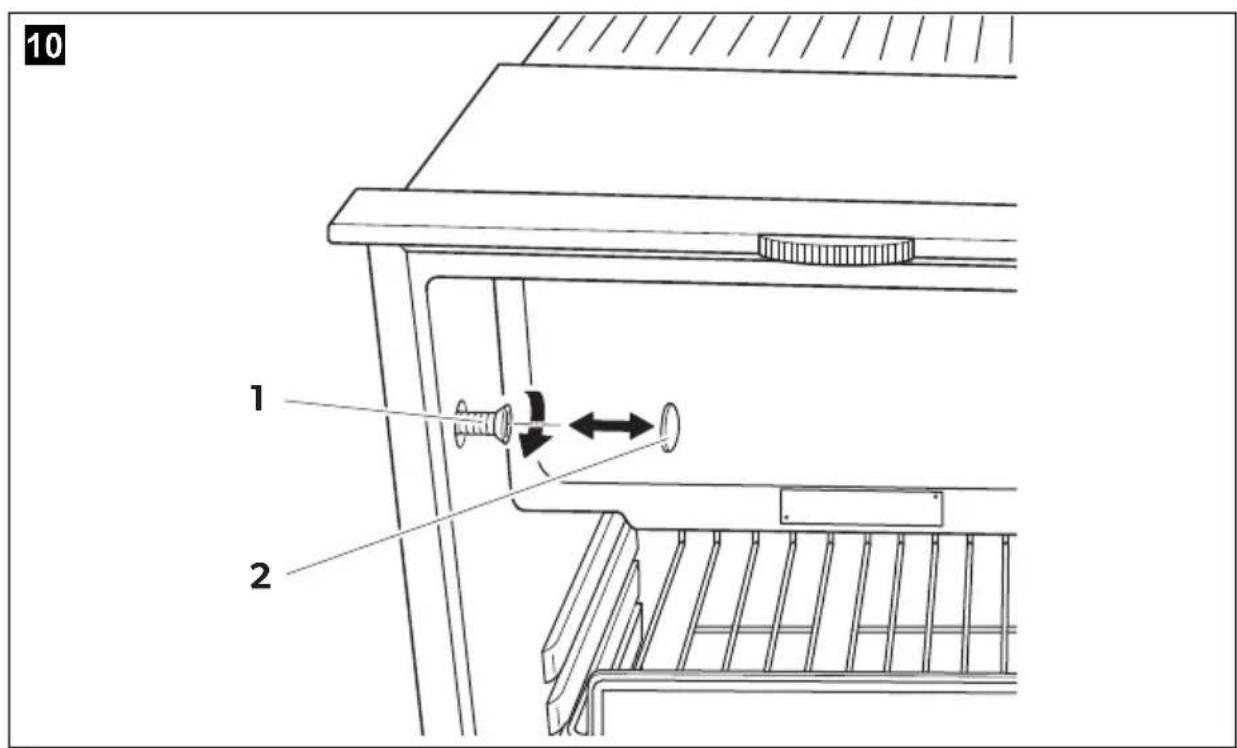

▶ Remove the blanking plugs (fig. 10 2, page 8).
▶Push the refrigerator into the recess.
▶ Fix the refrigerator in place using suitable screws (fig. 10 1, page 8).
▶ Press the blanking plugs (fig. 10 2, page 8) into the openings.

7.5 Changing the door hinge

You can also change the hinge of the door, so that it opens to the left rather than the right.

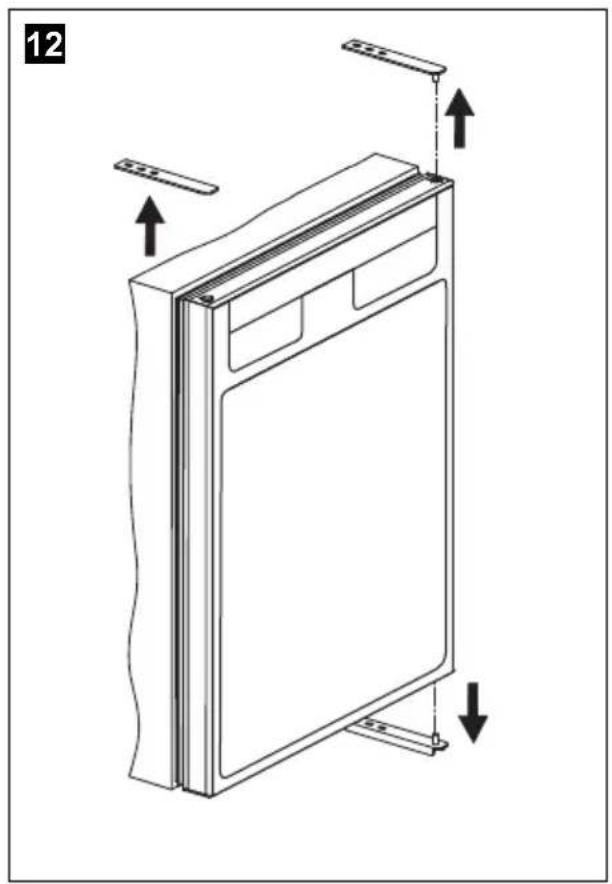

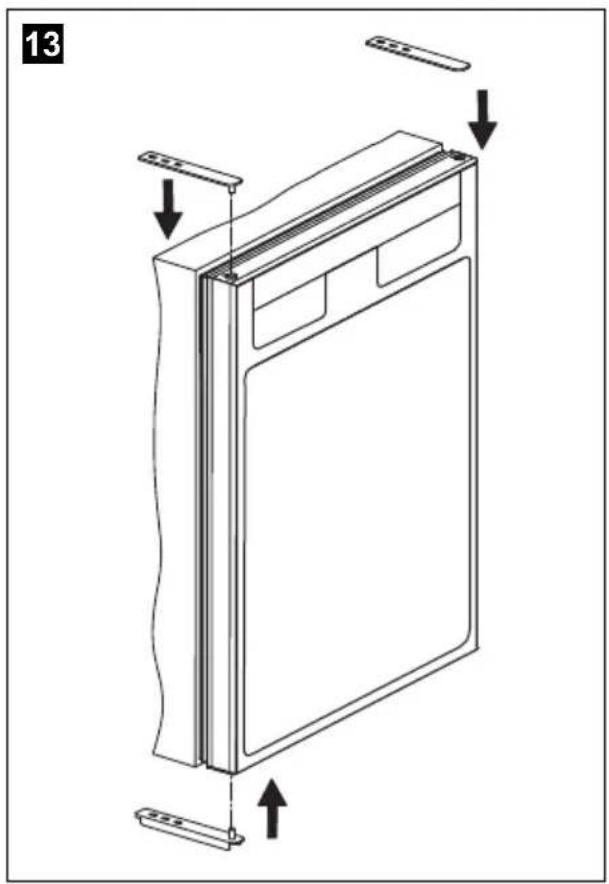

▶ Proceed as shown (fig. 11, page 9 to fig. 13, page 9).

7.6 Connecting the refrigerator to DC voltage

NOTICE! DANGER OF DAMAGE

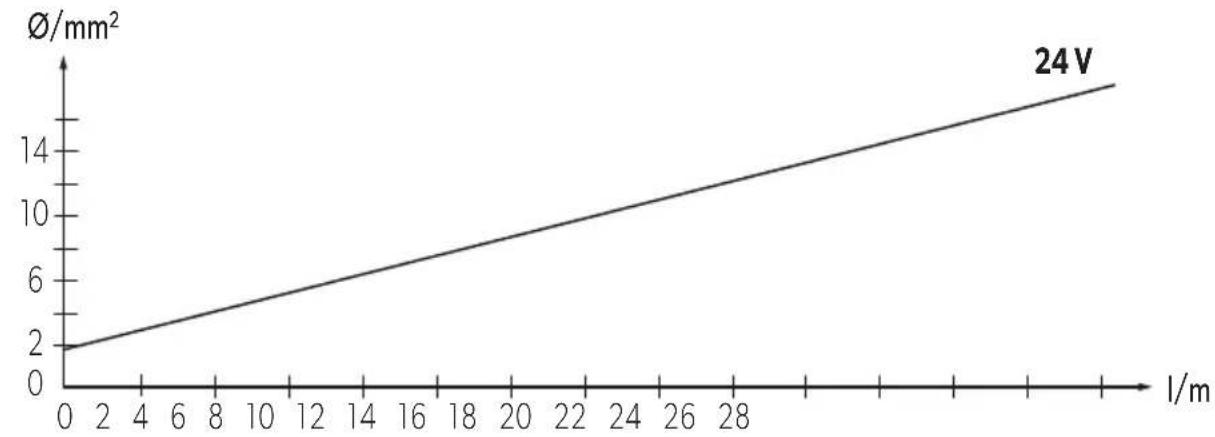

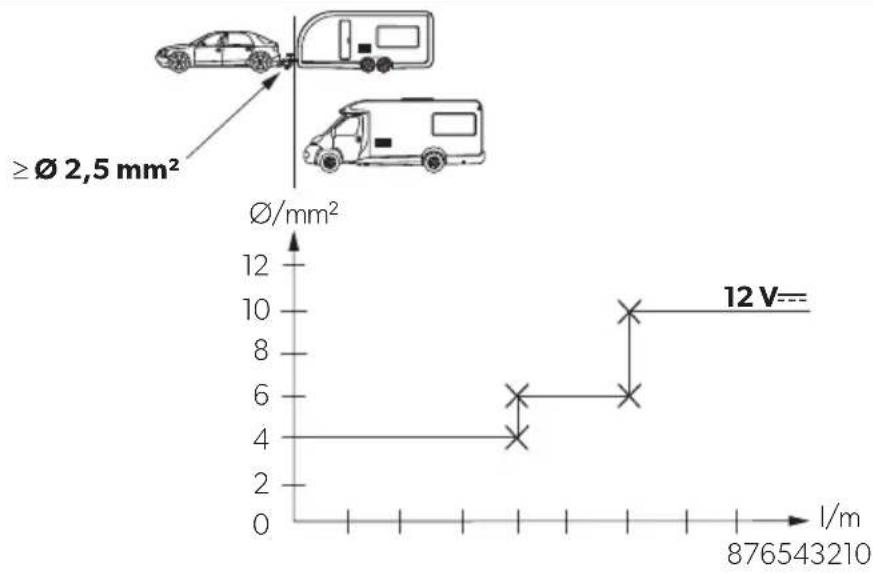

• To avoid voltage drops and loss of performance, keep the connection cable as short as possible and not be interrupted. Therefore avoid additional switches, plugs or power strips.
• Disconnect the cooling device and other electric consumers from the battery before you connect the battery to a quick charging device. Overvoltage can damage the electronics of the device.

The refrigerator can be operated with a 12 V or a 24 V DC voltage supply.

For safety reasons, the refrigerator is equipped with an electronic system to prevent the polarity being reversed. This protects the refrigerator against reversed polarity when connecting to a battery and against short circuiting.

To protect the battery, the refrigerator switches off automatically if the voltage is insufficient (see table below).

	12 V 24 V
Cut-off voltage	10.4 V 22.8 V
Cut-in voltage	11.7 V 24.2 V

▶Determine the required cross section of the cable in relation to the cable length according to:

• 1 2 V : f i g . 14, page 10
• 2 4 V : f i g . 15, page 10

Key to fig. 15, page 10:

Coordinate axis Meaning Unit

I Cable length		m
	Cable cross section		mm^2

NOTICE! DANGER OF DAMAGE

Make sure the polarity is correct.

▶Before starting up the device for the first time, check whether the operating voltage and the battery voltage match (see type plate).
▶ Connect your refrigerator to a plug socket which is fuse-protected at 15 A (at 12 V) or 7.5 A (at 24 V) (fig. 16 1, page 11).
▶ Connect the red cable (fig. 16 rd, page 11) to the positive terminal of the battery.
▶ Connect the black cable (fig. 16 bk, page 11) to the negative terminal of the battery.

7.7 Connecting the refrigerator to AC voltage

DANGER! DANGER OF ELECTROCUTION

• Never handle plugs and switches with wet hands or if you are standing on a wet surface.
• If you are operating your refrigerator on board a boat with an AC mains connection using a shore connection, you must install a residual current circuit breaker between the AC mains supply and the refrigerator.
  Seek advice from a trained technician.

CRX50ACDC, CRX65ACDC, CRX80ACDC, CRX110ACDC, CRX140ACDC

Proceed as follows when you connect the refrigerator to the AC supply:

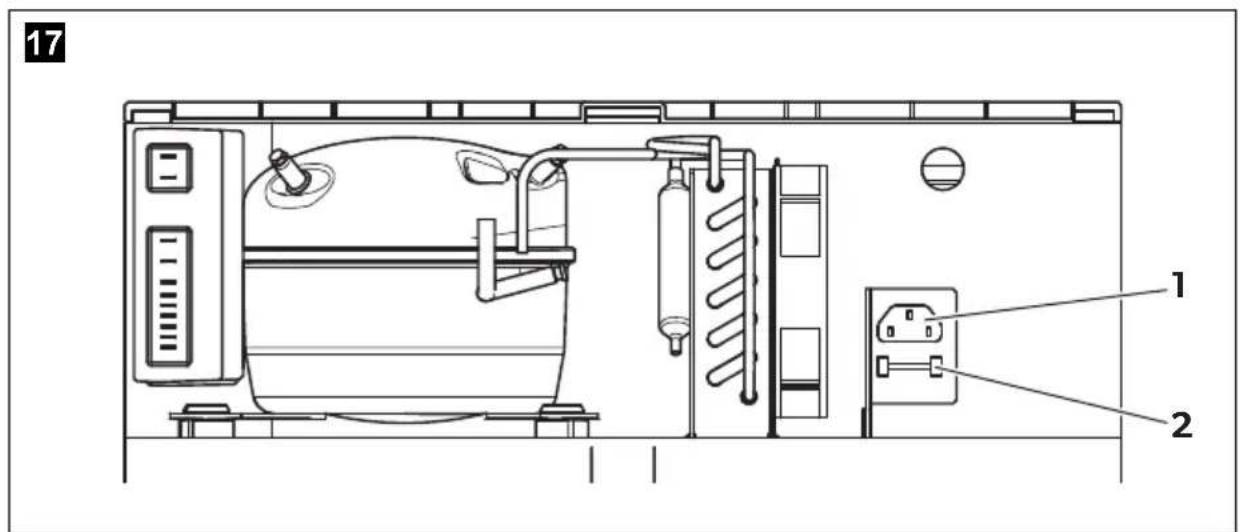

▶ Plug the connector into the AC socket (fig. 17 1, page 11).

CRX50DC, CRX65DC, CRX80DC, CRX110DC

You can connect the refrigerator to 100 – 240 V\~ AC power if you use the MPS35 rectifier (accessory).

The MPS35 rectifier features a priority circuit which conserves the battery connected. When a 100 – 240 V\~ mains connection is used, the rectifier automatically switches from battery to mains operation.

When disconnected from the 100 – 240 V\~ mains supply, the rectifier automatically switches back to battery operation. Mains operation via the rectifier always takes priority over battery operation.

In mains operation the output voltage of the rectifier will always be 24 V. When the rectifier is in 12 V or 24 V battery operation, the input voltage will be passed through so that the output voltage equals the input voltage.

Proceed as follows when you connect the refrigerator to the AC supply:

▶Attach the rectifier on the back of the refrigerator.
▶ Connect the rectifier as shown in fig. 18, page 12.
▶ Connect the refrigerator to the rectifier (fig. 18 2, page 12):
- Red cable (rd): positive battery terminal
- Black cable (bk): negative battery terminal
▶ Plug the connector (fig. 18 1, page 12) into the AC socket.

8 Using the refrigerator

The refrigerator conserves fresh foodstuffs. The freezer compartment conserves frozen foodstuffs and freezes fresh foodstuffs.

NOTICE! DANGER OF DAMAGE

• Do not place any electrical devices inside the cooler. The only exceptions are devices approved for the purpose by the manufacturer.
• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy glass containers.
• Food may only be stored in its original packaging or in suitable containers.
• Make sure that you only put items in the cooler which may be kept at the selected temperature.

NOTE

• Before starting your new refrigerator for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 31).
• Do not use force to press the flap of the freezer.
• Do not pull out the dividing wall if there is ice in the freezer.
• Do not remove the control panel membrane when operating the refrigerator.

8.1 Energy saving tips

• Choose a well ventilated location which is protected from direct sunlight.
• Allow hot food to cool down first before you put it in the refrigerator.
• Do not open the refrigerator more often than necessary. If the door is left open for more than 5 minutes, the light starts to flash.
• Do not leave the door open for longer than necessary.
• Defrost your refrigerator as soon as a layer of ice forms.
• Avoid unnecessarily low temperature settings.
• Clean dust and dirt from the condenser at regular intervals.

8.2 Switching on the refrigerator

▶Switch the refrigerator on by pressing the button.

NOTE

After switching on, the refrigerator needs some time before the compressor starts up.

8.3 Setting the temperature

▶ Press the ⏻ button repeatedly until the desired temperature level is set. The lower/largest LED is the coldest setting. The upper/smallest LED is the warmest setting. To switch from the coldest level to the warmest level press the ⏻ button again.

NOTE

The cooling performance can be affected by:

• The ambient temperature
• The amount of food to be conserved
- The frequency with which the door is opened.
If the ambient temperature is at 16 °C ( 61 °F ) to 20 °C ( 68 °F ), set the refrigerator to at least level 2.

8.4 Setting the fast cooling function (CRX50, CRX65, CRX80 only)

NOTICE! DANGER OF DAMAGE

• Only use the fast-cooling function when the removable freezer compartment is not being used. Otherwise there is a risk that the freezer compartment becomes too cold and condensate cannot be prevented from forming on the outside of the refrigerator. The energy consumption will also increase dramatically.
• Note that bottles and other containers can burst when frozen.
• Note that it is difficult to open the refrigerator directly after closing it.

The option of operating the refrigerator using a fast-cooling function allows temperatures suitable for freezing foods to be reached.

▶Press the button longer than 3 seconds.
√The LED above the button lights up.
▶Press the button again longer than 3 seconds to operate the refrigerator in normal mode.

8.5 Setting the winter mode (CRX110ACDC, CRX140ACDC only)

The winter mode ensures optimum operation at ambient temperature of below 16 °C ( 61 °F ):

▶Press the button longer than 3 seconds.
√The refrigerator switches to winter mode and the LED lights up above the ⏻ button.
▶Press the button again longer than 3 seconds to operate the refrigerator in normal mode.

8.6 Conserving foodstuffs

NOTICE! DANGER OF DAMAGE

• Do not conserve warm foodstuffs in the refrigerator.
• Do not place glass containers containing liquid in the freezer compartment.

NOTE

Food which can easily absorb tastes and odours, as well as liquids and products with a high alcohol content, should be conserved in air-tight containers.

You can conserve foodstuffs in the refrigerator. The time for which the food can be conserved in this way is usually stated on the package.

The refrigerator is divided in different zones with different temperatures:

• The colder zones are immediately above the drawers for fruit and vegetables, near the back wall.
• Observe the temperature information and best before date on the food packaging.
• Observe the following when using the refrigerator:
• Never re-freeze products which have started defrosting or have been defrosted; consume them as soon as possible.
• Wrap food in aluminium foil or cling film and shut in a suitable box with a lid. This ensures that aromas, the shape and the freshness will be better conserved.

8.7 Defrosting the freezer

NOTICE! DANGER OF DAMAGE

Never use mechanical tools to remove ice or to loosen objects stuck to the device. The only exceptions are devices approved for the purpose by the manufacturer.

This is how to defrost the refrigerator:

▶ Empty the contents.
▶If necessary, put them in another cooling device to keep them chilled.
▶Press the button until the refrigerator switches off.
▶Close the door properly.

8.8 Releasing the lock

NOTICE! DANGER OF DAMAGE

Only adjust the locking mechanism when the door is open. If you use it with the door closed, you will damage the device.

©

▶ Always disconnect the device from the power supply before you clean and service it.
▶ Clean the refrigerator regularly and as soon as it becomes dirty with a damp cloth.
▶Make sure that no water drips into the seals. This can damage the electronics.
▶Wipe the refrigerator dry with a cloth after cleaning.
▶ Clean dust and dirt from the condenser at regular intervals.

10 Limited warranty

LIMITED WARRANTY AVAILABLE AT DOMETIC.COM/WARRANTY.

IF YOU HAVE QUESTIONS OR TO OBTAIN A COPY OF THE LIMITED WARRANTY FREE OF CHARGE, CONTACT THE DOMETIC WARRANTY DEPARTMENT:

DOMETIC CORPORATION

CUSTOMER SUPPORT CENTER

1120 NORTH MAIN STREET

ELKHART, INDIANA 46514

1-800-544-4881 OPT. 3

11 Disposal

WARNING! CHILDREN BEWARE

Before disposing of your old refrigerator:

• Take off the doors.
- Leave storage surfaces in the refrigerator so that children cannot climb inside.

▶ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

12 Troubleshooting

The significance of the red LED (fig. 6 2, page 5, fig. 7 2, page 6)

For operational faults it illuminates several times. The number of pulses depends on the type of fault.

Each flash lasts for one quarter of a second. After the series of impulses a pause follows. The sequence for the fault is repeated every four seconds.

CRX50, CRX65, CRX80

Number of flashes	Fault Possible cause
1 Low Voltage The supply voltage is outside of the set range.
2 Excessive fan current The fan load on the electronics unit is more than 1 A.
3 The motor doesn't start The rotor is jammed.The pressure difference in the cooling system is too high (>5 bar).
4 Speed too low	If the cooling system is overloaded, the minimum speed of the motor of 1,850 rpm cannot be maintained.
5 Overheating of the electronics unit		If the cooling system is loaded too heavily or the temperature is set too high, the electronics can overheat.
Constantly	Temperature sensor errors	Temperature sensor is defective.

CRX110, CRX140

Number of flashes	Fault Possible cause
1 Low Voltage The supply voltage is outside of the set range.
2 Excessive fan current The fan load on the electronic unit is more than 1 A.
Number of flashes	Fault	Possible cause
3 The motor doesn't start The rotor is jammed.		The pressure difference in the cooling system is too high (>5 bar).
4 Speed too low If the cooling system is overloaded, the minimum speed of the motor of 1,850 rpm cannot be maintained.
5 Overheating of the electronics unit		If the cooling system is loaded too heavily or the temperature is set too high, the electronics can overheat.
Constantly Temperature sensor errors		Temperature sensor is defective.

Compressor does not run (battery connection)

Problem Possible cause	Remedy
U_Term=0V There is an int	interruption in the battery - electronics connection	Establish a connection
	Main switch faulty (if installed) Replace	the main switch
	Additional supply line fuse has blown (if installed)	Replace the supply line fuse
U_Term ≤ U_ON	Battery voltage is too low Charge the battery
Start attempt with U_Term ≤ U_OFF	Loose cablesPoor contact (corrosion)	Establish a connection
	Battery capacity too low Replacing the battery
	Cable cross section too small Replace the cable (fig. 14, page 10)
Start attempt with U_Term ≥ U_ON	Ambient temperature too high	-
	Insufficient ventilation	Move the refrigerator to another location
	Condenser is dirty	Clean the condenser
Electric circuit between the pins in the compressor interrupted	Defective compressor	Contact customer service

U_Term Voltage between the positive and negative terminals of the electronics

U_ON Cut-in voltage of the electronics

U_OFF Cut-off voltage of the electronics

Compressor is not running (connected to AC supply)

Problem Possible cause	Remedy
No voltage Connection	supply line interrupted Establish a connection
	Main switch faulty (if installed) Replace the main switch
	Additional supply line fuse has blown (if installed)	Replace the supply line fuse
Voltage is present but the compressor doesn't run	Ambient temperature too high –
	Insufficient ventilation Move the refrigerator to another location
	Condenser is dirty Clean the condenser
Electric circuit between the pins in the compressor interrupted	Defective compressor Contact customer service

Poor cooling, increase in interior temperature

Problem Possible cause	Remedy
Compressor runs for a long time/continuously	Ambient temperature too high –
	Insufficient ventilation Move the refrigerator to another location
	Condenser is dirty Clean the condenser
	Faulty fan Replace the fan
Compressor does not run often	Battery capacity exhausted Charge the battery

Unusual noises

Problem Possible cause	Remedy
Loud humming A component	not of the refrigerant circuit cannot move freely (touching the wall)	Bend the component carefully away from the obstruction
	There is a foreign object stuck between the cooling unit and the wall	Remove the foreign object
	Fan noise Replace the fan

13 Technical data

	CRX50 CRX65 CRX80
ACDC models:	CRX1050	CRX1065	CRX1080
DC models:	CRX0050	CRX0065	CRX0080
Refrigerator compartment storage volume:	41.2 l(1.45 cu.ft.)	50 l(1.77 cu.ft.)	70.6 l(2.49 cu.ft.)
Freezer compartment storage volume:	4.4 l(0.16 cu.ft.)	7.0 l(0.25 cu.ft.)	7.5 l(0.26 cu.ft.)
Total storage volume: 45 l	(1.59 cu.ft.)	57 l(2.01 cu.ft.)	78 l(2.75 cu.ft.)
Voltage:	12 V--- or 24 V---100 - 240 V~ (ACDC models only)
Power consumption (AC)(ACDC models only):	40 W	45 W	48 W
Rated current
12 V---:	5.0 A	5.5 A	5.6 A
24 V---:	2.6 A	2.8 A	2.9 A
100 V~ (ACDC models only):	1.14 A	1.22 A	1.23 A
240 V~ (ACDC models only):	0.53 A	0.58 A	0.56 A
Cooling temperature range
Refrigerator:	+3 °C (37 °F) to +12 °C (54 °F)
Freezer:	-15 °C (5 °F) to -5 °C (23 °F)
Fast cooling (without dividing wall):	maximum -6 °C (21 °F) ± 2 °C (36 °F)
	CRX50	CRX65	CRX80
Climatic class: T
Relative humidity: maximum 90 %
Short-term inclination: maximum 30°
Max. pressure:	LP 11 bar/HP 25 bar
Propellant: C	5H_10
Refrigerant: R134a
Refrigerant quantity: 38 g	(1.34 oz.)	42 g(1.48 oz.)	48 g(1.69 oz.)
CO2equivalent: 0.054 t	(119 lbs)	0.060 t(132.3 lbs)	0.069 t(152.1 lbs)
Global warming potential (GWP): 1430
Dimensions:	fig. 20, page 12	fig. 21, page 13	fig. 22, page 13
Weight:	17 kg(37.48 lbs)	19 kg(41.89 lbs)	21 kg(46.30 lbs)
Inspection/certification:

	CRX110	CRX140
ACDC models:DC models:	CRX1110CRX0110	CRX1140
Refrigerator compartment storage volume:	981(3.46 cu.ft.)	1241(4.38 cu.ft.)
Freezer compartment storage volume:	9.51(0.34 cu.ft.)	111(0.39 cu.ft.)
Total storage volume:	107.51(3.80 cu.ft.)	1351(4.77 cu.ft.)
Voltage:	12 V--- or 24 V---100 - 240 V~ (ACDC models only)
Power consumption (AC)(ACDC models only):Rated current	50 W	65 W
12 V---:	6.2 A	7.7A
24 V---:	3.0 A	3.6 A
100 V~ (ACDC models only):	0.82 A	0.95 A
240 V~ (ACDC models only):	0.34 A	0.4 A
Cooling temperature range
Refrigerator:	+3 °C (37 °F) to +12 °C (54 °F)
Freezer:	-18 °C (0 °F) to -6 °C (21 °F)
Winter mode setting(ACDC models only):	-5 W heating, off-cycle
Climatic class: T
Relative humidity: Max. 90 %
Short-term inclination: maximum 30°
Max. pressure:	LP 11 bar/HP 25 bar
Propellant: C	5H10
Refrigerant: R134a
Refrigerant quantity: 47 g	(1.66 oz.)	50 g(1.76 oz.)
CO2 equivalent: 0.067 t	(147.7 lbs)	0.072 t(158.73 lbs)
Global warming potential (GWP):	1430
Dimensions:	fig. 23, page 14	fig. 24, page 14
Weight:	27.6 kg(60.85 lbs)	30.6 kg(67.46 lbs)
Inspection/certification:

Contains fluorinated greenhouse gases

Hermetically sealed equipment

6 Description technique

CRX110CACC, CRX140CACC

7 Compartiment beurre (couvercle repliable)

CRX50CACC, CRX65CACC, CRX80CACC, CRX110CACC, CRX140ACACC

CRX50CC, CRX65CC, CRX80CC, CRX110CC

8.10 Remplacement du fusible (CRX50CACC, CRX65CACC, CRX80CACC, CRX110CACC et CRX140CACC uniquement)

dometic.com/sales-offices
