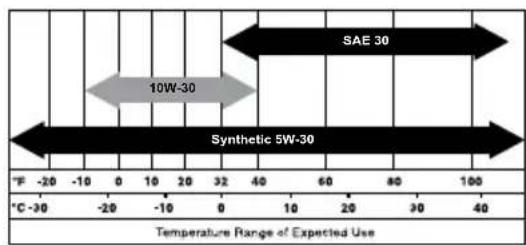

Recommended oil type	SAE 30, 10W-30 or synthetic 5W-30 depending on temperature
Routine maintenance	Oil change, air filter cleaning, spark plug inspection, spark arrestor cleaning
Warranty	Emissions warranty and Generac after-sales service

Frequently Asked Questions - G0071540 Generac

What type of oil to use for the engine?

Use a high-quality engine oil SAE 30, 10W-30 or synthetic 5W-30 depending on ambient temperature. The supplied mineral oil is recommended for initial break-in.

How to start the generator?

Set the PowerDial to CHOKE, ECO switch to OFF. Pull the starter cord slowly until you feel resistance, then pull sharply. Once started, turn the dial to RUN.

Can I use the generator indoors?

No, never indoors or in a partially enclosed space. Carbon monoxide (CO) from the exhaust is toxic and can kill in minutes. Use only outdoors, away from windows and doors.

How to avoid overload?

Add up the power of all connected devices. Total power must not exceed 2500 W (rated). If the overload indicator (red) lights up, disconnect loads, stop the engine, then restart after reducing the load.

Does the generator need to be grounded?

The generator is equipped with a ground via the AC outlets. For portable use, no external grounding is required per NEC 250.34. For connection to a building, use a transfer switch and call an electrician.

How to store the generator for a long period?

Drain the fuel or add a stabilizer. Run the engine for 10-15 minutes to circulate the stabilizer. Change the oil, remove the spark plug, pour a spoonful of oil into the cylinder and pull the starter several times. Store in a dry, clean place.

What is the oil capacity and how to check it?

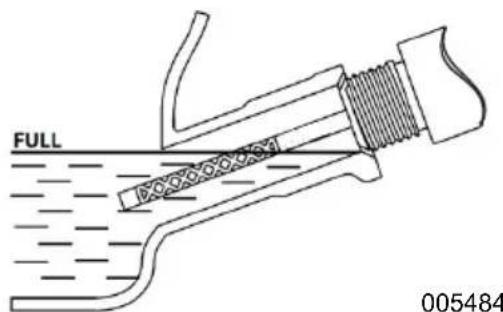

The oil capacity is 0.6 L (0.6 pt). To check the level, place the generator on a level surface, remove the dipstick, wipe it, insert it without screwing, then remove it. The level should be within the safe range (FULL).

What to do if the engine does not start?

Check that the PowerDial is on CHOKE or RUN, that the tank has fuel, that the oil level is correct, that the spark plug is clean and the air filter is not clogged. If the problem persists, contact an authorized Generac dealer.

Can I connect two generators for more power?

Yes, this model supports parallel operation with a Generac-approved kit. Make sure both generators are off when connecting and that the ECO switch is in the same position.

How often should I change the oil?

Change the oil after the first 20 hours, then every 100 hours or every 6 months. In extreme conditions (high temperatures, dust), change it more frequently.

USER MANUAL G0071540 Generac

GP3300i Portable Generator

Owner's Manual

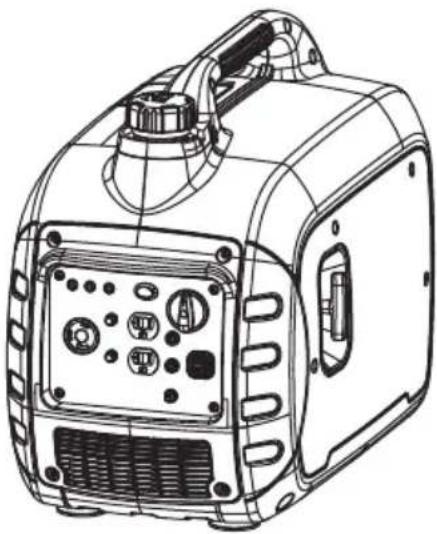

Technical line drawing of a portable electricity generator (no text or symbols visible)

MODEL:

SERIAL:

DATE PURCHASED:

WARNING

Loss of life. This product is not intended to be used in a critical life support application. Failure to adhere to this warning could result in death or serious injury. (000209b)

Register your Generac product at:

WWW.GENERAC.COM

1-888-GENERAC

(1-888-436-3722)

Section 1 Introduction and Safety 1

Introduction 1

Safety Rules 1

Safety Symbols and Meanings ..... 1

Exhaust and Location Hazards ..... 2

Electrical Hazards 3

Fire Hazards 3

Standards Index 3

Section 2 General Information and

Setup 4

Know Your Generator 5

Emissions 5

Connection Plugs 6

PowerDial™ 6

USB Outlets 6

Economy Switch 6

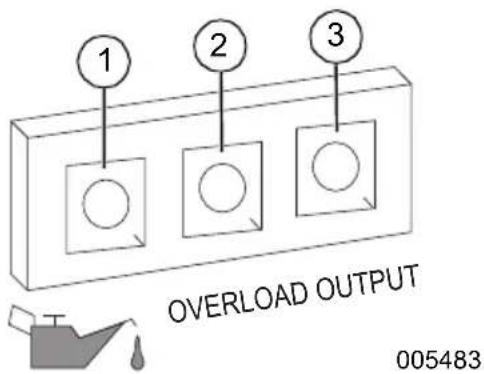

Generator Status Lights 6

Circuit Protectors 7

Remove Contents from Carton ..... 7

Add Engine Oil 7

Fuel 8

Section 3 Operation ...... 9

Operation and Use Questions ..... 9

Before Starting Engine 9

Prepare Generator for Use 9

Grounding the Generator When In Use 9

Connecting to a Building Electrical

System 9

Know Generator Limits ...... 10

Transporting/Tipping of the Unit .... 10

Starting Pull Start Engines 11

Starting Hot Engines 11

Low Oil Level Shutdown System ... 11

Parallel Operation 11

Section 4 Maintenance and

Troubleshooting 12

Maintenance 12

Maintenance Schedule ......12

Preventive Maintenance ....12

Engine Maintenance ....12

Storage 15

Troubleshooting 16

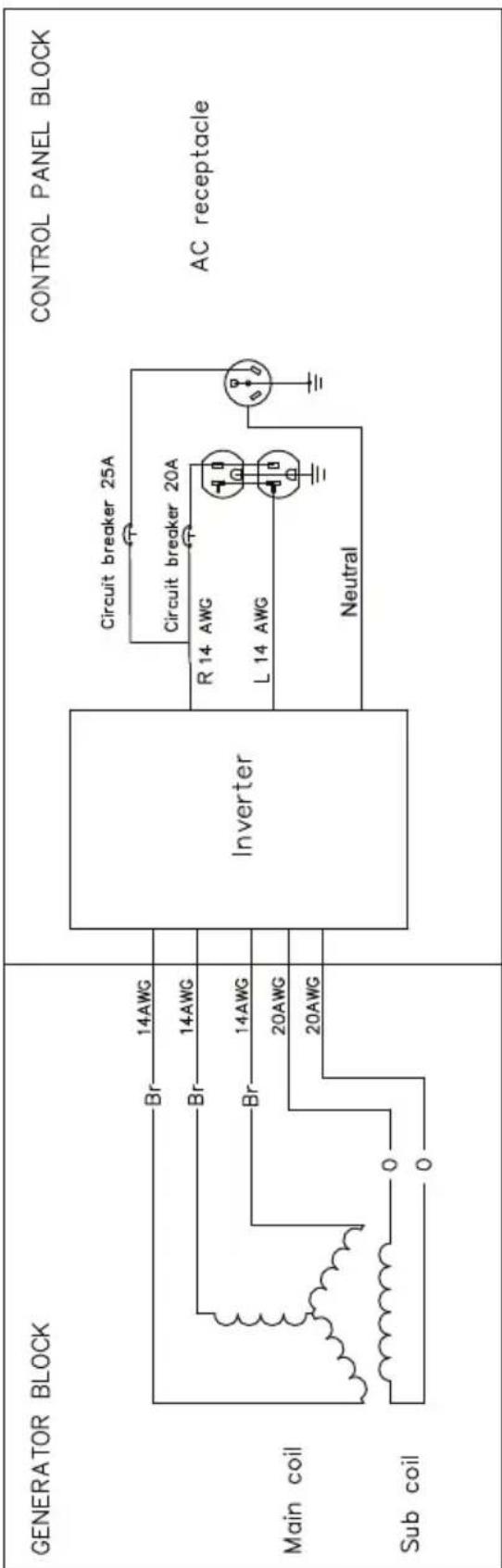

Wiring Diagram 17

Section 1 Introduction and Safety

Introduction

Read This Manual Thoroughly

WARNING

Consult Manual. Read and understand manual completely before using product. Failure to completely understand manual and product could result in death or serious injury. (000100a)

If any section of this manual is not understood, contact the nearest Independent Authorized Service Dealer (IASD) or Generac Customer Service at 1-888-436-3722 (1-888-GENERAC), or visit www.generac.com for starting, operating, and servicing procedures. The owner is responsible for proper maintenance and safe use of the unit.

SAVE THESE INSTRUCTIONS for future reference. This manual contains important instructions that must be followed during placement, operation, and maintenance of the unit and its components. Always supply this manual to any individual that will use this unit, and instruct them on how to correctly start, operate, and stop the unit in case of emergency.

The information in this manual is accurate based on products produced at the time of publication. The manufacturer reserves the right to make technical updates, corrections, and product revisions at any time without notice.

Safety Rules

The manufacturer cannot anticipate every possible circumstance that might involve a hazard. The alerts in this manual, and on tags and decals affixed to the unit, are not all inclusive. If using a procedure, work method, or operating technique that the manufacturer does not specifically recommend, verify that it is safe for others and does not render the equipment unsafe.

Throughout this publication, and on tags and decals affixed to the unit, DANGER, WARNING, CAUTION, and NOTE blocks are used to alert personnel to special instructions about a particular operation that may be hazardous if performed incorrectly or carelessly. Observe them carefully. Alert definitions are as follows:

DANGER

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

(000001)

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

(000002)

CAUTION

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

(000003)

NOTE: Notes contain additional information important to a procedure and will be found within the regular text of this manual.

These safety alerts cannot eliminate the hazards that they indicate. Common sense and strict compliance with the special instructions while performing the action or service are essential to preventing accidents.

Safety Symbols and Meanings

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

000657

DANGER

Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury. (000103)

- If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air IMMEDIATELY. See a doctor, as you could have carbon monoxide poisoning.

DANGER

Asphyxiation. The exhaust system must be properly maintained. Do not alter or modify the exhaust system as to render it unsafe or make it noncompliant with local codes and/or standards. Failure to do so will result in death or serious injury. (000179b)

DANGER

Electrocution. Water contact with a power source, if not avoided, will result in death or serious injury.

(000104)

DANGER

Electrocution. Turn utility and emergency power supplies to OFF before connecting power source and load lines. Failure to do so will result in death or serious injury. (000116)

WARNING

Equipment and property damage. Do not alter construction of, installation, or block ventilation for generator. Failure to do so could result in unsafe operation or damage to the generator. (000146)

WARNING

Asphyxiation. Always use a battery operated carbon monoxide alarm indoors and installed according to the manufacturer's instructions. Failure to do so could result in death or serious injury. (000178a)

WARNING

Equipment and property damage. Do not operate unit on uneven surfaces, or areas of excessive moisture, dirt, dust or corrosive vapors. Doing so could result in death, serious injury, property and equipment damage. (000250)

WARNING

Moving Parts. Keep clothing, hair, and appendages away from moving parts. Failure to do so could result in death or serious injury. (000111)

WARNING

Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustables during use. Hot surfaces could result in severe burns or fire. (000108)

WARNING

Personal injury. Do not insert any object through the air cooling slots. Generator can start at any time and could result in death, serious injury, and unit damage. (000142a)

WARNING

Risk of injury. Do not operate or service this machine if not fully alert. Fatigue can impair the ability to operate or service this equipment and could result in death or serious injury. (000215a)

WARNING

Injury and equipment damage. Do not use generator as a step. Doing so could result in falling, damaged parts, unsafe equipment operation, and could result in death or serious injury. (000216)

WARNING

Equipment damage. Do not attempt to start or operate a unit in need of repair or scheduled maintenance. Doing so could result in serious injury, death, or equipment failure or damage. (000291)

- For safety reasons, it is recommended that the maintenance of this equipment be performed by an IASD. Inspect the generator regularly, and contact the nearest IASD for parts needing repair or replacement.

Exhaust and Location Hazards

DANGER

Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury. (000103)

DANGER

Asphyxiation. The exhaust system must be properly maintained. Do not alter or modify the exhaust system as to render it unsafe or make it noncompliant with local codes and/or standards. Failure to do so will result in death or serious injury. (000179b)

WARNING

Equipment and property damage. Do not alter construction of, installation, or block ventilation for generator. Failure to do so could result in unsafe operation or damage to the generator. (000146)

WARNING

Asphyxiation. Always use a battery operated carbon monoxide alarm indoors and installed according to the manufacturer's instructions. Failure to do so could result in death or serious injury. (000178a)

• If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air IMMEDIATELY. See a doctor, as you could have carbon monoxide poisoning.
• NEVER run a generator indoors or in a partly enclosed area such as garages.
• ONLY use outdoors and far away from windows, doors, vents, crawl spaces and in an area where adequate ventilation is available and will not accumulate deadly exhaust gas.
• Point muffler exhaust away from people and occupied buildings.
  • Using a fan or opening a door will not provide sufficient ventilation.

Electrical Hazards

DANGER

Electrocution. Contact with bare wires, terminals, and connections while generator is running will result in death or serious injury.

(000144)

DANGER

Electrocution. Water contact with a power source, if not avoided, will result in death or serious injury.

(000104)

DANGER

Electrocution. In the event of electrical accident, immediately shut power OFF. Use non-conductive implements to free victim from live conductor. Apply first aid and get medical help. Failure to do so will result in death or serious injury. (000145)

• The National Electric Code (NEC) requires the frame and external electrically conductive parts of the generator be properly connected to an approved earth ground. Local electrical codes may also require proper grounding of the generator. Consult with a local electrician for grounding requirements in the area.
• Use a ground fault circuit interrupter in any damp or highly conductive area (such as metal decking or steel work).
• Once generator has been started outside, connect electrical loads to extension cord(s) inside.

Fire Hazards

ADANGER

Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Add fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury.(000105)

DANGER

Explosion and Fire. Do not fill fuel tank past full line. Allow for fuel expansion. Overfilling may cause fuel to spill onto engine causing fire or explosion, which will result in death or serious injury. (000214)

WARNING

Personal injury. Do not insert any object through the air cooling slots. Generator can start at any time and could result in death, serious injury, and unit damage. (000142a)

WARNING

Fire risk. Fuel and vapors are extremely flammable. Do not operate indoors. Doing so could result in death, serious injury, or property or equipment damage. (000281)

WARNING

Explosion and fire risk. Do not smoke near unit. Keep fire and spark away. Failure to do so could result in death, serious injury, or property or equipment damage.

(000282)

WARNING

Explosion and Fire. Do not smoke while refueling unit. Failure to do so could result in death, serious injury, or property or equipment damage. (000284a)

• Wipe up any fuel or oil spills immediately. Verify that no combustible materials are left on or near the generator. Keep the area surrounding the generator clean and free from debris and keep a clearance of five (5) feet on all sides to allow for proper ventilation of the generator and to prevent fire.
• Do not operate the generator if connected electrical devices overheat, if electrical output is lost, if engine or generator sparks or if flames or smoke are observed while unit is running.
• Keep a fire extinguisher near the generator at all times.
• Keep a minimum clearance of five feet all around generator.

Standards Index

1. National Fire Protection Association (NFPA) 70: The NATIONAL ELECTRIC CODE (NEC) available from www.nfpa.org
2. National Fire Protection Association (NFPA) 5000: BUILDING CONSTRUCTION AND SAFETY CODE available from www.nfpa.org
3. International Building Code available from www.iccsafe.org
4. Agricultural Wiring Handbook available from www.rerc.org, Rural Electricity Resource Council P.O. Box 309 Wilmington, OH 45177-0309
5. ASAE EP-364.2 Installation and Maintenance of Farm Standby Electric Power available from www.asabe.org, American Society of Agricultural & Biological Engineers 2950 Niles Road, St. Joseph, MI 49085
6. CSA C22.2 100-14 Electric motors and generators for installation and use, in accordance with the Rules of the Canadian Electrical Code
7. ANSI/PGMA G300 Safety and Performance of Portable Generators. Portable Generator Manufacturer's Association, www.pgmaonline.com
   This list is not all inclusive. Check with the Authority Having Jurisdiction (AHJ) for any local codes or standards which may be applicable to your jurisdiction.

Section 2 General Information and Setup

10 11 12 14 006087

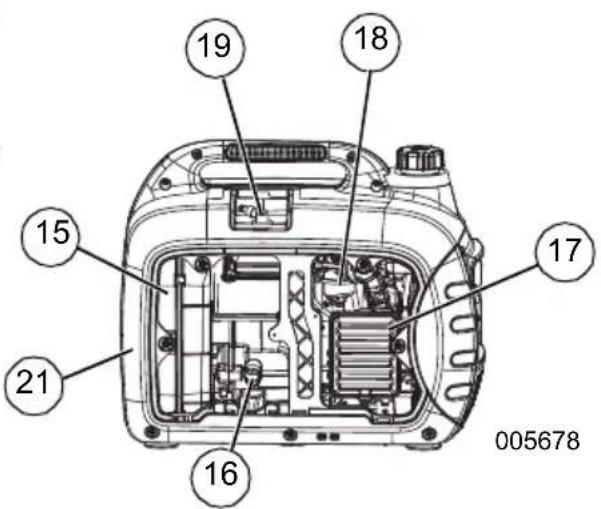

19 18 15 21 16 17 005678

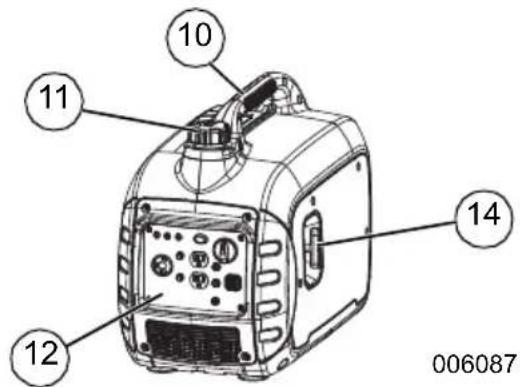

Figure 2-1. Features and Controls

TABLE 1. Generator Components

1 Low Oil LED (Yellow)

2 Overload LED (Red)

3 AC Power LED (Green)

4 Economy Mode Switch (ECO)

5 1A/2.1A, 5 VDC USB Outlet

6 AC Breaker

7 Parallel Operation Cable Connection

8 Grounding Location

9 120V, 20A Receptacle (NEMA 5-20R)

10 Handle

11 Fuel Tank Cap

12 Control Panel

13 PowerDialTM

14 Recoil Starter

15 Muffler

16 Oil Fill/Drain

17 Air Cleaner

18 Carburetor

19 Spark Plug

20 120V, 30A Receptacle (NEMA L5-30R)

21 Spark Arrestor

1 2 3 4 9 13 20 7 6 7 8 5 011948

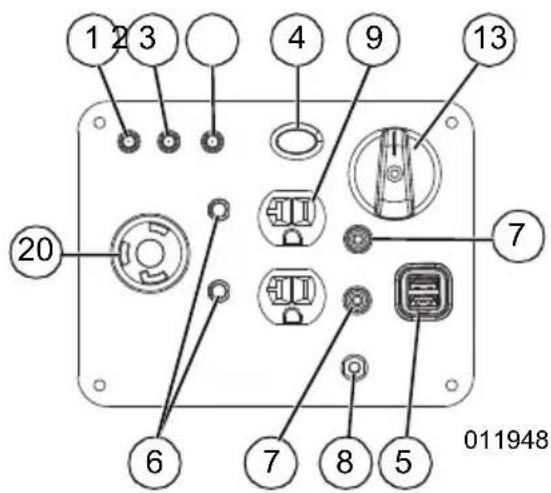

Figure 2-2. Control Panel

Know Your Generator

WARNING

Consult Manual. Read and understand manual completely before using product. Failure to completely understand manual and product could result in death or serious injury. (000100a)

Replacement owner's manuals are available at www.generac.com.

Emissions

The United States Environmental Protection Agency (US EPA) (and California Air Resources Board (CARB), for engines/equipment certified to California standards) requires this engine/equipment to comply with exhaust and evaporative emissions standards. Locate the emissions compliance decal on the engine to determine applicable standards. See the included emissions warranty for emissions warranty information. Follow the maintenance specifications in this manual to ensure the engine complies with applicable emissions standards for the duration of the product's life.

TABLE 2. Product Specifications

Generator Specifications GP3300i
Rated Power 2500 W**
Surge Power 3300 VA
Rated AC Voltage 120V
Rated AC Load at 120V 20.83 Amps**
Rated Frequency	60 Hz
Dimensions L x W x H (in/mm)	22.25 x 13.35 x 18.4 (565 x 339 x 467)
Weight (dry)	59.5 lb. (27 kg)
** Operating Temperature Range: -13°C (8°F) to 40°C (104°F). When operated above 25°C (77°F) there may be a decrease in power. ** Maximum wattage and current are subject to, and limited by, such factors as fuel Btu content, ambient temperature, altitude, engine condition, etc.. Maximum power decreases about 3.5% for each 1,000 feet above sea level; and will also decrease about 1% for each 6°C (10°F) above 16°C (60°F) ambient temperature.
Engine Specifications	GP3300i
Engine Type	Single Cylinder, 4-stroke
Displacement	149 cc
Spark Plug Part Number	0K95530157
Spark Plug Type	F7TC or equivalent
Spark Plug Gap (in/mm)	0.024-0.028 (0.6-0.7)
Fuel Capacity / Type	4.3 L (1.14 U.S. gallons) / Unleaded
Oil Type	See Add Engine Oil section
Oil Capacity	0.6 L (0.6 qt.)
Run Time at 25% Load	7 Hours
Run Time at 50% Load	4.5 Hours
* Go to www.generac.com or contact an Independent Authorized Service Dealer (IASD) for replacement parts.

Connection Plugs

120 VAC, Duplex Receptacle

See Figure 2-3. The 120 Volt outlet is overload protected by the 20 Amp push button circuit protector.

001630

Figure 2-3. 120 VAC, Duplex Receptacle NEMA 5-20R

120 VAC, 30 Amp Receptacle

See Figure 2-4. Use a NEMA L5-30R plug with this receptacle. Connect a suitable 3-wire cord set to the plug and to desired load. The cord set should be rated for 125 Volts AC at 30 Amps (or greater).

Use this receptacle to operate 120 Volt AC, 60Hz, single phase loads requiring up to 2500 watts of continuous power at 20.83 Amps. The outlet is protected by a 25 Amp push-to-reset circuit breaker.

Circular diagram with three curved black segments inside a larger white circle (no text or symbols)

000844

Figure 2-4. 120 VAC, 30 Amp Receptacle NEMA L5-30R

PowerDial™

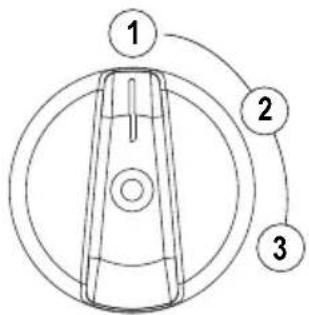

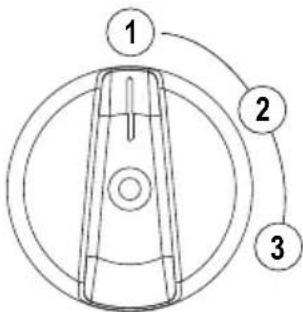

See Figure 2-5. This controls the ON/OFF functions, choke and fuel valve operation.

• The OFF position (1) stops the engine and shuts off fuel flow.
• The RUN position (2) is for normal operation and to gradually reduce the use of the choke.
  • The CHOKE position (3) switches the fuel valve on to start the engine.

NOTE: The CHOKE is not required to start a warm engine.

1 2 3

011949

Figure 2-5. Switch (example)

USB Outlets

The 5 VDC, 1/2.1 Amp USB outlet allows charging of compatible electronic devices.

Economy Switch

The economy (ECO) switch has two (2) modes of operation:

• On: The quietest mode and best when running appliances or equipment that are resistive loads (non-motor starting), (example: TV, video game, light, radio).
• Off: Best when running a both inductive (motor-starting) and resistive (non-motor starting) loads, especially when these loads are turning on and off (example: RV, air conditioner, hairdryer).

Generator Status Lights

See Figure 2-6.

• Overload LED (red): Indicates system overload (2). During motor starting it is normal for the overload LED to illuminate for a few seconds. If LED stays illuminated and the ready LED turns off, the engine will continue to run without output power. Remove all applied loads and determine if attached devices exceed recommended output power. Check for faulty or shorted connections. To restore electrical output, turn dial OFF to reset. Start engine. If condition was corrected, the red LED will not illuminate and electrical output will be restored. Loads can be applied once the green LED illuminates. If the red LED returns, contact an IASD.
• Low Oil Level LED (yellow): Illuminates when oil level is below safe operating level. Engine shuts down (1).
• Power LED (green): Indicates output from generator (3) (unless there is a low oil or overload condition).

1 2 3 OVERLOAD OUTPUT 005483

Figure 2-6. Status Indicators

Circuit Protectors

The AC receptacles are protected by an AC circuit protector. If the generator is overloaded or an external short circuit occurs, the circuit protector will trip. If this occurs, disconnect all electrical loads to determine the cause of the problem before using the generator again. Reduce the load if the circuit protector is tripped.

NOTE: Continuous tripping of the circuit protector may cause damage to generator or equipment.

Push the button of the protector to reset the circuit protector.

Remove Contents from Carton

1. Open carton completely by cutting each corner from top to bottom.
2. Remove and verify carton contents prior to assembly. Carton contents should contain the following:

TABLE 3. Accessories

Item Qty.
Main Unit 1
Owner's Manual 1
Engine Oil	1
Oil Funnel	1
Tool Kit	1
Service Warranty	1
Emissions Warranty	1

1. Call Generac Customer Service at 1-888-GENERAC (1-888-436-3722) with the unit model and serial number for any missing carton contents.
2. Record model, serial number, and date of purchase on front cover of this manual.

Add Engine Oil

CAUTION

Engine damage. Verify proper type and quantity of engine oil prior to starting engine. Failure to do so could result in engine damage.

(000135)

NOTE: The generator is shipped without oil in the engine. Add oil slowly and verify oil level often during filling process to ensure overfilling does not occur.

1. Place generator on a level surface.
2. Remove screws and side cover.
3. Verify oil fill area is clean.
4. See Figure 2-7. Remove oil fill cap/dipstick and wipe dipstick clean.

Illustration of a hand turning a valve with a water drop symbol (no text or labels)

Figure 2-7. Remove Dipstick

1. Insert funnel into oil fill opening. Add recommended engine oil as necessary. Climate determines proper engine oil viscosity. See chart below to select correct viscosity.

NOTE: Use petroleum based oil (supplied) for engine break-in before using synthetic oil.

000399

1. See Figure 2-8. To check oil level, remove funnel and insert dipstick into oil filler neck without screwing it in.

FULL 005484

Figure 2-8. Safe Operating Range

1. Remove dipstick and verify oil level is within safe operating range.

NOTE: Verify oil level often during filling process to ensure overfilling does not occur.

1. Install oil fill cap/dipstick and hand-tighten.

2. Install side panel and screws.

Fuel

DANGER

Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Add fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury.

(000105)

DANGER

Explosion and Fire. Do not fill fuel tank past full line. Allow for fuel expansion. Overfilling may cause fuel to spill onto engine causing fire or explosion, which will result in death or serious injury.

(000214)

Fuel requirements are as follows:

• Clean, fresh, unleaded gasoline.
  • Minimum rating of 87 octane/87 AKI (91 RON).
• Up to 10% ethanol (gasohol) is acceptable (where available, non-ethanol fuel is recommended).
  • DO NOT use E85.
  • DO NOT use a gas oil mix.

• DO NOT modify engine to run on alternate fuels. Stabilize fuel prior to storage.

• Verify unit is OFF and cooled entirely prior to fueling.

• Place unit on level ground in a well ventilated area.

• Clean area around fuel cap.

• Turn cap slowly to remove.

• Slowly add recommended fuel. Do not overfill.

• Install fuel cap.

NOTE: Allow spilled fuel to evaporate before starting unit.

IMPORTANT NOTE: It is important to prevent gum deposits from forming in fuel system parts such as the carburetor, fuel hose or tank during storage. Alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. See the Storage section. Never use engine or carburetor cleaner products in the fuel tank as permanent damage may occur.

Section 3 Operation

Operation and Use Questions

Call Generac Customer Service at 1-888-GENERAC (1-888-436-3722) with questions or concerns about equipment operation and maintenance.

Before Starting Engine

1. Verify engine oil level is correct.
2. Verify fuel level is correct.
3. Verify unit is secure on level ground, with proper clearance and is in a well ventilated area.

Prepare Generator for Use

DANGER

Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury. (000103)

DANGER

Asphyxiation. The exhaust system must be properly maintained. Do not alter or modify the exhaust system as to render it unsafe or make it noncompliant with local codes and/or standards. Failure to do so will result in death or serious injury. (000179b)

WARNING

Risk of fire. Do not use generator without spark arrestor installed. Failure to do so could result in death or serious injury.

(000118a)

WARNING

Asphyxiation. Always use a battery operated carbon monoxide alarm indoors and installed according to the manufacturer's instructions. Failure to do so could result in death or serious injury. (000178a)

WARNING

Risk of Fire. Hot surfaces could ignite combustibles, resulting in fire. Fire could result in death or serious injury.

(000110)

WARNING

Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire. (000108)

CAUTION

Equipment and property damage. Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage. (000136)

Grounding the Generator When In Use

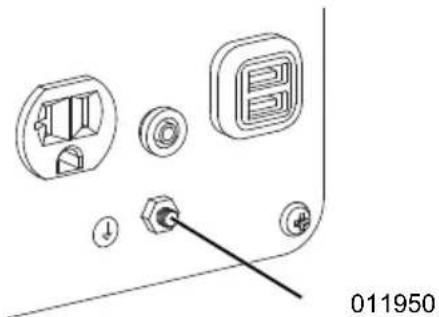

See Figure 3-1. The generator is equipped with an equipment ground connecting the generator frame and the ground terminals on the AC output receptacles (see NEC 250.34 (A). This allows the generator to be used as a portable without grounding the frame of the generator as specified in NEC 250.34.

- Neutral Floating

Diagram of a device panel with labeled components and a pointer pointing to a connector (no text or symbols present)

Figure 3-1. Grounding the Generator

The generator (stator winding) is isolated from the frame and from the AC receptacle ground pin. Electrical devices that require a grounded receptacle pin connection will not function if the receptacle ground pin is not functional.

Connecting to a Building Electrical System

Use a manual transfer switch when connecting directly to a building electrical system. Installation and connections must be performed by a qualified electrician and in strict compliance with all national and local electrical codes and laws.

Always operate the generator with the Eco Mode Switch OFF (if equipped).

Special Requirements

Review all Federal or State Occupational Safety and Health Administration (OSHA) regulations, local codes, or ordinances that apply to the intended use of the generator.

Consult a qualified electrician, electrical inspector, or the local agency having jurisdiction:

• In some areas, generators are required to be registered with local utility companies.
- If the generator is used at a construction site, there may be additional regulations which must be observed.

Know Generator Limits

Overloading a generator can result in damage to the generator and connected electrical devices. Observe the following to prevent overload:

• Add the total wattage of all electrical devices to be connected at one time. This total should NOT be greater than the generator's wattage capacity.
• The rated wattage of lights can be taken from light bulbs. The rated wattage of tools, appliances, and motors can be found on a data label or decal affixed to the device.
• If the appliance, tool, or motor does not give wattage, multiply volts times ampere rating to determine watts (volts x amps = watts).

• Some electric motors, such as induction types, require approximately three times more watts of power for starting than for running. This surge of power lasts only a few seconds when starting such motors. Make sure to allow for high starting wattage when selecting electrical devices to connect to the generator:

• Calculate the watts needed to start the largest motor.

• Add to that figure the running watts of all other connected loads.

The Wattage Reference Guide is provided to assist in determining how many items the generator can operate at one time.

NOTE: All figures are approximate. See data label on appliance for wattage requirements.

Wattage Reference Guide

Device Running	Watts
*Air Conditioner (12,000 Btu)	1700
*Air Conditioner (24,000 Btu)	3800
*Air Conditioner (40,000 Btu)	6000
Battery Charger (20 Amp)	500
Belt Sander (3")	1000
Chain Saw	1200
Circular Saw (7-1/4")	1250 to 1400
*Clothes Dryer (Electric)	5750
*Clothes Dryer (Gas)	700
*Clothes Washer	1150
Coffee Maker	1750
*Compressor (1 HP)	2000
*Compressor (3/4 HP)	1800
*Compressor (1/2 HP)	1400
Curling Iron	700
*Dehumidifier	650
Disc Sander (9")	1200
Edge Trimmer	500

Electric Blanket	400
Electric Nail Gun	1200
Electric Range (per element)	1500
Electric Skillet	1250
*Freezer	700
*Furnace Fan (3/5 HP)	875
*Garage Door Opener	500 to 750
Hair Dryer 1200
Hand Drill	250 to 1100
Hedge Trimmer	450
Impact Wrench	500
Iron	1200
*Jet Pump	800
Lawn Mower	1200
Light Bulb	100
Microwave Oven	700 to 1000
*Milk Cooler	1100
Oil Burner on Furnace	300
Oil Fired Space Heater (140,000 Btu)	400
Oil Fired Space Heater (85,000 Btu)	225
Oil Fired Space Heater (30,000 Btu)	150
*Paint Sprayer, Airless (1/3 HP)	600
Paint Sprayer, Airless (hand-held)	150
Radio	50 to 200
*Refrigerator	700
Slow Cooker	200
*Submersible Pump (1-1/2 HP)	2800
*Submersible Pump (1 HP)	2000
*Submersible Pump (1/2 HP)	1500
*Sump Pump	800 to 1050
*Table Saw (10")	1750 to 2000
Television	200 to 500
Toaster	1000 to 1650
Weed Trimmer	500
* Allow 3 times the listed watts for starting these devices.

Transporting/Tipping of the Unit

Do not store or transport the unit at an angle greater than 15 degrees.

Starting Pull Start Engines

WARNING

Recoil Hazard. Recoil could retract unexpectedly. Kickback could result in death or serious injury.

(000183)

CAUTION

Equipment and property damage. Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage. (000136)

1. See Figure 3-2. Rotate the PowerDial to CHOKE (3).
2. Switch Economy switch to OFF.
3. Firmly grasp recoil handle and pull slowly until increased resistance is felt. Pull rapidly up and away.

1 2 3

011949

Figure 3-2.PowerDial Positions

1. See Figure 3-2. When engine starts, rotate Off/Run/Choke dial to RUN (2). Choke operation is reduced as Off/Run/Choke dial is rotated towards RUN.

NOTE: If engine fires, but does not continue to run, rotate the Off/Run/Choke dial to OFF and repeat starting instructions.

IMPORTANT NOTE: See Figure 3-3. Do not overload generator or individual panel receptacles. If an overload occurs, the overload LED (A) will illuminate and AC output ceases. To correct, see Generator Status Lights. Read Know Generator Limits carefully.

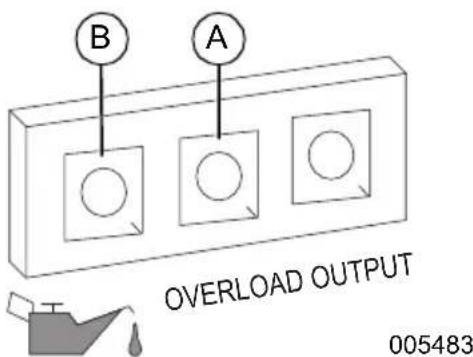

B A OVERLOAD OUTPUT 005483

Figure 3-3.Shutdown Fault

Generator Shut Down

CAUTION

Equipment and property damage. Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage. (0)

(000136)

1. Shut off all loads and unplug electrical loads from generator panel receptacles.
2. Let engine run at no-load for several minutes to stabilize internal temperatures of engine and generator.
3. See Figure 3-2. Rotate PowerDial to OFF (3).

Starting Hot Engines

CAUTION

Equipment and property damage. Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage. (0)

(000136)

1. See Figure 3-2. Turn PowerDial from OFF to RUN. This will open the fuel valve and permit starting.
2. Firmly grasp recoil handle and pull slowly until increased resistance is felt. Pull rapidly up and away.

Low Oil Level Shutdown System

The engine is equipped with a low oil level sensor to shut down the engine automatically when the oil level drops below a specified level. The engine will not run until the oil has been filled to the proper level.

IMPORTANT NOTE: Verify proper engine oil and fuel levels before use.

Parallel Operation

See the Parallel Kit Operator's Manual or contact an IASD.

NOTE: All connections to the parallel kit should be made while both inverters are turned off and all loads disconnected.

1. Make sure the Engine Economy Switch is in the same position on both generators.
2. Make appropriate parallel connections to the outlets on each Generac inverter as outlined in the owner's manual supplied with the kit.

NOTE: Do not disconnect any parallel kit connections once the units are running.
3. Start both units per starting instructions. Once the green output indicator illuminates, devices can be connected and turned on using the parallel kit outlet.
4. Follow Generator Shut Down instructions.

NOTE: Only use Generac approved parallel kit.

Section 4 Maintenance and Troubleshooting

Maintenance

Regular maintenance will improve performance and extend engine/equipment life. Generac Power Systems, Inc. recommends that all maintenance work be performed by an Independent Authorized Service Dealer (IASD). Regular maintenance, replacement, or repair of the emissions control devices and systems may be performed by any repair shop or person of the owner's choosing. To obtain emissions control warranty service free of charge, the work must be performed by an IASD. See the emissions warranty.

NOTE: Call 1-888-GENERAC (1-888-436-3722) with questions about component replacement.

Maintenance Schedule

Follow maintenance schedule intervals, whichever occurs first according to use.

NOTE: Adverse conditions will require more frequent service.

NOTE: All required service and adjustments should be completed as detailed in the following chart.

At Each Use

Check engine oil level

Every 100 Hours or Every 6 Months

Clean/Replace Air Filter**

Change oil ‡

Muffler Screen

Clean/Replace Spark Arrestor

Every 300 Hours or Every Year*

Replace Spark Plug

Replace Fuel Filter +

Valve Clearance Adjustment

Check/Replace Crankcase Breather Hose

Check Fittings/Fasteners +

‡ Change oil after first month or 20 hours of operation.+ To be performed by an IASD.* Change oil every month when operating under heavy load or in high temperatures.** Clean more often under dirty or dusty operating conditions. Replace air filter parts if they cannot be adequately cleaned.*** Check valve clearance and adjust if necessary after first 50 hours of operation and every 300 hours thereafter.

Preventive Maintenance

Dirt or debris can cause improper operation and equipment damage. Clean generator daily or before each use. Keep area around and behind muffler free from combustible debris. Inspect all cooling air openings on generator.

WARNING

Personal injury. Do not insert any object through the air cooling slots. Generator can start at any time and could result in death, serious injury, and unit damage.

(000142a)

• Use a damp cloth to wipe exterior surfaces clean.
• Use a soft bristle brush to loosen caked on dirt, oil, etc.
• Use a vacuum to pick up loose dirt and debris.
• Low pressure air (not to exceed 25 psi) may be used to blow away dirt. Inspect cooling air slots and openings on generator. These openings must be kept clean and unobstructed.

NOTE: DO NOT use a garden hose to clean generator. Water can enter engine fuel system and cause problems. If water enters generator through cooling air slots, some water will be retained in voids and crevices of rotor and stator winding insulation. Water and dirt buildup on generator internal windings will decrease insulation resistance of windings.

Engine Maintenance

WARNING

Accidental start-up. Disconnect spark plug wires when working on unit. Failure to do so could result in death or serious injury.

(000141)

Engine Oil Recommendations

To maintain the product warranty, the engine oil should be serviced in accordance with the recommendations of this manual. For your convenience, maintenance kits designed and intended for use on this product are available from the manufacturer that include engine oil, oil filter, air filter, spark plug(s), a shop towel and funnel. These kits can be obtained from an Independent Authorized Service Dealer (IASD).

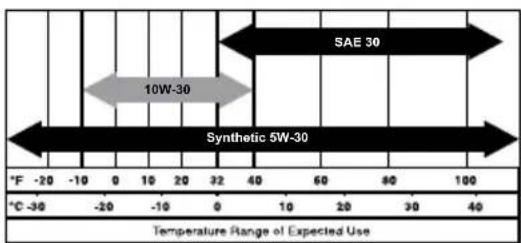

SAE 30 10W-30 Synthetic 5W-30 Temperature Range of Expected Use °F -20 -10 0 10 20 32 40 60 80 100 °C -30 -20 -10 0 10 20 32 40 *F -20 -10 0 10 20 32 40 60 80 100 °C -30 -20 -10 0 10 20 32 40 60 80 100

000399

Inspect Engine Oil Level

WARNING

Risk of burns. Allow engine to cool before draining oil or coolant. Failure to do so could result in death or serious injury.

(000139)

Inspect engine oil level prior to each use, or every 8 hours of operation.

1. Place generator on a level surface.
2. Remove screws and side cover.
3. Clean area around oil fill.

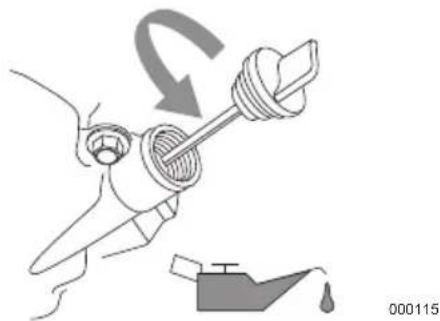

4. See Figure 4-1. Remove oil fill cap/dipstick and wipe dipstick clean.

Illustration of a hand using a tool to lift a screw, with no text or symbols present.

000115

Figure 4-1. Engine Oil Fill

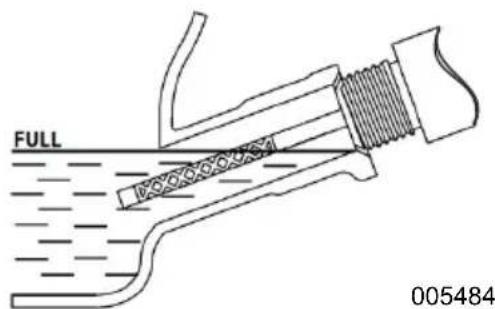

5. See Figure 4-2. To check oil level, insert dipstick into oil filler neck without screwing it in.

FULL 005484

Figure 4-2. Safe Operating Range

1. Remove dipstick and verify oil level is within safe operating range.
2. Add recommended engine oil as necessary.

NOTE: Verify oil level often during filling process to ensure overfilling does not occur.

1. Install oil fill cap/dipstick and hand-tighten.
   NOTE: Some units have more than one oil fill location. It is only necessary to use one oil fill point.
2. Install side panel and screws.

Change Engine Oil

WARNING

Accidental start-up. Disconnect spark plug wires when working on unit. Failure to do so could result in death or serious injury.

(000141)

When using generator under extreme, dirty, dusty conditions, or in extremely hot weather, change oil more frequently.

NOTE: Don't pollute. Conserve resources. Return used oil to collection centers.

Change oil while engine is still warm from running, as follows:

1. Place generator on a level surface.
2. Remove screws, side cover and spark plug cover.
3. Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug.
4. Clean area around oil fill and oil drain plug.
5. Remove oil fill cap/dipstick and wipe dipstick clean.
6. Tip unit and drain oil completely into a suitable container.
7. Once oil is sufficiently drained from unit, install oil drain plug and tighten securely.
8. See Figure 4-3. Insert funnel into oil fill opening. Add recommended engine oil as necessary.

Illustration of a hand holding a tool with a curved arrow indicating rotation, next to a funnel and water drop (no text or symbols)

002404
Figure 4-3. Oil Fill Opening With Funnel

1. See Figure 4-2. To check oil level, remove funnel and insert dipstick into oil filler neck without screwing it in.
2. Remove dipstick and verify oil level is within safe operating range.

NOTE: Verify oil level often during filling process to ensure overfilling does not occur.

1. Install oil fill cap/dipstick and hand-tighten.
2. Wipe up any spilled oil.
3. Install side panel, screws, and spark plug cover.
4. Properly dispose of oil in accordance with all applicable regulations.

Air Filter

Engine will not run properly and may be damaged if run with a dirty air filter. Service air filter more frequently in dirty or dusty conditions. To service air filter:

1. See Figure 4-4. Unscrew bolt (A) and remove air filter cover.
2. Wash filter (B) in soapy water. Squeeze dry in clean cloth (DO NOT TWIST).
3. Clean air filter cover before installation.
4. Replace side cover and screws.

NOTE: To order a new air filter, contact the nearest authorized service center at 1-888-436-3722.

A B 005486

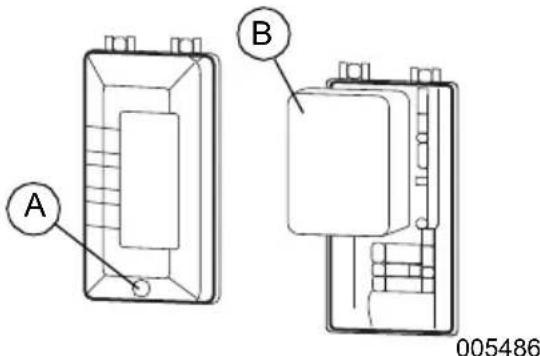

Figure 4-4. Air Filter Assembly

Service Spark Plug

To service spark plug:

1. See Figure 2-1. Remove spark plug cover and disconnect spark plug wire.
2. Clean area around spark plug.
3. Remove and inspect spark plug.
4. See Figure 4-5. Inspect electrode gap with feeler gauge and reset spark plug gap to 0.6 - 0.7mm (0.024 - 0.028 in).

Line drawing of hands holding a small mechanical component (no text or symbols)

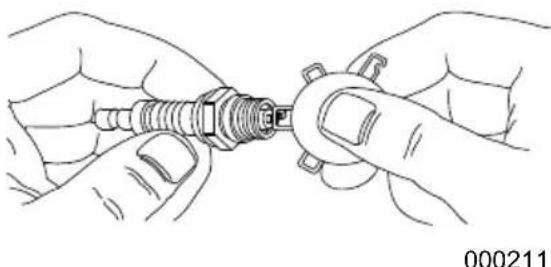

Figure 4-5. Spark Plug

NOTE: Replace spark plug if electrodes are pitted, burned or porcelain is cracked. Use ONLY recommended replacement plug. See Product Specifications.

1. Install spark plug finger tight, and tighten an additional 3/8 to 1/2 turn using spark plug wrench.

Inspect Muffler and Spark Arrestor

NOTE: It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrestor, as defined in Section 4442, maintained in effective working order. Other states or federal jurisdictions may have similar laws.

Contact original equipment manufacturer, retailer, or dealer to obtain a spark arrestor designed for exhaust system installed on this engine.

NOTE: Use ONLY original equipment replacement parts.

Inspect muffler for cracks, corrosion, or other damage. Remove spark arrestor, if equipped, inspect for damage or carbon blockage. Replace parts as required.

Inspect Spark Arrestor Screen

WARNING

Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire. (000108)

(000108)

Clean Spark Arrestor Screen

The engine exhaust muffler has a spark arrestor screen. Inspect and clean the screen every 100 hours of operation or every six months, whichever comes first.

To service spark arrestor:

1. See Figure 4-6. Remove the clamp to remove retainer.
2. Slide spark arrestor screens out from the muffler outlet tube.
3. Inspect screens and replace if torn, perforated or otherwise damaged. Do NOT use a defective screen. If screen is not damaged, clean with a commercial solvent.
4. Replace the screens, and retainer, and secure with clamp.

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

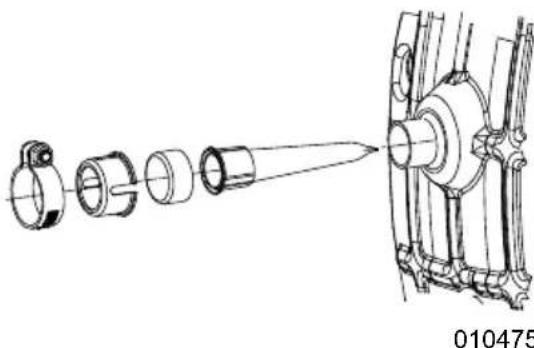

Figure 4-6. Spark Arrestor Screen

Valve Clearance

Important: Please contact an Independent Authorized Service Dealer for service assistance. Proper valve clearance is essential for prolonging the life of the engine.

Check valve clearance after the first fifty-hours of operation. Adjust as necessary.

• Intake — 0.10 ± 0.02mm (cold), (0.004" ± 0.001" inches)
• Exhaust — 0.10 ± 0.02mm (cold) (0.004" ± 0.001" inches)

Storage

General

DANGER

Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Store fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury.

(000143)

WARNING

Risk of Fire. Verify machine has properly cooled before installing cover and storing machine. Hot surfaces could result in fire.

(000109)

It is recommended to start and run the generator for 30 minutes, every 30 days. If this is not possible, refer to the following list to prepare unit for storage.

• DO NOT place a storage cover on a hot generator. Allow unit to cool to room temperature before storage.
• DO NOT store fuel from one season to another unless properly treated.
• Replace fuel container if rust is present. Rust in fuel will cause fuel system problems.
• Cover unit with a suitable protective, moisture resistant cover.
• Store unit in a clean, dry area.
  • Always store generator and fuel away from heat and ignition sources.

Prepare Fuel System/Engine for Storage

WARNING

Vision Loss. Eye protection is required to avoid spray from spark plug hole when cranking engine. Failure to do so could result in vision loss. (00)

(000181)

Fuel stored over 30 days can go bad and damage fuel system components. Keep fuel fresh, use fuel stabilizer.

If fuel stabilizer is added to fuel system, prepare and run engine for long term storage. Run engine for 10-15 minutes to circulate stabilizer throughout fuel system. Adequately prepared fuel can be stored up to 24 months.

NOTE: If fuel has not been treated with fuel stabilizer, it must be drained into an approved container. Run engine until it stops from lack of fuel. Use of fuel stabilizer in fuel storage container is recommended to keep fuel fresh.

1. See Figure 4-7. Loosen screw (A) and drain fuel from carburetor.

A 011954

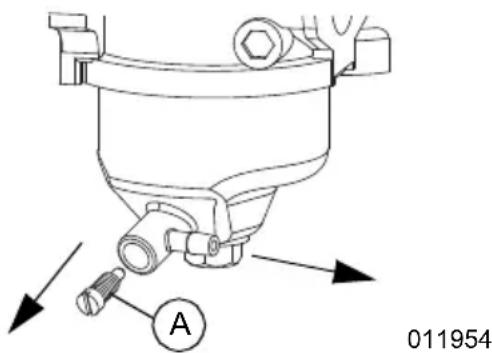

Figure 4-7. Drain Fuel from Carburetor

1. Change engine oil.
2. Remove spark plug.
3. Pour tablespoon (5-10cc) of clean engine oil or spray a suitable fogging agent into cylinder.
4. Pull starter recoil several times to distribute oil in cylinder.
5. Install spark plug.
6. Pull recoil slowly until resistance is felt. This will close valves so moisture cannot enter engine cylinder. Gently release recoil.

Change Oil

Change engine oil before storage. See, Change Engine Oil.

Troubleshooting

PROBLEM CAUSE CORRECTION
Engine won't start. 1. Dial turned off.2. Out of fuel.3. Defective spark plug.4. Plugged fuel filter.5. Defective or stuck Dial assembly.6. Incorrect engine oil level.7. Defective ignition coil.8. Carb is flooded.9. Throttle plate closed.		1. Turn on Dial.2. Fill fuel tank.3. Replace spark plug.4. Replace fuel and fuel filter.5. Contact IASD.6. Check/fill engine oil.7. Contact IASD.8. Drain carb.9. Open throttle plate (push toward back of unit).
Engine starts, then shuts down.	1. Out of fuel.2. Incorrect engine oil level.3. Contaminated fuel.4. Defective low oil level switch.	1. Fill fuel tank.2. Check engine oil level.3. Contact IASD.4. Contact IASD.
Engine will not start; or starts and runs rough.*	1. Choke is stuck or left on.2. Dirty or clogged air filter.3. Defective or dirty spark plug.4. Dirty fuel filter.5. Dirty or gummed up carburetor.6. Unit not warmed up.7. Spark arrestor clogged.	1. Turn choke off.2. Clean or replace air filter.3. Replace spark plug.4. Replace fuel and fuel filter.5. Clean carburetor.6. Gradually adjust Dial and reduce choke until engine runs smoothly in RUN position.7. Clean spark arrestor.
No AC output. 1. Generator is overloaded.2. Inverter module is overheated.3. Short circuit in electrical device.4. Defective inverter assembly.		1. Disconnect all loads. Shut down generator to reset module. Reduce loads, restart generator.2. Verify service door is ON. Let cool 15 minutes by running engine without AC output. Press and hold Reset button on control panel, restart generator.3. Verify condition of extension cords and items being powered. Press and hold Reset button on control panel.4. Contact IASD.
Fuel leaks from drain hoses.	1. Carburetor drain in bowl is not closed.	1. Turn valve clockwise to close.
* Engine speed increases and decreases — This is normal as generator starts up and loads vary.

Wiring Diagram

GENERATOR BLOCK Main coil Sub coil Br 14AWG Br 14AWG Br 14AWG 20AWG 20AWG Inverter Circuit breaker 25A Circuit breaker 20A R 14 AWG L 14 AWG Neutral CONTROL PANEL BLOCK AC receptacle

Br	Brown
L	Blue
O	Orange
R	Red

011951

Part No. A0001141434 Rev. B 01/14/2021

©2021 Generac Power Systems, Inc.

All rights reserved

Specifications are subject to change without notice.

No reproduction allowed in any form without prior

written consent from Generac Power Systems, Inc.

GENERAC®

Generac Power Systems, Inc.

S45 W29290 Hwy. 59

Waukesha, WI 53189

1-888-GENERAC (1-888-436-3722)

www.generac.com

Generador portátil GP3300i

Technical line drawing of a portable electricity generator (no text or symbols visible)

MODELO:

SERIE:

FECHA DE COMPRA:

ADVERTENCIA

Circular diagram with three curved black segments inside concentric white rings (no text or symbols)

000844

Figura 2-4. Receptáculo de 120 V CA, 30 A NEMA L5-30R

PowerDial™

Illustration of a hand turning a valve with a rotating arrow, next to a water drop (no text or symbols)

Diagram showing various electrical components with a pin inserted, no text or symbols present

011950

Illustration of a hand holding a tool with a curved arrow indicating rotation (no text or symbols)

000115

Illustration of a hand holding a tool with a valve, next to a funnel and water drop (no text or symbols)

Illustration of hands connecting a screw to a pin (no text or symbols)

Figura 4-5. Bujía

Technical line drawing of a mechanical assembly with exploded view and part view (no text or symbols)

Figura 4-6. Rejilla del parachispas

Br	Brown
L	Blue
O	Orange
R	Red

011951

©2021 Generac Power Systems, Inc.

Technical line drawing of a portable electricity generator (no text or symbols visible)

MODÈLE :

N° DE SÉRIE :

DATE D'ACHAT :

AVERTISSEMENT

Circular diagram with three curved black segments inside a larger white circle (no text or symbols)

000844

Figure 2-4. Prise de courant 120 V c.a 30 A NEMA L5-30R

Bouton PowerDial™

Illustration of a hand holding a tool with a curved arrow indicating rotation, next to a water tank (no text or symbols)

Diagram of a device panel with labeled components and a connector (no text or symbols present)

011950

Illustration of a hand using a tool to lift a component, with no visible text or symbols

Illustration of a hand holding a tool with a curved arrow indicating rotation, next to a funnel and water drop (no text or symbols)

Line drawing of hands holding a small mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view and part view (no text or symbols)

Figure 4-6. Tamis pare-étincelles

Jeu des soupapes

Technical diagram of a mechanical component with labeled parts and directional arrows

011954

Br	Brown
L	Blue
O	Orange
R	Red

011951

Réf. A0001141434

Rév. B 14/01/2021

©2021 Generac Power Systems, Inc.
