ZOM-E30BS - Basket Zephyr - Free user manual and instructions

Product Type	Decorative convertible wall hood (evacuation or recirculation)
Brand	Zephyr
Model	ZOM-E30BS
Width	30 inches (76.2 cm)
Depth	Approximately 20 inches (50.8 cm) – standard for wall hood
Height (telescopic)	Adjustable from 30 to 80 in with standard duct cover
Power Supply	120 V, 60 Hz, 15 or 20 A, dedicated circuit with grounding
Lighting	2 × LumiLight LED 6 W (pre-installed)
Motor	Single motor (blower) pre-installed
Fan Speeds	4 speeds: quiet (Q), 2, 3, 4 – adjustable via touch controls
Maximum Airflow	Up to 390 CFM (adjustable via ACT™ jumper)
Main Functions	Delayed shut-off (5 min), filter cleaning indicator, recirculation mode with charcoal filter change reminder, touch controls
Filters	Aluminum mesh filters (washable) + optional charcoal filters for recirculation
ACT™ Technology	Airflow control: max CFM adjustment to 390 or 290 via jumper on PCB
Exhaust	Recommended 6 in round duct (min 6 in) – rigid metal duct only
Minimum Mounting Height	24 in between cooktop and hood bottom (recommended 26-34 in)
Material and Finish	Stainless steel (BS model – likely brushed)
Maintenance	Clean stainless steel with soapy water and soft cloth; mesh filters in dishwasher; LEDs non-replaceable without service contact
Safety	Mandatory grounding, automatic shutdown on motor overheating, do not use with solid-state speed controls
Main Replacement Parts	LED (Z0B0047), mesh filter (50200059), recirculation kit (ZRC-01OM), charcoal filter (Z0F-C091), duct extension kit (Z1C-01OMS)
Warranty	Limited warranty – see manual for details
Optional Accessories	Make-up air kit (MUA006A), baffle filter kit (Z0F-B002)
Weight	Approximately 35 lb (15.9 kg) – estimate for hood of this size

Frequently Asked Questions - ZOM-E30BS Zephyr

What is the recommended mounting height for the ZOM-E30BS hood?

The minimum height between the top of the range and the bottom of the hood should be 24 in, but the recommended height is 26 to 34 in (66 to 86 cm) for optimal performance. Also check the range manufacturer's recommendations and local codes.

How to clean the aluminum mesh filters?

Remove the filters and wash them by hand or in the dishwasher with a phosphate-free detergent. For stubborn dirt, spray a degreaser and let soak. Dry them completely before reinstalling. Discoloration may occur with phosphate detergents but does not affect performance.

When should I replace the charcoal filters and how to change them?

Charcoal filters must be replaced after 120 hours of use in recirculation mode. Do not wash them. To change: remove the mesh filters, attach the new filters to the back using the provided brackets, then reinstall the mesh filters. Reset the counter by holding the + button for 3 seconds after turning off.

How to activate recirculation mode?

With the hood off, press the + and ⚙ buttons simultaneously for 3 seconds. The filter cleaning indicator lights up for 3 seconds to confirm. To deactivate, repeat the same operation; the indicator flashes twice.

What to do if the filter cleaning indicator lights up?

This signals that it is time to clean the mesh filters after 30 hours of use. Clean the filters, then reset: hood off, hold the — button for 3 seconds. The indicator turns off.

How to set the delayed shut-off function?

When the fan is running, hold the ⏻ button for 2 seconds. The fan switches to speed 1 and a 5-minute timer starts. After 5 minutes, the hood turns off automatically. Press ⏻ to cancel.

What are the important safety precautions?

Always turn off power before servicing. Do not use solid-state speed controls. Exhaust air outside only (except recirculation). Use rigid metal duct. The hood must be properly grounded. For grease fires, never use water; cover with a lid and turn off the burner.

How to adjust the maximum airflow with ACT™?

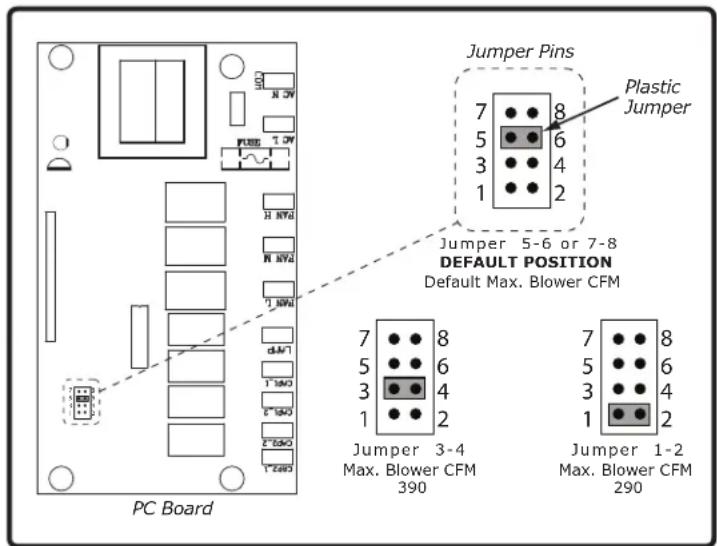

Before installation, open the PCB box and move the plastic jumper to pins 5-6 (390 CFM) or 7-8 (290 CFM). By default, the jumper is on 5-6 for maximum CFM. Once positioned, the setting is permanent. Stick the appropriate CFM sticker inside the hood.

Can the LED lights be replaced?

Yes, but the operation requires removing the filters, side panels, and light panel. Disconnect the quick connector, push the side clips and push the LED outward. Contact Zephyr for a replacement LED (ref. Z0B0047).

Where can I order spare parts or accessories?

You can order online at store.zephyronline.com. The main parts are: LumiLight LED (Z0B0047), mesh filter (50200059), recirculation kit (ZRC-01OM), charcoal filter (Z0F-C091), and duct extension (Z1C-01OMS).

USER MANUAL ZOM-E30BS Zephyr

EN Use, Care, and Installation Guide

Isometric line drawing of a chimney structure with ventilation grilles (no text or symbols)

ACT ^19 Airflow Control Technology

Page Safety Information 4-6

Types of Safety Warnings 4

General Safety 4-5

Operation 6

Electrical Requirements 6

Federal Communication Commission Interface Statement ...... 6

List of Materials 7

Installation Instructions 8-17

Ducting Calculation Sheet 8

Mounting Height, Clearance, & Ducting 9-10

Ducting Options ....11

Hood Specifications 12

Electrical Supply 13

Cable Lock 13

Mounting the Hood 14-15

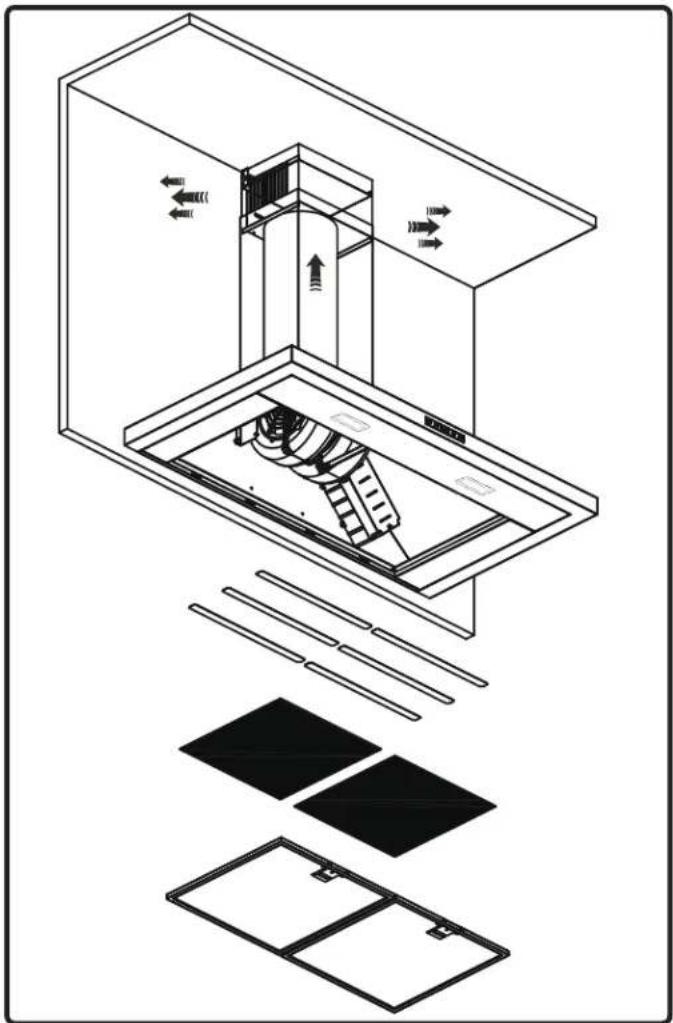

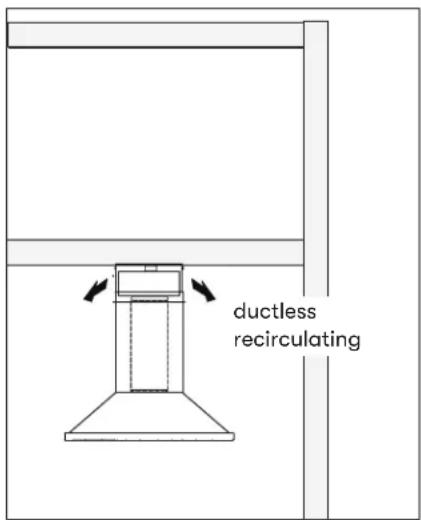

Ductless Recirculation 16-17

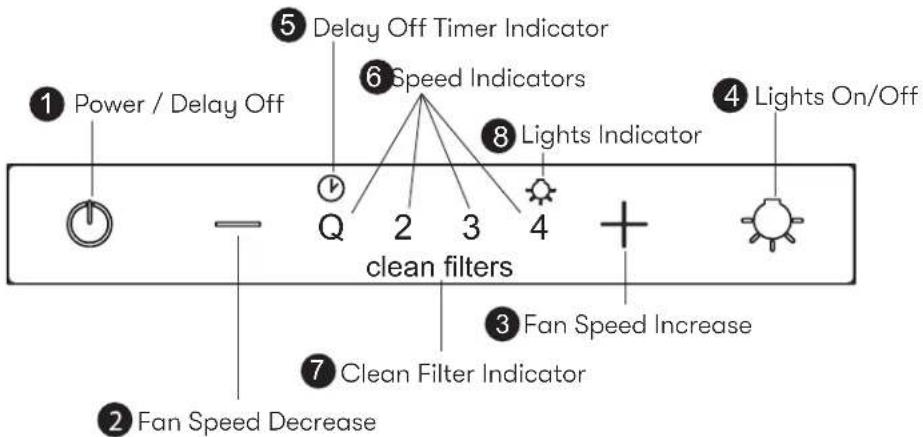

Features & Controls ....18-19

Touch Controls 18-19

Maintenance....20-21

Hood & Filter Cleaning 20-21

LumiLight LED 21

ACT™ Conversion 22-23

Airflow Control Technology (ACT™) 22

Enabling ACT™ 23

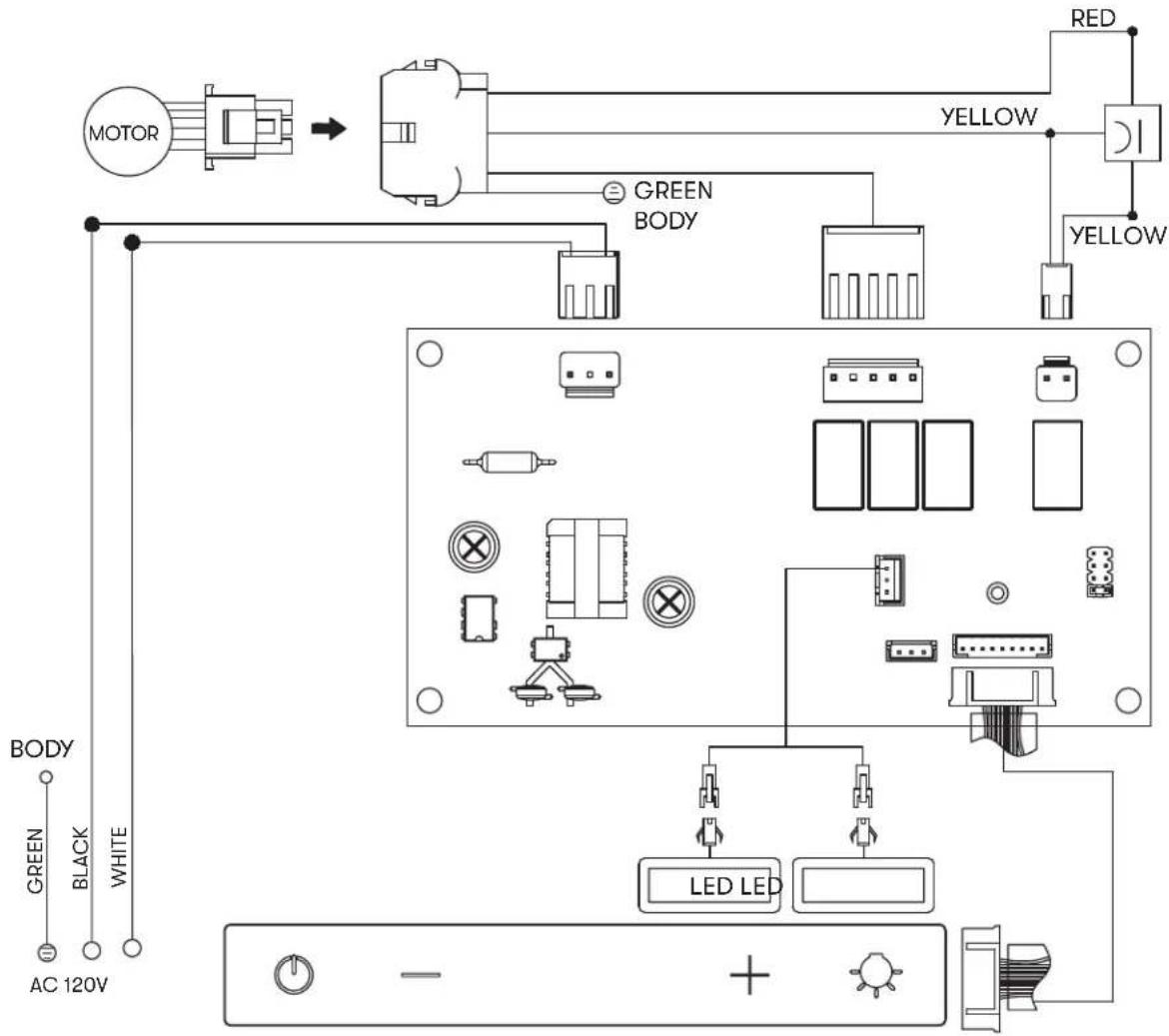

Wiring Diagram 24

Troubleshooting.... 25-26

List of Parts & Accessories 27

Notes......28

Limited Warranty 29

Product Registration 30

READ AND SAVE THESE INSTRUCTIONS

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can cause severe bodily injury or death. All safety messages will follow the Safety Alert Symbol and either the words "DANGER" "WARNING" or "CAUTION"

DANGER

Danger means that failure to heed this safety statement may result in severe injury or death.

WARNING

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

CAUTION

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage.

General Safety

WARNING

To reduce the risk of fire or electric shock, do not use this fan with any solid-state control device.

WARNING

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
b) Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION

For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area.

WARNING

WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe').
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

READ AND SAVE THESE INSTRUCTIONS

WARNING

WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING ^a :

a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d) Use an extinguisher ONLY if:

1) You know you have a Class ABC extinguisher, and you already know how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit

°Based on "Kitchen Firesafety Tips" published by NFPA.

WARNING

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

CAUTION

To reduce risk of fire and to properly exhaust air outside, do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces, or garages.

WARNING

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
b) Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
e) If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit.

WARNING

Prop. 65 Warning for California Residents: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

READ AND SAVE THESE INSTRUCTIONS

Operation

▶ Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.

NOTE: Please check www.zephyronline.com for revisions before doing any custom work.

Electrical Requirements

Important:

▶ Observe all governing codes and ordinances.
It is the customer's responsibility to be aware of these below:
▶ To contact a qualified electrical installer.
To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

▶ Do not ground to a gas pipe.

▶ Check with a qualified electrician if you are not sure the range hood is properly grounded.

▶ Do not have a fuse in the neutral or ground circuit.

This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product.

▶ A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.

* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

Parts Supplied

Quantity Part
1	H
2 Aluminum mesh filter
1 Duct cover assembly (top and bottom)
1 Duct cover wall bracket
2 LumiLight LED, 6W (pre-installed)
1 Single blower motor (pre-installed)
1 Hardware package

Parts Not Supplied

Ducting, conduit and all installation tools

Cable locking connector (if required by local codes)

Duct cover extension accessory

Recirculating kit

Ducting Calculation Sheet

Duct pieces		Equivalent number length x used =	Total
	3-1/4"x 10" Rect., straight	1 Ft. x( ) =	Ft.
	6",7",8",10" Round, straight	1 Ft. x( ) =	Ft.
	3-1/4"x 10" Rect.90° elbow	15 Ft. x( ) =	Ft.
	3-1/4"x 10" Rect.45° elbow	9 Ft. x( ) =	Ft.
	3-1/4"x 10" Rect.90° flat elbow	24 Ft. x( ) =	Ft.
	7" to 6" or 8" to 7" Round tapered reducer	25 Ft. x( ) =	Ft.
	6",7",8" Round in-line damper	15 Ft. x( ) =	Ft.
	6",7",8",10" Round, 90° elbow	15 Ft. x( ) =	Ft.
	6",7",8",10" Round, 45° elbow	9 Ft. x( ) =	Ft.
Subtotal column 1 =			Ft.

Maximum Duct Length: For satisfactory air movement, the total duct length should not exceed 150 equivalent feet.

Duct pieces		Equivalent number length x used =	Total
	3-1/4"x 10"Rect. to6" round transition	5 Ft. x( ) =	Ft.
	3-1/4"x 10"Rect. to6" round transition90° elbow	20 Ft. x( ) =	Ft.
	6" round to3-1/4"x 10"rect.transition	1 Ft. x( ) =	Ft.
	6" round to3-1/4"x 10"rect.transition90° elbow	16 Ft. x( ) =	Ft.
	7" round to3 1/4" x 10"rect.transition	8 Ft. x( ) =	Ft.
	7" round to3-1/4" x 10"rect.transition90° elbow	23 Ft. x( ) =	Ft.
	3-1/4"x 10"Rect.wall capwith damper	30 Ft. x( ) =	Ft.
	6", 7", 8", 10"Round, wallcap withdamper	30 Ft. x( ) =	Ft.
	6", 7", 8", 10"Roundroof cap	30 Ft. x( ) =	Ft.
Subtotal column 2=Subtotal column 1=Total ductwork =			Ft.
			Ft.
			Ft.

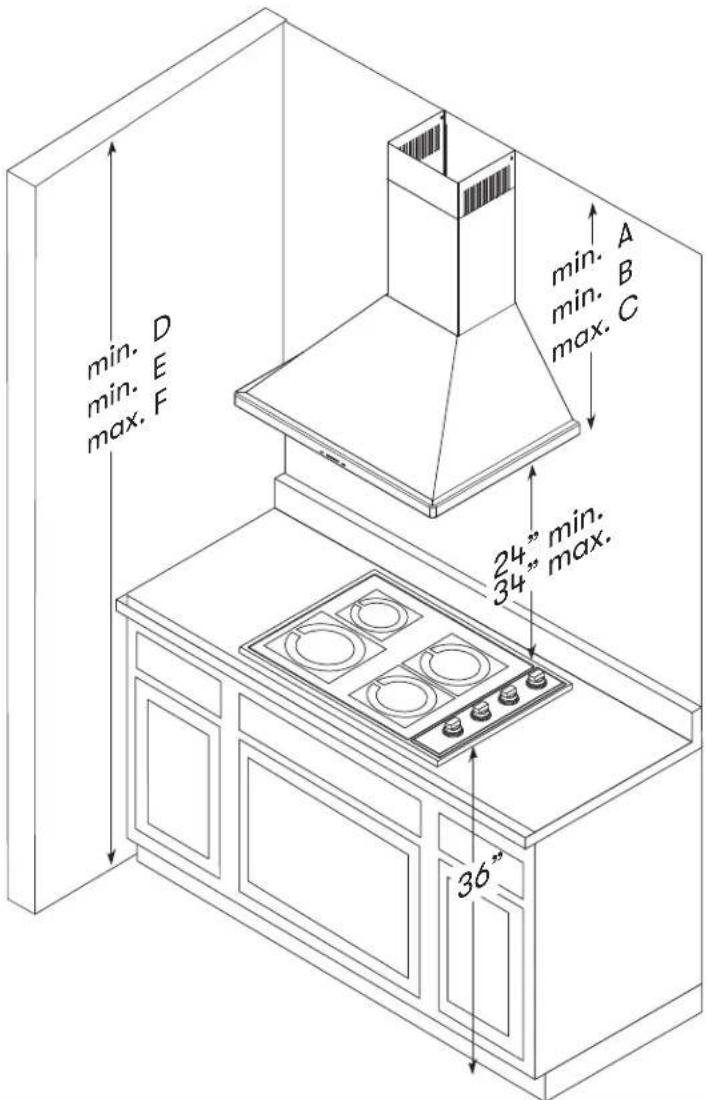

Mounting Height, Clearance, & Ducting

minimum ducted (A) minimum recirculating (B) maximum (C)

on

Duct Co

30" 46-1/2" 32" 50-1/2" 42-1/2" 80"

Ceiling Heights

minimum ducted (D) minimum recirculating (E) maximum (F)

90" (7' 6") 106-1/2" (8' 10-1/2") 92" (7' 8") 110-1/2" (9' 2-1/2") 12-1/2" (9' 4-1/2") 150" (12' 6")

Mounting Height, Clearance, & Ducting

A minimum of 6" round duct is recommended to maintain maximum air flow efficiency.

Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.

Also use the ducting calculation sheet (on page 8) to compute total available duct run when using elbows, transitions and caps.

ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase duct size from 6" to 7".

If turns or transitions are required; install as far away from hood duct output and as far apart, between the two as possible.

Minimum mount height between range top to hood bottom should be no less than 24".

Maximum mount height should be no higher than 34".

It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its performance and efficiency.

If available, also refer range manufacturer's height clearance requirements and recommended hood mounting height above range. Always check your local codes for any differences.

Duct cover extension kit available for ceiling heights up to 12 feet. Turn to the list of parts and accessories section for part number and ordering information.

For shipment and installation damages:

▶ Please fully inspect unit for damage before installation.
If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
If the unit is damaged by the installer (if other than the customer), repair of replacement must be made by arrangement between customer and installer.

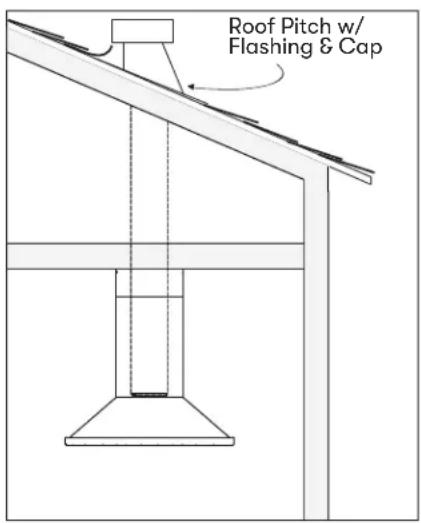

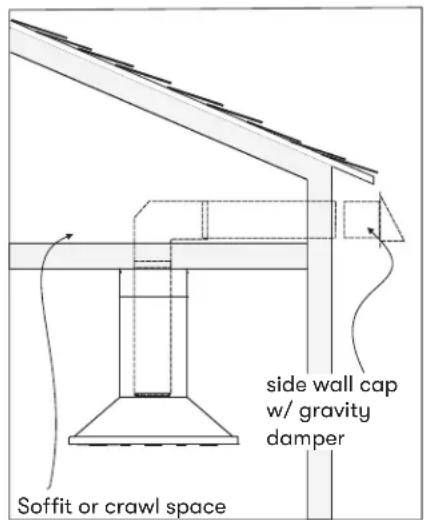

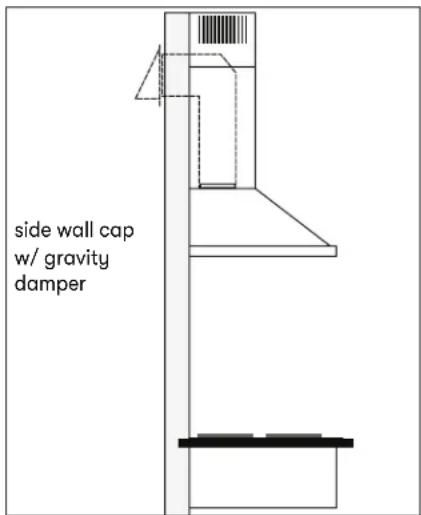

Ducting Options

WARNING

Fire Hazard: NEVER exhaust air or terminate ductwork into spaces between walls, crawl spaces, ceilings, attics, or garages. All exhaust must be ducted to the outside, unless using the recirculating option.

▶ Use single wall rigid metal ductwork only.

▶ Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.

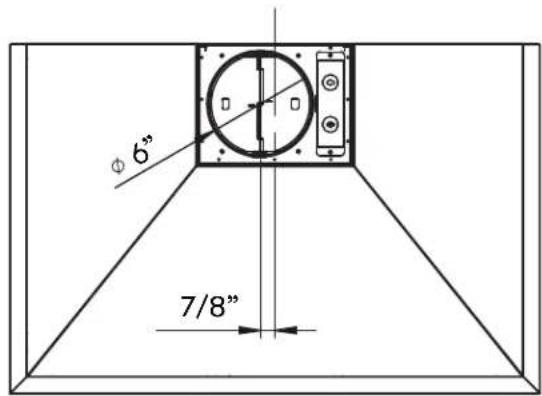

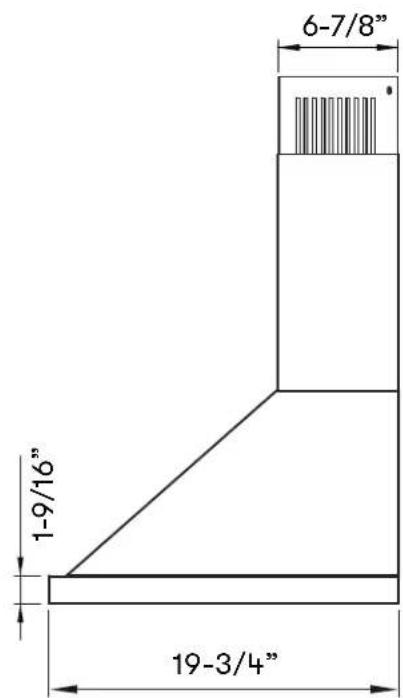

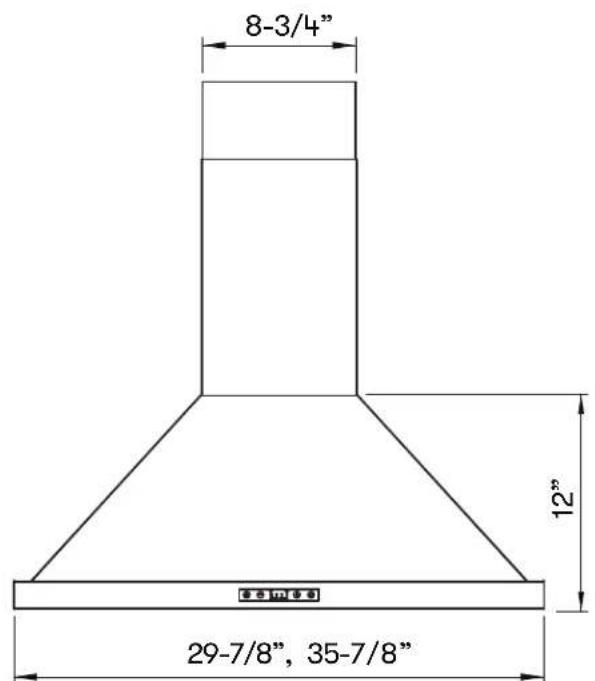

Hood Specifications

FRONT

SIDE

Standard
min. ducted - 30"
min. recirc - 32"
max. 42-1/2"
Z1C-01OMS
Z1C-01OMBS
min. ducted - 46-1/2"
min. recirc. - 50-1/2"
max. 80"

TOP

Electrical Supply

WARNING

Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. Turn off electrical power at service entrance before wiring.

For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance.

Follow national electrical codes or prevailing local codes and ordinances.

This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product.

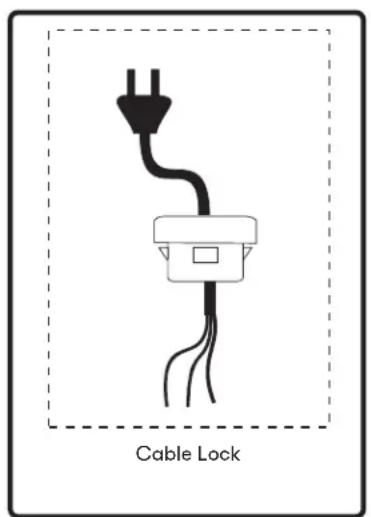

Cable Lock

A cable locking connector (not supplied) might be required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)

FIG. A

Mounting the Hood

CAUTION

At least two installers are required due to the weight and size of the hood.

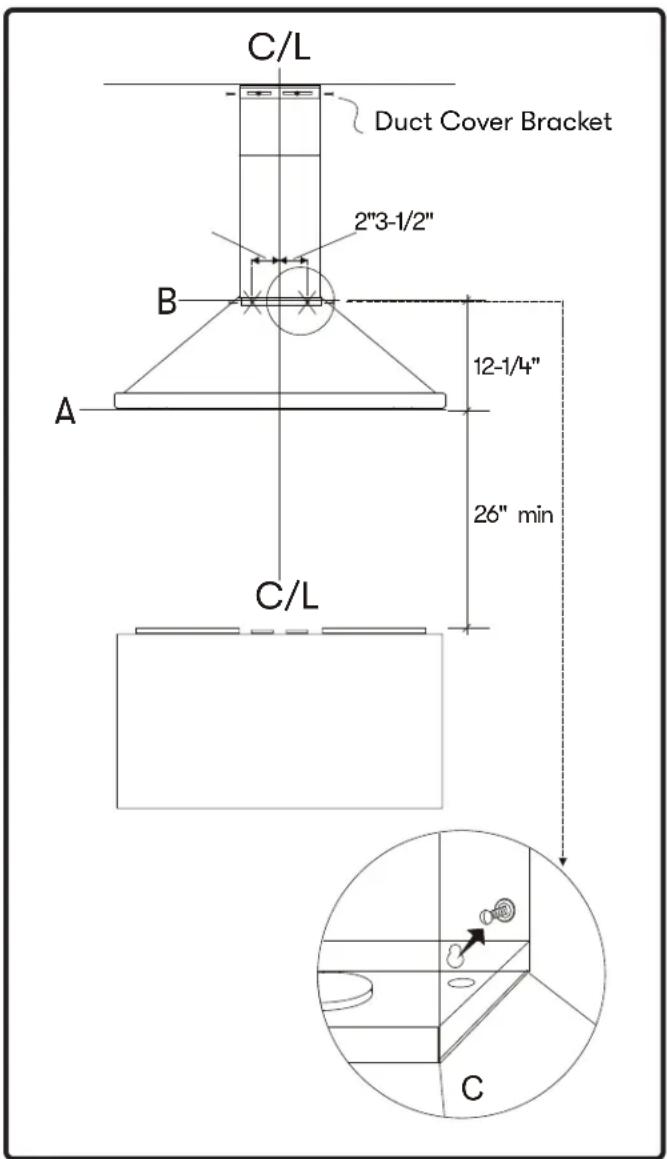

1. Measure from range top to hood bottom and mark line A. (26" minimum from range top).
2. Plum and mark center line.
3. Mark mounting height line B. (12-1/4" from line A).
4. Mark mounting spread from C/L on line B. From C/L to left mount mark (3-1/2"). From C/L to right mount mark (2").
5. Fasten (2) #6 x 1-1/2" screws into studs on line B but do not tighten all the way.

WARNING

Wood blocking may need to be added behind the drywall if no studs are present. Wall anchors may also be used but check local codes for compliance. Failure to use suitable wall anchors and screws to hold the weight of the hood could result in personal injury or damage to cooking surface or counter.

FIG. B

1. Hang hood onto screws and hand tighten shown on C in FIG. B. Use the last 6# x 1-1/2" screws to further secure the hood to the wall from inside the hood.
2. Center and attach duct cover bracket to wall below ceiling or soffit using (2) 6# x 1-1/2" screws.
3. Install electrical.

Mounting the Hood

1. (If applicable) If using hood in recirculating mode you must secure the air diverter plate onto wall before installing duct work and duct covers. Turn to page 16 for more details.
2. Install duct work and seal all joints with certified duct tape.
3. Power up hood and check for leaks around duct tape.
4. Place telescopic duct covers onto hood and extend inner (top) duct cover upwards and secure to duct cover bracket using (2) M4 x 8 screws.

Ductless Recirculation

Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust from cooking are drawn and filtered by a set of optional charcoal filters. The air is then purified and re-circulated back within the home.

We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct work, if possible. The hood is most effective and efficient as an exhaust hood. Only when the exhaust option is not possible should you recourse to converting the hood into a recirculating hood.

When converted to be a recirculating hood, a set of charcoal filters are required on top of its standard Metal Filter set. Order according to its part number below. The standard mesh filters are intended to capture residue from cooking, and the optional charcoal filters help to purify fumes exhausted from cooking for recirculation.

Recirculating Kit Installation (required if no ducting is used)

Kit includes the charcoal filters, charcoal filter brackets and the air diverter plate.

Hood Model Part Number Filters in Package
ZOM-E30BS ZRC-01OM 2
ZOM-E30BBS ZRC-01OM 2
ZOM-E36BS ZRC-01OM 2
ZOM-E36BBS ZRC-01OM 2

1. Purchase recirculating kit per the part number above.
2. Secure air diverter plate to wall below duct cover bracket. (FIG. C). Remove aluminum mesh filter from hood. Place charcoal filter over the back side of the aluminum mesh filter.
3. Secure charcoal filters to back side of filters by three brackets for each filter.
4. Reinstall aluminum mesh filters.
5. Enable recirculating mode (refer to page 19). The microprocessor in the controls will indicate the need to change the charcoal filters after 120 hours of continuous use. Order replacement charcoal filters per the list below.

Charcoal Filter Replacements

Hood Model Part Number	Quantity to Order
ZOM-E30BS ZOF-C091 2
ZOM-E30BBS ZOF-C091 2
ZOM-E36BS ZOF-C091 2
ZOM-E36BBS ZOF-C091 2

DO NOT WASH CHARCOAL FILTERS. Charcoal filters may need to be changed more often depending on cooking habits.

Technical diagram of a mechanical device with internal components and exploded view (no text or symbols)

FIG. C

Touch Controls

1 Power / Delay Off Button

• ⏻ Button will turn power on and off for entire hood (fan and lights.
• Hood will remember the last speed and light level it was last turned off at.

(Example: Press button to turn off hood when on fan speed 3 and high lights.

Press button again and the hood will turn back on at speed 3 and high lights.

Delay Off

• With the fan on, press and hold the ⏻ button for two seconds. The fan will change to speed 1 and the 5 minute delay off timer will start.
• Pressing ⏻ Button while delay off function is enabled will turn the hood off and cancel the delay off function.

ACT Verification

• Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
• To verify the maximum fan CFM:

- Wtih hood off, hold the Button for three seconds. If all speed four indicator illuminates = default maximum CFM. If speed three indicator illuminates = 390 maximum CFM. If speed two indicator illuminates = 290 maximum CFM.

② Fan Speed Decrease Button

• Press this button to decrease fan speed. 4, 3, 2, Q (Quiet).
• If fan is off, press this button to turn on fan at last speed it was turned off at.

③ Fan Speed Increase Button

• Press this button to increase fan speed. Fan on, Q (Quiet), 2, 3, 4
• If fan is off, press this button to turn on fan at last speed it was turned off at.

4 Lights Button

• Lights are two levels, high and low.
• From off, press one time for high. Press again for low. Press again to power lights off.

Touch Controls

5 Delay Off Indicator

• When delay off function is activated, delay off indicator light will turn on indicating the delay off 5 minute timer has started.
• After 5 minutes the fan, lights and delay off indicator will automatically turn off.

6 Speed Level Indicators

- Fan is four speed levels. Q (Quiet), 2, 3, and 4.

7 Clean Filters Indicator

• After 30 hours of fan usage, the clean fitlers indicator will turn on indicating it is time to clean the mesh filters.
• To Reset: With hood off: hold the button for three seconds. The clean filters indicator will turn off confirming the 30 hour timer has been reset.

Recirculating Mode

• To Enable: With hood off, press and hold the + button and ⚙ button simultaneously for three seconds. The clean filter indicator will illuminate for three seconds confirming the function is enabled.
• To Disable: With hood off, press and hold the + button and ✕ button simultaneously for three seconds. The clean filter indicator will blink two times confirming the function is disabled.
• After 120 hours of fan usage, the clean filters indicator will flash on and off indicating it is time to replace the charcoal filters.
• To Reset: With hood off: hold the + button for three seconds. The clean filters indicator will turn off confirming the 120 hour timer has been reset.

8 Lights Indicator

- When lights are on high or low, lights indicator will illuminate.

Hood & Filter Cleaning

Surface Maintenance

▶ Do not use corrosive detergents, abrasive detergents or oven cleaners.
▶ Do not use any product containing chlorine bleach or any product containing chloride.
▶ Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.

Cleaning Stainless Steel

Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser detergent.

After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and buff in the direction of the stainless steel grain.

Cleaning Black Stainless Steel

Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. To remove heavier grease build up use a liquid degreaser detergent.

Due to a built-in layer of protective anti-smudge coating, do not use stainless steel polish/cleaners to buff out black stainless steel.

Aluminum Mesh Filters

The aluminum mesh filters installed by the factory are intended to filter out residue and grease from cooking. They need not be replaced on a regular basis but are required to be kept clean.

Remove and clean by hand or in dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergents, or as a result of local water conditions - but this will not affect filter performance. This discoloration is not covered by the warranty. Spray degreasing detergent and leave to soak if heavily soiled.

Dry filters and re-install before using hood.

Replacing Aluminum Mesh Filters

Hood Model Part Number	Quantity to Order
ZOM-E30BS/ ZOM-E30BBS 5020	0059 2
ZOM-E36BS/ ZOM-E36BBS 5020	0059 2

To order parts, visit us online at http://store.zephyronline.com.

LumiLight LED

In the unlikely event that your LumiLight LED fails, please contact Zephyr to order replacement parts. See the list of parts and accessories page for part numbers and contact information.

LED Removal (FIG. D):

1. Remove aluminum mesh filter.
2. Disconnect LED light quick connector.

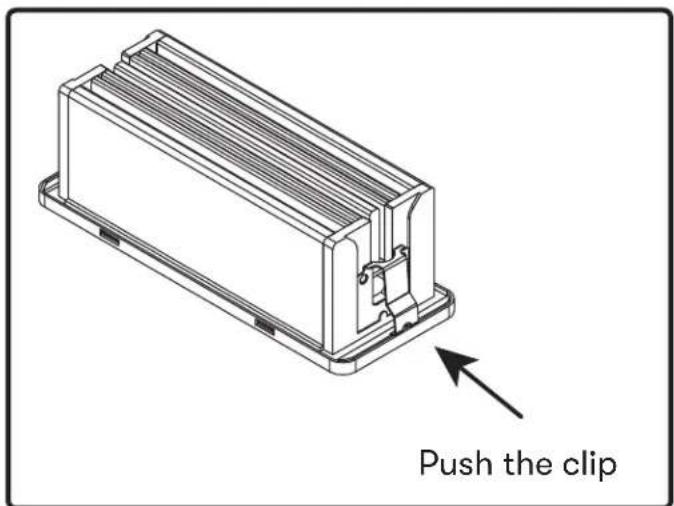

3. Push in the two side clips on the ends of the LED light.

4. Push LED light through the light panel opening.

5. If applicable, remove side panels by two screws each. Remove light panel by two screws.

FIG. D

Airflow Control Technology (ACT™)

Some local codes limit the maximum amount of CFM a range hood can move. ACT ^™ allows you to control the maximum blower CFM of select Zephyr Ventilation range hoods without the need for expensive make up air kits. ACT ^™ enables the installer to easily set the maximum blower speed to one of two most commonly specified CFM levels; 390 or 290 CFM. The usage of ACT ^™ may not be necessary for your installation. Please check your local codes for CFM restrictions.

CAUTION

Hood must be disconnected from the main power prior to performing the conversion instructions listed below. Failure to do so could result in personal injury or damage to the product.

CAUTION

After re-positioning the jumper and powering on the hood, the CFM cannot be changed again.

Enabling ACT™

To enable ACT™:

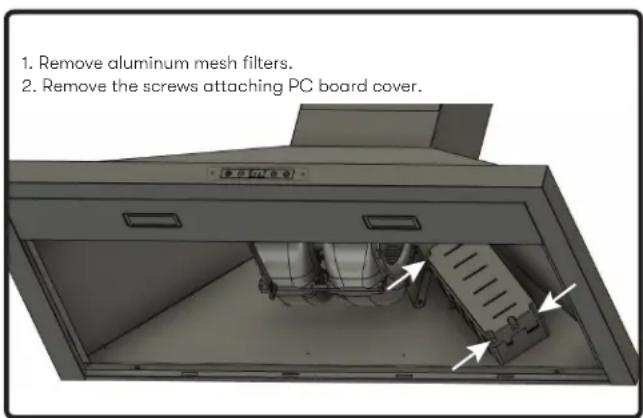

1. Before hood installation, gain access to PC board by following the steps shown on FIG. E.
2. Change plastic jumper positioning as shown in FIG. F to set the desired maximum blower CFM.
3. Re-install PC board and continue with hood installation.
4. Remove the appropriate foil CFM sticker included with the hood literature and place inside the hood body below the wiring diagram or in another clearly visible location.

To verify if your installer enabled ACT™:

1. With hood off, hold the On/Off button for five seconds. If speed 4 indicator illuminates = default max. CFM, if speed 3 indicator illuminates = max. 390 CFM, and if speed 2 indicator illuminates = max. 290 CFM.
2. There should also be a foil label located inside the hood body near the wiring diagram that indicates the blower CFM.

NOTE: When ACT is enabled, the number of blower speeds will be reduced. 390 CFM = max. 3 speeds and 290 CFM = max. 2 speeds.

FIG. E

FIG. F

WIRING DIAGRAM

CONDENSER 12.5+12.5μF 250V AC120V 60Hz

Possible Problem Possible Cause Solutions
After installation, the unit doesn't work.	The power source is not turned ON. Make sure the circuit breaker and the unit's power is ON.
	The power line and the cable locking connector is not connecting properly.	Check the power connection with the unit is connected properly.
	The switch board or control board wirings are disconnected.	Make sure the wirings at the switch board and control board are connected properly.
	The switch board or control board is defective.	Change the switch board or control board.
	The wires on control board are loose. Make sure the wires on the control board are connected properly.
Light works, but blower is not turning.	The blower wire is not connected. Check all wirings from the blower to be sure all cables are properly connected.
	The thermally protected system detects if the blower is too hot to operate and shuts the blower down.	The blower will function properly after the thermally protected system cool down.
	The switch board or control board is defective.	Change defective part.
	The blower is defective, possibly seized.	Change the blower.
The unit is vibrating. The	blower is not secured in place. Tighten the blower in place.
	Damaged blower wheel. Replace the blower.
	The hood is not secured in place. Check the installation of the hood.
The unit is whistling. A filter is not in the correct position. Adjust the filters until the whistling stops.
			The duct pipe connections are not sealed or connected properly.	Check the duct pipe connections to be sure all connections are sealed properly.
The blower is working, but the LumiLight LEDs are not.	The LumiLight LED connector is disconnected.	Connect the LumiLight LED connector.
	Defective LumiLight LED.	Change the LumiLight LED.
	The switch board or control board is defective.	Change the switch board or control board.
The hood is not venting out properly.	Using the wrong size of ducting. Change the ducting to the correct size.
	The hood might be hanging to high from the cook top.	Adjust the distance between the cook top and the bottom of the hood within 26” and 34” range.
	The wind from the opened windows or opened doors in the surrounding area are affecting the ventilation of the hood.	Close all the windows and doors to eliminate the outside wind flow.
	Blockage in the duct opening or ductwork.	Remove all the blocking from the duct work or duct opening.
Mesh filter is vibrating. Filter is loose. Make sure the metal clips in the handle are not stuck or replace the mesh filter.

Description Part Number
Replacement Parts
LumiLight LED, 6W Z0B0047
Aluminum mesh filter 50200059
Optional Accessories
Make-up Air Kit MUA006A
Duct Cover Extension, Stainless Z1C-01OMS
Duct Cover Extension, Black Stainless	Z1C-01OMBS
Recirculating Kit ZRC-01OM
Replacement Charcoal Filter Z0F-C091
Baffle Filter Kit Z0F-B002

To order parts, visit us online at http://store.zephyronline.com.

Notes

CORE

MILANO

WALL

TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-880-8368

Zephyr Ventilation, LLC (referred to herein as "we" or "us") warrants to the original consumer purchaser (referred to herein as "you" or "your") of Zephyr products (the "Products") that such Products will be free from defects in materials or workmanship as follows:

Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products.

One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty.

Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and charcoal filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial or government use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; (g) damage to the Products caused by accident, fire, floods, acts of God; or (h) Custom installations or alterations that impact serviceability of the Products. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty. All Products must be installed by a qualified professional installer to be eligible for warranty repairs or service.

Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same three-year and one-year periods described above if permitted by applicable law. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and only applies to the consumer residence where the Product was originally installed located in the United States and Canada. This warranty is not extended to resellers.

To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services. This warranty is not extended or restarted upon warranty repair or replacements.

Please check our website for any additional Product information, www.zephyronline.com.

Zephyr Ventilation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-8368

MAY20.0401

Congratulations on the purchase of your Zephyr product! Please take a moment to register your new Zephyr product at www.zephyronline.com/registration

IT'S IMPORTANT

Prompt registration helps in more ways than one.

• Ensures warranty coverage should you need service.
• Ownership verification for insurance purposes.
• Notification of product changes or recalls.

Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502 | 1.888.880.8368

Ombra

ZOM-E30BS, ZOM-E30BBS,

ZOM-E36BS, ZOM-E36BBS

EN Use, Care, and Installation Guide

Isometric line drawing of a chimney structure with ventilation grilles (no text or symbols)

ACT ^TM

Airflow Control Technology

* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

Pièces fournies

Technical diagram of a mechanical device with internal components and exploded view (no text or symbols)

FIG. C

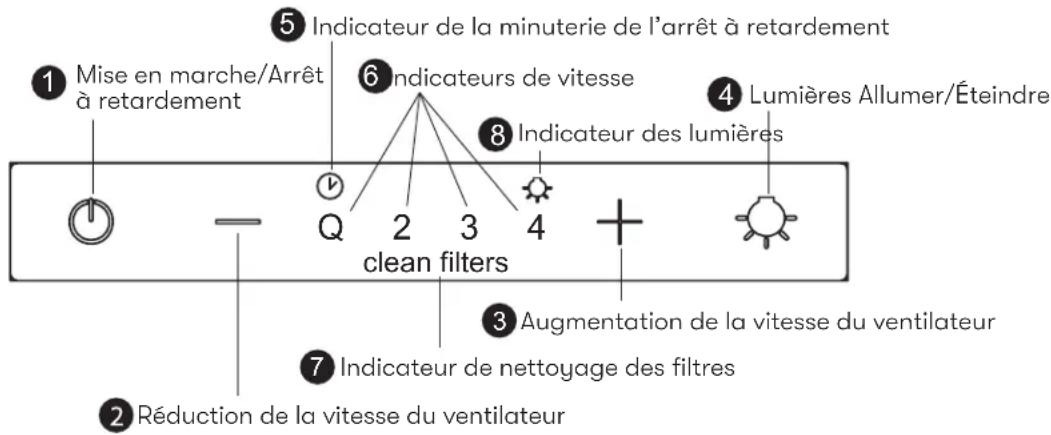

Commandes tactiles

TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-880-8368

Zephyr Ventilation, LLC (referred to herein as "we" or "us") warrants to the original consumer purchaser (referred to herein as "you" or "your") of Zephyr products (the "Products") that such Products will be free from defects in materials or workmanship as follows:

Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products.

One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty.

Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and charcoal filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial or government use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; (g) damage to the Products caused by accident, fire, floods, acts of God; or (h) Custom installations or alterations that impact serviceability of the Products. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty. All Products must be installed by a qualified professional installer to be eligible for warranty repairs or service.

Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same three-year and one-year periods described above if permitted by applicable law. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and only applies to the consumer residence where the Product was originally installed located in the United States and Canada. This warranty is not extended to resellers.

To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services. This warranty is not extended or restarted upon warranty repair or replacements.

Please check our website for any additional Product information, www.zephyronline.com.

Zephyr Ventilation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-8368

MAY20.0401

www.zephyronline.com/registration

C'EST IMPORTANT
