USER MANUAL ICM500RED Nostalgia

All products are trademarks of Nostalgia Products LLC.

Worldwide design & utility patented or patents pending.

© 2016 Nostalgia Products LLC.

www.nostalgiaproducts.com

(rev. 08/04/16 ES)

NOSTALGIA™

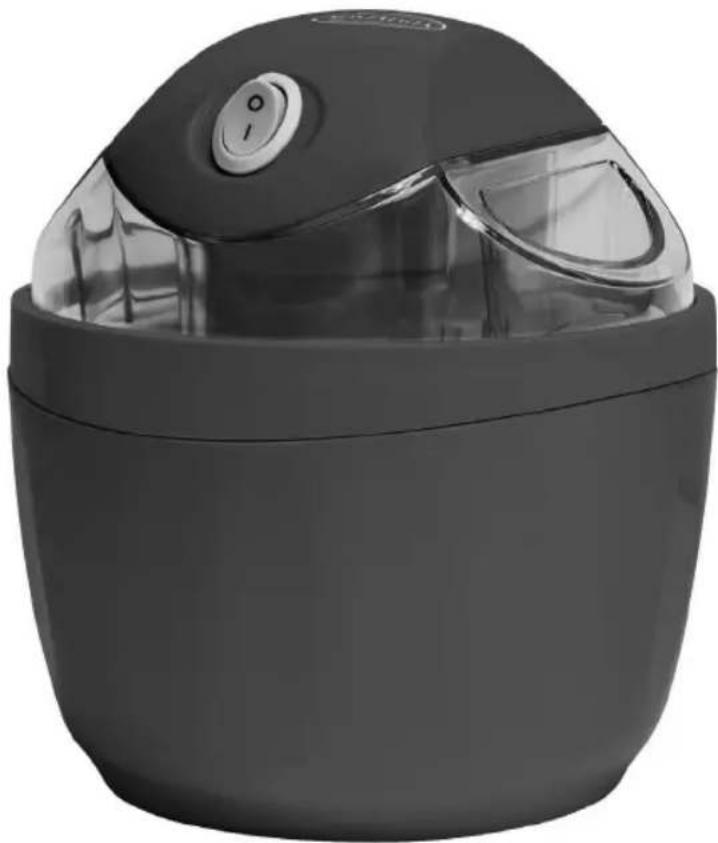

Black and white photo of a cleaning or cleaning appliance with a dome-shaped lid and control panel (no visible text or symbols)

ICMS00RED

Electric Ice Cream Maker Sorbetière Électrique Máquina de Helado Eléctrica

Instructions and Recipes

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Appliance Specifications:

120 Volts, 60 Hz

15 Watts, ETL Approved

THIS PRODUCT IS FOR USE IN 120V AC OUTLET ONLY.

IMPORTANT PRECAUTIONS

1. NEVER immerse Lid with Electric Motor in water.
2. NEVER use near water.
3. NEVER use an abrasive sponge or cloth on the unit.
4. NEVER leave unit unattended while in use.
5. NEVER add nuts, candy, fruit or other chunky ingredients to the Freezer Bowl prior to the churning process. They may prevent ice cream from churning properly.
6. Unplug unit from outlet when not in use and when cleaning.
7. DO NOT operate this appliance with a damaged cord or plug or in the event the appliance ever malfunctions.
8. DO NOT put in dishwasher.
9. Keep out of reach of children.
10. This appliance is NOT A TOY.
11. This appliance is not intended for use by unsupervised young children or cognitively challenged individuals.
12. Young children should be supervised while product is in use to ensure that they do not play with the appliance.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including:

1. Read all instructions before operating this appliance.

2. To protect against electrical shock do not immerse cord, plug or any part of this unit in water or other liquids.

3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from outlet when not in use and before removing parts for cleaning.
5. DO NOT operate any appliance with a damaged cord or plug or if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination or repair.

6. The manufacturer does not recommend the use of accessory attachments. Use of attachments may cause fire, electric shock or injury.

7. NEVER operate the unit dry. Always have ice cream mixture inside of the container while plugged in.

8. DO NOT use hot oil or liquids in the Freezer Bowl. Always chill mixture before churning.

9. Keep hands, hair, clothes and utensils away from moving parts in order to prevent injury or damage to the unit.

10. DO NOT use outdoors.

11. DO NOT let the cord touch hot surfaces.

12. DO NOT let cord hang over the edge of a table or countertop.

13. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
14. This unit must be on a level surface to operate properly.
15. DO NOT use this appliance for other than its intended use.
16. DO NOT leave unit unattended while in use or when plugged into an outlet.
17. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord. The cord is designed to be stored in the Lid of the unit when not in use.
18. An extension cord can be used if care is exercised in its use.
19. The marked electrical rating of an extension cord should be at least as great as the electrical rating of the appliance. The extension cord should be attached correctly and should be arranged so that it does not dangle over the edge of a table or countertop.
20. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electrical shock, this plug is intended to fit into a polarized outlet only one way. If the plug cannot be fully inserted into the socket, it can be re-inserted in the opposite direction. If this still does not work, please contact a professional maintenance or repair person. DO NOT repair it by yourself.
21. DO NOT attempt to service this appliance yourself. All maintenance, except for cleaning, must be performed by a professional repair technician.
22. DO NOT put hands or any foreign objects into this appliance while it is plugged in and operating.
23. DO NOT touch freezing Freezer Bowl with bare hands. Protect your hands by wearing oven mitts when touching the frozen Freezer Bowl, or use the handle that is attached to the Freezer Bowl.

SAVE THESE INSTRUCTIONS!

INTRODUCTION

Thank you for purchasing the ELECTRIC ICE CREAM MAKER from Nostalgia™. The ELECTRIC ICE CREAM MAKER provides a homemade ice cream experience with modern convenience. Simply freeze the Gel Canister, fill with fresh ingredients and in about 30 minutes, your delicious ice cream will be ready to serve. No salt or ice is needed! Add mint, cookie dough, or your favorite candy pieces through the ingredient chute to customize your ice cream concoction. You can also use this ice cream maker to create refreshing sorbet and frozen yogurt. Makes about 1 pint of ice cream per batch.

PARTS & ASSEMBLY

Take the ELECTRIC ICE CREAM MAKER out of the box and wash the Freezer Bowl, Lid and Dasher with warm, soapy water.

DO NOT wash the Electric Motor. Carefully wipe down the Electric Motor with a non-abrasive cloth or sponge. NEVER immerse the Electric Motor in water. Dry thoroughly.

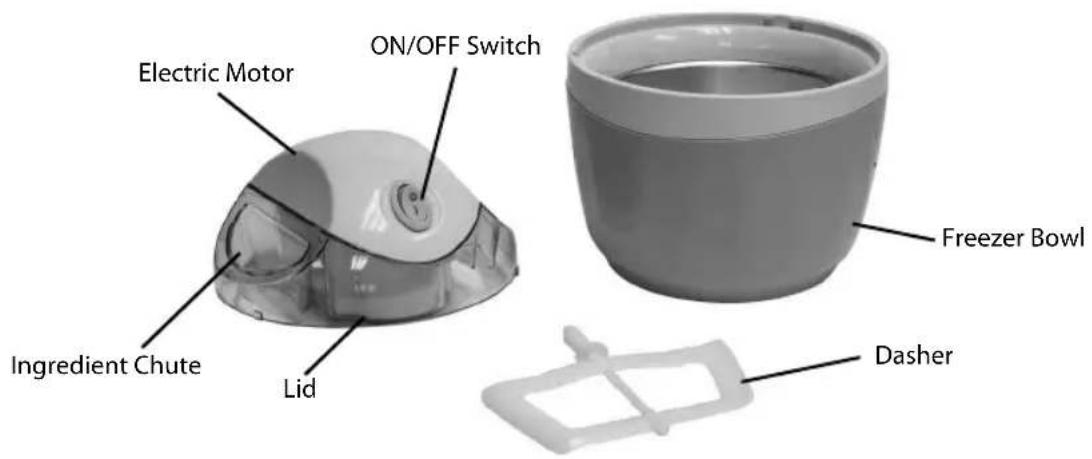

PARTS

Electric Motor ON/OFF Switch Ingredient Chute Lid Freezer Bowl Dasher

ASSEMBLY

1. Ensure unit is unplugged, then fit the Electric Motor into the Lid. Unit will click into place when secure.
2. Fit the Dasher into the hold on the bottom of the Electric Motor.
3. Place the Electric Motor/Lid/Dasher assembly onto the Freezer Bowl and turn counterclockwise to lock into position.
4. You can now operate your ELECTRIC ICE CREAM MAKER by using the ON/OFF switch.

HOW TO OPERATE

To prepare:

• Chill the Freezer Bowl in freezer for at least 8 hours before using your ELECTRIC ICE CREAM MAKER.
  • Find a stable surface near an electrical outlet before starting. Make sure cord is away from any water source. It is acceptable to use an extension cored if needed.

• Choose your favorite recipe and prepare ice cream or sorbet mixture per recipe instructions. Place in refrigerator until ready to use.

• Take Freezer Bowl from freezer and attach to Electric Motor/Lid/Dasher assembly. Turn counterclockwise to lock into position.

NOTE: To determine whether the Freezer Bowl is frozen enough to begin making ice cream, shake the Freezer Bowl slightly after freezing. If you hear liquid moving inside of Freezer Bowl, the Freezer Bowl needs more time to freeze.

1. Retrieve ice cream or sorbet mixture from the refrigerator. Using the Ingredient Chute, pour mixture into the Freezer Bowl. When pouring mixture into the Freezer Bowl, always stop at least 1.5 inches (4 cm) from the top, as the mixture will increase in volume during freezing.
2. Turn on the Electric Motor by flipping switch to "ON" position.
3. Allow the mixture to churn until frozen or desired consistency is reached. This can take 15 to 30 minutes, but some recipes may be ready in less time.

NOTE: Chocolate pieces, cookie dough chunks, nuts, or other candy may be added through the Ingredient Chute as the mixture starts to freeze.

1. Once ice cream has reached desired consistency, turn off the Electric Motor by flipping switch to "OFF" position, and unplug Electric Motor.

2. Remove Electric Motor/Lid/Dasher assembly by turning clockwise. Remove the Dasher and scrape off any excess ice cream with a spatula.

3. Transfer ice cream to a freezer-safe container and freeze, or serve straight from the Freezer Bowl!

HELPFUL TIPS

TASTE

Finished ice cream will always taste less sweet than the initial mixture. You may adjust the amount of sugar in the recipe to suit your taste.

Artificial sweeteners may be used in place of sugar. Use the following measurements for reference:

• 1 packet of sweetener = 2 tsp. of sugar
• 6 packets of sweetener = 14 cup of sugar
• 8 packets of sweetener = 13 cup of sugar
• 12 packets of sweetener = 12 cup of sugar

TEXTURE

To ensure that ice crystals do not form in ice cream mixture, DO NOT stop the churning process until the ice cream is ready.

Recipes with high amount of salt can cause the mixture to freeze too quickly, which can also cause ice crystals to form in the ice cream.

CONSISTENCY

Homemade ice cream generally has a thick, milkshake texture. If you prefer a thicker or more firm consistency, try one of the following:

• Place ice cream mixture in freezer to harden.
• Recipes that call for alcohol may inhibit the freezing process. Be sure to add any alcohol during the last few minutes of the freezing cycle.

JAMMING

If the Dasher gets jammed and does not revolve properly, try the following:

• Check to make sure that the Dasher is properly attached, that the cord is plugged into outlet and that the unit is flipped to the "ON" position.
• Ice Cream recipes that include hard ingredients like nuts or chocolate chips may cause the Dasher to become lodged in the Freezer Bowl. It is best to add hard ingredients during the last few minutes of the churning process.
  • DO NOT stop the churning process until ice cream is finished. Stopping in the middle of the process can cause the ice cream to harden and restrict the movement of the Dasher.

FREEZING

DO NOT operate the unit longer than required. If the mixture has not yet achieved the slush consistency or has thawed again after 30 minutes, do not continue. Possible reasons for mixture not chilling or freezing:

• The Freezer Bowl was not cold enough.
- The mixture was too warm. Make sure that the ingredients that you add are chilled and not warm, lukewarm or of room temperature before adding to the Freezer Bowl.

CLEANING & MAINTENANCE

1. Make sure the Electric Motor is turned off and the unit is unplugged.
2. Remove Electric Motor/Lid/Dasher by turning clockwise and lifting from Freezer Bowl.
3. Remove Dasher, and scrape off any excess ice cream.
4. Wash Freezer Bowl, Dasher, and Lid using warm, soapy water and dry thoroughly. DO NOT replace Lid with Electric Motor until the Freezer Bowl is completely dry.
5. Wipe Electric Motor with a soft cloth moistened with mild soap, then dry thoroughly. NEVER immerse Electric Motor in water or other liquid.
6. DO NOT use harsh or abrasive cleaners.
7. DO NOT use an abrasive sponge, cloth or scouring pad on the unit.
8. DO NOT freeze the Freezer Bowl when it is wet.
9. ONLY wash unit by hand. DO NOT place parts in the dishwasher.

RECIPES

The ELECTRIC ICE CREAM MAKER makes rich, creamy ice cream anytime! Try these delicious recipes and tips:

• Make sure your ingredients are chilled prior to adding to Canister, as this makes ice cream making faster.
- For ice cream recipes that require cooking, it is recommended that you cook one day in advance. The mixture will then have time to cool completely and expand.

VANILLA ICE CREAM

• 1 Cup Whole Milk, Well Chilled
• 12 Cup Granulated Sugar
• 1 Egg, beaten
• 1 Cup Heavy Cream, Well Chilled
• 1-2 Tsp. Pure Vanilla Extract, to Taste

In a saucepan, cook milk and sugar over medium heat, stirring occasionally, until just bubbling around the edges. Then reduce heat to low.

Beat egg in small bowl. Stirring constantly, slowly pour about 1/2 cup of hot milk mixture into the beaten egg. Add egg mixture to the remaining hot milk mixture. Cook over low heat, stirring constantly until slightly thickened, about 2-3 minutes.

Remove mixture from heat, pour into a bowl and cool completely in the refrigerator for at least 2 hours.

Once mixture is completely cooled, using a whisk, stir the whipping cream and vanilla into the mixture.

Turn ELECTRIC ICE CREAM MAKER on, pour mixture into Freezer Bowl and let churn until desired consistency is achieved, about 20-30 minutes.

Enjoy immediately, or transfer ice cream to freezer-safe container and store in freezer.

EASY CHOCOLATE ICE CREAM

• 2/3 Cup Whole Milk, Well Chilled
• 1/3 Cup Granulated Sugar
- 5 oz. Semi-Sweet Chocolate, Broken into 12 in. Pieces
• 1 1/3 Cups Heavy Cream, Well Chilled
• 12 Tsp. Pure Vanilla Extract

In a saucepan, combine milk, sugar and chocolate. Cook over medium heat, stirring constantly, until just bubbly around the edges and chocolate is melted.

Transfer to a bowl and cool completely in the refrigerator for at least 2 hours.

Stir in the heavy cream and vanilla to taste, and chill for at least 30 minutes.

Turn ELECTRIC ICE CREAM MAKER on, pour mixture into Freezer Bowl and let churn until desired consistency is achieved, about 20-30 minutes.

Enjoy immediately, or transfer ice cream to freezer-safe container and store in freezer.

FRESH STRAWBERRY ICE CREAM

• 1/3 Cup Whole Milk
• 1 1/3 Cups Heavy Cream
• 1/2 Tsp. Pure Vanilla Extract
• 2/3 Cup Granulated Sugar
• 1 1/3 Cup Fresh Strawberries, Stemmed and Sliced
- Juice of 12 Lemon

In a small bowl, combine the strawberries with the lemon juice and 14 cup of the sugar; stir gently and allow the strawberries to marinate in the juices for 2 hours.

In a medium bowl, use a hand mixer or a whisk to combine the milk and remaining granulated sugar until the sugar is dissolved, about 1 – 2 minutes on low speed.

Stir in the heavy cream, plus the remaining strawberry juice and vanilla.

Turn ELECTRIC ICE CREAM MAKER on, pour mixture into Freezer Bowl and let churn until thickened, about 30 minutes.

Add the sliced strawberries during the last 5 minutes of churning.

Enjoy immediately, or transfer ice cream to freezer-safe container and store in freezer.

NOTE: The ice cream will have a "natural" appearance of very pale pink. If a deeper pink is desired, sparingly add drops of red food coloring until desired color is achieved.

REFRESHING LEMON SORBET

• 34 Cup Sugar
• 34 Cup Water, Well Chilled
• Juice from 12 Medium Orange
• 12 Cup Freshly Squeezed Lemon Juice
• 12 Egg White

Combine the sugar and water in a medium saucepan and stir over low heat until sugar has dissolved.

Bring mixture to a boil and allow to boil for 1 minute. Remove from heat and allow to cool.

Once cooled, add orange and lemon juice to the mixture.

Whisk the egg white until almost stiff, and then stir into the lemon mixture.

Turn ELECTRIC ICE CREAM MAKER on, pour mixture into Freezer Bowl and let churn until desired consistency is achieved, about 20-30 minutes.

Enjoy immediately, or transfer sorbet to freezer-safe container and store in freezer.

CHOCOLATE FROZEN YOGURT

• 1 Cup Whole Milk
• 2 Cups Low Fat Vanilla Yogurt
• ¼ Cup White, Granulated Sugar
• 6 oz. Semi-Sweet Chocolate, Chopped

Combine the milk and chocolate in a blender or food processor and mix until well blended and smooth, about 20 – 30 seconds.

Add the yogurt and sugar, mix again until smooth, about 15 seconds.

Turn ELECTRIC ICE CREAM MAKER on, pour mixture into Freezer Bowl and let churn until desired consistency is achieved, about 20-30 minutes.

Enjoy immediately, or transfer frozen yogurt to freezer-safe container and store in freezer.

CUSTARD BASED VANILLA ICE CREAM

• 2 Egg Yolks
• 14 Cup Granulated Sugar
• 7/8 Cup Skim Milk
• 7/8 Cup Thickened Cream
• Few Drops of Vanilla Extract

Combine the egg yolks and sugar in a glass bowl and beat together.

In a saucepan, slowly bring the milk to boiling point, then pour onto the egg mixture and beat together.

Return the mixture to the pan and stir constantly until the mixture thickens and forms a film over the back of the spoon. IMPORTANT: Do not allow mixture to boil or the mixture will separate.

Remove mixture from heat and allow to cool. When cool, stir in the cream and vanilla extract.

Turn ELECTRIC ICE CREAM MAKER on, pour mixture into Freezer Bowl and let churn until desired consistency is achieved, about 20-30 minutes.

Enjoy immediately, or transfer ice cream to freezer-safe container and store in freezer.

RETURNS & WARRANTY

SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY.

ELECTRIC ICE CREAM MAKER / ICM500

Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 8:00 AM and 5:00 PM, Monday through Friday, Central Standard Time.

Distributed by:

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Customer Service

Phone: [phone]

Web: www.nostalgiaproducts.com

Customer Service Inquiry

To submit a Customer Service inquiry, go to www.nostalgiaproducts.com and fill out the Customer Service Inquiry form and click the Submit button.

A representative will contact you as soon as possible.

Product Warranty Terms

Nostalgia Products LLC (the "Company") hereby warrants that for a period of one (1) year from the date of original purchase, this product will be free of defects in material and workmanship under normal home use, provided that the product is operated and maintained in accordance with the operating instructions. As the sole and exclusive remedy under this warranty, the Company will at its discretion either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. This warranty is only available to the original retail purchaser of the product from the date of initial retail purchase, and is only valid with the original sales receipt, as proof of purchase date is required to obtain warranty benefits. All warranty claims must be brought to the attention of the Company within the warranty period and no later than 30 days of the failure to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling, misuse, accident, alteration, improper replacement parts, or other than ordinary household use. You may be required to return the product (with shipping prepaid by you) for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns damaged or lost in transit. Unless otherwise specifically permitted by the operating instructions, this warranty applies to indoor household use only. In order to obtain service under this warranty, please contact the Company at the telephone number listed above or by filling out the Customer Service Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada.

This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose, which are hereby excluded to the extent permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you.

This warranty does not apply to re-manufactured merchandise.

Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty.

For more information, visit us online at www.nostalgiaproducts.com.

Like us on Facebook at www.facebook.com/NostalgiaElectrics.

Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx.

Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.

TABLE DES MATIÈRES

IMPORTANTES MESURES DE PRÉCAUTION .....14

IMPORTANTES MISES EN GARDE 14

INTRODUCTION 15

PIÈCES ET ASSEMBLAGE....16

MODE DE FONCTIONNEMENT ..... 17

CONSEILS UTILES 18

NETTOYAGE ET ENTRETIEN 19

RECETTES 20

RETOURS ET GARANTIE 23

SÉCURITÉ

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Servicio al cliente
