USER MANUAL Premier K 60 L DR Hoshizaki

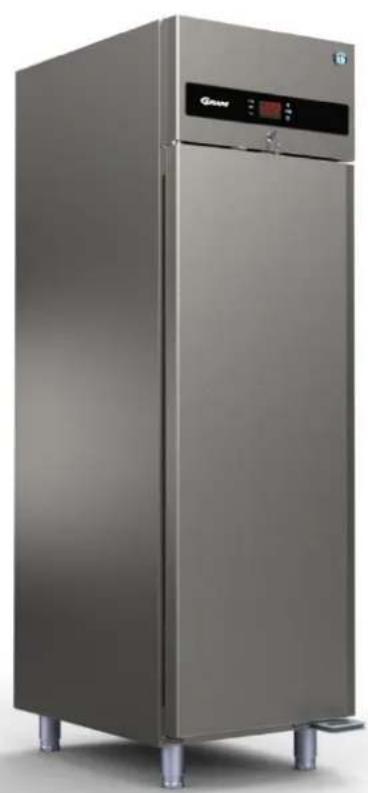

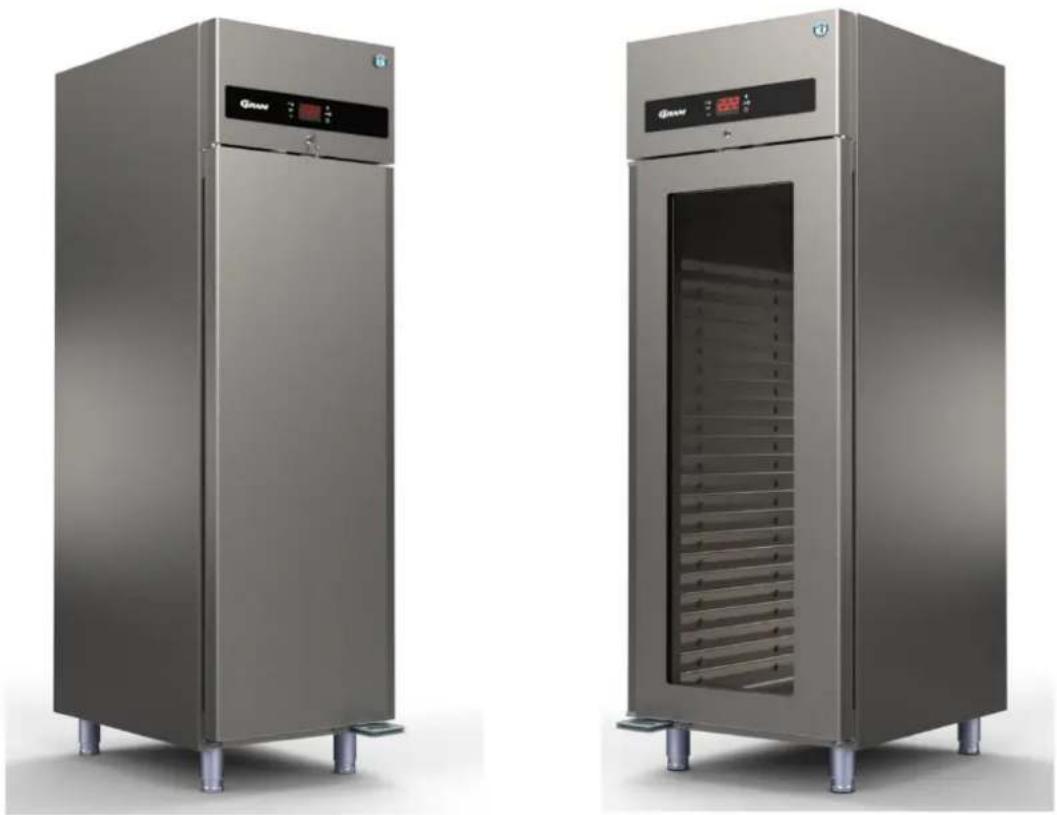

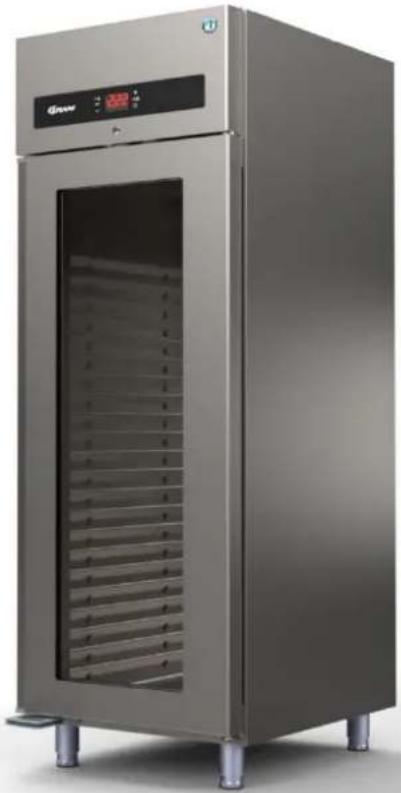

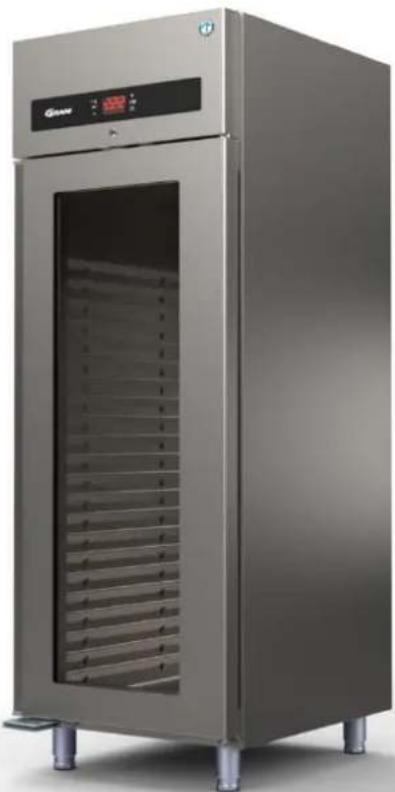

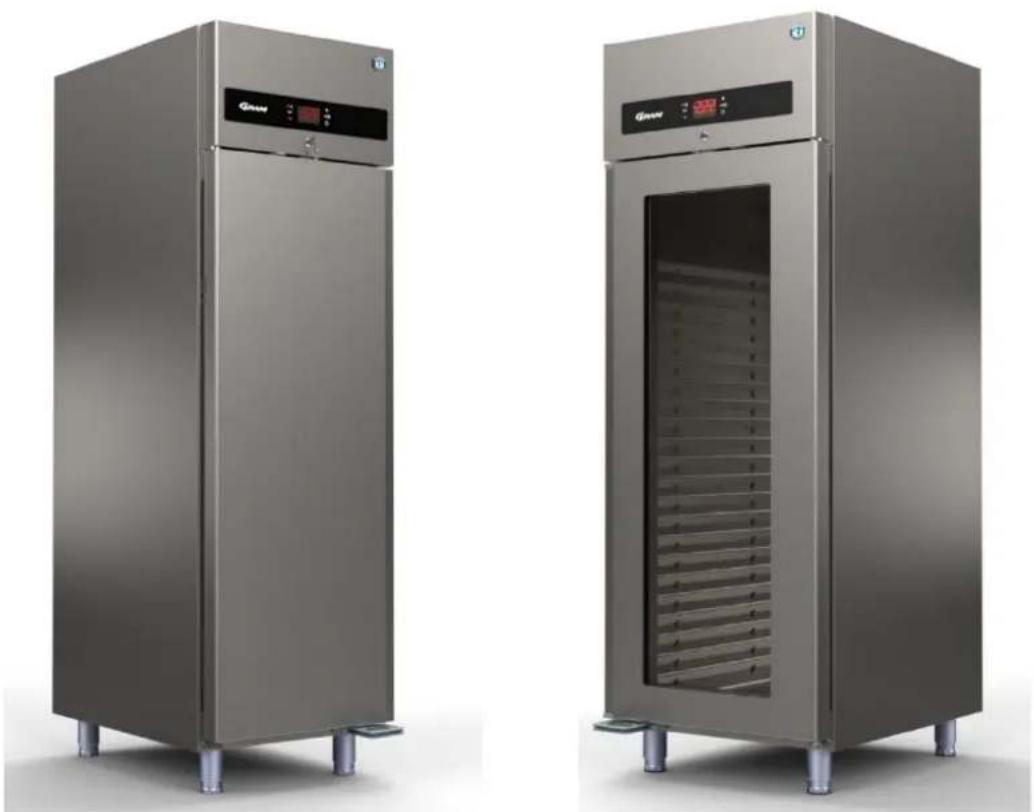

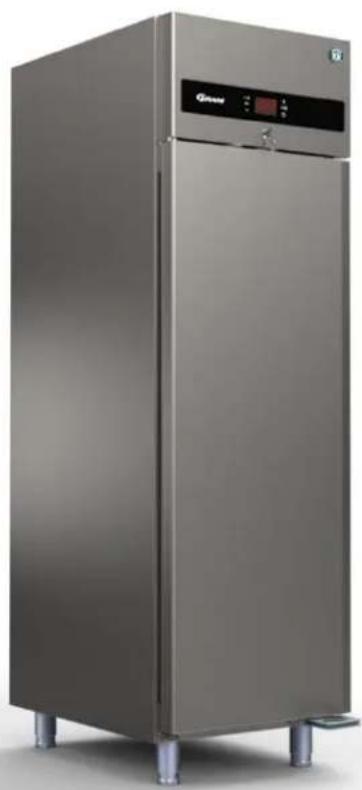

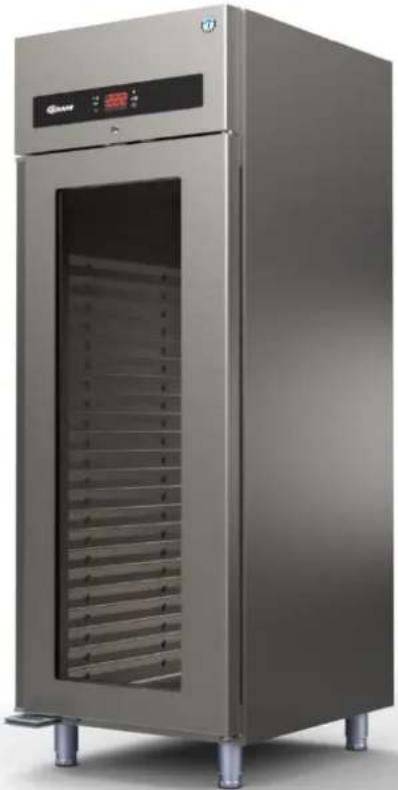

Exterior view of a stainless steel commercial kitchen refrigerator (no visible text or symbols)

Exterior view of a stainless steel commercial kitchen oven with digital display and side legs (no visible text or symbols)

EN: OPERATION, MAINTENANCE AND INSTALLATION MANUAL

FR: MANUEL D'UTILISATION, D'ENTRETIEN ET D'INSTALLATION

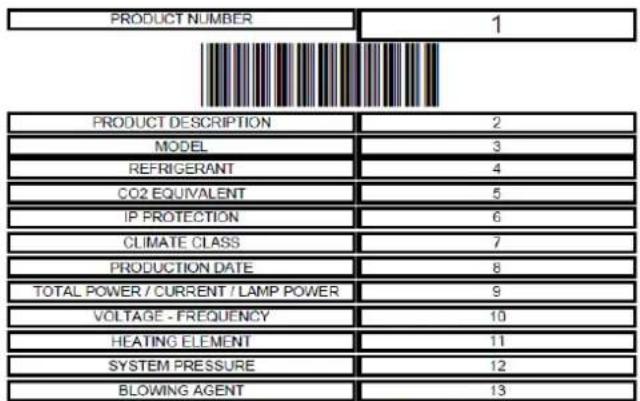

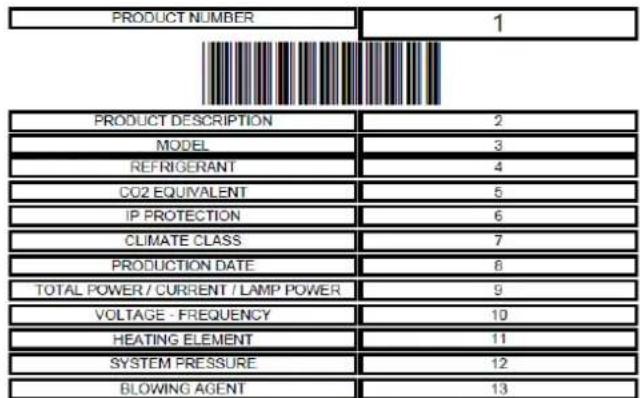

1 - Product Number

2 - Product Description

3 - Model

4 - Refrigerant (GWP)

5 - CO2 Equivalent

6 - IP Protection

7 - Climate Class

8 - Production Date

9 - Total power / Current / Lamp power

10 - Voltage – Frequency

11 - Heating Element

12 - System Pressure

13 - Blowing Agent

14 - Serial Number

PRODUCT NUMBER 1 PRODUCT DESCRIPTION 2 MODEL 3 REFRIGERANT 4 CO2 EQUIVALENT 5 IP PROTECTION 6 CLIMATE CLASS 7 PRODUCTION DATE 8 TOTAL POWER / CURRENT / LAMP POWER 9 VOLTAGE - FREQUENCY 10 HEATING ELEMENT 11 SYSTEM PRESSURE 12 BLOWING AGENT 13

S/N: 14

HOSHIZAKI EUROPE B.V. Burgemeester Stramanweg 101 1101 AA Amsterdam, The Netherlands

THE PURPOSE OF USAGE

• This product is suitable for use in indoor areas only and solely for the purpose of storing food and beverages. Storage units are designed to maintain products already at refrigerator/freezer temperature.
• The manufacturer will not be held responsible for any damages arising as a result of usage contrary to stated guidelines in this book.
• While storing food in this cabinet, it is necessary to ensure that food never comes in contact with the body of this cabinet.
• All foods must be completely covered. To avoid contamination and corrosion of internal components all products should be wrapped or stored in sealed containers.
• Do not store hot foods or liquids in this cabinet.
• Beverages stored in boxes and glass bottles should not be stored at temperatures below 0°C (freezing point). Cans and glass bottles may burst due to expansion. All containers with lids should not be filled completely: a small amount of space should be left for expansion.
• This cabinet is equipped with an automatic self-defrosting facility. It is also possible to perform manual defrosting. The manual defrosting does not involve turning the cabinet off for long periods but can be performed via the controller. Under no circumstances should force or hand tools be used to de-ice this cabinet, any damage arising from such action is difficult to repair.
• Do not employ any mechanical or alternative means of defrosting.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction.
  • Children being supervised not to play with the appliance.
  • Cleaning and user maintenance shall not be made by children without supervision.

HOSHIZAKI

Premier 70-W80-60

- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

- Any electrical or mechanical changes to this cabinet will void the warranty. Changes carried out by non-authorized service engineers and changes other than those described in this manual will also void the warranty. The manufacturer will not accept any responsibility for damages arising from such changes.

CLIMATE CLASS

The cabinet is designed to run within specific ambient temperature and humidity levels. These are set out in the climate class system. These levels are never to be exceeded. The climate class for this product can be found on the product description label. The refrigerator is not suitable for use in temperatures below 16 °C ambient temperature.

Climate Class	Ambient Temperatures and Humidity
4	+30°C with %55 RH
5	+40°C with %40 RH

FIRST ACCEPTANCE AND CONTROLS

This cabinet was packed in protective packaging material for shipping. On delivery, please check the cabinet for any possible transport damage and that the cabinet model is what you ordered.

IMPORTANT

All operations listed below must fully comply with all local bylaws and safety regulations. Observe all current safety rules when operating this product.

TRANSPORTING

When lifting the product using machinery, the lifting capacity of any machinery must be verified prior to undertaking any such procedures.

IMPORTANT

When using a fork truck to move the product, please ensure that the forks are inserted into the appropriate openings in the pallet.

Once moving, attention must be paid to the stability of the product. If the center of gravity is not central to the product, which will make it prone to tip over. When lowering the product with a fork truck ensure this is done slowly and with care.

Should it become necessary to transport any upright cabinets in a horizontal position, please make sure the cabinet has been upright for at least 2 hours before operating. It is not recommended to transport upright cabinets in the horizontal position and any damage arising from such action is not covered by a warranty.

HOSHIZAKI

Premier 70-W80-60

ATTENTION

Recommendations written on the outside of the transport packaging are for the user's benefit. Therefore, the following recommendations should be observed:

- Carry the product carefully.

- Keep the product dry. Do not use the top of the cabinet for storage!

OPENING THE PACKAGING

• Remove the cardboard and any other packaging material.
• Lift the cabinet to disconnect and remove it from the pallet.
• Place the cabinet in the desired location, standing on its own base.
• Check for any visible damage.
  • Packaging materials can be recycled according to local recycling regulations.
• Verify that the product code and serial number match the same on any shipping documents.

Trade mark			HOSHIZAKI
Model name			PREMIER K 70	PREMIER KG 70	PREMIER M 70	PREMIER F 70
Intended use			Storage	Storage	Storage	Storage
Chilled operating temperature			X	X	X
Frozen operating temperature						X
Multiuse cabinet
Vertical cabinet			X	X	X	X
Counter cabinet
Parameter	Symbol	Unit
Energy Efficiency Class	EEC	-	A	B	A	C
Energy Efficiency Index	EEI	-	24.56	32.49	24.56	46.45
24 hour Energy Consumption	E24h	kWh	0.935	1.237	0.935	4.853
Annual Energy Consumption	AEC	kWh	341.27	451,51	341.27	1771.34
Net volume for compartment 1	Vn or Vn1	litre	475	475	475	475
Net volume for compartment 2	Vn2	litre	-	-	-	-
Net volume for compartment 3	Vn3	litre	-	-	-	-
Net volume for compartment 4	Vn4	litre	-	-	-	-
Total Net volume	VnT	litre	475	475	475	475
Climate Class	CC		5	4	5	5
Refrigerant			R600a	R600a	R600a	R290
Charge		kg	0.080	0.080	0.080	0.115
GWP			3	3	3	3
CO2 Equivalent			0,24	0,24	0,24	0,345
Heavy-duty; This appliance is intended for use in ambient temperatures up to 40°C			X		X	X
Contact details:	HOSHIZAKI EUROPE B.V.Address: Burgemeester Stramanweg 101 1101 AAAmsterdam, The NetherlandsTel.: [phone] - http://hoshizaki.europe.com/
Model name			PREMIER K W80	PREMIER KG W80	PREMIER M W80	PREMIER F W80
Intended use			Storage	Storage	Storage	Storage
Chilled operating temperature			X	X	X
Frozen operating temperature						X
Multiuse cabinet
Vertical cabinet			X	X	X	X
Counter cabinet
Parameter	Symbol	Unit
Energy Efficiency Class	EEC	-	A	B	A	C
Energy Efficiency Index	EEI	-	24.29	31,62	24.29	46.58
24 hour Energy Consumption	E24h	kWh	0.925	1.204	0.925	4.87
Annual Energy Consumption	AEC	kWh	337,63	439,46	337,63	1777,55
Net volume for compartment 1	Vn or Vn1	litre	475	475	475	475
Net volume for compartment 2	Vn2	litre	-	-	-	-
Net volume for compartment 3	Vn3	litre	-	-	-	-
Net volume for compartment 4	Vn4	litre	-	-	-	-
Total Net volume	VnT	litre	475	475	475	475
Climate Class	CC		5	4	5	5
Refrigerant			R600a	R600a	R600a	R290
Charge		kg	0.080	0.080	0.080	0.085
GWP			3	3	3	3
CO2 Equivalent			0,24	0,24	0,24	0,255
Heavy-duty; This appliance is intended for use in ambient temperatures up to 40°C			X		X	X
Contact details:	HOSHIZAKI EUROPE B.V.Address: Burgemeester Stramanweg 101 1101 AAAmsterdam, The NetherlandsTel.: [phone] - http://hoshizaki.europe.com/
Model name			PREMIER K 60	PREMIER KG 60	PREMIER M 60	PREMIER F 60
Intended use			Storage	Storage	Storage	Storage
Chilled operating temperature			X	X	X
Frozen operating temperature						X
Multiuse cabinet
Vertical cabinet			X	X	X	X
Counter cabinet
Parameter	Symbol	Unit
Energy Efficiency Class	EEC	-	A	B	A	C
Energy Efficiency Index	EEI	-	24.71	32,20	24.71	48,23
24 hour Energy Consumption	E24h	kWh	0.785	1.023	0.785	4,127
Annual Energy Consumption	AEC	kWh	286,53	373,4	286,53	1506,36
Net volume for compartment 1	Vn or Vn1	litre	335	335	335	335
Net volume for compartment 2	Vn2	litre	-	-	-	-
Net volume for compartment 3	Vn3	litre	-	-	-	-
Net volume for compartment 4	Vn4	litre	-	-	-	-
Total Net volume	VnT	litre	335	335	335	335
Climate Class	CC		5	4	5	5
Refrigerant			R600a	R600a	R600a	R290
Charge		kg	0.080	0.080	0.080	0,085
GWP			3	3	3	3
CO2 Equivalent			0,24	0,24	0,24	0,255
Heavy-duty; This appliance is intended for use in ambient temperatures up to 40°C			X		X	X
Contact details:	HOSHIZAKI EUROPE B.V.Address: Burgemeester Stramanweg 101 1101AAAmsterdam, The NetherlandsTel.: [phone] - http://hoshizaki.europe.com/

II. OPERATING INSTRUCTIONS

ELECTRICITY

Before connecting the product to electrical power, please verify that the specified electrical power supply on the product description label corresponds with the local network electrical power supply.

The Product Description label with the specified electrical power supply can be found on the inside of the cabinet, on the top left-hand side.

Installation of the product must only be undertaken by qualified and trained service personnel as per the specifications listed in this manual.

The electrical safety of this cabinet can only be valid if it's earthed in accordance with current local laws and regulations.

Earthing of the product is always required.

The manufacturer will not accept any responsibility for any damage arising from improper grounding.

Adhere to all electricity requirements stipulated by the local electrical regulations. The product's electricity plug and wall socket must have the correct earth connectivity reading. If necessary employ a qualified electrician.

GENERAL PRELIMINARY CHECKS

Make sure the cabinet is standing on level ground and is upright. If necessary, the adjustable feet of the cabinet can be used to achieve this. All feet should be in contact with the ground. This is necessary for the proper operation of the cabinet door.

Do not place the cabinet next to any heat-generating devices such as ovens, grills, and deep fryers. Do not expose to direct sunlight. The heat that may be radiated by walls or floors must be insulated with appropriate insulating material. The cabinet should be placed as far as possible from any heat source.

If the cabinet is re-located, allow three hours before re-starting. Plastic protection or tape should be removed from the outer surfaces.

Ensure the cabinet is positioned so sufficient fresh air can flow to/from the cooling circuit and around the surfaces of the cabinet. Leave at least 500 mm free space from the top of the cabinet.

If two refrigerators or freezers are to be placed side by side, there should be at least 50 mm space between them.

Do not block any vent holes.

PRELIMINARY ELECTRICAL CHECKS

• Check that the mains voltage and frequency of the socket conform to the information on the product description label.
  • The cabinet is connected to the main outlet with a 13-16 Amp fuse as a serial connection.
• Turn off the main fuse connected to the power cable.
• Check that the plug on the cabinet is suitable for use with the available main socket and that they fit together.

FIRST OPERATIONS AND CONTROLS

After the above checks have been completed, the cabinet can be operated. The

ON/OFF switch operates the cabinet.

After the cabinet is turned ON, the compressor will start running. The compressor will run until the factory's pre-set temperature is reached. Foods should not be placed in the cabinet until the temperature setting has been adjusted to suit the foods to be cooled.

New temperature settings can be done through the controller as described in this manual.

IMPORTANT

Allow the product to cool to the set temperature before placing food items inside.
Never exceed the maximum load capacity. The maximum shelf capacity is an even load of 40 kg each for shelves in upright cabinets and 20 kg for shelves and drawers in counter cabinets.
Refer to the "General Preliminary Checks' section of this manual for information on the amount of space required for good air ventilation around the product.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING:

Do not block any ventilation openings on the appliance at any time.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the cabinet.
Do not damage power cord, wiring or any key component.

STORAGE CONDITIONS AND PERFORMANCE

Correct storage conditions are not only paramount to food hygiene and safety but improve the quality of service and reduce energy consumption. The best performance can be achieved if the following tips and guidelines are observed: keep all food items on shelves only and never place food items on the floor of the cabinet. Food items must be placed in the cabinet or counter in such a way as to allow good airflow all around, leaving space between items and the walls of the product. If required shelf distance can be adjusted accordingly.

HOSHIZAKI Premier 70-W80-60

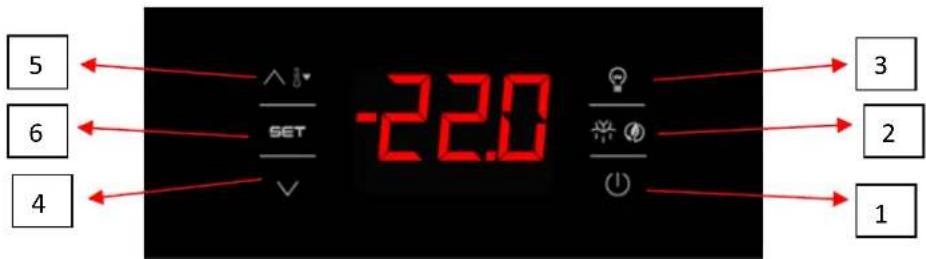

III. CONTROL PANEL

5 6 4 SET -22.0 3 2 1

FRONT PANEL FUNCTIONS

To lock the front panel keys, hold AUX (3) and hold On / Stand By (1) for 2 seconds: "Loc" text will be on the screen when keys are locked, if it isn't locked, "UnL" text will be on the screen.

1) When holding ON/STAND BY for 4 seconds; the device opens or closes. (On/Off)
2) MANUAL DEFROST; if the button is pressed for 4 seconds, manual defrost starts. If excessive cooling is active and evaporator temperature is not suitable, manual defrost will not start.
3) It is used only for models with glass doors to open or close the cabin interior Lighting (On / Off) or if there is, the auxiliary output turns on and off the ignition (On / Off).
4) DOWN key: Scroll down the menu or reduce the value; if held down for 4 seconds super cooling becomes active. When an excessive cooling function is active, the set temperature can be reduced; the time and temperature are determined with the help of the parameters. When an excessive cooling function is activated, the device never does defrost.
5) UP Key: Scroll up the menu or increase the value; if held down for 4 seconds, the percentage of low and high relative humidity function is engaged. (For some models) “rhL” is written on the screen (A low percentage of relative humidity function is operating.) or “rhH” is written on the screen (A high percentage of relative humidity function is operating.) These functions appear on the screen for 10 seconds. If humidity control is not available, “----” appears on the screen for 1 second.
6) SET key: input and change key for adjustable values.

OPERATING

Operation cases are available below:

"On" status: The device is energized and the device operates.

"Stand-By" status: The device is switched off, but the device is still powered.

"Of" status: To turn the device off, remove the plug from the socket, or by turning the main fuse off, the device is turned off.

IMPORTANT

Do not carry out any maintenance or repair while the cabinet is in on or standby mode. Only when the power supply is completely isolated from the cabinet can any work be done.

IV. MAINTENANCE INSTRUCTIONS

The device must be cleaned regularly. The intervals depend on the usage and level of soiling (at least annually).

Before carrying out any cleaning or maintenance operations, unplug the unit

Don't touch or wet the machine compartment parts. This could result in failure or breakdown.

To prevent possible damage, don't clean the plastic parts with water above 40^ or in a dishwasher.

Interior & Exterior of Cabinet and Shelves

Clean the interior and exterior at least once a week for sanitary use.

Clean off the interior and exterior of the cabinet with a soft cloth soaked in cold or warm water containing the proper amount of neutral cleaner and wrung dry. Don't use a water jet to clean the machine compartment.

Chemical agents other than neutral cleaner might cause damage to the interior and exterior surfaces.

Any remaining detergent will damage metal or plastic surfaces. Use a soft cloth dampened with warm water to wipe it off.

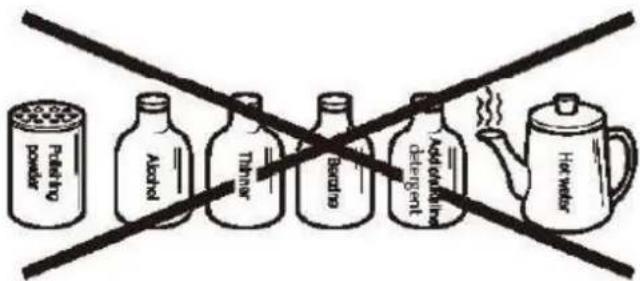

Don't use the following items, they could damage painted or plastic surfaces:

- Polishing powder, alcohol, thinner, benzene, acidic or alkaline detergent, hot water, petroleum, soap powder, metal scourer or brush, etc. Especially detergent to clean grease on ventilator or microwave.

Pulsifying powder Alcohol Thinner Banda Addictants Detergent Hot Water

Note: Some solutions other than the above may also damage painted or plastic surfaces. Immediately stop using such solutions if they cause any problems!

HOSHIZAKI

Premier 70-W80-60

The door gasket and its contact surface get soiled easily. Clean every surface of these parts thoroughly. Remnants of food will accelerate aging.

Use a cloth to wipe off any water staying inside the cabinet.

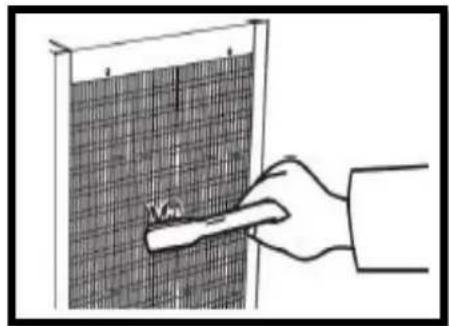

Condenser

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Use a vacuum cleaner or a soft brush to remove dust and stains from the condenser.

Warning: If users clean the condenser with a hard brush, such as a dishwasher brush, the coating of the condenser may peel off.

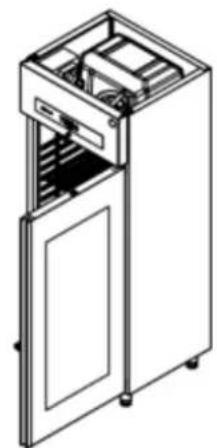

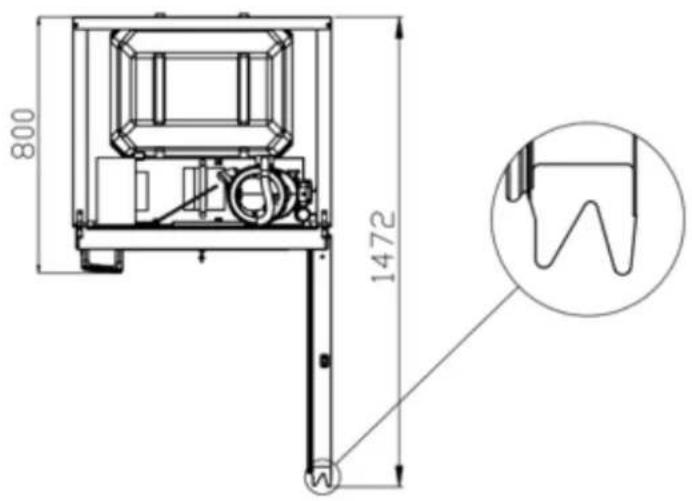

\*Air Filter

To prevent deformation do not wash the air filter hot water above 40^ C

Plastic mesh air filters remove dirt or dust from the air and keep the condenser from getting clogged. If the filters get clogged, the refrigerator/freezer's performance will be reduced.

Check the filters at least twice a month. When clogged or when the temperature controller shows "cH" use warm water and a neutral cleaner to wash the filters. Don't operate the unit with the air filters removed, or the condenser will get clogged, resulting in failure.

1) Open the front panel and remove the air filter. To prevent injury, don't touch the condenser fins directly.
2) Wash the air filter carefully with cold or warm water containing the proper amount of neutral cleaner. Rinse and dry the air filter thoroughly.
3) To refit the air filter put the two tabs into the heat exchanger or fins in a condenser and tightly attach the air filter over the condenser.

Note (*): Air filter is used in Premier W80, Premier 60 for this manual.

HOSHIZAKI

Premier 70-W80-60

V. TECHNICAL INFORMATIONS

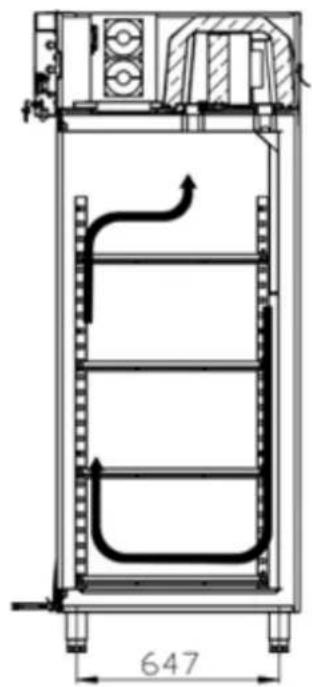

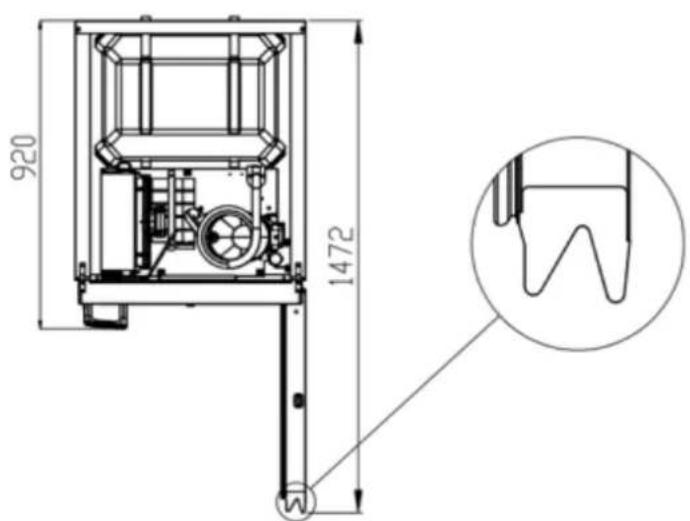

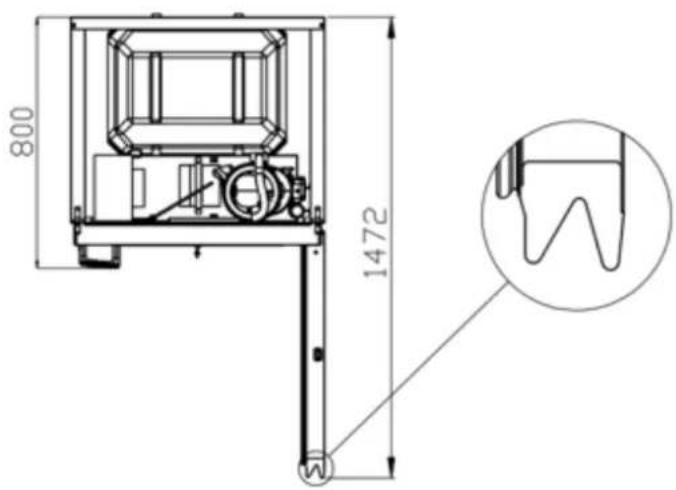

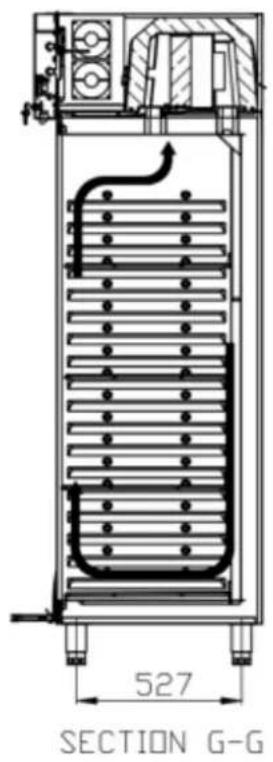

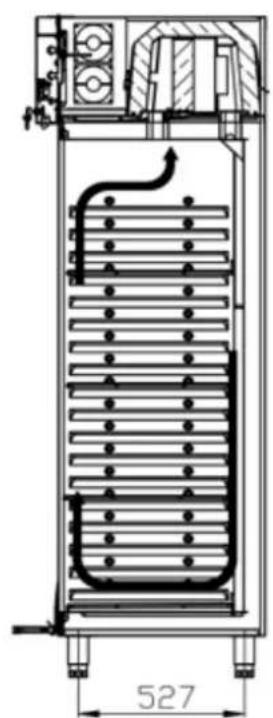

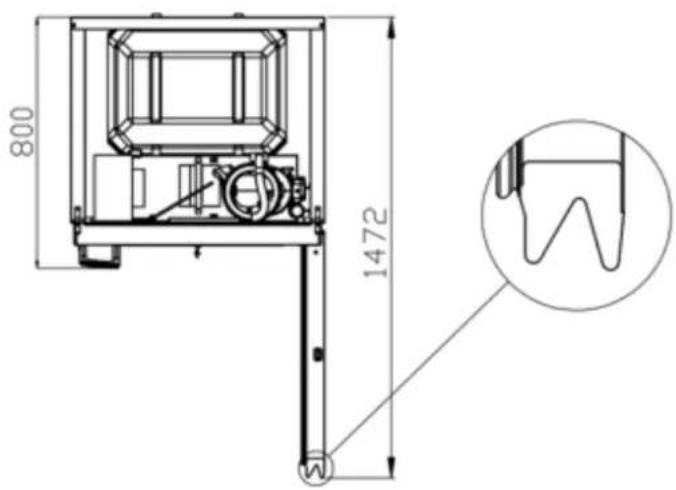

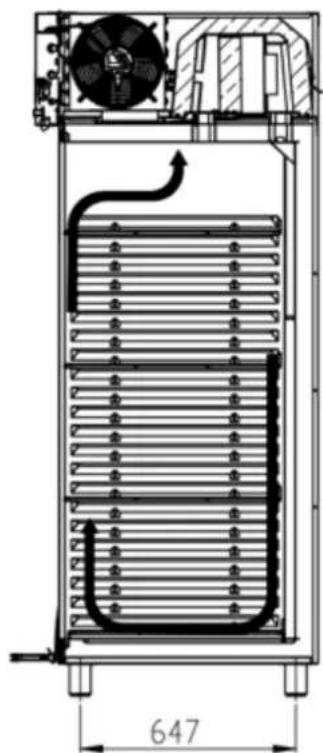

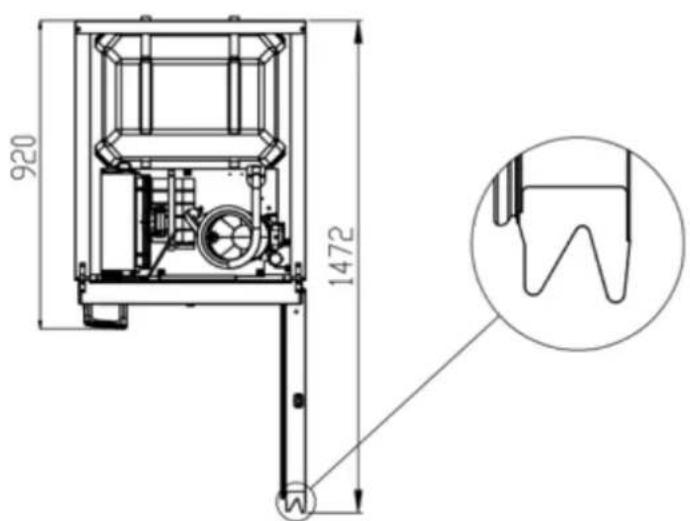

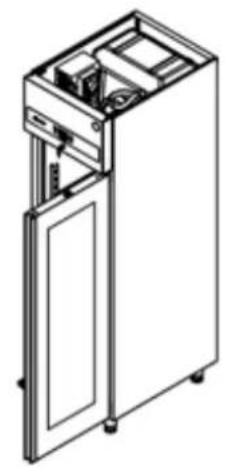

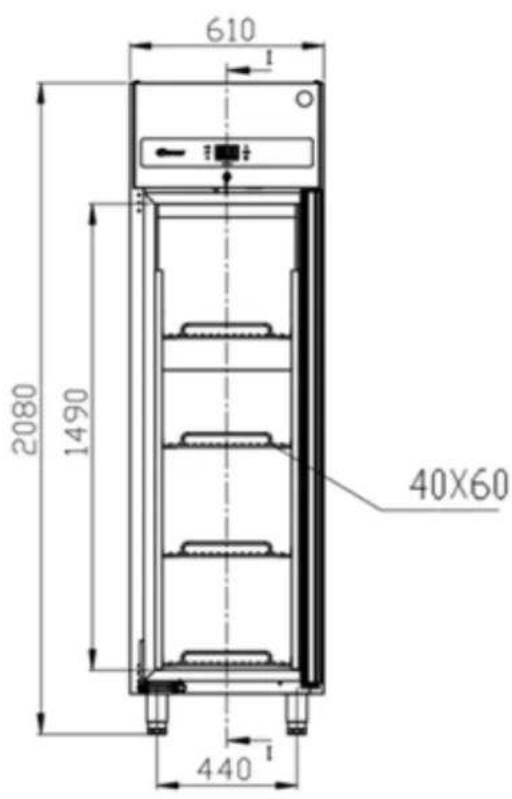

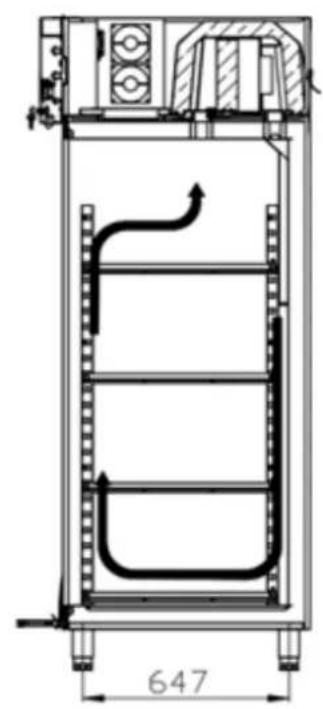

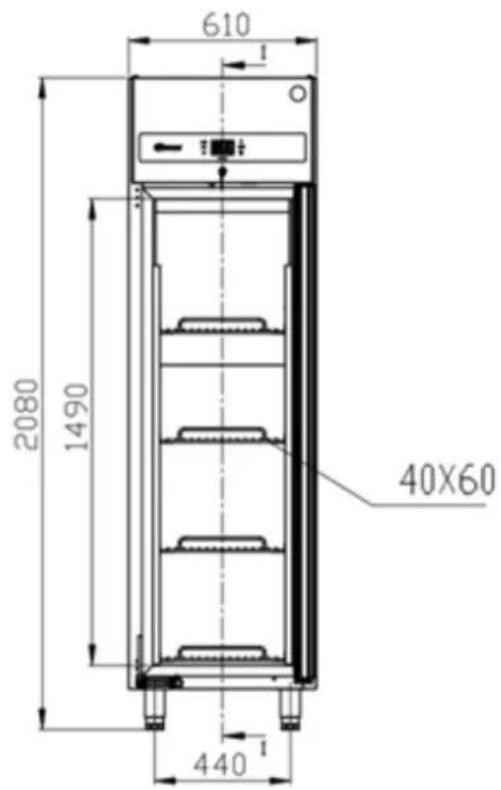

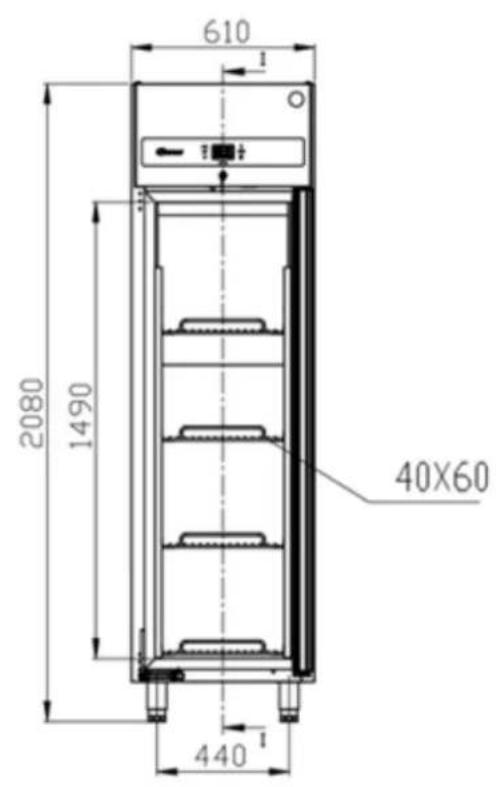

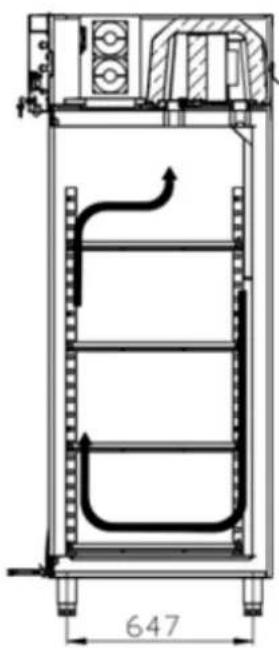

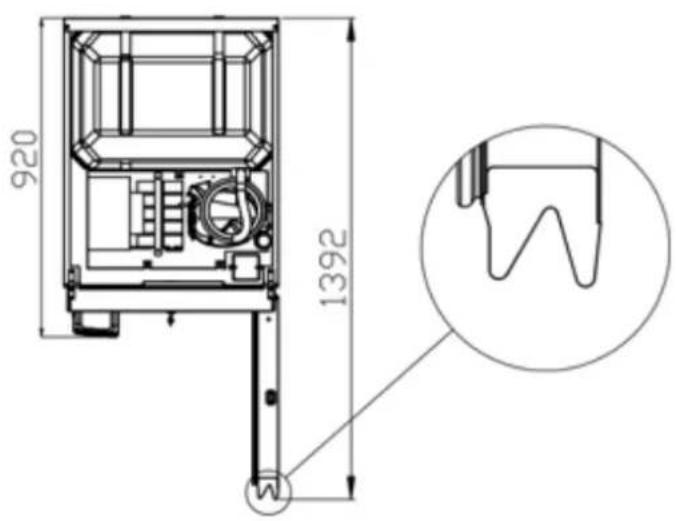

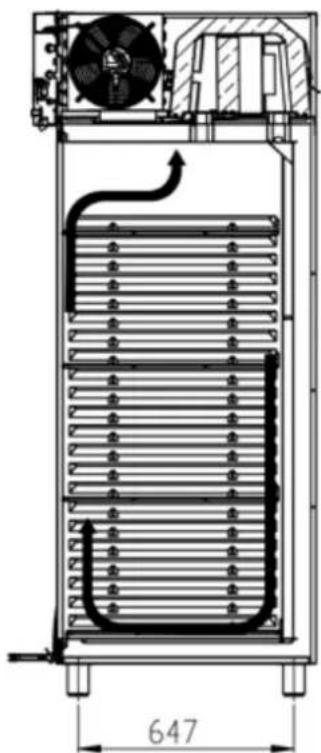

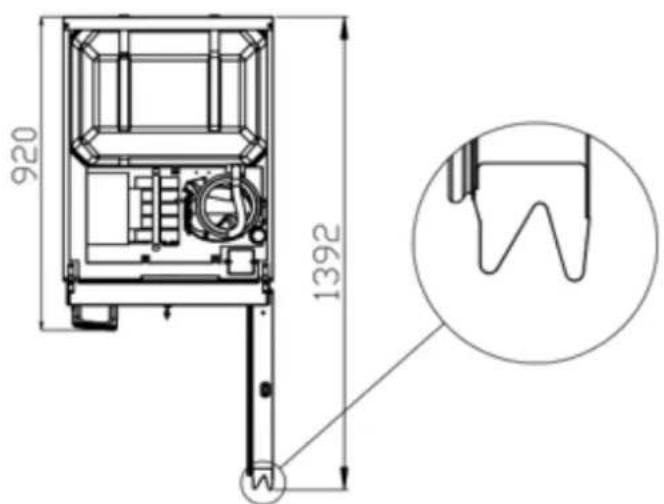

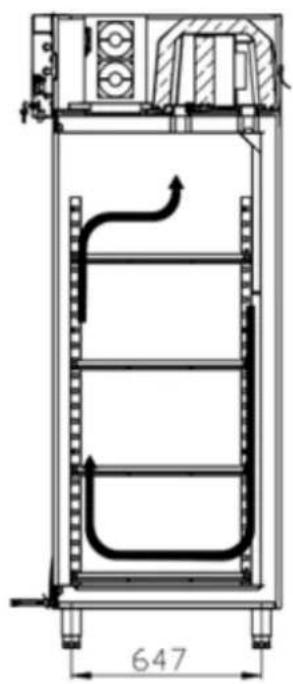

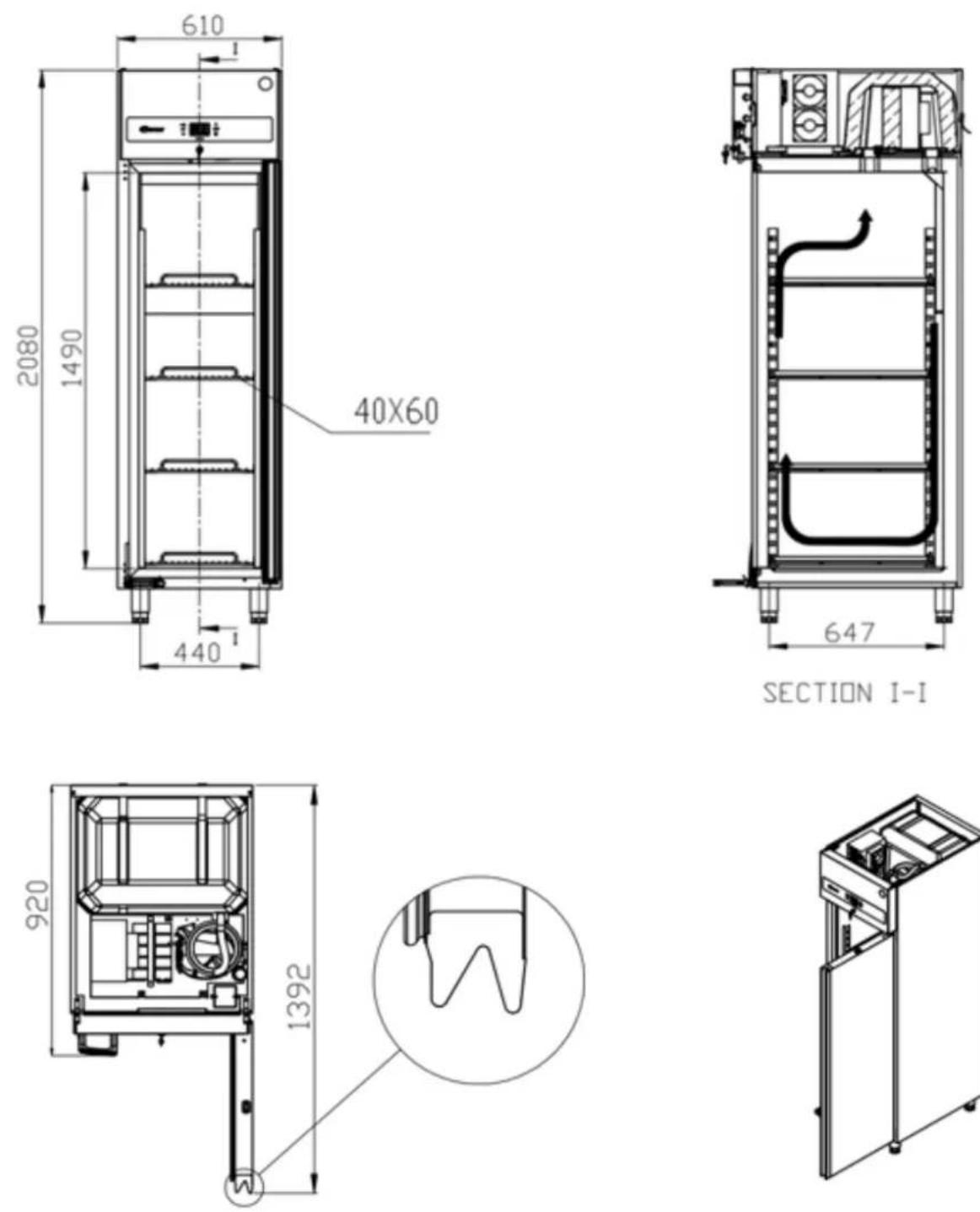

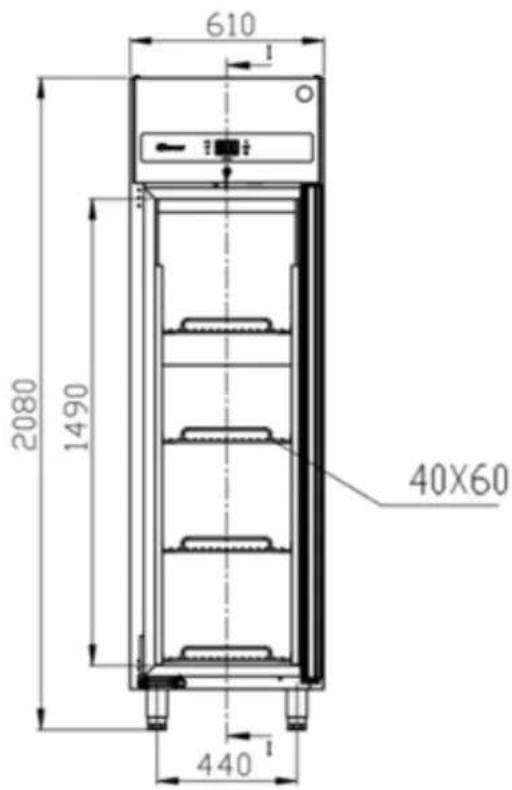

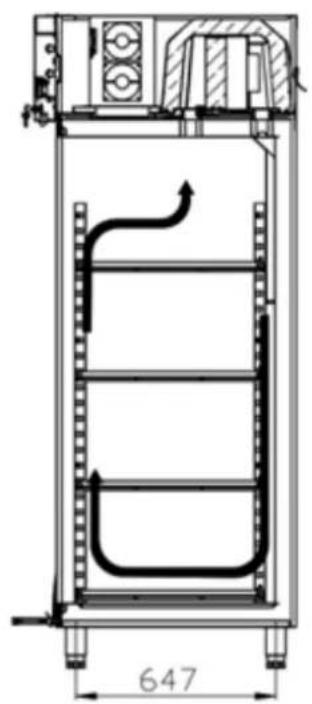

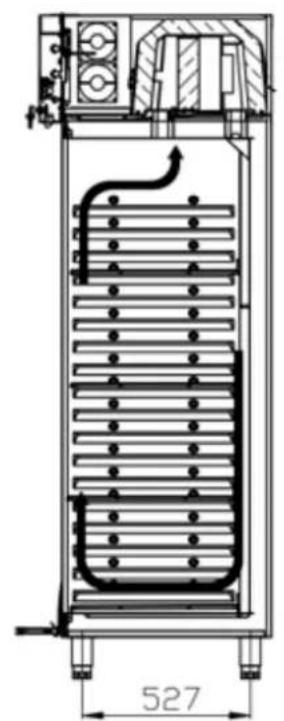

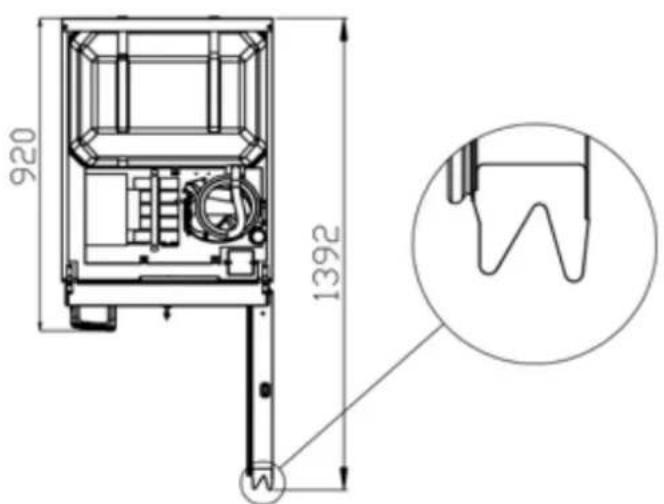

DIMENSIONS OF THE DEVICES

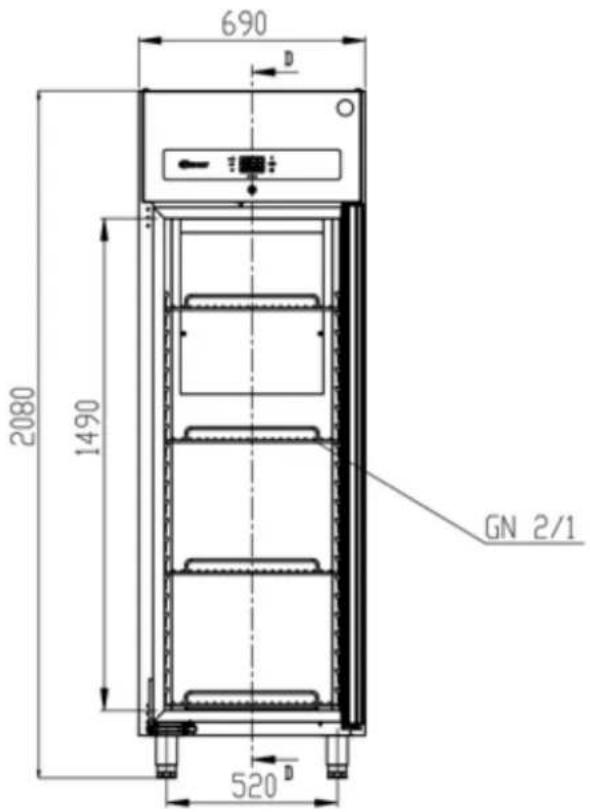

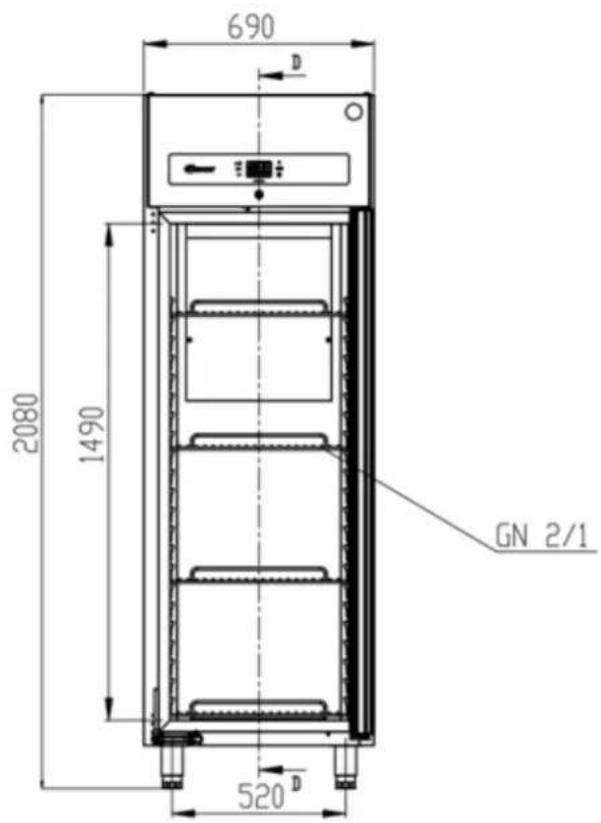

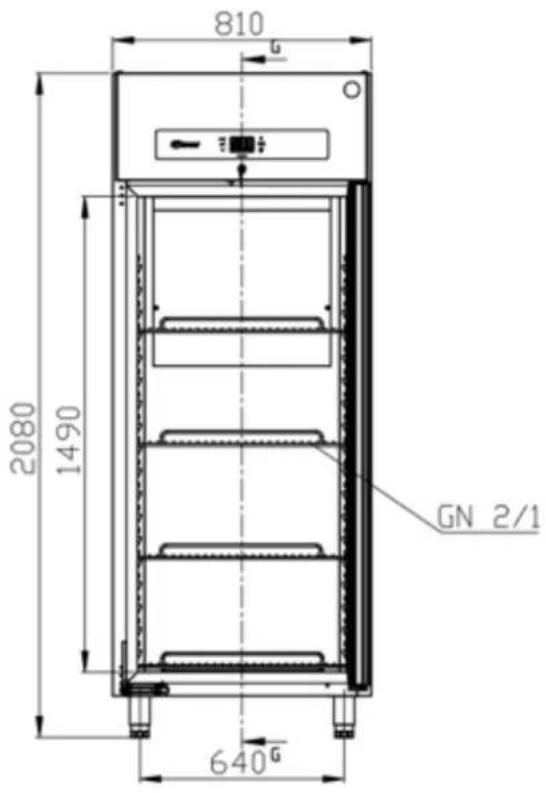

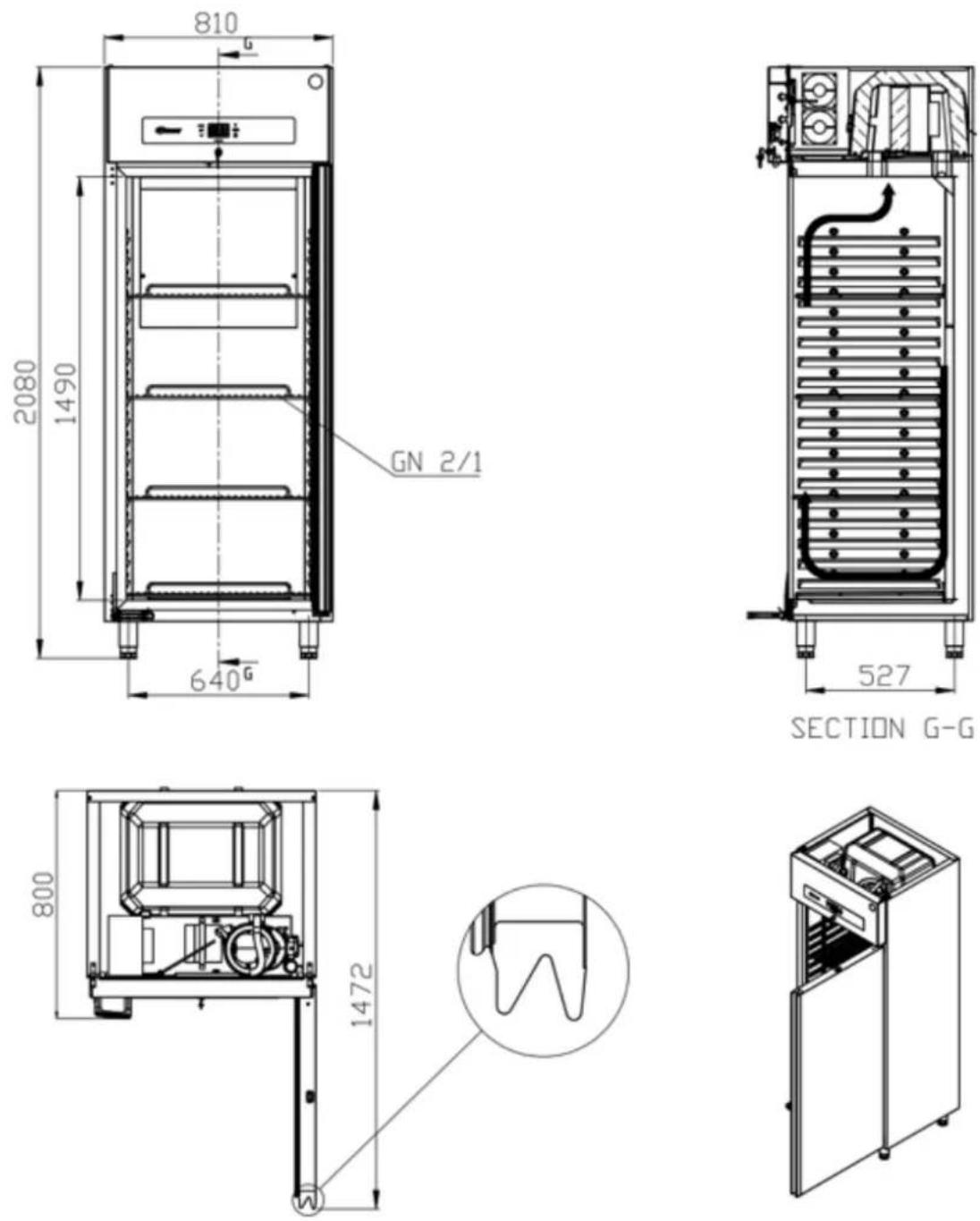

PREMIER K 70 - PREMIER M 70 - PREMIER F 70

690 D 2080 1490 GN 2/1 520

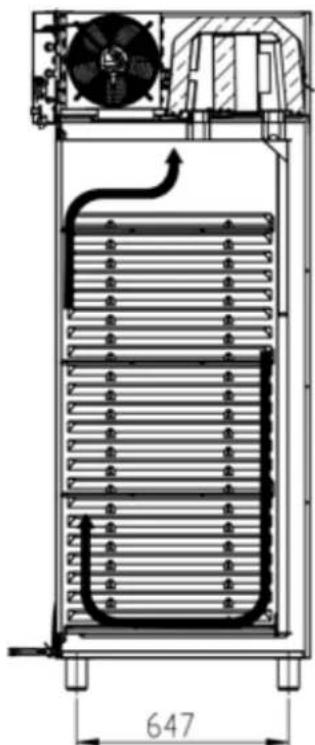

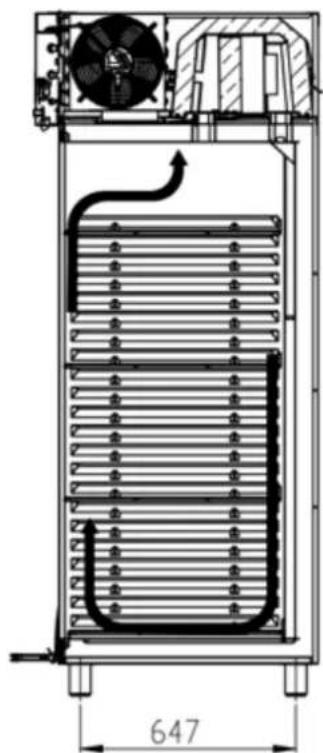

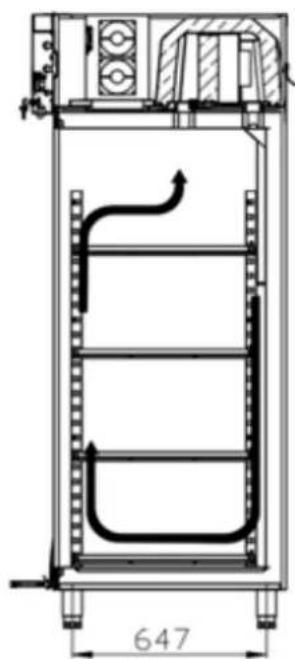

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, showing internal flow paths and dimension label (647) — no text or symbols beyond the dimension marker.

SECTION D-D

920 1472

Isometric line drawing of a multi-tiered open refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, showing internal flow paths and dimension标注 (no text labels or symbols)

SECTION D-D

920 1472

Line drawing of a single refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

HOSHIZAKI

Premier 70-W80-60

PREMIER KG W80

810 2080 1490 640G GN 2/1

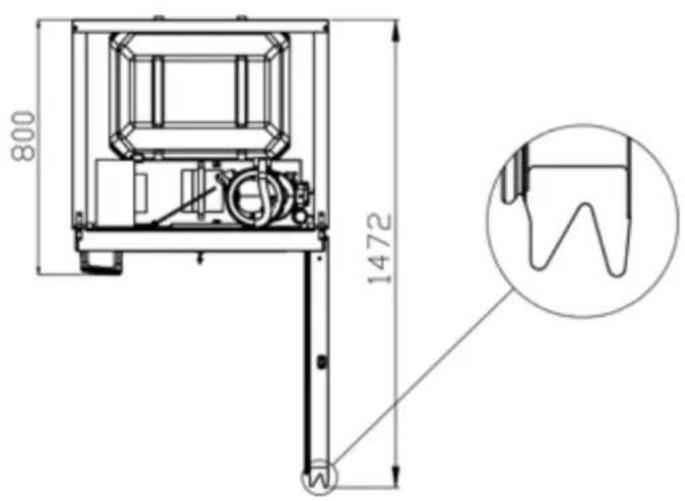

527 SECTION G-G

800 1472

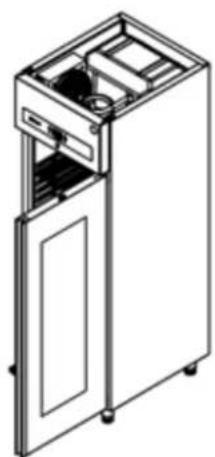

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical or electrical enclosure with internal channels and a dimension label (647), no readable text or symbols present.

SECTION I-I

920 1392

Isometric line drawing of a refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

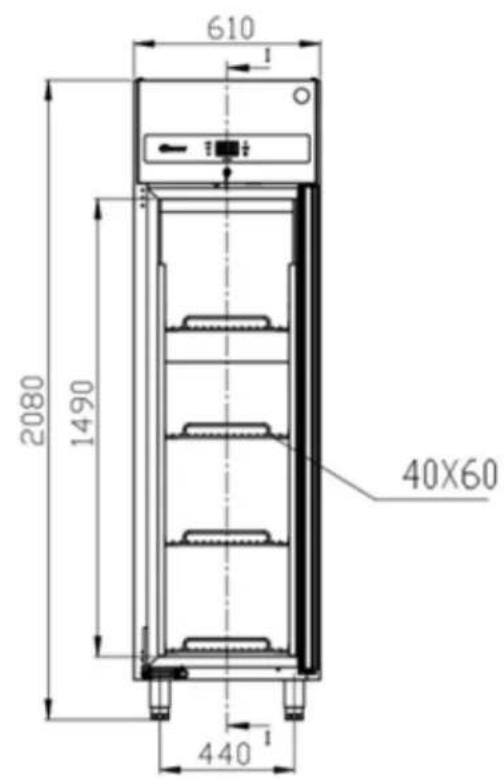

PREMIER KG 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical enclosure or enclosure with internal channels and structural elements, labeled with dimension 647 (no text or symbols beyond the label)

SECTION I-I

920 1392

Technical line drawing of a cabinet or enclosure with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

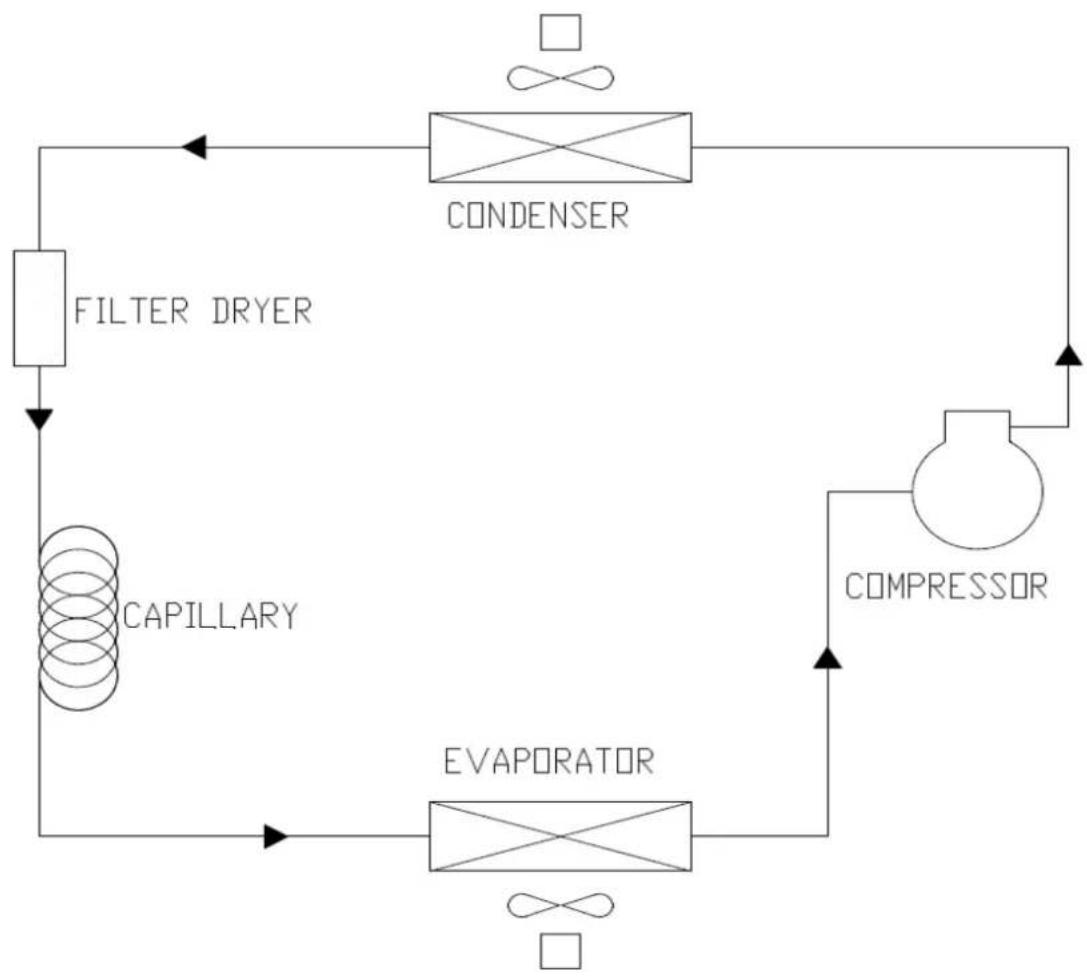

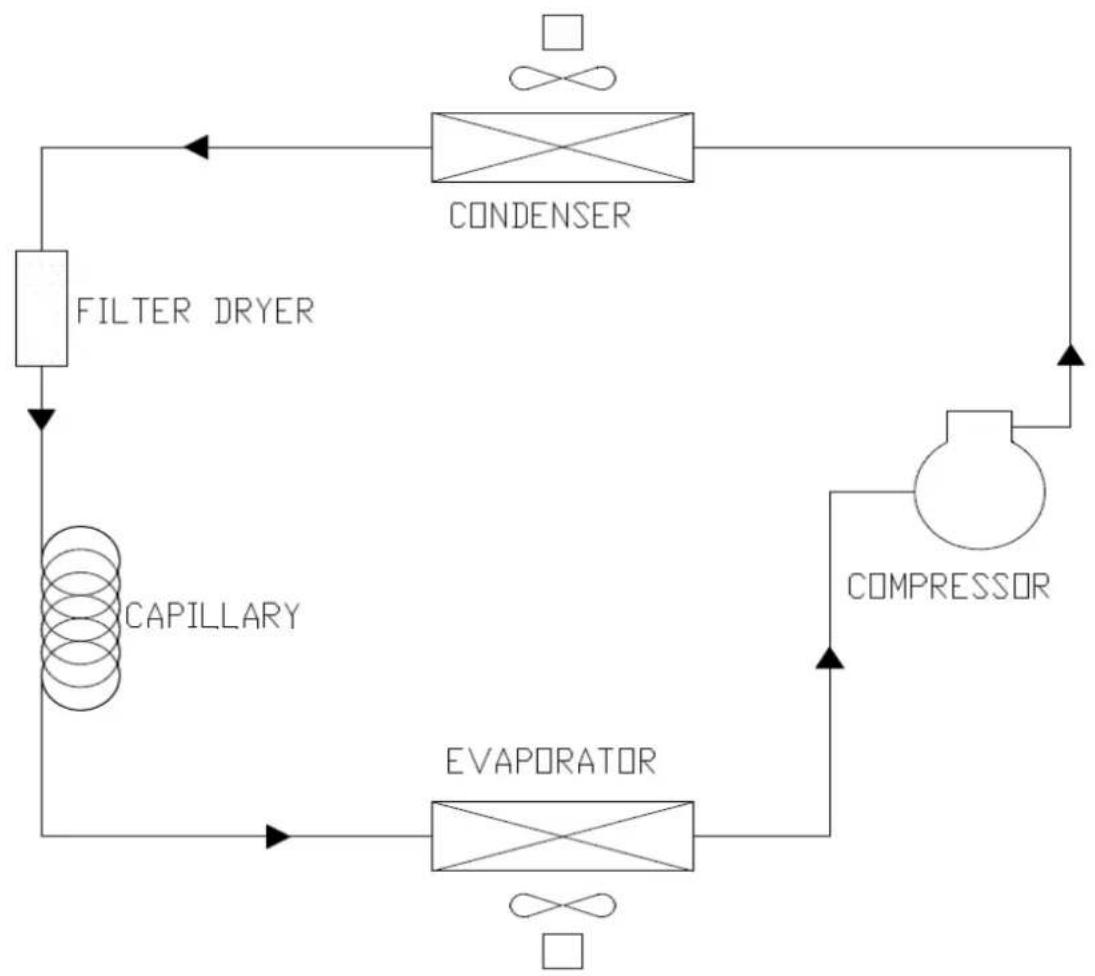

VI. COOLING DIAGRAM & ELECTRICAL WIRING DIAGRAMS


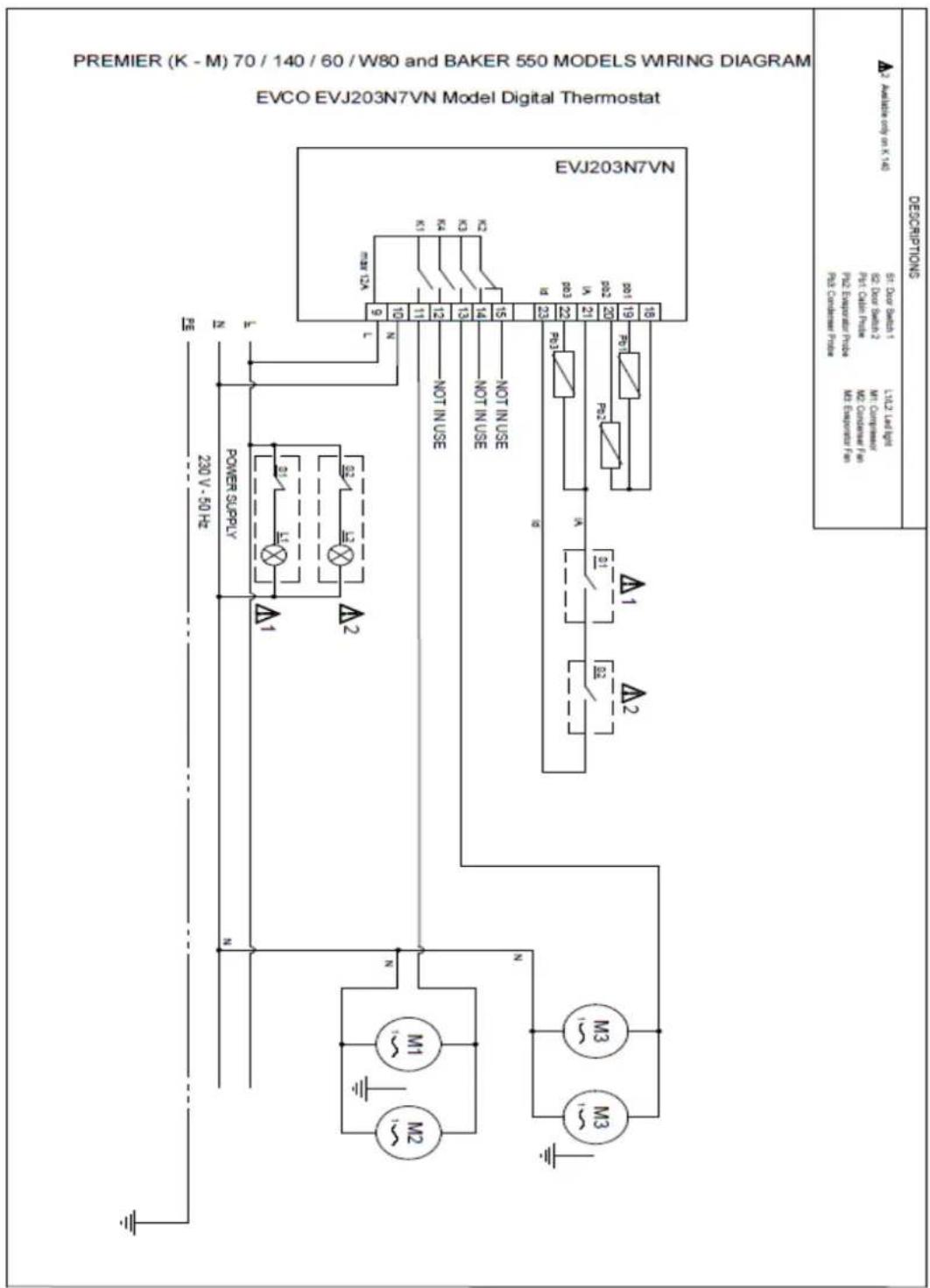

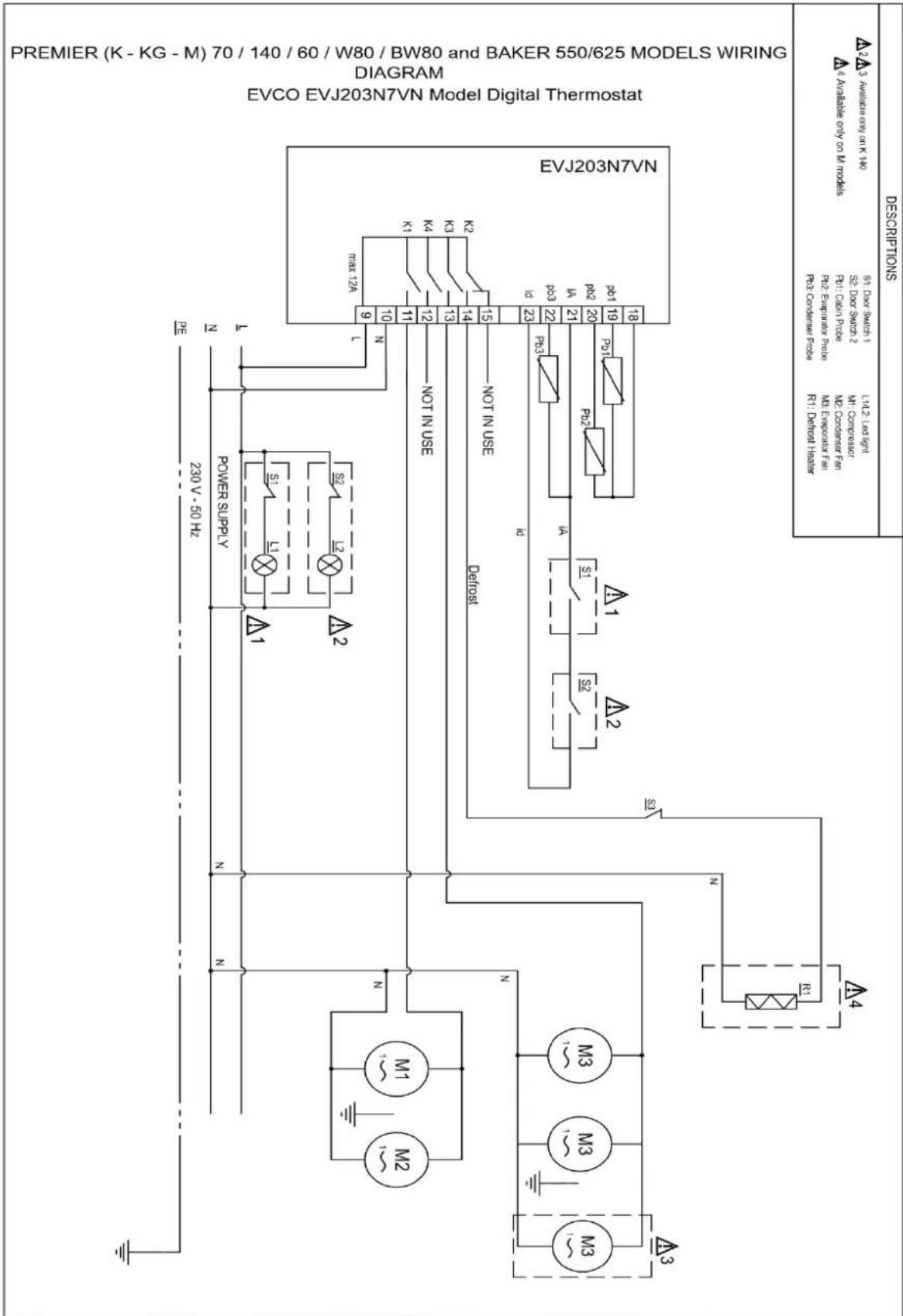

ELECTRICAL WIRING DIAGRAM (FOR CABINET REFRIGERATOR MODELS)

PREMIER (K - KG - M) 70 / 140 / 60 / W80 / BW80 and BAKER 550/625 MODELS WIRING EVCO EVJ203N7VN Model Digital Thermostat DIAGRAM EVC O EVJ203N7VN EVC O EVJ203N7VN DESIPPIFIONS A. Available only on all modes S1 Door switch 1 S2 Door switch 2 L14.2 low gait PDL Conpl Pdlo MC Conpress Fm PDL Eupower Pdlo MB Eupower Fm PDL Conpl Pdlo ML Conpress Fm R1: Densal Heater PDL Conpress Pdlo PDL Conpress Fm PDL Eupower Pdlo MB Eupower Fm R1: Densal Heater PDL Conpress Pdlo ML Conpress Fm PDL Eupower Pdlo MB Eupower Fm R1: Densal Heater PDL Conpress Pdlo ML Conpress Fm PDL Eupower Pdlo MB Eupower Fm R1: Densal Heater PDL Conpress Pdlo ML Conpress Fm PDL Eupower Pdlo MB Eupower Fm R1: PDL Conpress Pdlo ML Conpress Fm PDL Eupower Pdlo MB Eupower Fm R1: Densal Heater PDL Conpress Pdlo ML Conpress Fm PDL Eupower Pdlo MB Eupower Fm R1: Densal Heater PDL Conpress Pdlo ML Conpress Fm PDL Eupower Pdlo MS Conpress Fm PDL Conpress Pdlo ML Conpress Fm PDL Eupower Pdlo MS Conpress Fm PDL Conpress Pdlo ML Conpress Fm PDL Eupower Pdlo MS Conpress Fm PDL Conpress Pdlo ML Conpress Fm PDL Eupower Pdlo MS Conpress Fm PDL Conpress Pdlo ML Conpress Pm PDL Eupower Pdlo MS Conpress Pm PDL Conpress Pdlo ML Conpress Pm PDL Eupower Pdlo MS Conpress Pm PDL Conpress Pdlo ML Conpress Pm PDL Eupower Pdlo MS Conpress Pm PDL Conpress Pdlo ML Conpress Pm PDL Eupower Pdlo MS Conpress Pm PDL Conpress Pdlo ML Conress Fm PDL Conpress Pdlo ML Conpress Fm PDL Eupower Pdlo MS Conpress Fm PDL Conpress Pdlo ML Conpress Pm PDL Eupower Pdlo MS Conpress Pm

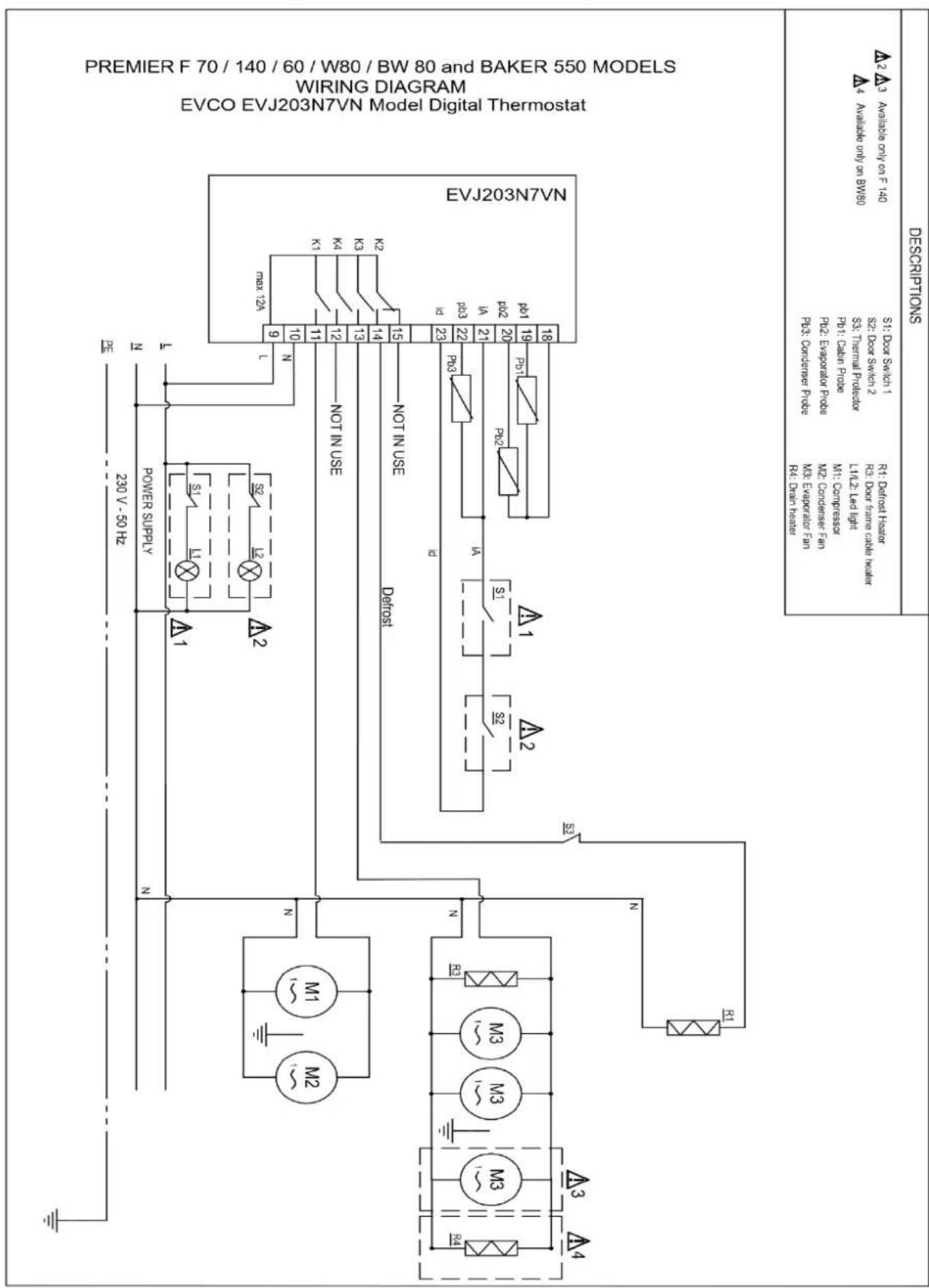

ELECTRICAL WIRING DIAGRAM (FOR CABINET FREEZER MODELS)

PREMIER F 70/140/60/W80/BW 80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat AVAILADE only on F 140 A2 A3 Available only on FBW90 ST: Door Switch 1 R1: Darcell Heater 52: Door Switch 2 RS: Door flame gate heater MS: Evapower Fan Pb2: Evapower Flange M2: Condenser Fan Rs: Drain heater Pb3: Condenser Flange MS: Evapower Fan Pb1: Cabin Flange M1: CompRESS Pb2: Cabin Flange MS: Condenser Fan Pb3: Condenser Flange MS: Evapower Fan Rs: Drain heater PB2: Evapower Flange M2: Condenser Fan Pb1: Cabin Flange M1: CompRESS Pb2: Cabin Flange MS: Condenser Fan Rs: Drain heater PB1: Drain heater PB2: Drain heater PB3: Drain heater MS: Evapower Fan Rs: Drain heater PB2: Evapower Flange MS: Evapower Fan Rs: Drain heater PB1: Drain heater PB2: Drain heater PB3: Drain heater MS: Evapower Fan Rs: Drain heater PB1: Drain heater PB2: Drain heater PB3: Drain heater MS: Evapower Fan Rs: Drain heater PB2: Drain heater PB3: Drain heater MS: Evapower Fan Rs: Drain heater PB1: Drain heater PB2: Drain heater PB3: Drain heater MS: Evapower Fan Rs: Drain heater PB1: Drain heater PB2: Drain heater PB3: Drain heater MS: Evapower Fan Rs: Drain heater PB2: Drain heater PB3: Drain heater MS: Evapower Fan Rs: Drain heater PB1, Pd2, Pb2, Pb3, Pb4, K1, K2, K3, K4, max 12A N, L, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, N, M3

VII. SERVICE DIAGNOSIS

The table below lists several problems that you may encounter. If an alarm code is displayed, a malfunction has occurred. Please correct any possible causes before resetting the cabinet. Potential causes and remedies are listed below.

If an error code persists after you have carried out the checks below, please contact an authorized technician. The characteristics of the error message must be determined. Product details including the serial number can be found on the nameplate of the product.

PROBLEM	POSSIBLE CAUSE	REMEDY
The cabinet is not working	No power is supplied to the cabinet	Check the power plug and cable are fault free
The compressor seldom stops running	The ambient temperature is too high	Ventilation needs to be improved
	Condenser or condenser filter are blocked	Check and clean condenser filter regularly
	Door gaskets are not sealing properly	Call an authorized technician to replace seals
	The evaporator is iced up	Do not place hot food items in the cabinet
		Do not place food items with high water content inside the cabinet unless they are stored in sealed
		Start a manual defrosting cycle
	Evaporator fan/fans are faulty	Call an authorized technician to replace the fan/fans
Overflowing water from the condenser water tray	Frequent placement of hot food items in the cabinet	Do not place hot food items in the cabinet
		Only place food items with high water content in sealed containers in the cabinet
	Frequent opening of doors or drawers	Verify whether cabinet specifications confirm it is suitable for current usage
Cabinet temperature is high	The condenser is blocked with dirt and dust	Check and clean condenser filter regularly
	Airflow within cabinet is blocked	Remove items of food blocking the airflow
	Ambient air is entering the cabinet	Ensure the door is closed
		Check for damage to the door and drawer seals
		Contact an authorized technician
	The evaporator is iced up	Start a manual defrosting cycle

HOSHIZAKI

Premier 70-W80-60

VIII. REMOVAL AND REPLACEMENT

REPLACING THE INTERIOR LIGHT BULB

• Turn off the power at the main isolator or remove the cabinet plug from the socket.
• Open the door.
• Remove the screw securing the canopy and then lift the canopy.
• Ensure that the new bulb has the same rating as the old bulb. Voltage and wattage are printed on the bulb.
• Remove and replace the lightbulb.

DISPOSING OF THE CABINET

• The cooling gas present in the cabinet can be identified from the nameplate.
- The cabinet is produced from recyclable materials in accordance to EU regulations. Therefore, at the end of its economic life, the cabinet must be passed to the appropriate recycling center for disposal.
- Do not recycle the cabinet as metal or household waste.
- Do not compact the cooling plant refrigeration circuit.

IMPORTANT

Adhere to local by-laws and regulations during disposal of the cabinet.

HOSHIZAKI

Premier 70-W80-60

All Rights Reserved

Hoshizaki reserves the right to change any features and the information in this manual.

Contact Details

Headquarters

Hoshizaki Europe B.V - All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Branches

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

Exterior view of a stainless steel multi-level refrigerator with control panel and display (no visible text or symbols)

Exterior view of a stainless steel industrial oven with digital display and side-mounted cooling fins (no visible text or symbols)

I. INFORMATIONS GENERALES	25
II. CONSIGNES D’UTILISATION	30
III. PANNEAU DE CONTROLE	31
IV. INSTRUCTIONS D’ENTRETIEN	33
V. INFORMATIONS TECHNIQUES	35
VI. SCHEMA DE REFROIDISSEMENT – SCHEMA DE CABLAGE	41
VII. TABLEAU DE DIAGNOSTIC	44
VIII. DEPOSE ET REMPLACEMENT	45

Contact :

5 6 4 SET -12.5 3 2 1

HOSHIZAKI

Premier 70-W80-60

FONCTIONS DU PANNEAU AVANT

Pasting powder Alcohol Thinner Bottle Adderials detergent Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Filtre à air

DIMENSIONS DES APPAREILS

PREMIER K 70 - PREMIER M 70 - PREMIER F 70

690 D O 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, dimension标注 647 (no text or symbols beyond measurement)

SECTION D-D

920 1472

Isometric line drawing of a multi-tiered refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with cooling fan and cooling fins, dimension标注 647 (no text or symbols beyond measurement)

SECTION D-D

920 1472

Line drawing of a single refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

HOSHIZAKI

Premier 70-W80-60

PREMIER KG W80

810 2080 1490 640G GN 2/1

527 SECTION G-G

800 1472

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical or electrical enclosure with internal channels and structural elements (no text or symbols)

SECTION I-I

920 1392

Isometric line drawing of a refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical enclosure or enclosure with internal channels and structural elements, labeled with dimension 647 (no text or symbols beyond the label)

SECTION I-I

920 1392

Technical line drawing of a cabinet or enclosure with open door and internal compartments (no text or symbols)

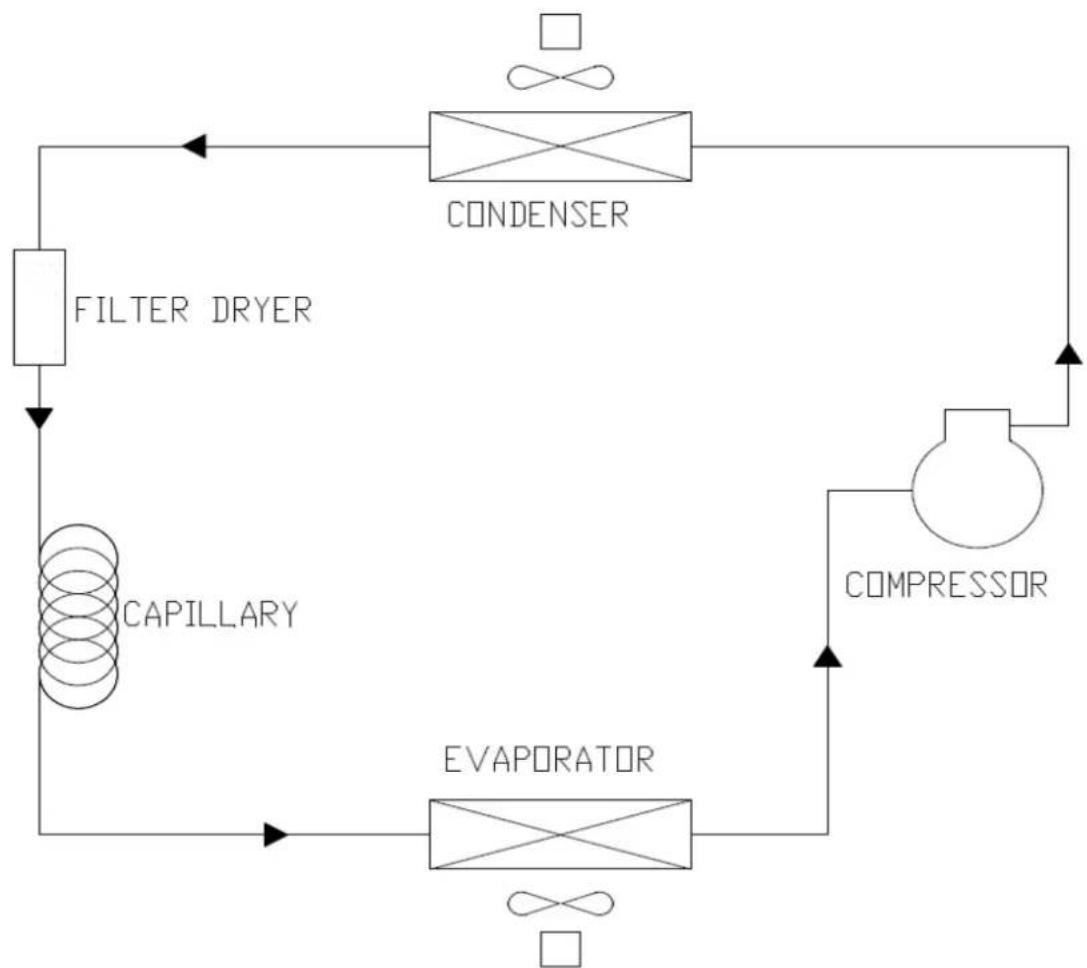

VI. SCHEMA DE REFROIDISSEMENT - SCHEMA DE CABLAGE ELECTRIQUE


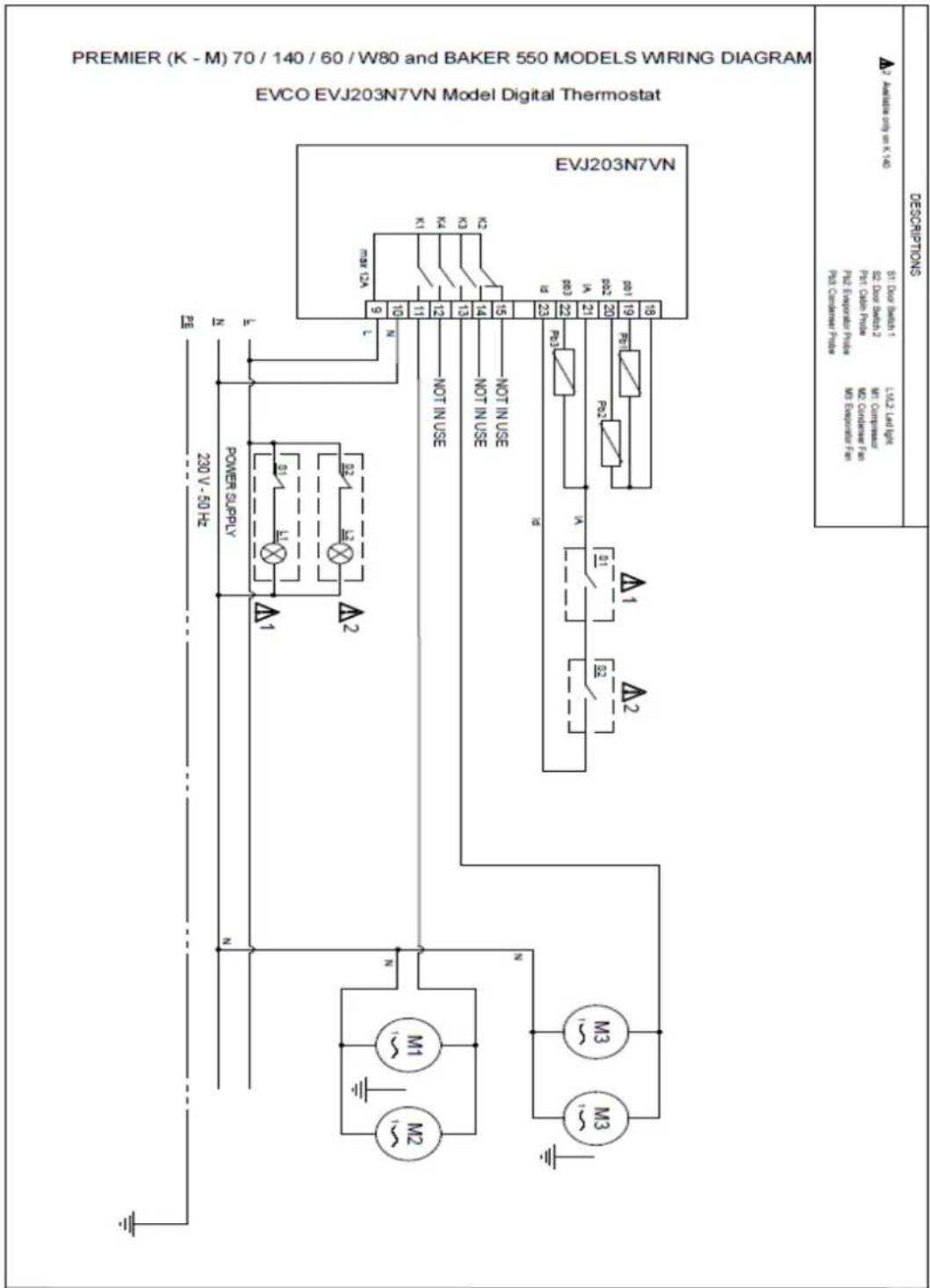

SCHEMA DE CABLAGE ELECTRIQUE (POUR LES MODELES D'ARMOIRES DE REFRIGERATION)

PREMIER (K - M) 70 / 140 / 60 / W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat DESCRIPTIONS ST: Don't switch 1 ST: Don't switch 2 ST: Don't switch 3 ST: Don't switch 4 ST: Don't switch 5 ST: Don't switch 6 ST: Don't switch 7 ST: Don't switch 8 ST: Don't switch 9 ST: Don't switch 10 ST: Don't switch 11 ST: Don't switch 12 ST: Don't switch 13 ST: Don't switch 14 ST: Don't switch 15 ST: Don't switch 16 ST: Don't switch 17 ST: Don't switch 18 ST: Don't switch 19 ST: Don't switch 20 ST: Don't switch 21 ST: Don't switch 22 ST: Don't switch 23 ST: Don't switch 24 ST: Don't switch 25 ST: Don't switch 26 ST: Don't switch 27 ST: Don't switch 28 ST: Don't switch 29 ST: Don't switch 30 ST: Don't switch 31 ST: Don't switch 32 ST: Don't switch 33 ST: Don't switch 34 ST: Don't switch 35 ST: Don't switch 36 ST: Don't switch 37 ST: Don't switch 38 ST: Don't switch 39 ST: Don't switch 40 ST: Don't switch 41 ST: Don't switch 42 ST: Don't switch 43 ST: Don't switch 44 ST: Don't switch 45 ST: Don't switch 46 ST: Don't switch 47 ST: Don't switch 48 ST: Don't switch 49 ST: Don't switch 50 St: Don't switch 51 St: Don't switch 52 St: Don't switch 53 St: Don't switch 54 St: Don't switch 55 St: Don't switch 56 St: Don't switch 57 St: Don't switch 58 St: Don't switch 59 St: Don't switch 60 St: Don't switch 61 St: Don't switch 62 St: Don't switch 63 St: Don't switch 64 St: Don't switch 65 St: Don't switch 66 St: Don't switch 67 St: Don't switch 68 St: Don't switch 69 St: Don't switch 70 St: Don't switch 71 St: Don't switch 72 St: Don't switch 73 St: Don't switch 74 St: Don't switch 75 St: Don't switch 76 St: Don't switch 77 St: Don't switch 78 St: Don't switch 79 St: Don't switch 80 St: Don't switch 81 St: Don't switch 82 St: Don't switch 83 St: Don't switch 84 St: Don't switch 85 St: Don't switch 86 St: Don't switch 87 St: Don't switch 88 St: Don't switch 89 St: Don't switch 90 St: Don't switch 91 St: Don't switch 92 St: Don't switch 93 St: Don't switch 94 St: Don't switch 95 St: Don't switch 96 St: Don't switch 97 St: Don't switch 98 St: Don't switch 99 St: Don't switch 100 Power Supply L11 L12 L13 L14 L15 L16 L17 L18 L19 L20 L21 L22 L23 L24 L25 L26 L27 L28 L29 L30 L31 L32 L33 L34 L35 L36 L37 L38 L39 L40 L41 L42 L43 L44 L45 L46 L47 L48 L49 L50 L51 L52 L53 L54 L55 L56 L57 L58 L59 L60 L61 L62 L63 L64 L65 L66 L67 L68 L69 L70 L71 L72 L73 L74 L75 L76 L77 L78 L79 L80 L81 L82 L83 L84 L85 L86 L87 L88 L89 L90 L91 L92 L93 L94 L95 L96 L97 L98 L99 L100 N

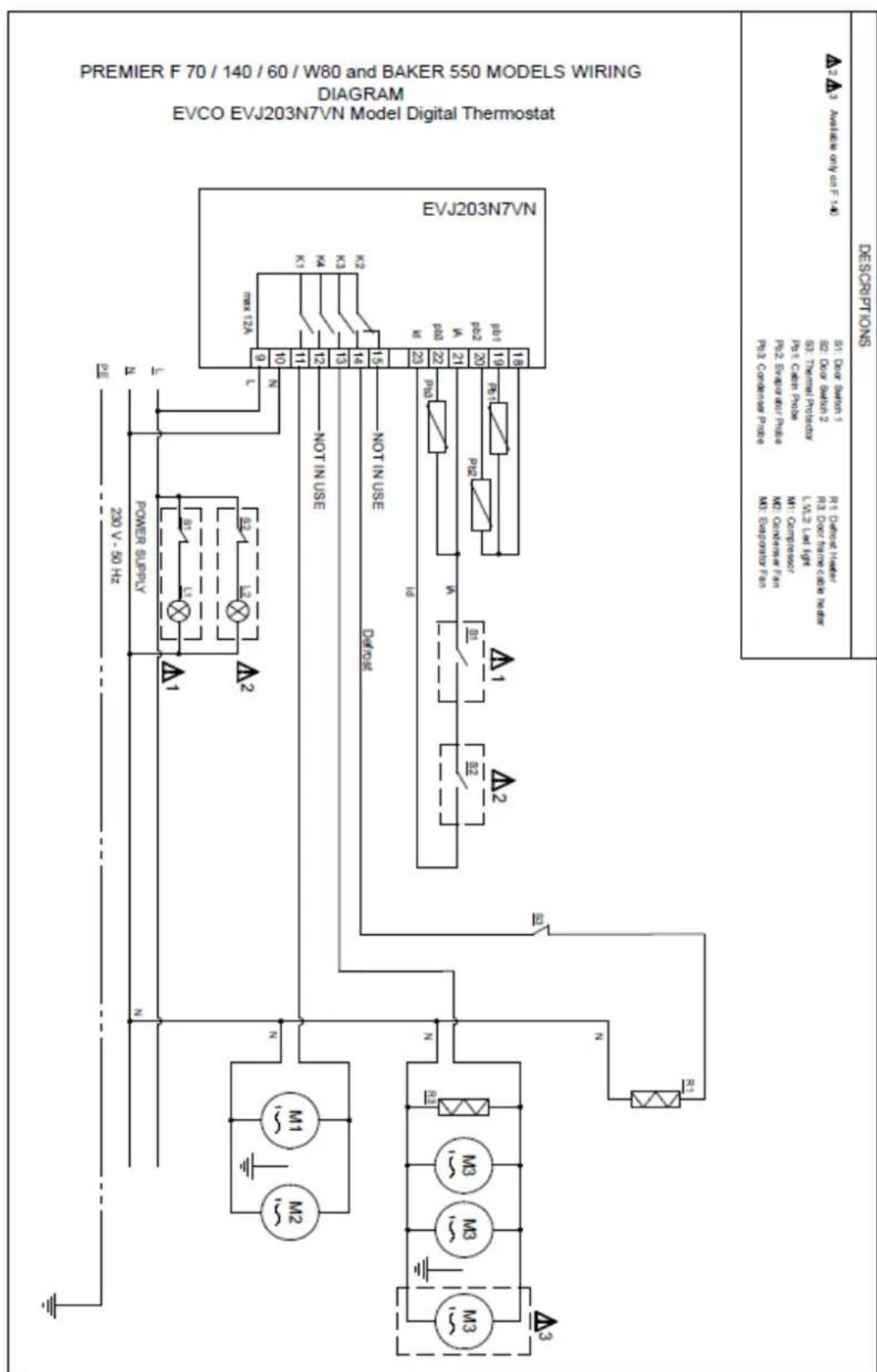

SCHEMA DE CABLAGE ELECTRIQUE (POUR LES MODELES D'ARMOIRES DE CONGELATION)

PREMIER F 70 / 140 / 60 / W80 and BAKER 550 MODELS WIRING EVCO EVJ203N7VN Model Digital Thermostat DIAGRAM ESCRPITIONS A2 A3 Return on or on line STI Drop Stand1 RS Drive Hare GS Transmission Provider L1.12 Lnd Light PS1 Cachn Floor M1 Compressor PS2 Epsilon Floor M2 Condomers Pan PS3 Condomers Floor MS Configuration Pan PS4 Condomers Floor MS Condomers Pan PS5 Cachn Floor M1 Compressor PS6 Epsilon Floor M2 Condomers Pan PS7 Condomers Floor PS8 Condomers Pan PS9 Condomers Floor PS10 Condomers Pan PS11 Condomers Pan PS12 Condomers Pan PS13 Condomers Pan PS14 Condomers Pan PS15 Condomers Pan PS16 Condomers Pan PS17 Condomers Pan PS18 Condomers Pan PS19 Condomers Pan PS20 Condomers Pan PS21 Condomers Pan PS22 Condomers Pan PS23 Condomers Pan PS24 Condomers Pan PS25 Condomers Pan PS26 Condomers Pan PS27 Condomers Pan PS28 Condomers Pan PS29 Condomers Pan PS30 Condomers Pan PS31 Condomers Pan PS32 Condomers Pan PS33 Condomers Pan PS34 Condomers Pan PS35 Condomers Pan PS36 Condomers Pan PS37 Condomers Pan PS38 Condomers Pan PS39 Condomers Pan PS40 Condomers Pan PS41 Condomers Pan PS42 Condomers Pan PS43 Condomers Pan PS44 Condomers Pan PS45 Condomers Pan PS46 Condomers Pan PS47 Condomers Pan PS48 Condomers Pan PS49 Condomers Pan PS50 Condomers Pan PS51 Condomers Pan PS52 Condomers Pan PS53 Condomers Pan PS54 Condomers Pan PS55 Condomers Pan PS56 Condomers Pan PS57 Condomers Pan PS58 Condomers Pan PS59 Condomers Pan PS60 Condomers Pan PS61 Condomers Pan PS62 Condomers Pan PS63 Condomers Pan PS64 Condomers Pan PS65 Condomers Pan PS66 Condomers Pan PS67 Condomers Pan PS68 Condomers Pan PS69 Condomers Pan PS70 Condomers Pan PS71 Condomers Pan

HOSHIZAKI

Premier 70-W80-60

VII. TABLEAU DE DIAGNOSTIC

VIII. DEPOSE ET REMPLACEMENT

REMPLACEMENT DE L'AMPOULE INTERIEURE

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Filiales

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

5 6 4 SET -12.5 3 2 1

FUNKTIONEN AN DER FRONTPLATTE

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Luftfilter

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, dimension标注 647 (no text or symbols beyond measurement)

SECTION D-D

920 1472

Isometric line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with cooling fan and cooling pipes (no text or symbols)

SECTION D-D

920 1472

Line drawing of a single refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

HOSHIZAKI

Premier 70-W80-60

PREMIER KG W80

810 2080 1490 640G GN 2/1

527 SECTION G-G

800 1472

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical or electrical enclosure with internal channels and structural elements (no text or symbols)

SECTION I-I

920 1392

Isometric line drawing of a refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Isometric line drawing of a multi-chamber refrigerator with doors and internal compartments (no text or symbols)

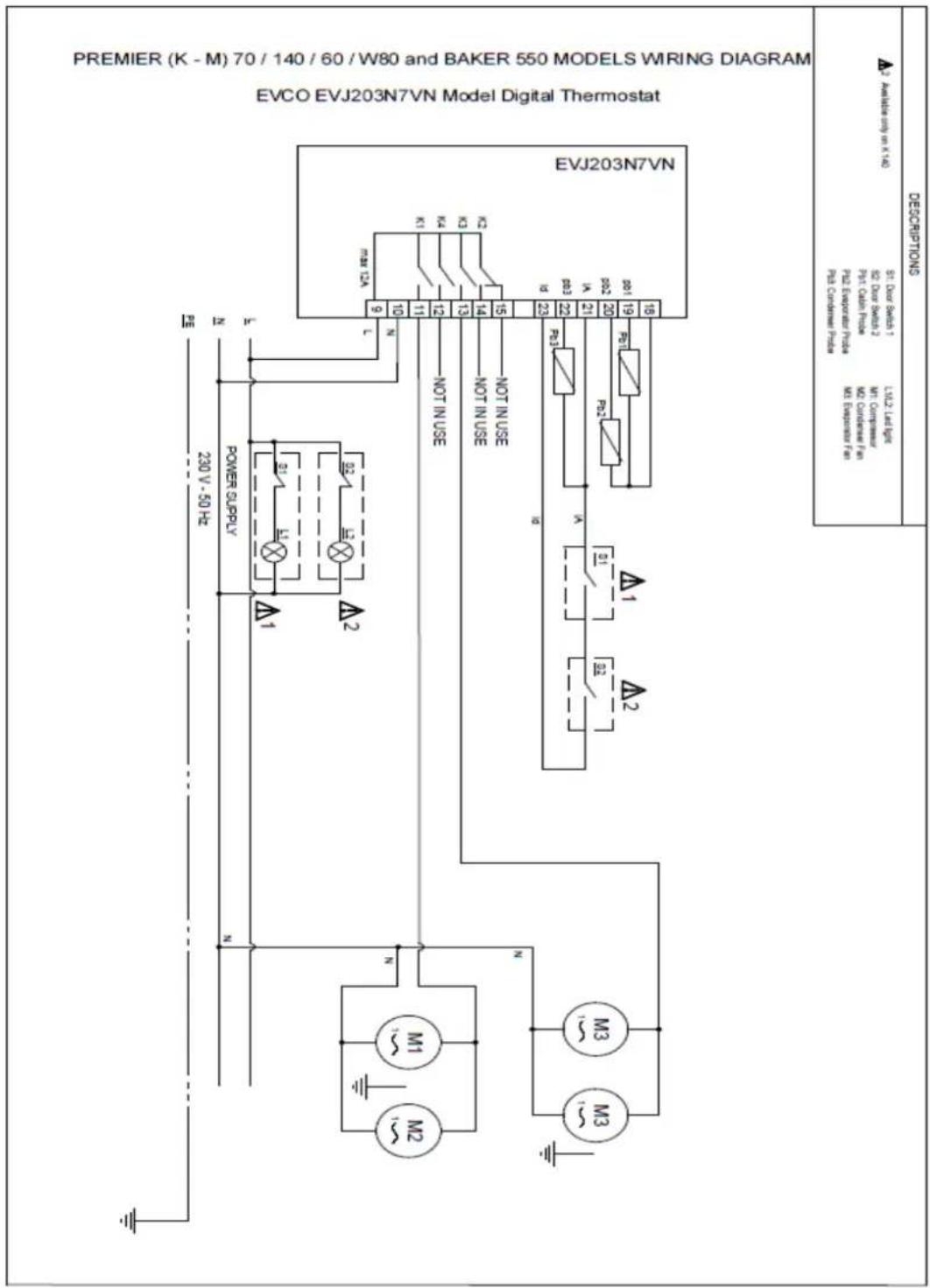

PREMIER (K-M) 70/140/60/W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat DESCRIPTIONS ST DAV Switch 1 LT22 LUX 1 PS2 Control Pitch PS2 Control Pitch No. Electron Run PS2 Control Pitch No. Electron Run PS2 Control Pitch No. Electron Run PS2 Control Pitch No. Electron Run PS2 Control Pitch No. Electron Run PS2 Control Pitch No. Electron Run PS2 Control Pitch No. Electron Run PS2 Control Pitch No. Electron Run PS2 Control Pitch No. Electron Run PS2 Control Pitch No. Electron Run PS2 Control Pitch No. Electron Run PS2 Control Pitch No. Electron Run

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Niederlassungen

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

5 6 4 SET -12.5 3 2 1

HOSHIZAKI

Premier 70-W80-60

▶ FUNCIONES DEL PANEL FRONTAL

Pasting powder Alcohol Thinner Bayered Adderating detergent Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Filtro de aire

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, dimension标注 647 (no text or symbols beyond measurement)

SECTION D-D

920 1472

Isometric line drawing of a multi-chamber refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, showing internal flow paths and dimension label (647) — no text or symbols beyond the dimension marker.

SECTION D-D

920 1472

Line drawing of a double-door refrigerator with open door and internal compartments (no text or symbols)

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

PREMIER KG W80

810 2080 1490 640G GN 2/1

527 SECTION G-G

800 1472

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical or electrical enclosure with internal channels and structural elements (no text or symbols)

SECTION I-I

920 1392

Isometric line drawing of a refrigerator with open door and internal compartments (no text or symbols)

PREMIER KG 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical enclosure or enclosure with internal channels and structural supports (no text or symbols)

SECTION I-I

920 1392

Line drawing of a refrigerator interior showing open door, front panel, and internal compartments (no text or labels)

PREMIER (K-M) 70/140/60/W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat EVJ203N7VN DESCRIPTIONS 51.2A Dashed Line 52.0A Dashed Line 52.1A Dashed Line 52.2A Dashed Line 52.3A Dashed Line 52.4A Dashed Line 52.5A Dashed Line 52.6A Dashed Line 52.7A Dashed Line 52.8A Dashed Line 52.9A Dashed Line 53.0A Dashed Line 53.1A Dashed Line 53.2A Dashed Line 53.3A Dashed Line 53.4A Dashed Line 53.5A Dashed Line 53.6A Dashed Line 53.7A Dashed Line 53.8A Dashed Line 53.9A Dashed Line 54.0A Dashed Line 54.1A Dashed Line 54.2A Dashed Line 54.3A Dashed Line 54.4A Dashed Line 54.5A Dashed Line 54.6A Dashed Line 54.7A Dashed Line 54.8A Dashed Line 54.9A Dashed Line 55.0A Dashed Line 55.1A Dashed Line 55.2A Dashed Line 55.3A Dashed Line 55.4A Dashed Line 55.5A Dashed Line 55.6A Dashed Line 55.7A Dashed Line 55.8A Dashed Line 55.9A Dashed Line 56.0A Dashed Line 56.1A Dashed Line 56.2A Dashed Line 56.3A Dashed Line 56.4A Dashed Line 56.5A Dashed Line 56.6A Dashed Line 56.7A Dashed Line 56.8A Dashed Line 56.9A Dashed Line 57.0A Dashed Line 57.1A Dashed Line 57.2A Dashed Line 57.3A Dashed Line 57.4A Dashed Line 57.5A Dashed Line 57.6A Dashed Line 57.7A Dashed Line 57.8A Dashed Line 57.9A Dashed Line 58.0A Dashed Line 58.1A Dashed Line 58.2A Dashed Line 58.3A Dashed Line 58.4A Dashed Line 58.5A Dashed Line 58.6A Dashed Line 58.7A Dashed Line 58.8A Dashed Line 58.9A Dashed Line 59.0A Dashed Line 59.1A Dashed Line 59.2A Dashed Line 59.3A Dashed Line 59.4A Dashed Line 59.5A Dashed Line 59.6A Dashed Line 59.7A Dashed Line 59.8A Dashed Line 59.9A Dashed Line

ESQUEMA ELÉCTRICO (PARA MODELOS CON CONGELADOR DE ARMARIO)

DESCRIPTIONS S1: DDX Segment 1 S2: DDX Segment 2 S3: TINM Processors S4: Transmission Processors S5: Transmission Processors S6: Transmission Processors S7: Transmission Processors S8: Transmission Processors S9: Transmission Processors S10: Transmission Processors S11: Transmission Processors S12: Transmission Processors S13: Transmission Processors S14: Transmission Processors S15: Transmission Processors S16: Transmission Processors S17: Transmission Processors S18: Transmission Processors S19: Transmission Processors S20: Transmission Processors S21: Transmission Processors S22: Transmission Processors S23: Transmission Processors S24: Transmission Processors S25: Transmission Processors S26: Transmission Processors S27: Transmission Processors S28: Transmission Processors S29: Transmission Processors S30: Transmission Processors S31: Transmission Processors S32: Transmission Processors S33: Transmission Processors S34: Transmission Processors S35: Transmission Processors S36: Transmission Processors S37: Transmission Processors S38: Transmission Processors S39: Transmission Processors S40: Transmission Processors S41: Transmission Processors S42: Transmission Processors S43: Transmission Processors S44: Transmission Processors S45: Transmission Processors S46: Transmission Processors S47: Transmission Processors S48: Transmission Processors S49: Transmission Processors S50: Transmission Processors S51: Transmission Processors S52: Transmission Processors S53: Transmission Processors S54: Transmission Processors S55: Transmission Processors S56: Transmission Processors S57: Transmission Processors S58: Transmission Processors S59: Transmission Processors S60: Transmission Processors S61: Transmission Processors S62: Transmission Processors S63: Transmission Processors EVO/203N7V N Model Digital Thermostat PREMIER F 70 / 140 / 60 / W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EV/203N7V N Model Digital Thermostat

HOSHIZAKI

Premier 70-W80-60

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Sucursales

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

KOELKASTEN EN DIEPVRIEZERS HANDLEIDING VOOR BEDIENING, ONDERHOUD EN INSTALLATIE

Exterior view of a stainless steel commercial refrigerator with control panel and side legs (no visible text or symbols)

Exterior view of a stainless steel commercial kitchen oven with digital display and side-mounted cooling fins (no visible text or symbols)

I. ALGEMENE INFORMATIE	94
II. BEDIENINGSINSTRUCTIES	99
III. BEDIENINGSPANEL	100
IV. AANWIJZINGEN VOOR ONDERHOUD	102
V. TECHNISCHE INFORMATIE	104
VI. KOELSCHEMA – BEDRADINGSSCHEMA	110
VII. OPSPOREN EN VERHELPEN VAN STORINGEN	113
VIII. VERWIJDEREN EN VERVANGEN	114

Contactinformatie:

DE VERPAKKING OPENEN

5 6 4 SET -12.5 3 2 1

▶ FUNCTIES VAN VOORPANEEL

Pulsifying powder Alcohol Thinner Bottler Add-on-lining Biscuit Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Luchtfilter

Isometric line drawing of a multi-free refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with cooling fan and cooling pipes (no text or symbols)

SECTION D-D

920 1472

Line drawing of a single refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

810 2080 1490 640G GN 2/1

Technical line drawing of a heat exchanger or cooling unit with internal flow paths and dimension label (527), no readable text or symbols beyond the dimension marker.

SECTION G-G

800 1472

Isometric line drawing of a multi-compartment refrigerator with open door and internal compartments (no text or symbols)

PREMIER KG W80

810 2080 1490 640G GN 2/1

527 SECTION G-G

800 1472

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Isometric line drawing of a refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

VI. KOELSCHEMA - BEDRADINGSSCHEMA

BEDRADINGSSCHEMA (VOOR KASTMODEL KOELKASTEN)

PREMIER (K-M) 70/140/60/W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat DESCRIPTIONS ST DAV Switch I LT12 LAdams PS1 CDA Block PS2 Emitter Block PS3 CDA Block PS4 Emitter Block PS5 CDA Block PS6 CDA Block PS7 Emitter Block PS8 Emitter Block PS9 CDA Block PS10 Emitter Block PS11 CDA Block PS12 Emitter Block PS13 CDA Block PS14 Emitter Block PS15 CDA Block PS16 Emitter Block PS17 CDA Block PS18 Emitter Block PS19 CDA Block PS20 Emitter Block PS21 CDA Block PS22 Emitter Block PS23 CDA Block PS24 Emitter Block PS25 CDA Block PS26 Emitter Block PS27 CDA Block PS28 Emitter Block PS29 CDA Block PS30 Emitter Block PS31 CDA Block PS32 Emitter Block PS33 CDA Block PS34 Emitter Block PS35 CDA Block PS36 Emitter Block PS37 CDA Block PS38 Emitter Block PS39 CDA Block PS40 Emitter Block PS41 CDA Block PS42 Emitter Block PS43 CDA Block PS44 Emitter Block PS45 CDA Block PS46 Emitter Block PS47 CDA Block PS48 Emitter Block PS49 CDA Block PS50 Emitter Block PS51 CDA Block PS52 Emitter Block PS53 CDA Block PS54 Emitter Block PS55 CDA Block PS56 Emitter Block PS57 CDA Block PS58 Emitter Block PS59 CDA Block PS60 Emitter Block PS61 CDA Block PS62 Emitter Block PS63 CDA Block PS64 Emitter Block PS65 CDA Block PS66 Emitter Block PS67 CDA Block PS68 Emitter Block PS69 CDA Block PS70 Emitter Block PS71 CDA Block PS72 Emitter Block PS73 CDA Block

BEDRADINGSSCHEMA (VOOR KASTMODEL VRIEZERS)

DESCRIPTIONS S1: 10A: 52A S2: 10A: 52B S3: 10A: 52C S4: 10A: 52D S5: 10A: 52E S6: 10A: 52F S7: 10A: 52G S8: 10A: 52H S9: 10A: 52I S10: 10A: 52J S11: 10A: 52K S12: 10A: 52L S13: 10A: 52M S14: 10A: 52N S15: 10A: 52O S16: 10A: 52P S17: 10A: 52Q S18: 10A: 52R S19: 10A: 52S S20: 10A: 52T S21: 10A: 52U S22: 10A: 52V S23: 10A: 52W S24: 10A: 52X S25: 10A: 52Y S26: 10A: 52Z S27: 10A: 52A S28: 10A: 52B S29: 10A: 52C S30: 10A: 52D POWER SUPPLY MAX 124 N L N A N B N C N D N E N F N G N H N I N J N K N L N M N N N O N P N Q N R N S N T N USE NOT IN USE NOT IN USE DeFiOS NOT IN USE Max Control Pinio MΩ Equipment Pin. NO Equipment Pin. No Control Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO Equipment Pin. NO equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. NO equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin. No equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, no equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, NO equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, No equipment pin, NO system on or off line. PREMIER F 70 / 140 / 60 / W80 and BAKER 550 MODELS WIRING EVCO EVJ203N7V N Model Digital Thermostat

HOSHIZAKI

Premier 70-W80-60

VII. OPSPOREN EN VERHELPEN VAN STORINGEN

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Vestigingen

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

K∅LESKABE OG FRYSESKABE

BETJENINGS-, VEDLIGEHOLDELSES- OG INSTALLATIONSVEJLEDNING

I. GENERELLE OPLYSNINGER	117
II. BETJENINGSANVISNINGER	122
III. STYREPANEL	123
IV. VEDLIGEHOLDELSESANVISNINGER	125
V. TEKNISKE OPLYSNINGER	127
VI. K∅LEDIAGRAM – ELEKTRISK LEDNINGSDIAGRAM	133
VII. SERVICEDIAGNOSE	136
VIII. AFMONTERING OG UDSKIFTNING	137

Kontaktoplysninger:
HOSHIZAKI EUROPE B.V.
Adresse: Burgemeester Stramanweg 101 1101 AA Amsterdam, Holland
Tlf.: [phone] http://hoshizaki-europe.com/

HOSHIZAKI

Premier 70-W80-60

I. GENERELLE OPLYSNINGER

MAERKAT MED PRODUKTBESKRIVELSE

1 - Produktnummer

2 - Produktbeskrivelse

3 - Model

4 - Kølemiddel (GWP)

5 - CO2-ækvivalent

6 - IP-beskyttelse

7 - Klimaklasse

8 - Produktionsdato

9 - Samlet strømforbrug / strøm / lampeeffekt

10 - Spænding - Frekvens

11 - Varmeelement

12 - Systemtryk

13 - Drivmiddel

14 - Serienummer

PRODUCT NUMBER 1 PRODUCT DESCRIPTION 2 MODEL 3 REFRIGERANT 4 CO2 EQUIVALENT 5 IP PROTECTION 6 CLIMATE CLASS 7 PRODUCTION DATE 8 TOTAL POWER / CURRENT / LAMP POWER 9 VOLTAGE - FREQUENCY 10 HEATING ELEMENT 11 SYSTEM PRESSURE 12 BLOWING AGENT 13

S/N: 14

HOSHIZAKI EUROPE B.V. Burgemeester Stramanweg 101 1101 AA Amsterdam, The Netherlands

ANVENDELSESFORMÅL

5 6 4 SET -12.5 3 2 1

HOSHIZAKI

Premier 70-W80-60

FRONTPANELFUNKTIONER

Pulsifying powder Alcohol Thinner Bottles Add or Heating Refrigerant Hot Water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Luftfilter

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, dimensioned 647 (no text or symbols)

SECTION D-D

920 1472

Isometric line drawing of a multi-free refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, showing internal structure and dimension (647 mm), no text or symbols present.

SECTION D-D

920 1472

Line drawing of a closed refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

HOSHIZAKI

Premier 70-W80-60

PREMIER KG W80

810 2080 1490 640G GN 2/1

527 SECTION G-G

800 1472

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Line drawing of a closed refrigerator with doors open and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

VI. K∅LEDIAGRAM - ELEKTRISK LEDNINGSDIAGRAM

ELEKTRISK LEDNINGSDIAGRAM (FOR K∅LESKABSMODELLER)

PREMIER (K - M) 70 / 140 / 60 / W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat DESCRIPTIONS ST. DOW SHMNT L42.1 LDGNS PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phase PDL Design Phases PDL Design Phases PDL Design Phases PDL Design Phases PDL Design Phases PDL Design Phases PDL Design Phases PDL Design Phases PDL Design Phases PDL Design Phases PDL Design Phases PDL Design Phases PDL Design Phases PDL Design Phases PDL Design Phases PDL Design Phases PDL Design Phases PDLDesign Phases PDLDesign Phases PDLDesign Phases PDLDesign Phases PDLDesign Phases PDLDesign Phases PDLDesign Phases PDLDesign Phases PDLDesign Phases PDLDesign Phases PDLDesign Phases PDLDesign Phases PDLDesign Phases PDLDesign Phases PDLDesign Phases PDLDesign Phases PDLDesign Phases V30 V-50 Hz

ELEKTRISK LEDNINGSDIAGRAM (FOR FRYSESKABSMODELLER)

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Filialer

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

FRIGORIFERI E CONGELATORI

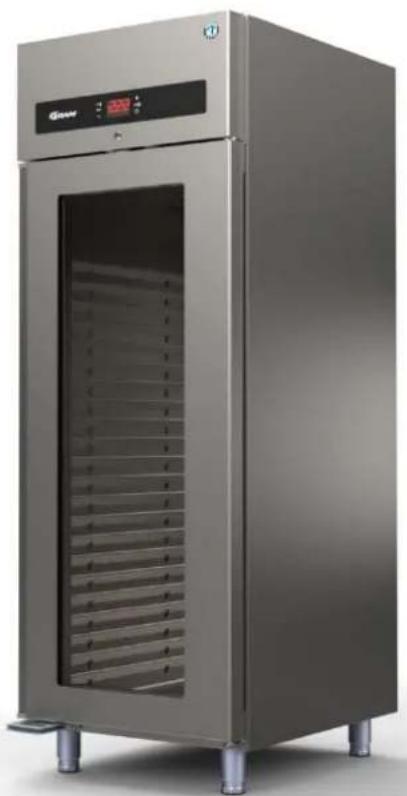

Exterior view of a stainless steel commercial refrigerator with control panel and side legs (no visible text or symbols)

Exterior view of a stainless steel commercial kitchen oven with digital display and side legs (no visible text or symbols)

I. INFORMAZIONI GENERALI	140
II. ISTRUZIONI PER L’USO	145
III. PANNELLO DI CONTROLLO	146
IV. ISTRUZIONI PER LA MANUTENZIONE	148
V. INFORMAZIONI TECNICHE	150
VI. SCHEMA DI RAFFREDDAMENTO - SCHEMA ELETTRICO	156
VII. RISOLUZIONE DEI PROBLEMI	159
VIII. RIMOZIONE E SOSTITUZIONE	160

5 6 4 SET -12.5 3 2 1

HOSHIZAKI

Premier 70-W80-60

FUNZIONI DEL PANNELLO ANTERIORE

Packing powder Alcohol Thinner Butter Detergent Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Filtro dell'aria

DIMENSIONI DEI DISPOSITIVI

PREMIER K 70 - PREMIER M 70 - PREMIER F 70

690 D O 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, dimension标注 647 (no text or symbols beyond measurement)

SECTION D-D

920 1472

Isometric line drawing of a multi-tiered refrigerator with open door and internal compartments (no text or symbols)

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, showing internal flow and dimension (no text labels)

SECTION D-D

920 1472

Line drawing of a single refrigerator with open door and internal compartments (no text or symbols)

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

PREMIER KG W80

810 2080 1490 640 G GN 2/1

527

SECTION G-G

800 1472

Line drawing of a double-door refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Technical line drawing of a closed refrigerator with internal compartments and mounting feet (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Line drawing of a refrigerator with open door and internal compartments (no text or symbols)

VI. SCHEMA DI RAFFREDDAMENTO - SCHEMA ELETTRICO

SCHEMA ELETTRICO (PER I MODELLI DI FRIGORIFERO AD ARMADIO)

PREMIER (K-M) 70/140/60/W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat DESCRIPTIONS ST DAV Switch I LT12 LAdams PS1 CDA Block PS2 Emitter Block PS3 CDA Block PS4 Emitter Block PS5 CDA Block PS6 CDA Block PS7 Emitter Block PS8 Emitter Block PS9 CDA Block PS10 Emitter Block PS11 CDA Block PS12 Emitter Block PS13 CDA Block PS14 Emitter Block PS15 CDA Block PS16 Emitter Block PS17 CDA Block PS18 Emitter Block PS19 CDA Block PS20 Emitter Block PS21 CDA Block PS22 Emitter Block PS23 CDA Block PS24 Emitter Block PS25 CDA Block PS26 Emitter Block PS27 CDA Block PS28 Emitter Block PS29 CDA Block PS30 Emitter Block PS31 CDA Block PS32 Emitter Block PS33 CDA Block PS34 Emitter Block PS35 CDA Block PS36 Emitter Block PS37 CDA Block PS38 Emitter Block PS39 CDA Block PS40 Emitter Block PS41 CDA Block PS42 Emitter Block PS43 CDA Block PS44 Emitter Block PS45 CDA Block PS46 Emitter Block PS47 CDA Block PS48 Emitter Block PS49 CDA Block PS50 Emitter Block PS51 CDA Block PS52 Emitter Block PS53 CDA Block PS54 Emitter Block PS55 CDA Block PS56 Emitter Block PS57 CDA Block PS58 Emitter Block PS59 CDA Block PS60 Emitter Block PS61 CDA Block PS62 Emitter Block PS63 CDA Block PS64 Emitter Block PS65 CDA Block PS66 Emitter Block PS67 CDA Block PS68 Emitter Block PS69 CDA Block PS70 Emitter Block PS71 CDA Block PS72 Emitter Block PS73 CDA Block

SCHEMA ELETTRICO (PER I MODELLI DI CONGELATORE AD ARMADIO)

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Filiali

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

KYLSKÅP OCH FRYSAR HANDBOK FÖR ANVÄNDNING, UNDERHÅLL OCH INSTALLATION

Exterior view of a stainless steel commercial refrigerator with control panel and digital display (no visible text or symbols)

Exterior view of a stainless steel kitchen oven with digital display and ventilation slots (no visible text or symbols)

I. ALLMÄN INFORMATION	163
II. ANVÄNDNINGSINSTRUKTIONER	168
III. KONTROLLPANEL	169
IV. UNDERHÅLLSANVISNINGAR	171
V. TEKNISK INFORMATION	173
VI. KYLSCHEMA – ELEKTRISKT KOPPLINGSSCHEMA	179
VII. SERVICEDIAGNOS	182
VIII. DEMONTERING OCH BYTE	183

Kontaktuppgifter:

5 6 4 SET -12.5 3 2 1

HOSHIZAKI

Premier 70-W80-60

FUNKTIONER PÅ FRONTPANELEN

Pulsifying powder Alcohol Thinner Bened to Add onlamine detergent Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Luftfilter

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, dimensioned 647 (no text or symbols)

SECTION D-D

920 1472

Line drawing of a closed industrial refrigerator with internal compartments and ventilation slots (no text or symbols)

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, showing internal structure and dimension (647 mm), no text or symbols present.

SECTION D-D

920 1472

Line drawing of a single refrigerator with open door and internal compartments (no text or symbols)

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

HOSHIZAKI

Premier 70-W80-60

PREMIER KG W80

810 2080 1490 640G GN 2/1

527 SECTION G-G

800 1472

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical device with internal channels and a dimension label (647), no readable text or symbols beyond the dimension marker.

SECTION I-I

920 1392

Line drawing of a refrigerator interior showing open door, front panel, and internal compartments (no text or labels)

HOSHIZAKI

Premier 70-W80-60

VI. KYLSCHEMA - ELEKTRISKT KOPPLINGSSCHEMA

ELEKTRISKT KOPPLINGSSCHEMA (FÖR KYLSKÅPSMODELLER)

PREMIER (K-M) 70/140/60/W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat DESCRIPTIONS ST. DAU Switch 1 LT12 Lndgus PS1 CDAI Rnss 2 PS2 Energrise Pin 6 PS3 CDAI Rnss 2 PS4 CDAI Rnss 2 PS5 Energrise Pin 6 PS6 CDAI Rnss 2 PS7 CDAI Rnss 2 PS8 CDAI Rnss 2 PS9 CDAI Rnss 2 PS10 CDAI Rnss 2 PS11 CDAI Rnss 2 PS12 CDAI Rnss 2 PS13 CDAI Rnss 2 PS14 CDAI Rnss 2 PS15 CDAI Rnss 2 PS16 CDAI Rnss 2 PS17 CDAI Rnss 2 PS18 CDAI Rnss 2 PS19 CDAI Rnss 2 PS20 CDAI Rnss 2 PS21 CDAI Rnss 2 PS22 CDAI Rnss 2 PS23 CDAI Rnss 2 MSR 12A 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

ELEKTRISKT KOPPLINGSSCHEMA (FÖR FRYSSKÅPSMODELLER)

PREMIER F 70 / 140 / 60 / W80 and BAKER 550 MODELS WIRING EVCO EVJ203N7V N Model Digital Thermostat DIAGRAM EVC DESCRIPTIONS A2 ▲ A5 S1: DDX Segment 1 S2: DDX Segment 2 S3: TINM1 Proactor S4: TINM1 Proactor S5: TINM1 Proactor S6: TINM1 Proactor S7: TINM1 Proactor S8: TINM1 Proactor S9: TINM1 Proactor S10: TINM1 Proactor S11: TINM1 Proactor S12: TINM1 Proactor S13: TINM1 Proactor S14: TINM1 Proactor S15: TINM1 Proactor S16: TINM1 Proactor S17: TINM1 Proactor S18: TINM1 Proactor S19: TINM1 Proactor S20: TINM1 Proactor S21: TINM1 Proactor S22: TINM1 Proactor S23: TINM1 Proactor S24: TINM1 Proactor S25: TINM1 Proactor S26: TINM1 Proactor S27: TINM1 Proactor S28: TINM1 Proactor S29: TINM1 Proactor S30: TINM1 Proactor S31: TINM1 Proactor S32: TINM1 Proactor S33: TINM1 Proactor S34: TINM1 Proactor S35: TINM1 Proactor S36: TINM1 Proactor S37: TINM1 Proactor S38: TINM1 Proactor S39: TINM1 Proactor S40: TINM1 Proactor S41: TINM1 Proactor S42: TINM1 Proactor S43: TINM1 Proactor S44: TINM1 Proactor S45: TINM1 Proactor S46: TINM1 Proactor S47: TINM1 Proactor S48: TINM1 Proactor S49: TINM1 Proactor S50: TINM1 Proactor S51: TINM1 Proactor S52: TINM1 Proactor S53: TINM1 Proactor S54: TINM1 Proactor S55: TINM1 Proactor S56: TINM1 Proactor S57: TINM1 Proactor S58: TINM1 Proactor S59: TINM1 Proactor S60: TINM1 Proactor S61: TINM1 Proactor S62: TINM1 Proactor S63: TINM1 Proactor

HOSHIZAKI

Premier 70-W80-60

VII. SERVICEDIAGNOS

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Filialer

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

KJ∅LESKAP OG FRYSESKAP DRIFTS-, VEDLIKEHOLDS- OG INSTALLASJONSHÅNDBOK

Two stainless steel kitchen cabinets side by side, one with digital display and control panel, the other with a closed door (no visible text or symbols)

I. GENERELL INFORMASJON	186
II. BRUK	191
III. KONTROLLPANEL	192
IV. VEDLIKEHOLDSINSTRUKSJONER	194
V. TEKNISK INFORMASJON	196
VI. KJ∅LESKJEMA – ELEKTRISK KOBLINGSSKJEMA	202
VII. VEDLIKEHOLDSDIAGNOSE	205
VIII. FJERNING OG UTSKIFTING	206

Kontaktinformasjon:

5 6 4 SET 12.5 3 2 1

HOSHIZAKI

Premier 70-W80-60

FUNKSJONER PÅ FRONTPANELET

Tastene på frontpanelet låses ved å holde inne AUX (3) og On/Stand By (1) i 2 sekunder. Teksten «Loc» vises på skjermen när tastene er låst, og de er ikke låst när teksten «UnL» vises.

1) Når du holder inne ON/STAND BY i 4 sekunder, åpnes og lukkes apparatet (på/av). 2) MANUELL AVISING-tasten: Manuell avising starter når du holder inne knappen i 4 sekunder. Manuell avising starter ikke hvis ekstra kjøling er aktivert og temperaturen i fordamperen ikke er egnet.

Pulsifying powder Alcohol Thinner Bottle Add oil/lining detergent Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Luftfilter

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, dimension标注 647 (no text or symbols beyond measurement)

SECTION D-D

920 1472

Isometric line drawing of a multi-free refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with cooling fan and cooling pipes (no text or symbols)

SECTION D-D

920 1472

Line drawing of a single refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

810 2080 1490 640G GN 2/1

Technical line drawing of a vertical heat exchanger or cooling unit with internal flow pipes and no visible text or symbols

SECTION G-G

800 1472

Isometric line drawing of a multi-chamber refrigerator with open door and internal compartments (no text or symbols)

PREMIER KG W80

810 2080 1490 640G GN 2/1

527 SECTION G-G

800 1472

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Technical line drawing of a multi-chamber refrigerator with doors and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical enclosure or enclosure with internal channels and a dimension label (647), no readable text or symbols present.

SECTION I-I

920 1392

Line drawing of a refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

VI. KJ∅LESKJEMA - ELEKTRISK KOBLINGSSKJEMA

ELEKTRISK KOBLINGSSKJEMA (TIL KJ∅LESKAPSMODELLER)

PREMIER (K-M) 70/140/60/W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat DESCRIPTIONS ST DAV Switch I LT12 Lufing PS1 CDAI Rink PS2 Emitter Flake PS3 CDAI Rink PS4 CDAI Rink PS5 CDAI Rink PS6 CDAI Rink PS7 CDAI Rink PS8 CDAI Rink PS9 CDAI Rink PS10 CDAI Rink PS11 CDAI Rink PS12 CDAI Rink PS13 CDAI Rink PS14 CDAI Rink PS15 CDAI Rink PS16 CDAI Rink PS17 CDAI Rink PS18 CDAI Rink PS19 CDAI Rink PS20 CDAI Rink PS21 CDAI Rink PS22 CDAI Rink PS23 CDAI Rink MSR 12A 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 V-50 Hz N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N PBJ3 PBJ2 PBJ1 PBJ0 PBJ9 PBJ8 PBJ7 PBJ6 PBJ5 PBJ4 PBJ3 PBJ2 PBJ1 PBJ0 PBJ9 PBJ8 PBJ7 PBJ6 PBJ5 PBJ4 PBJ3 PBJ2 PBJ1 PBJ0 PBJ9 PBJ8 PBJ7 PBJ6 PBJ5 PBJ4 PBJ3 PBJ2 PBJ1 PBJ0 PBJ9 PBJ8 PBJ7 PBJ6 PBJ5 PBJ4 PBJ3 PBJ2 PBJ1 PBE Counter Flare No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run No Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO Electron Run NO electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no electron run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element run no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs no element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO element runs NO item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No item run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items run No items turn out to 1st floor

ELEKTRISK KOBLINGSSKJEMA (TIL FRYSESKAPSMODELLER)

DESCRIPTIONS S1: 10k ohms-1 S2: 10k ohms-2 S3: 10k ohms-3 S4: 10k ohms-4 S5: 10k ohms-5 S6: 10k ohms-6 S7: 10k ohms-7 S8: 10k ohms-8 S9: 10k ohms-9 S10: 10k ohms-10 S11: 10k ohms-11 S12: 10k ohms-12 S13: 10k ohms-13 S14: 10k ohms-14 S15: 10k ohms-15 S16: 10k ohms-16 S17: 10k ohms-17 S18: 10k ohms-18 S19: 10k ohms-19 S20: 20k V - 50 Hz S21: 20k V - 50 Hz S22: 20k V - 50 Hz S23: 20k V - 50 Hz S24: 20k V - 50 Hz S25: 20k V - 50 Hz S26: 20k V - 50 Hz S27: 20k V - 50 Hz S28: 20k V - 50 Hz S29: 20k V - 50 Hz S30: 20k V - 50 Hz POWER SUPPLY MAX 12A MAX 13A MAX 14A MAX 15A MAX 16A MAX 17A MAX 18A MAX 19A MAX 20A MAX 21A MAX 22A MAX 23A MAX 24A MAX 25A MAX 26A MAX 27A MAX 28A MAX 29A MAX 30A MAX 31A MAX 32A MAX 33A MAX 34A MAX 35A MAX 36A MAX 37A MAX 38A MAX 39A MAX 40A MAX 41A MAX 42A MAX 43A MAX 44A MAX 45A MAX 46A MAX 47A MAX 48A MAX 49A MAX 50A MAX 51A MAX 52A MAX 53A MAX 54A MAX 55A MAX 56A MAX 57A MAX 58A MAX 59A MAX 60A MAX 61A MAX 62A MAX 63A MAX 64A MAX 65A MAX 66A MAX 67A MAX 68A MAX 69A MAX 70A MAX 71A MAX 72A

HOSHIZAKI

Premier 70-W80-60

VII. VEDLIKEHOLDSDIAGNOSE

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Avdelinger

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]
