USER MANUAL B-Ready Bassinet BRITAX

Illustration of a gray baby crib with open lid and side arm (no text or symbols)

User Guide

Safety Information......2

Features......4

Assembly....5

Bassinet 5

Boot Cover....6

Operating Instructions....8

Attaching the Bassinet....8

Removing the Bassinet....9

Folding with Bassinet....9

Carry Handle and Canopy 9

Bassinet with Second Seat....10

Care and Maintenance....11

Warranty 12

B-READY ^® , BRITAX ^® , and Click & Go ^™ , are trademarks owned by Britax and registered in the U.S.A. and other countries. All rights reserved. ©2016 Britax Child Safety, Inc. This product and its components are subject to change without notice. P03983300_A:03.16

Safety Information

WARNING!

Failure to follow these warnings and instructions could result in SERIOUS INJURY or DEATH.

Read these instructions carefully before using this product. To ensure proper use, store this user guide in a convenient place so it can be consulted often.

General Warnings

• Never leave child unattended.
• Avoid finger entrapment or injury. Always ensure any child occupants or bystanders are away from the stroller while folding or unfolding.
• Always make certain that the stroller is fully open and locked before use.
  • Always set the parking brake when stroller is not moving.
• Do not hang or place items on the stroller handle or frame except for those approved by BRITAX. They may cause an unstable or hazardous condition to exist.
• Only use BRITAX approved child restraints, car seats, accessories and replacement parts with this stroller.
• Do not overload basket as it may cause the stroller to become unstable. Maximum weight in basket is 4.5 kg (10 lbs).
• Do not allow children to climb on or play with the stroller.
• Never use stroller on stairs or escalators.
• Stroller is intended for walking speed only. Do not use while jogging, skating, etc.

Bassinet Warnings

• Bassinet intended for babies from birth to 9.1 kg (20 lbs) and a maximum height of 66 cm (26 in.).

• Never use this bassinet as a means to transport an infant in a motor vehicle.

• Do not place in or near this bassinet any cord, strap, or similar item that could become wrapped around a child's neck.

• Do not place this bassinet near a window or a patio door where a child could reach the cord of a blind or curtain and be strangled.
• Check this bassinet regularly before using it and do not use it if any parts are loose or missing or if there are any signs of damage. Do not substitute parts. Contact the manufacturer if replacement parts or additional instructions are needed.
• Use a bassinet mattress that is no thicker than 2.54 cm (1 in.) and is of such a size that, when it is pushed firmly against any side of the bassinet, it does not leave a gap of more than 3 cm (1.18 in.) between the mattress and any part of the sides of the bassinet.
• SUFFOCATION HAZARD – Infants have suffocated: In gaps between extra padding and side of the bassinet, and on soft bedding. Use only the pad provided by the manufacturer. NEVER add a pillow, comforter, or another mattress for padding. If a sheet is used with the pad, use only the one provided by the bassinet manufacturer or one specifically designed to fit the dimension of the bassinet mattress. Bassinet can roll over on soft surfaces and suffocate child. NEVER place on beds, sofas, or other soft surfaces.
• FALL HAZARD – Do not use this bassinet for a child who can roll over or push up or who has reached 9.1 kg (20 lbs). Child's movement can slide bassinet. NEVER place near edges of counter tops, tables, or other elevated surfaces.
• To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.

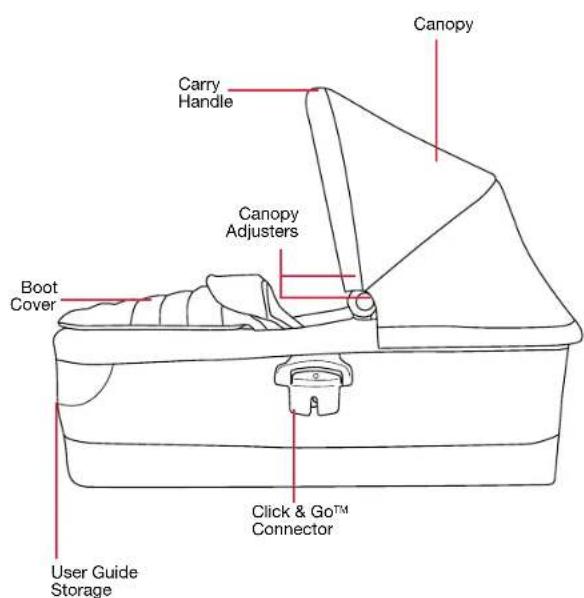

Features

Canopy Carry Handle Canopy Adjusters Boot Cover Click & Go™ Connector User Guide Storage

Actual product may vary from images.

Assembly

Bassinet

1. Pull the frame supports outward by the tabs until they lock under all four clips.

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols present)

1. Place the fabric insert into the bassinet.

Diagram of a car interior with red arrows indicating movement or change, no text or symbols present

1. Zip the cover around the bassinet frame.

Diagram of a car interior with red arrows indicating rotational motion (no text or symbols)

1. Place the bassinet bedding into the bassinet.

2. Connect the hook and loop fasteners around the carry handle hinge.

Illustration of a person using a tool to clean or adjust a bag (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Boot Cover

Attaching the Boot Cover

1. Zip the boot cover onto the bassinet.

Line drawing of a hand using a tool to adjust a red object inside a bag (no text or symbols)

1. Fasten the toggles on both sides of the boot cover to the bassinet.

Line drawing of a hand fastening a car seatbelt (no text or symbols)

Removing the Boot Cover

1. Unfasten the toggles from the bassinet.
2. Unzip and remove the boot cover.

Illustration of a hand adjusting a bicycle seatbelt with a red arrow indicating motion (no text or symbols)

Operating Instructions

Attaching the Bassinet

1. Align the bassinet Click & Go connectors with the Click & Go receivers on the stroller frame.

Diagram of a mechanical device with a lever and handle, showing a downward force arrow (no text or symbols)

1. Push down until the bassinet locks into place.

NOTE: Bassinet can be used forward facing with the use of the extension adapters.

Diagram of a mechanical assembly with a red arrow indicating a downward motion (no text or symbols present)

1. Lift gently on the bassinet to ensure that it is secure.

NOTE: Do not pick up stroller with the bassinet carry handle.

Line drawing of a baby barn with a hand架 and an upward arrow (no text or symbols)

Removing the Bassinet

1. Press the Click & Go connector release buttons on both sides of the bassinet and lift upward.

Illustration of a person's seatbelt mechanism with red arrows indicating upward movement (no text or symbols)

Folding with Bassinet

NOTE: The bassinet must be removed before folding the stroller.

Simple line drawing of a boat with a red arrow indicating upward motion (no text or symbols)

Carry Handle and Canopy

1. Press the hinge buttons on both sides of the carry handle and rotate the handle up or down to the desired position

IMPORTANT: ONLY use the carry handle in the fully extended and locked position to transport the bassinet.

Line drawing of a hand using a tool to lift a cloth or cable, with a red arrow indicating rotation (no text or symbols)

Bassinet with Second Seat

IMPORTANT: Extension adapters MUST be used when using the bassinet with the second seat.

1. Attach the bassinet using the extension adapters by lining up the bassinet Click & Go connectors with the extension adapter receivers and pressing down until the bassinet locks into place.

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

1. Attach the second seat (consult second seat user guide as needed).

Line drawing of a two-wheeled cart with wheels and a seat, no text or symbols present

NOTE: For extra room for the child in the second seat, the seat can be placed in a reclined position.

Illustration of a hand operating a bicycle with a red arrow indicating motion (no text or symbols)

Care and Maintenance

Frame

- Wipe the frame with a damp cloth and mild soap. Use clean, dry cloth or towel to wipe away excess water and soap.

Fabric

- Hand wash with cold water and mild soap. Air dry to prevent shrinking.

• Do not machine wash or dry.
• Do not iron
• Do not bleach

Canopy

• Spot clean and air dry.
• Do not machine wash or dry.
• Do not iron
• Do not bleach

Plastic Parts

• Wipe with a damp cloth and mild soap. Use a clean, dry cloth or towel to wipe away excess water and soap.
• Do not use abrasives, solvents, strong detergents, or household cleaners. These products can scratch, discolor, and weaken plastic or cause corrosion on metal surfaces.

Storage

• To prevent damage to plastic parts, store away from extreme heat.
• Do not stack other items on top of the bassinet.

Warranty

This product is distributed by BRITAX Child Safety, Inc. ("BRITAX"). BRITAX warrants this product to the original retail purchaser as follows:

Limited Two-Year Warranty

This product is warranted against defective materials or workmanship for two years from the date of original purchase. Proof of purchase is required. Your exclusive remedy for this warranty is that BRITAX will, at its option, provide repair or replacement components to the original purchaser for this product or replace the product. BRITAX reserves the right to discontinue or change fabrics, parts, models or products, or to make substitutions. Labor and shipping costs for returns are not included.

To make a claim under this Warranty, you must contact BRITAX Customer Services Department at 1-888-427-4829 or 704-409-1699 or write to 4140 Pleasant Road, Fort Mill, SC 29708. Proof of purchase is required.

PLEASE COMPLETE AND MAIL THE REGISTRATION CARD WITHIN 30 DAYS OF PURCHASE, OR VISIT WWW.BRITAXUSA.COM/REGISTRATION.

Warranty Limitations

This warranty does not include damages which arise from negligence, misuse, salt corrosion, or use not in accordance with the user guide.

The use of non-BRITAX accessories is not approved by BRITAX. The use of unapproved accessories could cause this product to become damaged or dangerous. Their use may void the BRITAX warranty.

Limitations of Damages

The warranty and remedies as set forth above are exclusive and in lieu of all others, oral or written, express or implied. In no event will BRITAX or the retailer selling this product be liable for any damages, including incidental or consequential damages, arising out of the use or inability to use this product.

Limitations of Warranties and Other Warranty Terms and State Law Rights

Any implied warranties, including implied warranties of merchantability and fitness for a particular purpose, shall be limited to the duration and terms of the express written warranty. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. Neither BRITAX, nor the retailer selling this product, authorizes any person to create for it any other warranty, obligation, or liability in connection with this product.

Table des matières

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols present)

Diagram of a car interior with red arrows indicating movement or force direction (no text or symbols)

Diagram showing two hands holding a curved mechanical component with red arrows indicating rotation or movement (no text or symbols)

Line drawing of a person using a tool to clean or install a bag (no text or symbols visible)

Illustration of hands holding a tool or device with a circular component, no visible text or symbols

Chancelière

Line drawing of a hand using a tool to adjust a device in a toolbox (no text or symbols)

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Retirer la chancelière

Illustration of a hand adjusting a bag with a red arrow indicating motion (no text or symbols)

Diagram of a mechanical device with a lever and handle, showing a downward force arrow (no text or symbols)

Diagram of a mechanical assembly with a red arrow indicating a force or direction (no text or symbols present)

Simple line drawing of a boat with a handle and an upward arrow, no text or symbols present

Retirer le moïse

Illustration of a person using a belt switch mechanism (no text or symbols)

Plier avec le moïse

Diagram of a mechanical assembly with a red arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to lift a cloth or cable, with a red arrow indicating rotation (no text or symbols present)

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

Illustration of a wheeled cart with wheels and a triangular ramp (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Soin et entretien

Cadre

Diagram showing car seatbelt mechanism with red directional arrows indicating movement or force directions

Diagram of a car interior with red arrows indicating motion or movement, no text or symbols present

Diagram of a car interior with red arrows indicating rotational motion (no text or symbols)

Illustration of a person using a tool to clean or install a bag (no text or symbols visible)

Line drawing of hands holding a medical device (no text or symbols visible)

Line drawing of a mechanical assembly with hands and joints (no text or symbols)

Illustration of a hand adjusting a mechanical component with a red arrow indicating rotation (no text or symbols)

Protegebotas

Line drawing of a hand using a tool to adjust a component in a toolbox (no text or symbols)

Diagram of a mechanical device with a lever and handle, showing a downward force arrow (no text or symbols)

Diagram of a mechanical assembly with a red arrow indicating a downward motion (no text or symbols present)

Simple line drawing of a boat with a red upward arrow indicating direction (no text or symbols)

Illustration of a person using a benchbelt device with red arrows indicating force direction (no text or symbols)

Diagram of a mechanical component with a red arrow indicating direction, no text or symbols present

Manija de transporte y capota

Illustration of a hand using a tool to lift a cloth or paper (no text or symbols visible)

Diagram of a mechanical device with a red arrow indicating downward motion (no text or symbols)

Illustration of a small wheeled cart with wheels and a triangular ramp, no text or symbols present

Illustration of a hand operating a bicycle with a red arrow indicating motion (no text or symbols)

Britax Child Safety, Inc.

4140 Pleasant Road

Fort Mill, SC 29708 USA

A Britax Childcare company

Tel.: [phone]

Tel.: [phone]

www.Britax.com
