USER MANUAL EZPar 64 RGBA ILS Chauvet

QR code image containing encoded data, no visible human-readable text

Scan the QR code to access the product page, warranty terms, and the complete User Manual

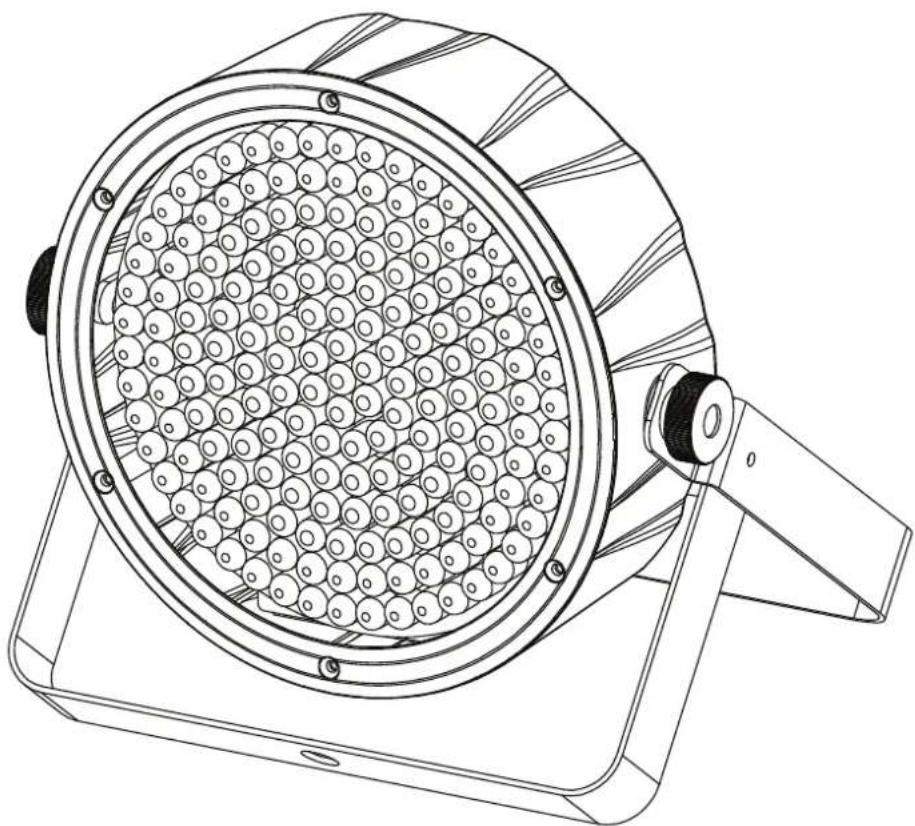

Technical line drawing of a mechanical device with circular components and a handle (no text or symbols)

Intentionally Left Blank Page

Safety Notes

These Safety Notes include important information about installation, use, and maintenance of the EZPar 64 RGBA ILS.

■ ALWAYS:

◆ Connect to a grounded circuit.
◆ Connect to operating voltages as specified on the product's spec sticker.
♦ Disconnect from power before replacing the fuse.
♦ Disconnect from its power source during periods of inactivity.
◆ Use a safety cable when suspending overhead.
- Heed all restrictions and warnings on the spec sticker.
◆ Mount in a location with at least 20 in (50 cm) of ventilation.
♦ Replace the fuse with the same type and rating.
Use a clamp with a captive bolt when a single hanging bracket is used.

■ In the event of a serious operating problem, stop using immediately.

■ DO NOT:

◆ Open this product or attempt any repairs. It contains no user-serviceable parts.
◆ Look at the light source when the product is on.
◆ Use if the power cord is crimped or damaged.
♦ Disconnect by pulling on the power cord.
♦ Allow flammable materials close to the product when it is operating.
♦ Touch the housing when it is on.
◆ Block any ventilation holes/slots in the housing.
◆ Connect to a dimmer or rheostat.
♦ Carry the product by its power cord.
♦ Operate in temperatures higher than 104°F (40°C).
♦ Expose to environments that exceed the Ingress Protection (IP) rating.
♦ Expose to rain or moisture.
◆ Use outdoors.
Submerge.
Leave outdoors for extended periods of time.
♦ Set this product on a flammable surface.

♦ Expose to corrosive environmental conditions such as temperature, humidity, salinity, pressure, radiation, or shock.

What is Included

◆ EZPar 64 RGBA ILS
Power cable

◆ IRC-6 remote
◆ Quick Reference Guide

Battery Charge Notes

Rechargeable lithium-ion batteries are potentially hazardous and can present a serious FIRE HAZARD, SERIOUS INJURY and/or PROPERTY DAMAGE if damaged, defective, or improperly used.

■ ALWAYS:

◆ Charge using a manufacturer-provided charger while the product is powered off.
◆ Charge the battery in temperatures between 32°-95°F (0°-35°C).
Allow a depleted battery to charge for a few minutes before turning on the product. If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected.
♦ Keep at least 3 ft (1 m) distance to any heat source and away from flammable materials.
- Keep the lid of any charging case open while charging.
♦ Keep batteries away from children.
◆ Store batteries between 40-60% charge.
◆ Follow local regulations when disposing of batteries.
◆ Replace with an authentic Chauvet battery.

■ DO NOT:

◆ Continue charging if the battery becomes hot, smokes, swells, or gives off an odor during charging.
Leave the product unattended while charging.
◆ Deplete the battery below 10%.
◆ Charge the battery in a closed container.
◆ Charge for more than 24 hours.

Control Panel Description

Button Function

	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

ILS Connection

The EZPar 64 RGBA ILS uses the DMX data connection and the D-Fi USB for wireless connection to the Integrated Lighting System (ILS) ecosystem (patent pending). For more information about configuring the EZPar 64 RGBA ILS into ILS mode, please refer to the User Manual available at www.chauvetdj.com.

Notas de seguridad

Intentionally Left Blank Page

Contact Us

General Information Technical Support

Chauvet World Headquarters

Address: 3360 Davie Rd., Suite 509 Voice: [phone]

Davie, FL 33314 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetdj.com

Chauvet U.K.

Address: Pod 1 EVO Park Email: [e-mail]

Little Oak Drive, Sherwood Park

Nottinghamshire, NG15 0EB Website: www.chauvetdj.eu

UK

Voice: [phone]

Fax: [phone]

Chauvet Benelux

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetdj.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère Email: [e-mail]

91380 Chilly-Mazarin

France Website: www.chauvetdj.eu

Voice: [phone]

Chauvet Germany

Address: Bruno-Bürgel-Str. 11 Email: [e-mail]

28759 Bremen

Germany Website: www.chauvetdj.eu

Voice: [phone]

Chauvet Mexico

(Entrance by Calle 2)

Zona Industrial Lerma

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

EZPar 64 RGBA ILS QRG ML6 Rev. 1

© Copyright 2024 Chauvet

All rights reserved

RoHS
