USER MANUAL KCO213 KITCHENAID

Front view of a modern toaster oven with two golden-brown baked products, placed on a black tray (no visible text or symbols)

PARTS AND FEATURES

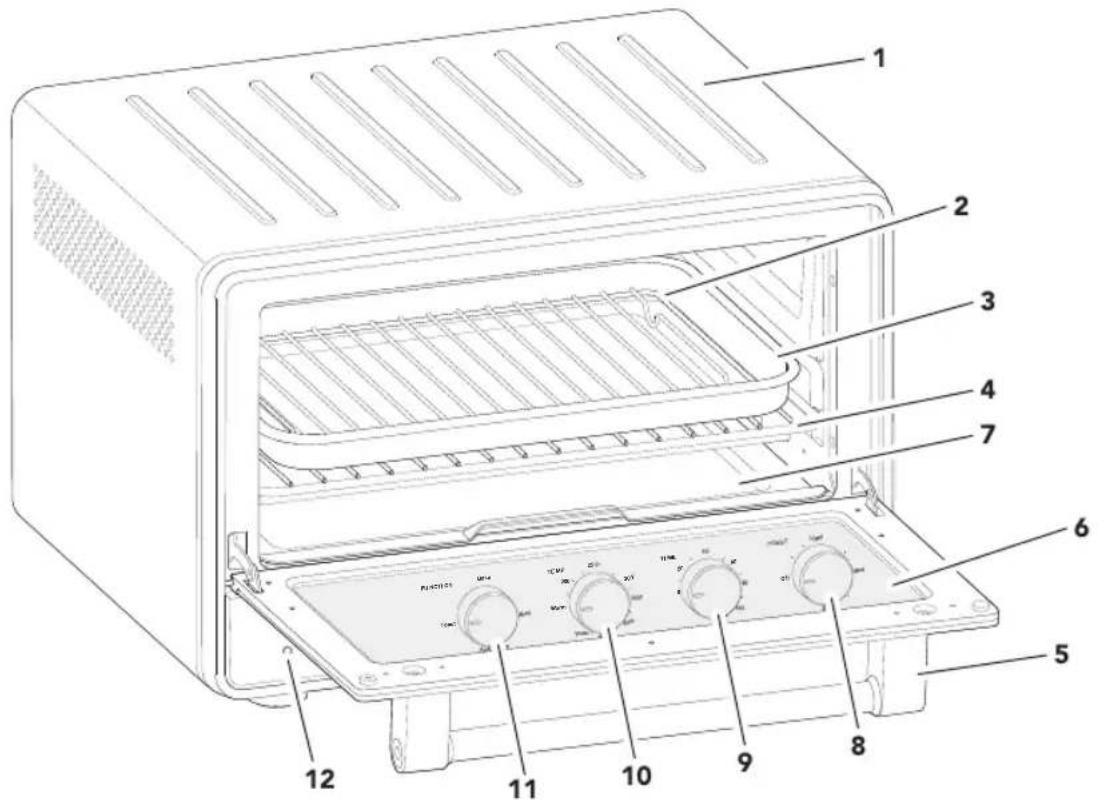

Labeled diagram of a toaster oven with numbered parts for identification

1 Cool down surface for Oven Rack
2 Chrome-plated Steel Broiling Rack
3 Enamel Multipurpose Pan
4 Chrome-plated Steel Oven Rack
5 Stainless Steel Door Handle
6 Toughened Glass Window

7 Removable Crumb Tray
8 Toast Knob
9 Time Knob
10 Temperature Knob
11 Function Knob
12 Power On Indicator Light

PRODUCT SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plugs, or any parts of the oven in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not let cord hang over edge of table or counter, or touch hot surfaces.
9. Do not place on or near a hot gas or electric burner, or in a heated oven.
10. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
11. Use extreme caution when removing broiler pan tray or disposing of hot grease.
12. Oversize foods or metal utensils must not be inserted in a Countertop Oven as they may create a fire or risk of electric shock.
13. A fire may occur if the toaster-oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.
14. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.

PRODUCT SAFETY

1. Extreme caution should be exercised when using containers constructed of materials other than metal or glass.
2. Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
3. Do not place any of the following materials in the oven: paper, cardboard, plastic, or anything similar.
4. Do not cover crumb drawer or any part of the oven with metal foil. This will cause overheating of the oven. Foil is permitted in the multipurpose pan to catch grease.
5. To disconnect, turn Oven "Off" by turning the Timer Knob to "0" or Toast Knob "Off", then remove plug from wall outlet.
6. Do not use outdoors.
7. Do not use appliance for other than intended use.

CAUTION: Hot surface.

(alert symbol is required to comply with Mexican regulations.)

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

ELECTRICAL REQUIREMENTS

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Voltage: 120 VAC

Frequency: 60 Hz

Wattage: 1440 Watts

NOTE: If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way. Do not use an adapter.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician to install an outlet near the appliance.

The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

GETTING STARTED

Before first use, clean all parts and accessories (see "Care and Cleaning" section). Place the Countertop Oven on a dry and flat level surface.

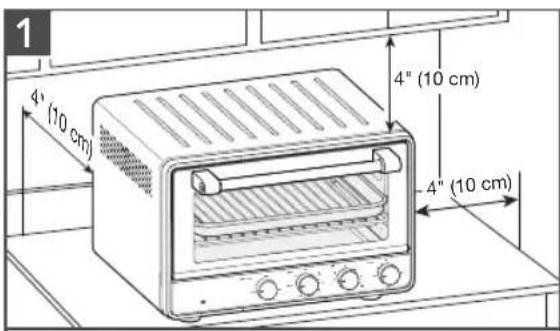

1 4" (10 cm) 4" (10 cm) 4" (10 cm)

Make sure all sides are positioned with at least 4" (10 cm) distance.

2 1- Top 2- Bottom

Open and align the oven rack with the grooves for desired positions.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

3

Simple line drawing of an electrical outlet with a cable, no text or symbols present

Plug into a grounded 3 prong outlet. Your oven is now ready to use.

NOTE: Upon first use, the oven may produce light smoke. This is normal.

PREHEATING THE OVEN

Preheating allows your oven to saturate the walls and cooking racks to remove cold spots that draw heat away from the food.

1

TEMP 200° 250° 300° Warm 350° Toast 450° 400° TIME 0 20 40 60 80 120 100

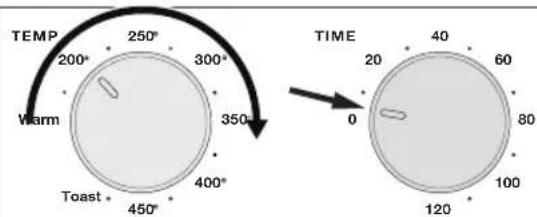

Rotate the Temperature knob to the desired Preheating temperature.

Rotate the Time knob past the 10-minute position, then rotate it back to 5-minute position.

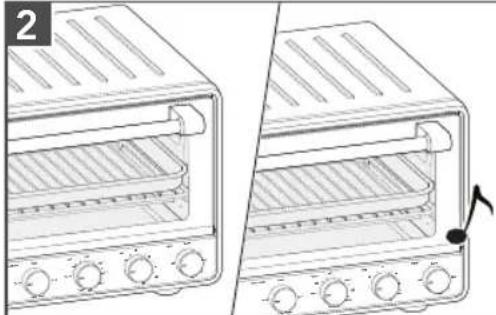

Line drawing of a two-section kitchen oven with grilles and control knobs, showing exterior and interior views (no text or symbols)

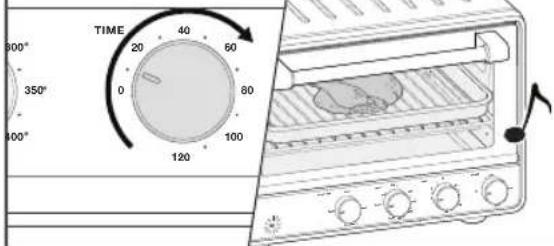

The Power On indicator light will turn on. After 5 minutes, the end signal will sound and the oven will shut off automatically.

USING THE BAKE FUNCTION

Both the top and bottom cooking elements cycle on and off while baking. Recipes will vary and cooking time should be monitored for desired results. For better cooking results, select the correct cooking pan to allow for proper air circulation.

FUNCTION Bake Toast Broil Keep Warm TE 2

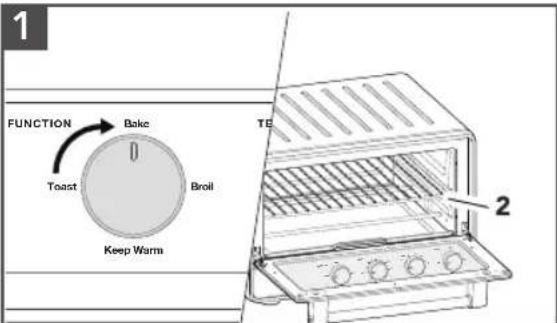

Recommended rack position: 2-Bottom. Rotate the Function knob to BAKE.

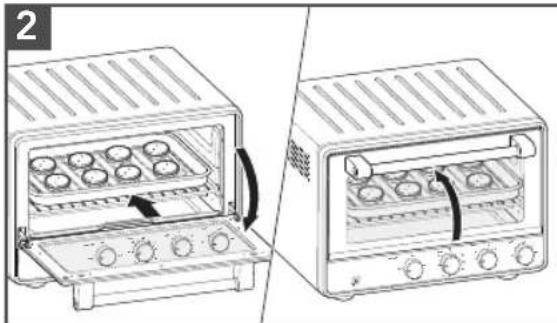

Line drawing of a two-step setup showing the oven with ovens and a side view of the oven (no text or symbols)

Open and place food in the center of the rack and close the door.

3 FUNCTION Bake Toast Broil Keep Warm TEMP 200° 250° 300° Warm 350° Toast 450° 400°

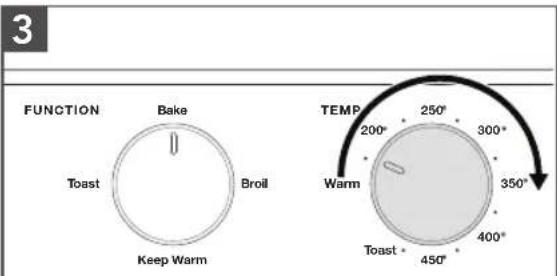

Rotate the Temperature knob to the desired temperature. Bake according to package or recipe instructions. Preheat if desired.

4 TIME 20 40 60 0 80 100 120

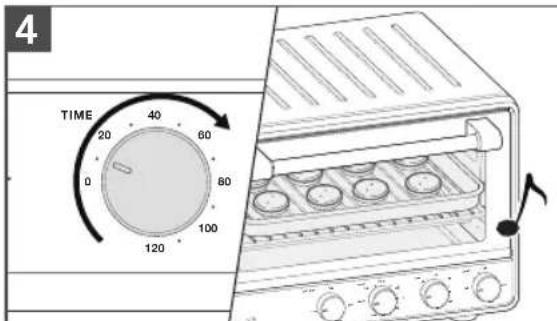

Rotate the Time knob to the desired time. When the time has elapsed, the end signal will sound and the Compact Oven will shut off automatically. Turn the Time knob to "0" (Off) if removing food before the time has elapsed.

USING THE BROIL FUNCTION

Only the top cooking elements heat when the Broil function is selected. Use the included broil pan and grill directly on the oven rack for even browning and easy cleanup. The broil pan and grill may also be used for the Bake and Warm settings.

IMPORTANT: The food to be broiled should be at least 1" (2.5 cm) from the top cooking elements in your oven.

IMPORTANT: Always use oven mitts when removing pans or racks.

Two-step diagram showing a toaster oven with a mouse inside, before and after cooling (no text or symbols)

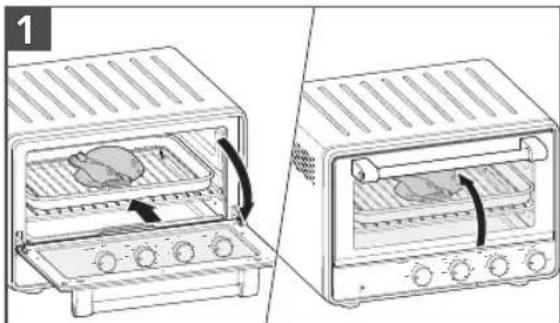

Recommended rack position: 1- Top. Place the food on the broil pan with grill. Then, close the door.

2

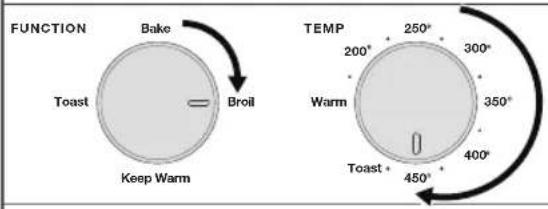

FUNCTION Bake Toast Broil Keep Warm TEMP 250° 300° Warm 350° 400° Toast + 450°

Rotate the Function knob to BROIL. Rotate the Temperature knob to 450^ .

3

TIME 20 40 60 350° 0 80 400° 120 100

Rotate the Time knob to the desired time for broiling or browning the food on one side. The Power On indicator light will turn on. Be sure to monitor the broiling progress through front glass.

4

Illustration of a two-step cooking process showing a toaster oven with a mouse inside and a side view of the oven with a tray (no text or symbols)

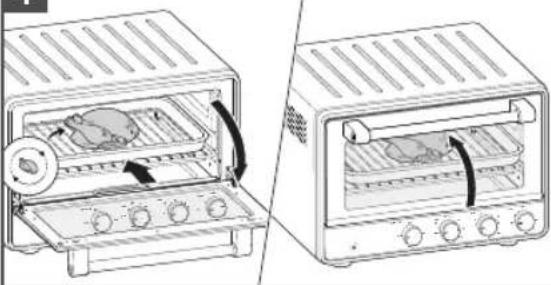

If broiling or browning the other side of the food, open the door and pull the rack and pan about halfway out of the oven. Flip the food, slide the rack and pan back into place, and close the door.

5

Rotate the Time control knob to the desired time for broiling or browning the food on the other side. When the time elapses, the end signal will sound and your countertop oven will automatically shut off.

USING THE TOAST FUNCTION

Up to 6 slices of bread may be placed directly on the rack for toasting. Both the top and bottom cooking elements heat when in Toast function.

TIP: Frozen, dark, or whole-grain breads require a longer time. Fresh, soft, or white breads require a shorter time. We encourage you to experiment to find the best toasting time for various kinds of bread.

Line drawing of an open oven with three plates and a control panel (no text or symbols)

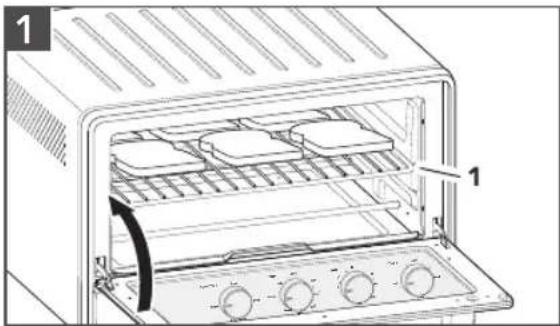

Recommended rack position: 1- Top

Place bread in the center of the oven rack and Bread slices do not need to be flipped. Close the door.

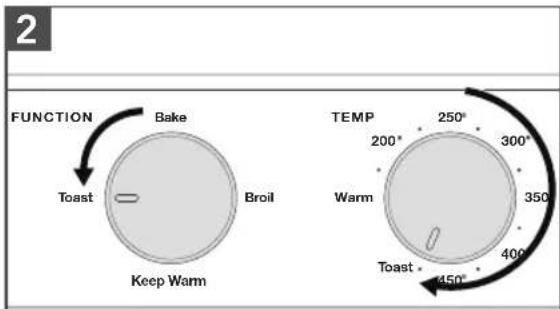

2 FUNCTION Bake Toast Broil Keep Warm TEMP 250° 300° Warm 350° 400° Toast 450°

Rotate the Function knob to the TOAST. Rotate the Temperature knob to "Toast".

3 TIME TOAST 40 20 60 0 80 120 100 Light Off Med Dark

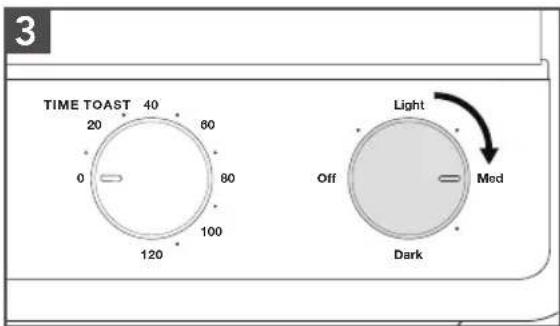

Rotate the Toast knob to your desired setting: Dark, Medium, Light, or on any of the dot icons in between to choose a customized toast setting. The Power On indicator light will turn on.

Line drawing of a two-stop toaster oven with control knobs and a musical note (no text or symbols)

When finished, the end signal will sound and your countertop oven will shut off automatically. Rotate the Toast control knob to the Off position if removing toast before the end signal sounds.

IMPORTANT: For the Toast setting, the Toast control knob works as a timer instead of the Time knob. The Toast setting will not function properly if the Time control knob is used.

NOTE: It is normal for condensation to form on the door when toasting moist or fresh breads.

USING THE WARM FUNCTION

Only the lower cooking elements heat when the Warm function is selected.

TIP: Turn the Temperature knob to WARM, or minimum setting, when Your countertop oven is not in use.

1 FUNCTION Bake Toast Broll Keep Warm TE 2

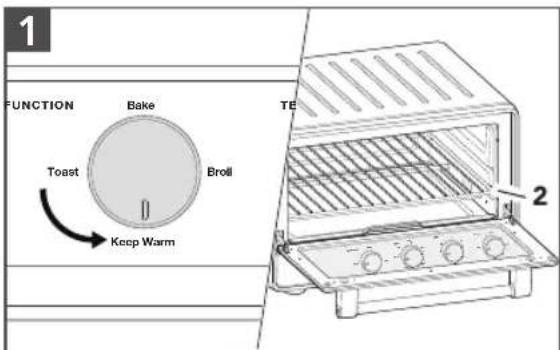

Recommended rack position: 2- Bottom. Rotate the Function knob to Keep Warm.

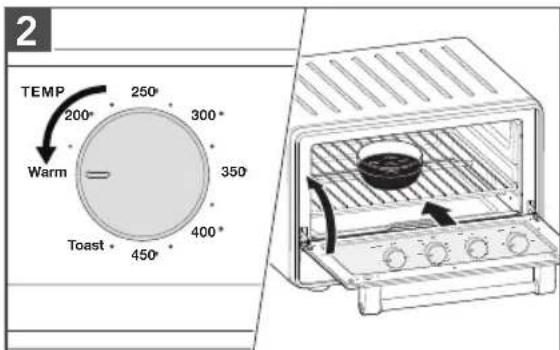

2 TEMP 200° 250° 300° Warm 350° Toast 400° 450°

Rotate the Temperature knob to lowest setting (150°). For faster heating, increase temperature as desired.

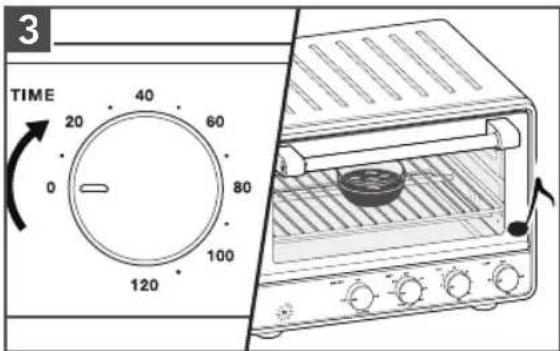

3 TIME 20 40 60 0 80 120 100

Rotate the Time knob to the desired setting. The Power On indicator light will turn on. When the time elapses, the end signal will sound and your countertop oven will automatically shut off.

4 TIME 20 40 60 0 80 100 120

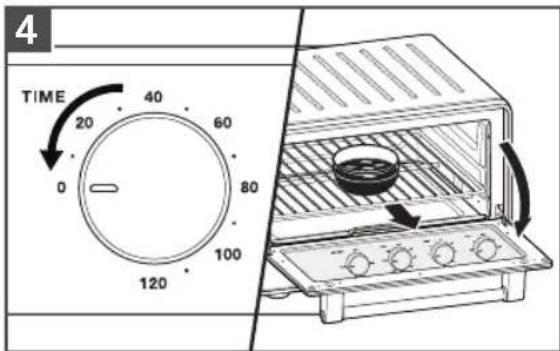

If removing food before the end signal sounds, rotate the Time knob to "0" (Off) to shut off your countertop oven. Then, remove the food.

TIP: When setting for 10 minutes or less, rotate the Time knob past the 20-minute mark; then, rotate back to the desired time.

FOR DETAILED INFORMATION ON THE COUNTERTOP OVEN

Visit www.kitchenaid.com/quickstart for additional instructions with videos, inspiring recipes, cleaning tips and tips on how to use your Countertop Oven.

CARE AND CLEANING

NOTE: Allow Compact Oven and accessories to cool completely before cleaning.

1

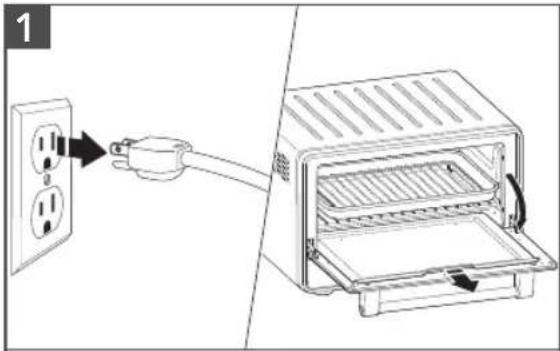

Turn the Oven "Off", by turning Timer Knob to "0" or Toast Knob to "Off" position. Unplug the Oven.

To remove the crumb tray, open the door, grasp the crumb tray handle and slide straight out.

Line drawing of a kitchen sink with faucet and drain, no text or symbols present

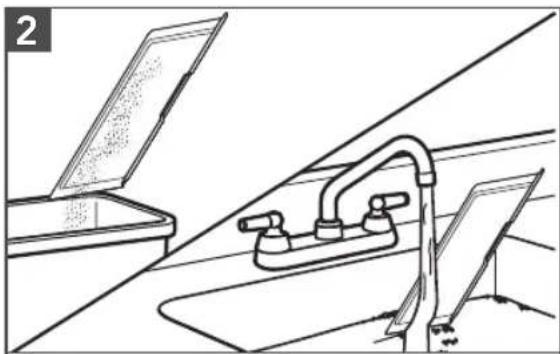

Empty and wash in warm, sudsy water, if needed. Dry with a soft cloth. Open the door and slide it back into place.

3

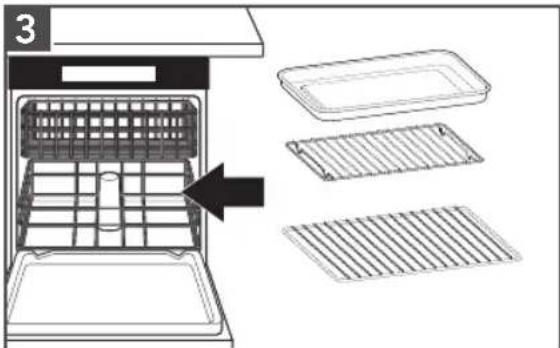

The following parts are dish-washer safe, but hand washing is recommended: Oven rack, Multipurpose pan, and Broiling rack.

IMPORTANT: Do not use cleaning agents, abrasive cleansers, or metal scouring pads on the inner or outer surfaces of the oven. They could scratch the surface.

INTERIOR: The inside walls of the oven feature a nonstick coating. Remove heavy spatter with a nylon or polyester mesh pad, sponge, or cloth dampened with warm water. Dry thoroughly.

EXTERIOR: Wipe the outside of the Countertop Oven with a clean, damp cloth and dry thoroughly.

IMPORTANT: Ensure all parts and surfaces are completely dry before re-use.

TROUBLESHOOTING GUIDE

Black-and-white illustration of a hand with a lightning bolt symbol (no text or labels)

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Problem Solution
If the oven fails to start:	Check to see if the Compact oven is plugged into a grounded 3 prong outlet.
	Check to see if the fuse in the circuit breaker box to your Compact oven is in working order.
Upper cooking elements visibly glow, but bottom cooking elements do not:	This is normal and designed for better browning performance. Your countertop oven is working properly.
If the problem cannot be corrected:	See the "KitchenAid® Warranty and Service" sections. Do not return the Countertop Oven to the retailer – retailers do not provide service.

WARRANTY AND SERVICE

KITCHENAID® COUNTERTOP OVEN WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for Countertop Ovens operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.
KitchenAid Will Pay for Your Choice of:	Hassle-Free Replacement of your Countertop Oven. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.ORThe replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.
KitchenAid Will Not Pay for:	A. Repairs when your Countertop Oven is used in other than normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse.C. Any shipping or handling costs to deliver your Countertop Oven to an Authorized Service Center.D. Replacement parts or repair labor costs for Countertop Oven attachments operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY—50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Countertop Oven should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Countertop Oven returned to us. Your replacement unit will also be covered by our one year limited warranty.

If your Countertop Oven should fail within the first year of ownership, simply call our toll-free

Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address (no P.O. Box numbers, please).

When you receive your replacement Countertop Oven, use the carton, packing materials, and prepaid shipping label to pack up your original Countertop Oven and send it back to KitchenAid.

HASSLE-FREE REPLACEMENT WARRANTY—CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Countertop Oven should fail within the first year of ownership, we will replace your Countertop Oven with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty.

If your Countertop Oven should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at

1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.

When you receive your replacement Countertop Oven, use the carton, packing materials, and prepaid shipping label to pack up your original Countertop Oven and send it back to KitchenAid.

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to:

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Countertop Oven for information on how to obtain service.

For service information in Canada: Call toll-free 1-800-807-6777.

For service information in Mexico: Call toll-free 01-800-0022-767.

®/TM ©2019 KitchenAid. All rights reserved. KITCHENAID and the design of the stand mixer are trademarks in the U.S. and elsewhere. Used under license in Canada.

PIÈCES ET CARACTÉRISTIQUES

Labeled diagram of a toaster oven with numbered parts for identification

1 4" (10 cm) 4" (10 cm) 4" (10 cm)

Illustration of a plug inserted into an electrical outlet (no text or symbols)

Line drawing of a two-stop toaster oven with control knobs and a musical note (no text or symbols)

FUNCTION Bake Toast Broil Keep Warm TE 2

Two-step diagram showing a toaster oven with multiple ovens and a side view of the oven (no text or symbols)

Illustration of a two-step kitchen setup showing the oven, tray, and oven with heat exchanger (no text or symbols)

Illustration of a two-step cooking process: opening and rotating a tray with a lid (no text or symbols)

Line drawing of an open oven with three food compartments and a control panel (no text or symbols)

Line drawing of a two-torop oven with control knobs and a doorbell, shown from front and side views (no text or symbols)

FUNCTION Bake Toast Broil Keep Warm TE 2

Line drawing of a kitchen sink with open lid and drain, no text or symbols present

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Labeled diagram of a toaster oven with numbered parts for identification

1 4" (10 cm) 4" (10 cm) -4" (10 cm)

Illustration of a plug inserted into an electrical outlet (no text or symbols)

Line drawing of a two-tan appliance with front and side views, showing interior shelves and control knobs (no text or symbols)

FUNCTION Bake Toast Broil Keep Warm TE 2

Two-step diagram showing a toaster oven setup with a tray holding multiple ovens and a side view of the oven (no text or labels)

Two-step diagram showing a toaster oven with a mouse inside, before and after cooling (no text or symbols)

Illustration of a two-step cooking process: opening and rotating a dog (no text or symbols)

Line drawing of an open oven with a tray holding three food items, labeled with number 1 (no text or symbols on the device itself)

Line drawing of a two-torter oven with control knobs and a door, showing exterior and interior views (no text or symbols)

1 FUNCTION Bake Toast Broil Keep Warm TE 2

Line drawing of a kitchen sink with faucet and open door (no text or symbols)

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218.

www.kitchenaid.com.mx

p.m. Sábados de 8:00 a.m. a 2:00 p.m.

E-mail: [e-mail]

www.kitchenaid-ca.com

Colombia

web: www.kitchenaid.com.do

Color palette bar with grayscale shades and a small crosshair symbol (no text or labels)

DISCOVER MORE. DÉCOUVREZ PLUS. DESCUBRA MÁS. KITCHENAID.COM/QUICKSTART

White silhouette of a telephone handset on black background (no text or symbols)

PRODUCT QUESTIONS OR RETURNS

QUESTIONS SUR LE PRODUIT OU LES RETOURS

MEXICO: KitchenAid.com.mx

LATIN AMERICA: KitchenAid-Latam.com

Silhouette of a kitchen mixer and bowl (no text or symbols)

KitchenAid®

®/TM ©2019 KitchenAid. All rights reserved. KITCHENAID and the design of the stand mixer are trademarks in the U.S. and elsewhere. Used under license in Canada.
