USER MANUAL KCO124 KITCHENAID

Exterior view of a KitchenAid electric stove with digital display and mesh grater (no text or symbols on main subject)

PARTS AND FEATURES

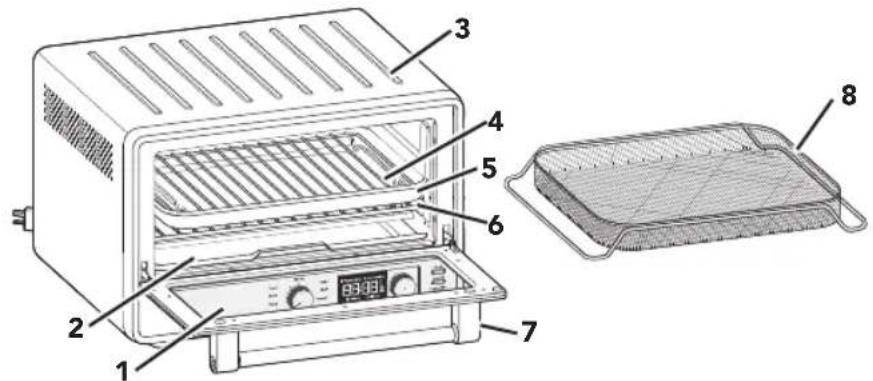

Technical diagram of a toaster oven with numbered parts and labeled interior components

Air Fry Toast - Bake Bagel - Broil Proof - Reheat Dehydrate - Keep Warm 13 12 14 Preheating Convection 17 18 19 20 21 22 Shade Slices 88:88 °F Hrs Min 15 16

1 Toughened Glass Window
2 Removable Crumb Tray

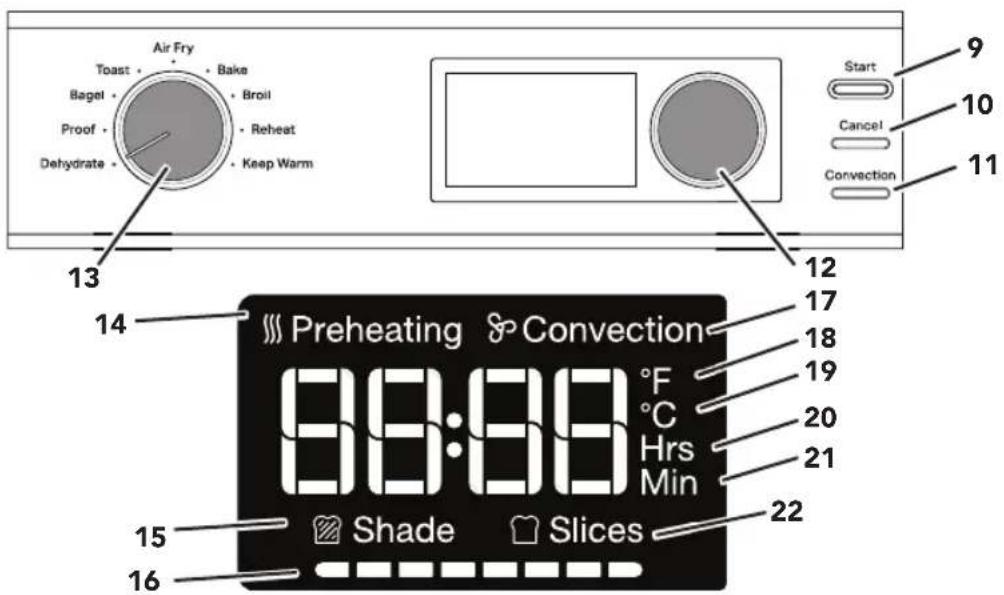

3 Cool Down Surface for Removable Oven Rack
4 Chrome-plated Steel Broiling Rack
5 Enamel-coated Pan
6 Chrome-plated Steel Oven Rack
7 Door Handle
8 Air Fry Basket
9 Start: Start Selected Cooking Mode
10 Cancel: Stops Selected Cooking Mode

11 Convection: Temperature Switch Mode
12 Temperature/ Timer Knob
13 Mode Knob: Cooking Mode Selector
14 Preheating Icon
15 Shade Icon
16 Shade Number Graphic
17 Convection Icon
18 Fahrenheit Icon
19 Celsius Icon
20 Hours Icon
21 Minutes Icon
22 Slices Icon

NOTE: Press and hold the Convection button for 3 seconds to switch between the temperature units Fahrenheit (°F) and Celsius (°C).

PRODUCT SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against risk of electrical shock, do not put cord, plugs, or any parts of the Air Fryer in water or other liquid.

4. Close supervision is necessary when any appliance is used by or near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.

6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair, or adjustment.

7. The use of accessories/attachments not recommended or sold by KitchenAid may cause fire, electrical shock, or injury to persons.

8. Do not let cord hang over edge of table or counter, or touch hot surfaces.

9. Do not place on or near a hot gas or electric burner, or in a heated oven.

10. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

11. Use extreme caution when removing Broiling Rack, Multipurpose Pan, Oven Rack, or disposing of hot grease.

12. Oversize foods or metal utensils must not be inserted in a Air Fryer as they may create a fire or risk of electric shock.

13. A fire may occur if Air Fryer is covered or touching flammable material, including curtains, draperies, walls and the like, when in operation. Do not store any item on top of the appliance when in operation.

PRODUCT SAFETY

1. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
2. Extreme caution should be exercised when using containers constructed of materials other than metal or glass.
3. Do not store any materials, other than manufacturer's recommended accessories, in this Air Fry when not in use.
4. Do not place any of the following materials in the Air Fry: paper, cardboard, plastic, or anything similar.
5. Do not cover crumb drawer or any part of the Air Fry with metal foil. This will cause overheating of the oven.
6. To disconnect, turn the Air Fry "off" by pressing Cancel button, then remove plug from wall outlet.
7. Do not use the appliance outdoors.
8. Do not use the appliance for other than intended use.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

ELECTRICAL REQUIREMENTS

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Voltage: 120 V\~

Frequency: 60 Hz

Power: 1800 W

NOTE: If the plug does not fit in the outlet, contact a qualified electrician.

Do not modify the plug in any way.

Do not use an adapter.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or service technician to install an outlet near the appliance.

The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

GETTING STARTED

Before first use, clean all parts and accessories (see "Care and Cleaning" section). Place the Air Fryer on a dry and flat level surface. Remove all packaging materials and labels, if present.

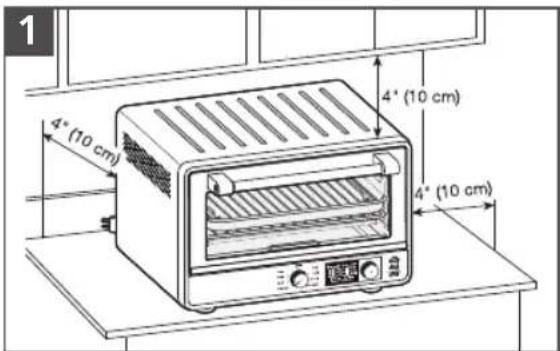

1 4° (10 cm) 4° (10 cm) 4° (10 cm)

Make sure all sides are positioned with at least 4" (10 cm) distance.

Line drawing of a toaster oven with ventilation grilles and control panel (no text or symbols)

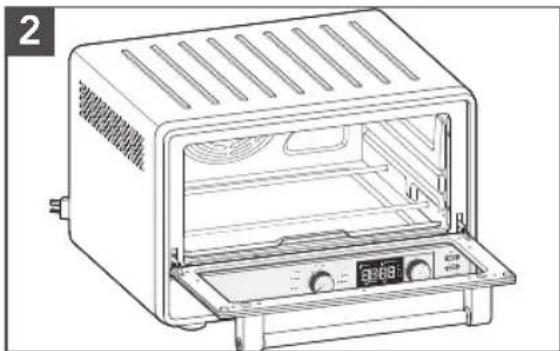

Open the door and align the rack with the grooves for desired positions (see "Air Fryer rack position" section).

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

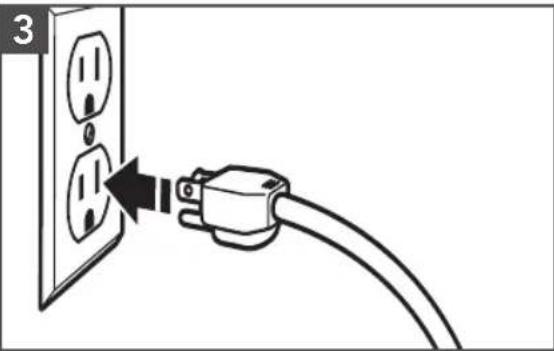

Line drawing of an electrical outlet with a plug inserted, showing power lines and socket (no text or symbols)

Plug into a grounded 3 prong outlet. Your Air Fryer is now ready to use.

NOTE: Upon first use, the Air Fryer may produce light smoke. This is normal.

GETTING STARTED

TIME RECOMMENDATION - AIR FRY FUNCTION

Food Portion	Temperature Time
Chicken Nuggets 1	Layer 425°F (218°C)	8-10 minutes
Chicken Tenders 1	Layer 425°F (218°C)	13-15 minutes
Chicken Wings 1	Layer 425°F (218°C)	18-20 minutes
Fish Fillets 1	Layer 450°F (232°C)	12-14 minutes
Fish Sticks 1	Layer 450°F (232°C)	10-12 minutes
French Fries 1	Layer 425°F (218°C)	22-24 minutes
Mozarella Sticks 1	Layer 450°F (232°C)	5-7 minutes
Taquitos 1	Layer 400°F (204°C)	5-7 minutes

NOTE: Gently spray the basket with oil before each batch of food. No more oil is needed. Results may vary with different food brands and sizes. Follow Toaster Oven instructions from the back of the food package and reduce time.

TIP: When cooking fatty foods, such as non breaded poultry with skin, use the baking pan instead of the Air Fry Basket to catch excess oil that may drip from the food.

COOKING FUNCTIONS

PREHEATING

Preheating your Air Fryer is important for consistent and even results. Once you select your desired cooking mode or any other settings, and press Start. The light ring around the Start button will be on, and the Preheat indicator will show on the LCD. Once the oven has reached the set temperature, a tone will sound to let you know that you can insert food and begin cooking. Preheating is NOT necessary in all cooking modes. To skip the Preheat and start the timer directly, push the Start button a second time.

NOTE: Automatic Preheat is not programmed for Dehydrate, Keep Warm, Reheat, Toast and Bagel functions.

CONVECTION

The convection fan is controlled by the Convection button. Pushing the Convection button will toggle the fan on or off for Bake, Broil, Keep Warm, and Reheat functions. A "Convection" label and fan icon will appear on the display when the convection fan is on. The Air Fry function uses a high speed convection fan that cannot be turned off. The Dehydrate function uses the high speed convection fan as preset, but it may be turned off by pushing the Convection button.

COOKING FUNCTIONS

Cooking function	Rack No.	Preset Temp. °C (°F)	Temperature Range °C (°F)	Preset Time (Mins.)	Time Range	Elements Run
Dehydrate 1	-2	150°F (66°C)	80–180°F (27–82 °C)	6 hours	1 min–12 hours	2 bottom; high speed convect
Proof 1		90°F (32°C)	75–90°F (24–32°C)	30	1 min–1 hours	2 bottom
Air Fry 2		400°F (205°C)	150–450°F (66–232°C)	17	1 min–1 hours	2 top, 2 bottom, high speed convect
Bake 2		350°F (176°C)	150–450°F (66–232°C)	30	1 min–2 hours	2 top, 2 bottom, convect available
Broil 2		450°F (232°C)	350°F (176°C) 450°F (232°C)	8	1 min–30 mins	2 top, convect available
Reheat 2		300°F (149°C)	150–450°F (66–232°C)	15	1 min–2 hours	2 top, 2 bottom, convect available
Keep Warm 2		170°F (77 °C)	150–450°F (66–232°C)	1 hour	1 min–2 hours	2 bottom, convect available

Cook all foods to minimum safe internal temperatures. Consuming raw or undercooked meats, poultry, seafood, shellfish, or eggs may increase your risk of food borne illness.

Toasting functions	Rack No.	Preset Shade	Shade Range (Light to Dark)	Preset Slices	Range (# of slices)	Elements Run
Toast	2 4	1-8 2 1-6				Runs 4 elements
Bagel	2 4	1-8 2 1-6				Runs 4 elements

AIR FRY RACK POSITION

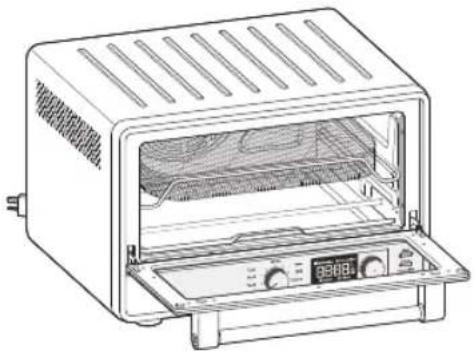

Rack position for Air Fry
Rack position for Bake, Reheat, Dehydrate, Proof, Bagel, Toast, Keep Warm, Broil

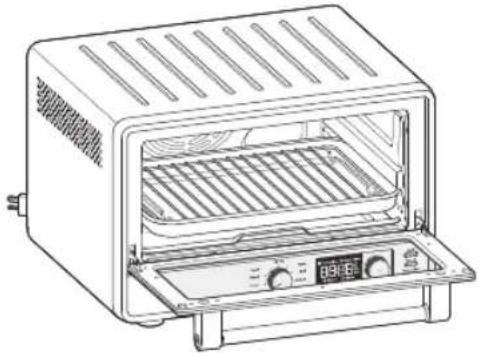

Rack position for Baking large items or items that are sensitive to over browning on top

USING THE DEHYDRATE FUNCTION

Dehydrate option is to remove moisture content from veggies or fruits to dry and preserve them.

1

Air Fry Toast Bake Bagel Broil Proof Reheat Dehydrate Keep Warm

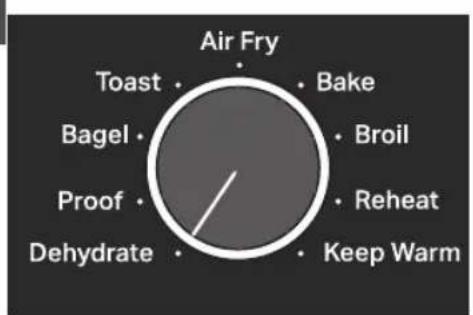

Set the function knob to Dehydrate.

The preset temperature 150^ F will be shown. If desired, rotate knob to adjust.

Press the knob to show preset time. The preset time is 6 hours. If desired, rotate knob to adjust.

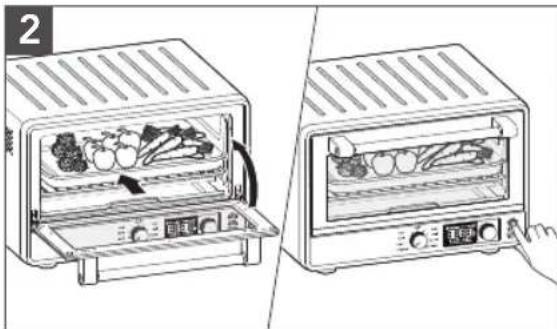

Two-step illustration of a food appliance with vegetables inside, showing interior and exterior views (no text or symbols)

Open the door and place the food on the center of the rack. Close the door. Press Start to start the cycle.

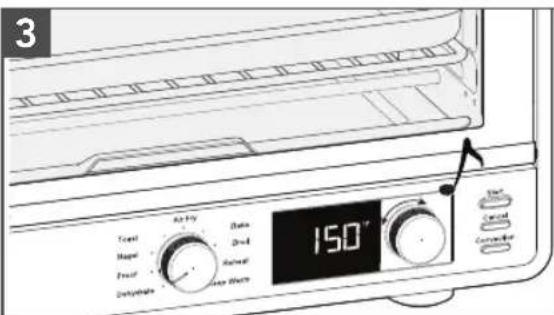

3 Tread Air Fry Data Magnet D=4 Fresh Roasted Dehydrate Close Where 150° Air Fry D=4 Roasted Close Where Close Connection

When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.

IMPORTANT: Always use oven mitts when removing pans or racks.

USING THE PROOF FUNCTION

The Proof function maintains a warm environment useful for rising yeast.

Use for dough. To speed up bread proofi ng. With a range of 75–90°F temperature and lower heating elements, this setting can be used to accelerate bread proofi ng (rising).

1

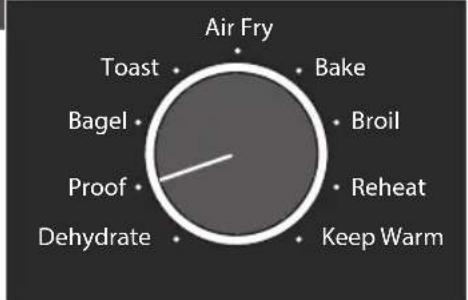

Set the function knob to Proof.

The preset temperature 90 °F will be shown. If desired, rotate knob to adjust.

Press the knob to show preset time. The preset time is 30 minutes. If desired, rotate knob to adjust.

USING THE PROOF FUNCTION

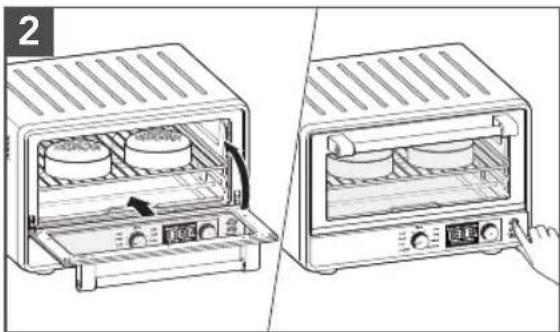

Two line drawings of a toaster oven with two dish units and control knobs, shown from different angles (no text or symbols)

Open the door and place the food on the center of the rack. Close the door. Press Start to start the cycle.

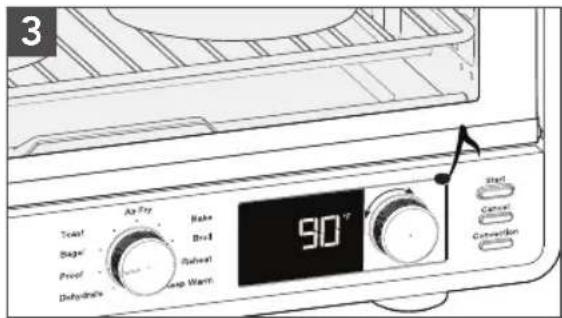

3 Total Stage Proof Dehydrates Air Fry Make Bread Reheat Keep Warm 90°F Start Cancel Conversion

When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.

USING THE BAGEL FUNCTION

In Bagel mode, the oven distributes power between the top and bottom heating elements to nicely brown the top of cut bagels while gently warming the outside.

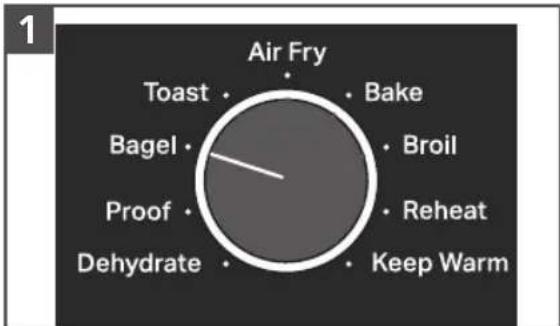

Set the function knob to Bagel. Shade and slices will be shown.

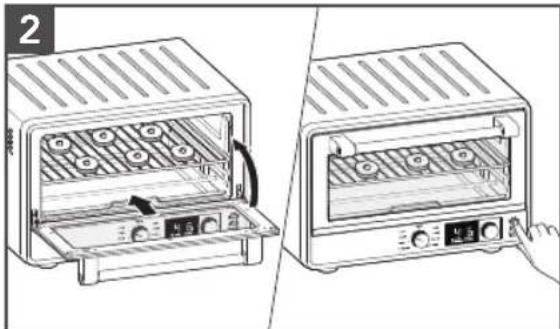

Two-step diagram showing a toaster oven with internal die array and control panel (no text or symbols)

Open the door and place the food on the center of the rack. Close the door.

3 4-6 Control Control Control 4-6 Control Control

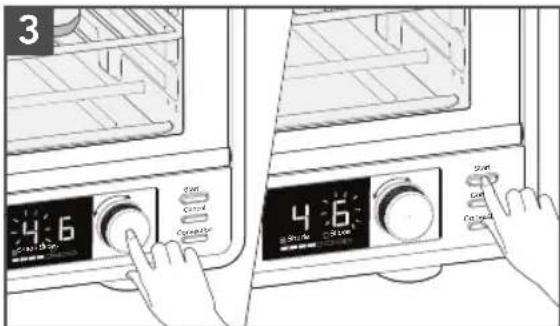

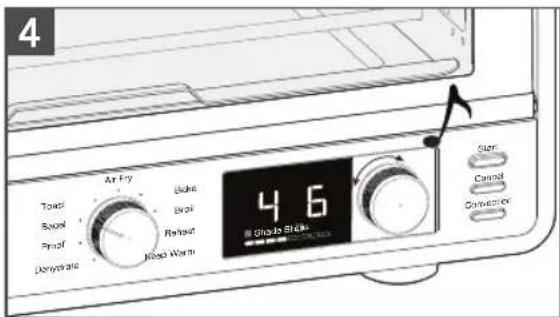

The Shade Icon starts flashing. Rotate the knob to adjust shade. Press knob to select slices. The Slices Icon will start flashing. If desired, rotate knob to adjust number of slices. Press Start to start the cycle.

4 Toilet Air Fry Sagel Blow Proof Breakout Unspherical Keep Warm 4 6 Cloud Slicks Start Cannot Converter

When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.

USING THE TOAST FUNCTION

In Toast mode, your oven distributes power to the top and bottom heating elements to maintain the desired oven temperature.

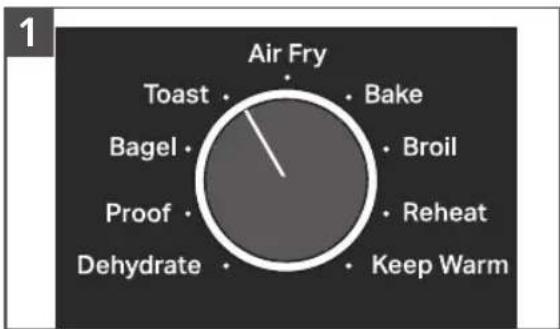

Set the function knob to Toast. Shade and slices will be shown.

2

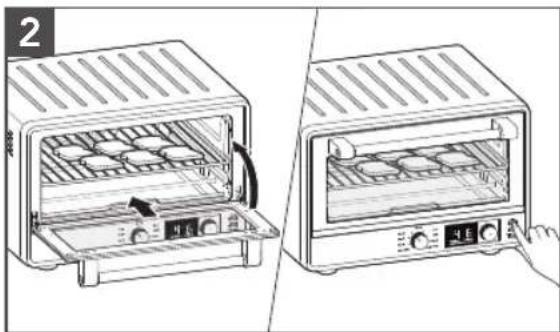

Open the door and place the food on the center of the rack. Close the door.

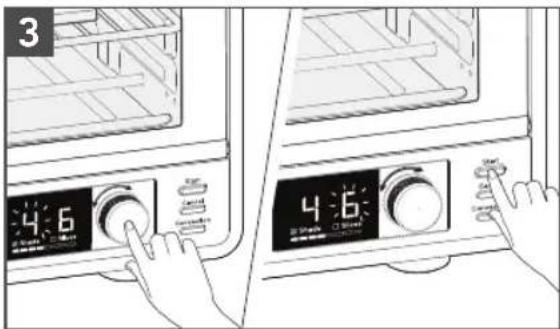

3 4 6 4 6 20 Pads 10 Pads 10 Pads

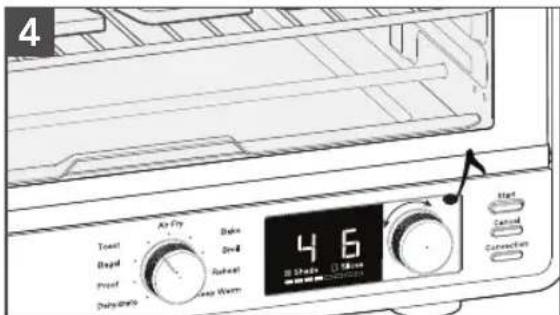

The Shade Icon starts flashing. If desired, rotate knob to adjust shade. Press knob to select slices. The Slices Icon will start flashing. If desired, rotate knob to adjust number of slices.

Press Start to start the cycle.

4 Toilet Brasil Provol Dehydrating Air Fry Shake Sim-B Rutout Deep Warm 4.6 Shade 5.0mm Air Start Control Connection

When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.

USING THE AIR FRY FUNCTION

The Air Fry function uses a combination of hot air and heating elements to prepare crispy foods.

Set the function knob to Air Fry.

The preset temperature 400^ F will be shown. If desired, rotate knob to adjust.

Press the knob to show preset time. The preset time is 17 minutes. If desired, rotate knob to adjust.

USING THE AIR FRY FUNCTION

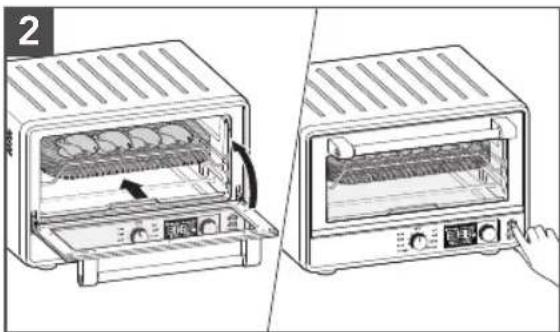

Two-step illustration of a toaster oven setup, showing open and closed states with a hand pressing the right (no text or symbols)

Open the door and place the food on the center of the rack. Close the door. Press Start to start the cycle.

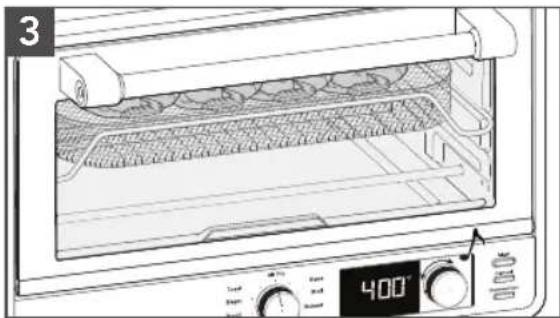

Illustration of a toaster oven with a digital display showing temperature reading (no text or symbols on the oven itself)

When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.

USING THE BAKE FUNCTION

In Bake mode, food will prepare in dry heat like bread, cake, toast etc. Both the top and bottom cooking elements cycle on and off while baking. Recipes will vary and cooking time should be monitored for desired results. For better cooking results, select the correct cooking pan to allow for proper air circulation.

The convection fan can be turned on or off by pressing the Convection button.

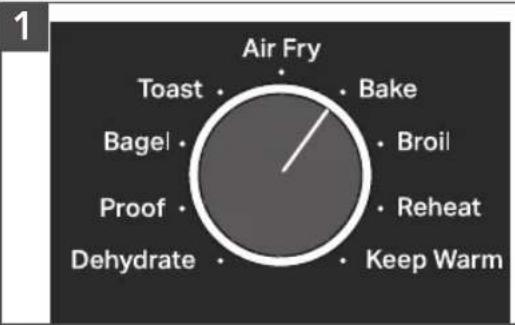

Set the function knob to Bake.

The preset temperature 350^ F will be shown. If desired, rotate knob to adjust.

Press the knob to show preset time. The preset time is 30 minutes. If desired, rotate knob to adjust.

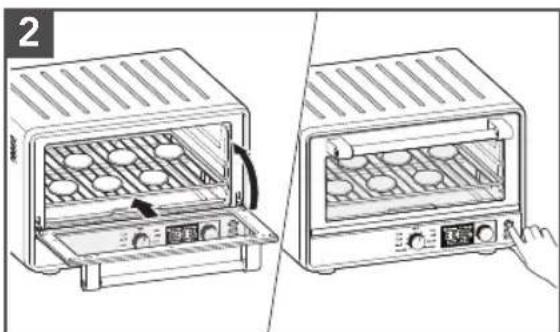

Two-step illustration of a toaster oven setup, showing open and closed doors with ovens and a hand pressing the tray (no text or symbols)

Open the door and place the food on the center of the rack. Close the door. Press Start to start the cycle.

3 Teart Bagar Proof Dripdrate Air Fry Shoe Drill Airheat Deep Warm 350° Start Cancel Connection

When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.

USING THE BROIL FUNCTION

Only the top cooking elements heat when the Broil function is selected. Use the included broil pan and grill directly on the Oven Rack for even browning and easy cleanup. The broil pan and grill may also be used for the Bake and Warm settings.

The convection fan can be turned on or off by pressing the Convection button.

1

Air Fry Toast • • Bake Bagel • • Broil Proof • • Reheat Dehydrate • • Keep Warm

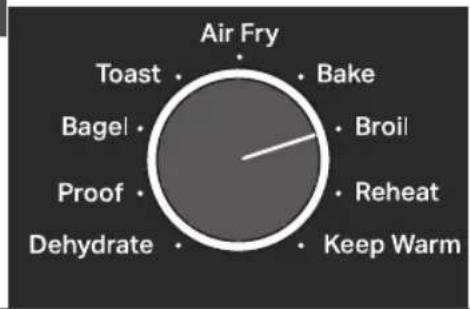

Set the function knob to Broil.

The preset temperature 450^ F will be shown. If desired, rotate knob to adjust.

Press the knob to show preset time. The preset time is 8 minutes. If desired, rotate knob to adjust.

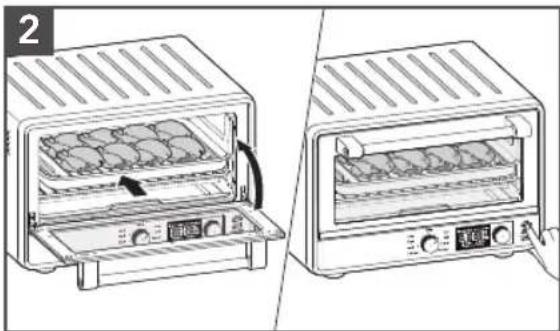

Two-step illustration of a toaster oven with food inside, showing the interior and exterior views (no text or symbols)

Open the door and place the food on the center of the rack. Close the door. Press Start to start the cycle.

3 Toast Air Mix Delta Stage Drill Phone Retireal Dehydrate Drop-Warm 450° Start Cancel Connection

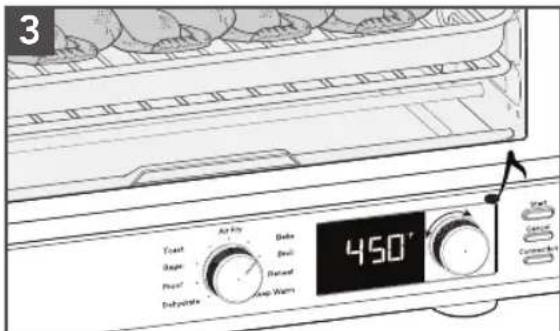

When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.

USING THE REHEAT FUNCTION

In Reheat function oven distributes power to the top and bottom elements to bring food to serving temperature.

The convection fan can be turned on or off by pressing the Convection button.

1

Air Fry Toast Bake Bagel Broil Proof Reheat Dehydrate Keep Warm

Set the function knob to Reheat.

The preset temperature 300^ F will be shown. If desired, rotate knob to adjust.

Press the knob to show preset time. The preset time is 15 minutes. If desired, rotate knob to adjust.

USING THE REHEAT FUNCTION

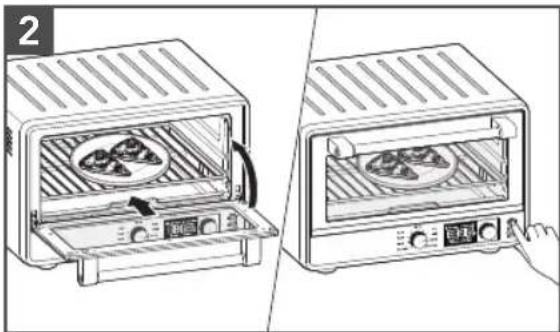

Two-step illustration of a toaster oven setup, showing open and closed views with food being placed inside (no text or symbols)

Open the door and place the food on the center of the rack. Close the door. Press Start to start the cycle.

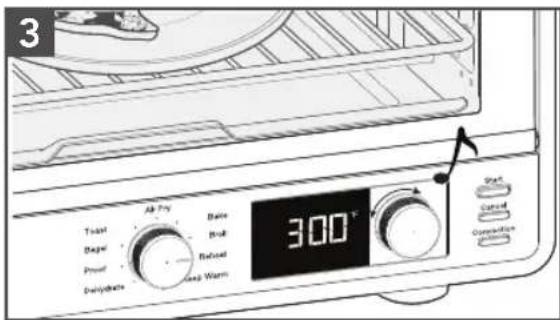

3 Tread Ab Pro Date Book Dagel Book Prout Refool Dehydrate Load Warm Start Cancel Connection

When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.

USING THE KEEP WARM FUNCTION

WARNING

Food Poisoning Hazard

Do not let food sit in oven more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

In Keep Warm mode, your oven distributes power to the bottom elements to keep food warm after cooking, so it may be served hot. The convection fan can be turned on by pressing the Convection button.

1

Air Fry Toast Bake Bagel Broil Proof Reheat Dehydrate Keep Warm

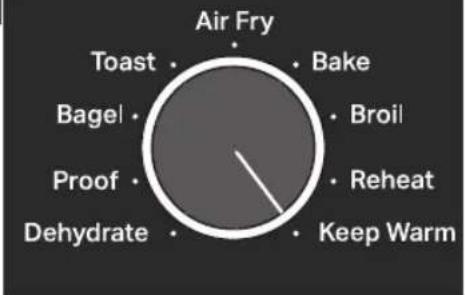

Set the function knob Keep Warm.

The preset temperature 170^ F will be shown. If desired, rotate knob to adjust.

Press the knob to show preset time. The preset time is 1 hour. If desired, rotate knob to adjust.

USING THE KEEP WARM FUNCTION

Two-step illustration of a toaster oven setup, showing front and side views with no text or symbols

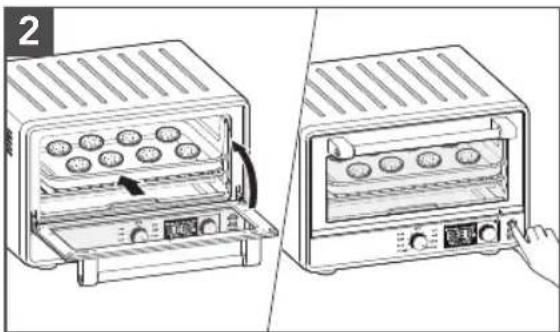

Open the door and place the food on the center of the rack. Close the door. Press Start to start the cycle.

3 Air Key Air Air Air Air Air Air Air 170° Air Air Air Air Air Air Air

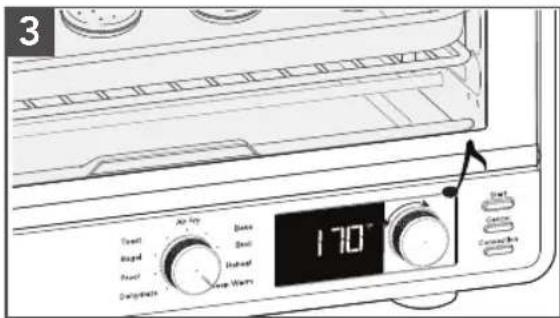

When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.

ENGLISH

CARE AND CLEANING

NOTE: Allow the Air Fryer and accessories to cool completely before cleaning.

1

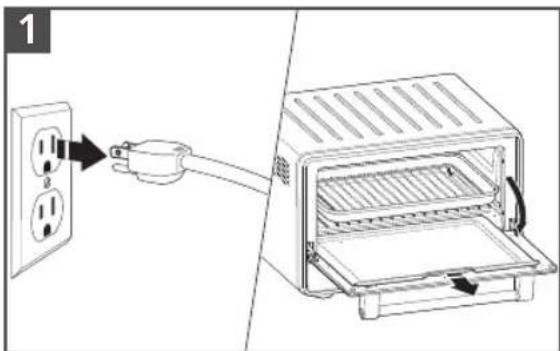

Unplug the Air Fryer from the outlet.

To remove the Crumb Tray, Air Fry Basket, open the door, grasp the Crumb Tray Handle and slide straight out.

Line drawing of a kitchen sink with faucet and plate, no text or symbols present

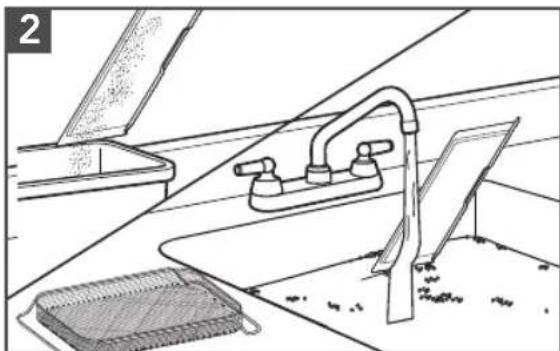

Empty and wash in warm, sudsy water, if needed. Dry with a soft cloth. Open the door and slide it back into place. A soft bristle brush can be used to clean the mesh on the Air Fry Basket.

3

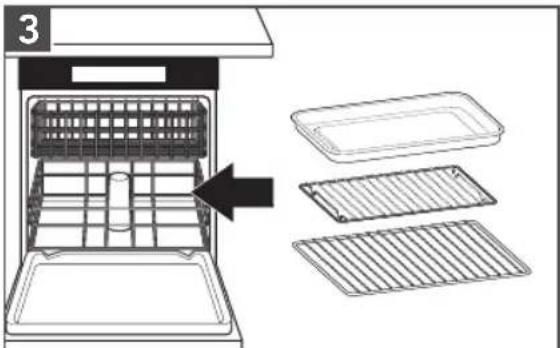

The following parts are dish-washer safe, but hand washing is recommended: Oven Rack, Multipurpose Pan, and Broiling Rack.

IMPORTANT: Do not use cleaning agents, abrasive cleansers, or metal scouring pads on the inner or outer surfaces of the Air Fryer. They could scratch the surface.

INTERIOR: The inside walls of the oven feature a nonstick coating. Remove heavy spatter with a nylon or polyester mesh pad, sponge, or cloth dampened with warm water. Dry thoroughly.

EXTERIOR: Wipe the outside of the Air Fryer with a clean, damp cloth and dry thoroughly.

IMPORTANT: Ensure all parts and surfaces are completely dry before re-use.

TROUBLESHOOTING

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Problem Solution
If the oven fails to start	Check to see if the oven is plugged into a grounded 3 prong outlet.
	Check to see if the fuse in the circuit breaker box to the oven is in working order.
If the problem cannot be corrected	See the “KitchenAid® Warranty and Service” sections.Do not return the Air Fryer to the retailer – retailers do not provide service.
If the wrong temperature unit is displayed	Press and hold the Convection button for 3 seconds to switch between Fahrenheit (°F) and Celsius (°C) temperature units.
Upper cooking elements visibly glow, but bottom cooking elements do not	The upper cooking elements use higher power for better browning performance. The lower cooking elements are on, but may not visibly glow like the upper cooking elements. This is normal and your Air Fryer is working properly.
If “E1 or E2” flashes on the display and a chime sounds	The NTC Sensor may not be working. This issue can not be corrected. Please see the “KitchenAid® Warranty and Service” sections.
If “PF” is shown on the display	The oven will display “PF” when it is powered up for the first time, or has experienced a power failure. If a cooking function was in process, dispose of food; it might not be thoroughly cooked.

LIMITED WARRANTY AND SERVICE

KITCHENAID® PRODUCT WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This limited warranty extends to the original purchaser and any succeeding owner for product operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Limited Warranty from date of delivery.
KitchenAid Will Pay for Your Choice of:	Hassle-Free Replacement of your product. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.ORThe replacement parts and repair labor costs to correct defects in materials and workmanship that existed at the time this product. was purchased. Service be provided by an Authorized KitchenAid Service Center.
KitchenAid Will Not Pay for (What is Not Covered By This Limited Warranty) :	A. Commercial, non-residential, or multiple family use or use inconsistent with product instructions and manuals.B. Defects or damage resulting from accident, alteration, misuse, abuse, fire flood, or acts of God.C. Any shipping or handling costs to deliver your product to an Authorized Service Center.D. Replacement parts or repair labor costs for the product operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.E. Damages, defects, or repairs caused by unauthorized servicers or use of non-genuine or third-party parts; however, use of unauthorized service providers or non-genuine or third-party parts will not void this warranty.F. Cosmetic damage (e.g., scratches, dents, chips, and other damage to finishes), unless damage results from defects in materials and workmanship and is reported to KitchenAid within 30 days from date of delivery.G. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments (e.g., high salt concentrations, high moisture or humidity or exposure to chemicals).H. Products with original, factory-installed model/serial numbers removed, altered or not easily determined.I. Incidental or consequential damages resulting from product failure.J. Consumable parts or accessories.
DISCLAIMER OF IMPLIED WARRANTIESImplied warranties, including any implied warranty of merchantability or implied warranty of fitness for a particular purpose, are limited to ten years or the shortest period allowed by law. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you.
HOW STATE LAW APPLIESThis warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province. Some states and provinces, such as California, do not allow for limitations on the date your warranty coverage begins, so this limitation may not apply to you.

LIMITED WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY—50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your product should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Countertop Oven returned to us. Your replacement unit will also be covered by our one year limited warranty.

If your Countertop Oven should fail within the first year of ownership, simply call our toll-free

Customer eXperience Center at

1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address (no P.O. Box numbers, please).

When you receive your replacement Countertop Oven, use the carton, packing materials, and prepaid shipping label to pack up your original Countertop Oven and send it back to KitchenAid.

HASSLE-FREE REPLACEMENT WARRANTY—CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your product should fail within the first year of ownership due to defects in materials or workmanship, we will replace your product with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty.

I If your product should fail within the first year of ownership, simply call our toll-free

Customer eXperience Center at

1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.

When you receive your replacement product, use the carton, packing materials, and prepaid shipping label to pack up your original product and send it back to KitchenAid.

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to:

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the product for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

For service information in Mexico:

Call toll-free 01-800-0022-767.

®/TM ©2023 KitchenAid. All rights reserved. Used under license in Canada.

PIÈCES ET CARACTÉRISTIQUES

Technical diagram of a toaster oven with numbered parts and labeled interior components

FRANCIALS

Air Fry Toast - Bake Bagel - Broil Proof - Reheat Dehydrate - Keep Warm 13 12 14 Preheating Convection 17 18 19 20 21 15 Shade Slices 16 22 Start Cancel Convection

1 4° (10 cm) 4° (10 cm) 4° (10 cm)

Line drawing of a toaster oven with ventilation grilles and control panel (no text or symbols)

Diagram of a cable plugged into an electrical outlet with two outlets, showing power connection (no text or symbols)

Air Fry Toast Bake Bagel Broil Proof Reheat Dehydrate Keep Warm

Two-step illustration of a food oven with vegetables inside, showing the interior and exterior views (no text or symbols)

Air Fry Toast Bake Bagel Broil Proof Reheat Dehydrate Keep Warm

FRANÇAIS

Two line drawings of a toaster oven with two dish units and control knobs, shown from different angles (no text or symbols)

3 Text! Stage Preel Dehydrates Air Fry Bake Dust Reheat Keep Warm 90°F Heat Cancel Conversion

Two-step illustration of a toaster oven setup, showing front and side views with no text or symbols

Line drawing of a toaster oven with a digital display showing temperature reading (no text or symbols on the oven itself)

FRANÇAIS

Two line drawings of a toaster oven with ovens and a control panel, showing internal structure and operation (no text or symbols)

Two-step illustration of a toaster oven with food inside, showing the interior and exterior views (no text or symbols)

Air Fry Toast Bake Bagel Broil Proof Reheat Dehydrate Keep Warm

FRANÇAIS

Two-step illustration of a toaster oven setup, showing open and closed doors with food inside (no text or symbols)

3 Tread Sugar Proof Derybate All Dry Bake Boil Roasted Deep Warm 300° Gout Control Connection

UTILISER LA FONCTION KEEP WARM (MAINTIEN AU CHAUD)

AVERTISSEMENT

Two-step illustration of a toaster oven setup, showing front and side views with no text or symbols

Line drawing of a kitchen sink with faucet and plate, no text or symbols present

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Technical diagram of a toaster oven with numbered parts and labeled interior components

Air Fry Toast - Bake Bagel - Broil Proof - Reheat Dehydrate - Keep Warm 13 12 14 Preheating Convection 17 18 19 20 21 22 Shade Slices 88:88 °F Hrs Min 15 16

1 4° (10 cm) 4° (10 cm) 4° (10 cm)

Line drawing of a microwave oven with ventilation grilles and control panel (no text or symbols)

Line drawing of a cable inserted into an electrical outlet with two outlets, no text or symbols present

Air Fry Toast Bake Bagel Broil Proof Reheat Dehydrate Keep Warm

Two line drawings of a toaster oven with food inside, showing interior and exterior views (no text or symbols)

3 Tread Air Hot Date Hager Dvd Proof Recell Dehydrate Rear Warm 150° Air Control Connection

Air Fry Toast Bake Bagel Broil Proof Reheat Dehydrate Keep Warm

Line drawing of a two-stop toaster oven with two dish units and control knobs, showing open and closed sections (no text or symbols)

3 Air Fry Bake Bisc 90°F Pre- Bisc Reheat Dehydrate Keep Warm Start Close Connection

Two line drawings of a toaster oven with grilles and control knobs, showing internal components (no text or symbols)

4 Toast Sugel Proof Dehydration Air Fry Bake Brill Renal Keep Warm 4.6 Shade filter Bar Cancel Connector

Two-step diagram showing a toaster oven with grilles and a hand pressing the lid (no text or symbols)

Air Fry Toast Bake Bagel Broil Proof Reheat Dehydrate Keep Warm

Two-step illustration of a toaster oven setup, showing open and closed views with no text or symbols

Illustration of a microwave oven with a digital display showing temperature reading (no text or symbols on the oven itself)

Air Fry Toast Bake Bagel Broil Proof Reheat Dehydrate Keep Warm

Two-step illustration of a toaster oven with grilles and control panel, showing open and closed states (no text or symbols)

Two-step illustration of a toaster oven with food inside, showing the interior and exterior views (no text or symbols)

3 Tread Roasted Proved Roasted Air Fry Make Boat Roasted Deep Warm 450° Control

Air Fry Toast Bake Bagel Broil Proof Reheat Dehydrate Keep Warm

Two-step illustration of a toaster oven with food being opened, showing the interior and exterior views (no text or symbols)

3 Total Digital Provol Dehydrate Air Dry Bare Boil Reheat Cool Warm 300° Start Close Connection

Two line drawings of a toaster oven with food being opened, showing the interior and exterior views (no text or symbols)

3 Tread Air Bag Data Piped Dryer Barrel Piped Delphiate Exhaust Warm 170° Air Control Connection

Line drawing of a kitchen sink with faucet and drawer, no text or symbols present

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

www.kitchenaid.com.mx

de 8:00 a.m. a 6:00 p.m.

8:00 a.m. a 6:00 p.m.

Sábados de 8:00 a.m. a 2:00 p.m.

E-mail: [e-mail]

www.kitchenaid-ca.com

Colombia

web: www.kitchenaid.com.do

Color palette bar with grayscale shades and a small crosshair symbol (no text or labels)

DISCOVER MORE. DÉCOUVREZ PLUS. DESCUBRA MÁS. KITCHENAID.COM/QUICKSTART

White silhouette of a telephone handset on black background (no text or symbols)

PRODUCT QUESTIONS OR RETURNS

QUESTIONS SUR LE PRODUIT OU LES RETOURS

MEXICO: KitchenAid.com.mx

LATIN AMERICA: KitchenAid-Latam.com

KitchenAid®

®/TM ©2023 KitchenAid. All rights reserved. Used under license in Canada.

W11407666E

09/23
