Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before Initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Battery voltage DC 29,6 V
Input 450 W
Sound level ≤ 85 dB
Battery 2 500 mAh
Operating hours	≥ 15 min high power/ ≥ 30 min medium power/ ≥ 45 min low power
Full charging time ≤ 3,5 h
Dust container capacity 0,6 l

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Make sure the mains voltage and current protection correspond to the values on the rating plate of the charging station.
• Do not leave the appliance without supervision when it is turned on.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the charger and disconnect it by removing it from the receptacle. Charging adapter always disconnect with dry hands!
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Pay extra attention if the appliance is used near children.
• Do not use the appliance as a toy.
• Do not use any accessories other than those recommended by the manufacturer.
• Do not use a charger with a damaged cord or plug and have it repaired immediately by an authorized service centre.
• Keep the appliance away from heat sources such as radiators, ovens and other, protect it from direct sunlight and humidity.
• Do not touch the appliance with wet hands.

• Do not insert any objects into the openings. Do not use the appliance if any of the openings is clogged.
  • Take extra caution when vacuuming on stairs.

• If the appliance intake is clogged, switch off the appliance and remove the dirt before switching on again.

• When attaching accessories during cleaning or in the event of a malfunction, switch off the appliance and disconnect the charger from wall socket.
• The appliance is only suitable for home use and is not intended for commercial use.
• Do not use or charge the appliance outdoors.
• Do not vacuum anything burning like cigarettes, matches or hot ash.
• Do not use the appliance in rooms with increased air humidity, do not vacuum flammable liquids such as petrol and do not use the appliance in rooms where these substances may be present.
• Never vacuum without vacuum cleaner filters. Every time you use the appliance, make sure the vacuum cleaner filters are properly installed.
• Do not immerse the power cord or the charger in water or any other liquid.
• Check the appliance and the charger cord for damage regularly.
• Do not use the appliance if it is not working properly, if it has been dropped, damaged or immersed in liquid. Have it inspected and repaired by an authorized service center.
• Before cleaning and after use of the appliance, switch off the appliance and allow it to cool down.
• Before vacuuming, remove all large or sharp objects from the surface intended for vacuum cleaning, such objects may damage the vacuum cleaner filter.
• Do not use the appliance with dirty filters.
• Do not put the battery in fire or expose it to temperatures above 40 °C.
• Under extreme temperature conditions, the battery may leak fluid. If fluid gets on the skin, wash immediately with soap and water. In case of eye contact, immediately rinse under running water for at least 10 minutes. Locate medical attention. Keep hair, fingers and loose clothing well away from moving parts of the appliance.
• Do not touch the moving parts of the appliance during operation.
• Do not repair the appliance yourself. Contact an authorized service centre.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and

EN

concept

concept

EN

understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are at least 8 years old and under supervision.

- Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

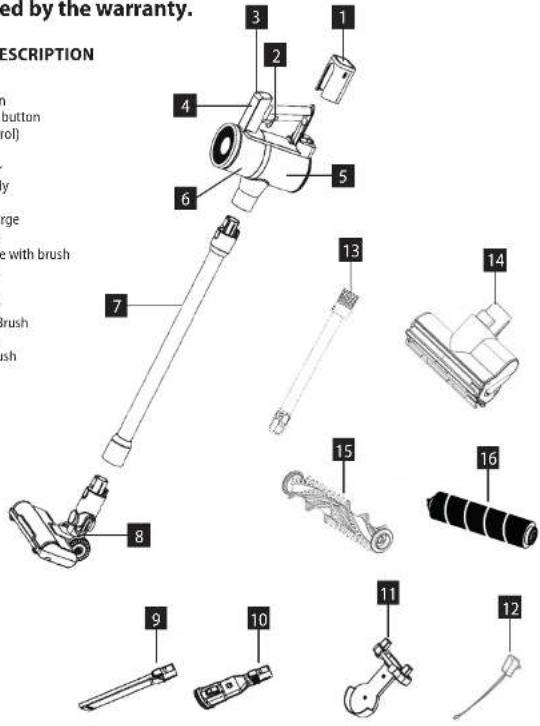

PRODUCT DESCRIPTION

1 Accumulator
2 ON/OFF button
3 Power control button (Speed Control)

4 Display

5 Dust container

6 Appliance body

7 Suction tube

1. Turbo brush large

9 Slotted nozzle

10 Slotted nozzle with brush

11 Wall bracket

12 Adapter

13 Flexible hose

14 Small Turbo Brush

15 Carpet brush

16 Hardfloor brush

ED by the warranty. DESCRIPTION 3 1 2 4 5 6 7 8 13 14 15 16 9 10 11 12

OPERATING INSTRUCTIONS

Vacuum cleaner assembly

Always switch off the vacuum cleaner and remove the charging adapter from the power socket before assembling or removing accessories!

1. Insert the suction tube into the hand-held unit of the vacuum cleaner, you will hear a click. To remove the tube from the hand-held unit, press the lock button and pull to disconnect.
2. Insert the turbo brush into the suction tube, you will hear a click. To remove the turbo brush from the suction tube, press the lock button and pull to disengage. The turbo brush can be connected to the handheld unit in the same way. Note: To use other accessories, follow the same procedure.

CHARGE

Note: Fully charge the battery before first use.

• Connect the adapter to the charging port on the right side of the battery and plug the plug into a power outlet. The display shows the current state of charge of the battery.
• During charging, the battery indicator flashes, and when the appliance is fully charged, the battery indicator lights up and the display shows 100.
• The battery can also be charged separately. To remove the battery, press the button on the bottom of the battery and pull backwards to remove the battery. If the charging indicator on the battery flashes, it means it is charging.
• If the indicator is still lit, the battery is fully charged.

Note: In case of inactivity, the display will go out after about 10 minutes after the battery is fully charged; if you are charging the battery separately, the charging indicator will not light up.

• If the battery is low, the battery indicator will flash. At that point, charge the device.
  • To prolong the battery life, it is recommended not to discharge the battery completely.
• Do not store or charge the battery in a place where the temperature is below 5 °C or above 40 °C.

USE

Insert the battery into the body of the handheld unit, you will hear a click.
1. Press the ON/OFF button on the handle to switch on the appliance.
2. Press the Speed Control button to toggle the Low/Medium/High setting of the vacuum cleaner (default setting is Medium). The display shows the current power and the current battery level.
3. Press the on/off button again to turn the vacuum cleaner off.
Note: We recommend using the high power handheld unit for heavily soiled surfaces or carpets with medium or high pile.

ACCESSORIES

Choose accessories according to the nature of the surface to be cleaned.
Slotted nozzle - suitable for wall corners, car padding, radiators, etc.
Slotted nozzle with brush - suitable for bed linen, fabric, sofas, shelves, curtains, etc.
Turbobrush small - suitable for bed linen, fabric, sofas, etc.
Hardfloor brush - suitable for hard floors.
Carpet brush - suitable for carpets and other types of floors.

Technical line drawing of two mechanical components with arrows indicating assembly or transformation (no text or symbols)

EN

concept

concept

EN

EMPTYING THE DUST CONTAINER

To maintain the suction power of the vacuum cleaner, we recommend emptying the dust container after each use.

Make sure the vacuum cleaner is switched off. To empty the dust container, press the empty button. Open the container, empty the dust and close the container cover.

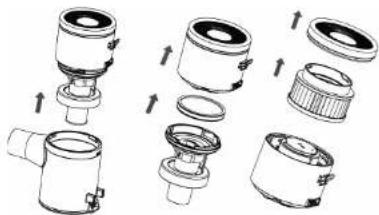

CLEANING FILTERS

Press the button on the handheld unit and lift off the hook to separate the handle from the dust container. To reinstall the handle, place the top of the handle on the dust container hook and then snap the bottom of the handle back on, you will hear a click.

1. Turn the engine cover and remove it from the dust container.
2. Remove the cloth filter
3. Remove the coarse filter by turning it. Remove the centre part of the coarse filter by turning the inner part of the coarse filter.
4. Turn the air outlet cover and remove the Hepa filter.
5. The coarse filter and Hepa filter can be cleaned by tapping, rinsing under running water or cleaning with a brush. Note: Do not dry the Hepa filter in the sun. It is recommended to replace the Hepa filter once/year. The fabric filter can be cleaned by tapping/blowing and possibly rinsing with water, but using water will reduce the level of filtration. It is recommended to change the fabric filter every 2-3 months.
6. Put the cleaned dry filters back in. Make sure that the lifting strip on the fabric filter is facing upwards.
7. Make sure all parts are seated correctly.
8. We recommend cleaning the filters regularly.

Exploded view diagram of a mechanical assembly showing exploded views of components (no text or labels)

BRUSH CLEANING

Press the button to release the brush and lift off the cover. Remove and clean the brush.

After cleaning, replace the brush and secure with the cap.

Note: With prolonged use, a large amount of hair, thread, etc. can get caught on the roller. In the event of a large amount of hair, the brush may stop the appliance. It is necessary to clean the brush regularly.

Technical diagram showing a mechanical assembly with cross-sectional view and exploded view (no text or labels)

VACUUM CLEANER STORAGE

The vacuum cleaner can be safely hung using the wall mounting bracket supplied with the product. This prevents the product from tipping over and causing damage.

SERVICE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
  • Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without notice and we reserve the right to change them.
