USER MANUAL Cardio Fit M40 TUNTURI

Icon depicting a document with a globe symbol and 'WWW' text, no readable text or symbols beyond the graphic design.

A

B

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with three bolted joints (no text or symbols)

No.2

Technical line drawing of a mechanical component with three bolted pins (no text or symbols)

No.3

Technical line drawings of four different mechanical components or housing designs (no text or symbols present)

No.4 (L/R)

AAA size 3 battery - 2x ##A Wrench (513/15/19) - 1x

Simple line drawing of an open book with a lowercase 'i' symbol on the right page (no text or labels)

C

AAA size Battery - 2x #A Wrench (S13/15/19) - 1x

D-00

100 cm 100 cm 100 cm 100 cm

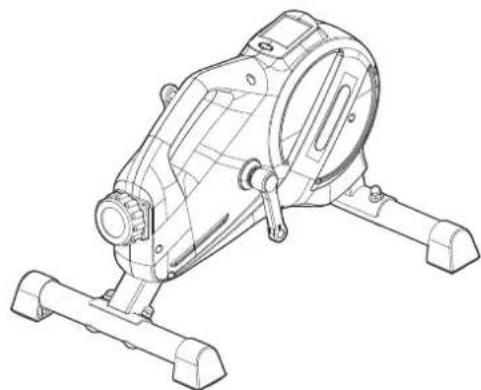

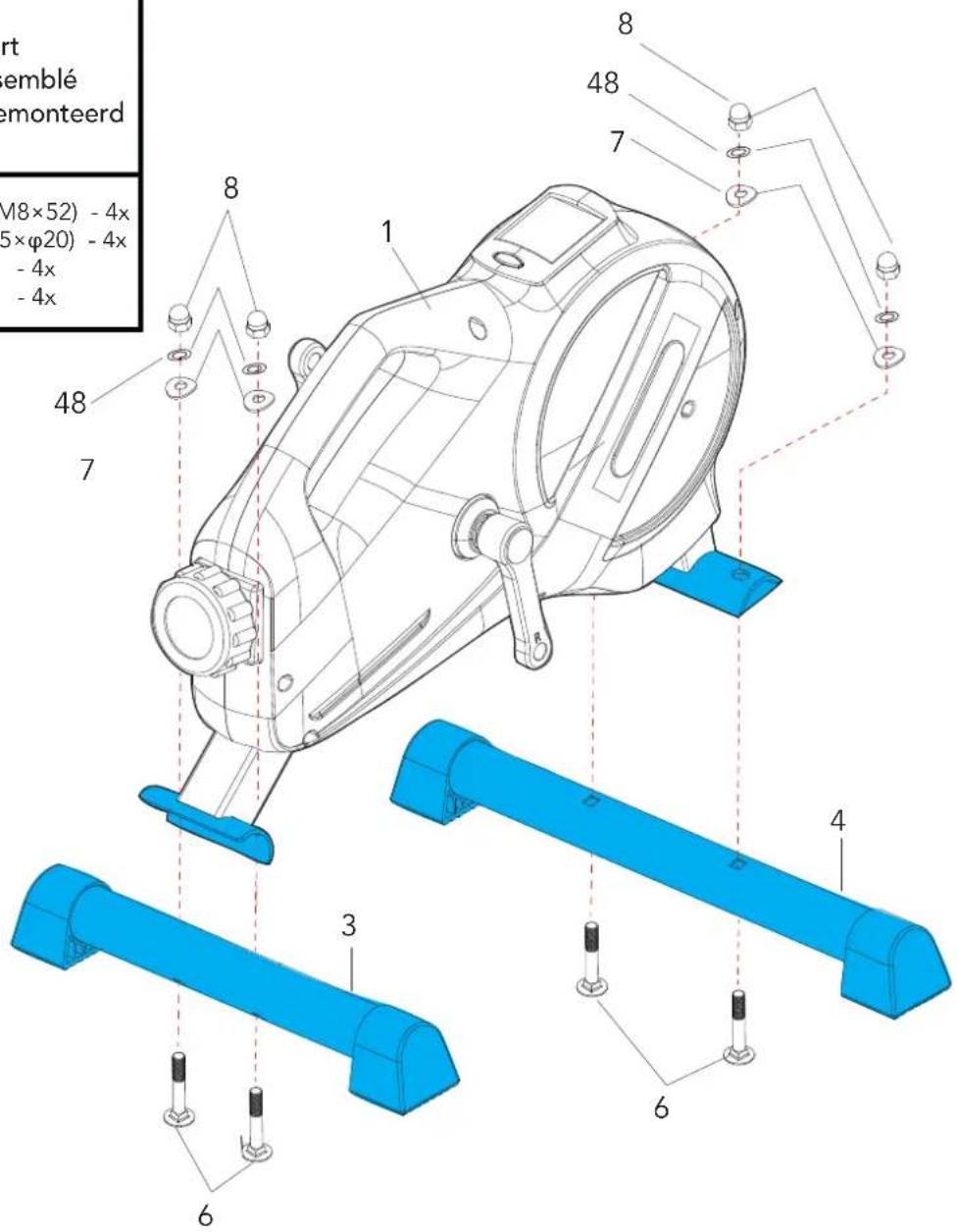

D-01

No. 6 Square Neck Bolt (M8×52) - 4x

No. 7 Arc Washer (D8×1.5×φ20) - 4x

No. 8 Domed Nut (M8) - 4x

No.48 Spring washer (D8) - 4x

art semblé emonteerd (M8×52) - 4x (5×φ20) - 4x - 4x - 4x 1 8 7 48 8 48 7 3 6 4 6

Technical line drawing of a mechanical device with mounting legs and internal components (no text or symbols)

Simple line drawing of two cylindrical objects with a central hole, labeled 'AA' (no text or symbols on the objects themselves)

AAA size Battery - 2x

Blue abstract geometric shape resembling a stylized tool or bracket (no text or symbols)

A Wrench (S13/15/19) - 1x

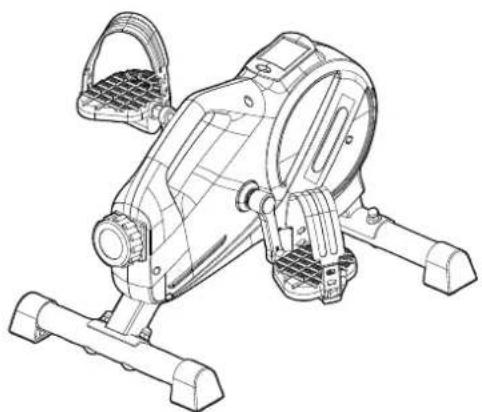

D-02

TUNTURI®

Icon of a person holding a YouTube logo, no text or symbols present

Scan to see YouTube tutorial

R

10L 13L 13R 10R

Diagram showing a mechanical assembly with labeled parts and a red downward arrow indicating process flow.

Technical line drawing of a mechanical exercise machine (no text or symbols)

AAA size Battery - 2x

Blue stylized wrench icon on white background (no text or symbols)

A Wrench (S13/15/19) - 1x

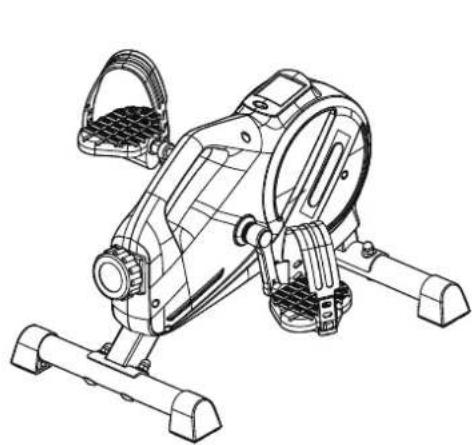

D-03

Technical diagram showing assembly steps of a robotic device with labeled parts and a close-up of the internal component.

Technical line drawing of a mechanical exercise machine (no text or symbols)

AAA size Battery - 2x

Pure mechanical part outline without any text, numbers, or symbols

A Wrench (S13/15/19) - 1x

D-04

44 2 3 4 5 678 1 LOW HIGH TENSION CONTROL 44

D-05

Black Tunturi exercise machine with green and black body, mounted on a tripod stand (no visible text or symbols)

Index

Safety warnings....10

Assembly instructions....10

Description (fig. A) 10

Package contents (fig. B & C) 10

Assembly (fig. D) 11

Additional assembly information ....11

Additional information 11

Use....11

Resistance Adjustment Instructions ....11

Battery Replacement Instructions ....11

Console....11

Explanation of buttons 12

Operation....12

Connecting to an APP via BT....12

Using the added strap....12

Cleaning and maintenance....12

Defects and malfunctions 12

Transport and storage 12

Warranty....12

Technical data....13

Declaration of the manufacturer ....13

Disclaimer....13

Safety warnings

WARNING

- Read the safety warnings and the instructions. Failure to follow the safety warnings and the instructions can cause personal injury or damage to the equipment. Keep the safety warnings and the instructions for future reference.

• The equipment is suitable for domestic use only. The equipment is not suitable for commercial use.
• Max. usage is limited to 2 hrs a day.
• The use of this equipment by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety must give explicit instructions or supervise the use of the equipment.
• Before starting your workout, consult a physician to check your health.
• If you experience nausea, dizziness or other abnormal symptoms, immediately stop your workout and consult a physician.
• To avoid muscular pain and strain, start each workout by warming up and finish each workout by cooling down. Remember to stretch at the end of the workout.
• The equipment is suitable for indoor use only. The equipment is not suitable for outdoor use.
• Only use the equipment in environments with adequate ventilation. Do not use the equipment in draughty environments in order not to catch a cold.
• Only use the equipment in environments with ambient temperatures between 10 °C and 35 °C. Only store the equipment in environments with ambient temperatures between 5 °C and 45 °C.
• Do not use or store the equipment in humid surroundings. The air humidity must never be more than 80%.
• Only use the equipment for its intended purpose. Do not use the equipment for other purposes than described in the manual.
• Do not use the equipment if any part is damaged or defective. If a part is damaged or defective, contact your dealer.
• Keep your hands, feet and other body parts away from the moving parts.
• Keep your hair away from the moving parts.
• Wear appropriate clothing and shoes.
• Keep clothing, jewellery and other objects away from the moving parts.
• Make sure that only one person uses the equipment at a time. The equipment must not be used by persons weighing more than 100 kg (220 lbs).
• Do not open equipment without consulting your dealer.

Assembly instructions

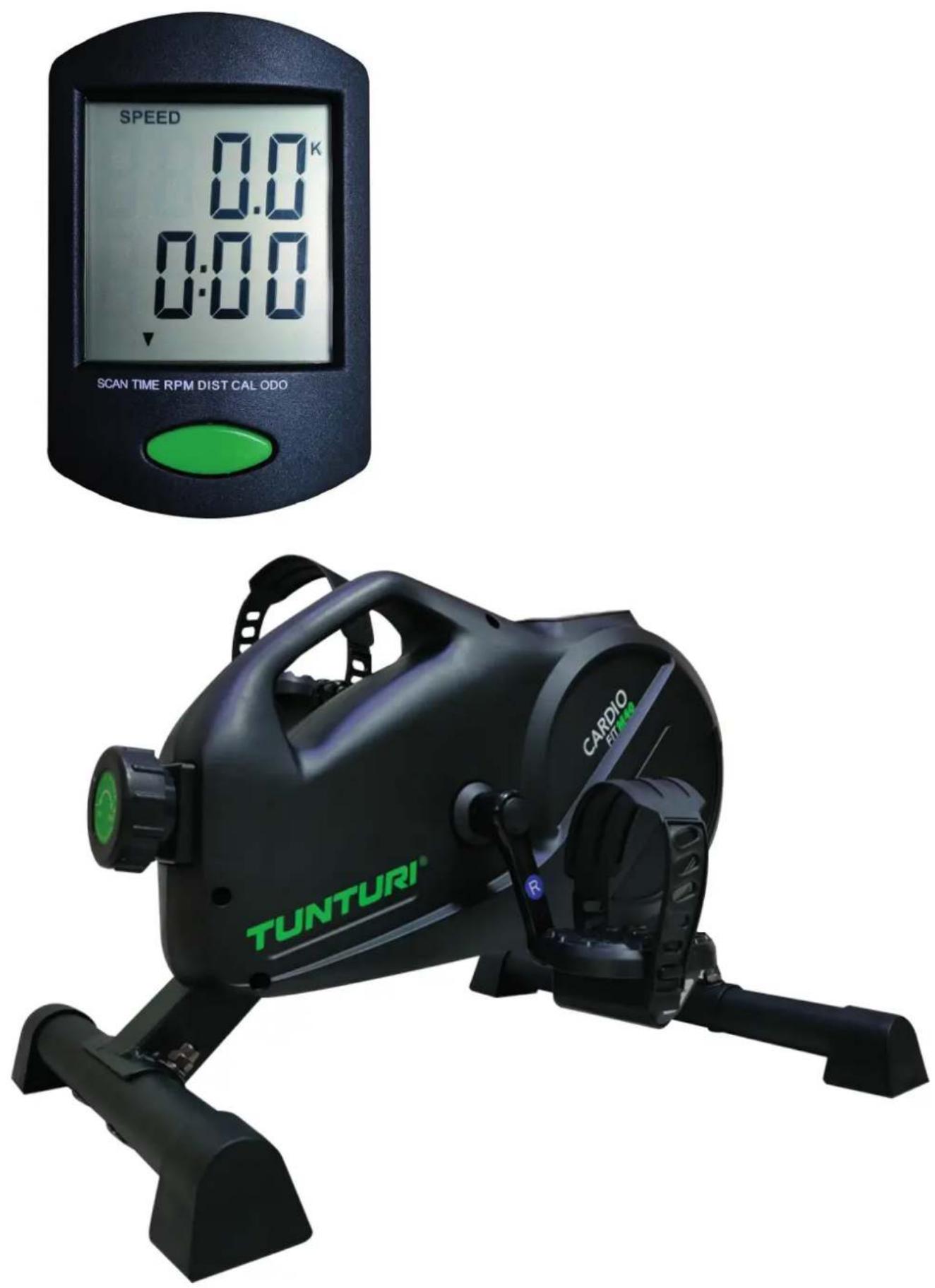

Description (fig. A)

Your upright bike is a piece of stationary fitness equipment used to simulate cycling without causing excessive pressure to the joints.

Package contents (fig. B & C)

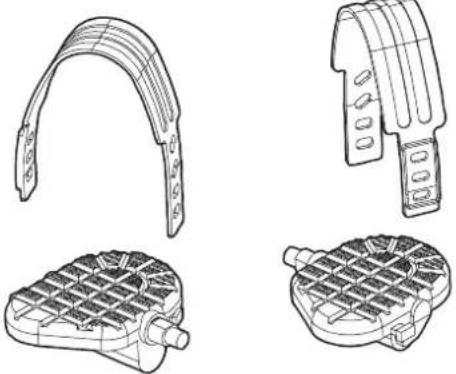

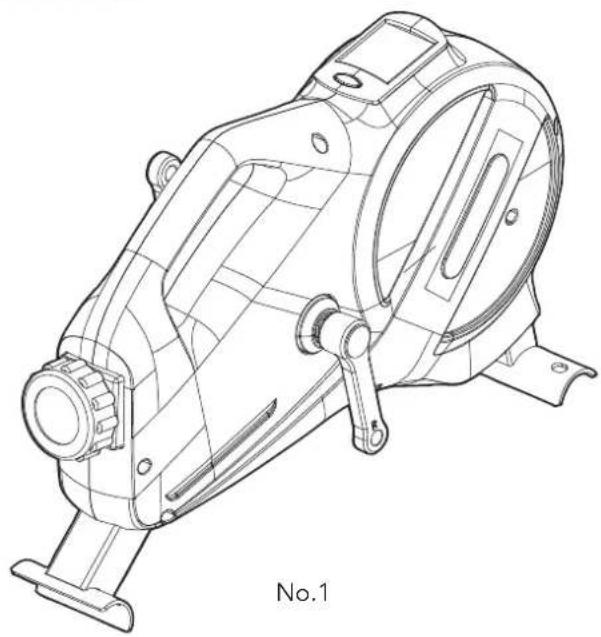

• The package contains the parts as shown in fig. B.

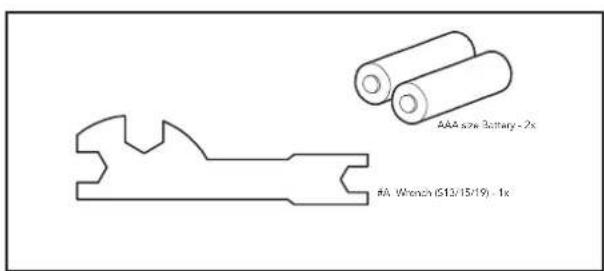

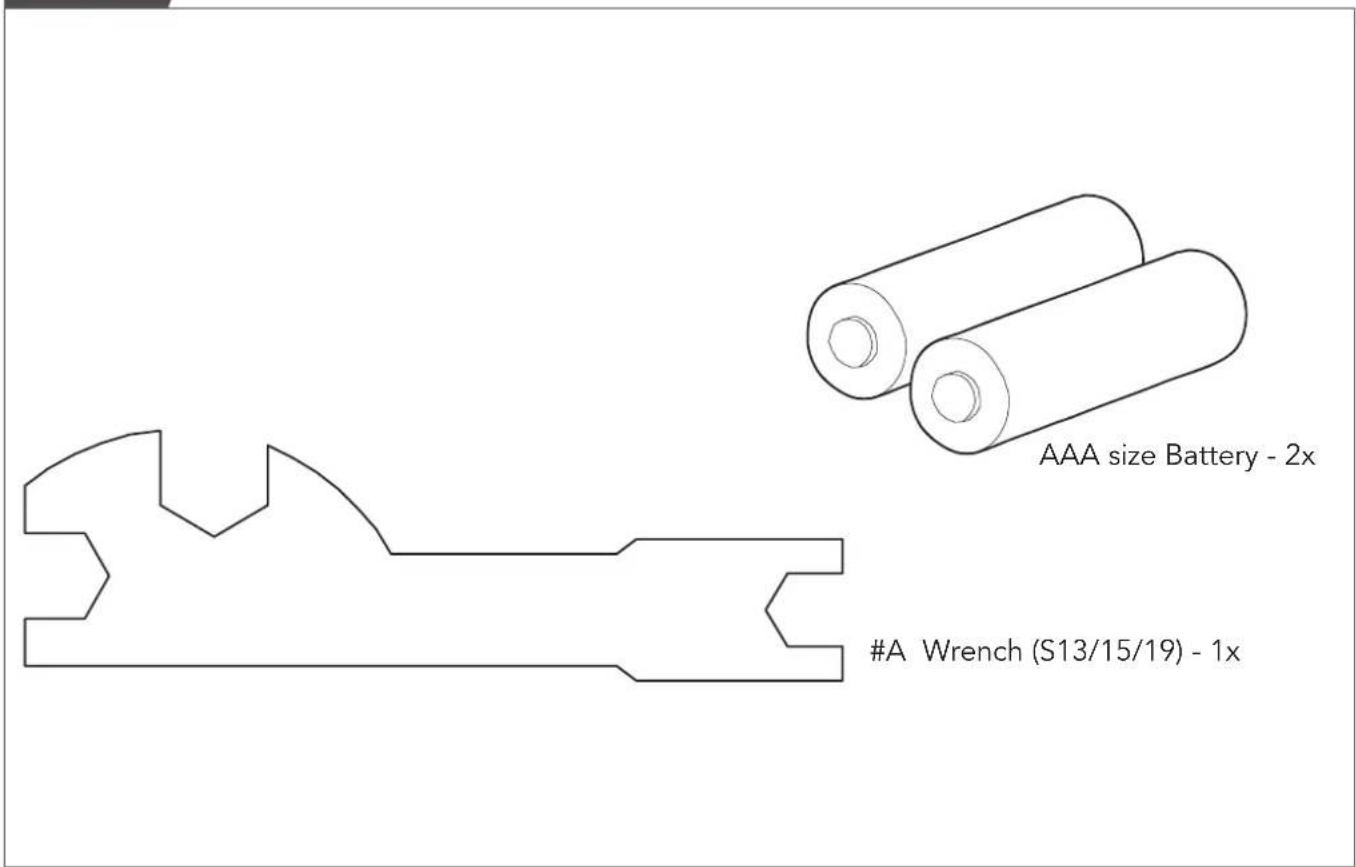

• The package contains the fasteners as shown in fig. C. Refer to the section "Description"

• If a part is missing, contact your dealer.

Assembly (fig. D)

WARNING

• Assemble the equipment in the given order.
• Carry and move the equipment with at least two persons.

WARNING

• Place the equipment on a firm, level surface.
• Place the equipment on a protective base to prevent damage to the floor surface.

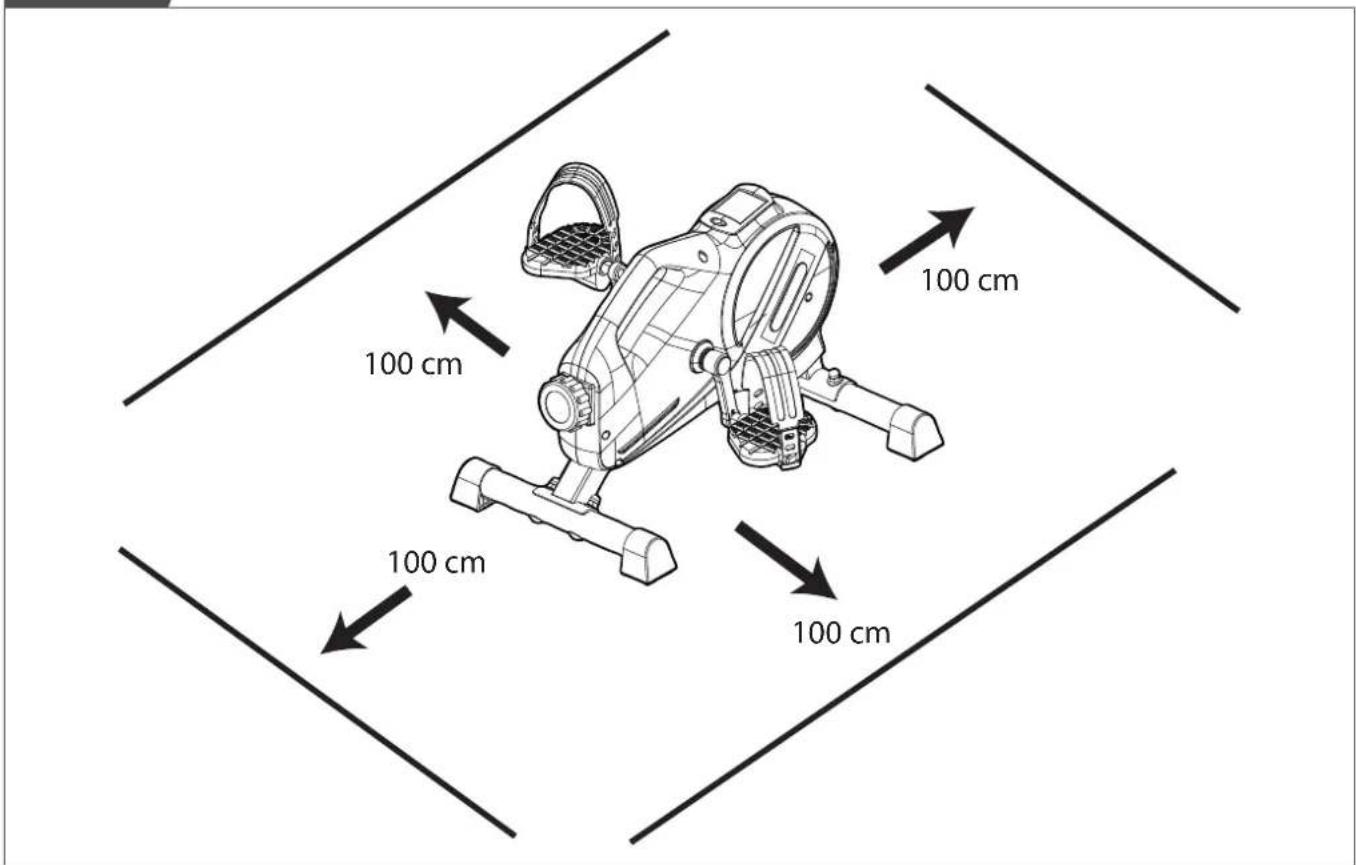

• Allow at least 100 cm of clearance around the equipment.
• Refer to the illustrations for the correct assembly of the equipment.

Additional assembly information

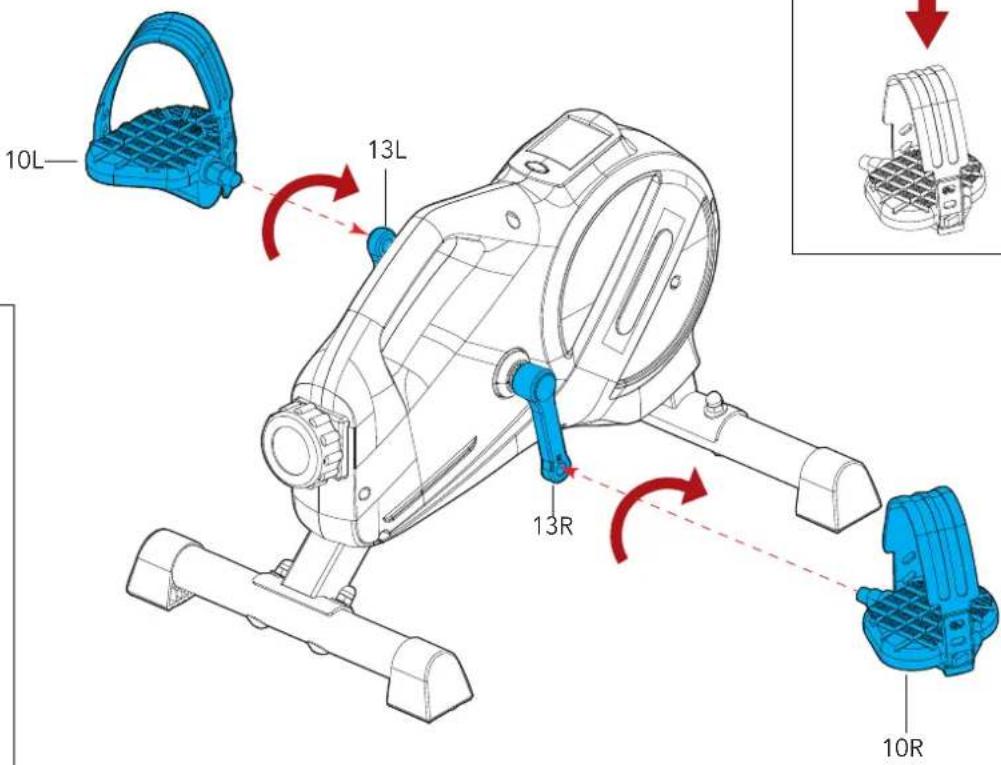

D2 How to fit the pedals correctly

NOTE

- Right and left side are determined from an exercising positions perspective.

Right hand pedal

Find the "R" or "L" mark on the pedal axle

• Fit the right hand pedal "R" into the right hand crank.
• Firstly turn the pedal axle in clockwise direction by hand.
• Use the wrench to fully tighten the pedal.

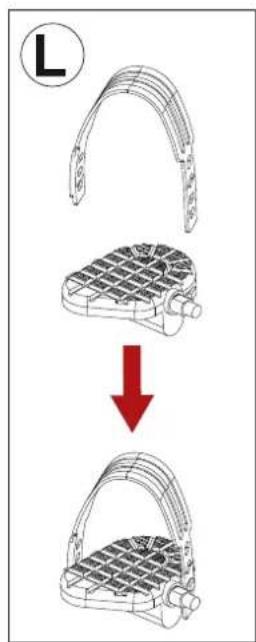

Left hand pedal

• Fit the left hand pedal "L" into the left hand crank.
• Firstly turn the pedal axle in counter-clockwise direction by hand.
• Use the wrench to fully tighten the pedal.

Click to see our supportive YouTube video https://youtu.be/Devel2ZhCAc

NOTE

- Save the tools provided with this product, after you completed the product assembly, for future service purposes.

Additional information

Packaging disposal

Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres.

End of life disposal

We at Tunturi hope you enjoy many years of enjoyable use from your fitness trainer. However, a time will come when your fitness trainer will come to the end of its useful life. Under 'European WEEE Legislation you are responsible for the appropriate disposal of your fitness trainer to a recognised public collection facility.

Use

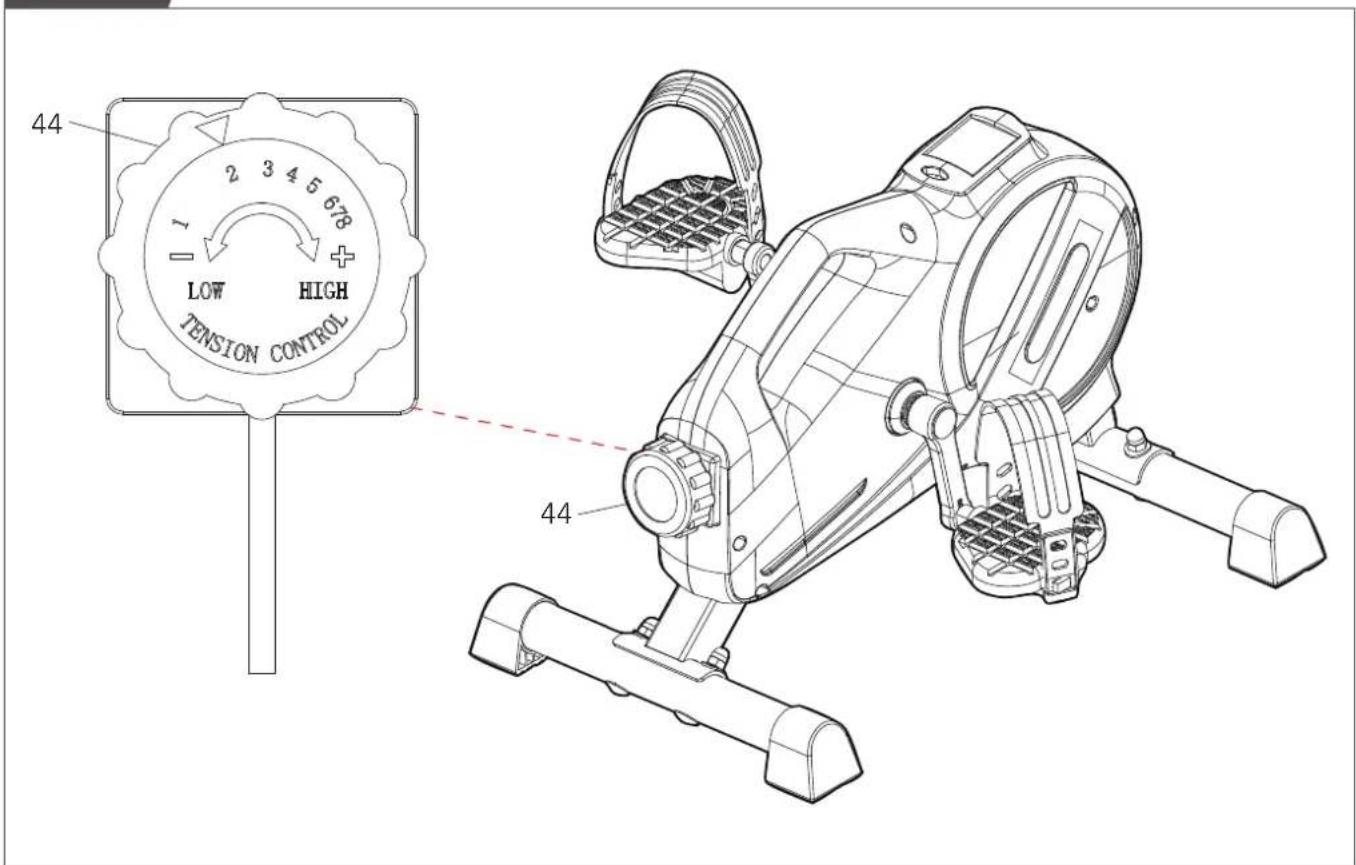

Resistance Adjustment Instructions

• Rotate 8-level resistance controller (44) with the arrow aligned with the gear number as shown in Fig. D-4.
• Turn clockwise to gradually increase resistance.
• Rotate counterclockwise to gradually decrease resistance.
• The number 8 has the highest resistance and the number 1 has the lowest resistance.

Battery Replacement Instructions

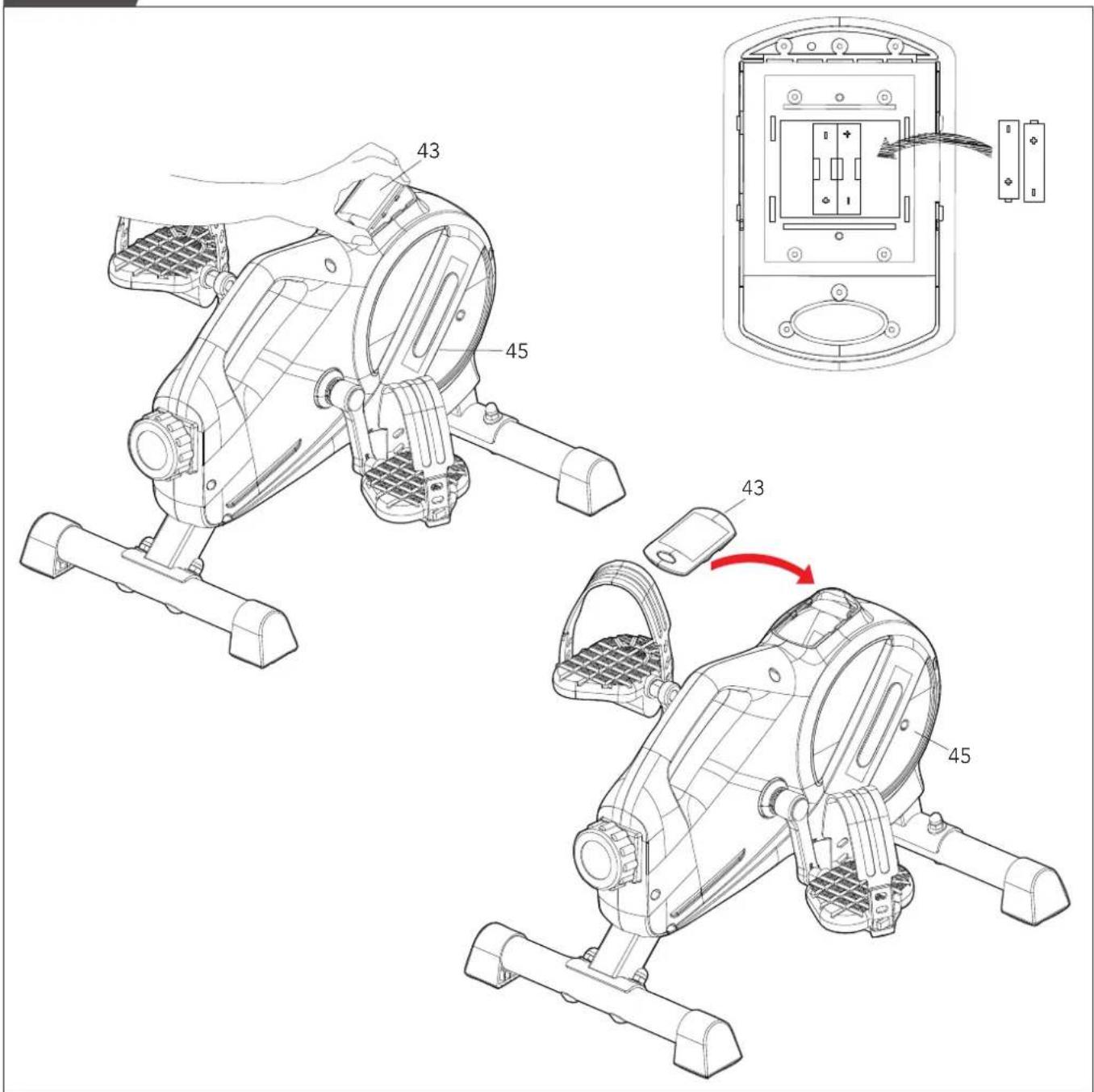

When it is necessary to replace the battery, as shown in Fig. D-3, use your hand to force the monitor(43) upward out of the chain cover (45), eject the monitor (43), replace the battery with a new one, and then put the monitor (43) back on the chain cover (45).

NODE

- Empty batteries should always be recycled per your Local legal regulations to save the environment.

WARNING

• Do not expose batteries to big temperature changes to prevent the batteries from leaking.
  • To prevent your batteries from leaking, take them out if you plan on not using your device for longer periods of time.
• When inserting multiple batteries into a device, always use the same brand, the same type, and the same energy level.

Console

WARNING

• Keep the console away from direct sunlight.
• Dry the surface of the console when it is covered with drops of sweat.
• Do not lean on the console.
• Only touch the display with the tip of your finger. Make sure that your nails or sharp objects do not touch the display.

NOTE

- The console switches to sleep mode when the equipment is not used for 2 minutes.

Scan

- Function display change every 6 seconds, TIME, RPM, DIST, CAL, ODO

Time

• Automatically accumulates workout time when exercising.
• Display range: 0:00 \~ 99:59.

Speed

• Displays current training speed. (Always displayed)
• Range: 0.0 \~ 99.9 KM/h
• Without any signal being transmitted into the monitor for 4 seconds during workout, SPEED will display "0.0"

Odo

• Automatically accumulates the Total Rotations for all exercise sessions.
• Range: 0.00 \~ 99.99 KM

Rpm

• Displays the Rotation Per Minute.
• Display range: 0 \~ 15 \~ 999.
• Without any signal being transmitted into the monitor for 4 seconds during workout, RPM will display "0"

Dist

• Automatically accumulates the distance from exercise when exercising.
• Range: 0.00 \~ 99.99 KM

Cal

• Automatically accumulates calories burnt when exercising.
• Range: 0.0 \~ 999.9

NOTE

- This data is a rough guide for comparison of different exercise sessions which cannot be used in medical treatment

Explanation of buttons

Mode/ Reset

• Press Mode/ Reset button to select console functions.
• Push and hold for 5 seconds in, stop Mode/ Reset, to reset: Time, Distance, Calories.

Operation

Power on

• Press any key to power on the console when being in sleep mode.
• Start pedalling to power on the console when being in sleep mode.

Power off

Without any signal being transmitted into the monitor for 2 minutes, the monitor will enter SLEEP mode automatically.

Connecting to an APP via BT

This machine is equipped with bluetooth and can therefore transmit the values to an app like Tunturi Routes or Zwift.

You can connect the machine with the app using the following BT-name: TUN-CF-XXXX.

XXXX is a four digit number that varies per trainer.

• This console can connect with an APP on a smart device by Bluetooth (iOS & Android).
• Establish the Bluetooth connection only via the connection mode on the installed APP on your smart device.

For pairing instructions we want to ask you to check the pairing instructions with the APP provider.

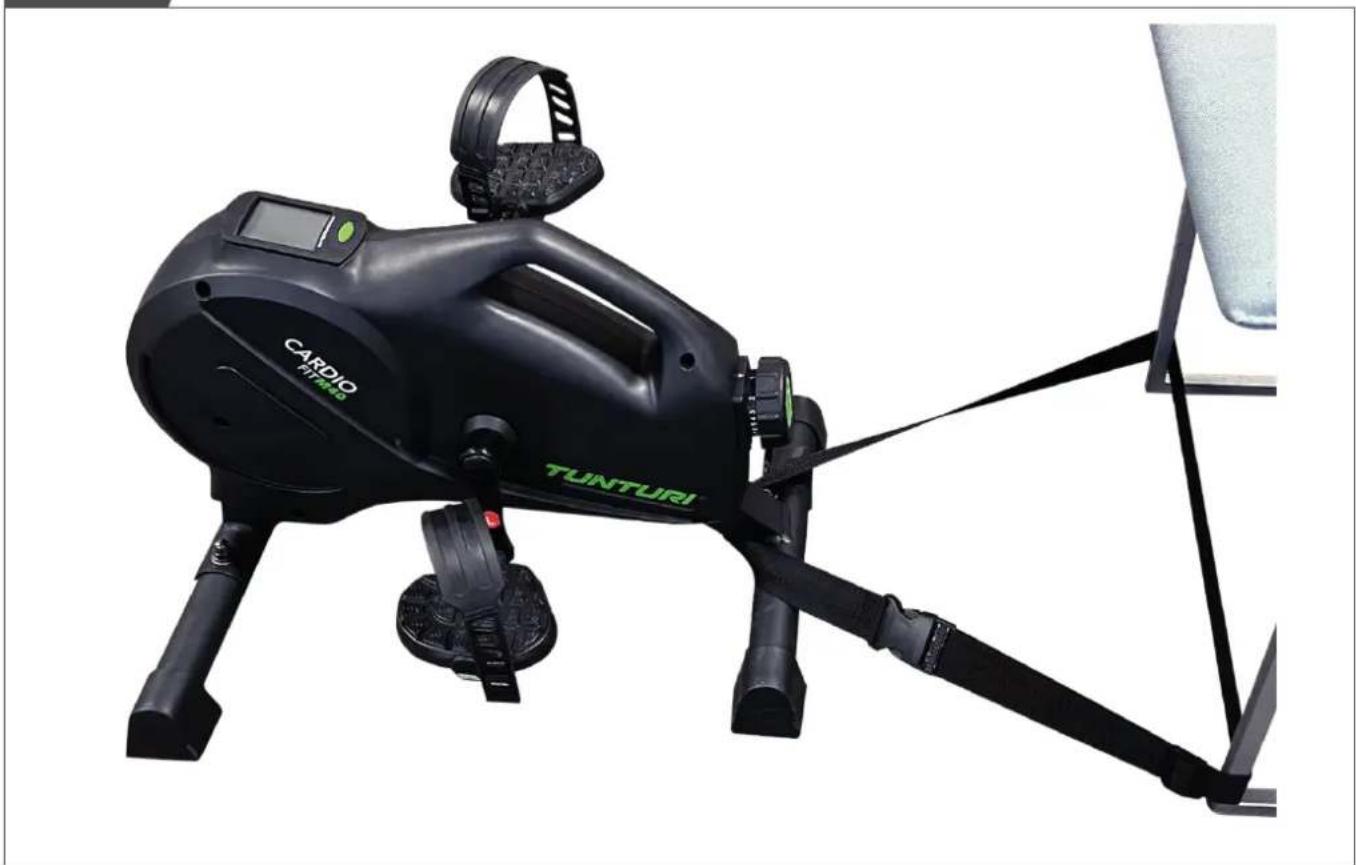

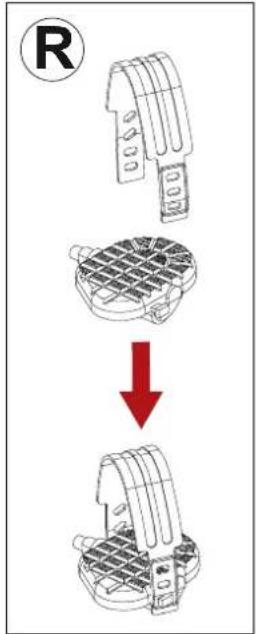

Using the added strap

The bike is equipped with antislip feet, but if you feel like the bike is slipping away you can add a strap for extra support. You can connect the strap to a chair as seen in Fig. D-5.

Cleaning and maintenance

The equipment does not require special maintenance. The equipment does not require recalibration when it is assembled, used and serviced according to the instructions.

WARNING

• Do not use solvents to clean the equipment.
• Clean the equipment with a soft, absorbent cloth after each use.
  • Regularly check that all screws and nuts are tight.

Defects and malfunctions

Despite continuous quality control, defects and malfunctions caused by individual parts can occur in the equipment. In most cases, it will be sufficient to replace the defective part.

• If the equipment does not function properly, immediately contact the dealer.
• Provide the model number and the serial number of the equipment to the dealer. State the nature of the problem, conditions of use and purchase date.

Transport and storage

WARNING

• Carry and move the equipment with care.
• Move the equipment and carefully put the equipment down.
• Place the equipment on a protective base to prevent damage to the floor surface.
• Move and lift the equipment carefully over uneven surfaces.
• Do not move the equipment by grabbing the pedals, but use the assigned handle on top of the housing.
• Store the equipment in a dry place with as little temperature variation as possible.

Warranty

Tunturi purchaser's warranty

Warranty terms

The consumer is entitled to the applicable legal rights stated in the national legislation concerning the commerce of consumer goods. This warranty does not restrict these rights. The Purchaser's Warranty is only valid if the item is used in an environment approved by Tunturi New Fitness BV, and is maintained as instructed for that particular equipment. The product-specific approved environment and maintenance instructions are stated in the "user manual" of the product. The "user manual" can be downloaded from our website. http://manuals.tunturi.com

Warranty conditions

The warranty conditions commence from the date of purchase. Warranty conditions may vary per country, so please consult your local dealer for the warranty conditions.

Warranty coverage

Under no circumstances shall Tunturi New Fitness BV or the Tunturi Distributor be liable by virtue of this warranty or otherwise for any special, indirect, secondary or consequential damages of any nature arising out of any use or inability to use this equipment.

Warranty limitations

This warranty covers manufacturing defects in the fitness equipment as originally packed by Tunturi New Fitness BV. The warranty shall apply only under conditions of normal, recommended use of the product as described in the Owner's Manual and providing that Tunturi New Fitness BV's instructions for installation, maintenance and use have been complied with. Neither Tunturi New Fitness BV's nor the Tunturi Distributors' obligations apply to defects due to reasons beyond their control. The warranty applies only to the original purchaser and is valid only in countries where Tunturi New Fitness BV has an authorised importer. The warranty does not extend to fitness equipment or components that have been modified without the consent of Tunturi New Fitness BV. Defects resulting from normal wear, misuse, abuse, corrosion, or damage incurred during loading or transportation are not covered.

The warranty does not cover sounds or noises emitted during use where these do not substantially impede the use of the equipment and where they are not caused by a fault in the equipment. The warranty does not cover defects arising from the failure to carry periodic maintenance as outlined within the Owner's Manual for the product. Furthermore, the warranty does not cover defects arising from usage and storage within an unsuitable environment as described within the Owner's Manual which should be indoors, dry, dust and grit free and within a temperature range of +15°C to +35°C.

The warranty does not cover maintenance activities, such as cleaning, lubricating, and normal part adjustments, nor installation

procedures that customers can accomplish themselves, such as changing uncomplicated meters, pedals and other similar parts not requiring any dismantling/reassembling of the fitness equipment.

Warranty repairs carried out by other than authorised Tunturi representatives are not covered.

Failure to follow the instructions given in the Owner's Manual will invalidate the product's warranty.

Technical data

Parameter Unit of measurement Value

Length cm		51.5
	inch	20.3
Width cm		45
	inch	17.7
Height cm		35
	inch	13.8
Weight kg		8.6
	lbs	19
Max. user weight kg		100
	lbs	220

Battery size 2x AAA

Declaration of the manufacturer

Tunturi New Fitness BV declares that the product is in conformity with the following standards and directives: EN 957 (HC), 2014/30/EU. The product therefore carries the CE label.

01 -2024

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2024 Tunturi New Fitness BV All rights reserved.

• The product and the manual are subject to change.
• Specifications can be changed without further notice.
• Check our website for the latest user manual version.
