USER MANUAL MDRS791MIC46 MIDEA

Two vertical rectangular panels with gray borders, no text or symbols present

Refrigerator

SIDE BY SIDE SERIES

QR code image containing encoded data, no visible human-readable text

MSmartHome

Download the app & activate product

USER MANUAL

MDRS791MIE

MDRS791MIC

LANGUAGES

EN English

DE Deutsch

IT Italian

FR French

ES Spanish

PT Portuguese

GR Greek

PL Polish

LV Latvian

SR Serbian

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SPECIFICATIONS 02

PRODUCT OVERVIEW 03

PRODUCT INSTALLATION 04

OPERATION INSTRUCTIONS 08

APP SETUP AND OPERATION 13

CLEANING AND MAINTENANCE 15

TROUBLESHOOTING 16

APPENDIX 20

SPECIFICATIONS

Product model MDRS791MIE
Rated Voltage/Frequency 220-240V~/50Hz
Rated Current 1.9A
Total Volume 592L
Fresh Food Storage Compartment Volume 379L
Frozen Food Storage Volume 213L
Temperature Rise Time 7h
Freezing Capacity 12kg/24h
Overall Dimension (W x D x H) 910x698x1775mm

Product model MDRS791MIC
Rated Voltage/Frequency 220-240V-/50Hz
Rated Current 1.9A
Total Volume 592L
Fresh Food Storage Compartment Volume 379L
Frozen Food Storage Volume 213L
Temperature Rise Time 9h
Freezing Capacity 12kg/24h
Overall Dimension (W x D x H) 910x698x1775mm

MSmartHome

Wireless Network module model MWB-S-WB01
Standard IEEE 802. 11b/g/n
Antenna Type Printed PCB antenna
Frequency Band 2400-2483.5 MHz
Operating Temperature	0 °C ~ 85 °C /32 °C -185 °C Operation humidity: 10%~85%
Power Input	DC5V/500mA Maximum Transmission power: <20dBm

PRODUCT OVERVIEW

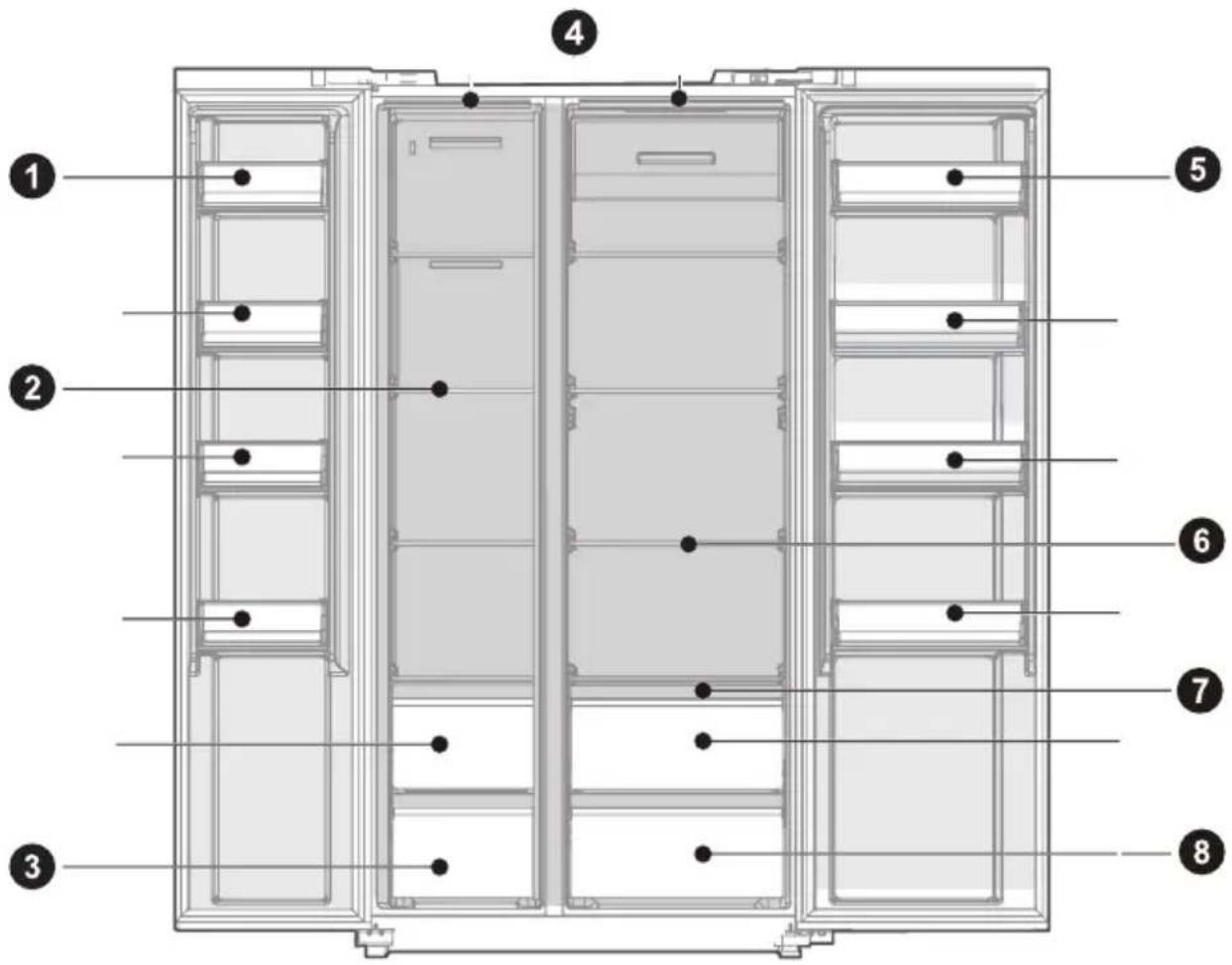

Names of components

Technical diagram of a refrigerator internal structure with numbered components for identification

1 Door tray 5 Door Tray
2 Glass Shelf 6 Glass Shelf
3 Freeze box 7 Wet control shelf
4 LED Lighting 8 Fresh box

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

PRODUCT INSTALLATION

Install Instruction

For refrigerating appliances with climate class

• Depending on the climate class, This refrigerating appliance is intended to be used at ambient temperatures range as specified following table.
• The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specific range.
• You can find the climate class on the product label.

Effective temperature range

- The product is designed to operate normally in the temperature range specified by its class rating.

Class Symbol		Ambient temperature range °C
		IEC 62552 (ISO 15502) ISO 8561
Extended temperate SN	+ 10 to + 32	+ 10 to + 32
Temperate N + 16 to + 32	+ 16 to + 32
Subtropical ST + 16 to + 38	+ 18 to + 38
Tropical T + 16 to + 43	+ 18 to + 43

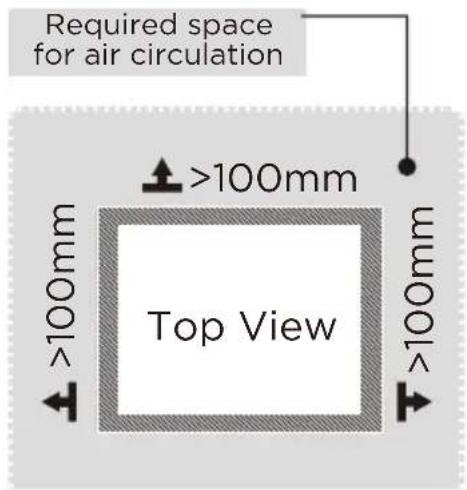

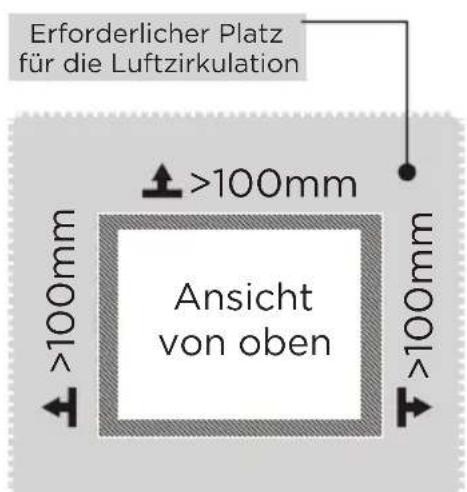

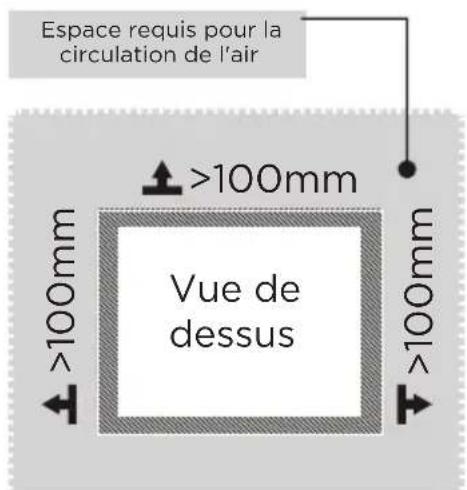

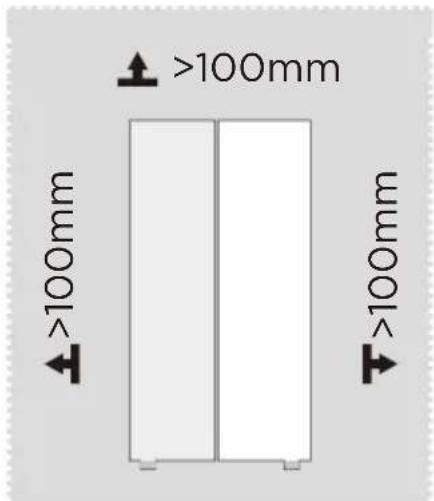

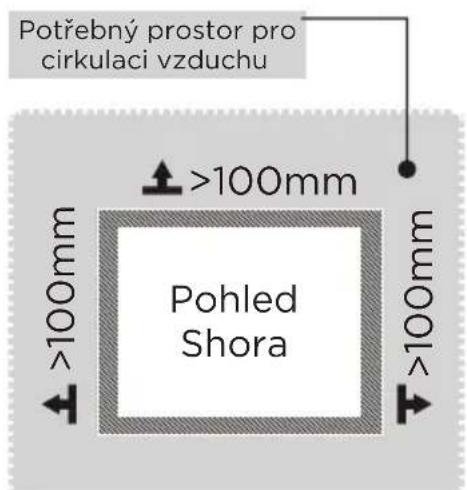

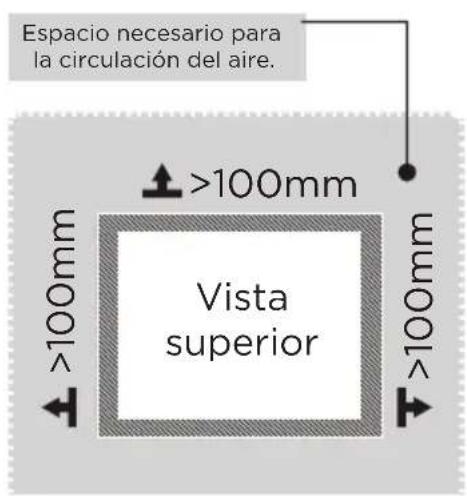

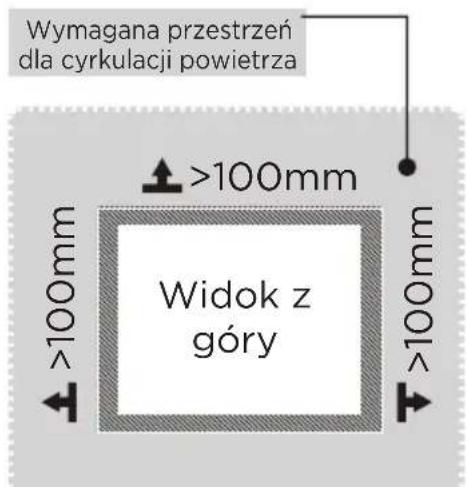

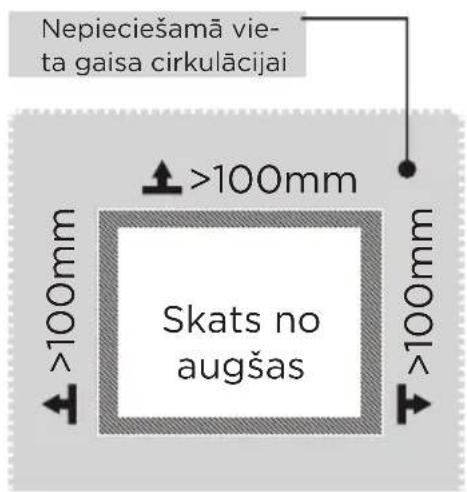

Dimensions and Clearances

- Too small of a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 100 mm of clearance from each adjacent wall when installing the appliance.

>100mm >100mm >100mm

Required space for air circulation >100mm Top View >100mm >100mm

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

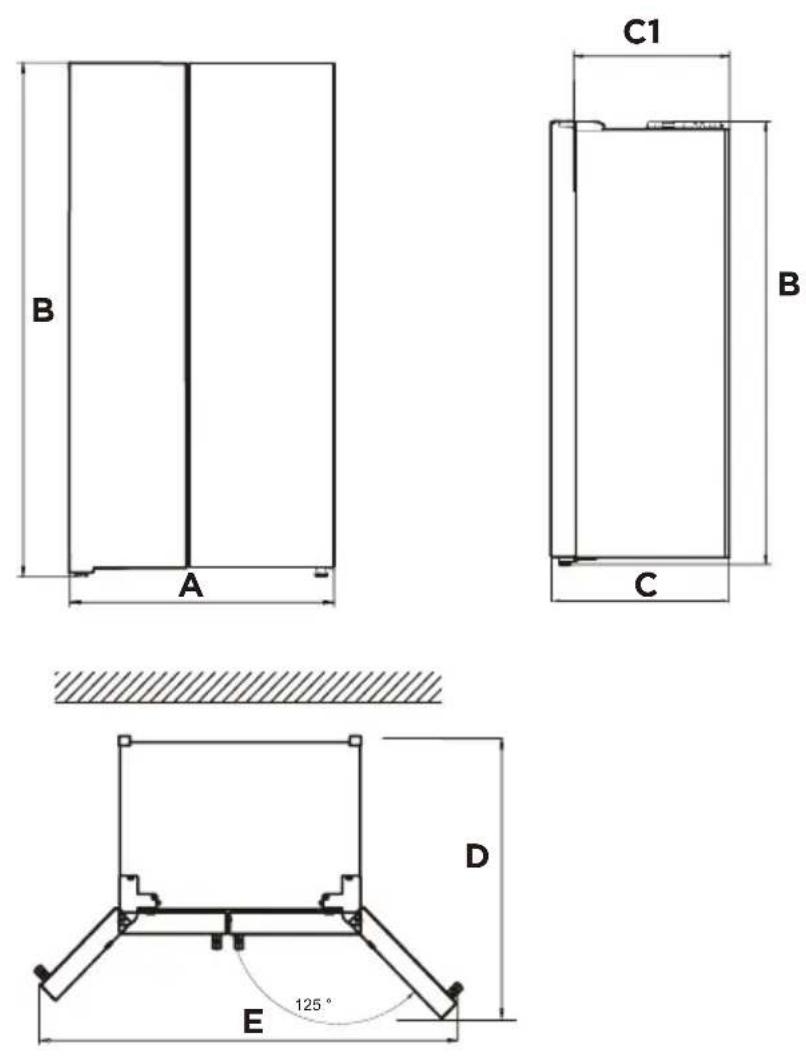

Space requirement diagram (when the door is open and when the door is closed)

Width	Overall Height	Depth Without door	Depth doors open 125°	Width doors open 125°
A B C	C1 D E
910 1775	698 610 1010	1470

Notice: All dimensions in mm

Leveling feet

To avoid vibration, the unit must be leveled.

If required, adjust the leveling screws to compensate for the uneven floor.

The front should be slightly higher than the rear to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws counterclockwise ↩ to raise the unit, clockwise ↪ to lower it.

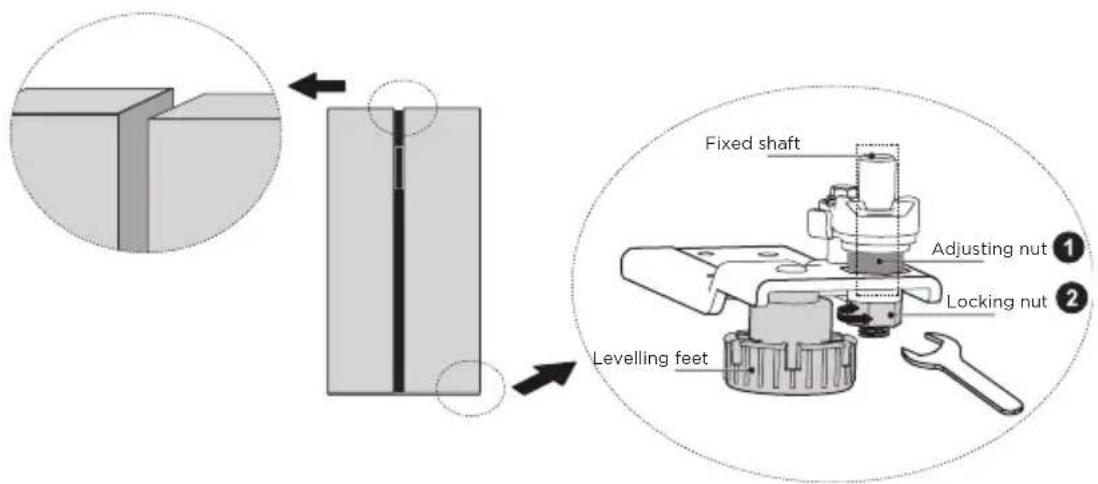

Leveling doors

If the doors are not at the same height, the door can be adjusted with a spanner.

A- To raise the door, turn the nut (1) anticlockwise.

B- To lower the door, turn the nut (1) clockwise.

C- When the door is correctly aligned, fix it with the nut (2).

Fixed shaft Adjusting nut ① Locking nut ② Levelling feet

Moving the appliance

1. Remove all food from inside the appliance.
2. Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance.
3. Tape parts such as shelves and the door handle to prevent from falling off while moving the appliance.
4. Move the appliance with more than two people carefully. When transporting the appliance over a long distance, keep the appliance upright.
5. After installing the appliance, connect the power plug into a socket out to switch on the appliance.

ATTENTION

Precautions before operation:

Before making changes the refrigerator must be disconnected from power, precautions should be taken to prevent any personal injury.

Changing the light

- Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

ATTENTION

This product contains two light sources of energy efficiency class (G).

Connecting the appliance

After installing the appliance, connect the power plug into a socket outlet.

ATTENTION

After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you put food into the appliance. If you add food before the appliance has cooled completely, your food may spoil.

Tips for energy saving

• Do not place the appliance near cookers, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption.
• Ensure that there is sufficient ventilation at the base of the appliance, on the sides of the appliance and at the back of the appliance. Never cover ventilation openings.
• Please also observe the spacing dimensions in the chapter "Installation".
• The arrangement of drawers, shelves and racks as shown in the illustration offers the most efficient use of energy and should therefore be retained as far as possible. All drawers and shelves should remain in the appliance to keep the temperature stable and save energy.
• To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the middle drawers can be removed. The top and bottom drawers and shelves should be removed last if necessary.
• An evenly filled refrigerator/freezer compartment contributes to optimal energy use. Therefore, avoid empty or half-empty compartments.
• Allow warm food to cool before placing it in the refrigerator/freezer. Food that has already cooled down increases energy efficiency.
• Allow frozen food to defrost in the refrigerator. The coldness of the frozen food reduces the energy consumption in the refrigerator compartment and thus increases the energy efficiency.
• Open the door only as briefly as necessary to minimise cold loss. Opening the door briefly and closing it properly reduces energy consumption.
• Setting the temperature no colder than necessary contributes to optimal energy use. The optimum temperature in the refrigerator is +7^ . It should be measured as far forward as possible in the top compartment of refrigerators.
• The door seals of your appliance must be perfectly intact so that the doors close properly and energy consumption is not increased unnecessarily.

OPERATION INSTRUCTIONS

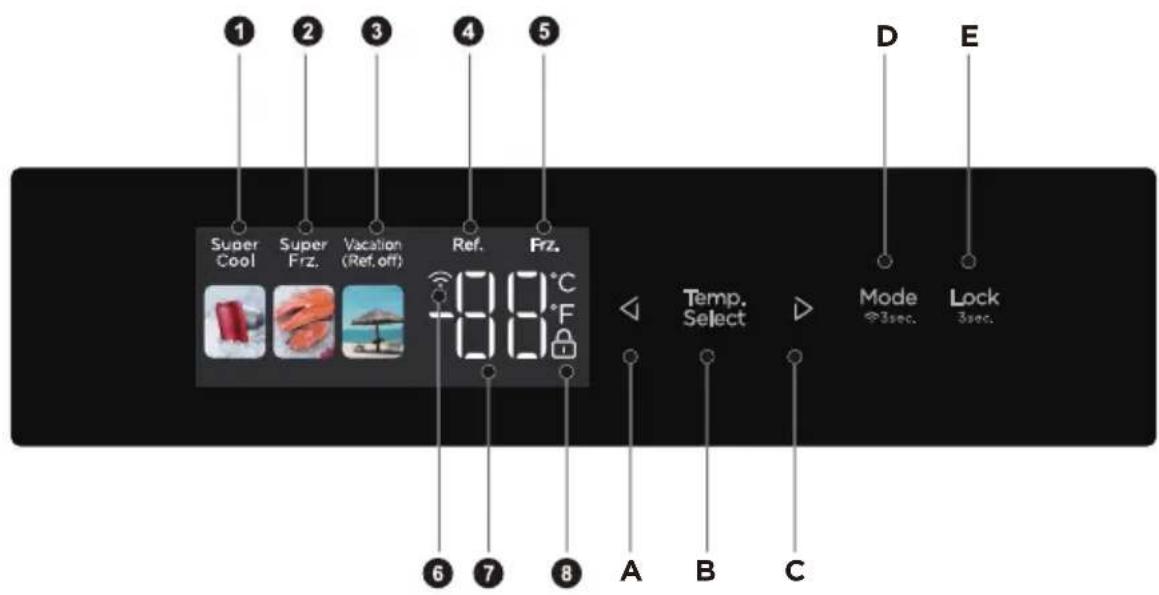

Control panel

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. -0.8°C 0.8°F Temp. Select Mode 3sec. Lock 3sec. 6 7 8 A B C D E

	Display Button
1	Super Cooling icon	A	Temperature down button
2	Super Freezing icon	B	Temperature zone selection button
3	Vacation icon	C	Temperature up button
4	Refrigerating compartment temperature	D	Mode/network configuration button
5	Freezer compartment temperature	E	Lock/Unlock button
6	Wireless Network icon
7	Temperature display icon
8	Lock icon

ATTENTION

The actual control panel may differ from model to model.

The control panel will turn off automatically for energy saving.

If there is any finger or skin contacts to the control panel while cleaning it, the button function may operate.

Lock 🔒/ unlock

- In the unlocked state, long press the button Lock 3sec for 3 seconds, enter the lock state; In the locked state, long press the button Lock 3sec for 3 seconds, the lock icon disappears and enters the unlock state. All the following functions must be operated in the unlocking status.

Vacation mode

- Click the button to enter the vacation mode. Icon lights up, the vacation mode will start after locking the control panel.

- Under vacation mode, the refrigerating compartment is turned off and temperature area display -the freezer compartment temperature is set at -18^ .

Super Cooling mode

- Click the button Mode to enter the quick cooling mode. Icon lights up, the quick refrigerating mode will start after locking the control panel. Quick cool exits for 6h.

Super Freezing mode

- Click the button to enter the quick freezing mode. Icon lights up, the quick freezing mode will start after locking the control panel. Quick freeze exits for 24h.

Temperature setting of refrigerating compartment

- Click temperature zone selection button Temp. Select, refrigerating compartment temperature will blink. Then click the button ☑ir Main to set the temperature, and will hear one beep. Setting scope is between 2°C and 8°C. Every time you click the button, the temperature will be changed 1°C. After adjusting, the digital tube will keep blinking for 5 seconds. New temperature setting will take effect after locking the control panel.

Temperature setting of freezer compartment

- Click temperature zone selection button Temp. Select, freezer compartment temperature will blink .Then click the button ←r a →ain to set the temperature, and you will hear one beep. Setting scope is between -16°C and -24°C. Every time you click the button, the temperature will be changed 1°C. After adjusting, the digital tube will keep blinking for 5 seconds. New temperature setting will take effect after locking the control panel.

ATTENTION

Recommended setting: Refrigerated chamber 5°C, freezing chamber - 18°C.

The quick-freezing function is designed to maintain the nutritional value of the food in the freezer. It can freeze the food in the shortest time. If a large amount of food is frozen at one time, it is recommended that the user turn on the quick-freezing function and put the food in. At this time, the freezing speed of the freezer compartment is increased, which can quickly freeze the food, effectively lock the nutrition of the food, and facilitate storage.

Wireless network setting-AP configuration

- Please start AP mode before connecting to the mobile app. Whether in the locked or unlocked state, press and hold the mode button for 3s to force the refrigerator wireless module to set to AP mode, and then the temperature display area will display AP; After the module is successfully configured to enter the AP mode, it will automatically exit the AP mode, and the temperature display area will return to normal temperature display; After setting the AP mode, if the module is not configured successfully for 10s, it will forcibly exit the AP mode and restore the normal temperature display.

Storage upon power failure

- In case of power failure, the instant working state will be locked and maintained till re-electrification.

Opening warning and alarm control

- when open the refrigerator doors, the opening music will play. If the door is not closed in two minutes, the buzzer will sound once every minute until the door is closed. Press anyone button to stop the buzzer alarm.

ATTENTION

Disable the door opening tone: Press and hold the combination key ◀ and ▶ for 3 seconds to disable or enable the door opening tone (the tone is enabled by default). Disable the door opening alarm sound: Not possible

Error code

- The following warnings appearing on the display indicate corresponding faults of the refrigerator. Though the refrigerator may still have cold storage function with the following faults, the user shall contact a maintenance specialist for maintenance, so as to ensure optimized operation of the appliance.

Fault Code Fault Description

E1 Temperature sensor failure of refrigerating chamber

E2 Temperature sensor failure of freezing chamber

E5 Freezing defrost sensor detection circuit error

E6 Communication error

E7 Ambient temperature sensor error

Tips on storing food

Freezer compartment

• The freezer is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice.
• Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing.
• Do not put fresh and frozen food next to each other. The frozen food may thaw.
• When freezing fresh food (such as meat, fish or chopped meat), cut them into parts that can be used at the same time.
• Storing frozen food: instructions are usually stated on the packages, which must be followed. If there is no information on the packaging, food should not be stored for longer than three months from the date of purchase.
• When purchasing frozen food, make sure that it was frozen at a suitable temperature and that the packaging is not damaged.
• Frozen food should be kept in suitable packages to retain the quality and should be returned to the freezer compartment as soon as possible.
• If a package of frozen food shows moisture or abnormal bulging, it is probable that it was stored at the wrong temperature and the content is spoiled.
• The storage period for frozen food depends on the room temperature, the thermostat setting, the frequency of opening the door of the freezer, the type of food and the time of transporting the product from the shop to the household. Always follow the instructions printed on the packaging and never exceed the maximum storage time stated on the package.

Refrigerating compartment

• To reduce moisture and subsequent ice build-up, never put liquid into the refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts of the evaporator. Storing uncovered liquids results in a more frequent need for defrosting.
• Never put warm foods in the refrigerator. These should first cool down at room temperature and then be placed so as to ensure adequate air circulation in the refrigerator.
• Foods or food containers should not touch the back wall of the refrigerator because they could freeze to the wall. Do not keep regularly opening the door of the refrigerator.
• Meat and clean fish (packed in a package or plastic foil) can be placed in the refrigerator, which can be used in 1-2 days.
• Fruit and vegetables without packaging can be placed in the part designated for fresh fruit and vegetables.

ATTENTION

The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25 °C .

Order	Compartments TYPE	Target storage temp. [°C]	Appropriate food
1 Fridge +2		~ +8	Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2 (***)*-Freezer		≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3 ***-Freezer		≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
4 **-Freezer		≤-12	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
5 *-Freezer		≤-6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
6 0-star -6		~ 0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no more than 3 days).Partially encapsulated processed foods (non-freezable foods).
7 Chill -2		~ +3	Fresh/ frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0°C.
8 Fresh food 0		~ +4	Fresh pork, beef, fish, chicken, cooked food, etc.(Recommended to eat within the same day, preferably no more than 3 days)
9 Wine +5		~ +20 Red wine, white wine, sparkling wine, etc.

ATTENTION

please store different foods according to the compartments or target storage temperature of your purchased.

APP SETUP AND OPERATION

Download the MSmarthome App

On an app market (Google Play Store, Apple App Store), search for "MSmartHome" and find the MSmartHome app. Download and install it on your phone. You can also download the app by scanning the QR code below.

Register and log in

Open the MSmartHome app, and create a new account to start (you can also register through a third-party account). If you already have an existing account, use the account to log in.

Connect your devices to MSmarthome

1. Please make sure your mobile phone is connected to a wireless network. If it is not, go to Settings and enable wireless networks and Bluetooth.

2. Please power on your devices.

3. Open MSmarthome App on your phone.

4. If a message of "Smart devices discovered nearby" appears, click to add.

5. If no message appears, select "+" on the page and select your device in the list of nearby devices available. If your device is not listed, please add your device manually by the device category and device model.

6. Connect your device to the wireless network according to instructions on app. If the connection fails, please follow the instructions provided by the app to continue with the operation.

MSmartHome Download the app & activate product Download on the App Store Google Play

Login Login

Illustration of a hand interacting with a smartphone displaying a UI element, showing a grid and arrow icon.

Illustration showing a hand pointing at a smartphone screen displaying a grid interface with a magnified circular icon containing a grid symbol.

9.69 0.69

NOTE

1. Make sure your devices are powered on.
2. Keep your mobile phone close enough to your device when you are connecting your device to the network.
3. Connect your mobile phone to the wireless network at home, and make sure you know the password of the wireless network.
4. Check if your wireless router supports 2.4 GHz band and turn it on. If you are not sure whether the router supports 2.4 GHz band, please contact the router manufacturer.
5. The device cannot connect to the wireless network that requires authentication, and it usually appears in public areas such as hotels, restaurants, etc. Please connect to a wireless network that does not require authentication.
6. Turn off the WLAN+ (Android) or WLAN Assistant (iOS) function of your mobile phone when connecting your device to the network.
7. In the case that your device connected to a wireless network before but it needs to reconnect, please click “+” on the app Home page, and add your device again by the device category and model according to the instructions on app.

CLEANING AND MAINTENANCE

Defrosting

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

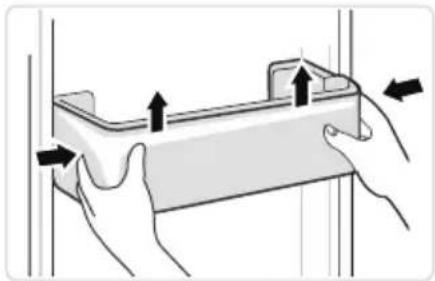

Cleaning of door tray

• According to the direction arrow in the figure below, use both hands to squeeze the tray, and push it upward, then you can take it out.
  • After washing the tray having been taken out, you can adjust its installing height in accordance with your requirement.

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Cleaning of glass shelf

• As the innermost part of the refrigerator liner where contacting the shelves has a backstop, you shall raise the shelves upward, then you can be able to take it out.
• Adjust or clean the shelves according to your requirement.

Illustration of a hand interacting with a flat surface, showing upward arrows and a magnified view of a device (no text or symbols)

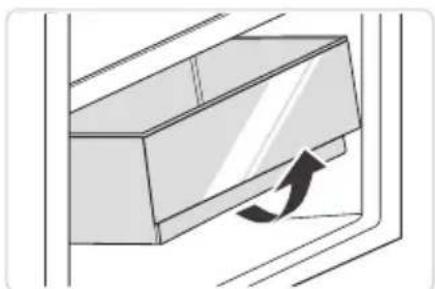

Cleaning the vegetable drawer

1. Remove the contents of the drawer. Hold the handle of the vegetable drawer and pull it out completely until it stops.
2. Lift the vegetable drawer up and remove it by pulling it out.

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATTENTION

Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on. Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.

TROUBLESHOOTING

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved.

EN

Problem Possible reason
Failed operation	·Check whether the appliance is connected to power or whether the plug is in well contact
	·Check whether the voltage is too low
	·Check whether there is a power failure or partial circuits have tripped
Odor	·Odorous foods shall be tightly wrapped
	·Check whether there is any rotten food
	·Clean the inside of the refrigerator
Long-time operation of the compressor	·Long operation of the refrigerator is normal in summer
	·when the ambient temperature is high It is not suggestible having too much food in the appliance at the same time
	·Food shall get cool before being put into the appliance
	·The doors are opened too frequently
Light fails to get lit	·Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged
	·Have the light replaced by a specialist
Door can not be properly closed	·The door is stuck by food packages Too much food is placed
	·The refrigerator is tilted.
Loud noises	·Check whether the floor is level and whether the refrigerator is placed stably
	·Check whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door seal
	Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting
	The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal When housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.

EN

DOC AND CERTIFICATIONS

Declaration of Conformity

We hereby confirm that the following customer model names and Midea model names match each other respectively.

Brand Midea Model Marketing Model Factory Model
Midea HC-769WEN		MDRS791MIE28	CE-BCD592WZ-JT
Midea HC-769WEN		MDRS791MIE46 CE-BCD592WZ-JT
Midea HC-769WEN MDRS791MIC28		CE-BCD592WE-CT
Midea HC-769WEN MDRS791MIC46		CE-BCD592WE-CT

Application of Council Directives LVD: 2009/125/EC

Standards, to which Conformity Is Declared EMC: 2004/108/EC

EN IEC 61000-3-2:2019+A1

EN 61000-3-3:2013+A1+A2

EN 60335-1:2012+A11+A13+A1+A14+A2+A15

EN IEC 60335-2-24:2022+A11

EN 62233:2008

EN IEC 62311:2020

EN 50665:2017

EN 62479:2010

EN 50663:2017

Manufacturer's Name: Hubei Midea Refrigerator Co., Ltd.

Manufacturer's Address: No.38 Oriental Road, 434000, Jingzhou, Hubei, P.R. China

We, Hubei Midea Refrigerator Co., Ltd.

hereby declare that the above-mentioned products comply with the above-mentioned currently valid regulations and standards.

SIGNATURE: Date: 2023-03-27

CE

Midea hereby declares that the appliance with MSmartHome functionality meets the essential requirements and other relevant provisions of the Directive 2014/53/EU. A detailed RED Declaration of Conformity can be found online at www.midea.com among the additional documents on the product page for your appliance.

Special for new European standard

The ordered parts in the following table can be acquired from Service provider channel

Ordered part Provided by Minimum time required for Provision
Thermostats Professional maintenance personnel		At least 7 years after the last model is launched on the market
Temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Light sources Professional maintenance personnel		At least 7 years after the last model is launched on the market
Door handles Professional repairers and final users	At least 7 years after the last model is launched on the market
Door hinges Professional repairers and final users		At least 7 years after the last model is launched on the market
Trays Professional repairers and final users		At least 7 years after the last model is launched on the market
Baskets Professional repairers and final users		At least 7 years after the last model is launched on the market
Door gaskets Professional repairers and final users		At least 10 years after the last model is launched on the market

Dear customer

1. If you want to return or replace the product, please contact the store where you buy.

(Remember to bring the purchase invoice)

1. If your product breaks down which needs to repair, please contact after-sales service provider.

ATTENTION

The model information in the product database, as well as the model identifier, can be obtained througha weblink scanned by a QR code, if any, on the energy efficiency label of the product.

For more information about the energy efficiency of the appliance, visit https://ec.europa.eu and search using the model name.

The model name can be found on the rating label of the appliance.

Coldest zone in the refrigerator

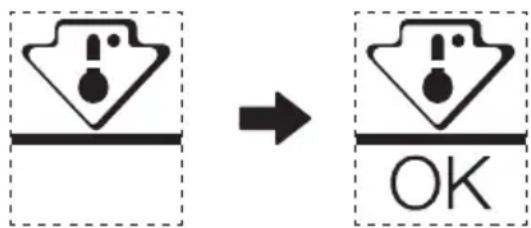

OPTIONAL: OK-temperature indicator

- The OK-temperature indicator can be used to determine temperatures below +4^ . Gradually reduce the temperature if the sign does not indicate "OK".

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

- To ensure the temperature in this area, do not change the positioning of the shelf. Inforced air refrigerators (equipped with a fan or No Frost models), the symbol of the coldest zone is not represented because the temperature inside is homogeneous.

Temperature indicator setting

- To help you set your refrigerator well, it is equipped with a temperature indicator that will monitor the average temperature in the coldest zone.

- WARNING: This indicator is intended to work only with your refrigerator, do not use it in another refrigerator (in fact, the coldest zone is not the same), or for any other use.

Checking the temperature in the coldest zone

• With the temperature indicator, you can check regularly that the temperature of the coldest zone is correct. Indeed, the internal temperature of the refrigerator depends on several factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. Take these factors into consideration when setting the device.
• When the indicator shows « OK », this means that your thermostat is well adjusted and the internal temperature correct.
• If the indicator of temperature turns WHITE, this means that the temperature is too high; in this case, increase the refrigerator temperature control setting and wait for 12 hours before performing a new visual inspection of the indicator. When fresh food has been introduced or the door has been left open, it is possible for the indicator of temperature to turn WHITE after a while.

DANKESBRIEF

Technical diagram of a refrigerator internal structure with numbered components for identification

>100mm >100mm >100mm

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. -8.0°C 6 7 8 Temp. Select A B C D E Mode 3sec. Lock 3sec.

MSmartHome Download the app & activate product Download on the App Store Google Play

Login Login

Illustration of a hand interacting with a smartphone displaying a grid interface (no text or symbols)

Illustration showing a hand interacting with a smartphone displaying a grid interface, with a magnified circular icon highlighting a specific grid.

03-04-08 2.95%

HINWEIS

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with upward arrows indicating movement or force, and a magnified inset showing a device (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ACHTUNG

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered components for identification

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. -8.0°C 8.0°F Temp. Select A B C D E Mode 3sec. Lock 3sec.

MSmartHome Download the app & activate product Download on the App Store Google Play

Login Login

Illustration of a hand interacting with a smartphone displaying a grid interface (no text or symbols)

Illustration showing a hand interacting with a smartphone displaying a grid interface, with a magnifying glass highlighting a specific grid.

Mobile phone screenshot showing a login interface with a 'OK' button and a Chinese text input field.

NOTA

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a flat surface with upward arrows indicating motion or force (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATTENZIONE

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

INSTALLATION DU PRODUIT 04

INSTRUCTIONS D'OPÉRATION 08

CONFIGURATION DE L'APPLICATION ET FONCTIONNEMENT 13

NETTOYAGE ET ENTRETIEN 15

DÉPANNAGE 16

ANNEXE 19

SPÉCIFICATIONS

Technical diagram of a refrigerator internal structure with numbered components for identification

INSTALLATION DU PRODUIT

>100mm >100mm >100mm >100mm

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. -8.0°C Temp. Select Mode 3sec. Lock 3sec. 6 7 8 A B C D E

MSmartHome Download the app & activate product Download on the App Store Google Play

Login Login

Illustration of a hand interacting with a smartphone displaying a UI element, likely for mobile app or system interaction.

Illustration showing a hand interacting with a smartphone displaying a grid interface, with a magnified circular icon highlighting a specific cell.

Mobile phone screenshot showing a login interface with a dark 'OK' button and Chinese text '扫码关注'

OBSERVATION

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a flat surface with upward arrows, showing a magnified view of a device (no text or symbols present)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATTENTION

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to specific compartments or fixtures.

>100mm >100mm >100mm >100mm

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. 8.0°C 8.0°F Temp. Select Mode 3sec. Lock 3sec. 6 7 8 A B C D E

Illustration of a hand interacting with a smartphone displaying a grid interface (no text or symbols)

Illustration showing a hand interacting with a smartphone displaying a grid interface, with a magnified circular icon highlighting a specific cell.

8.88

NOTE

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a flat surface with upward arrows, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATENCIÓN

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion.

Technical diagram of a refrigerator with numbered components for identification

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. 0.0°C -8.0°F Temp. Select Mode 3sec. Lock 3sec. 6 7 8 A B C D E

MSmartHome Download the app & activate product Download on the App Store Google Play

Login Login

Illustration of a hand interacting with a smartphone displaying a grid interface (no text or symbols)

Illustration showing a hand interacting with a smartphone displaying a grid interface, with a magnifying glass highlighting a specific grid.

Add to the Google 80%

NOTA

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Limpeza de prateleiras de vidro

Illustration of a hand pressing down on a flat surface with upward arrows, no text or symbols present

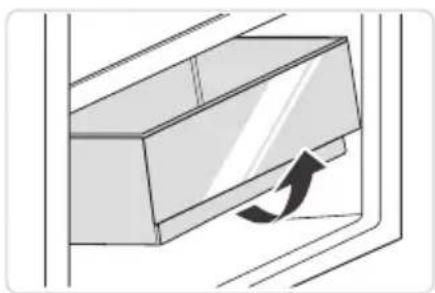

Limpeza da gaveta dos legumes

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATENÇÃO

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered components for identification

① ② ③ ④ ⑤ Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. -8.0°C 8.0°F Temp. Select Mode 3sec. Lock 3sec. ⑥ ⑦ ⑧ A B C D E

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

GR

Illustration of a hand pressing down on a flat surface with upward arrows, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ΠΡΟΣΟΧΗ

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion.

Technical diagram of a refrigerator with numbered components for identification

>100mm >100mm >100mm >100mm

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. 8.0°C Temp. Select Mode 3sec. Lock 3sec. 6 7 8 A B C D E

PL

MSmartHome Download the app & activate product Download on the App Store Google Play

Login Login

Illustration of a hand interacting with a smartphone displaying a grid interface (no text or symbols)

Illustration of a hand interacting with a smartphone displaying a grid interface, with a magnified circular icon showing a small grid chart.

C:\B.E.C.\( ^{1} \)

UWAGA

Illustration of hands holding a rectangular device with arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a flat surface with upward arrows, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

UWAGA

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

PRODUKTA PÄRSKATS 03

PRODUKTA UZSTĀDĪŠANA 04

LIETOŠANAS INSTRUKCIJAS 08

LIETOTNES IESTATĪŠANA UN LIETOŠAA 13

TİRİŞANA UN APKOPE 15

DARBĪBAS TRAUCĒJUMI 16

PIELIKUMS 19

SPECIFIKĀCIJA

Technical diagram of a refrigerator with numbered components for identification

>100mm >100mm >100mm >100mm

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. -8.0°C 8 Temp. Select A B C D E Mode 3sec. Lock 3sec.

LV

Illustration of a hand interacting with a smartphone displaying a grid interface (no text or symbols)

Illustration of a hand pointing at a smartphone screen displaying a grid interface with a magnified circular icon showing a grid symbol.

Mobile phone screenshot showing a login interface with a '8.88U' button and text fields

PIEZIME

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand interacting with a flat surface, showing upward arrows and a speech bubble (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

UZMANIBU

Diagram showing a warning symbol with exclamation mark inside a box and an arrow pointing to a 'OK' button, indicating a change or modification.

Technical diagram of a refrigerator internal structure with numbered components for identification

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. -8.0°C 6 7 8 Temp. Select A B C D E Mode 3sec. Lock 3sec.

MSmartHome Download the app & activate product Download on the App Store GET ON Google Play

Login the user the name Login

Illustration of a hand interacting with a smartphone displaying a small grid interface (no text or symbols visible)

Illustration of a hand interacting with a smartphone displaying a grid interface, with a magnified circular icon showing a small grid chart.

8.851

ПАЖНЬА

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a flat surface with upward arrows indicating movement or force (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ПАЖНЬА

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion.

Technical diagram of a refrigerator internal structure with numbered components for identification

>100mm >100mm >100mm >100mm

Potreban prostor za cirkulaciju zraka >100mm Pogled odozgo >100mm >100mm >100mm

PAŽNJA

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Čišćenje staklene police

Illustration of a hand pressing down on a flat surface with upward arrows, showing a magnified view of a small object (no text or symbols present)

Čišćenje ladice za povrće

1. Izvadite sadržaj ladice. Držite ručku ladice za povrće i potpuno je izvucite dok se ne zaustavi.
2. Podignite ladicu za povrće i izvadite je izvlačenjem.

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

PAŽNJA

Za čišćenje se preporučuju mekane krpe ili spužva umočeni u vodu, i nekorozivni neutralni deterdženti. Zamrzivač očistite čistom vodom i suhom krpom. Nakon čišćenja otvorite vrata i ostavite da se unutrašnjost prirodno osuši prije ponovnog uključenja. Nemojte koristiti tvrde četke, čeličnu vunu, abrazivna sredstva poput pasta za zube, organska otapala (poput alkohola, acetona, ulja od banane itd.), kipuću vodu ili kisela i alkalna sredstva koja mogu oštetiti vanjske i unutarnje površine hladnjaka.

RJEŠAVANJE PROBLEMA

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

- Kako biste osigurali temperaturu u ovom području, nemojte mijenjati položaj police. Hladnjaci s pojačanim zrakom (opremljeni ventilatorom ili No Frost modeli), simbol najhladnije zone nije prikazan jer je unutrašnja temperatura homogena.

Podešavanje indikatora temperature

Technical diagram of a refrigerator internal structure with numbered components for identification

Illustration of a hand interacting with a smartphone displaying a UI element, likely for app or system interaction.

Illustration of a hand interacting with a smartphone displaying a grid interface, with a magnified circular icon showing a grid cell.

Mobile screenshot showing a login interface with a '确认' (Confirm) button and a Chinese text input field.

FIGYELEM

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand interacting with a flat surface under an umbrella, showing upward arrows (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

FIGYELEM

Diagram showing a process step with warning symbols and an 'OK' button, indicating cancellation or completion.

Technical diagram of a refrigerator internal structure with numbered components for identification

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. -8.0°C Temp. Select Mode 3sec. Lock 3sec. 6 7 8 A B C D E

	Zaslon Gumb
1	Ikona Super Cooling (Super Hlajenje)	A	Gumb za Temperature down (Znižanje temperature)
2	Ikona Super Freezing (Super Zamrzovanje)	B	Gumb za Temperature zone selection (izbiro temperaturnega območja)
3	Ikona Vacation (Vočitnic)	C	Gumb za dvig temperature
4	Temperatura hladilnega prostora	D	Gumb za Mode/network configuration (Nastavitev Načina/omrežja)
5	Temperatura zamrzovalnega prostora	E	Gumb za Lock/Unlock (Zaklepanje/Odklepanje)
6	Ikona Wireless Network (Brezžično Omrežje)
7	Ikona Temperature display (Za prikaz temperature)
8	Ikona Lock (Za zaklepanje)

PREVIDNO

MSmartHome Download the app & activate product Download on the App Store Google Play

Login Login

Illustration of a hand interacting with a smartphone displaying a grid interface (no text or symbols)

Illustration showing a hand interacting with a smartphone displaying a grid interface, with a magnified circular icon highlighting a specific cell.

Mobile app interface screenshot showing a login button with Chinese text and a dropdown menu

POZNÁMKA

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Čiščenje steklene police

Illustration of a hand pressing down on a flat surface with upward arrows, showing a magnified view of the object (no text or symbols present)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

PREVIDNO

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

Technical diagram of a refrigerator with numbered components for identification

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. -8.0°C 0.0°F Temp. Select A B C D E Mode 3sec. Lock 3sec.

Lock (Blocare) ☑/ Unlock (Deblocare)

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand interacting with a flat surface under an umbrella, showing upward arrows (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATENTIE

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered components for identification

1 Рафм на Врама

2 Стъклен Рафт

3 Фризер

4 LED Осветление

5 Рафт на врама

6 Стъклен Рафт

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. -8.0°C Temp. Select Mode 3sec. Lock 3sec. 6 7 8 A B C D E

Illustration of hands holding a rectangular device with arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a flat surface with upward arrows, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ВНИМАНИЕ

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered components for identification

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. -8.0°C Temp. Select Mode 3sec. Lock 3sec. 6 7 8 A B C D E

Illustration of hands holding a rectangular device with arrows indicating movement or force (no text or symbols)

Illustration of a hand interacting with a flatbed surface, showing upward arrows and a speech bubble (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

DÈMESIO

Diagram showing a warning symbol transforming from a downward arrow to an upward arrow, with 'OK' indicating completion or cancellation.

Technical diagram of a refrigerator with numbered components for identification

1 Sirtarët e dyerve
2 Rafti Prej Qelqi
3 Kutia e ngrirjes
4 Ndriçimi LED

INSTALIMI I PRODUKTIT

Instruksionet e instalimit

Për pajisjet ftohëse me klasë klimatike

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. -8.0°C 8 Temp. Select A B C D E Mode 3sec. Lock 3sec.

Illustration of hands holding a rectangular device with arrows indicating movement or force (no text or symbols)

Pastrimi i sirtarit prej xhami

Illustration of a hand pressing down on a flat surface with upward arrows, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

VINI RE

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered components for identification

>100mm >100mm >100mm >100mm

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. 8.0°C Temp. Select Mode 3sec. Lock 3sec.

Illustration of hands holding a rectangular device with arrows indicating movement or force (no text or symbols)

Illustration of a hand interacting with a flat surface, showing upward arrows and a speech bubble (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

POZOR

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or completion.

Technical diagram of a refrigerator internal structure with numbered components for identification

1 2 3 4 5 Super Cool Super Frz. Vacation (Ref. off) Ref. Frz. 0.0°C -8.0°F Temp. Select Mode 3sec. Lock 3sec. 6 7 8 A B C D E

	zobražit Tlačidlo
1	Ikona Super Cooling (Rýchleho Chladenia)	A	Tlačidlo Temperature down (Na zníženie teploty)
2	Ikona Super Freezing (Rýchleho Mrazenia)	B	Tlačidlo Temperature zone selection (Výberu teplotnej zóny)
3	Ikona Vacation (Dovolenke)	C	Tlačidlo Temperature up (Na zvýšenie teploty)
4	Teplota chladiaceho priestoru	D	Tlačidlo Mode/network configuration (konfigurácie režimu/siete)
5	Teplota mraziaceho priestoru	E	Tlačidlo Lock/Unlock (Zamknút/ Odomknút)
6	Ikona Wireless Network (Bezdrôtovej Siete)
7	Ikona Temperature display (Zobrazenia teploty)
8	Ikona Lock (Zamknút)

SK

UPOZORNENIE

MSmartHome Download the app & activate product Download on the App Store Google Play

Login Login

Illustration of a hand interacting with a smartphone displaying a grid interface (no text or symbols)

Illustration of a hand interacting with a smartphone displaying a grid interface, with a magnified circular icon showing a grid symbol.

636.24.03 8.8801

POZNÁMKA

Illustration of hands holding a rectangular device with arrows indicating movement or force (no text or symbols)

Illustration of a hand interacting with a flat surface, showing upward arrows and a speech bubble (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

UPOZORNENIE

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion.

make yourself at home
