TRÅDFRI 304.100.67 - Lamp IKEA - Free user manual and instructions

Brand	IKEA
Model	TRÅDFRI 304.100.67
Product type	Connected LED bulb
Dimensions (approximate)	110 x 60 mm (E27 base)
Weight (approximate)	50 g
Power supply	220-240 V AC, 50 Hz
Power	8.6 W
Luminous flux	1000 lumens
Color temperature	2700 K (warm white)
Color rendering index	80
Lifespan	25,000 hours
Connectivity	Wireless 2405-2480 MHz, power 10 dBm
Wireless range	Up to 10 meters
Compatible devices	IKEA TRÅDFRI gateway, phone, voice assistant
Main functions	Dimming, remote control, scheduling via app
Pairing	Up to 10 bulbs per remote
Safety	Do not use with a standard dimmer
Care and cleaning	Clean with a dry cloth; disconnect before cleaning
Spare parts and repairability	Not repairable; sealed product
Recycling	Separate collection according to local regulations

Frequently Asked Questions - TRÅDFRI 304.100.67 IKEA

How to pair the TRÅDFRI bulb with a remote?

Make sure the bulb is installed and turned on. Hold the remote within 5 cm of the bulb. Press the pairing button for at least 10 seconds until the red light stays on. The bulb blinks once to confirm. Repeat for each bulb, one by one.

Why won't my TRÅDFRI bulb turn on?

Check that the bulb is screwed in tightly and the main switch is on. Make sure it is paired with a compatible control device. If the problem persists, reset the bulb by flicking the main switch 6 times in a row.

Can I use the TRÅDFRI bulb with a standard dimmer?

No, the TRÅDFRI bulb must not be used with a standard dimmer. Only use IKEA control devices (remote, gateway, or app) to adjust the brightness.

How to reset my TRÅDFRI bulb?

To reset the bulb, flick the main switch 6 times quickly. The bulb will blink to confirm reset. You will then need to pair it again with your control device.

How many bulbs can I pair with one remote?

You can pair up to 10 bulbs with a single control device (remote or other). Pair them one by one and disconnect already paired bulbs if they are too close.

Does the TRÅDFRI bulb work with Apple HomeKit or Google Home?

Yes, via the IKEA TRÅDFRI gateway, the bulb is compatible with Apple HomeKit, Google Assistant, and Amazon Alexa. You can control it with voice commands and through the IKEA Home smart app.

What type of base does the TRÅDFRI 304.100.67 bulb have?

This bulb has a E27 base (standard screw base). It can be used in most household light fixtures.

Is the TRÅDFRI bulb dimmable?

Yes, the bulb is dimmable, but only with IKEA control devices (remote, gateway, or app). It does not work with traditional incandescent dimmers.

What should I do if my bulb blinks unexpectedly?

Blinking may indicate a loss of connection or pairing issue. Try resetting the bulb (flick switch 6 times) and pair it again. Also check that the distance between the bulb and control device does not exceed 10 meters.

How to safely clean the TRÅDFRI bulb?

Before cleaning, turn off the bulb and disconnect if possible. Use a soft, dry cloth to wipe the surface. Do not use liquid or abrasive products.

USER MANUAL TRÅDFRI 304.100.67 IKEA

English 8

Deutsch 11

Français 14

Nederlands 17

Dansk 20

Íslenska 23

Norsk 26

Suomi 29

Svenska 32

Česky 35

Español 38

Italiano 41

Magyar 44

Polski 47

Eesti 50

Latviešu 53

Lietuvių 56

Português 59

Româna 62

Slovensky 65

Български 68

Hrvatski 71

Ελληνικα 74

Русский 77

Українська 80

Srpski 83

Slovenščina 86

Türkçe 89

92 عرب

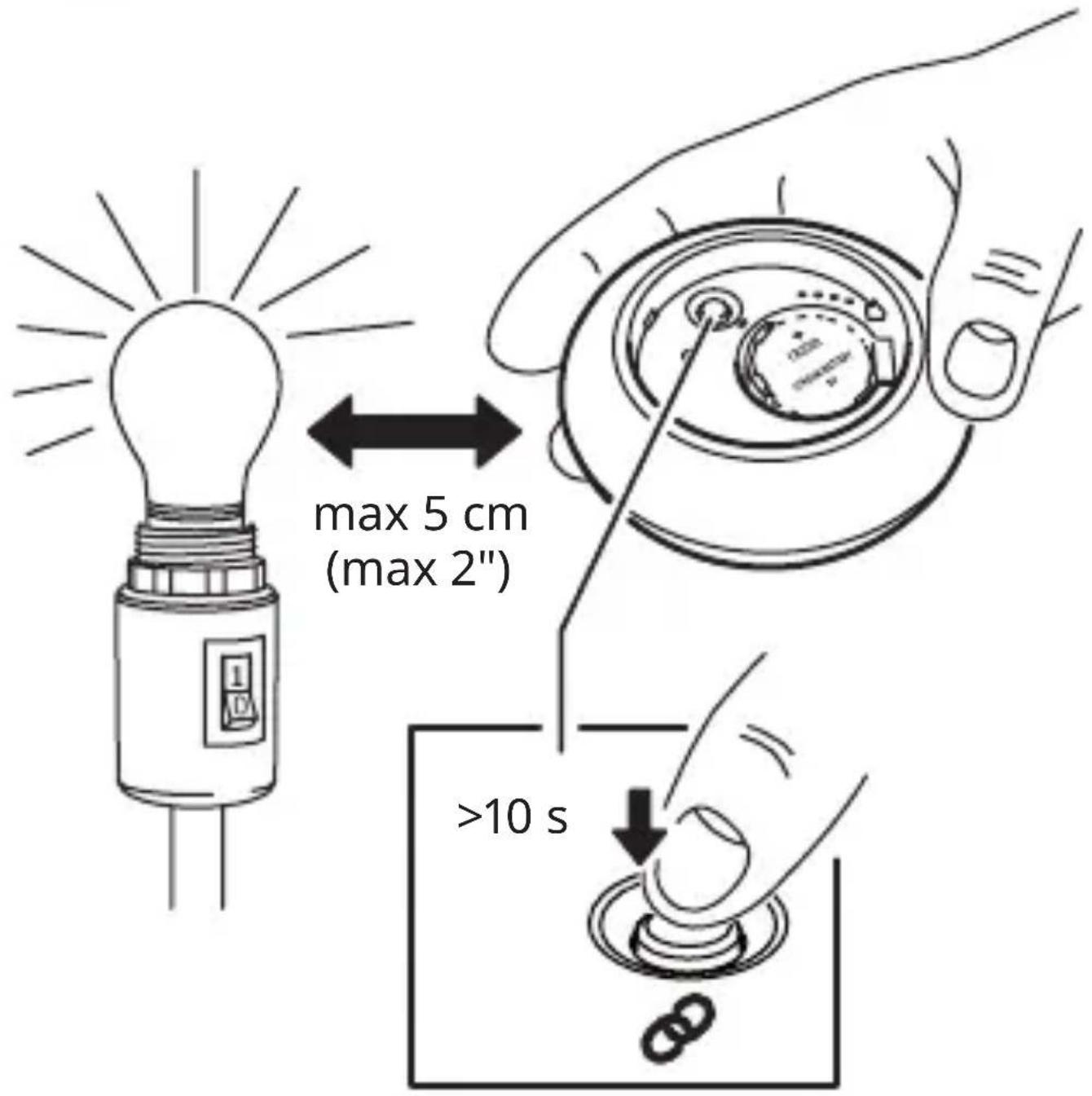

ADD LIGHT SOURCES TO YOUR STEERING DEVICE:

Before you can use your light source you'll need to pair it with a steering device.

To add more light sources, just repeat the steps below:

1. Make sure that your light source is installed and the main power switch is turned on.
2. Hold the steering device close to the light source you want to add (no more than 5 cm away).
3. Press and hold the pairing button for at least 10 seconds. A red light will shine steadily on the steering device. Your light source will begin to dim and finally flash one time to indicate that it has been successfully paired.

Up to 10 light sources can be paired with 1 steering device.

Make sure to pair them one at a time. If the light sources are close to each other, disconnect those that have already been paired from the main power switch.

CAUTION:

DO NOT USE WITH STANDARD DIMMERS. Only use the control provided with or specified by these instructions to control this bulb. This bulb will not operate properly when connected to a standard (incandescent) dimmer or dimming control. Only controllable by IKEA Smart lighting products.

RESET YOUR DEVICE

Toggle the main switch 6 times.

TECHNICAL DATA:

Operating frequency: 2405 - 2480 MHz

Output power: 10 dBm

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

AJOUT SOURCES LUMINEUSES AU DISPOSITIF DE COMMANDE

Fabricant : IKEA of Sweden AB

Adresse : Box 702, SE-343 81 Älmhult, SUÈDE

JE APPARAAT RESETTEN

Producent: IKEA of Sweden AB

Framleiðandi: IKEA of Sweden AB

Heimilisfang: Box 702, SE-343 81 Älmhult, SWEDEN

TILBAKESTILL PRODUKTET

Produsent: IKEA of Sweden AB

Adresse: Box 702, SE-343 81 Älmhult, SWEDEN

Producent: IKEA of Sweden AB

Adres: Box 702, SE-343 81 Älmhult, SZWECJA

Tootja: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN
