USER MANUAL POWX2090 PowerPlus

POWERPLUS® HIGH QUALITY TOOLS

POWX2090

Yellow power plant with black and white components, no visible text or symbols on the device itself.

i

NL NEDERLANDS VERTAALDE VERSIE VAN DE ORIGINELE HANDLEIDING

FR FRANÇAIS TRADUCTION DU MODE D'EMPLOI D'ORIGINE

EN ENGLISH ORIGINAL INSTRUCTION MANUAL

Technical line drawing of a mechanical frame or chassis with two wheels and a central body (no text or symbols)

• Fig. E

Technical line drawing of a mechanical device with wheels and components, no visible text or symbols

Fig. F

14 15

Fig. G

Fig. H 16 17

19 19 20

Fig. I

Collection of black plastic mechanical components with no visible text or symbols

Fig. J

POWX2090 NL

1 BEOOGD GEBRUIK 3
2 BESCHRIJVING (FIG. A) 3
3 INHOUD VAN DE VERPAKKING....3
4 TOELICHTING VAN DE SYMBOLEN 4
5 ALGEMENE VEILIGHEIDSVOORSCHRIFTEN ....4
5.1 Werkplaats....4
5.2 Elektrische veiligheid ....4
5.3 Veiligheid van personen....5
5.4 Zorgvuldige omgang met en gebruik van elektrisch gereedschap....5
5.5 Service....6
6 SPECIFIEKE VEILIGHEIDSINSTRUCTIES 6
7 INSTRUCTIES VOOR DE STOFOPVANGZAK 6
8 MONTAGE....6
8.1 Montage van de steunen van het ventilatorhuis (Fig. B & C)....6
8.2 Montage van de steun (Fig. D, E & F)....7
8.3 De afzuigslang aanbrengen (Fig. G) 7
8.4 De stofopvangzak aanbrengen (Fig. H)....7
8.5 De stoffilterzak aanbrengen (Fig. I)....7
9 GEBRUIK (FIG. J) 7
9.1 Elektrostatische lading....7
9.2 Overbelastingsbeveiliging....7
10 REINIGING EN ONDERHOUD 8
10.1 Reiniging 8
10.2 Smeren 8
11 TECHNISCHE GEGEVENS 8
12 GELUID 8
13 SERVICEDIENST 9
14 OPSLAG 9
15 GARANTIE 9
16 MILIEU....10

MOBIELE STOFAFZUIGING POWX2090

1 BEOOGD GEBRUIK

2 BESCHRIJVING (FIG. A)

1. Stoffilterzak
2. Motor
3. Netschakelaar

4. Ventilatorhuis

5. Stofopvangzak

6. Afzuigslang
7. Transporthandgreep

3 INHOUD VAN DE VERPAKKING

18/11/2021, Lier - Belgium

17 DÉCLARATION DE CONFORMITÉ

VARO N.V. - Vic. Van Rompuy N.V. Joseph Van Instraat 9 - BE2500 Lier - BELGIQUE, déclare que :

18/11/2021, Lier - Belgium

1 INTENDED USE 3
2 DESCRIPTION (FIG. A) 3
3 PACKAGE CONTENT LIST....3
4 SYMBOLS 4
5 GENERAL POWER TOOL SAFETY WARNINGS 4
5.1 Working area....4
5.2 Electrical safety....4
5.3 Personal safety 4
5.4 Power tool use and care....5
5.5 Service....5
6 SPECIFIC SAFETY INSTRUCTIONS....5
7 DUST COLLECTION BAG INSTRUCTIONS ......6
8 ASSEMBLY 6
8.1 Mounting the fan housing supports (FIG B & C)......6
8.2 Support base assembly (FIG D,E & F)....6
8.3 Fitting the suction hose (FIG G)....6
8.4 Fitting the dust collection bag (FIG H)....6
8.5 Fitting the dust filter bag (FIG I)....6
9 OPERATION (FIG J) 7
9.1 Electrostatic Charging....7
9.2 Overload Protection....7
10 CLEANING AND MAINTENANCE....7
10.1 Cleaning....7
10.2 Lubrication....8
11 TECHNICAL DATA 8
12 NOISE....8
13 SERVICE DEPARTMENT 8
14 STORAGE 8
15 WARRANTY....9
16 ENVIRONMENT 9

MOBILE DUST EXTRACTOR POWX2090

1 INTENDED USE

This machine is designed for the extraction of wood and plastic chips as well as wood dust from woodworking machines. Not suitable for professional use.

WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions.

Inflammable gases (eg paint or varnish mist) and explosive media must not be extracted.

CAUTION - This device is not suitable for extracting dust that is hazardous to health.

Any use other than the use specified above is not allowed. Any modification of the machine or use of spare parts not tested and approved by the manufacturer may cause unforeseeable damage!

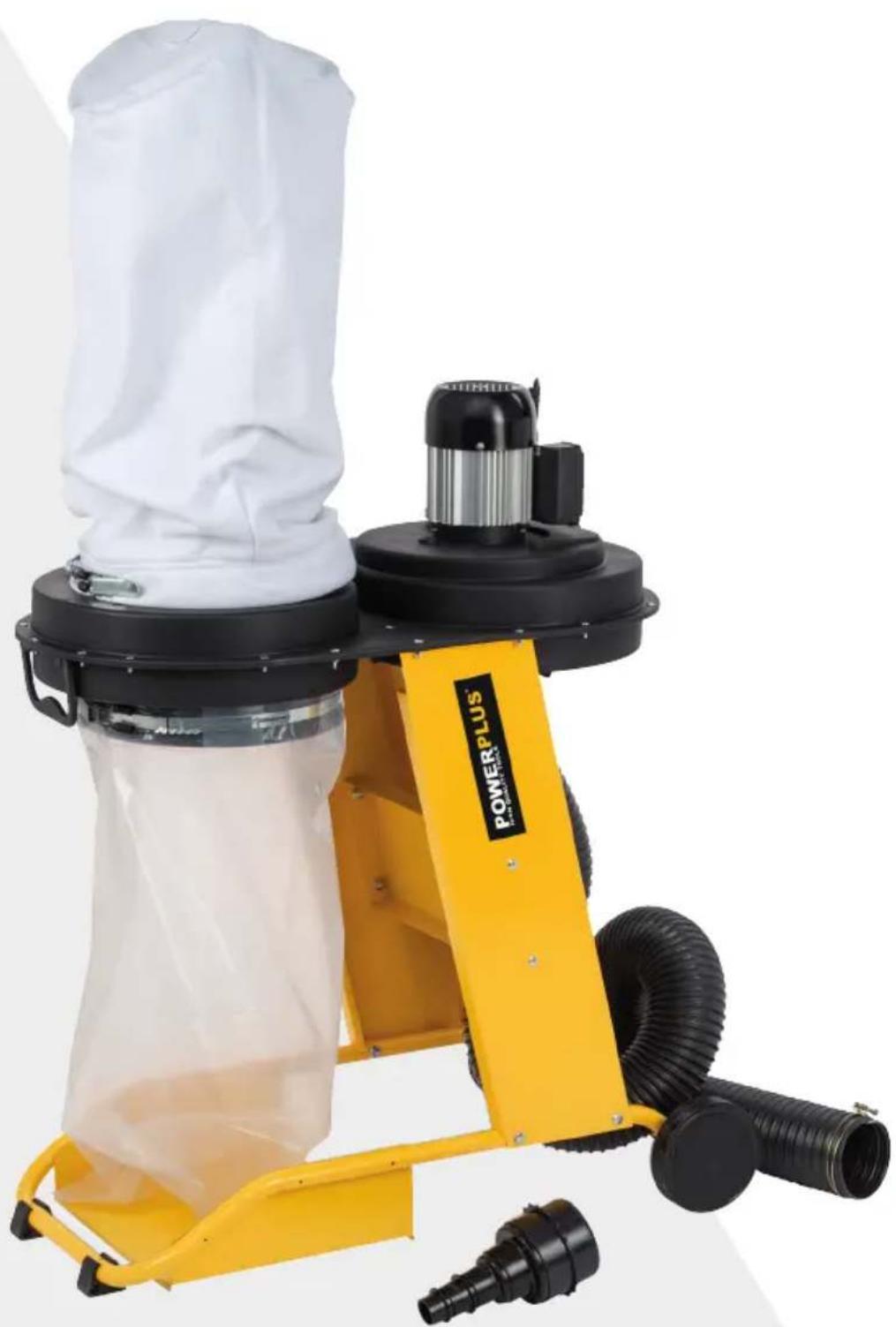

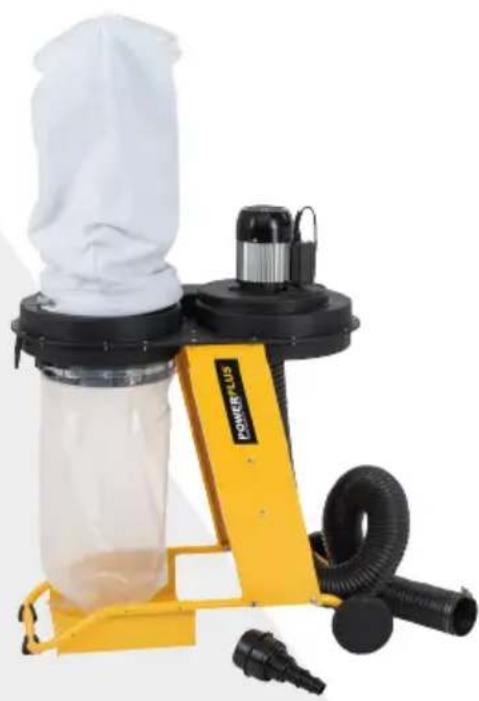

2 DESCRIPTION (FIG. A)

1. Dust filter bag

2. Dust collection bag

3. Motor

4. Suction hose

5. Power switch

6. Transport handle

7. Fan housing

3 PACKAGE CONTENT LIST

■ Remove all packaging materials.

- Remove remaining packaging and packing inserts (if included).

- Check that the package contents are complete.

- Check the appliance, the power cord, the power plug and all accessories for transportation damage.

- Keep the packaging materials as far as possible until the end of the warranty period. Then take it to your local waste disposal system.

WARNING! Packaging materials are not toys! Children must not play with plastic bags! There is a danger of suffocation!

1x Fan housing

1x Dust collection bag

2x Side panels

1x Dust collection bag clamp

1x Base panel

1x Suction hose

1x Cross plate

1x Suction hose clamp

1x Dust filter bag

1x Fastener set

1x Dust filter bag clamp

2x Castor

1x Dust filter support

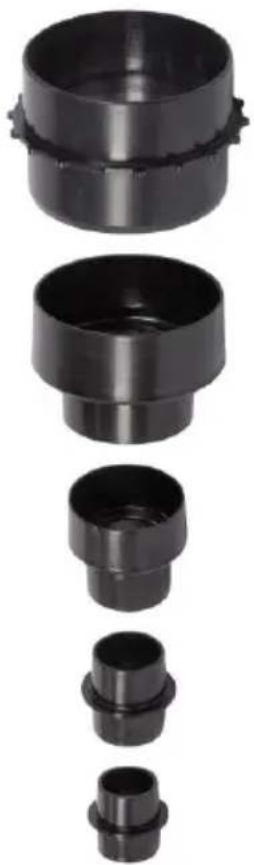

5x Suction hose adapter

If any parts are missing or damaged, please contact your dealer.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

	In accordance with essential requirements of the European directive(s)
	Denotes risk of personal injury or damage to the tool.			Read manual before use
	Wear eye protection			Wear gloves

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

5.1 Working area

• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of a lethal electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of a lethal electric shock if your body is earthed.
• Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of a lethal electric shock.
• Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of a lethal electric shock.
• When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of a lethal electric shock.
• If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of a lethal electric shock.

5.3 Personal safety

- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.

• Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.
• Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.
• Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.
• Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.
• If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

• Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.
• Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.
• Maintenance. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
• Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

5.5 Service

- Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

6 SPECIFIC SAFETY INSTRUCTIONS

• Keep your work area tidy. A messy work area invites accidents.
• Be alert. Know what you are doing. Set out to work with reason.
• Do not operate the machine if you lack concentration.
• Consider environmental conditions: keep work area well lighted.
• Do not operate the machine near inflammable liquids or gases.
• This machine may only be started and operated by persons familiar with the operation of electric tools who are aware of the risks involved by using such machine.
  ■ Children may not play with the device.
• Cleaning and user maintenance may not be performed by children unless supervised.

POWX2090 EN

• Keep bystanders, particularly children, out of the danger zone. Do not permit other persons to touch the machine or power cable while it is running.
• Do not overload tool – use it only within the performance range it was designed for.
• Turn power off if the tool is not used.

Danger! Risk of electric shock!

■ This device is only intended for dry use.
■ This device is designed for use indoors.
■ This device may only be stored indoors.
- Do not expose machine to rain.
- Do not operate machine in damp or wet environment.
- Prevent body contact with earthed objects such as radiators, pipes, cooking stoves, refrigerators when operating this tool.
- Do not use the power cable for any purpose it is not intended for.
- Make sure the power cable is unplugged before servicing or troubleshooting.
- At low temperatures, the device may not be used outdoors.

7 DUST COLLECTION BAG INSTRUCTIONS

• Polyethylene dust collection bags of 0.10 mm minimum thickness must be used. When using dust collection bags made of other materials, these must have the same strength against mechanical damage.
  ■ Use dust collection bags of about 600 × 900 mm.
  ■ Empty the dust collection bag when it is about 4/5 full.

8 ASSEMBLY

8.1 Mounting the fan housing supports (FIG B & C)

■ 1. (FIG B) Place the fan housing (7), with the motor facing down, on a workbench or similar stable support and set it level with a block of wood or similar Loosen 2 of 3 hexagon nuts and washers on both side of the ventilator housing. Guide the two side panels (8) over the bolts with the adhesive label pointing outwards. Fit all washers and re-tighten all nuts on the ventilator housing.
■ 2. (FIG C) Install the cross plate (10) between the side panels using carriage bolts and hex flange nuts.

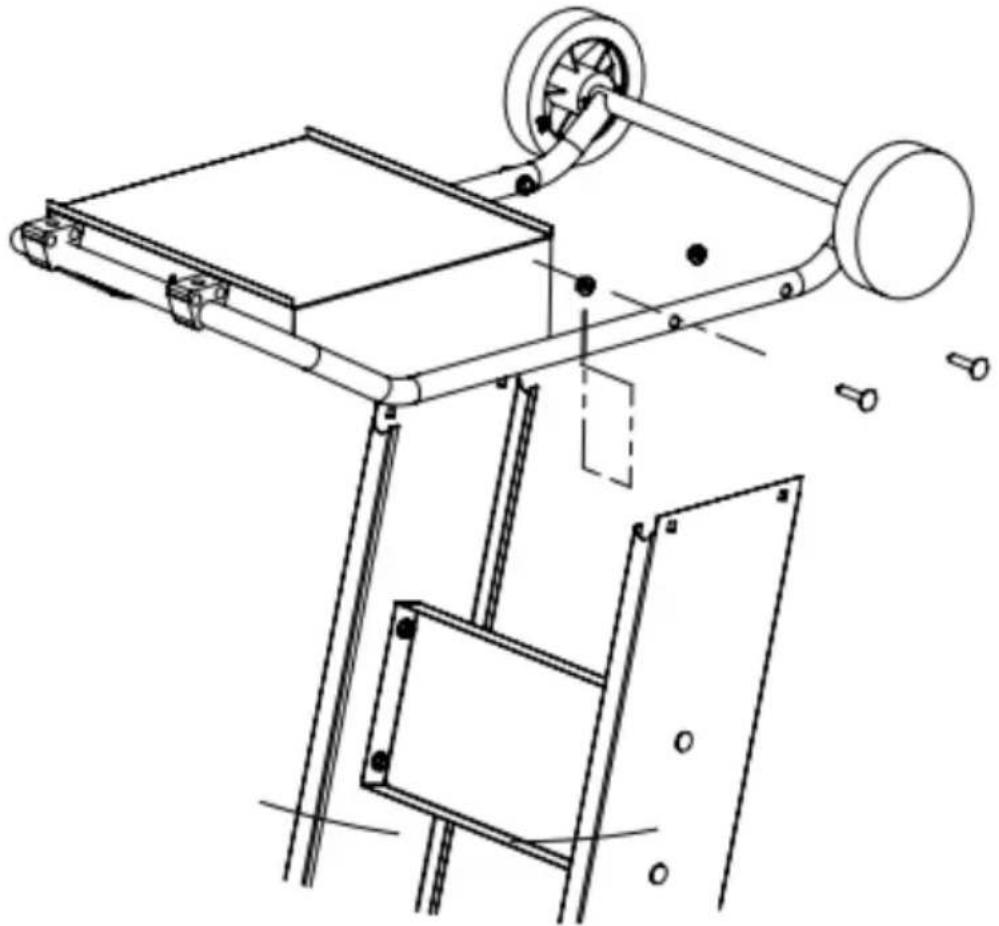

8.2 Support base assembly (FIG D,E & F)

1. (FIG D) Mount the 2 wheels by a clip ring to the base frame, and put on the wheel cover.
   ■ 2. (FIG E) Fixing the base plate to the base frame with 6 set M5 philips set screws.
   ■ 3. (FIG F) Place the thus prepared base panel on the side panels and secure with the 4 carriage bolts and hex flange nuts. Then check all screws and nuts for tightness and place the machine with the castors on the floor.

8.3 Fitting the suction hose (FIG G)

Put the hose clamp (14) on one end of the suction hose (15), then push the hose on the suction port below the motor. Tighten the hose clamp.

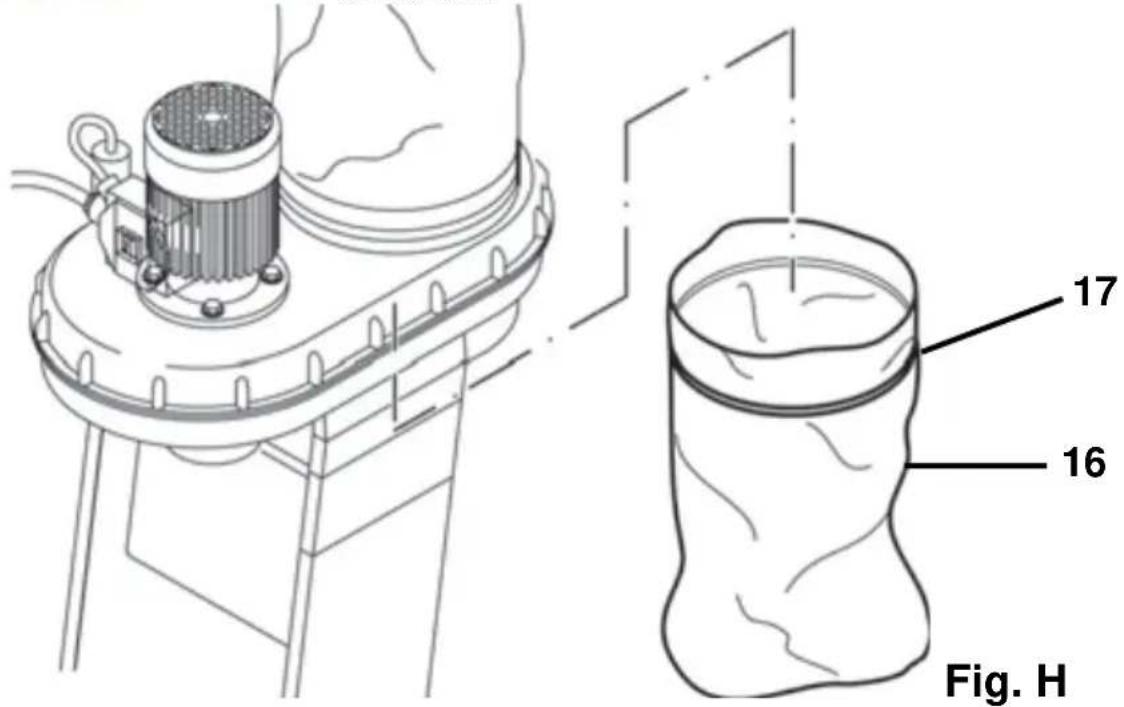

8.4 Fitting the dust collection bag (FIG H)

Clamp the dust collection bag under the fan opening. Fit a sufficiently long and wide dust collection bag (16) (eg 600 × 900 mm) and tighten it with the clamp (17).

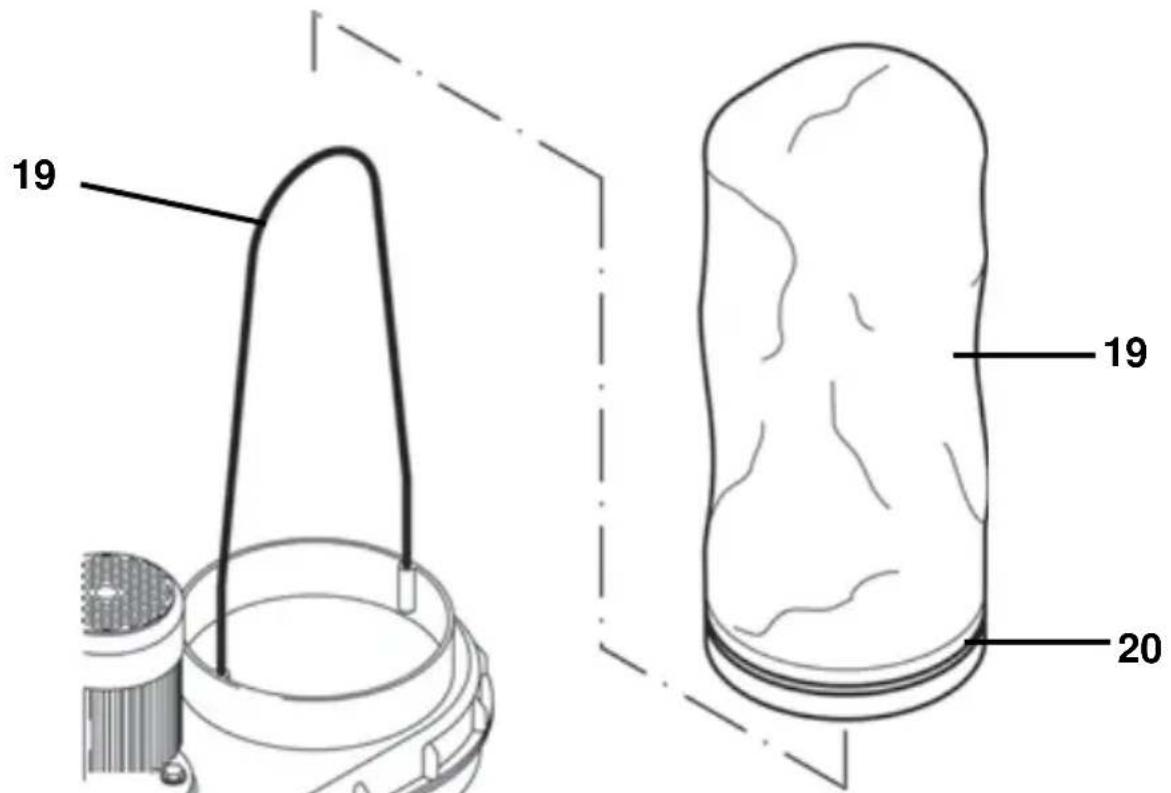

8.5 Fitting the dust filter bag (FIG I)

Insert the rod (18) into the two holes on the edge of the upper dust bag opening. Thread the clamp (20) through the guide sewn into the dust bag (19). Fit the dust bag over the dust bag opening. Tighten the clamp ring.

9 OPERATION (FIG J)

• Place the dust extractor next to the woodworking machine in a way that it will not interfere with your work.
• Connect the suction hose to the dust extraction port of the woodworking machine. Use 1 of the supplied adapters (FIG J) as needed.
  ■ Connect the power supply cable into a mains outlet.
• Turn the motor ON and wait a few seconds, until the fan has reached full speed. If the upper dust bag does not fill with air after a few seconds, pull it up.
  ■ Only now start the woodworking machine and commence with your work.
• Let the dust extractor run for at least 10 seconds after the woodworking machine has been turned of.

9.1 Electrostatic Charging

The entire extraction system of the machine is constructed of electrically nonconductive components. If the suction hose is connected to electrically conductive parts (eg metal dust chutes or suctions pipes), they need to be earthed to dissipate possible electrostatic energy. On the machine no plastic parts may be replaced by metal parts. The suction hose in particular must not be retrofitted with a metal spiral. In this context small metal parts like screws and hose clamps are harmless. Use only genuine spare parts. These spare parts are designed for the machine.

9.2 Overload Protection

To protect the electric motor against overloads it has a motor protection built in. If the motor is overheated or overloaded the machine will shut off.

In this case the motor can be restarted after a few minutes of cooling down.

If the machine is shut OFF repeatedly by a tripped motor protection (2–3 times) within a short time, the machine needs to be checked by a qualified electrician, before attempting to turn it ON again.

10 CLEANING AND MAINTENANCE

Attention! Before performing any work on the equipment, pull the power plug.

10.1 Cleaning

• Keep the ventilation slots of the machine clean to prevent overheating of the engine.
• Regularly clean the machine housing with a soft cloth, preferably after each use.
• Keep the ventilation slots free from dust and dirt.
• If the dirt does not come off use a soft cloth moistened with soapy water.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

10.2 Lubrication

The machine does not require any specific lubrication.

11 TECHNICAL DATA

Rated voltage	220-20V
Rated frequency	50Hz
Rated power	550W
PVC cable	Yes / HO5VV-F 3x0,75mm ^2
Fan Diameter	294 mm
Rated air Flow	800 m ^3 /h
Maximum air Flow	900 m ^3 /h
Rated vacuum	874Pa
Maximum vacuum	2232Pa
Suction hose inner diameter	100mm
Suction hose length	2m
Dust collection bag size	65L
Weight	22kg

12 NOISE

Noise emission values measured according to relevant standard. (K=3)

LpA (Sound pressure level) :	80 dB(A)
LwA (Sound power level) :	98 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

13 SERVICE DEPARTMENT

• Damaged switches must be replaced by our after-sales service department.
• If the connecting cable (or mains plug) is damaged, it must be replaced by a special connecting cable which is available from our service department. Replacement of the connecting cable should only be carried out by our service department (see last page) or by a qualified specialist (qualified electrician).

14 STORAGE

■ Thoroughly clean the whole machine and its accessories.
- Store it out of the reach of children, in a stable and secure position, in a cool and dry place, avoid too high and too low temperatures.
- Protect it from exposure to direct sunlight. Keep it in the dark, if possible.
- Don't keep it in plastic bags to avoid humidity build-up.

15 WARRANTY

- This product is warranted for a 36-month period effective from the date of purchase by the first user.

- This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

■ We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.

■ You can always obtain more information at the number 00 32 3 292 92 90.

- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

■ Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

- Your purchase receipt must be kept as proof of date of purchase.

- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

16 ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way.

Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

17 DECLARATION OF CONFORMITY

VARO N.V. - Vic. Van Rompuy N.V. Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

product: Mobile Dust Extractor

trade mark: POWERplus

model: POWX2090

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2011/65/EU

2006/42/EC

2014/30/EU

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60335-1:2012

EN60335-2-69:2012

EN IEC55014-1 : 2021

The undersigned acts on behalf of the company CEO,

Mertens Ludo

Ludo Mertens

Regulatory Affairs – Compliance Manager

18/11/2021, Lier - Belgium

18/11/2021, Lier - Belgium

18/11/2021, Lier - Belgium

Regulatory Affairs – Compliance Manager

18/11/2021, Lier - Belgium

18/11/2021, Lier - Belgium

18/11/2021, Lier - Belgium

1 TILSIGTET BRUG....3
2 BESKRIVELSE (FIG. A) 3
3 MEDF∅LGENDE INDHOLD 3
4 SYMBOLER....4
5 GENERELLE SIKKERHEDSFORSKRIFTER 4
5.1 Arbejdsområde....4
5.2 Elektrisk sikkerhed 4
5.3 Personlig sikkerhed....4
5.4 Omhyggelig håndtering og anvendelse af el-værktøjer 5
5.5 Service....5
6 SPECIFIKKE SIKKERHEDSINSTRUKTIONER....5
7 BRUGSANVISNING TIL ST∅VOPSAMLINGSPOSEN......6
8 MONTERING....6
8.1 Montering af ventilatorhusstøtterne (FIG. B & C)....6
8.2 Montering af støttebasen (FIG. D, E & F)....6
8.3 Montering af sugeslangen (FIG. G)....6
8.4 Montering af støvopsamlingsposen (FIG. H)....7
8.5 Montering af støvfilterposen (FIG. I)....7
9 BETJENING (FIG. J) 7
9.1 Elektrostatisk opladning....7
9.2 Overbelastningsbeskyttelse....7
10 RENG∅RING OG VEDLIGEHOLDELSE....7
10.1 Rengøring....7
10.2 Smøring....7
11 TEKNISKE DATA....8
12 ST∅J....8
13 SERVICEAFDELING....8
14 OPBEVARING....8
15 GARANTI....9
16 MILJ∅ 9

MOBIL ST∅VUDSUGNING POWX2090

1 TILSIGTET BRUG

18/11/2021, Lier - Belgium

18/11/2021, Lier - Belgium

18/11/2021, Lier - Belgium

Yellow power plant with white cloth bag and black components, no visible text or symbols on main body

varo

WWW.VARO.COM

DESIGNED AND MARKETED BY VARO

©copyright by varo

VARO - VIC. VAN ROMPUY nv

JOSEPH VAN INSTRAAT 9 - 2500 LIER - BELGIUM

OFFICES:
