USER MANUAL DW18SS4ADA Summit

Simple line drawing of a rectangular box with a horizontal stripe on top (no text or symbols)

Models/Modèles :

DW183WADA DW184BADA

DW185SSADA

Installation Instructions/Instructions d'installation

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS / AVANT UTILISATION, VEUILLEZ LIRE ET SUIVRE TOUTES LES RÈGLES DE SÉCURITÉ ET LES INSTRUCTIONS D'UTILISATION

Write Model & Serial Nos. here:

Model No. ____

Serial No. ____

Felix Storch, Inc.

An ISO 9001:2015 registered company

770 Garrison Avenue

Bronx, NY 10474

www.summitappliance.com

Table of Contents

Important Safety Instructions	3 – 4
Tools Which May Be Needed	5
Materials Which May Be Needed	5
Materials Supplied	6
Materials Supplied In Each Bag	6
Dishwasher Specifications	7
Enclosure Preparation	8
Electrical Preparation	8
Preparation for Installing Mounting Brackets	8
Adjusting Height	9
Preparing the Water Connection	10
Steam Protection Foil	11
Placement of Dishwasher into the opening	12
Drain Hose Connection	12 – 14
Adjusting the Customizable Toe Kick	15
Installer Check List	16
Final Instructions	16
Self Help Hints	16
Instructions aux Français	17 – 31

To prevent accidents, which could cause serious injury or death, as well as machine damage, read these instructions before installation and/or use.

INTRODUCTION

When using the dishwasher, carefully follow the precautions in this instruction, especially the safety instructions. These are provided in order to save you, your time,+ and effort and help to ensure optimum dishwasher performance. Be sure to observe all listed warnings and cautions. Look particularly for the icons with exclamation marks inside. The information icon will also provide important references.

WARNING CAUTION Notice

WARNING:

Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION:

Indicates a potentially hazardous situation that, if not avoided, may result in injury. It may also be used to alert against unsafe practices.

Notice:

Indicates a potentially hazardous situation that, if not avoided, may result in damage to the dishwasher, the tableware, the equipment, or the environment.

IMPORTANT SAFETY INSTRUCTIONS

In addition to these instructions, the dishwasher shall be installed:

* In accordance with all local codes or, in absence of a local code,
* In the United States, with the National Electric Code,
* In Canada, with the Canadian Electric Code C22.1-latest edition/Provincial and Municipal codes and/or local codes.

Notice

Read these installation instructions completely before installing and follow them carefully. Save these installation instructions and pass them on to any future user.

WARNING

When installing the dishwasher, follow basic precautions, including the following:

•The dishwasher could only be converted from cord-connected to permanently connected by an authorized service representative. (If needed contact your dealer to schedule an authorized service agent for conversion with an appropriate conversion kit)

- Installation and repair should be performed by a qualified installer. Work by unqualified persons could be dangerous and may void the warranty.

Notice

The dishwasher should be installed by an insured licensed plumber, contractor or trained installer. Installation performed by persons other than this could result in improper installation and property damage.

- Do not operate the appliance if damaged, malfunctioning, partially disassembled, or if it has missing or broken parts.

- Also follow the safety instructions in the user manual.

• To reduce the risk of electric shock, fire, or injury to persons, the installer must ensure that the dishwasher is completely enclosed at the time of installation.

- Only connect the dishwasher to the power supply when all installation and plumbing work is complete.

- If the dishwasher is installed in a location that experiences freezing temperatures (e.g., in a vacation home, cabin, etc.), you must drain all the water from the dishwasher's interior. Water system ruptures that occur as a result of freezing are not covered by the warranty.

- Dishwasher must be secured to adjacent cabinetry using the provided brackets. Failure to do this may cause damage to property or bodily injury

- Connect to a properly rated, protected, and sized power supply circuit to avoid electrical overload. The dishwasher is designed for an electrical supply of 120V (volts), 60Hz (hertz), AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breakers rated for 15 amperes.

Electrical supply conductors shall be a minimum of # 16 AWG copper wire rated at 167 °F (75 °C) or higher. These requirements must be met to prevent injury and machine damage. Consult a qualified electrician if in doubt.

- Do not use any extension cord or portable outlet device to connect the dishwasher to a power supply.

- Ensure that any plastic wrappings, bags, small pieces, etc. are disposed of safely and kept out of the reach of children. DANGER OF SUFFOCATION!

- Remove the door to the washing compartment when removing an old dishwasher from service or discarding it. Ensure that the appliance presents no danger to children while being stored for disposal.

- Old appliances may contain materials that can be recycled. Please contact your local recycling center about the possibility of recycling these materials.

Notice

- The dishwasher drain hose must be installed with a drain loop at least 28" (710mm) off the cabinet floor; otherwise, the dishwasher may not drain properly.

- This dishwasher is intended for residential use only and should not be used in commercial establishments.

- New installation - If the dishwasher is a new installation, most of the work must be done before the dishwasher is moved into place.

- Replacement - If the dishwasher is replacing another dishwasher, check the existing dishwasher connections for compatibility with the new dishwasher, and replace parts as necessary.

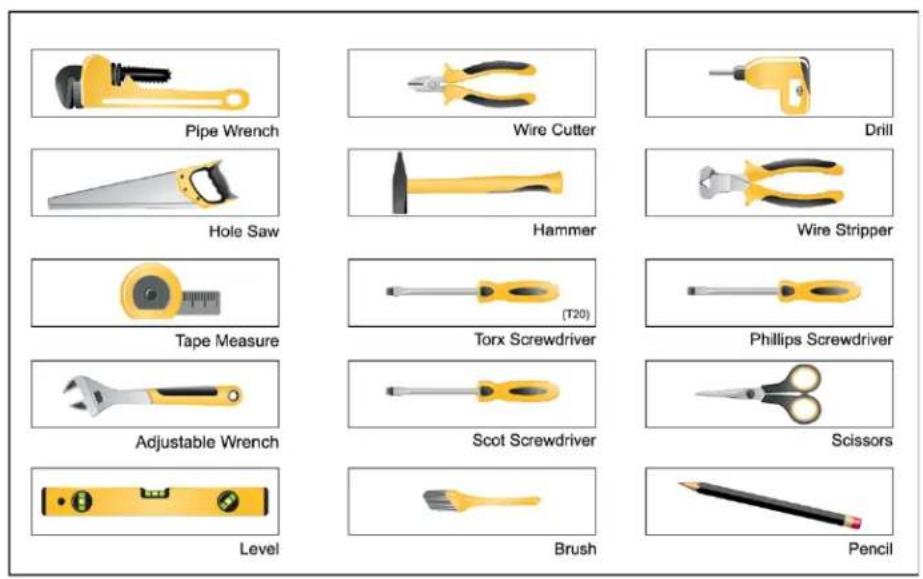

TOOLS NEEDED:

Pipe Wrench Hole Saw Tape Measure Adjustable Wrench Level Wire Cutter Hammer (T20) Torx Screwdriver Scot Screwdriver Brush Drill Wire Stripper Phillips Screwdriver Scissors Pencil

MATERIALS NEEDED:

(Additional materials may be required to comply with local codes)

	Hot Water Supply Line - Minimum 3/4” O.D. copper tubing or metal braided dishwasher supply line.
	UL listed conduit connector or strain relief.
	Teflon tape or other pipe thread compound to seal plumbing connections.
	Shut-off valve and fittings appropriate for hot water supply line (copper tubing/compression fitting, or braided hose).
	Silicone Glue
	Silicone Glue

MATERIALS SUPPLIED

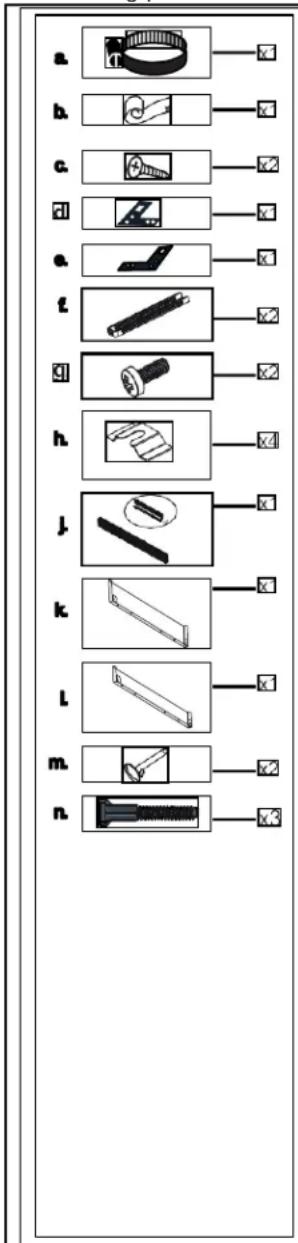

PARTS SUPPLIED

The parts required for positioning the dishwasher are in plastic bags. Check that all of the following parts are contained in the plastic bags.

a b c d e f g h i j k l m n

MANUAL BAG

The dishwasher comes with a manual bag containing: User manual, Installation manual

DISHWASHER PARTS BAG 1

This dishwasher bag comes with the following parts: a. Hose Clamp

DISHWASHER PARTS BAG 2

b. Steam Protection Foil

DISHWASHER PARTS BAG 3

c. Screws ∅ 5/32" x 19/32" (∅ 4mm x 15mm)
d. Mounting Bracket Left
e. Mounting Bracket Right

DISHWASHER PARTS BAG 4

(MODEL DEPENDING)

f. Toe Kick Bracket
g. Screws ∅ 5/32" x 7/32" (∅ 4mm x 6mm)
h. Plinth Fixing Metal
j. Adjustable Plinth
k. Adjustable Plinth Metal (130mm)
I. Adjustable Plinth Metal (80mm)
m. Plinth Locking Pins

DISHWASHER PARTS BAG 5

(MODEL DEPENDING)

n. Long Legs

DISHWASHER SPECIFICATIONS

647 mm-717 mm (25 1/2"-28 1/4") 820mm-870 mm (32 9/32"-34 9/32") 448 mm (17 5/8") 824 mm-874mm (32 7/16"-34 7/16") 570mm (22 1/2) 50mm (1 1/8) 105mm (4 1/8) 570mm (3 1/16" 100 mm (3 1/16" 450 mm (17 3/4")

TECHNICAL FEATURES

Load Capacity	8 place settings
Permissible water pressure	4.35 - 145 psi (0.3 - 10 bars)
Electrical connection	120V (volts), 12A (amps), 60Hz (hertz)
Total power	1400 W (watts)
Heater power	1100 W (watts)

Notice:

Because we continually strive to improve our products, we may change our specifications and design without prior notice.

This device corresponds to the following standards: UL 749

Household Dishwasher Standard.

ENCLOSURE PREPARATION

ELECTRICAL PREPARATION

WARNING

The dishwasher is designed for an electrical supply of 120V, 60Hz, AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breaker rated for 15 amperes.

PREPARATION FOR INSTALLING MOUNTING BRACKETS

WARNING

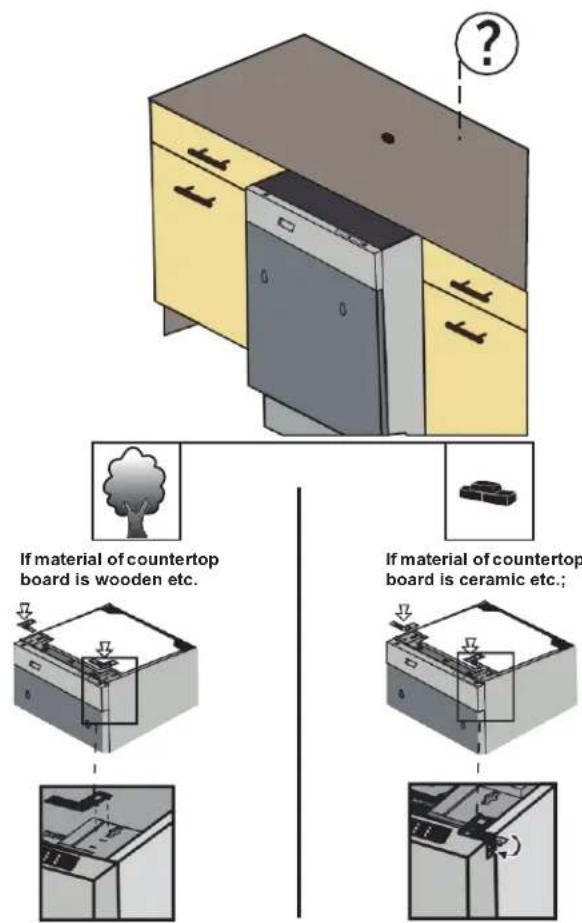

The mounting brackets in the plastic bag should be used when the dishwasher is installed in the cabinetry. Use of any parts other than mounting brackets may result in damage to property or bodily injury.

If material of countertop board is wooden etc. If material of countertop board is ceramic etc.;

Place the two mounting brackets into the top corners of the dishwasher.

If necessary (according to countertop board material), bend the sides of mounting brackets.

ADJUSTING HEIGHT

CAUTION

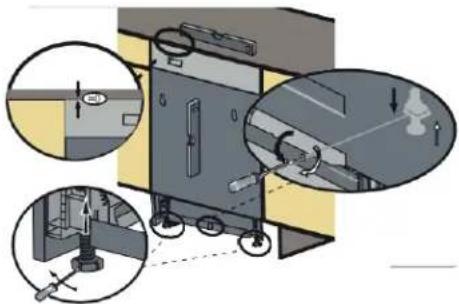

First Step: Before the dishwasher is placed in the cabinetry, the front feet are closed until the end and the dishwasher is placed in the cabinetry.

Second Step: Adjust the forefoot level with a flat screwdriver to stabilize the dishwasher and raise it to the enclosure height.

Third Step: Adjust the rear foot level with a Philips screwdriver to balance and raise the dishwasher to the enclosure height.

Notice

• Make sure the dishwasher is plumb and notice dishwasher can be placed with a small clearance under the countertop.
• For the front foot, turning the feet in the direction of the black arrows with the flat screwdriver allows the dishwasher to move downwards.
• For the rear foot, Turning the Philips screwdriver in the direction of the black arrows will take the dishwasher feet down.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement.

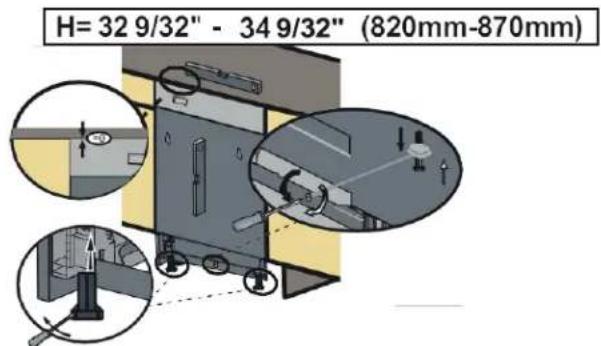

If the height of the enclosure is 32 9/32" to 34 9/32" (820mm-870mm) use short supports as shown in the figure.

H= 32 9/32" - 34 9/32" (820mm-870mm)

If the height of the enclosure is above 32 9/32" (870mm) use long supports as shown in the figure.

WATER SUPPLY CONNECTION

Water supply may be connected to the dishwasher in one of two ways:

• With metal braided hose.
• With copper tubing BRAIDED

HOSE/COPPER TUBING

After connections are made turn on the water supply to check for leaks.

CAUTION

Hot water supply line: Use minimum 3/4" O.D. copper tubing or metal braided dishwasher supply line.

• "Water Inlet valve of dishwasher has 3/4"-11.5NH inlet coupling thread dimension according to ASME B1.20.7-1991.
- When you are buying water inlet hose for your dishwasher, please choose the thread dimension of the inlet hose as compatible with indicated water inlet valve inlet coupling thread dimension (3/4"-11.5NH) of your dishwasher.
- Temperatures required for soldering and sweating will damage the dishwasher's water inlet valve so if any such operation is needed, keep the heat source min. 77/8" (200mm) away from the dishwasher's water inlet valve.
- There should not be any sharp bends in the water line that may restrict the water flow.
- Teflon tape or pipe tread compound must be used for sealing the connection. Before connecting the copper water supply line to the dishwasher, flush it with hot water to clear any foreign material.

Pure mechanical component diagram without any text, numbers, or symbols

STEAM PROTECTION FOIL

Steam will be produced when the dishwasher door is opened during the operation of the dishwasher and after the completion of the washing cycle. To prevent the resulting steam from collecting and damaging the underside of the countertop, use a steam protection foil included with your unit.

Illustration of a hand opening a cabinet with yellow panels (no text or symbols)

FITTING THE PROTECTION FOIL

Clean the surface with a damp cloth before applying steam protection to the underside of the countertop.

Diagram of a mechanical or fluidic component with directional arrows indicating motion (no text or symbols)

Diagram of a ceiling structure with a curved pipe or duct, showing airflow direction (no text or symbols)

3D rendering of a simple room corner with gray walls and yellow panels (no text or symbols)

CAUTION

The steam protection foil must be applied where the steam escapes from when the door is first opened. Failure to install the steam protection foil during installation can lead to damage to the cabinets and countertop.

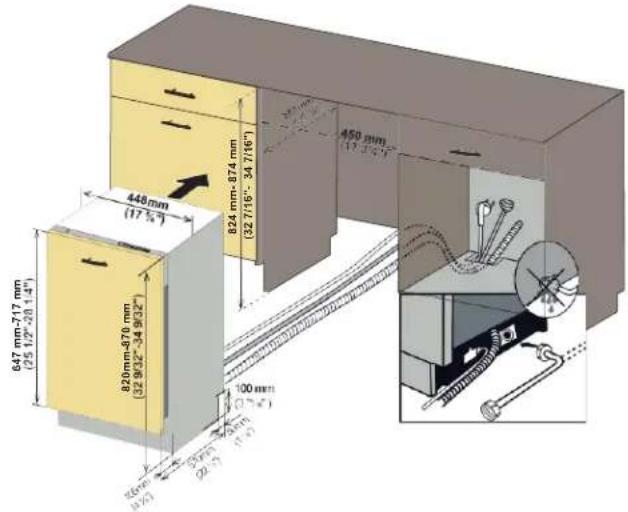

PLACEMENT OF DISHWASHER INTO THE OPENING

Now place the dishwasher into the opening and get ready to connect all the hoses and electrical connections.

448 mm (17.5") 824 mm-874 mm (32 1/16"-34 1/16") 847 mm-870 mm (35 1/2"-20 1/4") 820 mm-870 mm (32 9/32"-34 9/32") 100 mm (3.5") 70mm (0.5) 30mm (2.7) (1.5) 450 mm (17.5)

CAUTION

Make sure all hoses are pulled through the side opening of the cabinet, no hoses are kinked, and all slack is taken out as shown in the figure.

DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL CONNECTIONS

DRAIN HOSE CONNECTION

1. Check the parts on the sink to which the drain hose will be connected to.
2. There are several ways to insert the drain hose into the drain hose connector of the sink, as shown in the following figures. You must connect the drain hose in accordance with the water pipe installation regulations in your region.

Garbage Disposal	With an air gap	Without an air gap

A. Without disposal

Garbage disposal	With an air gap	Without an air gap
	Air gap Hose Clamp Drain Hose	Hose clamp

B. With Garbage Disposal

1. Check the size of the sink's drain hose connector. If needed, cut the drain hose so its end fits onto the sink connector (5/8 in., 3/4 in., or 1 in. - as shown in C below). If the end of the drain hose does not fit onto the drain hose connector of the sink, use an adaptor purchasable at a plumbing/hardware supply store.
2. Slide a hose clamp over the end of the drain hose. Attach the drain hose to the sink connector, slide the hose clamp to the end of the hose, and then tighten the hose clamp. NOTE: You must use a hose clamp. Failure to do so may cause water leakage.
3. If there is no air gap, make sure to hang the middle of the drain hose well above the sink cabinet base to prevent backflow (see Figure E below).
4. When drilling a hole for the drain hose on the cabinet wall, take caution not to damage the drain hose with the sharp edges of the hole. On wooden walls, use sanding to soften the edges. On metal walls, use insulation tape or duct tape to cover the sharp edges around the hole.
5. Take caution not to damage the drain hose when installing the dishwasher on the floor, wall, or cabinet.

NOTE: To prevent leaks or drainage problems, make sure the drain hose is not damaged, kinked, or twisted.

1. Do not cut the wrinkled area of the drain hose to fit the size. When arranging the drain hose, take caution not to contact on sharp edges of the cabinet or under-sink.

2. Be careful when cutting off the end of the drain hose as there is a risk of injury.
   Clean around the sink's drain connection so that it does not damage the hose. Check for any foreign items in the drain hose and remove them.

3. When arranging the drain hose, make sure the drain hose is not cut, torn, or broken by any sharp edges of the floor, the product itself, or the cabinet. A damaged drain hose causes a leak.

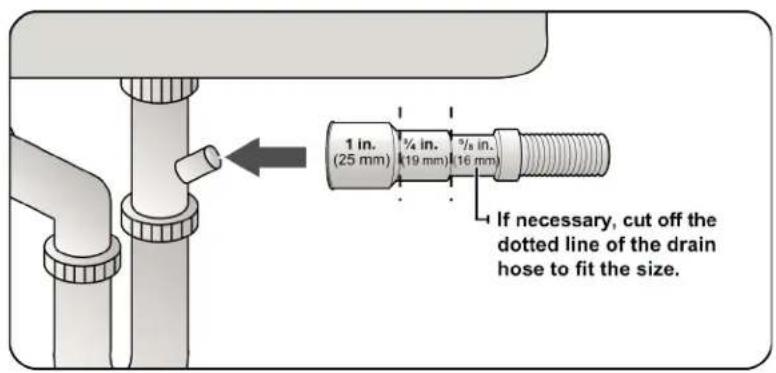

1 in. (25 mm) ¼ in. (19 mm) ¾ in. (16 mm) If necessary, cut off the dotted line of the drain hose to fit the size.

C

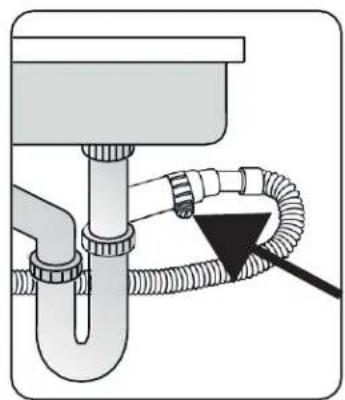

Diagram of a plumbing sink with tubing and a black arrow indicating a component (no text or symbols)

D
Use the hose clamp shown in Figure D. for drain hose assembly to the sink.

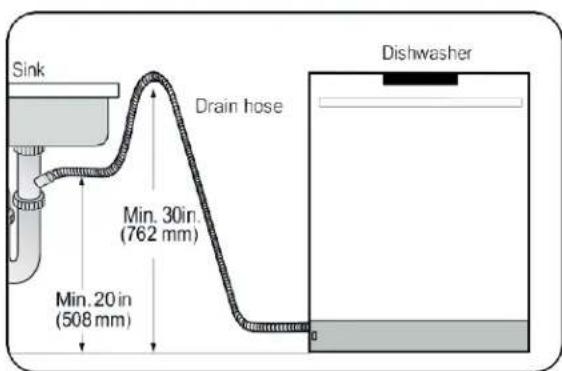

Sink Drain hose Min. 30in. (762 mm) Min. 20 in. (508 mm) Dishwasher

E

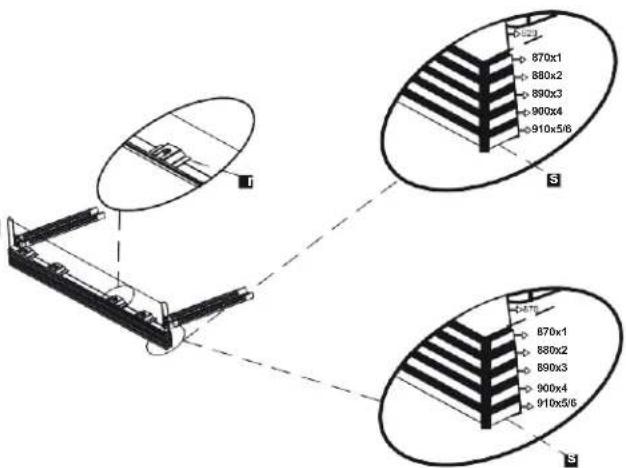

ADJUSTING THE MOVABLE TOE KICK (MODEL DEPENDING)

Now that you have successfully installed the dishwasher, you need to attach the toe kick to the dishwasher. The two-piece toe kick can be adjusted to the height and depth needed for your kitchen.

Technical diagram showing a mechanical assembly with labeled components and an inset view of a device with labeled parts.

A. If the height is 32 9/32" to 34 9/32" (820mm-870mm) and uses short supports: adjustable plinth metal with 80 mm length (v), toe kick brackets(o) are installed. Mounting is done using Screws ∅ 5/32" x 7/32" (∅ 4mm x 6mm) with a Philips Screwdriver.

B. A. If the height is above 34 9/32" (870mm) and uses short supports; adjustable plinth metal with 130 mm length (v), toe kick brackets(o) are installed. Mounting is done using Screws ∅ 5/32" x 7/32" (∅ 4mm x 6mm) with a Philips Screwdriver.

C. The adjustable plinth number is determined according to the required distance and assembled to each other.
D. As shown in the image to the right, the cylindrical feet of the adjustable plinth are attached to the plinth fixing metal parts and shifted through the cavity of the part.
C. The adjustable plinth number is determined according to the required distance and assembled to each other.
D. As shown in the image to the right, the cylindrical feet of the adjustable plinth are attached to the plinth fixing metal parts and shifted through the cavity of the part.

870x1 880x2 890x3 900x4 910x5/6 S 870x1 880x2 890x3 900x4 910x5/6 S

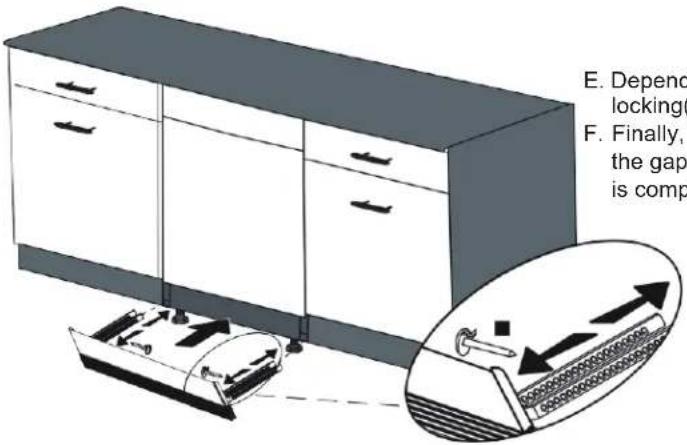

E. Depend locking(0) F. Finally, the gap is comp

E. Depending on the desired depth, plinth locking(y) is attached to the toe kick bracket(o).
F. Finally, Toe kick brackets(o) are attached to the gaps under the machine and the installation is completed.

INSTALLER CHECKLIST

Your installer must have completed the following:

The dishwasher is square in the cabinetry and leveled.

The dishwasher is fastened securely to the cabinetry.

The dishwasher door opens and closes freely. The dishwasher door must close without hitting any cabinetry or countertop.

The inlet water supply is turned on and checked for leaks.

The drain hose has been connected and checked for leaks. There must be no kinks or obstructions in the drain hose.

The drain hose must be installed with a 28" (710mm) high drain loop for drain hook-ups without any air removed.

If the dishwasher drain is hooked up to a garbage disposal, the drain hopper plug must be removed.

The spray arms are free and rotate freely. The rinse cycle has been run.

The water level will be below the filter screen after the end of the wash program.

It is normal to find some water in the drain filter area.

Set the water softener to the correct water hardness for your area. If the dishwasher drain is connected to a garbage disposal, make sure that the drain/hopper plug has been removed.

FINAL INSTRUCTIONS

1. Press the On/Off button to turn the dishwasher on.
2. Power indicator light comes on.
3. Use the Program Select button to choose a washing program.
4. Start the program with the Start/Pause/Cancel button.
5. Run the dishwasher through one complete cycle. When the wash cycle is completed, use the On/Off button to turn the dishwasher off.

SELF-HELP HINTS:

If the screen does not come on:

Check to make sure the breaker to the dishwasher is in the on position.

Check to make sure that the Supply cord is plugged.

If no water is coming into the dishwasher: Check to make sure the hot water shut-off is in the ON position.

If the water does not drain:

Make sure the drain hose is not kinked or comes out of the air gap next to the sink. Remove the drain hose from the disposal and make sure the plug is removed.

i NOTICE:

If your dishwasher is not operating properly after following these steps: Contact your dealer to schedule an authorized service agent to inspect your new dishwasher for any function-related failure.

The manufacturer warranty does not cover installation, conversion, or customer education service visits.

You will find the model and serial number information on the label located on the right-hand side of the inner door of your dishwasher, as shown above.

NOTICE:

Please make a copy of your invoice and keep it with this manual and register your dishwasher.

NOTICE:

If the dishwasher does not operate properly, refer to the self-help hints.

INTRODUCTION

Technical diagram showing mechanical assembly with labeled components and close-ups of parts, likely from an engineering or manufacturing context.

Diagram illustrating electrical circuit components with magnified views of connections and component positioning

Pure mechanical component diagram without any text, numbers, or symbols

FEUILLE DE PROTECTION VAPEUR

Illustration of a hand holding a cabinet with yellow panels (no text or symbols)

MONTAGE DE LA FEUILLE DE PROTECTION

Diagram showing a mechanical or fluidic component with directional arrows indicating motion (no text or symbols)

3D diagram of a cabinet interior with a curved pipe or duct, no text or symbols present

MISE EN GARDE

Diagram of a plumbing sink with tubing and a black arrow indicating a component (no text or symbols)

D

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Illustration of a kitchen appliance with a refrigerator and a close-up view of the keyboard (no text or symbols)

The water level will be below the filter

It is normal to find some water in the drain

filter area.
