USER MANUAL BF 3050 M BRENNENSTUHL

Mobiler 360^ LED Strahler

Mobile 360^ LED Light

Operating Instructions Mobile 360^ LED Light

BF 3050 M / BF 5050 M / BF 5051 M

Note: Before using the floodlight, please carefully read the operating instructions and store them in a proper location!

SAFETY INSTRUCTIONS

1. Always check the product for damage before use. Never use the product in case of any damage. If this is the case, please refer to an electrician or the manufacturer's service address.

Non-compliance poses a risk of fatal injury from electrical current!

1. Do not use the product in potentially explosive atmospheres - danger of death!
2. Keep the floodlight away from children. Children are not aware of the risks imposed by electric current.
3. Please never look directly into the light.
4. A destroyed protective cover cannot be replaced. The floodlight has to be disposed of.
5. The external flexible cable of this lamp cannot be exchanged; if the cable is damaged, the lamp has to be scrapped.
6. During the charging process, the product is not IP54-compliant (dust-protected and protected against splashing water).

Not suitable for applications with external dimmers.

If the minimum distance is not complied with, illuminated objects may overheat.

TECHNICAL DATA

Protection class: I

Protection class: IP 54, IK08

Rated voltage: 220 - 250V 50 / 60Hz

Connection cable: H07RN-F 3G1.5 mm²

Socket: 220 - 250V max.3400W

Typ: BF 3050 M BF 5050 M BF 5051 M
Product number: 1171410900 1171410902 1	171411902
Power plug: DE DE FR
Electrical power (W):	30	50	50
Electricity (A):	0.75	1.22	1.22
Dimensions (mm):	205 x 211 x 222.5	205 x 211 x 222.5	205 x 211 x 222.5
Protective cover dimension (mm):	200 Ø x 85.8 h	200 Ø x 85.8 h	200 Ø x 85.8 h
Weight max. (kg):	1.85	2.85	2.85
Power factor:	>0.9	>0.9	>0.9
Max projected area (cm²): 456	456		456

This LED floodlight is suitable for indoor and outdoor lighting purposes.

COMMISSIONING

SWITCHING THE FLOODLIGHT ON/OFF

Position the floodlight and switch it on using the switch (A).

The floodlight is lit with 100% light intensity; by pressing again, the light intensity is set to 50% , pressing once more switches the floodlight off.

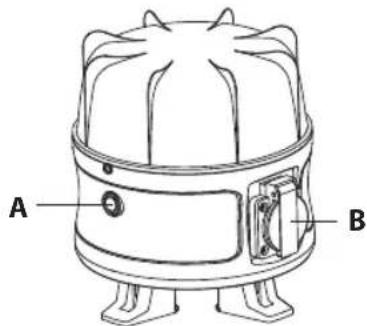

A: On/Off and function switch
B:Socket
C:Hook

OPERATION

Upright: Place the light on a dry and level surface.

Hanging: Hang the light on a suitable pipe.

Combined: interconnect several BF floodlights

A socket (B) is located on the side of the light which can be used to turn it into a power distributor.

The socket also functions when the light is switched off.

On a stand (not included in the scope of delivery)

The light can also be installed on a Brennenstuhl stand, either individually or in pairs.

The additional CB 70 1172640059 crossmember is required for installing two lights.

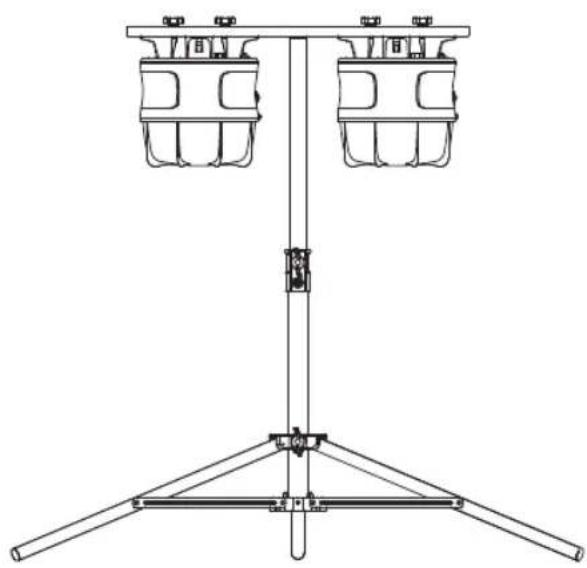

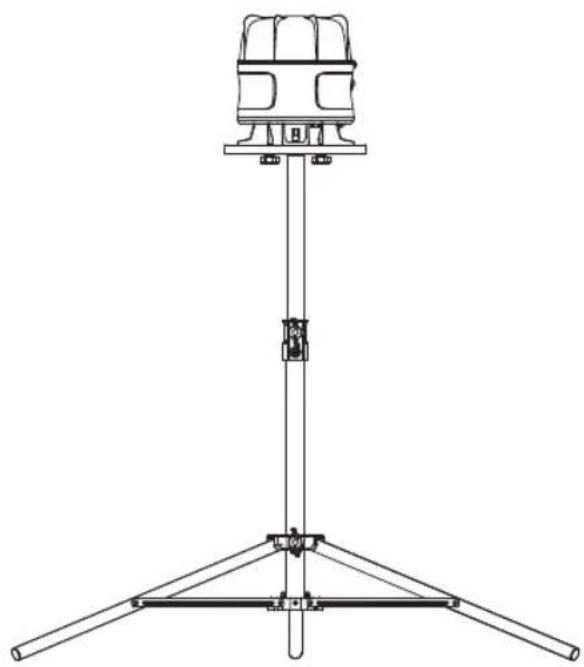

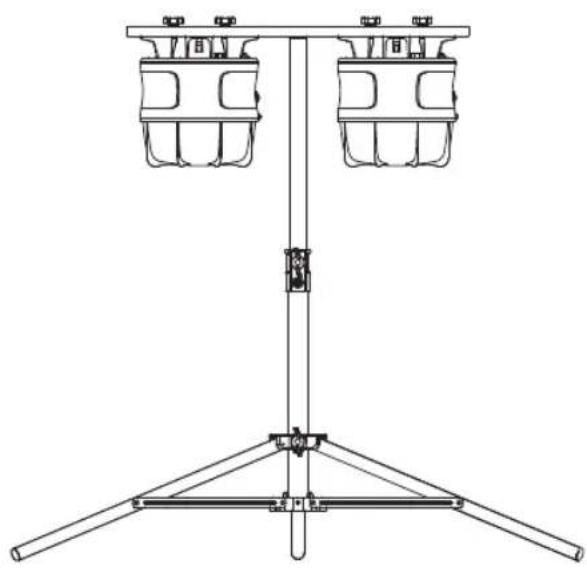

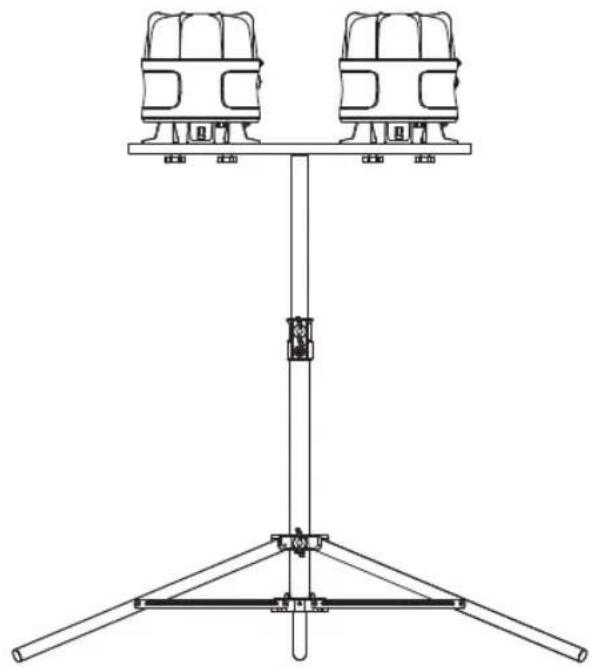

Vertically screwed single floodlight Bolted on hanging light

(just TS 250 1170610020

and TS 170 1170610010

and TS 300 9171991100)

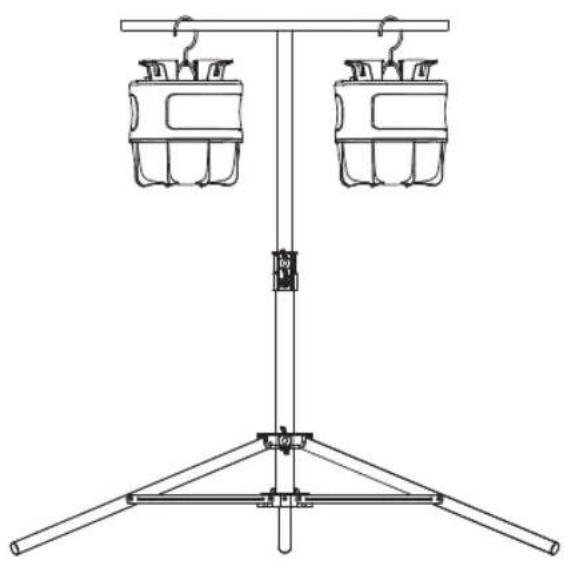

Bolted on hanging light Hanging on a hook

CABLE WRAP

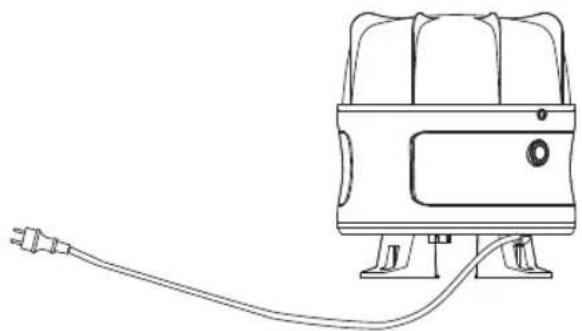

The cable can be wrapped around a groove in the light for transport and storage.

ACCESSIONS

Suitable accessories are available on our homepage www.brennenstuhl.com.

MAINTENANCE

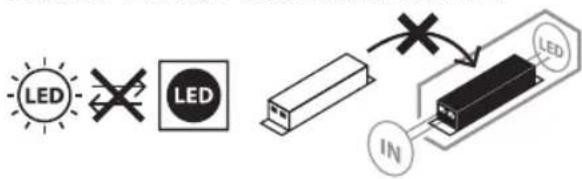

ATTENTION! The LED lamp does not contain components that require maintenance. The light source in this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.

CLEANING

Before cleaning, disconnect the floodlight from the mains power.

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

EU DECLARATION OF CONFORMITY

The EU declaration of conformity is deposited at the manufacturer.

ADRESSES

For more information please visit the Service/FAQ section on our homepage, www.brennenstuhl.com.

Indices de protection: IP 54, IK08

Tension nominale: 220 - 250V 50 / 60Hz

Cable de raccordement: H07RN-F 3G1,5 mm²

Prise de courant: 220 - 250V max.3400 W

YKA3AHNRA MEP NOTEXHNIKE BE3ONACHOCTN

1. Ipeed KaKdbIM nCnOJIb3OBaHHeM n3dEJIne HxJHO npOBepaTb Ha BO3MOXHbIe NOBpeXDeHnR. Ppi O6HApUKeHHn KaKnx 6bl To Hn 6blIO NOBpeXdeHn Hn B KOem cIyueae HeIb3r NOIb3OBaTbCS n3dEJIneM. B 3tOM cIyueae Heo6xoJMo O6paTbCS K CneuaJInCTy no 3JIeKTpuCeCKo Yactn INN B cepBnCHyO cIyX6y No aDpeCy, yKa3aHHomy n3rTOBHTeHm.

При Нecobюдени濒TORO Tpe6OBaHЯ cyuEcTByeT onaCHOCTb dЯЖИЗнВ pe3yNbTaTe nopaxKENHa 3NeKTPoTOKOM!

1. HeIb3a nCnoJIb3OBAt bN3dJIe NO B3pbIBOONaCHO cpeJe. OnaCHOCTb dJRA KUN3HN!
2. He noDnyckaTb DeTeK N3JyuaTeJIIO! DeTu He MOrTy OuceHHTb OnaCHOCTb nopaxKeHHa 3NeKTPOTOKOM.
3. Hn B KOem cIyue He CneNyET CMOTpeTb HENOCpeDCTBeHHo Ha CBeT.
4. Pa3pyuheHbI 3aunTHbI KOxuyx 3aMeHe He noJnExNt. I3nyaTeNb DoJXeH 6bITb OTnpabNeH Ha yTuIN3aCIO.
5. Bheunn rnbkn Ka6enb 3Toro CBeTnblnHa 3aMeHe He noDnexNt; B cnyuae nobpejdeHna Ka6enCBetnblnKcneDyET OTnpaBnTB Ha yTnIu3aUHO.
6. Дяиизденистениь 3aцntы IP54 (3aцntа OT nonadаня nbiln n 6pbizr) He obecneuBaetc BO Bpem npocecca 3apdkn.

Pn6Op He npurodEn dIy 3KcnpyaTaun C BHeuHmIpeyrJToPam JpKocTn CBeueHn.

Ipn yctaHOBKe Ha MeHee Yem MInHMaJIbHOM paCCTOaHN BO3MOXeH nepeRpeB OCBeueHHbIX PpeMeTOB

TEXHNUECKXAPAKTEPNCUK

Knacc 3aunTbI: I

CTeneh 3aunTbI:IP54,IK08

HomHaIbHoe HapJxKeHne: 220-250 B nep. ToKa, 50/60 T

CoeHHTeBHyk6eHb: H07RN-F 3G1,5MM²

Po3eTka: Ha 220-250 B nep. Toka, MaKc. 3400 Bt

I3nyaTeIb CBeITcra C INHTeHCNBHOCTbIO CBeueHnA 100%, npn NOBTOPHo HaxaTn INHTeHCNBHOCTb CBeueHn BbICTabJIaETcRa Ha 50%, nocJeDyIOUee HaxaTne npINBOJNT K BbIKIOUeHIO I3nyaTeIa.

A:BkIIOaTeB/BBKIOUaTeB nΦyHKIOHaJIbHbI nepeKIOuTaTeB

B:Po3eTka

C:Kpouok

Iyrae TpaHcnpTnOpBKn XpaHeHna ONOpHbIe CToIK N03BOJIaOT HaMaTbIBaTb Ha HNX Ka6eJb.

KOMJIeKTaun

IopxOJaIe KOMPJIeKToIouIe MoXHO HauTn Ha HauWei DomaHHei CtpaHnCe B INHTepHete: www.brennenstuhl.com.

TEXHnueCKOE OBCJyXnBAHne

BHIMAHHE! B CBETNbHnke Ha CBETOAnoDax HeT KOMNoHEnTOB, Tpe6yUOuX TexHnueCKOrO 06CnyKuBaHN. NCTOChNK CBeTa B 3TOM CBETNbHnke He NOJLeKNT 3aMeHe; eCNI NCTOChNK CBeTa NCpePnA1 CBOI pa6Ouyn peCypc, 3aMeHe NOJLeKNT BeCb CBETNbHnK. BCKpbIBaTB CBETNbHnK 3aPpeUaetcra.

OuHCTKA

Ipeed ouhctkoi n3nyatelb cneyuET OTKIouHTb OT cTeBOrO Hapjxehn.

HnB3a nCnoB3OBAb paCTbOpnteJi, pa3beJaoune uNCTaue BeueCTBa n T. n. dIy ouNCTKcJe dyET nCnoB3OBAb ToJbKO cyxu nn CnerKa yBnaJkHeHHy TKaHb.

YTNIN3AUIN

3neKtpnueckne np6opbl noIeXaT yTnn3aun c yyeTom 3aunTbI Okpykaoue Cpebl!

3anpeaetcBb6paCbIBaTb 3eKtponpu6Opbl BmecTe c 6bITobBMn OTxoamn!

B COOTBeTCTBnC DnpeKTHBOE NC No Otpa6oTaHHbIM 3eKtponp6opam N 3eKTPoHHo annapaType OTPa6oTaHHbI eKTPoPnp6Opbl DOJXHbI CObpaTbcB B OTdJIbHbIe KOHTeHepbl N OTpabJIaTbcra Ha yTuIN3aUIO C cO6JIIODeHNEM HOpM 3aUInTbi OKpykaIOSeI cpebl.

O BO3MOXHOCTaUNI INPn6OpOB,OTpa6oTabuNX CBOI pecypc,MOxHO y3HaTb B MeCTHOM CeIbCKOM IINI rOpOckOM camOynpaBJeHN.

DEKJIAPAUZI COOTBETCTBNA HOPMAM EC

AKTO COOTBETCTBUN TOBapa XpaHHTbCBy pON3BOJNTeJI.

N3ROTOBNTJIb

Katnyopia npoostaoic: I

PpOoTaOia:IP54,IK08

Ovoaatakna:220-250V\~,50/60Hz

A: Interruptor ON / OFF e functional

B: Da tomada

C:Gancho

CONDIÇÖES

Empe:coloque oprojetor numasuperficie planae seca.

Suspenso: Pendure o projector num tubo adequado.

in TS 170 1170610010

in TS 300 9171991100)

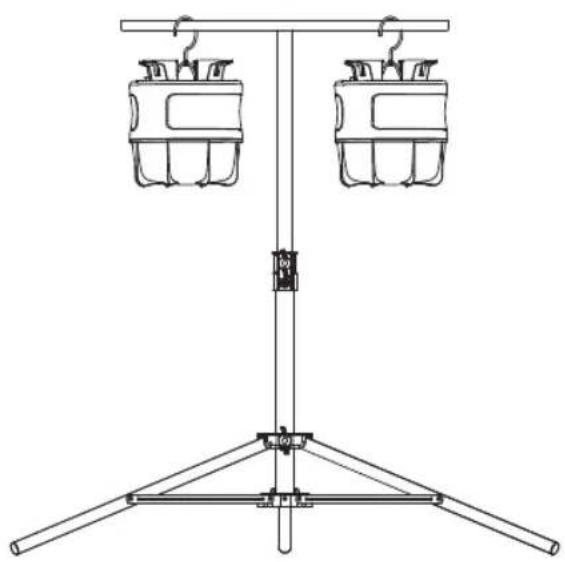

Obeseno privit Obeseno's kavljem

NAVITJE KABLOV

Stojala dovoljujejo navitja kabla za namene prevoza in skladišenja.

OPREMA

Ustreznopremo najdeten a naisi splletni strani www.brennenstuhl.com.

VZDRZEVANJE
