Operating Instructions Mobile 360° LED Light

BF 3050 M / BF 5050 M / BF 5051 M

Note: Before using the floodlight, please carefully read the operating instructions and store them in a proper location!

SAFETY INSTRUCTIONS

1. Always check the product for damage before use. Never use the product in case of any damage. If this is the case, please refer to an electrician or the manufacturer's service address.

Non-compliance poses a risk of fatal injury from electrical current!

1. Do not use the product in potentially explosive atmospheres – danger of death!
2. Keep the floodlight away from children. Children are not aware of the risks imposed by electric current.
3. Please never look directly into the light.
4. A destroyed protective cover cannot be replaced. The floodlight has to be disposed of.
5. The external flexible cable of this lamp cannot be exchanged; if the cable is damaged, the lamp has to be scrapped.
6. During the charging process, the product is not IP54-compliant (dust-protected and protected against splashing water).

Not suitable for applications with external dimmers.

If the minimum distance is not complied with, illuminated objects may overheat.

TECHNICAL DATA

Protection class: I

Protection class: IP 54, IK08

Rated voltage: 220–250 V\~, 50/60 Hz

Connection cable: H07RN-F 3G1.5 mm ^4

Socket: 220–250 V\~, max. 3400 W

Typ: BF 3050 M BF 5050 M BF 5051 M
Product number: 1171410900 1171410902 1171411902
Power plug: DE DE FR
Electrical power (W):	30	50	50
Electricity (A):	0.75	1.22	1.22
Dimensions (mm):	205 x 211 x 222.5	205 x 211 x 222.5	205 x 211 x 222.5
Protective cover dimension (mm):	200 ∅ x 85.8 h	200 ∅ x 85.8 h	200 ∅ x 85.8 h
Weight max. (kg):	1.85	2.85	2.85
Power factor:	>0.9	>0.9	>0.9
Max projected area (cm2): 456	456		456

This LED floodlight is suitable for indoor and outdoor lighting purposes.

COMMISSIONING

SWITCHING THE FLOODLIGHT ON/OFF

Position the floodlight and switch it on using the switch (A).

The floodlight is lit with 100 % light intensity; by pressing again, the light intensity is set to 50 %, pressing once more switches the floodlight off.

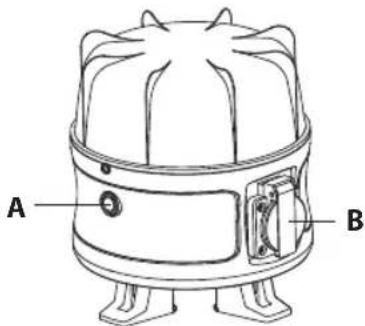

A: On/Off and function switch

B: Socket

C: Hook

Technical line drawing of a mechanical device with labeled parts A and B (no text or symbols beyond labels)

Technical diagram of a circular mechanical component with labeled part C (no text or symbols beyond label)

OPERATION

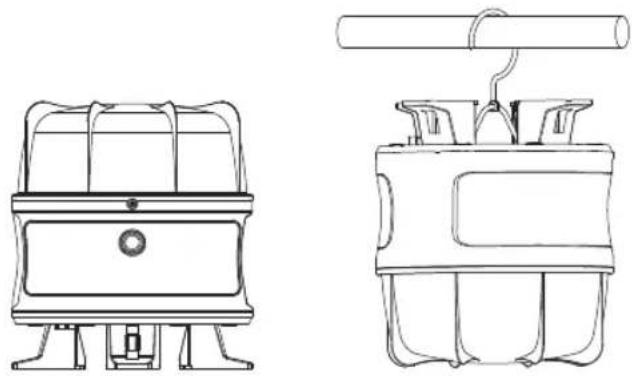

Upright: Place the light on a dry and level surface.

Hanging: Hang the light on a suitable pipe.

Technical line drawings of two mechanical components with no visible text or symbols

Combined: interconnect several BF floodlights

A socket (B) is located on the side of the light which can be used to turn it into a power distributor.

The socket also functions when the light is switched off.

Line drawing of a car front panel with seat covers and door (no text or symbols)

Line drawing of a mechanical device with a cable and power outlet (no text or symbols)

On a stand (not included in the scope of delivery)

The light can also be installed on a Brennenstuhl stand, either individually or in pairs.

The additional CB 70 1172640059 crossmember is required for installing two lights.

Technical line drawing of two identical tripod-mounted industrial equipment with dual vertical supports (no text or symbols)

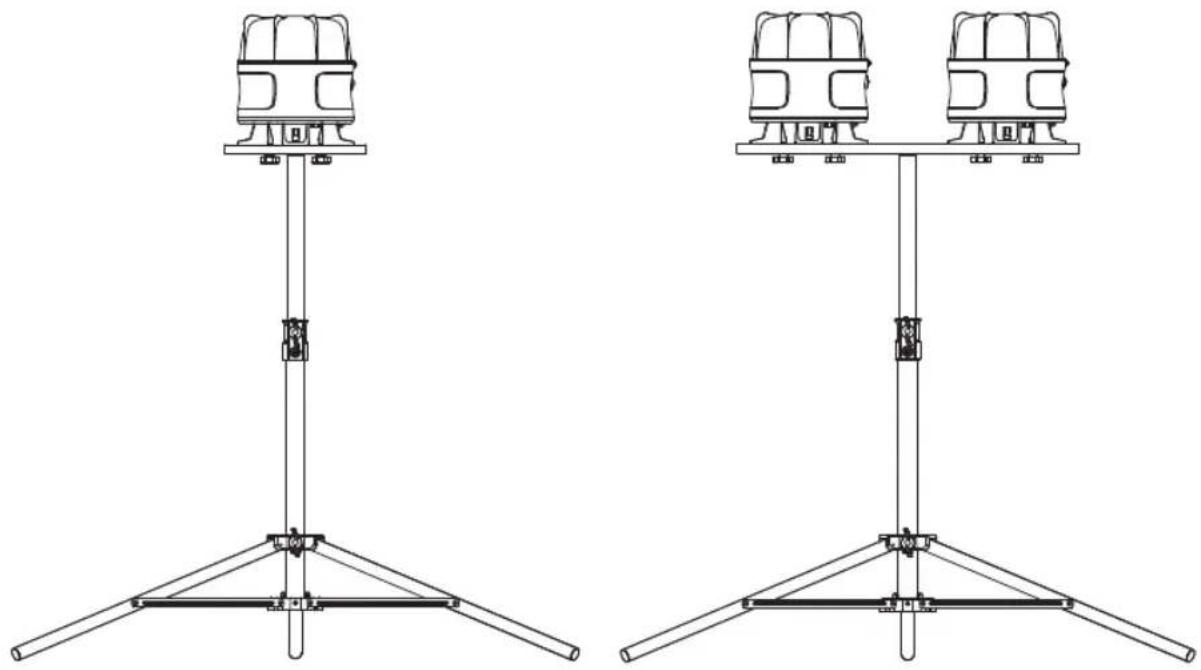

Vertically screwed single floodlight Bolted on hanging light

(just TS 250 1170610020

and TS 170 1170610010

and TS 300 9171991100)

Technical line drawing of two identical mechanical support structures with no text or symbols

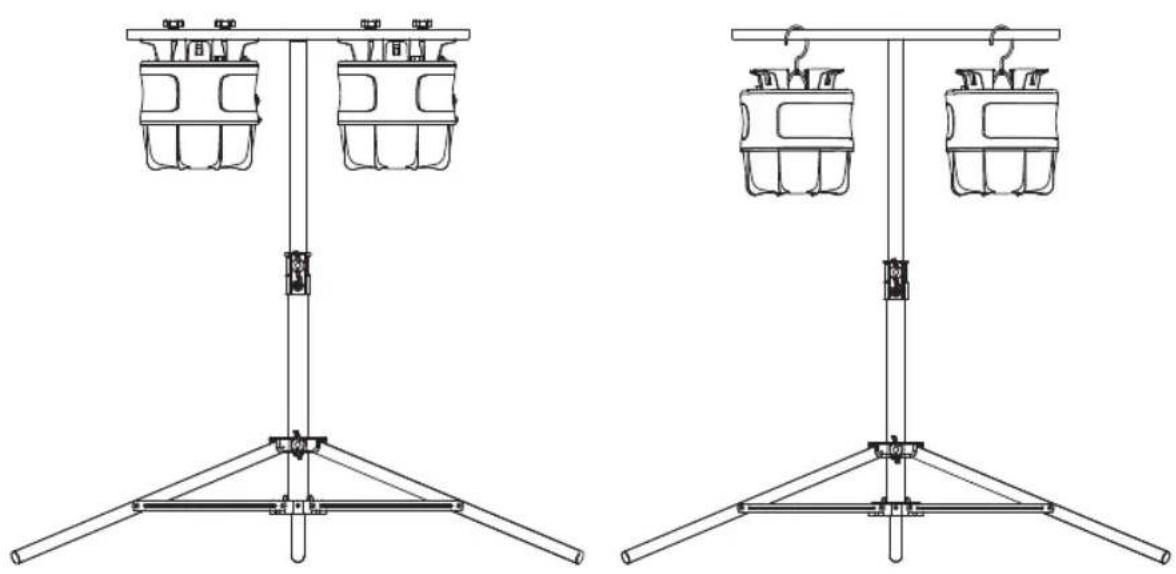

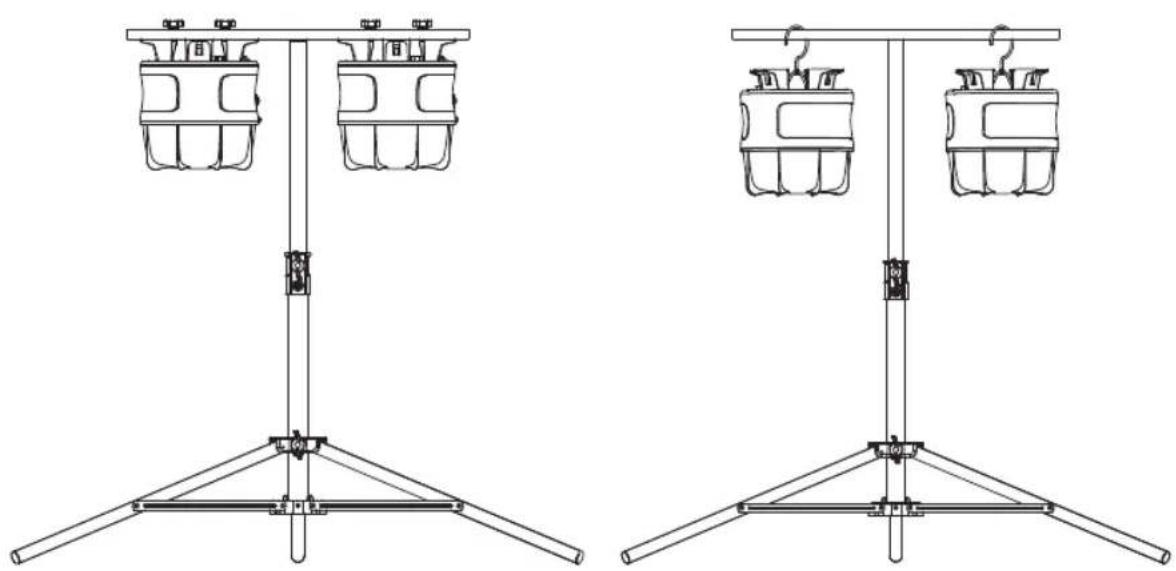

Bolted on hanging light Hanging on a hook

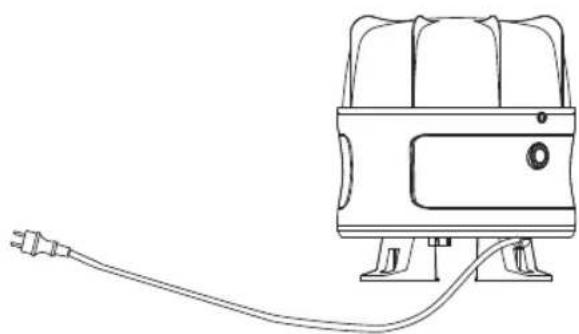

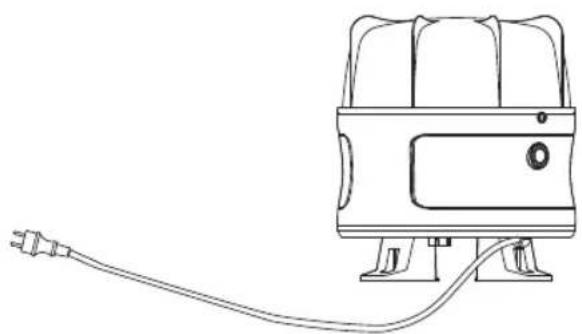

CABLE WRAP

The cable can be wrapped around a groove in the light for transport and storage.

ACCESSORIES

Suitable accessories are available on our homepage www.brennenstuhl.com.

MAINTENANCE

Diagram showing a device with an 'IN' label and a black rectangular component labeled 'LED' connected to it, with a red X symbol indicating cancellation or failure.

ATTENTION! The LED lamp does not contain components that require maintenance. The light source in this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.

CLEANING

Before cleaning, disconnect the floodlight from the mains power.

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

EU DECLARATION OF CONFORMITY

The EU declaration of conformity is deposited at the manufacturer.

ADRESSES

For more information please visit the Service/FAQ section on our homepage, www.brennenstuhl.com.
