USER MANUAL VT-554 V-TAC
WEEE Number: 80133970
INSTALLATION INSTRUCTION

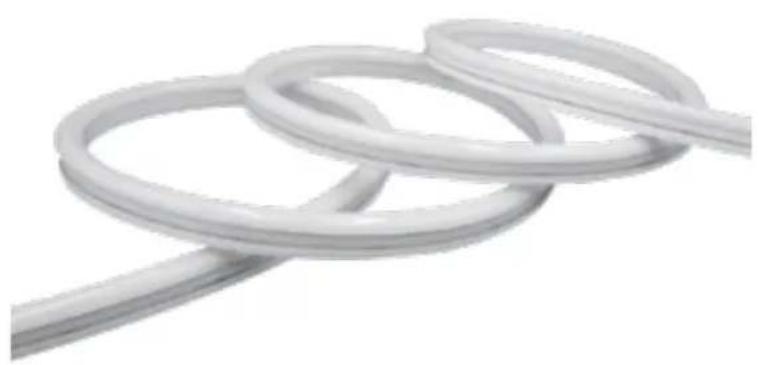

NEON FLEX LIGHT
TECHNICAL DATA:
| Model | VT-554 |
| Watts | 6.5 |
| Lumens | 260 |
| BeamAngle | 120° |
| Body Type | Silicone |
| CRI | >80 |
| PCB Width | 8mm |
| Roll | 10 |
| LED QTY/M | 126 |
| Current Power/M | 0.27A |
| Operation Temperature | -20 to +60°C |
| Input Power | DC: 24V |
IP68
RATING
WARRANTY
Note: IP68 LED Neon Flex can be installed up to 20 meters (max) inside the water.
WARNING!
- Please make sure to turn off the power before starting the installation.
- The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole luminaire should be replaced.
- Installation should only be done by a certified electrician.
This marking indicates that this product should not be disposed of with other household wastes.
Caution, risk of electric shock.
INTRODUCTION
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installing and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.
! Attention


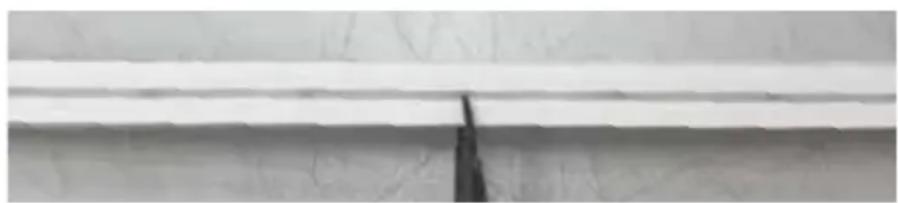

Close-up of a white plastic rod or connector with a small protrusion on one end (no text or symbols visible)Please cut only on the dotted/scissor marking on the LED Neon Flex. No End Cap required.
SAFETY INSTRUCTION AND WARNINGS!
- Please cut the LED Neon Flex according to the cutting as shown in the cutting instructions. Cutting outside the marking will damage the product. Please cut only on the dotted/scissor marking on the LED Neon Flex. No End Cap required.
- LED Neon Flex cannot be folded, bent or twisted during the installation. Please install in straight direction. DO NOT turn on power until LED Neon Flex is connected properly and well-installed.
- DO NOT touch/cut the LED Neon Flex when power is on.
- DO NOT power the LED Neon Flex in roll/package.
- DO NOT install in flammable environment, and make sure well ventilated.
- DO NOT wrap or cover LED Strip Light with any objects. Additional waterproof measure needed when used outdoors.
-
DO NOT directly connect LED Neon to AC power. Special power plug is needed.
-
If LED Neon Flex does not work when Power is on, please check "+" and "-" polarity
-
When selecting power supply always add additional 10% to the maximum load.
-
DO NOT use excessive wire length between the power supply and LED Neon Flex to avoid voltage drop.
INFORMATION CONCERNING INSTALLATION
1) Use only DC power Supply (DC:24V).
2) When selecting appropriate power supply, please take into account, the electric power consumed by LED Neon Flex (kindly check the technical data sheet).
3) In case when section is longer than 10M, we recommend to power strips from the ends
INSTALLATION INSTRUCTIONS
Step 1: Switch Off the power before starting the installation.

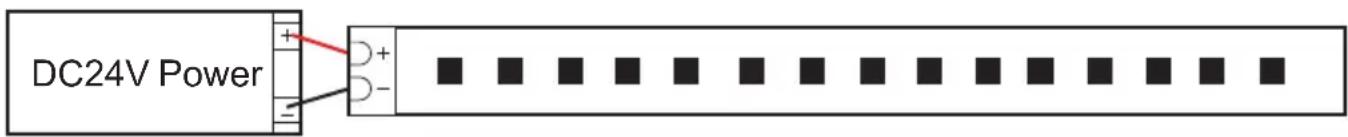

Step 2: Connect the LED Neon Flex polarity "+" and "-" to the driver's polarity "+" and "-". Follow the wiring diagram to ensure the wiring is done correctly [Refer to Figure 1].
Red wire should be connected to positive (+) side of the power supply.
Step 3: Wire the AC input source to the power supply and the AC plug.
AC Power
Neutral Supply can be Blue or Black
Live Supply Can be Red or Brown
Figure 1
Step 4: Switch on the power to test the light.
REMARKS CONCERNING MAINTENANCE
1) Use dry delicate cloth for cleaning.
2) Switch off the LED Neon Flex, prior to cleaning and make sure that the plug is pulled out of the outlet.
3) Please wait until the lamp cools down in case it is heated.
4) During cleaning, follow the general safety rules and always be careful.
REMARKS CONCERNING SAFETY
1) The product should be safeguarded from children and in any case, should not be the subject of play.
2) If the product is damaged, it should not be used (Advisably for recycling).
3) To be used for indirect lighting/architectural purpose only.
4) The manufacturer is not responsible for any damage arisen from not following safety instruction or misuse of product.
