Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully.
  This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.

2. Delivery contents

• Digital thermo-hygrometer
- Instruction manual

3. Range of application and all the benefits of your new instrument at a glance

• For checking indoor climate
• Indoor temperature and humidity
• Trend arrows

Digital thermo-hygrometer

• Indication of maximum and minimum values with manual or auto-reset
• Backlight
• With coloured comfort levels
• Can be used as a transmitter for Cat.-No. 30.3054.10, 30.3056.10 and 30.3062.10
  • Wall mounting or table stand

4. For your safety

• This product is exclusively intended for the range of application described above. It should only be used as described within these instructions.
• Unauthorized repairs, alterations or changes to the product are prohibited.

Caution! Risk of injury:

• Keep the device and the batteries out of reach of children.
• Batteries may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.

Digital thermo-hygrometer

- Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks.
• Protect it from moisture.
• Only suitable for indoor use.

5. Elements

A: Display

A 1: Temperature
A 2: °C/°F
A 3: Temperature trend arrow
A 4: Temperature calibrated
A 5: Transmission symbol
A 6: Trend arrow humidity
A 7: Symbol for auto-reset of the maximum-minimum values
A 8: Battery symbol
A 9: Humidity calibrated
A 10: Comfort level indicator
A 11: Humidity
A 12: Channel number
A 13: Max/min values

B: Buttons (Fig. 2):

B 1: MIN/MAX/- button

B 2: SET button

B 3: CH/+ button

Digital thermo-hygrometer

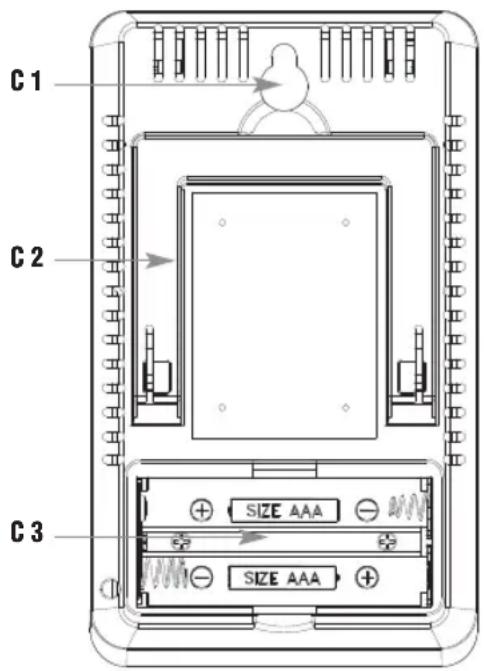

C: Housing (Fig. 3):

C 1: Mounting hole
C 2: Stand (fold out)
C 3: Battery compartment

6. Getting started

• Open the battery compartment.
• Insert two new AAA 1.5 V batteries, polarity as illustrated. The measured temperature and humidity and the channel number 2 (default) appear on the display.
• Close the battery compartment again.

7. Temperature display

- Press and hold the MIN/MAX/– button to change between °C (Celsius) or °F (Fahrenheit) as temperature unit.

8. Trend indicator

- The trend arrows indicate whether the values for temperature and humidity are currently increasing, steady or decreasing.

9. Comfort level

- A marking appears on the display to indicate the comfort level.

RH <45% RH 45%... 65% RH >65%

DRY COM WET

Dry Comfortable Wet

Digital thermo-hygrometer

10. Maximum and minimum values

• Press the MIN/MAX/- button.
  • MAX appears on the display.
• The maximum values measured since the last reset appear on the display.
• Press the MIN/MAX/– button again.
  • MIN appears on the display.
• The minimum values measured since the last reset appear on the display.
• Press the MIN/MAX/– button again, to go back to the display of the present values.

11. Reset to the current temperature

11.1 Manual reset

- Press and hold the MIN/MAX/– button when the maximum or minimum values are displayed to reset the corresponding values.

11.2 Automatic reset

• Press and hold the SET button for 3 seconds to activate the automatic reset of the maximum-minimum values.
  • 24hrs appears on the display.
• The maximum and minimum values will be reset every 24 hours (from the moment of activation).
• Press and hold the SET button for 3 seconds to deactivate the automatic reset of the maximum-minimum values.
  • 24hrs disappears on the display.

12. Backlight

- Press any button to temporarily activate the backlight.

Digital thermo-hygrometer

13. Transmitter function

• The device can be used as a thermo-hygro transmitter for stations cat.-No. 30.3054.10, 30.3056.10 and 30.3062.10 (temperature only).
• Connect the transmitter according to the instruction manual of the base station.

14. Setting of channel number

• Press and hold the CH/+ button for 3 seconds.
• The circle symbol for channel change appears.
• Press CH/+ button to adjust the channel (1-8).
• Press and hold the CH/+ button for 3 seconds to confirm the selection.
• The circle symbol for channel change disappears.

15. Positioning and mounting of the device

- The device can be placed onto any flat surface with its fold out (150 degrees) stand or wall mounted with the mounting hole, both found on the back of the unit.

15.1 Use as thermo-hygro transmitter

• Make sure you avoid the vicinity of any source of interference such as computer screens, TV sets or solid metal objects.
• Once the desired location is chosen, check whether the transmission from the device to the base station is possible (transmission range of up to 100 m in open areas). Within solid walls, especially ones with metal parts, the transmission range can be reduced considerably.
• If necessary choose another position for the device and/or base station.

Digital thermo-hygrometer

16. Care and maintenance

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the batteries if the device will not be used for an extended period of time.
• Keep the device in a dry place.

16.1 Battery replacement

- Change the batteries when the battery symbol appears on the display.

17. Troubleshooting

Problem Solution

No display → Ensure the batteries'

polarity are correct → Change the batteries

Incorrect indication → Change the batteries

→ Use the calibration function

Base station doesn't Base station is not com-receive the values patible (see "transmitter function" section 13.)

→ Restart the device and the base station (according to the base station manual)

→ Manual search for the transmitter (according to the base station manual)

Digital thermo-hygrometer

→ Choose another place for the device and/or the base station
→ Reduce the distance between the device and the base station
→ Check if there is any source of interference

18. Calibration function

- The thermo-hygrometer allows the user to calibrate the display of temperature and humidity measurements with an external, better reference source. The user can make adjustments to the temperature and humidity displays within the measuring range.

18.1 Calibration of the humidity display

• Press the SET and the MIN/ MAX/— button at the same time for 5 seconds.
  • The humidity display flashes.
• Press the CH/+ or the MIN/ MAX/− button to correct the display of the humidity.
  • CALIBRATED appears on the display.
• Press the SET button briefly, on the display appears the normal measurement or press and hold the SET button for 3 seconds to confirm the set value.

18.2 Calibration of the temperature display

• Press the SET and the CH/+ button at the same time for 5 seconds.
  • The temperature display flashes.

Digital thermo-hygrometer

• Press the CH/+ or the MIN/MAX/− button to correct the display of the temperature.
• Press the SET button briefly, on the display appears the normal measurement or press and hold the SET button for 3 seconds to confirm the set value.

19. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries with ordinary household waste.

As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the contained heavy metals are:

Cd = cadmium, Hg = mercury, Pb = lead

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

Digital thermo-hygrometer

1. Specifications

Temperature range indoor 0 °C... 60°C(32 °F ...140 °F)

Humidity range 10 ... 99%

Temperature accuracy ±1°C

Temperature resolution 0.1°C

Humidity accuracy ±5% @ 20...90%

Humidity resolution 1 %

Range max. 100 m (open field)

Transmission frequency 433 MHz

Maximumradio-frequency power < 10mW

Transmission time Every 60 seconds

Power consumption Batteries 2 x 1,5 V AAA(not included)

Dimensions 64 x 18 (40) x 109 mm

Weight 65 g (device only)

Digital thermo-hygrometer

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about your product can be found by entering the product number on our homepage

EU Declaration of conformity

Hereby, TFA Dostmann declares that the radio equipment type 30.5045.54 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address:

www.tfa-dostmann.de
