USER MANUAL sE4400 SE Electronics
Thank you for choosing an sE product! In addition to some basic safety precautions, this manual includes details and specifications to help you get the most out of your microphone. Please take a few minutes to read through it.
Capturing excellent audio is our passion. We sincerely hope you'll enjoy using this microphone as much as we've enjoyed designing and building it for you.
Happy Tracking,
The sE Team
The sE4400
Pure and simple. No thrills. Just great sound. The sE4400 is a handcrafted vintage-meets-modern condenser microphone, featuring a brass capsule with twin 1" gold-sputtered Mylar diaphragms. It has a smooth response, reminiscent of classic condenser mics of decades past. A true studio workhorse and delivers excellent results on any application from recording vocals, acoustic instruments, grand piano to drum overheads, brass instruments and electric guitar cabinets. The sE4400 and the T2 are also available as a factory-matched stereo pair and include a stereo mounting bar.

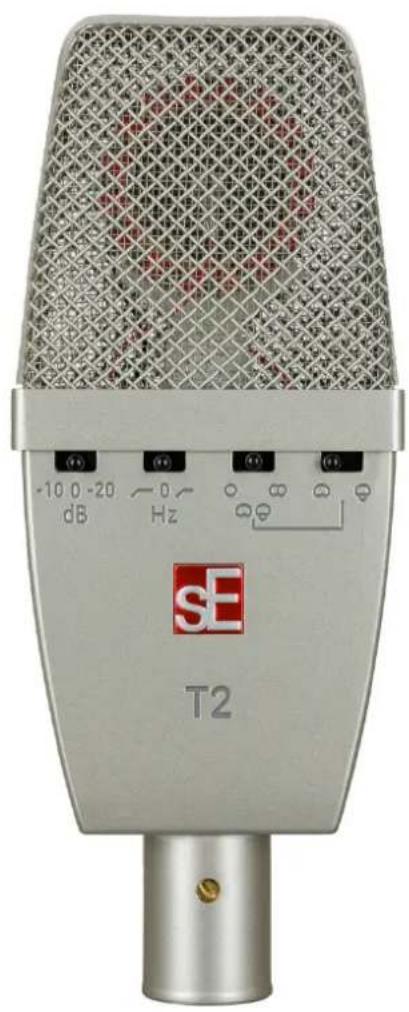

The T2
While the sE4400 incorporates gold-sputtered diaphragms, the T2 uses Titanium. Why? Because it is better. Titanium is 33% stiffer and more than 300% lighter than Gold. This results in impressive transient response perfect for capturing sources that thrive on attack: drums, cymbals, hand percussion, upright bass, etc.
What's in the box
Your packaging should contain the follow items. If anything is missing, please contact your sE Electronics dealer and let them know.
sE4400 / T2
- Microphone
• Shock-mount with thread adapter
sE4400 / T2 Matched Pair
- Two microphones
- Two shock-mounts with thread adapters
- Stereo mounting bar
Controls
These microphones have four switches, allowing a tailored response to the source.
Attenuation Pad
The attenuation switch, on the far left of the microphone, allows you to reduce the microphone's signal by 10 or 20 decibels, which can be very helpful on loud sources, preventing overload on your audio interface. When this switch is in its center position, the microphone output is unaffected.
The low-cut switch, second from the left, allows you to adjust the bass response to your source. When engaged to the left, the microphone's low frequency response is rolled off at 40 Hz. When engaged to the right, the microphone's low frequency response is rolled off beginning at 80 Hz. In the center position, the low frequency response is unaffected.
The two switches on the right side of the microphone control its polar pattern. The right-center switch offers three settings. To the left, the microphone is capturing an omnidirectional pattern. To the right, the microphone is capturing a figure-8 pattern. In the center, you have two options: cardioid or hypercardioid. The switch on the far right toggles between those two polar patterns. Switch to the left for cardioid. Switch to the right for hypercardioid.
The sE4400 and T2 condenser microphones both require 48V Phantom power to operate.
Do not connect the microphone to any power supply other than a 48V Phantom power source. Phantom power is often integrated into both mixers and audio interfaces, and engaged via a switch on the unit's panel. Verify that any potential external power source is a direct substitute for integrated 48V Phantom power.
Please be aware that Phantom power cannot pass through TRS connectors. A balanced microphone cable with XLR connectors at both sides is required to provide Phantom power to a microphone.
Safety and maintenance
Please make sure that the piece of equipment to which your microphone will be connected fulfils the safety regulations enforced in your country and is fitted with a ground lead.
Cleaning the microphone
The microphone should only be cleaned with a soft cloth. Do not use any cleaning agents or aggressive liquids.
Technical Specifications
| Capsule | Hand-crafted 1" true condenser capsule |
| Polar patterns | Cardioid, Hypercardioid, Omni-directional, Figure-8 |
| Frequency range | 20 – 20,000 Hz |
| Sensitivity | 25 mV/Pa (-32 dBV) |
| Max. SPL (0.5% THD) | 137 / 147 / 157 dB_SPL (0/10/20 dB Attenuation pad) |
| Equivalent noise level | 13 dB(A) |
| Dynamic range | 124 / 134 / 144 dB (0/10/20 dB Attenuation pad) |
| Signal-to-noise ratio | 81 dB |
| Low cut filter | 40 / 80 Hz, 6 dB/Oct, switchable |
| Attenuation pad | 10 / 20 dB, switchable |
| Powering | 48 Volts according to IEC 61938 |
| Electrical Impedance | 22 Ohms |
| Recommended load impedance | >1k Ohms |
| Current consumption | 3.7 mA |
| Connectivity | 3-pin male XLR connector |
| Dimensions | 58 x 29 x 146 mm (2.32 x 1.10 x 5.75 in.) |
| Weight | 290 g (10.23 oz.) |
Support
In the event that you experience any problems or have any questions regarding your sE product, please contact your dealer first for the fastest and most direct service. If authorized service is required, it will be arranged by that dealer: http://www.seelectronics.com/dealers
If you are still having difficulties with support or assistance, please do not hesitate to contact us directly: http://www.seelectronics.com/contact-us
Lastly, please remember to register your new gear with sE to extend your warranty to a full three years: http://www.seelectronics.com/registration
Contact
Feel free to contact us:
sE Electronics International, Inc. www.seelectronics.com
448 Ignacio Blvd, STE 411
Novato, CA 94949 USA
contact@seelectronics.com
Our international distributors & sales representatives: http://www.seelectronics.com/contact-us
This product conforms to the standards listed in the Declaration of Conformity. Please contact us if you want to order a free copy of the Declaration of Conformity. Technical data subject to change without notice.
Vielen Dank
sE Electronics International, Inc.
448 Ignacio Blvd, STE 411
Novato, CA 94949 USA
www.seelectronics.com
contact@seelectronics.com
Unsere internationalen Vertriebspartner & Handelsvertreter: http://www.seelectronics.com/contact-us
http://www.seelectronics.com/registration
联系方式
sE Electronics International, Inc. www.seelectronics.com
448 Ignacio Blvd, STE 411 contact@seelectronics.com
Novato, CA 94949 USA
http://www.seelectronics.com/registration
Contatti
http://www.seelectronics.com/registration
Contact
Close-up of a black electronic device with white circular symbols and a curved line (no readable text or labels)Питание
Warning sign with red triangle and black exclamation mark symbolsE Electronics International, Inc.
448 Ignacio Blvd, STE 411
Novato, CA 94949 USA (CLWA)
www.seelectronics.com
contact@seelectronics.com

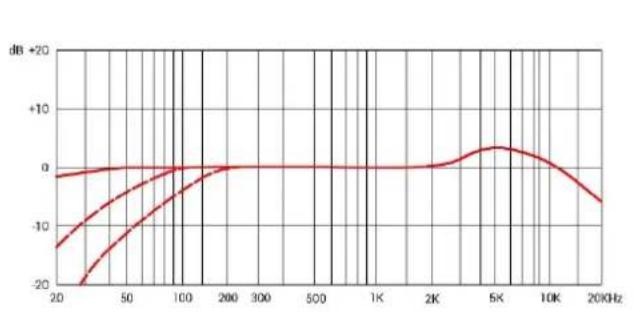

line
| Frequency | Value | | --------- | ----- | | 20 | -20 | | 50 | -10 | | 100 | 0 | | 200 | 0 | | 500 | 0 | | 1K | 0 | | 2K | 0 | | 5K | 0 | | 10K | 0 | | 20K | -5 |

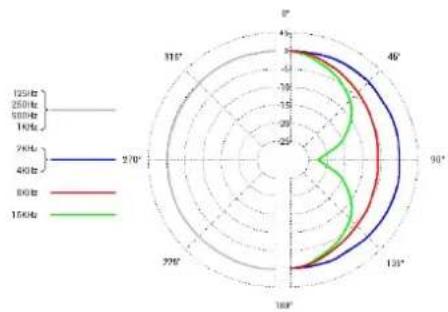

radar
| Frequency | Angle (°) | Value | |---|---|---| | 120Hz | 210° | 4.5 | | 200Hz | 270° | 5.2 | | 500Hz | 330° | 4.8 | | 800Hz | 400° | 3.9 | | 1000Hz | 470° | 4.1 | | 120Hz | 540° | 4.6 | | 200Hz | 610° | 5.1 | | 500Hz | 680° | 4.7 | | 800Hz | 750° | 4.3 | | 1000Hz | 820° | 3.8 | | 120Hz | 900° | 3.5 | | 200Hz | 980° | 3.2 | | 500Hz | 1060° | 3.1 | | 800Hz | 1140° | 3.0 | | 1000Hz | 1220° | 2.9 | The chart displays a polar plot with angular positions in degrees and corresponding frequency values for each frequency band. The data is presented in a single column format with the same axes labeled 'Angle' and 'Value'.Figure 8 / Acht / 8 字型 / Figura a 8 / Figure en 8 / Figura de 8 / «Восьмерка»
line
| Frequency | Value (dB) | | --------- | ---------- | | 20 | -15 | | 50 | -5 | | 100 | 0 | | 200 | 0 | | 500 | 0 | | 1K | 0 | | 2K | 0 | | 5K | 5 | | 10K | 0 | | 20K | -5 |
radar

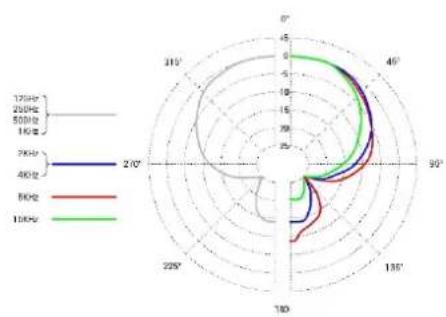

| Frequency | Value | |---|---| | 1250Hz | 2500 | | 250Hz | 500 | | 40Hz | 150 | | 80Hz | 800 | | 160Hz | 1600 |Cardioid / Niere / 心型 / Cardioide / Cardioïde / Cardioide / Кардиоидная
line
| Frequency | Value (dB) | | --------- | ---------- | | 20 | -15 | | 50 | -5 | | 100 | 0 | | 200 | 0 | | 500 | 0 | | 1K | 0 | | 2K | 0 | | 5K | 0 | | 10K | 0 | | 20K | 0 |
radar
| Frequency | Angle (°) | Value | |---|---|---| | 125Hz | 0 | 125 | | 125Hz | 45° | 125 | | 125Hz | 90° | 125 | | 125Hz | 145° | 125 | | 125Hz | 200° | 125 | | 125Hz | 250° | 125 | | 125Hz | 315° | 125 | | 125Hz | 380° | 125 | | 250Hz | 0 | 250 | | 250Hz | 45° | 250 | | 250Hz | 90° | 250 | | 250Hz | 145° | 250 | | 250Hz | 200° | 250 | | 250Hz | 250° | 250 | | 250Hz | 315° | 250 | | 250Hz | 380° | 250 | | 400Hz | 0 | 400 | | 400Hz | 45° | 400 | | 400Hz | 90° | 400 | | 400Hz | 145° | 400 | | 400Hz | 200° | 400 | | 400Hz | 250° | 400 | | 400Hz | 315° | 400 | | 400Hz | 380° | 400 | | 600Hz | 0 | 600 | | 600Hz | 45° | 600 | | 600Hz | 90° | 600 | | 600Hz | 145° | 600 | | 600Hz | 200° | 600 | | 600Hz | 250° | 600 | | 600Hz | 315° | 600 | | 600Hz | 380° | 600 | | 100kHz | 0 | 100 | | 100kHz | 45° | 100 | | 100kHz | 90° | 100 | | 100kHz | 145° | 100 | | 100kHz | 200° | 100 | | 100kHz | 250° | 100 | | 100kHz | 315° | 100 | | 100kHz | 380° | 100 | The chart displays the frequency response of a system measured at various angular positions. The data is presented in a single column format with 'Frequency' and 'Angle' as the legend categories. The values are estimated based on the 'Value' column.Omnidirectional / Kugel / 仓指向型 / Omnidirezionale / Omnidirectionnelle / Omnidireccional / всенаправленная
line
| Frequency | Value (dB) | | --------- | ---------- | | 20 | -15 | | 50 | -5 | | 100 | 0 | | 200 | 0 | | 500 | 0 | | 1K | 0 | | 2K | 0 | | 5K | 5 | | 10K | 0 | | 20K | -5 |
radar
| Time | Angle (°) | Value | |---|---|---| | 125h | 45° | 13 | | 250h | 45° | 13 | | 500h | 45° | 13 | | 800h | 45° | 13 | | 1000h | 45° | 13 | | 125h | 90° | 13 | | 270° | 90° | 13 | | 315° | 90° | 13 | | 360° | 90° | 13 | | 405° | 90° | 13 | | 450° | 90° | 13 | | 495° | 90° | 13 | | 540° | 90° | 13 | | 585° | 90° | 13 | | 630° | 90° | 13 | | 675° | 90° | 13 | | 720° | 90° | 13 | | 765° | 90° | 13 | | 800° | 90° | 13 | | 845° | 90° | 13 | | 890° | 90° | 13 | | 935° | 90° | 13 | | 980° | 90° | 13 | | 1025° | 90° | 13 | | 1070° | 90° | 13 | | 1115° | 90° | 13 | | 1160° | 90° | 13 | | 1205° | 90° | 13 | | 1250° | 90° | 13 | The chart displays a single data series with values ranging from -2 to +4. The x-axis represents the angle in degrees (from -2 to +4). There are no labels or additional data series in this image.Hypercardioid / Hyperniere / 超心型 / Ipercardioide / Hypercardioide / Hipercardioide / гиперкардиоидная
line
| Frequency | Value (dB) | | --------- | ---------- | | 20 | -15 | | 50 | -5 | | 100 | 0 | | 200 | 0 | | 300 | 0 | | 500 | 0 | | 1K | 0 | | 2K | 0 | | 5K | 0 | | 10K | 0 | | 20K | -5 |

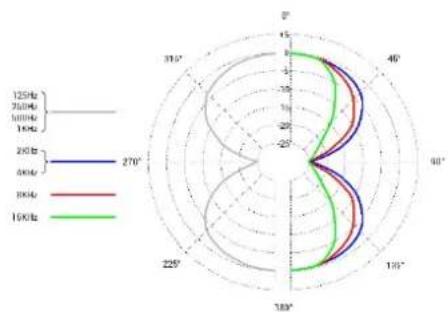

Figure 8 / Acht / 8 字型 / Figura a 8 / Figure en 8 / Figura de 8 / «Восьмерка»
line
| Frequency | Amplitude (dB) | | --------- | -------------- | | 20 | -18 | | 50 | -10 | | 100 | 0 | | 200 | 0 | | 500 | 0 | | 1K | 0 | | 2K | 0 | | 5K | 3 | | 10K | 0 | | 20K | -5 |
radar
| Angle | 125Hz | 200Hz | 300Hz | 400Hz | 160Hz | |---|---|---|---|---|---| | 0° | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | | 90° | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | | 180° | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | | 270° | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | | 360° | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
IMPORTANT
WARRANTY REGISTRATION
Thank you for purchasing an sE product! You are automatically entitled to a two-year warranty, but can extend this to a full three years with registration. To register your new equipment and to read the full warranty details, please go here:
http://www.seelectronics.com/registration
Most Sincerely,
The sE Team
