USER MANUAL T300 Maruyama

Technical line drawing of a mechanical tool with a lever and base, no text or symbols present

The POWER in Outdoor Power

Completely read and understand this manual PRIOR to using this product.

Limited Warranty Statement

All Maruyama commercial/ industrial products are warranted to the original purchaser to be free from defects in material and workmanship from the date of purchase for the time periods listed as follows:

Lifetime for solid steel driveshaft and ignition coils.

5 years for qualified IRON 5-YR ^™ commercial, institutional, or industrial use.

2 years for residential and commercial use with competitor's oil.

90 days for rental use.

Engine - Refer to engine manufacturer's warranty statement. Only Maruyama engines are covered by this limited warranty statement.

Any part of a Maruyama product found to be defective within the applicable warranty period shall, at Maruyama's option, be repaired or replaced without charge. Warranty consideration is obtained by delivering any Maruyama product believed to be defective to an Authorized Maruyama Servicing Dealer within the applicable warranty period.

The purchaser shall not be charged for diagnostic labor that leads to the determination that a warranted part is defective, if the diagnostic work is performed at a Maruyama Dealer.

Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled only for regular inspection to the effect of “repair or replace as necessary” shall be warranted for the warranty period. Any warranted part, which is scheduled for replacement as, required maintenance shall be warranted for the period of time up to the first scheduled replacement point for that part. Maruyama Mfg. Co., Inc. is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

The purchaser is responsible for the performance of the required maintenance, as defined by Maruyama Mfg. Co., Inc. in the Owner's/Operator's Manual.

EMISSION-RELATED PARTS WARRANTY: In addition to the above warranty coverage, Maruyama Mfg. Co., Inc. will repair or replace, free of charge, for the original purchaser and each subsequent purchaser any emission-related part or parts found to be defective in material and workmanship for 5 years from original retail delivery date. Emission-related parts are the carburetor assembly, the ignition coil assembly, the ignition rotor, the spark plug, the catalytic converter and the fuel tank. Any replacement part that is equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not reduce the warranty obligations of Maruyama Mfg. Co., Inc.

This warranty does not cover the following:

1. Maintenance items (excluding defects in materials and workmanship) including hoses, spark plugs, starter rope, air and fuel filters, clutch shoes, vibration isolators, throttle cables and all cutting attachments, etc.
2. Extra expenses including shipping and handling, travel, payment for lost time or pay and for any inconvenience and storage.
3. Alterations or modifications including aftermarket parts not authorized by Maruyama U.S., Inc.
4. Wear, accident, abuse, neglect, misuse, negligence, improper fuels, lubricants, fuel mixtures (when applicable), or failure to operate or maintain the product in accordance with instructions approved by Maruyama.

Repair or replacement as provided under this warranty is the exclusive remedy of the consumer. Maruyama shall not be liable for any incidental or consequential damages for breach of any express or implied warranty on these products except to the extent prohibited by applicable law. Any implied warranty of merchantability or fitness for a particular purpose on these products is limited in duration to the warranty period as defined in the limited warranty statement. Maruyama reserves the rights to change or improve the design of the product without notice and does not assume obligation to update previously manufactured products.

This warranty provides you with specific legal rights, which may vary from state to state.

It is the Owner's and Dealer's responsibility to make sure the Warranty Registration Card is properly filled out and mailed to Maruyama U.S., Inc. Proof of purchase and registration will be required in order to obtain warranty service.

To locate an Authorized Maruyama Servicing Dealer nearest you, contact:.

Maruyama U.S., Inc. 4770 Mercantile Drive, suite100, Fort Worth, TX 76137 U.S.A. [phone] [e-mail] www.maruyama-us.com

WARNING:

Operating, servicing and maintaining this product can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, service equipment in a well-ventilated area and wear gloves or wash your hands frequently when servicing this equipment. For more information, visit on the web at www.P65warnings.ca.gov.

THE AIR INDEX OF THIS ENGINE IS 3 0 2 4 6 8 10 MOST CLEAN LEAST CLEAN NOTE: THE LOWER THE AIR INDEX, THE LESS POLLUTION. THIS ENGINE IS CERTIFIED TO BE EMISSIONS COMPLIANT FOR THE USE EXTENDED: 300HOURS CHECK THE OWNER'S MANUAL FOR FURTHER DETAILS.

T300

FEDERAL EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS

The U.S. Environmental Protection Agency (EPA), and Maruyama Manufacturing Company, Inc. are pleased to explain the emission control system warranty on your small off-road engine. New 1997 and later model year small off-road engines must be designed, built and equipped, at the time of sale, to meet the U.S. EPA regulations for small off-road engines. The equipment engine must be free from defects in materials and workmanship which cause it to fail to conform with U.S. EPA standards for the first 5 years of engine use from the date of sale to the ultimate purchaser. Maruyama Manufacturing Company, Inc. must warrant the emission control system on your small off-road engine for the period of time listed above provided there has been no abuse, neglect or improper maintenance of your small off-road engine.

Emission durability of 300 hours.

Your emission control system may include parts such as the carburetor or fuel injection system, the ignition system, and catalytic converter. Also included may be hoses, belts, and connectors and other emission related assemblies.

Where a warrantable condition exists, Maruyama Manufacturing Company, Inc. will repair your small off-road engine at no cost to you, including diagnosis (if the diagnostic work is performed at an authorized dealer), parts, and labor.

MANUFACTURER'S WARRANTY COVERAGE:

The 1997 and later model year small off-road engines are warranted for five years. If any emission-related part on your engine is defective, the part will be repaired or replaced by Maruyama Manufacturing Company, Inc. free of charge.

OWNER'S WARRANTY RESPONSIBILITIES:

(a) As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your owner's/operator's manual.

Maruyama Manufacturing Company, Inc. recommends that you retain all receipts covering maintenance on your small off-road engine, but Maruyama Manufacturing Company, Inc. cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. Any replacement part or service that is equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not reduce the warranty obligations of the engine manufacturer.

(b) As the small off-road engine owner, you should be aware, however, that Maruyama Manufacturing Company may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
(c) You are responsible for presenting your small off-road engine to a Maruyama Manufacturing Company, Inc. service center as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should contact Maruyama U.S., Inc. at 1-866-783-7400, or [e-mail].

COVERAGE

Maruyama Manufacturing Company, Inc. warrants to the ultimate purchaser and each subsequent purchaser that your small off-road engine will be designed, built and equipped, at the time of sale, to meet all applicable regulations. Maruyama Manufacturing Company, Inc. also warrants to the initial purchaser and each subsequent purchaser that your small off-road engine is free from defects in materials and workmanship which cause the engine to fail to conform with applicable regulations for a period of 5 years.

The 1997 and later model years, EPA requires manufacturers to small off-road engines for 5 years. These warranty periods will begin on the date the small off-road engine is purchased by the initial purchaser. If any emission-related part on your engine is defective, the part will be replaced by Maruyama Manufacturing Company, Inc. at no cost to the owner.

Maruyama Manufacturing Company, Inc. shall remedy warranty defects at any authorized Maruyama Manufacturing Company, Inc. engine dealer or warranty station. Any authorized work done at an authorized dealer or warranty station shall be free of charge to the owner if such work determines that a warranted part is defective. Any manufacturer-approved or equivalent replacement part may be used for any warranty maintenance or repairs on emission-related parts, and must be provided free of charge to the owner if the part is still under warranty, Maruyama Manufacturing Company, Inc. is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

EPA considers emission-related warranted parts to include all the parts listed below. These warranted parts are: the carburetor assembly, the ignition coil assembly, the ignition rotor, the spark plug, the catalytic converter, and the fuel tank.

MAINTENANCE REQUIREMENTS

The owner is responsible for the performance of the required maintenance as defined by the Maruyama Manufacturing Company, Inc. in the owner's/operator's manual.

LIMITATIONS

This Emission Control System Warranty shall not cover any of the following:

(a) repair or replacement required because of misuse or neglect, lack of required maintenance, repairs improperly performed or replacements not conforming to Maruyama Manufacturing Company, Inc. specifications that adversely affect performance and/or durability, and alterations or modifications not recommended or approved in writing by Maruyama Manufacturing Company, Inc., and

(b) replacement of parts and other services and adjustments necessary for required maintenance at and after the first scheduled replacement point.

Part II: CALIFORNIA EMISSIONS CONTROL WARRANTY STATEMENT CALIFORNIA EXHAUST AND EVAPORATIVE EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS

The California Air Resources Board and Maruyama Manufacturing Company, Inc. are pleased to explain the exhaust and evaporative emissions (“emissions”) control system warranty on your 2021 small off-road engine. In California, new equipment that use small off-road engines must be designed, built, and equipped to meet the State’s stringent anti-smog standards. Maruyama Manufacturing Company, Inc. must warrant the emissions control system on your small off-road engine for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your small off-road engine or equipment leading to the failure of the emissions control system.

Your emissions control system may include parts such as the carburetor or fuel-injection system, the ignition system, catalytic converter, fuel tanks, fuel lines (for liquid fuel and fuel vapors), fuel caps, valves, canisters, filters, clamps and other associated components. Also included may be hoses, belts, connectors, and other emission-related assemblies.

The evaporative emission warranty parts list shall include all parts whose failure would increase evaporative emissions, and may contain, but is not limited to, the following parts: Fuel Tank, Fuel Cap, Fuel Lines (for liquid fuel and fuel vapors), Fuel Line Fittings, Pressure Relief Valves, Control Valves, Vacuum Control Diaphragms, Purge Valves, Carburetor Purge Port Connector.

Where a warrantable condition exists, Maruyama Manufacturing Company, Inc. will repair your small off-road engine at no cost to you including diagnosis, parts and labor.

MANUFACTURER'S WARRANTY COVERAGE:

The exhaust and evaporative emissions control system on your small off-road engine is warranted for 5 years. If any emissions-related part on your small off-road engine is defective, the part will be repaired or replaced by Maruyama Manufacturing Company, Inc.

OWNER'S WARRANTY RESPONSIBILITIES:

• As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your owner's manual. Maruyama Manufacturing Company, Inc. recommends that you retain all receipts covering maintenance on your small off-road engine, but Maruyama Manufacturing Company, Inc. cannot deny warranty coverage solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
• As the small off-road engine owner, you should however be aware that Maruyama Manufacturing Company, Inc. may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
• You are responsible for presenting your small off-road engine to a Maruyama Manufacturing Company, Inc. distribution center or service center as soon as the problem exists. The warranty repairs shall be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should contact Maruyama Manufacturing Company, Inc. at 1-866-783-7400, or [e-mail].

The evaporative emission warranty parts list shall include all parts whose failure would increase evaporative emissions, and may contain, but is not limited to, the following parts:

(1) Fuel Tank
(2) Fuel Cap
(3) Fuel Lines (for liquid fuel and fuel vapors)
(4) Fuel Line Fittings
(5) Pressure Relief Valves
(6) Control Valves
(7) Vacuum Control Diaphragms
(8) Purge Valves
(9) Carburetor Purge Port Connector

The exhaust emission warranty parts list shall include all parts whose failure would increase exhaust emissions, and may contain, but is not limited to, the following parts:

(1) Fuel Metering System
(A) Carburetor and internal parts
(2) Cold start enrichment system
(3) Controlled hot air intake system
(4) Air filter
(5) Ignition System
(6) Spark Plug
(7) Magneto or electronic ignition system
(8) Spark advance/retard system
(9) Exhaust Gas Recirculation (EGR) System
(10) EGR valve body, and carburetor spacer if applicable
(11) Air pump or pulse valve

MARUYAMA®

Limited Warranty Statement 1

FEDERAL EMISSION CONTROL 3

CALIFORNIA EMISSION CONTROL 4

Contents.... 16

Safety and Instruction Decals.... 19

Introduction 20

Safety 21

Operator Safety 21

Cultivator Safety 21

Fuel Safety 22

Cultivator Operating Safety....23

Product description 24

Assembly 25

Loop Handle Installation 25

Installing Shaft and Gearcase 26

Before Operation 27

Oil and Fuel 27

Mixing Gasoline and Oil 29

Starting and Stopping 31

Instruction of the throttle trigger 34

Operation 35

Maintenance 37

Idle Speed Adjustment....37

Air Filter 38

Fuel Filter 39

Spark Plug 39

Cylinder Cooling Fins 40

Spark Arrester 41

Exhaust Muffler 42

Gearcase 43

General Cleaning and Tightening 43

Storage 44

Troubleshooting 45

Maintenance Period 46

Specifications 47

Contenido

Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost.

WARNING BEFORE OPERATING THIS EQUIPMENT READ THE OPPERS OF THIS EQUIPMENT FAILURE TO FOLLOW ALL AND FACTS, INSTRUCTIONS, MARKINGS AND INSTRUCTIONS CAN RESULT IN SERIOUS NAME WARNING HAULED DISECTS CAN CAUSE BLUNT, ALWAYS WEAR PROTECTIVE OPERATING THIS EQUIPMENT. OPERATING THIS EQUIPMENT. (SEE OPERATORS MANUAL) WARNING THE EQUIPMENT PRESSING ON LAYOUT WHICH ON DAMS OPERATING ALWAYS OR WHIP ON WORK THE EQUIPMENT WHIP ON WORK THE EQUIPMENT MANUAL DO NOT OPERATE WITHIN 45 FEET FROM OTHER PEOPLE

Thank you for purchasing a MARUYAMA product.

MARUYAMA, it's distributors, and dealers want you to be completely satisfied with your new product. Please feel free to contact your local Authorized Service Dealer for help with service, genuine MARUYAMA parts, or other information you may require.

Whenever you contact your Authorized Service Dealer or the factory, always know the serial number of your product. This number will help the Service Dealer or Service Representative provide exact information about your specific product. You will find the model and serial number located in a unique place on the product (Product Description on page 24).

For your convenience, write the product model name and serial number in the space to the below.

Model Name ____

Serial No. ____

Read this manual carefully to learn how to operate and maintain your product correctly. Reading this manual will help you and others avoid personal injury and damage to the product.

Although MARUYAMA designs, produces and markets safe, state of the art products, you are responsible for using the product properly and safely. You are also responsible for training persons who you allow to use the product about safe operation.

The MARUYAMA warning system in this manual identifies potential hazards and has special safety messages that help you and others avoid personal injury, even death.

DANGER, WARNING and CAUTION are signal words used to identify the level of hazard. However, regardless of the hazard, be extremely careful.

DANGER signals an extreme hazard that will cause serious injury or death if the recommended precautions are not followed.

WARNING signals a hazard that may cause serious injury or death if the recommended precautions are not followed.

CAUTION signals a hazard that may cause minor or moderate injury if the recommended precautions are not followed. Two other words are also used to highlight information. "Important" calls attention to special mechanical information and "Note" emphasizes general information worthy of special attention.

Introducción

1. Read and understand this Owner's/Operator's Manual before using this product. Be thoroughly familiar with the proper use of this product.
2. Never allow children to operate the Cultivator. It is not a toy. Never allow adults to operate the unit without first reading the Owner's/Operator's Manual.
3. Always wear eye protection that complies with ANSI (American National Standards Institute) Z87-1. [#21-1]
4. Always wear hearing protection. [#21-2]
5. Always wear heavy, long pants, a long sleeved shirt, boots and gloves. Do not wear loose clothing, jewelry, short pants, sandals, or go barefoot. Secure hair so it is above shoulder length.
6. Never operate this Cultivator when you are tired, ill, or under the influence of alcohol, drugs or medication.
7. Never start or run the engine inside a closed room or building. Breathing exhaust fumes can cause death. [#21-3]
8. Keep handles clean of oil, fuel and dirt.

Cultivator Safety

1. Make sure the Cultivator is assembled correctly and that the Cultivator tines is correctly installed and securely fastened as instructed in the Assembly section.
2. Inspect the Unit before each use. Replace damaged parts. Check for fuel leaks. Make sure all fasteners are in place and tightened securely. Follow the maintenance instructions beginning on page 37.
3. Make sure the Cultivator tines does not move at engine idle speed. Refer to Idle Speed Adjustment, page 37.
4. Inspect the Cultivator tines and replace any parts that are cracked, worn or damaged before using the Cultivator.
5. Never use a Cultivator tines or replacement parts that are not approved by MARUYAMA.
6. Maintain the Cultivator according to the recommended maintenance intervals and procedures in the Maintenance section on page 37.
7. Shut off the engine and wait until the Cultivator tines has completely stopped moving before Cultivator, performing maintenance on or working on the machine.

1. L'essence est hautement inflammable et doit être manipulée et stockée avec précaution. Utilisez un bidon approuvé pour le

2. Mix and pour fuel outdoors, where there are no sparks or flames.

3. Do not smoke near fuel or Cultivator, or while using the Cultivator.
4. Do not overfill the fuel tank. Stop filling 1/4-1/2 in. (6 mm-13 mm) from the top of the tank.
5. Wipe up any spilled fuel before starting the engine.
6. Move the Cultivator at least 10ft. (3m) away from the fueling location before starting the engine.
7. Do not remove the fuel tank cap while the engine is running, or right after stopping the engine.
8. Allow the engine to cool before refueling.
9. Drain the tank and run the engine dry before storing the unit.
10. Store fuel and Cultivator away from open flame, sparks and excessive heat. Make sure fuel vapors cannot reach sparks or open flames from water heaters, furnaces, electric motors, etc.

Cultivator Operating Safety

1. THIS CULTIVATOR CAN CAUSE SERIOUS INJURIES. Read the instructions carefully. Be familiar with all controls and the proper use of the Cultivator.
2. Avoid using the Cultivator near rocks, gravel, stones and similar material that would cause harmful missiles.
3. Inspect your work area before you begin. Remove objects such as broken glass, nails, wire and rocks which can become dangerous projectiles if thrown by the Cultivator. Remove string, rope or similar materials which can become entangled in the Cultivator head.
4. This Cultivator will throw objects and cut. Keep children, bystanders and animals outside a 50ft. (15m) radius from the operator and Trimmer. Beyond the 50ft. (15m) there still may be a risk of injury to bystanders from thrown objects. It is recommended that bystanders wear eye protection. A thrown object can ricochet. (See the String Trimmer Operating Safety)
5. If you are approached while operating the Cultivator, stop the engine and cultivate tool rotation.

6. Use the Cultivator only in daylight or good artificial light.

7. Do not put hands or feet near or under any rotating parts. Keep clear at all times. Keep all parts of your body away from the rotating tool and hot surfaces such as the muffler.

8. If the cultivator tines become jammed, stop the engine immediately. Make certain all moving parts have stopped, and disconnect the plug before attempting to remove any obstruction.
9. Use the right tool for the job. Do not use the Cultivator for any job that is not recommended by MARUYAMA

Technical diagram of a mechanical device with numbered components and an inset view showing internal components.

Pure mechanical component diagram without any text, numbers, or symbols

[#25-2] [#25-3]

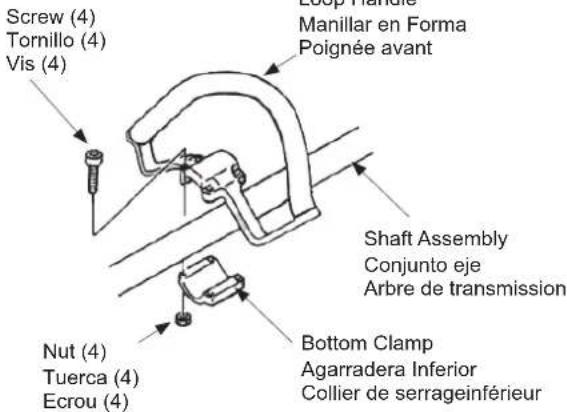

Screw (4) Tornillo (4) Vis (4) Loop Handle Manillar en Forma Poignée avant Shaft Assembly Conjunto eje Arbre de transmission Bottom Clamp Agarradera Inferior Collier de serrageinférieur Nut (4) Tuerca (4) Ecrou (4)

Line drawing of a person using a handheld tool to lift a hose (no text or symbols)

Assembly

Loop Handle Installation

Loop handle must be assembled gearcase side from the arrow (A). [#25-1]

1. Place the loop handle and the bottom clamp on the shaft assembly. [#25-2]
2. Install the four screws and nuts. Leave the screws finger-tight.
3. Reposition the loop handle up or down the shaft assembly to the most comfortable position, but don't over to the arrow mark. [#25-3]
4. Tighten the screws and nuts.

Montaje

Installing Shaft and Gearcase

1. Attach the shaft assembly to the gearcase assembly. [#26-1]

NOTE: Align the locating holes and install the locating screw through the side of the gearcase. Then tighten the locating screw and the clamping screw.

1. Attach the debris shield onto the shaft assembly. [#26-2, #26-3] Place the plastic collar onto the shaft assembly approximately one inch from the cultivator gearcase, locating the ends as shown in sketch. Then place the two bracket parts onto the plastic collar and fasten securely with two 6 mm screws. Attach the shield to the bracket with four 5 mm screws.

- In certain conditions gasoline is extremely flammable and highly explosive.

WHAT CAN HAPPEN

- A fire or explosion from gasoline can burn you, others, and cause property damage.

HOW TO AVOID THE HAZARD

• Use a funnel and fill the fuel tank outdoors, in an open area, when the engine is could. Wipe up any gasoline that spills.
• Do not fill the fuel tank completely full. Add gasoline to the fuel tank until the level is 1/4 to 1/2in. (6mm to 13mm) below the bottom of the filler neck. This empty space in the tank allows gasoline to expand.
• Never smoke when handling gasoline, and stay away from an open flame or where gasoline fumes may be ignited by a spark.
• Store gasoline in an approved container and keep it out of the reach of children.

• Never buy more than a 30-day supply of gasoline.

• Do not smoke near fuel.

• Mix and pour fuel outdoors and where there are no sparks or flames.

WARNING

POTENTIAL HAZARD

- Gasoline contains gasses that can build up pressure inside a gas tank.

WHAT CAN HAPPEN

- Fuel can be sprayed on you when removing gas cap.

HOW TO AVOID THE HAZARD

- Remove fuel cap slowly to avoid injury from fuel spray.

1. Always shut off the engine before refueling. Never remove the fuel tank cap while the engine is running or right after just stopping the engine.
2. Always open the fuel tank cap slowly to release any possible overpressure inside the tank.

Antes de Utilizar

Diagram illustrating two different techniques for climbing a slope, with one method showing a broken structure and the other demonstrating a tool path.

1. Do not overfill the fuel tank. Stop filling 1/4-1/2 in. (6mm-13mm) from the top of the tank.
2. Tighten the tank fuel cap carefully but firmly after refilling.
3. Wipe up any spilled fuel before starting the engine.
4. Move the Cultivator at least 10 ft (3m) away from the fueling location and fuel storage container before starting the engine.

Recommended Oil Type

Only use a two-stroke engine oil formulated for use in high-performance, air-cooled two-stroke engines. MARUYAMA brand two-stroke oil is formulated for use in high-performance, air-cooled two-stroke engines.

IMPORTANT: Do not use National Marine Manufacturer's Association (NMMA) or BIA certified oils. This type of two-stroke engine oil does not have the proper additives for air cooled, two-stroke engines and can cause engine damage.

Do not use automotive motor oil. This type of oil does not have the proper additives for air-cooled, two-stroke engines and can cause engine damage.

Recommended Fuel Type

Use clean, fresh lead-free gasoline, including oxygenated or reformulated gasoline, with an octane rating of 89 or higher. To ensure freshness, purchase only the quantity of gasoline that can be used in 30 days. Use of lead-free gasoline results in fewer combustion chamber deposits and longer spark plug life. Use of premium grade fuel is not necessary or recommended.

Use of Fuel Additives

IMPORTANT: NEVER USE ALCOHOL, GASOHOL CONTAINING MORE THAN 10% ALCOHOL BECAUSE ENGINE FUEL SYSTEM DAMAGE COULD RESULT.

DO NOT USE FUEL ADDITIVES OTHER THAN THOSE MANUFACTURED FOR FUEL STABILIZATION DURING STORAGE SUCH AS MARUYAMA'S STABILIZER/CONDITIONER OR A SIMILAR PRODUCT. MARUYAMA'S STABILIZER/CONDITIONER IS A PETROLEUM DISTILLATE BASED CONDITIONER/STABILIZER. MARUYAMA DOES NOT RECOMMEND STABILIZERS WITH AN ALCOHOL BASE SUCH AS ETHANOL, METHANOL OR ISOPROPYL. ADDITIVES SHOULD NOT BE USED TO TRY TO ENHANCE THE POWER OR PERFORMANCE OF MACHINE.

Mixing Gasoline and Oil

IMPORTANT: The engine used on this Cultivator is of a two-stroke design. The internal moving parts of the engine, i.e., crankshaft bearings, piston pin bearings and piston to cylinder wall contact surfaces, require oil mixed with the gasoline for lubrication.

Failure to add oil to the gasoline or failure to mix oil with the gasoline at the appropriate ratio will cause major engine damage which will void your warranty.

For your fuel premix, use MARUYAMA Premium two-stroke Oil Mix, or equivalent ISOL- EGD & JASO FD oil with a minimum 89 octane high Quality gasoline. MARUYAMA two-stroke oil is specially formulated to meet the requirements of high-performance, low-emission air-cooled two-stroke engines. Use of other oils may lead to service issues which may Not be covered by your warranty.

Fuel Mixture

The fuel: oil ratio is 50 parts gasoline to 1 part oil or 50:1.

Note: Never use a mixing ratio less than 50:1 regardless of the oil package mixing instructions. Ratios less than 50:1, (for example, 60:1, 80:1, 100:1), reduce the amount of lubrication to the internal moving parts of the engine and can cause damage.

Refer to the chart above.

Mixing Instructions

IMPORTANT: Never mix gasoline and oil directly in the Cultivator fuel tank.

1. Always mix fuel and oil in a clean container approved for gasoline.
2. Mark the container to identify it as fuel mix for the Cultivator.
3. Use regular unleaded gasoline and fill the container with half the required amount of gasoline.
4. Pour the correct amount of oil into the container then add the remaining amount of gasoline.
5. Close the container tightly and shake it momentarily to evenly mix the oil and the gasoline before filling the fuel tank on the Cultivator.
6. When refilling the Cultivator fuel tank, clean around the fuel tank cap to prevent dirt and debris from entering the tank during cap removal.
7. Always shake the premix fuel container momentarily before filling the fuel tank.
8. Always use a spout or funnel when fueling to reduce fuel spillage.
9. Fill the tank only to within 1/4-1/2 in. (6mm-13mm) from the top of the tank. Avoid filling to the top of the tank filler neck.

Starting and Stopping

Before Starting The Engine

1. Fill the fuel tank as instructed in the Before Operation section of this manual (page 30).
2. Rest the Cultivator on the ground.
3. Make sure the cutting attachment is clear of any broken glass, nails, wire, rocks or other debris.
4. Keep all bystanders, children and animals away from the working area.

Cold Starting Procedure

This engine is equipped with a fuel primer and a choke system. To start a "cold" engine properly, perform the following procedure:

1. Pump the primer bulb at the bottom of the carburetor until fuel can be seen flowing through the fuel return line to the fuel tank. (Flowing fuel should be almost clear, not foamy or full of bubbles.) [#31-1]
2. Move the choke lever to the closed ( ± ) position. And move the control lever to the high speed side approximately half in from the low speed side. [#31-2, #32-1]

Arranque y Parada

1. Grasp the throttle lever then push the fast-idle lock button. Release your hand with holding the fast-idle lock button to lock the fast-idle. [#32-2]

2. Pull the starter grip.

WARNING

POTENTIAL HAZARD

- The components of your recoilstarter assembly are under high spring tension. If improperly disassembled these parts maystrike you with considerable force, possibly causing personal injury.

WHAT CAN HAPPEN

- Contact with the parts can cause severer personal injury. HOW TO AVOID THE HAZARD

- Never attempt to disassemble your recoil starter assembly yourself. Always consult your authorized MARUYAMA dealer for repair by qualified service technicians.

CAUTION

- Do not pull the Starter rope all the way out.

1. After the engine starts, squeeze and release the throttle trigger to return it to the idle position, then move the choke lever to the open (≡) position.

If the engine stops running before you move the choke lever to the open (≡) position:

Go ahead and open the choke, pull the starter grip with the throttle trigger positioned at Fast-idle position.

To start an engine that is already warmed up (hot restart), or if the ambient temperature exceeds 68^ F ( 20^ C):

1. Pump the primer bulb at the bottom of the carburetor until fuel can be seen flowing through the fuel return line to the fuel tank. (Flowing fuel should be almost clear, not foamy or full of bubbles.)
2. Move the choke lever to the open (≡) position.
3. Leave the throttle trigger in the idle position and pull the starter grip.
4. If the engine fails to start after three to four pulls, follow the instruction in the Cold Starting Procedure section (page 31). If the engine fails to start after you follow the above procedures, contact an authorized MARUYAMA dealer.

To Stop The Engine:

1. Release the throttle lever.
2. Push the stop switch of the throttle trigger until the engine will stop.

Instruction of the throttle trigger

Start the blade rotation

1. Grasp the throttle lever.
2. Move the control lever to high speed side slowly.
3. Then engine speed increase gradually, and the blade starts rotation.
4. Adjust the blade rotational speed by the control lever.

NOTE: Engine speed does not increase by grasping the throttle lever If the control lever is positioned at low speed side fully.

Stop the blade rotation

1. The engine speed will down to idling by moving the control lever to low speed position fully, or releasing the throttle lever.
2. If you did not change the control lever position, engine speed become to the original adjusted speed when grasp the throttle lever again.

NOTE: If the control lever returns to the low speed side during operation, turn the screw A clockwise. Over tighten causes movement failure of the control lever. So careful tightening is required.

- Read the Safety instructions on page 21 concerning proper use of the Cultivator.

Operating Position

Before using the Cultivator, check the following

1. The Cultivator should be on the operator's right side.
2. The operator's right hand should be holding the shaft grip, with his or her fingers on the throttle trigger. The right arm should be slightly bent.

3. The left hand should be holding the loop handle with the fingers and thumb fully enclosed around the grip. The left arm should be extended. Reposition the loop handle up or down the driveshaft if necessary for a comfortable position.

4. Do not operate the Cultivator in hard un-tilled soil or in rocky areas.

5. Do not operate the Cultivator in areas with vines or tree roots.
6. Do not operate the Cultivator in water.
7. Always release the throttle trigger and allow the engine to return to idle speed when not cultivating.
8. Stop the engine when moving between work sites.

CAUTION

• Always wear gloves and protective clothing when operating the Cultivator.

Uso

CUIDADO

Maintenance, replacement or repair of emission control devices and systems may be performed by any repair establishment or individual; however, warranty repairs must be performed by a dealer or service center authorized by MARUYAMA Manufacturing Company, Inc.

The use of parts that are not equivalent in performance and durability to authorized parts may impair the effectiveness of the emission control system and may have a bearing on the outcome of a warranty claim.

Maintenance on today's low-emission engines is even more critical for longest life and best performance. Particularly critical are air and fuel filters, spark plug heat range, cooling air intake area and proper gaps of coil and plug.

Idle Speed Adjustment

This Cultivator is equipped with non-adjustable fuel mixture carburetor. The engine idle speed is the only adjustment for the operator.

WARNING

- Idle speed adjustment should be checked each time the unit is operate.

WARNING

POTENTIAL HAZARD

• Engine must be running to make carburetor adjustments.
- When engine is running, Attached Tool is rotating/moving and other parts are moving.

WHAT CAN HAPPEN

- Contact with rotating/moving tool or other moving parts could cause serious personal injury or death.

HOW TO AVOID THE HAZARD

- Keep hands, feet and clothing away from attached tool and other moving parts.

- Keep all bystanders and pets away from unit while making carburetor adjustments.

The Attached Tool may be rotating/moving during idle speed adjustment. Wear the recommended personal protective equipment and observe all safety instructions.

Keep hands and body away from the Attached Tool.

Mantenimiento

When the throttle trigger is released, the engine should return to an idle speed between 2700-3300 RPM, or just below the clutch engagement speed. The Attached Tool must not rotate/move and the engine should not stall (stop running) at engine idle speed.

To adjust the engine idle speed, rotate the idle speed adjustment screw on the carburetor. [#38-1]

• Turn the idle speed screw in (clockwise) to increase the engine idle speed.
• Turn the screw out (counter-clockwise) to decrease the engine idle speed.

If idle speed adjustment is necessary, and after adjustment the Attached Tool rotates/moves or the engine stalls, stop using the Cultivator immediately!

Contact your local authorized MARUYAMA Dealer for assistance and servicing.

• The air filter should be cleaned daily, or more often when working in extremely dusty conditions.
• Replace after every 100 hours of operation.

Air Filter Cleaning [#38-2]

1. Loosen the knob and remove the air filter cover.
2. Remove the foam element and fi Iter screen from the air fi Iter body.
3. Clean the foam element and filter screen with warm, soapy water. Let the screen and element dry completely.
4. Apply a light coat of motor oil (SAE 30 or equivalent viscosity) to the foam element and squeeze out all excess oil.
5. Reassemble the filter screen and foam element to the air filter body.
6. Reinstall the air filter cover and tighten the knob.

Filtro del Aire

• The fuel filter should be replaced after every 100 hours of operation.
• Fuel filters needing more frequent replacement may indicate debris in fuel tank.

Fuel Filter Replacement [#39-1]

The fuel filter is attached to the end of the fuel pick-up hose inside the fuel tank. To replace the fuel filter:

1. Make sure the fuel tank is empty.
2. Remove the fuel cap.
3. Using a wire hook, gently pull the fuel filter out through the fuel filler opening. Use caution not to "fishhook" the fuel hose. Replace immediately if punctured!
4. Grasp the fuel hose next to the fuel filter fitting and remove the filter, but do not release the hose.
5. While still holding on to the fuel hose, attach the new fuel filter.
6. Drop the new fuel filter back into the fuel tank.
7. Make sure that the fuel filter is not stuck in a corner of the tank, and that the fuel hose is not doubled over (kinked) before refueling.

Spark Plug

Maintenance Interval

- The spark plug should be removed from the engine and checked after each 25 hours of operation.

- Replace the spark plug after every 100 hours of operation.

Spark Plug Maintenance [#39-2]

1. Twist the high tension lead boot on the spark plug back and forth a couple of times to loosen the boot, then pull the boot off of the spark plug.
2. Remove the spark plug.
3. Clean the electrodes with a stiff brush.
4. Adjust the electrode air gap to .024-.028 in. (0.6-0.7 mm).
5. Replace the spark plug if it is oil-fouled, damaged, or if the electrodes are worn down.
6. Do not overtighten the spark plug when installing. The tightening torque is 95-148 in·lbs. (10.7-16.6 N·m).
7. Always use only the specific heat range of spark plug. This is particularly critical with today's low-emission engines. For best results, use the exact replacement.

• The cylinder cooling fi ns should be cleaned after every 25 hours of operation, or once a week, whichever comes fi rst.
• Air must flow freely around and through the cylinder cooling fins to prevent engine overheating. Leaves, grass, dirt and debris buildup on the fins will increase the operating temperature of the engine, which can reduce engine performance and shorten engine life.

Cooling Fin Cleaning

1. With the engine at ambient (room) temperature, loosen the knob and remove the air filter cover.
2. Twist the high tension lead boot on the spark plug back and forth a couple of times to loosen the boot, then pull the boot off of the spark plug.
3. Loosen the knob and lift off the cylinder cover.
4. Clean all dirt and debris from the cooling fins and from around the cylinder base.
5. DO NOT overlook cleaning of the cooling air intake area below the crankcase and above the fuel tank! This area must be free of debris and obstruction for the engine to cool properly.
6. Reinstall the cylinder cover and the air fi Iter cover.

- Muffler surface becomes hot when Cultivator is in operation and remains hot for some time after the engine is shut off.

WHAT CAN HAPPEN

- Contact with hot muffler surfaces could cause a burn.

HOW TO AVOID THE HAZARD

- Make sure the muffler is cool before inspecting and cleaning the spark arrester.

Maintenance Interval

• The spark arrester should be inspected and cleaned after every 25 hours of use.
• Replace the screen if it cannot be thoroughly cleaned, or if it is damaged.

Spark Arrester Maintenance

1. With the engine at ambient (room) temperature, loosen the knob and remove the air filter cover.
2. Twist the high tension lead boot on the spark plug back and forth a couple of times to loosen the boot, then pull the boot off of the spark plug.
3. Loosen the knob and lift off the cylinder cover.
4. Remove and clean the tail, gasket and spark arrester with a safety solvent and a stiff brush. If any part cannot be thoroughly cleaned, it must be replaced.
5. Reinstall the spark arrester and tail onto the muffler, then reinstall and tighten the two socket head screws.
6. Reinstall the cylinder cover and the air filter cover.

Matachispas

ADVERTENCIA

PELIGRO POTENCIAL

The muffler should be inspected and cleaned after each 100 hours of use.

Muffler Maintenance

1. With the engine at ambient (room) temperature, loosen the knob and remove the air filter cover.
2. Twist the high tension lead boot on the spark plug back and forth a couple of times to loosen the boot, then pull the boot off of the spark plug.
3. Loosen the knob and lift off the cylinder cover.
4. Remove the spark arrester (see spark arrester maintenance), Clean the muffler with a stiff brush.

IMPORTANT: Don't use solvent for cleaning inside of muffler, because of the catalytic converter in muffler.

Be careful not to allow any dirt or debris to fall into the exhaust port, as this can cause engine damage.

1. Reinstall the spark arrester and tail onto muffler, then reinstall and tighten the two socket head screws.
2. Reinstall the cylinder cover and the air filter cover.

The cultivator gearcase should be inspected after each 25 hours of use.

Lubrication

The cultivator gearcase holds 1.4 ounces of lubricant.

A grease fitting is located in the top of the gearcase.

Lubricant should be checked at least every 25 hours of operation. Use a #2 lithium-based EP lubricant with Molybdenum additive.

General Cleaning and Tightening

The MARUYAMA Cultivator will provide maximum performance for many, many hours if it is maintained properly.

WARNING

POTENTIAL HAZARD

- When engine is running, Attached Tool is rotating/moving and other parts are moving.

WHAT CAN HAPPEN

- Contact with rotating/moving Tool or other moving parts could cause serious personal injury or death.

HOW TO AVOID THE HAZARD

• Always turn off your Cultivator before you clean or perform any maintenance on it.

Good maintenance includes regular checking of all fasteners for correct tightness and cleaning the entire machine.

Caja de Engranaje

Line drawing of a hand operating a mechanical device with a droplet and plug, no text or symbols present

Storage

CAUTION

POTENTIAL HAZARD

- Oil may squirt out of the spark plug opening when you pull the starter grip.

WHAT CAN HAPPEN

• Oil can cause eye injuries.

HOW TO AVOID THE HAZARD

- Protect your eyes and keep your face away from the spark plug opening.

For long term storage of the Cultivator:

1. Empty the fuel tank into a suitable fuel storage container.
2. Pump the primer bulb on the carburetor until all fuel is discharged through the clear fuel return hose.
3. Run the engine to remove any fuel that may remain in the carburetor.
4. Perform all regular maintenance procedures and any needed repairs.

5. Remove the spark plug and squirt a very small amount of oil into the cylinder.

6. Pull the starter grip once.

7. Slowly pull the starter grip to bring the piston to the top of the cylinder (TDC).

8. Reinstall the spark plug.

9. Store the Cultivator in a dry place away from excessive heat, sparks or open flame.

Almacenaje

CUIDADO

PELIGRO POTENCIAL

●: Service to be performed by an authorized MARUYAMA engine dealer.
■: Service more frequently under dusty conditions.

NOTE:

The service intervals indicated are to be used as a guide.

Service to be performed more frequently as necessary depending on operating condition.

Use MARUYAMA standard 50:1 two-stroke engine oil.

Emission durability of 300 hours.

Dry weight without Fuel and debris shield.
